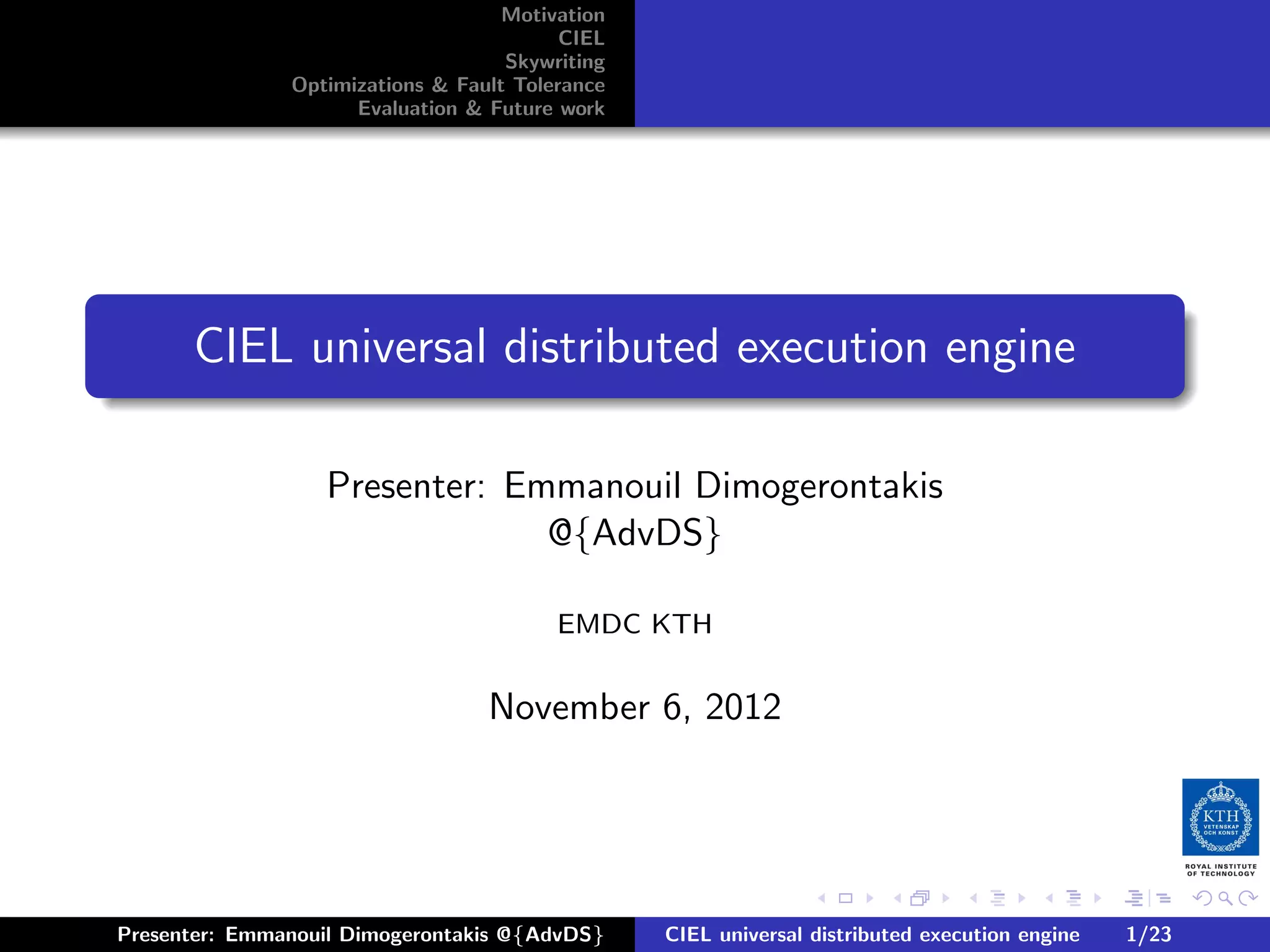

Presentation of the CIEL framework as described in the paper: "CIEL: a universal execution engine for distributed data-flow computing"

1. Motivation
CIEL
Skywriting
Optimizations & Fault Tolerance
Evaluation & Future work
.
.
CIEL universal distributed execution engine
.
.. .
.
Presenter: Emmanouil Dimogerontakis
@{AdvDS}
EMDC KTH
November 6, 2012
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 1/23

2. Motivation
CIEL
Skywriting Distributed Execution Engines
Optimizations & Fault Tolerance
Evaluation & Future work
.
. . Motivation
1
Distributed Execution Engines
.
. . CIEL
2
Dynamic Task Graphs
Architecture
.
. . Skywriting
3
.
. . Optimizations & Fault Tolerance
4
.
. . Evaluation & Future work
5
Evaluation
Future Work
Conclusions
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 2/23

3. Motivation
CIEL
Skywriting Distributed Execution Engines
Optimizations & Fault Tolerance
Evaluation & Future work

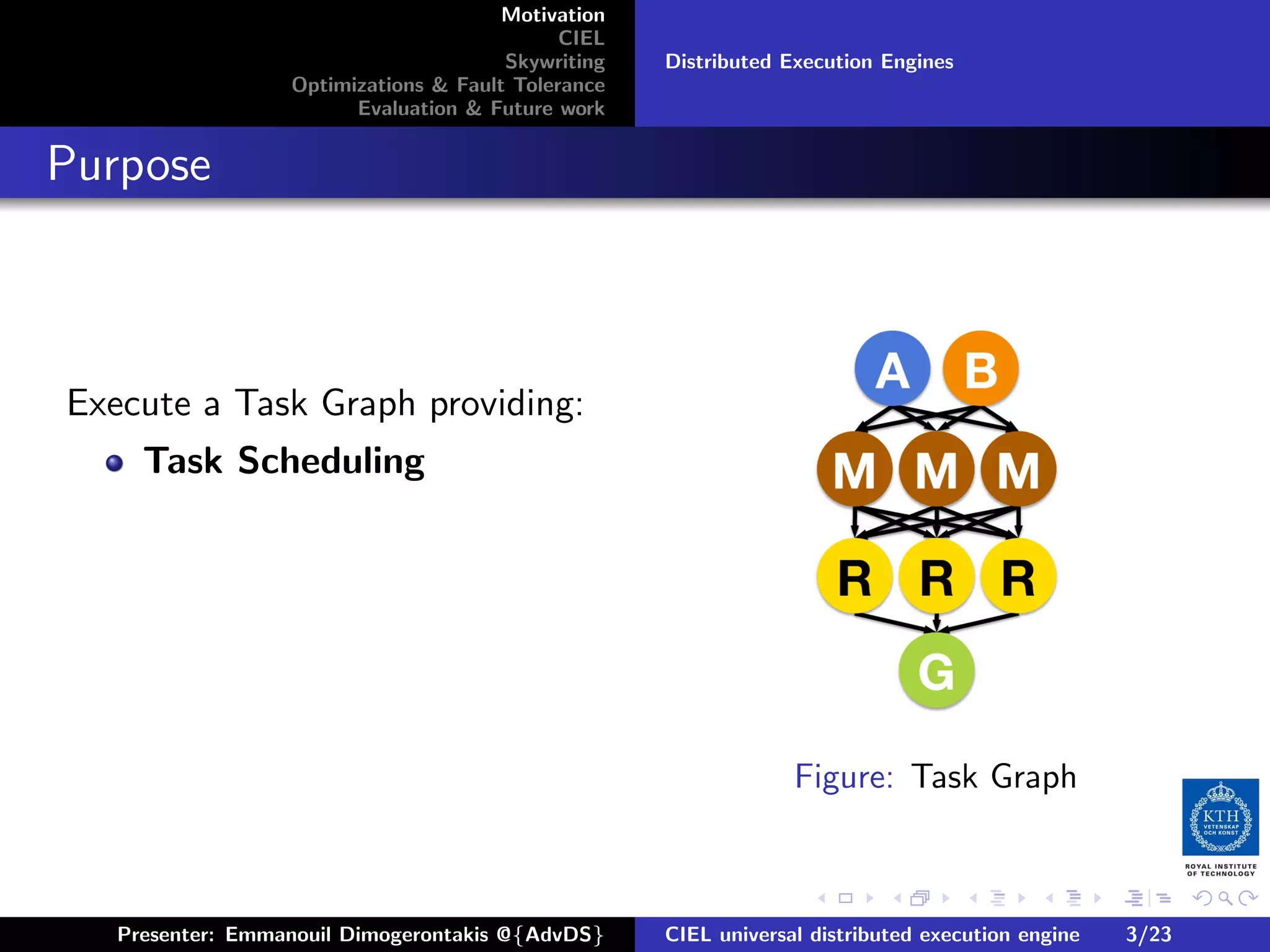

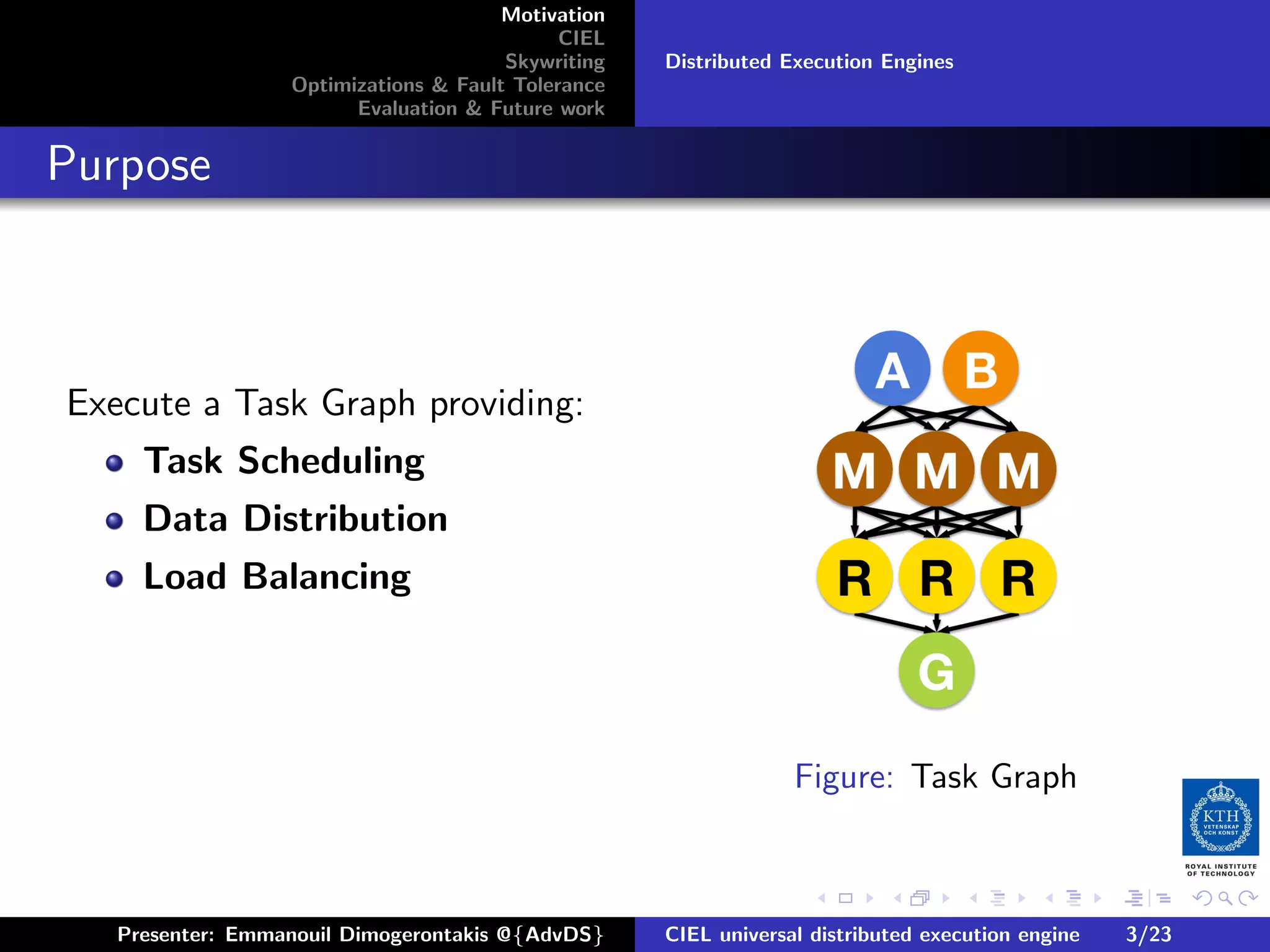

. Purpose
Execute a Task Graph providing:
Task Scheduling
Figure: Task Graph
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 3/23

4. Motivation
CIEL
Skywriting Distributed Execution Engines
Optimizations & Fault Tolerance
Evaluation & Future work

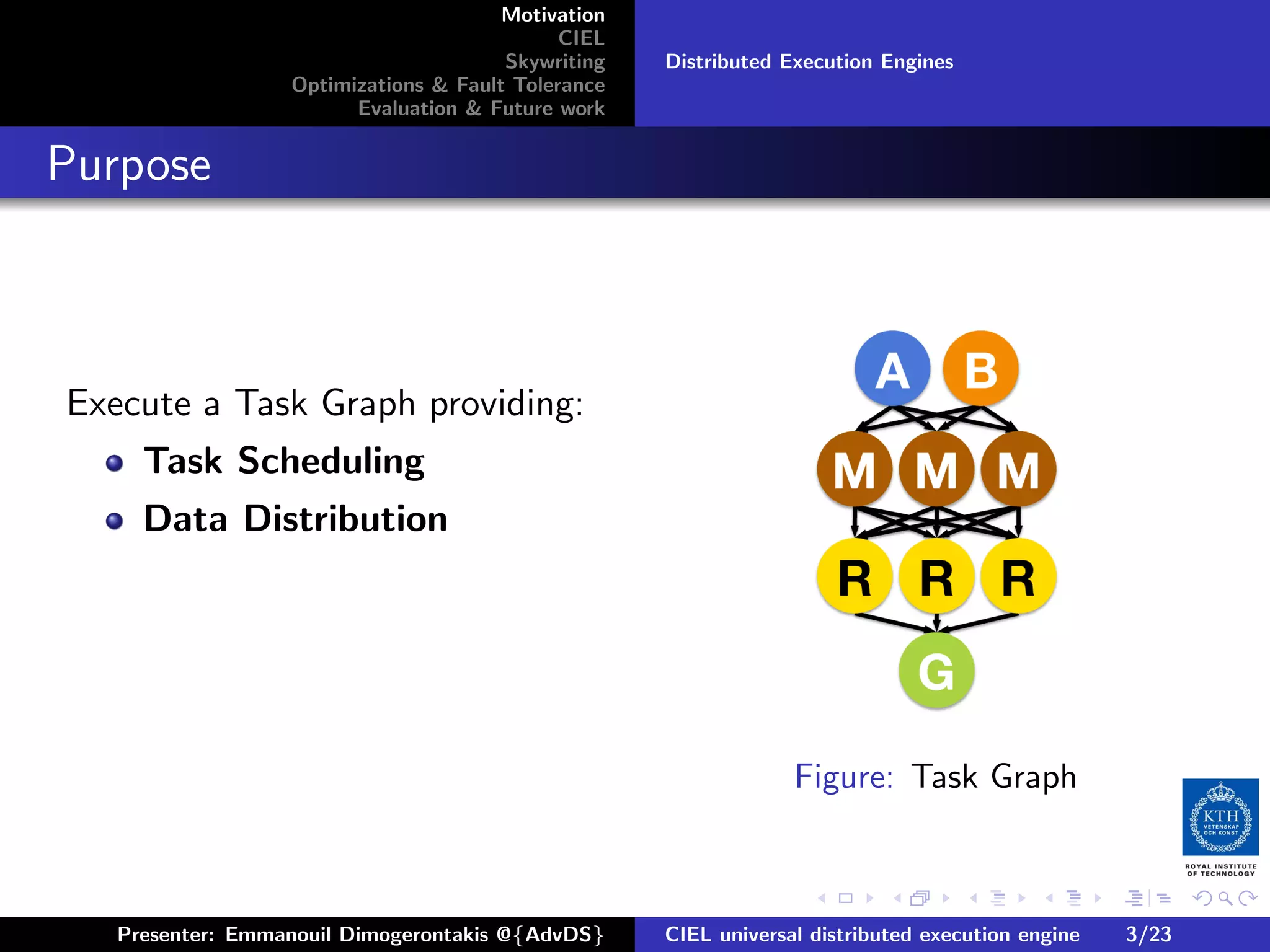

. Purpose
Execute a Task Graph providing:
Task Scheduling
Data Distribution
Figure: Task Graph
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 3/23

5. Motivation
CIEL
Skywriting Distributed Execution Engines
Optimizations & Fault Tolerance
Evaluation & Future work
. Purpose
Execute a Task Graph providing:
Task Scheduling
Data Distribution
Load Balancing
Figure: Task Graph
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 3/23

6. Motivation
CIEL
Skywriting Distributed Execution Engines
Optimizations & Fault Tolerance
Evaluation & Future work

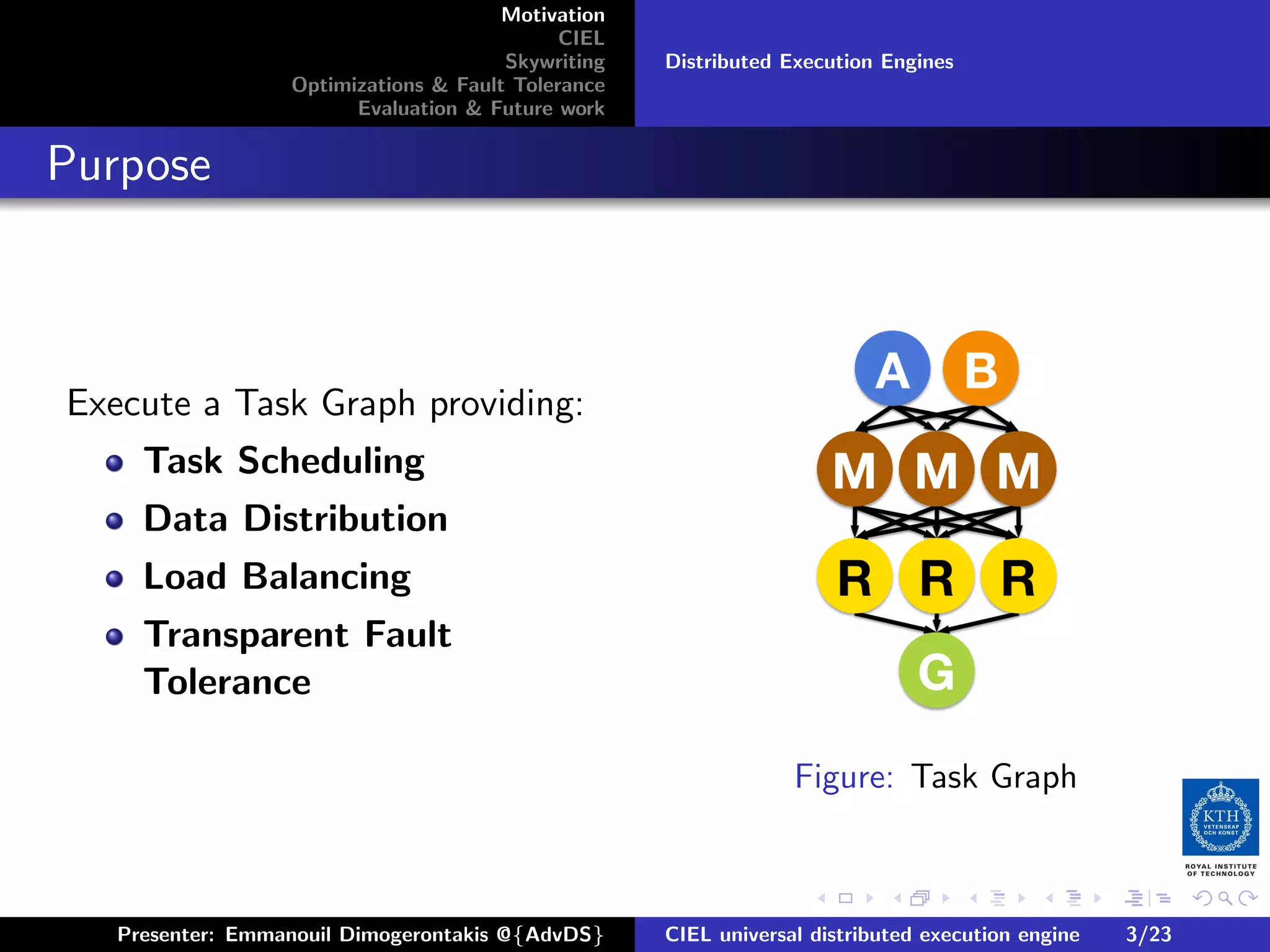

. Purpose
Execute a Task Graph providing:
Task Scheduling
Data Distribution
Load Balancing
Transparent Fault
Tolerance
Figure: Task Graph
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 3/23

7. Motivation
CIEL
Skywriting Distributed Execution Engines
Optimizations & Fault Tolerance
Evaluation & Future work

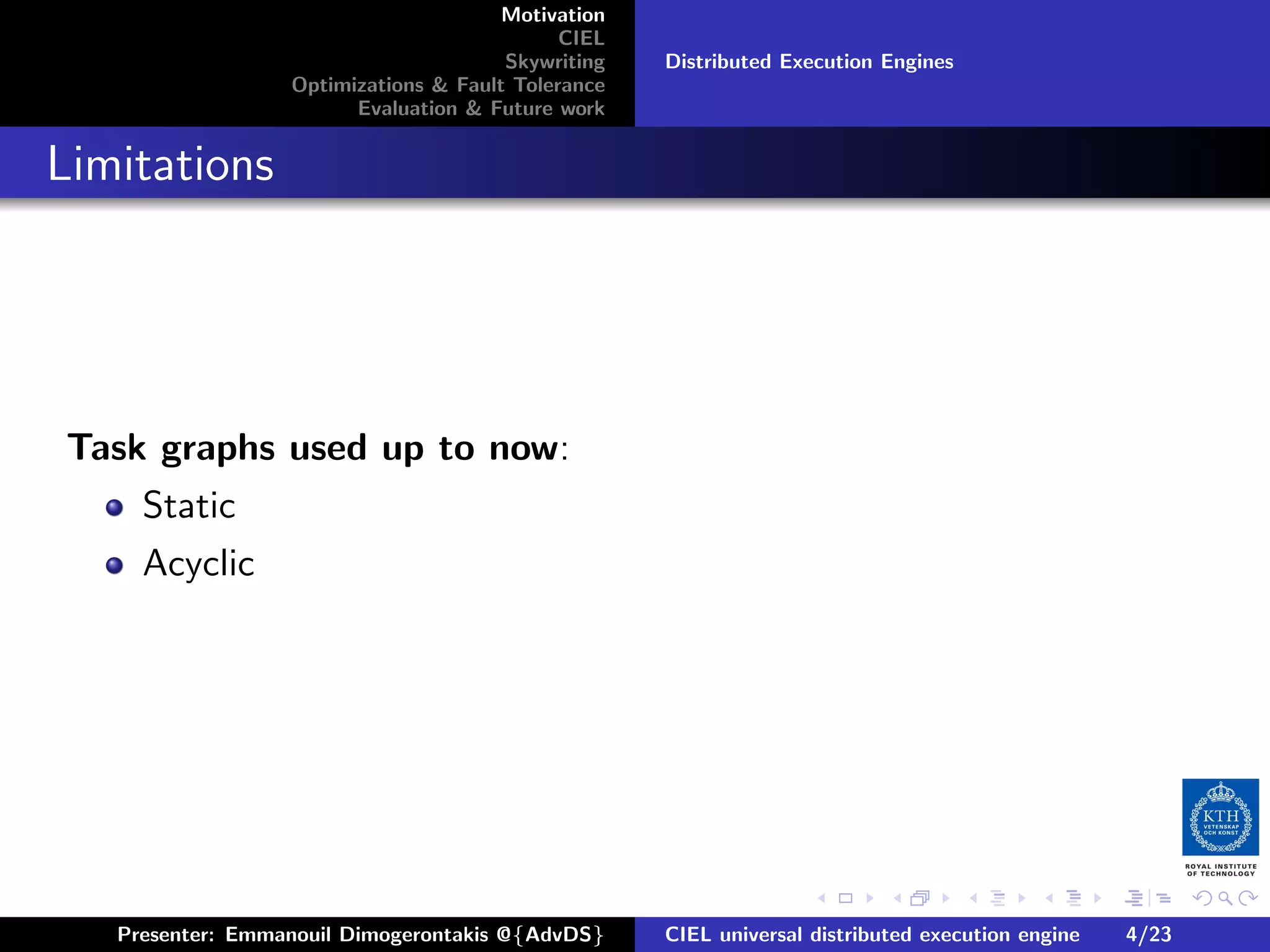

. Limitations
Task graphs used up to now:
Static
Acyclic
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 4/23

8. Motivation
CIEL
Skywriting Distributed Execution Engines
Optimizations & Fault Tolerance
Evaluation & Future work

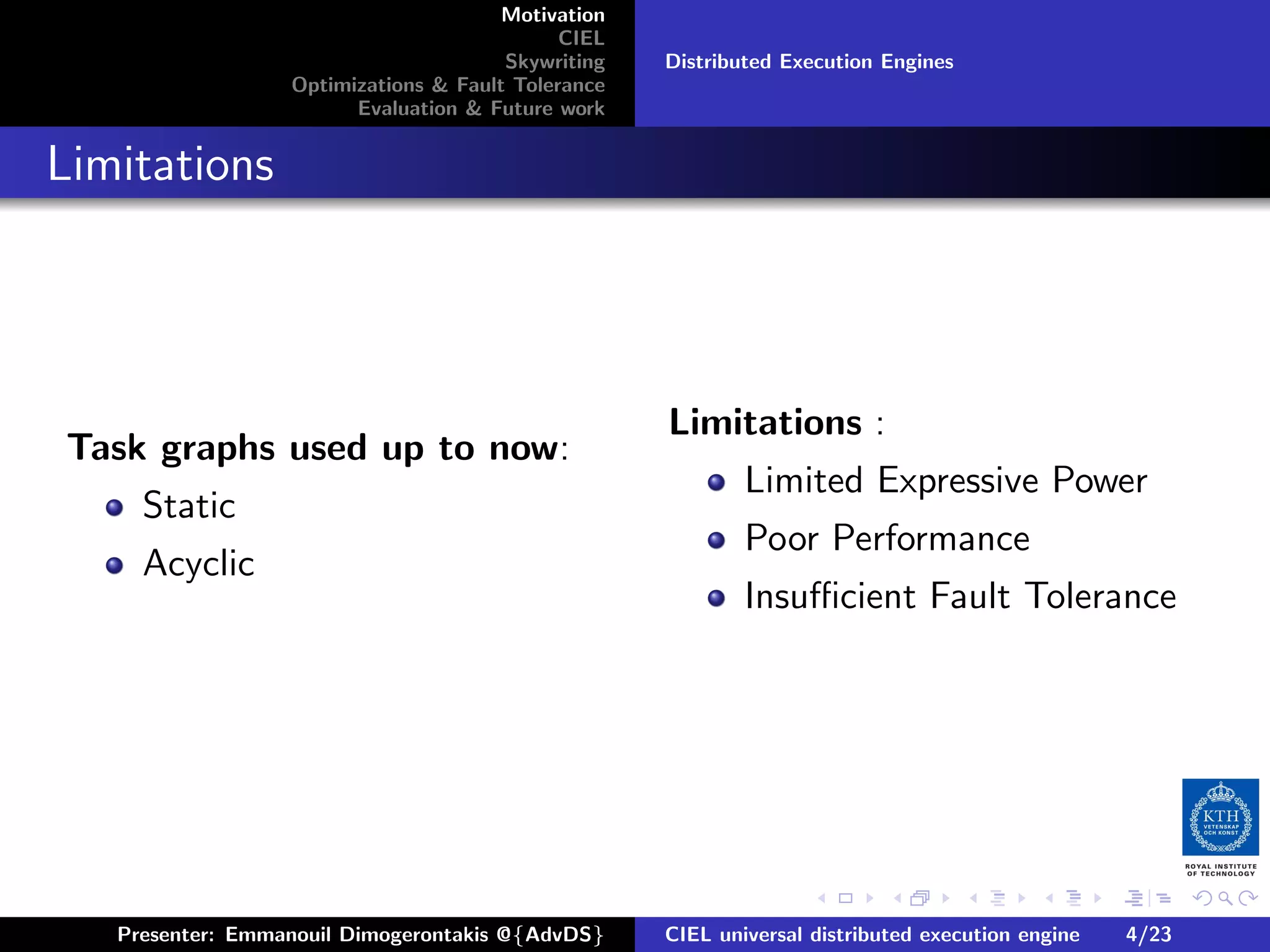

. Limitations
Limitations :
Task graphs used up to now:
Limited Expressive Power
Static
Poor Performance
Acyclic
Insufficient Fault Tolerance
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 4/23

9. Motivation
CIEL
Skywriting Distributed Execution Engines
Optimizations & Fault Tolerance
Evaluation & Future work

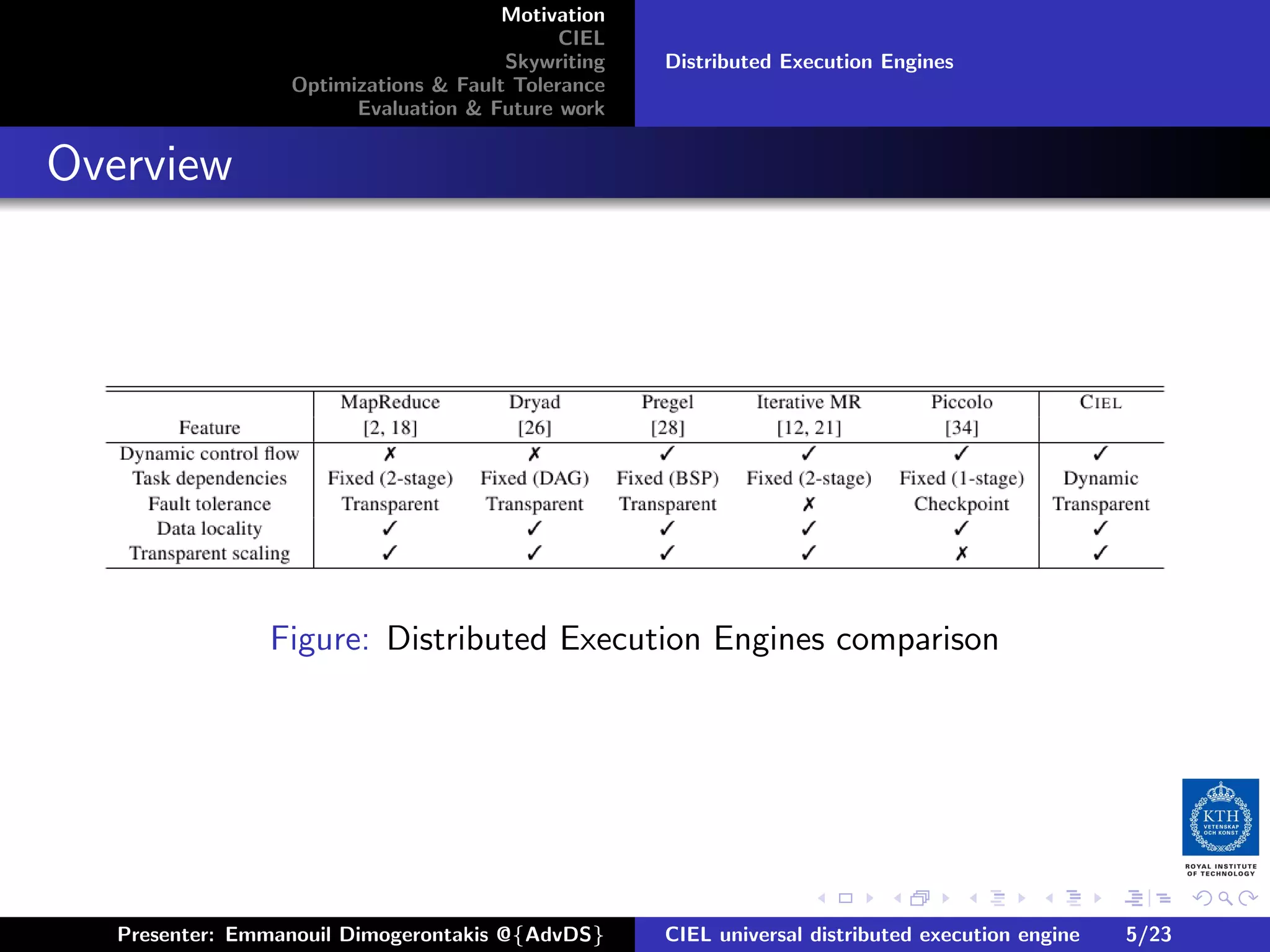

. Overview
Figure: Distributed Execution Engines comparison
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 5/23

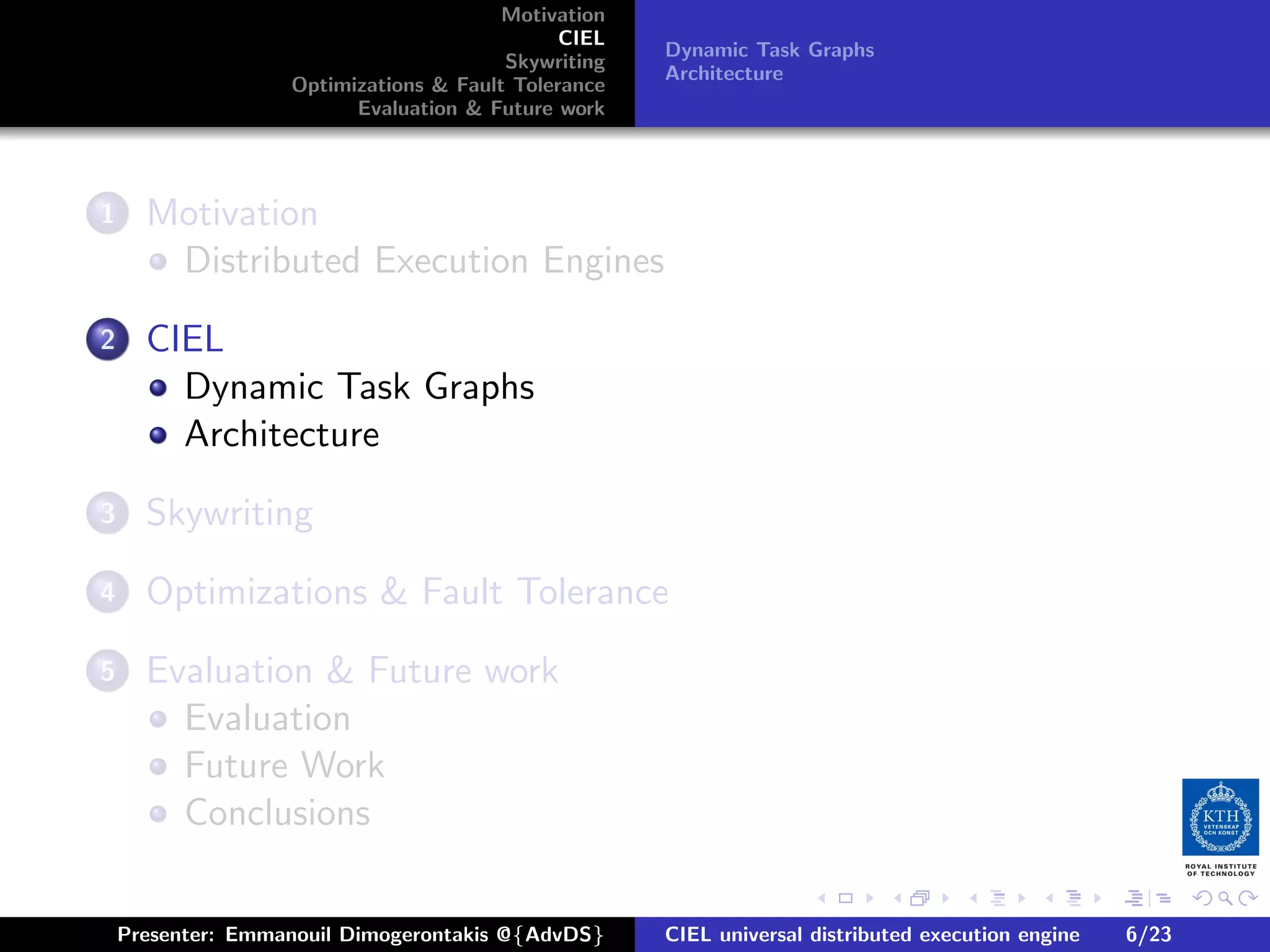

10. Motivation
CIEL
Dynamic Task Graphs
Skywriting
Architecture
Optimizations & Fault Tolerance
Evaluation & Future work
.
. . Motivation
1
Distributed Execution Engines
.
. . CIEL
2
Dynamic Task Graphs
Architecture
.
. . Skywriting
3
.
. . Optimizations & Fault Tolerance
4
.
. . Evaluation & Future work
5
Evaluation
Future Work
Conclusions
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 6/23

11. Motivation
CIEL
Dynamic Task Graphs
Skywriting
Architecture
Optimizations & Fault Tolerance
Evaluation & Future work
. CIEL
WHY Universal?
Support same cluster of algorithms as a TM
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 7/23

12. Motivation
CIEL
Dynamic Task Graphs
Skywriting
Architecture
Optimizations & Fault Tolerance
Evaluation & Future work

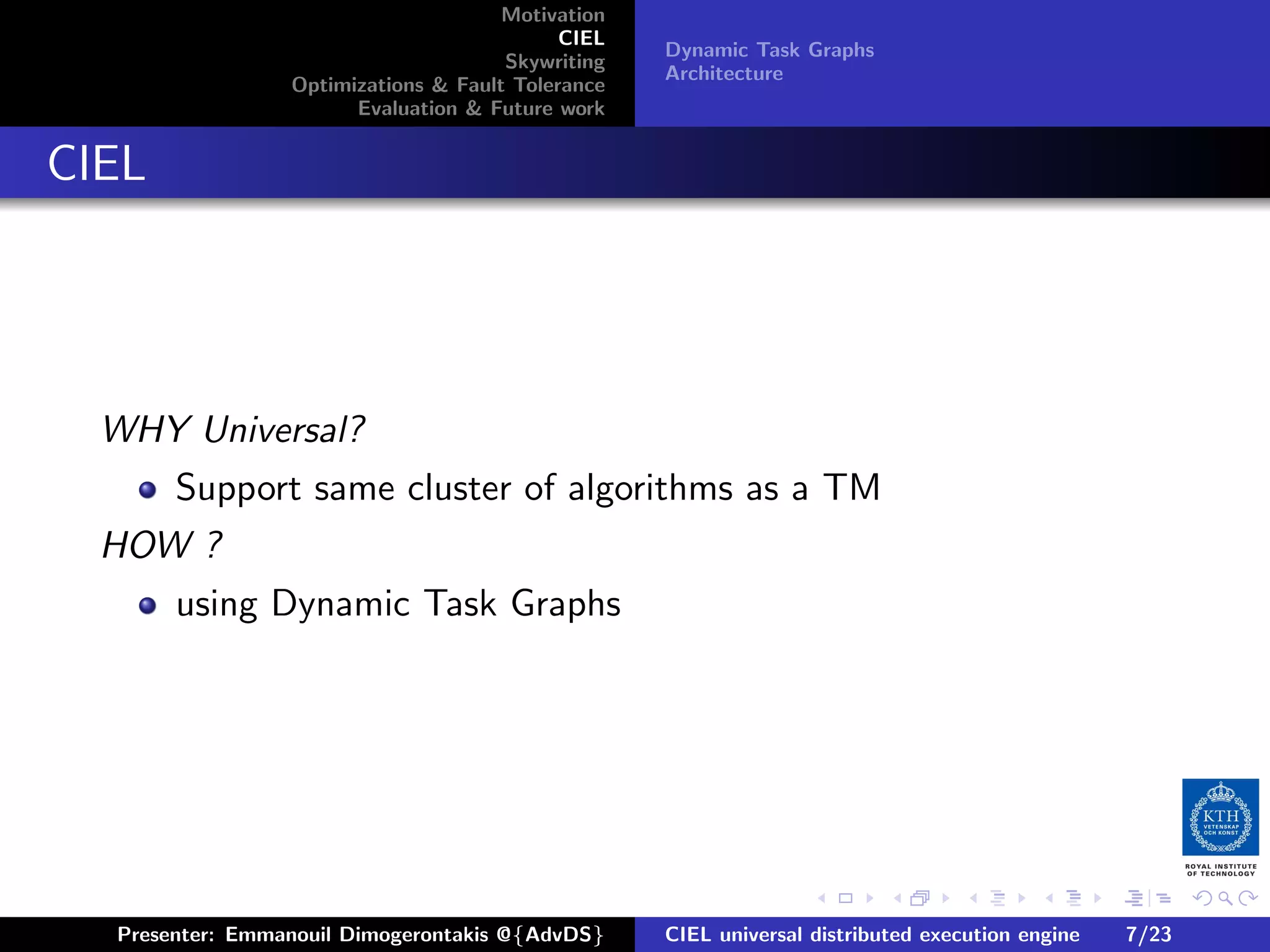

. CIEL
WHY Universal?
Support same cluster of algorithms as a TM
HOW ?
using Dynamic Task Graphs
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 7/23

13. Motivation
CIEL
Dynamic Task Graphs
Skywriting
Architecture
Optimizations & Fault Tolerance
Evaluation & Future work

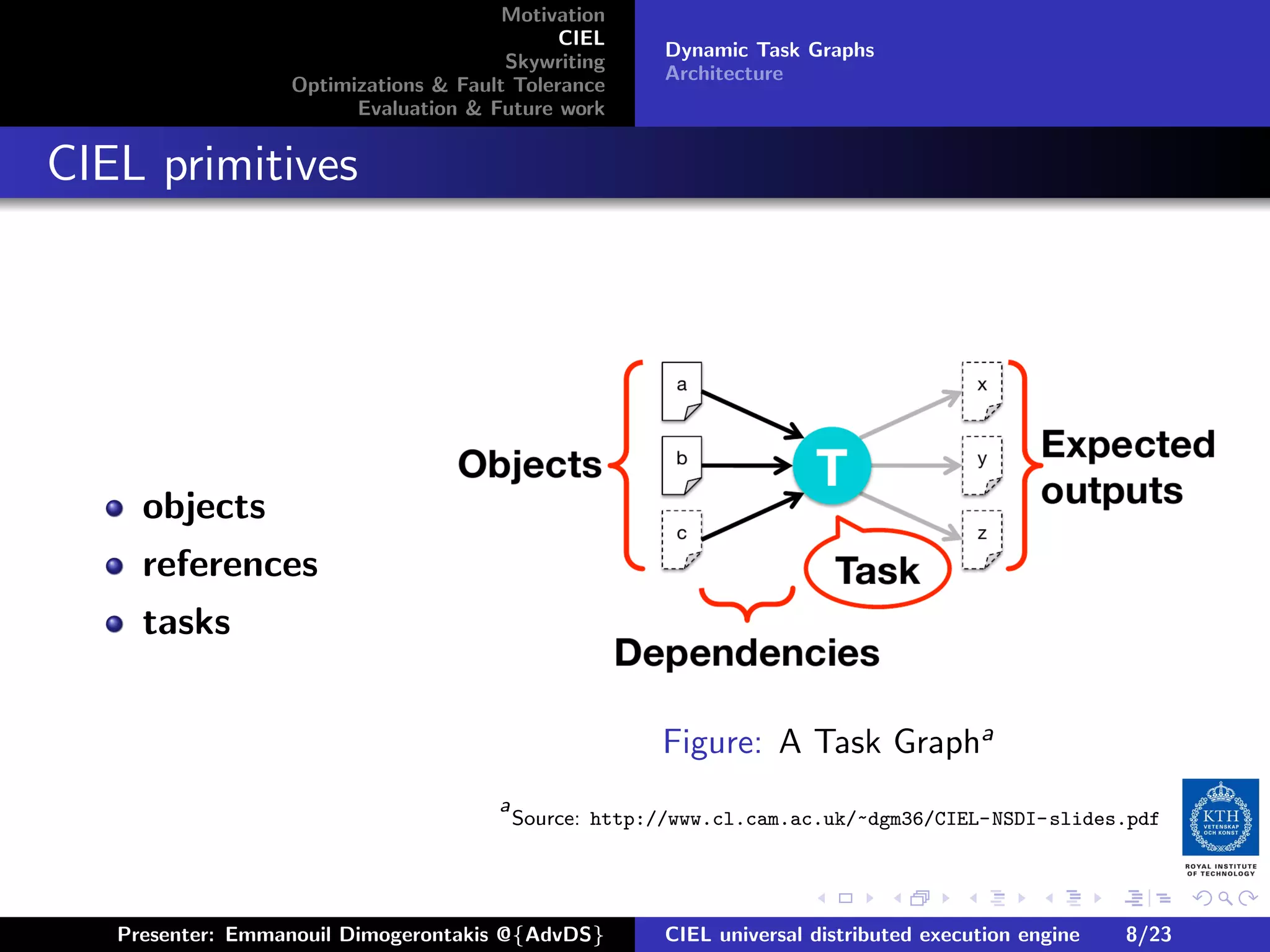

. CIEL primitives
objects
references
tasks
Figure: A Task Grapha
a
Source: http://www.cl.cam.ac.uk/~dgm36/CIEL-NSDI-slides.pdf
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 8/23

14. Motivation
CIEL
Dynamic Task Graphs
Skywriting
Architecture
Optimizations & Fault Tolerance
Evaluation & Future work

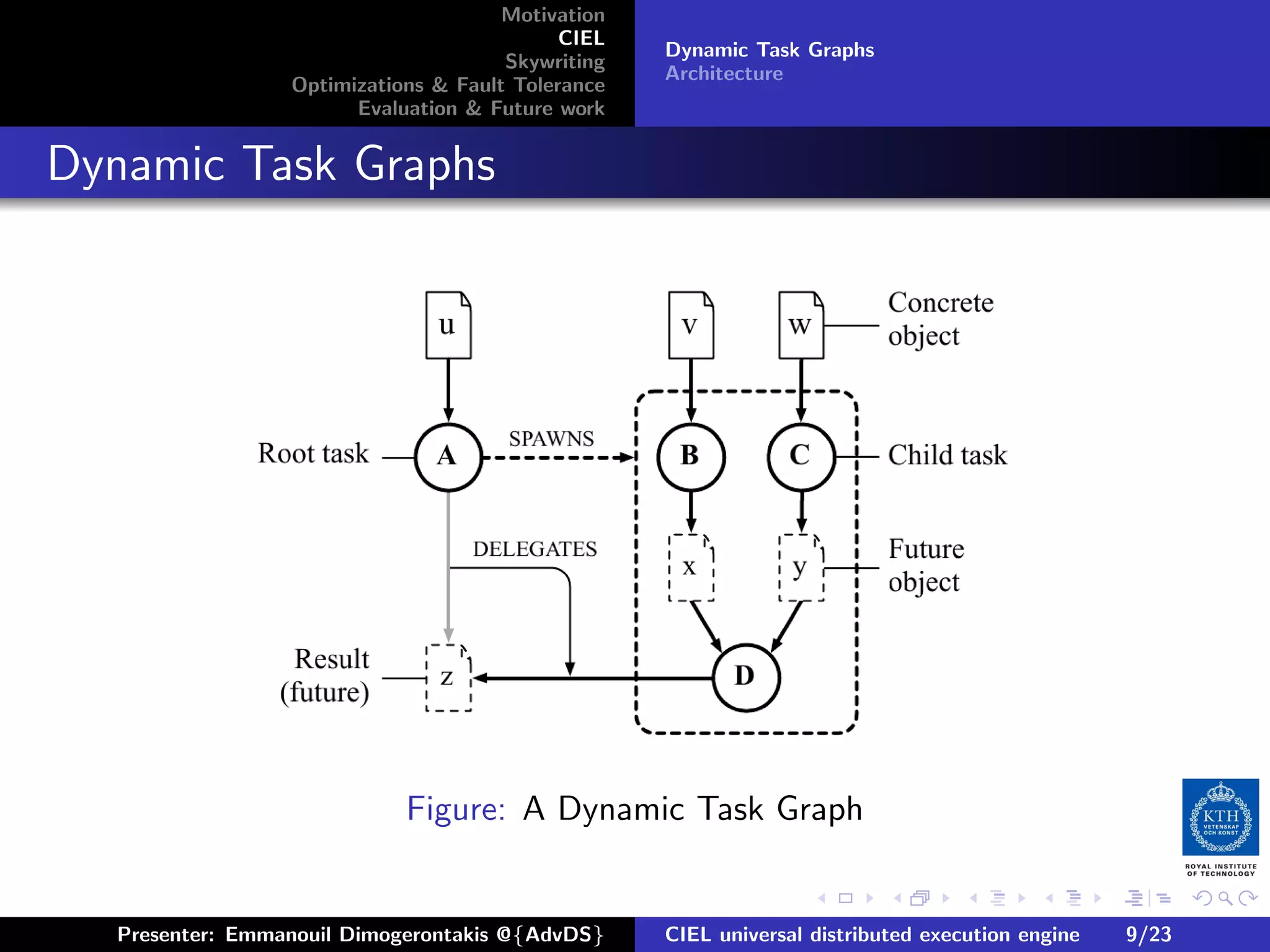

. Dynamic Task Graphs
Figure: A Dynamic Task Graph
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 9/23

15. Motivation
CIEL
Dynamic Task Graphs
Skywriting
Architecture
Optimizations & Fault Tolerance
Evaluation & Future work

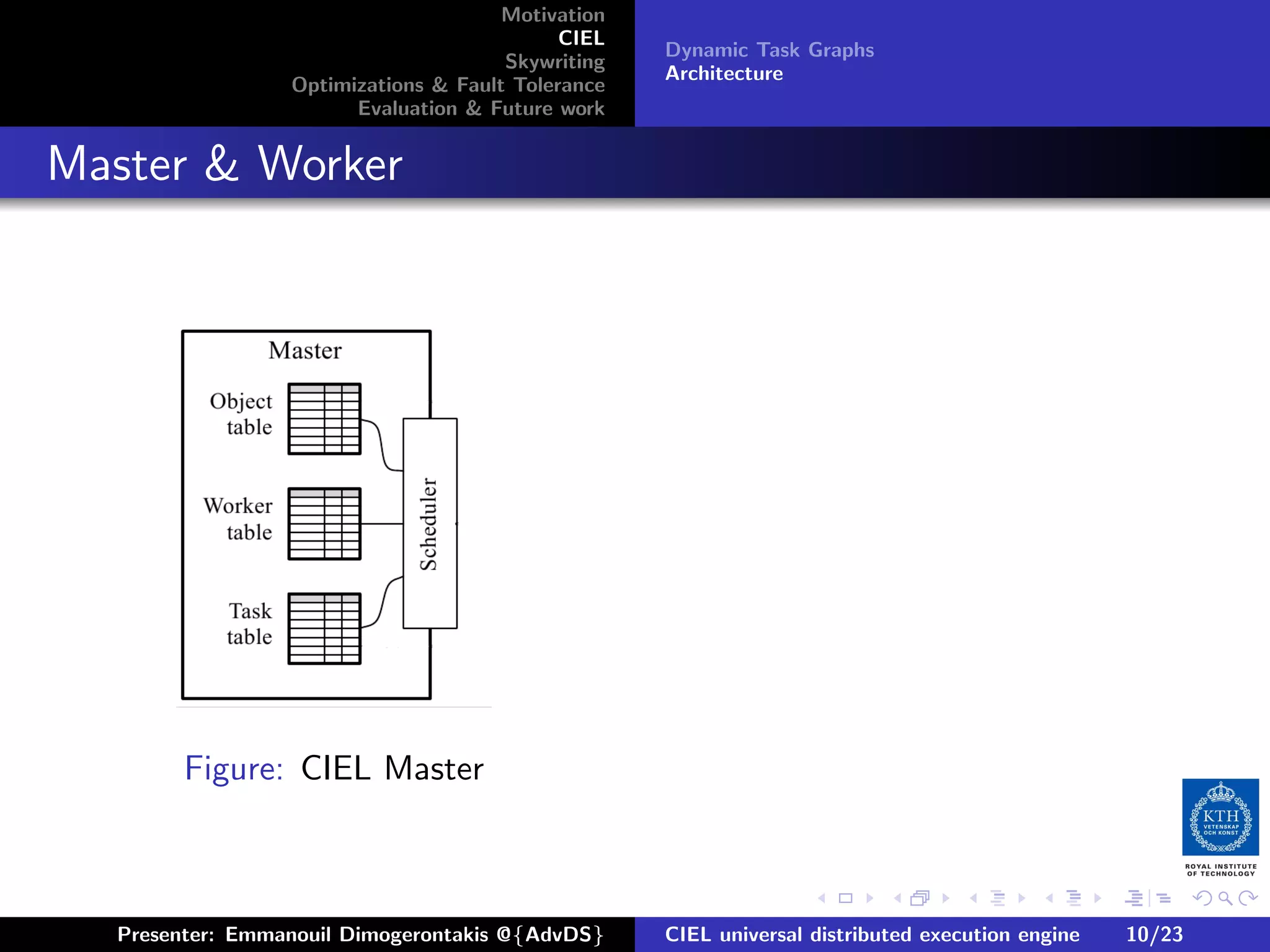

. Master & Worker
Figure: CIEL Master
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 10/23

16. Motivation
CIEL
Dynamic Task Graphs
Skywriting
Architecture
Optimizations & Fault Tolerance
Evaluation & Future work

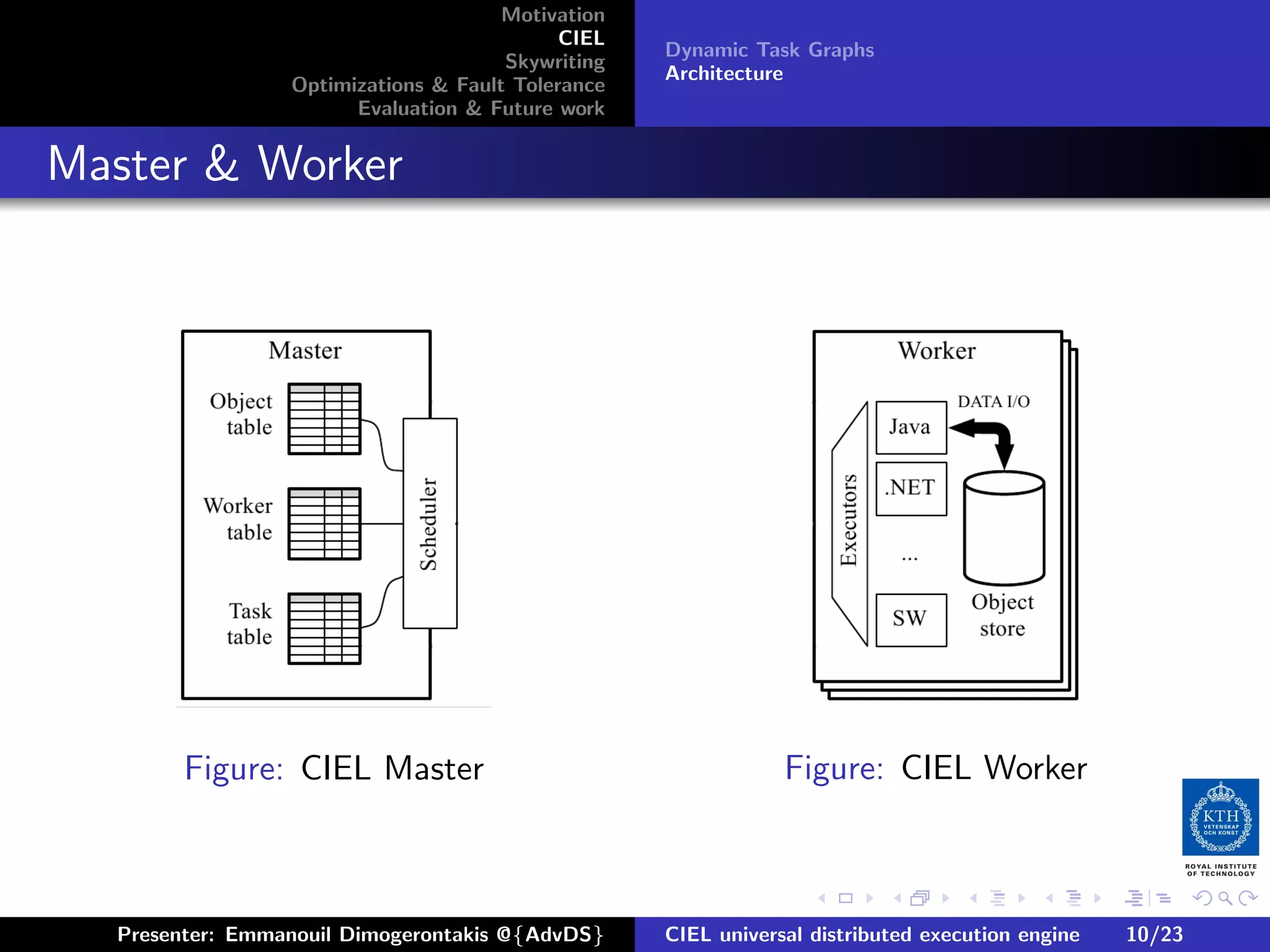

. Master & Worker
Figure: CIEL Master Figure: CIEL Worker
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 10/23

17. Motivation
CIEL
Dynamic Task Graphs
Skywriting
Architecture
Optimizations & Fault Tolerance
Evaluation & Future work

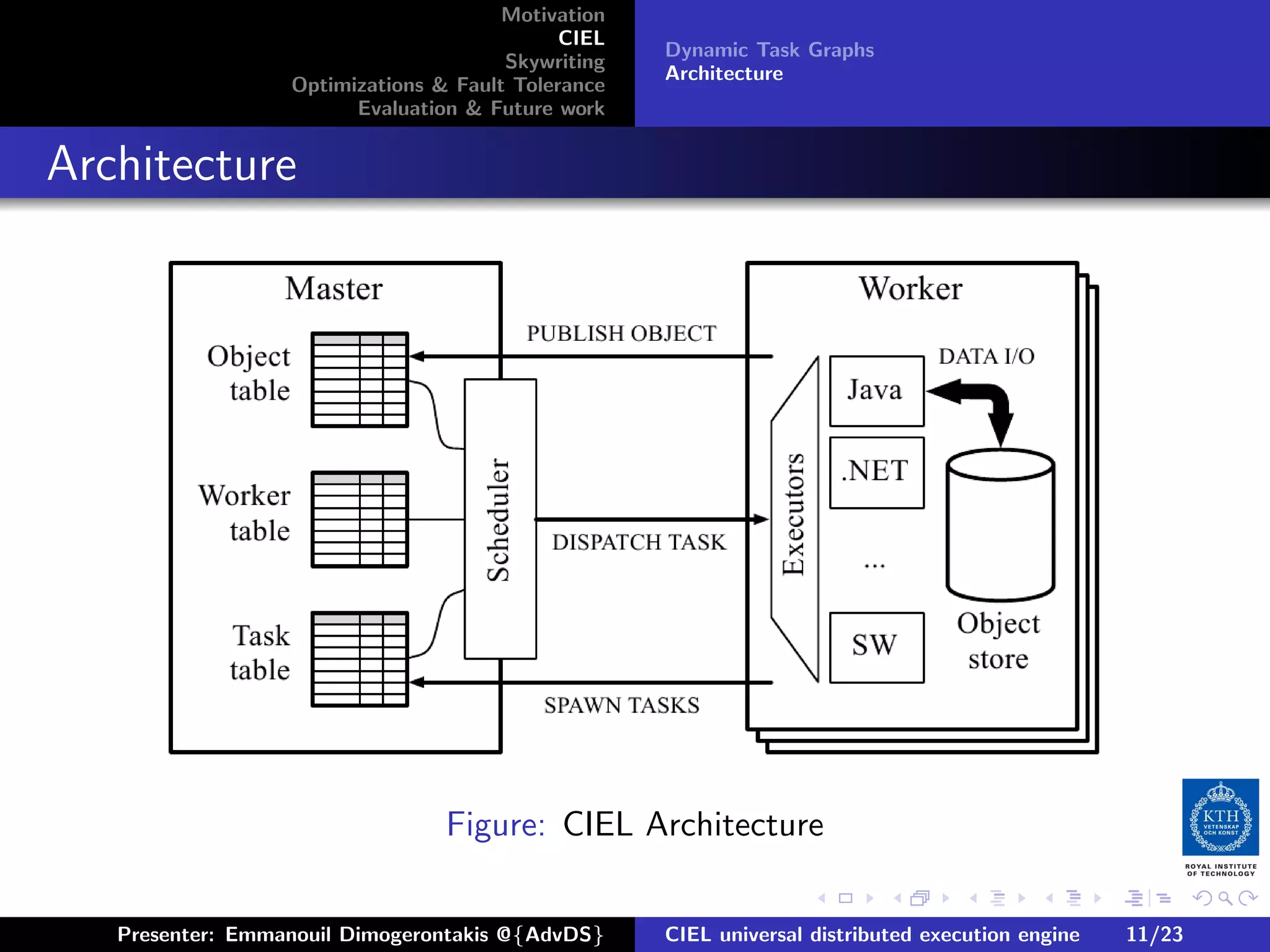

. Architecture
Figure: CIEL Architecture
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 11/23

18. Motivation
CIEL
Skywriting
Optimizations & Fault Tolerance
Evaluation & Future work
.
. . Motivation
1
Distributed Execution Engines
.
. . CIEL
2
Dynamic Task Graphs
Architecture
.
. . Skywriting
3
.
. . Optimizations & Fault Tolerance
4
.
. . Evaluation & Future work
5
Evaluation
Future Work
Conclusions
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 12/23

19. Motivation
CIEL
Skywriting
Optimizations & Fault Tolerance
Evaluation & Future work

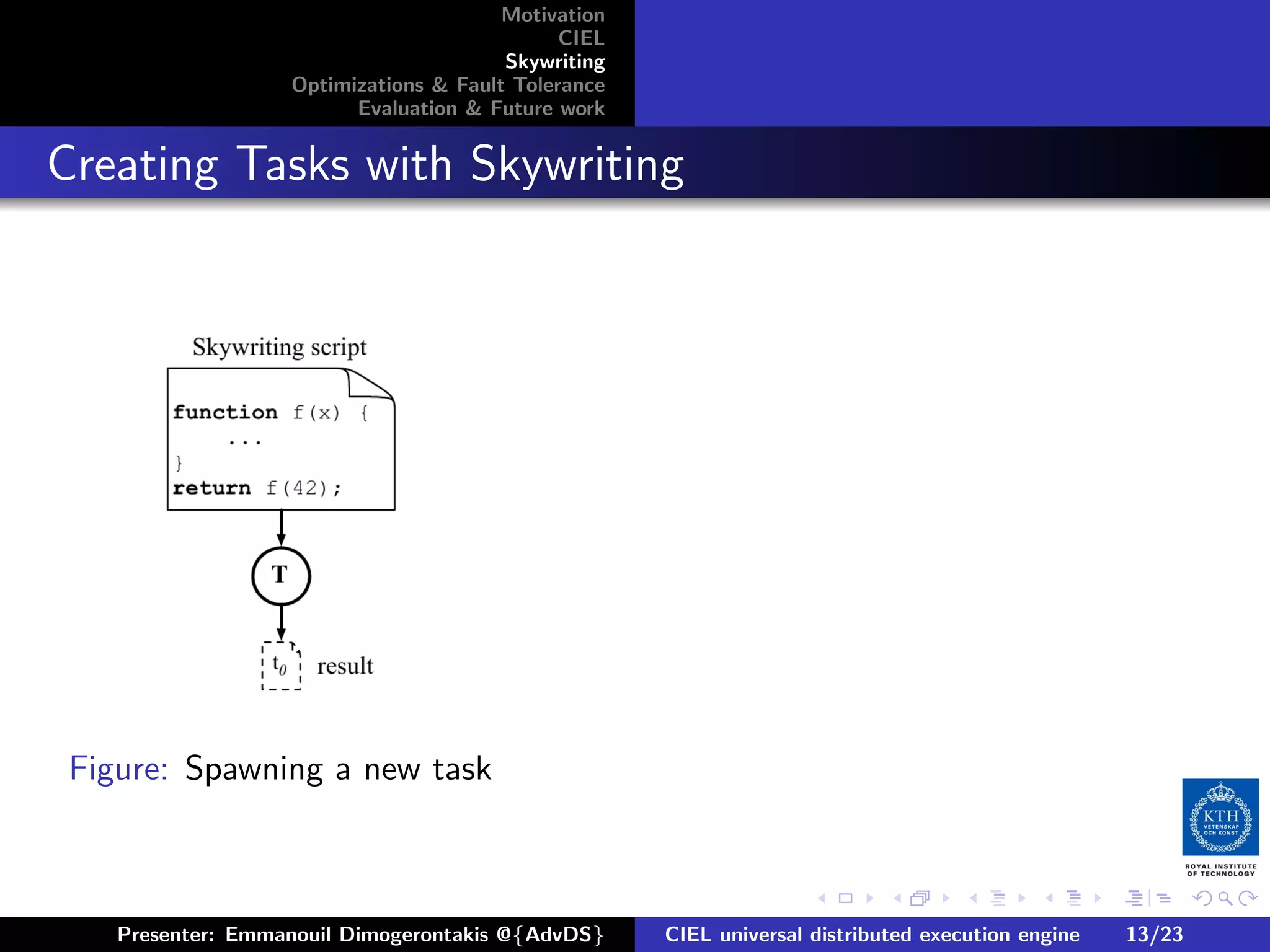

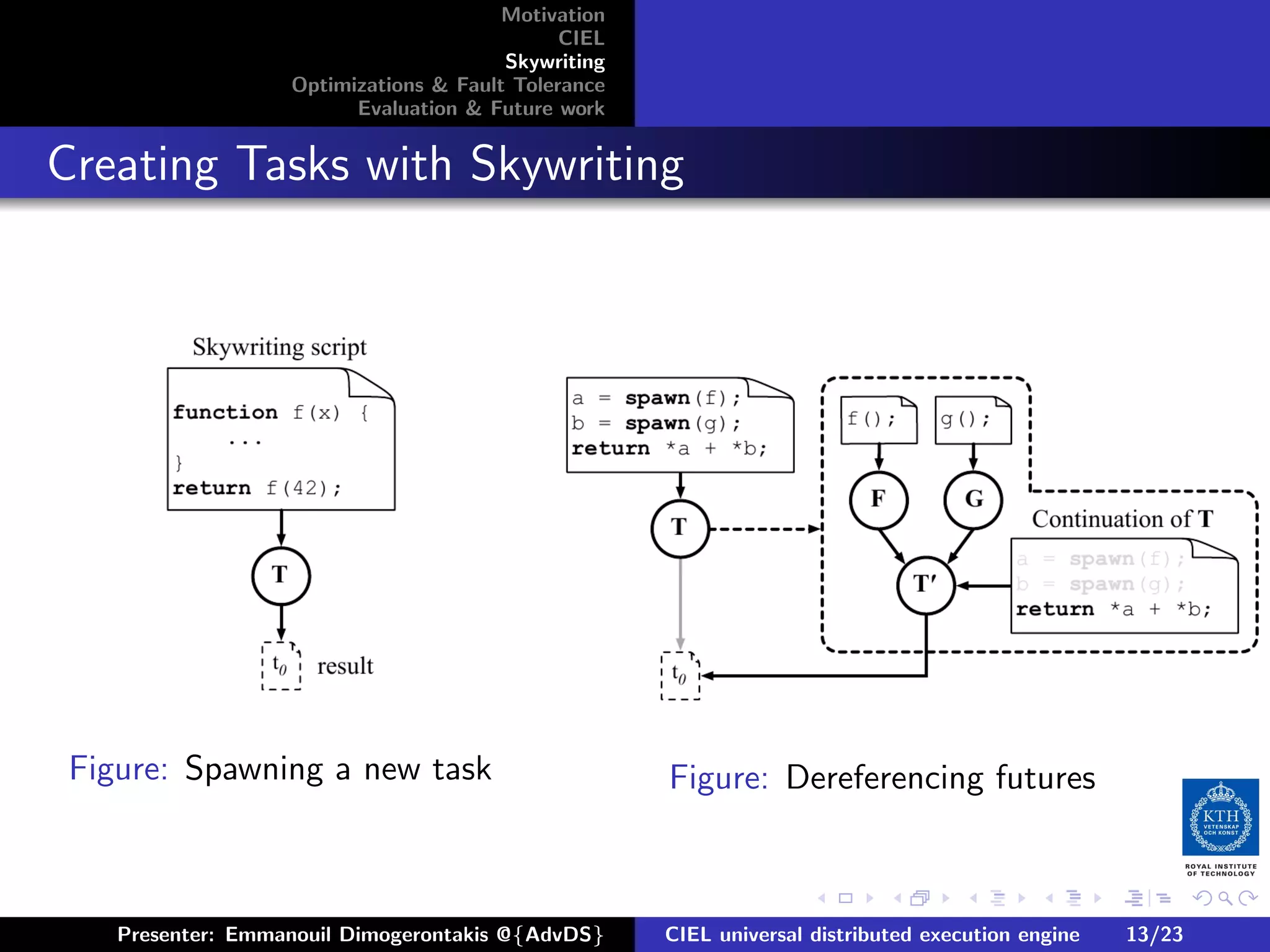

. Creating Tasks with Skywriting
Figure: Spawning a new task
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 13/23

20. Motivation
CIEL
Skywriting
Optimizations & Fault Tolerance
Evaluation & Future work
. Creating Tasks with Skywriting
Figure: Spawning a new task Figure: Dereferencing futures
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 13/23

21. Motivation
CIEL
Skywriting
Optimizations & Fault Tolerance
Evaluation & Future work
.
. . Motivation
1
Distributed Execution Engines
.
. . CIEL
2
Dynamic Task Graphs
Architecture
.
. . Skywriting
3
.
. . Optimizations & Fault Tolerance
4
.
. . Evaluation & Future work
5
Evaluation
Future Work
Conclusions
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 14/23

22. Motivation
CIEL
Skywriting
Optimizations & Fault Tolerance
Evaluation & Future work

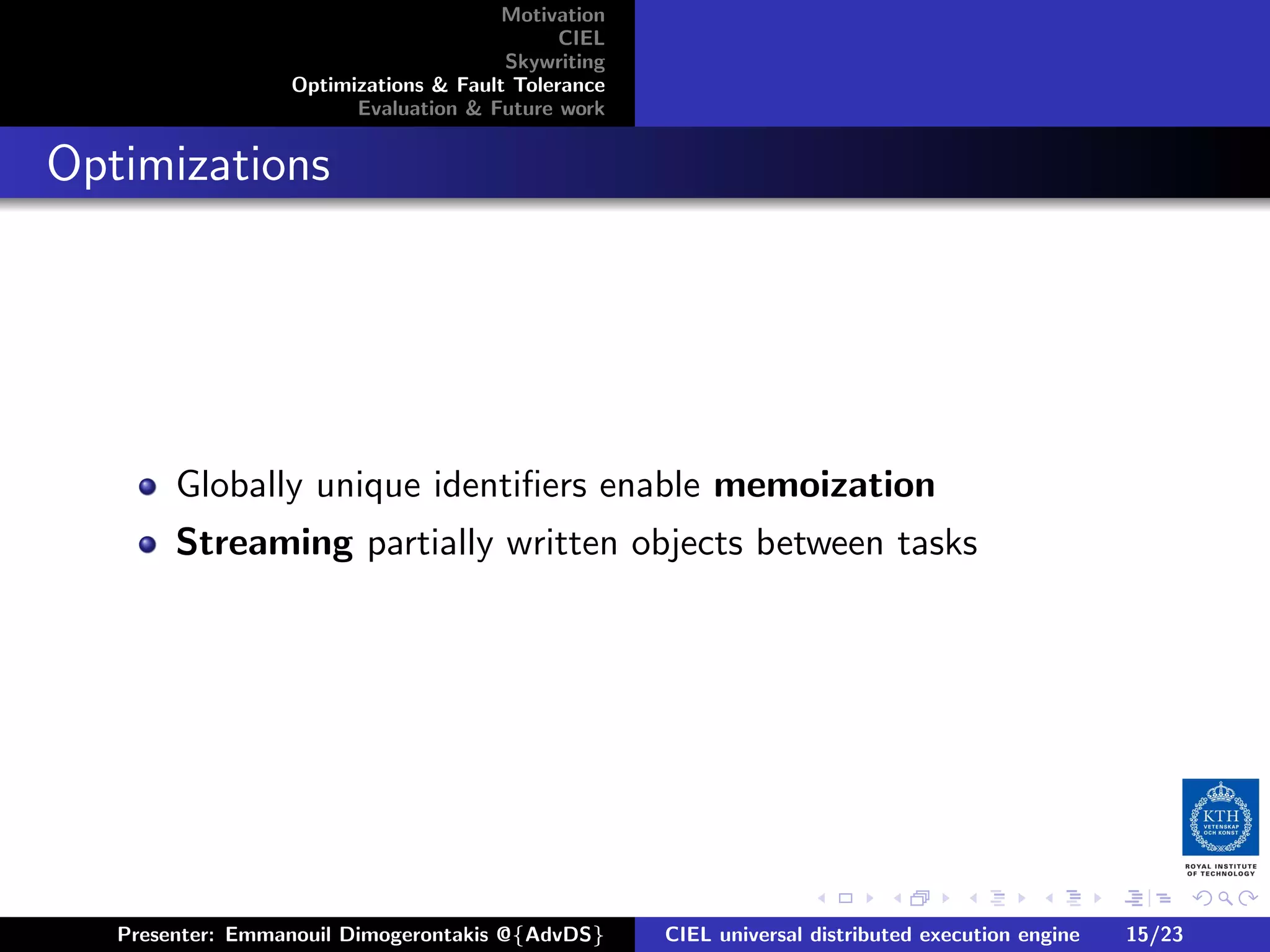

. Optimizations
Globally unique identifiers enable memoization
Streaming partially written objects between tasks
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 15/23

23. Motivation
CIEL
Skywriting
Optimizations & Fault Tolerance
Evaluation & Future work

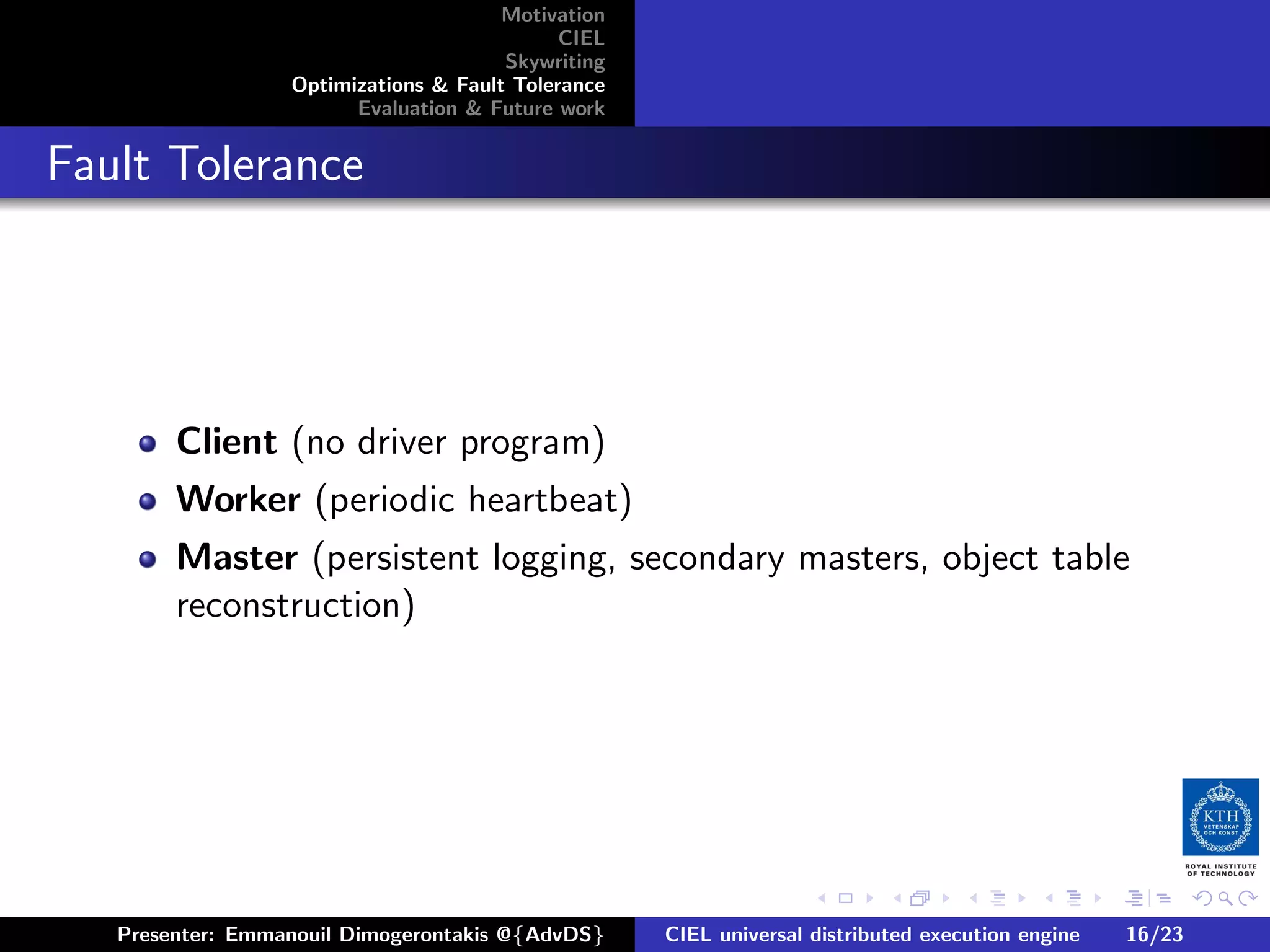

. Fault Tolerance
Client (no driver program)
Worker (periodic heartbeat)
Master (persistent logging, secondary masters, object table
reconstruction)
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 16/23

24. Motivation
CIEL Evaluation
Skywriting Future Work
Optimizations & Fault Tolerance Conclusions
Evaluation & Future work
.

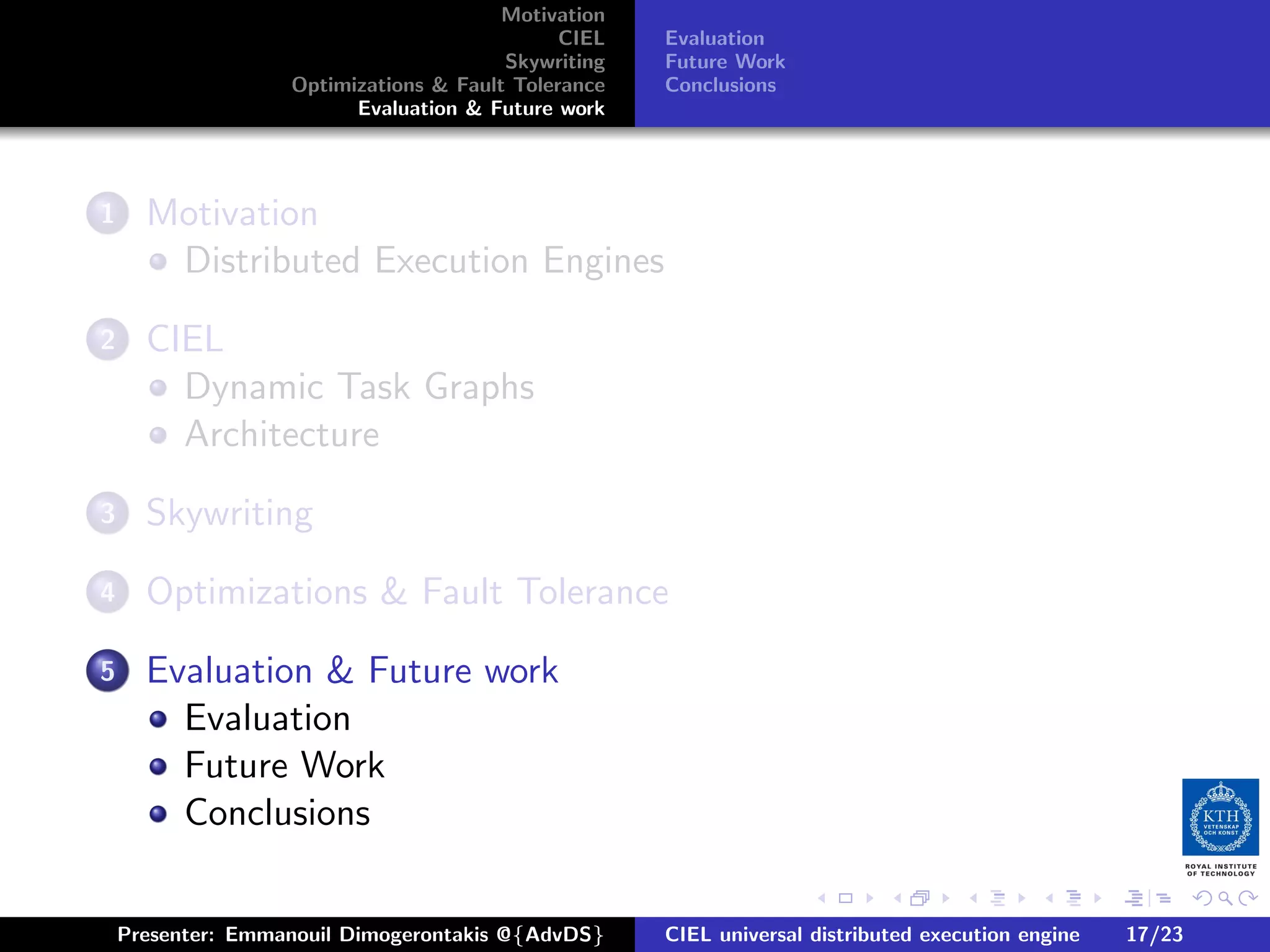

. . Motivation
1
Distributed Execution Engines
.
. . CIEL
2
Dynamic Task Graphs
Architecture
.
. . Skywriting
3
.
. . Optimizations & Fault Tolerance
4
.
. . Evaluation & Future work
5
Evaluation
Future Work
Conclusions
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 17/23

25. Motivation
CIEL Evaluation
Skywriting Future Work
Optimizations & Fault Tolerance Conclusions
Evaluation & Future work

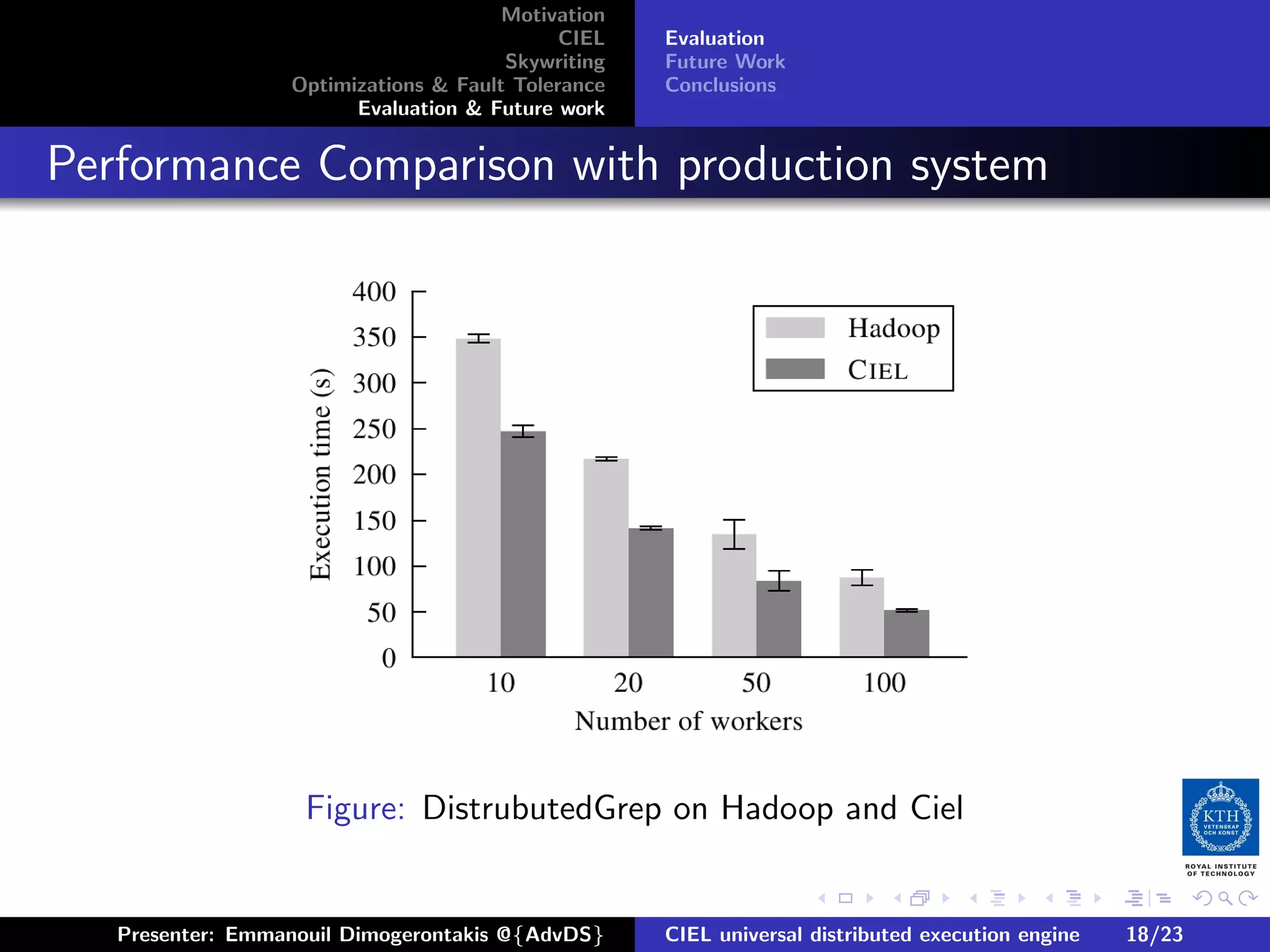

. Performance Comparison with production system
Figure: DistrubutedGrep on Hadoop and Ciel
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 18/23

26. Motivation
CIEL Evaluation
Skywriting Future Work
Optimizations & Fault Tolerance Conclusions
Evaluation & Future work

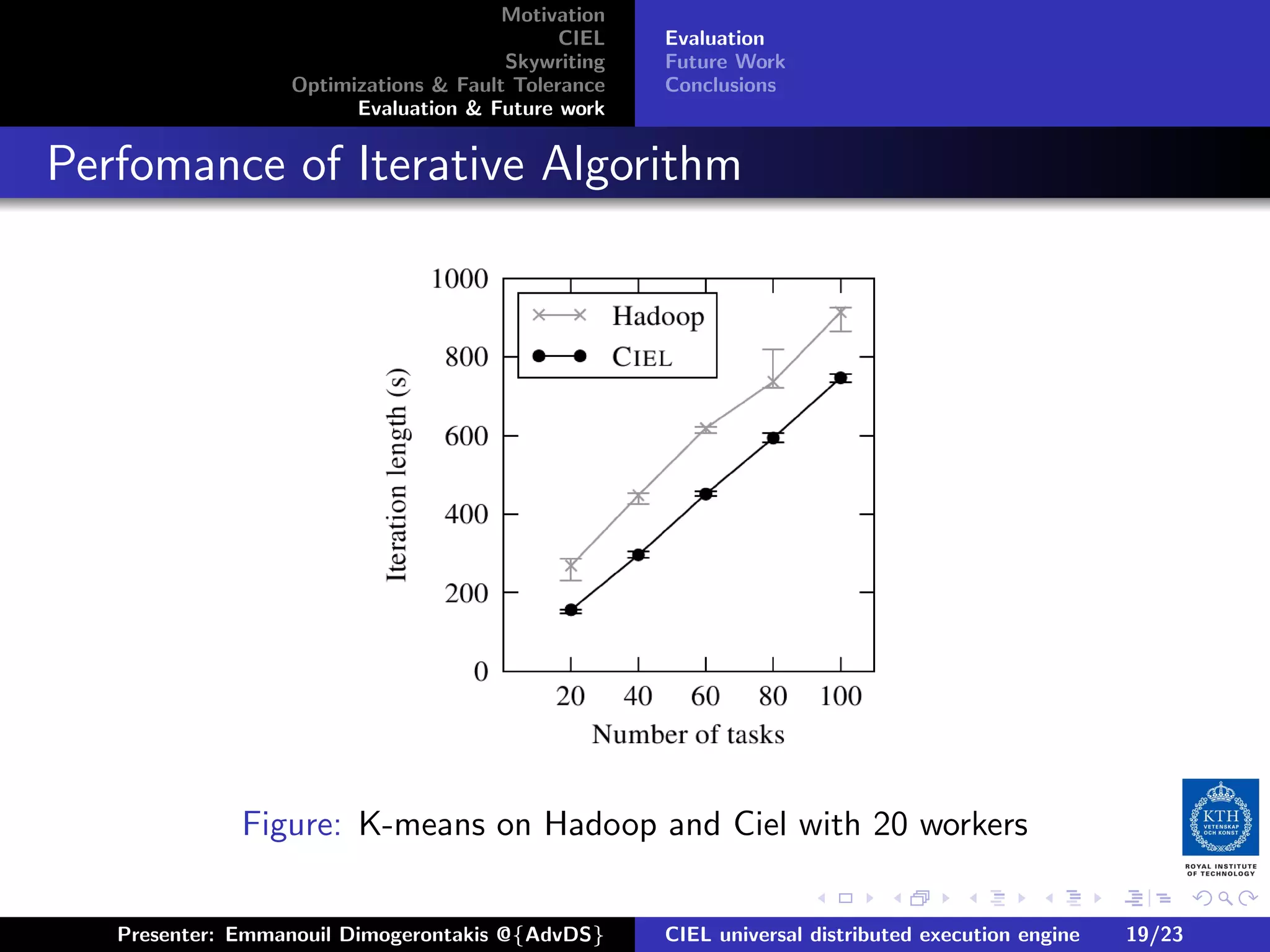

. Perfomance of Iterative Algorithm
Figure: K-means on Hadoop and Ciel with 20 workers
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 19/23

27. Motivation
CIEL Evaluation
Skywriting Future Work
Optimizations & Fault Tolerance Conclusions
Evaluation & Future work

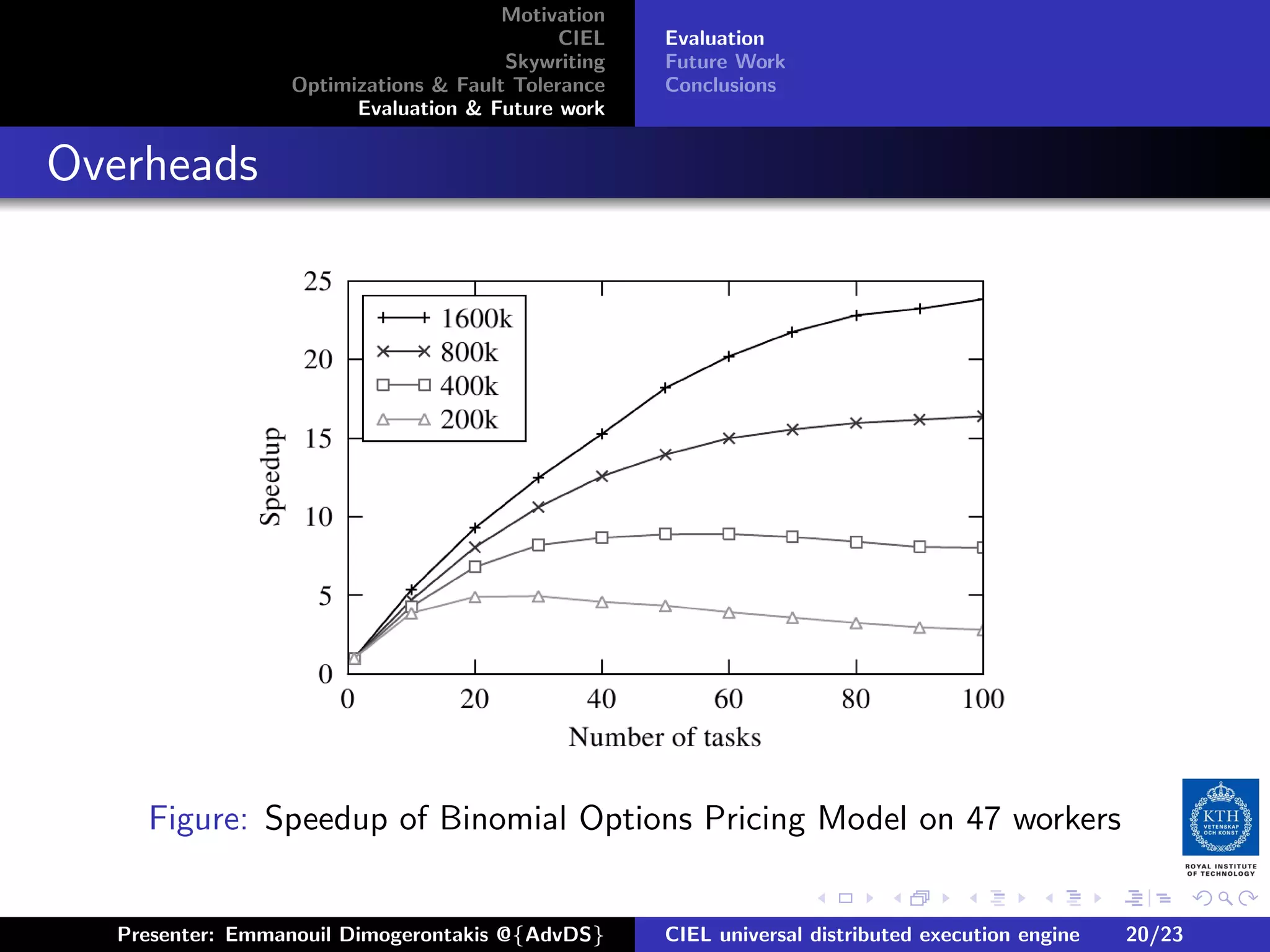

. Overheads
Figure: Speedup of Binomial Options Pricing Model on 47 workers
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 20/23

28. Motivation
CIEL Evaluation
Skywriting Future Work
Optimizations & Fault Tolerance Conclusions
Evaluation & Future work

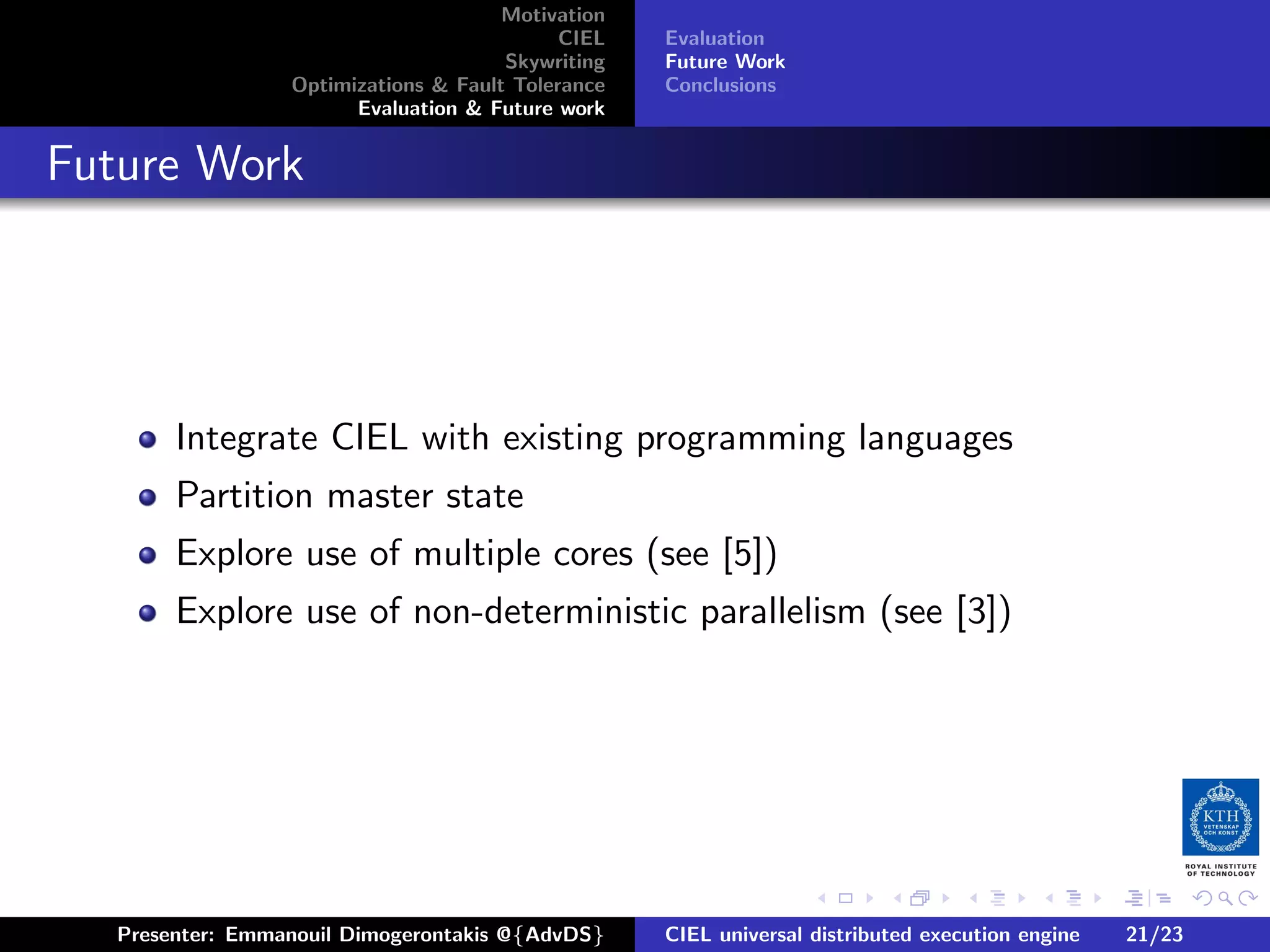

. Future Work
Integrate CIEL with existing programming languages
Partition master state
Explore use of multiple cores (see [5])
Explore use of non-deterministic parallelism (see [3])
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 21/23

29. Motivation
CIEL Evaluation
Skywriting Future Work
Optimizations & Fault Tolerance Conclusions
Evaluation & Future work

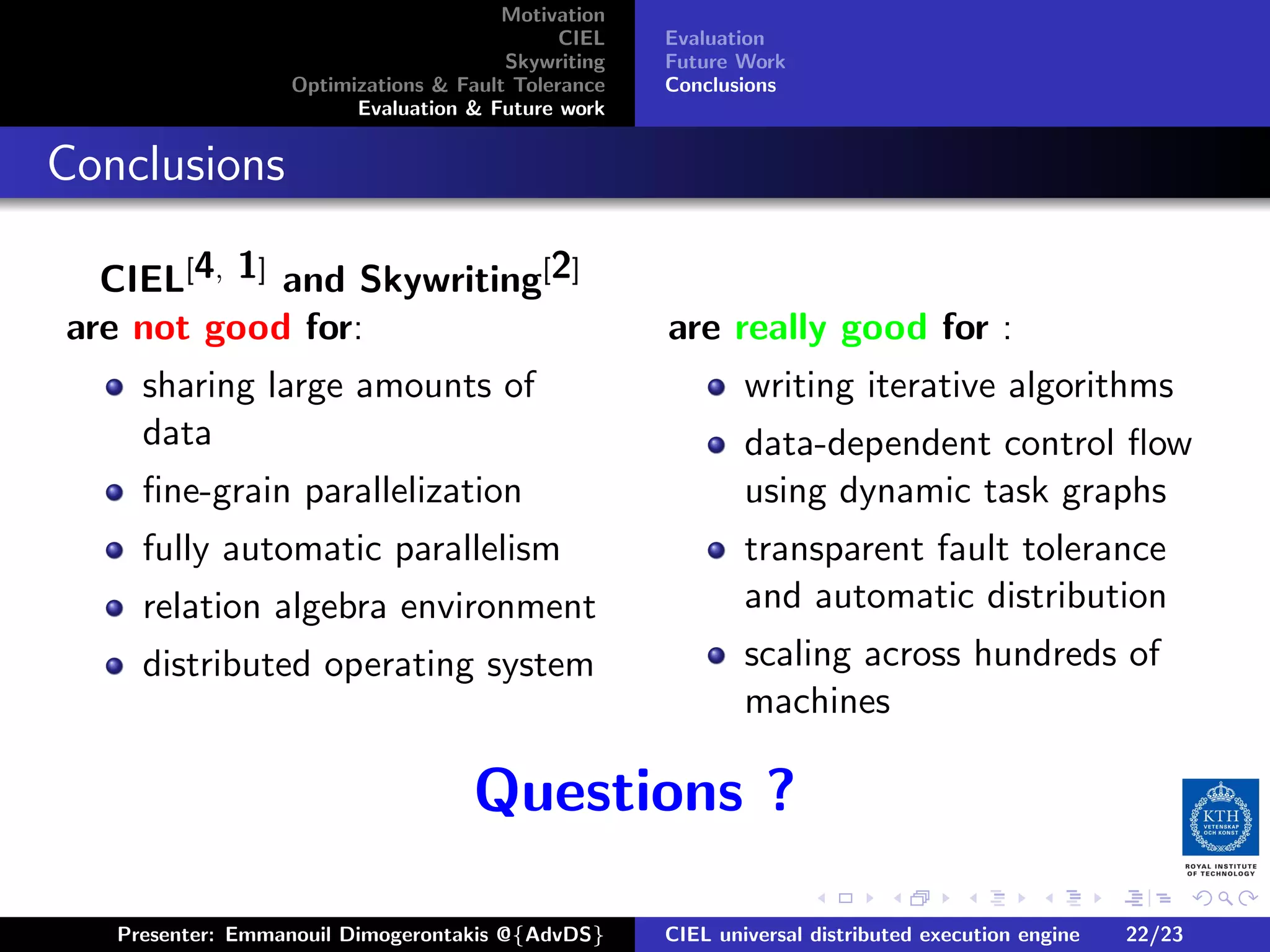

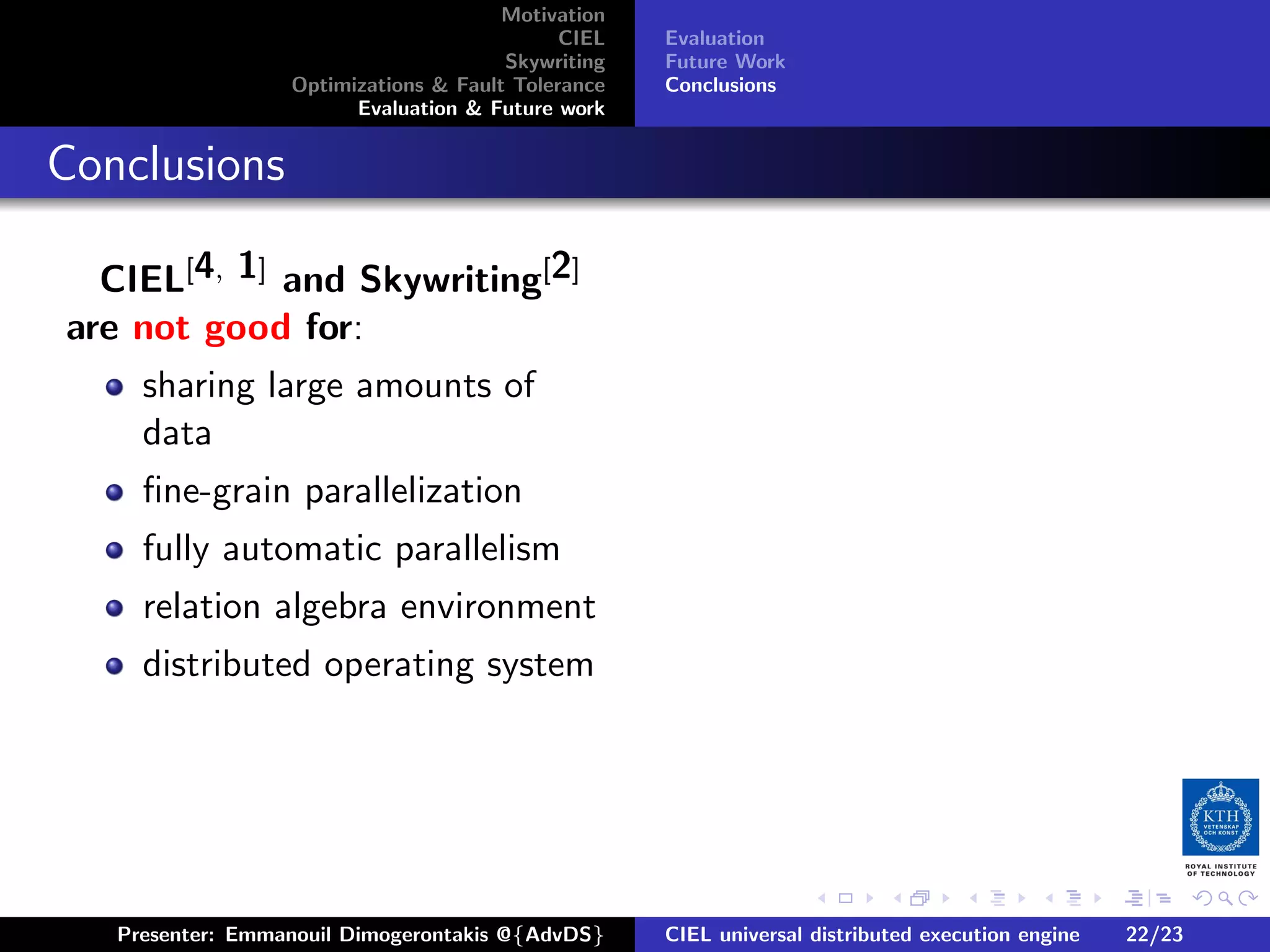

. Conclusions
CIEL[4, 1] and Skywriting[2]
are not good for:
sharing large amounts of
data
fine-grain parallelization
fully automatic parallelism
relation algebra environment
distributed operating system
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 22/23

30. Motivation
CIEL Evaluation
Skywriting Future Work
Optimizations & Fault Tolerance Conclusions
Evaluation & Future work

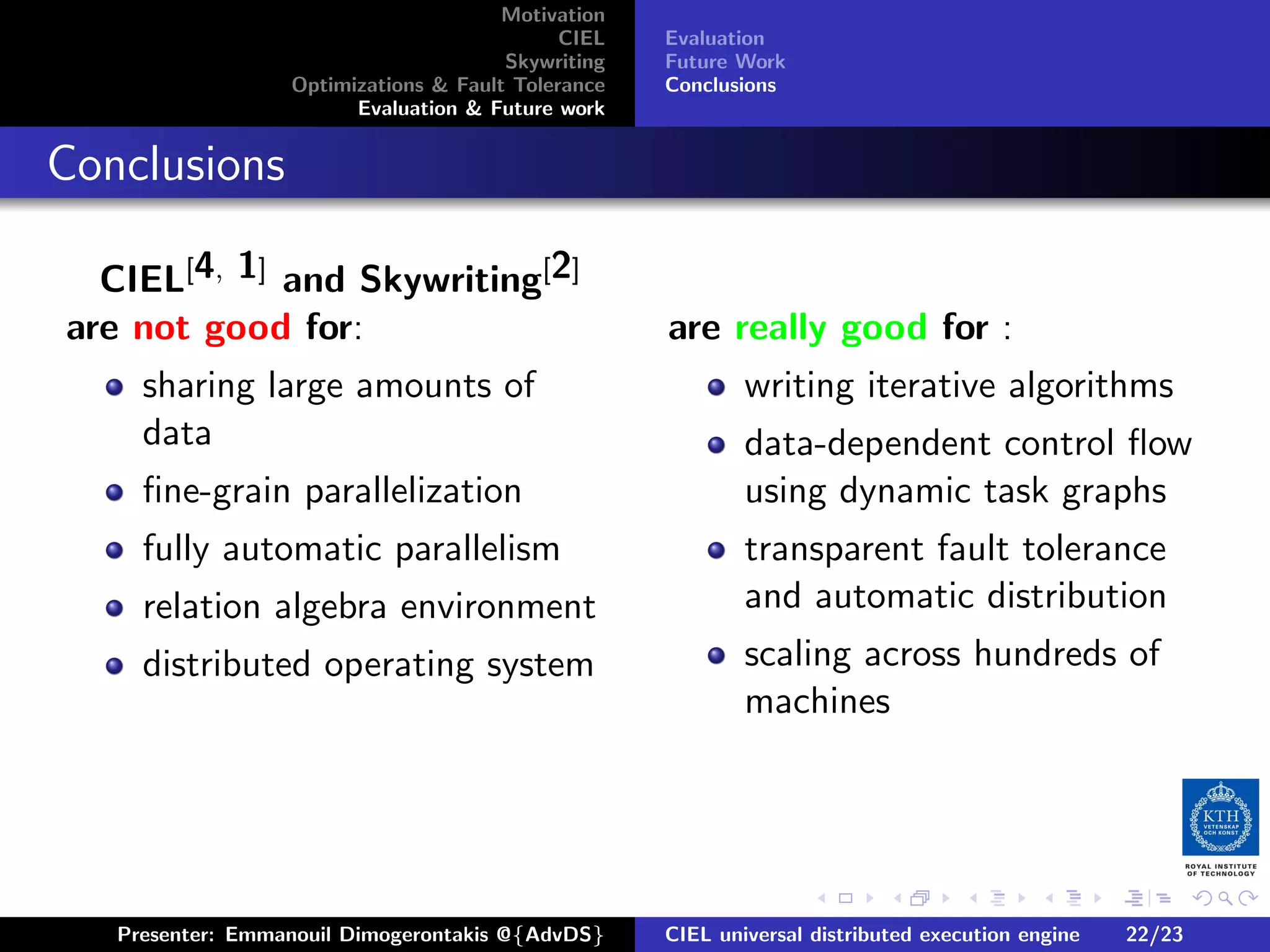

. Conclusions
CIEL[4, 1] and Skywriting[2]
are not good for: are really good for :
sharing large amounts of writing iterative algorithms
data data-dependent control flow
fine-grain parallelization using dynamic task graphs
fully automatic parallelism transparent fault tolerance
relation algebra environment and automatic distribution
distributed operating system scaling across hundreds of
machines
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 22/23

31. Motivation
CIEL Evaluation
Skywriting Future Work
Optimizations & Fault Tolerance Conclusions
Evaluation & Future work
. Conclusions
CIEL[4, 1] and Skywriting[2]
are not good for: are really good for :
sharing large amounts of writing iterative algorithms
data data-dependent control flow
fine-grain parallelization using dynamic task graphs
fully automatic parallelism transparent fault tolerance
relation algebra environment and automatic distribution
distributed operating system scaling across hundreds of
machines
Questions ?
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 22/23

32. Motivation
CIEL Evaluation
Skywriting Future Work
Optimizations & Fault Tolerance Conclusions
Evaluation & Future work
.

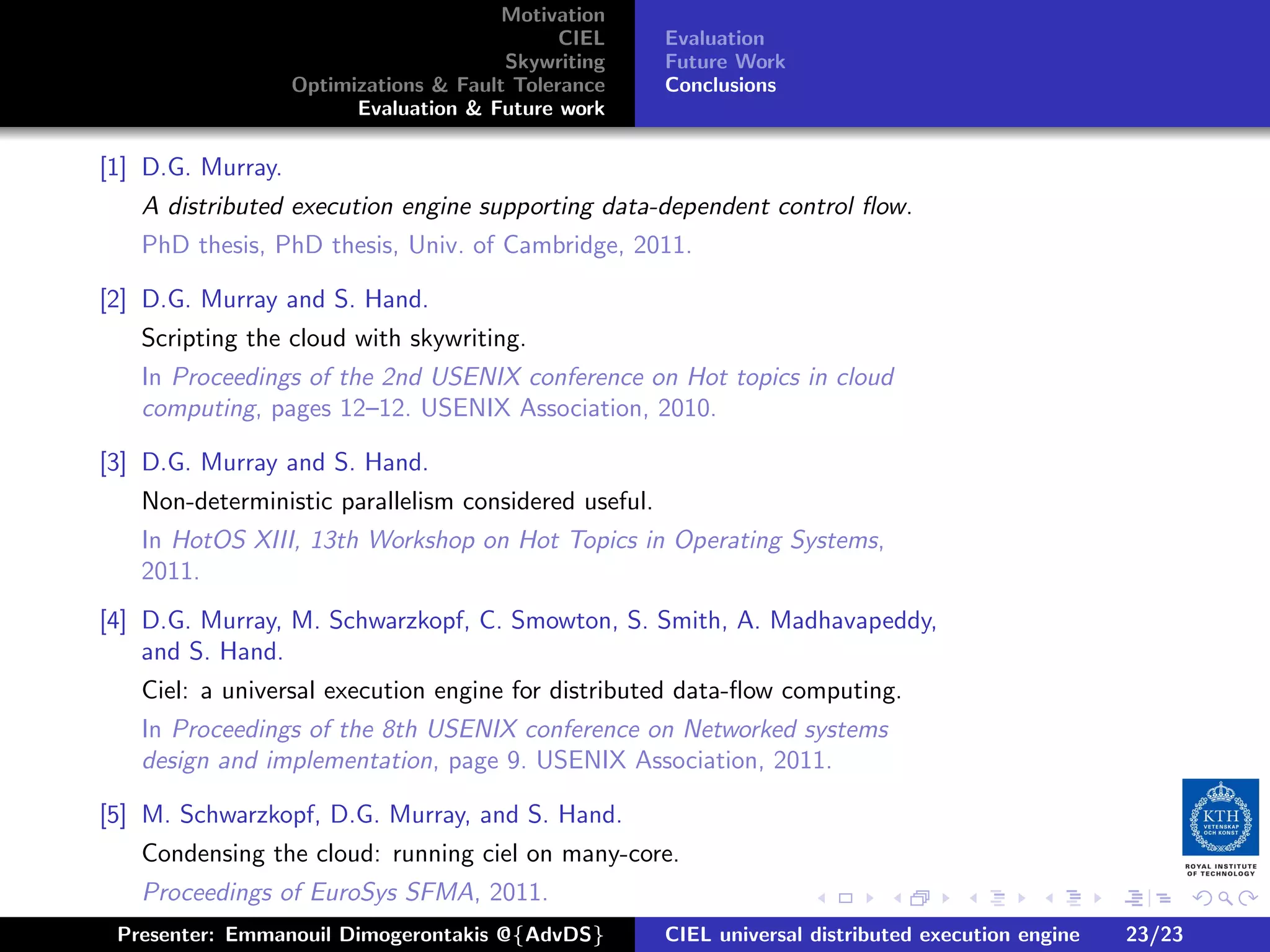

[1] D.G. Murray.
A distributed execution engine supporting data-dependent control flow.
PhD thesis, PhD thesis, Univ. of Cambridge, 2011.
[2] D.G. Murray and S. Hand.
Scripting the cloud with skywriting.
In Proceedings of the 2nd USENIX conference on Hot topics in cloud
computing, pages 12–12. USENIX Association, 2010.
[3] D.G. Murray and S. Hand.
Non-deterministic parallelism considered useful.
In HotOS XIII, 13th Workshop on Hot Topics in Operating Systems,
2011.
[4] D.G. Murray, M. Schwarzkopf, C. Smowton, S. Smith, A. Madhavapeddy,
and S. Hand.
Ciel: a universal execution engine for distributed data-flow computing.
In Proceedings of the 8th USENIX conference on Networked systems
design and implementation, page 9. USENIX Association, 2011.
[5] M. Schwarzkopf, D.G. Murray, and S. Hand.
Condensing the cloud: running ciel on many-core.
. Proceedings of EuroSys SFMA, 2011. . . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 23/23

33. CIEL
Skywriting
Experiments
Part I
.
.
Appendix
.
.. .
.
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 24/23

34. CIEL
Skywriting
Experiments
.
. . CIEL
6
.
. . Skywriting
7
.
. . Experiments
8
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 1/7

35. CIEL
Skywriting
Experiments
. Hidden slide 1

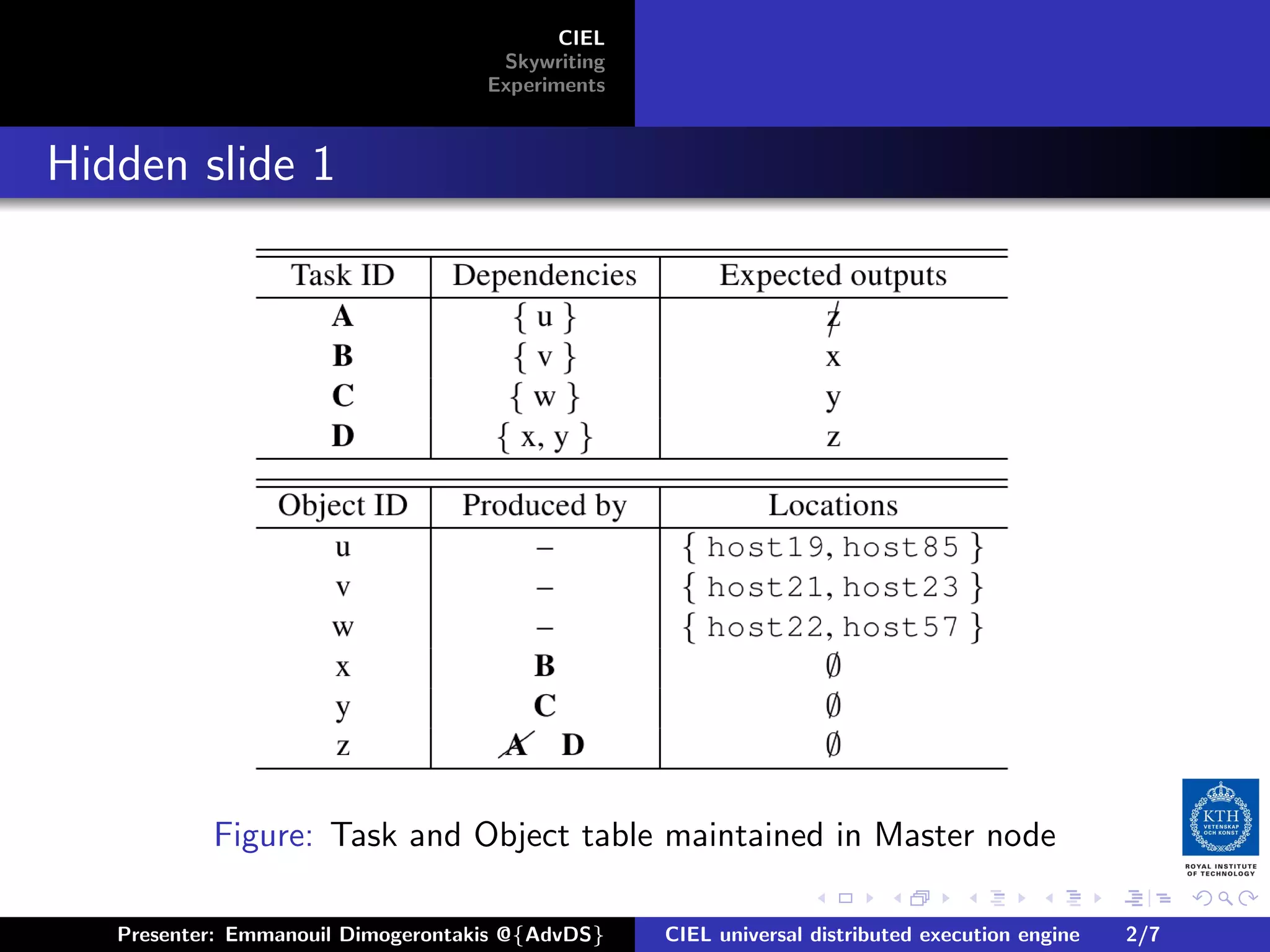

Figure: Task and Object table maintained in Master node
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 2/7

36. CIEL
Skywriting
Experiments
.
. . CIEL
6
.
. . Skywriting
7
.
. . Experiments
8
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 3/7

37. CIEL
Skywriting
Experiments
. Hidden slide 2

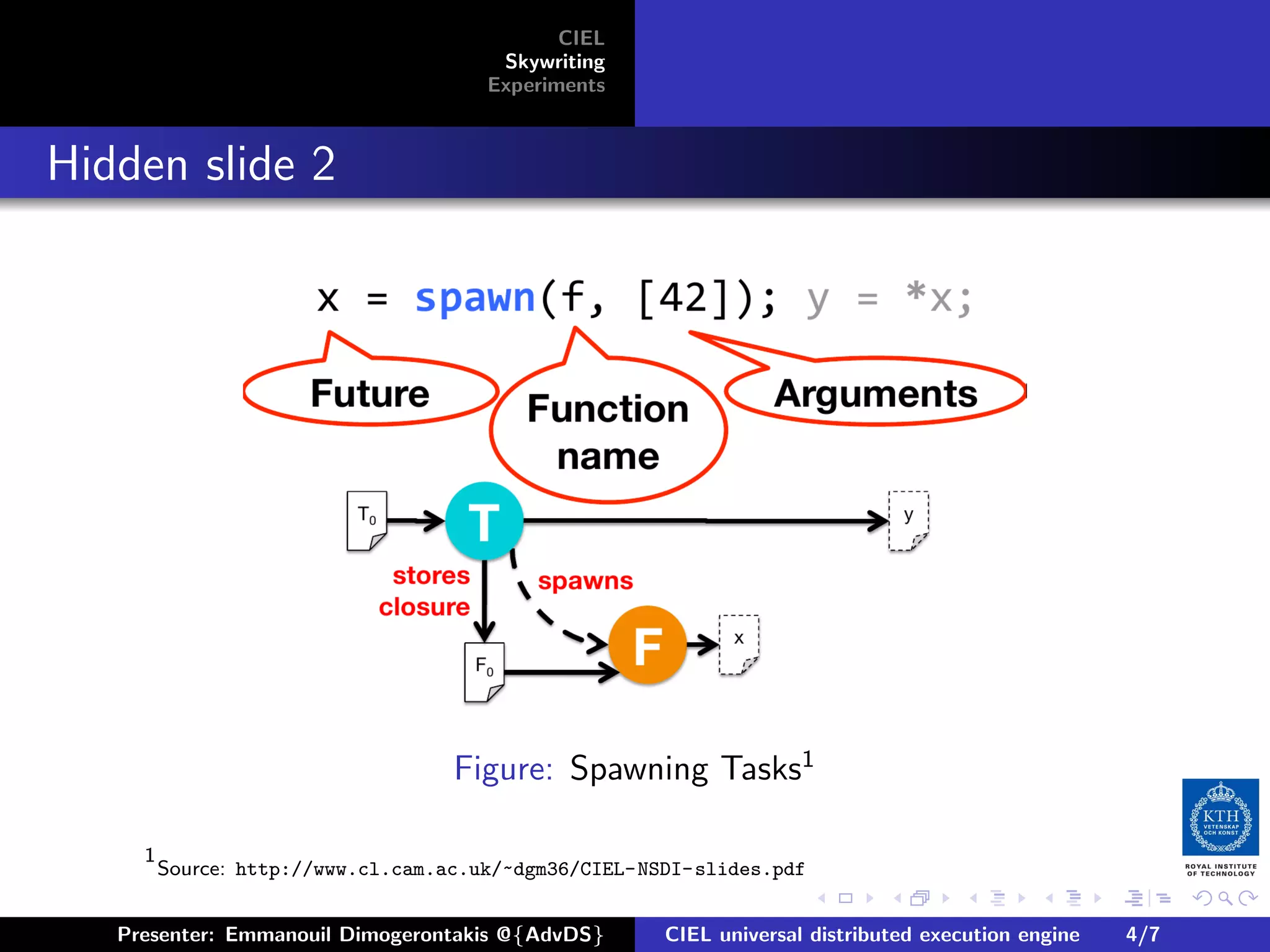

Figure: Spawning Tasks1
1
Source: http://www.cl.cam.ac.uk/~dgm36/CIEL-NSDI-slides.pdf
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 4/7

38. CIEL
Skywriting
Experiments
. Hidden slide 3

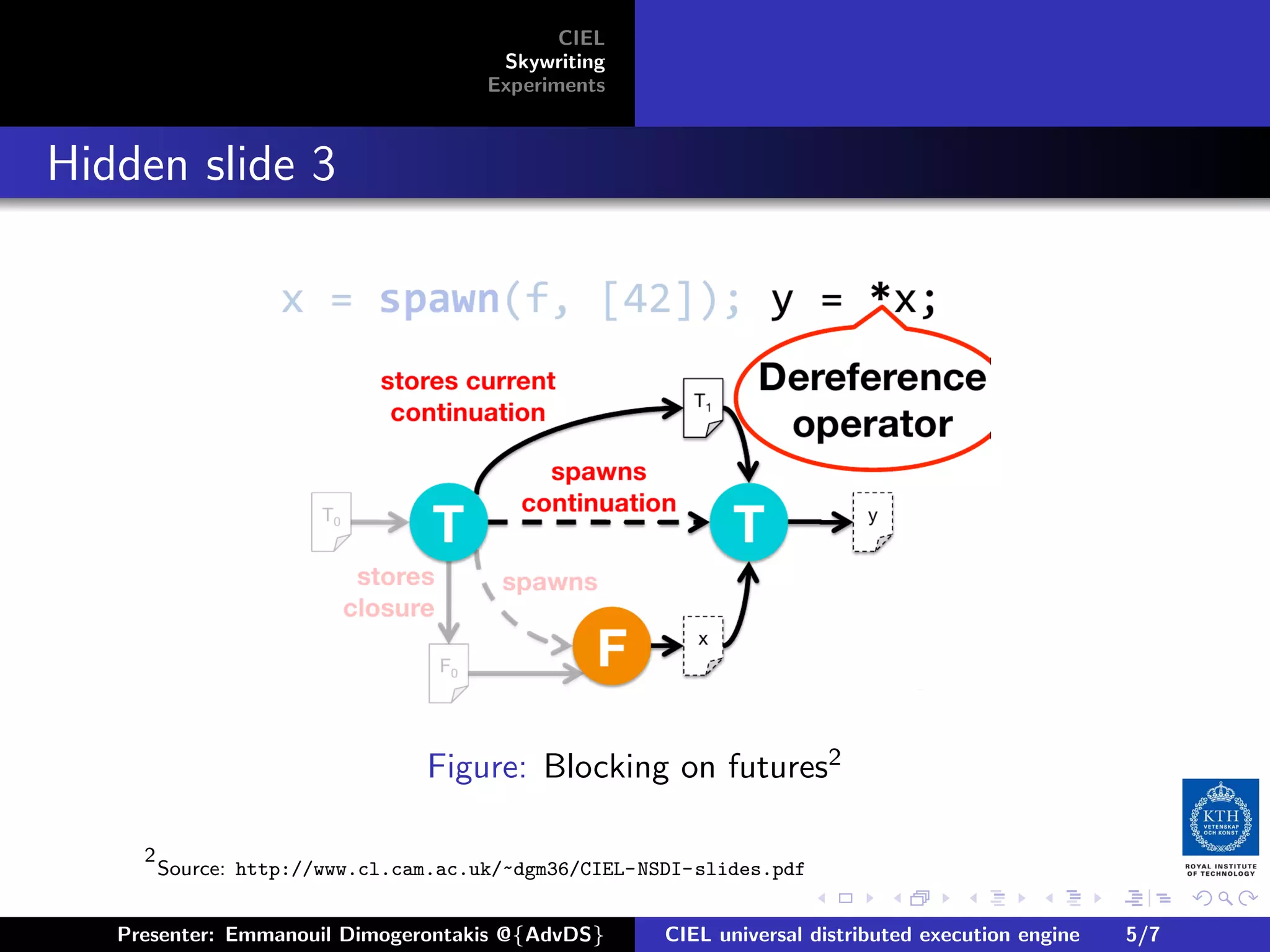

Figure: Blocking on futures2
2
Source: http://www.cl.cam.ac.uk/~dgm36/CIEL-NSDI-slides.pdf
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 5/7

39. CIEL
Skywriting
Experiments
.
. . CIEL
6
.
. . Skywriting
7
.
. . Experiments
8
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 6/7

40. CIEL
Skywriting
Experiments
. Hidden slide 4

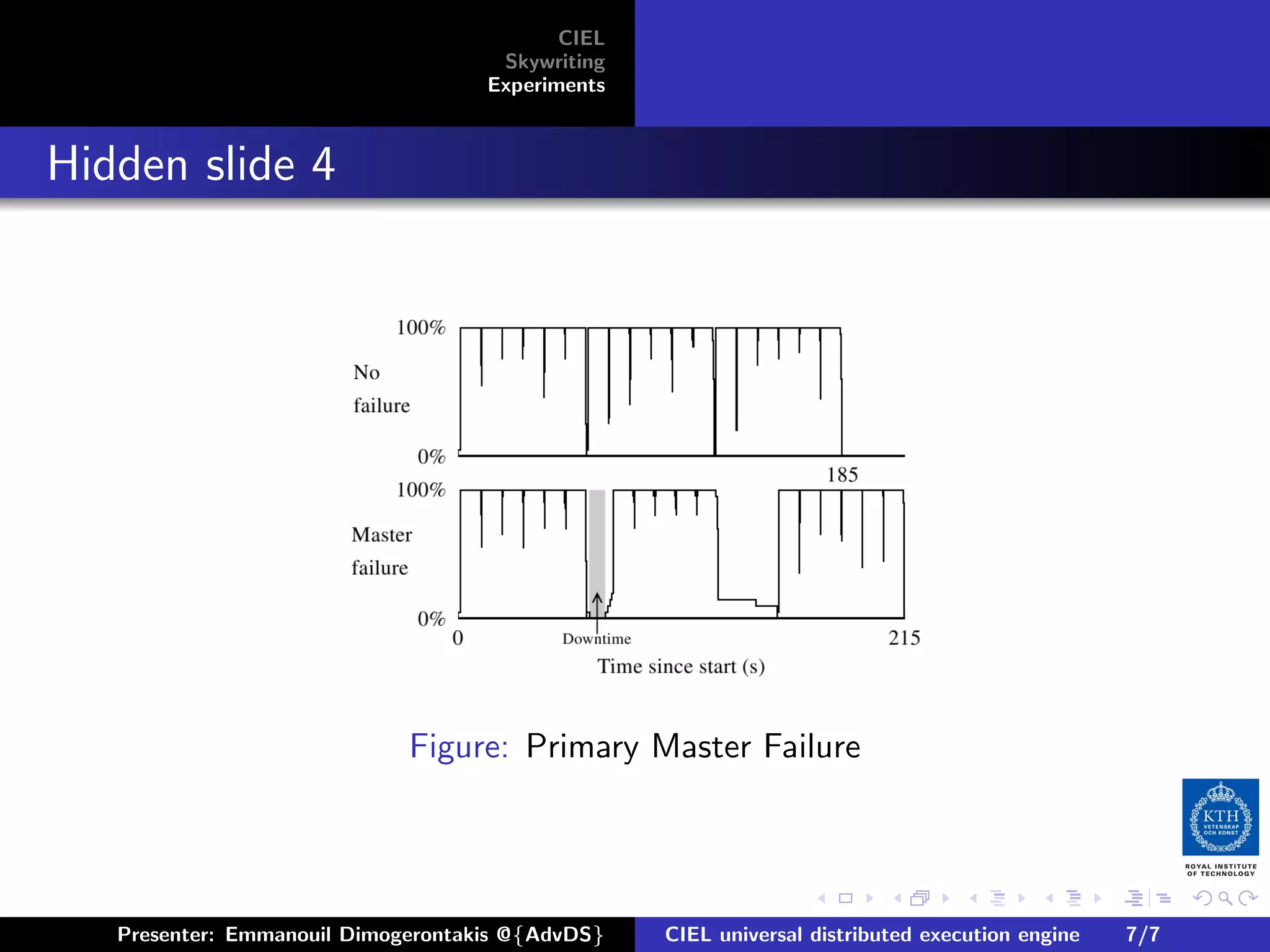

Figure: Primary Master Failure
. . . . . .
Presenter: Emmanouil Dimogerontakis @{AdvDS} CIEL universal distributed execution engine 7/7
