RUSLAN is a high performance para-aramid fiber optimized for ballistic body armor fabrics. AR Kompozit designed RUSLAN fiber and various ballistic fabrics using unique weaving techniques to provide lightweight and high performing body armor that meets international standards. The document describes RUSLAN fiber properties and various AR Kompozit ballistic fabric properties, weaves, weights and thicknesses that provide ballistic protection against various threat levels while maintaining flexibility and durability.

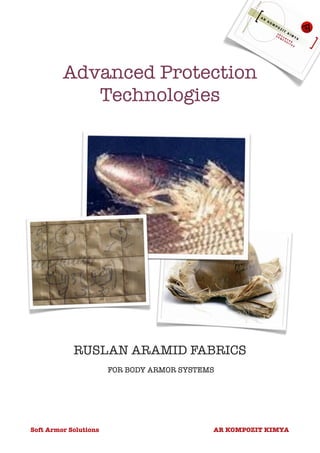

1. Advanced Protection
Technologies
RUSLAN ARAMID FABRICS
FOR BODY ARMOR SYSTEMS
Soft Armor Solutions AR KOMPOZIT KIMYA

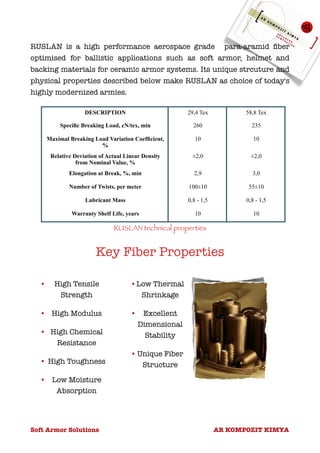

2. RUSLAN is a high performance aerospace grade para-aramid fiber
optimised for ballistic applications such as soft armor, helmet and
backing materials for ceramic armor systems. Its unique strcuture and
physical properties described below make RUSLAN as choice of today's
highly modernized armies.
DESCRIPTION 29,4 Tex 58,8 Tex
Specific Breaking Load, cN/tex, min 260 235
Maximal Breaking Load Variation Coefficient, 10 10
%
Relative Deviation of Actual Linear Density ±2,0 ±2,0
from Nominal Value, %
Elongation at Break, %, min 2,9 3,0
Number of Twists, per meter 100±10 55±10
Lubricant Mass 0,8 - 1,5 0,8 - 1,5
Warranty Shelf Life, years 10 10
RUSLAN technical properties
Key Fiber Properties
• High Tensile •Low Thermal
Strength Shrinkage
• High Modulus • Excellent
Dimensional
• High Chemical Stability
Resistance
• Unique Fiber
• High Toughness Structure
• Low Moisture
Absorption
Soft Armor Solutions AR KOMPOZIT KIMYA

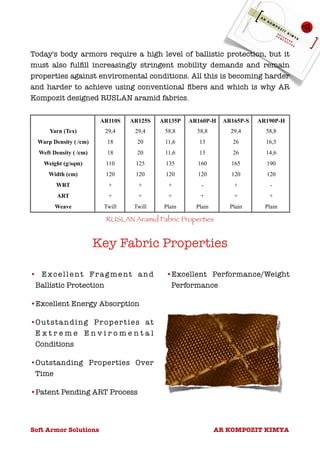

3. Today's body armors require a high level of ballistic protection, but it
must also fulfill increasingly stringent mobility demands and remain
properties against enviromental conditions. All this is becoming harder
and harder to achieve using conventional fibers and which is why AR
Kompozit designed RUSLAN aramid fabrics.
AR110S AR125S AR135P AR160P-H AR165P-S AR190P-H
Yarn (Tex) 29,4 29,4 58,8 58,8 29,4 58,8
Warp Density ( /cm) 18 20 11,6 13 26 16,5
Weft Density ( /cm) 18 20 11,6 13 26 14,6
Weight (g/sqm) 110 125 135 160 165 190
Width (cm) 120 120 120 120 120 120
WRT + + + - + -
ART + + + + + +
Weave Twill Twill Plain Plain Plain Plain
RUSLAN Aramid Fabric Properties
Key Fabric Properties
• Excellent F ragment and •Excellent Performance/Weight
Ballistic Protection Performance
•Excellent Energy Absorption
•O u t s t a n d i n g P r o p e r t i e s a t
Extreme Enviromental
Conditions
•Outstanding Properties Over
Time
•Patent Pending ART Process
Soft Armor Solutions AR KOMPOZIT KIMYA

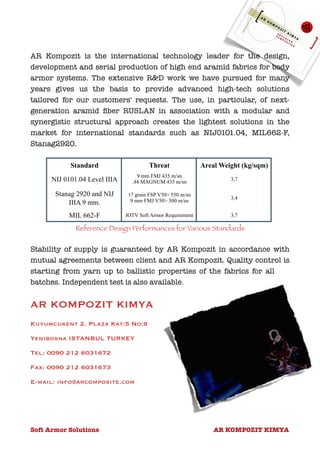

4. AR Kompozit is the international technology leader for the design,
development and serial production of high end aramid fabrics for body
armor systems. The extensive R&D work we have pursued for many
years gives us the basis to provide advanced high-tech solutions
tailored for our customers' requests. The use, in particular, of next-
generation aramid fiber RUSLAN in association with a modular and
synergistic structural approach creates the lightest solutions in the
market for international standards such as NIJ0101.04, MIL662-F,
Stanag2920.
Standard Threat Areal Weight (kg/sqm)
9 mm FMJ 435 m/sn
NIJ 0101.04 Level IIIA .44 MAGNUM 435 m/sn 3,7
Stanag 2920 and NIJ 17 grain FSP V50> 550 m/sn
3,4
IIIA 9 mm. 9 mm FMJ V50> 500 m/sn
MIL 662-F IOTV Soft Armor Requirement 3,7
Reference Design Performances for Various Standards
Stability of supply is guaranteed by AR Kompozit in accordance with
mutual agreements between client and AR Kompozit. Quality control is
starting from yarn up to ballistic properties of the fabrics for all
batches. Independent test is also available.
AR KOMPOZIT KIMYA
Kuyumcukent 2. Plaza Kat:5 No:9
Yenibosna ISTANBUL TURKEY
Tel: 0090 212 6031672
Fax: 0090 212 6031673
E-mail: info@arcomposite.com
Soft Armor Solutions AR KOMPOZIT KIMYA
