This document describes a proposed mobile phone sniffer device to help locate lost phones. The sniffer would work by detecting a phone's unique IMEI number when in range, similar to how networks use IMEI numbers to identify phones and block stolen devices. The sniffer would include a unidirectional antenna, small base station with transceiver and oscillator, and software to store detected IMEI numbers and signaling data in a database for tracking purposes. The proposed sniffer aims to provide an effective and low-cost solution for locating lost mobile phones.

1. Sniffer
for detecting lost mobile
By
Muhammed Ansal P.I

2. What Happens when you lost your
Mobile Phone?

3. Reporting…Searching… Praying…

4. But still not found?

5. What is the best Solution then?

6. What is the best Solution then?
Sniffer

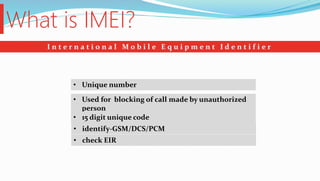

10. What is IMEI?
I n t e r n a t i o n a l M o b i l e E q u i p m e n t I d e n t i f i e r
• Unique number
• Used for blocking of call made by unauthorized
person
• 15 digit unique code
• identify-GSM/DCS/PCM
• check EIR

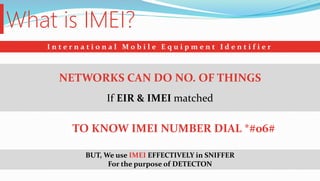

11. What is IMEI?
I n t e r n a t i o n a l M o b i l e E q u i p m e n t I d e n t i f i e r
If EIR & IMEI matched
NETWORKS CAN DO NO. OF THINGS
TO KNOW IMEI NUMBER DIAL *#06#
BUT, We use IMEI EFFECTIVELY in SNIFFER
For the purpose of DETECTON

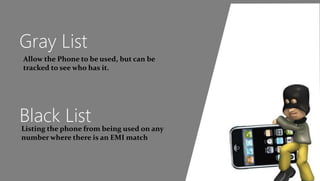

12. Gray List
Allow the Phone to be used, but can be
tracked to see who has it.
Black ListListing the phone from being used on any
number where there is an EMI match

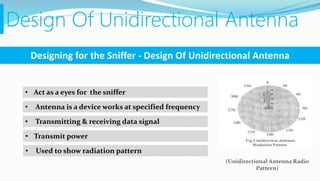

13. Design Of Unidirectional Antenna
Designing for the Sniffer - Design Of Unidirectional Antenna
• Act as a eyes for the sniffer
• Antenna is a device works at specified frequency
• Transmitting & receiving data signal
• Transmit power
• Used to show radiation pattern
(Unidirectional Antenna Radio
Pattern)

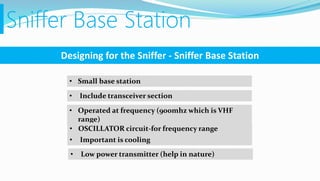

14. Sniffer Base Station
Designing for the Sniffer - Sniffer Base Station
• Small base station
• Include transceiver section
• Operated at frequency (900mhz which is VHF
range)
• OSCILLATOR circuit-for frequency range
• Important is cooling
• Low power transmitter (help in nature)

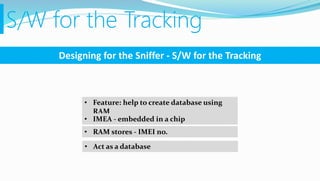

15. S/W for the Tracking
Designing for the Sniffer - S/W for the Tracking
• Feature: help to create database using
RAM
• IMEA - embedded in a chip
• RAM stores - IMEI no.
• Act as a database

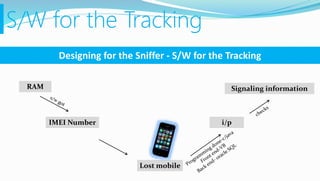

16. S/W for the Tracking
Designing for the Sniffer - S/W for the Tracking
RAM
IMEI Number
Lost mobile
Signaling information
i/p

17. Working of a Sniffer Device
• Sniffer works as a transceiver
• BTS (Base Transceiver Station) - Act as a
middle man
• MTSO (Mobile Telephone Switching office) =
MSC(Mobile Switching Centre)

18. ADVANTAGES• Useful for lost mobile
• effective cost
• low power consumption
• easy to design

19. ConclusionCertain boundaries :
• Power of mobile should be good enough
• mobile should not been in shadow regain
Note: “Method can been improved by using modern technology and devices”

20. Thank You
