The Smyth F.145 Automatic Book Sewing Machine is designed for graphic companies seeking independence in book production, offering ease of use and compact design. It features an automatic opening front guard, a touchscreen interface for parameter monitoring, and an automatic feeder with advanced positioning systems. With specifications including a maximum mechanical speed of 145 cycles/min and a total weight of 2100 kg, it caters to a wide range of signature sizes.

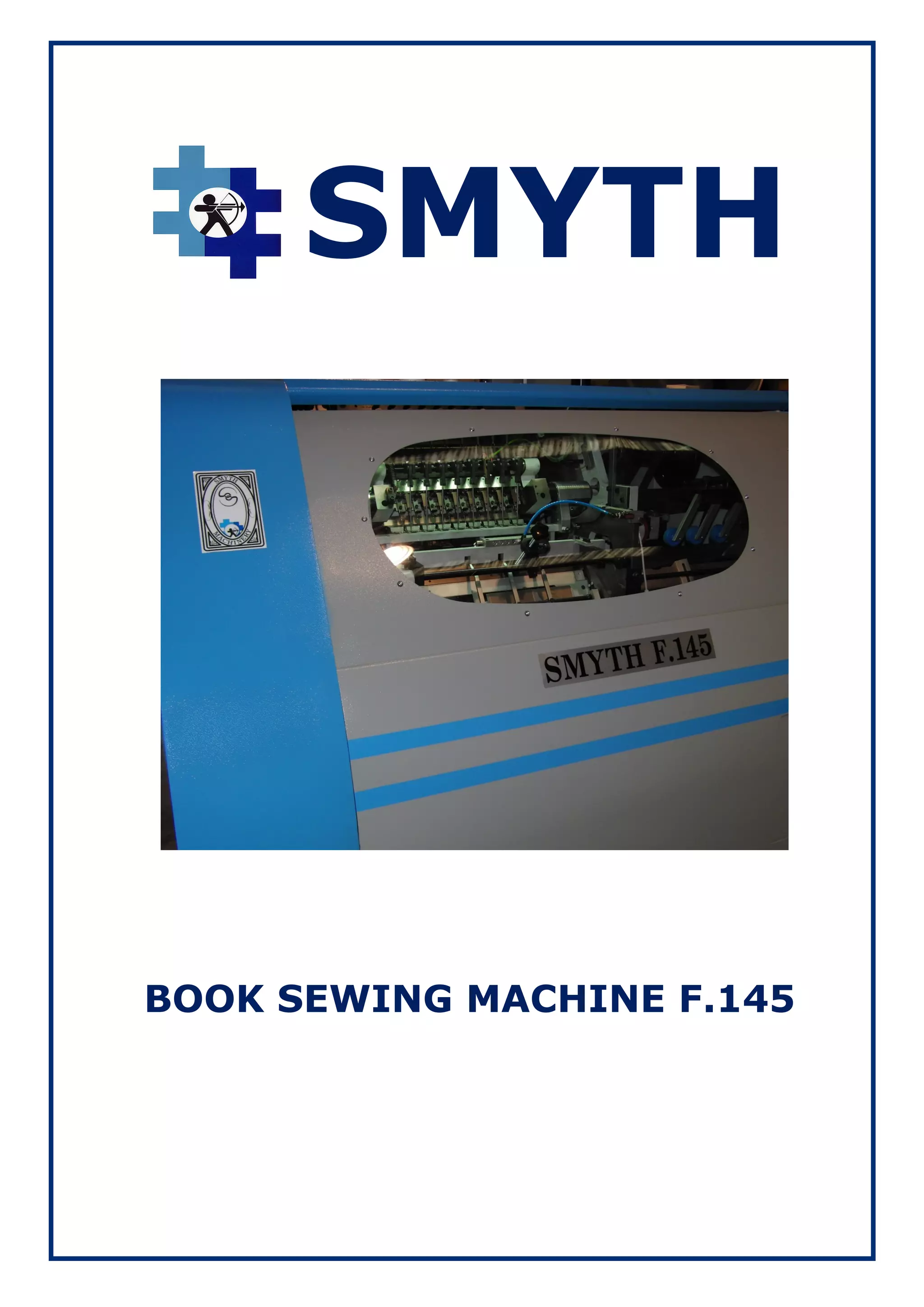

1. SMYTH
BOOK SEWING MACHINE F.145

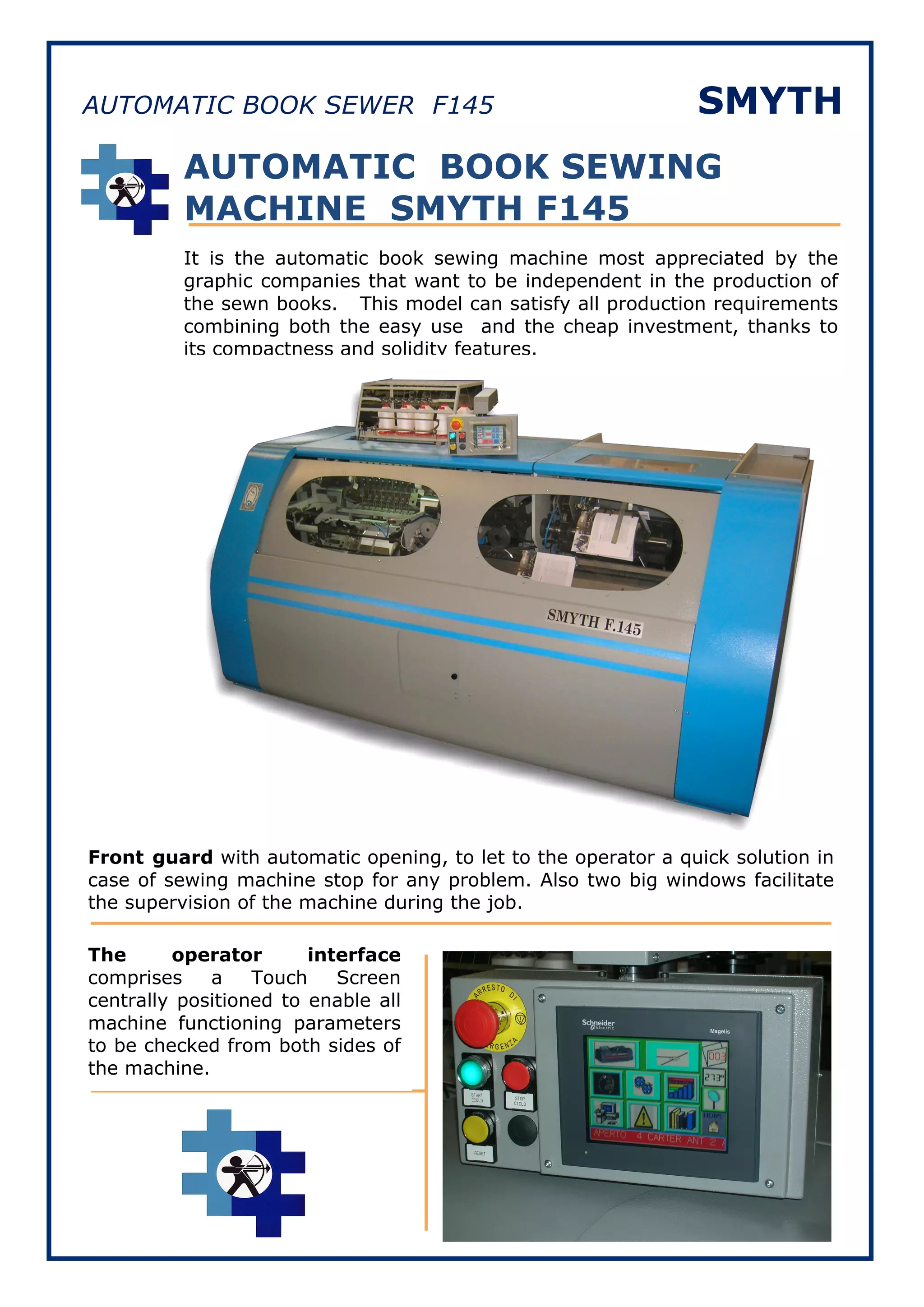

2. AUTOMATIC BOOK SEWER F145 SMYTH
AUTOMATIC BOOK SEWING
MACHINE SMYTH F145
It is the automatic book sewing machine most appreciated by the
graphic companies that want to be independent in the production of
the sewn books. This model can satisfy all production requirements
combining both the easy use and the cheap investment, thanks to
its compactness and solidity features.
Front guard with automatic opening, to let to the operator a quick solution in
case of sewing machine stop for any problem. Also two big windows facilitate
the supervision of the machine during the job.
The operator interface
comprises a Touch Screen
centrally positioned to enable all
machine functioning parameters
to be checked from both sides of
the machine.

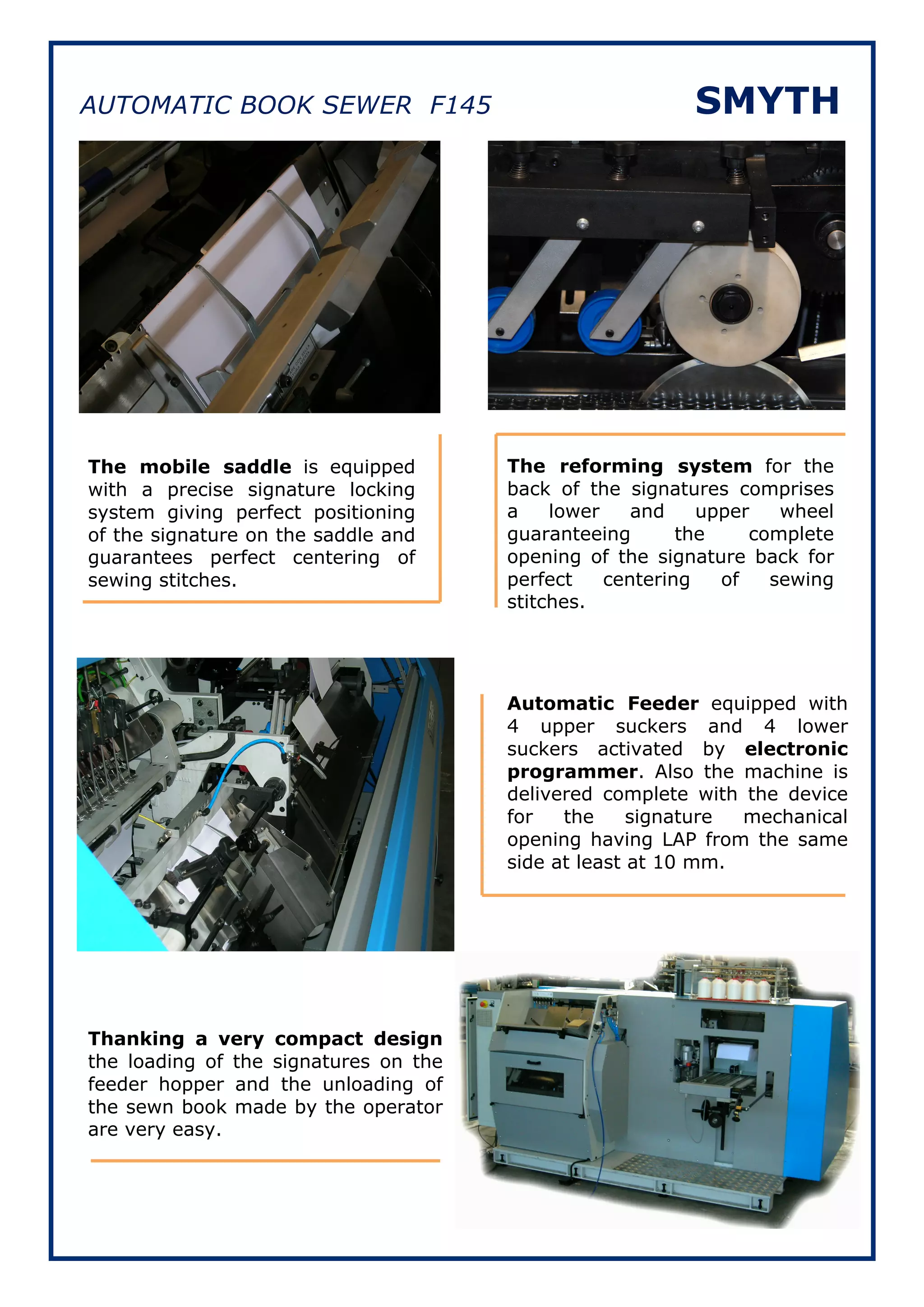

3. AUTOMATIC BOOK SEWER F145 SMYTH
The mobile saddle is equipped The reforming system for the
with a precise signature locking back of the signatures comprises
system giving perfect positioning a lower and upper wheel
of the signature on the saddle and guaranteeing the complete
guarantees perfect centering of opening of the signature back for
sewing stitches. perfect centering of sewing
stitches.
Automatic Feeder equipped with
4 upper suckers and 4 lower
suckers activated by electronic
programmer. Also the machine is
delivered complete with the device
for the signature mechanical
opening having LAP from the same
side at least at 10 mm.
Thanking a very compact design
the loading of the signatures on the
feeder hopper and the unloading of
the sewn book made by the operator
are very easy.

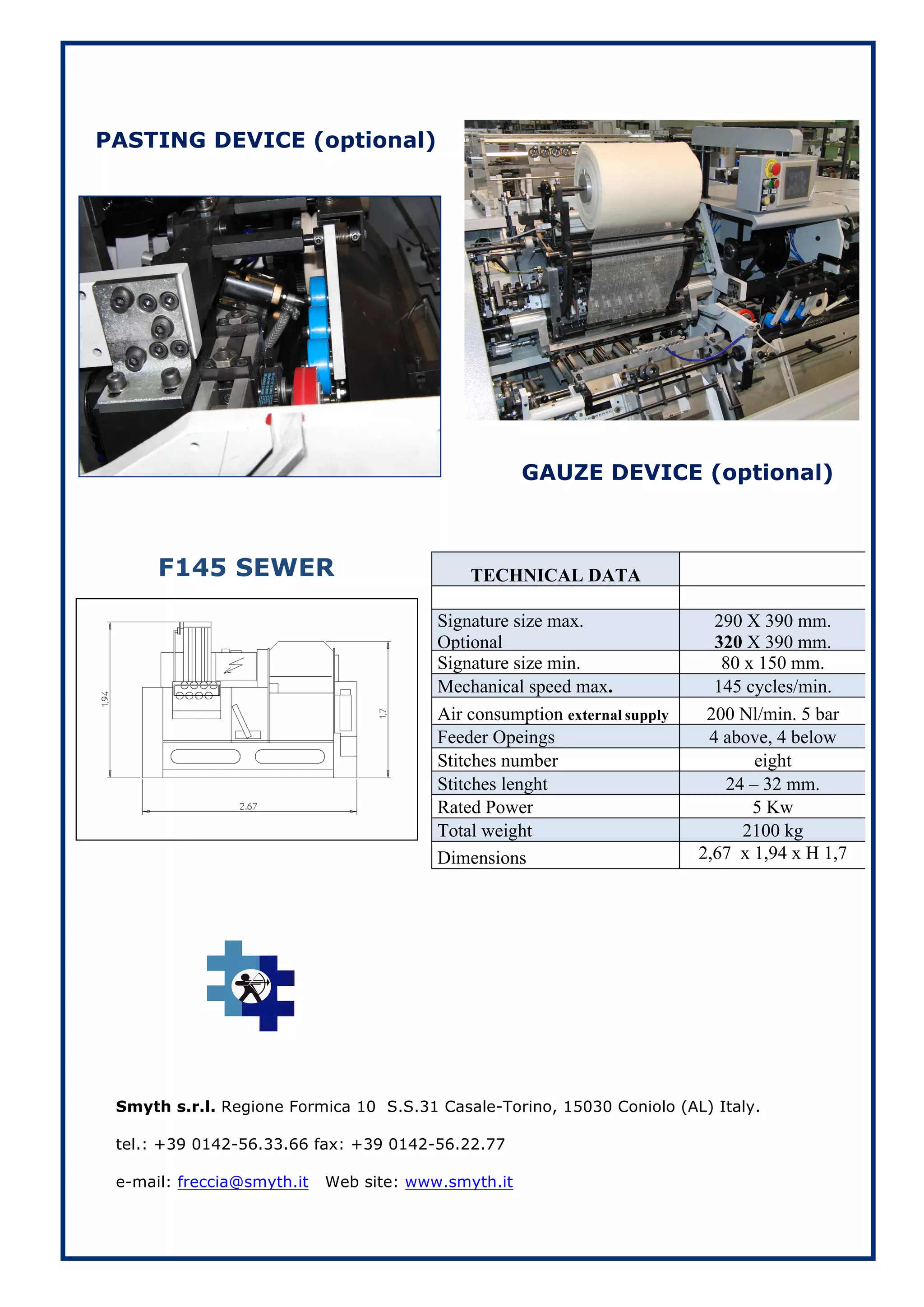

4. PASTING DEVICE (optional)
GAUZE DEVICE (optional)
F145 SEWER TECHNICAL DATA
Signature size max. 290 X 390 mm.
Optional 320 X 390 mm.
Signature size min. 80 x 150 mm.
Mechanical speed max. 145 cycles/min.
Air consumption external supply 200 Nl/min. 5 bar
Feeder Opeings 4 above, 4 below
Stitches number eight
Stitches lenght 24 – 32 mm.
Rated Power 5 Kw
Total weight 2100 kg
Dimensions 2,67 x 1,94 x H 1,7
mt.
Smyth s.r.l. Regione Formica 10 S.S.31 Casale-Torino, 15030 Coniolo (AL) Italy.
tel.: +39 0142-56.33.66 fax: +39 0142-56.22.77
e-mail: freccia@smyth.it Web site: www.smyth.it
