Smart Homes
This document discusses smart buildings and the technologies used within them. It defines a smart building as one that uses automated systems to intelligently control lighting, appliances, security, and more using a centralized network. Devices within a smart building can communicate with each other and be controlled remotely using voice commands, apps, or other inputs. Common smart building technologies allow for energy savings, lighting control, security features, home automation, and entertainment integration. The document provides examples of specific smart building products and components that make the automation possible.
Smart Homes
- 1.

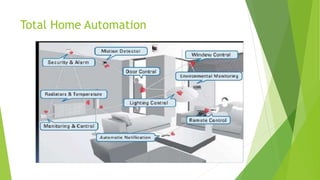

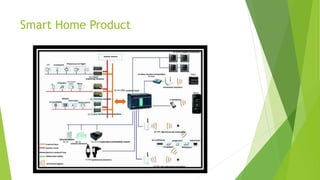

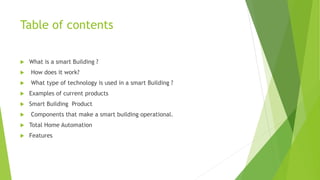

- 2. Table of contents What is a smart Building ? How does it work? What type of technology is used in a smart Building ? Examples of current products Smart Building Product Components that make a smart building operational. Total Home Automation Features

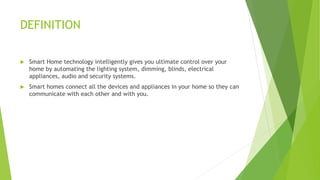

- 3. DEFINITION Smart Hometechnology intelligently gives you ultimate control over your home by automating the lighting system, dimming, blinds, electrical appliances, audio and security systems. Smart homes connect all the devices and appliances in your home so they can communicate with each other and with you.

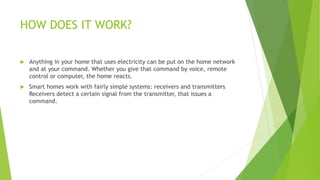

- 4. HOW DOES ITWORK? Anything in your home that uses electricity can be put on the home network and at your command. Whether you give that command by voice, remote control or computer, the home reacts. Smart homes work with fairly simple systems: receivers and transmitters Receivers detect a certain signal from the transmitter, that issues a command.
- 5.
- 6.

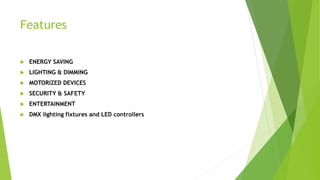

- 7. Features ENERGY SAVING LIGHTING & DIMMING MOTORIZED DEVICES SECURITY & SAFETY ENTERTAINMENT DMX lighting fixtures and LED controllers
- 8. ENERGY SAVING Withthe use of sensors you can minimize the usage of all room devices, lighting, HVAC , music, and also motorized shades to control sunlight emitted in room areas. Turning off lights at areas not dwelled, dimming lights in corridors and hallways, separating circuits creating energy saving moods.

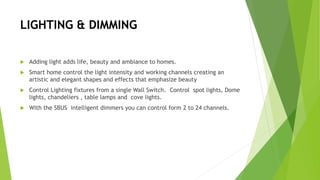

- 9. LIGHTING & DIMMING Adding light adds life, beauty and ambiance to homes. Smart home control the light intensity and working channels creating an artistic and elegant shapes and effects that emphasize beauty Control Lighting fixtures from a single Wall Switch. Control spot lights, Dome lights, chandeliers , table lamps and cove lights. With the SBUS intelligent dimmers you can control form 2 to 24 channels.

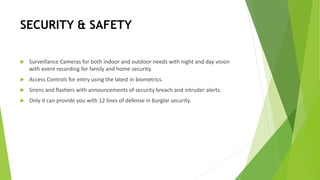

- 10. SECURITY & SAFETY Surveillance Cameras for both indoor and outdoor needs with night and day vision with event recording for family and home security. Access Controls for entry using the latest in biometrics. Sirens and flashers with announcements of security breach and intruder alerts. Only it can provide you with 12 lines of defense in burglar security.

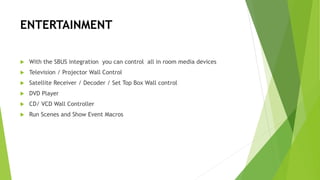

- 11. ENTERTAINMENT With theSBUS integration you can control all in room media devices Television / Projector Wall Control Satellite Receiver / Decoder / Set Top Box Wall control DVD Player CD/ VCD Wall Controller Run Scenes and Show Event Macros

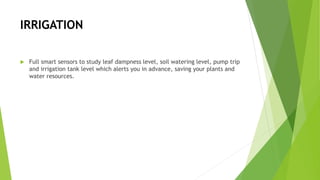

- 12. IRRIGATION Full smartsensors to study leaf dampness level, soil watering level, pump trip and irrigation tank level which alerts you in advance, saving your plants and water resources.

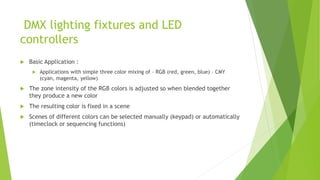

- 13. DMX lighting fixturesand LED controllers Basic Application : Applications with simple three color mixing of – RGB (red, green, blue) – CMY (cyan, magenta, yellow) The zone intensity of the RGB colors is adjusted so when blended together they produce a new color The resulting color is fixed in a scene Scenes of different colors can be selected manually (keypad) or automatically (timeclock or sequencing functions)
- 14.

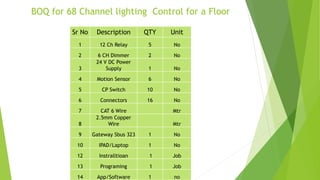

- 15. BOQ for 68Channel lighting Control for a Floor Sr No Description QTY Unit 1 12 Ch Relay 5 No 2 6 CH Dimmer 2 No 3 24 V DC Power Supply 1 No 4 Motion Sensor 6 No 5 CP Switch 10 No 6 Connectors 16 No 7 CAT 6 Wire Mtr 8 2.5mm Copper Wire Mtr 9 Gateway Sbus 323 1 No 10 IPAD/Laptop 1 No 12 Instralltioan 1 Job 13 Programing 1 Job 14 App/Software 1 no
