Building intelligence with
Smart Building Automation System (SBAS)
Application Note
Overview
This application note focuses on integration of the building
management systems/equipments with the surrounding built
environment for efficient energy management. The Smart
Building Automation System (SBAS) focuses on three main
areas:
:Energy Management and Sensors
:Security and Monitoring
:Actuators and Data logging
Smart BuildingAutomation System (SBAS)
Building intelligence starts with monitoring and controlling
information services known as Smart Building Automation System
(SBAS). Smart building automation project is an integrated
building solution system that facilitates lighting control, heating, air
conditioning (HVAC) and access control to share information and
strategies with an eye to reduce energy consumption, improve
energy efficiency management, provide value-added functionality
and make the building easier to operate. An integrated system can
not only increase energy and operational efficiency, but it can also
provide a level of occupant control unmatched by single-purpose,
non-integrated systems.

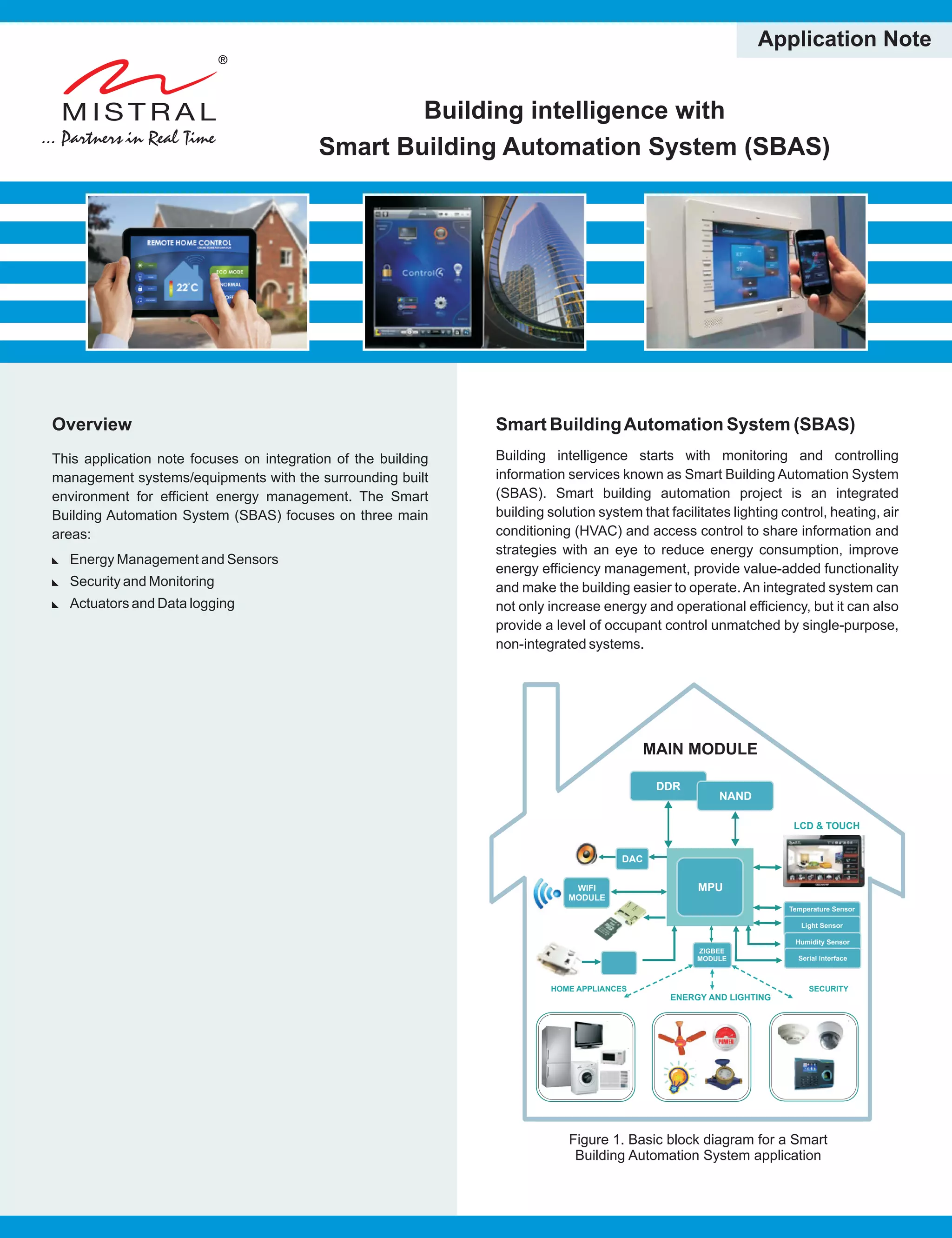

Figure 1.
Building Automation System application
Basic block diagram for a Smart
ENERGY AND LIGHTING
SECURITYHOME APPLIANCES
WIFI
MODULE
MODULE
BATTERY
POWER
SYSTEM
LCD & TOUCH
MAIN MODULE
DDR
NAND
MPU
DAC
WIFI
MODULE
Temperature Sensor
Light Sensor
Humidity Sensor
Serial Interface
ZIGBEE
MODULE
Intelligent building, with the use of automated control system
such as SBAS, enables both building owners and occupants to
enjoy the benefits of financial gain and enhance comfortable
accommodation/management quality.
SBASArchitecture
Building automation and control systems rely on many sensors and
actuators placed at different locations throughout a building.
Reducing the power consumption of a modern building requires
continuous monitoring of various environmental parameters inside
and outside the building. The key requirement for an efficient
monitoring and controlling is that all sensors and actuators are
addressable over the network.
SBAS includes a collection of sensors that determine the condition
or status of parameters to be controlled, such as lighting,
temperature, relative humidity, and pressure. An action based on
the sensor data received by the control unit is imparted to a device
like electric relays or damper and valve actuators via electronic
signals to activate physical action to control the devices.
In this application note, we will provide a design overview for the
SBAS Control Unit.
Key Specifications of SBAS Control Unit
Hardware
TI’sARM 32 Bit Cortex Processor
Flash Memory: 64MB for application and OS (Linux) Storage
SDRAM DDR3: 16-bit 128MB for application and OS
program execution
SRAM: 1MB for non-volatile parameter storage
12 BitADC (SAR) and DACs
Enhanced High-Resolution PWM Modules
VFD (Variable frequency drive for motor control)
Encoders
Signal Conditioning ICs
DC Relays (For ON/OFF Control)
Electrical Interfaces
Wi-Fi Built in module (WAN)
Zigbee Wireless built in module
2X 10/100/1000-TEthernet interfaces
6X UART(5 with h/w flow control)
RS-422/485 Interface for easy integration with gateways
4.-20Ma 2-wire interface (for flow sensors)
4 wire interface for stepper motor
Software
Diagnostics software for all the interfaces
X-Loader porting to custom platform
U-Boot porting to the custom platform
Kernel Porting to the custom platform
Testing the Linux port using custom testApplication
SNMPbased status monitoring
Event generation through e-mails/data logging
:
!
!
!
!
!
!
!
!
!
!
:
!
!
!
!
!
!
!
:
!
!
!
!
!
!
!
!
!
:
!
:
!
!
!
:
!
:
!
GUI application for data monitoring and statistical data
representations
System Integration andTesting.
Intelligent Features
The SBAS enables intelligent features such as:
Air flow control: When occupants in the room increase, the
thermostat will sense the increase in the room temperature.
Control unit will open its damper allowing more air to the room,
which will cause a drop in the duct static pressure sensed by the
duct static pressure sensor. In order to maintain the static pressure
in the duct, the SBAS activates the VSD to increase the fan speed
which builds up the duct pressure to the desire point.
Temperature and fan control system: When the control unit is
not functioning, the SBAS detects and communicates the ‘OFF’
status of the unit, thus shutting it down. For example, if the room
temperature is fixed at 25 degree Celsius, but the actual room
temperature is 27 degree Celsius, SBAS will open the chilled water
valve. Once the temperature falls below 25 degree Celsius, the
SBAS will shut the valve.
Lighting System: The Lighting System can be controlled using
motion and detection sensors that detect occupancy and motion.
On/Off switches can be configured based on pre-defined time
schedules. Daylight-linked automated response systems can also
be incorporated in to the system.
Benefits
Energy efficient and reduced cost
Increased energy efficiency can save a substantial amount
of costs by effectively controlling equipment use. In addition,
it is far easier to monitor aspects of the system for potential
problems or provide preventative maintenance
Streamlined operations management
Smart building automation greatly reduces operational
expenses and the hassle of installing and operating multiple
autonomous building systems
Managers and operators can view data from all over the
facility and make quick changes or provide preventative
maintenance
Lower installation costs and Lower failure rates and
downtime
Quick and effective service
Building Management can provide better services to
occupants and users. Accessing building systems via
remote makes it easier for facilities professionals to assess
real-time conditions, detect problems, and monitor building
performance off-site
Data accuracy and report generation
More accurate data monitoring and control of energy-
intensive systems like HVAC and lighting, and statistical
data report generation help keep costs in check
:
!
:
!
:
!
Customer attraction and retention
Smart buildings can demand above-market rents, have
lower vacancy rates, and can have reduced turnover
through higher customer service, added technologies, and
increased efficiency.
Environment friendly
Monitoring and control of energy use for the purpose of
reducing consumption defines a green building. While it may
be possible to have a green building that isn't smart, most
green buildings will have some form of a building automation
system (SBAS).
Product cost
The entire system comprises of a compact unit, integrated
interface and conferencing into a single device, which saves
on BoM and production cost for the customer
Summary
Mistral has the expertise in designing and developing Home
Automation Solutions that allows every point of a smart home to be
connected and controlled from a central or remote location.
Mistral’s team of engineers has the expertise of providing a variety
of power optimized, small footprint home automation solutions on
leading architecture and platforms. Mistral’s expertise in Home
automation designs includes
Customized ProductArchitecture
Hardware Design and Development
Software Design and Development
Application Design and Development
Product Certifications and Deployment
Support and Maintenance
Design Consultation and Review.
!
!
!
!
!
!
!
Figure 2. Smart Building Automation System
Data logging &
Event Generation
Central
control UnitLighting
Air conditioning &
Temperature Control
Energy
management
& Sensors
Actuators and
Data logging
Security and
Monitoring
Access Control
Monitoring
Camera
Ethernet
Smart Meter
Gateway
About Mistral
Mistral is a technology design and systems engineering company providing end-to-end solutions for product design
and application deployment. Mistral is focused in two business domains: Product Engineering Services and
Defense & Homeland Security. Mistral provides total solutions for a given requirement, which may include hardware
board design, embedded software development, FPGA design, systems integration and customized turnkey
solutions. Mistral's strategic partnerships with leading technology companies help provide customers with a
comprehensive package of end-to-end solutions.
Mistral's Product Engineering Services are delivered through a proven development process, designed for
embedded product development. Mistral's hardware and software team works together in a seamless manner
providing expert product designs covering board and FPGADesigns, BSP and Firmware developments, Embedded
Application developments, integration of 3rd party solutions, verification/validation, product prototyping, production
coordination and product sustenance services.
www.mistralsolutions.com
©Copyright 2014, Mistral Solutions Pvt. Ltd. All rights reserved. & ...Partners in Real Time are registered Trademarks and Logos of Mistral. All other
Trademarks and Tradenames are the property of the respective owners.
Mistral Solutions Pvt. Ltd.,
No.60, 'Adarsh Regent',
100 Ft. Ring Road,
Domlur Extension, Bangalore - 560 071
Tel: +91-80-3091-2600
Fax: +91-80-2535-6440
E-mail: info@mistralsolutions.com
Mistral Solutions Inc.,
4633 Old Ironsides Drive,
Suite 410, Santa Clara,
CA 95054
Tel: +1-408-705-2240
Fax: +1-408-987-9665
E-mail: usa@mistralsolutions.com
Branch Offices:
INDIA
! Hyderabad
! New Delhi
USA
! Dallas, Texas

More Related Content

What's hot

Building Management System BMS Introduction
Building Management System BMS  IntroductionBuilding Management System BMS  Introduction
Building Management System BMS Introduction
GAUTAM KOPPALA (JORGE)

Building utilities
Building utilitiesBuilding utilities
Building utilities
Ramos Ricarte

Intelligent building library study
Intelligent building library studyIntelligent building library study
Intelligent building library study
Archistudent Portal

Building management system
Building management systemBuilding management system
Building management system
charan malyala

Optimizing Building Performance with Building Management Systems (BMS): Benef...
Optimizing Building Performance with Building Management Systems (BMS): Benef...Optimizing Building Performance with Building Management Systems (BMS): Benef...
Optimizing Building Performance with Building Management Systems (BMS): Benef...
Ashraf El Desoky

Building automation & controls
Building automation & controlsBuilding automation & controls
Building automation & controls
Illinois ASHRAE

Electrical services
Electrical servicesElectrical services
Electrical services
RIDDHESH VARIK

Sensors and Analytics for Smart Buildings
Sensors and Analytics for Smart BuildingsSensors and Analytics for Smart Buildings
Sensors and Analytics for Smart Buildings
Dawn John Mullassery

Forms and materials for speedy construction
Forms and materials for speedy constructionForms and materials for speedy construction
Forms and materials for speedy construction
Mudassir khan

ECBC Training_08-Compliance
ECBC Training_08-ComplianceECBC Training_08-Compliance
ECBC Training_08-Compliance
Mathangi Ramakrishnan

Building management system (bms)
Building management system (bms)Building management system (bms)
Building management system (bms)
AHMED NADIM JILANI

Smart buildings powerpoint, the future of sustainability. Building services
Smart buildings powerpoint, the future of sustainability. Building services Smart buildings powerpoint, the future of sustainability. Building services
Smart buildings powerpoint, the future of sustainability. Building services
PatricNgotho

Fundamentals of Practical Building Automation Systems
Fundamentals of Practical Building Automation SystemsFundamentals of Practical Building Automation Systems
Fundamentals of Practical Building Automation Systems
Living Online

Passive cooling-techniques
Passive cooling-techniquesPassive cooling-techniques
Passive cooling-techniques
padamatikona swapnika

Building Services Engg. (Electrical installations)
Building Services Engg. (Electrical installations)Building Services Engg. (Electrical installations)
Building Services Engg. (Electrical installations)
Ritesh Ambadkar

Building automation
Building automationBuilding automation
Building automation
Ketan Nayak

Building envlope
Building envlopeBuilding envlope
Building envlope
Anant Nautiyal

Intelligent Building (Dayabumi Complex)
Intelligent Building (Dayabumi Complex)Intelligent Building (Dayabumi Complex)
Intelligent Building (Dayabumi Complex)
Ridhwan Zakaria

Bms overview
Bms overviewBms overview
Bms overview
atteyanageeb

Bms for security systems
Bms for security systemsBms for security systems
Bms for security systems
Vinod Kumar Nehta


What's hot (20)

Building Management System BMS Introduction
Building Management System BMS  IntroductionBuilding Management System BMS  Introduction
Building Management System BMS Introduction

Building utilities
Building utilitiesBuilding utilities
Building utilities

Intelligent building library study
Intelligent building library studyIntelligent building library study
Intelligent building library study

Building management system
Building management systemBuilding management system
Building management system

Optimizing Building Performance with Building Management Systems (BMS): Benef...
Optimizing Building Performance with Building Management Systems (BMS): Benef...Optimizing Building Performance with Building Management Systems (BMS): Benef...
Optimizing Building Performance with Building Management Systems (BMS): Benef...

Building automation & controls
Building automation & controlsBuilding automation & controls
Building automation & controls

Electrical services
Electrical servicesElectrical services
Electrical services

Sensors and Analytics for Smart Buildings
Sensors and Analytics for Smart BuildingsSensors and Analytics for Smart Buildings
Sensors and Analytics for Smart Buildings

Forms and materials for speedy construction
Forms and materials for speedy constructionForms and materials for speedy construction
Forms and materials for speedy construction

ECBC Training_08-Compliance
ECBC Training_08-ComplianceECBC Training_08-Compliance
ECBC Training_08-Compliance

Building management system (bms)
Building management system (bms)Building management system (bms)
Building management system (bms)

Smart buildings powerpoint, the future of sustainability. Building services
Smart buildings powerpoint, the future of sustainability. Building services Smart buildings powerpoint, the future of sustainability. Building services
Smart buildings powerpoint, the future of sustainability. Building services

Fundamentals of Practical Building Automation Systems
Fundamentals of Practical Building Automation SystemsFundamentals of Practical Building Automation Systems
Fundamentals of Practical Building Automation Systems

Passive cooling-techniques
Passive cooling-techniquesPassive cooling-techniques
Passive cooling-techniques

Building Services Engg. (Electrical installations)
Building Services Engg. (Electrical installations)Building Services Engg. (Electrical installations)
Building Services Engg. (Electrical installations)

Building automation
Building automationBuilding automation
Building automation

Building envlope
Building envlopeBuilding envlope
Building envlope

Intelligent Building (Dayabumi Complex)
Intelligent Building (Dayabumi Complex)Intelligent Building (Dayabumi Complex)
Intelligent Building (Dayabumi Complex)

Bms overview
Bms overviewBms overview
Bms overview

Bms for security systems
Bms for security systemsBms for security systems
Bms for security systems


Similar to Building intelligence with Smart Building Automation System (SBAS)

Building management system from link vue system
Building management system  from link vue systemBuilding management system  from link vue system
Building management system from link vue system
Mahesh Chandra Manav

Dcs vs scada
Dcs vs scadaDcs vs scada
Dcs vs scada
Sayed Qaisar Shah

Wired-wireless or both - Presented by Ross Eberlin
Wired-wireless or both - Presented by Ross EberlinWired-wireless or both - Presented by Ross Eberlin
Wired-wireless or both - Presented by Ross Eberlin
Cindy Foster-Warthen

BUILDING AUTOMATION.pdf
BUILDING AUTOMATION.pdfBUILDING AUTOMATION.pdf
BUILDING AUTOMATION.pdf
veertasingh1

BMS-System
BMS-SystemBMS-System
BMS-System
Ali Shojaei

IO-Summary-for-IBMS-Service.pdf
IO-Summary-for-IBMS-Service.pdfIO-Summary-for-IBMS-Service.pdf
IO-Summary-for-IBMS-Service.pdf
Prasanna Venkatesan

Design and simulation of remote monitoring of the intelligent automatic contr...
Design and simulation of remote monitoring of the intelligent automatic contr...Design and simulation of remote monitoring of the intelligent automatic contr...
Design and simulation of remote monitoring of the intelligent automatic contr...
IAESIJAI

Ia Ems
Ia EmsIa Ems
Asset Insight Manager Introduction 2014 (2)
Asset Insight Manager Introduction 2014 (2)Asset Insight Manager Introduction 2014 (2)
Asset Insight Manager Introduction 2014 (2)
Dean Bishop

Sentron datasheet final 042610
Sentron datasheet final 042610Sentron datasheet final 042610
Sentron datasheet final 042610
logenatech

IRJET- Building Management System and its Network Design
IRJET- Building Management System and its Network DesignIRJET- Building Management System and its Network Design
IRJET- Building Management System and its Network Design
IRJET Journal

Overview of IoT/M2M Capability
Overview of IoT/M2M CapabilityOverview of IoT/M2M Capability
Overview of IoT/M2M Capability
ALTEN Calsoft Labs

Scada for remote industrial plant
Scada for remote industrial plant Scada for remote industrial plant
Scada for remote industrial plant
Edgefxkits & Solutions

VIBRATION AND POWER ANALYZER By Zreyas Technology Private Limited
VIBRATION AND POWER ANALYZER By Zreyas Technology Private LimitedVIBRATION AND POWER ANALYZER By Zreyas Technology Private Limited
VIBRATION AND POWER ANALYZER By Zreyas Technology Private Limited
IndiaMART InterMESH Limited

CHILLER PLANT MANAGER
CHILLER PLANT MANAGERCHILLER PLANT MANAGER
CHILLER PLANT MANAGER
Swapnil Pangarkar

SCADA (Supervisory Control & data Acquisation) PPT
SCADA (Supervisory Control & data Acquisation) PPTSCADA (Supervisory Control & data Acquisation) PPT
SCADA (Supervisory Control & data Acquisation) PPT
DeepeshK4

Company profile solar
Company profile solarCompany profile solar
Dc
DcDc
Dc
rkonte

Scada in hydropower plant
Scada  in  hydropower plantScada  in  hydropower plant
Scada in hydropower plant
Indian Institute of Technology Delhi

Scada in hydropower plant
Scada in  hydropower plantScada in  hydropower plant
Scada in hydropower plant
Indian Institute of Technology Delhi


Similar to Building intelligence with Smart Building Automation System (SBAS) (20)

Building management system from link vue system
Building management system  from link vue systemBuilding management system  from link vue system
Building management system from link vue system

Dcs vs scada
Dcs vs scadaDcs vs scada
Dcs vs scada

Wired-wireless or both - Presented by Ross Eberlin
Wired-wireless or both - Presented by Ross EberlinWired-wireless or both - Presented by Ross Eberlin
Wired-wireless or both - Presented by Ross Eberlin

BUILDING AUTOMATION.pdf
BUILDING AUTOMATION.pdfBUILDING AUTOMATION.pdf
BUILDING AUTOMATION.pdf

BMS-System
BMS-SystemBMS-System
BMS-System

IO-Summary-for-IBMS-Service.pdf
IO-Summary-for-IBMS-Service.pdfIO-Summary-for-IBMS-Service.pdf
IO-Summary-for-IBMS-Service.pdf

Design and simulation of remote monitoring of the intelligent automatic contr...
Design and simulation of remote monitoring of the intelligent automatic contr...Design and simulation of remote monitoring of the intelligent automatic contr...
Design and simulation of remote monitoring of the intelligent automatic contr...

Ia Ems
Ia EmsIa Ems
Ia Ems

Asset Insight Manager Introduction 2014 (2)
Asset Insight Manager Introduction 2014 (2)Asset Insight Manager Introduction 2014 (2)
Asset Insight Manager Introduction 2014 (2)

Sentron datasheet final 042610
Sentron datasheet final 042610Sentron datasheet final 042610
Sentron datasheet final 042610

IRJET- Building Management System and its Network Design
IRJET- Building Management System and its Network DesignIRJET- Building Management System and its Network Design
IRJET- Building Management System and its Network Design

Overview of IoT/M2M Capability
Overview of IoT/M2M CapabilityOverview of IoT/M2M Capability
Overview of IoT/M2M Capability

Scada for remote industrial plant
Scada for remote industrial plant Scada for remote industrial plant
Scada for remote industrial plant

VIBRATION AND POWER ANALYZER By Zreyas Technology Private Limited
VIBRATION AND POWER ANALYZER By Zreyas Technology Private LimitedVIBRATION AND POWER ANALYZER By Zreyas Technology Private Limited
VIBRATION AND POWER ANALYZER By Zreyas Technology Private Limited

CHILLER PLANT MANAGER
CHILLER PLANT MANAGERCHILLER PLANT MANAGER
CHILLER PLANT MANAGER

SCADA (Supervisory Control & data Acquisation) PPT
SCADA (Supervisory Control & data Acquisation) PPTSCADA (Supervisory Control & data Acquisation) PPT
SCADA (Supervisory Control & data Acquisation) PPT

Company profile solar
Company profile solarCompany profile solar
Company profile solar

Dc
DcDc
Dc

Scada in hydropower plant
Scada  in  hydropower plantScada  in  hydropower plant
Scada in hydropower plant

Scada in hydropower plant
Scada in  hydropower plantScada in  hydropower plant
Scada in hydropower plant


More from Mistral Solutions

Field Dominance Algorithm
Field Dominance AlgorithmField Dominance Algorithm
Field Dominance Algorithm
Mistral Solutions

An infographic from Mistral explaining Semiconductors
An infographic from Mistral explaining SemiconductorsAn infographic from Mistral explaining Semiconductors
An infographic from Mistral explaining Semiconductors
Mistral Solutions

SMARC Development Kit
SMARC Development KitSMARC Development Kit
SMARC Development Kit
Mistral Solutions

Satellite based SCADA systems
Satellite based SCADA systemsSatellite based SCADA systems
Satellite based SCADA systems
Mistral Solutions

AM437x Application board
AM437x Application boardAM437x Application board
AM437x Application board
Mistral Solutions

SMARC module
SMARC moduleSMARC module
SMARC module
Mistral Solutions

Interfacing a Thermal Printer using an AM437x PoM
Interfacing a Thermal Printer using an AM437x PoMInterfacing a Thermal Printer using an AM437x PoM
Interfacing a Thermal Printer using an AM437x PoM
Mistral Solutions

IoT based Industrial Gateway (IoT-SDK) built around Sitara™ AM437x processors...
IoT based Industrial Gateway (IoT-SDK) built around Sitara™ AM437x processors...IoT based Industrial Gateway (IoT-SDK) built around Sitara™ AM437x processors...
IoT based Industrial Gateway (IoT-SDK) built around Sitara™ AM437x processors...
Mistral Solutions

Designing a Product on Module for Health and Wellness Applications
Designing a Product on Module for Health and Wellness ApplicationsDesigning a Product on Module for Health and Wellness Applications
Designing a Product on Module for Health and Wellness Applications
Mistral Solutions

iOS Application Development for Drones
iOS Application Development for DronesiOS Application Development for Drones
iOS Application Development for Drones
Mistral Solutions

Hardware Software Co-Design - White Paper
Hardware Software Co-Design - White PaperHardware Software Co-Design - White Paper
Hardware Software Co-Design - White Paper
Mistral Solutions

India Needs an OEM Evolution
India Needs an OEM EvolutionIndia Needs an OEM Evolution
India Needs an OEM Evolution
Mistral Solutions

RTM Break Out Card - Datasheet
RTM Break Out Card - DatasheetRTM Break Out Card - Datasheet
RTM Break Out Card - Datasheet
Mistral Solutions

Power Spikes Isolation to avoid corruption within sensitive ICs Solutions
Power Spikes Isolation to avoid corruption within sensitive ICs SolutionsPower Spikes Isolation to avoid corruption within sensitive ICs Solutions
Power Spikes Isolation to avoid corruption within sensitive ICs Solutions
Mistral Solutions

Algorithm for Lossy Image Compression using FPGA
Algorithm for Lossy Image Compression using FPGAAlgorithm for Lossy Image Compression using FPGA
Algorithm for Lossy Image Compression using FPGA
Mistral Solutions

High-Definition Rugged DVR - Case Study
High-Definition Rugged DVR - Case StudyHigh-Definition Rugged DVR - Case Study
High-Definition Rugged DVR - Case Study
Mistral Solutions

Customized SoC for Industrial Automation Markets
Customized SoC for Industrial Automation MarketsCustomized SoC for Industrial Automation Markets
Customized SoC for Industrial Automation Markets
Mistral Solutions

The Amazing World of Infotainment
The Amazing World of InfotainmentThe Amazing World of Infotainment
The Amazing World of Infotainment
Mistral Solutions

Assistive technology
Assistive technologyAssistive technology
Assistive technology
Mistral Solutions

Infographic - Sonar Subsystems
Infographic - Sonar Subsystems Infographic - Sonar Subsystems
Infographic - Sonar Subsystems
Mistral Solutions


More from Mistral Solutions (20)

Field Dominance Algorithm
Field Dominance AlgorithmField Dominance Algorithm
Field Dominance Algorithm

An infographic from Mistral explaining Semiconductors
An infographic from Mistral explaining SemiconductorsAn infographic from Mistral explaining Semiconductors
An infographic from Mistral explaining Semiconductors

SMARC Development Kit
SMARC Development KitSMARC Development Kit
SMARC Development Kit

Satellite based SCADA systems
Satellite based SCADA systemsSatellite based SCADA systems
Satellite based SCADA systems

AM437x Application board
AM437x Application boardAM437x Application board
AM437x Application board

SMARC module
SMARC moduleSMARC module
SMARC module

Interfacing a Thermal Printer using an AM437x PoM
Interfacing a Thermal Printer using an AM437x PoMInterfacing a Thermal Printer using an AM437x PoM
Interfacing a Thermal Printer using an AM437x PoM

IoT based Industrial Gateway (IoT-SDK) built around Sitara™ AM437x processors...
IoT based Industrial Gateway (IoT-SDK) built around Sitara™ AM437x processors...IoT based Industrial Gateway (IoT-SDK) built around Sitara™ AM437x processors...
IoT based Industrial Gateway (IoT-SDK) built around Sitara™ AM437x processors...

Designing a Product on Module for Health and Wellness Applications
Designing a Product on Module for Health and Wellness ApplicationsDesigning a Product on Module for Health and Wellness Applications
Designing a Product on Module for Health and Wellness Applications

iOS Application Development for Drones
iOS Application Development for DronesiOS Application Development for Drones
iOS Application Development for Drones

Hardware Software Co-Design - White Paper
Hardware Software Co-Design - White PaperHardware Software Co-Design - White Paper
Hardware Software Co-Design - White Paper

India Needs an OEM Evolution
India Needs an OEM EvolutionIndia Needs an OEM Evolution
India Needs an OEM Evolution

RTM Break Out Card - Datasheet
RTM Break Out Card - DatasheetRTM Break Out Card - Datasheet
RTM Break Out Card - Datasheet

Power Spikes Isolation to avoid corruption within sensitive ICs Solutions
Power Spikes Isolation to avoid corruption within sensitive ICs SolutionsPower Spikes Isolation to avoid corruption within sensitive ICs Solutions
Power Spikes Isolation to avoid corruption within sensitive ICs Solutions

Algorithm for Lossy Image Compression using FPGA
Algorithm for Lossy Image Compression using FPGAAlgorithm for Lossy Image Compression using FPGA
Algorithm for Lossy Image Compression using FPGA

High-Definition Rugged DVR - Case Study
High-Definition Rugged DVR - Case StudyHigh-Definition Rugged DVR - Case Study
High-Definition Rugged DVR - Case Study

Customized SoC for Industrial Automation Markets
Customized SoC for Industrial Automation MarketsCustomized SoC for Industrial Automation Markets
Customized SoC for Industrial Automation Markets

The Amazing World of Infotainment
The Amazing World of InfotainmentThe Amazing World of Infotainment
The Amazing World of Infotainment

Assistive technology
Assistive technologyAssistive technology
Assistive technology

Infographic - Sonar Subsystems
Infographic - Sonar Subsystems Infographic - Sonar Subsystems
Infographic - Sonar Subsystems


Recently uploaded

Software Engineering and Project Management - Introduction to Project Management
Software Engineering and Project Management - Introduction to Project ManagementSoftware Engineering and Project Management - Introduction to Project Management
Software Engineering and Project Management - Introduction to Project Management
Prakhyath Rai

IS Code SP 23: Handbook on concrete mixes
IS Code SP 23: Handbook  on concrete mixesIS Code SP 23: Handbook  on concrete mixes
IS Code SP 23: Handbook on concrete mixes
Mani Krishna Sarkar

Time-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 TalkTime-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 Talk
Evan Chan

PMSM-Motor-Control : A research about FOC
PMSM-Motor-Control : A research about FOCPMSM-Motor-Control : A research about FOC
PMSM-Motor-Control : A research about FOC
itssurajthakur06

Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
IJAEMSJORNAL

CONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY ppt
CONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY pptCONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY ppt
CONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY ppt
ASHOK KUMAR SINGH

UNIT I INCEPTION OF INFORMATION DESIGN 20CDE09-ID
UNIT I INCEPTION OF INFORMATION DESIGN 20CDE09-IDUNIT I INCEPTION OF INFORMATION DESIGN 20CDE09-ID
UNIT I INCEPTION OF INFORMATION DESIGN 20CDE09-ID
GOWSIKRAJA PALANISAMY

IWISS Catalog 2024
IWISS Catalog 2024IWISS Catalog 2024
IWISS Catalog 2024
Iwiss Tools Co.,Ltd

Vernier Caliper and How to use Vernier Caliper.ppsx
Vernier Caliper and How to use Vernier Caliper.ppsxVernier Caliper and How to use Vernier Caliper.ppsx
Vernier Caliper and How to use Vernier Caliper.ppsx
Tool and Die Tech

21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
PradeepKumarSK3

STC-TRS-Conventional traction report-01.pdf
STC-TRS-Conventional traction report-01.pdfSTC-TRS-Conventional traction report-01.pdf
STC-TRS-Conventional traction report-01.pdf
BalasubramanianGurun1

6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
doner6

Lecture 3 Biomass energy...............ppt
Lecture 3 Biomass energy...............pptLecture 3 Biomass energy...............ppt
Lecture 3 Biomass energy...............ppt
RujanTimsina1

Unit 1 Information Storage and Retrieval
Unit 1 Information Storage and RetrievalUnit 1 Information Storage and Retrieval
Unit 1 Information Storage and Retrieval
KishorMahale5

Stiffness Method for structure analysis - Truss
Stiffness Method  for structure analysis - TrussStiffness Method  for structure analysis - Truss
Stiffness Method for structure analysis - Truss
adninhaerul

OSHA LOTO training, LOTO, lock out tag out
OSHA LOTO training, LOTO, lock out tag outOSHA LOTO training, LOTO, lock out tag out
OSHA LOTO training, LOTO, lock out tag out
Ateeb19

Benefits of Studying Artificial Intelligence - KRCE.pptx
Benefits of Studying Artificial Intelligence - KRCE.pptxBenefits of Studying Artificial Intelligence - KRCE.pptx
Benefits of Studying Artificial Intelligence - KRCE.pptx
krceseo

Introduction to IP address concept - Computer Networking
Introduction to IP address concept - Computer NetworkingIntroduction to IP address concept - Computer Networking
Introduction to IP address concept - Computer Networking
Md.Shohel Rana ( M.Sc in CSE Khulna University of Engineering & Technology (KUET))

Jet Propulsion and its working principle.pdf
Jet Propulsion and its working principle.pdfJet Propulsion and its working principle.pdf
Jet Propulsion and its working principle.pdf
KIET Group of Institutions

Germany Offshore Wind 010724 RE (1) 2 test.pptx
Germany Offshore Wind 010724 RE (1) 2 test.pptxGermany Offshore Wind 010724 RE (1) 2 test.pptx
Germany Offshore Wind 010724 RE (1) 2 test.pptx
rebecca841358


Recently uploaded (20)

Software Engineering and Project Management - Introduction to Project Management
Software Engineering and Project Management - Introduction to Project ManagementSoftware Engineering and Project Management - Introduction to Project Management
Software Engineering and Project Management - Introduction to Project Management

IS Code SP 23: Handbook on concrete mixes
IS Code SP 23: Handbook  on concrete mixesIS Code SP 23: Handbook  on concrete mixes
IS Code SP 23: Handbook on concrete mixes

Time-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 TalkTime-State Analytics: MinneAnalytics 2024 Talk
Time-State Analytics: MinneAnalytics 2024 Talk

PMSM-Motor-Control : A research about FOC
PMSM-Motor-Control : A research about FOCPMSM-Motor-Control : A research about FOC
PMSM-Motor-Control : A research about FOC

Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...
Profiling of Cafe Business in Talavera, Nueva Ecija: A Basis for Development ...

CONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY ppt
CONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY pptCONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY ppt
CONFINED SPACE ENTRY TRAINING FOR OIL INDUSTRY ppt

UNIT I INCEPTION OF INFORMATION DESIGN 20CDE09-ID
UNIT I INCEPTION OF INFORMATION DESIGN 20CDE09-IDUNIT I INCEPTION OF INFORMATION DESIGN 20CDE09-ID
UNIT I INCEPTION OF INFORMATION DESIGN 20CDE09-ID

IWISS Catalog 2024
IWISS Catalog 2024IWISS Catalog 2024
IWISS Catalog 2024

Vernier Caliper and How to use Vernier Caliper.ppsx
Vernier Caliper and How to use Vernier Caliper.ppsxVernier Caliper and How to use Vernier Caliper.ppsx
Vernier Caliper and How to use Vernier Caliper.ppsx

21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY
21EC63_Module1B.pptx VLSI design 21ec63 MOS TRANSISTOR THEORY

STC-TRS-Conventional traction report-01.pdf
STC-TRS-Conventional traction report-01.pdfSTC-TRS-Conventional traction report-01.pdf
STC-TRS-Conventional traction report-01.pdf

6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES
6G TECHNOLOGY:REVOTION FROM 1G TO 6G AND ADVANTAGES-DISADVANTAGES

Lecture 3 Biomass energy...............ppt
Lecture 3 Biomass energy...............pptLecture 3 Biomass energy...............ppt
Lecture 3 Biomass energy...............ppt

Unit 1 Information Storage and Retrieval
Unit 1 Information Storage and RetrievalUnit 1 Information Storage and Retrieval
Unit 1 Information Storage and Retrieval

Stiffness Method for structure analysis - Truss
Stiffness Method  for structure analysis - TrussStiffness Method  for structure analysis - Truss
Stiffness Method for structure analysis - Truss

OSHA LOTO training, LOTO, lock out tag out
OSHA LOTO training, LOTO, lock out tag outOSHA LOTO training, LOTO, lock out tag out
OSHA LOTO training, LOTO, lock out tag out

Benefits of Studying Artificial Intelligence - KRCE.pptx
Benefits of Studying Artificial Intelligence - KRCE.pptxBenefits of Studying Artificial Intelligence - KRCE.pptx
Benefits of Studying Artificial Intelligence - KRCE.pptx

Introduction to IP address concept - Computer Networking
Introduction to IP address concept - Computer NetworkingIntroduction to IP address concept - Computer Networking
Introduction to IP address concept - Computer Networking

Jet Propulsion and its working principle.pdf
Jet Propulsion and its working principle.pdfJet Propulsion and its working principle.pdf
Jet Propulsion and its working principle.pdf

Germany Offshore Wind 010724 RE (1) 2 test.pptx
Germany Offshore Wind 010724 RE (1) 2 test.pptxGermany Offshore Wind 010724 RE (1) 2 test.pptx
Germany Offshore Wind 010724 RE (1) 2 test.pptx


Building intelligence with Smart Building Automation System (SBAS)

  • 1. Building intelligence with Smart Building Automation System (SBAS) Application Note Overview This application note focuses on integration of the building management systems/equipments with the surrounding built environment for efficient energy management. The Smart Building Automation System (SBAS) focuses on three main areas: :Energy Management and Sensors :Security and Monitoring :Actuators and Data logging Smart BuildingAutomation System (SBAS) Building intelligence starts with monitoring and controlling information services known as Smart Building Automation System (SBAS). Smart building automation project is an integrated building solution system that facilitates lighting control, heating, air conditioning (HVAC) and access control to share information and strategies with an eye to reduce energy consumption, improve energy efficiency management, provide value-added functionality and make the building easier to operate. An integrated system can not only increase energy and operational efficiency, but it can also provide a level of occupant control unmatched by single-purpose, non-integrated systems. Figure 1. Building Automation System application Basic block diagram for a Smart ENERGY AND LIGHTING SECURITYHOME APPLIANCES WIFI MODULE MODULE BATTERY POWER SYSTEM LCD & TOUCH MAIN MODULE DDR NAND MPU DAC WIFI MODULE Temperature Sensor Light Sensor Humidity Sensor Serial Interface ZIGBEE MODULE

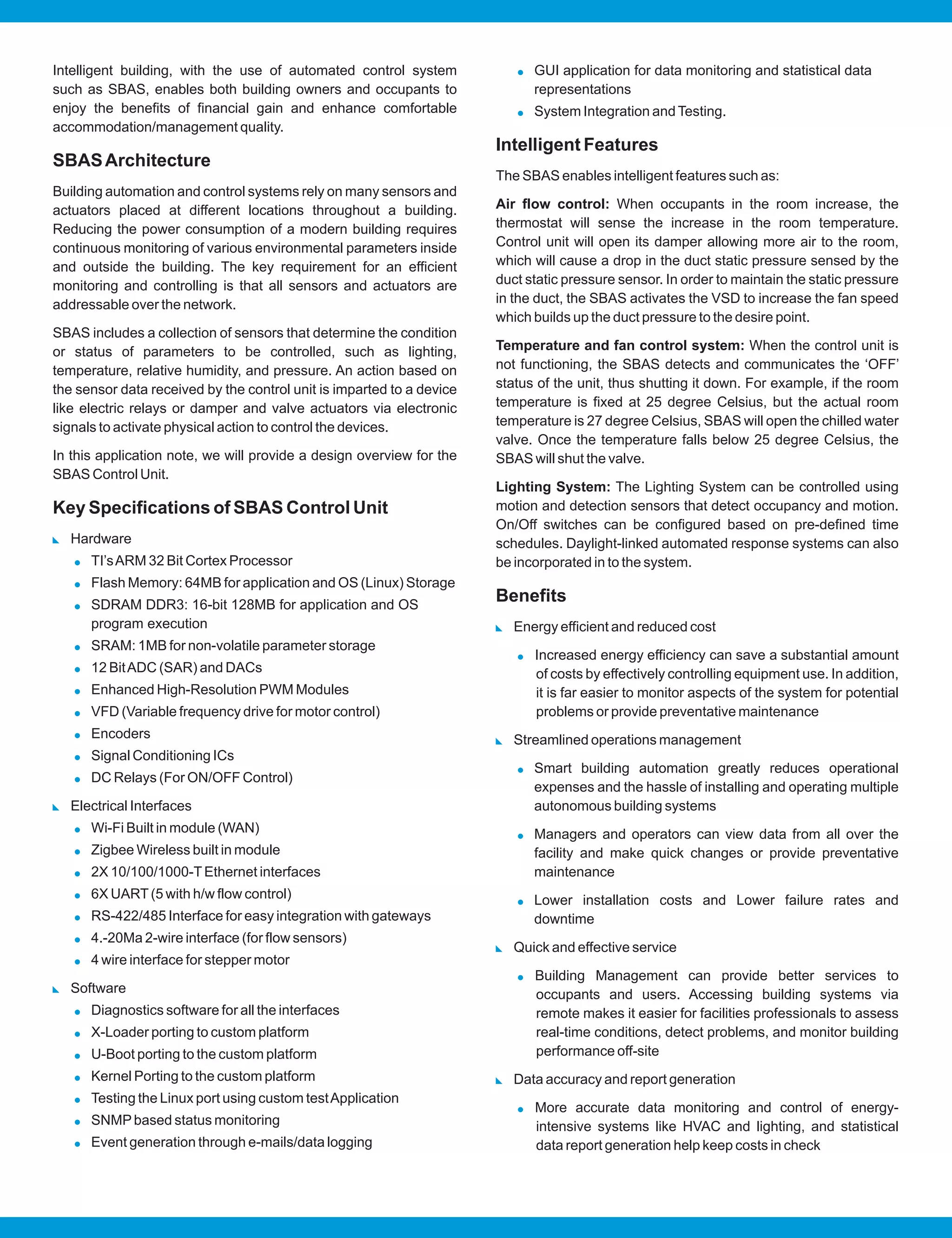

  • 2. Intelligent building, with the use of automated control system such as SBAS, enables both building owners and occupants to enjoy the benefits of financial gain and enhance comfortable accommodation/management quality. SBASArchitecture Building automation and control systems rely on many sensors and actuators placed at different locations throughout a building. Reducing the power consumption of a modern building requires continuous monitoring of various environmental parameters inside and outside the building. The key requirement for an efficient monitoring and controlling is that all sensors and actuators are addressable over the network. SBAS includes a collection of sensors that determine the condition or status of parameters to be controlled, such as lighting, temperature, relative humidity, and pressure. An action based on the sensor data received by the control unit is imparted to a device like electric relays or damper and valve actuators via electronic signals to activate physical action to control the devices. In this application note, we will provide a design overview for the SBAS Control Unit. Key Specifications of SBAS Control Unit Hardware TI’sARM 32 Bit Cortex Processor Flash Memory: 64MB for application and OS (Linux) Storage SDRAM DDR3: 16-bit 128MB for application and OS program execution SRAM: 1MB for non-volatile parameter storage 12 BitADC (SAR) and DACs Enhanced High-Resolution PWM Modules VFD (Variable frequency drive for motor control) Encoders Signal Conditioning ICs DC Relays (For ON/OFF Control) Electrical Interfaces Wi-Fi Built in module (WAN) Zigbee Wireless built in module 2X 10/100/1000-TEthernet interfaces 6X UART(5 with h/w flow control) RS-422/485 Interface for easy integration with gateways 4.-20Ma 2-wire interface (for flow sensors) 4 wire interface for stepper motor Software Diagnostics software for all the interfaces X-Loader porting to custom platform U-Boot porting to the custom platform Kernel Porting to the custom platform Testing the Linux port using custom testApplication SNMPbased status monitoring Event generation through e-mails/data logging : ! ! ! ! ! ! ! ! ! ! : ! ! ! ! ! ! ! : ! ! ! ! ! ! ! ! ! : ! : ! ! ! : ! : ! GUI application for data monitoring and statistical data representations System Integration andTesting. Intelligent Features The SBAS enables intelligent features such as: Air flow control: When occupants in the room increase, the thermostat will sense the increase in the room temperature. Control unit will open its damper allowing more air to the room, which will cause a drop in the duct static pressure sensed by the duct static pressure sensor. In order to maintain the static pressure in the duct, the SBAS activates the VSD to increase the fan speed which builds up the duct pressure to the desire point. Temperature and fan control system: When the control unit is not functioning, the SBAS detects and communicates the ‘OFF’ status of the unit, thus shutting it down. For example, if the room temperature is fixed at 25 degree Celsius, but the actual room temperature is 27 degree Celsius, SBAS will open the chilled water valve. Once the temperature falls below 25 degree Celsius, the SBAS will shut the valve. Lighting System: The Lighting System can be controlled using motion and detection sensors that detect occupancy and motion. On/Off switches can be configured based on pre-defined time schedules. Daylight-linked automated response systems can also be incorporated in to the system. Benefits Energy efficient and reduced cost Increased energy efficiency can save a substantial amount of costs by effectively controlling equipment use. In addition, it is far easier to monitor aspects of the system for potential problems or provide preventative maintenance Streamlined operations management Smart building automation greatly reduces operational expenses and the hassle of installing and operating multiple autonomous building systems Managers and operators can view data from all over the facility and make quick changes or provide preventative maintenance Lower installation costs and Lower failure rates and downtime Quick and effective service Building Management can provide better services to occupants and users. Accessing building systems via remote makes it easier for facilities professionals to assess real-time conditions, detect problems, and monitor building performance off-site Data accuracy and report generation More accurate data monitoring and control of energy- intensive systems like HVAC and lighting, and statistical data report generation help keep costs in check
  • 3. : ! : ! : ! Customer attraction and retention Smart buildings can demand above-market rents, have lower vacancy rates, and can have reduced turnover through higher customer service, added technologies, and increased efficiency. Environment friendly Monitoring and control of energy use for the purpose of reducing consumption defines a green building. While it may be possible to have a green building that isn't smart, most green buildings will have some form of a building automation system (SBAS). Product cost The entire system comprises of a compact unit, integrated interface and conferencing into a single device, which saves on BoM and production cost for the customer Summary Mistral has the expertise in designing and developing Home Automation Solutions that allows every point of a smart home to be connected and controlled from a central or remote location. Mistral’s team of engineers has the expertise of providing a variety of power optimized, small footprint home automation solutions on leading architecture and platforms. Mistral’s expertise in Home automation designs includes Customized ProductArchitecture Hardware Design and Development Software Design and Development Application Design and Development Product Certifications and Deployment Support and Maintenance Design Consultation and Review. ! ! ! ! ! ! ! Figure 2. Smart Building Automation System Data logging & Event Generation Central control UnitLighting Air conditioning & Temperature Control Energy management & Sensors Actuators and Data logging Security and Monitoring Access Control Monitoring Camera Ethernet Smart Meter Gateway
  • 4. About Mistral Mistral is a technology design and systems engineering company providing end-to-end solutions for product design and application deployment. Mistral is focused in two business domains: Product Engineering Services and Defense & Homeland Security. Mistral provides total solutions for a given requirement, which may include hardware board design, embedded software development, FPGA design, systems integration and customized turnkey solutions. Mistral's strategic partnerships with leading technology companies help provide customers with a comprehensive package of end-to-end solutions. Mistral's Product Engineering Services are delivered through a proven development process, designed for embedded product development. Mistral's hardware and software team works together in a seamless manner providing expert product designs covering board and FPGADesigns, BSP and Firmware developments, Embedded Application developments, integration of 3rd party solutions, verification/validation, product prototyping, production coordination and product sustenance services. www.mistralsolutions.com ©Copyright 2014, Mistral Solutions Pvt. Ltd. All rights reserved. & ...Partners in Real Time are registered Trademarks and Logos of Mistral. All other Trademarks and Tradenames are the property of the respective owners. Mistral Solutions Pvt. Ltd., No.60, 'Adarsh Regent', 100 Ft. Ring Road, Domlur Extension, Bangalore - 560 071 Tel: +91-80-3091-2600 Fax: +91-80-2535-6440 E-mail: info@mistralsolutions.com Mistral Solutions Inc., 4633 Old Ironsides Drive, Suite 410, Santa Clara, CA 95054 Tel: +1-408-705-2240 Fax: +1-408-987-9665 E-mail: usa@mistralsolutions.com Branch Offices: INDIA ! Hyderabad ! New Delhi USA ! Dallas, Texas
