1. SKELETAL DYSPLASIAS
Moderator : Dr SANJU
(assistant professor )
Presentation by
Dr Navya ,PGY2
Department of radiodiagnosis
MMC,Khammam

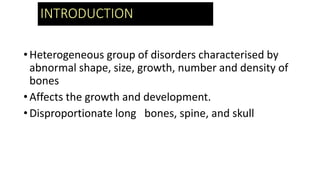

2. INTRODUCTION
•Heterogeneous group of disorders characterised by
abnormal shape, size, growth, number and density of
bones
•Affects the growth and development.
•Disproportionate long bones, spine, and skull

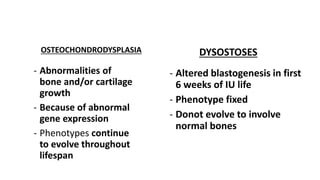

3. OSTEOCHONDRODYSPLASIA DYSOSTOSES
- Abnormalities of
bone and/or cartilage
growth
- Because of abnormal
gene expression
- Phenotypes continue
to evolve throughout
lifespan
- Altered blastogenesis in first
6 weeks of IU life
- Phenotype fixed
- Donot evolve to involve
normal bones

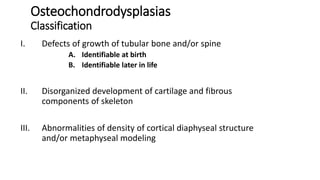

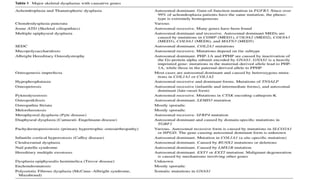

5. Osteochondrodysplasias
Classification
I. Defects of growth of tubular bone and/or spine
A. Identifiable at birth
B. Identifiable later in life
II. Disorganized development of cartilage and fibrous
components of skeleton
III. Abnormalities of density of cortical diaphyseal structure
and/or metaphyseal modeling

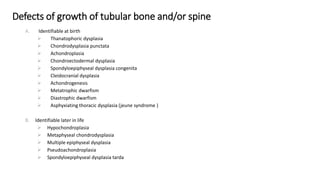

6. Defects of growth of tubular bone and/or spine
A. Identifiable at birth
 Thanatophoric dysplasia
 Chondrodysplasia punctata

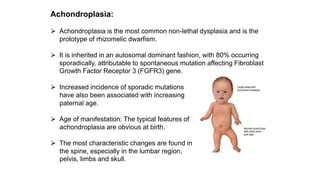

 Achondroplasia
 Chondroectodermal dysplasia
 Spondyloepiphyseal dysplasia congenita
 Cleidocranial dysplasia
 Achondrogenesis
 Metatrophic dwarfism
 Diastrophic dwarfism

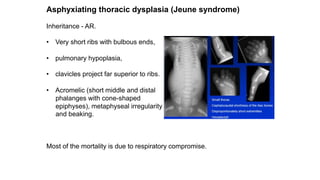

 Asphyxiating thoracic dysplasia (jeune syndrome )
B. Identifiable later in life
 Hypochondroplasia
 Metaphyseal chondrodysplasia
 Multiple epiphyseal dysplasia
 Pseudoachondroplasia
 Spondyloepiphyseal dysplasia tarda

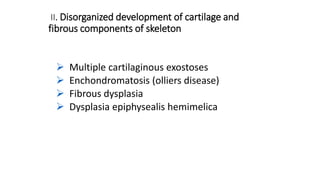

7. II. Disorganized development of cartilage and
fibrous components of skeleton
 Multiple cartilaginous exostoses
 Enchondromatosis (olliers disease)
 Fibrous dysplasia
 Dysplasia epiphysealis hemimelica

8. III. Abnormalities of density of cortical diaphyseal
structure and/or metaphyseal modeling
 Osteogenesis Imperfecta
 Osteopetrosis
 Pycnodysostosis
 Osteopoikilosis
 Melorheostosis
 Diaphyseal dysplasia
 Metaphyseal dysplasia
 Osteopathia striata

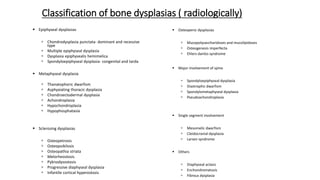

9. Classification of bone dysplasias ( radiologically)

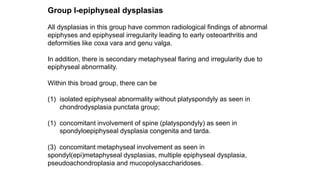

 Epiphyseal dysplasias
 Chondrodysplasia punctata- dominant and recessive
type
 Multiple epiphyseal dysplasia
 Dysplasia epiphysealis hemimelica
 Spondyloepiphyseal dysplasia- congenital and tarda
 Metaphyseal dysplasia
 Thanatophoric dwarfism
 Asphyxiating thoracic dysplasia

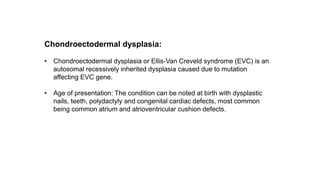

 Chondroectodermal dysplasia
 Achondroplasia
 Hypochondroplasia
 Hypophosphatasia
 Sclerosing dysplasias
 Osteopetrosis
 Osteopoikilosis
 Osteopathia striata
 Melorheostosis
 Pyknodysostosis
 Progressive diaphyseal dysplasia
 Infantile cortical hyperostosis
 Osteopenic dysplasias
 Mucopolysaccharidoses and mucolipidoses
 Osteogenesis imperfecta
 Ehlers danlos syndrome
 Major involvement of spine
 Spondyloepiphyseal dysplasia
 Diastrophic dwarfism
 Spondylometaphyseal dysplasia
 Pseudoachondroplasia
 Single segment involvement
 Mesomelic dwarfism

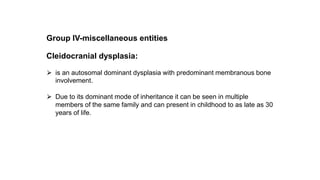

 Cleidocranial dysplasia
 Larsen syndrome
 Others
 Diaphyseal aclasis
 Enchondromatosis
 Fibrous dysplasia

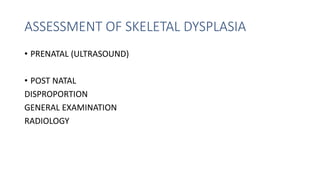

10. ASSESSMENT OF SKELETAL DYSPLASIA
• PRENATAL (ULTRASOUND)
• POST NATAL
DISPROPORTION
GENERAL EXAMINATION
RADIOLOGY

11. PRENATAL ASSESSMENT

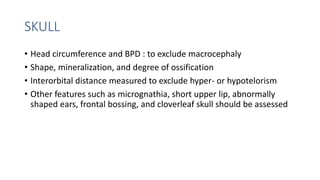

12. SKULL
• Head circumference and BPD : to exclude macrocephaly
• Shape, mineralization, and degree of ossification
• Interorbital distance measured to exclude hyper- or hypotelorism
• Other features such as micrognathia, short upper lip, abnormally
shaped ears, frontal bossing, and cloverleaf skull should be assessed

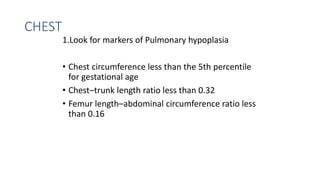

13. CHEST
1.Look for markers of Pulmonary hypoplasia
• Chest circumference less than the 5th percentile
for gestational age
• Chest–trunk length ratio less than 0.32
• Femur length–abdominal circumference ratio less
than 0.16

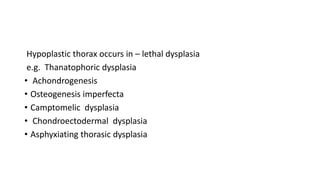

14. Hypoplastic thorax occurs in – lethal dysplasia
e.g. Thanatophoric dysplasia
• Achondrogenesis
• Osteogenesis imperfecta
• Camptomelic dysplasia
• Chondroectodermal dysplasia
• Asphyxiating thorasic dysplasia

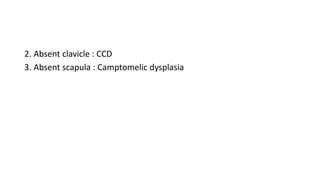

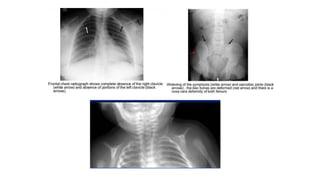

15. 2. Absent clavicle : CCD
3. Absent scapula : Camptomelic dysplasia

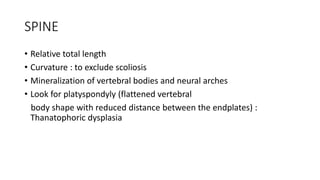

16. SPINE
• Relative total length
• Curvature : to exclude scoliosis
• Mineralization of vertebral bodies and neural arches
• Look for platyspondyly (flattened vertebral
body shape with reduced distance between the endplates) :
Thanatophoric dysplasia

17. SPINE : Platyspondyly

18. SPINE
• Relative total length
• Curvature : to exclude scoliosis
• Mineralization of vertebral bodies and neural arches
• Look for platyspondyly (flattened vertebral
body shape with reduced distance between the endplates) :
Thanatophoric dysplasia

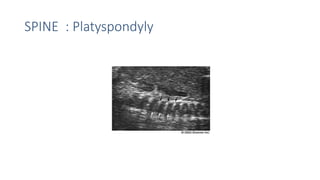

19. SPINE : Platyspondyly

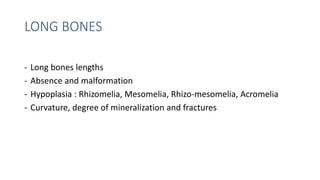

20. LONG BONES
- Long bones lengths
- Absence and malformation
- Hypoplasia : Rhizomelia, Mesomelia, Rhizo-mesomelia, Acromelia
- Curvature, degree of mineralization and fractures

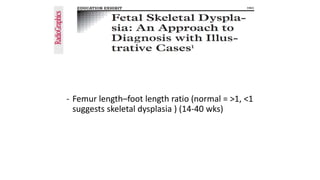

21. - Femur length–foot length ratio (normal = >1, <1
suggests skeletal dysplasia ) (14-40 wks)

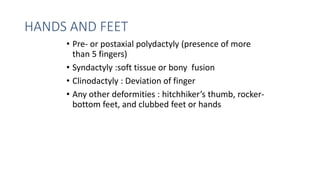

22. HANDS AND FEET
• Pre- or postaxial polydactyly (presence of more
than 5 fingers)
• Syndactyly :soft tissue or bony fusion
• Clinodactyly : Deviation of finger
• Any other deformities : hitchhiker’s thumb, rocker-
bottom feet, and clubbed feet or hands

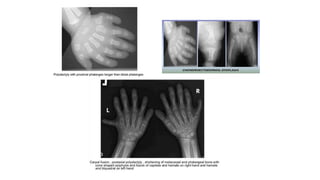

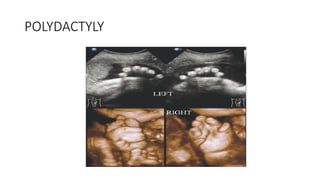

23. POLYDACTYLY

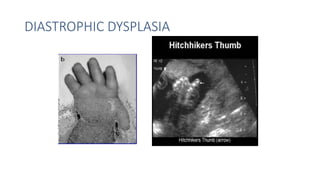

24. DIASTROPHIC DYSPLASIA

25. PRENATAL ASSESSMENT CONCLUSION

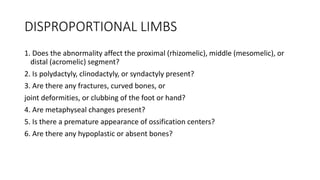

26. DISPROPORTIONAL LIMBS
1. Does the abnormality affect the proximal (rhizomelic), middle (mesomelic), or
distal (acromelic) segment?
2. Is polydactyly, clinodactyly, or syndactyly present?
3. Are there any fractures, curved bones, or
joint deformities, or clubbing of the foot or hand?
4. Are metaphyseal changes present?
5. Is there a premature appearance of ossification centers?
6. Are there any hypoplastic or absent bones?

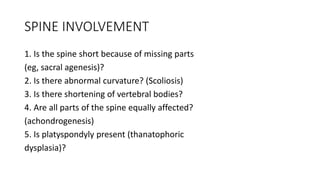

27. SPINE INVOLVEMENT
1. Is the spine short because of missing parts
(eg, sacral agenesis)?
2. Is there abnormal curvature? (Scoliosis)
3. Is there shortening of vertebral bodies?
4. Are all parts of the spine equally affected?
(achondrogenesis)
5. Is platyspondyly present (thanatophoric
dysplasia)?

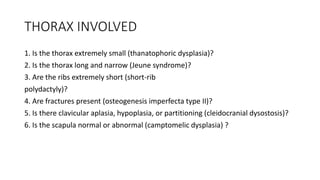

28. THORAX INVOLVED
1. Is the thorax extremely small (thanatophoric dysplasia)?
2. Is the thorax long and narrow (Jeune syndrome)?
3. Are the ribs extremely short (short-rib
polydactyly)?
4. Are fractures present (osteogenesis imperfecta type II)?
5. Is there clavicular aplasia, hypoplasia, or partitioning (cleidocranial dysostosis)?
6. Is the scapula normal or abnormal (camptomelic dysplasia) ?

29. POSTNATAL ASSESSMENT

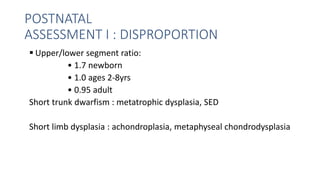

30. POSTNATAL
ASSESSMENT I : DISPROPORTION
 Upper/lower segment ratio:
• 1.7 newborn
• 1.0 ages 2-8yrs
• 0.95 adult
Short trunk dwarfism : metatrophic dysplasia, SED
Short limb dysplasia : achondroplasia, metaphyseal chondrodysplasia

31. • Sitting height : ascertains trunkal shortening

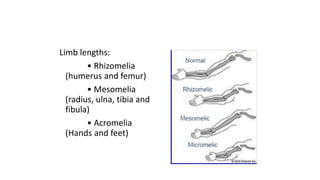

32. Limb lengths:
• Rhizomelia
(humerus and femur)
• Mesomelia
(radius, ulna, tibia and
fibula)
• Acromelia
(Hands and feet)

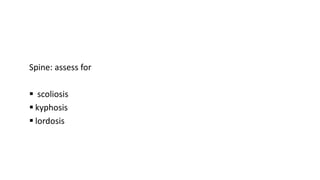

33. Spine: assess for
 scoliosis
 kyphosis
 lordosis

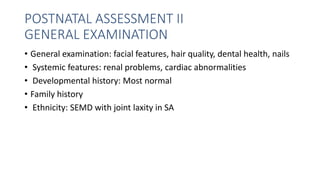

34. POSTNATAL ASSESSMENT II
GENERAL EXAMINATION
• General examination: facial features, hair quality, dental health, nails
• Systemic features: renal problems, cardiac abnormalities
• Developmental history: Most normal
• Family history
• Ethnicity: SEMD with joint laxity in SA

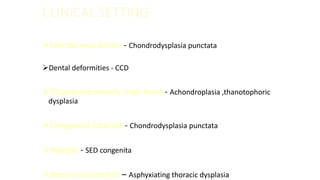

35. CLINICAL SETTING
Mental retardation - Chondrodysplasia punctata
Dental deformities - CCD
Disproportionately large head - Achondroplasia ,thanotophoric
dysplasia
Congenital cataract - Chondrodysplasia punctata
Myopia - SED congenita
Renal involvement – Asphyxiating thoracic dysplasia

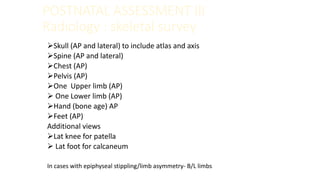

36. POSTNATAL ASSESSMENT III
Radiology : skeletal survey
Skull (AP and lateral) to include atlas and axis
Spine (AP and lateral)
Chest (AP)
Pelvis (AP)
One Upper limb (AP)
 One Lower limb (AP)
Hand (bone age) AP
Feet (AP)
Additional views
Lat knee for patella
 Lat foot for calcaneum
In cases with epiphyseal stippling/limb asymmetry- B/L limbs

37. • In preterm fetuses and stillbirths, babygram i.e. anteroposterior (AP)
and lateral films from head to foot
• Imaging of other family members suspected of having same condition

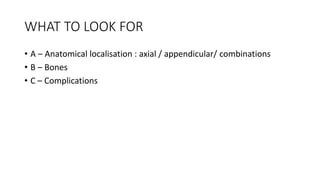

38. WHAT TO LOOK FOR
• A – Anatomical localisation : axial / appendicular/ combinations
• B – Bones
• C – Complications

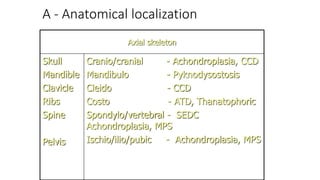

39. A - Anatomical localization
Axial skeleton
Skull
Mandible
Clavicle
Ribs
Spine
Pelvis
Cranio/cranial - Achondroplasia, CCD
Mandibulo - Pyknodysostosis
Cleido - CCD
Costo - ATD, Thanatophoric
Spondylo/vertebral - SEDC
Achondroplasia, MPS
Ischio/ilio/pubic - Achondroplasia, MPS

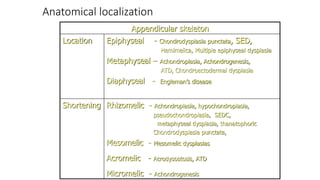

40. Anatomical localization
Appendicular skeleton
Location Epiphyseal - Chondrodysplasia punctata, SED,
Hemimelica, Multiple epiphyseal dysplasia
Metaphyseal – Achondroplasia, Achondrogenesis,
ATD, Chondroectodermal dysplasia
Diaphyseal - Engleman’s disease
Shortening Rhizomelic - Achondroplasia, hypochondroplasia,
pseudochondroplasia, SEDC,
metaphyseal dysplasia, thanatophoric
Chondrodysplasia punctata,
Mesomelic - Mesomelic dysplasias
Acromelic - Acrodysostosis, ATD
Micromelic - Achondrogenesis

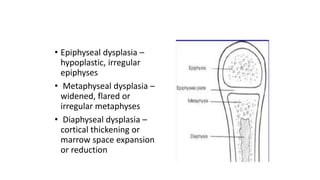

41. • Epiphyseal dysplasia –
hypoplastic, irregular
epiphyses
• Metaphyseal dysplasia –
widened, flared or
irregular metaphyses
• Diaphyseal dysplasia –
cortical thickening or
marrow space expansion
or reduction

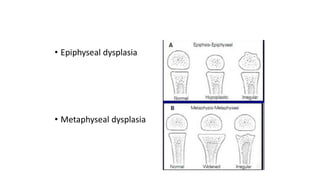

42. • Epiphyseal dysplasia
• Metaphyseal dysplasia

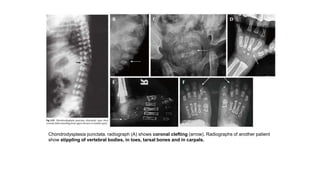

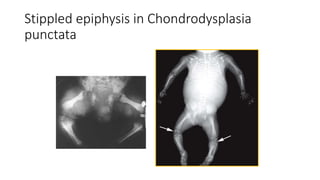

43. Stippled epiphysis in Chondrodysplasia
punctata

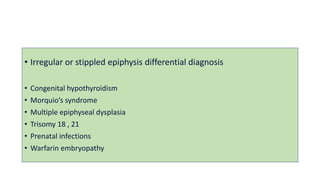

44. • Irregular or stippled epiphysis differential diagnosis
• Congenital hypothyroidism

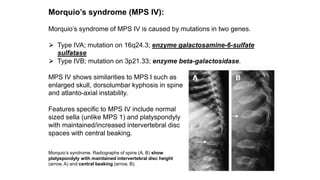

• Morquio’s syndrome
• Multiple epiphyseal dysplasia
• Trisomy 18 , 21
• Prenatal infections
• Warfarin embryopathy

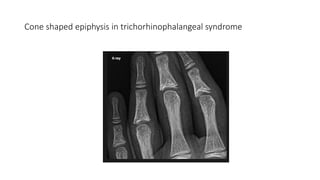

45. Cone shaped epiphysis in trichorhinophalangeal syndrome

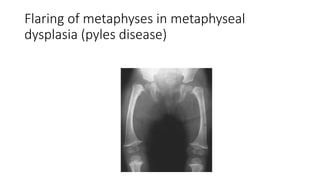

46. Flaring of metaphyses in metaphyseal
dysplasia (pyles disease)

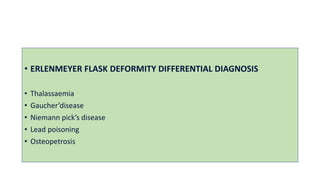

47. • ERLENMEYER FLASK DEFORMITY DIFFERENTIAL DIAGNOSIS
• Thalassaemia
• Gaucher’disease
• Niemann pick’s disease
• Lead poisoning
• Osteopetrosis

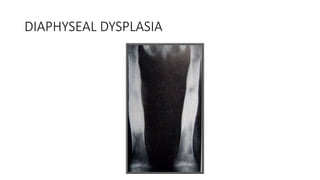

48. DIAPHYSEAL DYSPLASIA

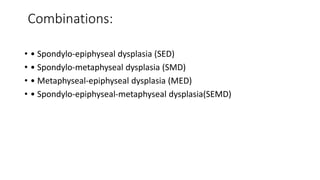

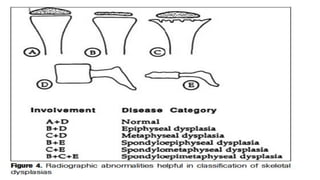

49. Combinations:
• • Spondylo-epiphyseal dysplasia (SED)
• • Spondylo-metaphyseal dysplasia (SMD)
• • Metaphyseal-epiphyseal dysplasia (MED)
• • Spondylo-epiphyseal-metaphyseal dysplasia(SEMD)

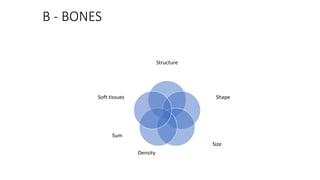

51. B - BONES
Structure
Shape
Size
Sum
Density
Soft tissues

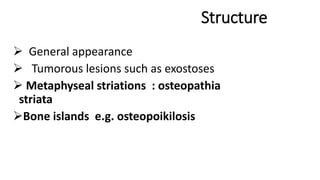

52. Structure
 General appearance
 Tumorous lesions such as exostoses
 Metaphyseal striations : osteopathia
striata
Bone islands e.g. osteopoikilosis

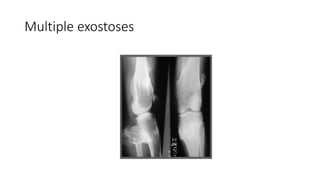

53. Multiple exostoses

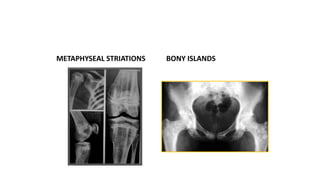

54. METAPHYSEAL STRIATIONS BONY ISLANDS

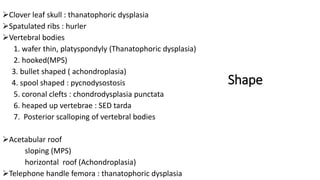

55. Shape
Clover leaf skull : thanatophoric dysplasia

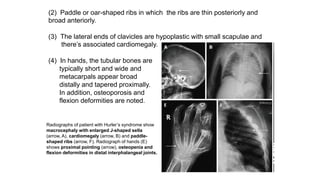

Spatulated ribs : hurler
Vertebral bodies
1. wafer thin, platyspondyly (Thanatophoric dysplasia)
2. hooked(MPS)

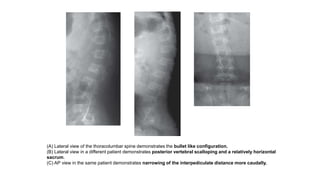

3. bullet shaped ( achondroplasia)
4. spool shaped : pycnodysostosis
5. coronal clefts : chondrodysplasia punctata
6. heaped up vertebrae : SED tarda
7. Posterior scalloping of vertebral bodies

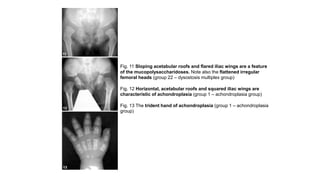

Acetabular roof
sloping (MPS)
horizontal roof (Achondroplasia)
Telephone handle femora : thanatophoric dysplasia

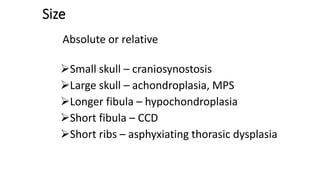

56. Size
Absolute or relative
Small skull – craniosynostosis
Large skull – achondroplasia, MPS
Longer fibula – hypochondroplasia
Short fibula – CCD
Short ribs – asphyxiating thorasic dysplasia

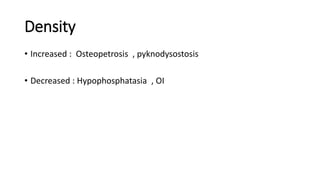

57. Density
• Increased : Osteopetrosis , pyknodysostosis
• Decreased : Hypophosphatasia , OI

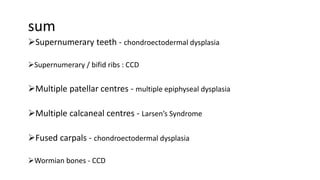

58. sum
Supernumerary teeth - chondroectodermal dysplasia
Supernumerary / bifid ribs : CCD
Multiple patellar centres - multiple epiphyseal dysplasia
Multiple calcaneal centres - Larsen’s Syndrome
Fused carpals - chondroectodermal dysplasia
Wormian bones - CCD

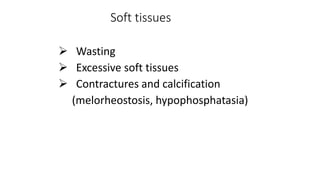

59. Soft tissues
 Wasting
 Excessive soft tissues
 Contractures and calcification
(melorheostosis, hypophosphatasia)

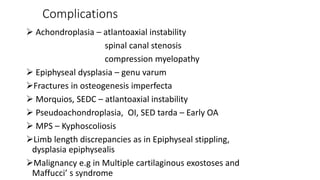

60. Complications
 Achondroplasia – atlantoaxial instability
spinal canal stenosis
compression myelopathy
 Epiphyseal dysplasia – genu varum
Fractures in osteogenesis imperfecta
 Morquios, SEDC – atlantoaxial instability
 Pseudoachondroplasia, OI, SED tarda – Early OA
 MPS – Kyphoscoliosis
Limb length discrepancies as in Epiphyseal stippling,
dysplasia epiphysealis
Malignancy e.g in Multiple cartilaginous exostoses and
Maffucci’ s syndrome

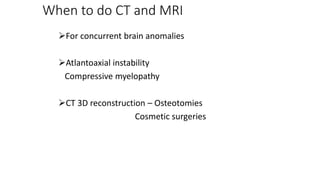

61. When to do CT and MRI
For concurrent brain anomalies
Atlantoaxial instability
Compressive myelopathy
CT 3D reconstruction – Osteotomies
Cosmetic surgeries

62. Making a diagnosis
An accurate diagnosis requires a multidisciplinary approach, i.e.,
combined clinical, pediatric, genetic, biochemical, radiological and
pathological.
Rule out acquired causes of bone problems:
• Neuromuscular disorders
• Chronic diseases – JIA
• Poorly healed fractures
• Metabolic bone problem

63. Non-lethal dysplasias

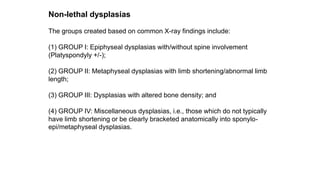

The groups created based on common X-ray findings include:
(1) GROUP I: Epiphyseal dysplasias with/without spine involvement
(Platyspondyly +/-);
(2) GROUP II: Metaphyseal dysplasias with limb shortening/abnormal limb
length;
(3) GROUP III: Dysplasias with altered bone density; and
(4) GROUP IV: Miscellaneous dysplasias, i.e., those which do not typically
have limb shortening or be clearly bracketed anatomically into sponylo-
epi/metaphyseal dysplasias.

64. Group I-epiphyseal dysplasias
All dysplasias in this group have common radiological findings of abnormal
epiphyses and epiphyseal irregularity leading to early osteoarthritis and
deformities like coxa vara and genu valga.
In addition, there is secondary metaphyseal flaring and irregularity due to
epiphyseal abnormality.
Within this broad group, there can be
(1) isolated epiphyseal abnormality without platyspondyly as seen in
chondrodysplasia punctata group;
(1) concomitant involvement of spine (platyspondyly) as seen in
spondyloepiphyseal dysplasia congenita and tarda.
(3) concomitant metaphyseal involvement as seen in
spondyl(epi)metaphyseal dysplasias, multiple epiphyseal dysplasia,
pseudoachondroplasia and mucopolysaccharidoses.

65. Spondyloepiphyseal dysplasia congenita:
⮚ The mode of inheritance is autosomal dominant
affecting Type II collagen protein.
⮚ Age of manifestation: At birth with delayed ossification
of epiphyses as its hallmark.
Essential radiographic features:
(1) Bulbous and pear-shaped vertebrae at birth
which later flatten leading to severe
platyspondyly with thin intervertebral disc
spaces.
(2) Absent pubic bones at birth with horizontal
roofs of acetabula and short and broad iliac
wings;
Spondyloepiphyseal dysplasia congenita. Lateral radiograph of cevical spine show platyspondyly.
Radiograph of pelvis (C) shows small femoral epiphyses (white arrow), horizontal acetabuli (black arrow)
and short iliac wings (a).

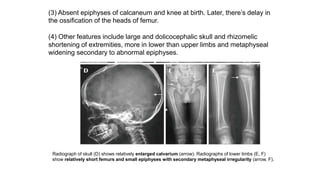

66. Radiograph of skull (D) shows relatively enlarged calvarium (arrow). Radiographs of lower limbs (E, F)
show relatively short femurs and small epiphyses with secondary metaphyseal irregularity (arrow, F).
(3) Absent epiphyses of calcaneum and knee at birth. Later, there’s delay in
the ossification of the heads of femur.
(4) Other features include large and dolicocephalic skull and rhizomelic
shortening of extremities, more in lower than upper limbs and metaphyseal
widening secondary to abnormal epiphyses.

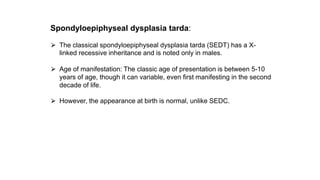

67. Spondyloepiphyseal dysplasia tarda:
⮚ The classical spondyloepiphyseal dysplasia tarda (SEDT) has a X-
linked recessive inheritance and is noted only in males.
⮚ Age of manifestation: The classic age of presentation is between 5-10
years of age, though it can variable, even first manifesting in the second
decade of life.
⮚ However, the appearance at birth is normal, unlike SEDC.

68. Essential radiographic features:
(1)Platyspondyly with heaping up and hyperostosis on the posterior two-
thirds of end-plates giving rise to a heaped-up or hump-shaped
appearance;
(2) Small pelvis with mild-to-moderate epiphyseal irregularity leading to
early osteoarthritis at hips, knees and ankles. However hands, feet and
skull are typically not involved; and
(3) Other features: In addition to these
findings, progressive narrowing of
interpedicular distance in lumbar spine
have also been described, similar to
achondroplasia, in the autosomal
recessive forms of SEDT.
Spondyloepiphyseal dysplasia tarda. Lateral radiograph of lumbar spine (A) shows characteristic posterior
hump (arrow). Radiograph of pelvis (B) shows bilateral flattened femoral heads, short necks and
premature degenerative changes (arrow).

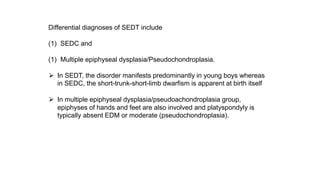

69. Differential diagnoses of SEDT include
(1) SEDC and
(1) Multiple epiphyseal dysplasia/Pseudochondroplasia.
⮚ In SEDT, the disorder manifests predominantly in young boys whereas
in SEDC, the short-trunk-short-limb dwarfism is apparent at birth itself
⮚ In multiple epiphyseal dysplasia/pseudoachondroplasia group,
epiphyses of hands and feet are also involved and platyspondyly is
typically absent EDM or moderate (pseudochondroplasia).

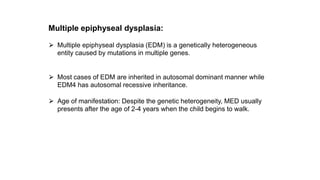

70. Multiple epiphyseal dysplasia:
⮚ Multiple epiphyseal dysplasia (EDM) is a genetically heterogeneous
entity caused by mutations in multiple genes.
⮚ Most cases of EDM are inherited in autosomal dominant manner while
EDM4 has autosomal recessive inheritance.
⮚ Age of manifestation: Despite the genetic heterogeneity, MED usually
presents after the age of 2-4 years when the child begins to walk.

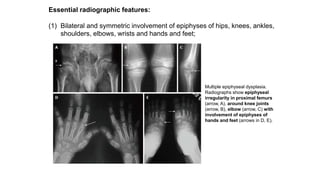

71. Essential radiographic features:
(1) Bilateral and symmetric involvement of epiphyses of hips, knees, ankles,
shoulders, elbows, wrists and hands and feet;
Multiple epiphyseal dysplasia.
Radiographs show epiphyseal
irregularity in proximal femurs
(arrow, A), around knee joints
(arrow, B), elbow (arrow, C) with
involvement of epiphyses of
hands and feet (arrows in D, E).

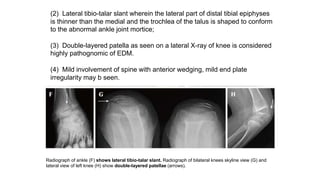

72. Radiograph of ankle (F) shows lateral tibio-talar slant. Radiograph of bilateral knees skyline view (G) and
lateral view of left knee (H) show double-layered patellae (arrows).
(2) Lateral tibio-talar slant wherein the lateral part of distal tibial epiphyses
is thinner than the medial and the trochlea of the talus is shaped to conform
to the abnormal ankle joint mortice;
(3) Double-layered patella as seen on a lateral X-ray of knee is considered
highly pathognomic of EDM.
(4) Mild involvement of spine with anterior wedging, mild end plate
irregularity may b seen.

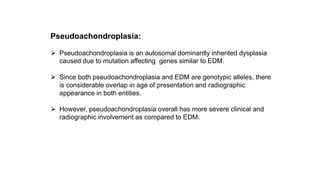

73. Pseudoachondroplasia:
⮚ Pseudoachondroplasia is an autosomal dominantly inherited dysplasia
caused due to mutation affecting genes similar to EDM.
⮚ Since both pseudoachondroplasia and EDM are genotypic alleles, there
is considerable overlap in age of presentation and radiographic
appearance in both entities.
⮚ However, pseudoachondroplasia overall has more severe clinical and
radiographic involvement as compared to EDM.

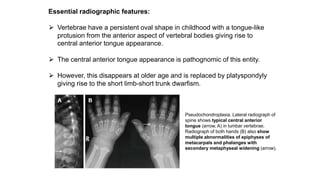

74. Essential radiographic features:
⮚ Vertebrae have a persistent oval shape in childhood with a tongue-like
protusion from the anterior aspect of vertebral bodies giving rise to
central anterior tongue appearance.
⮚ The central anterior tongue appearance is pathognomic of this entity.
⮚ However, this disappears at older age and is replaced by platyspondyly
giving rise to the short limb-short trunk dwarfism.
Pseudochondroplasia. Lateral radiograph of
spine shows typical central anterior
tongue (arrow, A) in lumbar vertebrae.
Radiograph of both hands (B) also show
multiple abnormalities of epiphyses of
metacarpals and phalanges with
secondary metaphyseal widening (arrow).

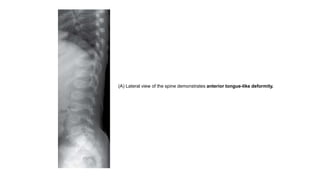

75. (A) Lateral view of the spine demonstrates anterior tongue-like deformity.

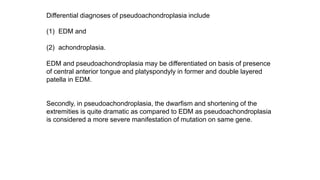

76. Differential diagnoses of pseudoachondroplasia include
(1) EDM and
(2) achondroplasia.
EDM and pseudoachondroplasia may be differentiated on basis of presence
of central anterior tongue and platyspondyly in former and double layered
patella in EDM.
Secondly, in pseudoachondroplasia, the dwarfism and shortening of the
extremities is quite dramatic as compared to EDM as pseudoachondroplasia
is considered a more severe manifestation of mutation on same gene.

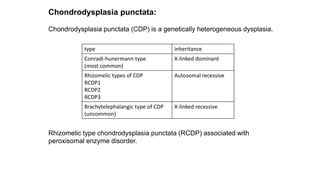

77. Chondrodysplasia punctata:
Chondrodysplasia punctata (CDP) is a genetically heterogeneous dysplasia.
Rhizomelic type chondrodysplasia punctata (RCDP) associated with
peroxisomal enzyme disorder.
type inheritance
Conradi-hunermann type
(most common)
X-linked dominant
Rhizomelic types of CDP
RCDP1
RCDP2
RCDP3
Autosomal recessive
Brachytelephalangic type of CDP
(uncommon)
X-linked recessive

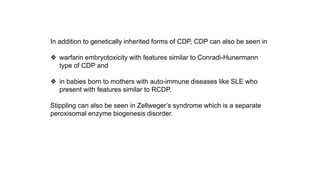

78. In addition to genetically inherited forms of CDP, CDP can also be seen in
❖ warfarin embryotoxicity with features similar to Conradi-Hunermann
type of CDP and
❖ in babies born to mothers with auto-immune diseases like SLE who
present with features similar to RCDP.
Stippling can also be seen in Zellweger’s syndrome which is a separate
peroxisomal enzyme biogenesis disorder.

79. ⮚ Essentially, the hallmark of CDP is stippling of epiphyses at birth.
⮚ Later on, the stippling disappears and epiphyses become irregular with limb
asymmetry.
⮚ It is important to identify the radiologic type of chondrodysplasia punctata to
prognosticate the patient.

80. Chondrodysplasia punctata. radiograph (A) shows coronal clefting (arrow). Radiographs of another patient
show stippling of vertebral bodies, in toes, tarsal bones and in carpals.

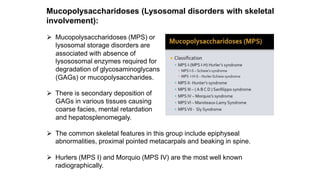

81. Mucopolysaccharidoses (Lysosomal disorders with skeletal
involvement):
⮚ Mucopolysaccharidoses (MPS) or
lysosomal storage disorders are
associated with absence of
lysososomal enzymes required for
degradation of glycosaminoglycans
(GAGs) or mucopolysaccharides.
⮚ There is secondary deposition of
GAGs in various tissues causing
coarse facies, mental retardation
and hepatosplenomegaly.
⮚ The common skeletal features in this group include epiphyseal
abnormalities, proximal pointed metacarpals and beaking in spine.
⮚ Hurlers (MPS I) and Morquio (MPS IV) are the most well known
radiographically.

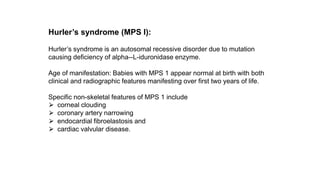

82. Hurler’s syndrome (MPS I):
Hurler’s syndrome is an autosomal recessive disorder due to mutation
causing deficiency of alpha--L-iduronidase enzyme.
Age of manifestation: Babies with MPS 1 appear normal at birth with both
clinical and radiographic features manifesting over first two years of life.
Specific non-skeletal features of MPS 1 include
⮚ corneal clouding
⮚ coronary artery narrowing
⮚ endocardial fibroelastosis and
⮚ cardiac valvular disease.

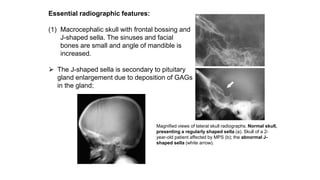

83. Essential radiographic features:
(1) Macrocephalic skull with frontal bossing and
J-shaped sella. The sinuses and facial
bones are small and angle of mandible is
increased.
⮚ The J-shaped sella is secondary to pituitary
gland enlargement due to deposition of GAGs
in the gland;
Magnified views of lateral skull radiographs. Normal skull,
presenting a regularly shaped sella (a). Skull of a 2-
year-old patient affected by MPS (b); the abnormal J-
shaped sella (white arrow).

84. (2) Paddle or oar-shaped ribs in which the ribs are thin posteriorly and
broad anteriorly.
(3) The lateral ends of clavicles are hypoplastic with small scapulae and
there’s associated cardiomegaly.
(4) In hands, the tubular bones are
typically short and wide and
metacarpals appear broad
distally and tapered proximally.
In addition, osteoporosis and
flexion deformities are noted.
Radiographs of patient with Hurler’s syndrome show
macrocephaly with enlarged J-shaped sella
(arrow, A), cardiomegaly (arrow, B) and paddle-
shaped ribs (arrow, F). Radiograph of hands (E)
shows proximal pointing (arrow), osteopenia and
flexion deformities in distal interphalangeal joints.

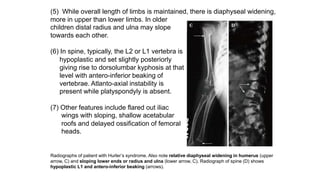

85. (5) While overall length of limbs is maintained, there is diaphyseal widening,
more in upper than lower limbs. In older
children distal radius and ulna may slope
towards each other.
(6) In spine, typically, the L2 or L1 vertebra is
hypoplastic and set slightly posteriorly
giving rise to dorsolumbar kyphosis at that
level with antero-inferior beaking of
vertebrae. Atlanto-axial instability is
present while platyspondyly is absent.
(7) Other features include flared out iliac
wings with sloping, shallow acetabular
roofs and delayed ossification of femoral
heads.
Radiographs of patient with Hurler’s syndrome. Also note relative diaphyseal widening in humerus (upper
arrow, C) and sloping lower ends or radius and ulna (lower arrow, C). Radiograph of spine (D) shows
hypoplastic L1 and antero-inferior beaking (arrows).

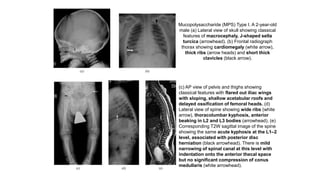

86. Mucopolysaccharide (MPS) Type I. A 2-year-old
male (a) Lateral view of skull showing classical
features of macrocephaly, J-shaped sella
turcica (arrowhead). (b) Frontal radiograph
thorax showing cardiomegaly (white arrow),
thick ribs (arrow heads) and short thick
clavicles (black arrow).
(c) AP view of pelvis and thighs showing
classical features with flared out iliac wings
with sloping, shallow acetabular roofs and
delayed ossification of femoral heads. (d)
Lateral view of spine showing wide ribs (white
arrow), thoracolumbar kyphosis, anterior
beaking in L2 and L3 bodies (arrowhead). (e)
Corresponding T2W sagittal image of the spine
showing the same acute kyphosis at the L1–2
level, associated with posterior disc
herniation (black arrowhead). There is mild
narrowing of spinal canal at this level with
indentation onto the anterior thecal space
but no significant compression of conus
medullaris (white arrowhead).

87. Morquio’s syndrome (MPS IV):
Morquio’s syndrome of MPS IV is caused by mutations in two genes.
⮚ Type IVA; mutation on 16q24.3; enzyme galactosamine-6-sulfate
sulfatase
⮚ Type IVB; mutation on 3p21.33; enzyme beta-galactosidase.
MPS IV shows similarities to MPS I such as
enlarged skull, dorsolumbar kyphosis in spine
and atlanto-axial instability.
Features specific to MPS IV include normal
sized sella (unlike MPS 1) and platyspondyly
with maintained/increased intervertebral disc
spaces with central beaking.
Morquio’s syndrome. Radiographs of spine (A, B) show
platyspondyly with maintained intervertebral disc height
(arrow, A) and central beaking (arrow, B).

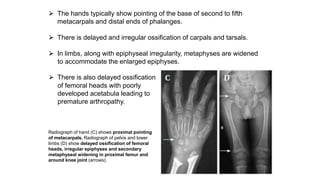

88. ⮚ The hands typically show pointing of the base of second to fifth
metacarpals and distal ends of phalanges.
⮚ There is delayed and irregular ossification of carpals and tarsals.
⮚ In limbs, along with epiphyseal irregularity, metaphyses are widened
to accommodate the enlarged epiphyses.
⮚ There is also delayed ossification
of femoral heads with poorly
developed acetabula leading to
premature arthropathy.
Radiograph of hand (C) shows proximal pointing
of metacarpals. Radiograph of pelvis and lower
limbs (D) show delayed ossification of femoral
heads, irregular epiphyses and secondary
metaphyseal widening in proximal femur and
around knee joint (arrows).

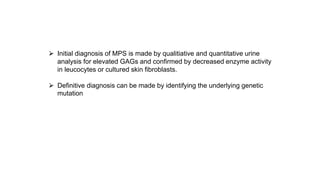

89. ⮚ Initial diagnosis of MPS is made by qualitiative and quantitative urine
analysis for elevated GAGs and confirmed by decreased enzyme activity
in leucocytes or cultured skin fibroblasts.
⮚ Definitive diagnosis can be made by identifying the underlying genetic
mutation

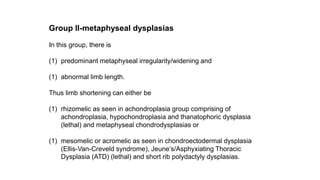

90. Group II-metaphyseal dysplasias
In this group, there is
(1) predominant metaphyseal irregularity/widening and
(1) abnormal limb length.
Thus limb shortening can either be
(1) rhizomelic as seen in achondroplasia group comprising of
achondroplasia, hypochondroplasia and thanatophoric dysplasia
(lethal) and metaphyseal chondrodysplasias or
(1) mesomelic or acromelic as seen in chondroectodermal dysplasia
(Ellis-Van-Creveld syndrome), Jeune’s/Asphyxiating Thoracic
Dysplasia (ATD) (lethal) and short rib polydactyly dysplasias.

91. Achondroplasia:
⮚ Achondroplasia is the most common non-lethal dysplasia and is the
prototype of rhizomelic dwarfism.
⮚ It is inherited in an autosomal dominant fashion, with 80% occurring
sporadically, attributable to spontaneous mutation affecting Fibroblast
Growth Factor Receptor 3 (FGFR3) gene.
⮚ Increased incidence of sporadic mutations
have also been associated with increasing
paternal age.
⮚ Age of manifestation: The typical features of
achondroplasia are obvious at birth.
⮚ The most characteristic changes are found in
the spine, especially in the lumbar region,
pelvis, limbs and skull.

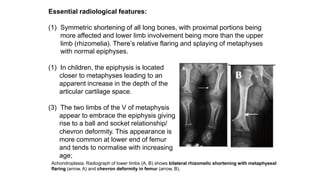

92. Essential radiological features:
(1) Symmetric shortening of all long bones, with proximal portions being
more affected and lower limb involvement being more than the upper
limb (rhizomelia). There’s relative flaring and splaying of metaphyses
with normal epiphyses.
(1) In children, the epiphysis is located
closer to metaphyses leading to an
apparent increase in the depth of the
articular cartilage space.
(3) The two limbs of the V of metaphysis
appear to embrace the epiphysis giving
rise to a ball and socket relationship/
chevron deformity. This appearance is
more common at lower end of femur
and tends to normalise with increasing
age;
Achondroplasia. Radiograph of lower limbs (A, B) shows bilateral rhizomelic shortening with metaphyseal
flaring (arrow, A) and chevron deformity in femur (arrow, B).

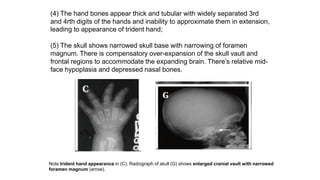

93. (4) The hand bones appear thick and tubular with widely separated 3rd
and 4rth digits of the hands and inability to approximate them in extension,
leading to appearance of trident hand;
(5) The skull shows narrowed skull base with narrowing of foramen
magnum. There is compensatory over-expansion of the skull vault and
frontal regions to accommodate the expanding brain. There’s relative mid-
face hypoplasia and depressed nasal bones.
Note trident hand appearance in (C). Radiograph of skull (G) shows enlarged cranial vault with narrowed
foramen magnum (arrow).

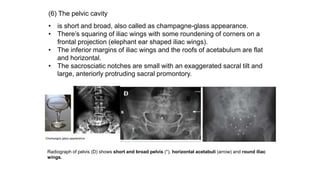

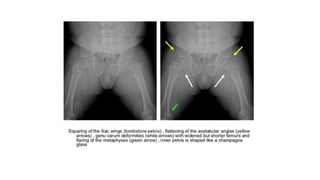

94. (6) The pelvic cavity
• is short and broad, also called as champagne-glass appearance.
• There’s squaring of iliac wings with some roundening of corners on a
frontal projection (elephant ear shaped iliac wings).
• The inferior margins of iliac wings and the roofs of acetabulum are flat
and horizontal.
• The sacrosciatic notches are small with an exaggerated sacral tilt and
large, anteriorly protruding sacral promontory.
Radiograph of pelvis (D) shows short and broad pelvis (*), horizontal acetabuli (arrow) and round iliac
wings.

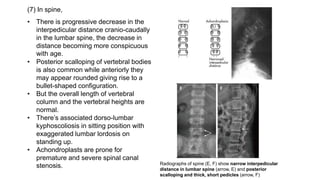

96. (7) In spine,
• There is progressive decrease in the
interpedicular distance cranio-caudally
in the lumbar spine, the decrease in
distance becoming more conspicuous
with age.
• Posterior scalloping of vertebral bodies
is also common while anteriorly they
may appear rounded giving rise to a
bullet-shaped configuration.
• But the overall length of vertebral
column and the vertebral heights are
normal.
• There’s associated dorso-lumbar
kyphoscoliosis in sitting position with
exaggerated lumbar lordosis on
standing up.
• Achondroplasts are prone for
premature and severe spinal canal
stenosis. Radiographs of spine (E, F) show narrow interpedicular
distance in lumbar spine (arrow, E) and posterior
scalloping and thick, short pedicles (arrow, F)

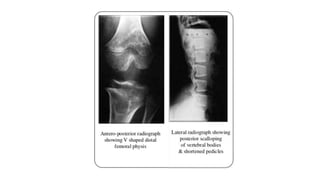

98. (A) Lateral view of the thoracolumbar spine demonstrates the bullet like configuration.
(B) Lateral view in a different patient demonstrates posterior vertebral scalloping and a relatively horizontal
sacrum.
(C) AP view in the same patient demonstrates narrowing of the interpediculate distance more caudally.

99. Fig. 11 Sloping acetabular roofs and flared iliac wings are a feature
of the mucopolysaccharidoses. Note also the flattened irregular
femoral heads (group 22 – dysostosis multiplex group)
Fig. 12 Horizontal, acetabular roofs and squared iliac wings are
characteristic of achondroplasia (group 1 – achondroplasia group)
Fig. 13 The trident hand of achondroplasia (group 1 – achondroplasia
group)

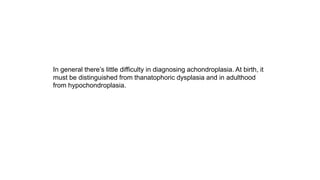

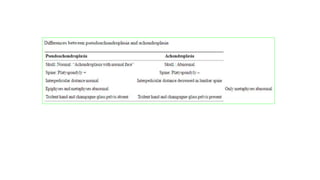

101. In general there’s little difficulty in diagnosing achondroplasia. At birth, it
must be distinguished from thanatophoric dysplasia and in adulthood
from hypochondroplasia.

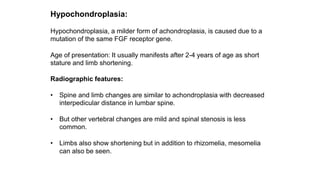

102. Hypochondroplasia:
Hypochondroplasia, a milder form of achondroplasia, is caused due to a
mutation of the same FGF receptor gene.
Age of presentation: It usually manifests after 2-4 years of age as short
stature and limb shortening.
Radiographic features:
• Spine and limb changes are similar to achondroplasia with decreased
interpedicular distance in lumbar spine.
• But other vertebral changes are mild and spinal stenosis is less
common.
• Limbs also show shortening but in addition to rhizomelia, mesomelia
can also be seen.

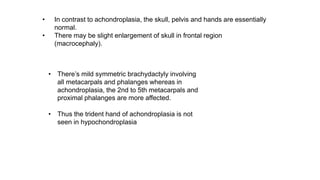

103. • In contrast to achondroplasia, the skull, pelvis and hands are essentially
normal.
• There may be slight enlargement of skull in frontal region
(macrocephaly).
• There’s mild symmetric brachydactyly involving
all metacarpals and phalanges whereas in
achondroplasia, the 2nd to 5th metacarpals and
proximal phalanges are more affected.
• Thus the trident hand of achondroplasia is not
seen in hypochondroplasia

104. Chondroectodermal dysplasia:
• Chondroectodermal dysplasia or Ellis-Van Creveld syndrome (EVC) is an
autosomal recessively inherited dysplasia caused due to mutation
affecting EVC gene.
• Age of presentation: The condition can be noted at birth with dysplastic
nails, teeth, polydactyly and congenital cardiac defects, most common
being common atrium and atrioventricular cushion defects.

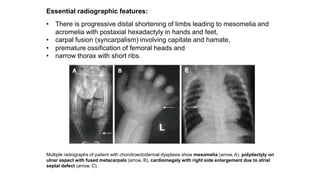

105. Essential radiographic features:
• There is progressive distal shortening of limbs leading to mesomelia and
acromelia with postaxial hexadactyly in hands and feet,
• carpal fusion (syncarpalism) involving capitate and hamate,
• premature ossification of femoral heads and
• narrow thorax with short ribs.
Multiple radiographs of patient with chondroectodermal dysplasia show mesomelia (arrow, A), polydactyly on
ulnar aspect with fused metacarpals (arrow, B), cardiomegaly with right side enlargement due to atrial
septal defect (arrow, C).

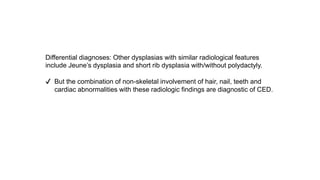

107. Differential diagnoses: Other dysplasias with similar radiological features
include Jeune’s dysplasia and short rib dysplasia with/without polydactyly.
✔ But the combination of non-skeletal involvement of hair, nail, teeth and
cardiac abnormalities with these radiologic findings are diagnostic of CED.

108. Group III-dysplasias with altered bone density: osteopenic
or osteosclerotic:
⮚ Osteopenic dysplasias are dysplasias with decreased bone density; of
which osteogenesis imperfecta is the prototype.
⮚ Osteosclerotic dysplasias are dysplasias with increased bone density; of
which osteopetrosis is the prototype.
⮚ Both OI and osteopetrosis are genetically heterogeneous diseases,
caused by multiple genetic mutations that phenotypically have a common
appearance of decreased or increased bone density respectively.

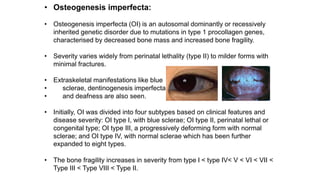

109. • Osteogenesis imperfecta:
• Osteogenesis imperfecta (OI) is an autosomal dominantly or recessively
inherited genetic disorder due to mutations in type 1 procollagen genes,
characterised by decreased bone mass and increased bone fragility.
• Severity varies widely from perinatal lethality (type II) to milder forms with
minimal fractures.
• Extraskeletal manifestations like blue
• sclerae, dentinogenesis imperfecta
• and deafness are also seen.
• Initially, OI was divided into four subtypes based on clinical features and
disease severity: OI type I, with blue sclerae; OI type II, perinatal lethal or
congenital type; OI type III, a progressively deforming form with normal
sclerae; and OI type IV, with normal sclerae which has been further
expanded to eight types.
• The bone fragility increases in severity from type I < type IV< V < VI < VII <
Type III < Type VIII < Type II.

110. Essential radiological features:
• Radiologically, OI is characterised by a triad of diffuse
osteopenia, pencil-thin cortices, and multiple bony
fractures. The fractures are usually multiple and heal
with exuberant callus formation giving rise to
“pseudotumour” formation. Associated findings include
deformities and pseudoarthrosis;
• The vertebrae are also osteopenic, have a biconcave
“cod-fish vertebrae” appearance with areas of
collapse.
• The skull shows multiple wormian bones, lucent
calvarium, enlarged sinuses and platybasia.
• The pelvis is also abnormal in shape with
deformities like protusio acetabuli and “shepherd
crook” femurs.
Osteogenesis Imperfecta. Infantogram of 1-mo baby shows
diffuse osteopenia with multiple fractures in extremities
(arrow). Radiograph of another patient shows fractures in
bilateral femurs with callus formation (arrow). Radiograph
of spine (C) shows osteopenia with codfish vertebrae.

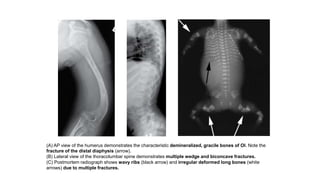

111. (A) AP view of the humerus demonstrates the characteristic demineralized, gracile bones of OI. Note the
fracture of the distal diaphysis (arrow).
(B) Lateral view of the thoracolumbar spine demonstrates multiple wedge and biconcave fractures.
(C) Postmortem radiograph shows wavy ribs (black arrow) and irregular deformed long bones (white
arrows) due to multiple fractures.

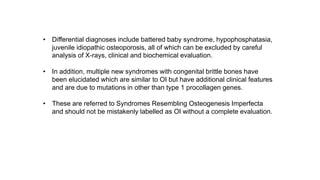

112. • Differential diagnoses include battered baby syndrome, hypophosphatasia,
juvenile idiopathic osteoporosis, all of which can be excluded by careful
analysis of X-rays, clinical and biochemical evaluation.
• In addition, multiple new syndromes with congenital brittle bones have
been elucidated which are similar to OI but have additional clinical features
and are due to mutations in other than type 1 procollagen genes.
• These are referred to Syndromes Resembling Osteogenesis Imperfecta
and should not be mistakenly labelled as OI without a complete evaluation.

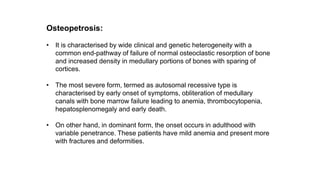

113. Osteopetrosis:
• It is characterised by wide clinical and genetic heterogeneity with a
common end-pathway of failure of normal osteoclastic resorption of bone
and increased density in medullary portions of bones with sparing of
cortices.
• The most severe form, termed as autosomal recessive type is
characterised by early onset of symptoms, obliteration of medullary
canals with bone marrow failure leading to anemia, thrombocytopenia,
hepatosplenomegaly and early death.
• On other hand, in dominant form, the onset occurs in adulthood with
variable penetrance. These patients have mild anemia and present more
with fractures and deformities.

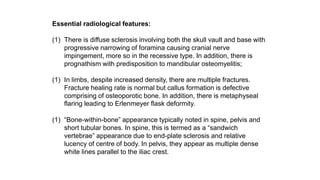

114. Essential radiological features:
(1) There is diffuse sclerosis involving both the skull vault and base with
progressive narrowing of foramina causing cranial nerve
impingement, more so in the recessive type. In addition, there is
prognathism with predisposition to mandibular osteomyelitis;
(1) In limbs, despite increased density, there are multiple fractures.
Fracture healing rate is normal but callus formation is defective
comprising of osteoporotic bone. In addition, there is metaphyseal
flaring leading to Erlenmeyer flask deformity.

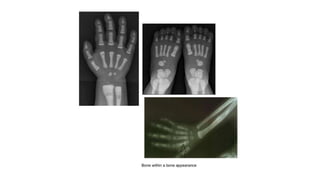

(1) “Bone-within-bone” appearance typically noted in spine, pelvis and
short tubular bones. In spine, this is termed as a “sandwich
vertebrae” appearance due to end-plate sclerosis and relative
lucency of centre of body. In pelvis, they appear as multiple dense
white lines parallel to the iliac crest.

115. Osteopetrosis. Radiograph of skull shows diffusely increased density (A). Radiograph of bilateral femurs show
obliteration of medullary cavity and Erlenmeyer flask deformity (arrow, B). Also note sandwich vertebrae
(arrow, C) bone-within-bone appearance in pelvis (arrow, D) and increased density in hand bones (E).

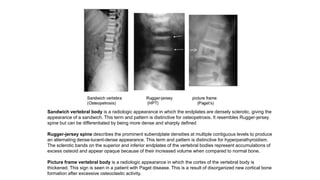

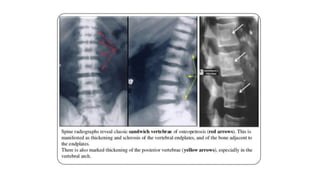

119. Sandwich vertebral body is a radiologic appearance in which the endplates are densely sclerotic, giving the
appearance of a sandwich. This term and pattern is distinctive for osteopetrosis. It resembles Rugger-jersey
spine but can be differentiated by being more dense and sharply defined
Rugger-jersey spine describes the prominent subendplate densities at multiple contiguous levels to produce
an alternating dense-lucent-dense appearance. This term and pattern is distinctive for hyperparathyroidism.
The sclerotic bands on the superior and inferior endplates of the vertebral bodies represent accumulations of
excess osteoid and appear opaque because of their increased volume when compared to normal bone.
Picture frame vertebral body is a radiologic appearance in which the cortex of the vertebral body is
thickened. This sign is seen in a patient with Paget disease. This is a result of disorganized new cortical bone
formation after excessive osteoclastic activity.

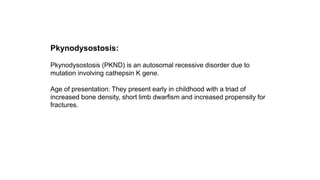

120. Pkynodysostosis:
Pkynodysostosis (PKND) is an autosomal recessive disorder due to
mutation involving cathepsin K gene.
Age of presentation: They present early in childhood with a triad of
increased bone density, short limb dwarfism and increased propensity for
fractures.

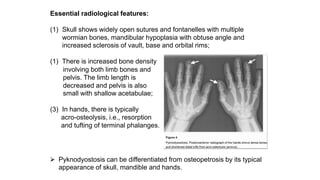

121. Essential radiological features:
(1) Skull shows widely open sutures and fontanelles with multiple
wormian bones, mandibular hypoplasia with obtuse angle and
increased sclerosis of vault, base and orbital rims;
(1) There is increased bone density
involving both limb bones and
pelvis. The limb length is
decreased and pelvis is also
small with shallow acetabulae;
(3) In hands, there is typically
acro-osteolysis, i.e., resorption
and tufting of terminal phalanges.
⮚ Pyknodyostosis can be differentiated from osteopetrosis by its typical
appearance of skull, mandible and hands.

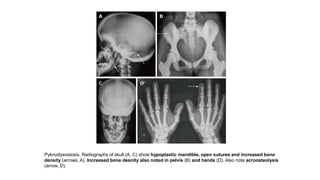

122. Pyknodysostosis. Radiographs of skull (A, C) show hypoplastic mandible, open sutures and increased bone
density (arrows, A). Increased bone desnity also noted in pelvis (B) and hands (D). Also note acroosteolysis
(arrow, D).

123. Osteopoikilosis:
⮚ It is a benign condition with autosomal dominant inheritance, more common
in males characterised by multiple small (1-10 mm), symmetric, uniform
radiopaque densities located at ends of long bones, carpals, tarsals and
periacetabular and subglenoid areas.
⮚ An important differential can be osteoblastic metastases which can be
differentiated by the variable size of lesions and by radionuclide scintigraphy.
Radiographs of pelvis (A) and hand (B) of a patient with osteopoikilosis show multiple bilateral symmetrical
sclerotic lesions in periarticular location (arrows, A and B).

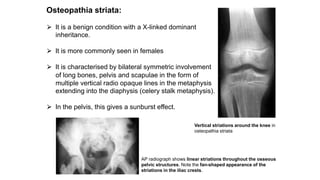

124. Osteopathia striata:
⮚ It is a benign condition with a X-linked dominant
inheritance.
⮚ It is more commonly seen in females
⮚ It is characterised by bilateral symmetric involvement
of long bones, pelvis and scapulae in the form of
multiple vertical radio opaque lines in the metaphysis
extending into the diaphysis (celery stalk metaphysis).
⮚ In the pelvis, this gives a sunburst effect.
Vertical striations around the knee in
osteopathia striata
AP radiograph shows linear striations throughout the osseous
pelvic structures. Note the fan-shaped appearance of the
striations in the iliac crests.

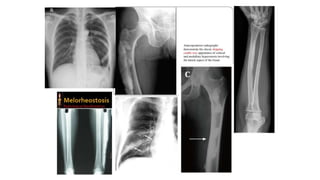

125. Melorheostosis:
⮚ Melorheostosis can be both a sporadic, non-inherited disorder or an
inherited disorder presenting with melorheostosis and osteopoikilosis.
⮚ Melorheostosis is a benign condition characterised clinically by pain and
soft-tissue contractures.
⮚ Other bones like skull, ribs, spine and short tubular bones can be affected at
times.
⮚ There is typically cortical thickening in a streaky or wavy pattern extending
from the proximal to distal part of bone giving a “flowing wax candle
appearance”.

127. Group IV-miscellaneous entities
Cleidocranial dysplasia:
⮚ is an autosomal dominant dysplasia with predominant membranous bone
involvement.
⮚ Due to its dominant mode of inheritance it can be seen in multiple
members of the same family and can present in childhood to as late as 30
years of life.

128. Essential radiological features:
(1)The skull shows delayed ossification of calvarium, multiple wormian
bones, persistently open sutures and fontanelles giving a hot cross bun
appearance.
However the mandible is normal with maintained angle.

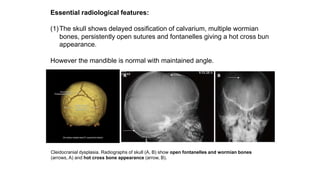

Cleidocranial dysplasia. Radiographs of skull (A, B) show open fontanelles and wormian bones
(arrows, A) and hot cross bone appearance (arrow, B).

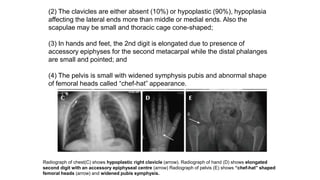

129. Radiograph of chest(C) shows hypoplastic right clavicle (arrow). Radiograph of hand (D) shows elongated
second digit with an accessory epiphyseal centre (arrow) Radiograph of pelvis (E) shows “chef-hat” shaped
femoral heads (arrow) and widened pubis symphysis.
(2) The clavicles are either absent (10%) or hypoplastic (90%), hypoplasia
affecting the lateral ends more than middle or medial ends. Also the
scapulae may be small and thoracic cage cone-shaped;
(3) In hands and feet, the 2nd digit is elongated due to presence of
accessory epiphyses for the second metacarpal while the distal phalanges
are small and pointed; and
(4) The pelvis is small with widened symphysis pubis and abnormal shape
of femoral heads called “chef-hat” appearance.

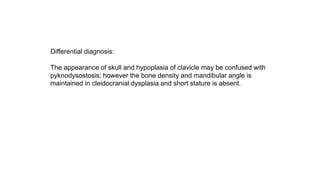

131. Differential diagnosis:
The appearance of skull and hypoplasia of clavicle may be confused with
pyknodysostosis; however the bone density and mandibular angle is
maintained in cleidocranial dysplasia and short stature is absent.

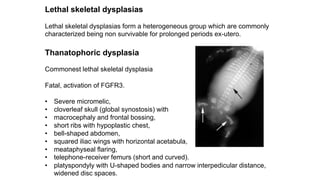

132. Lethal skeletal dysplasias
Lethal skeletal dysplasias form a heterogeneous group which are commonly
characterized being non survivable for prolonged periods ex-utero.
Thanatophoric dysplasia
Commonest lethal skeletal dysplasia
Fatal, activation of FGFR3.
• Severe micromelic,
• cloverleaf skull (global synostosis) with
• macrocephaly and frontal bossing,
• short ribs with hypoplastic chest,
• bell-shaped abdomen,
• squared iliac wings with horizontal acetabula,
• meataphyseal flaring,
• telephone-receiver femurs (short and curved).
• platyspondyly with U-shaped bodies and narrow interpedicular distance,
widened disc spaces.

133. Sagittal US image shows a depressed nasal bridge (arrowhead), a prominent forehead (double arrows),
and an undersized thorax (single arrow) compared with the abdomen. (c) US image shows a telephone
receiver–shaped femur (arrows). Normal limb echogenicity with severe shortening and bowing of the
limbs, a narrow chest, and macrocephaly suggest thanatophoric dysplasia
Coronal US image through the abdomen-chest shows a hypoplastic thorax (arrow).

135. Achondrogenesis
Inheritance - AR
Two types - both are fatal but type I is more severe than II.
Defect in type 2 collagen.
• Extremely micromelic,
• large head,
• no/minimally ossified vertebral bodies,
• short ribs ± fractures,
• poorly ossified pelvis.

136. Asphyxiating thoracic dysplasia (Jeune syndrome)
Inheritance - AR.
• Very short ribs with bulbous ends,
• pulmonary hypoplasia,
• clavicles project far superior to ribs.
• Acromelic (short middle and distal
phalanges with cone-shaped
epiphyses), metaphyseal irregularity
and beaking.
Most of the mortality is due to respiratory compromise.
