SpringOne Platform 2019 Session Title: Simple Data Movement Patterns: Legacy Application to Cloud-Native Environment and Apache Geode Speaker: James Bedenbaugh, Advisory Data Solutions Architect, Pivotal; Zachary Hansen, Data Transformation Solutions Architect, Pivotal Youtube: https://youtu.be/7ds0YZNlhmE

1. Simple Data Movement Patterns:
Legacy Application to Cloud-
Native Environment and Apache
Geode
October 7–10, 2019
Austin Convention Center

2. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

3. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

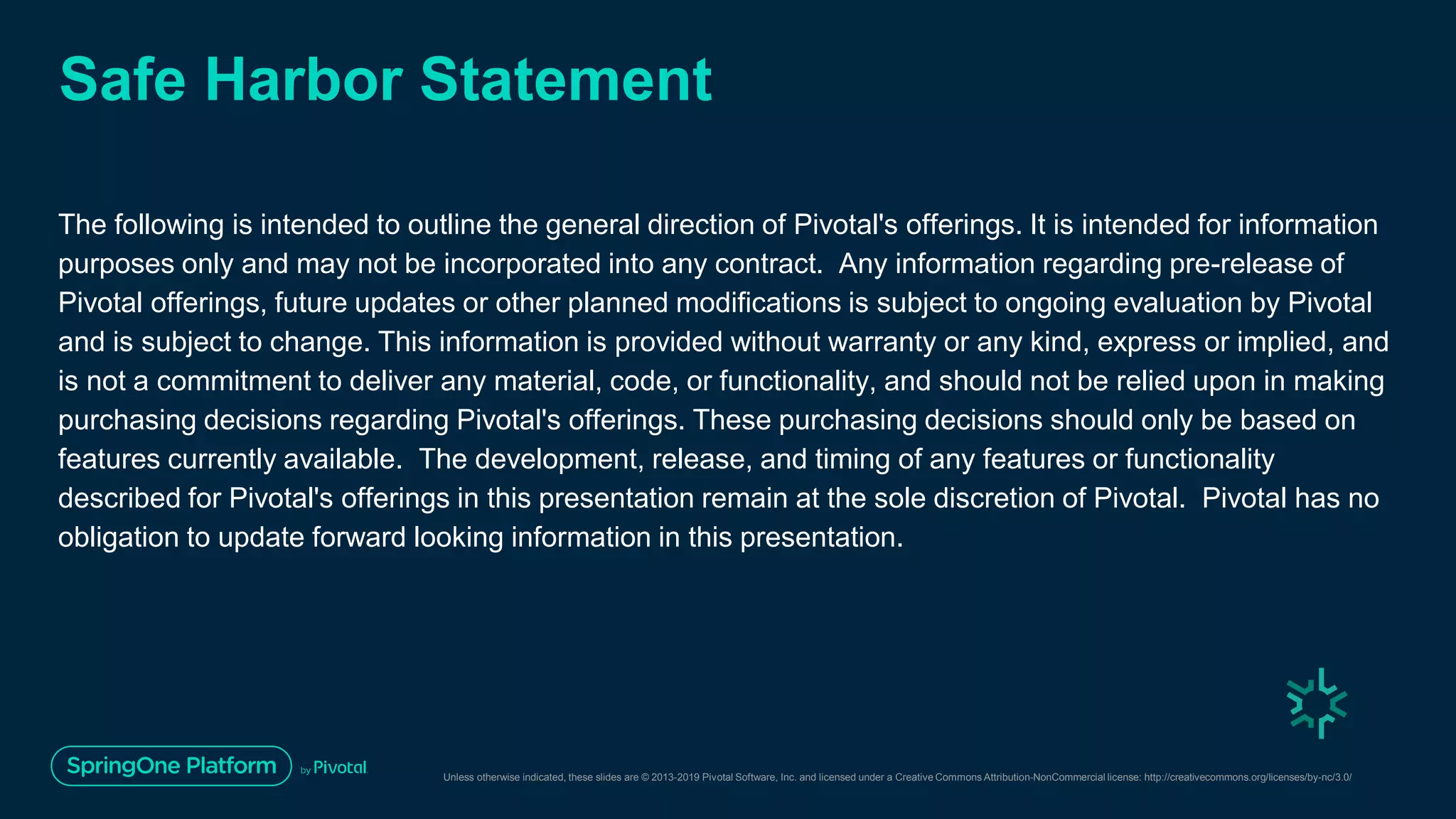

Safe Harbor Statement
The following is intended to outline the general direction of Pivotal's offerings. It is intended for information
purposes only and may not be incorporated into any contract. Any information regarding pre-release of
Pivotal offerings, future updates or other planned modifications is subject to ongoing evaluation by Pivotal
and is subject to change. This information is provided without warranty or any kind, express or implied, and
is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making
purchasing decisions regarding Pivotal's offerings. These purchasing decisions should only be based on
features currently available. The development, release, and timing of any features or functionality
described for Pivotal's offerings in this presentation remain at the sole discretion of Pivotal. Pivotal has no
obligation to update forward looking information in this presentation.

4. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

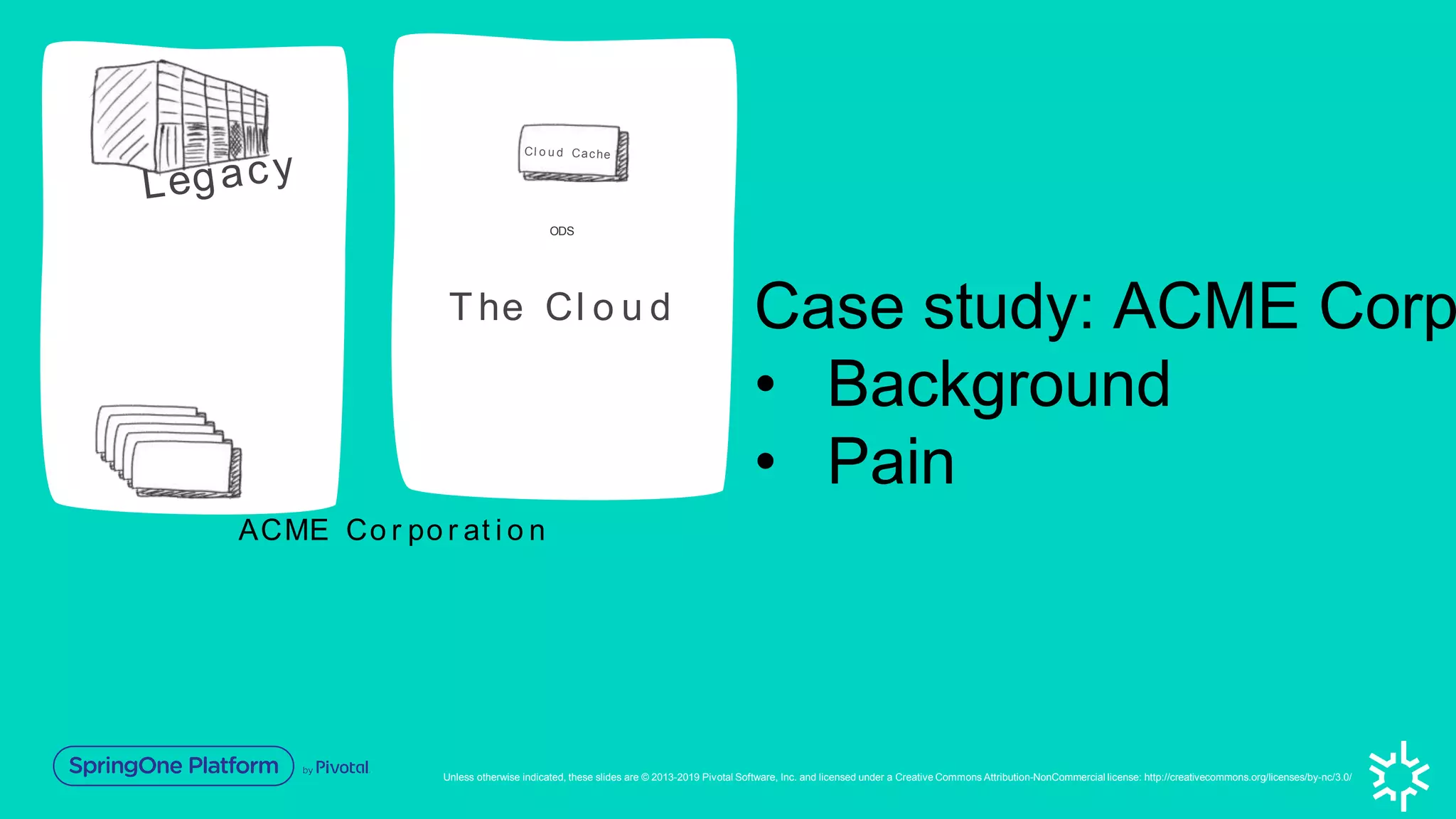

GeodeConf i g
object
object
Legacy
T he Cl o u d
Cl o u d Cache
ODS
ACME Co r po r at i o n
Case study: ACME Corp
• Background
• Pain

5. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/ 5
Roadmap
Considerations
• Constraints and conditions
surrounding migration pathways
• Goals

6. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
• There will be a continued use of legacy
application data by back end systems
• Some applications in cloud use cloud data
• Some applications in cloud use legacy data
• Some applications will use cloud and legacy
• Data will have to move from legacy to cloud
Constraints and conditions
surrounding migration pathways
6

7. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
• Optimally move all operational data to cloud
• Minimally invasive on legacy domain code and
data
• Should be a transition period where data is pushed
to cloud but will be shutoff when all cloud apps can
operate independently - that should be
configurable.
Goals
7

8. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
Four Common
Migration Patterns
Business Value versus Technical Value

9. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

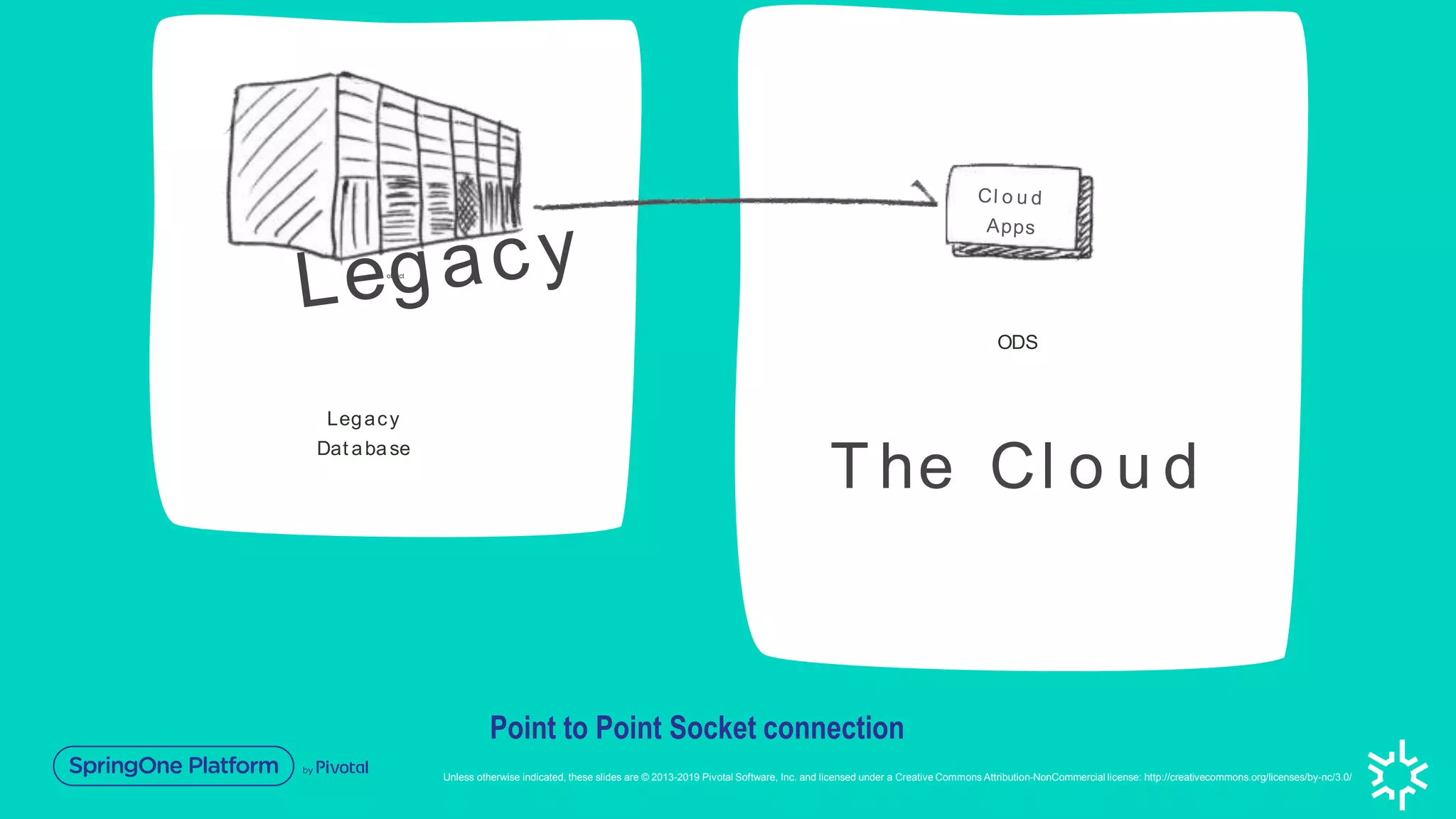

Point to Point Socket connection
object
object
Legacy
Legacy
Dat abase
T he Cl o u d
Cl o u d
Apps
ODS

10. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

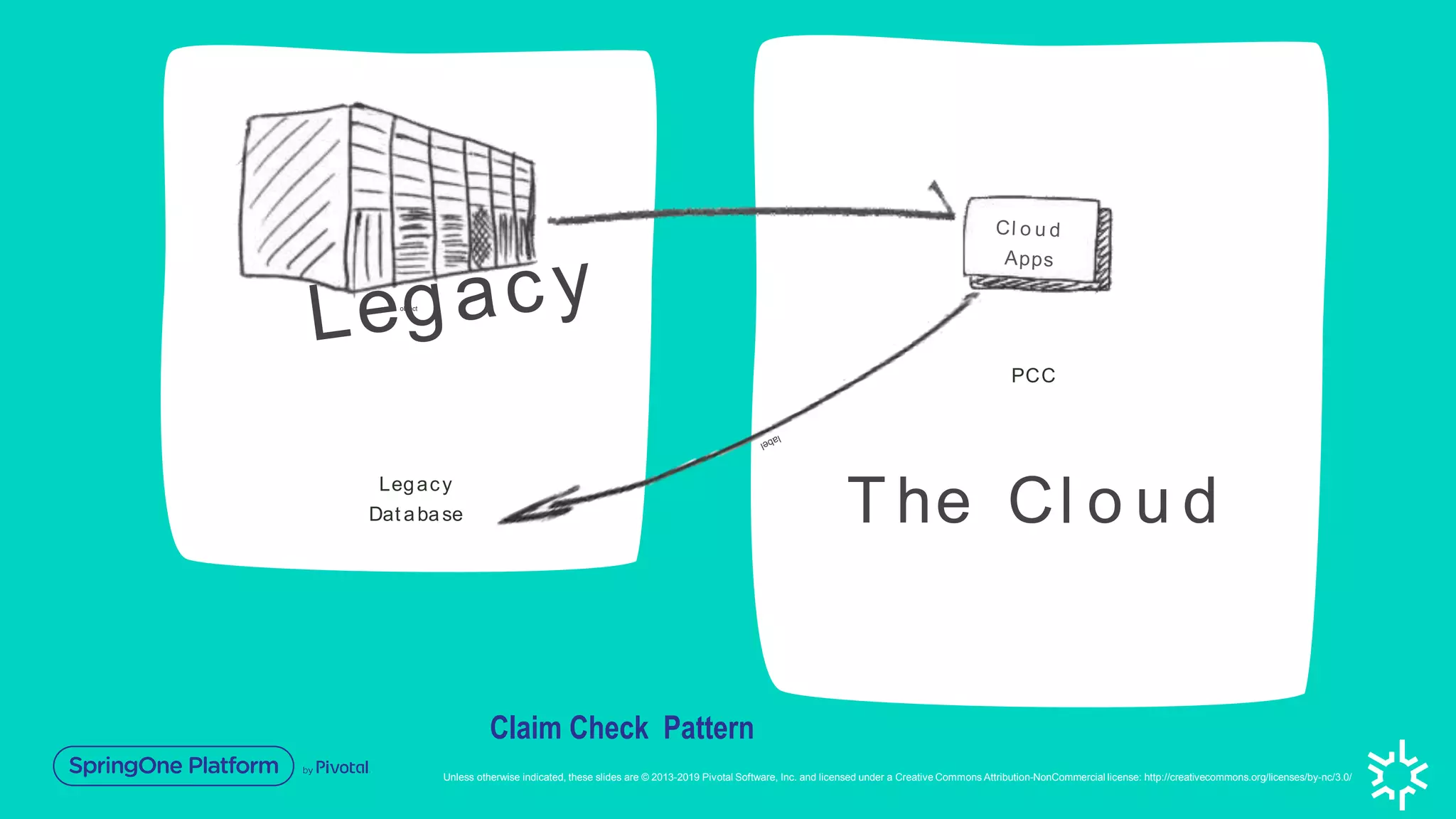

Claim Check Pattern
object
object
Legacy
Legacy
Dat abase T he Cl o u d
Cl o u d
Apps
PCC
label

11. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

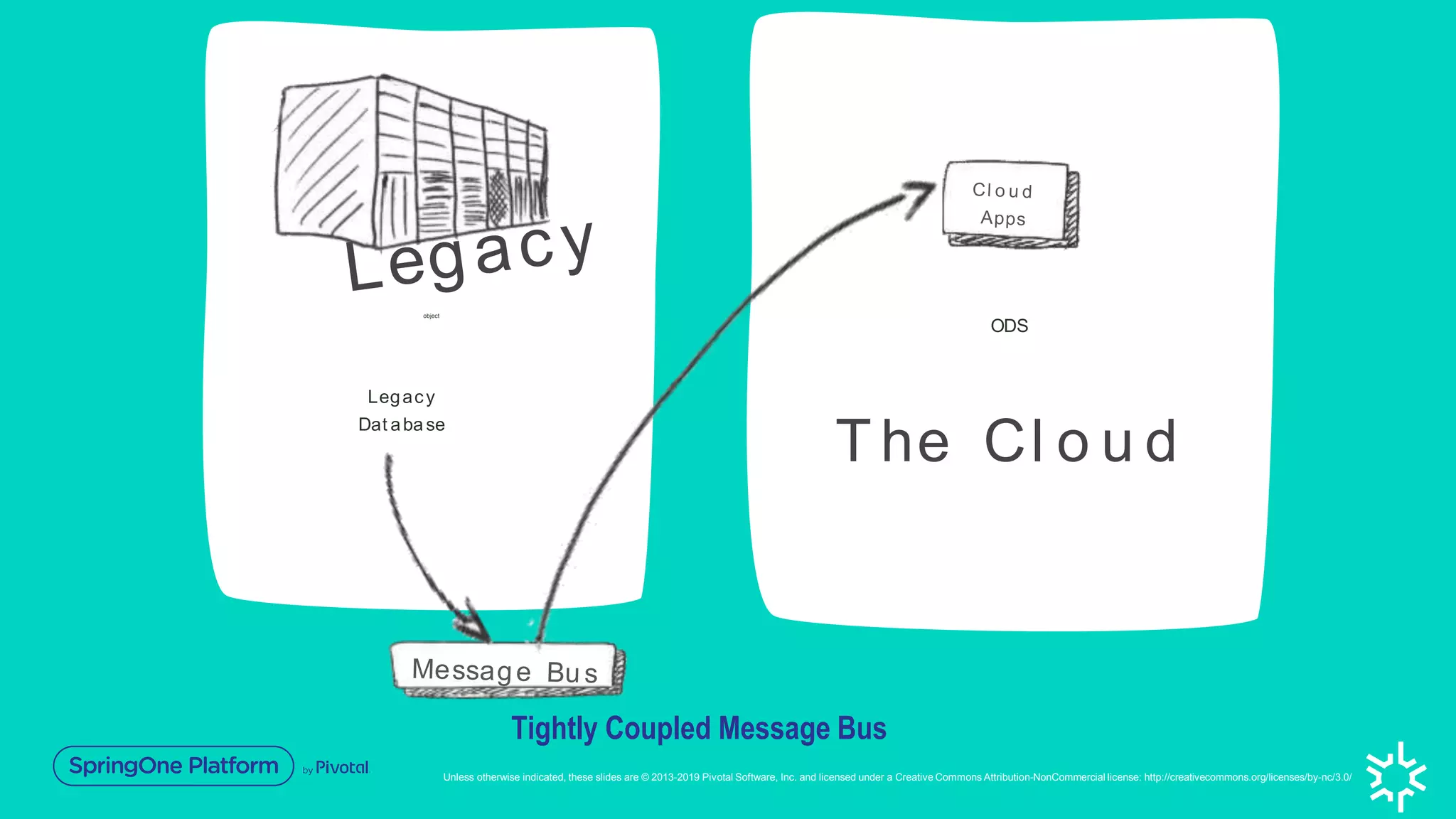

Tightly Coupled Message Bus
object
object
Legacy
Legacy
Dat aba se
T he Cl o u d
Cl o u d
Apps
Message Bu s
ODS

12. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

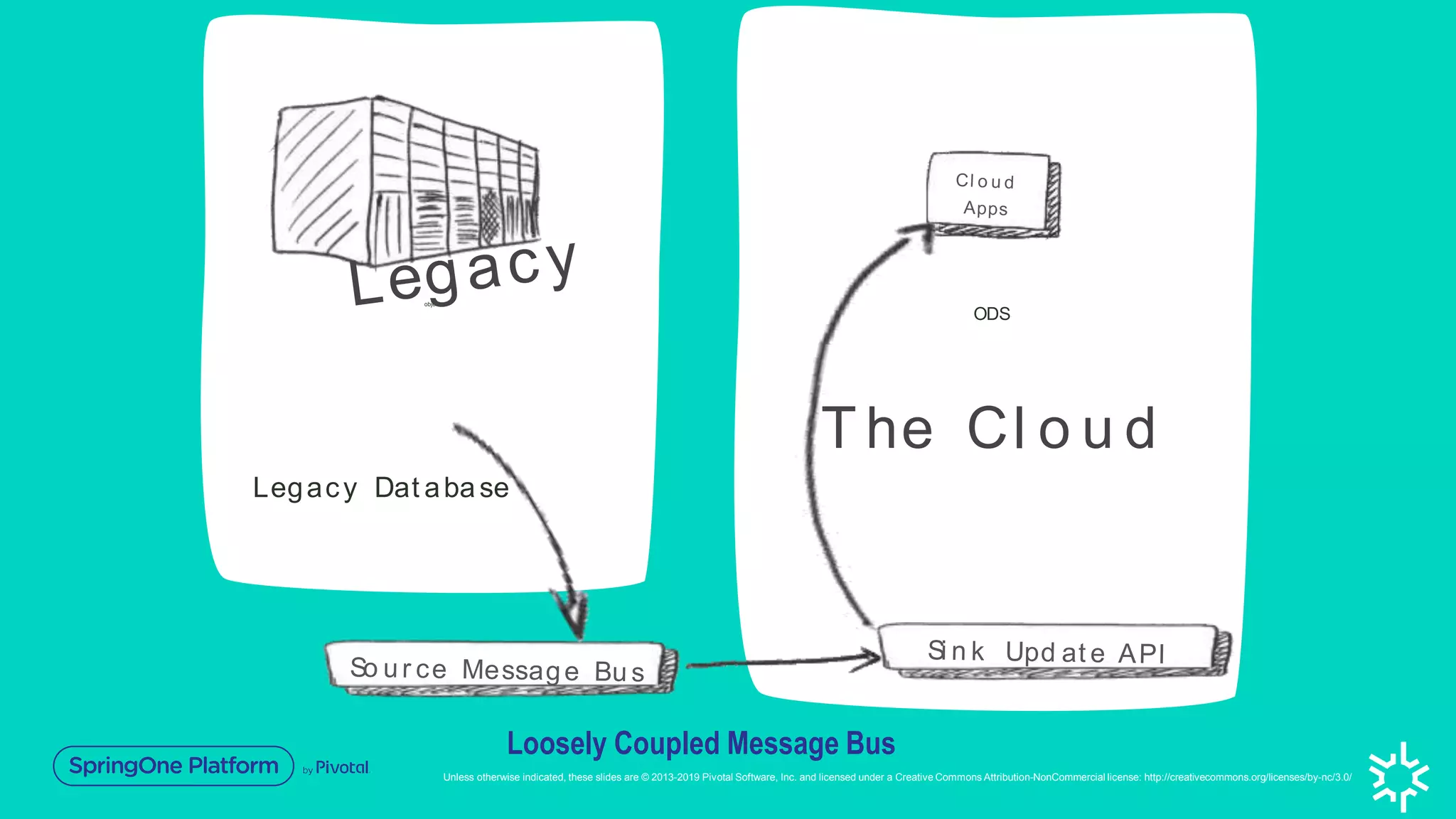

Loosely Coupled Message Bus
object
object
Legacy
Legacy Dat abase
T he Cl o u d
Cl o u d
Apps
So ur ce Message Bu s
Si n k Upd at e API
ODS

13. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

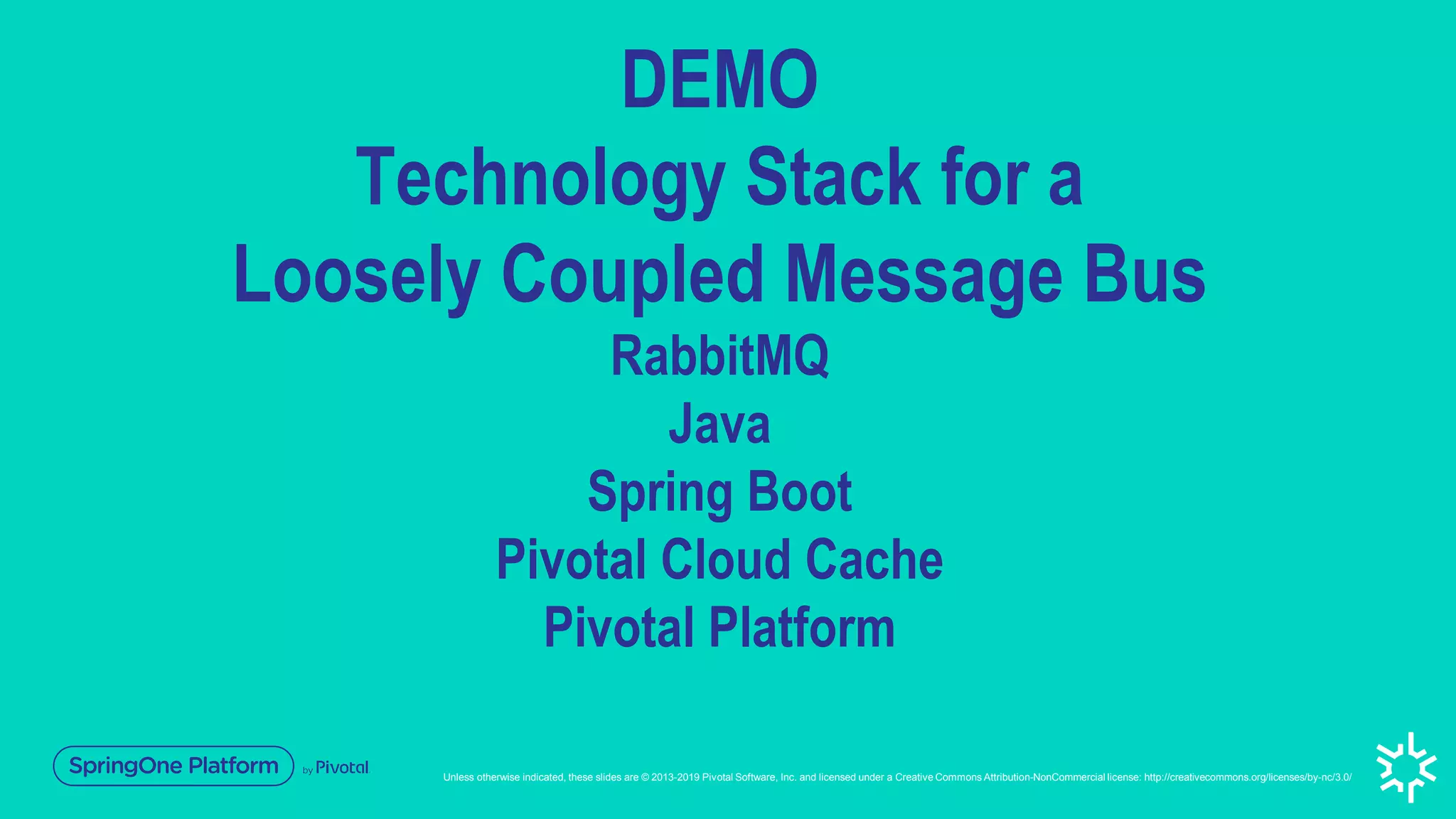

DEMO
Technology Stack for a
Loosely Coupled Message Bus
RabbitMQ
Java
Spring Boot
Pivotal Cloud Cache
Pivotal Platform

14. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
1
4
THE CODE
What you need to wire it all
up

15. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/

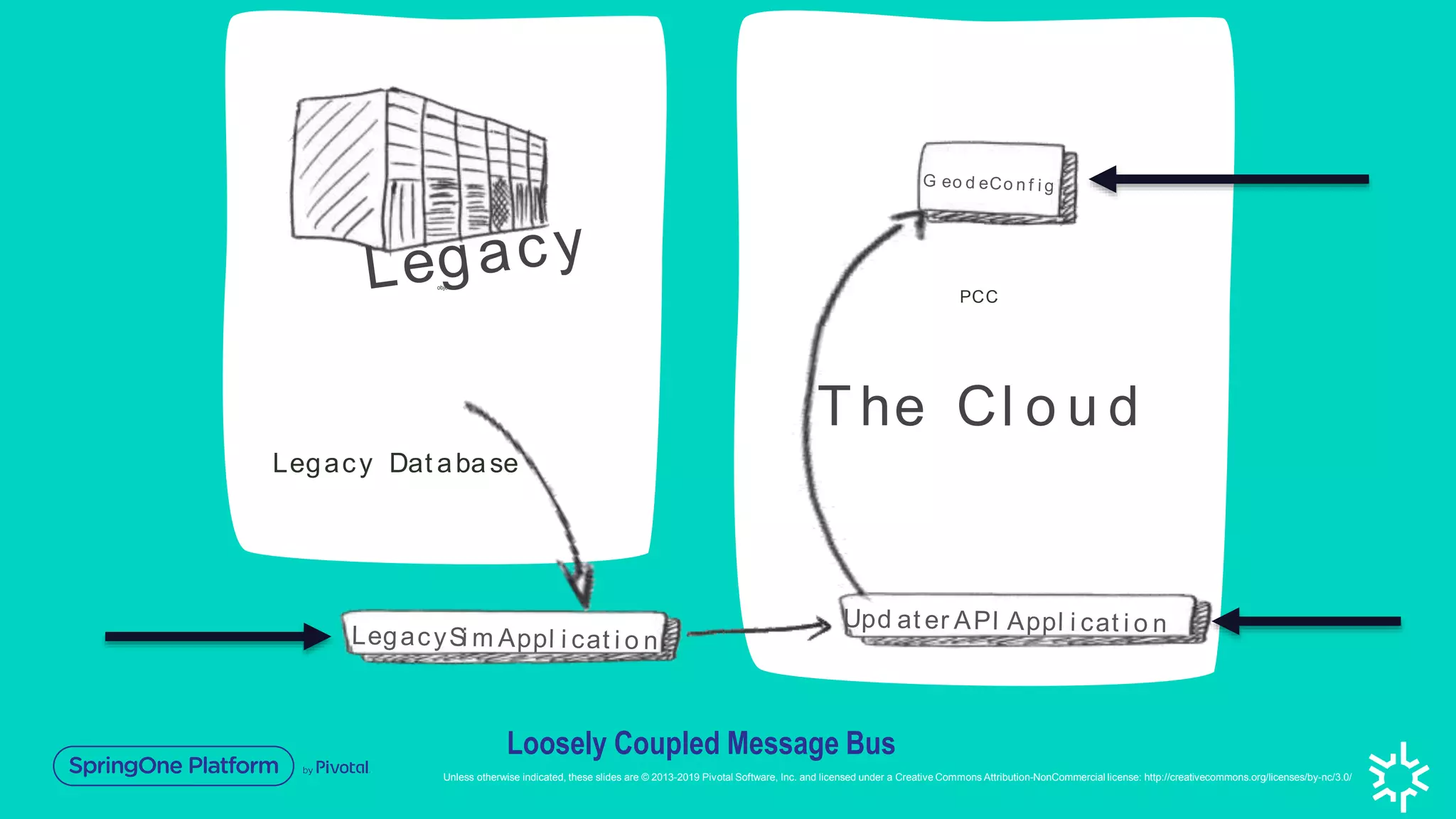

Loosely Coupled Message Bus
GeodeConf i g
object
object
Legacy
Legacy Dat abase
T he Cl o u d
G eo d eCo n f i g
LegacySi m Appl i cat i o n
Upd at er API Appl i cat i o n
PCC

16. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
1
6
@EnableEntityDefinedRegions(basePackages="io.pivotal.s1p.model")
@EnableGemfireRepositories
@EnablePdx
@EnableSecurity
@Configuration
public class GeodeConfig {
}
Geode (PCC)
GeodeConf i g
object
object
Legacy
Legacy Dat abase
T he Cl o u d
G eo d eCo n f i g
LegacySi m Appl i cat i o n
Upd at er API Appl i cat i o n
PCC

17. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
1
7
@EnableBinding(Source.class)
public class FileSourceConfiguration {
@Autowired
Source source;
@InboundChannelAdapter(value = Source.OUTPUT)
public Customer customerFileStreamSingleMessage() {
CustomerParser parser = new CustomerParser();
List<Customer> customers =
parser.buildCustomerList(new FileReader().readCustomers());
return customers;
}
}
RMQ Source
GeodeConf i g
object
object
Legacy
Legacy Dat abase
T he Cl o u d
G eo d eCo n f i g
LegacySi m Appl i cat i o n
Upd at er API Appl i cat i o n
PCC

18. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
1
8
@EnableBinding(Sink.class)
public class UpdaterApiApplication {
@Autowired
UpdateCustomerService updateCustomerService;
@StreamListener(Sink.INPUT)
public void handle(Customer customer) {
updateCustomerService.createCustomer(customer);
}
}
RMQ Sink
GeodeConf i g
object
object
Legacy
Legacy Dat abase
T he Cl o u d
G eo d eCo n f i g
LegacySi m Appl i cat i o n
Upd at er API Appl i cat i o n
PCC

19. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
THE DEMO

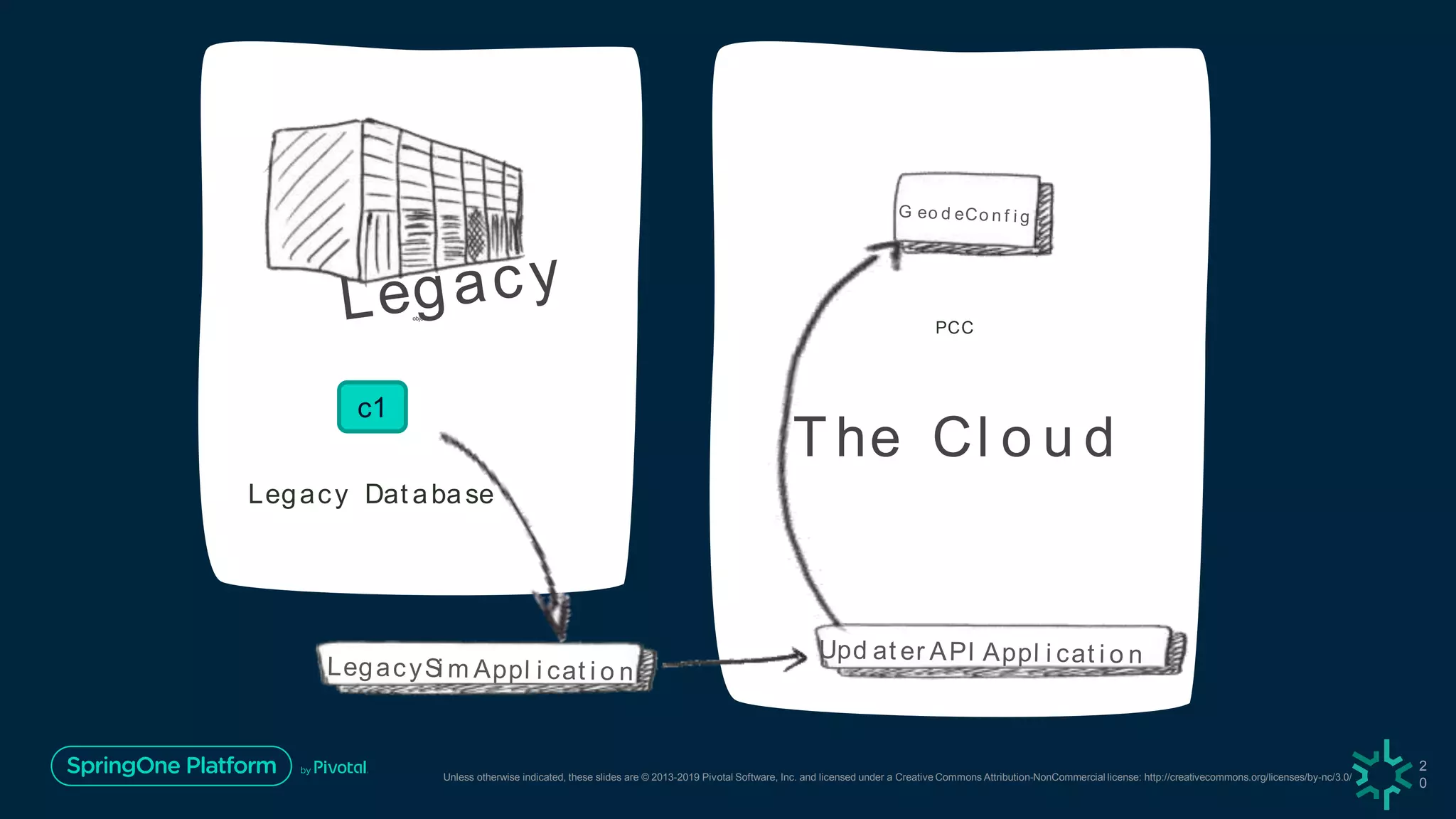

20. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
2
0
GeodeConf i g
object
object
Legacy
Legacy Dat abase
T he Cl o u d
G eo d eCo n f i g
LegacySi m Appl i cat i o n
Upd at er API Appl i cat i o n
PCC
c1

21. Stay Connected.
#springone@s1p
jbedenbaugh@pivotal.io
zhansen@pivotal.io

22. Unless otherwise indicated, these slides are © 2013-2019 Pivotal Software, Inc. and licensed under a Creative Commons Attribution-NonCommercial license: http://creativecommons.org/licenses/by-nc/3.0/
QUESTIONS
AND
DISCUSSION
