1. Signature verification ofSignature verification of
kernel module and kexeckernel module and kexec
October, 2016, openSUSE.Asia 2016, YogyakartaOctober, 2016, openSUSE.Asia 2016, Yogyakarta
Joey Lee, SUSE Labs Taipei

2. 2

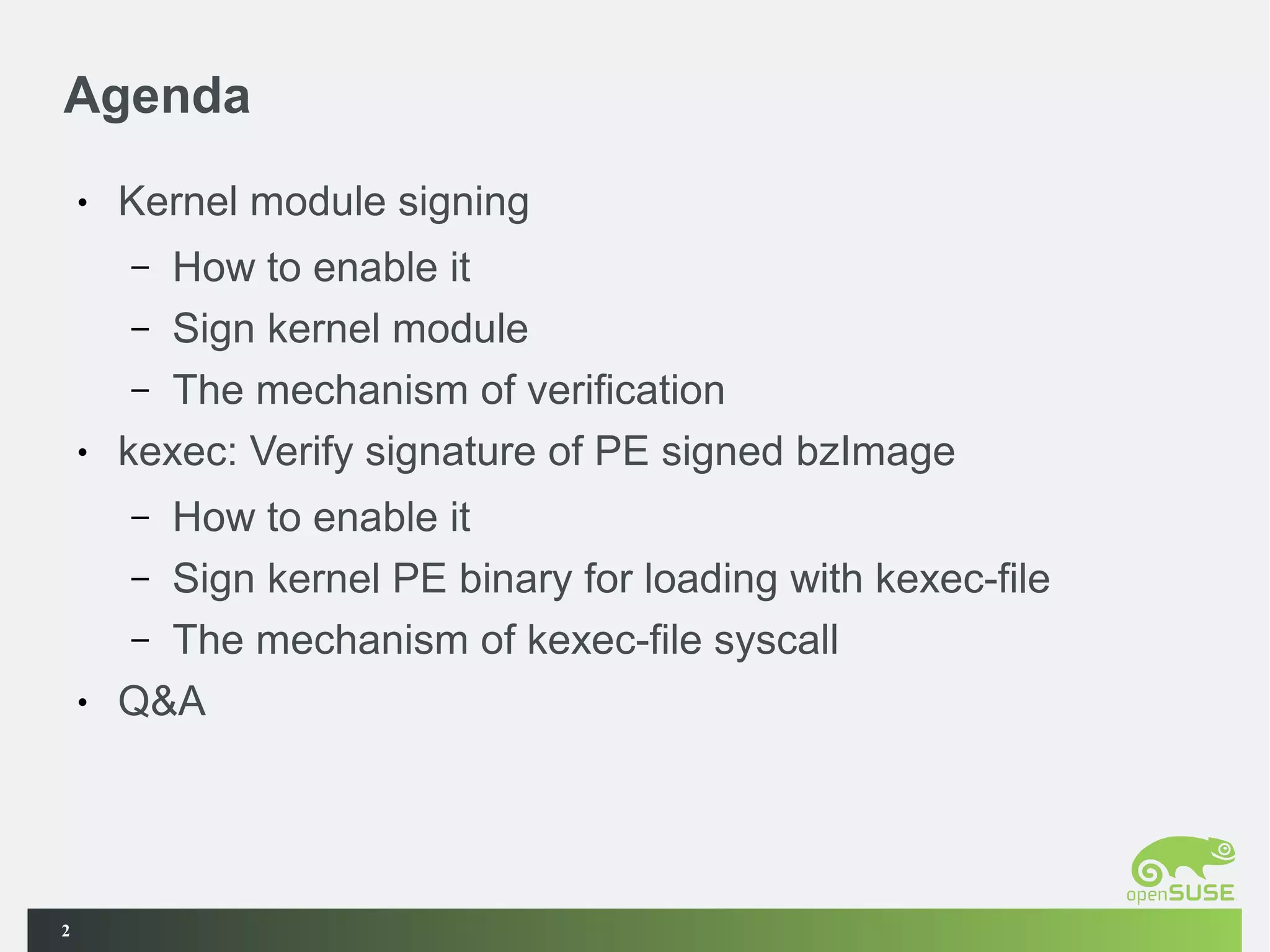

Agenda
• Kernel module signing
– How to enable it
– Sign kernel module
– The mechanism of verification
• kexec: Verify signature of PE signed bzImage
– How to enable it
– Sign kernel PE binary for loading with kexec-file
– The mechanism of kexec-file syscall
• Q&A

3. Kernel module signingKernel module signing

4. 4

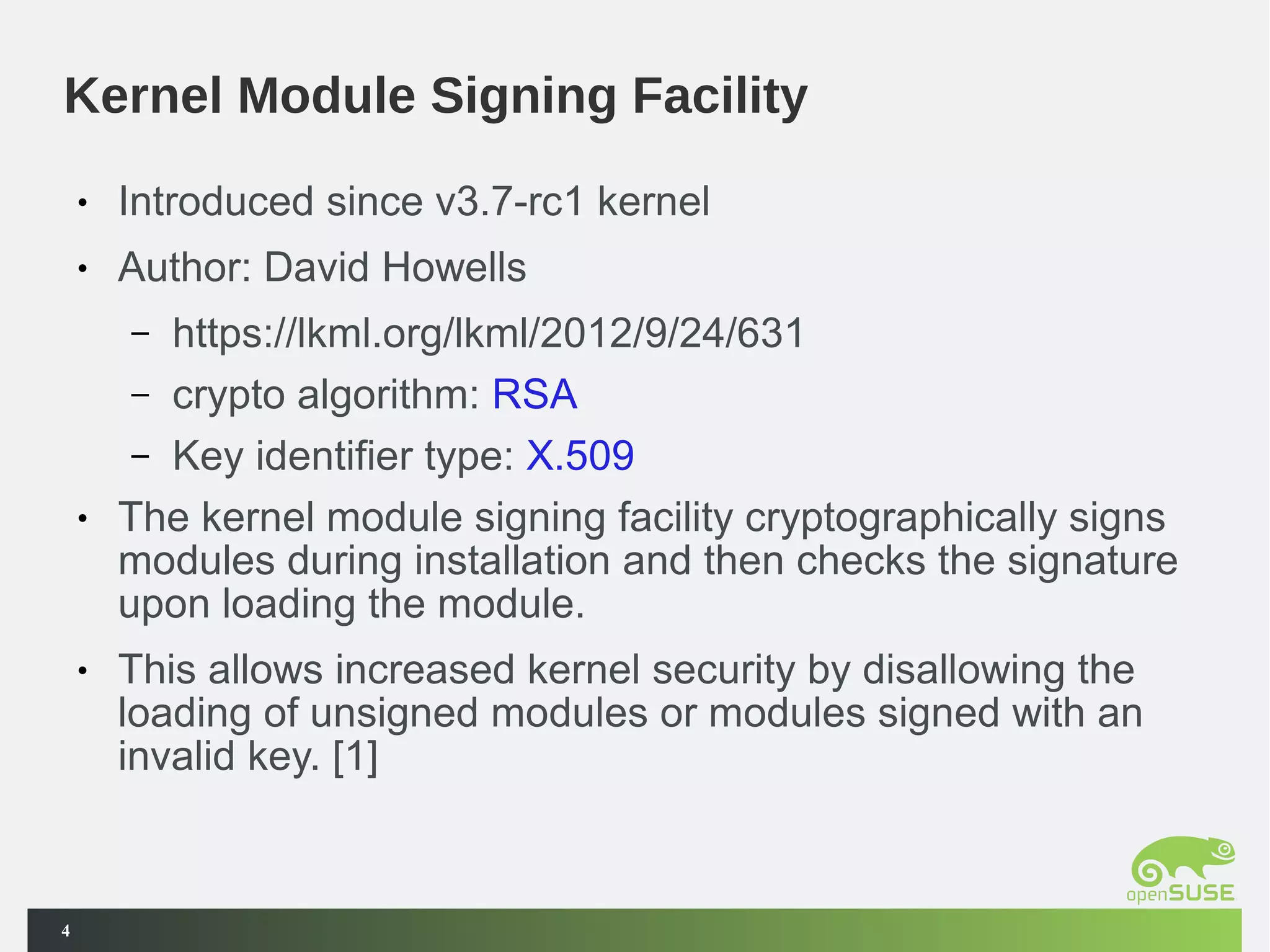

Kernel Module Signing Facility
• Introduced since v3.7-rc1 kernel
• Author: David Howells
– https://lkml.org/lkml/2012/9/24/631
– crypto algorithm: RSA
– Key identifier type: X.509
• The kernel module signing facility cryptographically signs
modules during installation and then checks the signature
upon loading the module.
• This allows increased kernel security by disallowing the
loading of unsigned modules or modules signed with an
invalid key. [1]

5. 5

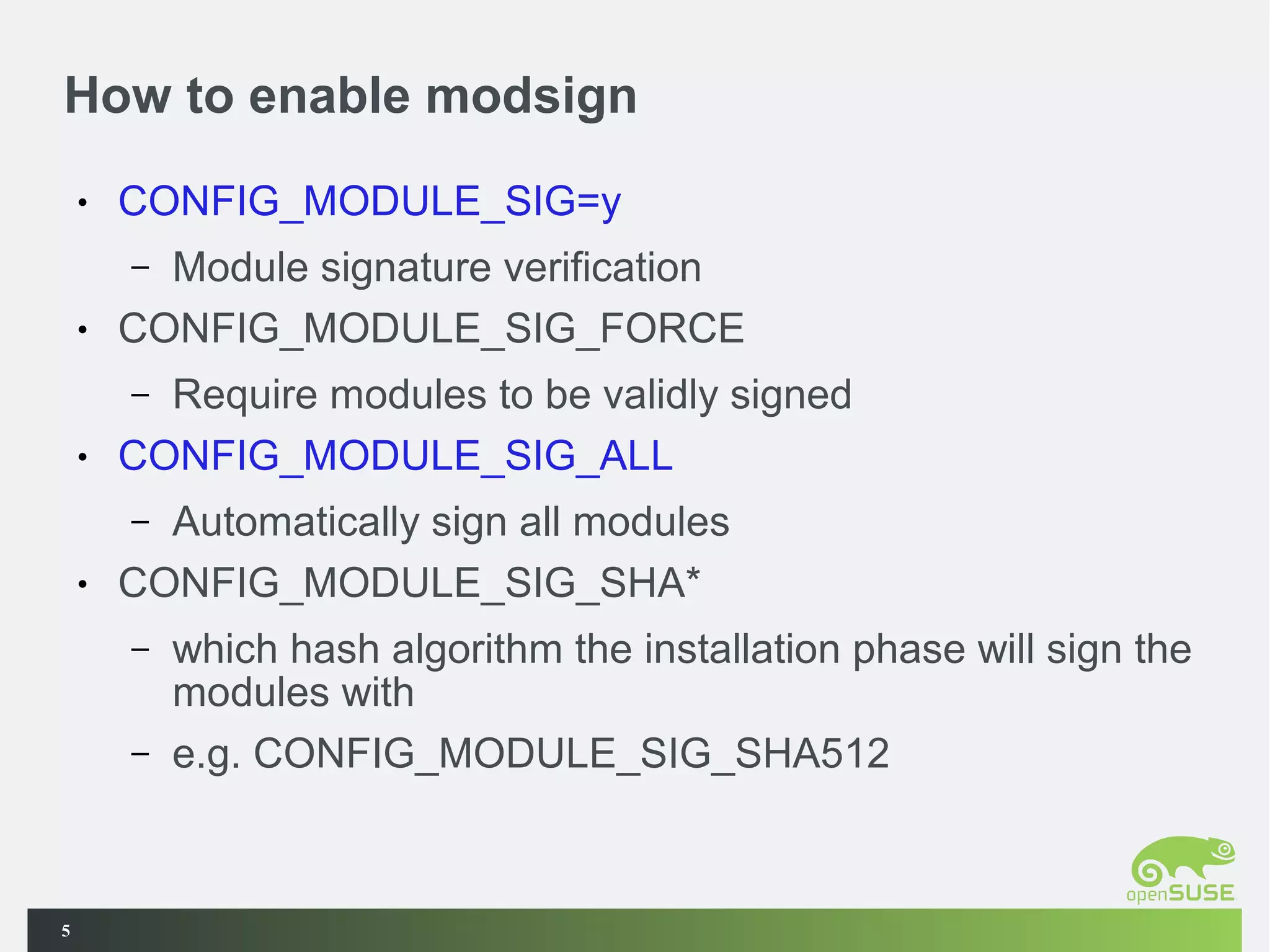

How to enable modsign
• CONFIG_MODULE_SIG=y
– Module signature verification
• CONFIG_MODULE_SIG_FORCE
– Require modules to be validly signed
• CONFIG_MODULE_SIG_ALL
– Automatically sign all modules
• CONFIG_MODULE_SIG_SHA*
– which hash algorithm the installation phase will sign the
modules with
– e.g. CONFIG_MODULE_SIG_SHA512

6. 6

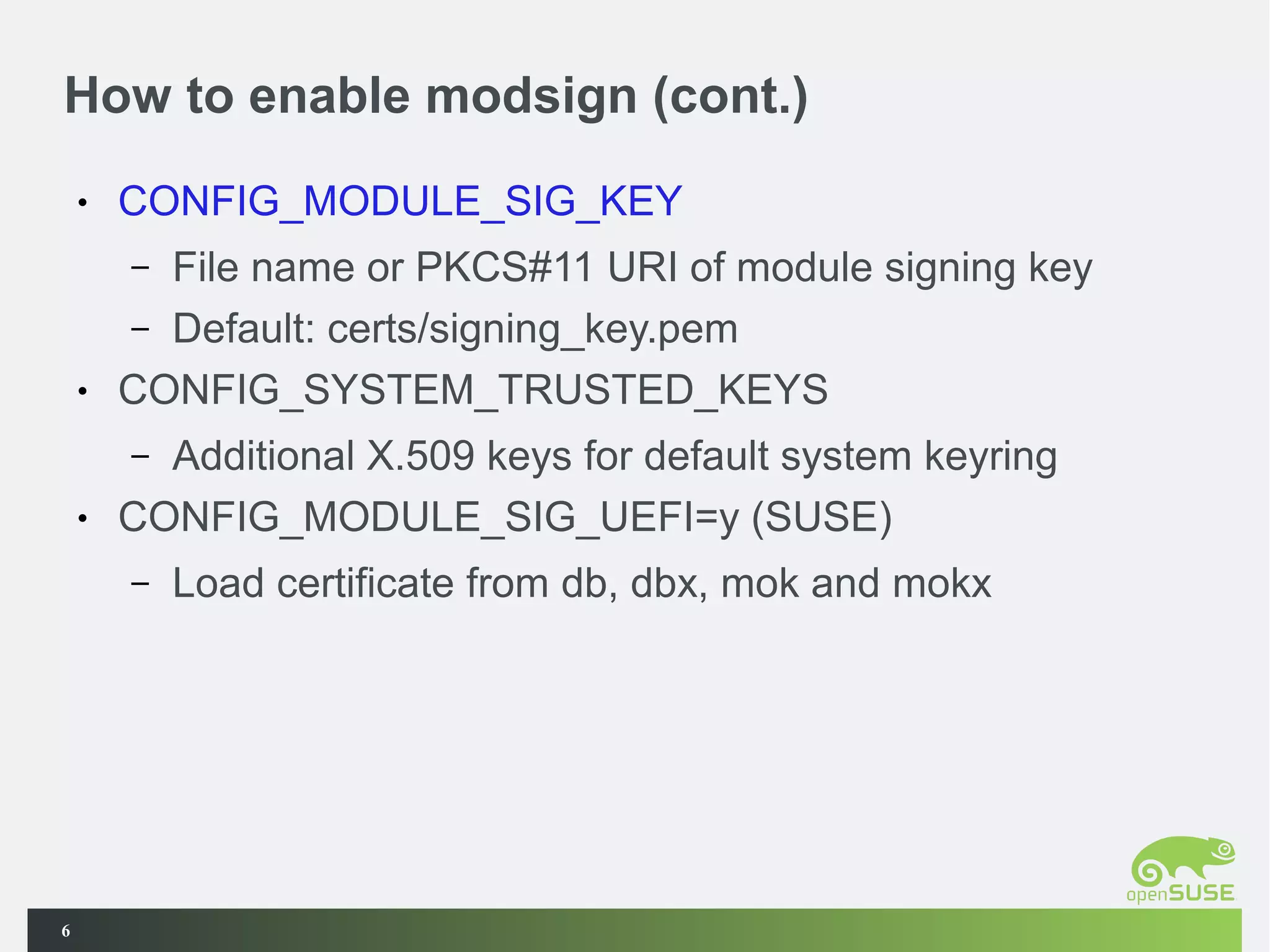

How to enable modsign (cont.)
• CONFIG_MODULE_SIG_KEY
– File name or PKCS#11 URI of module signing key
– Default: certs/signing_key.pem
• CONFIG_SYSTEM_TRUSTED_KEYS
– Additional X.509 keys for default system keyring
• CONFIG_MODULE_SIG_UEFI=y (SUSE)
– Load certificate from db, dbx, mok and mokx

7. 7

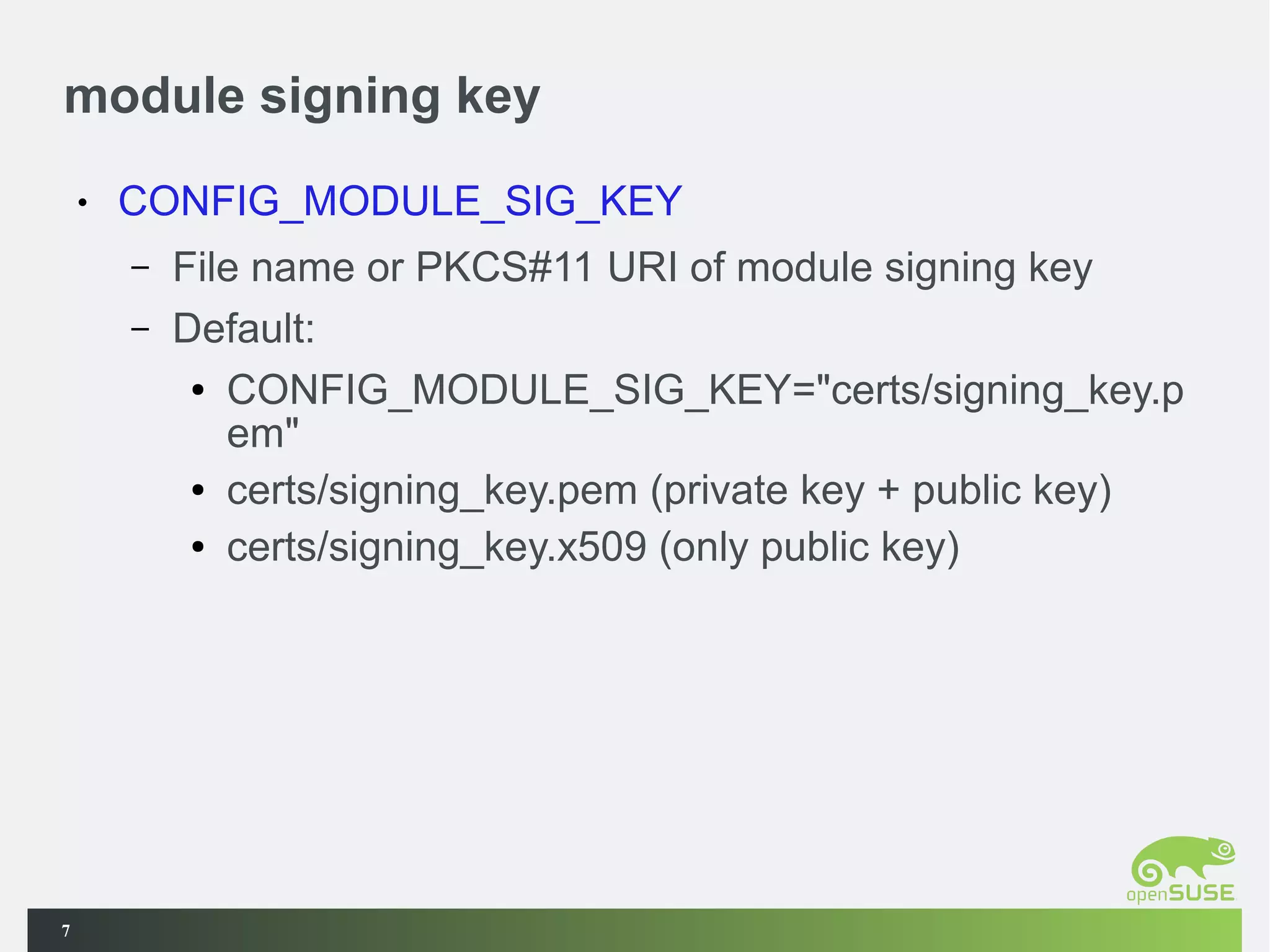

module signing key
• CONFIG_MODULE_SIG_KEY
– File name or PKCS#11 URI of module signing key
– Default:
● CONFIG_MODULE_SIG_KEY="certs/signing_key.p
em"
● certs/signing_key.pem (private key + public key)
● certs/signing_key.x509 (only public key)

8. 8

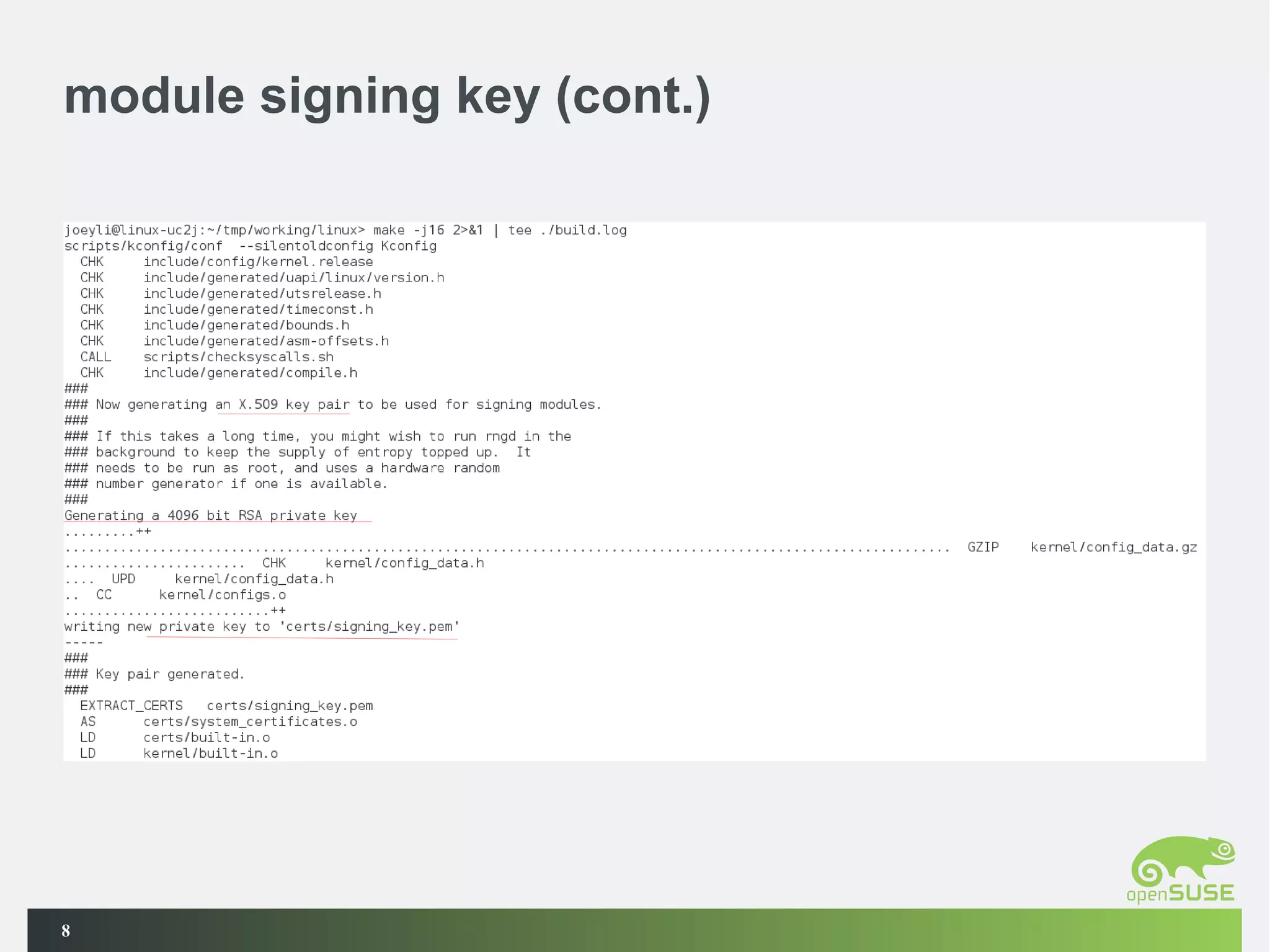

module signing key (cont.)

9. 9
module signing key (cont.)

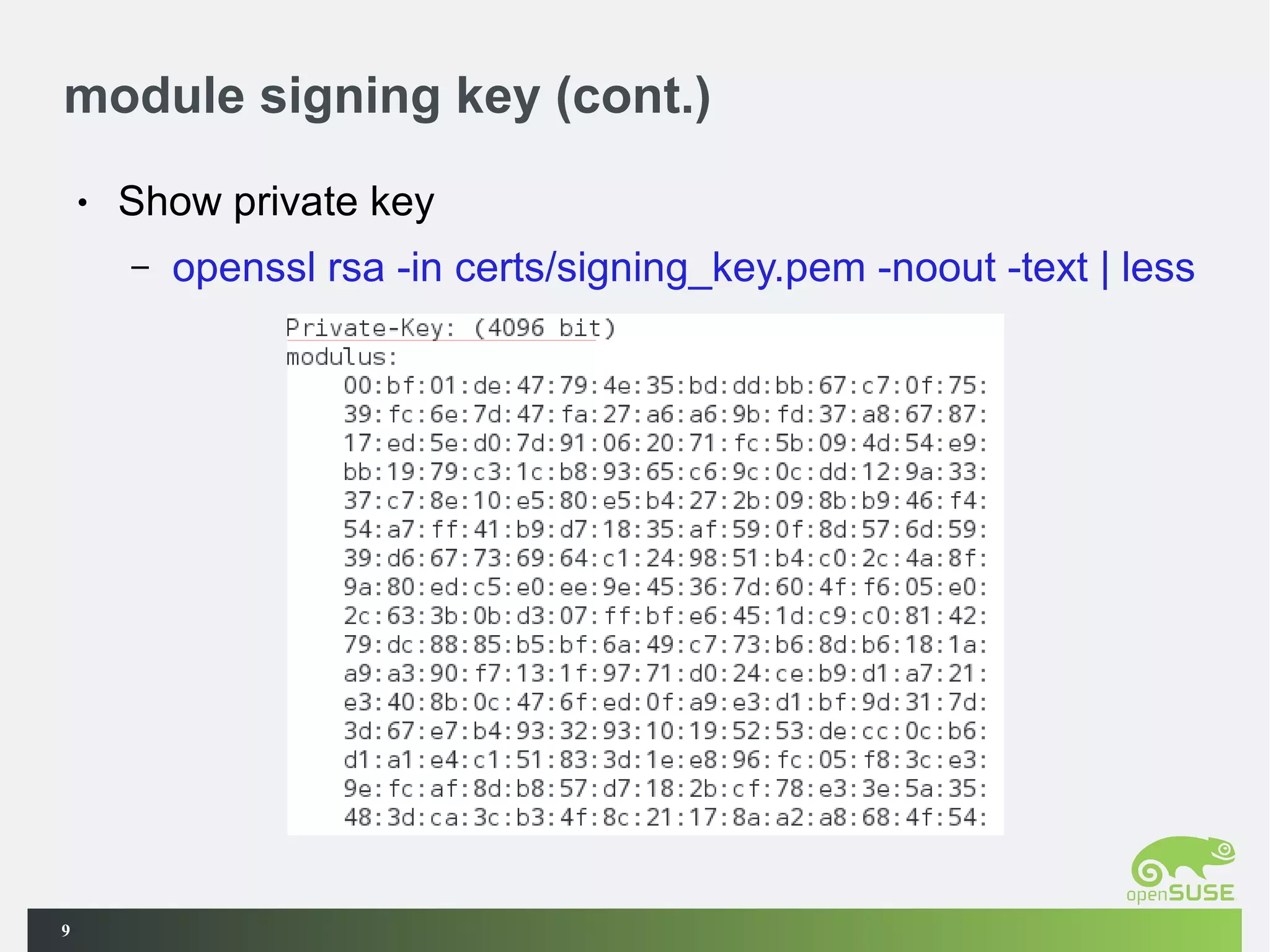

• Show private key
– openssl rsa -in certs/signing_key.pem -noout -text | less

10. 10

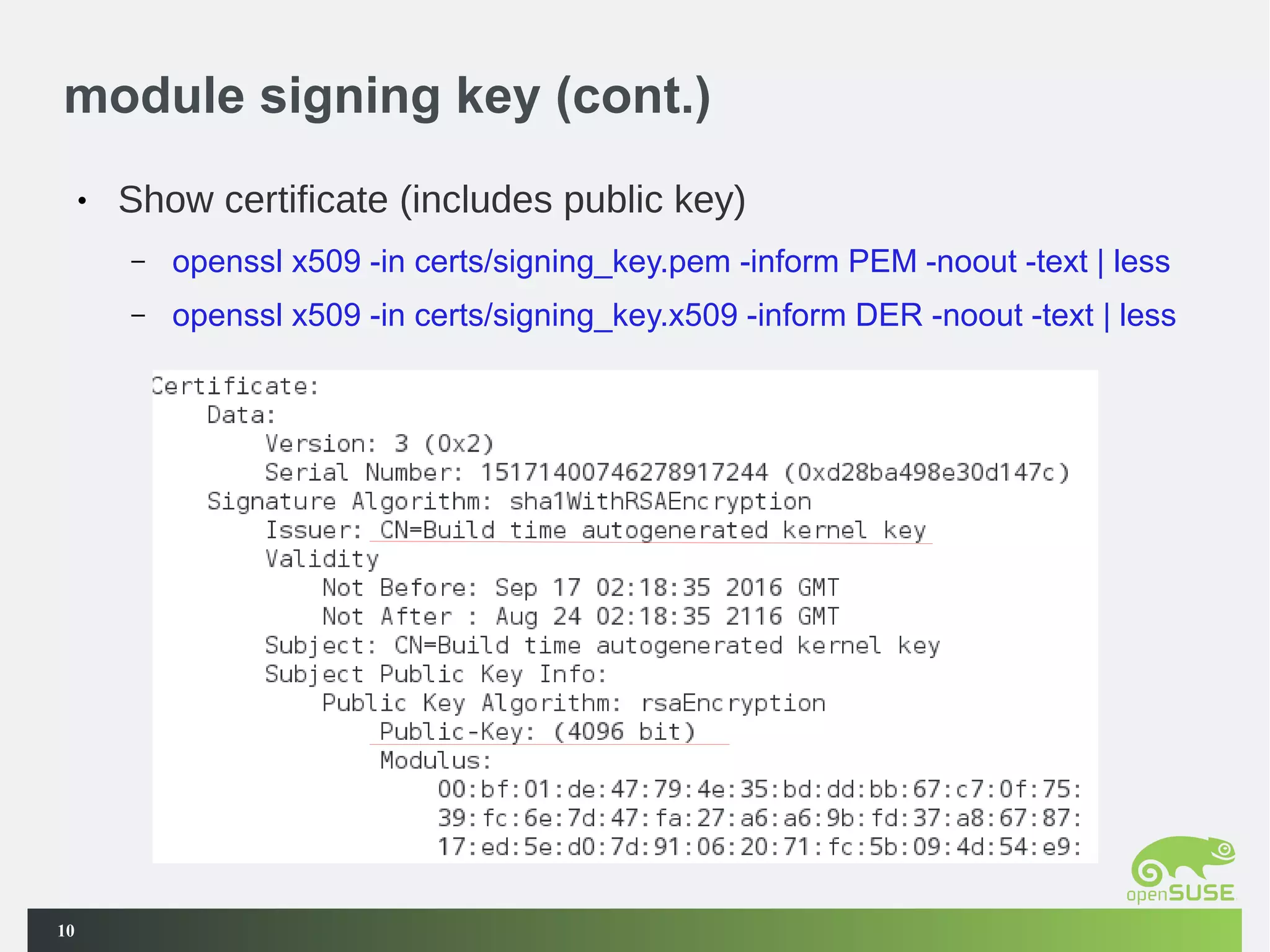

module signing key (cont.)
• Show certificate (includes public key)
– openssl x509 -in certs/signing_key.pem -inform PEM -noout -text | less
– openssl x509 -in certs/signing_key.x509 -inform DER -noout -text | less

11. 11

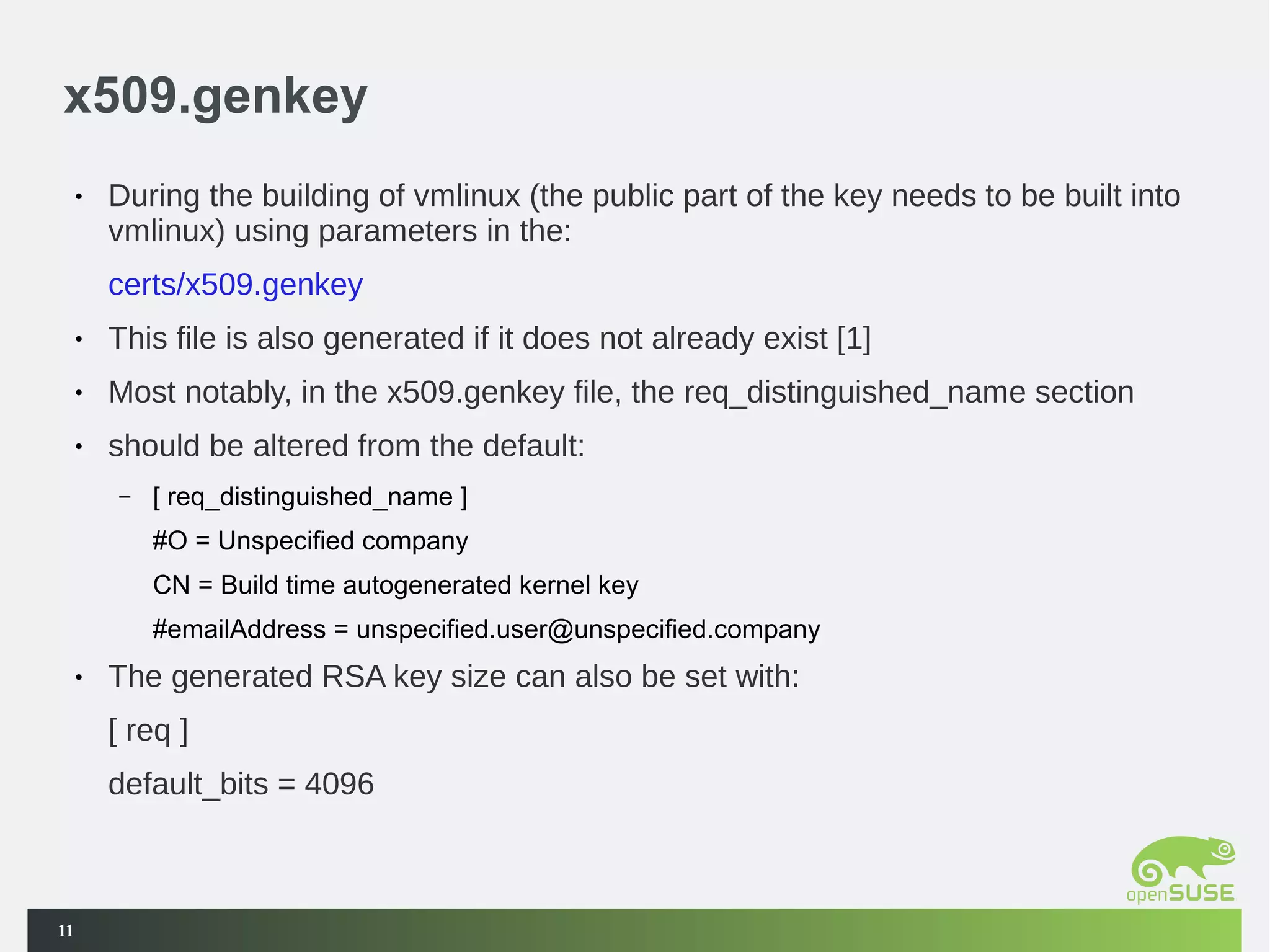

x509.genkey
• During the building of vmlinux (the public part of the key needs to be built into
vmlinux) using parameters in the:
certs/x509.genkey
• This file is also generated if it does not already exist [1]
• Most notably, in the x509.genkey file, the req_distinguished_name section
• should be altered from the default:
– [ req_distinguished_name ]
#O = Unspecified company
CN = Build time autogenerated kernel key
#emailAddress = unspecified.user@unspecified.company
• The generated RSA key size can also be set with:
[ req ]
default_bits = 4096

12. 12

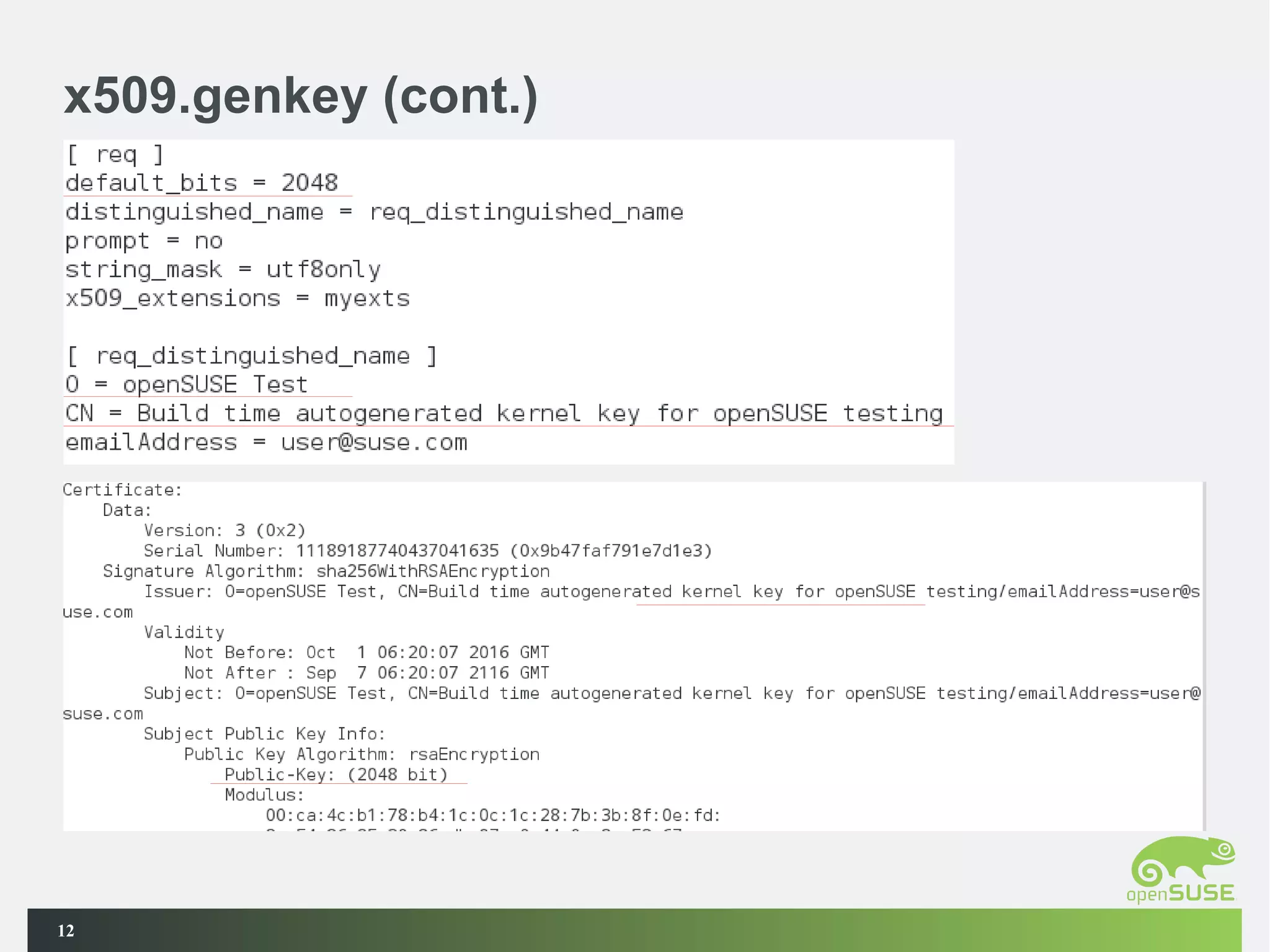

x509.genkey (cont.)

13. 13

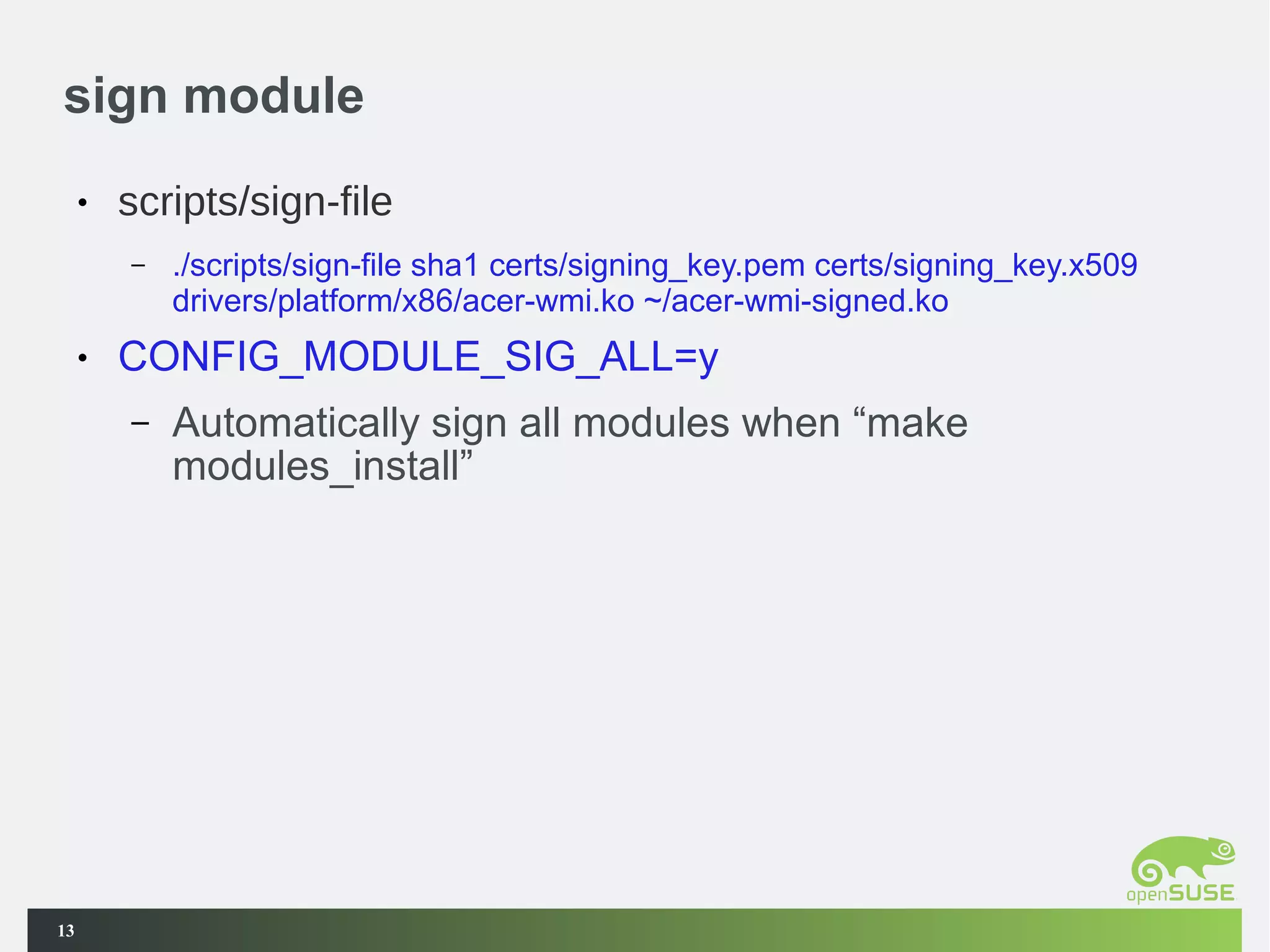

sign module
• scripts/sign-file
– ./scripts/sign-file sha1 certs/signing_key.pem certs/signing_key.x509
drivers/platform/x86/acer-wmi.ko ~/acer-wmi-signed.ko
• CONFIG_MODULE_SIG_ALL=y
– Automatically sign all modules when “make
modules_install”

14. 14

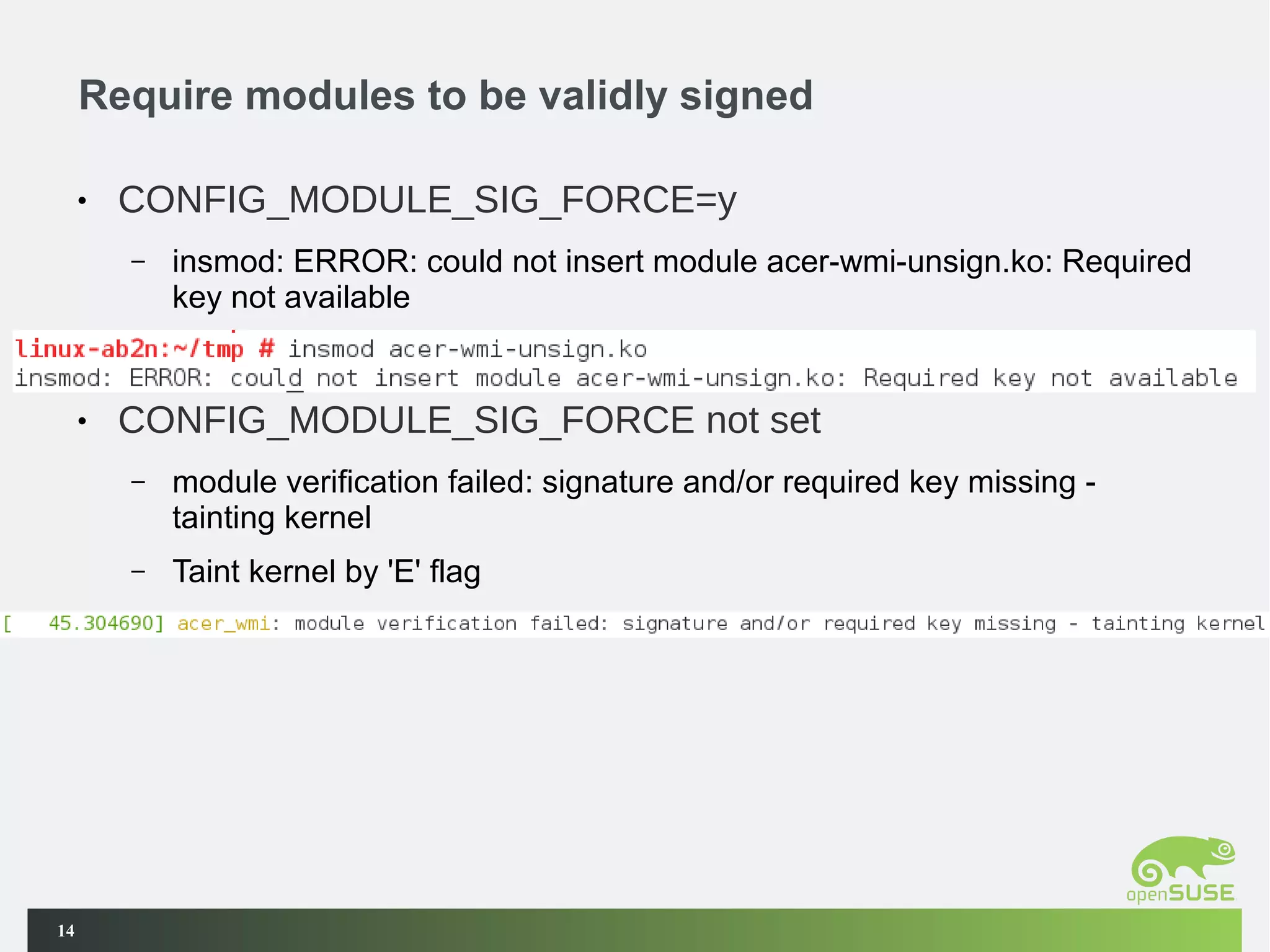

Require modules to be validly signed
• CONFIG_MODULE_SIG_FORCE=y
– insmod: ERROR: could not insert module acer-wmi-unsign.ko: Required
key not available
•
• CONFIG_MODULE_SIG_FORCE not set
– module verification failed: signature and/or required key missing -
tainting kernel
– Taint kernel by 'E' flag

15. 15
Signature of module

16. 16

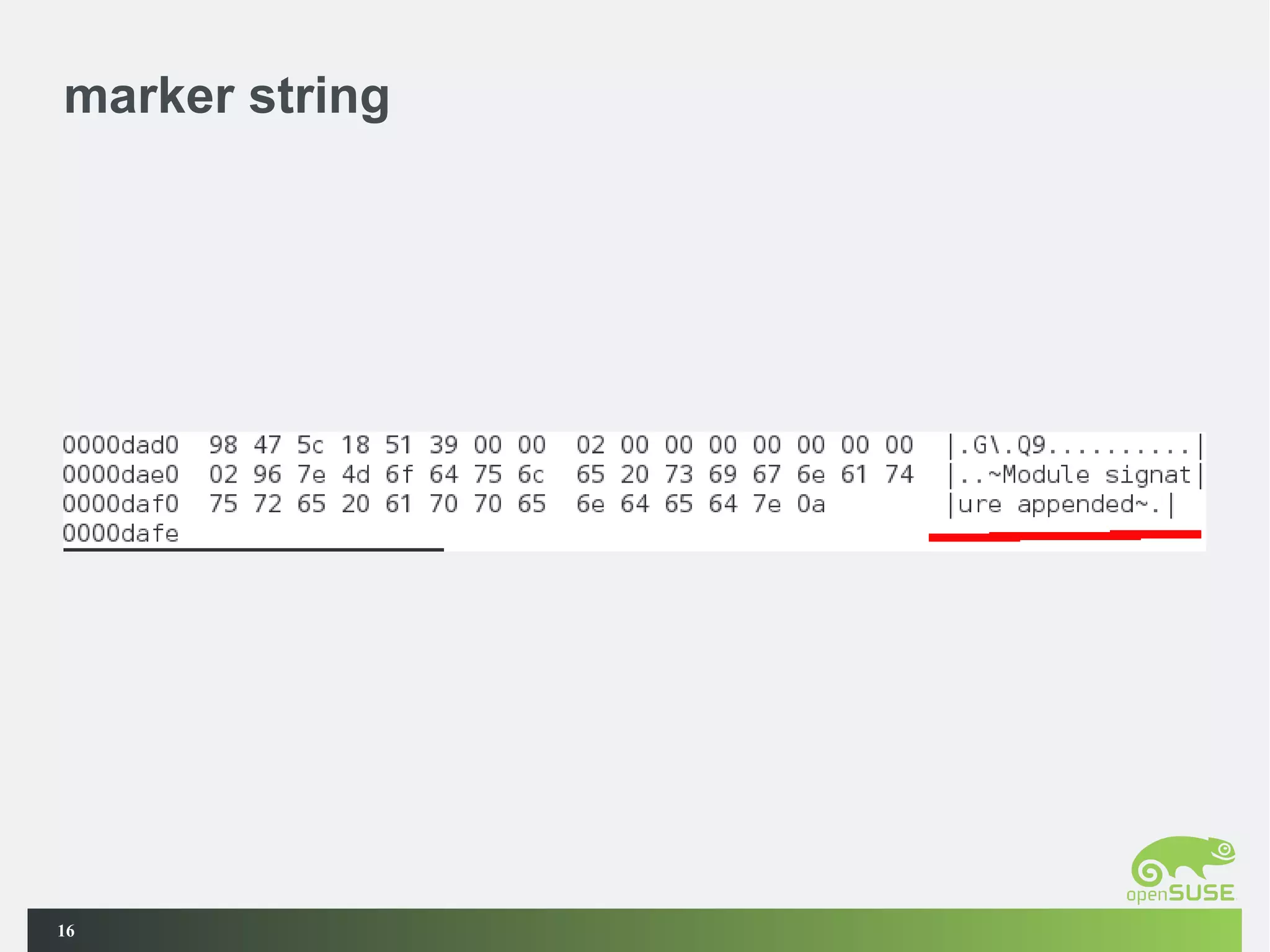

marker string

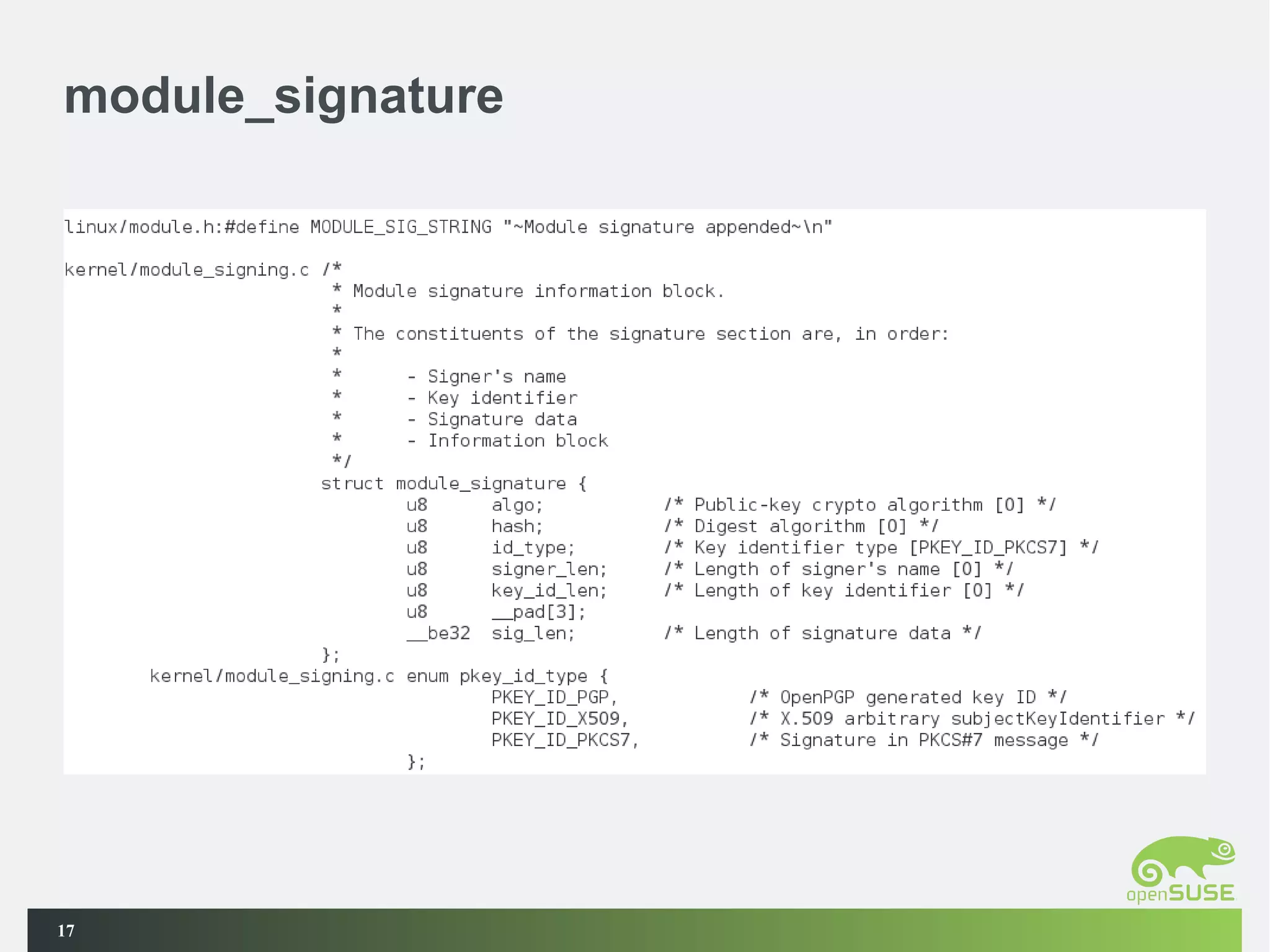

17. 17
module_signature

18. 18

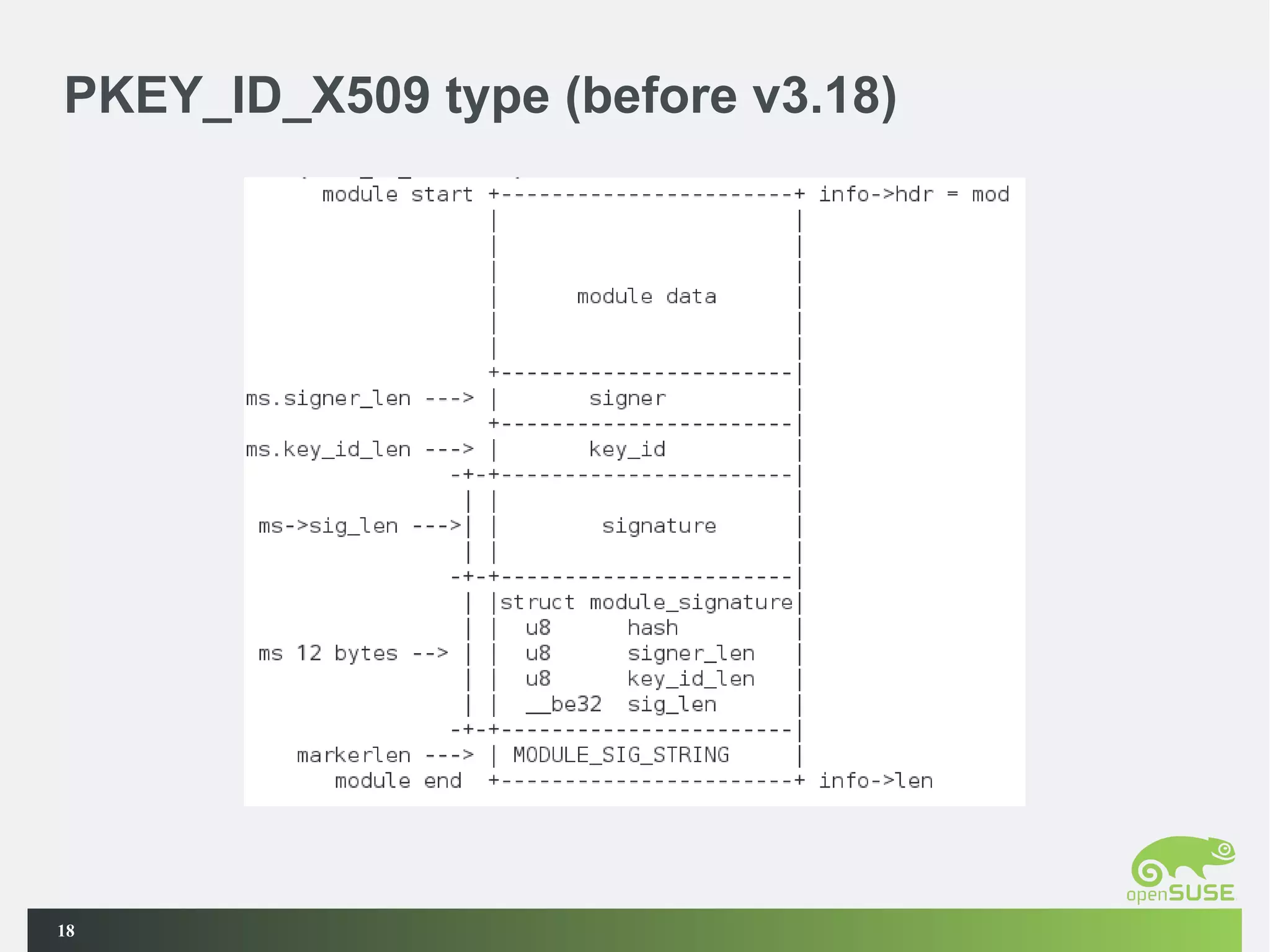

PKEY_ID_X509 type (before v3.18)

19. 19

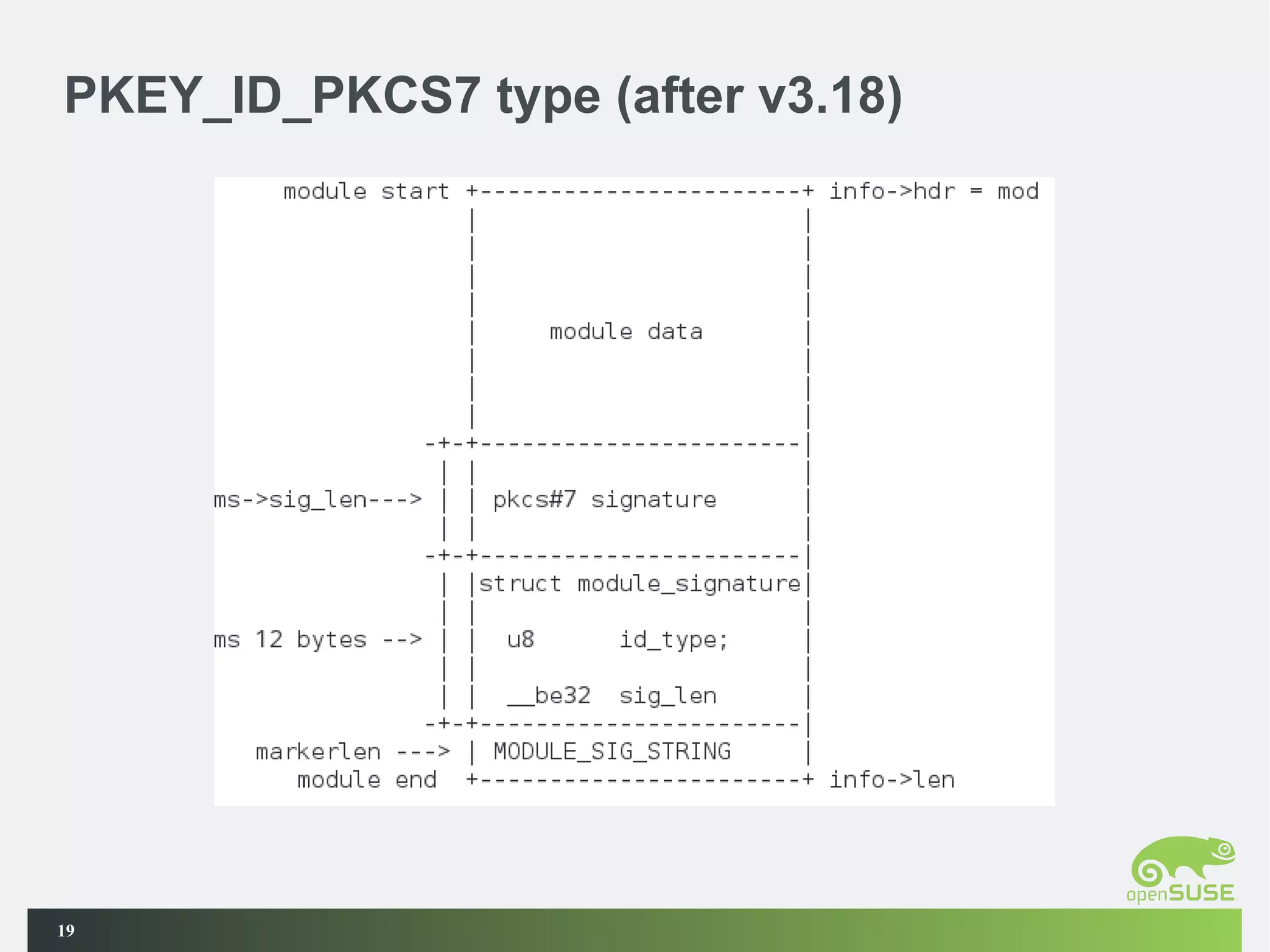

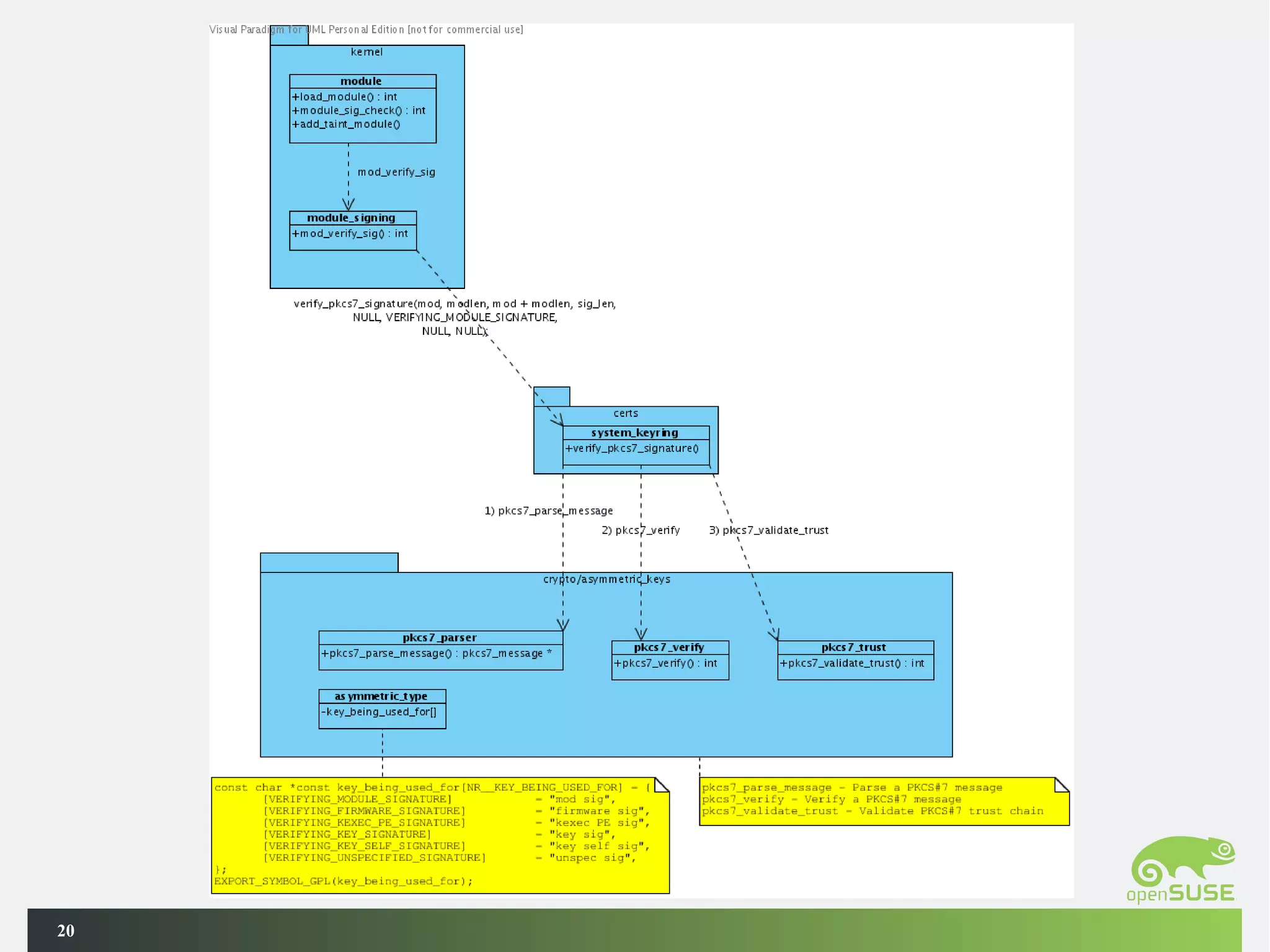

PKEY_ID_PKCS7 type (after v3.18)

20. 20

21. 21

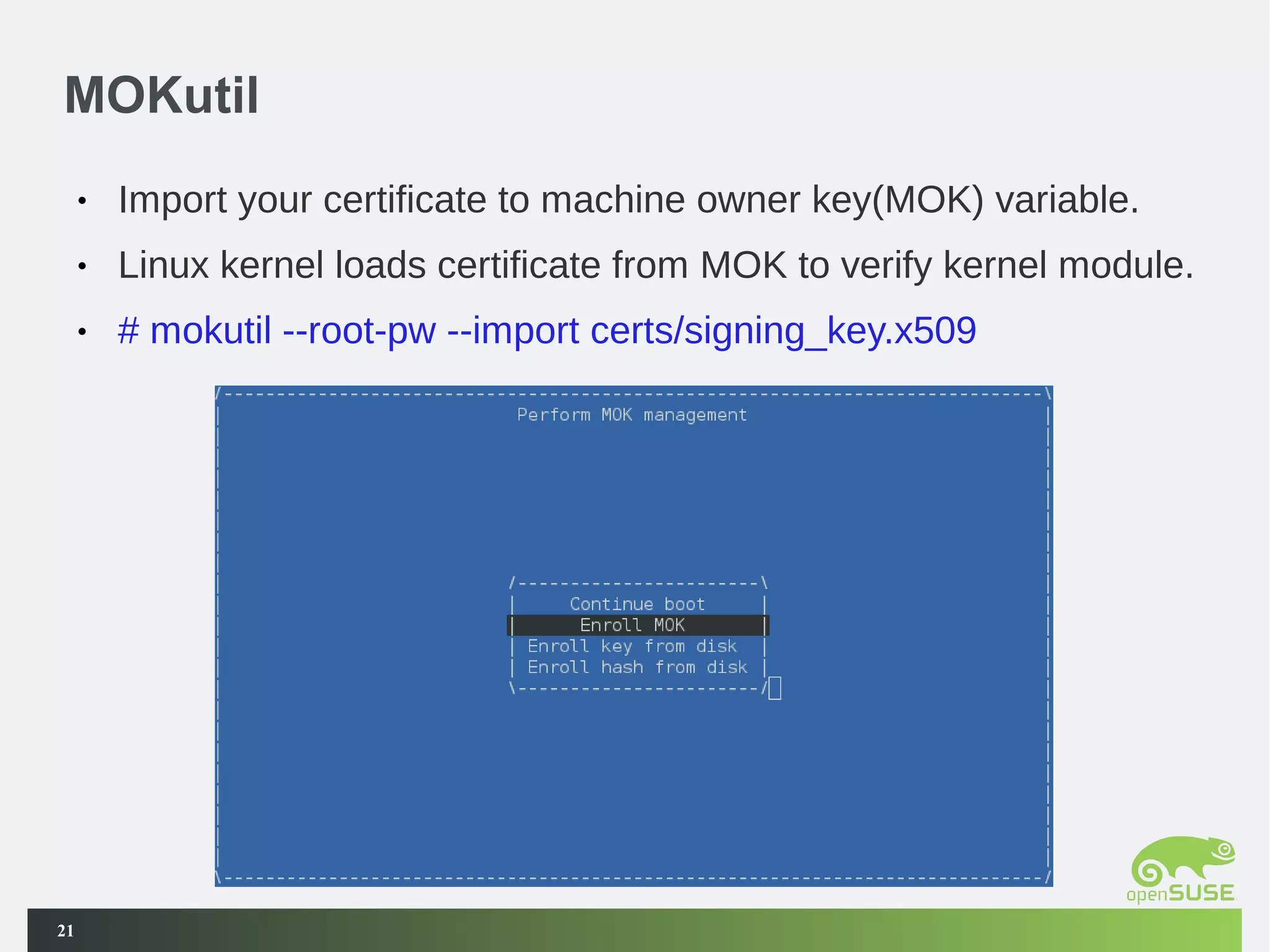

MOKutil
• Import your certificate to machine owner key(MOK) variable.
• Linux kernel loads certificate from MOK to verify kernel module.
• # mokutil --root-pw --import certs/signing_key.x509

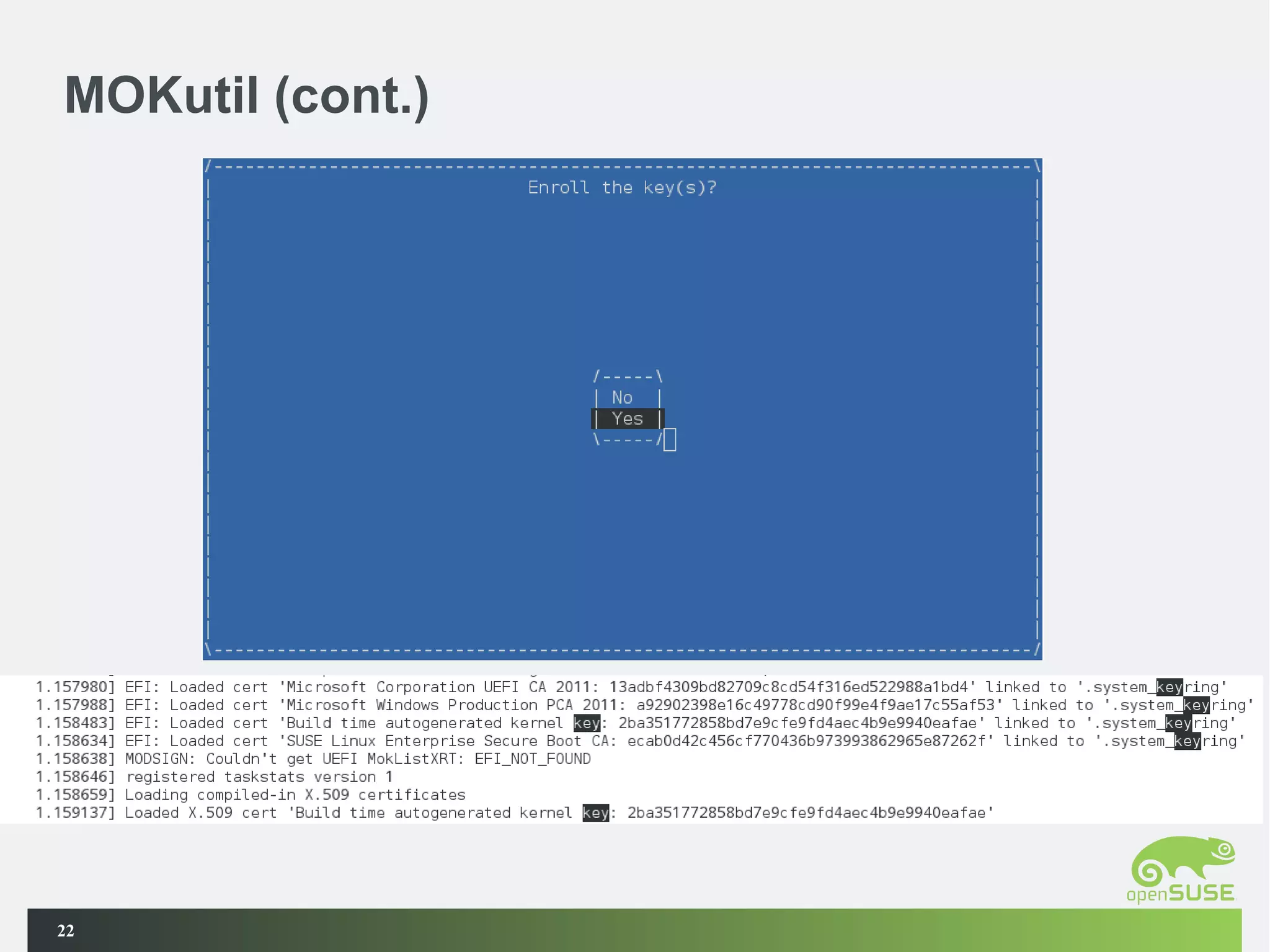

22. 22
MOKutil (cont.)

23. kexec: verify signaturekexec: verify signature

24. 24
kexec: Verify signature of PE signed bzImage
• Introduced since v3.7-rc1 kernel
• Author: Vivek Goyal
– https://lkml.org/lkml/2014/7/3/749
– x86_64 only
– Base on:
● kexec: A new system call to allow in kernel loading
● PKCS7 signature support
• Now kexec bzImage loader calls into pefile parser and
passes the PE signed bzImage for signature verification.

25. 25

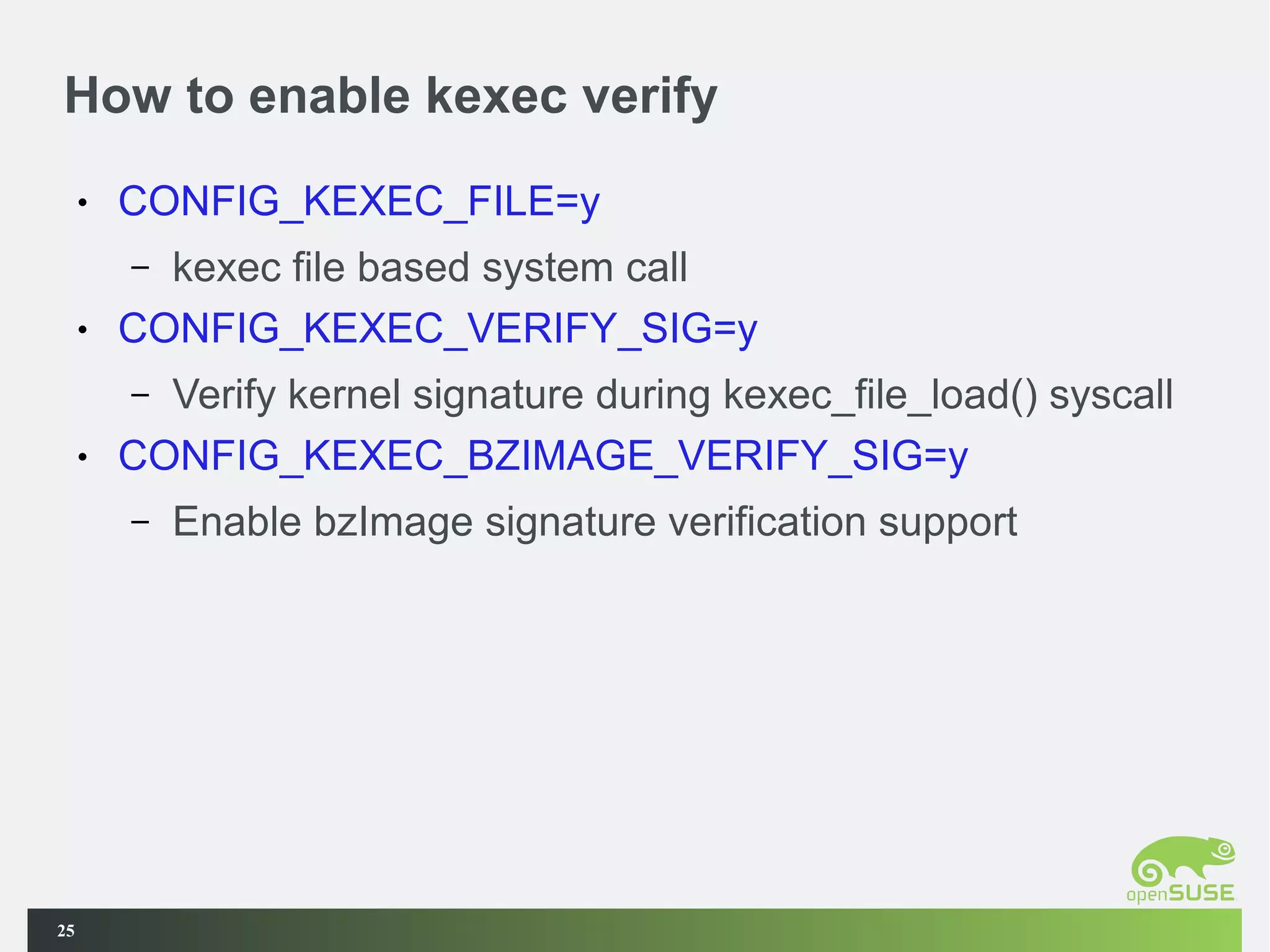

How to enable kexec verify
• CONFIG_KEXEC_FILE=y
– kexec file based system call
• CONFIG_KEXEC_VERIFY_SIG=y
– Verify kernel signature during kexec_file_load() syscall
• CONFIG_KEXEC_BZIMAGE_VERIFY_SIG=y
– Enable bzImage signature verification support

26. 26

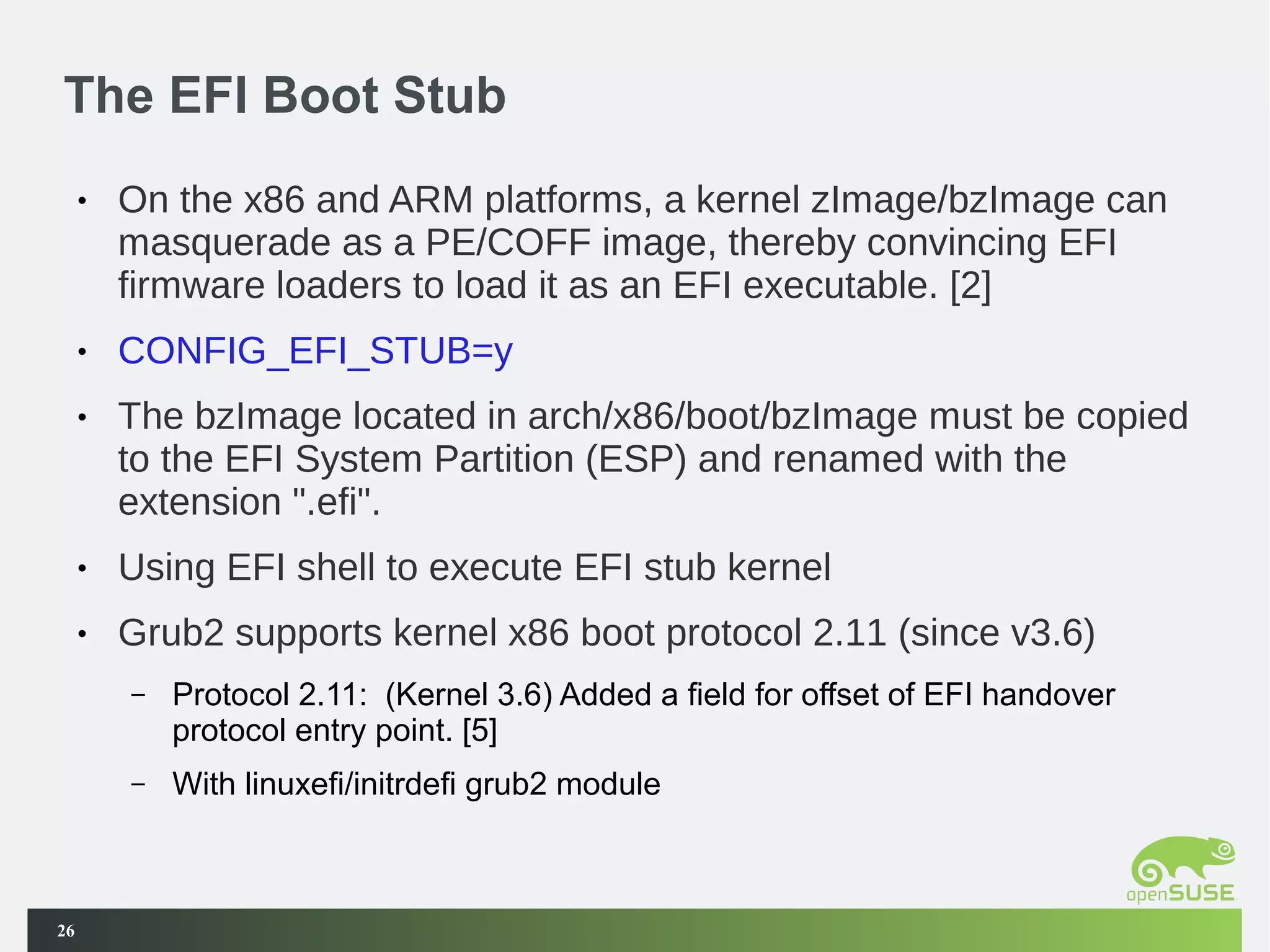

The EFI Boot Stub
• On the x86 and ARM platforms, a kernel zImage/bzImage can
masquerade as a PE/COFF image, thereby convincing EFI
firmware loaders to load it as an EFI executable. [2]
• CONFIG_EFI_STUB=y
• The bzImage located in arch/x86/boot/bzImage must be copied
to the EFI System Partition (ESP) and renamed with the
extension ".efi".
• Using EFI shell to execute EFI stub kernel
• Grub2 supports kernel x86 boot protocol 2.11 (since v3.6)
– Protocol 2.11: (Kernel 3.6) Added a field for offset of EFI handover
protocol entry point. [5]
– With linuxefi/initrdefi grub2 module

27. 27
Key was rejected by service

28. 28

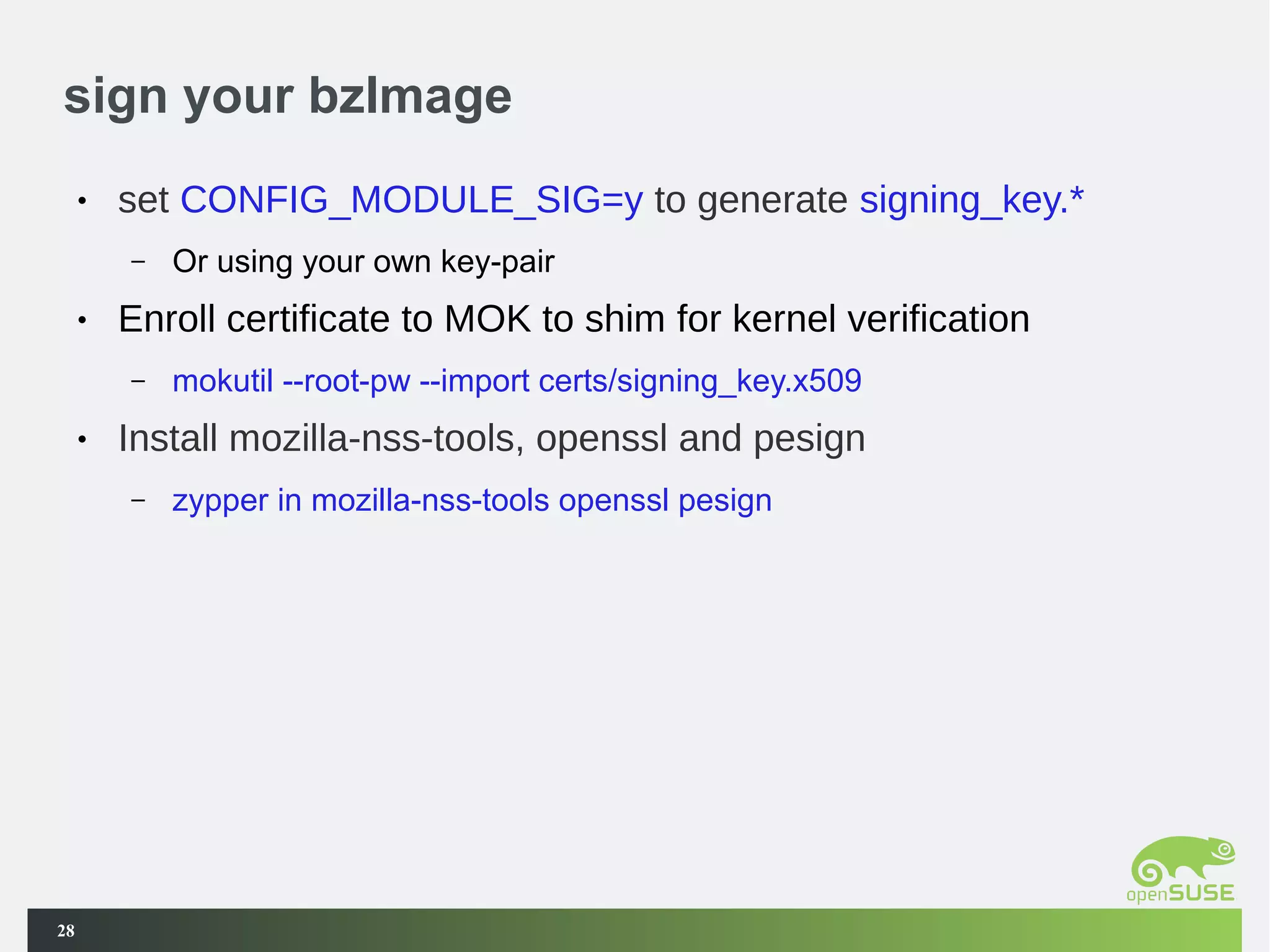

sign your bzImage
• set CONFIG_MODULE_SIG=y to generate signing_key.*
– Or using your own key-pair
• Enroll certificate to MOK to shim for kernel verification
– mokutil --root-pw --import certs/signing_key.x509
• Install mozilla-nss-tools, openssl and pesign
– zypper in mozilla-nss-tools openssl pesign

29. 29

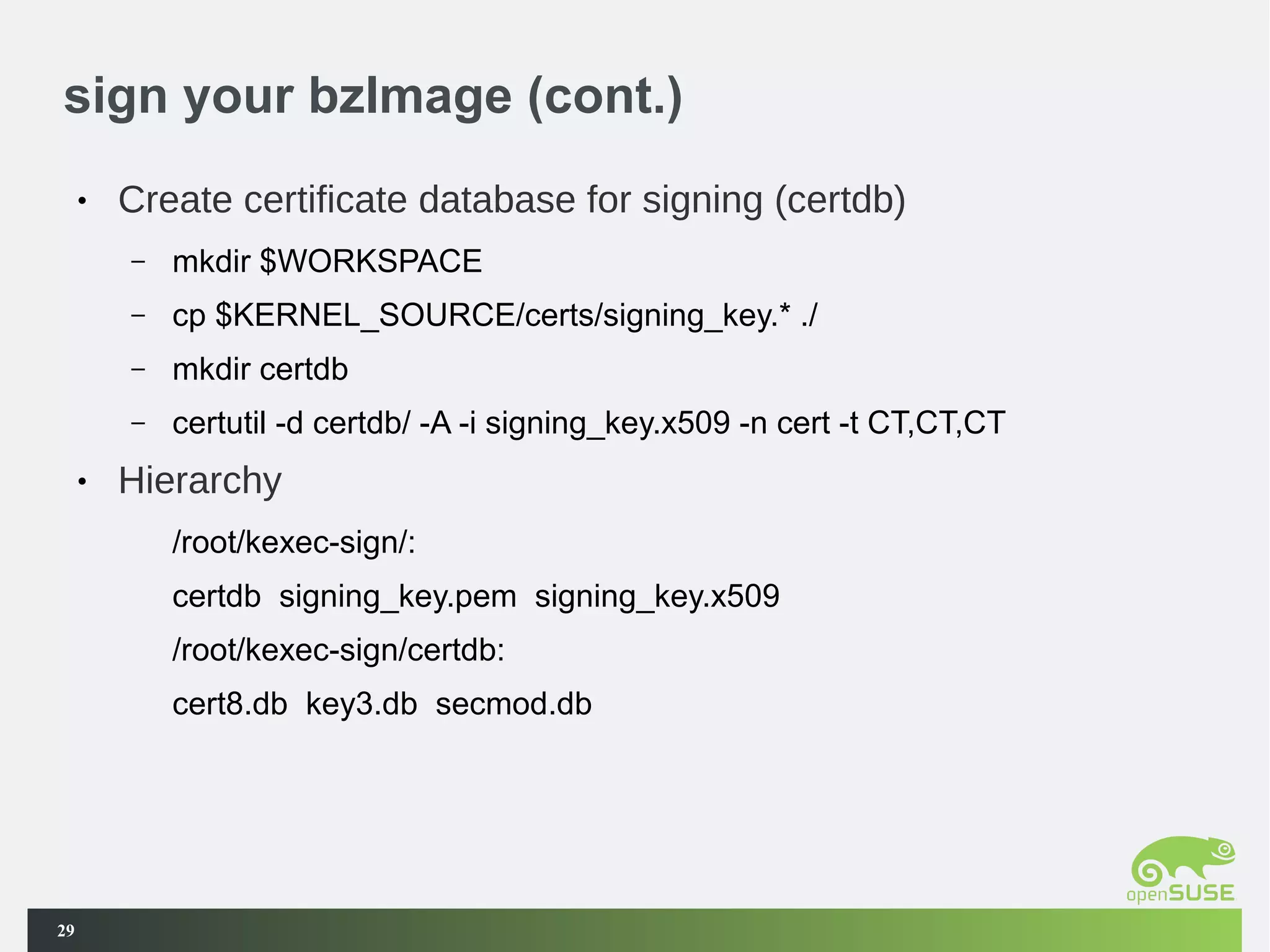

sign your bzImage (cont.)
• Create certificate database for signing (certdb)
– mkdir $WORKSPACE
– cp $KERNEL_SOURCE/certs/signing_key.* ./
– mkdir certdb
– certutil -d certdb/ -A -i signing_key.x509 -n cert -t CT,CT,CT
• Hierarchy
/root/kexec-sign/:
certdb signing_key.pem signing_key.x509
/root/kexec-sign/certdb:
cert8.db key3.db secmod.db

30. 30

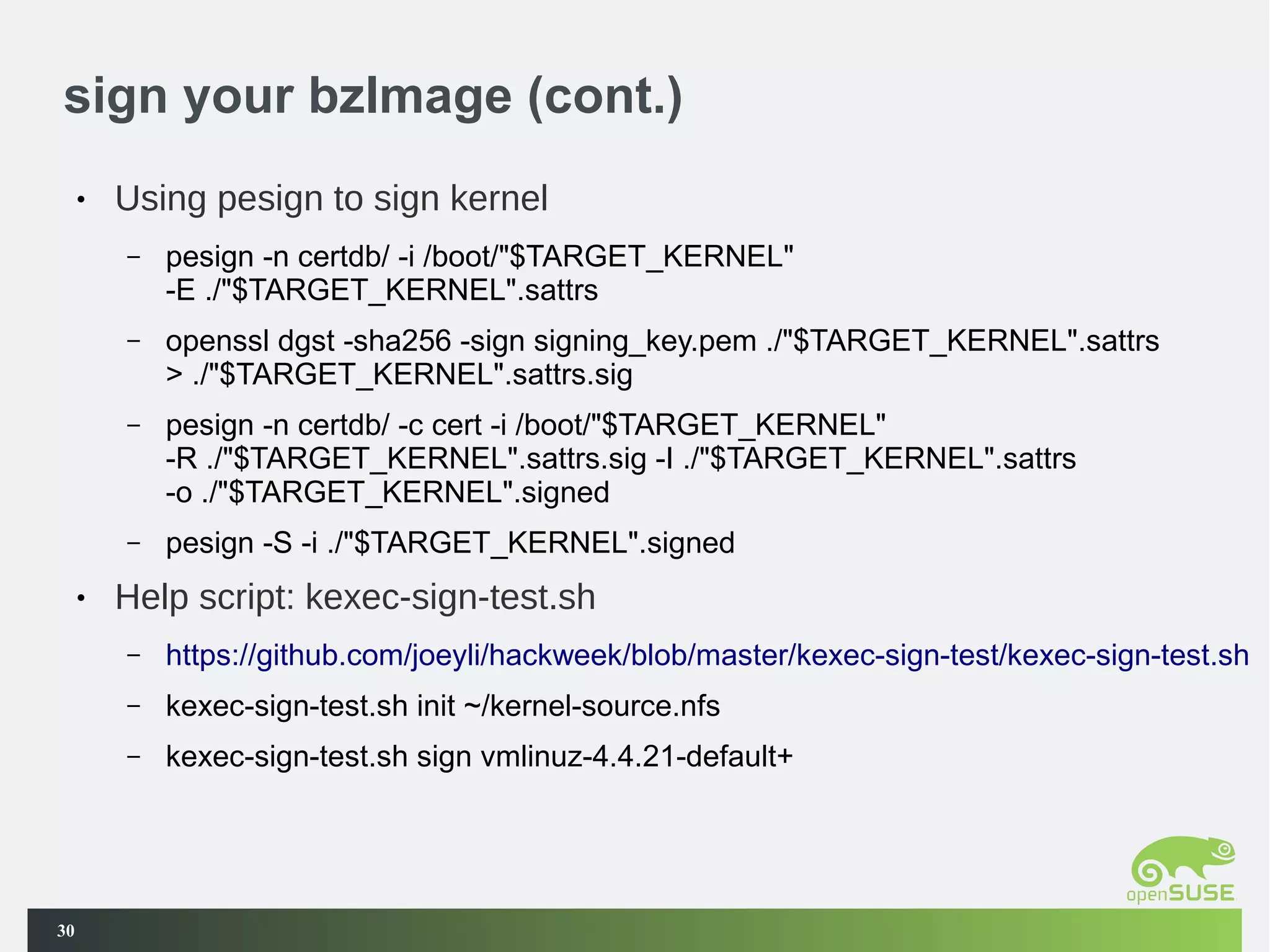

sign your bzImage (cont.)
• Using pesign to sign kernel
– pesign -n certdb/ -i /boot/"$TARGET_KERNEL"
-E ./"$TARGET_KERNEL".sattrs
– openssl dgst -sha256 -sign signing_key.pem ./"$TARGET_KERNEL".sattrs
> ./"$TARGET_KERNEL".sattrs.sig
– pesign -n certdb/ -c cert -i /boot/"$TARGET_KERNEL"
-R ./"$TARGET_KERNEL".sattrs.sig -I ./"$TARGET_KERNEL".sattrs
-o ./"$TARGET_KERNEL".signed
– pesign -S -i ./"$TARGET_KERNEL".signed
• Help script: kexec-sign-test.sh
– https://github.com/joeyli/hackweek/blob/master/kexec-sign-test/kexec-sign-test.sh
– kexec-sign-test.sh init ~/kernel-source.nfs
– kexec-sign-test.sh sign vmlinuz-4.4.21-default+

31. 31

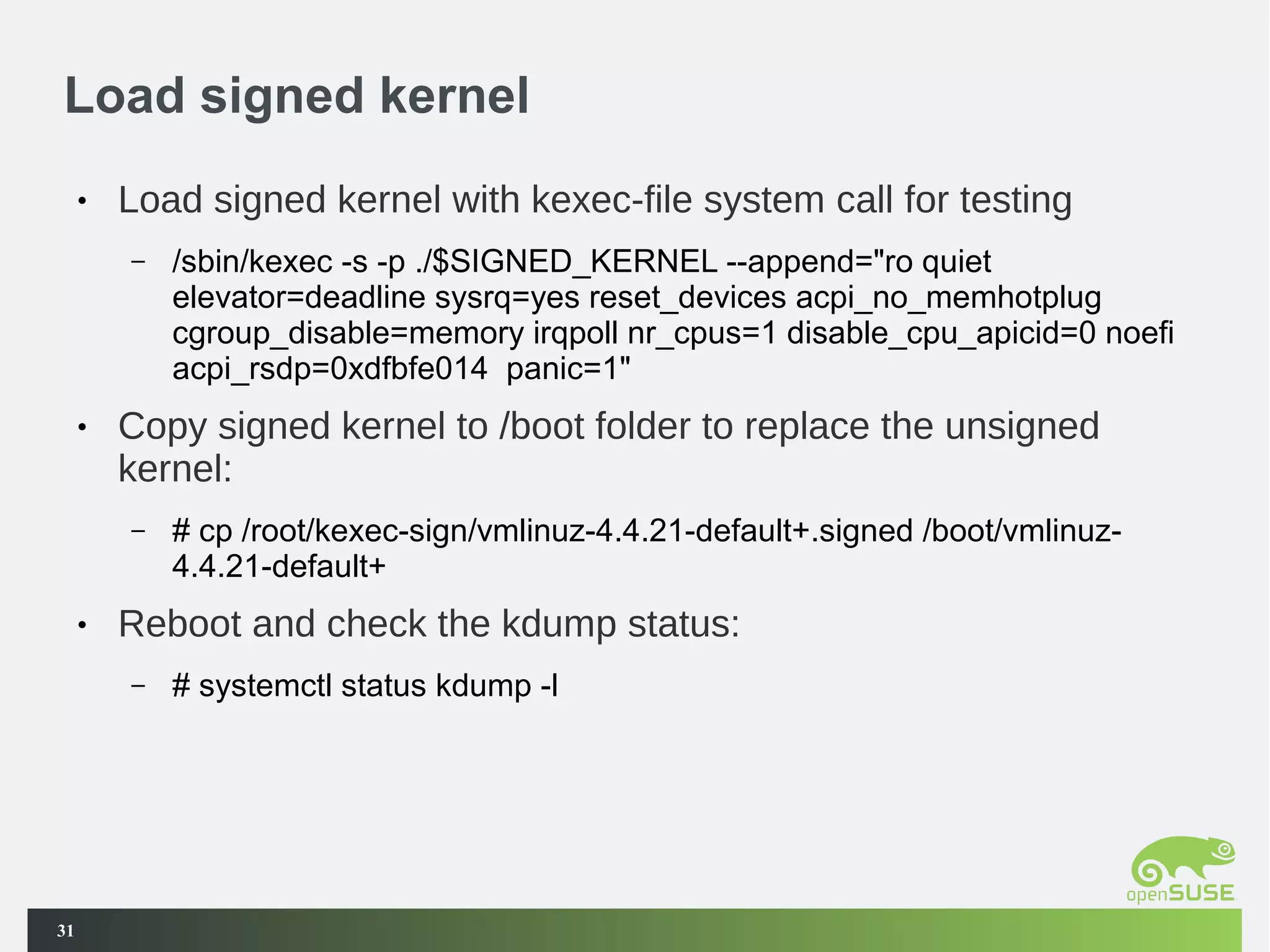

Load signed kernel
• Load signed kernel with kexec-file system call for testing
– /sbin/kexec -s -p ./$SIGNED_KERNEL --append="ro quiet
elevator=deadline sysrq=yes reset_devices acpi_no_memhotplug
cgroup_disable=memory irqpoll nr_cpus=1 disable_cpu_apicid=0 noefi
acpi_rsdp=0xdfbfe014 panic=1"
• Copy signed kernel to /boot folder to replace the unsigned
kernel:
– # cp /root/kexec-sign/vmlinuz-4.4.21-default+.signed /boot/vmlinuz-
4.4.21-default+
• Reboot and check the kdump status:
– # systemctl status kdump -l

32. 32

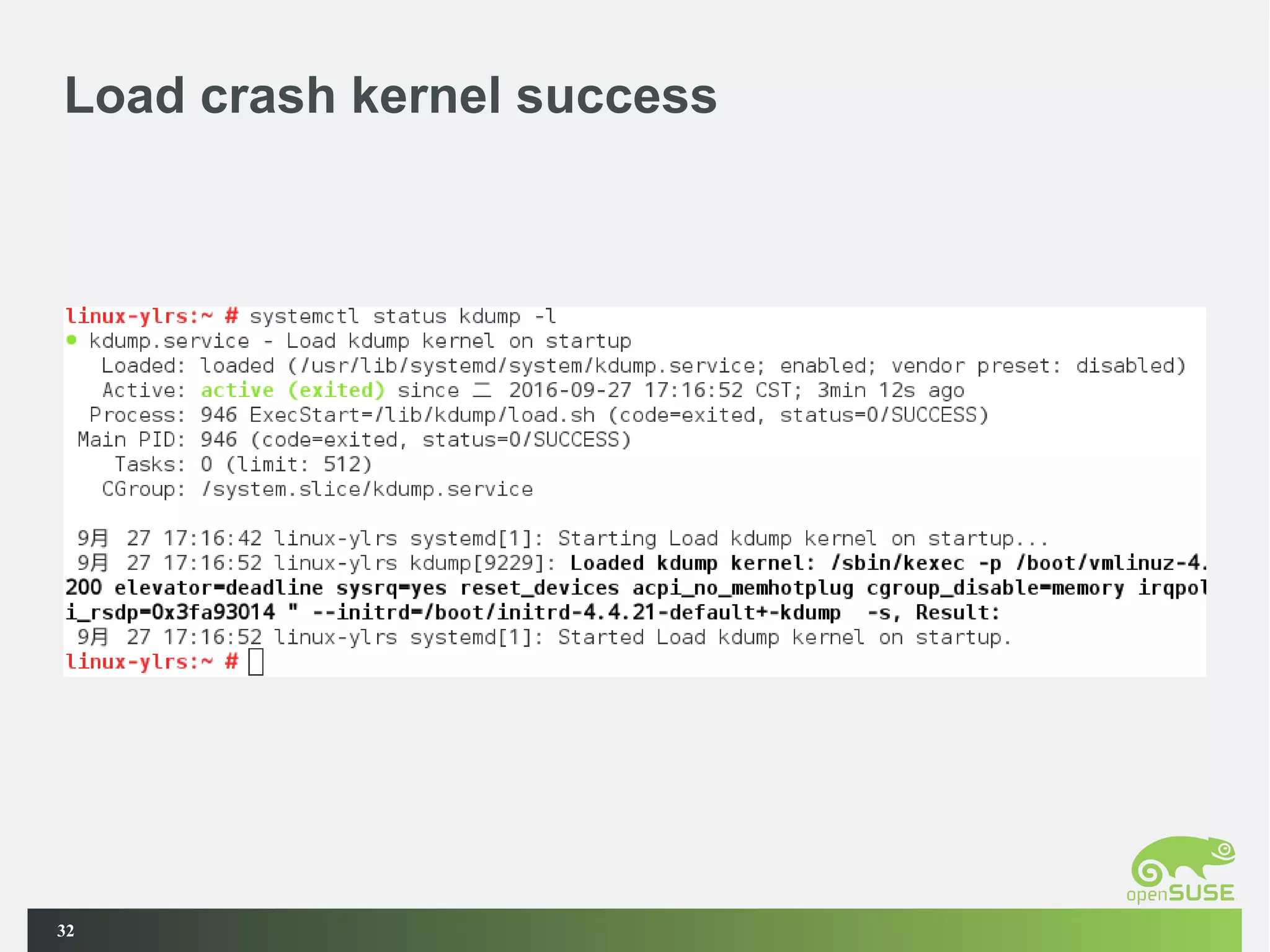

Load crash kernel success

33. 33

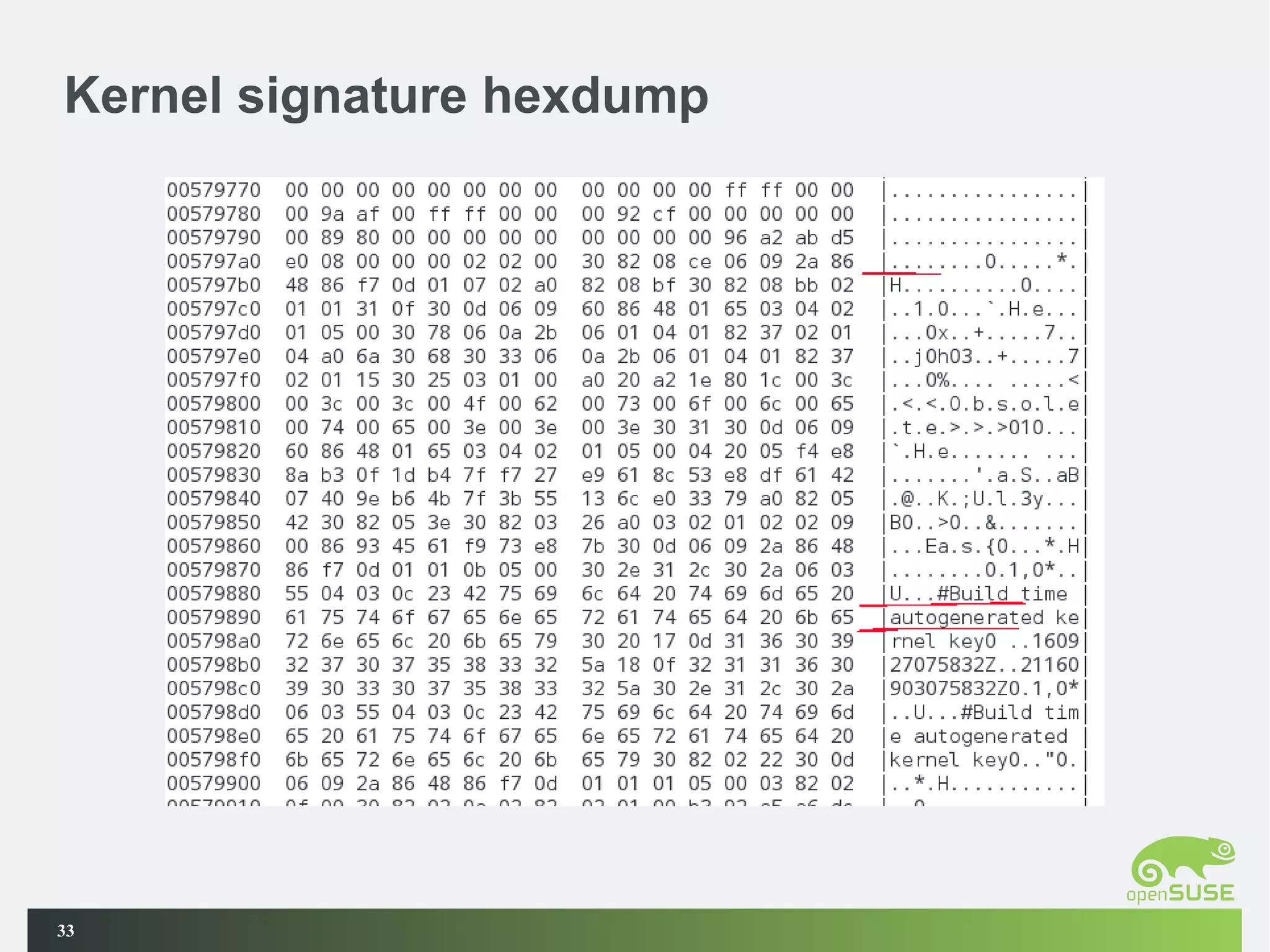

Kernel signature hexdump

34. 34

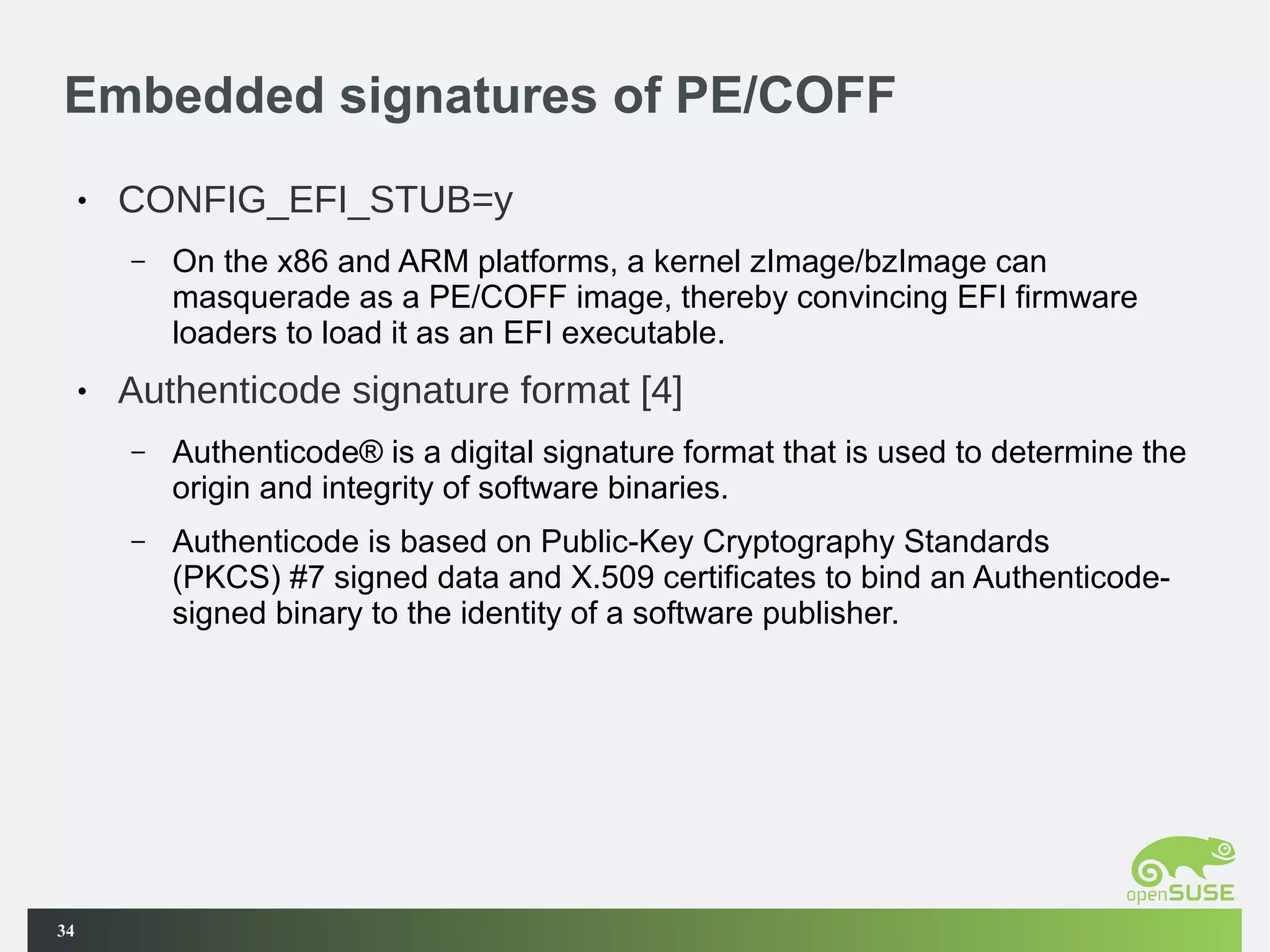

Embedded signatures of PE/COFF
• CONFIG_EFI_STUB=y
– On the x86 and ARM platforms, a kernel zImage/bzImage can
masquerade as a PE/COFF image, thereby convincing EFI firmware
loaders to load it as an EFI executable.
• Authenticode signature format [4]
– Authenticode® is a digital signature format that is used to determine the
origin and integrity of software binaries.
– Authenticode is based on Public-Key Cryptography Standards
(PKCS) #7 signed data and X.509 certificates to bind an Authenticode-
signed binary to the identity of a software publisher.

35. 35

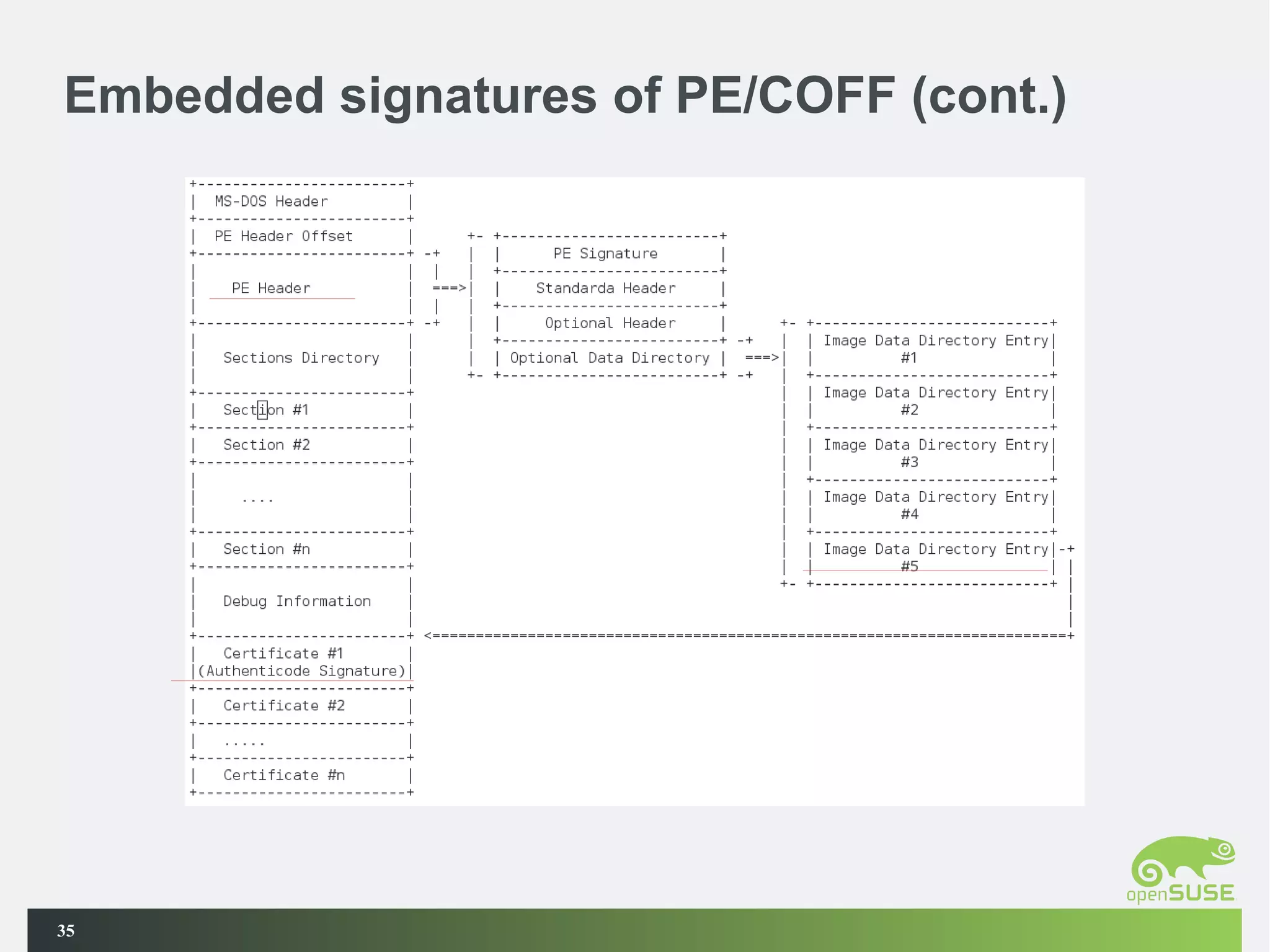

Embedded signatures of PE/COFF (cont.)

36. 36

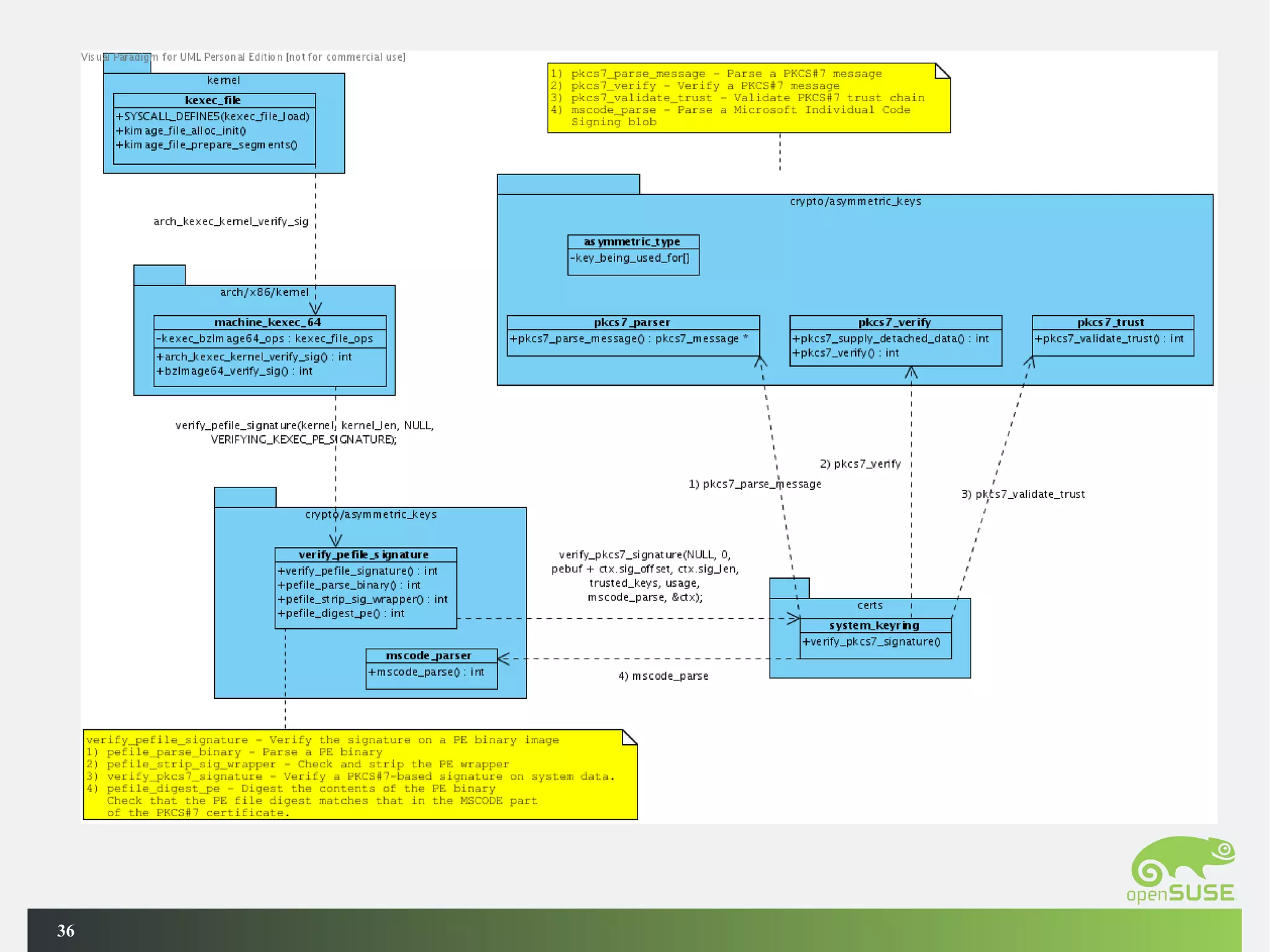

37. Q&AQ&A

38. Terima Kasih!Terima Kasih!
謝謝謝謝 !!
Thank you!Thank you!

39. 39

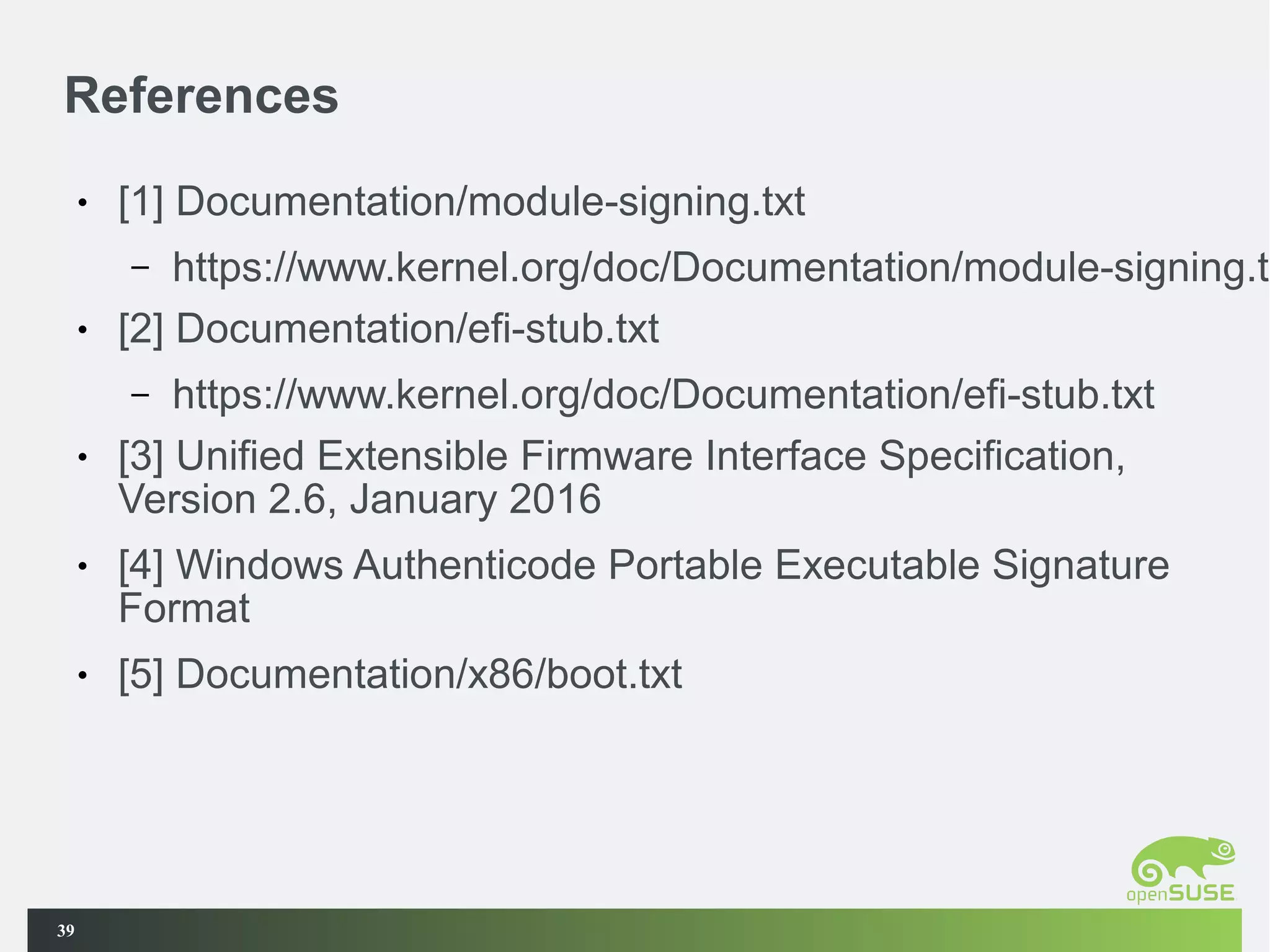

References
• [1] Documentation/module-signing.txt
– https://www.kernel.org/doc/Documentation/module-signing.tx
• [2] Documentation/efi-stub.txt
– https://www.kernel.org/doc/Documentation/efi-stub.txt
• [3] Unified Extensible Firmware Interface Specification,
Version 2.6, January 2016
• [4] Windows Authenticode Portable Executable Signature
Format
• [5] Documentation/x86/boot.txt
