This document proposes a green signage system for a residential building to help with wayfinding issues. It involves installing modular planter boxes with mother-in-law's tongue plants beside the lifts on select floors. The plants would spell out the floor number and act as a community engagement project. Details of the proposed design, materials, budget, timeline and group members are provided.

1. CSIi d e a & d e s i g n p r o p o s a l
g r o u p 4

2. s i t e o b s e r v a t i o n

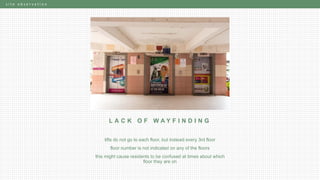

L A C K O F W A Y F I N D I N G
lifts do not go to each floor, but instead every 3rd floor
floor number is not indicated on any of the floors
this might cause residents to be confused at times about which
floor they are on

3. s i t e o b s e r v a t i o n
L A C K O F W A Y F I N D I N G
units of the flats do not have unit number indicated
can be seen on mailboxes @ ground floor

4. e n g a g e m e n t o n s i t e
I N T E R V I E W
Lifts do not show floor number. Residents get confused even he stayed there for a
long time
Usage of the stairs. Stairs are dirty and smelly. Many things can be found on the
stairs: mattress, bottles, etc.
Signage. Wants handmade and unique signages. Eg. the one way road signs
looks boring.
The playground looks incomplete. Should have more play structures for the
children.
Urban farming. Is ok with this idea.
As of now, the vegetable garden is taken care by the person in charge of the
refuse collection center.
Mr Zul says the community could contribute money to upkeep the garden, for
example the fertilizer.

5. PROPOSAL
w a y f i n d i n g + g r e e n e r i e s
g r o u p 4

6. p r o p o s a l
V E R T I C A L P L A N T I N G
F L O O R S I G N S
combination of urban farming/greenery and wayfinding/signage
‘green signage’

7. p r o p o s a l

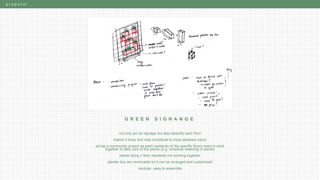

G R E E N S I G N A N G E
not only act as signage but also beautify each floor
makes it lively and may contribute to more pleasant odour
act as a community project as each residents of the specific floors need to work
together to take care of the plants (e.g. schedule watering of plants)
plants dying = floor residents not working together
planter box are removable so it can be arranged and customized
modular, easy to assemble

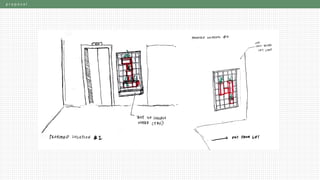

8. p r o p o s a l

9. p r o p o s a l

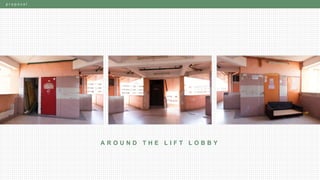

A R O U N D T H E L I F T L O B B Y

10. p r o p o s a l

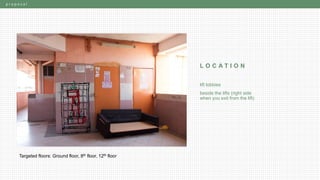

L O C A T I O N
lift lobbies
beside the lifts (right side
when you exit from the lift)
Targeted floors: Ground floor, 8th floor, 12th floor

11. p r o p o s a l

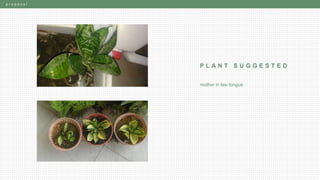

P L A N T S U G G E S T E D
mother in law tongue

12. p r o p o s a l

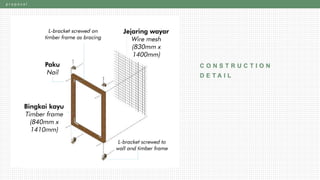

C O N S T R U C T I O N
D E T A I LTimber frame
(1045mm x 1445mm)
Wire mesh
(1000mm x 1400mm)
L-bracket screwed to
wall and timber frame
Nail
L-bracket
screwed on
timber frame
as bracing

13. p r o p o s a l
C O N S T R U C T I O N
D E T A I L
Wire mesh
L-bracket
screwed
to wall
L-bracket
screwed on
timber frame
Pots with be tied onto the wire
mesh with metal wires

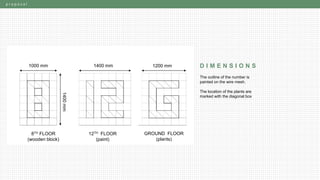

14. p r o p o s a l
D I M E N S I O N S1000 mm 1400 mm 1200 mm
1400mm
8TH FLOOR
(wooden block)
12TH FLOOR
(paint)
GROUND FLOOR
(plants)
The outline of the number is
painted on the wire mesh.
The location of the plants are
marked with the diagonal box

15. p r o p o s a l
E S T I M A T E D B U D G E T
ITEM QUANTITY
PRICE
x
QUANTITY
Timber (3m long, 45mmx18mm – RM 11) 7 RM 77.00
Wire mesh (0.5 inch x 0.5 inch) per meter 4 RM 46.00
Mother in law tongue plant (without pot) x 3 4 RM 40.00
Plastic pots (no hook) 12 RM 21.60
Nails, Screws and other adhesive (per packet) 2 RM 5.00
Bucket paint (per can) 2 RM 100.00
Shellac (per can) 1 -
TOTAL 289.00

16. p r o p o s a l

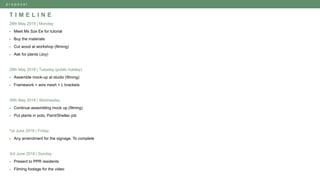

T I M E L I N E
28th May 2018 | Monday
- Meet Ms Sze Ee for tutorial
- Buy the materials
- Cut wood at workshop (filming)
- Ask for plants (Joy)
29th May 2018 | Tuesday (public holiday)
- Assemble mock-up at studio (filming)
- Framework + wire mesh + L brackets
30th May 2018 | Wednesday
- Continue assembling mock up (filming)
- Put plants in pots, Paint/Shellac job
1st June 2018 | Friday
- Any amendment for the signage. To complete
3rd June 2018 | Sunday
- Present to PPR residents
- Filming footage for the video
