The Sheffield Kinetic Separator utilizes kinetic energy to separate analyzer samples from impurities in a process stream across two chambers. The first chamber effectively removes larger contaminants while the second chamber polishes the sample for analysis, aided by a specialized self-cleaning filter. The system operates under various pressures and flow rates, is capable of removing free water, and is designed to be virtually maintenance-free.

2. Analyzer Sample Separator
Sheffield SeparatorsTM

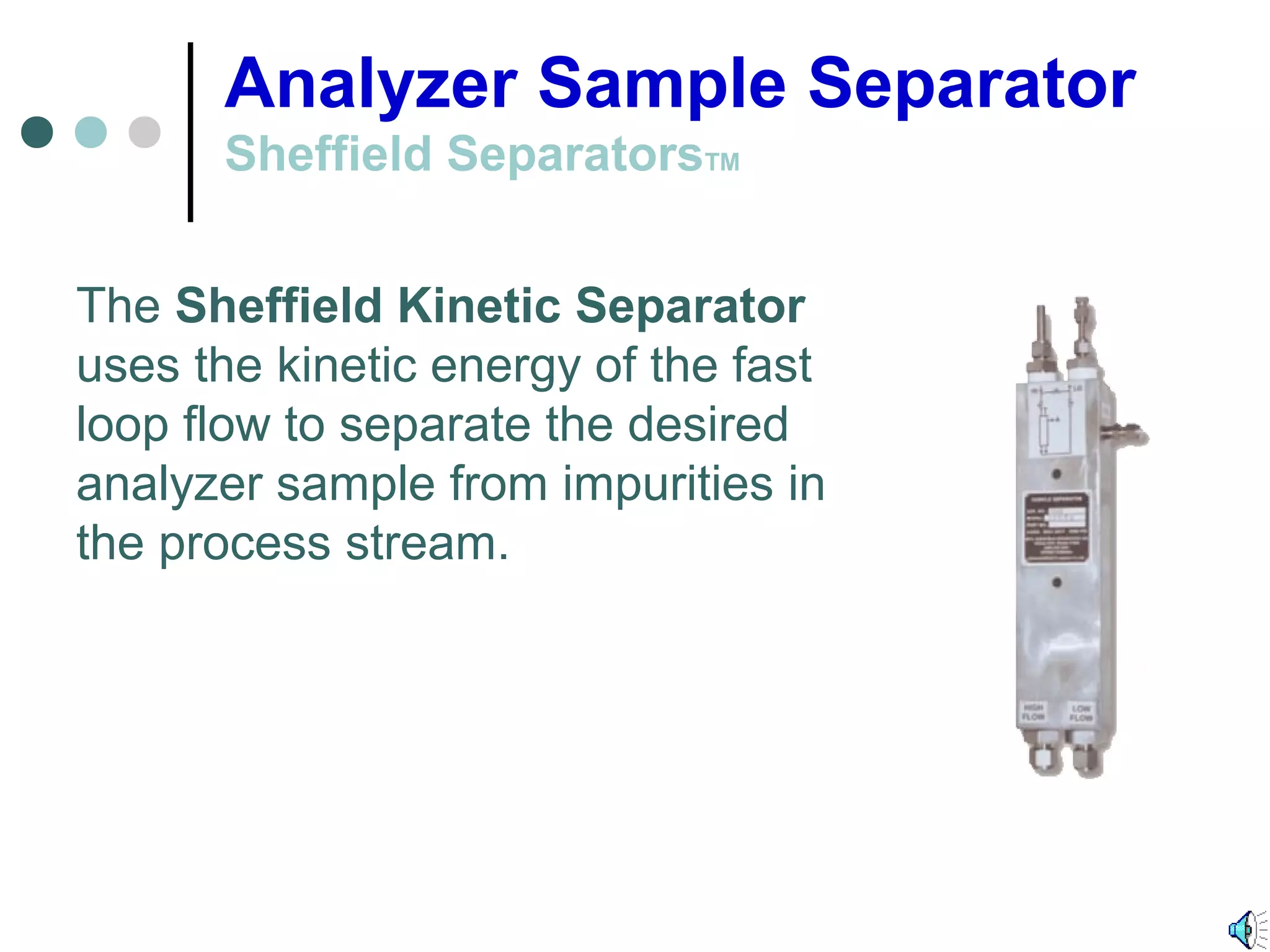

The Sheffield Kinetic Separator
uses the kinetic energy of the fast
loop flow to separate the desired
analyzer sample from impurities in
the process stream.

3. Analyzer Sample Separator
Sheffield SeparatorsTM

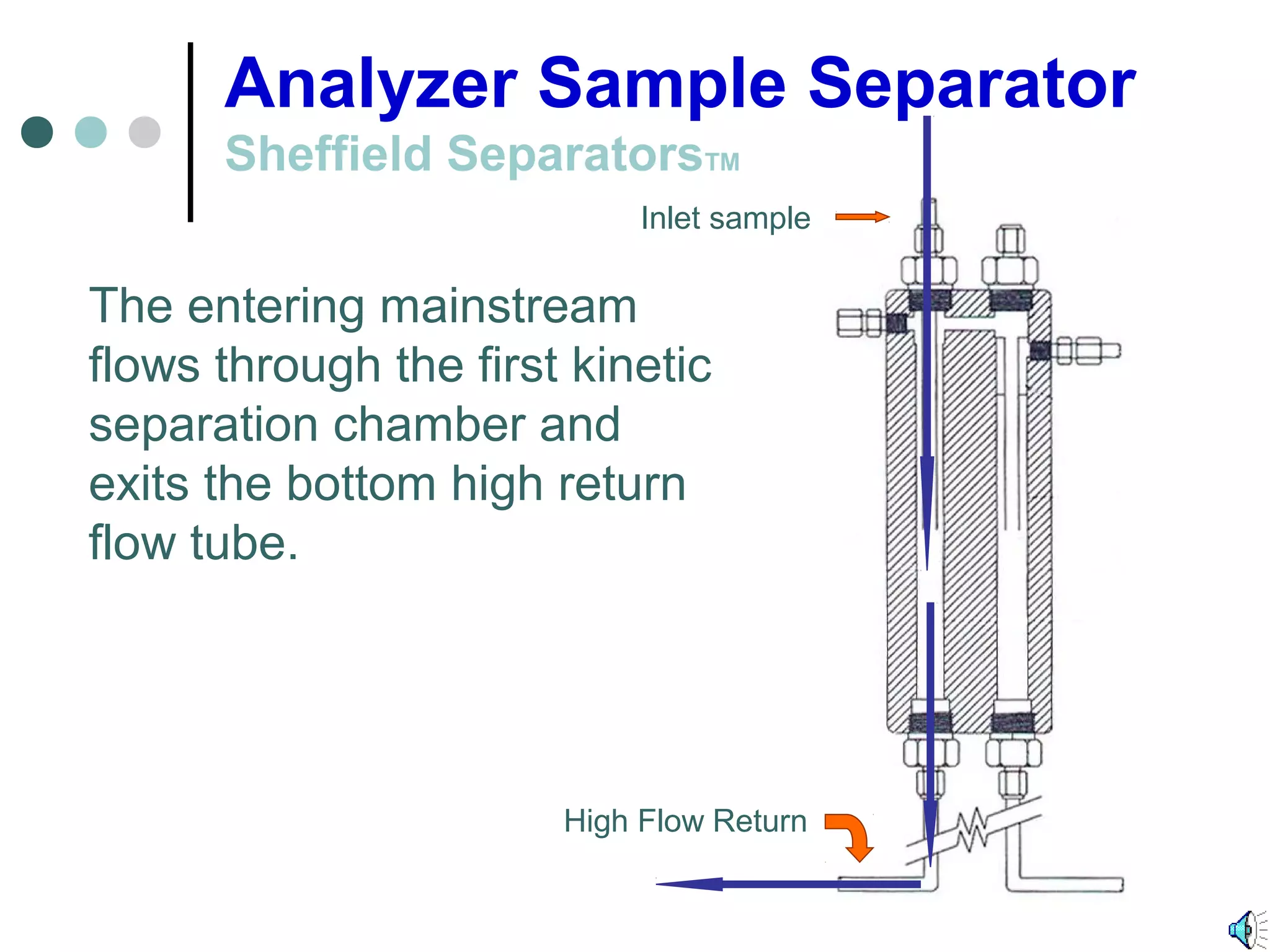

The entering mainstream
flows through the first kinetic
separation chamber and
exits the bottom high return
flow tube.
Inlet sample
High Flow Return

4. Analyzer Sample Separator
Sheffield SeparatorsTM

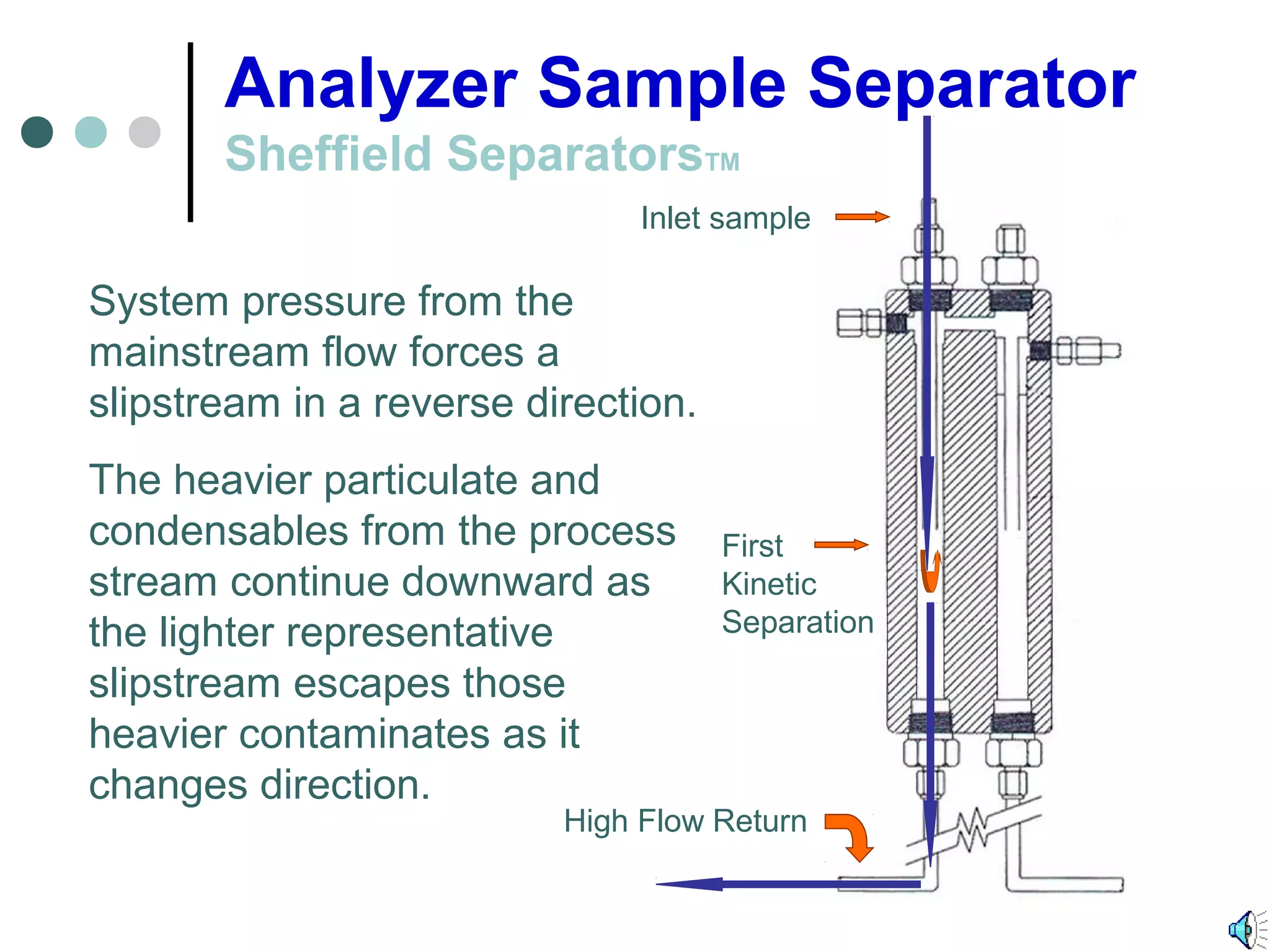

System pressure from the
mainstream flow forces a
slipstream in a reverse direction.
The heavier particulate and
condensables from the process
stream continue downward as
the lighter representative
slipstream escapes those
heavier contaminates as it
changes direction.
Inlet sample
High Flow Return
First
Kinetic
Separation

5. Analyzer Sample Separator
Sheffield SeparatorsTM

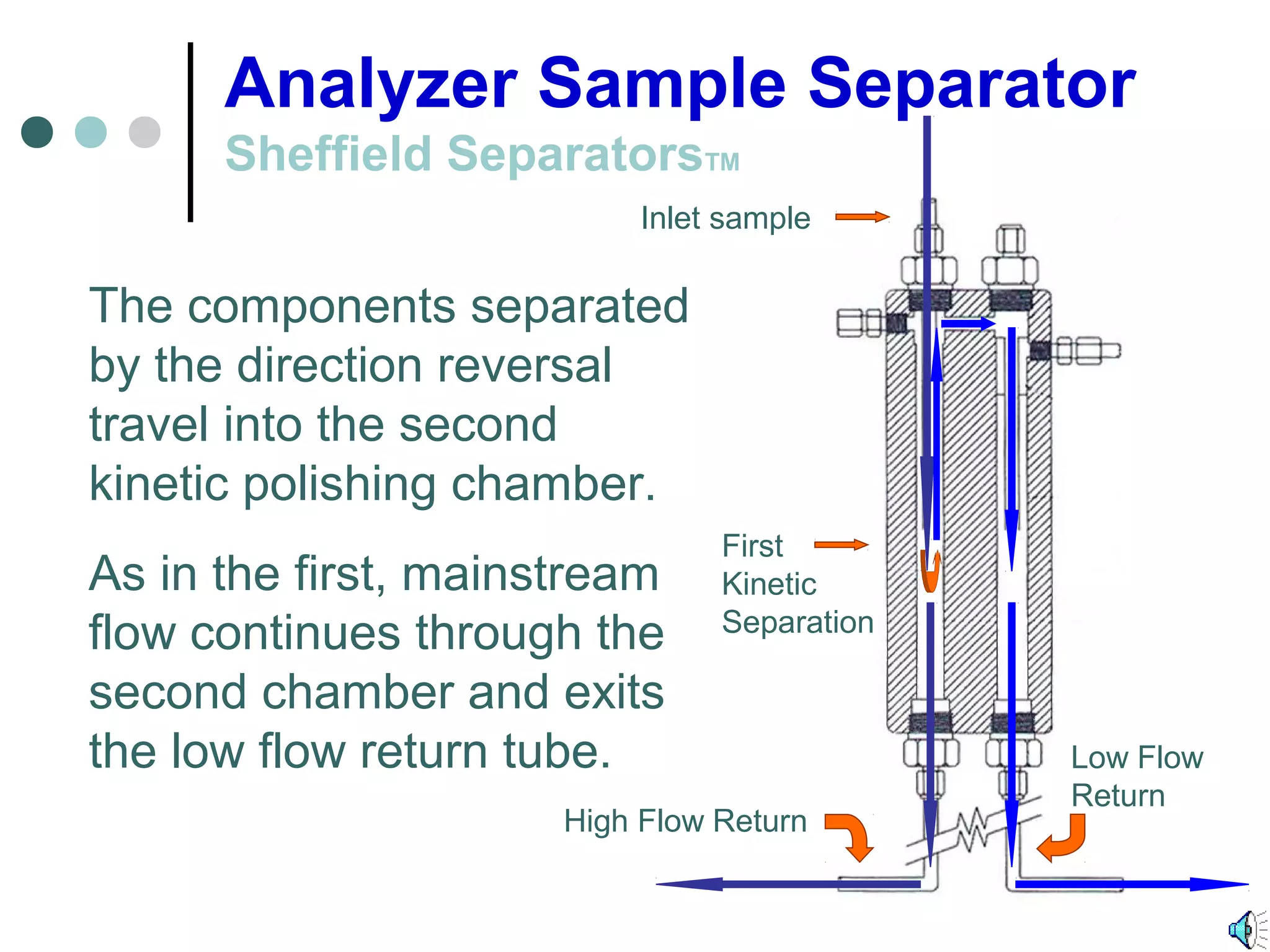

The components separated
by the direction reversal
travel into the second
kinetic polishing chamber.
As in the first, mainstream
flow continues through the
second chamber and exits
the low flow return tube.
Inlet sample
High Flow Return
First
Kinetic
Separation
Low Flow
Return

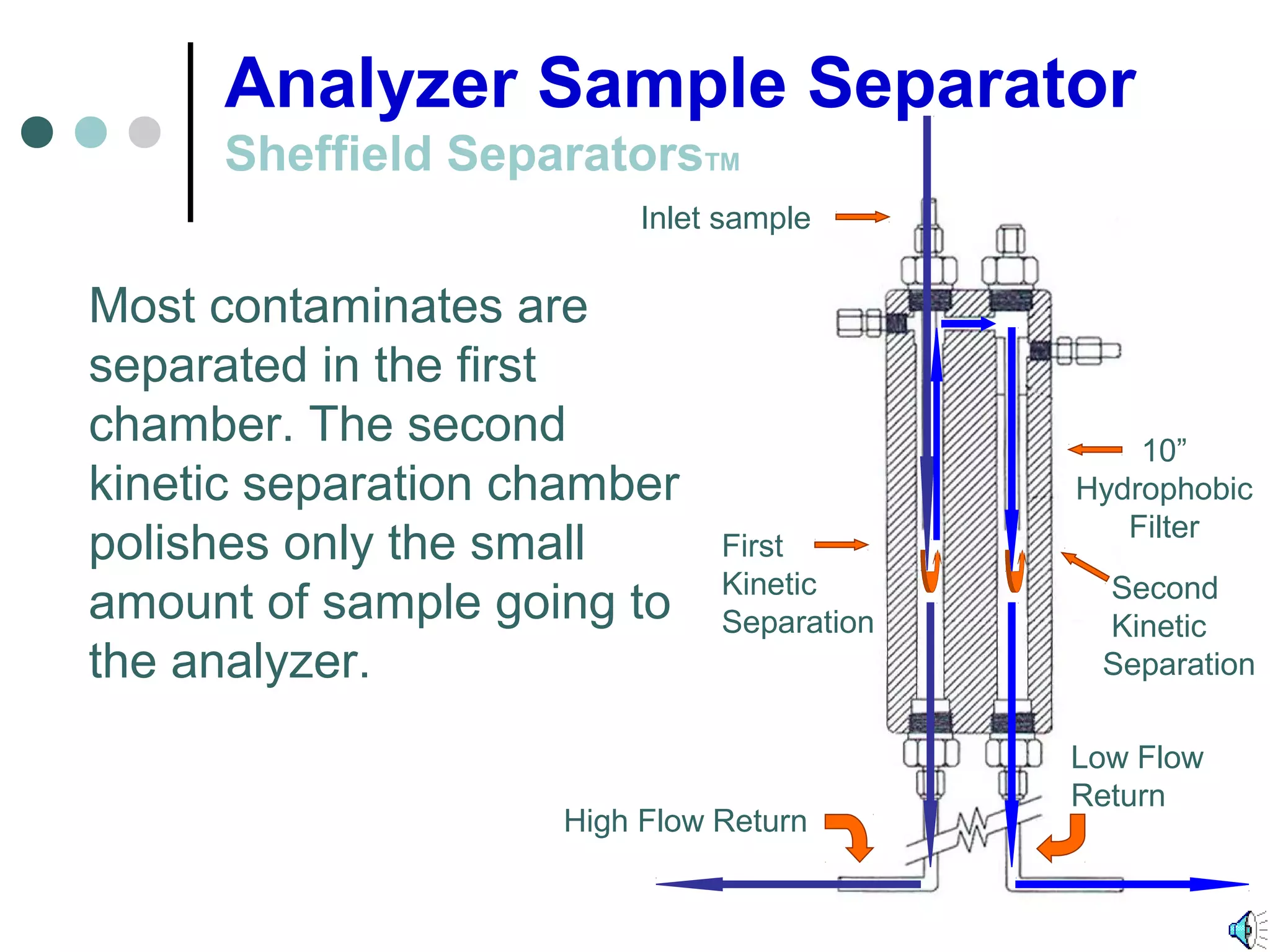

6. Analyzer Sample Separator
Sheffield SeparatorsTM
Most contaminates are
separated in the first
chamber. The second
kinetic separation chamber
polishes only the small
amount of sample going to
the analyzer.
Inlet sample
High Flow Return
First
Kinetic
Separation
Low Flow
Return
Second
Kinetic
Separation
10”
Hydrophobic
Filter

7. Analyzer Sample Separator
Sheffield SeparatorsTM

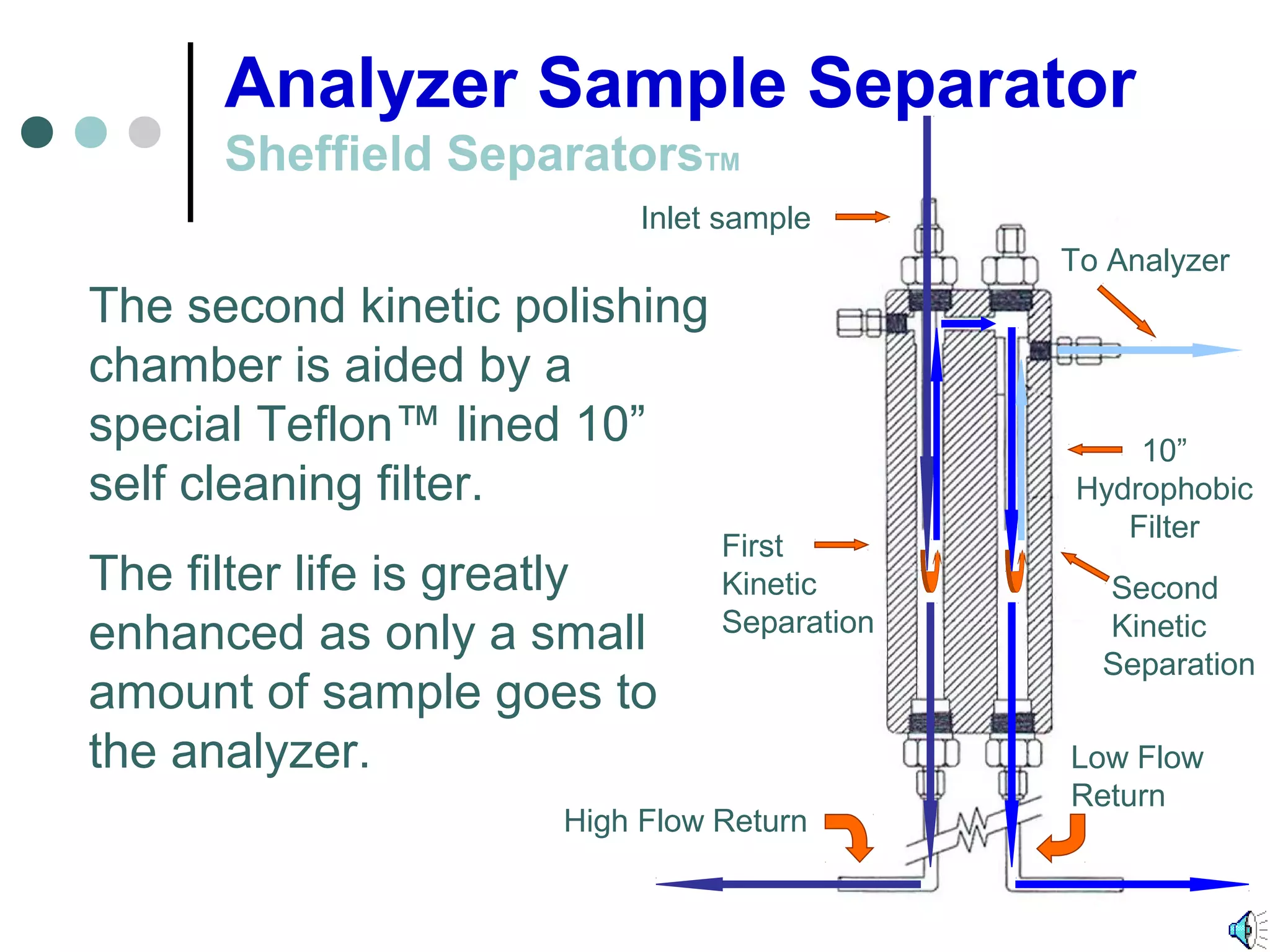

The second kinetic polishing
chamber is aided by a
special Teflon™ lined 10”
self cleaning filter.
The filter life is greatly
enhanced as only a small
amount of sample goes to
the analyzer.
Inlet sample
High Flow Return
First
Kinetic
Separation
Low Flow
Return
Second
Kinetic
Separation
To Analyzer
10”
Hydrophobic
Filter

8. Analyzer Sample Separator
Sheffield SeparatorsTM
THE BOTTOM LINE:
The separator simply works!
1. Pressure - from 2 to 2000 psig
2. Flows – from 2 scfh / 2 gph to
40 scfm / 5 gpm
3. Remove up to 6% free water
4. Gas (condensate & particulate)
5. Liquid (water & particulate)
6. Fast Loop or Single line applications
7. Virtually maintenance free!
Inlet sample
High Flow Return
First
Kinetic
Separation
Low Flow
Return
Second
Kinetic
Separation
To Analyzer
The Sheffield
Kinetic Separator
10”
Hydrophobic
Filter
