This document introduces classes for asynchronous I/O in Servlet 3.0 without exposing low-level I/O details. New classes include ServletFuture, ServletAsyncHandler, ServletRequestChannel, and ServletResponseChannel. ServletRequestChannel allows asynchronous and synchronous read operations from the request body, while ServletResponseChannel allows write operations to the response. Examples demonstrate asynchronous and synchronous reads and writes, with the request automatically suspended for asynchronous operations.

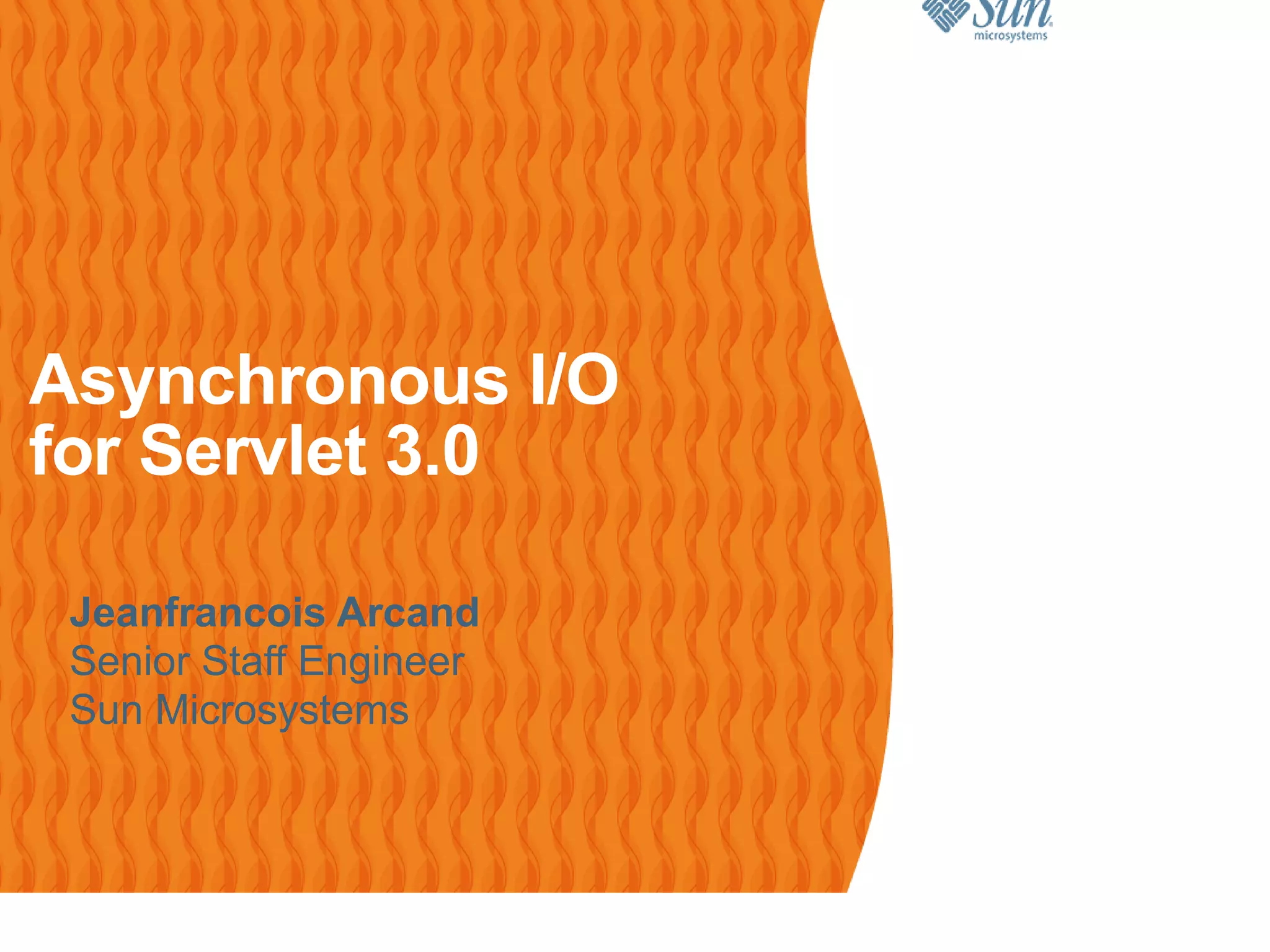

1. Asynchronous I/O
for Servlet 3.0
Jeanfrancois Arcand
Senior Staff Engineer
Sun Microsystems

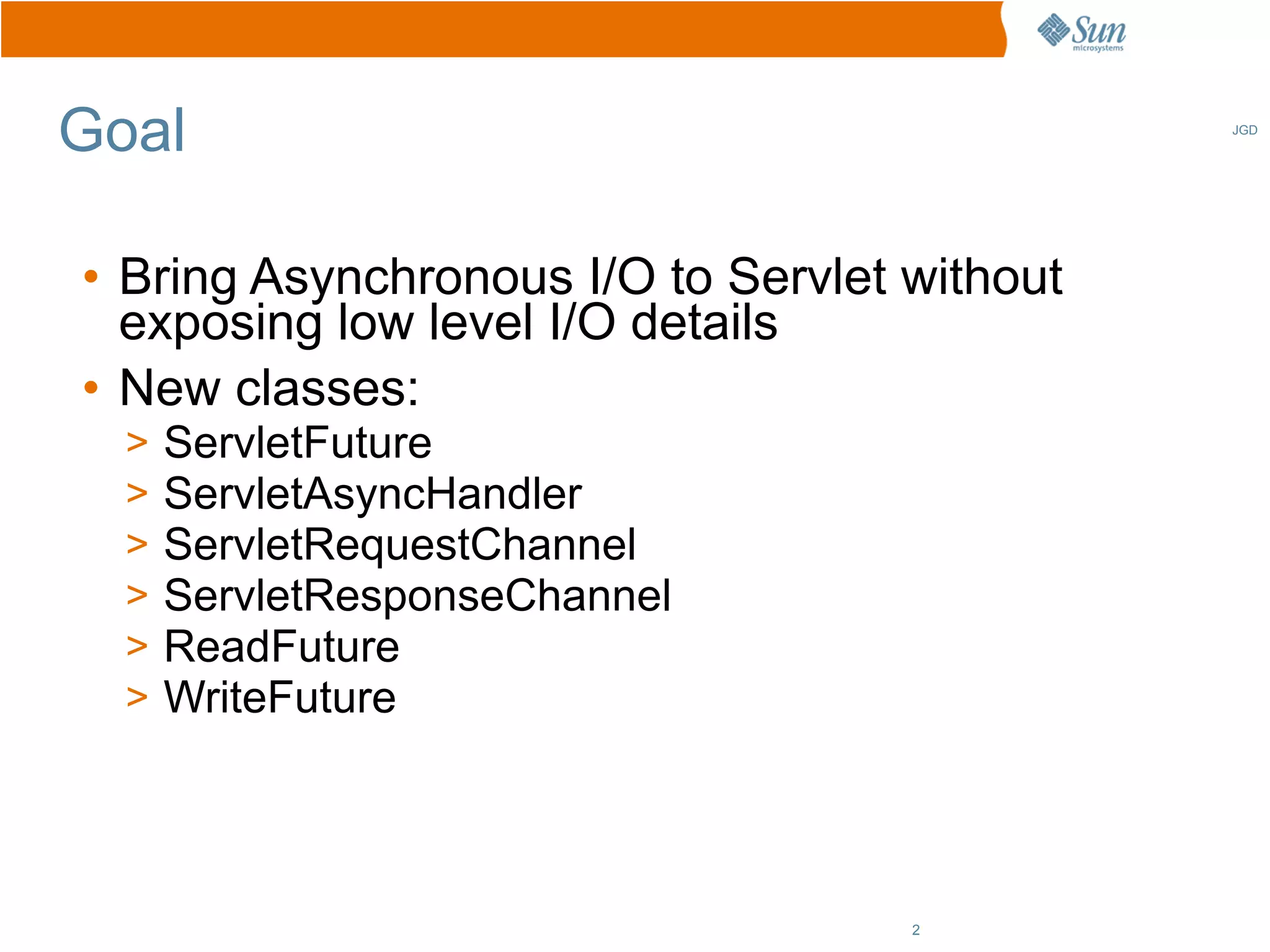

2. Goal JGD
• Bring Asynchronous I/O to Servlet without
exposing low level I/O details
• New classes:
> ServletFuture
> ServletAsyncHandler
> ServletRequestChannel
> ServletResponseChannel
> ReadFuture
> WriteFuture
2

3. ServletFuture JGD
• A Future representing the result of an
asynchronous I/O operation.
• In addition to the methods defined by the
Future interface, a ServletFuture allows
for the attachment of a single arbitrary
object.
• The object can be used to associate
application-specific data or context
required when consuming the result of the
I/O operation.
• This is important for cases where the
same ServletAsyncHandler is used to
consume the result of several I/O
operations.
3

4. ServletIoFuture JGD
boolean cancel(boolean mayInterruptIfRunning)
A attachment()
A attach(A attachment)
4

5. ServletAsyncHandler JGD
• A handler for consuming the result of an
asynchronous I/O operation.
• The asynchronous
ServletRequestChannel.read or
ServletResponseChannel.write defined in
this package allow a ServletAsyncHandler
to be specified yo consume the result of
an asynchronous operation.
• When an operation completes the
handler's completed method is invoked
with the result.
5

6. ServletAsyncHandler JGD
void completed(ServletIoFuture<T,A> result)
6

7. ServletRequestChannel JGD
• An asynchronous channel for read
stream-oriented operations.
• Allow synchronous and asynchronous
read operations
• From a Class definition, the read
operation will convert the request body
into an instance of that Class definition.
7

8. ServletRequestChannel JGD
<T,A> ReadFuture<T,A> read
(java.lang.Class<T> clazz,
A attachment,
ServletAsyncHandler<? super T,A>
handler)
<T,A> ReadFuture<T,A> read
(java.lang.Class<T> clazz,
long timeout,
TimeUnit unit,
A attachment,
ServletAsyncHandler<? super T,A>
handler)
8

9. Example 1: Asynchronous Read JGD
// Asynchronous Read
// The request is automatically suspended when the getChannel() is invoked.
// See Example 3 for a scenario when the request is not explicitly suspended.
ServletRequestChannel channel = servletRequest.getChannel();
ReadFuture ioFuture = channel.read(Map.class,30,TimeUnits.SECONDS, null,
new ServletAsyncHandler<ReadFuture<Map,Void>){
public void completed(ReadFuture<Map,Void> result){
Map map = result.getContent();
}
});
9

10. Example 2: Synchronous Read JGD
// Synchronous Read
ServletRequestChannel channel = servletRequest.getChannel();
ReadFuture ioFuture = channel.read(Map.class);
// Or ReadFuture ioFuture = channel.read(Map.class,null,null);
ioFuture.get(30,TimeUnits.SECONDS);
Map map = ioFuture.getContent() ;
10

11. Example 3: Suspendable Request JGD
// Asynchronous Read
servletRequest.suspend();
ServletRequestChannel channel = servletRequest.getChannel();
ReadFuture ioFuture = channel.read(
Map.class,30,TimeUnits.SECONDS, servletRequest,
new ServletAsyncHandler<ReadFuture<Map,ServletRequest>){
public void completed(ReadFuture<Map,ServletRequest> result){
Map map = result.getContent();
result.attachment().resume();
}
});
11

12. ServletResponseChannel JGD
• An asynchronous channel for write
stream-oriented operations.
• Allow synchronous and asynchronous
write operations
12

13. ServletResponseChannel JGD
<A> WriteFuture<Integer> write
(Object object,
A attachment,
ServletAsyncHandler<Integer,A> handler)
<A> WriteFuture<Integer> write
(Object object,
long timeout,
TimeUnit unit,
A attachment,
ServletAsyncHandler<Integer,A> handler)
13

14. Example 4: Asynchronous Write JGD
// Asynchronous Write
// The request is automatically suspended when the getChannel() is invoked.
// See Example 6 for a scenario when the request is not explicitly suspended.
ServletResponseChannel channel = servletResponse.getChannel();
WriteFuture ioFuture = channel.write(“Hello”,30,TimeUnits.SECONDS, null,
new ServletAsyncHandler<WriteFuture<Integer,Void>){
public void completed(WriteFuture<Integer,Void> result){
System.out.println(“Bytes Written: “ + result.get());
}
});
14

15. Example 5: Asynchronous Write JGD
// Asynchronous Write
ServletResponseChannel channel = servletResponse.getChannel();
WriteFuture ioFuture = channel.write(“Hello”,30,TimeUnits.SECONDS, null,
new ServletAsyncHandler<WriteFuture<Integer,Void>){
public void completed(WriteFuture<Integer,Void> result){
System.out.println(“Bytes Written: “ + result.get());
}
});
15

16. Example 6: Synchronous Write JGD
// Asynchronous Write
ServletResponseChannel channel = servletResponse.getChannel();
WriteIoFuture ioFuture = channel.write(“Hello”);
ioFuture.get(30,TimeUnits.SECONDS);
16

17. Example 2: Suspendable Request JGD
// Asynchronous Read
servletRequest.suspend();
ServletResponseChannel channel = servletResponse.getChannel();
WriteIoFuture ioFuture = channel.write(
“Hello”,30,TimeUnits.SECONDS, servletRequest, new
ServletAsynchronousIoHandler<WriteIoFuture<Integer,ServletRequest>){
public void completed(WriteIoFuture<Integer,ServletRequest> result){
result.attachment().resume();
}
});
17

18. Summary JGD
• Simple API.
• No buffering of data
• API can be used synchronously and
asynchronously.
• Easy to implement.
18
