- The document discusses the Atmosphere Framework, an open-source Java library that allows web applications to communicate in real-time via WebSocket or Comet techniques. - It provides a uniform API that hides the complexities of different browser and server WebSocket implementations and allows fallback to alternative techniques like Comet. - The framework integrates with various Java web servers and frameworks and supports Servlet, RESTful, and native WebSocket APIs to build scalable real-time applications.

1. Writing highly scalable WebSocket using the Atmosphere Framework Jeanfrancois Arcand Wordnik.com

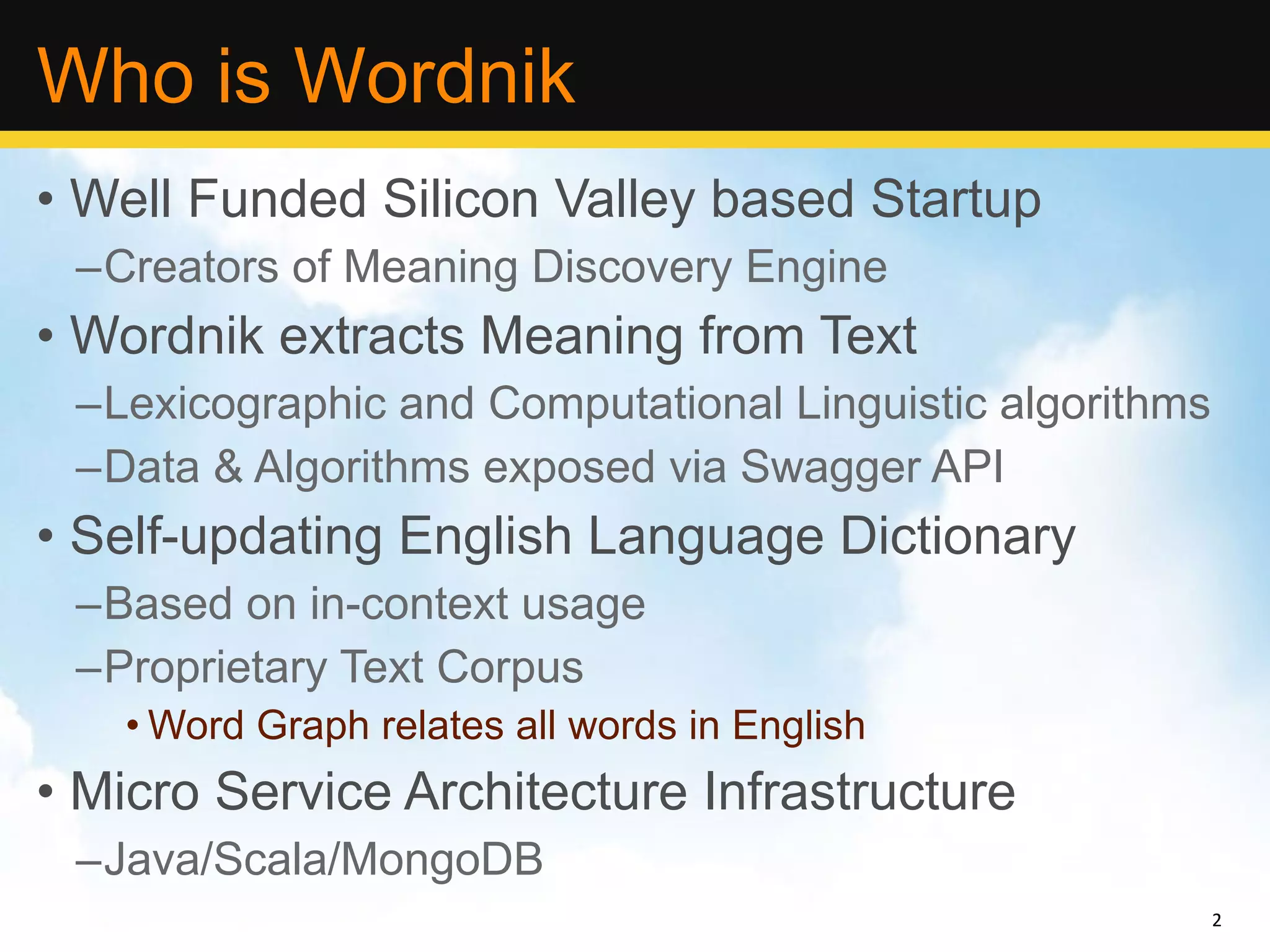

2. Well Funded Silicon Valley based Startup Creators of Meaning Discovery Engine Wordnik extracts Meaning from Text Lexicographic and Computational Linguistic algorithms Data & Algorithms exposed via Swagger API Self-updating English Language Dictionary Based on in-context usage Proprietary Text Corpus Word Graph relates all words in English Micro Service Architecture Infrastructure Java/Scala/MongoDB Who is Wordnik

3. Who I am Twitter: @jfarcand Creator of Grizzly Framework

4. Who I am Creator of Grizzly Framework Significant contributor of GlassFish Twitter: @jfarcand

5. Who I am Creator of Grizzly Framework Significant contributor of GlassFish Creator of the AsyncHttpClient Twitter: @jfarcand

6. Who I am Creator of Grizzly Framework Significant contributor of GlassFish Creator of Atmosphere Creator of the AsyncHttpClient Twitter: @jfarcand

7. Who I am Creator of Grizzly Framework Significant contributor of GlassFish Creator of Atmosphere Creator of the AsyncHttpClient Twitter: @jfarcand Tomcat, Apache Digester, Sitebricks, Jersey, Aether/Maven, etc.

8. The Atmosphere Framework A Portable Comet Framework

9. The Atmosphere Framework A Portable Comet Framework Support All native Comet API and Servlet 3.0

10. The Atmosphere Framework A Portable Comet Framework Support All native Comet API and Servlet 3.0 Atmosphere Client JQuery Plugin

11. The Atmosphere Framework A Portable Comet Framework Support All native Comet API and Servlet 3.0 Atmosphere Client JQuery Plugin Support available WebSocket Native API

12. The Atmosphere Framework A Portable Comet Framework Support All native Comet API and Servlet 3.0 Atmosphere Client JQuery Plugin Support available WebSocket Native API Plugs in for Redis, Active MQ (JMS), JGroups, XMPP, etc.

13. The Atmosphere Framework A Portable Comet Framework Support All native Comet API and Servlet 3.0 Atmosphere Client JQuery Plugin Support available WebSocket Native API Plugs in for Redis, Active MQ (JMS), JGroups, XMPP, etc. Supported/Integrated by almost all major frameworks and javascript library

14. The Atmosphere Framework WebSocket Spec is evolving fast on both Browser and Server Side

15. The Atmosphere Framework WebSocket Spec is evolving fast on both Browser and Server Side Chrome/Safari/Opera: WebSocket FF: MozWebSocket IE: (crikets … ~10)

16. The Atmosphere Framework WebSocket Spec is evolving fast on both Browser and Server Side Chrome/Safari/Opera: WebSocket FF: MozWebSocket IE: (crikets … ~10) Atmosphere JQuery Plug In hide that and propose a uniform API

17. The Atmosphere Framework WebSocket Spec is evolving fast on both Browser and Server Side Chrome/Safari/Opera: WebSocket FF: MozWebSocket IE: (crikets … ~10) Atmosphere JQuery Plug In hide that and propose a uniform API Decide the best transport, negociate it with the server

18. Java Landscape Jetty 7.0: First to Support WebSocket

19. Java Landscape Jetty 7.0: First to Support WebSocket Jetty 7.2.x -> API Changes, break compatibility

20. Java Landscape Jetty 7.0: First to Support WebSocket Jetty 7.2.x -> API Changes, break compatibility Jetty 7.4.5 and 8.0.2 and up: Spec change

21. Java Landscape Jetty 7.0: First to Support WebSocket Jetty 7.2.x -> API Changes, break compatibility Jetty 7.4.5 and 8.0.2 and up: Spec change GlassFish 3.0 -> some support

22. Java Landscape Jetty 7.0: First to Support WebSocket Jetty 7.2.x -> API Changes, break compatibility Jetty 7.4.5 and 8.0.2 and up: Spec change GlassFish 3.0 -> some support GlassFish 3.1.2 -> API Changes

23. Java Landscape Jetty 7.0: First to Support WebSocket Jetty 7.2.x -> API Changes, break compatibility Jetty 7.4.5 and 8.0.2 and up: Spec change GlassFish 3.0 -> some support GlassFish 3.1.2 -> API Changes Tomcat 7 zzzzzzzzzzzz

24. Java Landscape Jetty 7.0: First to Support WebSocket Jetty 7.2.x -> API Changes, break compatibility Jetty 7.4.5 and 8.0.2 and up: Spec change GlassFish 3.0 -> some support GlassFish 3.1.2 -> API Changes Tomcat 7 zzzzzzzzzzzz WOUAAAAAAAAAAAAAAA Atmosphere to the rescue!!

25. Java Landscape Jetty 7.0: First to Support WebSocket Jetty 7.2.x -> API Changes, break compatibility Jetty 7.4.5 and 8.0.2 and up: Spec change GlassFish 3.0 -> some support GlassFish 3.1.2 -> API Changes Tomcat 7 zzzzzzzzzzzz WOUAAAAAAAAAAAAAAA Atmosphere to the rescue!! Are you crazy enough to rewrite your entire app?

26. Java Landscape Jetty 7.0: First to Support WebSocket Jetty 7.2.x -> API Changes, break compatibility Jetty 7.4.5 and 8.0.2 and up: Spec change GlassFish 3.0 -> some support GlassFish 3.1.2 -> API Changes Tomcat 7 zzzzzzzzzzzz WOUAAAAAAAAAAAAAAA Atmosphere to the rescue!! Are you crazy enough to rewrite your entire app? Really want to use proprietary solution like ?

27. How? Integrate with all framework? Check!

28. How? Integrate with all framework? Check! Want Servlet API? Check!

29. How? Integrate with all framework? Check! Want Servlet API? Check! Want REST like API? Check!

30. How? Integrate with all framework? Check! Want Servlet API? Check! Want REST like API? Check! Fallback to Comet? Check!

31. How? Integrate with all framework? Check! Want Servlet API? Check! Want REST like API? Check! Fallback to Comet? Check! Pure WebSocket? Check!

32. How? Integrate with all framework? Check! Want Servlet API? Check! Want REST like API? Check! Fallback to Comet? Check! Pure WebSocket? Check! WebSocket Sub Protocol? Check

33. How? Integrate with all framework? Check! Want Servlet API? Check! Want REST like API? Check! Fallback to Comet? Check! Pure WebSocket? Check! WebSocket Sub Protocol? Check Atmosphere provides a uniform API and hides the underlying transport details (async I/O included)

34. Concepts Upgrade/Suspend

35. Concepts Upgrade/Suspend Broadcast

36. Concepts Upgrade/Suspend Broadcast Resume

37. Concepts Upgrade/Suspend Broadcast Resume Client choose the best technique (ws or comet) Async I/O (Input/Output Stream)

38. Concepts Upgrade/Suspend Broadcast Resume Cloud enabled (zzzzzz) Async I/O (Input/Output Stream) Survive Proxy Cloud Enabled

39. Zzzzzzzzz Enough Bla Bla Bla, let ’s do Scala!

40. API Atmosphere Handler

41. API Jersey to the rescue! (@ and Prog API) Atmosphere Handler

42. API Atmosphere Handler WebSocket Protocol Jersey to the rescue! (@ and Prog API)

43. API Atmosphere Handler WebSocket Protocol Servlet API Jersey to the rescue! (@ and Prog API)

44. The Demo Jetty 8 Tomcat 6 Redis Chrome Redis CLI Safari WebSocket WebSocket FAIL -> Streaming Broadcaster Broadcaster

45. def onRequest(r: AtmosphereResource[HttpServletRequest, HttpServletResponse]): Unit = { var req: HttpServletRequest = r.getRequest var res: HttpServletResponse = r.getResponse var method: String = req.getMethod if (" GET ".equalsIgnoreCase(method)) { var b: Broadcaster = lookupBroadcaster(req.getPathInfo) r.setBroadcaster(b) if (req.getHeader(HeaderConfig.X_ATMOSPHERE_TRANSPORT).equalsIgnoreCase(HeaderConfig.LONG_POLLING_TRANSPORT)) { req.setAttribute(ApplicationConfig.RESUME_ON_BROADCAST, true) r.suspend(-1, false) } else { r.suspend(-1) } } else if (" POST ".equalsIgnoreCase(method)) { var b: Broadcaster = lookupBroadcaster(req.getPathInfo) var message: String = req.getReader.readLine if (message != null && message.indexOf("message") != -1) { b.broadcast(message.substring("message=".length)) } } } 2005- AtmosphereHandler http://is.gd/hH3AaH

46. override def doGet (req: HttpServletRequest, res: HttpServletResponse): Unit = { var m: org.atmosphere.cpr.Meteor = org.atmosphere.cpr.Meteor.build(req) m.addListener(new Console) res.setContentType("text/html;charset=ISO-8859-1") var b: Broadcaster = lookupBroadcaster(req.getPathInfo) m.setBroadcaster(b) if (req.getHeader(HeaderConfig.X_ATMOSPHERE_TRANSPORT).equalsIgnoreCase(HeaderConfig.LONG_POLLING_TRANSPORT)) { req.setAttribute(ApplicationConfig.RESUME_ON_BROADCAST, true) m.suspend(-1, false) } else { m.suspend(-1) } } override def doPost (req: HttpServletRequest, res: HttpServletResponse): Unit = { var b: Broadcaster = lookupBroadcaster(req.getPathInfo) var message: String = req.getReader.readLine if (message != null && message.indexOf("message") != -1) { b.broadcast(message.substring("message=".length)) } } 1999 – Servlet API http://is.gd/GcnG0A

47. @Path("/resource/{topic}") @Produces(Array("text/html;charset=ISO-8859-1")) class Resource { @ PathParam ("topic") private var topic: Broadcaster = null @ GET def subscribe: SuspendResponse[String] = { return new SuspendResponse.SuspendResponseBuilder[String]() .broadcaster(topic) .outputComments(true) .addListener(new Console) .build } @ POST @Broadcast def publish(@FormParam("message") message: String): Broadcastable = { return new Broadcastable(message, "", topic) } 2007 – REST API http://is.gd/Df9Uvm

48. 2011 – WebSocket API http://is.gd/SEa4AK

49. 2011 – Client API http://is.gd/9jumKt

50. SwaggerSocket Protocol HTTP/REST Over WebSocket

51. SwaggerSocket Protocol HTTP/REST Over WebSocket JSON based protocol

52. SwaggerSocket Protocol HTTP/REST Over WebSocket JSON based protocol Support Pipelined Requests

53. SwaggerSocket Protocol HTTP/REST Over WebSocket JSON based protocol Support Pipelined Requests Fully ASYNCHRONOUS

54. SwaggerSocket Protocol HTTP/REST Over WebSocket JSON based protocol Support Pipelined Request Fully ASYNCHRONOUS Work with ANY existing technology, without any changes No need to use Atmosphere API directly Protocol easily extensible

55. SwaggerSocket Protocol WebServer Atmosphere WebSocket WebSocket Protocol Jersey REST Resource

56. Comparing HTTP/keep-alive vs WebSocket Benchmark

57. Writing WebSocket doesn ’t have to be complex Use technology/API that you know, don’t re-invent the wheel again! Twitter: @atmo_framework Github: http://github.com/Atmosphere/atmosphere Wordnik: http://wordnik.com Conclusion
