This document provides an introduction to service-oriented architecture (SOA). It discusses key concepts of SOA including loose coupling, implementation neutrality, and granularity. It explains that a service is an autonomous unit of automated business logic that is accessible to other systems. A SOA is a collection of services that are classified into types and layers and governed by architectural patterns and policies. The document outlines several principles for designing services, such as abstraction, reusability, composability, and autonomy.

1. Service OrientedService Oriented
ArchitectureArchitecture
An Introduction and PrinciplesAn Introduction and Principles
Sandesh SharmaSandesh Sharma

2. prof. Strassmann, 11/19/07 2
Problems Addressed by a SOA

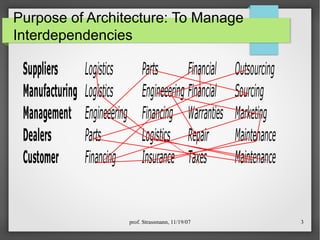

3. prof. Strassmann, 11/19/07 3
Purpose of Architecture: To Manage
Interdependencies
Suppliers Logistics Parts Financial Outsourcing
Manufacturing Logistics Engineeering Financial Sourcing
Management Engineeering Financing Warranties Marketing
Dealers Parts Logistics Repair Maintenance
Customer Financing Insurance Taxes Maintenance

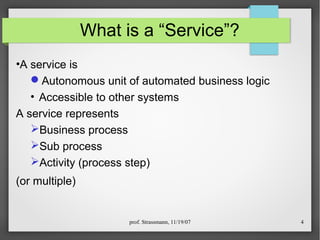

4. prof. Strassmann, 11/19/07 4
What is a “Service”?
•A service is
Autonomous unit of automated business logic
• Accessible to other systems
A service represents
Business process
Sub process
Activity (process step)
(or multiple)

5. prof. Strassmann, 11/19/07 5
What is Service Architecture?
• A collection of services
• classified into types
• arranged into layers
• Governed by architectural
patterns and policies
services
identification
granularity
dependency
type typetype
source:TietoEnator AB,
Kurts Bilder

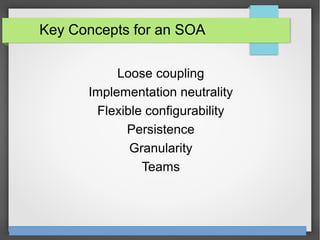

6. Chapter 5 6Service-Oriented Computing: Semantics, Processes, Agents - Munindar Singh and Michael Huhns
Key Concepts for an SOA
Loose coupling
Implementation neutrality
Flexible configurability
Persistence
Granularity
Teams

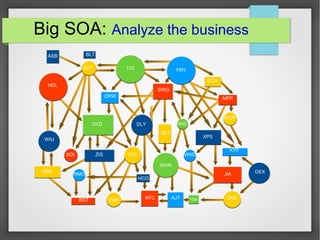

7. ASB BLT
HDL
AFT TGI FRY
DRW
SWG
QYD DLY
BST
WIU
ASB
ZISXOI CUI
RMO
DLY
XPS
KYF
KFC
WHR
JIA GEX
FQAVUH
HCO
WKD
ECP
SKD
MFP
WCP
DKEAJT
Big SOA: Analyze the business

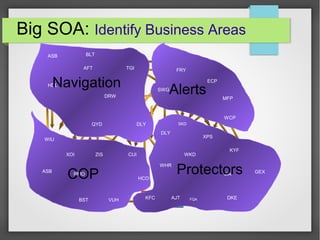

8. ASB BLT
HDL
AFT TGI FRY
DRW
SWG
QYD DLY
BST
WIU
ASB
ZISXOI CUI
RMO
DLY
XPS
KYF
KFC
WHR
JIA GEX
FQAVUH
HCO
WKD
ECP
SKD
MFP
WCP
DKEAJT
Big SOA: Identify Business Areas
COP
Navigation
Protectors
Alerts

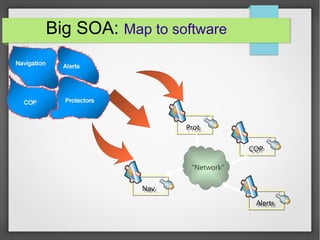

9. Big SOA: Map to software
"Network"
COPCOP
Nav.Nav.
AlertsAlerts
Prot.Prot.

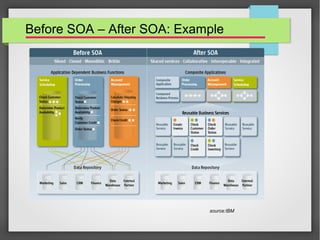

10. Before SOA – After SOA: Example
source:IBM

11. Loose Coupling
“Service contracts impose low consumer coupling
requirements and are themselves decoupled from their
surrounding environment."
Create specific types of relationships within and outside
of service boundaries with a constant emphasis on
reducing (“loosening”) dependencies
between
 Service contract
 Service implementation
 Service consumers
Source: Thomas Erl

12. Standardized Service Contracts
∀ “Services within the same service inventory are in
compliance with the same contract design standards."
∀ Services use service contract to
 Express their purpose
 Express their capabilities
∀ Use formal, standardized service contracts
∀ Focus on the areas of
 Functional expression
 Data representation
 Policy
Source: Thomas Erl

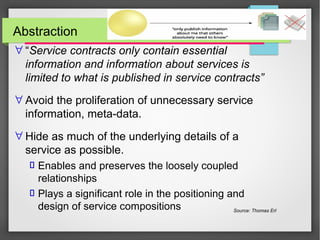

13. Abstraction
∀ “Service contracts only contain essential
information and information about services is
limited to what is published in service contracts”
∀ Avoid the proliferation of unnecessary service
information, meta-data.
∀ Hide as much of the underlying details of a
service as possible.
 Enables and preserves the loosely coupled
relationships
 Plays a significant role in the positioning and
design of service compositions Source: Thomas Erl

14. Re-usability
∀ “Services contain and express agnostic logic and
can be positioned as reusable enterprise
resources."
∀ Reusable services have the
following characteristics:
 Defined by an agnostic functional context
 Logic is highly generic
 Has a generic and extensible contract
 Can be accessed concurrently
Source: Thomas Erl

15. Composability
∀ "Services are effective
composition
participants,
regardless of the size
and complexity of the
composition."
∀ Ensures services are
able to participate in
multiple compositions
to solve multiple larger
problems
Source: Thomas Erl

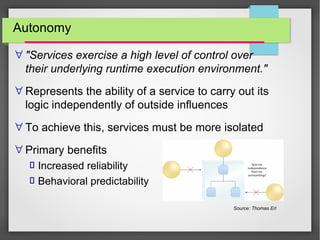

16. Autonomy
∀ "Services exercise a high level of control over
their underlying runtime execution environment."
∀ Represents the ability of a service to carry out its
logic independently of outside influences
∀ To achieve this, services must be more isolated
∀ Primary benefits
 Increased reliability
 Behavioral predictability
Source: Thomas Erl

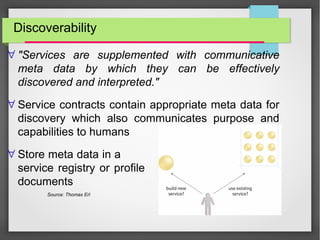

17. Discoverability
∀ "Services are supplemented with communicative
meta data by which they can be effectively
discovered and interpreted."
∀ Service contracts contain appropriate meta data for
discovery which also communicates purpose and
capabilities to humans
∀ Store meta data in a
service registry or profile
documents
Source: Thomas Erl

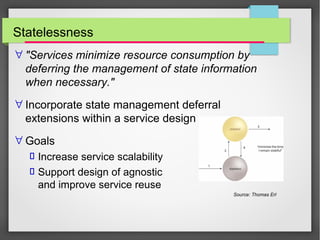

18. Statelessness
∀ "Services minimize resource consumption by
deferring the management of state information
when necessary."
∀ Incorporate state management deferral
extensions within a service design
∀ Goals
 Increase service scalability
 Support design of agnostic logic
and improve service reuse
Source: Thomas Erl

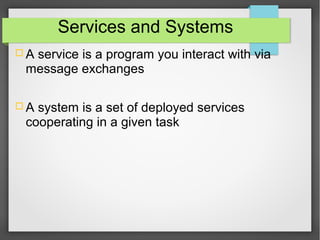

19. Services and Systems
 A service is a program you interact with via
message exchanges
 A system is a set of deployed services
cooperating in a given task

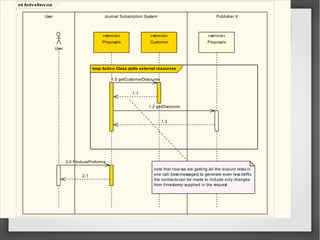

20. sd ActiveServ ice
User Journal Subscription System Publisher X
User
«service»
Customer
«service»
Proposals
«service»
Proposals
note that now we are getting all the dicount rates in
one call (less messages) to generate even less traffic
the contracts can be made to include only changes
from timestamp supplied in the request
loop Activ e Class polls external resources
1.0 getCustomerDiscounts
1.1
1.2 getDiscounts
1.3
2.0 ProduceProforma
2.1

21. thAnks
Sandesh Sharma
Questions
Can be send me at ersandeshsharma[at]gmail.com
