1. LED Street Light is dedicated to achieve end-user friendly
performance, we keep working on the goals of super durability,
lowest consumption, top security structural design under this
theory and our constant effort LED Street Light is widely applied
in regions of Europe, Australia countries, etc.
LED Street Light Series-N
LUMINHOME OPTOELECTRONIC CO.,LTD
ADD: No.36-15, 3F,Building 6th,PaoBing Industry Area,Dasha West Rd,Dashadi,Huangpu Distr. Guangzhou,China
TEL: (86) 136 1000 2670
Email: sales1@luminhome.com
www.luminhome.com
Simon Kang
Mob: +86 13610002670
Email: sales1@luminhome.com
IES 140 LM/W
1
Function Optional :
1) 0-10V Dimmable
2) DALI Dimmable
3) Time control
4) Light sensor control
5) Surge>20KV
6）Single light control

2. Perfect for parking lots, roadways, car dealerships, stadiums, outdoor sports areas, campuses and parks—this
Street Light shines brightly when reliability and performance are critical. The high-power LED light is also a great
replacement option for street lights and vapor lamps. These street lights have a life expectancy of 50,000 hours—5
times as long as MH fixtures—the LED light reduces costly repairs and the need for replacements. The waterproof,
IP65-rated die cast aluminum housing guards against damage done by harsh or wet weather conditions, and
unbeatable versatility that can serve as a flood light, area light, wall light and many more application.

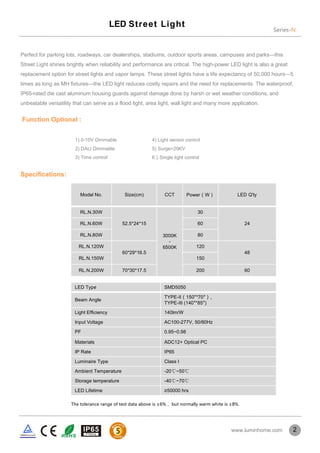

Specifications:
Model No. Size(cm) CCT Power（W） LED Q'ty
RL.N.30W
52.5*24*15
3000K
-
6500K
30
24RL.N.60W 60
RL.N.80W 80
RL.N.120W
60*29*16.5
120
48
RL.N.150W 150
RL.N.200W 70*30*17.5 200 60
LED Type SMD5050
Beam Angle
TYPE-II（150°*70°）、
TYPE-III (140°*85°)
Light Efficiency 140lm/W
Input Voltage AC100-277V, 50/60Hz
PF 0.95~0.98
Materials ADC12+ Optical PC
IP Rate IP65
Luminaire Type Class I
Ambient Temperature -20℃~50℃
Storage temperature -40℃~70℃
LED Lifetime ≥50000 hrs
Series-N
LED Street Light
2www.luminhome.com
1) 0-10V Dimmable
2) DALI Dimmable
3) Time control
Function Optional :
4) Light sensor control
5) Surge>20KV
6）Single light control
The tolerance range of test data above is ±6%， but normally warm white is ±8%.

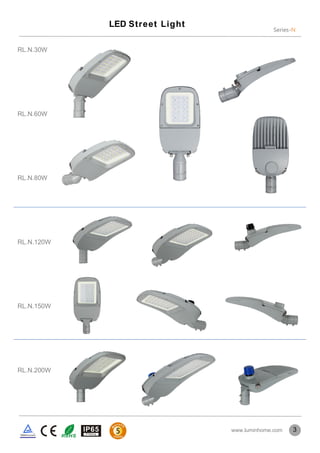

3. Series-N
LED Street Light
3
RL.N.30W
RL.N.150W
RL.N.60W
RL.N.80W
RL.N.120W
RL.N.200W
www.luminhome.com

4. Series-N
LED Street Light
4

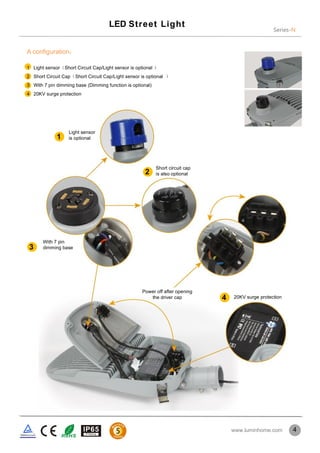

A configuration：
1 Light sensor（Short Circuit Cap/Light sensor is optional ）
2 Short Circuit Cap（Short Circuit Cap/Light sensor is optional ）
3 With 7 pin dimming base (Dimming function is optional)
4 20KV surge protection
1
2
3
4
Light sensor
is optional
Short circuit cap
is also optional
With 7 pin
dimming base
20KV surge protection
Power off after opening
the driver cap
www.luminhome.com

5. Series-N
LED Street Light
5

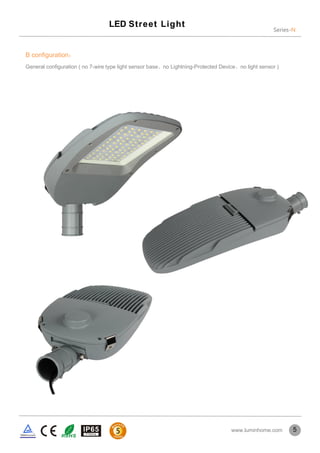

B configuration：
General configuration ( no 7-wire type light sensor base、no Lightning-Protected Device、no light sensor )
www.luminhome.com

6. L
W H
I
Φ

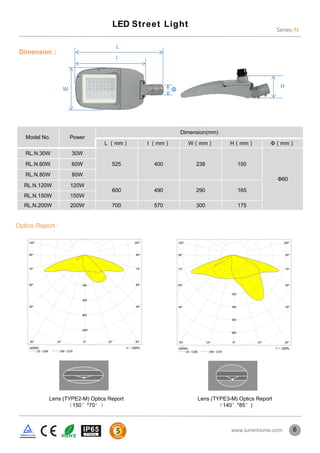

Dimension：
Model No. Power
Dimension(mm)
L （mm） I （mm） W（mm） H（mm） Φ（mm）
RL.N.30W 30W
525 400 238 150
Φ60
RL.N.60W 60W
RL.N.80W 80W
RL.N.120W 120W
600 490 290 165
RL.N.150W 150W
RL.N.200W 200W 700 570 300 175
6
LED Street Light
Series-N
Optics Report :
Lens (TYPE2-M) Optics Report
（150°*70°）
Lens (TYPE3-M) Optics Report
（140°*85°)
www.luminhome.com

7. Light Distribution-30W：
7
LED Street Light
Series-N
www.luminhome.com

8. Light Distribution-60W：
8
LED Street Light
Series-N
www.luminhome.com

9. Light Distribution-80W：
9
LED Street Light
Series-N
www.luminhome.com

10. Light Distribution-120W：
10
LED Street Light
Series-N
www.luminhome.com

11. Light Distribution-150W：
11
LED Street Light
Series-N
www.luminhome.com

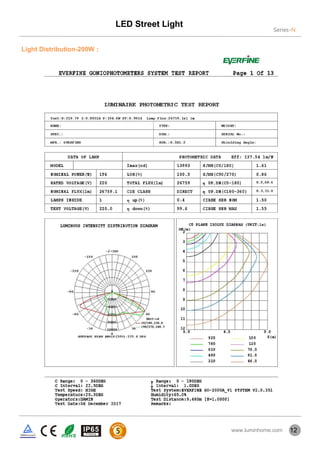

12. Light Distribution-200W：
12
LED Street Light
Series-N
www.luminhome.com

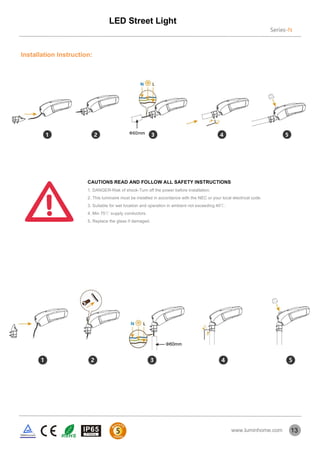

13. Installation Instruction:
13
CAUTIONS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. DANGER-Risk of shock-Turn off the power before installation.
2. This luminaire must be installed in accordance with the NEC or your local electrical code.
3. Suitable for wet location and operation in ambient not exceeding 40℃.
4. Min 75℃ supply conductors.
5. Replace the glass if damaged.
LED Street Light
Series-N
www.luminhome.com

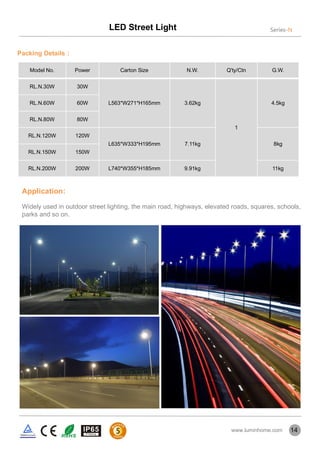

14. Packing Details：
Model No. Power Carton Size N.W. Q'ty/Ctn G.W.
RL.N.30W 30W
L563*W271*H165mm 3.62kg
1
4.5kgRL.N.60W 60W
RL.N.80W 80W
RL.N.120W 120W
L635*W333*H195mm 7.11kg 8kg
RL.N.150W 150W
RL.N.200W 200W L740*W355*H185mm 9.91kg 11kg
Application:
Widely used in outdoor street lighting, the main road, highways, elevated roads, squares, schools,
parks and so on.
14
LED Street Light Series-N
www.luminhome.com
