LED Modular Tunnel Light LH-
TS6B
Model:LH-TS6B
Description:

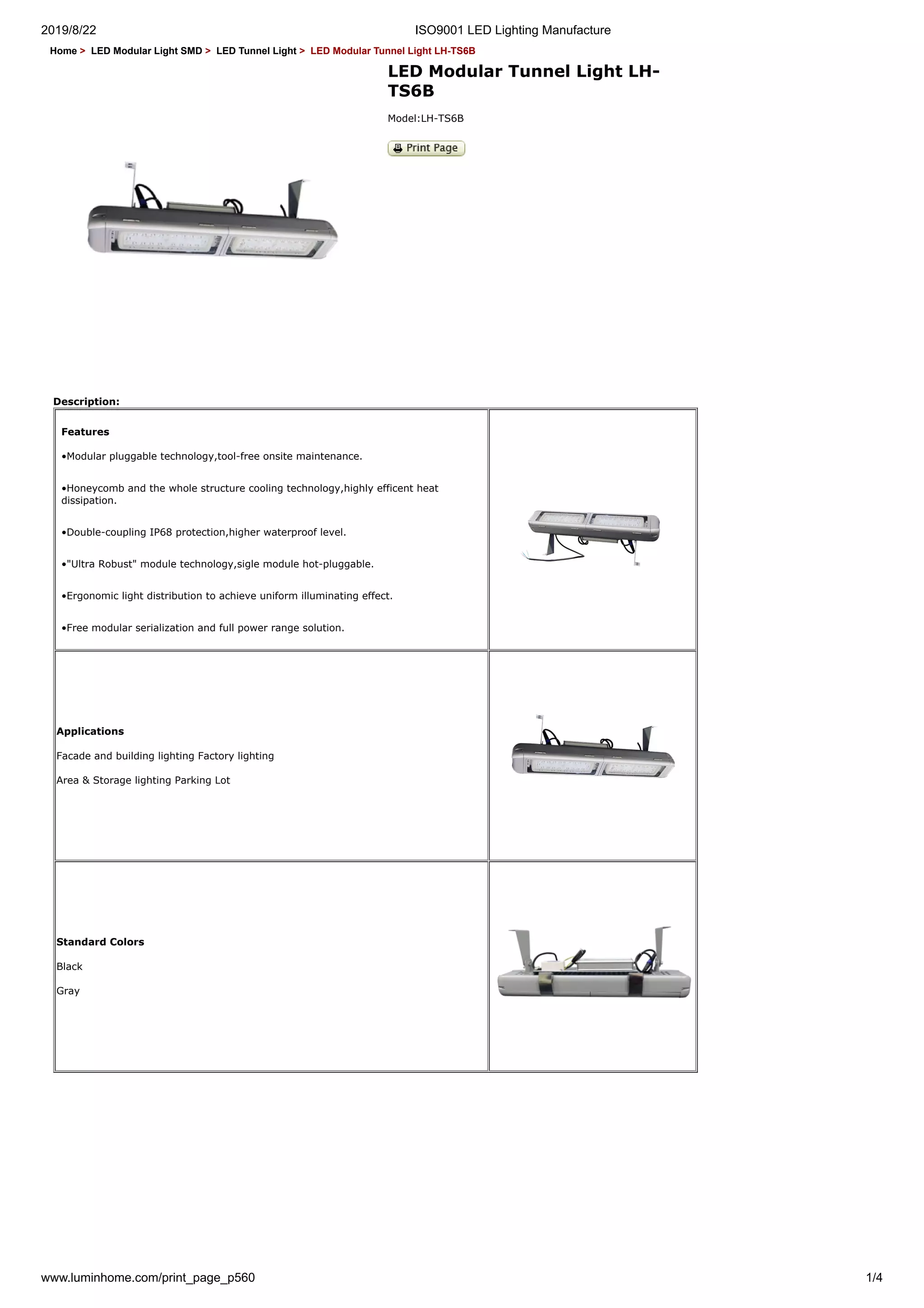

Features
•Modular pluggable technology,tool-free onsite maintenance.
•Honeycomb and the whole structure cooling technology,highly efficent heat
dissipation.
•Double-coupling IP68 protection,higher waterproof level.
•"Ultra Robust" module technology,sigle module hot-pluggable.
•Ergonomic light distribution to achieve uniform illuminating effect.
•Free modular serialization and full power range solution.
Applications
Facade and building lighting Factory lighting
Area & Storage lighting Parking Lot
Standard Colors
Black
Gray
Home > LED Modular Light SMD > LED Tunnel Light > LED Modular Tunnel Light LH-TS6B

2. 2019/8/22 ISO9001 LED Lighting Manufacture
www.luminhome.com/print_page_p560 2/4
Product Parameters
Model LH-TS6B-1 LH-TS6B-1 LH-TS6B-2 LH-TS6B-2 LH-TS6B-3 LH-TS6B-3
Operating Voltage AC 90V-305V
Power Efficiency ≥91%
Power Factor 0.95
LED Unit 15units*1 18units*1 15units*2 18units*2 15units*3 18units*3
System Power 50W 60W 100W 120W 150W 180W
Luminous
Efficacy of
Lights
Rebel ES Super
High Efficacy
120LM/W
Rebel ES
High Efficacy
145LM/W
Initial
Luminous Flux
of Lights
Lumen(120LM/W） 5500 LM 6500 LM 11000 LM 13000 LM 16500 LM 19000 LM
Lumen(145LM/W) 7250 LM 8700 LM 14500 LM 17400 LM 21750 LM 36100 LM
Temperature of Junctions(TJ) <70℃
Light Distribution Curve 25°,40°,60°,90°
Color Temperature 3000K/5000K/6000K
CRI Ra70±5
Lighting Source Philips-Lumileds
Working Environment Between－40℃～＋50℃, 10%～90%RH
Storage Temperature Between－40℃～＋50℃
LED life span ＞50000 Hours
Body and shell materials Aluminum Alloy
Tunder Protection 4KV
Dimensions(mm) 130*250*390 130*250*695 130*250*995
Packing size(mm) 315*180*455 315*180*760 315*180*1065
Gross Weight 3.9Kg 7.3Kgs 9.0Kg
Certificates TUV Rheinland / CE / ROHS
Wind Index Force 12
IP Protection Grade LED Module IP68, Power Supply IP67
Quality Assurance /Warranty 5 years
Remarks
Technical factors will be changed accordingly based on the LEDs used
in the lights.The installation of the connector: Φ60mm;
for other sizes, adapters are needed.
Lighting Source Options

3. 2019/8/22 ISO9001 LED Lighting Manufacture
www.luminhome.com/print_page_p560 3/4

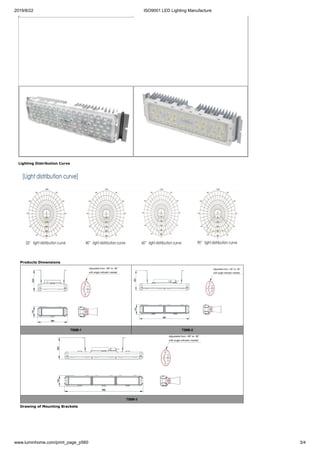

Lighting Distribution Curve
Products Dimensions
Drawing of Mounting Brackets

4. 2019/8/22 ISO9001 LED Lighting Manufacture
www.luminhome.com/print_page_p560 4/4

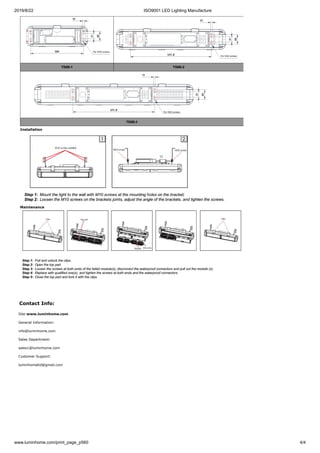

Installation
