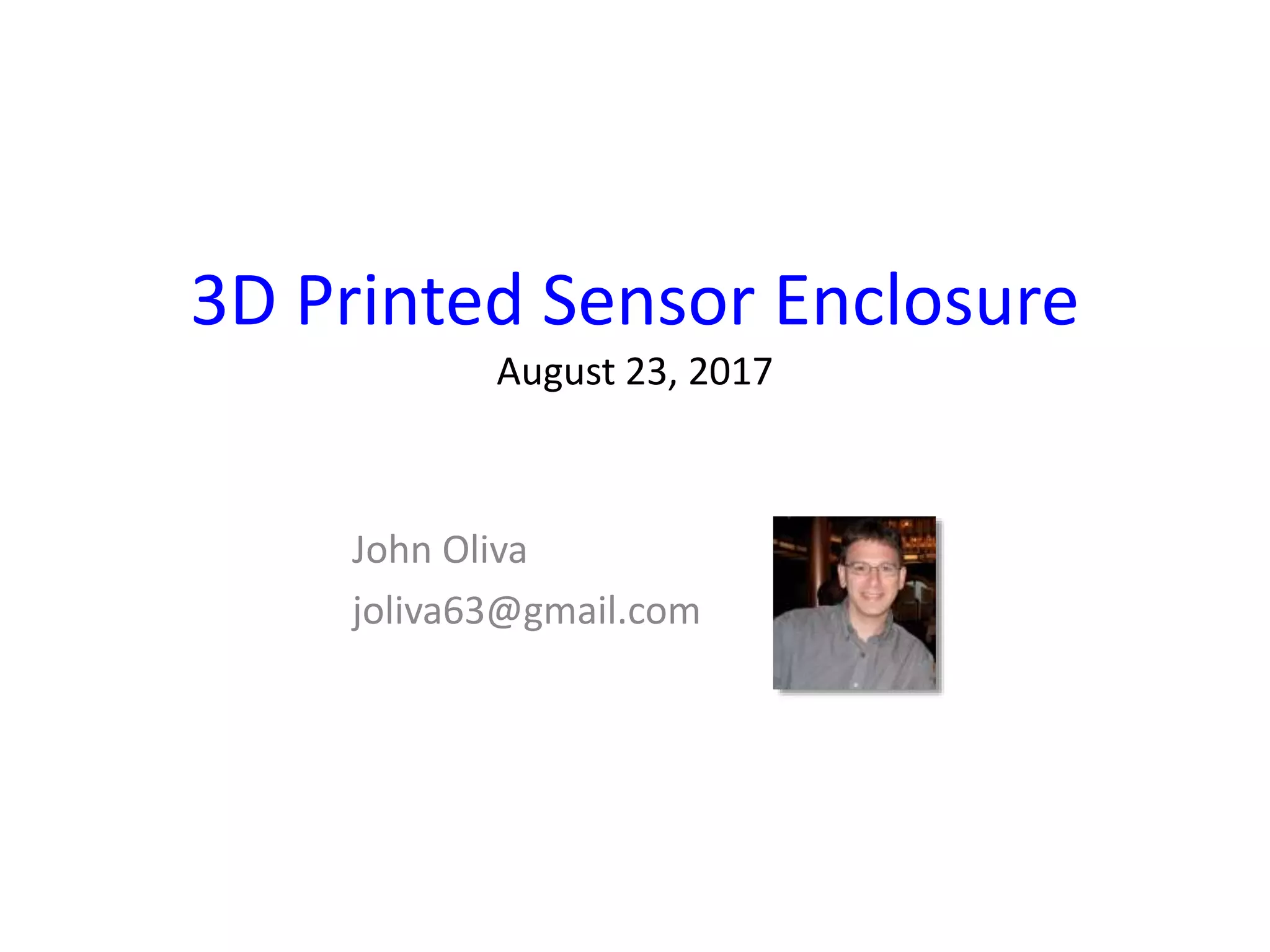

1. 3D Printed Sensor Enclosure
August 23, 2017
John Oliva
joliva63@gmail.com

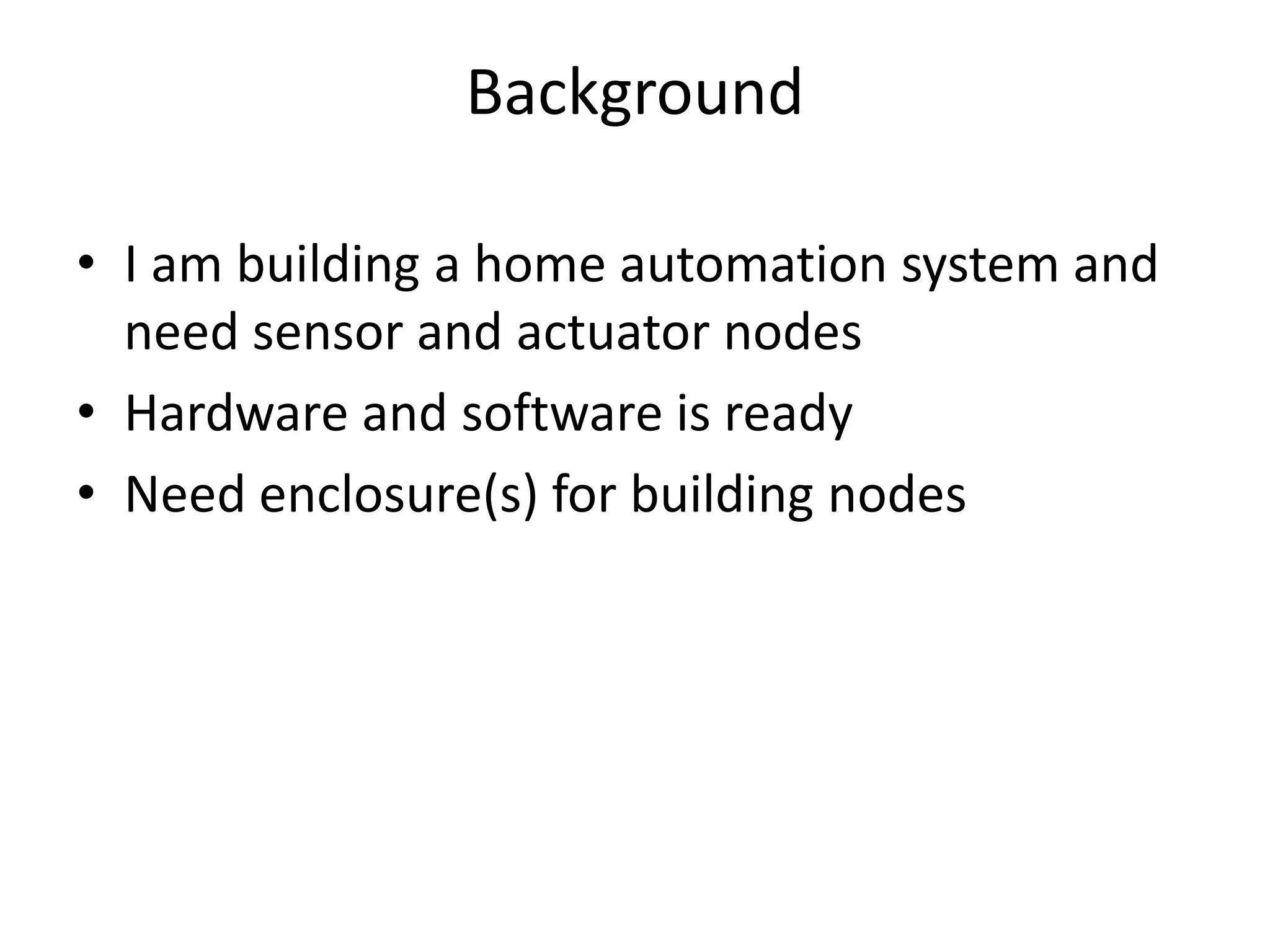

2. Background
• I am building a home automation system and
need sensor and actuator nodes
• Hardware and software is ready
• Need enclosure(s) for building nodes

3. Hardware
• Low power version of Arduino

4. Hardware (cont.)
• NRF24L01+ GFSK radio transceiver

5. Hardware (cont.)

6. Hardware (cont.)

7. Software
• Arduino library + MySensors

8. Sensor Node Components
• CPU/Radio board + Software ✔
• Sensor ✔
• Batteries + battery holder
• Enclosure

9. First Concept Sketch
• The design concept is a long narrow enclosure
with compartments.

10. Batteries + Battery Holder
• Low power CPU/Radio runs off 2 AA batteries
• Design concept is long and narrow so AA
batteries must sit end-to-end.
• Since I am looking to 3D print what I can, I will
print the battery holder rather than purchase one
• Let me check what is available on Thingiverse for
the battery holder.

11. Battery Holder
• https://www.thingiverse.com/thing:1755397

12. Battery Holder (cont.)
• Designed with OpenSCAD ✔
• I have used this one before ✔
• Design configuration only supports side-by-side for multi-
cell. Ruh Roh ✗
• Wait a minute – I know OpenSCAD so I can modify the
design ✔

13. Battery Holder (cont.)
• Original side-by-side version in OpenSCAD

14. Battery Holder (cont.)
• Modified to support end-to-end + no flanges

15. Battery Holder (cont.)
• New + old capability via customizer

16. 3D Printing Battery Holder
• Finally, its time to 3D print something
• Wait… I am using a new brand and color of
PETG filament
• Better make sure I have the settings dialed in
properly to get good, strong prints

17. 3D Printing Battery Holder (cont.)
• Use a really simple object that will print fast to
test the slicer settings
• Iterate and vary layer height, temperature,
speed, etc.

18. 3D Printing Battery Holder (cont.)
• Rate the results from various combinations to
find the sweet spot.

19. 3D Printing Battery Holder (cont.)
• Export STL for battery holder from OpenSCAD
and import into Simplify3D (my slicer)

20. 3D Printing Battery Holder (cont.)
• Generate GCODE using Simplify3D using sweet
spot setting and print!

21. 3D Printing Battery Holder (cont.)
• Some connectors that work with the design
purchased on eBay

22. Sensor Node Components
• CPU/Radio board + Software ✔
• Sensor ✔
• Batteries + battery holder ✔
• Enclosure

23. More Concept Sketches

24. 3D Printing Enclosure (cont.)
• Measure internal parts in order to design the
enclosure

25. 3D Printing Enclosure (cont.)
• Use OpenSCAD and customizer to design enclosures and insertable
bottoms – this may take some time to get it right

26. 3D Printing Enclosure (cont.)

27. 3D Printing Enclosure (cont.)
• Design and print clip for connecting compartments

28. 3D Printing Enclosure (cont.)

29. 3D Printing Enclosure (cont.)
• Uh, oh. Too tight.

30. 3D Printing Enclosure (cont.)
• Better

31. Sensor Node Components
• CPU/Radio board + Software ✔
• Sensor ✔
• Batteries + battery holder ✔
• Enclosure ✔

32. Assembly
• All parts printed and ready for assembly

33. Assembly (cont.)
• Battery, battery holder in compartment

34. Assembly (cont.)
• All components in compartments

35. Assembly (cont.)
• Fully assembled

36. Future Improvements
• Tune dimensions of battery holder and
compartments for a better fit
• Add fillets to enclosure to strengthen places
where walls meet
• Experiment with other enclosure
configurations – not long and narrow
