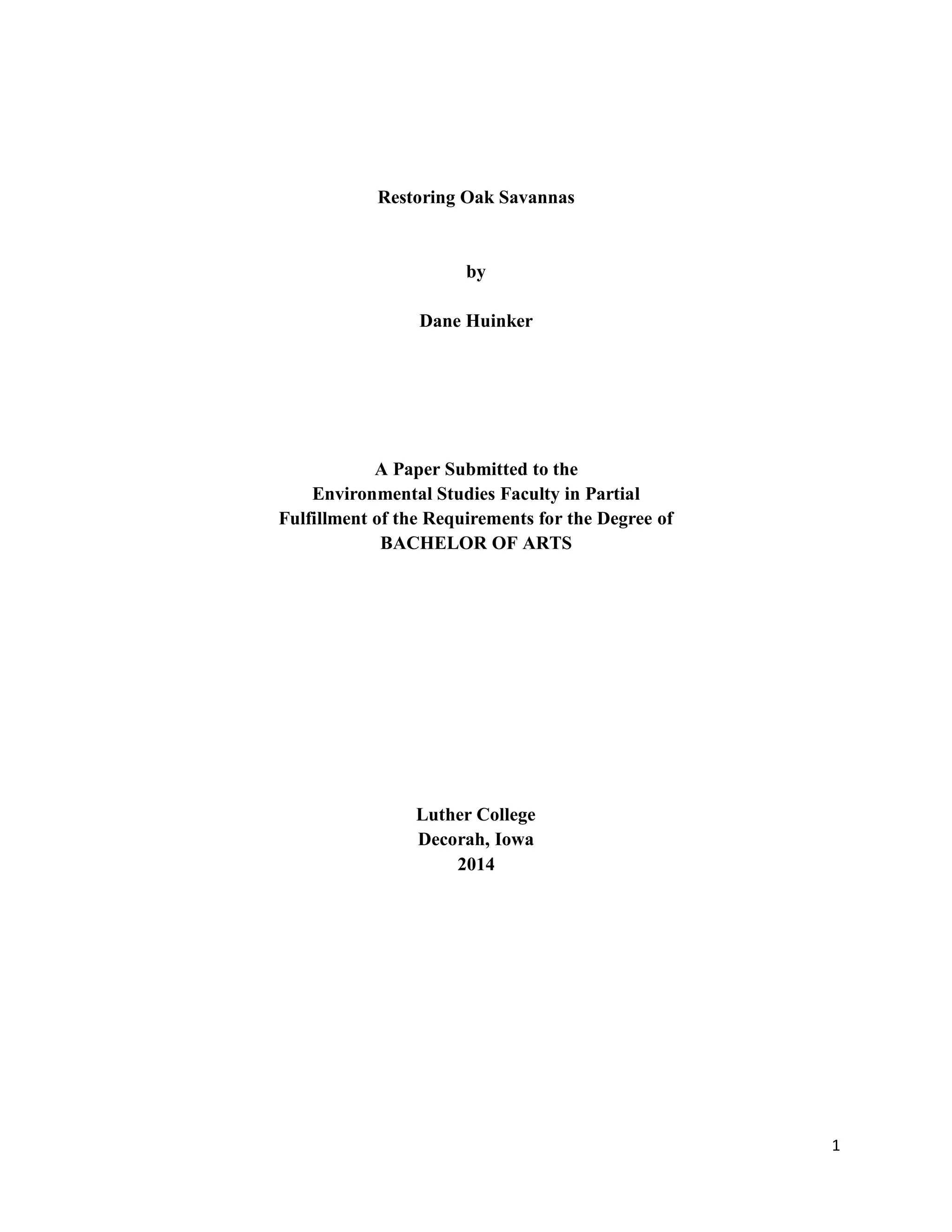

Restoring Oak Savannas
by
Dane Huinker
A Paper Submitted to the
Environmental Studies Faculty in Partial
Fulfillment of the Requirements for the Degree of
BACHELOR OF ARTS
Luther College
Decorah, Iowa
2014

2. 2
Introduction
Oak savanna habitat was at one time a very prominent landscape in the midsection of the
United States. Many factors have played a role in the formation of oak savannas but to truly
understand their formation, one must first look back in history approximately one million years
ago when the uplift of the Rocky Mountains created a rain-shadow casting over everything to its
east (Kline 1997). The land in this rain shadow created by the mountains became drier, making
the environment favorable for grasses to dominate the landscape (Fig. 1) (Kline 1997).
Figure 1. Short grass, mixed grass and tallgrass prairie distribution in the U.S.
(from U.S. Department of Agriculture ND).
However, along the east edge of the tallgrass prairie zone, the moisture gradient increased and
taller grasses and trees were able to exist (Kline 1997). This created a transitional habitat
between tallgrass prairies and closed canopy forests spreading from Texas north to Canada and
from central Nebraska east to Ohio (Fig. 2) (Kline 1997).
Tallgrass PrairieMixed PrairieShortgrass Prairie

3. 3

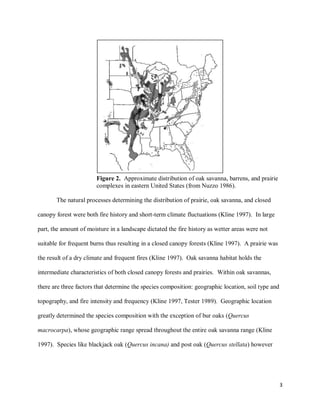

Figure 2. Approximate distribution of oak savanna, barrens, and prairie
complexes in eastern United States (from Nuzzo 1986).
The natural processes determining the distribution of prairie, oak savanna, and closed
canopy forest were both fire history and short-term climate fluctuations (Kline 1997). In large
part, the amount of moisture in a landscape dictated the fire history as wetter areas were not
suitable for frequent burns thus resulting in a closed canopy forests (Kline 1997). A prairie was
the result of a dry climate and frequent fires (Kline 1997). Oak savanna habitat holds the
intermediate characteristics of both closed canopy forests and prairies. Within oak savannas,
there are three factors that determine the species composition: geographic location, soil type and
topography, and fire intensity and frequency (Kline 1997, Tester 1989). Geographic location
greatly determined the species composition with the exception of bur oaks (Quercus
macrocarpa), whose geographic range spread throughout the entire oak savanna range (Kline
1997). Species like blackjack oak (Quercus incana) and post oak (Quercus stellata) however

4. 4

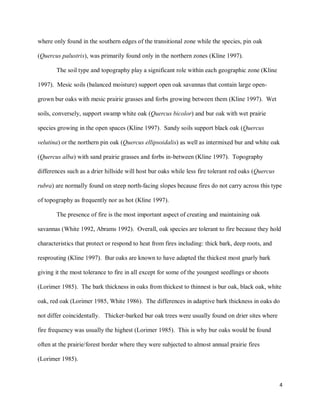

where only found in the southern edges of the transitional zone while the species, pin oak
(Quercus palustris), was primarily found only in the northern zones (Kline 1997).
The soil type and topography play a significant role within each geographic zone (Kline
1997). Mesic soils (balanced moisture) support open oak savannas that contain large open-
grown bur oaks with mesic prairie grasses and forbs growing between them (Kline 1997). Wet
soils, conversely, support swamp white oak (Quercus bicolor) and bur oak with wet prairie
species growing in the open spaces (Kline 1997). Sandy soils support black oak (Quercus
velutina) or the northern pin oak (Quercus ellipsoidalis) as well as intermixed bur and white oak
(Quercus alba) with sand prairie grasses and forbs in-between (Kline 1997). Topography
differences such as a drier hillside will host bur oaks while less fire tolerant red oaks (Quercus
rubra) are normally found on steep north-facing slopes because fires do not carry across this type
of topography as frequently nor as hot (Kline 1997).
The presence of fire is the most important aspect of creating and maintaining oak
savannas (White 1992, Abrams 1992). Overall, oak species are tolerant to fire because they hold
characteristics that protect or respond to heat from fires including: thick bark, deep roots, and
resprouting (Kline 1997). Bur oaks are known to have adapted the thickest most gnarly bark
giving it the most tolerance to fire in all except for some of the youngest seedlings or shoots
(Lorimer 1985). The bark thickness in oaks from thickest to thinnest is bur oak, black oak, white
oak, red oak (Lorimer 1985, White 1986). The differences in adaptive bark thickness in oaks do
not differ coincidentally. Thicker-barked bur oak trees were usually found on drier sites where
fire frequency was usually the highest (Lorimer 1985). This is why bur oaks would be found
often at the prairie/forest border where they were subjected to almost annual prairie fires
(Lorimer 1985).

5. 5

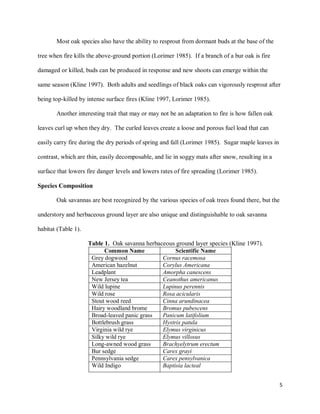

Most oak species also have the ability to resprout from dormant buds at the base of the
tree when fire kills the above-ground portion (Lorimer 1985). If a branch of a bur oak is fire
damaged or killed, buds can be produced in response and new shoots can emerge within the
same season (Kline 1997). Both adults and seedlings of black oaks can vigorously resprout after
being top-killed by intense surface fires (Kline 1997, Lorimer 1985).
Another interesting trait that may or may not be an adaptation to fire is how fallen oak
leaves curl up when they dry. The curled leaves create a loose and porous fuel load that can
easily carry fire during the dry periods of spring and fall (Lorimer 1985). Sugar maple leaves in
contrast, which are thin, easily decomposable, and lie in soggy mats after snow, resulting in a
surface that lowers fire danger levels and lowers rates of fire spreading (Lorimer 1985).
Species Composition
Oak savannas are best recognized by the various species of oak trees found there, but the
understory and herbaceous ground layer are also unique and distinguishable to oak savanna
habitat (Table 1).
Table 1. Oak savanna herbaceous ground layer species (Kline 1997).
Common Name Scientific Name
Grey dogwood Cornus racemosa
American hazelnut Corylus Americana
Leadplant Amorpha canescens
New Jersey tea Ceanothus americanus
Wild lupine Lupinus perennis
Wild rose Rosa acicularis
Stout wood reed Cinna arundinacea
Hairy woodland brome Bromus pubescens
Broad-leaved panic grass Panicum latifolium
Bottlebrush grass Hystrix patula
Virginia wild rye Elymus virginicus
Silky wild rye Elymus villosus
Long-awned wood grass Brachyelytrum erectum
Bur sedge Carex grayi
Pennsylvania sedge Carex pensylvanica
Wild Indigo Baptisia lacteal

6. 6

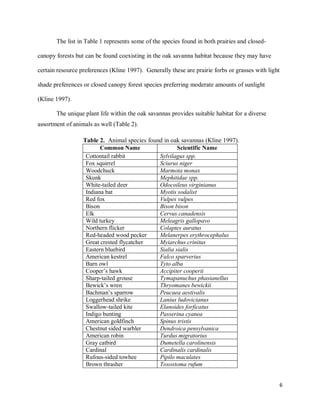

The list in Table 1 represents some of the species found in both prairies and closed-
canopy forests but can be found coexisting in the oak savanna habitat because they may have
certain resource preferences (Kline 1997). Generally these are prairie forbs or grasses with light
shade preferences or closed canopy forest species preferring moderate amounts of sunlight
(Kline 1997).
The unique plant life within the oak savannas provides suitable habitat for a diverse
assortment of animals as well (Table 2).
Table 2. Animal species found in oak savannas (Kline 1997).
Common Name Scientific Name
Cottontail rabbit Sylvilagus spp.
Fox squirrel Sciurus niger
Woodchuck Marmota monax
Skunk Mephitidae spp.
White-tailed deer Odocoileus virginianus
Indiana bat Myotis sodalist
Red fox Vulpes vulpes
Bison Bison bison
Elk Cervus canadensis
Wild turkey Meleagris gallopavo
Northern flicker Colaptes auratus
Red-headed wood pecker Melanerpes erythrocephalus
Great crested flycatcher Myiarchus crinitus
Eastern bluebird Sialia sialis
American kestrel Falco sparverius
Barn owl Tyto alba
Cooper’s hawk Accipiter cooperii
Sharp-tailed grouse Tymapanuchus phasianellus
Bewick’s wren Thryomanes bewickii
Bachman’s sparrow Peucaea aestivalis
Loggerhead shrike Lanius ludovicianus
Swallow-tailed kite Elanoides forficatus
Indigo bunting Passerina cyanea
American goldfinch Spinus tristis
Chestnut sided warbler Dendroica pensylvanica
American robin Turdus migratorius
Gray catbird Dumetella carolinensis
Cardinal Cardinalis cardinalis
Rufous-sided towhee Pipilo maculates
Brown thrasher Toxostoma rufum

7. 7

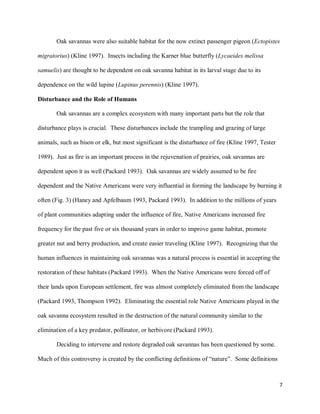

Oak savannas were also suitable habitat for the now extinct passenger pigeon (Ectopistes
migratorius) (Kline 1997). Insects including the Karner blue butterfly (Lycaeides melissa
samuelis) are thought to be dependent on oak savanna habitat in its larval stage due to its
dependence on the wild lupine (Lupinus perennis) (Kline 1997).
Disturbance and the Role of Humans
Oak savannas are a complex ecosystem with many important parts but the role that
disturbance plays is crucial. These disturbances include the trampling and grazing of large
animals, such as bison or elk, but most significant is the disturbance of fire (Kline 1997, Tester
1989). Just as fire is an important process in the rejuvenation of prairies, oak savannas are
dependent upon it as well (Packard 1993). Oak savannas are widely assumed to be fire
dependent and the Native Americans were very influential in forming the landscape by burning it
often (Fig. 3) (Haney and Apfelbaum 1993, Packard 1993). In addition to the millions of years
of plant communities adapting under the influence of fire, Native Americans increased fire
frequency for the past five or six thousand years in order to improve game habitat, promote
greater nut and berry production, and create easier traveling (Kline 1997). Recognizing that the
human influences in maintaining oak savannas was a natural process is essential in accepting the
restoration of these habitats (Packard 1993). When the Native Americans were forced off of
their lands upon European settlement, fire was almost completely eliminated from the landscape
(Packard 1993, Thompson 1992). Eliminating the essential role Native Americans played in the
oak savanna ecosystem resulted in the destruction of the natural community similar to the
elimination of a key predator, pollinator, or herbivore (Packard 1993).
Deciding to intervene and restore degraded oak savannas has been questioned by some.
Much of this controversy is created by the conflicting definitions of “nature”. Some definitions

8. 8
hold that nature is “plants, animals, geographic features, etc., or places where these exist largely
free of human interference” (Packard 1993). From the conservation and land stewardship
standpoint, this definition is impractical because oak savannas would not exist if it were not for
the influence of human activity. Packard (1993) gives a revised definition that replaces the
“largely free of humans” with “essentially free of human influence that would be so great or so
rapid that the natural processes of the ecosystem are destroyed”. In this way, it gives
communities of species in an ecosystem time to adapt in order to thrive in a changing
environment over the course of hundreds or thousands of years (Packard 1993).

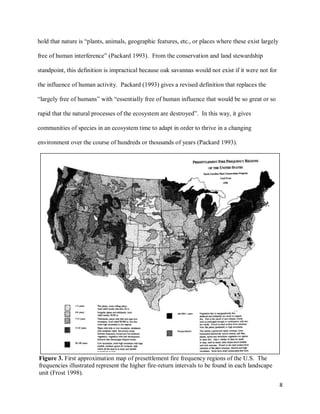

Figure 3. First approximation map of presettlement fire frequency regions of the U.S. The
frequencies illustrated represent the higher fire-return intervals to be found in each landscape
unit (Frost 1998).

9. 9

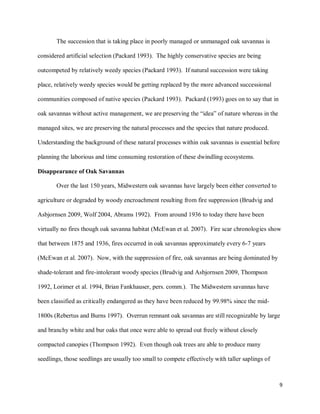

The succession that is taking place in poorly managed or unmanaged oak savannas is
considered artificial selection (Packard 1993). The highly conservative species are being
outcompeted by relatively weedy species (Packard 1993). If natural succession were taking
place, relatively weedy species would be getting replaced by the more advanced successional
communities composed of native species (Packard 1993). Packard (1993) goes on to say that in
oak savannas without active management, we are preserving the “idea” of nature whereas in the
managed sites, we are preserving the natural processes and the species that nature produced.
Understanding the background of these natural processes within oak savannas is essential before
planning the laborious and time consuming restoration of these dwindling ecosystems.
Disappearance of Oak Savannas
Over the last 150 years, Midwestern oak savannas have largely been either converted to
agriculture or degraded by woody encroachment resulting from fire suppression (Brudvig and
Asbjornsen 2009, Wolf 2004, Abrams 1992). From around 1936 to today there have been
virtually no fires though oak savanna habitat (McEwan et al. 2007). Fire scar chronologies show
that between 1875 and 1936, fires occurred in oak savannas approximately every 6-7 years
(McEwan et al. 2007). Now, with the suppression of fire, oak savannas are being dominated by
shade-tolerant and fire-intolerant woody species (Brudvig and Asbjornsen 2009, Thompson
1992, Lorimer et al. 1994, Brian Fankhauser, pers. comm.). The Midwestern savannas have
been classified as critically endangered as they have been reduced by 99.98% since the mid-
1800s (Rebertus and Burns 1997). Overrun remnant oak savannas are still recognizable by large
and branchy white and bur oaks that once were able to spread out freely without closely
compacted canopies (Thompson 1992). Even though oak trees are able to produce many
seedlings, those seedlings are usually too small to compete effectively with taller saplings of

10. 10

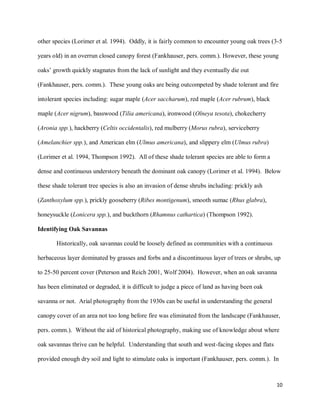

other species (Lorimer et al. 1994). Oddly, it is fairly common to encounter young oak trees (3-5
years old) in an overrun closed canopy forest (Fankhauser, pers. comm.). However, these young
oaks’ growth quickly stagnates from the lack of sunlight and they eventually die out
(Fankhauser, pers. comm.). These young oaks are being outcompeted by shade tolerant and fire
intolerant species including: sugar maple (Acer saccharum), red maple (Acer rubrum), black
maple (Acer nigrum), basswood (Tilia americana), ironwood (Olneya tesota), chokecherry
(Aronia spp.), hackberry (Celtis occidentalis), red mulberry (Morus rubra), serviceberry
(Amelanchier spp.), and American elm (Ulmus americana), and slippery elm (Ulmus rubra)
(Lorimer et al. 1994, Thompson 1992). All of these shade tolerant species are able to form a
dense and continuous understory beneath the dominant oak canopy (Lorimer et al. 1994). Below
these shade tolerant tree species is also an invasion of dense shrubs including: prickly ash
(Zanthoxylum spp.), prickly gooseberry (Ribes montigenum), smooth sumac (Rhus glabra),
honeysuckle (Lonicera spp.), and buckthorn (Rhamnus cathartica) (Thompson 1992).
Identifying Oak Savannas
Historically, oak savannas could be loosely defined as communities with a continuous
herbaceous layer dominated by grasses and forbs and a discontinuous layer of trees or shrubs, up
to 25-50 percent cover (Peterson and Reich 2001, Wolf 2004). However, when an oak savanna
has been eliminated or degraded, it is difficult to judge a piece of land as having been oak
savanna or not. Arial photography from the 1930s can be useful in understanding the general
canopy cover of an area not too long before fire was eliminated from the landscape (Fankhauser,
pers. comm.). Without the aid of historical photography, making use of knowledge about where
oak savannas thrive can be helpful. Understanding that south and west-facing slopes and flats
provided enough dry soil and light to stimulate oaks is important (Fankhauser, pers. comm.). In

11. 11

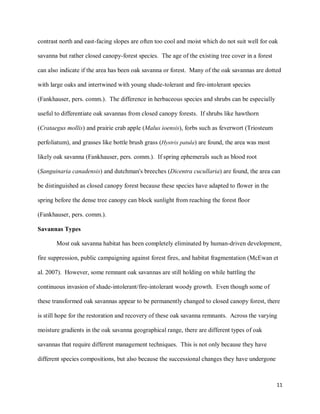

contrast north and east-facing slopes are often too cool and moist which do not suit well for oak
savanna but rather closed canopy-forest species. The age of the existing tree cover in a forest
can also indicate if the area has been oak savanna or forest. Many of the oak savannas are dotted
with large oaks and intertwined with young shade-tolerant and fire-intolerant species
(Fankhauser, pers. comm.). The difference in herbaceous species and shrubs can be especially
useful to differentiate oak savannas from closed canopy forests. If shrubs like hawthorn
(Crataegus mollis) and prairie crab apple (Malus ioensis), forbs such as feverwort (Triosteum
perfoliatum), and grasses like bottle brush grass (Hystrix patula) are found, the area was most
likely oak savanna (Fankhauser, pers. comm.). If spring ephemerals such as blood root
(Sanguinaria canadensis) and dutchman's breeches (Dicentra cucullaria) are found, the area can
be distinguished as closed canopy forest because these species have adapted to flower in the
spring before the dense tree canopy can block sunlight from reaching the forest floor
(Fankhauser, pers. comm.).
Savannas Types
Most oak savanna habitat has been completely eliminated by human-driven development,
fire suppression, public campaigning against forest fires, and habitat fragmentation (McEwan et
al. 2007). However, some remnant oak savannas are still holding on while battling the
continuous invasion of shade-intolerant/fire-intolerant woody growth. Even though some of
these transformed oak savannas appear to be permanently changed to closed canopy forest, there
is still hope for the restoration and recovery of these oak savanna remnants. Across the varying
moisture gradients in the oak savanna geographical range, there are different types of oak
savannas that require different management techniques. This is not only because they have
different species compositions, but also because the successional changes they have undergone

12. 12

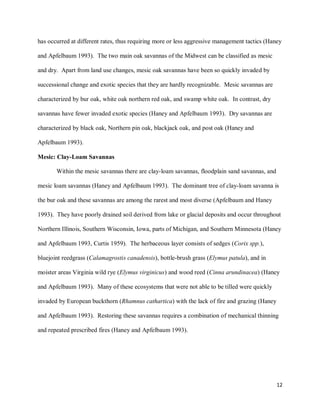

has occurred at different rates, thus requiring more or less aggressive management tactics (Haney
and Apfelbaum 1993). The two main oak savannas of the Midwest can be classified as mesic
and dry. Apart from land use changes, mesic oak savannas have been so quickly invaded by
successional change and exotic species that they are hardly recognizable. Mesic savannas are
characterized by bur oak, white oak northern red oak, and swamp white oak. In contrast, dry
savannas have fewer invaded exotic species (Haney and Apfelbaum 1993). Dry savannas are
characterized by black oak, Northern pin oak, blackjack oak, and post oak (Haney and
Apfelbaum 1993).
Mesic: Clay-Loam Savannas
Within the mesic savannas there are clay-loam savannas, floodplain sand savannas, and
mesic loam savannas (Haney and Apfelbaum 1993). The dominant tree of clay-loam savanna is
the bur oak and these savannas are among the rarest and most diverse (Apfelbaum and Haney
1993). They have poorly drained soil derived from lake or glacial deposits and occur throughout
Northern Illinois, Southern Wisconsin, Iowa, parts of Michigan, and Southern Minnesota (Haney
and Apfelbaum 1993, Curtis 1959). The herbaceous layer consists of sedges (Corix spp.),
bluejoint reedgrass (Calamagrostis canadensis), bottle-brush grass (Elymus patula), and in
moister areas Virginia wild rye (Elymus virginicus) and wood reed (Cinna arundinacea) (Haney
and Apfelbaum 1993). Many of these ecosystems that were not able to be tilled were quickly
invaded by European buckthorn (Rhamnus cathartica) with the lack of fire and grazing (Haney
and Apfelbaum 1993). Restoring these savannas requires a combination of mechanical thinning
and repeated prescribed fires (Haney and Apfelbaum 1993).

13. 13

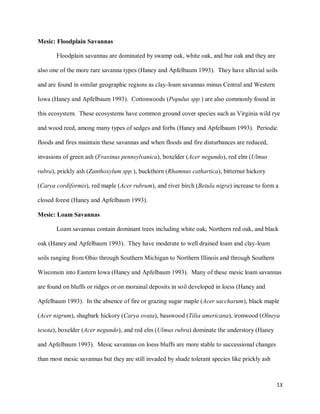

Mesic: Floodplain Savannas
Floodplain savannas are dominated by swamp oak, white oak, and bur oak and they are
also one of the more rare savanna types (Haney and Apfelbaum 1993). They have alluvial soils
and are found in similar geographic regions as clay-loam savannas minus Central and Western
Iowa (Haney and Apfelbaum 1993). Cottonwoods (Populus spp.) are also commonly found in
this ecosystem. These ecosystems have common ground cover species such as Virginia wild rye
and wood reed, among many types of sedges and forbs (Haney and Apfelbaum 1993). Periodic
floods and fires maintain these savannas and when floods and fire disturbances are reduced,
invasions of green ash (Fraxinus pennsylvanica), boxelder (Acer negundo), red elm (Ulmus
rubra), prickly ash (Zanthoxylum spp.), buckthorn (Rhamnus cathartica), bitternut hickory
(Carya cordiformis), red maple (Acer rubrum), and river birch (Betula nigra) increase to form a
closed forest (Haney and Apfelbaum 1993).
Mesic: Loam Savannas
Loam savannas contain dominant trees including white oak, Northern red oak, and black
oak (Haney and Apfelbaum 1993). They have moderate to well drained loam and clay-loam
soils ranging from Ohio through Southern Michigan to Northern Illinois and through Southern
Wisconsin into Eastern Iowa (Haney and Apfelbaum 1993). Many of these mesic loam savannas
are found on bluffs or ridges or on morainal deposits in soil developed in loess (Haney and
Apfelbaum 1993). In the absence of fire or grazing sugar maple (Acer saccharum), black maple
(Acer nigrum), shagbark hickory (Carya ovata), basswood (Tilia americana), ironwood (Olneya
tesota), boxelder (Acer negundo), and red elm (Ulmus rubra) dominate the understory (Haney
and Apfelbaum 1993). Mesic savannas on loess bluffs are more stable to successional changes
than most mesic savannas but they are still invaded by shade tolerant species like prickly ash

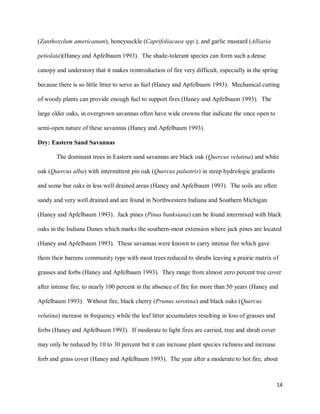

14. 14
(Zanthoxylum americanum), honeysuckle (Caprifoliacaea spp.), and garlic mustard (Alliaria
petiolata)(Haney and Apfelbaum 1993). The shade-tolerant species can form such a dense
canopy and understory that it makes reintroduction of fire very difficult, especially in the spring
because there is so little litter to serve as fuel (Haney and Apfelbaum 1993). Mechanical cutting
of woody plants can provide enough fuel to support fires (Haney and Apfelbaum 1993). The
large older oaks, in overgrown savannas often have wide crowns that indicate the once open to
semi-open nature of these savannas (Haney and Apfelbaum 1993).
Dry: Eastern Sand Savannas
The dominant trees in Eastern sand savannas are black oak (Quercus velutina) and white
oak (Quercus alba) with intermittent pin oak (Quercus palustris) in steep hydrologic gradients
and some bur oaks in less well drained areas (Haney and Apfelbaum 1993). The soils are often
sandy and very well drained and are found in Northwestern Indiana and Southern Michigan
(Haney and Apfelbaum 1993). Jack pines (Pinus banksiana) can be found intermixed with black
oaks in the Indiana Dunes which marks the southern-most extension where jack pines are located
(Haney and Apfelbaum 1993). These savannas were known to carry intense fire which gave
them their barrens community type with most trees reduced to shrubs leaving a prairie matrix of
grasses and forbs (Haney and Apfelbaum 1993). They range from almost zero percent tree cover
after intense fire, to nearly 100 percent in the absence of fire for more than 50 years (Haney and
Apfelbaum 1993). Without fire, black cherry (Prunus serotina) and black oaks (Quercus
velutina) increase in frequency while the leaf litter accumulates resulting in loss of grasses and
forbs (Haney and Apfelbaum 1993). If moderate to light fires are carried, tree and shrub cover
may only be reduced by 10 to 30 percent but it can increase plant species richness and increase
forb and grass cover (Haney and Apfelbaum 1993). The year after a moderate to hot fire, about

15. 15

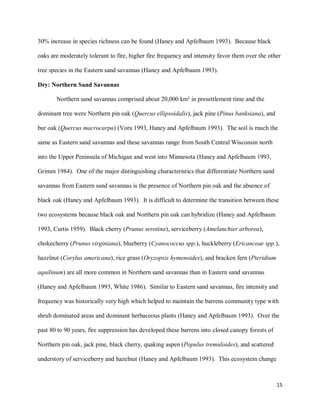

30% increase in species richness can be found (Haney and Apfelbaum 1993). Because black
oaks are moderately tolerant to fire, higher fire frequency and intensity favor them over the other
tree species in the Eastern sand savannas (Haney and Apfelbaum 1993).
Dry: Northern Sand Savannas
Northern sand savannas comprised about 20,000 km² in presettlement time and the
dominant tree were Northern pin oak (Quercus ellipsoidalis), jack pine (Pinus banksiana), and
bur oak (Quercus macrocarpa) (Vora 1993, Haney and Apfelbaum 1993). The soil is much the
same as Eastern sand savannas and these savannas range from South Central Wisconsin north
into the Upper Peninsula of Michigan and west into Minnesota (Haney and Apfelbaum 1993,
Grimm 1984). One of the major distinguishing characteristics that differentiate Northern sand
savannas from Eastern sand savannas is the presence of Northern pin oak and the absence of
black oak (Haney and Apfelbaum 1993). It is difficult to determine the transition between these
two ecosystems because black oak and Northern pin oak can hybridize (Haney and Apfelbaum
1993, Curtis 1959). Black cherry (Prunus serotina), serviceberry (Amelanchier arborea),
chokecherry (Prunus virginiana), blueberry (Cyanococcus spp.), huckleberry (Ericanceae spp.),
hazelnut (Corylus americana), rice grass (Oryzopsis hymenoides), and bracken fern (Pteridium
aquilinum) are all more common in Northern sand savannas than in Eastern sand savannas
(Haney and Apfelbaum 1993, White 1986). Similar to Eastern sand savannas, fire intensity and
frequency was historically very high which helped to maintain the barrens community type with
shrub dominated areas and dominant herbaceous plants (Haney and Apfelbaum 1993). Over the
past 80 to 90 years, fire suppression has developed these barrens into closed canopy forests of
Northern pin oak, jack pine, black cherry, quaking aspen (Populus tremuloides), and scattered
understory of serviceberry and hazelnut (Haney and Apfelbaum 1993). This ecosystem change

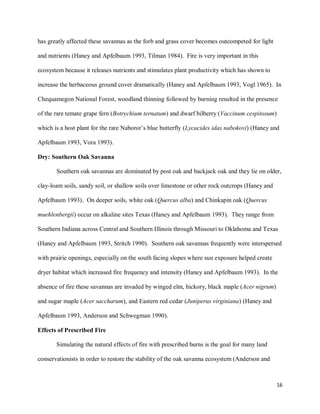

16. 16
has greatly affected these savannas as the forb and grass cover becomes outcompeted for light
and nutrients (Haney and Apfelbaum 1993, Tilman 1984). Fire is very important in this
ecosystem because it releases nutrients and stimulates plant productivity which has shown to
increase the herbaceous ground cover dramatically (Haney and Apfelbaum 1993, Vogl 1965). In
Chequamegon National Forest, woodland thinning followed by burning resulted in the presence
of the rare temate grape fern (Botrychium ternatum) and dwarf bilberry (Vaccinum cespitosum)
which is a host plant for the rare Naboror’s blue butterfly (Lycacides idas nabokovi) (Haney and
Apfelbaum 1993, Vora 1993).
Dry: Southern Oak Savanna
Southern oak savannas are dominated by post oak and backjack oak and they lie on older,
clay-loam soils, sandy soil, or shallow soils over limestone or other rock outcrops (Haney and
Apfelbaum 1993). On deeper soils, white oak (Quercus alba) and Chinkapin oak (Quercus
muehlenbergii) occur on alkaline sites Texas (Haney and Apfelbaum 1993). They range from
Southern Indiana across Central and Southern Illinois through Missouri to Oklahoma and Texas
(Haney and Apfelbaum 1993, Stritch 1990). Southern oak savannas frequently were interspersed
with prairie openings, especially on the south facing slopes where sun exposure helped create
dryer habitat which increased fire frequency and intensity (Haney and Apfelbaum 1993). In the
absence of fire these savannas are invaded by winged elm, hickory, black maple (Acer nigrum)
and sugar maple (Acer saccharum), and Eastern red cedar (Juniperus virginiana) (Haney and
Apfelbaum 1993, Anderson and Schwegman 1990).
Effects of Prescribed Fire
Simulating the natural effects of fire with prescribed burns is the goal for many land
conservationists in order to restore the stability of the oak savanna ecosystem (Anderson and

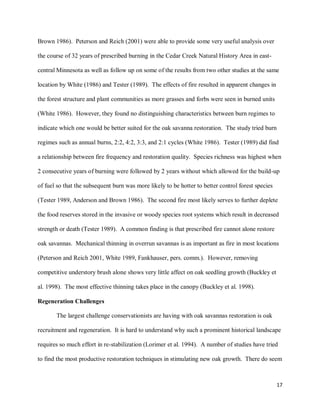

17. 17
Brown 1986). Peterson and Reich (2001) were able to provide some very useful analysis over
the course of 32 years of prescribed burning in the Cedar Creek Natural History Area in east-
central Minnesota as well as follow up on some of the results from two other studies at the same
location by White (1986) and Tester (1989). The effects of fire resulted in apparent changes in
the forest structure and plant communities as more grasses and forbs were seen in burned units
(White 1986). However, they found no distinguishing characteristics between burn regimes to
indicate which one would be better suited for the oak savanna restoration. The study tried burn
regimes such as annual burns, 2:2, 4:2, 3:3, and 2:1 cycles (White 1986). Tester (1989) did find
a relationship between fire frequency and restoration quality. Species richness was highest when
2 consecutive years of burning were followed by 2 years without which allowed for the build-up
of fuel so that the subsequent burn was more likely to be hotter to better control forest species
(Tester 1989, Anderson and Brown 1986). The second fire most likely serves to further deplete
the food reserves stored in the invasive or woody species root systems which result in decreased
strength or death (Tester 1989). A common finding is that prescribed fire cannot alone restore
oak savannas. Mechanical thinning in overrun savannas is as important as fire in most locations
(Peterson and Reich 2001, White 1989, Fankhauser, pers. comm.). However, removing
competitive understory brush alone shows very little affect on oak seedling growth (Buckley et
al. 1998). The most effective thinning takes place in the canopy (Buckley et al. 1998).
Regeneration Challenges
The largest challenge conservationists are having with oak savannas restoration is oak
recruitment and regeneration. It is hard to understand why such a prominent historical landscape
requires so much effort in re-stabilization (Lorimer et al. 1994). A number of studies have tried
to find the most productive restoration techniques in stimulating new oak growth. There do seem

18. 18

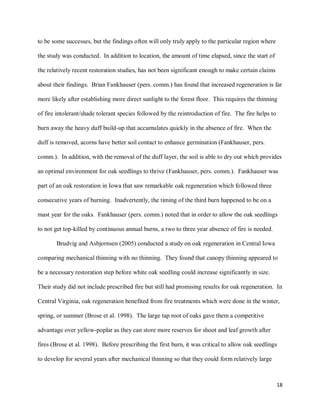

to be some successes, but the findings often will only truly apply to the particular region where
the study was conducted. In addition to location, the amount of time elapsed, since the start of
the relatively recent restoration studies, has not been significant enough to make certain claims
about their findings. Brian Fankhauser (pers. comm.) has found that increased regeneration is far
more likely after establishing more direct sunlight to the forest floor. This requires the thinning
of fire intolerant/shade tolerant species followed by the reintroduction of fire. The fire helps to
burn away the heavy duff build-up that accumulates quickly in the absence of fire. When the
duff is removed, acorns have better soil contact to enhance germination (Fankhauser, pers.
comm.). In addition, with the removal of the duff layer, the soil is able to dry out which provides
an optimal environment for oak seedlings to thrive (Fankhauser, pers. comm.). Fankhauser was
part of an oak restoration in Iowa that saw remarkable oak regeneration which followed three
consecutive years of burning. Inadvertently, the timing of the third burn happened to be on a
mast year for the oaks. Fankhauser (pers. comm.) noted that in order to allow the oak seedlings
to not get top-killed by continuous annual burns, a two to three year absence of fire is needed.
Brudvig and Asbjornsen (2005) conducted a study on oak regeneration in Central Iowa
comparing mechanical thinning with no thinning. They found that canopy thinning appeared to
be a necessary restoration step before white oak seedling could increase significantly in size.
Their study did not include prescribed fire but still had promising results for oak regeneration. In
Central Virginia, oak regeneration benefited from fire treatments which were done in the winter,
spring, or summer (Brose et al. 1998). The large tap root of oaks gave them a competitive
advantage over yellow-poplar as they can store more reserves for shoot and leaf growth after
fires (Brose et al. 1998). Before prescribing the first burn, it was critical to allow oak seedlings
to develop for several years after mechanical thinning so that they could form relatively large

19. 19

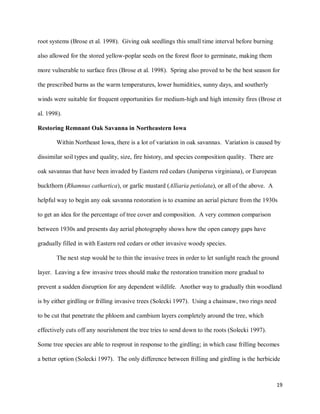

root systems (Brose et al. 1998). Giving oak seedlings this small time interval before burning
also allowed for the stored yellow-poplar seeds on the forest floor to germinate, making them
more vulnerable to surface fires (Brose et al. 1998). Spring also proved to be the best season for
the prescribed burns as the warm temperatures, lower humidities, sunny days, and southerly
winds were suitable for frequent opportunities for medium-high and high intensity fires (Brose et
al. 1998).
Restoring Remnant Oak Savanna in Northeastern Iowa
Within Northeast Iowa, there is a lot of variation in oak savannas. Variation is caused by
dissimilar soil types and quality, size, fire history, and species composition quality. There are
oak savannas that have been invaded by Eastern red cedars (Juniperus virginiana), or European
buckthorn (Rhamnus cathartica), or garlic mustard (Alliaria petiolata), or all of the above. A
helpful way to begin any oak savanna restoration is to examine an aerial picture from the 1930s
to get an idea for the percentage of tree cover and composition. A very common comparison
between 1930s and presents day aerial photography shows how the open canopy gaps have
gradually filled in with Eastern red cedars or other invasive woody species.
The next step would be to thin the invasive trees in order to let sunlight reach the ground
layer. Leaving a few invasive trees should make the restoration transition more gradual to
prevent a sudden disruption for any dependent wildlife. Another way to gradually thin woodland
is by either girdling or frilling invasive trees (Solecki 1997). Using a chainsaw, two rings need
to be cut that penetrate the phloem and cambium layers completely around the tree, which
effectively cuts off any nourishment the tree tries to send down to the roots (Solecki 1997).
Some tree species are able to resprout in response to the girdling; in which case frilling becomes
a better option (Solecki 1997). The only difference between frilling and girdling is the herbicide

20. 20

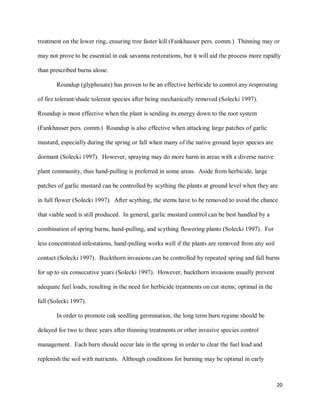

treatment on the lower ring, ensuring tree faster kill (Fankhauser pers. comm.) Thinning may or
may not prove to be essential in oak savanna restorations, but it will aid the process more rapidly
than prescribed burns alone.
Roundup (glyphosate) has proven to be an effective herbicide to control any resprouting
of fire tolerant/shade tolerant species after being mechanically removed (Solecki 1997).
Roundup is most effective when the plant is sending its energy down to the root system
(Fankhauser pers. comm.) Roundup is also effective when attacking large patches of garlic
mustard, especially during the spring or fall when many of the native ground layer species are
dormant (Solecki 1997). However, spraying may do more harm in areas with a diverse native
plant community, thus hand-pulling is preferred in some areas. Aside from herbicide, large
patches of garlic mustard can be controlled by scything the plants at ground level when they are
in full flower (Solecki 1997). After scything, the stems have to be removed to avoid the chance
that viable seed is still produced. In general, garlic mustard control can be best handled by a
combination of spring burns, hand-pulling, and scything flowering plants (Solecki 1997). For
less concentrated infestations, hand-pulling works well if the plants are removed from any soil
contact (Solecki 1997). Buckthorn invasions can be controlled by repeated spring and fall burns
for up to six consecutive years (Solecki 1997). However, buckthorn invasions usually prevent
adequate fuel loads, resulting in the need for herbicide treatments on cut stems; optimal in the
fall (Solecki 1997).
In order to promote oak seedling germination, the long term burn regime should be
delayed for two to three years after thinning treatments or other invasive species control
management. Each burn should occur late in the spring in order to clear the fuel load and
replenish the soil with nutrients. Although conditions for burning may be optimal in early

21. 21

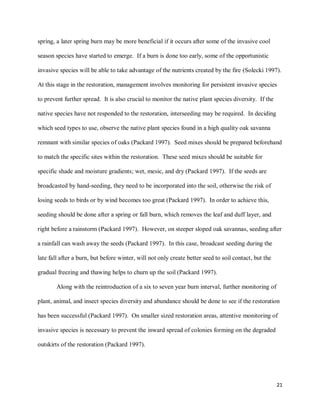

spring, a later spring burn may be more beneficial if it occurs after some of the invasive cool
season species have started to emerge. If a burn is done too early, some of the opportunistic
invasive species will be able to take advantage of the nutrients created by the fire (Solecki 1997).
At this stage in the restoration, management involves monitoring for persistent invasive species
to prevent further spread. It is also crucial to monitor the native plant species diversity. If the
native species have not responded to the restoration, interseeding may be required. In deciding
which seed types to use, observe the native plant species found in a high quality oak savanna
remnant with similar species of oaks (Packard 1997). Seed mixes should be prepared beforehand
to match the specific sites within the restoration. These seed mixes should be suitable for
specific shade and moisture gradients; wet, mesic, and dry (Packard 1997). If the seeds are
broadcasted by hand-seeding, they need to be incorporated into the soil, otherwise the risk of
losing seeds to birds or by wind becomes too great (Packard 1997). In order to achieve this,
seeding should be done after a spring or fall burn, which removes the leaf and duff layer, and
right before a rainstorm (Packard 1997). However, on steeper sloped oak savannas, seeding after
a rainfall can wash away the seeds (Packard 1997). In this case, broadcast seeding during the
late fall after a burn, but before winter, will not only create better seed to soil contact, but the
gradual freezing and thawing helps to churn up the soil (Packard 1997).
Along with the reintroduction of a six to seven year burn interval, further monitoring of
plant, animal, and insect species diversity and abundance should be done to see if the restoration
has been successful (Packard 1997). On smaller sized restoration areas, attentive monitoring of
invasive species is necessary to prevent the inward spread of colonies forming on the degraded
outskirts of the restoration (Packard 1997).

22. 22

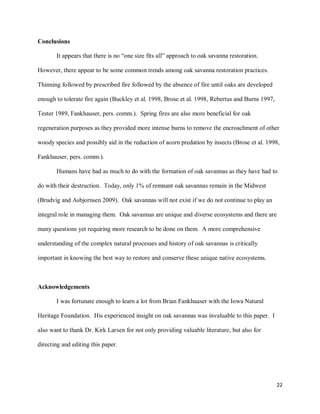

Conclusions
It appears that there is no “one size fits all” approach to oak savanna restoration.
However, there appear to be some common trends among oak savanna restoration practices.
Thinning followed by prescribed fire followed by the absence of fire until oaks are developed
enough to tolerate fire again (Buckley et al. 1998, Brose et al. 1998, Rebertus and Burns 1997,
Tester 1989, Fankhauser, pers. comm.). Spring fires are also more beneficial for oak
regeneration purposes as they provided more intense burns to remove the encroachment of other
woody species and possibly aid in the reduction of acorn predation by insects (Brose et al. 1998,
Fankhauser, pers. comm.).
Humans have had as much to do with the formation of oak savannas as they have had to
do with their destruction. Today, only 1% of remnant oak savannas remain in the Midwest
(Brudvig and Asbjornsen 2009). Oak savannas will not exist if we do not continue to play an
integral role in managing them. Oak savannas are unique and diverse ecosystems and there are
many questions yet requiring more research to be done on them. A more comprehensive
understanding of the complex natural processes and history of oak savannas is critically
important in knowing the best way to restore and conserve these unique native ecosystems.
Acknowledgements
I was fortunate enough to learn a lot from Brian Fankhuaser with the Iowa Natural
Heritage Foundation. His experienced insight on oak savannas was invaluable to this paper. I
also want to thank Dr. Kirk Larsen for not only providing valuable literature, but also for
directing and editing this paper.

23. 23

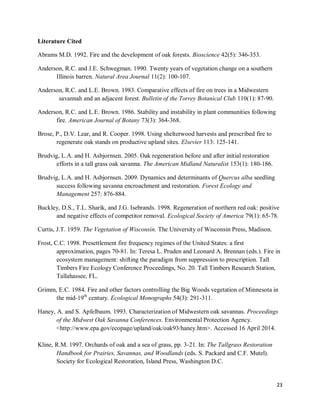

Literature Cited
Abrams M.D. 1992. Fire and the development of oak forests. Bioscience 42(5): 346-353.
Anderson, R.C. and J.E. Schwegman. 1990. Twenty years of vegetation change on a southern
Illinois barren. Natural Area Journal 11(2): 100-107.
Anderson, R.C. and L.E. Brown. 1983. Comparative effects of fire on trees in a Midwestern
savannah and an adjacent forest. Bulletin of the Torrey Botanical Club 110(1): 87-90.
Anderson, R.C. and L.E. Brown. 1986. Stability and instability in plant communities following
fire. American Journal of Botany 73(3): 364-368.
Brose, P., D.V. Lear, and R. Cooper. 1998. Using shelterwood harvests and prescribed fire to
regenerate oak stands on productive upland sites. Elsevier 113: 125-141.
Brudvig, L.A. and H. Asbjornsen. 2005. Oak regeneration before and after initial restoration
efforts in a tall grass oak savanna. The American Midland Naturalist 153(1): 180-186.
Brudvig, L.A. and H. Asbjornsen. 2009. Dynamics and determinants of Quercus alba seedling
success following savanna encroachment and restoration. Forest Ecology and
Management 257: 876-884.
Buckley, D.S., T.L. Sharik, and J.G. Isebrands. 1998. Regeneration of northern red oak: positive
and negative effects of competitor removal. Ecological Society of America 79(1): 65-78.
Curtis, J.T. 1959. The Vegetation of Wisconsin. The University of Wisconsin Press, Madison.
Frost, C.C. 1998. Presettlement fire frequency regimes of the United States: a first
approximation, pages 70-81. In: Teresa L. Pruden and Leonard A. Brennan (eds.). Fire in
ecosystem management: shifting the paradigm from suppression to prescription. Tall
Timbers Fire Ecology Conference Proceedings, No. 20. Tall Timbers Research Station,
Tallahassee, FL.
Grimm, E.C. 1984. Fire and other factors controlling the Big Woods vegetation of Minnesota in
the mid-19th
century. Ecological Monographs 54(3): 291-311.
Haney, A. and S. Apfelbaum. 1993. Characterization of Midwestern oak savannas. Proceedings
of the Midwest Oak Savanna Conferences. Environmental Protection Agency.
<http://www.epa.gov/ecopage/upland/oak/oak93/haney.htm>. Accessed 16 April 2014.
Kline, R.M. 1997. Orchards of oak and a sea of grass, pp. 3-21. In: The Tallgrass Restoration
Handbook for Prairies, Savannas, and Woodlands (eds. S. Packard and C.F. Mutel).
Society for Ecological Restoration, Island Press, Washington D.C.

24. 24

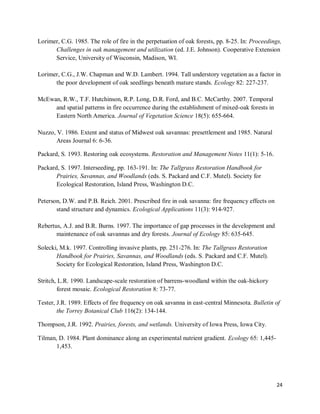

Lorimer, C.G. 1985. The role of fire in the perpetuation of oak forests, pp. 8-25. In: Proceedings,
Challenges in oak management and utilization (ed. J.E. Johnson). Cooperative Extension
Service, University of Wisconsin, Madison, WI.
Lorimer, C.G., J.W. Chapman and W.D. Lambert. 1994. Tall understory vegetation as a factor in
the poor development of oak seedlings beneath mature stands. Ecology 82: 227-237.
McEwan, R.W., T.F. Hutchinson, R.P. Long, D.R. Ford, and B.C. McCarthy. 2007. Temporal
and spatial patterns in fire occurrence during the establishment of mixed-oak forests in
Eastern North America. Journal of Vegetation Science 18(5): 655-664.
Nuzzo, V. 1986. Extent and status of Midwest oak savannas: presettlement and 1985. Natural
Areas Journal 6: 6-36.
Packard, S. 1993. Restoring oak ecosystems. Restoration and Management Notes 11(1): 5-16.
Packard, S. 1997. Interseeding, pp. 163-191. In: The Tallgrass Restoration Handbook for
Prairies, Savannas, and Woodlands (eds. S. Packard and C.F. Mutel). Society for
Ecological Restoration, Island Press, Washington D.C.
Peterson, D.W. and P.B. Reich. 2001. Prescribed fire in oak savanna: fire frequency effects on
stand structure and dynamics. Ecological Applications 11(3): 914-927.
Rebertus, A.J. and B.R. Burns. 1997. The importance of gap processes in the development and
maintenance of oak savannas and dry forests. Journal of Ecology 85: 635-645.
Solecki, M.k. 1997. Controlling invasive plants, pp. 251-276. In: The Tallgrass Restoration
Handbook for Prairies, Savannas, and Woodlands (eds. S. Packard and C.F. Mutel).
Society for Ecological Restoration, Island Press, Washington D.C.
Stritch, L.R. 1990. Landscape-scale restoration of barrens-woodland within the oak-hickory
forest mosaic. Ecological Restoration 8: 73-77.
Tester, J.R. 1989. Effects of fire frequency on oak savanna in east-central Minnesota. Bulletin of
the Torrey Botanical Club 116(2): 134-144.
Thompson, J.R. 1992. Prairies, forests, and wetlands. University of Iowa Press, Iowa City.
Tilman, D. 1984. Plant dominance along an experimental nutrient gradient. Ecology 65: 1,445-
1,453.

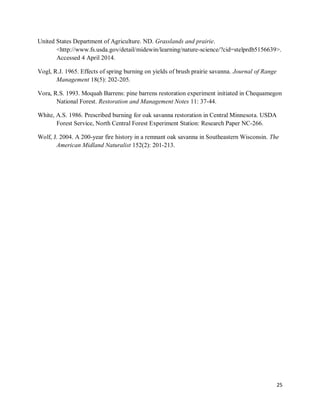

25. 25
United States Department of Agriculture. ND. Grasslands and prairie.
<http://www.fs.usda.gov/detail/midewin/learning/nature-science/?cid=stelprdb5156639>.
Accessed 4 April 2014.
Vogl, R.J. 1965. Effects of spring burning on yields of brush prairie savanna. Journal of Range
Management 18(5): 202-205.
Vora, R.S. 1993. Moquah Barrens: pine barrens restoration experiment initiated in Chequamegon
National Forest. Restoration and Management Notes 11: 37-44.
White, A.S. 1986. Prescribed burning for oak savanna restoration in Central Minnesota. USDA
Forest Service, North Central Forest Experiment Station: Research Paper NC-266.
Wolf, J. 2004. A 200-year fire history in a remnant oak savanna in Southeastern Wisconsin. The
American Midland Naturalist 152(2): 201-213.
