Self-propelled Modular Transporter
1. China Sanjiang Space Group
45 Changqing Road, Jianghan District, Wuhan,430023, Hubei Province, China
Tel: +86-2783562489 Fax:+86-2783562455 www.sanjspace.com
Data of Self-propelled Modular Transporter
Self-propelled Modular Transporter is composed of a PPU and modular trailers. The modular units are either
connected mechanically or displayed freely. The load capacity goes up to ten thousands tons.
Technical parameters of PPU
Length 3770mm
Width 2980 mm
Height 850 mm
Upwards angel 12°
Weight 6000
Engine manufacturer MAN
Engine model D2876LUE604
Engine power 375/ 2000
Emission standard Europe Ⅲ
Volume of fuel tank 400 ltrs
Volume of hydraulic tank 850 ltrs
Highest pressure of driving system 410bar
Highest pressure of steering system 300 bar
Electric system 28V
Remote contrl Wwre or radio
AEROSPACE means PURSUING QUALITY 1
2. China Sanjiang Space Group
45 Changqing Road, Jianghan District, Wuhan,430023, Hubei Province, China
Tel: +86-2783562489 Fax:+86-2783562455 www.sanjspace.com

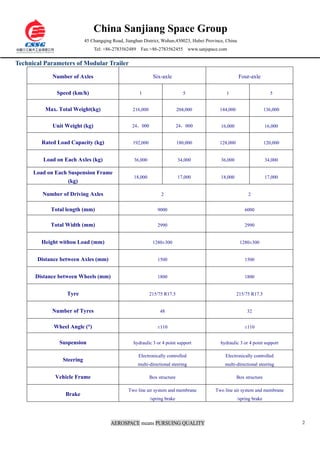

Technical Parameters of Modular Trailer
Number of Axles Six-axle Four-axle
Speed (km/h) 1 5 1 5
Max. Total Weight(kg) 216,000 204,000 144,000 136,000
Unit Weight (kg) 24,000 24,000 16,000 16,000
Rated Load Capacity (kg) 192,000 180,000 128,000 120,000
Load on Each Axles (kg) 36,000 34,000 36,000 34,000
Load on Each Suspension Frame
18,000 17,000 18,000 17,000
(kg)
Number of Driving Axles 2 2
Total length (mm) 9000 6000
Total Width (mm) 2990 2990
Height withou Load (mm) 1280±300 1280±300
Distance between Axles (mm) 1500 1500
Distance between Wheels (mm) 1800 1800
Tyre 215/75 R17.5 215/75 R17.5
Number of Tyres 48 32
Wheel Angle (°) ±110 ±110
Suspension hydraulic 3 or 4 point support hydraulic 3 or 4 point support
Electronically controlled Electronically controlled
Steering
multi-directional steering multi-directional steering
Vehicle Frame Box structure Box structure
Two line air system and membrane Two line air system and membrane
Brake
/spring brake /spring brake
AEROSPACE means PURSUING QUALITY 2
