This document provides an overview of the key components and functionality of a search engine project called SUCHE. It discusses user authentication, spell checking using Bayesian probability, an extensible plugin architecture, crawling and indexing websites, searching and ranking results, and query autocompletion. The search engine also includes features like spell correction, query parsing, and suggestion of relevant queries.

1. Introduction

2. • SUCHE German word for Search
• Project is a fully functioning extensible Search Engine.
• Also has:
– Auto Completion
– Spell Correction
– Query Language/Grammar Parsing
– Authentication
– Relevant Suggestions
– AJAX Based Querying
– Extensible via Plug-ins

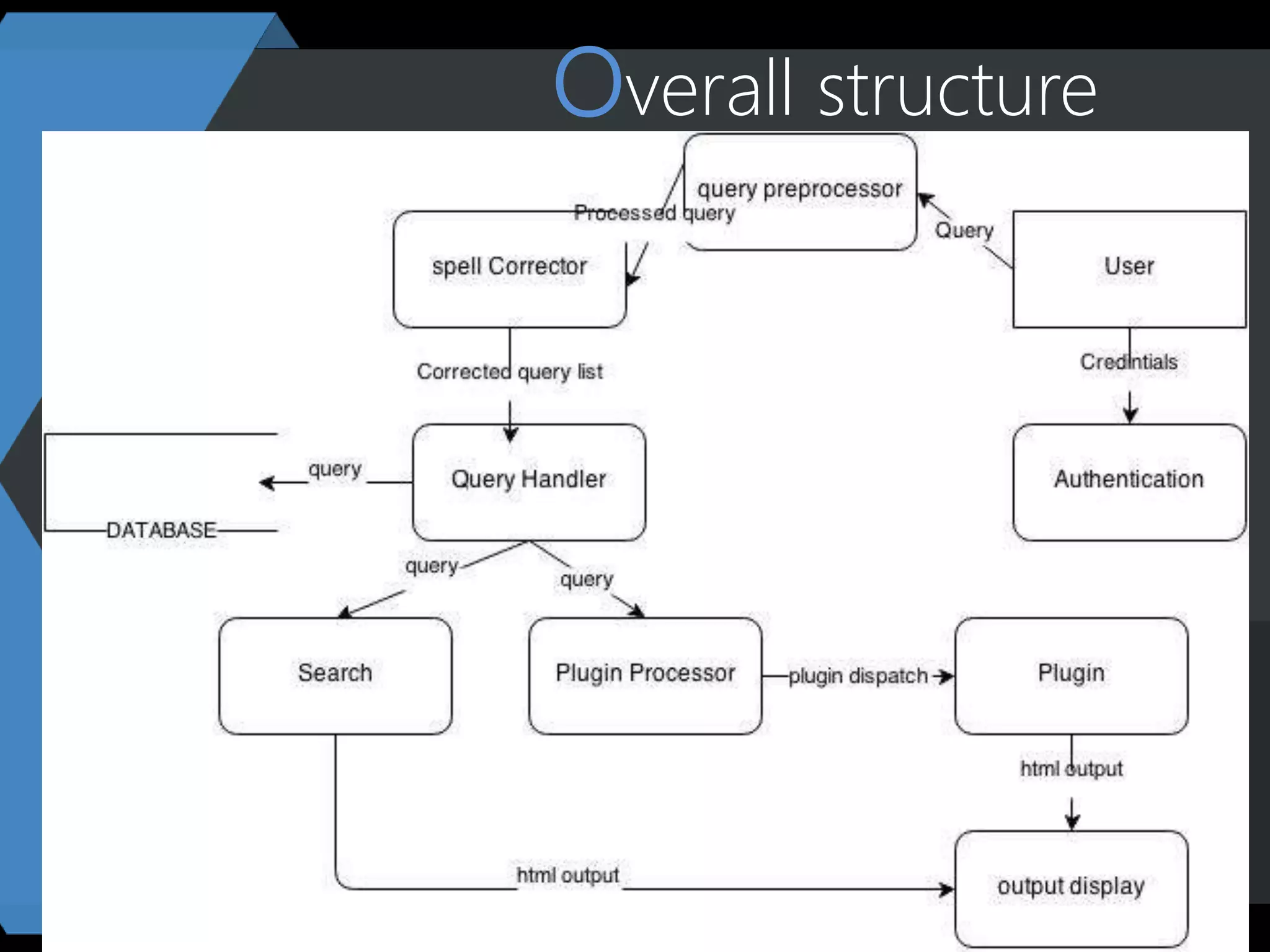

3. Overall structure

4. Methodology

5. User Management
• Django Authentication framework:
– User model
– validation
– authentication
– Authorized access

6. Spell Correction
• Runs continuously in Background
• Reads words through the interface
provided:
– DB
– Named Pipes
• Words with counts loaded at startup

7. Spell Correction
• Based on Baye’s Theorem of conditional
probability.
• We use : argmaxc P(w|c) P(c) / P(w)
Where:
– P(c), the probability that a proposed
correction c stands on its own.
– P(w|c), the probability that w would be typed in
a text when the author meant c.

8. Spell Correction
• Process:
– Read the word
– Calculate possible words by deletion,
transposition, instertion, etc.
– Check if the word is currently present and
find its occurance probability.
– Return maximum probable word.

9. Plugin Support
• Easy extension of required features by the users.
• Emphasizes Selective Implentation
• Plug-in designers can design and submit Plug-
ins for approval.
• Separative Deployment
• Private-Key based Verification

10. Plugin Support
• Grammar/Language Parsing
– Each Plug-in has a specific grammar
• E.g. <temperature|temp><?for|of><$query>
• This is used for: temperature of kathmandu
• Returns ‘kathmandu’ to the Temperature Plugin

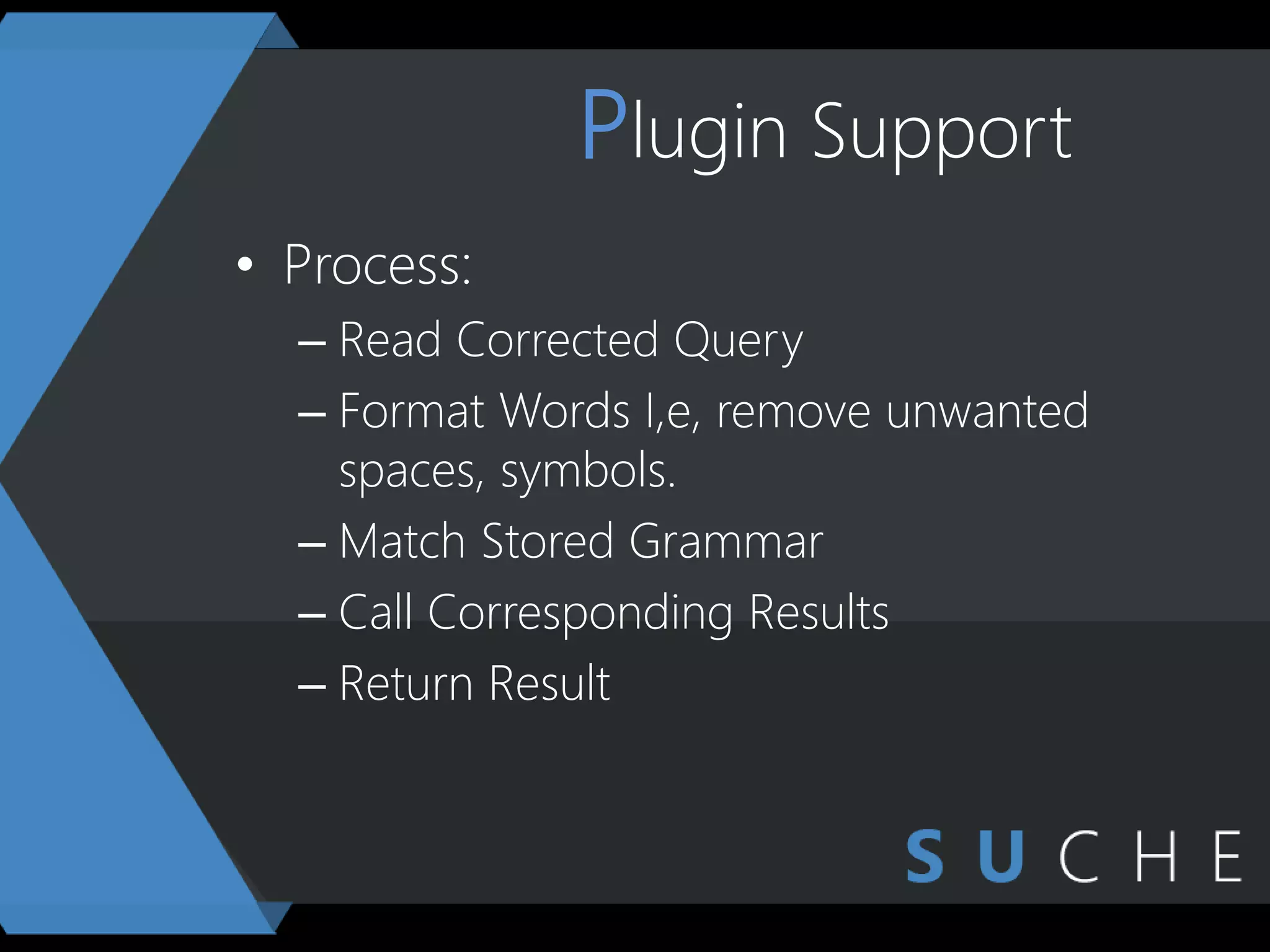

11. Plugin Support
• Process:
– Read Corrected Query
– Format Words I,e, remove unwanted
spaces, symbols.
– Match Stored Grammar
– Call Corresponding Results
– Return Result

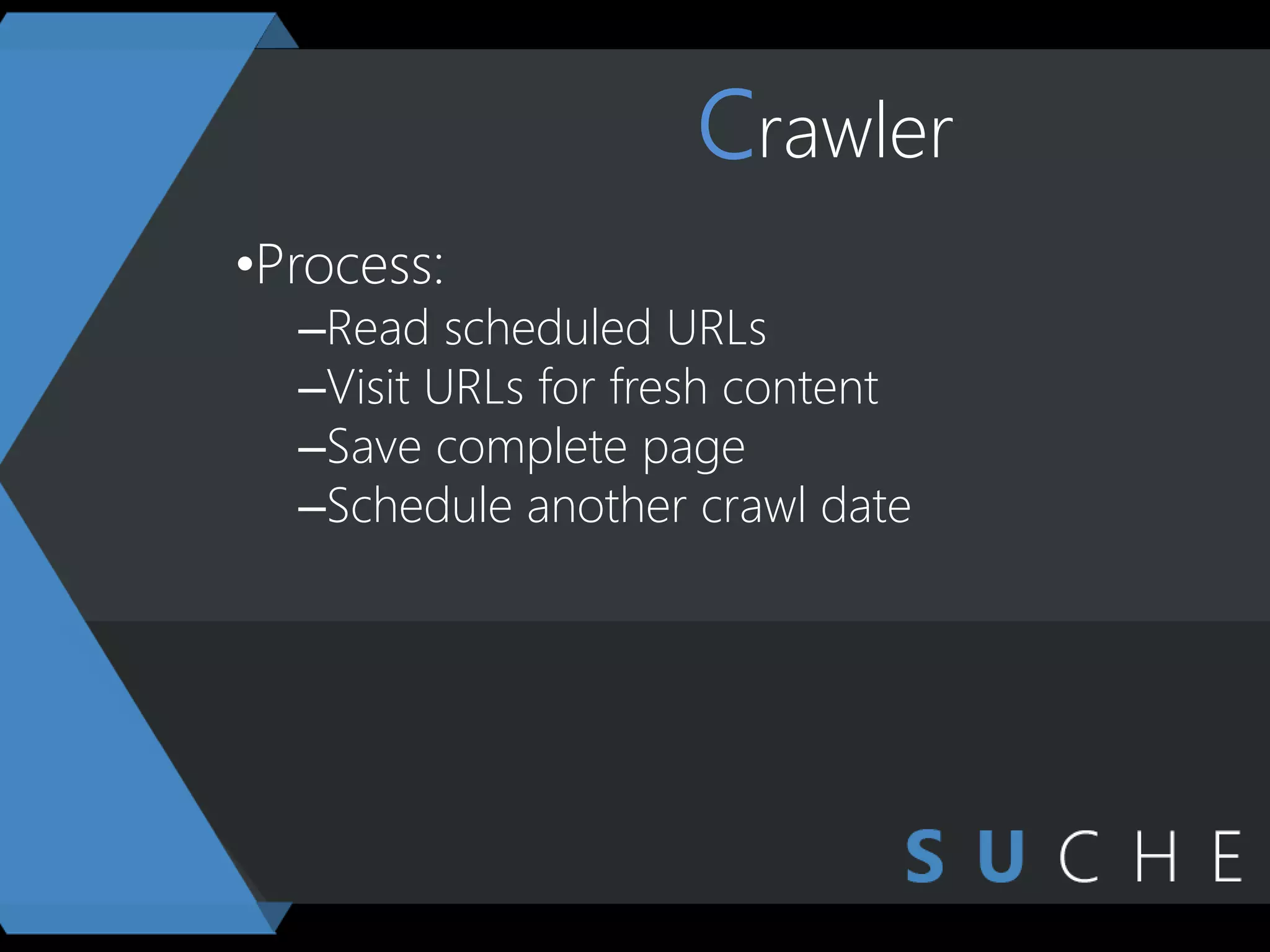

12. Crawler
•Process:
–Read scheduled URLs
–Visit URLs for fresh content
–Save complete page
–Schedule another crawl date

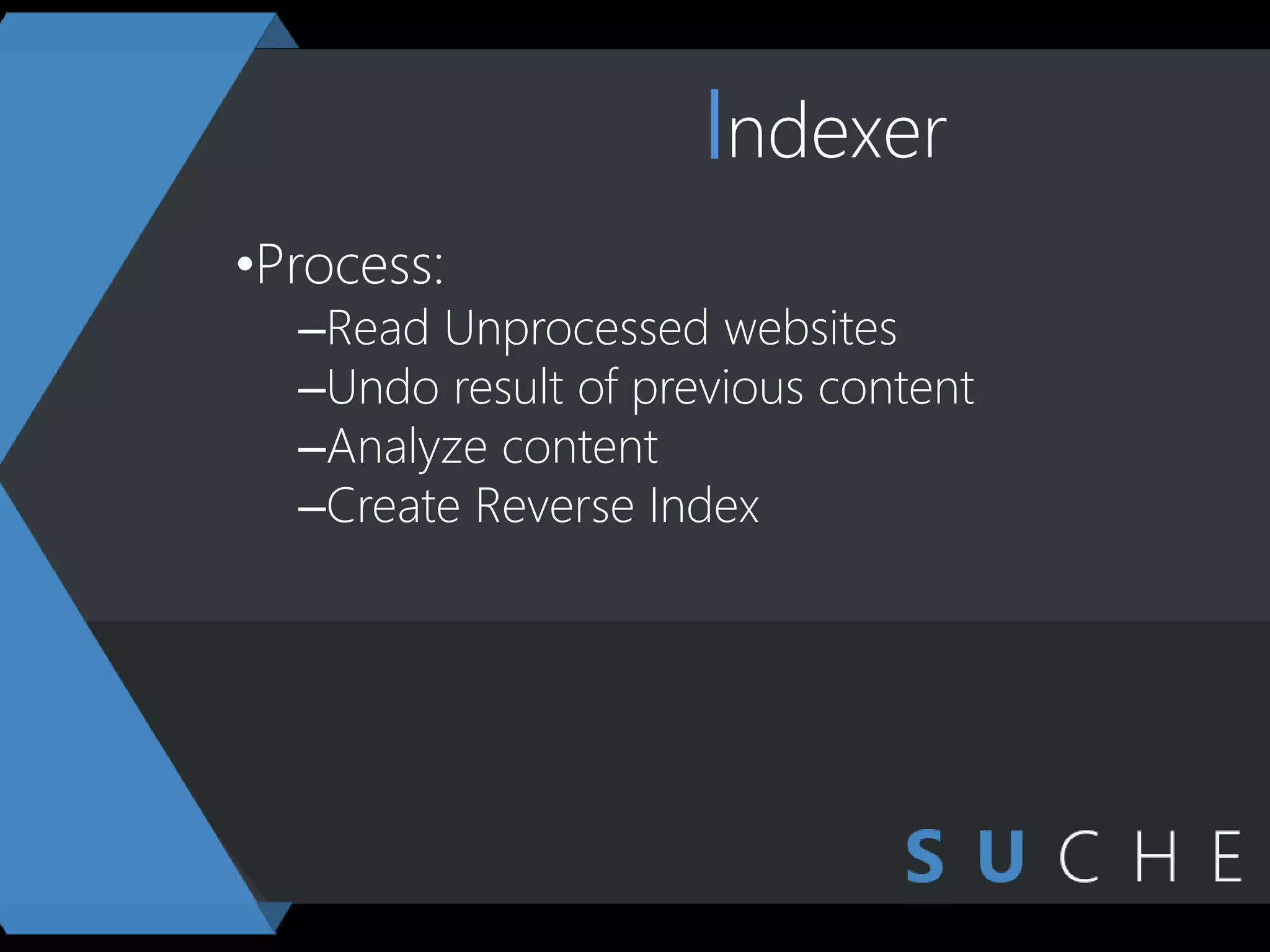

13. Indexer
•Process:
–Read Unprocessed websites
–Undo result of previous content
–Analyze content
–Create Reverse Index

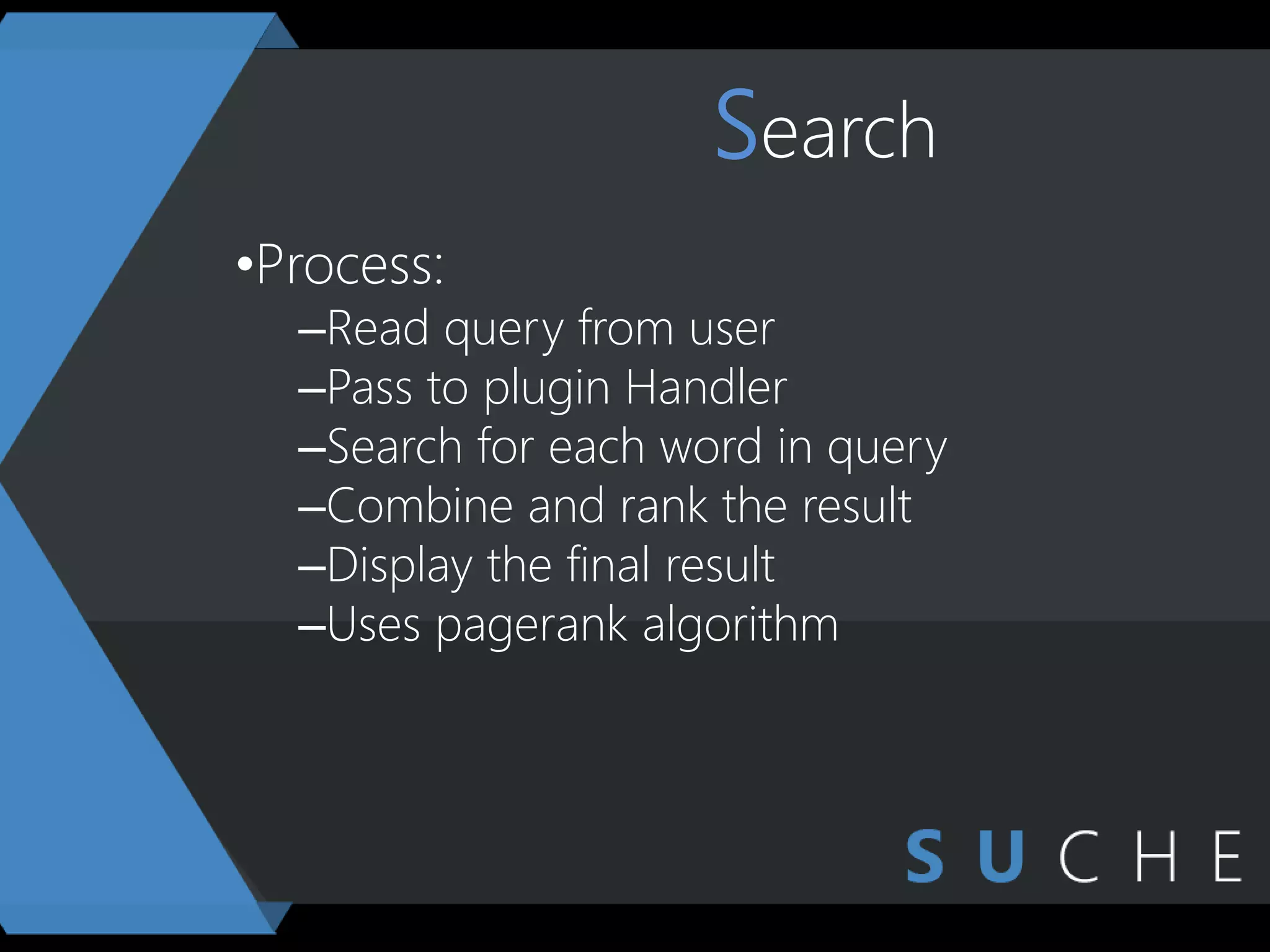

14. Search
•Process:
–Read query from user
–Pass to plugin Handler
–Search for each word in query
–Combine and rank the result
–Display the final result
–Uses pagerank algorithm

15. Autocompletion
•Process:
–Get current incomplete query
–Search for query in cache
–Complete the query using language models
–Return the various alternatives

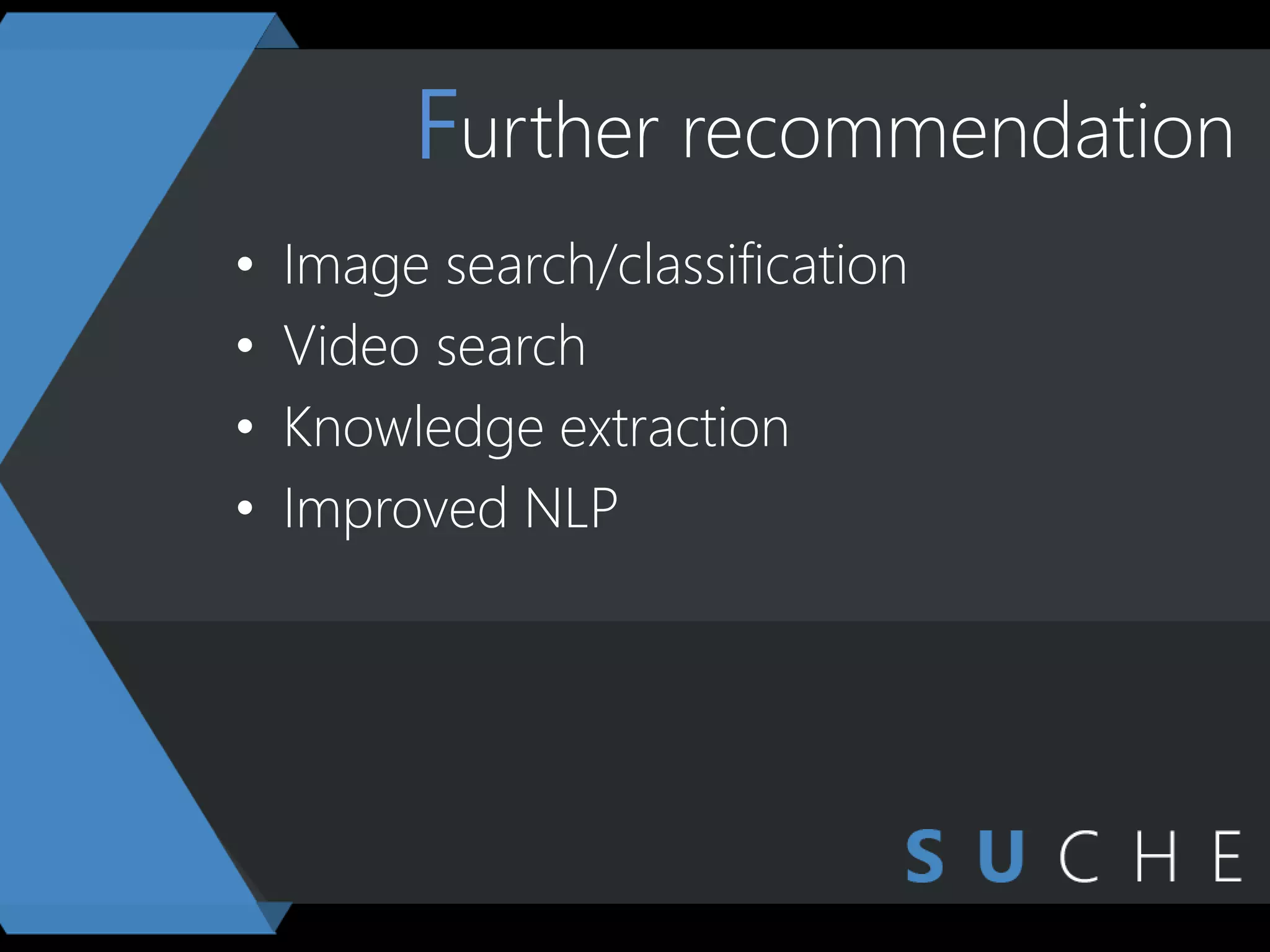

16. Further recommendation
• Image search/classification
• Video search
• Knowledge extraction
• Improved NLP
