Specialty Sealer for Egg Producers
HIGH SPEED, RANDOM SEALER
PRODUCT:
4 STANDARDIZED-SIZE CASES TO HOLD 5, 15, 24 &
30 DOZEN EGG CARTONS; RANGING IN SIZE FROM
12x12x5 TO 24x12x14
THE CHALLENGE:
New egg sortation equipment is producing eggs at
much faster speeds, which is creating the need for
high speed automation at the end of line.
THE COMBI SOLUTION:
TBS-100FC XL Top and Bottom Case Sealer with high
speed belt drive and high speed tape heads at 20 cpm
Modified for 4 case sizes, randomly fed into machine,
with case height and automatic case length sensing
Case infeed metering gate accepts cases feeding into
machine back to back and feeds them one-at-a-time
into the sealer
Photo eyes sense case height and an Allen Bradley
PLC with servo driven height adjustment sets the tape
head height . Automatic case length sensors (for flap
kicker). All cases are 12” wide.
Dual spring loaded side belt drives transfer the cases
over the tapeheads providing square cases every time.
The spring loaded belts allow for small variances in
the case width.
Fully guarded with hinged access doors with electrical
interlocks disconnect power and air for operator safety.
Live roller case infeed conveyor at 65 fpm
To view video of this machine, go to:
http://www.combi.com/tbs100fc-xl-random-egg-cases
5365 East Center Drive NE
Canton, OH 44721
800 521 9072 ph
330 456 4644 fax
www.combi.com
RANDOM SEALER FOR EGG PRODUCERS
TBS100 FC XL with High Speed Belt Drive

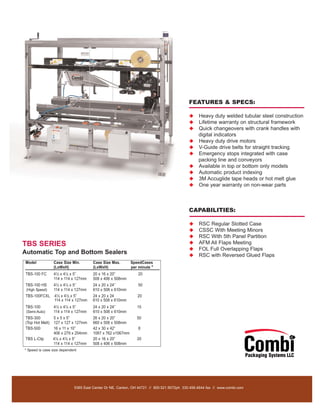

2. FEATURES & SPECS:
Heavy duty welded tubular steel construction
Lifetime warranty on structural framework
Quick changeovers with crank handles with
digital indicators
Heavy duty drive motors
V-Guide drive belts for straight tracking
Emergency stops integrated with case
packing line and conveyors
Available in top or bottom only models
Automatic product indexing
3M Accuglide tape heads or hot melt glue
One year warranty on non-wear parts
CAPABILITIES:
RSC Regular Slotted Case
CSSC With Meeting Minors
RSC With 5th Panel Partition
TBS SERIES AFM All Flaps Meeting
FOL Full Overlapping Flaps
Automatic Top and Bottom Sealers RSC with Reversed Glued Flaps
Model Case Size Min. Case Size Max. SpeedCases
(LxWxH) (LxWxH) per minute *
TBS-100 FC 4½ x 4½ x 5” 20 x 16 x 20” 20
114 x 114 x 127mm 508 x 406 x 508mm
TBS-100 HS 4½ x 4½ x 5” 24 x 20 x 24” 50
(High Speed) 114 x 114 x 127mm 610 x 508 x 610mm
TBS-100FCXL 4½ x 4½ x 5” 24 x 20 x 24 20
114 x 114 x 127mm 610 x 508 x 610mm
TBS-100 4½ x 4½ x 5” 24 x 20 x 24” 15
(Semi-Auto) 114 x 114 x 127mm 610 x 508 x 610mm
TBS-300 5 x 5 x 5” 26 x 20 x 20” 50
(Top Hot Melt) 127 x 127 x 127mm 660 x 508 x 508mm
TBS-500 16 x 11 x 10” 42 x 30 x 42” 8
406 x 279 x 254mm 1067 x 762 x1067mm
TBS L-Clip 4½ x 4½ x 5” 20 x 16 x 20” 20
114 x 114 x 127mm 508 x 406 x 508mm
* Speed is case size dependent
