Scaling Your Data: Data Democratisation and DataOps Juan Urrego March 2020
Juan Urrego 2 DataOps Team Lead YOU-Anne JOO-Anne ONE Who-Anne Colombia Columbia
3 Who is Travelstart? SOUTH AFRICA UAE TAIPEI EGYPT NIGERIA TANZANIA KENYA MIDDLE EAST ASIAAFRICAEUROPE ATHENS PORTO Travelstart is a leading online travel agency that helps today’s business and leisure travellers search, compare and book the best flight, hotel and car options with all your favourite airline and accommodation suppliers. Based in Cape Town, Travelstart proudly employs a team of more than 850 staff from all walks of life who are passionate about one goal - making travel simple.
Context
At Google, for example, nearly 80% of employees use Dremel (the internal counterpart to Google BigQuery) every month...everyone touches data on a regular basis to inform their decisions” Valliappa Lakshmanan (2018) 5 What Are We Doing? Context “

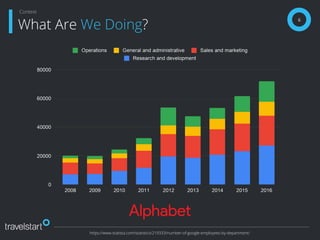

6 What Are We Doing? Context https://www.statista.com/statistics/219333/number-of-google-employees-by-department/
7 What Are We Doing? Context https://www.statista.com/statistics/219333/number-of-google-employees-by-department/ ~38% ~62%
Ask someone a question and you are likely to receive a link to a BigQuery view or query rather than the actual answer” Valliappa Lakshmanan (2018) 8 What Are We Doing? Context “

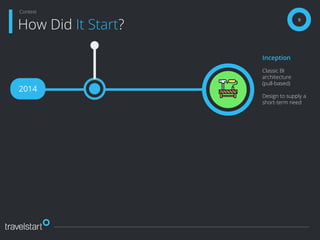

9 How Did It Start? Context 2014 Inception Classic BI architecture (pull-based) Design to supply a short-term need

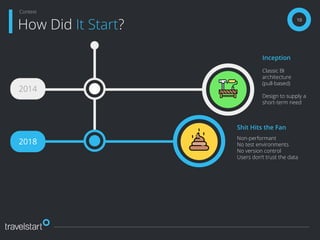

10 How Did It Start? Context 2014 2018 Inception Classic BI architecture (pull-based) Design to supply a short-term need Non-performant No test environments No version control Users don’t trust the data Shit Hits the Fan

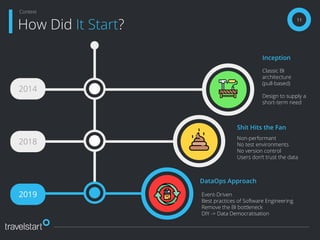

11 How Did It Start? Context 2014 2018 2019 Inception Classic BI architecture (pull-based) Design to supply a short-term need Non-performant No test environments No version control Users don’t trust the data Shit Hits the Fan DataOps Approach Event-Driven Best practices of Software Engineering Remove the BI bottleneck DIY -> Data Democratisation
DataOps

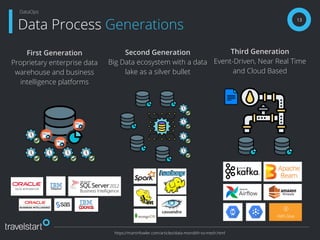

First Generation Proprietary enterprise data warehouse and business intelligence platforms 13 Data Process Generations DataOps https://martinfowler.com/articles/data-monolith-to-mesh.html Second Generation Big Data ecosystem with a data lake as a silver bullet Third Generation Event-Driven, Near Real Time and Cloud Based
● Data Mesh: Embracing ubiquitous data ○ Distributed Domain Driven Architecture (DDD), Self-serve Platform Design, and Product Thinking with Data ○ Data is discoverable, addressable, trustworthy & truthful, self-describing semantics & syntax, inter-operable & governed by global standards, domain data cross-functional teams 14 Data Process Generations DataOps https://martinfowler.com/articles/data-monolith-to-mesh.html

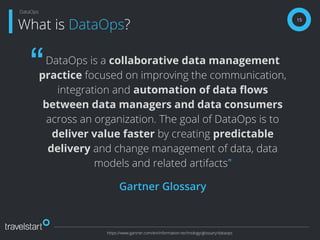

DataOps is a collaborative data management practice focused on improving the communication, integration and automation of data flows between data managers and data consumers across an organization. The goal of DataOps is to deliver value faster by creating predictable delivery and change management of data, data models and related artifacts” Gartner Glossary 15 What is DataOps? DataOps https://www.gartner.com/en/information-technology/glossary/dataops “

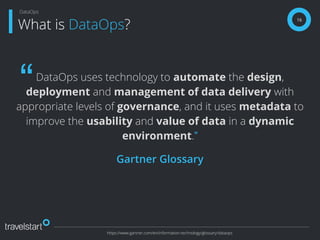

DataOps uses technology to automate the design, deployment and management of data delivery with appropriate levels of governance, and it uses metadata to improve the usability and value of data in a dynamic environment.” Gartner Glossary 16 What is DataOps? DataOps https://www.gartner.com/en/information-technology/glossary/dataops “

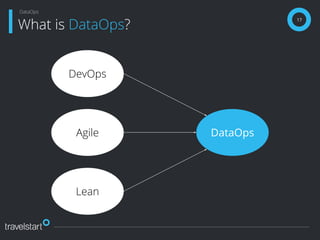

17 What is DataOps? DataOps DevOps Agile Lean DataOps

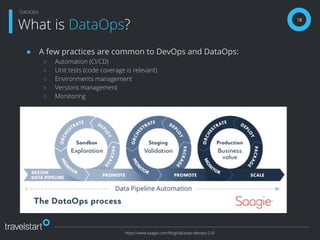

18 What is DataOps? DataOps https://www.saagie.com/blog/dataops-devops-2-0/ ● A few practices are common to DevOps and DataOps: ○ Automation (CI/CD) ○ Unit tests (code coverage is relevant) ○ Environments management ○ Versions management ○ Monitoring

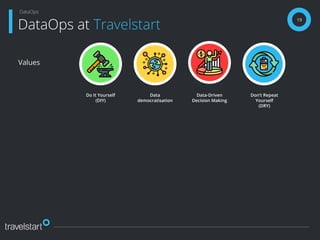

19 DataOps at Travelstart DataOps Do It Yourself (DIY) Data democratisation Data-Driven Decision Making Don’t Repeat Yourself (DRY) Values

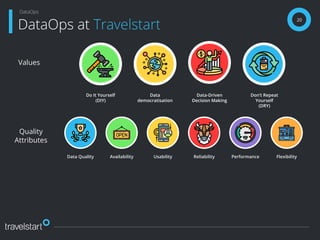

20 DataOps at Travelstart DataOps Do It Yourself (DIY) Data democratisation Data-Driven Decision Making Don’t Repeat Yourself (DRY) Data Quality Availability Usability Reliability Performance Flexibility Quality Attributes Values
21 DataOps at Travelstart DataOps Do It Yourself (DIY) Data democratisation Data-Driven Decision Making Don’t Repeat Yourself (DRY) Data Quality Availability Usability Reliability Performance Flexibility Quality Attributes Data Lakes IaC & CI/CD Data Dictionary Data Catalog Values Descriptive Predictive Prescriptive Framework Data Pipelines Data Warehouse
The Architecture

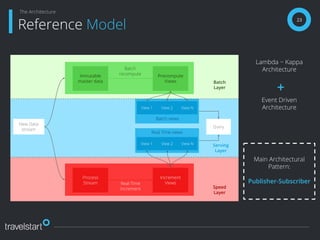

23 Reference Model The Architecture Lambda ~ Kappa Architecture Event Driven Architecture + Inmutable master data Precompute Views New Data stream Process Stream Increment Views View 1 View 2 View N View 1 View 2 View N Query Batch recompute Real-Time Increment Batch views Real Time views Batch Layer Serving Layer Speed Layer Main Architectural Pattern: Publisher-Subscriber

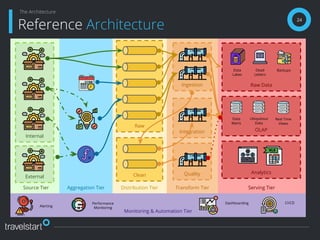

Distribution Tier Clean Raw Serving TierTransform TierSource Tier External Internal 24 Reference Architecture The Architecture Aggregation Tier Ingestion Integration Quality Raw Data OLAP Analytics Monitoring & Automation Tier Data Lakes Dead Letters Backups Data Marts Ubiquitous Data Real Time Views Alerting Performance Monitoring Dashboarding CI/CD
Monitoring & Automation Tier Alerting Performance Monitoring Dashboarding CI/CD Distribution Tier Clean Raw Serving TierTransform TierSource Tier External Internal 25 Reference Architecture The Architecture Aggregation Tier Ingestion Integration Quality Raw Data OLAP Analytics Data Lakes Dead Letters Backups Data Marts Ubiquitous Data Real Time Views

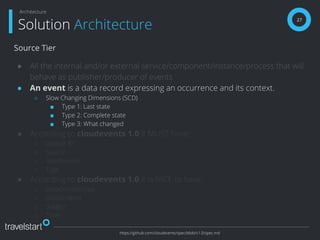

Source Tier ● All the internal and/or external service/component/instance/process that will behave as publisher/producer of events ● An event is a data record expressing an occurrence and its context. ○ Slow Changing Dimensions (SCD) ■ Type 1: Last state ■ Type 2: Complete state ■ Type 3: What changed ● According to cloudevents 1.0 it MUST have: ○ Unique ID ○ Source ○ SpecVersion ○ Type ● According to cloudevents 1.0 it is NICE to have: ○ DataContentType ○ DataSchema ○ Subject ○ Time 26 Solution Architecture Architecture https://github.com/cloudevents/spec/blob/v1.0/spec.md
Source Tier ● All the internal and/or external service/component/instance/process that will behave as publisher/producer of events ● An event is a data record expressing an occurrence and its context. ○ Slow Changing Dimensions (SCD) ■ Type 1: Last state ■ Type 2: Complete state ■ Type 3: What changed ● According to cloudevents 1.0 it MUST have: ○ Unique ID ○ Source ○ SpecVersion ○ Type ● According to cloudevents 1.0 it is NICE to have: ○ DataContentType ○ DataSchema ○ Subject ○ Time 27 Solution Architecture Architecture https://github.com/cloudevents/spec/blob/v1.0/spec.md

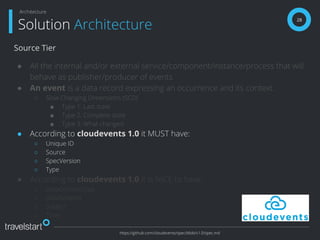

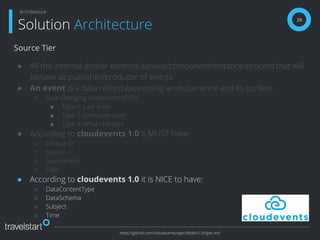

Source Tier ● All the internal and/or external service/component/instance/process that will behave as publisher/producer of events ● An event is a data record expressing an occurrence and its context. ○ Slow Changing Dimensions (SCD) ■ Type 1: Last state ■ Type 2: Complete state ■ Type 3: What changed ● According to cloudevents 1.0 it MUST have: ○ Unique ID ○ Source ○ SpecVersion ○ Type ● According to cloudevents 1.0 it is NICE to have: ○ DataContentType ○ DataSchema ○ Subject ○ Time 28 Solution Architecture Architecture https://github.com/cloudevents/spec/blob/v1.0/spec.md
Source Tier ● All the internal and/or external service/component/instance/process that will behave as publisher/producer of events ● An event is a data record expressing an occurrence and its context. ○ Slow Changing Dimensions (SCD) ■ Type 1: Last state ■ Type 2: Complete state ■ Type 3: What changed ● According to cloudevents 1.0 it MUST have: ○ Unique ID ○ Source ○ SpecVersion ○ Type ● According to cloudevents 1.0 it is NICE to have: ○ DataContentType ○ DataSchema ○ Subject ○ Time 29 Solution Architecture Architecture https://github.com/cloudevents/spec/blob/v1.0/spec.md

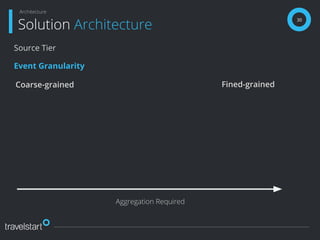

30 Solution Architecture Architecture Source Tier Event Granularity Coarse-grained Fined-grained Aggregation Required

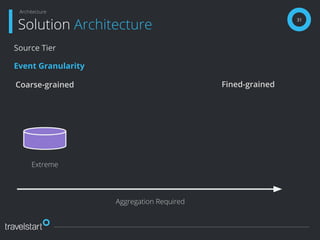

31 Solution Architecture Architecture Source Tier Event Granularity Extreme Aggregation Required Coarse-grained Fined-grained

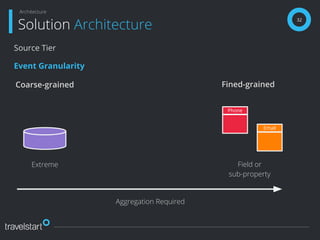

32 Solution Architecture Architecture Source Tier Event Granularity Extreme Field or sub-property Aggregation Required Phone Email Coarse-grained Fined-grained

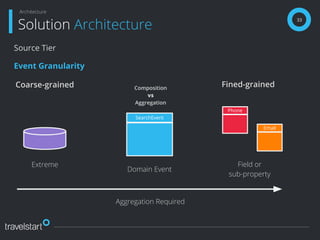

33 Solution Architecture Architecture Source Tier Event Granularity Extreme Domain Event Field or sub-property Aggregation Required Phone Email SearchEvent Composition vs Aggregation Coarse-grained Fined-grained

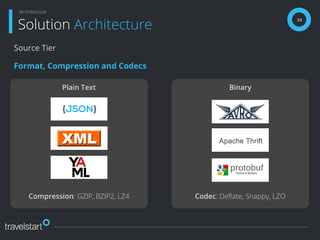

34 Solution Architecture Architecture Source Tier Format, Compression and Codecs Plain Text Compression: GZIP, BZIP2, LZ4 Binary Codec: Deflate, Snappy, LZO
35 Solution Architecture Architecture Source Tier Travelstart Event Template Payload { “uuid”: “34c86044-4b73-46ec-b766”, “timestamp”: 1581749960349, …. } ● Main Format: JSON ● Compression: GZIP JSON Minify + GZIP -> ~96% size reduction Header Type: search_event Format: json System: backend UUID: 34c86044-4b73-46ec-b766 Ip: 10.10.0.1 InstanceId: backend-01 Hostname: mybackend.travelstart Compression: gzip Timestamp: 1581749960349
Distribution Tier Clean Raw Serving TierTransform TierSource Tier External Internal 36 Reference Architecture The Architecture Aggregation Tier Ingestion Integration Quality Raw Data OLAP Analytics Data Lakes Dead Letters Backups Data Marts Ubiquitous Data Real Time Views Monitoring & Automation Tier Alerting Performance Monitoring Dashboarding CI/CD

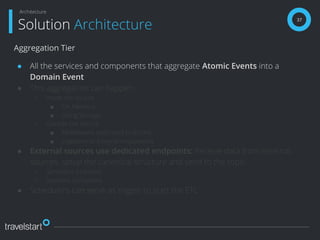

Aggregation Tier ● All the services and components that aggregate Atomic Events into a Domain Event ● This aggregation can happen: ○ Inside the source ■ On Memory ■ Using Storage ○ Outside the source ■ Middleware dedicated to do this ■ Ingestion or Integration pipelines ● External sources use dedicated endpoints: Receive data from external sources, setup the canonical structure and send to the topic ○ Serverless functions ○ Stateless containers ● Schedulers can serve as trigger to start the ETL 37 Solution Architecture Architecture
Aggregation Tier ● All the services and components that aggregate Atomic Events into a Domain Event ● This aggregation can happen: ○ Inside the source ■ On Memory ■ Using Storage ○ Outside the source ■ Middleware dedicated to do this ■ Ingestion or Integration pipelines ● External sources use dedicated endpoints: Receive data from external sources, setup the canonical structure and send to the topic ○ Serverless functions ○ Stateless containers ● Schedulers can serve as trigger to start the ETL 38 Solution Architecture Architecture

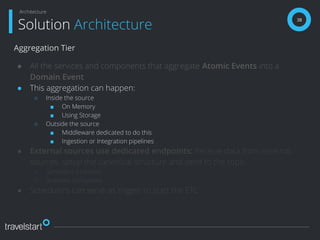

Aggregation Tier ● All the services and components that aggregate Atomic Events into a Domain Event ● This aggregation can happen: ○ Inside the source ■ On Memory ■ Using Storage ○ Outside the source ■ Middleware dedicated to do this ■ Ingestion or Integration pipelines ● External sources use dedicated endpoints: Receive data from external sources, setup the canonical structure and send to the topic ○ Serverless functions ○ Stateless containers ● Schedulers can serve as trigger to start the ETL 39 Solution Architecture Architecture

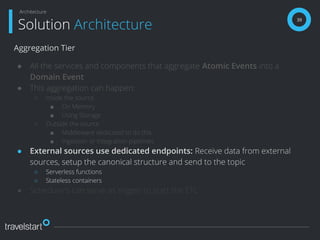

Aggregation Tier ● All the services and components that aggregate Atomic Events into a Domain Event ● This aggregation can happen: ○ Inside the source ■ On Memory ■ Using Storage ○ Outside the source ■ Middleware dedicated to do this ■ Ingestion or Integration pipelines ● External sources use dedicated endpoints: Receive data from external sources, setup the canonical structure and send to the topic ○ Serverless functions ○ Stateless containers ● Schedulers can serve as trigger to start the ETL 40 Solution Architecture Architecture
41 Solution Architecture Architecture Aggregation Tier Areas of aggregation Source System Producer 2 Read Replica(s) or API Aggregation System Distribution & Transformation DWH/DLRead Replica(s) Orchestrator Orchestrator Producer n Event Delivery Producer 1 Map & Aggr Event Delivery Windowing [session] Map & Aggregator Event Producer Persistence Complexity
42 Solution Architecture Architecture Aggregation Tier External Sources
43 Solution Architecture Architecture Aggregation Tier Schedulers

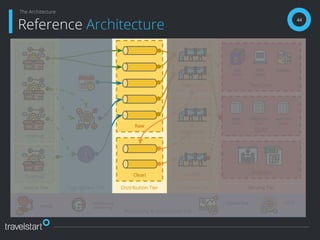

Distribution Tier Clean Raw Serving TierTransform TierSource Tier External Internal 44 Reference Architecture The Architecture Aggregation Tier Ingestion Integration Quality Raw Data OLAP Analytics Data Lakes Dead Letters Backups Data Marts Ubiquitous Data Real Time Views Monitoring & Automation Tier Alerting Performance Monitoring Dashboarding CI/CD
Distribution Tier ● All the Topics/Queues in charge of receive raw and clean to be distributed to multiple subscribers ● Topic per event type ● Subscription per subscriber ● Communication between producer and topics could failed, so keep in mind: ○ Retries ○ Graveyard (dead letters) 45 Solution Architecture Architecture
Distribution Tier ● All the Topics/Queues in charge of receive raw and clean to be distributed to multiple subscribers ● Topic per event type ● Subscription per subscriber ● Communication between producer and topics could failed, so keep in mind: ○ Retries ○ Graveyard (dead letters) 46 Solution Architecture Architecture

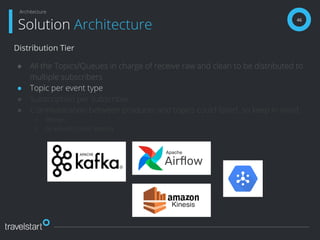

Distribution Tier ● All the Topics/Queues in charge of receive raw and clean to be distributed to multiple subscribers ● Topic per event type ● Subscription per subscriber ● Communication between producer and topics could failed, so keep in mind: ○ Retries ○ Graveyard (dead letters) 47 Solution Architecture Architecture
Distribution Tier ● All the Topics/Queues in charge of receive raw and clean to be distributed to multiple subscribers ● Topic per event type ● Subscription per subscriber ● Communication between producer and topics could failed, so keep in mind: ○ Retries ○ Graveyard (dead letters) 48 Solution Architecture Architecture

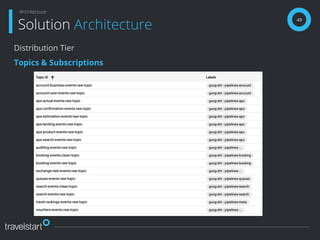

Distribution Tier Topics & Subscriptions 49 Solution Architecture Architecture

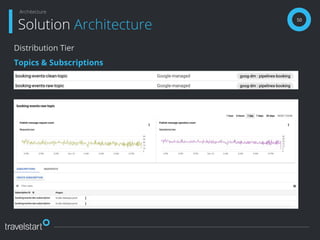

Distribution Tier Topics & Subscriptions 50 Solution Architecture Architecture

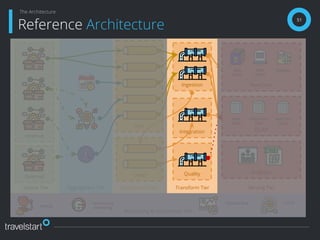

Distribution Tier Clean Raw Serving TierTransform TierSource Tier External Internal 51 Reference Architecture The Architecture Aggregation Tier Ingestion Integration Quality Raw Data OLAP Analytics Data Lakes Dead Letters Backups Data Marts Ubiquitous Data Real Time Views Monitoring & Automation Tier Alerting Performance Monitoring Dashboarding CI/CD

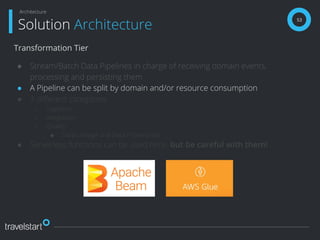

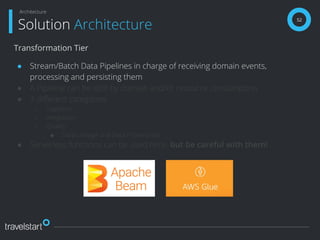

Transformation Tier ● Stream/Batch Data Pipelines in charge of receiving domain events, processing and persisting them ● A Pipeline can be split by domain and/or resource consumption ● 3 different categories: ○ Ingestion ○ Integration ○ Quality ■ Data Lineage and Data Provenance ● Serverless functions can be used here, but be careful with them! 52 Solution Architecture Architecture
Transformation Tier ● Stream/Batch Data Pipelines in charge of receiving domain events, processing and persisting them ● A Pipeline can be split by domain and/or resource consumption ● 3 different categories: ○ Ingestion ○ Integration ○ Quality ■ Data Lineage and Data Provenance ● Serverless functions can be used here, but be careful with them! 53 Solution Architecture Architecture
Transformation Tier ● Stream/Batch Data Pipelines in charge of receiving domain events, processing and persisting them ● A Pipeline can be split by domain and/or resource consumption ● 3 different categories: ○ Ingestion ○ Integration ○ Quality ■ Data Lineage and Data Provenance ● Serverless functions can be used here, but be careful with them! 54 Solution Architecture Architecture

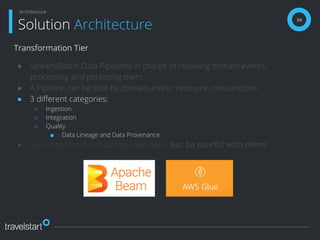

Transformation Tier ● Stream/Batch Data Pipelines in charge of receiving domain events, processing and persisting them ● A Pipeline can be split by domain and/or resource consumption ● 3 different categories: ○ Ingestion ○ Integration ○ Quality ■ Data Lineage and Data Provenance ● Serverless functions can be used here, but be careful with them! 55 Solution Architecture Architecture
56 Solution Architecture Architecture Transformation Tier Ingestion Pipelines In charge of receiving the raw events, process, clean, enrich and validate quality of them - Uncompress - Standardize - Cleansing - Enrichment - Schematization - Quality Checks - Alerting Directed Acyclic Graph (DAG) Canonize Events Process Quality Assurance Persist Raw (Data Lake) Persistence Publish Clean Event RAW CLEAN

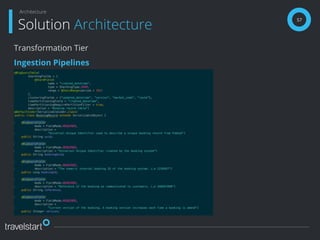

57 Solution Architecture Architecture Transformation Tier Ingestion Pipelines
58 Solution Architecture Architecture Transformation Tier Ingestion Pipelines
59 Solution Architecture Architecture Transformation Tier Ingestion Pipelines Col 1 Col 2 Col 3 Quality Check
60 Solution Architecture Architecture Transformation Tier Ingestion Pipelines Col 1 Col 2 Col 3 Metadata

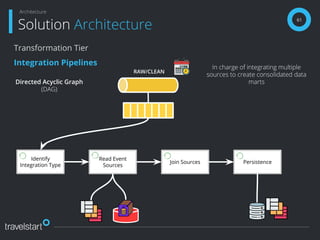

61 Solution Architecture Architecture Transformation Tier Integration Pipelines In charge of integrating multiple sources to create consolidated data martsDirected Acyclic Graph (DAG) Identify Integration Type Read Event Sources Join Sources Persistence RAW/CLEAN
62 Solution Architecture Architecture Transformation Tier Quality Pipelines In charge of reading deadletters, run reports to analyse quality issues and bring back to life (if possible) dead/lost events (necromancer) Directed Acyclic Graph (DAG) Identify Quality Check Read Event Sources Run Quality Check Report CLEAN

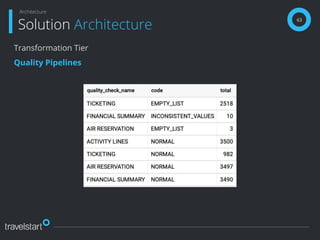

63 Solution Architecture Architecture Transformation Tier Quality Pipelines
64 Solution Architecture Architecture Transformation Tier Quality Pipelines

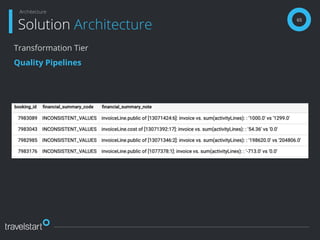

65 Solution Architecture Architecture Transformation Tier Quality Pipelines

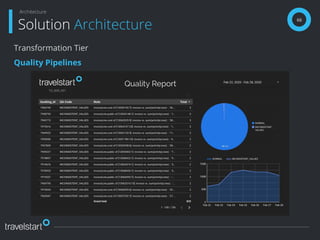

66 Solution Architecture Architecture Transformation Tier Quality Pipelines

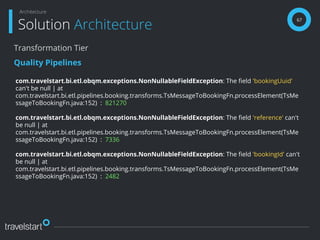

67 Solution Architecture Architecture Transformation Tier Quality Pipelines com.travelstart.bi.etl.obqm.exceptions.NonNullableFieldException: The field 'bookingUuid' can't be null | at com.travelstart.bi.etl.pipelines.booking.transforms.TsMessageToBookingFn.processElement(TsMe ssageToBookingFn.java:152) : 821270 com.travelstart.bi.etl.obqm.exceptions.NonNullableFieldException: The field 'reference' can't be null | at com.travelstart.bi.etl.pipelines.booking.transforms.TsMessageToBookingFn.processElement(TsMe ssageToBookingFn.java:152) : 7336 com.travelstart.bi.etl.obqm.exceptions.NonNullableFieldException: The field 'bookingId' can't be null | at com.travelstart.bi.etl.pipelines.booking.transforms.TsMessageToBookingFn.processElement(TsMe ssageToBookingFn.java:152) : 2482

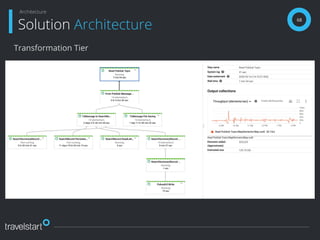

Transformation Tier 68 Solution Architecture Architecture

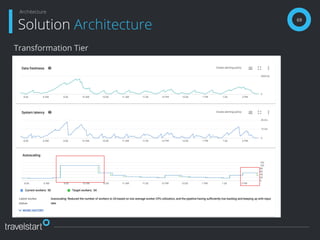

Transformation Tier 69 Solution Architecture Architecture

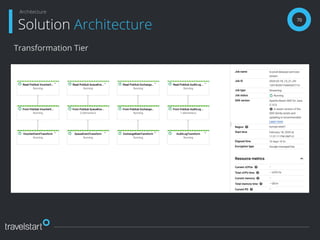

Transformation Tier 70 Solution Architecture Architecture

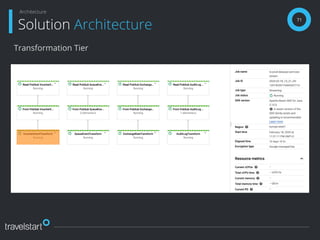

Transformation Tier 71 Solution Architecture Architecture
Transformation Tier 72 Solution Architecture Architecture
Still Awake?
Distribution Tier Clean Raw Serving TierTransform TierSource Tier External Internal 74 Reference Architecture The Architecture Aggregation Tier Ingestion Integration Quality Raw Data OLAP Analytics Data Lakes Dead Letters Backups Data Marts Ubiquitous Data Real Time Views Monitoring & Automation Tier Alerting Performance Monitoring Dashboarding CI/CD
Serving Tier ● Store all the raw and clean data to be accessible for our stakeholders ● About raw data: ○ Data Lakes ○ Dead Letters ○ Backups ● About OLAP: ○ Data Marts ○ Ubiquitous Data/ Data Sourcing ○ Real Time Views ● About Analytics: ○ Whatever it makes you happy (of course with data governance) 75 Solution Architecture Architecture
Serving Tier ● Store all the raw and clean data to be accessible for our stakeholders ● About raw data: ○ Data Lakes ○ Dead Letters ○ Backups ● About OLAP: ○ Data Marts ○ Ubiquitous Data/ Data Sourcing ○ Real Time Views ● About Analytics: ○ Whatever it makes you happy (of course with data governance) 76 Solution Architecture Architecture
Serving Tier ● Store all the raw and clean data to be accessible for our stakeholders ● About raw data: ○ Data Lakes ○ Dead Letters ○ Backups ● About OLAP: ○ Data Marts ○ Ubiquitous Data/ Data Sourcing ○ Real Time Views ● About Analytics: ○ Whatever it makes you happy (of course with data governance) 77 Solution Architecture Architecture
Serving Tier ● Store all the raw and clean data to be accessible for our stakeholders ● About raw data: ○ Data Lakes ○ Dead Letters ○ Backups ● About OLAP: ○ Data Marts ○ Ubiquitous Data/ Data Sourcing ○ Real Time Views ● About Analytics: ○ Whatever it makes you happy (of course with data governance) 78 Solution Architecture Architecture

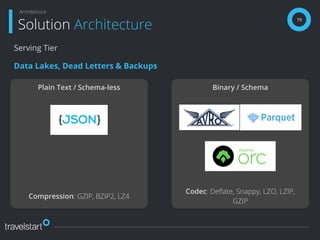

79 Solution Architecture Architecture Serving Tier Data Lakes, Dead Letters & Backups Plain Text / Schema-less Compression: GZIP, BZIP2, LZ4 Binary / Schema Codec: Deflate, Snappy, LZO, LZIP, GZIP

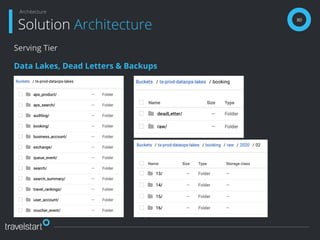

80 Solution Architecture Architecture Serving Tier Data Lakes, Dead Letters & Backups

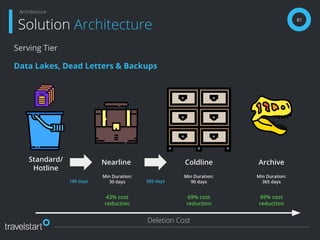

81 Solution Architecture Architecture Serving Tier Data Lakes, Dead Letters & Backups Standard/ Hotline Nearline Coldline Archive 180 days Min Duration: 90 days Min Duration: 365 days365 days Min Duration: 30 days 43% cost reduction 69% cost reduction 89% cost reduction Deletion Cost

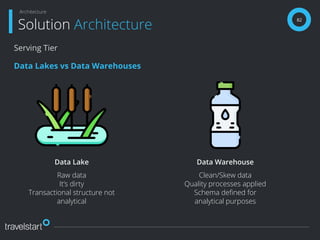

82 Solution Architecture Architecture Serving Tier Data Lakes vs Data Warehouses Data Lake Data Warehouse Raw data It’s dirty Transactional structure not analytical Clean/Skew data Quality processes applied Schema defined for analytical purposes

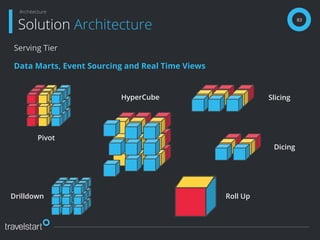

83 Solution Architecture Architecture Serving Tier Data Marts, Event Sourcing and Real Time Views HyperCube Pivot Drilldown Roll Up Dicing Slicing

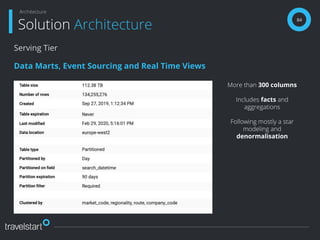

84 Solution Architecture Architecture Serving Tier Data Marts, Event Sourcing and Real Time Views More than 300 columns Includes facts and aggregations Following mostly a star modeling and denormalisation
85 Solution Architecture Architecture Serving Tier Data Marts, Event Sourcing and Real Time Views Views Materialise d Views

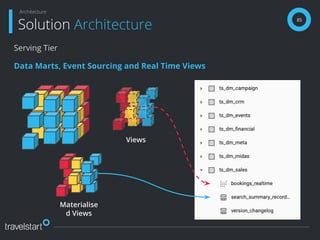

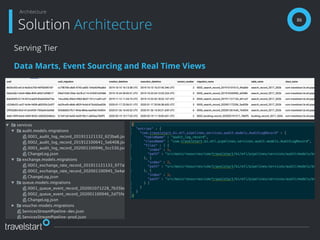

86 Solution Architecture Architecture Serving Tier Data Marts, Event Sourcing and Real Time Views
Distribution Tier Clean Raw Serving TierTransform TierSource Tier External Internal 87 Reference Architecture The Architecture Aggregation Tier Ingestion Integration Quality Raw Data OLAP Analytics Data Lakes Dead Letters Backups Data Marts Ubiquitous Data Real Time Views Monitoring & Automation Tier Alerting Performance Monitoring Dashboarding CI/CD
Monitoring & Automation Tier ● The command and control area of the whole architecture ● It needs to monitor everything related with data ingestion, processing and infrastructure ● Alerting: ○ Policies ○ Multiple notification channels ● Performance and Stability Monitoring ○ Bottlenecks, Bugs, etc ○ Slow steps, underutilized infrastructure, memory issues, etc ● CI/CD + IaC ○ Development and Deployment lifecycle completely automated ○ Any architectural change should be track through a version control ● Dashboards! 88 Solution Architecture Architecture
89 Solution Architecture Architecture Monitoring & Automation Tier Monitoring
90 Solution Architecture Architecture Monitoring & Automation Tier Monitoring

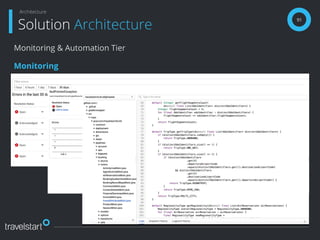

91 Solution Architecture Architecture Monitoring & Automation Tier Monitoring

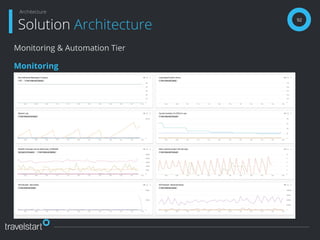

92 Solution Architecture Architecture Monitoring & Automation Tier Monitoring

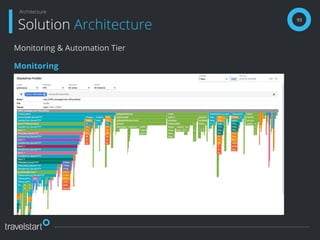

93 Solution Architecture Architecture Monitoring & Automation Tier Monitoring

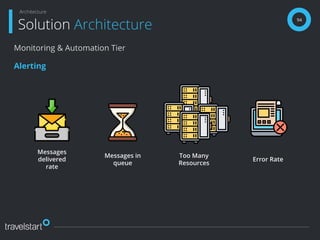

94 Solution Architecture Architecture Monitoring & Automation Tier Alerting Messages delivered rate Messages in queue Too Many Resources Error Rate

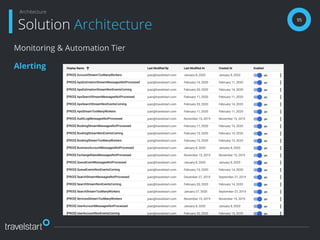

95 Solution Architecture Architecture Monitoring & Automation Tier Alerting

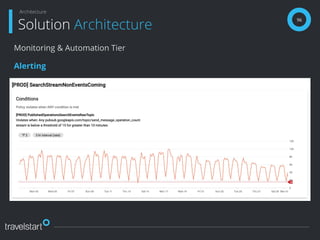

96 Solution Architecture Architecture Monitoring & Automation Tier Alerting

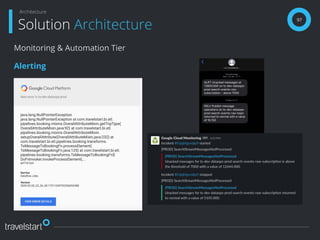

97 Solution Architecture Architecture Monitoring & Automation Tier Alerting

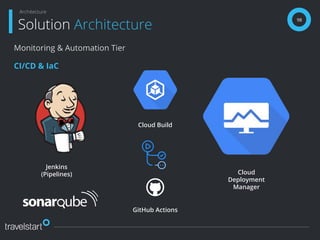

98 Solution Architecture Architecture Monitoring & Automation Tier CI/CD & IaC Jenkins (Pipelines) Cloud Deployment Manager Cloud Build GitHub Actions

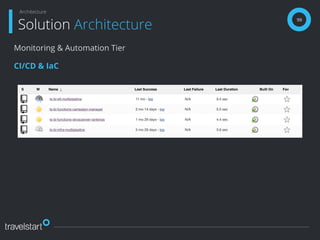

99 Solution Architecture Architecture Monitoring & Automation Tier CI/CD & IaC

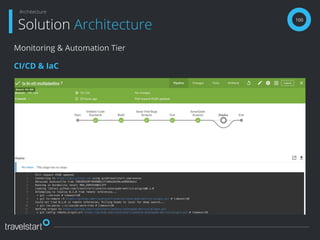

100 Solution Architecture Architecture Monitoring & Automation Tier CI/CD & IaC
101 Solution Architecture Architecture Monitoring & Automation Tier CI/CD & IaC Spotless Code Analysis PR Analysis

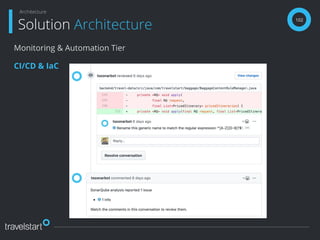

102 Solution Architecture Architecture Monitoring & Automation Tier CI/CD & IaC

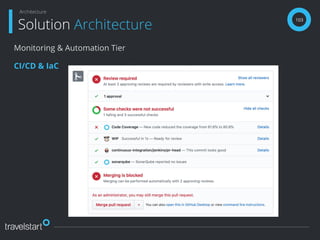

103 Solution Architecture Architecture Monitoring & Automation Tier CI/CD & IaC
104 Solution Architecture Architecture Monitoring & Automation Tier CI/CD & IaC info: title: Buckets Template description: Creates buckets in GCS with the correct life cycle rules and security constraints version: 1.0 properties: name: type: string description: Name property of the bucket standard `ts-<env>-dataops-<name>` pattern: ^[a-z0-9]+$ labels: type: object description: User-provided bucket labels, in key/value pairs. YAML Schema

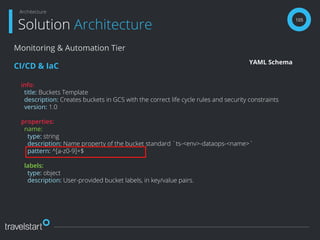

105 Solution Architecture Architecture Monitoring & Automation Tier CI/CD & IaC info: title: Buckets Template description: Creates buckets in GCS with the correct life cycle rules and security constraints version: 1.0 properties: name: type: string description: Name property of the bucket standard `ts-<env>-dataops-<name>` pattern: ^[a-z0-9]+$ labels: type: object description: User-provided bucket labels, in key/value pairs. YAML Schema

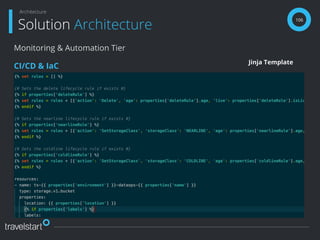

106 Solution Architecture Architecture Monitoring & Automation Tier CI/CD & IaC Jinja Template
107 Solution Architecture Architecture Monitoring & Automation Tier CI/CD & IaC Jinja/YAML Template - name: ts-dataops-batch type: buckets.jinja properties: name: batch environment: {{ properties['environment'] }} labels: description: temporary_files_to_insert data_type: raw deleteRule: age: 7 isLive: true
108 Solution Architecture Architecture Monitoring & Automation Tier CI/CD & IaC
Questions juancho088 @juancho088 @tech-travelstart juan-urrego jsurrego We love talent. We are recruiting!
