Rick Copeland @rick446
Arborian Consulting, LLC

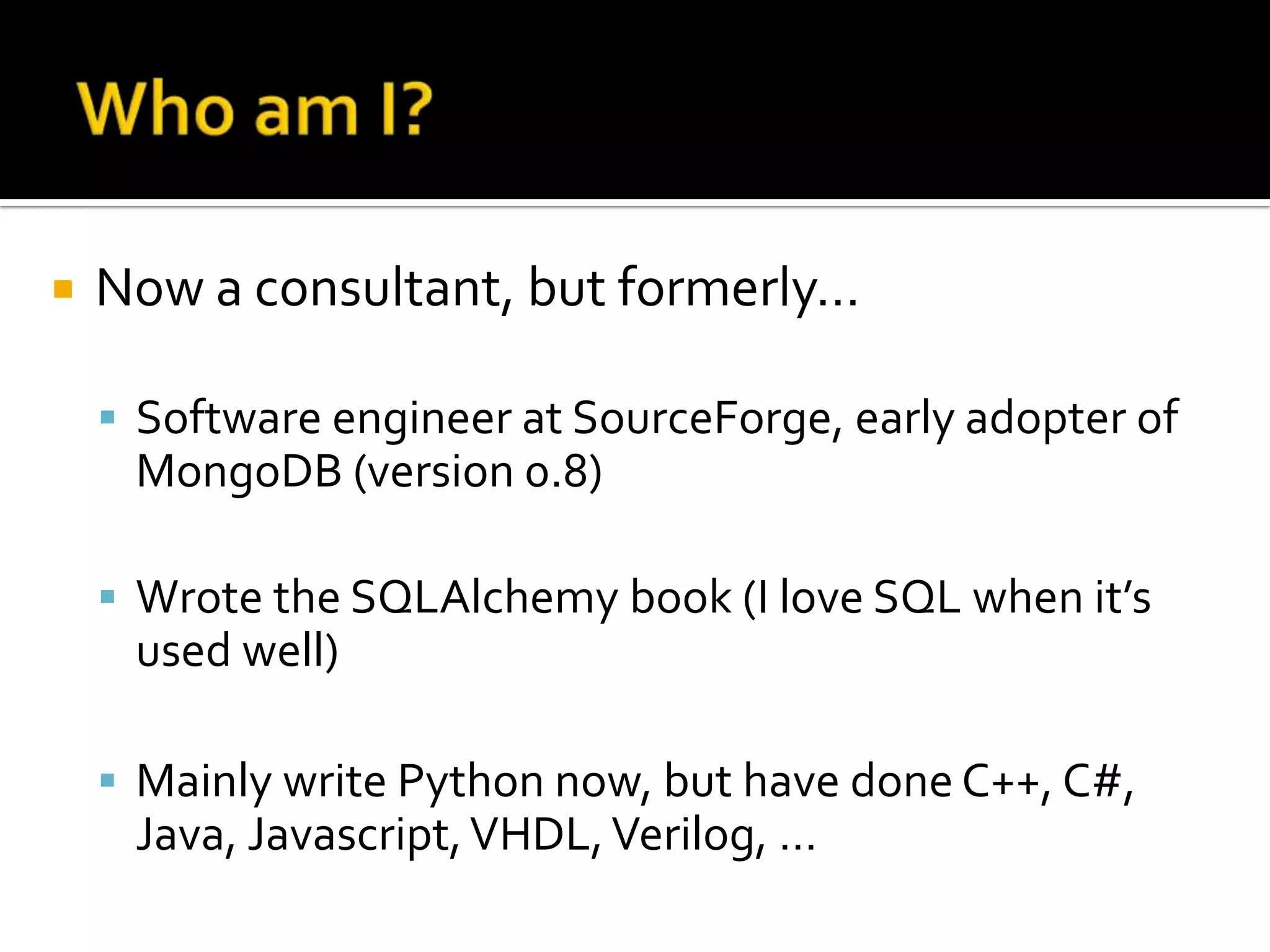

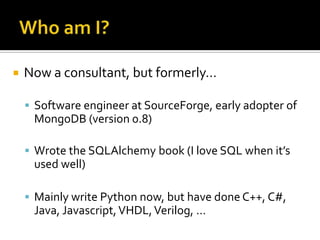

   Now a consultant, but formerly…

     Software engineer at SourceForge, early adopter of
     MongoDB (version 0.8)

     Wrote the SQLAlchemy book (I love SQL when it’s
     used well)

     Mainly write Python now, but have done C++, C#,
     Java, Javascript, VHDL, Verilog, …

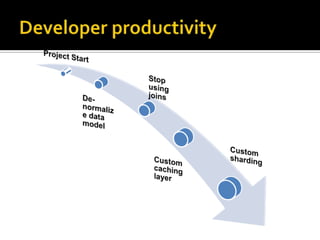

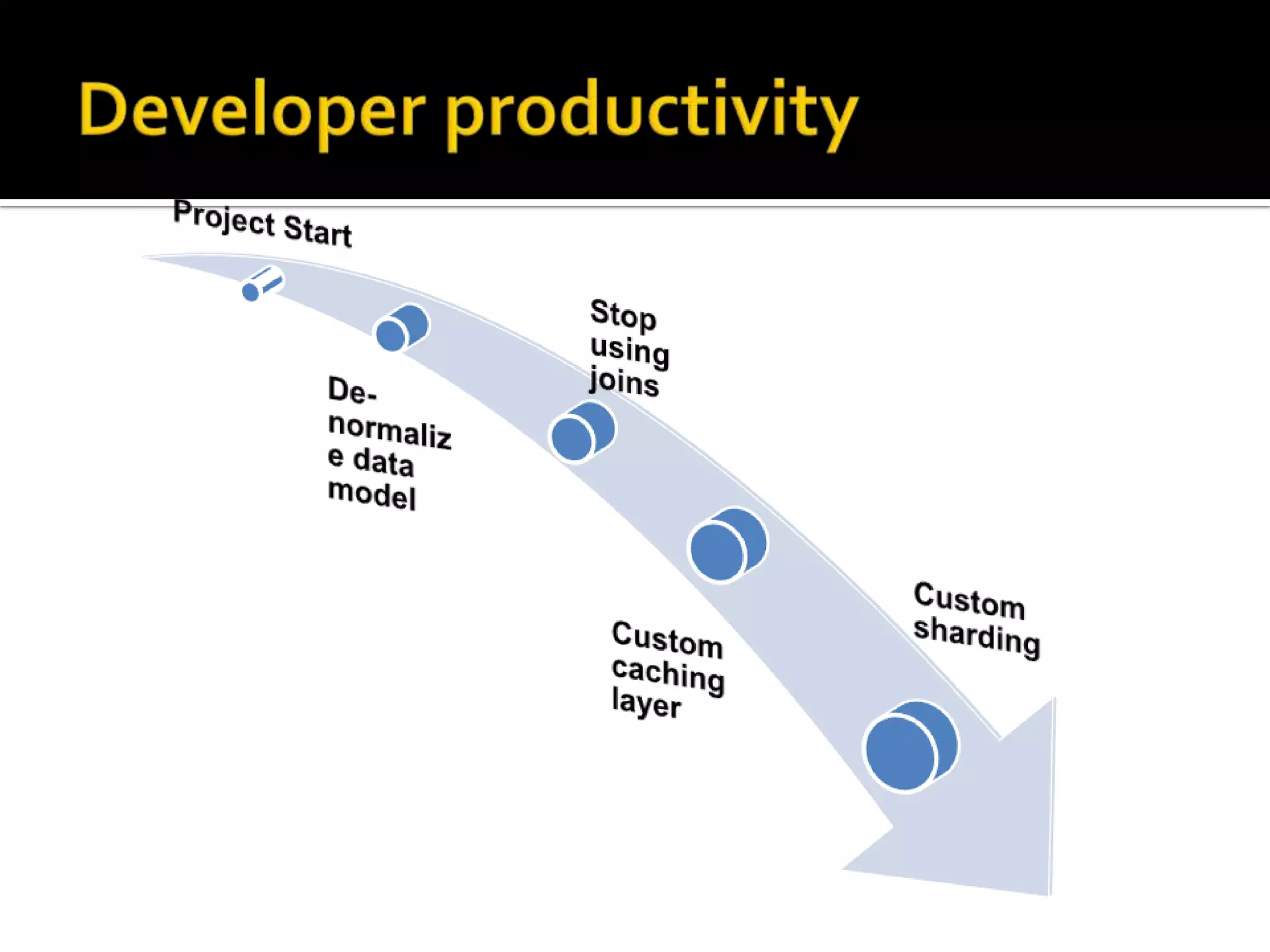

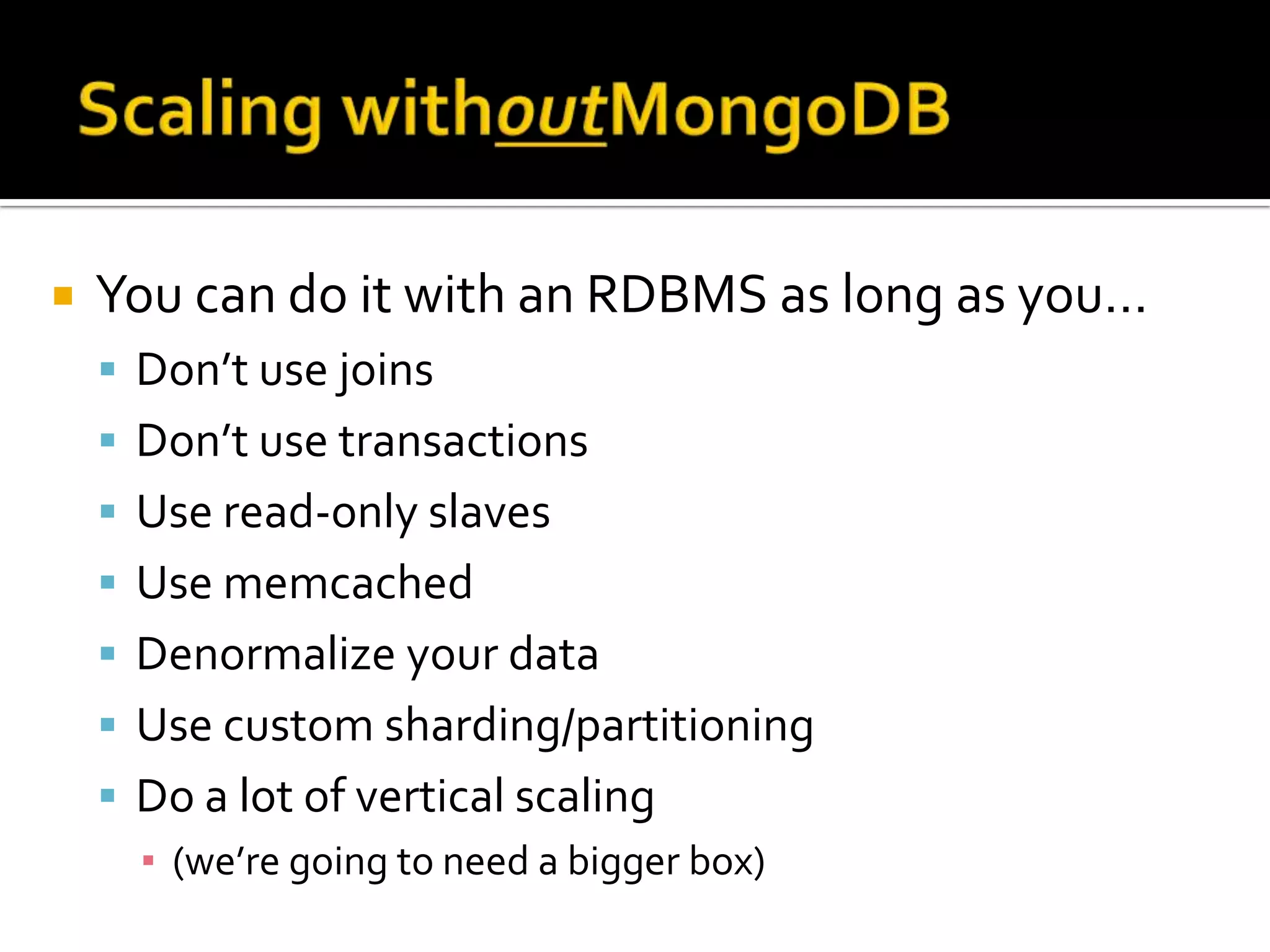

   You can do it with an RDBMS as long as you…
     Don’t use joins
     Don’t use transactions
     Use read-only slaves
     Use memcached
     Denormalize your data
     Use custom sharding/partitioning

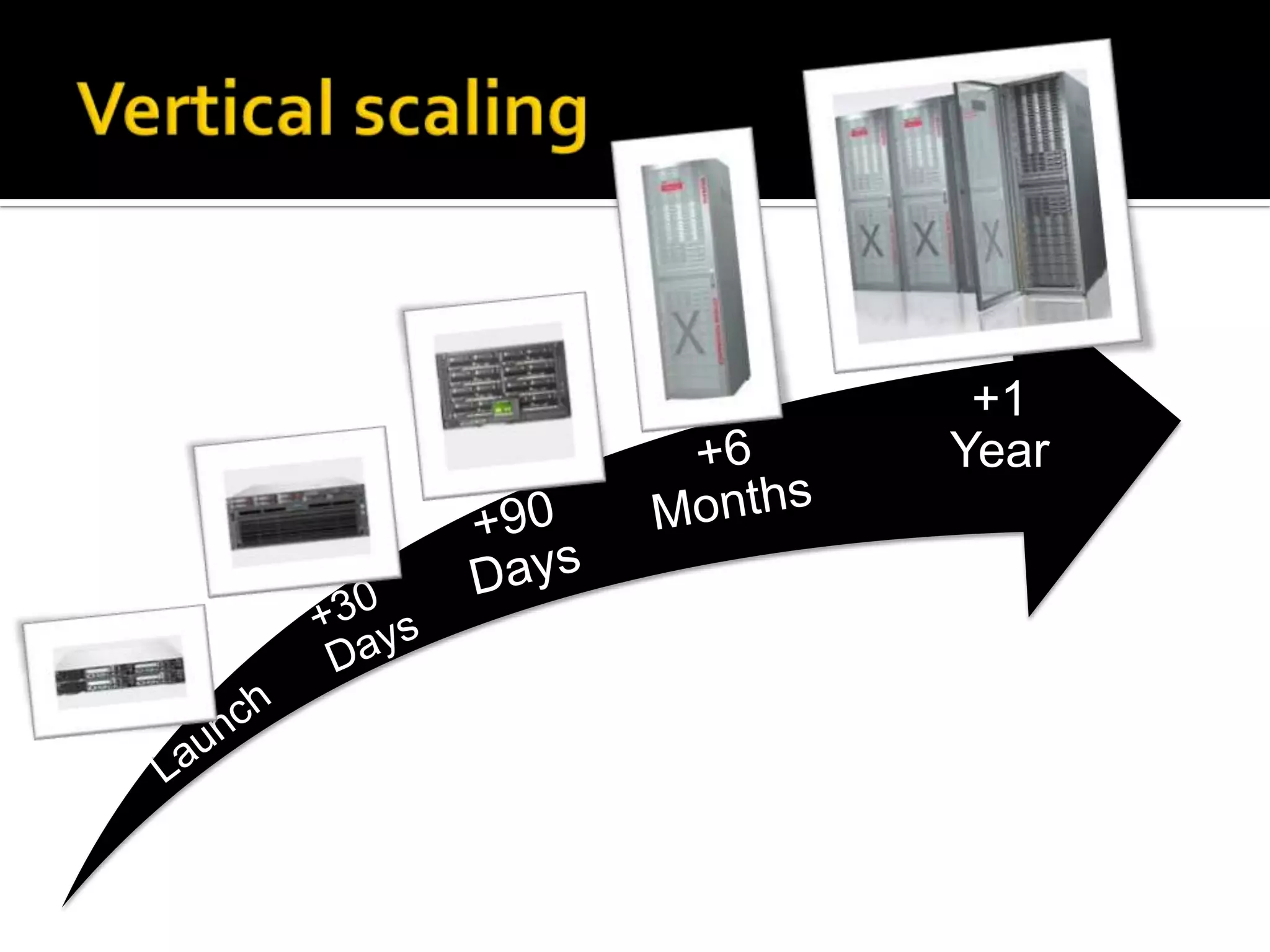

     Do a lot of vertical scaling
      ▪ (we’re going to need a bigger box)
+1
Year

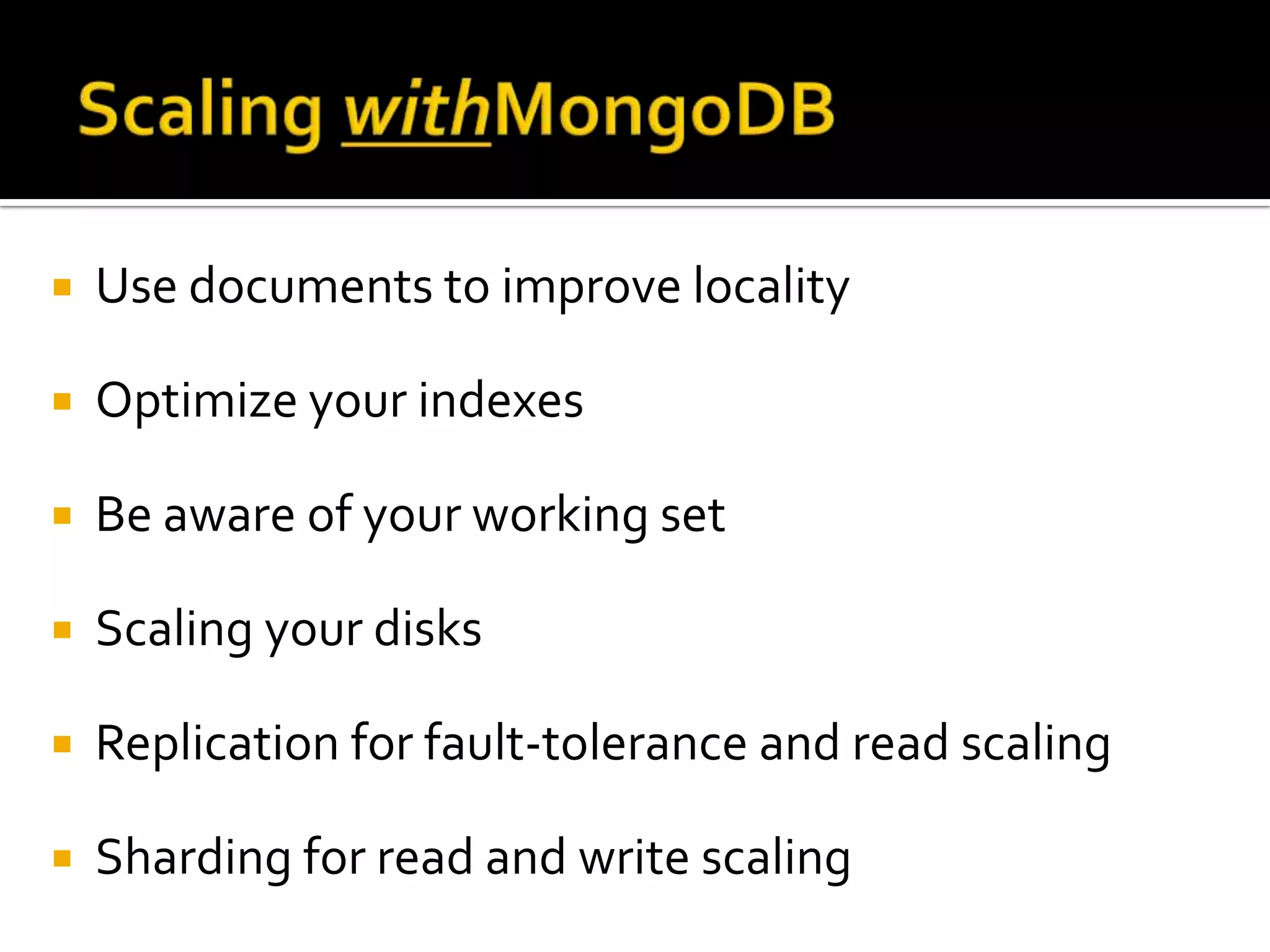

Scaling with MongoDB
   Use documents to improve locality

   Optimize your indexes

   Be aware of your working set

   Scaling your disks

   Replication for fault-tolerance and read scaling

   Sharding for read and write scaling

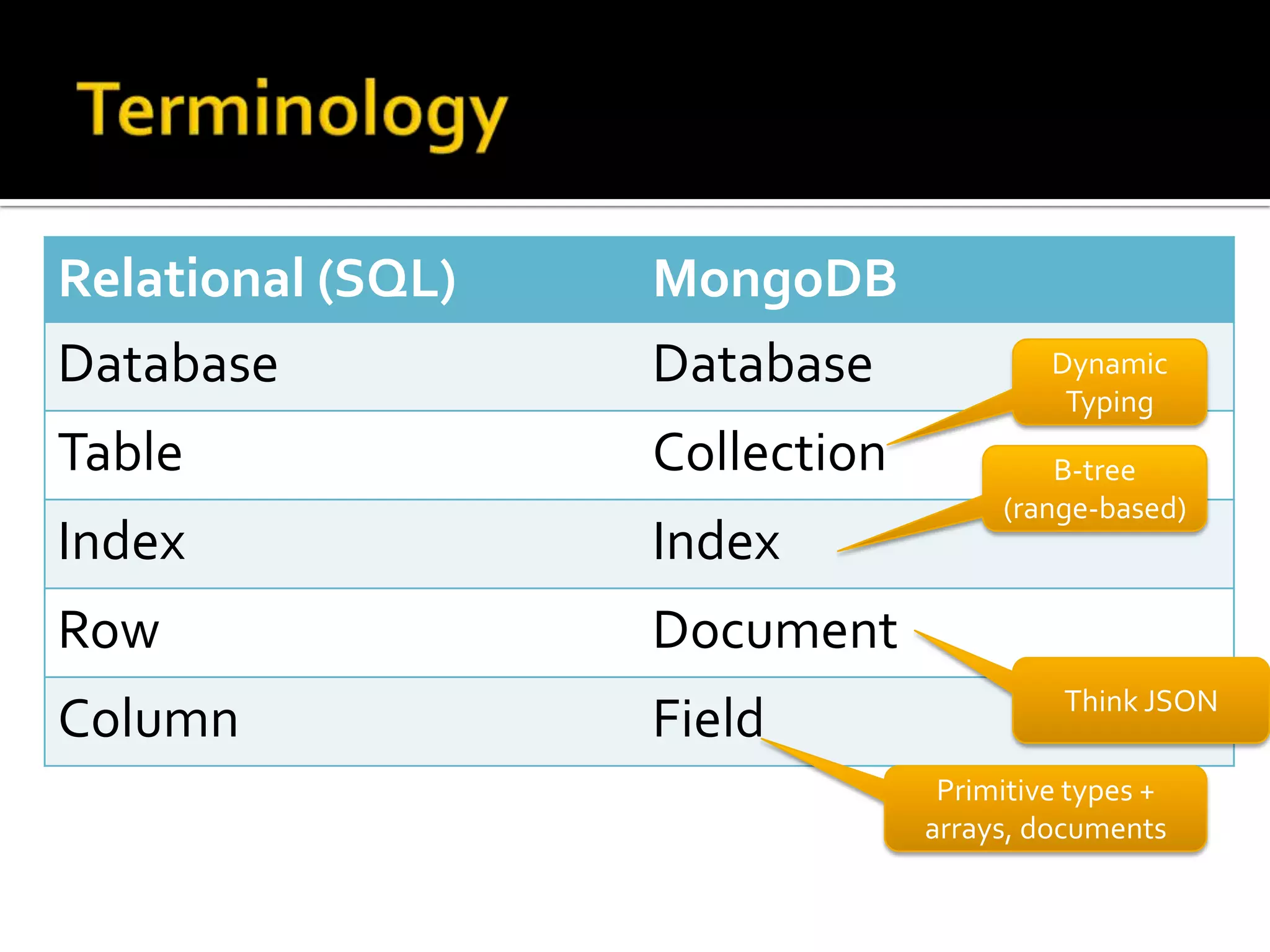

Relational (SQL)   MongoDB
Database           Database              Dynamic
                                          Typing
Table              Collection            B-tree
                                     (range-based)
Index              Index
Row                Document
                                          Think JSON
Column             Field
                                 Primitive types +
                                arrays, documents
{

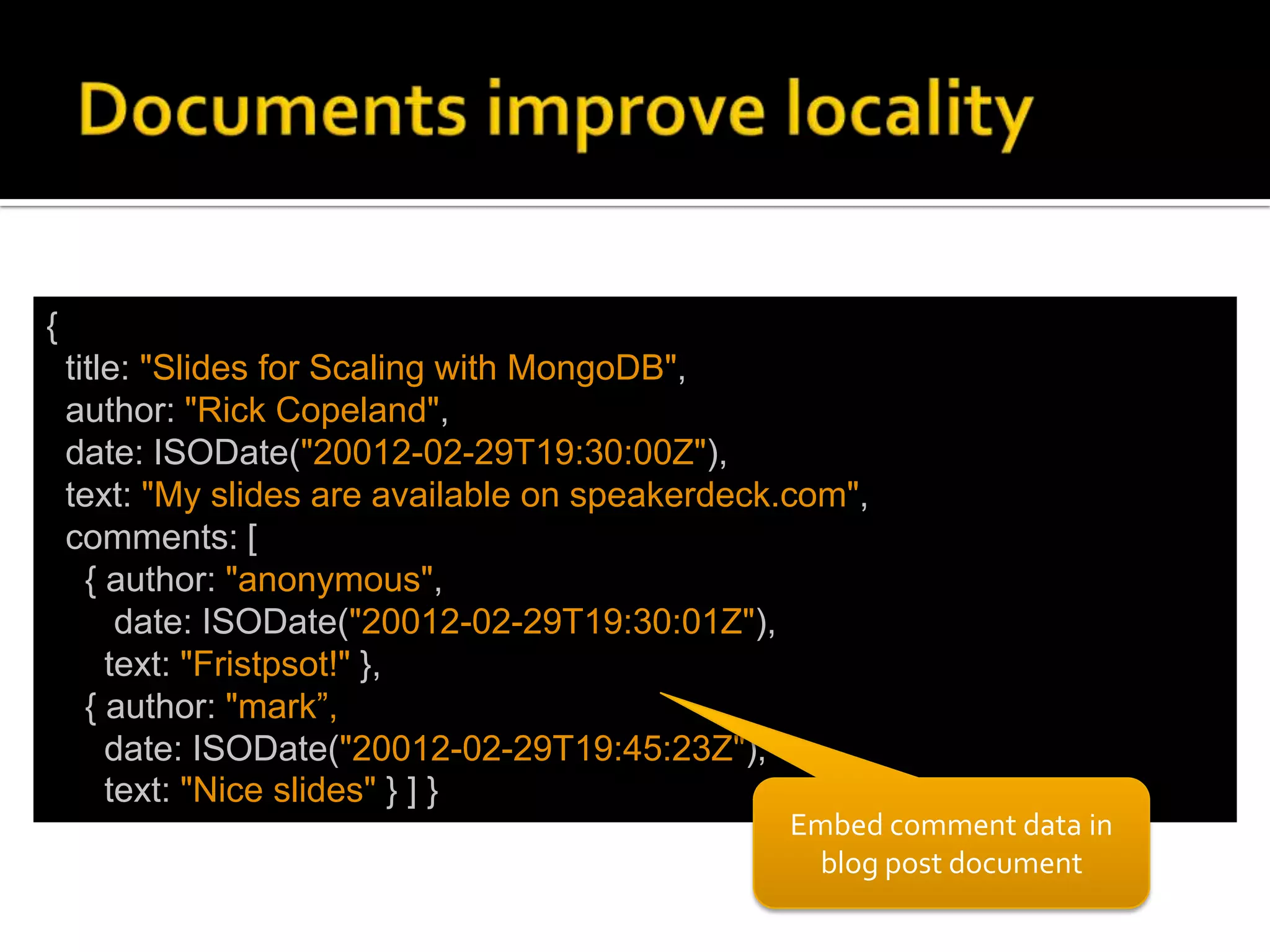

    title: "Slides for Scaling with MongoDB",
    author: "Rick Copeland",
    date: ISODate("20012-02-29T19:30:00Z"),
    text: "My slides are available on speakerdeck.com",
    comments: [
      { author: "anonymous",
         date: ISODate("20012-02-29T19:30:01Z"),
        text: "Fristpsot!" },
      { author: "mark”,
        date: ISODate("20012-02-29T19:45:23Z"),
        text: "Nice slides" } ] }
                                                 Embed comment data in
                                                  blog post document

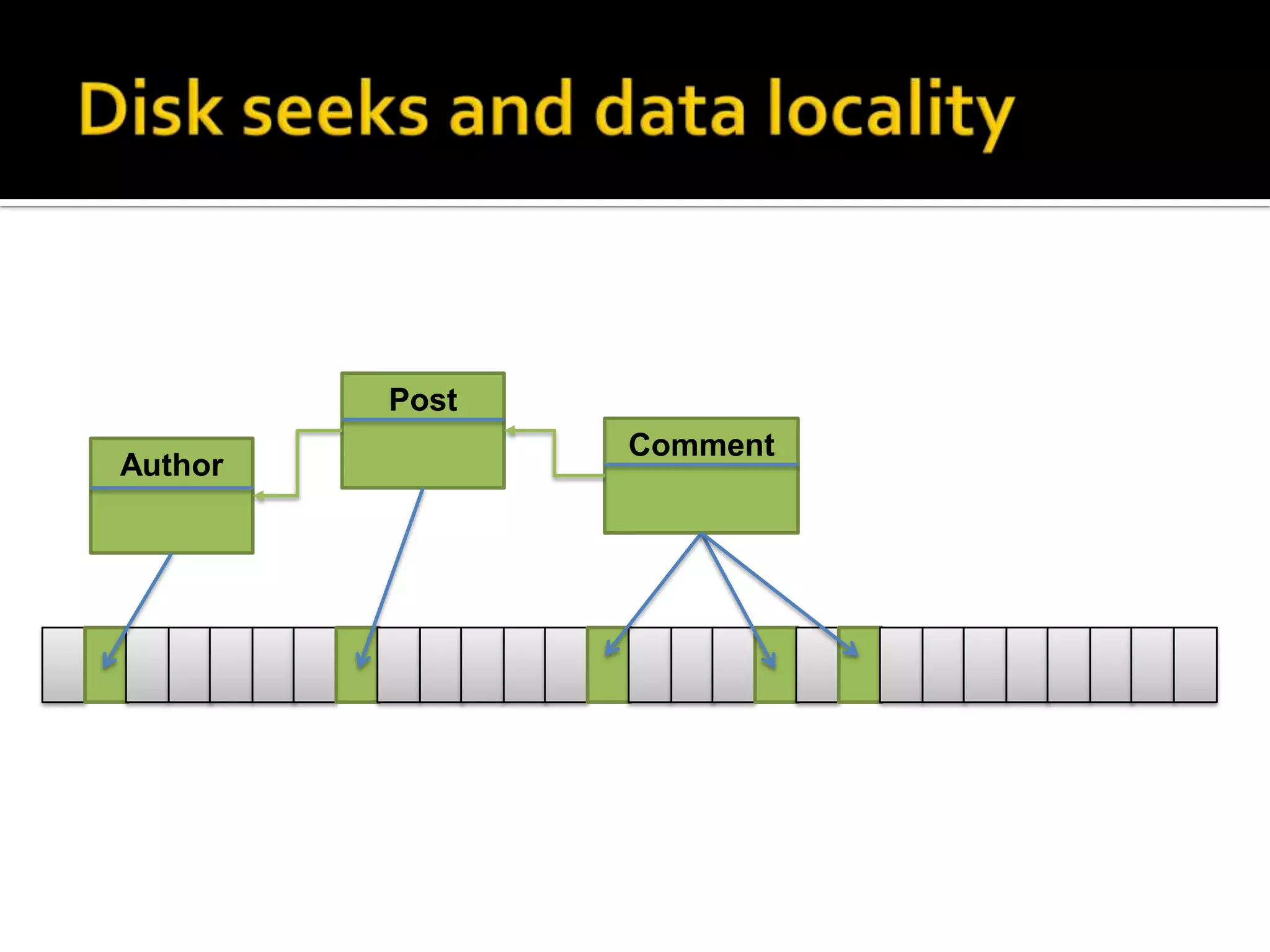

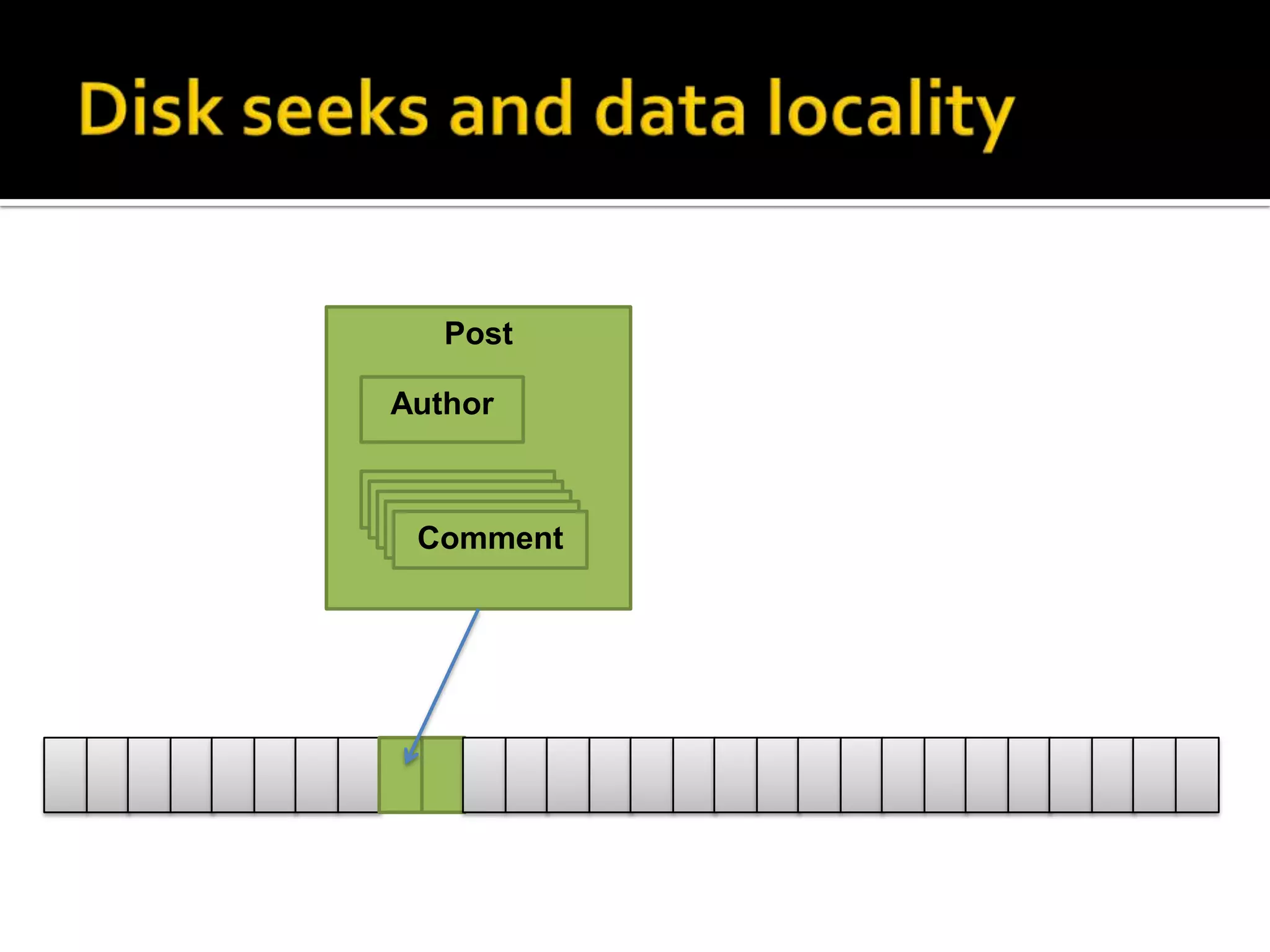

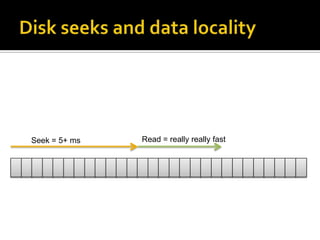

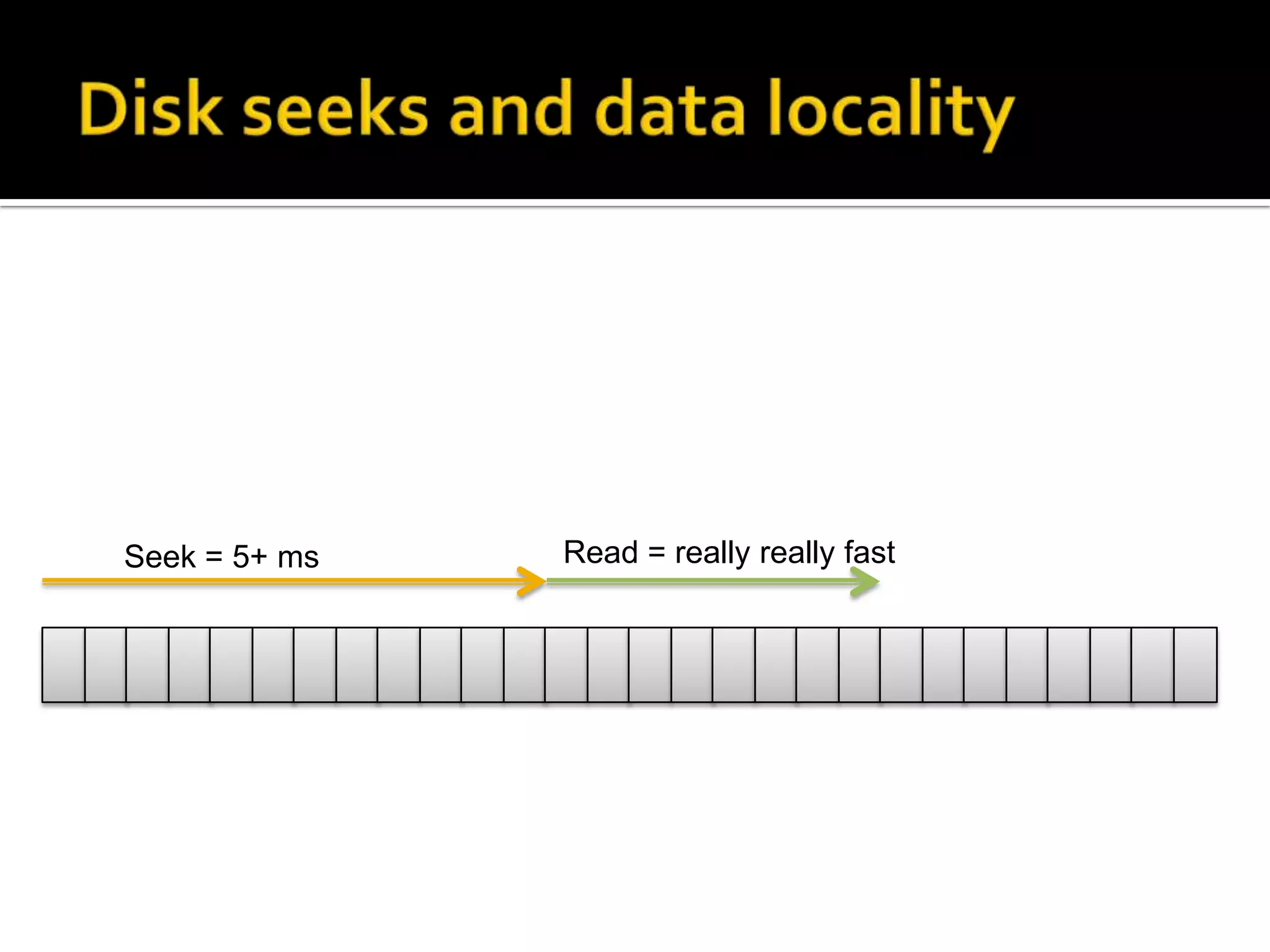

Seek = 5+ ms   Read = really really fast

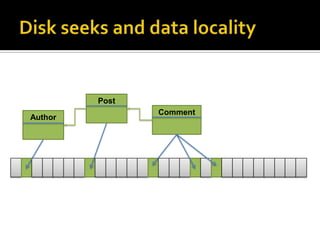

Post
                Comment
Author
Post

Author

Comment
Comment
 Comment
 Comment
  Comment

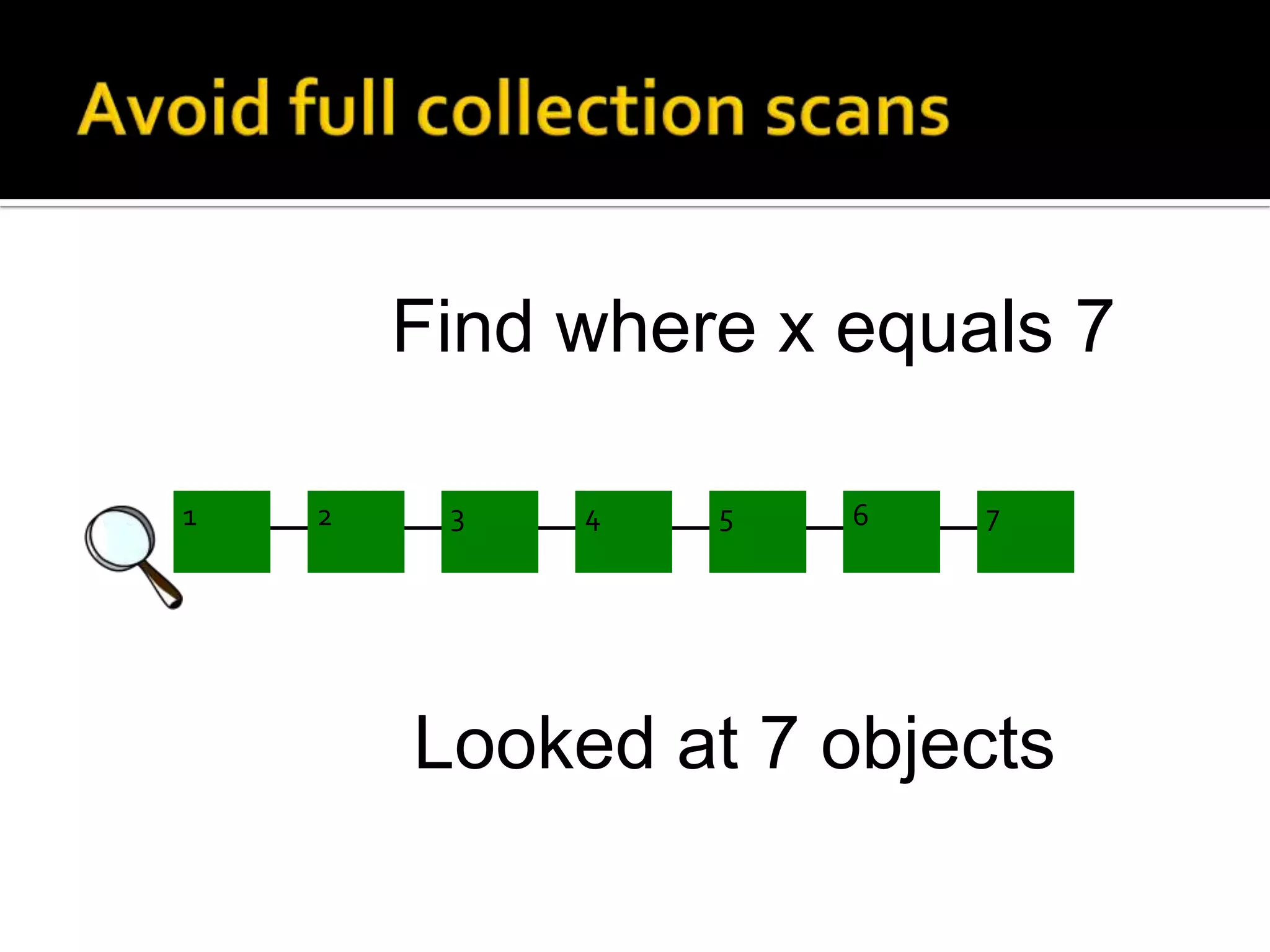

Find where x equals 7

1   2    3   4   5   6   7




        Looked at 7 objects

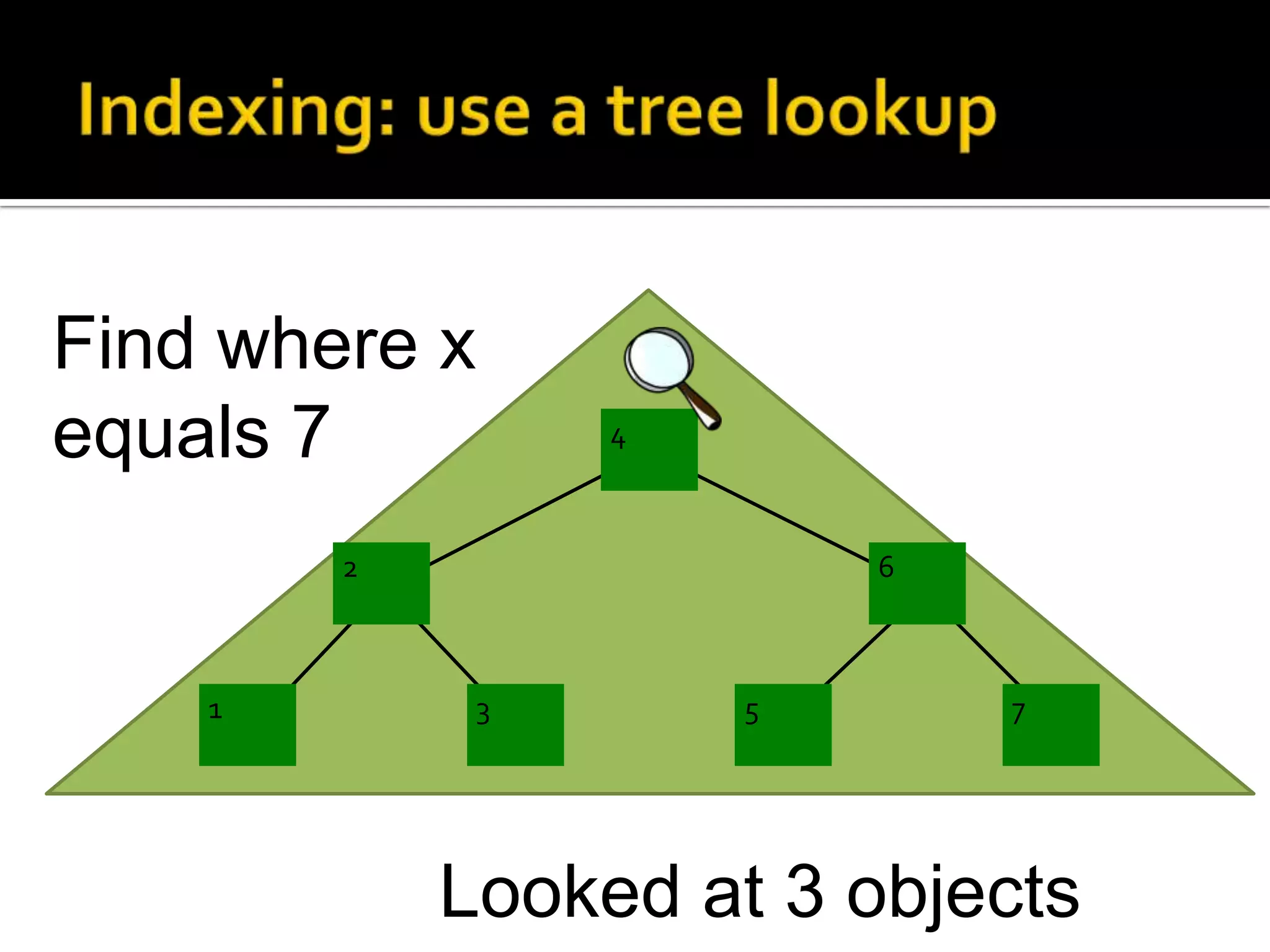

Find where x
equals 7         4



        2                6



    1        3       5       7




            Looked at 3 objects

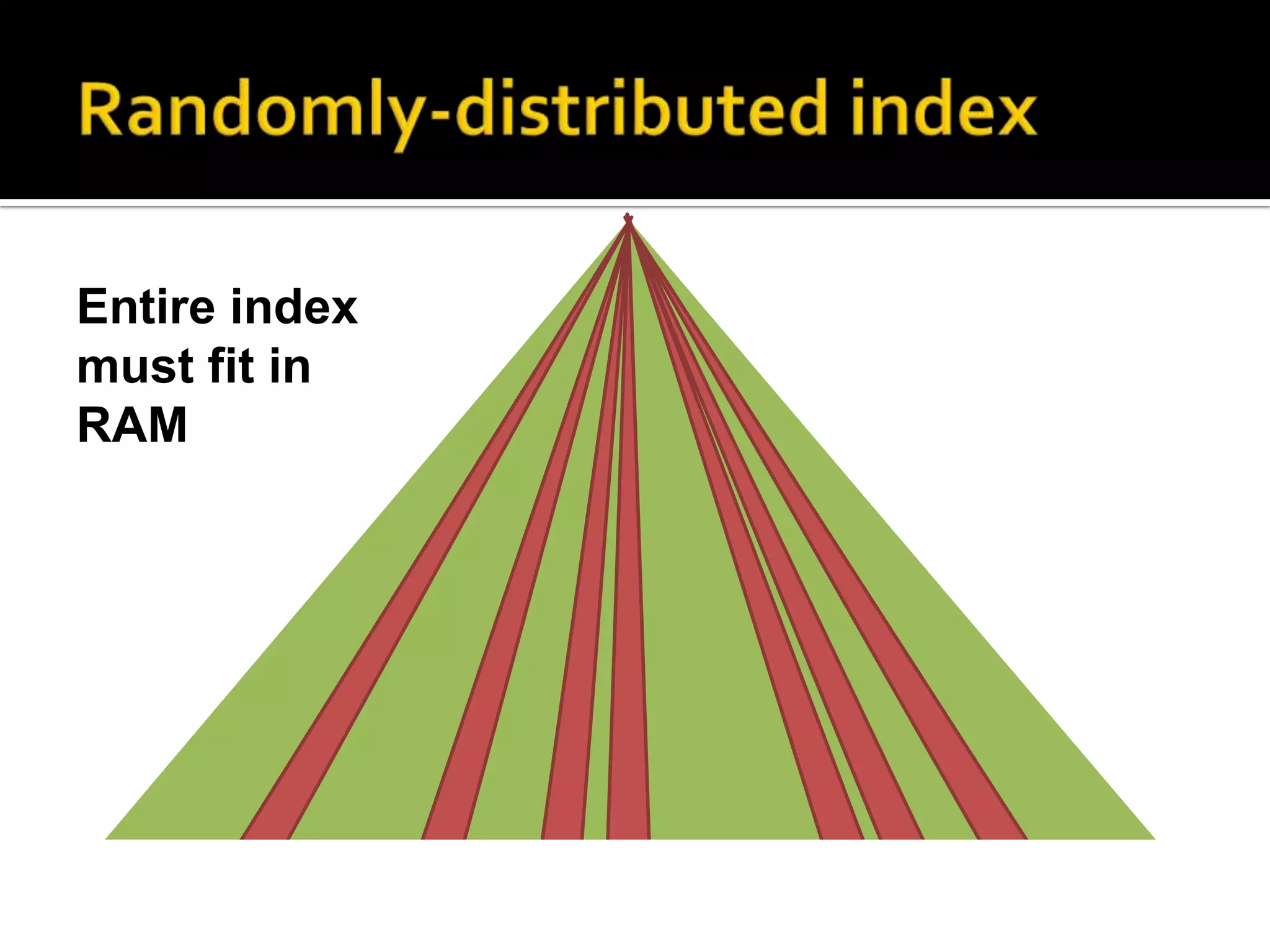

Entire index
must fit in
RAM

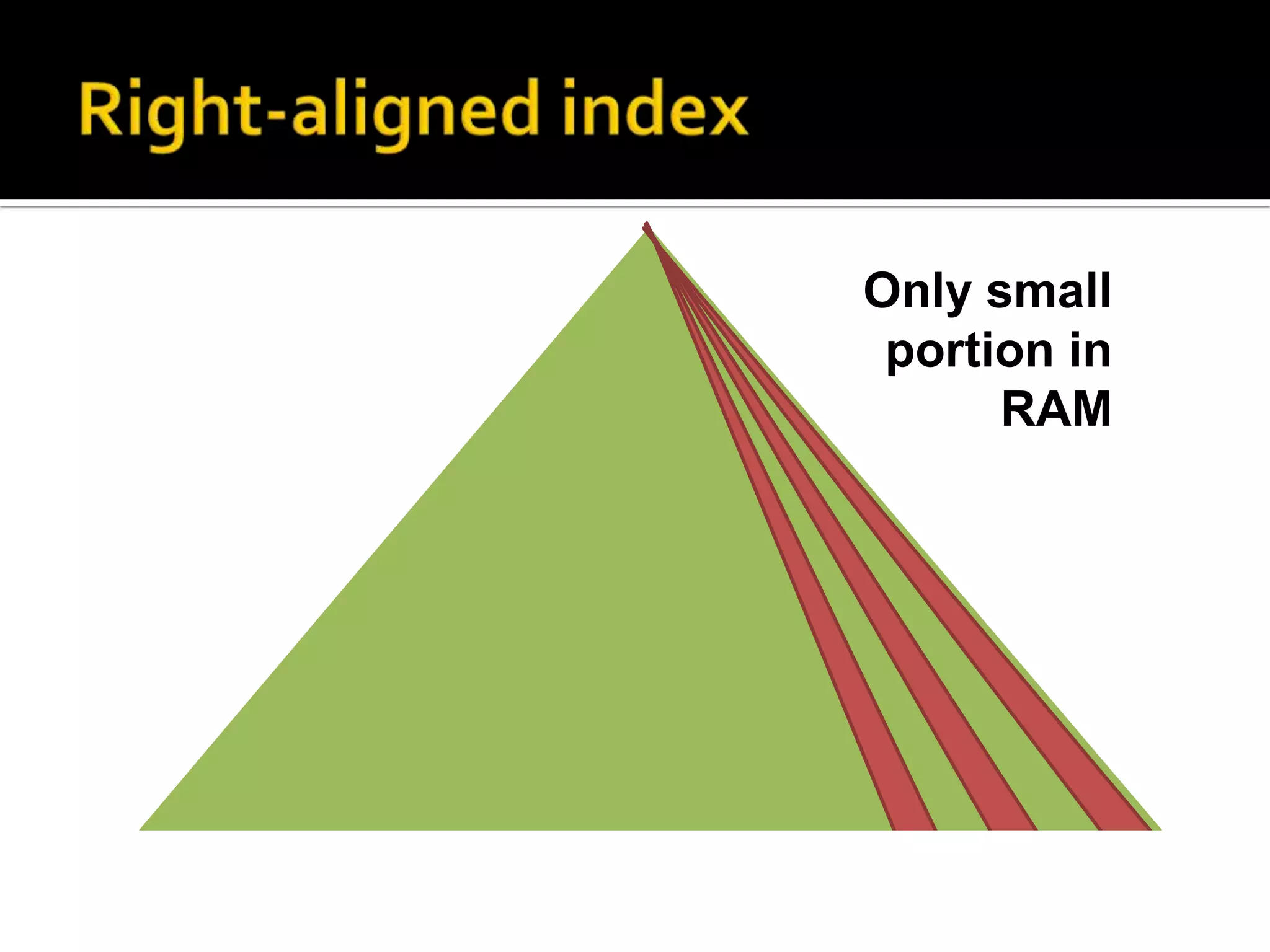

Only small
 portion in
      RAM

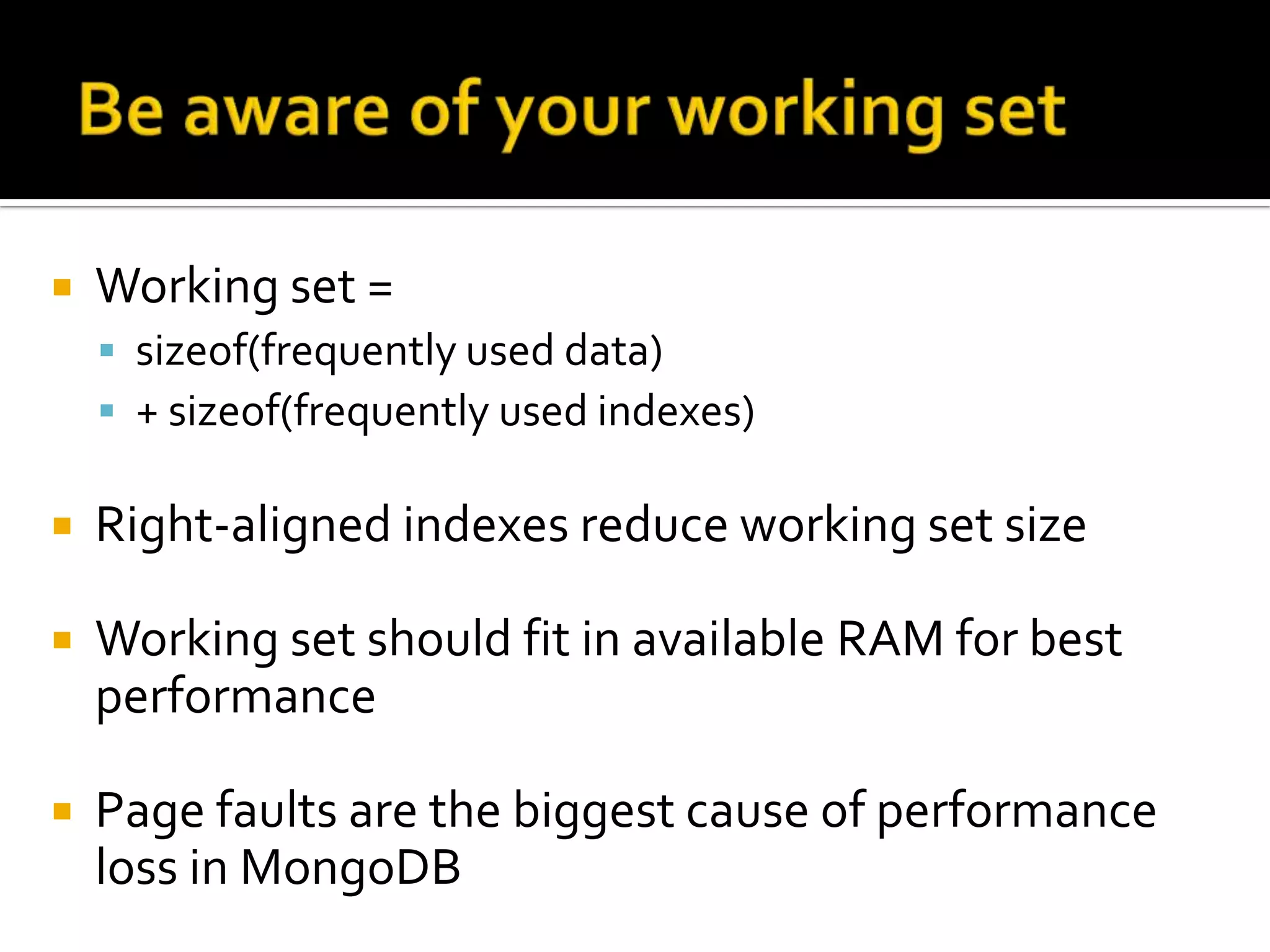

   Working set =
     sizeof(frequently used data)
     + sizeof(frequently used indexes)

   Right-aligned indexes reduce working set size

   Working set should fit in available RAM for best
    performance

   Page faults are the biggest cause of performance
    loss in MongoDB

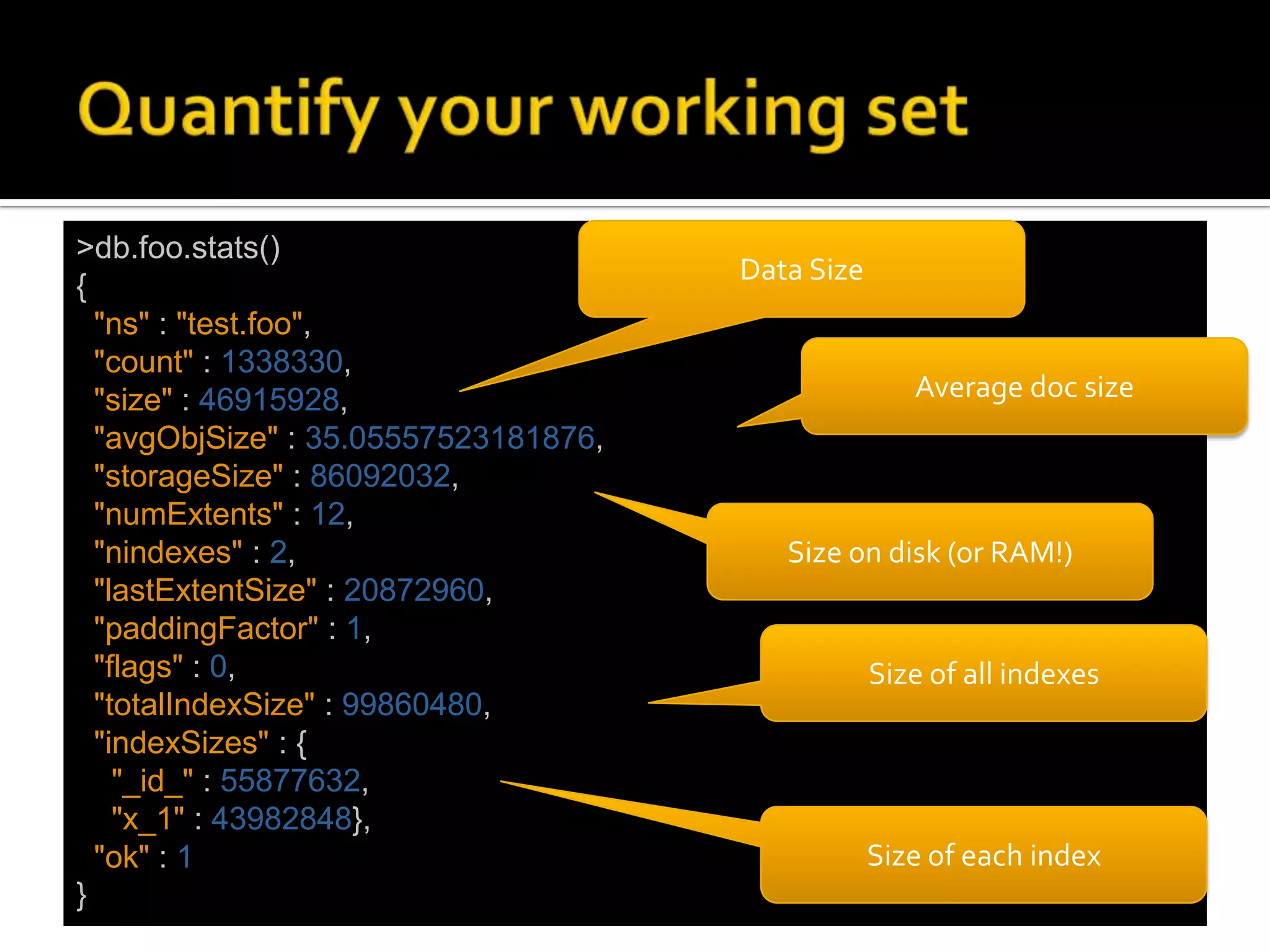

>db.foo.stats()
                                      Data Size
{
  "ns" : "test.foo",
  "count" : 1338330,
  "size" : 46915928,                                 Average doc size
  "avgObjSize" : 35.05557523181876,
  "storageSize" : 86092032,
  "numExtents" : 12,
  "nindexes" : 2,                        Size on disk (or RAM!)
  "lastExtentSize" : 20872960,
  "paddingFactor" : 1,
  "flags" : 0,                                    Size of all indexes
  "totalIndexSize" : 99860480,
  "indexSizes" : {
    "_id_" : 55877632,
    "x_1" : 43982848},
  "ok" : 1                                        Size of each index
}

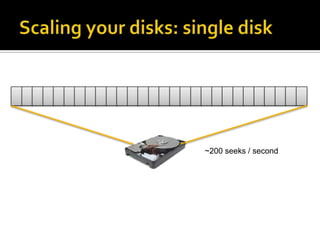

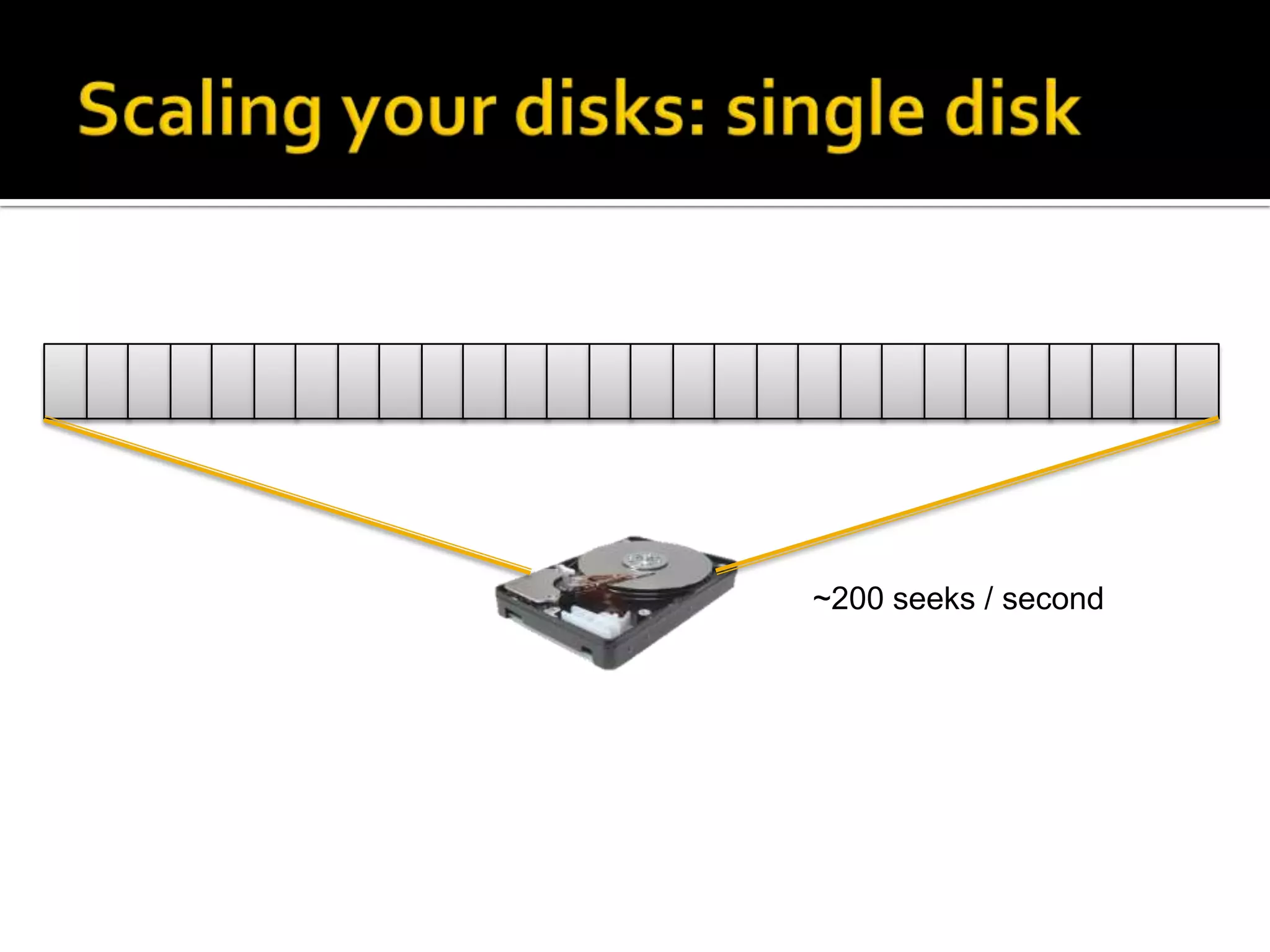

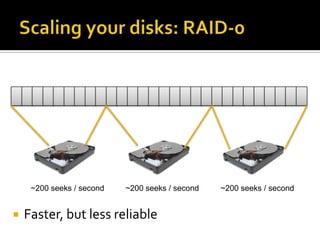

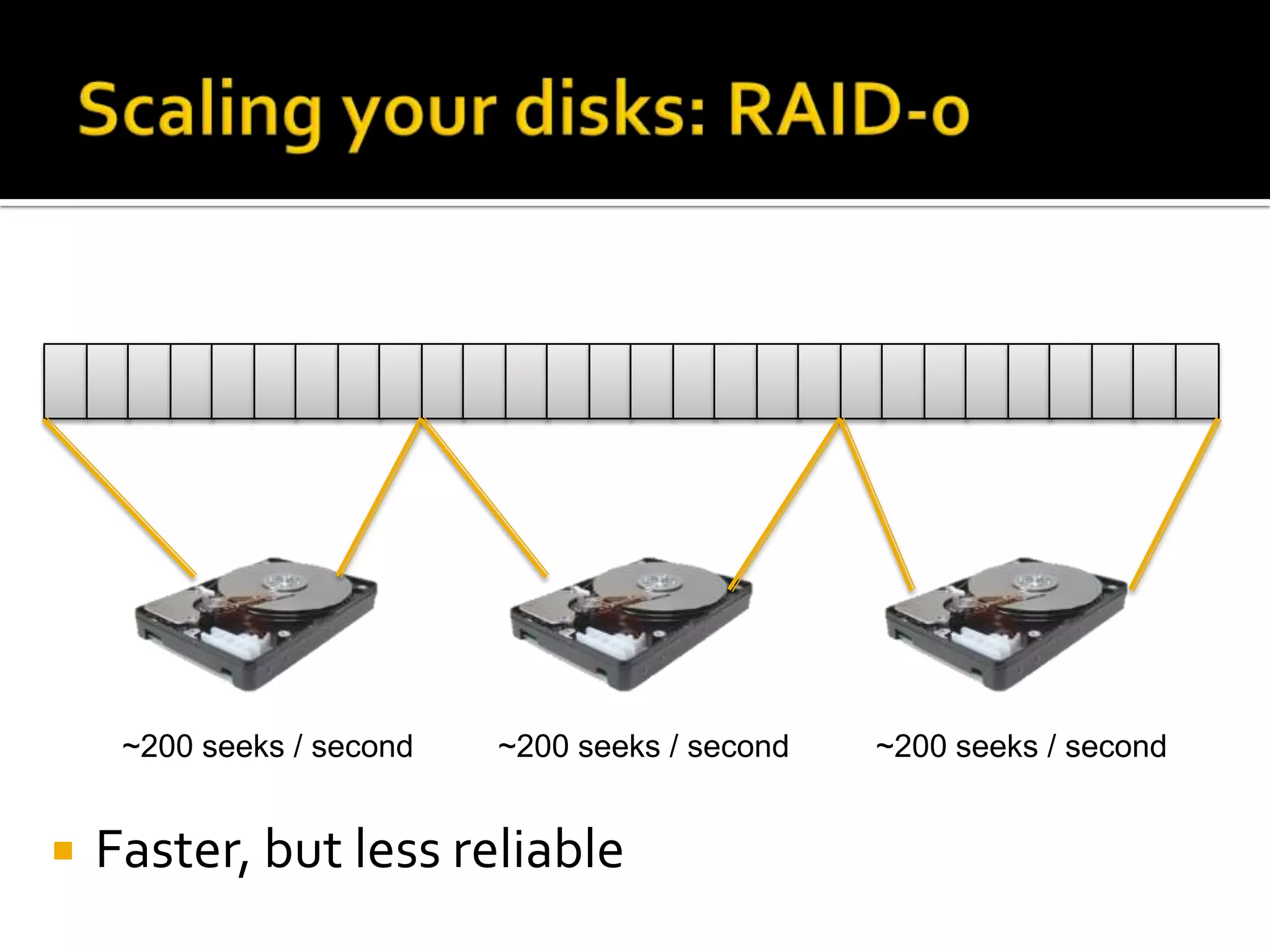

~200 seeks / second
~200 seeks / second   ~200 seeks / second   ~200 seeks / second


   Faster, but less reliable

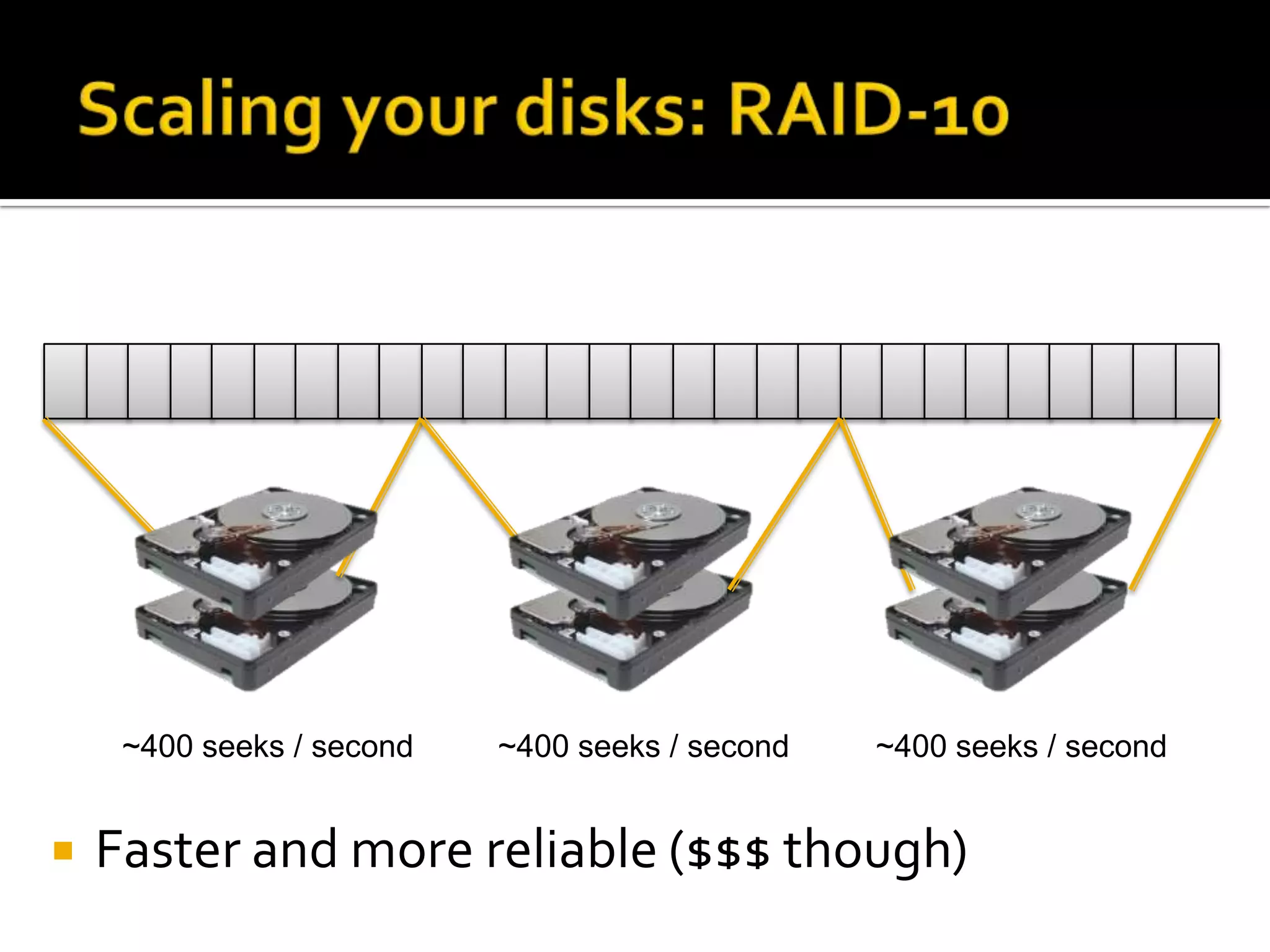

~400 seeks / second   ~400 seeks / second   ~400 seeks / second


   Faster and more reliable ($$$ though)

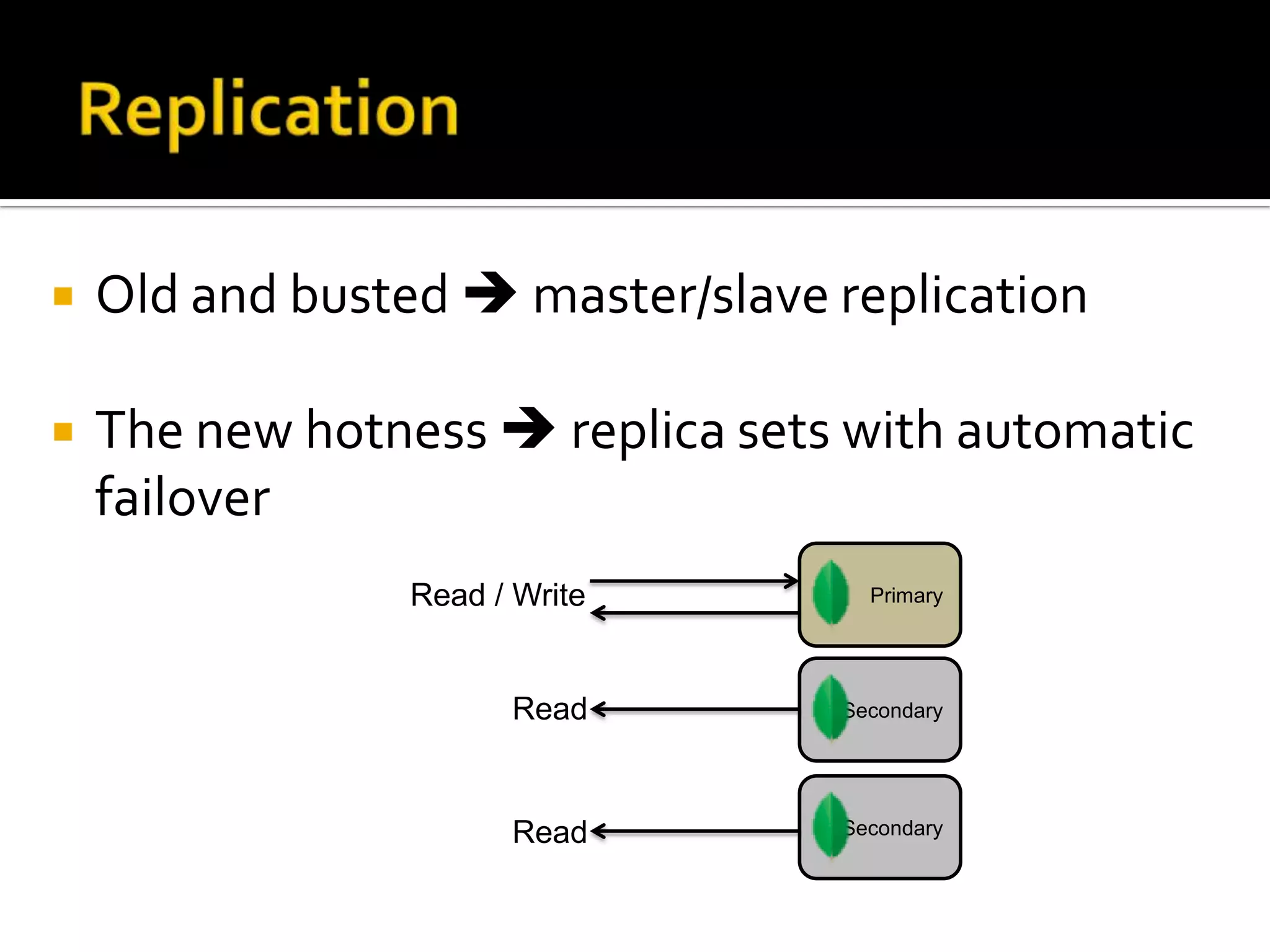

   Old and busted  master/slave replication

   The new hotness  replica sets with automatic
    failover

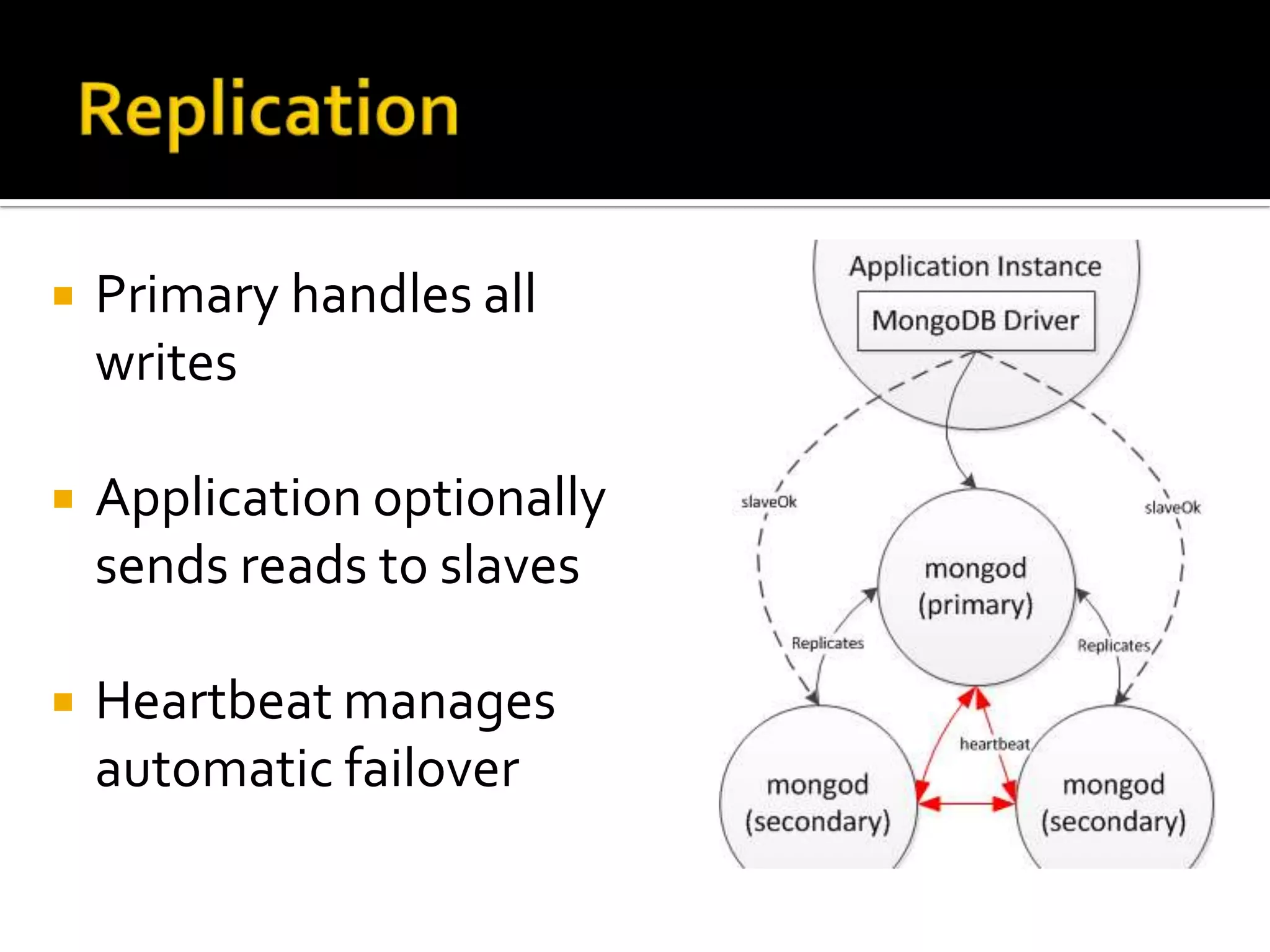

                 Read / Write       Primary




                       Read       Secondary




                       Read       Secondary
   Primary handles all
    writes

   Application optionally
    sends reads to slaves

   Heartbeat manages
    automatic failover

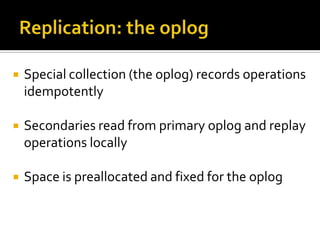

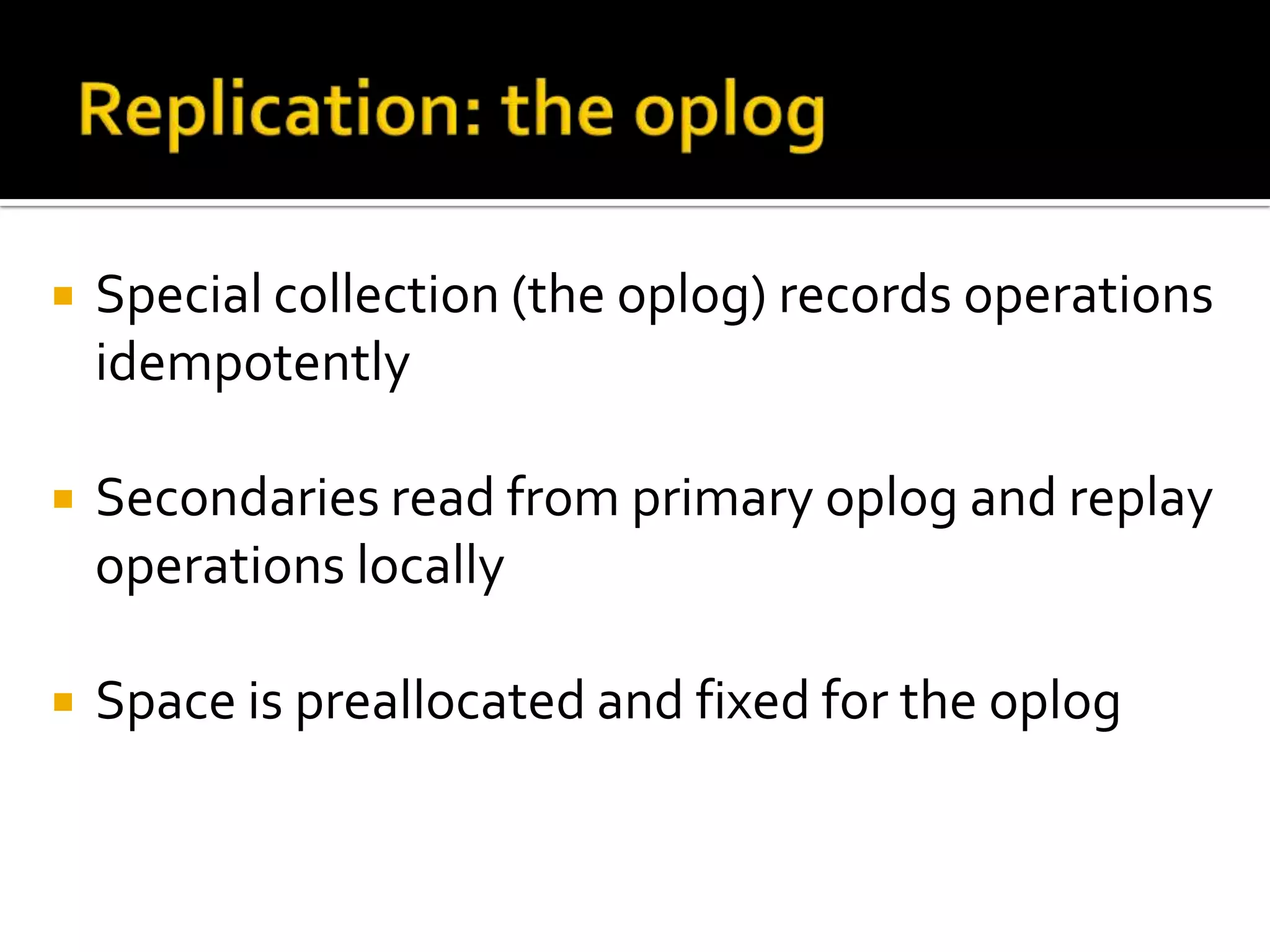

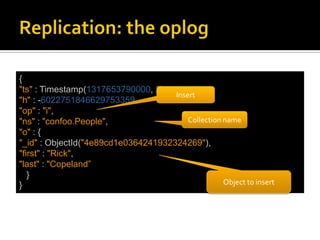

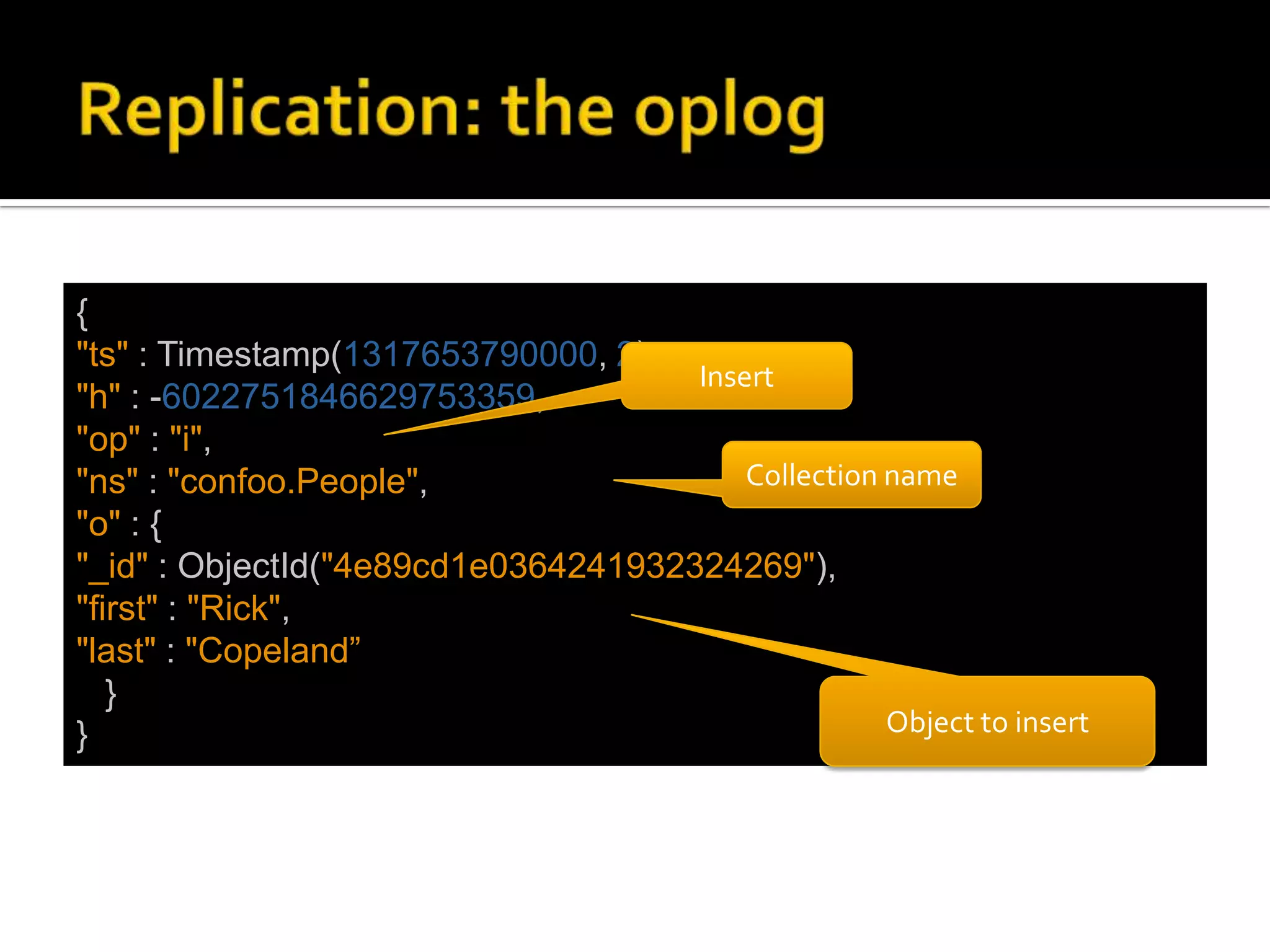

   Special collection (the oplog) records operations
    idempotently

   Secondaries read from primary oplog and replay
    operations locally

   Space is preallocated and fixed for the oplog
{
"ts" : Timestamp(1317653790000, 2),
                                     Insert
"h" : -6022751846629753359,
"op" : "i",
"ns" : "confoo.People",                  Collection name
"o" : {
"_id" : ObjectId("4e89cd1e0364241932324269"),
"first" : "Rick",
"last" : "Copeland”
   }
}                                                   Object to insert

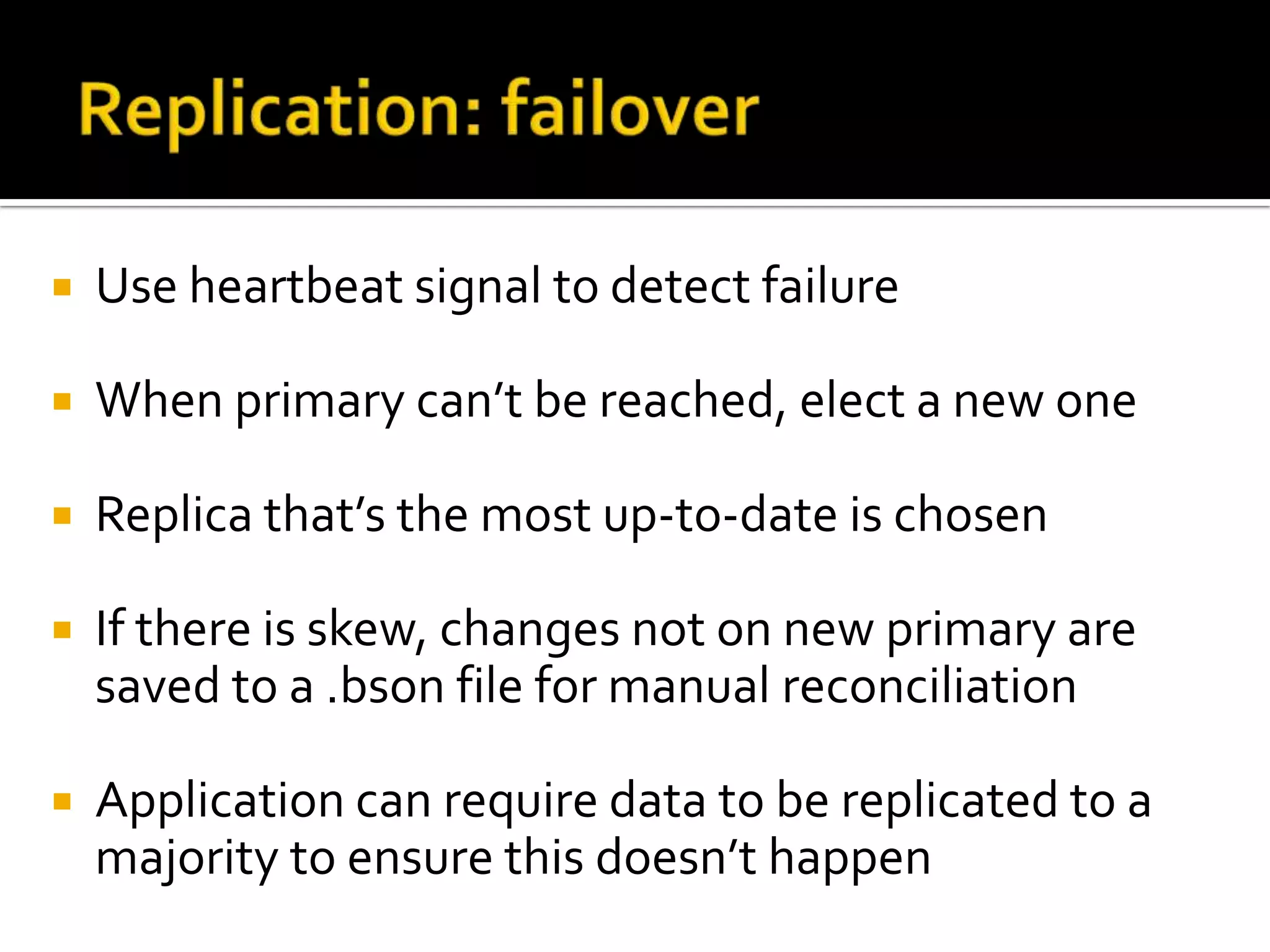

   Use heartbeat signal to detect failure

   When primary can’t be reached, elect a new one

   Replica that’s the most up-to-date is chosen

   If there is skew, changes not on new primary are
    saved to a .bson file for manual reconciliation

   Application can require data to be replicated to a
    majority to ensure this doesn’t happen

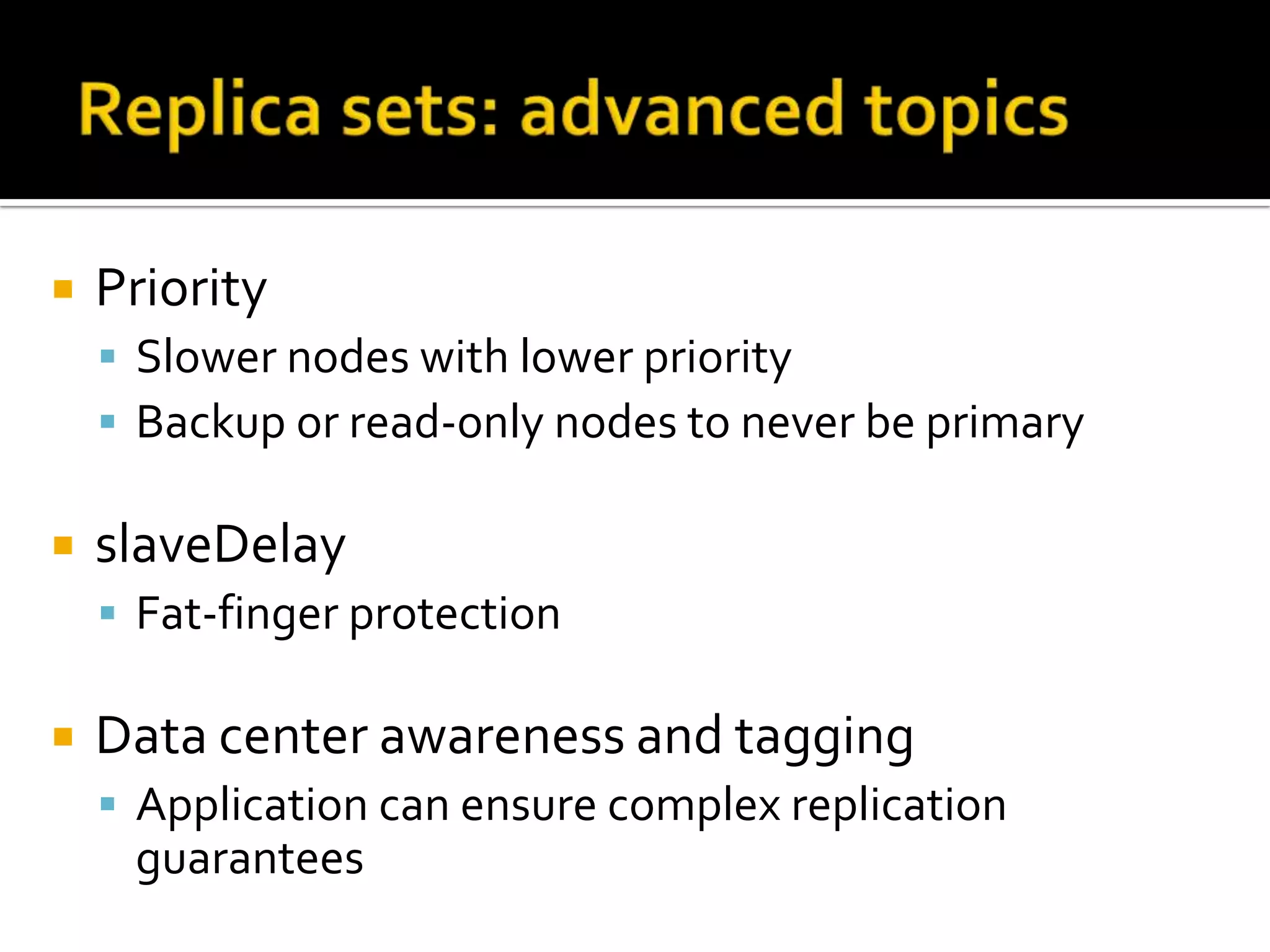

   Priority
     Slower nodes with lower priority
     Backup or read-only nodes to never be primary

   slaveDelay
     Fat-finger protection

   Data center awareness and tagging
     Application can ensure complex replication
     guarantees

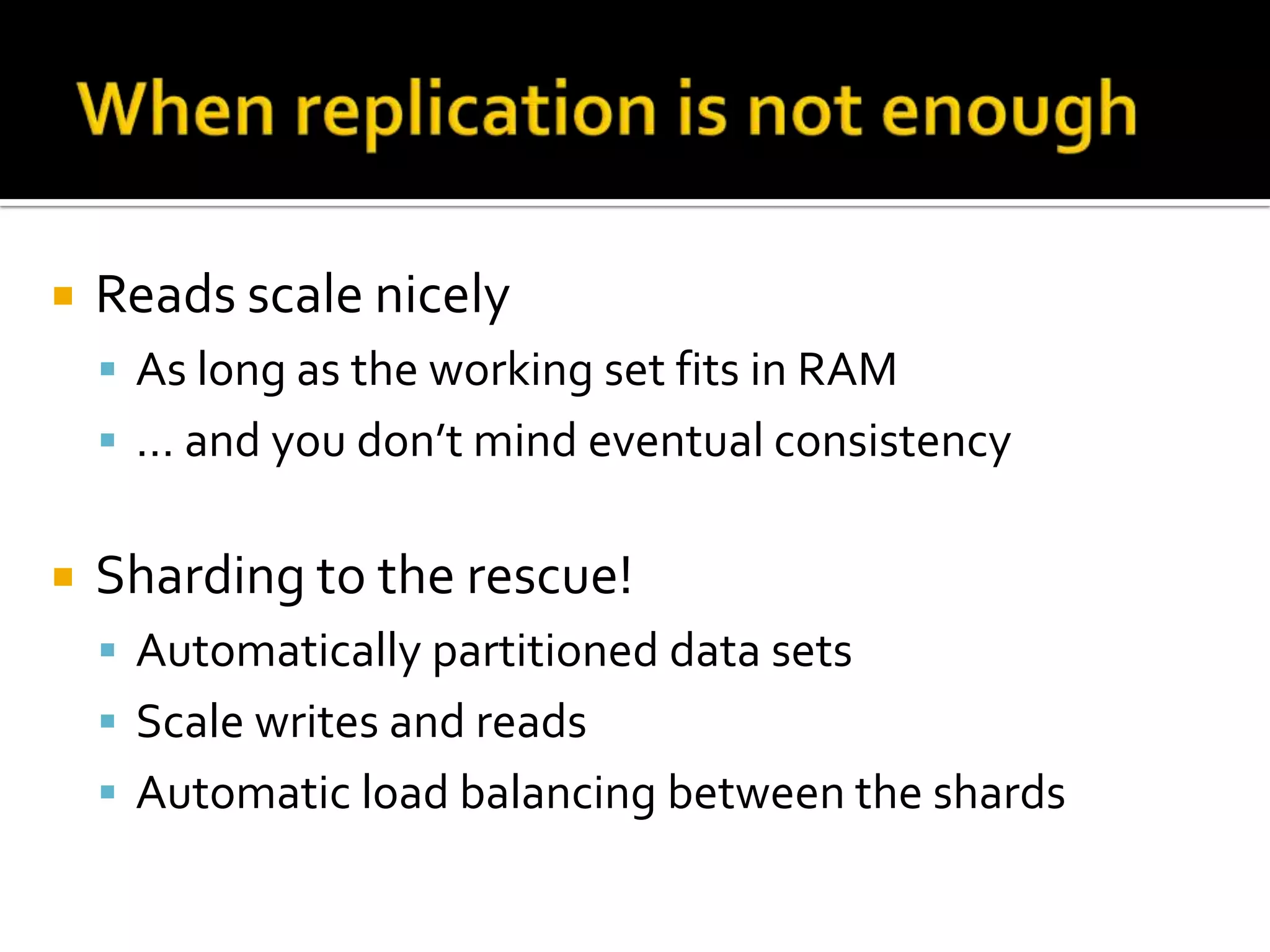

   Reads scale nicely
     As long as the working set fits in RAM
     … and you don’t mind eventual consistency


   Sharding to the rescue!
     Automatically partitioned data sets
     Scale writes and reads
     Automatic load balancing between the shards

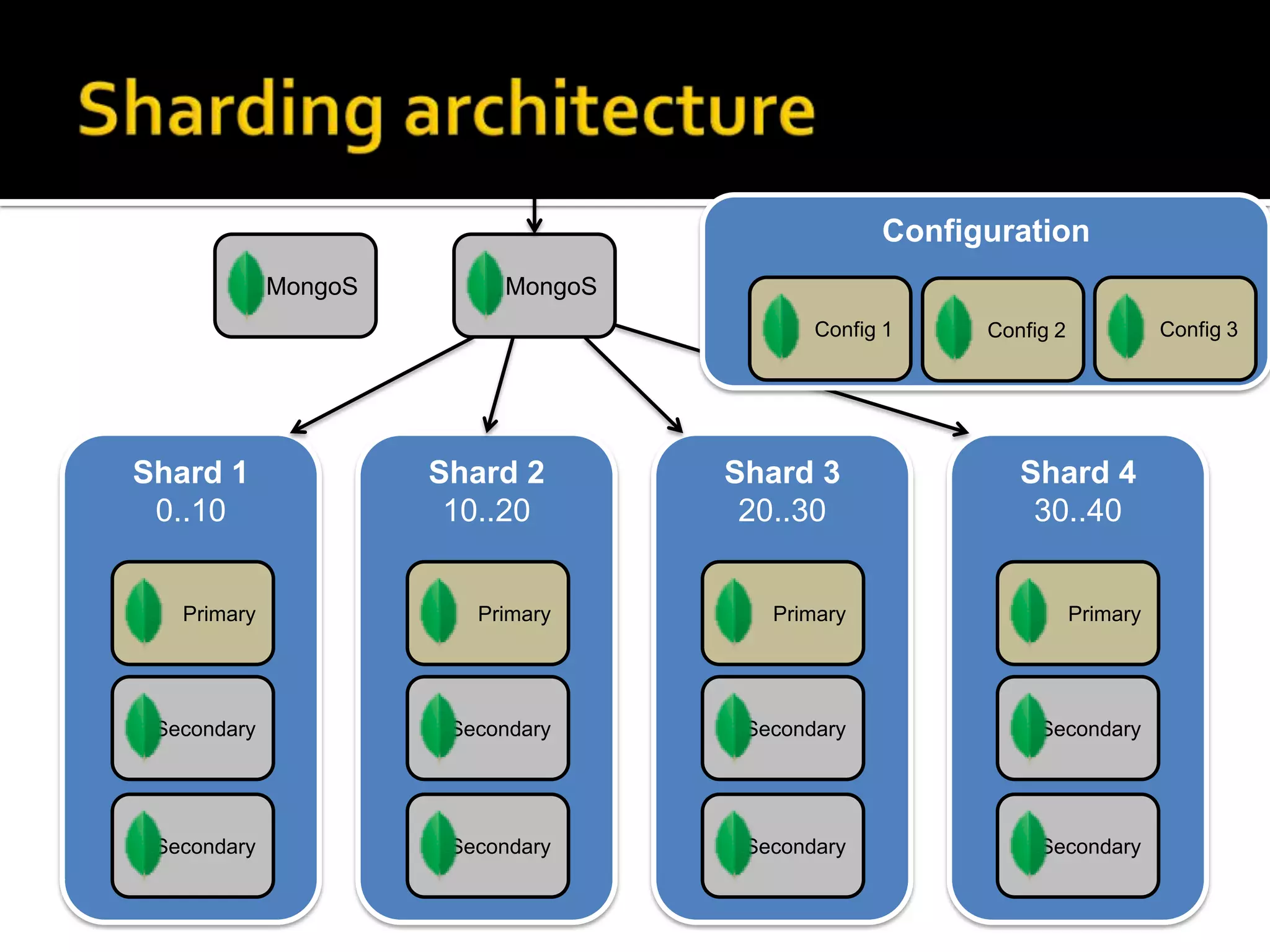

Configuration
             MongoS        MongoS
                                           Config 1    Config 2             Config 3




Shard 1               Shard 2       Shard 3               Shard 4
 0..10                 10..20        20..30                30..40


   Primary               Primary       Primary                    Primary




 Secondary             Secondary     Secondary              Secondary




 Secondary             Secondary     Secondary              Secondary

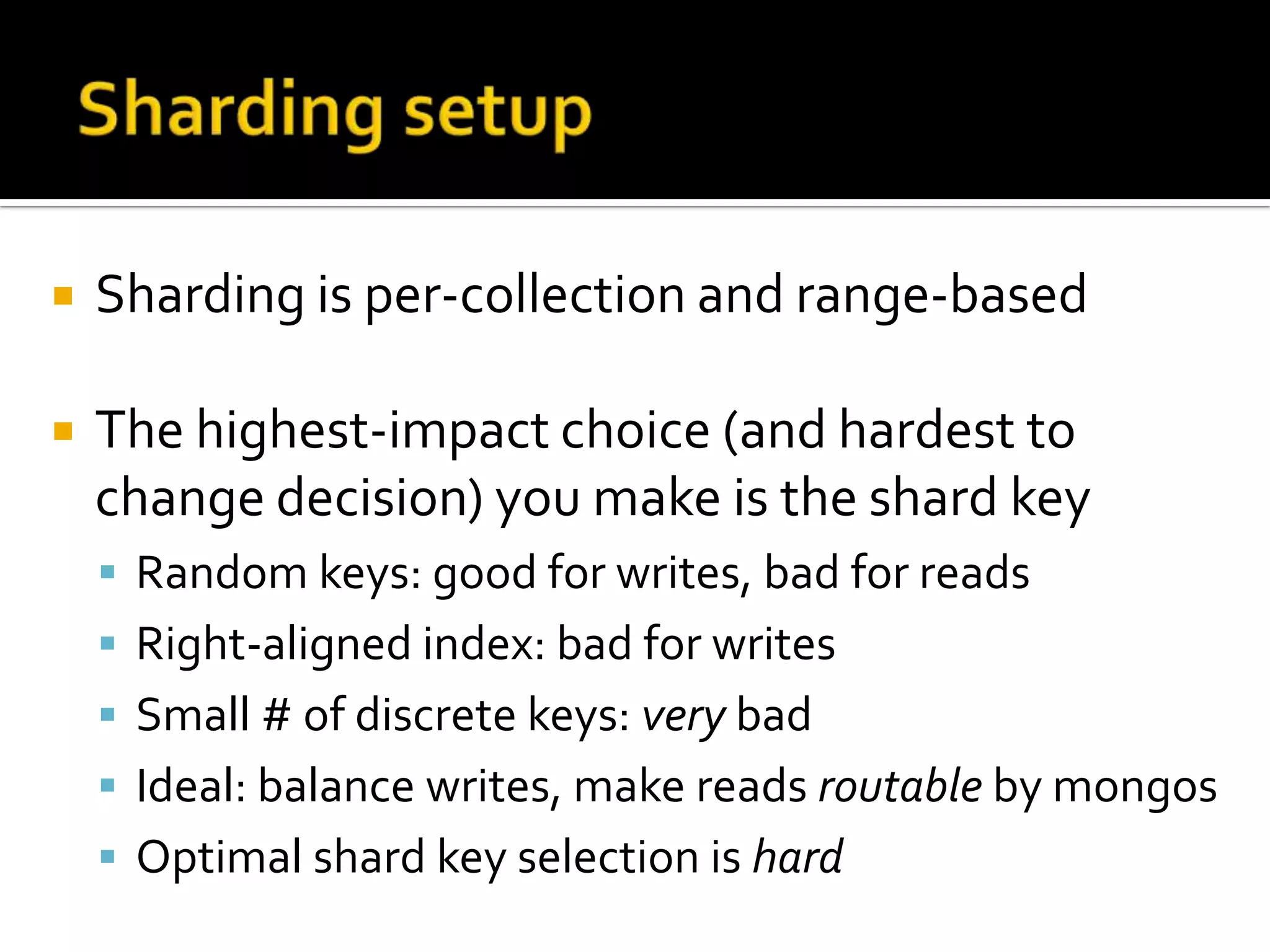

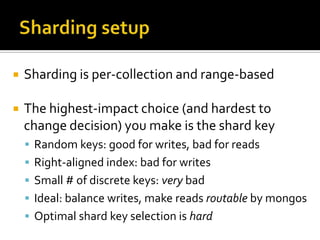

   Sharding is per-collection and range-based

   The highest-impact choice (and hardest to
    change decision) you make is the shard key
     Random keys: good for writes, bad for reads
     Right-aligned index: bad for writes
     Small # of discrete keys: very bad
     Ideal: balance writes, make reads routable by mongos
     Optimal shard key selection is hard

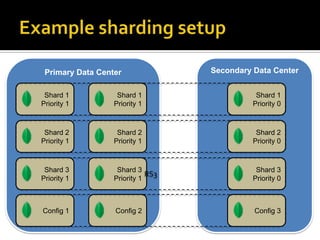

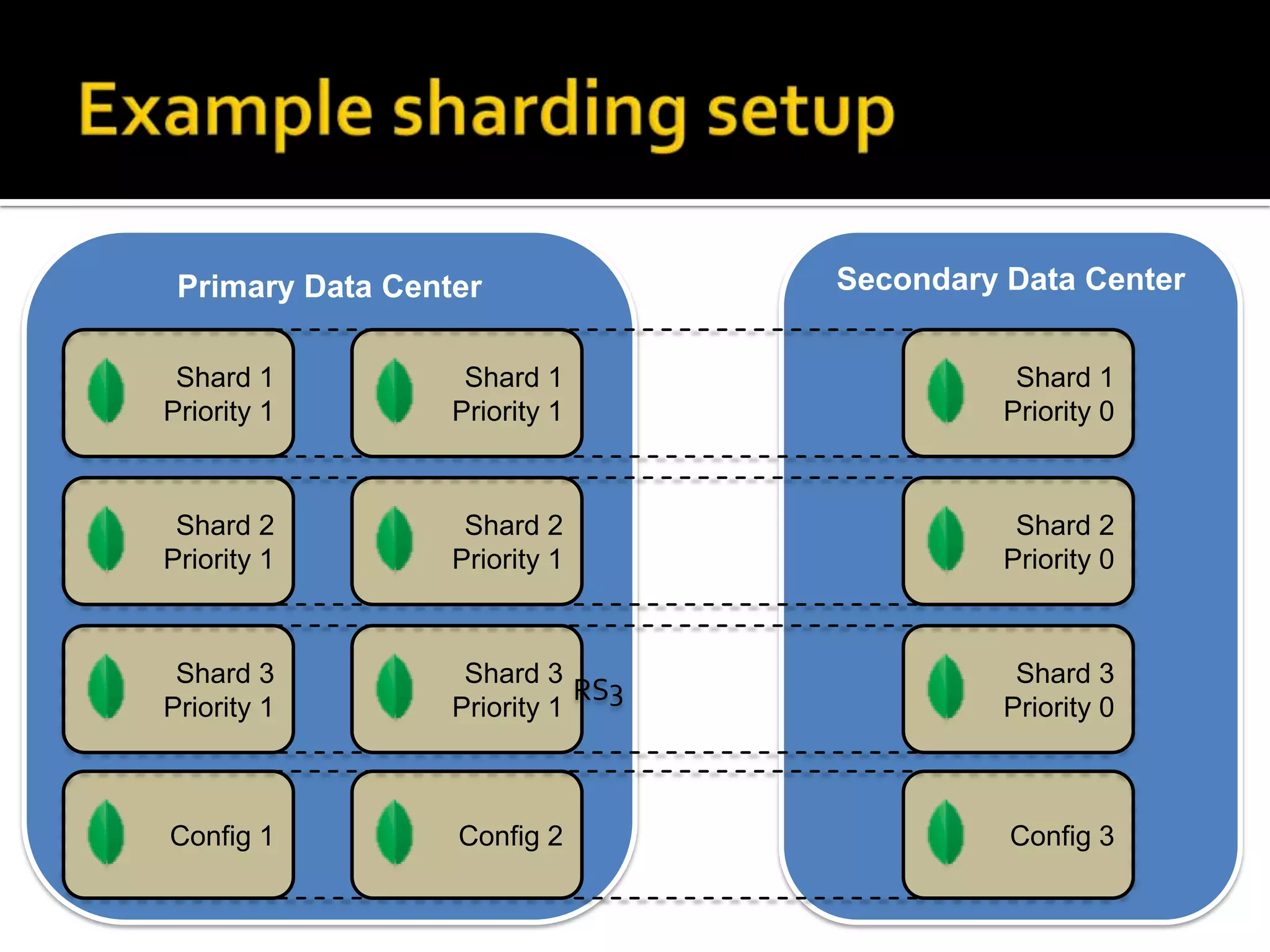

Primary Data Center               Secondary Data Center


 Shard 1           Shard 1                    Shard 1
Priority 1        Priority 1                 Priority 0



 Shard 2           Shard 2                    Shard 2
Priority 1        Priority 1                 Priority 0



 Shard 3           Shard 3                    Shard 3
                             RS3
Priority 1        Priority 1                 Priority 0



Config 1          Config 2                   Config 3

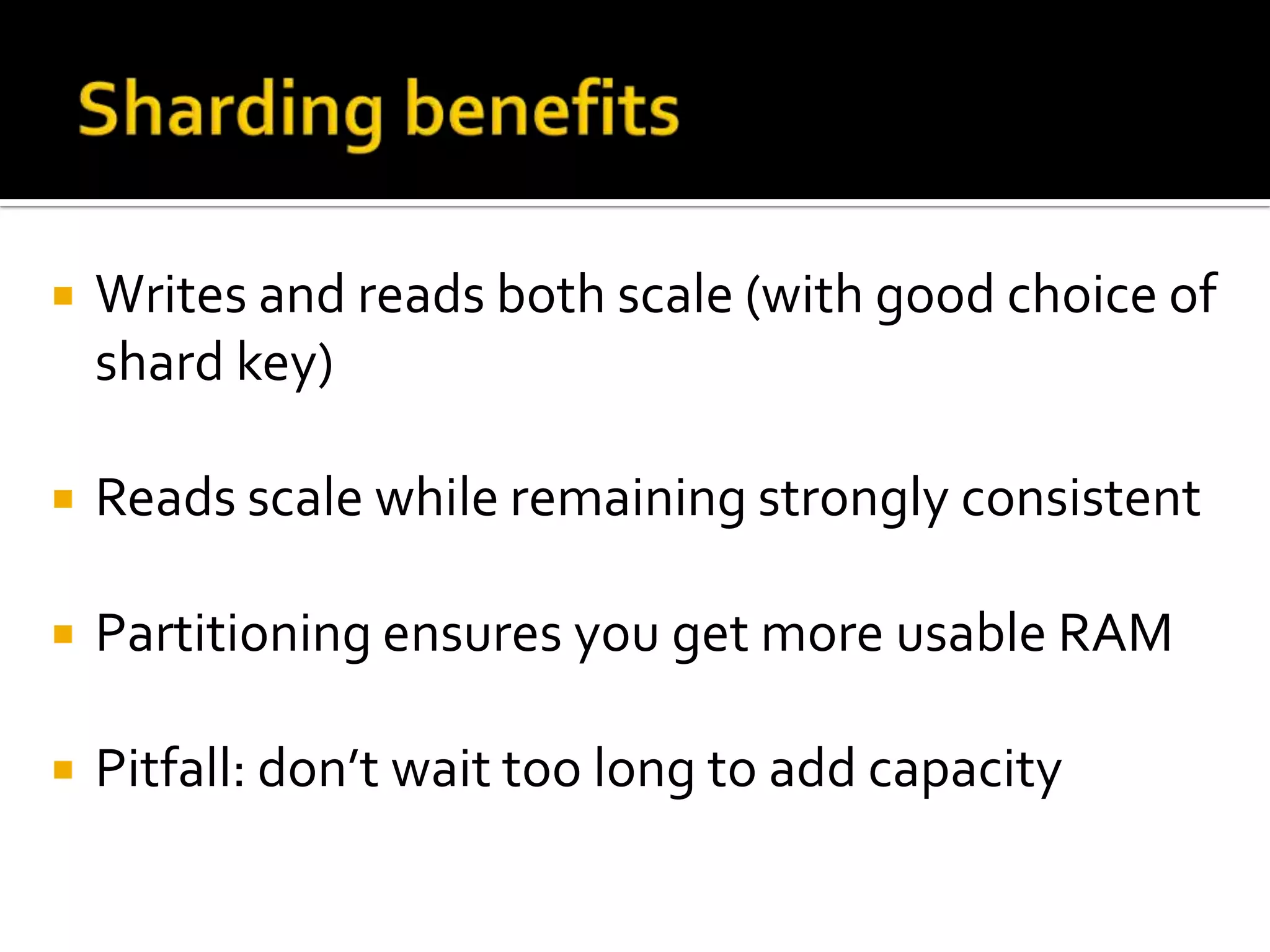

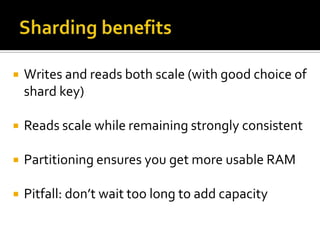

   Writes and reads both scale (with good choice of
    shard key)

   Reads scale while remaining strongly consistent

   Partitioning ensures you get more usable RAM

   Pitfall: don’t wait too long to add capacity
Rick Copeland @rick446
Arborian Consulting, LLC
