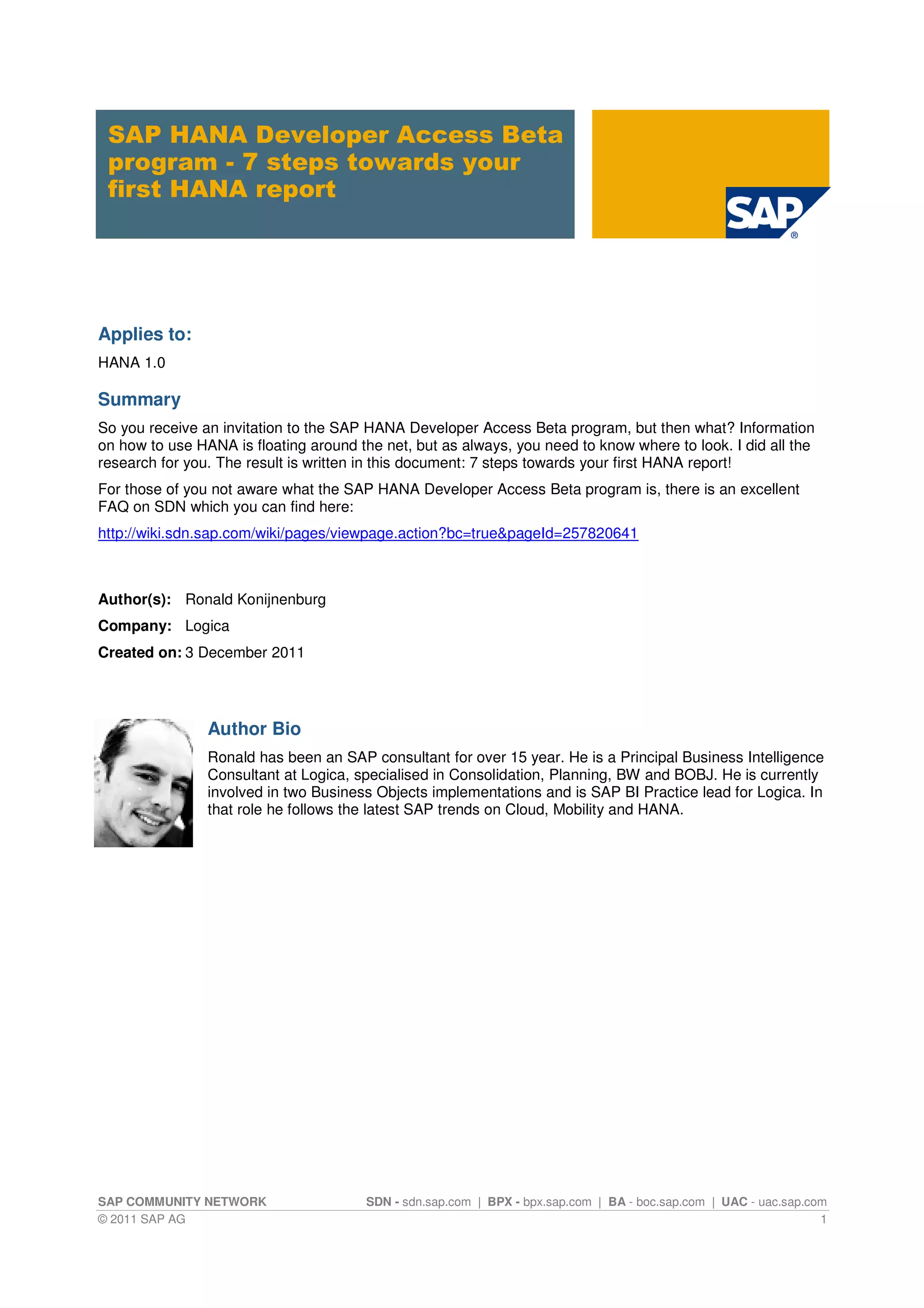

SAP HANA Developer Access Beta program - 7 steps towards your first HANA report

SAP HANA Developer Access Beta
program - 7 steps towards your
first HANA report

Applies to:
HANA 1.0

Summary
So you receive an invitation to the SAP HANA Developer Access Beta program, but then what? Information
on how to use HANA is floating around the net, but as always, you need to know where to look. I did all the
research for you. The result is written in this document: 7 steps towards your first HANA report!
For those of you not aware what the SAP HANA Developer Access Beta program is, there is an excellent
FAQ on SDN which you can find here:
http://wiki.sdn.sap.com/wiki/pages/viewpage.action?bc=true&pageId=257820641

Author(s): Ronald Konijnenburg
Company: Logica
Created on: 3 December 2011

Author Bio
Ronald has been an SAP consultant for over 15 year. He is a Principal Business Intelligence
Consultant at Logica, specialised in Consolidation, Planning, BW and BOBJ. He is currently
involved in two Business Objects implementations and is SAP BI Practice lead for Logica. In
that role he follows the latest SAP trends on Cloud, Mobility and HANA.

SAP COMMUNITY NETWORK SDN - sdn.sap.com | BPX - bpx.sap.com | BA - boc.sap.com | UAC - uac.sap.com
© 2011 SAP AG 1

SAP HANA Developer Access Beta program - 7 steps towards your first HANA report

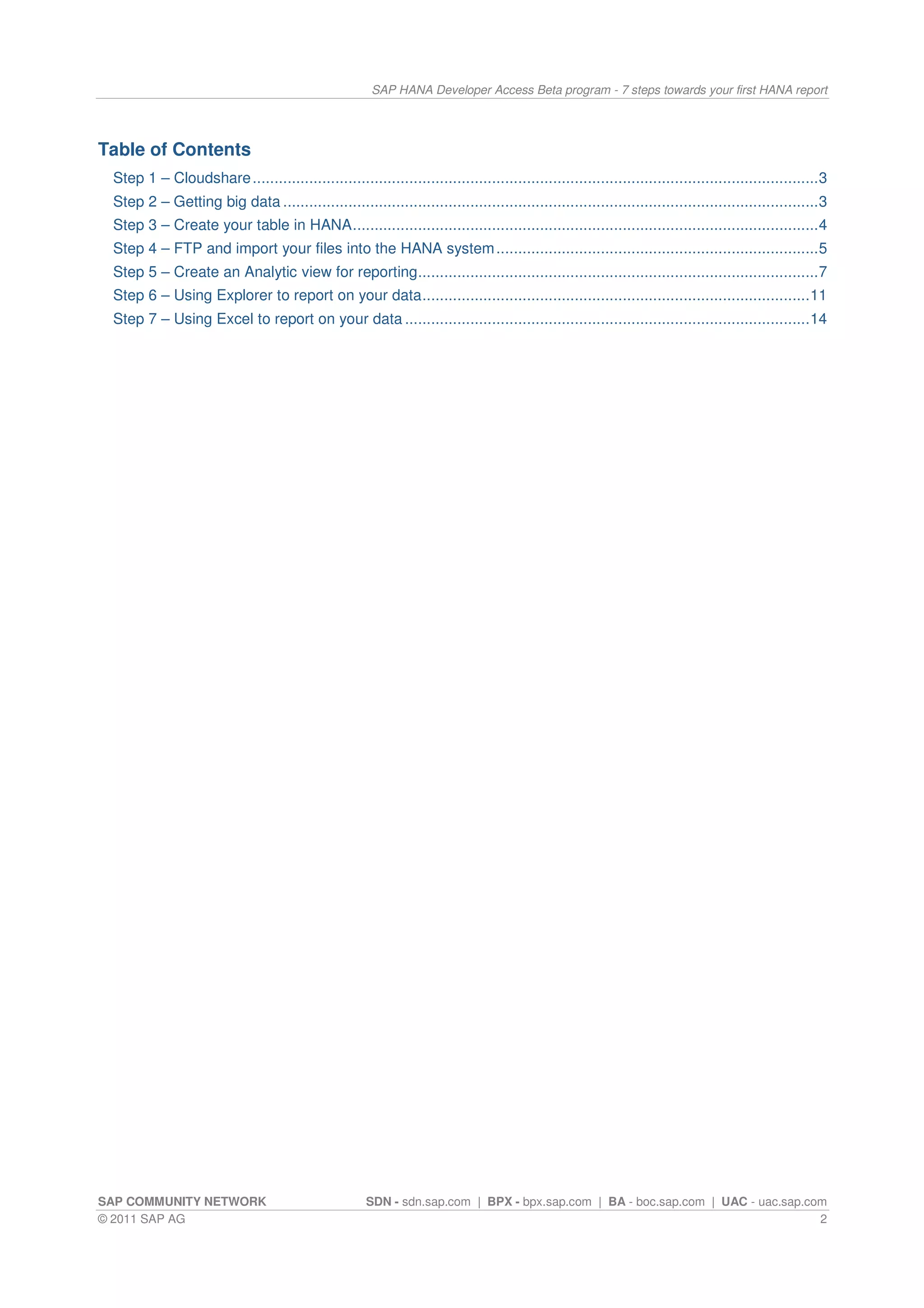

Table of Contents
Step 1 – Cloudshare .................................................................................................................................. 3
Step 2 – Getting big data ........................................................................................................................... 3
Step 3 – Create your table in HANA ........................................................................................................... 4
Step 4 – FTP and import your files into the HANA system .......................................................................... 5
Step 5 – Create an Analytic view for reporting ............................................................................................ 7
Step 6 – Using Explorer to report on your data ......................................................................................... 11
Step 7 – Using Excel to report on your data ............................................................................................. 14

© 2011 SAP AG 2

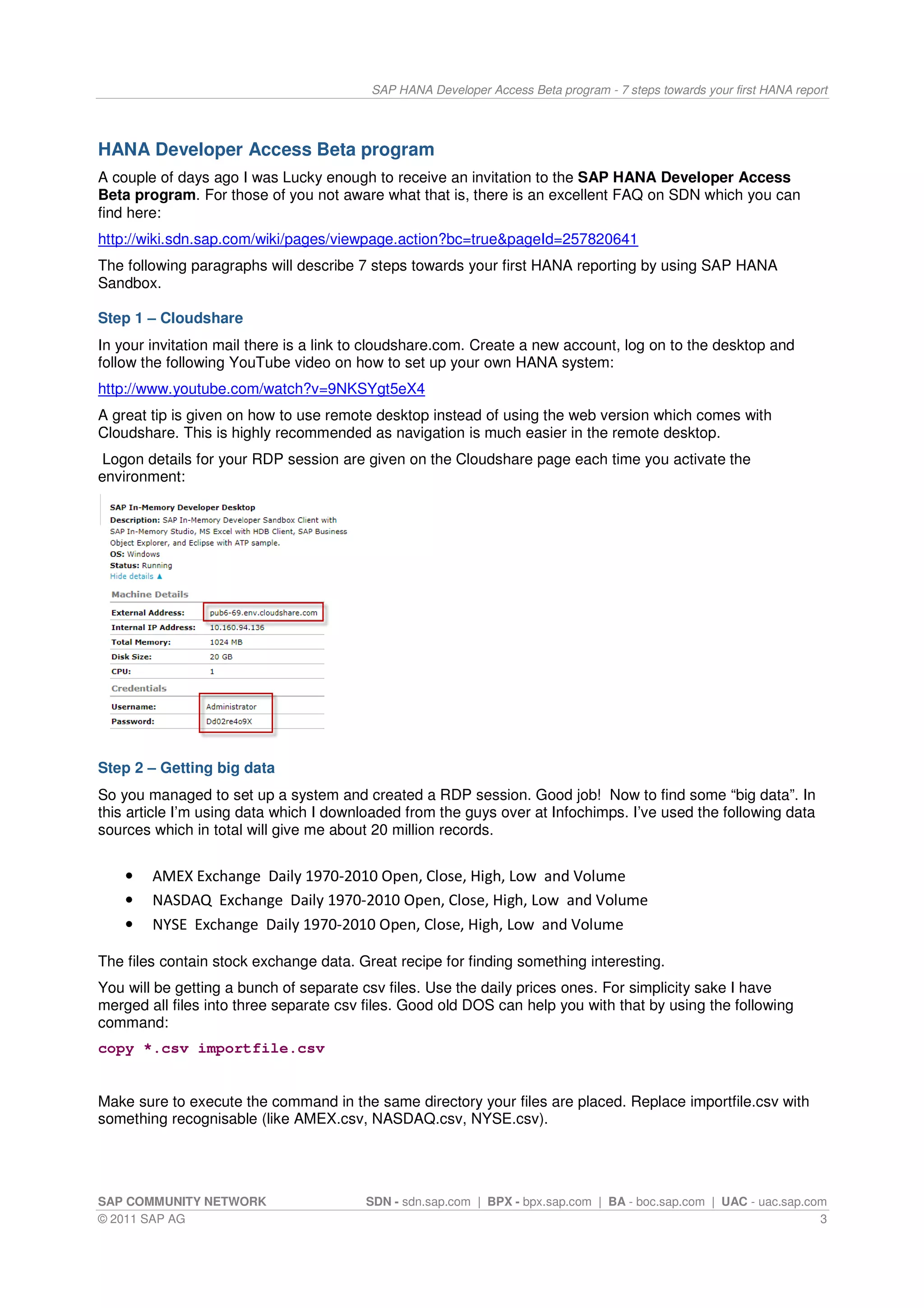

HANA Developer Access Beta program
A couple of days ago I was Lucky enough to receive an invitation to the SAP HANA Developer Access
Beta program. For those of you not aware what that is, there is an excellent FAQ on SDN which you can
find here:
http://wiki.sdn.sap.com/wiki/pages/viewpage.action?bc=true&pageId=257820641
The following paragraphs will describe 7 steps towards your first HANA reporting by using SAP HANA
Sandbox.

Step 1 – Cloudshare
In your invitation mail there is a link to cloudshare.com. Create a new account, log on to the desktop and
follow the following YouTube video on how to set up your own HANA system:
http://www.youtube.com/watch?v=9NKSYgt5eX4
A great tip is given on how to use remote desktop instead of using the web version which comes with
Cloudshare. This is highly recommended as navigation is much easier in the remote desktop.
Logon details for your RDP session are given on the Cloudshare page each time you activate the
environment:

Step 2 – Getting big data
So you managed to set up a system and created a RDP session. Good job! Now to find some “big data”. In
this article I’m using data which I downloaded from the guys over at Infochimps. I’ve used the following data
sources which in total will give me about 20 million records.

• AMEX Exchange Daily 1970-2010 Open, Close, High, Low and Volume
• NASDAQ Exchange Daily 1970-2010 Open, Close, High, Low and Volume
• NYSE Exchange Daily 1970-2010 Open, Close, High, Low and Volume

The files contain stock exchange data. Great recipe for finding something interesting.
You will be getting a bunch of separate csv files. Use the daily prices ones. For simplicity sake I have
merged all files into three separate csv files. Good old DOS can help you with that by using the following
command:
copy *.csv importfile.csv

Make sure to execute the command in the same directory your files are placed. Replace importfile.csv with
something recognisable (like AMEX.csv, NASDAQ.csv, NYSE.csv).

© 2011 SAP AG 3

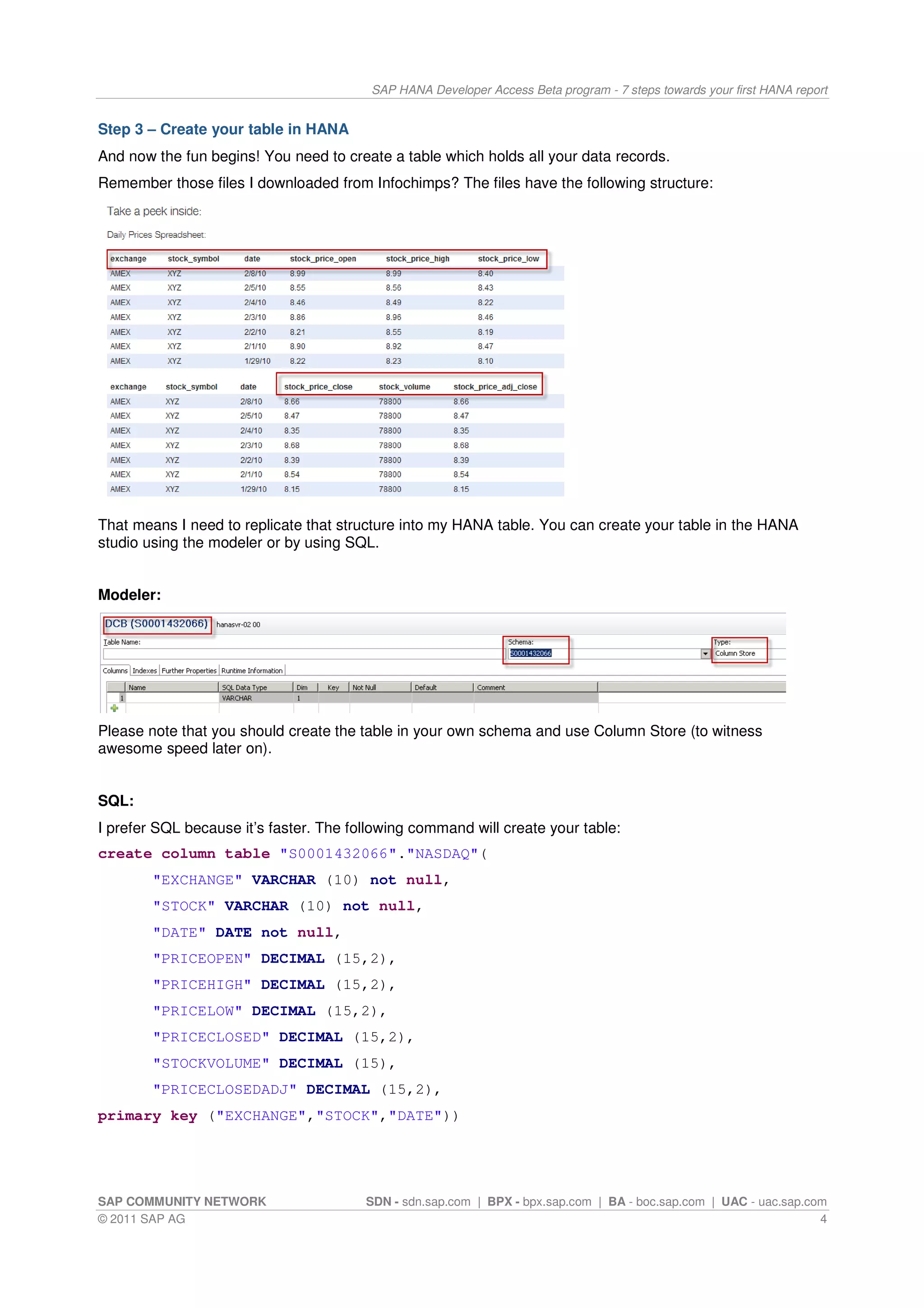

Step 3 – Create your table in HANA
And now the fun begins! You need to create a table which holds all your data records.
Remember those files I downloaded from Infochimps? The files have the following structure:

That means I need to replicate that structure into my HANA table. You can create your table in the HANA
studio using the modeler or by using SQL.

Modeler:

Please note that you should create the table in your own schema and use Column Store (to witness
awesome speed later on).

SQL:
I prefer SQL because it’s faster. The following command will create your table:
create column table "S0001432066"."NASDAQ"(
"EXCHANGE" VARCHAR (10) not null,
"STOCK" VARCHAR (10) not null,
"DATE" DATE not null,
"PRICEOPEN" DECIMAL (15,2),
"PRICEHIGH" DECIMAL (15,2),
"PRICELOW" DECIMAL (15,2),
"PRICECLOSED" DECIMAL (15,2),
"STOCKVOLUME" DECIMAL (15),
"PRICECLOSEDADJ" DECIMAL (15,2),
primary key ("EXCHANGE","STOCK","DATE"))

© 2011 SAP AG 4

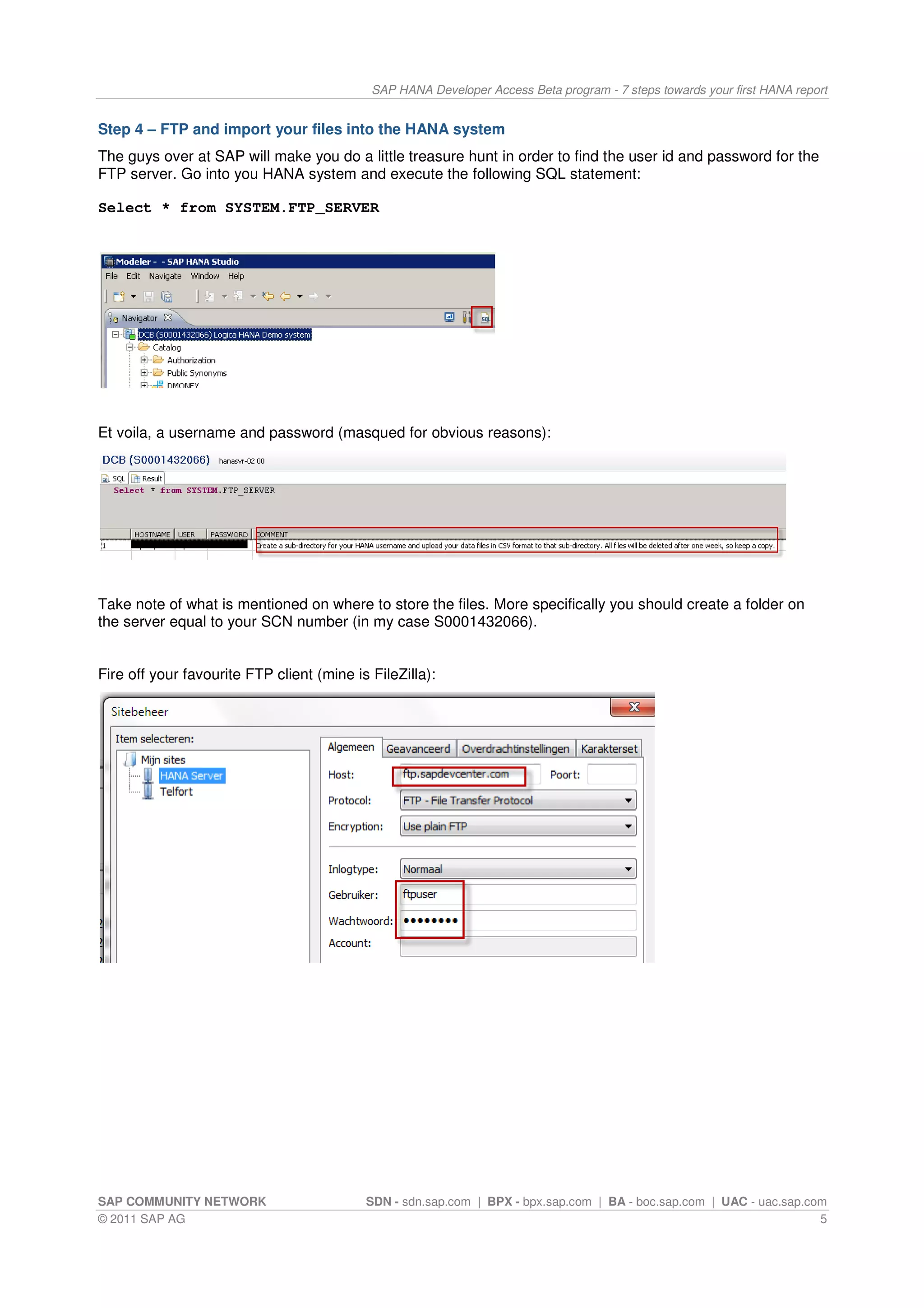

Step 4 – FTP and import your files into the HANA system
The guys over at SAP will make you do a little treasure hunt in order to find the user id and password for the
FTP server. Go into you HANA system and execute the following SQL statement:

Select * from SYSTEM.FTP_SERVER

Et voila, a username and password (masqued for obvious reasons):

Take note of what is mentioned on where to store the files. More specifically you should create a folder on
the server equal to your SCN number (in my case S0001432066).

Fire off your favourite FTP client (mine is FileZilla):

© 2011 SAP AG 5

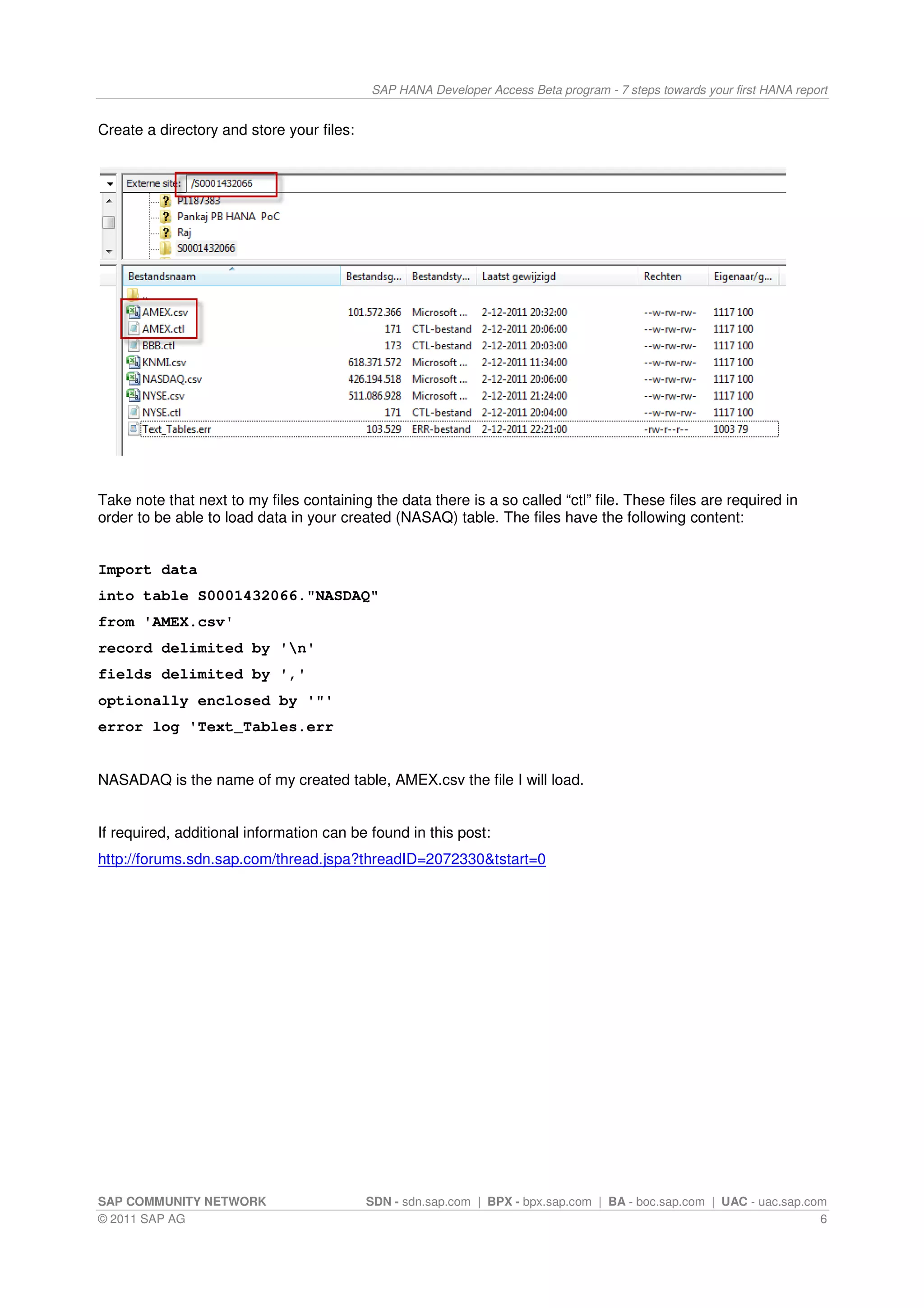

Create a directory and store your files:

Take note that next to my files containing the data there is a so called “ctl” file. These files are required in
order to be able to load data in your created (NASAQ) table. The files have the following content:

Import data
into table S0001432066."NASDAQ"
from 'AMEX.csv'
record delimited by 'n'
fields delimited by ','
optionally enclosed by '"'
error log 'Text_Tables.err

NASADAQ is the name of my created table, AMEX.csv the file I will load.

If required, additional information can be found in this post:
http://forums.sdn.sap.com/thread.jspa?threadID=2072330&tstart=0

© 2011 SAP AG 6

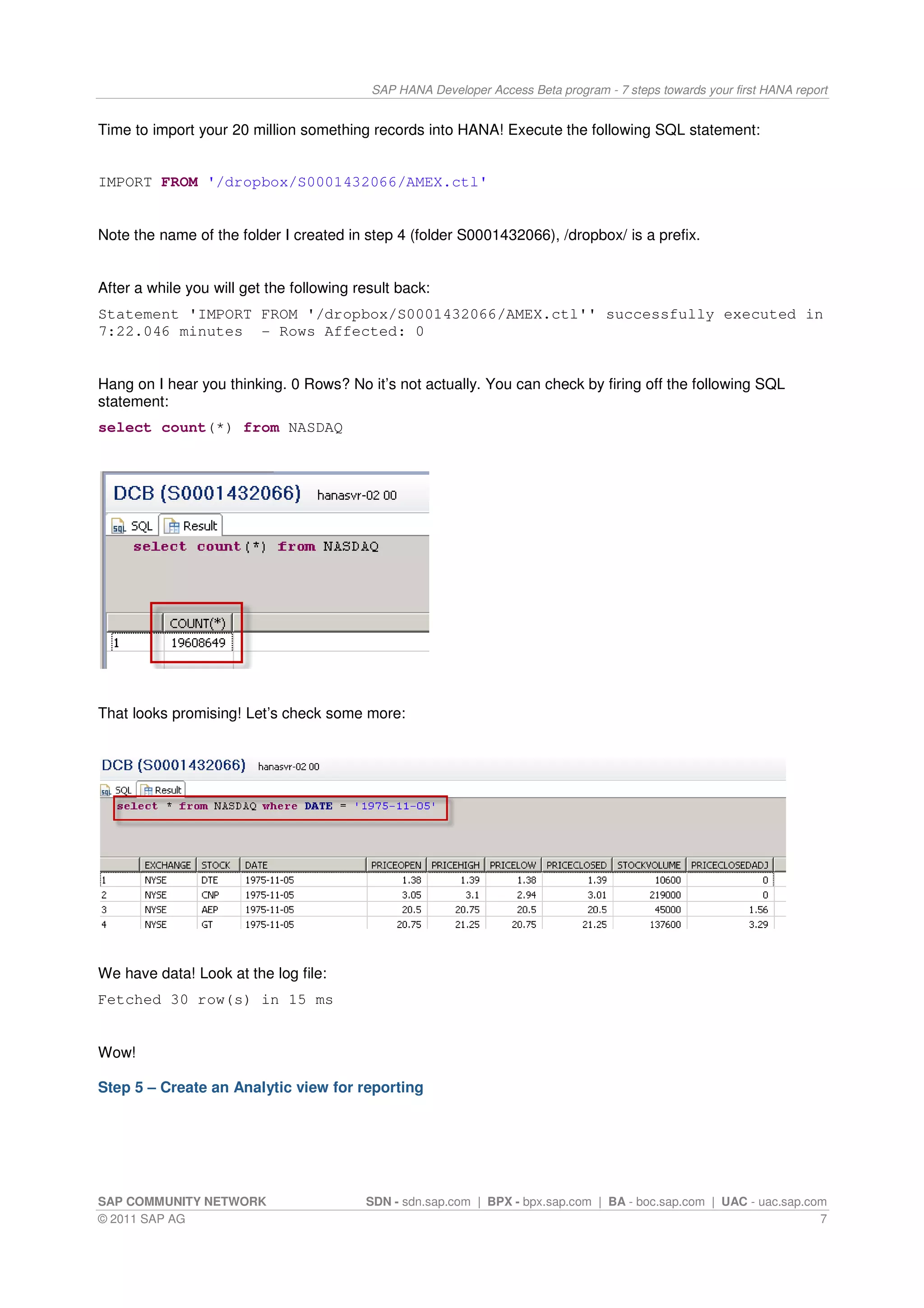

Time to import your 20 million something records into HANA! Execute the following SQL statement:

IMPORT FROM '/dropbox/S0001432066/AMEX.ctl'

Note the name of the folder I created in step 4 (folder S0001432066), /dropbox/ is a prefix.

After a while you will get the following result back:
Statement 'IMPORT FROM '/dropbox/S0001432066/AMEX.ctl'' successfully executed in
7:22.046 minutes - Rows Affected: 0

Hang on I hear you thinking. 0 Rows? No it’s not actually. You can check by firing off the following SQL
statement:
select count(*) from NASDAQ

That looks promising! Let’s check some more:

We have data! Look at the log file:
Fetched 30 row(s) in 15 ms

Wow!

Step 5 – Create an Analytic view for reporting

© 2011 SAP AG 7

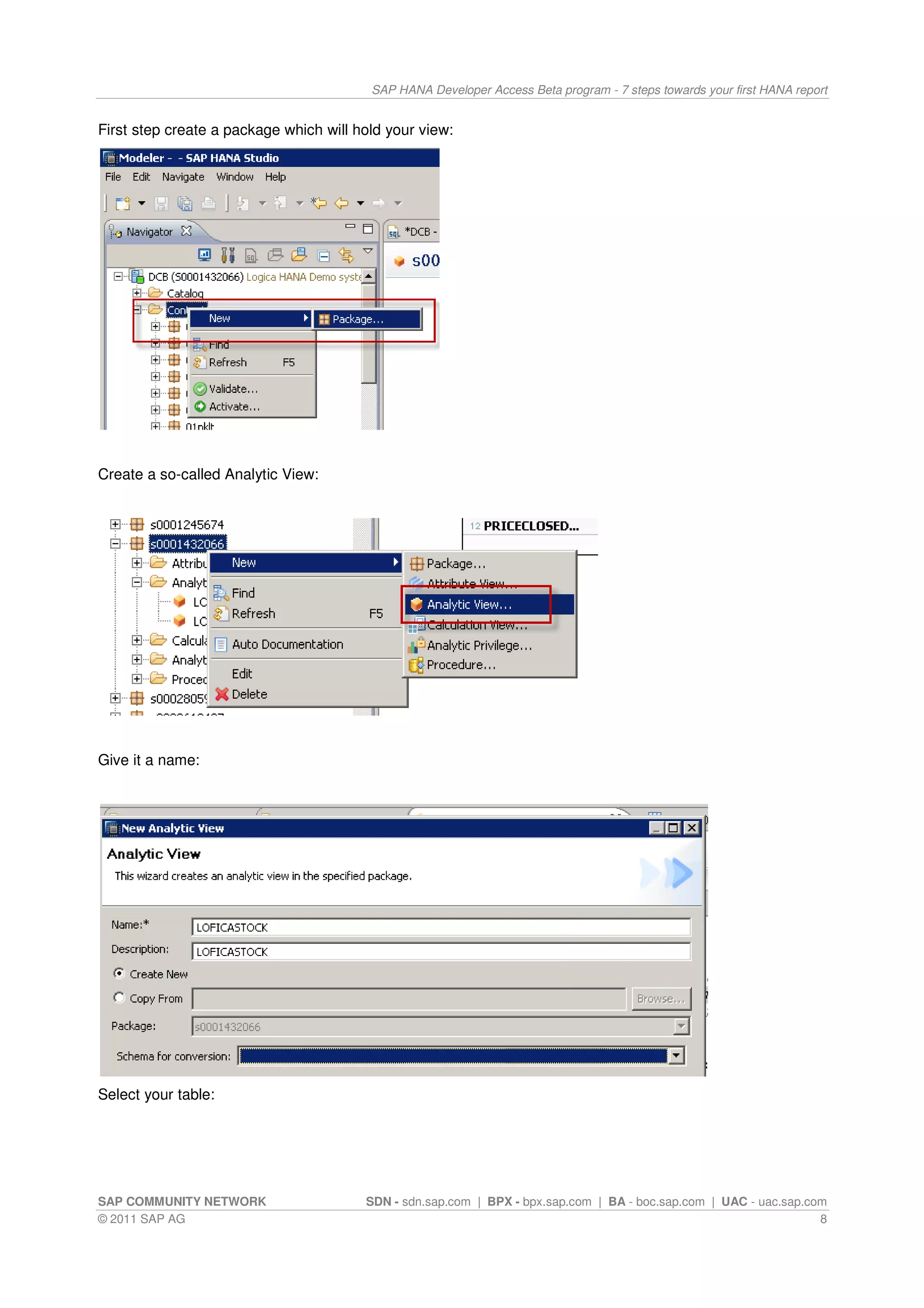

First step create a package which will hold your view:

Create a so-called Analytic View:

Give it a name:

Select your table:

© 2011 SAP AG 8

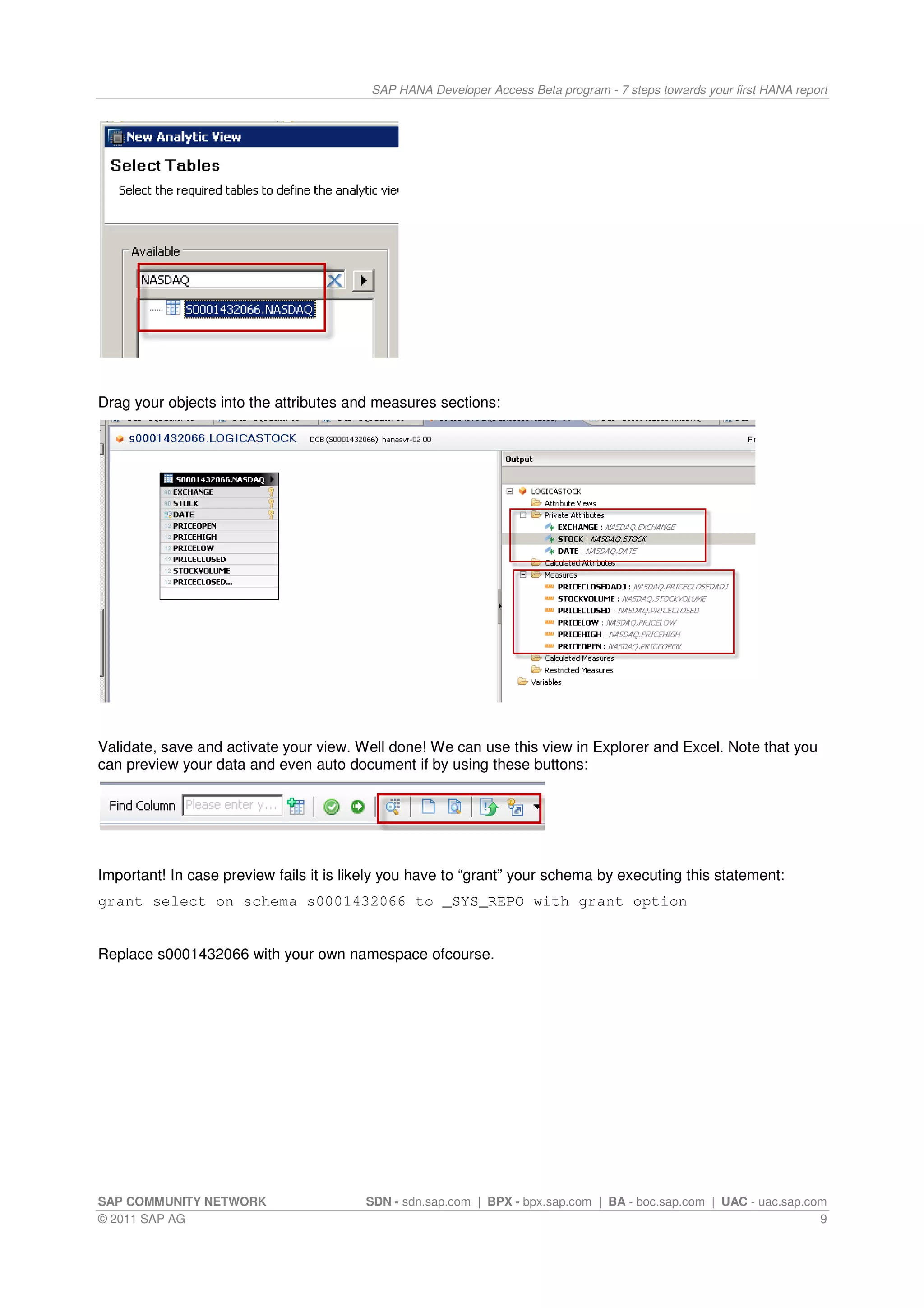

Drag your objects into the attributes and measures sections:

Validate, save and activate your view. Well done! We can use this view in Explorer and Excel. Note that you
can preview your data and even auto document if by using these buttons:

Important! In case preview fails it is likely you have to “grant” your schema by executing this statement:
grant select on schema s0001432066 to _SYS_REPO with grant option

Replace s0001432066 with your own namespace ofcourse.

© 2011 SAP AG 9

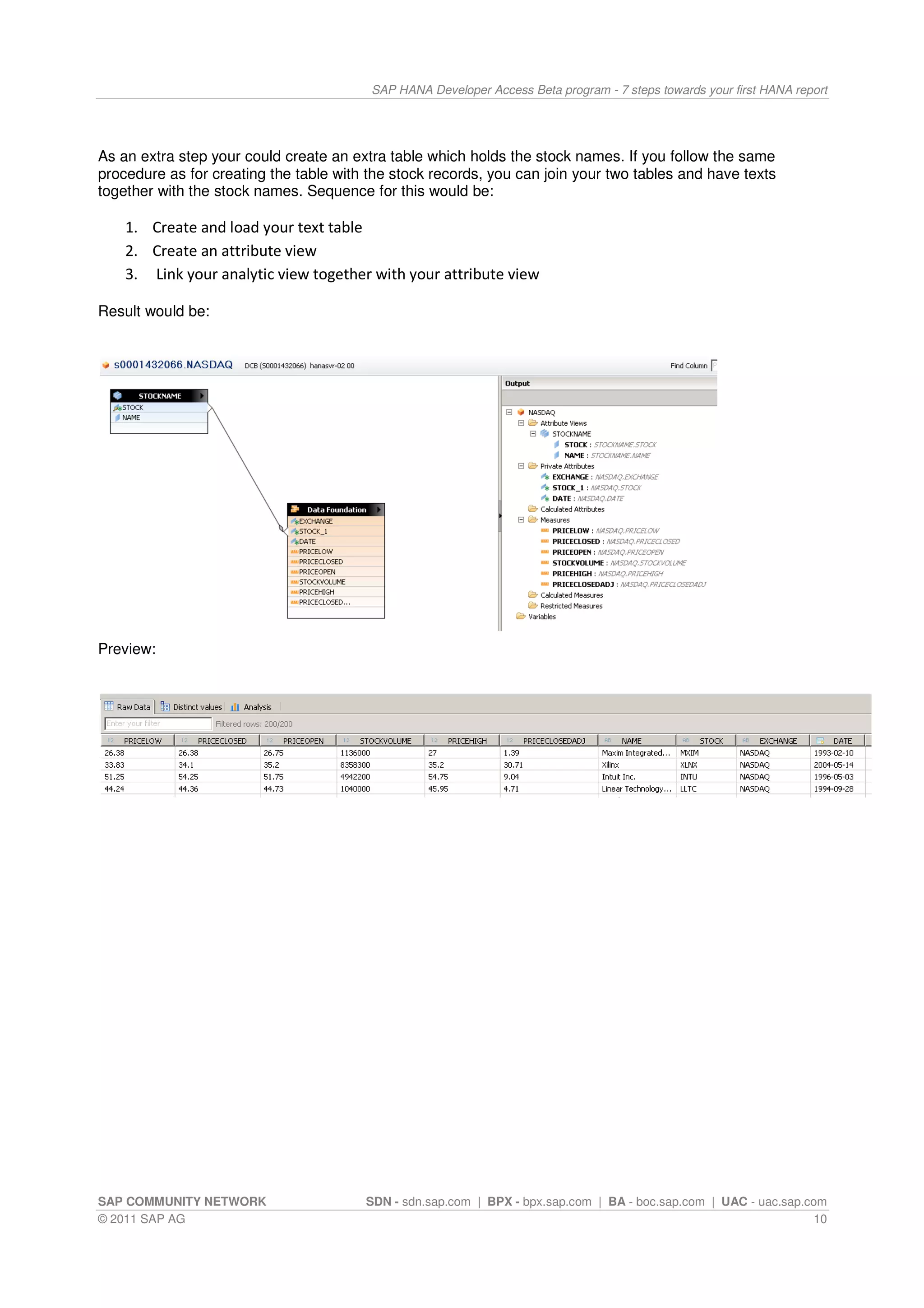

As an extra step your could create an extra table which holds the stock names. If you follow the same
procedure as for creating the table with the stock records, you can join your two tables and have texts
together with the stock names. Sequence for this would be:

1. Create and load your text table
2. Create an attribute view
3. Link your analytic view together with your attribute view

Result would be:

Preview:

© 2011 SAP AG 10

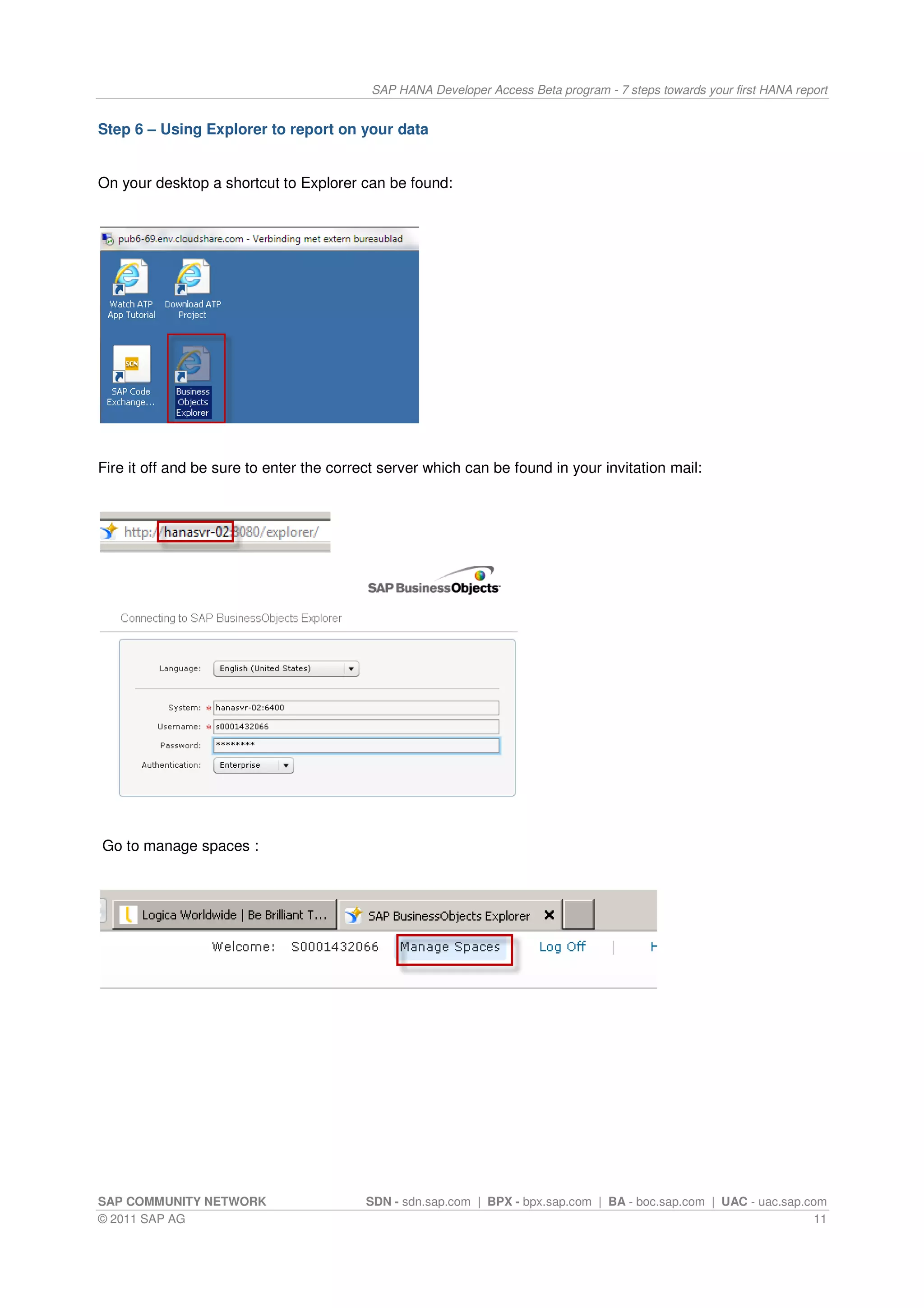

Step 6 – Using Explorer to report on your data

On your desktop a shortcut to Explorer can be found:

Fire it off and be sure to enter the correct server which can be found in your invitation mail:

Go to manage spaces :

© 2011 SAP AG 11

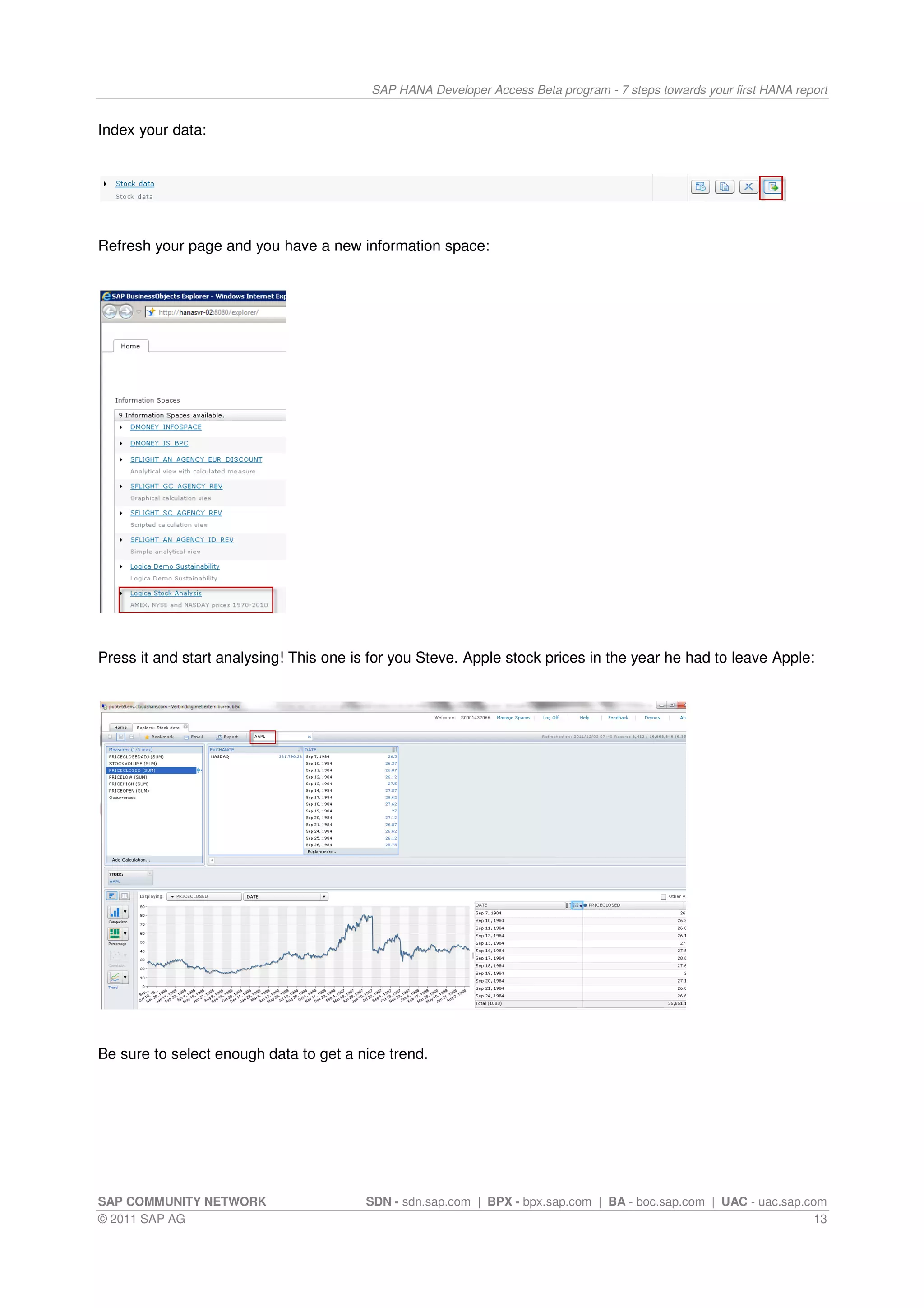

Index your data:

Refresh your page and you have a new information space:

Press it and start analysing! This one is for you Steve. Apple stock prices in the year he had to leave Apple:

Be sure to select enough data to get a nice trend.

© 2011 SAP AG 13

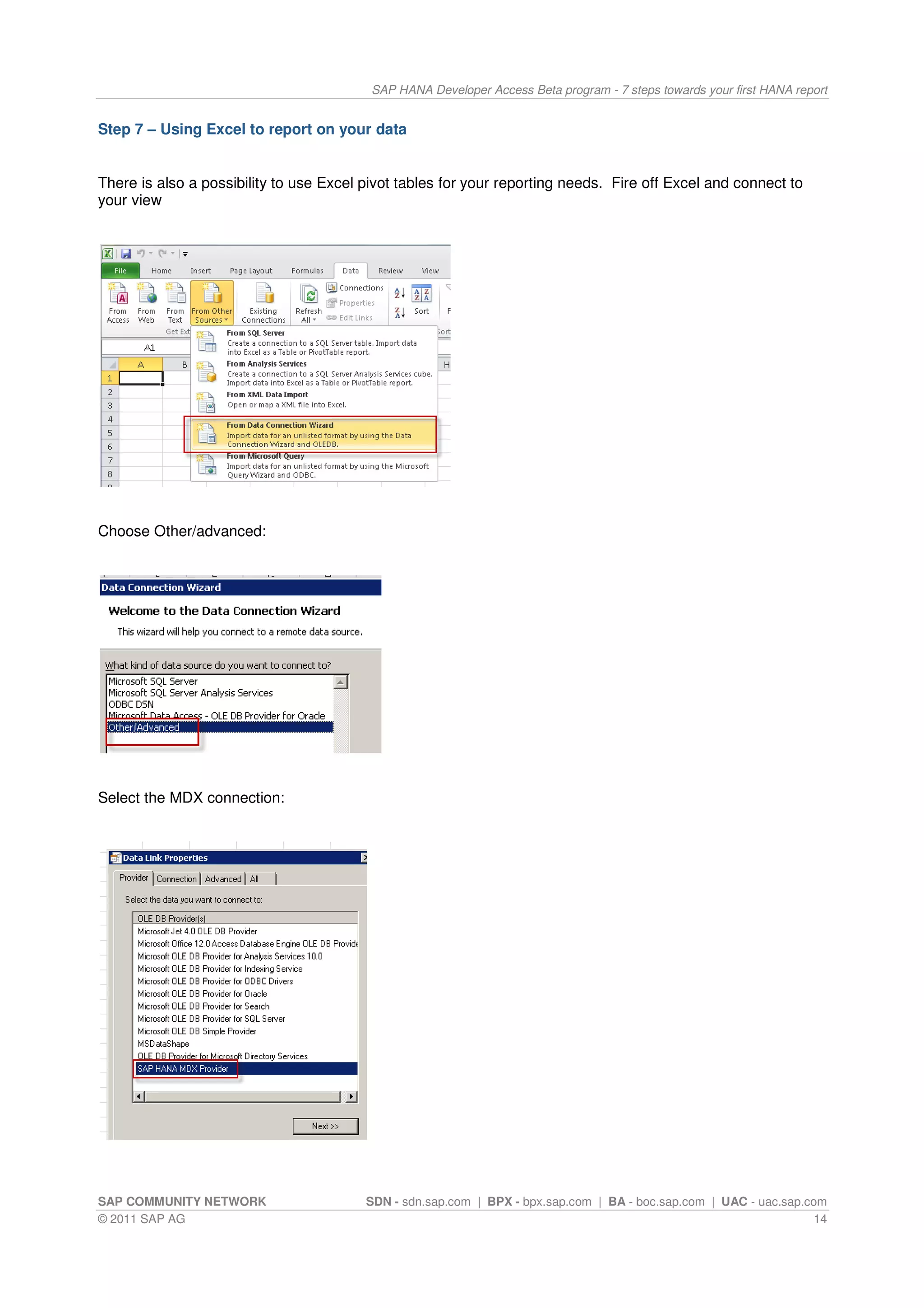

Step 7 – Using Excel to report on your data

There is also a possibility to use Excel pivot tables for your reporting needs. Fire off Excel and connect to
your view

Choose Other/advanced:

Select the MDX connection:

© 2011 SAP AG 14

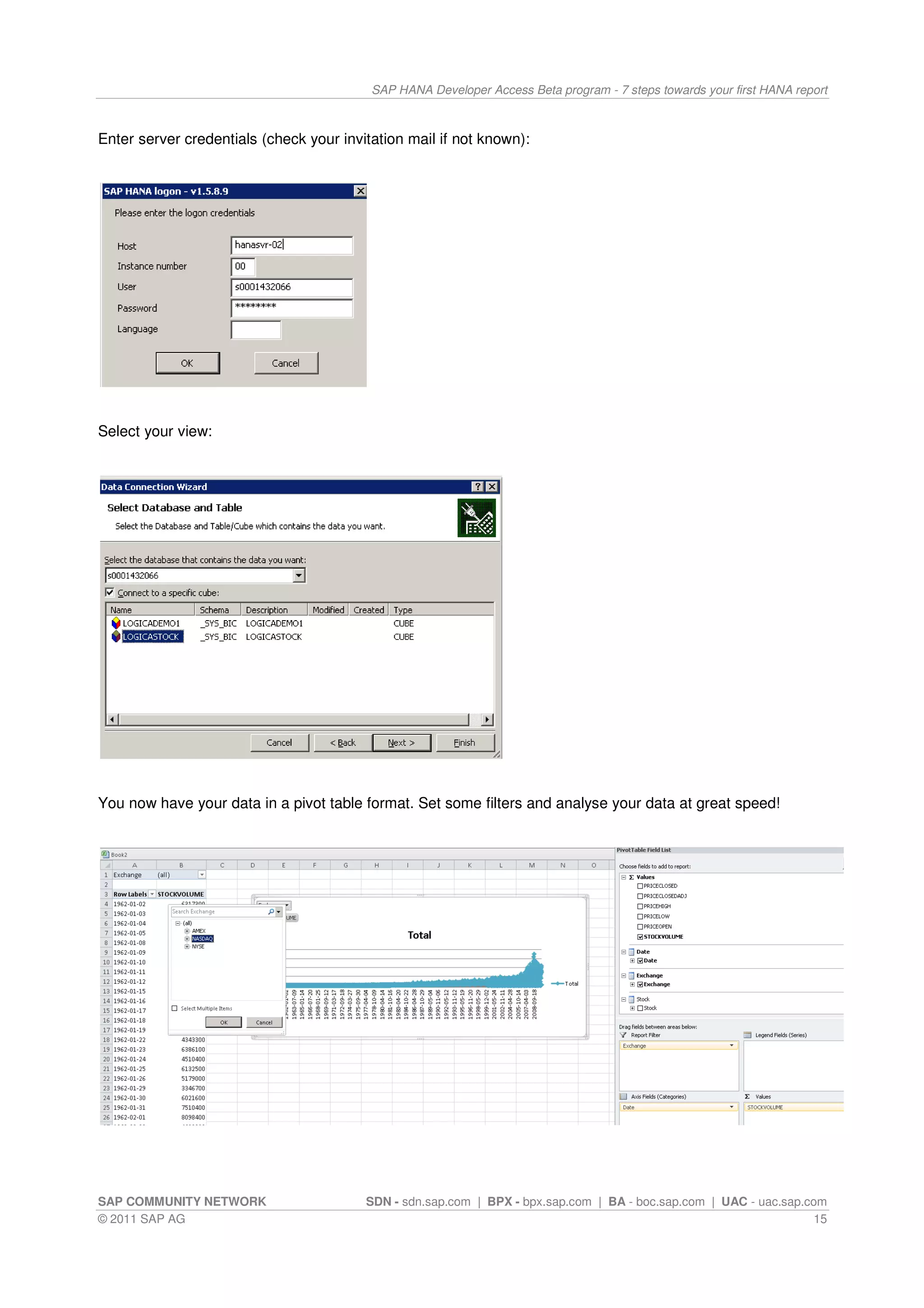

Enter server credentials (check your invitation mail if not known):

Select your view:

You now have your data in a pivot table format. Set some filters and analyse your data at great speed!

© 2011 SAP AG 15

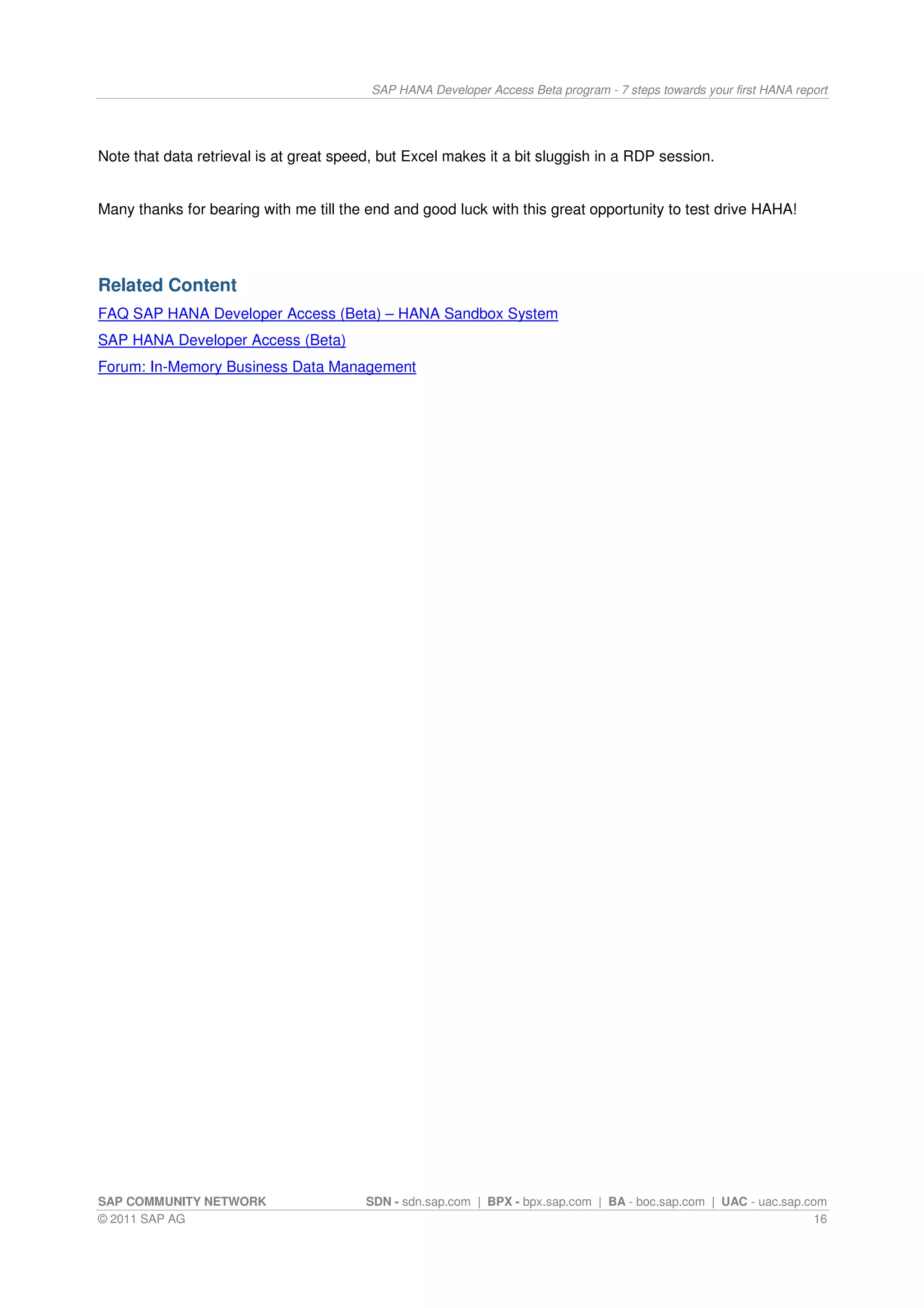

Note that data retrieval is at great speed, but Excel makes it a bit sluggish in a RDP session.

Many thanks for bearing with me till the end and good luck with this great opportunity to test drive HAHA!

Related Content
FAQ SAP HANA Developer Access (Beta) – HANA Sandbox System
SAP HANA Developer Access (Beta)
Forum: In-Memory Business Data Management

© 2011 SAP AG 16

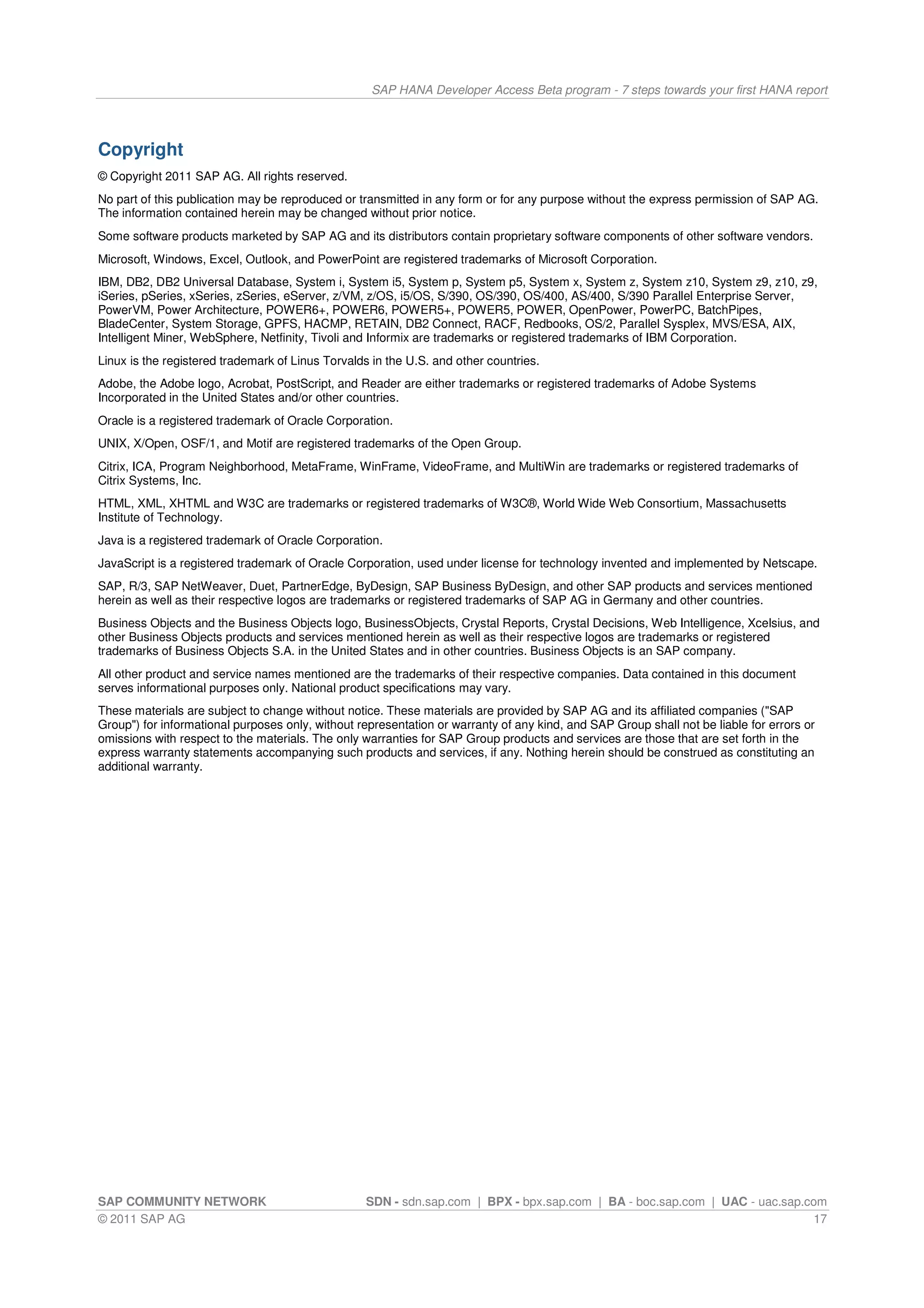

Copyright
