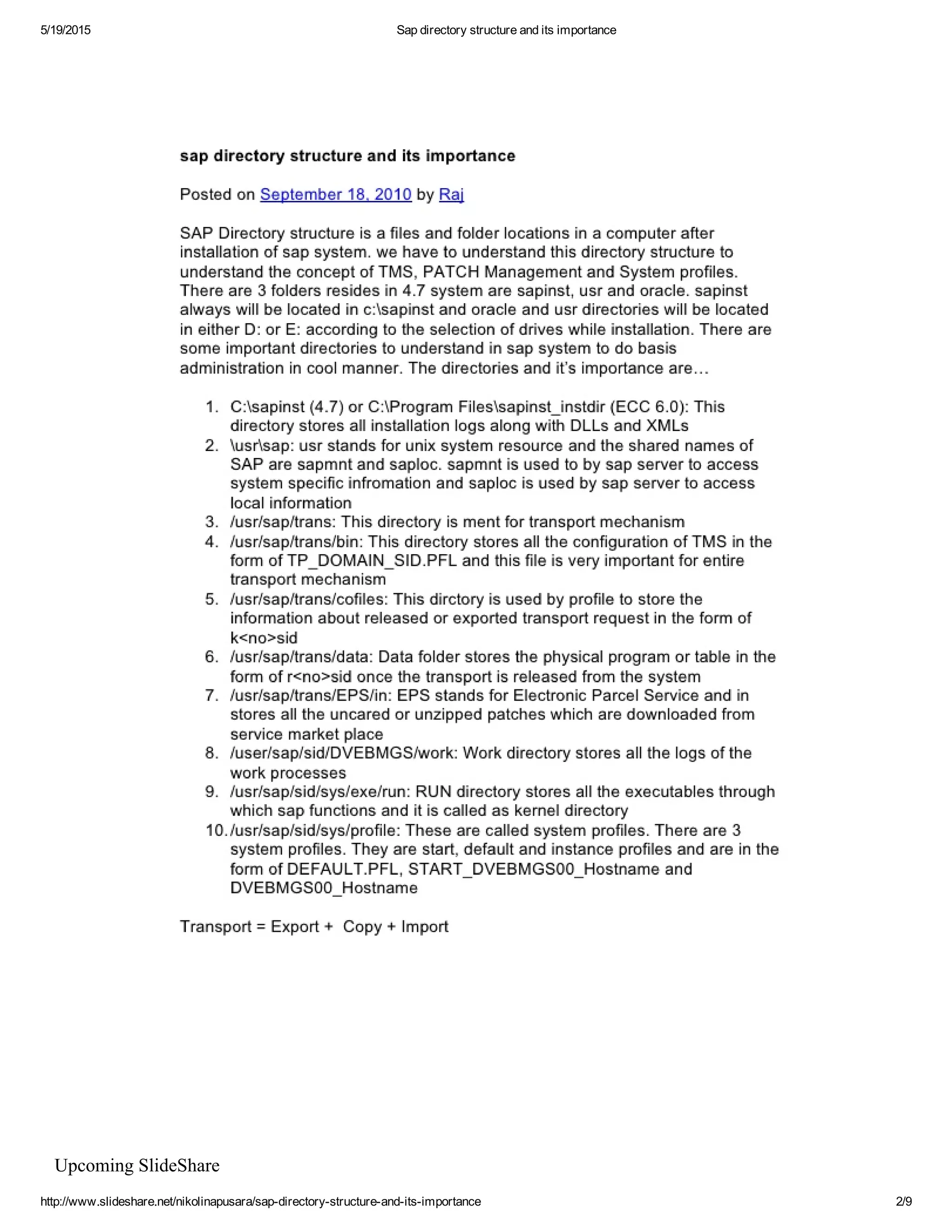

1. sap directory structure and its importancePosted on September 18, 2010 by RajSAP Directory structure
is a files and folder locations in a computer afterinstallation of sap system. we have to understand this
directory structure tounderstand the concept of TMS, PATCH Management and System profiles.There are
3 folders resides in 4.7 system are sapinst, usr and oracle. sapinstalways will be located in c:sapinst and
oracle and usr directories will be locatedin either D: or E: according to the selection of drives while
installation. There aresome important directories to understand in sap system to do basisadministration in
cool manner. The directories and it’s importance are… 1. C:sapinst (4.7) or C:Program
Filessapinst_instdir (ECC 6.0): This directory stores all installation logs along with DLLs and XMLs 2.
usrsap: usr stands for unix system resource and the shared names of SAP are sapmnt and saploc. sapmnt
is used to by sap server to access system specific infromation and saploc is used by sap server to access
local information 3. /usr/sap/trans: This directory is ment for transport mechanism 4. /usr/sap/trans/bin:
This directory stores all the configuration of TMS in the form of TP_DOMAIN_SID.PFL and this file is
very important for entire transport mechanism 5. /usr/sap/trans/cofiles: This dirctory is used by profile to
store the information about released or exported transport request in the form of k<no>sid 6.
/usr/sap/trans/data: Data folder stores the physical program or table in the form of r<no>sid once the
transport is released from the system 7. /usr/sap/trans/EPS/in: EPS stands for Electronic Parcel Service
and in stores all the uncared or unzipped patches which are downloaded from service market place 8.
/user/sap/sid/DVEBMGS/work: Work directory stores all the logs of the work processes 9.
/usr/sap/sid/sys/exe/run: RUN directory stores all the executables through which sap functions and it is
called as kernel directory 10. /usr/sap/sid/sys/profile: These are called system profiles. There are 3 system
profiles. They are start, default and instance profiles and are in the form of DEFAULT.PFL,
START_DVEBMGS00_Hostname and DVEBMGS00_HostnameTransport = Export + Copy + Import
