Sam latz-se tu-p-solar-energy-transformation-program-setup
The document summarizes the status and learnings from the Solar Energy Transformation Program - SETuP, which aims to install solar PV and energy storage systems in over 50 remote Indigenous communities currently reliant on diesel power. It provides details on the program scope, current status of installations, key learnings regarding land access, community engagement, construction costs, and actual diesel savings observed. Performance data from the first tranche of installations is also presented. The document concludes by providing contacts for those seeking more information.
More Related Content
Similar to Sam latz-se tu-p-solar-energy-transformation-program-setup
Sam latz-se tu-p-solar-energy-transformation-program-setup
- 1. Solar Energy Transformation Program- SETuP Isolated Power Systems Connect Conference November 2017

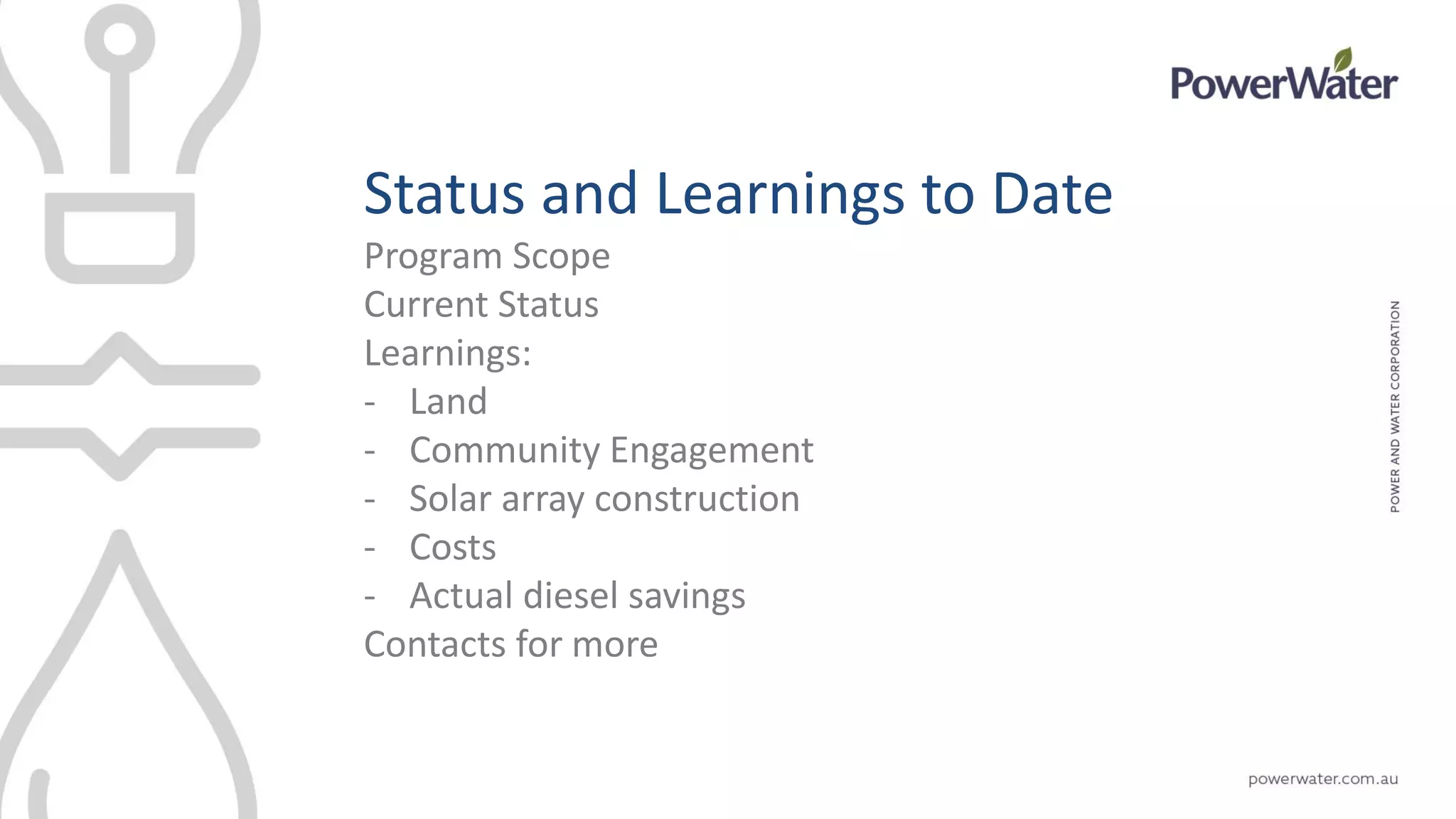

- 2. Status and Learningsto Date Program Scope Current Status Learnings: - Land - Community Engagement - Solar array construction - Costs - Actual diesel savings Contacts for more

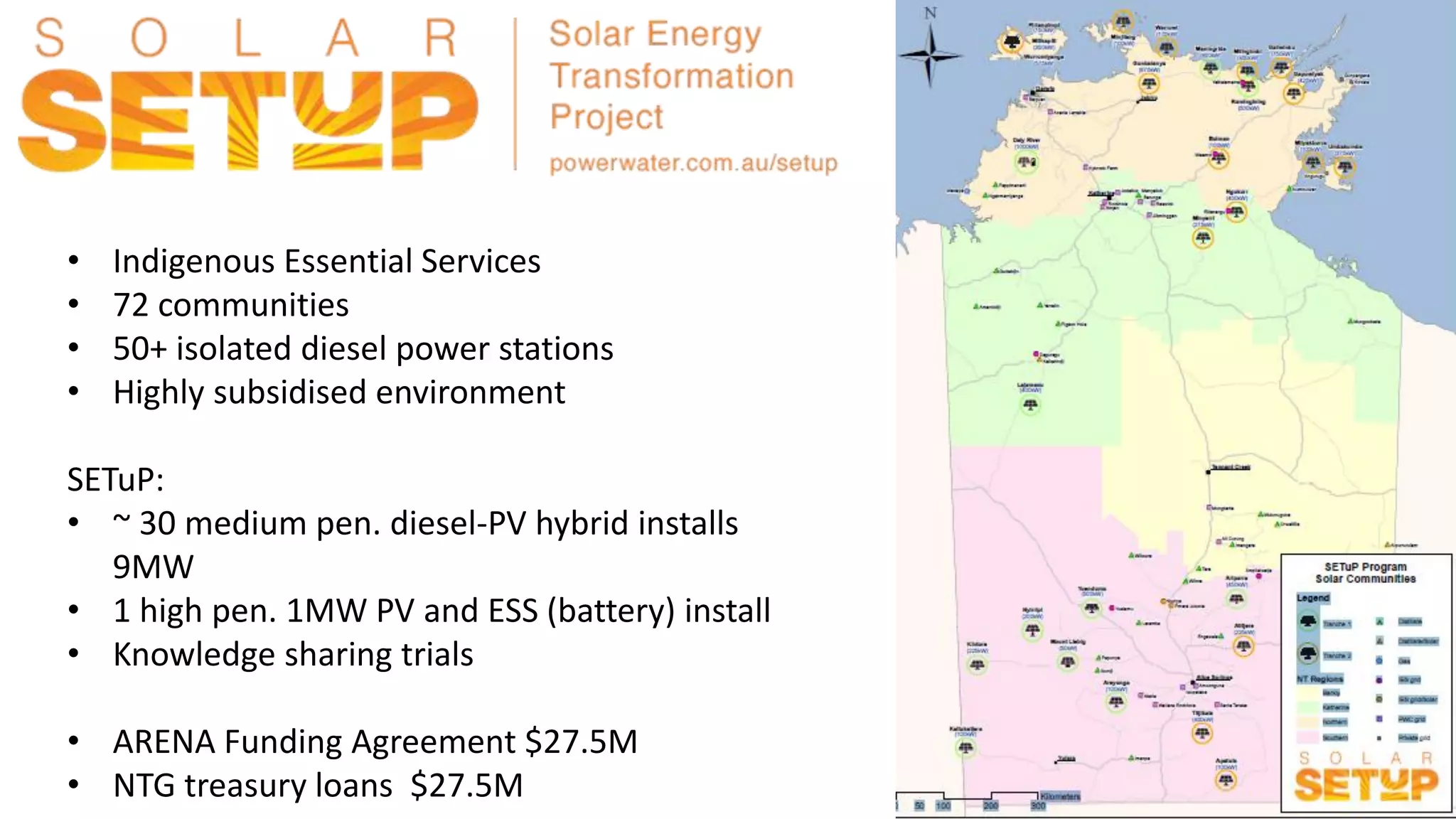

- 3. • Indigenous EssentialServices • 72 communities • 50+ isolated diesel power stations • Highly subsidised environment SETuP: • ~ 30 medium pen. diesel-PV hybrid installs 9MW • 1 high pen. 1MW PV and ESS (battery) install • Knowledge sharing trials • ARENA Funding Agreement $27.5M • NTG treasury loans $27.5M

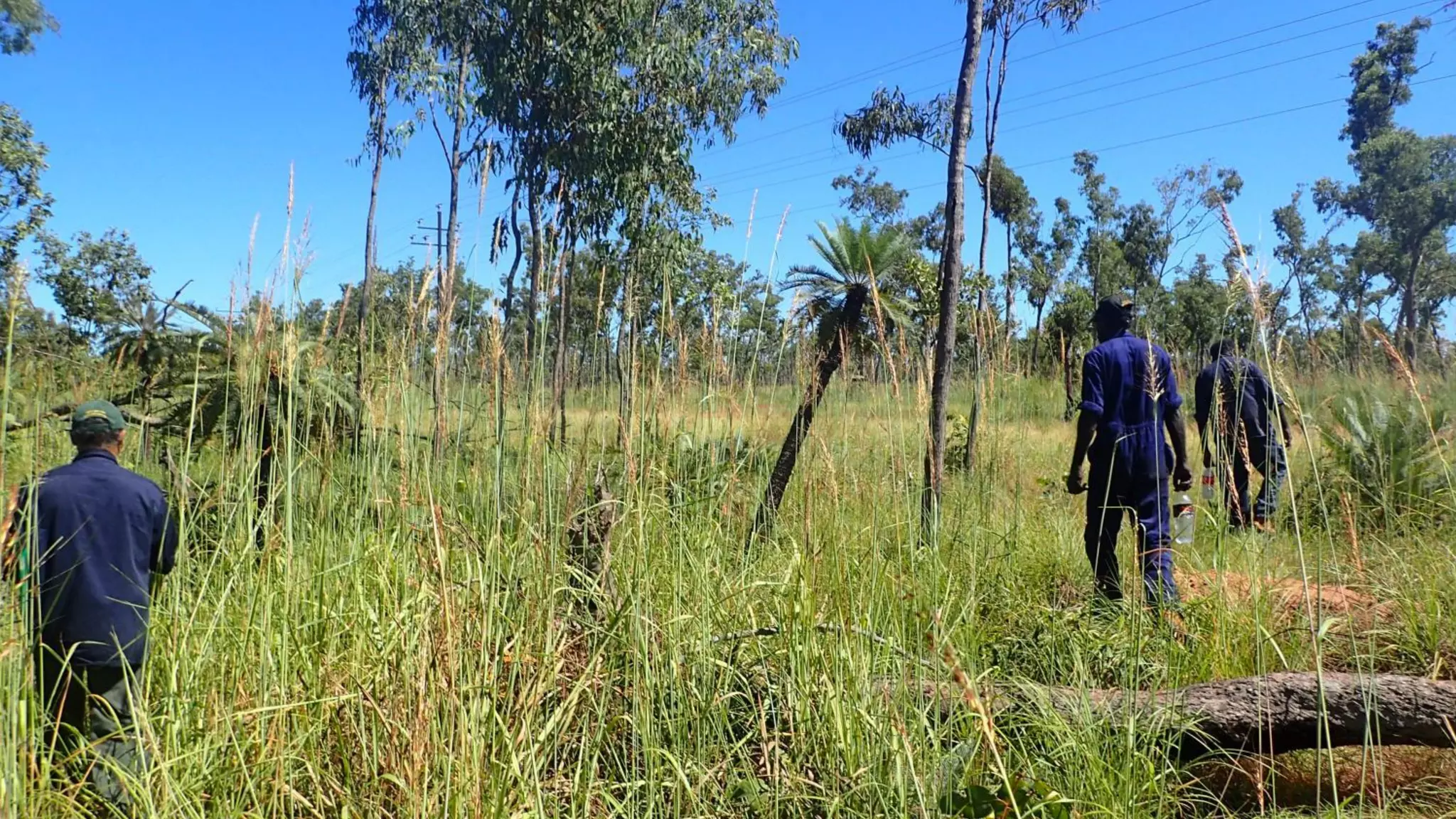

- 5. • Photos ofclearing and fencing / rangers on leases
- 6.

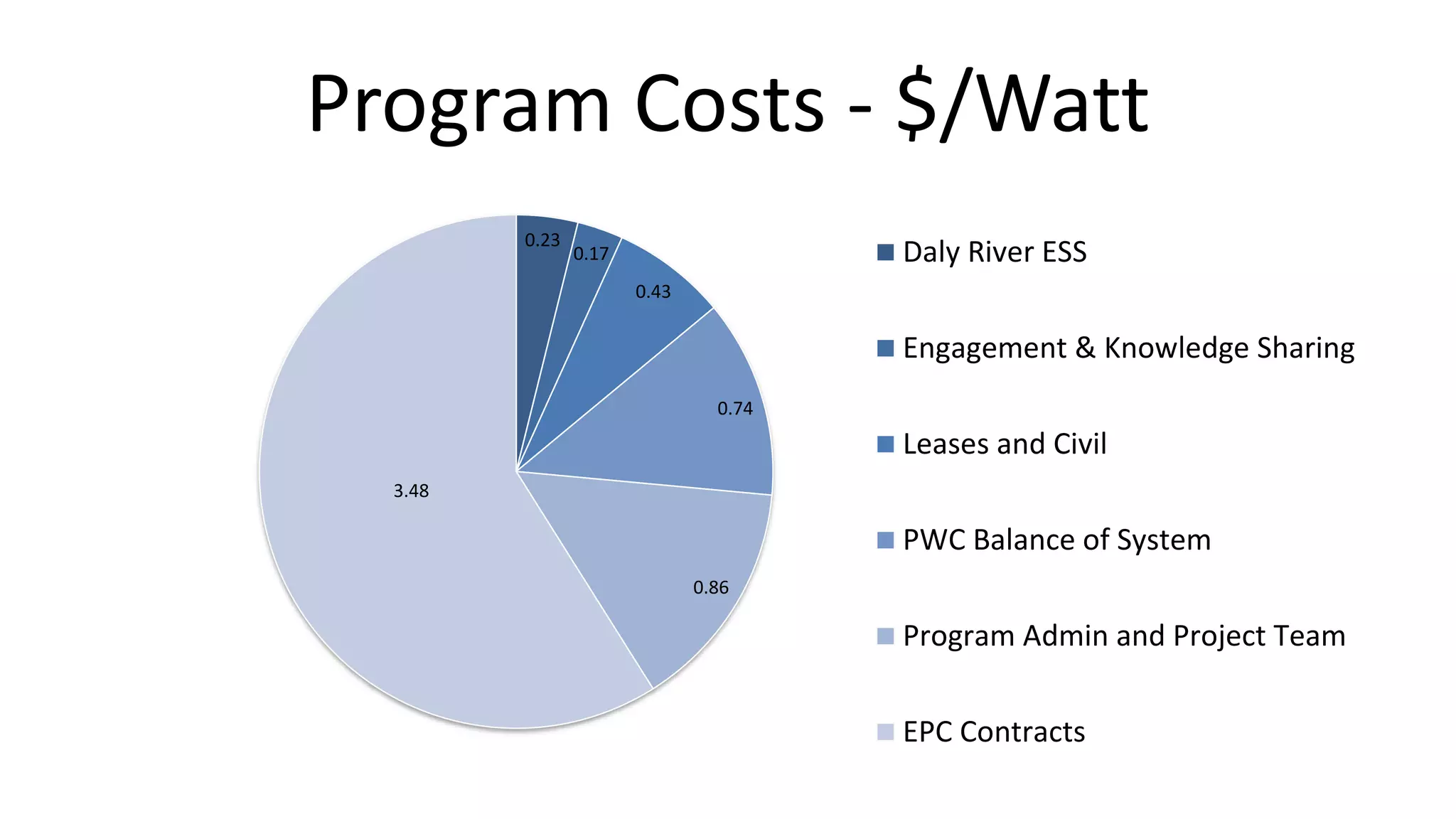

- 7. Program Costs -$/Watt 0.23 0.17 0.43 0.74 0.86 3.48 Daly River ESS Engagement & Knowledge Sharing Leases and Civil PWC Balance of System Program Admin and Project Team EPC Contracts

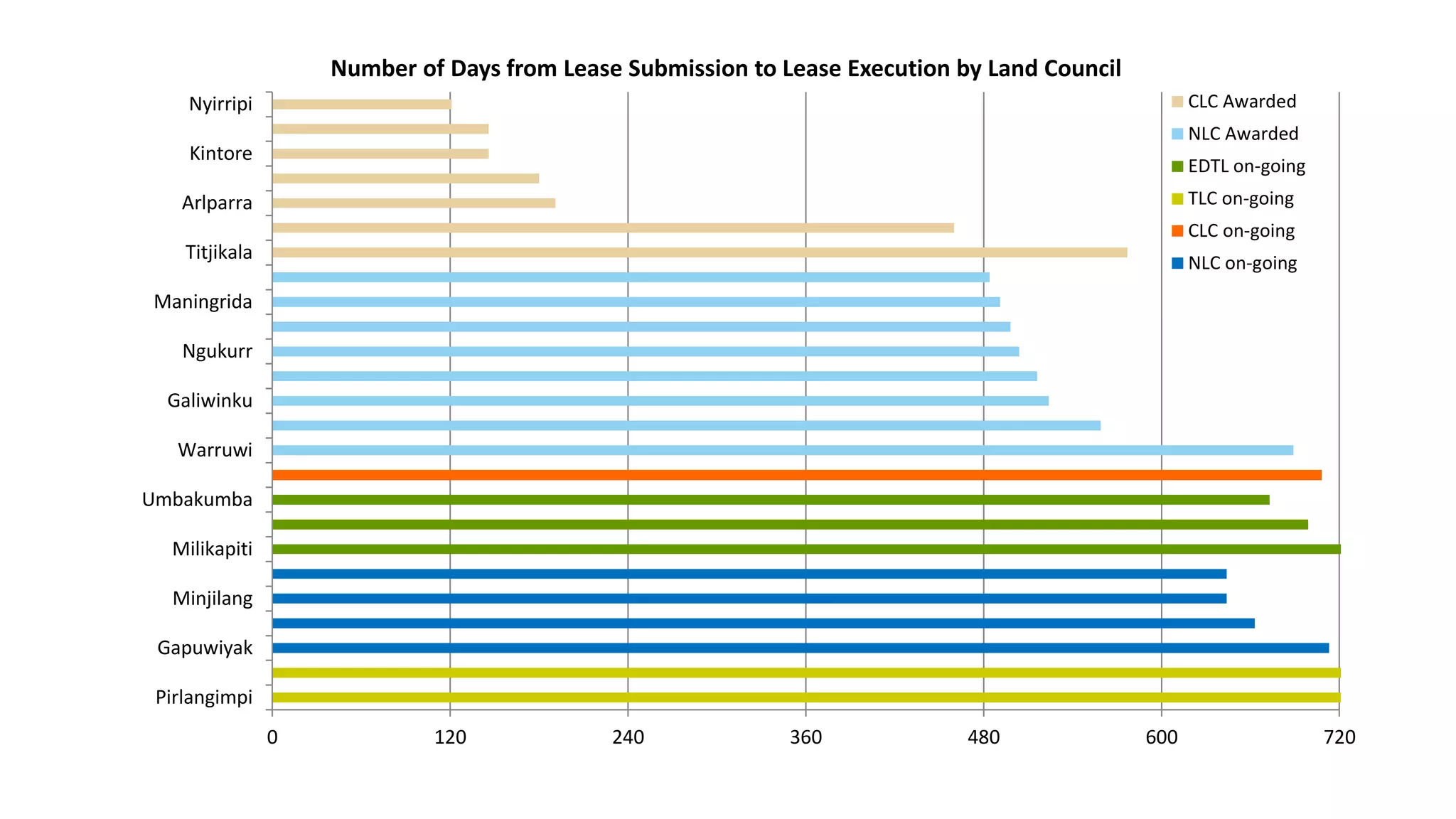

- 8. 0 120 240360 480 600 720 Pirlangimpi Gapuwiyak Minjilang Milikapiti Umbakumba Warruwi Galiwinku Ngukurr Maningrida Titjikala Arlparra Kintore Nyirripi Number of Days from Lease Submission to Lease Execution by Land Council CLC Awarded NLC Awarded EDTL on-going TLC on-going CLC on-going NLC on-going

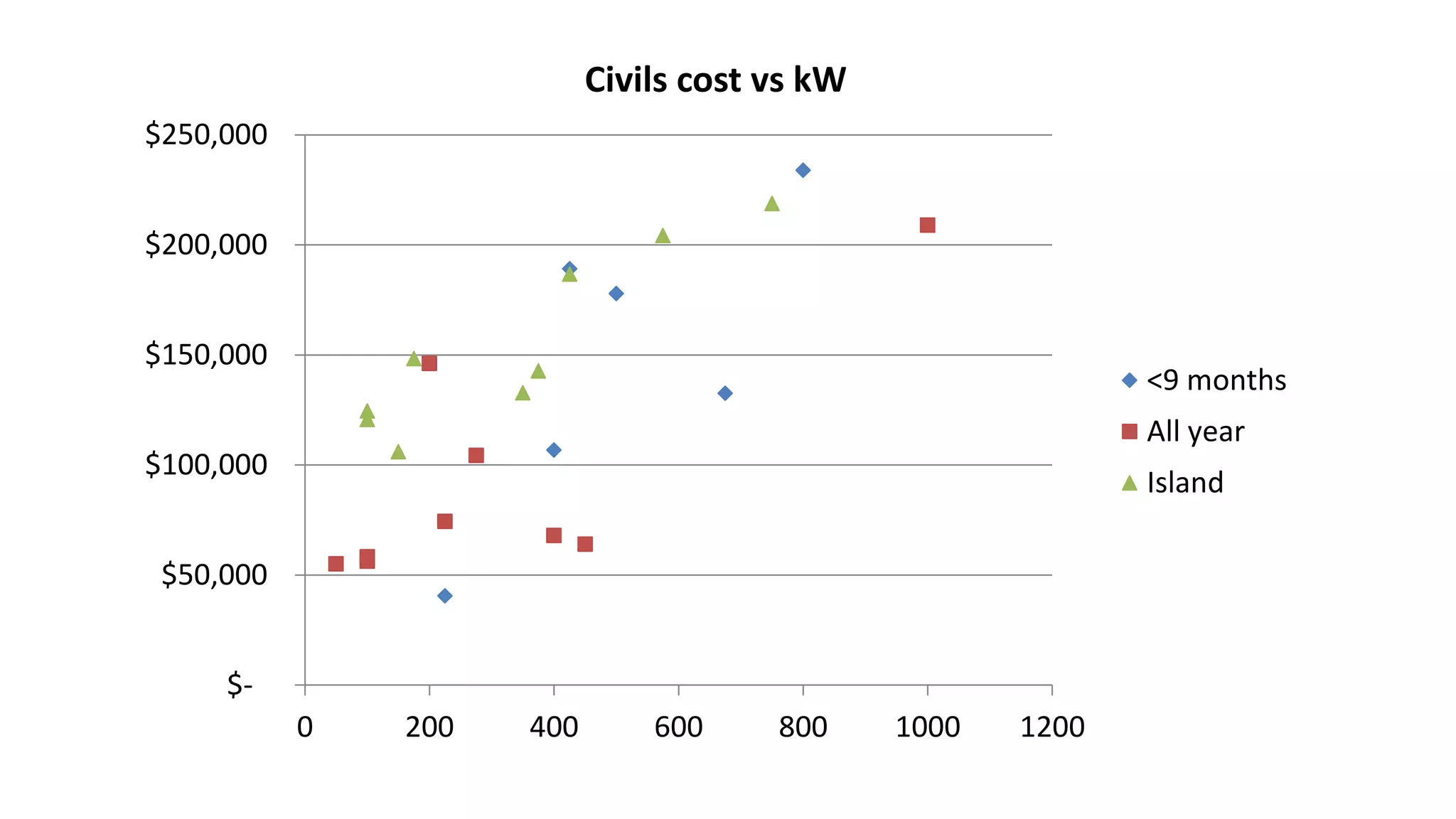

- 11. $- $50,000 $100,000 $150,000 $200,000 $250,000 0 200 400600 800 1000 1200 Civils cost vs kW <9 months All year Island

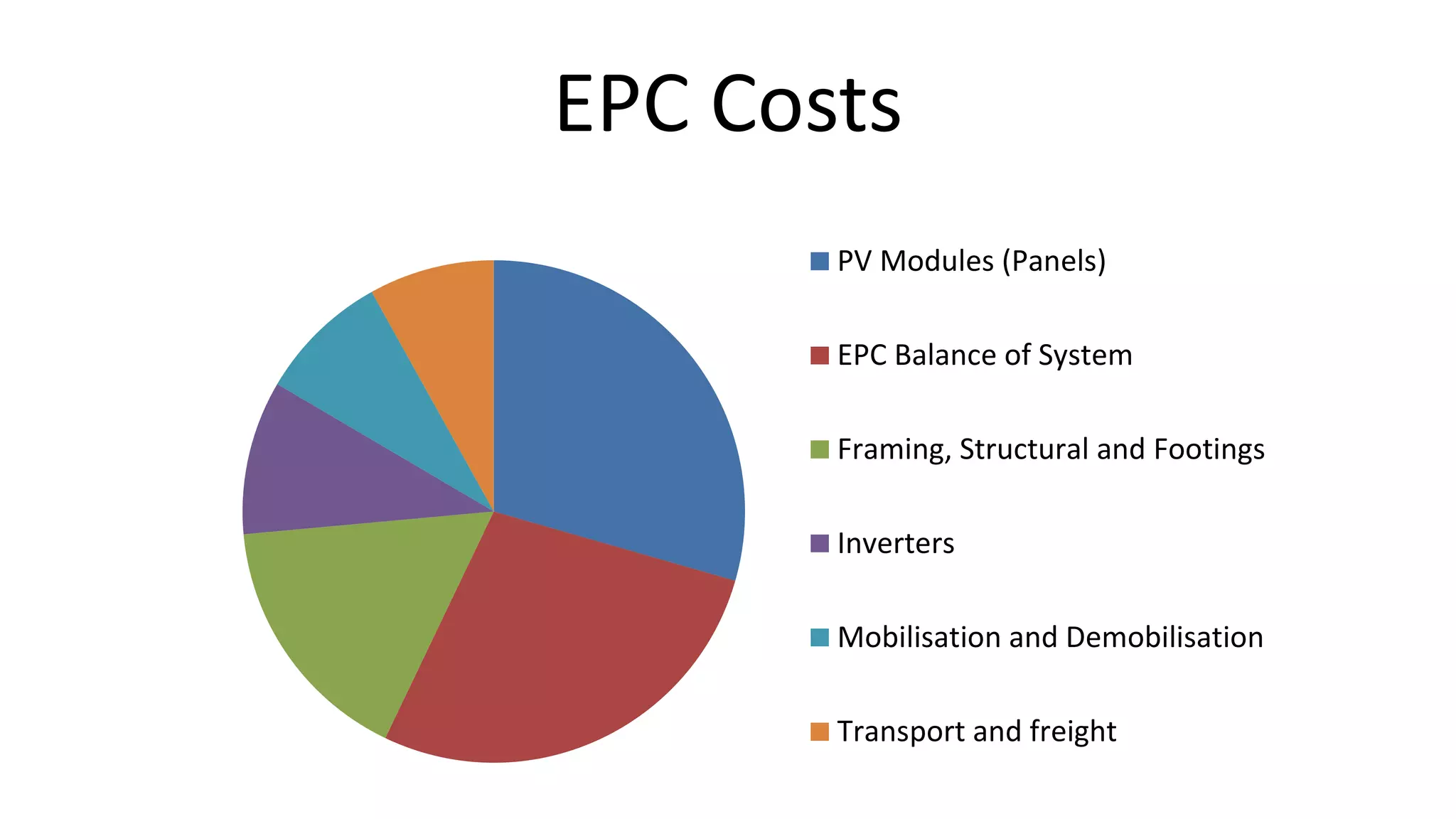

- 13. EPC Costs PV Modules(Panels) EPC Balance of System Framing, Structural and Footings Inverters Mobilisation and Demobilisation Transport and freight

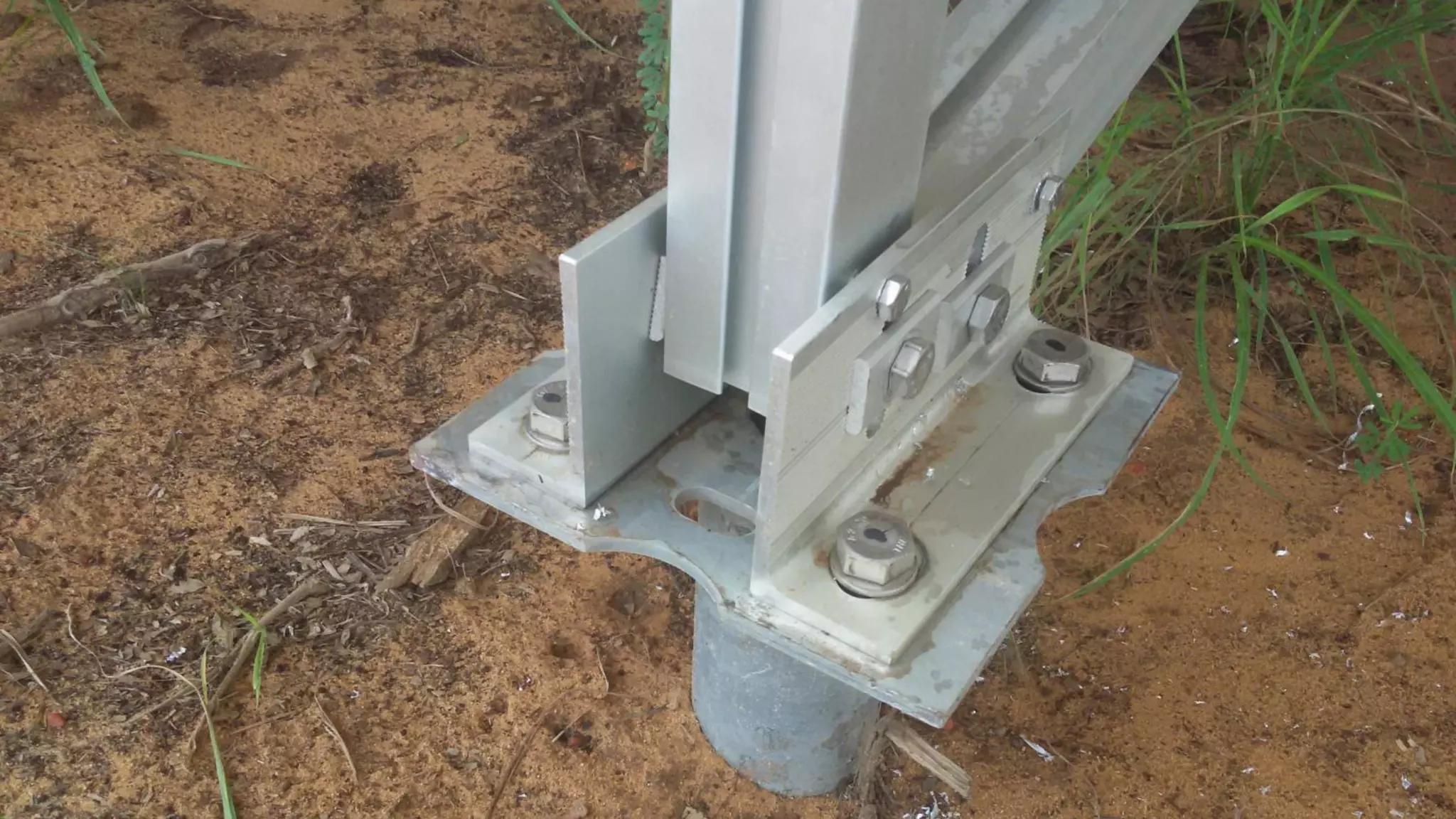

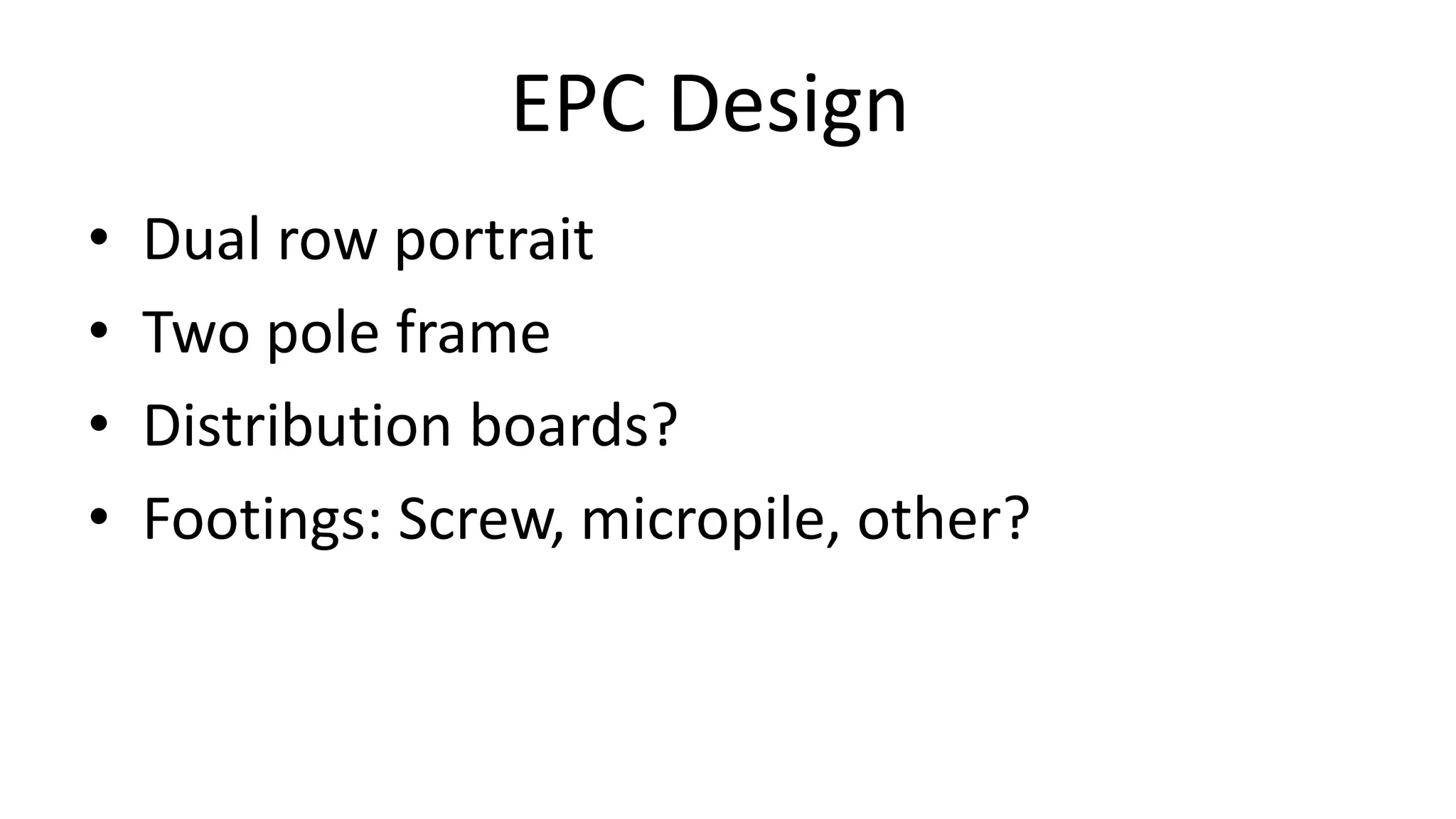

- 14. EPC Design • Dualrow portrait • Two pole frame • Distribution boards? • Footings: Screw, micropile, other?

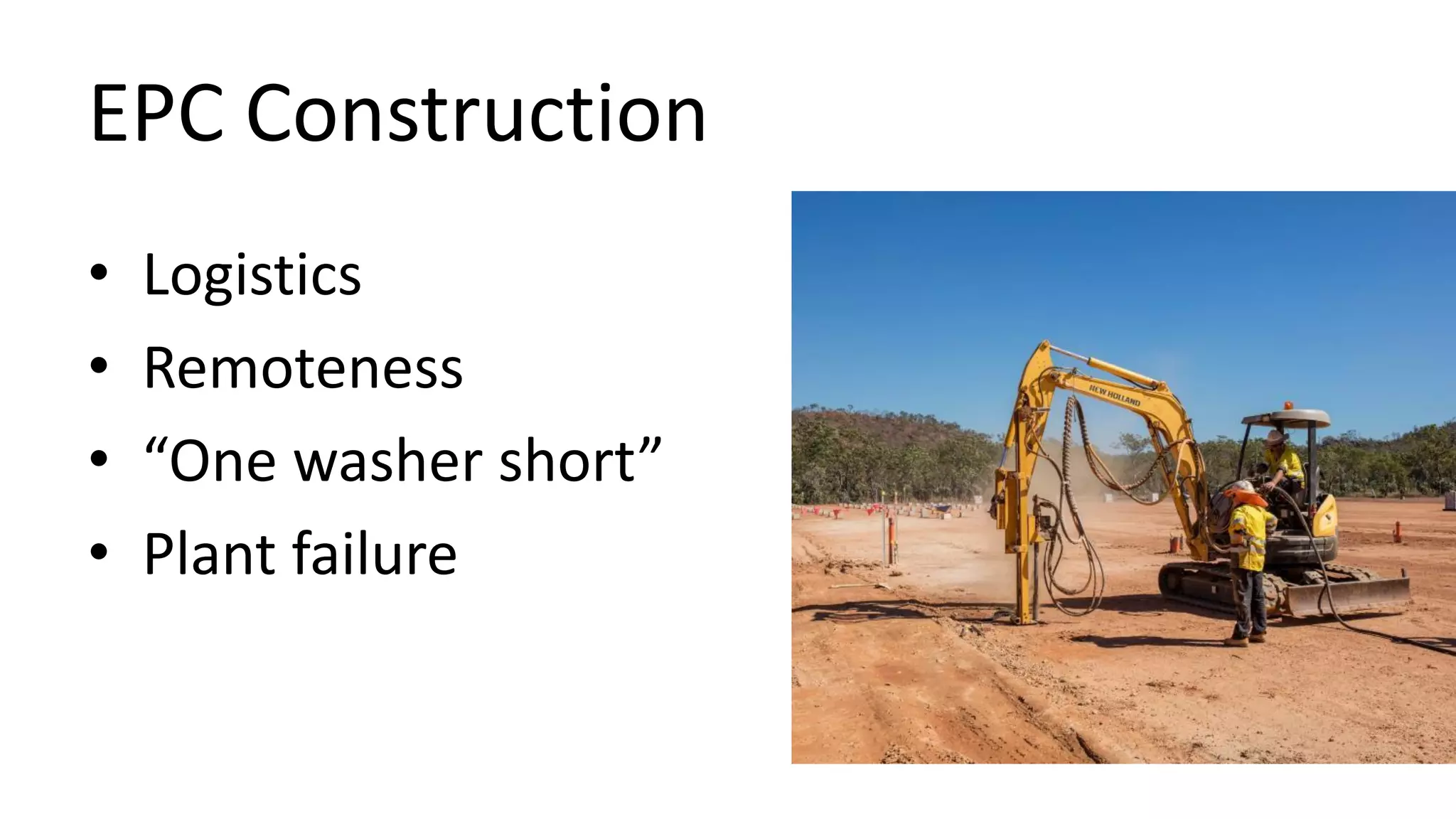

- 15. EPC Construction • Logistics •Remoteness • “One washer short” • Plant failure

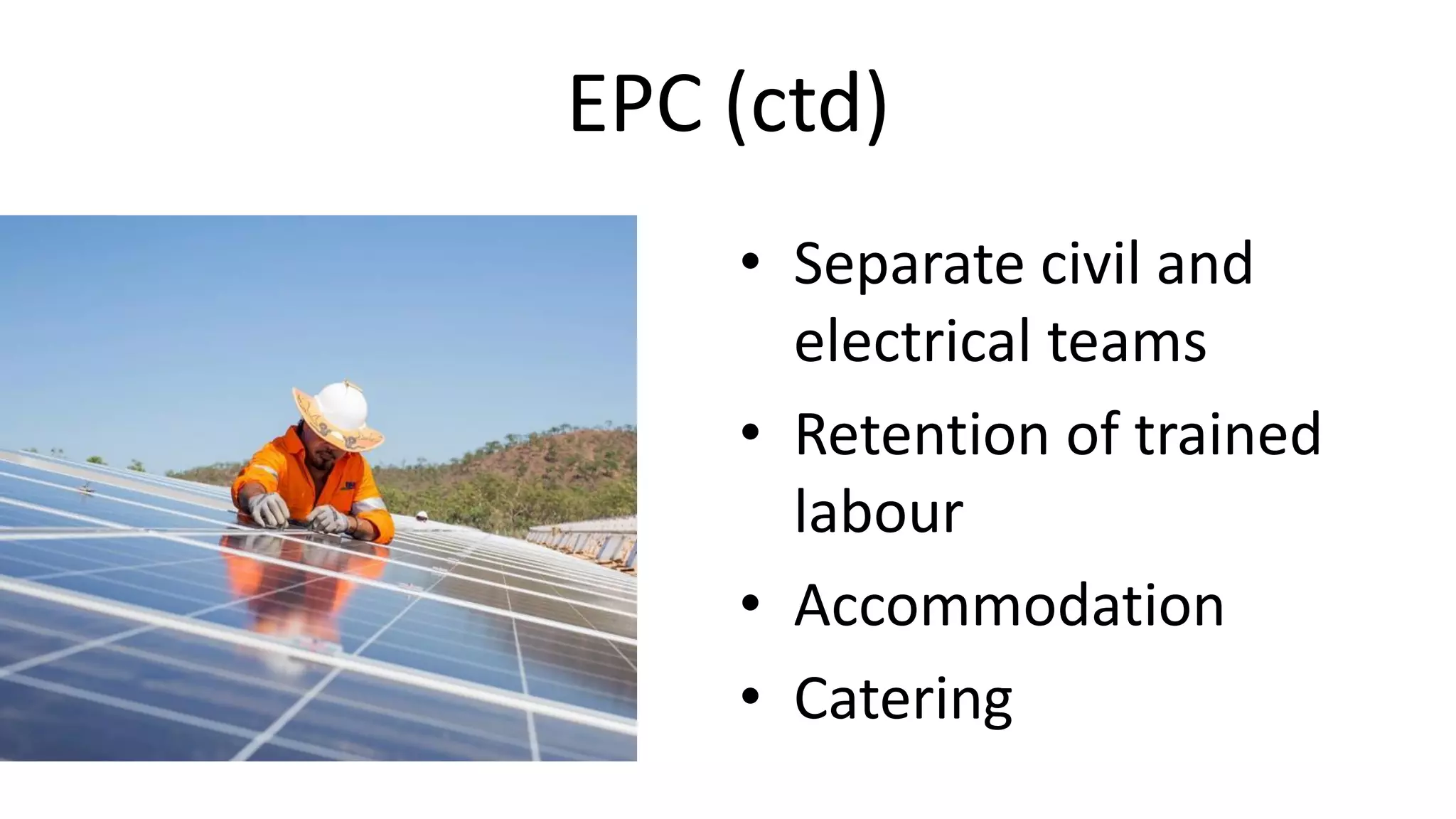

- 16. EPC (ctd) • Separatecivil and electrical teams • Retention of trained labour • Accommodation • Catering

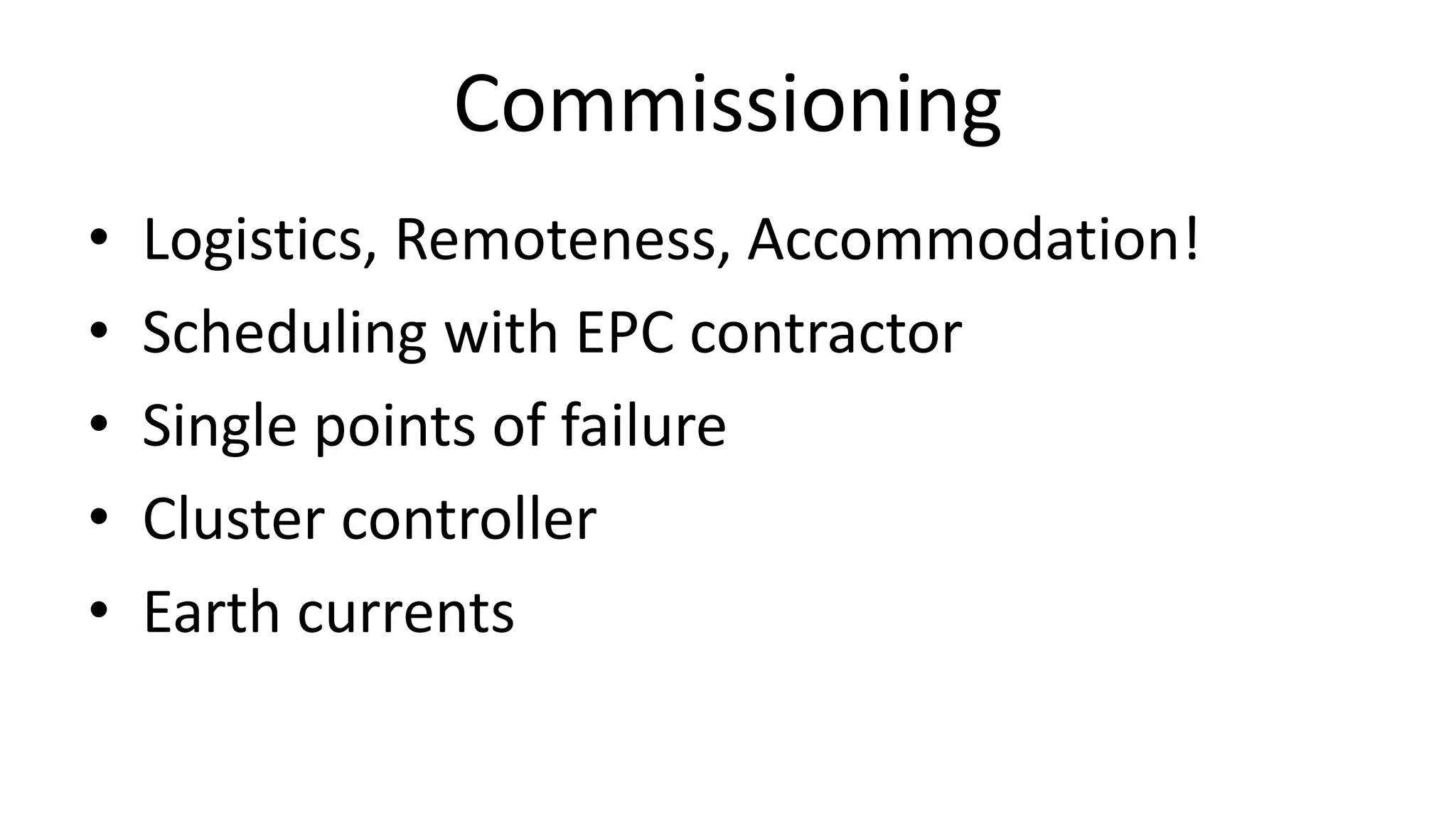

- 18. Commissioning • Logistics, Remoteness,Accommodation! • Scheduling with EPC contractor • Single points of failure • Cluster controller • Earth currents

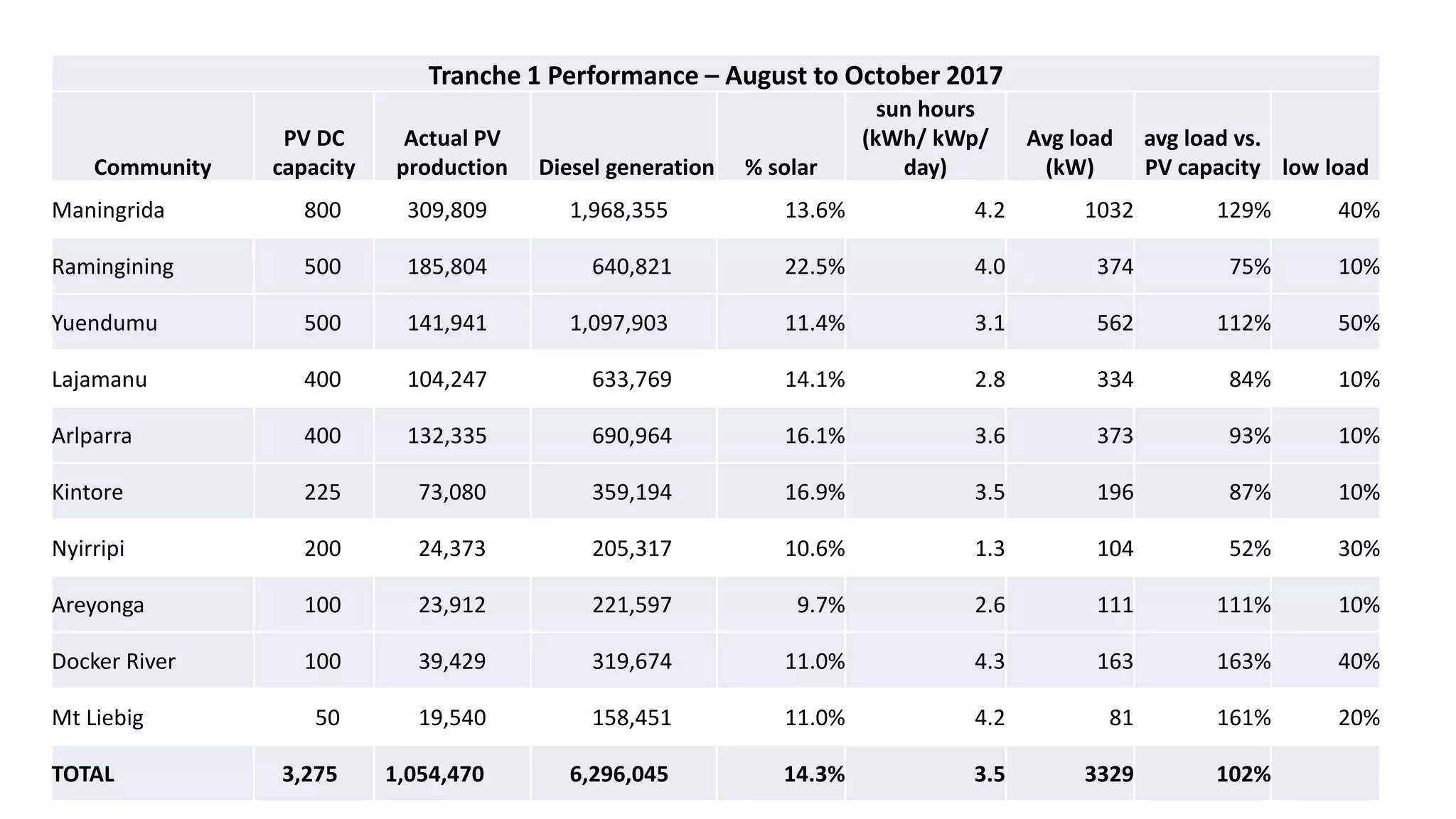

- 20. Tranche 1 Performance– August to October 2017 Community PV DC capacity Actual PV production Diesel generation % solar sun hours (kWh/ kWp/ day) Avg load (kW) avg load vs. PV capacity low load Maningrida 800 309,809 1,968,355 13.6% 4.2 1032 129% 40% Ramingining 500 185,804 640,821 22.5% 4.0 374 75% 10% Yuendumu 500 141,941 1,097,903 11.4% 3.1 562 112% 50% Lajamanu 400 104,247 633,769 14.1% 2.8 334 84% 10% Arlparra 400 132,335 690,964 16.1% 3.6 373 93% 10% Kintore 225 73,080 359,194 16.9% 3.5 196 87% 10% Nyirripi 200 24,373 205,317 10.6% 1.3 104 52% 30% Areyonga 100 23,912 221,597 9.7% 2.6 111 111% 10% Docker River 100 39,429 319,674 11.0% 4.3 163 163% 40% Mt Liebig 50 19,540 158,451 11.0% 4.2 81 161% 20% TOTAL 3,275 1,054,470 6,296,045 14.3% 3.5 3329 102%
- 21.
- 24. We want toknow what it is that you want to know

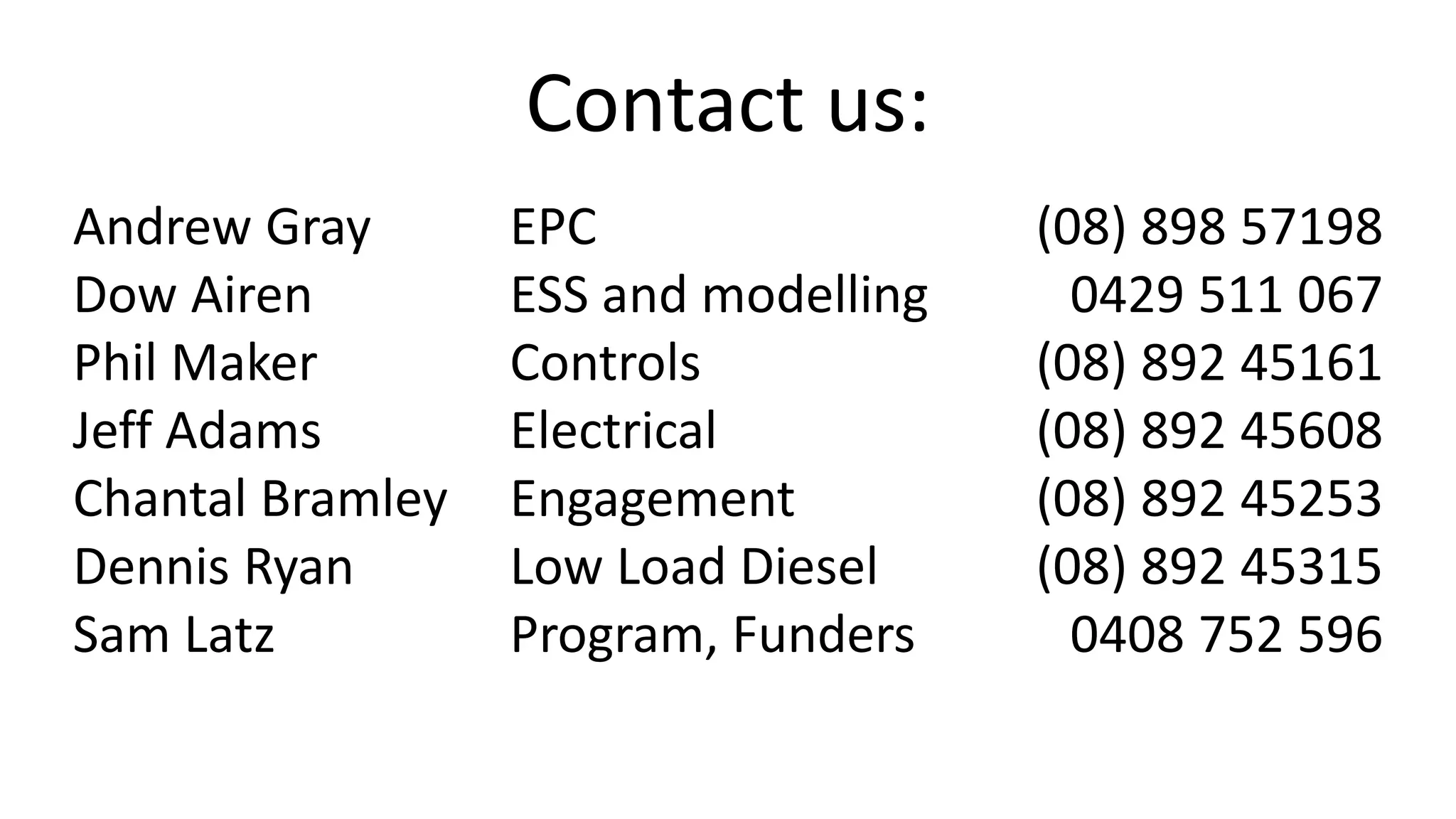

- 25. Contact us: Andrew GrayEPC (08) 898 57198 Dow Airen ESS and modelling 0429 511 067 Phil Maker Controls (08) 892 45161 Jeff Adams Electrical (08) 892 45608 Chantal Bramley Engagement (08) 892 45253 Dennis Ryan Low Load Diesel (08) 892 45315 Sam Latz Program, Funders 0408 752 596
