Authors: Hao Jin, Osaka University Ce Shi, Shanghai Lixin University of Accounting and Finance Tatsuhiro Tsuchiya, Osaka University Abstract: Detecting Arrays (DAs) are mathematical objects that enable fault localization in combinatorial interaction testing. Each row of a DA serves as a test case, whereas a whole DA is treated as a test suite. In real-world testing problems, it is often the case that some constraints exist among test parameters. In this paper, we show that it may be impossible to construct a DA using only constraint-satisfying test cases. The reason for this is that a set of some faulty interactions may always mask the effect of other faulty interactions in the presence of constraints. Based on this observation, we propose the notion of Constrained Detecting Arrays (CDAs) to adapt DAs to practical situations. The definition of CDAs requires that all rows of a CDA must satisfy the constraints and the same fault localization capability as the DA must hold except for such inherently undetectable faults. We then propose a computational method for constructing CDAs. Experimental results obtained by using a program that implements the method show that the method was able to produce CDAs within a reasonable time for practical problem instances.

1. Constrained Detecting Arrays for
Fault Localization in
Combinatorial Testing
Hao Jin[1], Ce Shi[2] and Tatsuhiro Tsuchiya[1]
Osaka University[1],
Shanghai Lixin University of
Accounting and Finance[2]
SAC2020-SVT, Brno, March. 31, 2020.

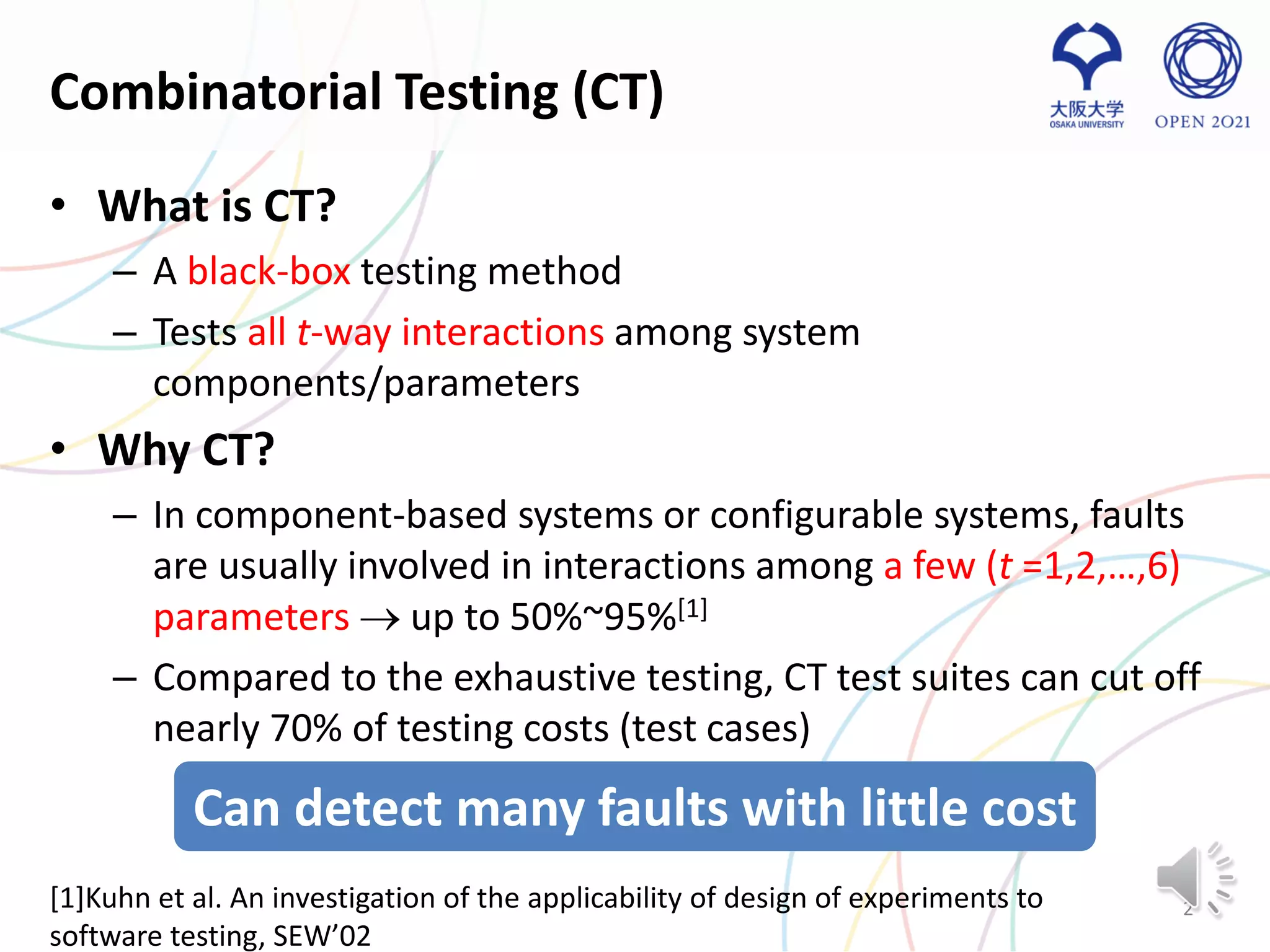

2. Combinatorial Testing (CT)
• What is CT?
– A black-box testing method
– Tests all t-way interactions among system
components/parameters
• Why CT?
– In component-based systems or configurable systems, faults
are usually involved in interactions among a few (t =1,2,…,6)
parameters → up to 50%~95%[1]
– Compared to the exhaustive testing, CT test suites can cut off
nearly 70% of testing costs (test cases)
2[1]Kuhn et al. An investigation of the applicability of design of experiments to
software testing, SEW’02
Can detect many faults with little cost

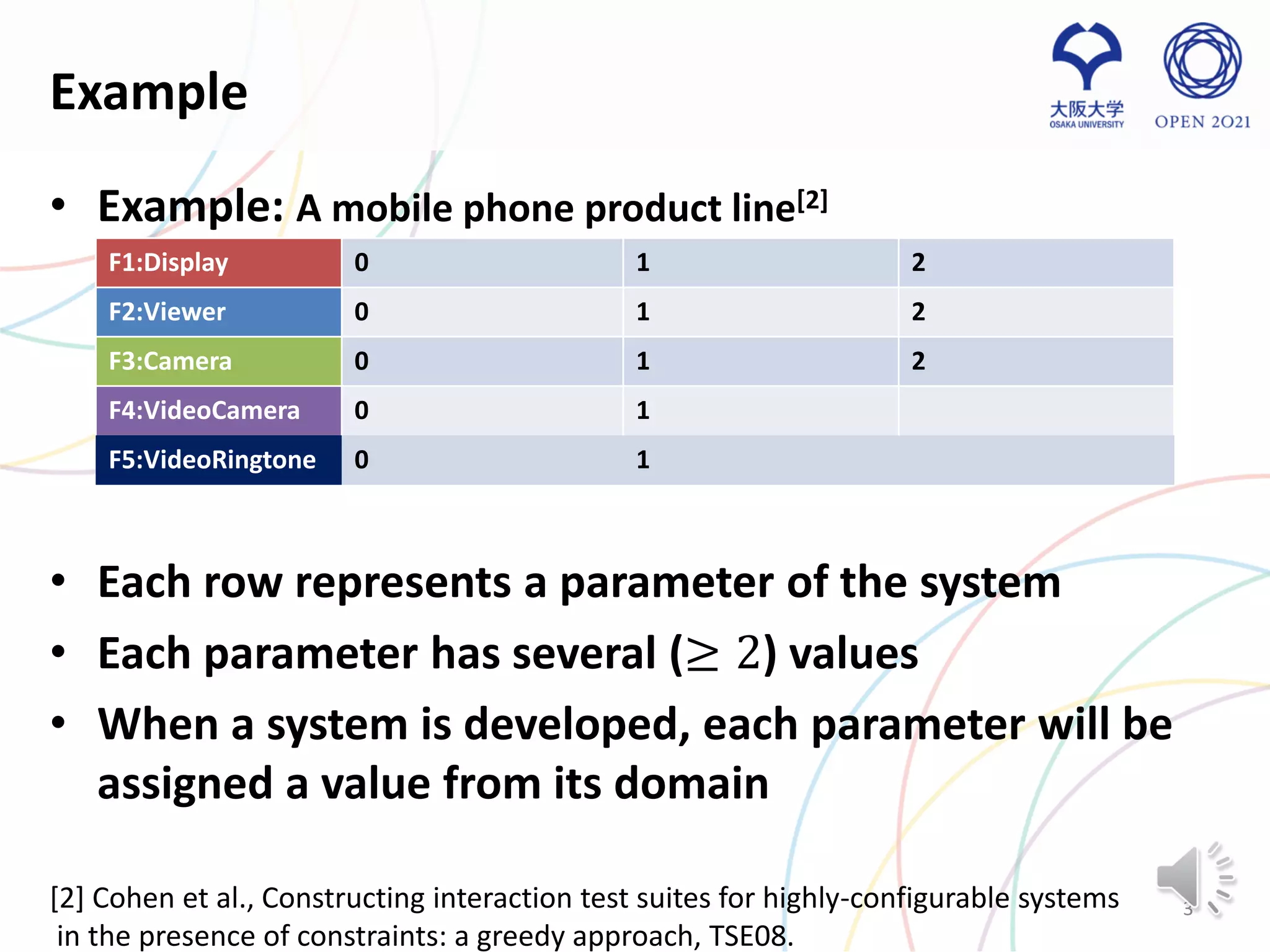

3. Example
• Example: A mobile phone product line[2]
• Each row represents a parameter of the system
• Each parameter has several (≥ 2) values
• When a system is developed, each parameter will be
assigned a value from its domain
3
F1:Display 0:16MC 1:8MC 2:BW
F2:Viewer 0:Graphical 1:Text 2:None
F3:Camera 0:2MP 1:1MP 2:None
F4:VideoCamera 0:On 1:Off
F5:VideoRingtone 0:On 1:Off
F1:Display 0 1 2
F2:Viewer 0 1 2
F3:Camera 0 1 2
F4:VideoCamera 0 1
F5:VideoRingtone 0 1
[2] Cohen et al., Constructing interaction test suites for highly-configurable systems
in the presence of constraints: a greedy approach, TSE08.

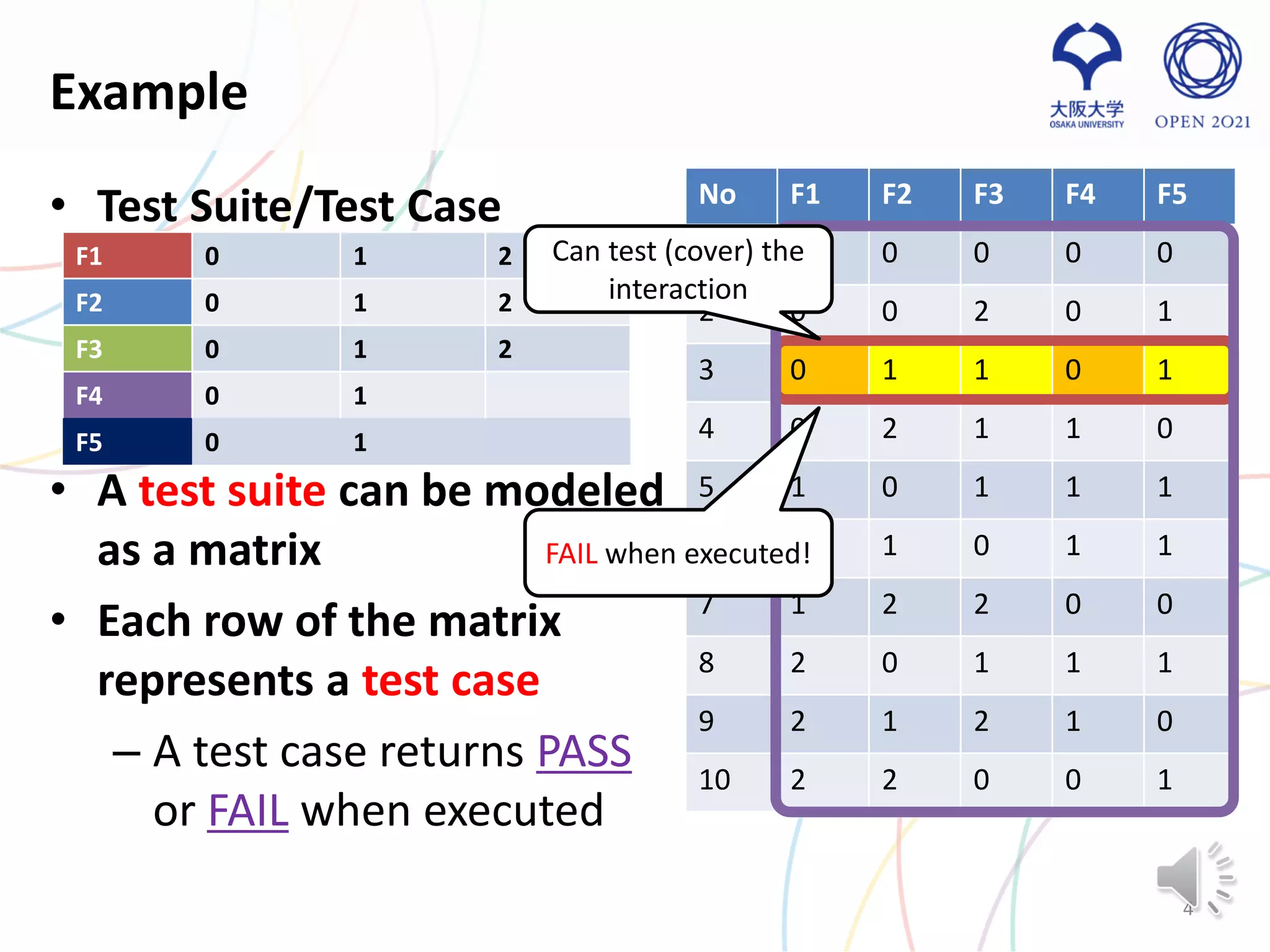

4. Example
• Test Suite/Test Case
• A test suite can be modeled
as a matrix
• Each row of the matrix
represents a test case
– A test case returns PASS
or FAIL when executed
4
F1 0 1 2
F2 0 1 2
F3 0 1 2
F4 0 1
F5 0 1
No F1 F2 F3 F4 F5
1 0 0 0 0 0
2 0 0 2 0 1
3 0 1 1 0 1
4 0 2 1 1 0
5 1 0 1 1 1
6 1 1 0 1 1
7 1 2 2 0 0
8 2 0 1 1 1
9 2 1 2 1 0
10 2 2 0 0 1
Can test (cover) the
interaction
FAIL when executed!

5. No F1 F2 F3 F4 F5
1 0 0 0 0 0
2 0 0 2 0 1
3 0 1 1 0 1
4 0 2 1 1 0
5 1 0 1 1 1
6 1 1 0 1 1
7 1 2 2 0 0
8 2 0 1 1 1
9 2 1 2 1 0
10 2 2 0 0 1

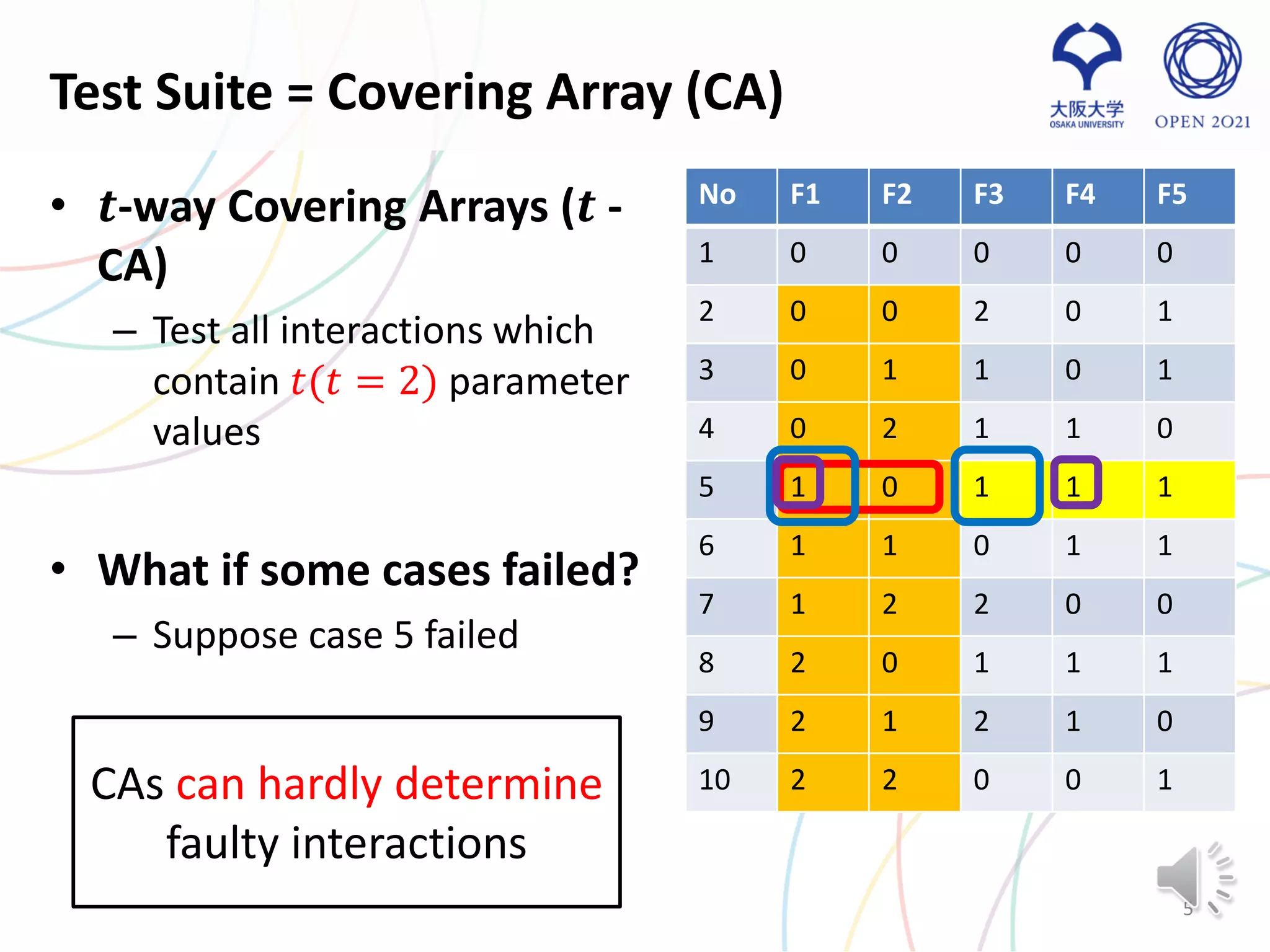

Test Suite = Covering Array (CA)
• 𝒕-way Covering Arrays (𝒕 -
CA)
– Test all interactions which
contain 𝑡(𝑡 = 2) parameter
values
• What if some cases failed?
– Suppose case 5 failed
5
Some interactions are
suspicious for triggering
a fault
CAs can hardly determine
faulty interactions

6. No F1 F2 F3 F4 F5
1 0 0 0 0 0
2 0 0 1 0 1
3 0 0 2 1 1
4 0 1 0 1 1
5 0 1 2 0 0
6 0 2 0 0 1
7 0 2 1 1 0
8 1 0 0 0 1
9 1 0 1 1 0
10 1 1 2 1 0
11 1 1 2 1 0
12 1 2 0 1 0
13 1 2 1 0 0
14 1 2 1 1 1
…
22 2 2 2 1 0
No F1 F2 F3 F4 F5
1 0 0 0 0 0
2 0 0 1 0 1
3 0 0 2 1 1
4 0 1 0 1 1
5 0 1 2 0 0
6 0 2 0 0 1
7 0 2 1 1 0
8 1 0 0 0 1
9 1 0 1 1 0
10 1 1 2 1 0
11 1 1 2 1 0
12 1 2 0 1 0
13 1 2 1 0 0
14 1 2 1 1 1
…
22 2 2 2 1 0

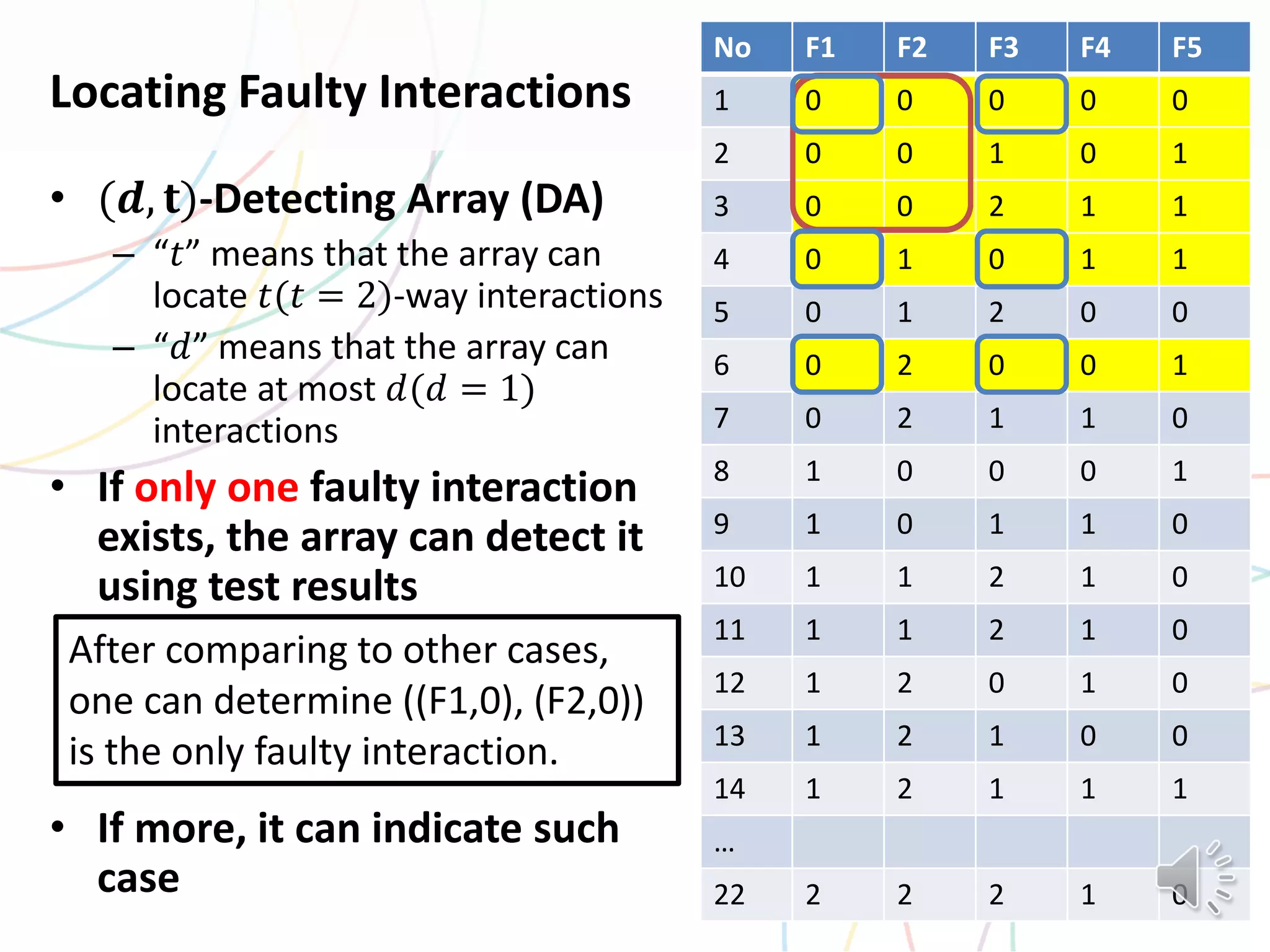

Locating Faulty Interactions
• (𝒅, 𝐭)-Detecting Array (DA)
– “𝑡” means that the array can
locate 𝑡(𝑡 = 2)-way interactions
– “𝑑” means that the array can
locate at most 𝑑(𝑑 = 1)
interactions
• If only one faulty interaction
exists, the array can detect it
using test results
• If more, it can indicate such
case
6
After comparing to other cases,
one can determine ((F1,0), (F2,0))
is the only faulty interaction.
No F1 F2 F3 F4 F5
1 0 0 0 0 0
2 0 0 1 0 1
3 0 0 2 1 1
4 0 1 0 1 1
5 0 1 2 0 0
6 0 2 0 0 1
7 0 2 1 1 0
8 1 0 0 0 1
9 1 0 1 1 0
10 1 1 2 1 0
11 1 1 2 1 0
12 1 2 0 1 0
13 1 2 1 0 0
14 1 2 1 1 1
…
22 2 2 2 1 0

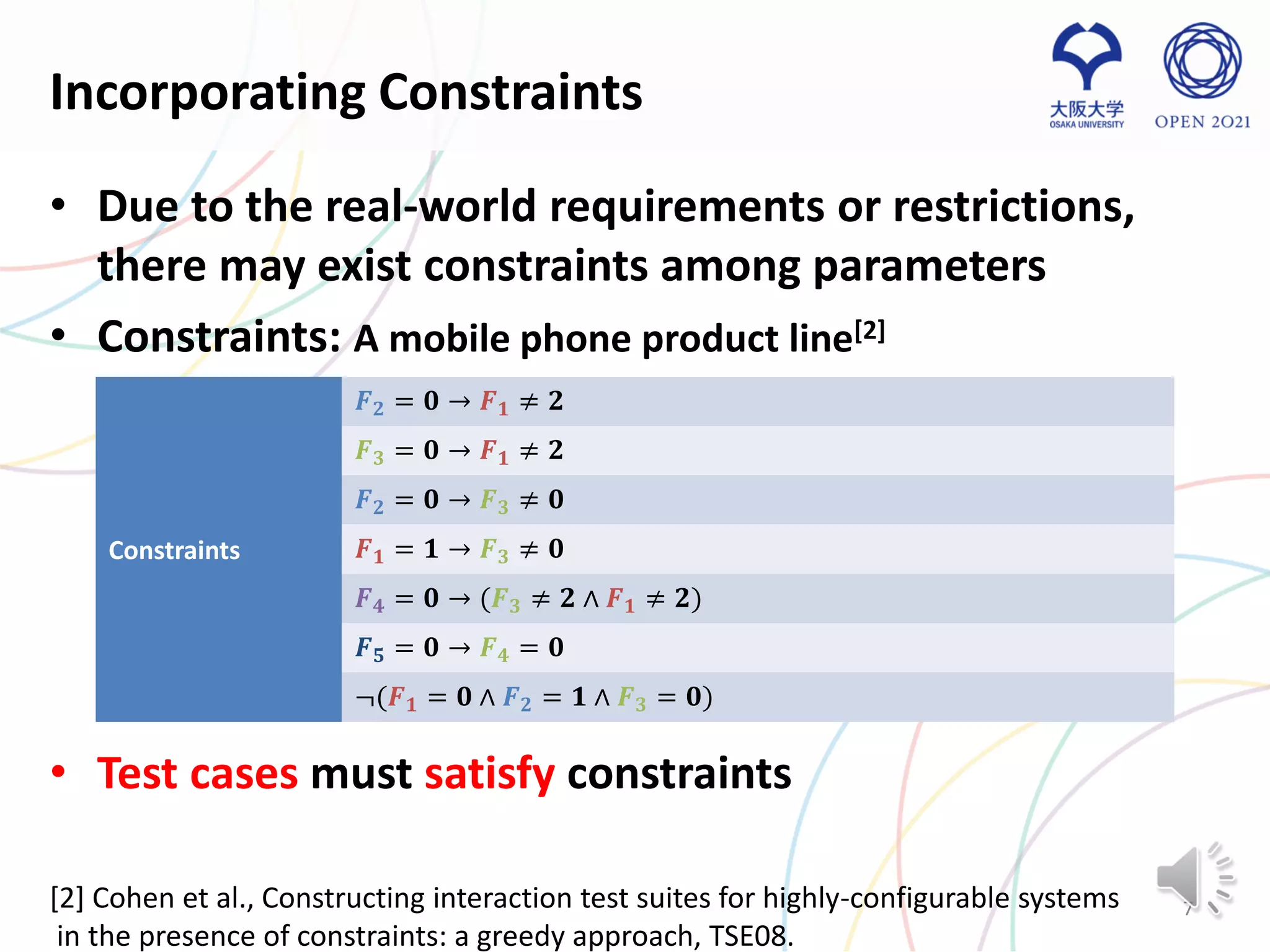

7. Incorporating Constraints
• Due to the real-world requirements or restrictions,
there may exist constraints among parameters
• Constraints: A mobile phone product line[2]
• Test cases must satisfy constraints
7[2] Cohen et al., Constructing interaction test suites for highly-configurable systems
in the presence of constraints: a greedy approach, TSE08.
Constraints
Graphical viewer requires color display
2MP camera requires color display
Graphical viewer not support 2MP camera
8MC display not support 2MP camera
Video camera requires a camera and a color display
Video ringtones cannot occur with NO video camera
The combination (16MC, Text, 2MP camera) will not be supported
Constraints
𝑭 𝟐 = 𝟎 → 𝑭 𝟏 ≠ 𝟐
𝑭 𝟑 = 𝟎 → 𝑭 𝟏 ≠ 𝟐
𝑭 𝟐 = 𝟎 → 𝑭 𝟑 ≠ 𝟎
𝑭 𝟏 = 𝟏 → 𝑭 𝟑 ≠ 𝟎
𝑭 𝟒 = 𝟎 → (𝑭 𝟑 ≠ 𝟐 ∧ 𝑭 𝟏 ≠ 𝟐)
𝑭 𝟓 = 𝟎 → 𝑭 𝟒 = 𝟎
¬(𝑭 𝟏 = 𝟎 ∧ 𝑭 𝟐 = 𝟏 ∧ 𝑭 𝟑 = 𝟎)

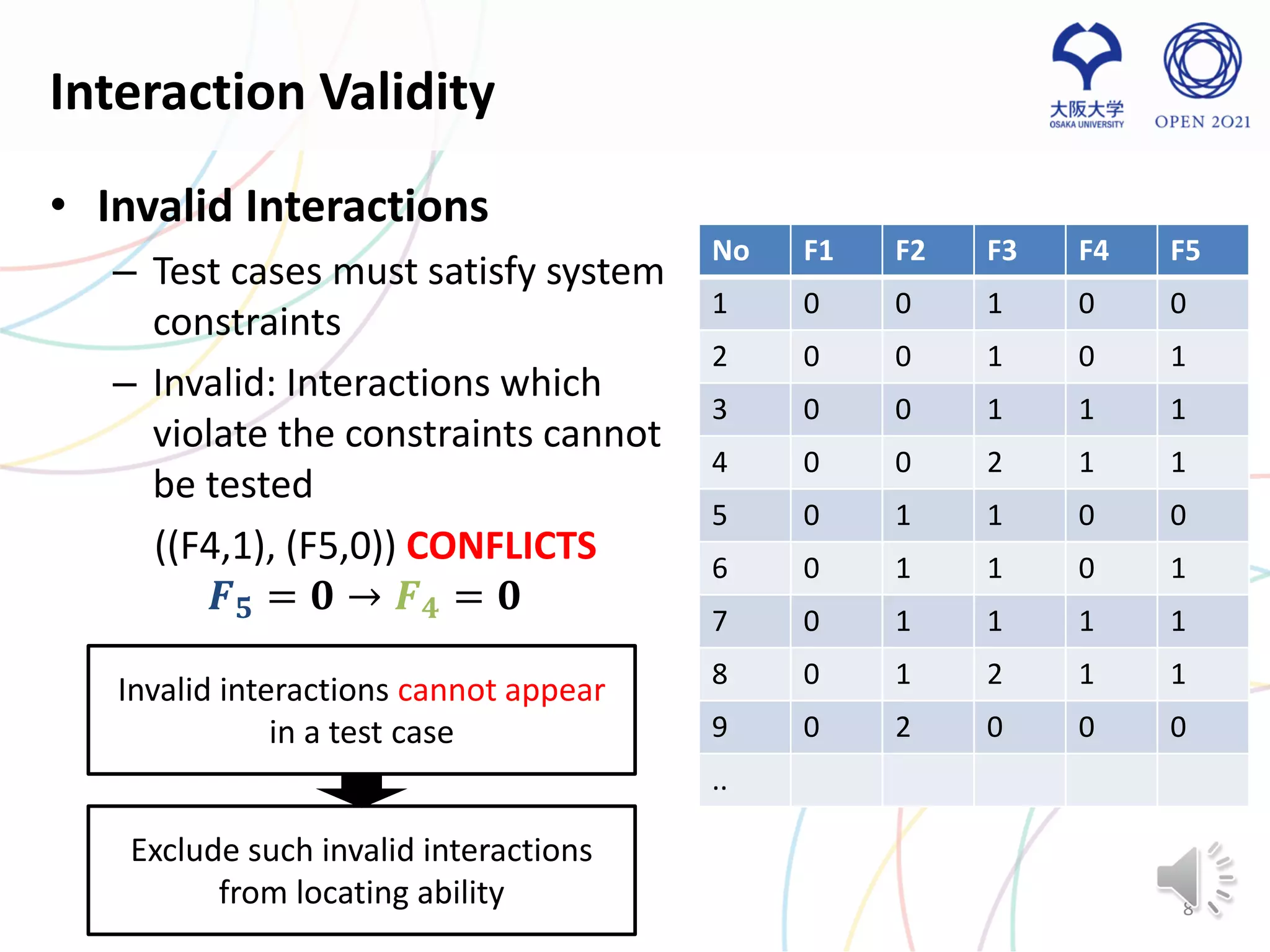

8. Interaction Validity
• Invalid Interactions
– Test cases must satisfy system
constraints
– Invalid: Interactions which
violate the constraints cannot
be tested
((F4,1), (F5,0)) CONFLICTS
𝑭 𝟓 = 𝟎 → 𝑭 𝟒 = 𝟎
8
No F1 F2 F3 F4 F5
1 0 0 1 0 0
2 0 0 1 0 1
3 0 0 1 1 1
4 0 0 2 1 1
5 0 1 1 0 0
6 0 1 1 0 1
7 0 1 1 1 1
8 0 1 2 1 1
9 0 2 0 0 0
..
Invalid interactions cannot appear
in a test case
Exclude such invalid interactions
from locating ability

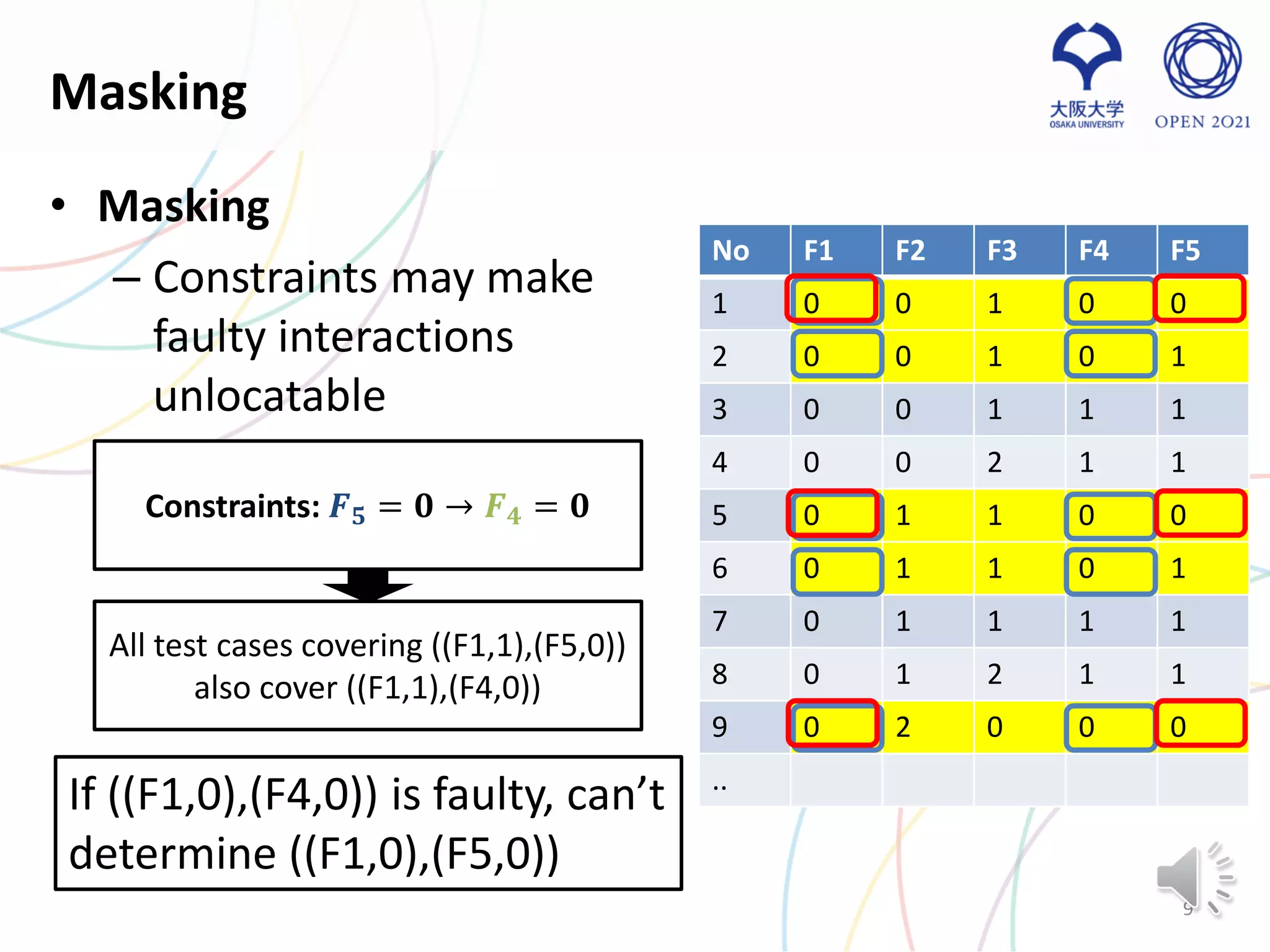

9. Masking
• Masking
– Constraints may make
faulty interactions
unlocatable
9
Constraints: 𝑭 𝟓 = 𝟎 → 𝑭 𝟒 = 𝟎
All test cases covering ((F1,1),(F5,0))
also cover ((F1,1),(F4,0))
If ((F1,0),(F4,0)) is faulty, can’t
determine ((F1,0),(F5,0))
No F1 F2 F3 F4 F5
1 0 0 1 0 0
2 0 0 1 0 1
3 0 0 1 1 1
4 0 0 2 1 1
5 0 1 1 0 0
6 0 1 1 0 1
7 0 1 1 1 1
8 0 1 2 1 1
9 0 2 0 0 0
..

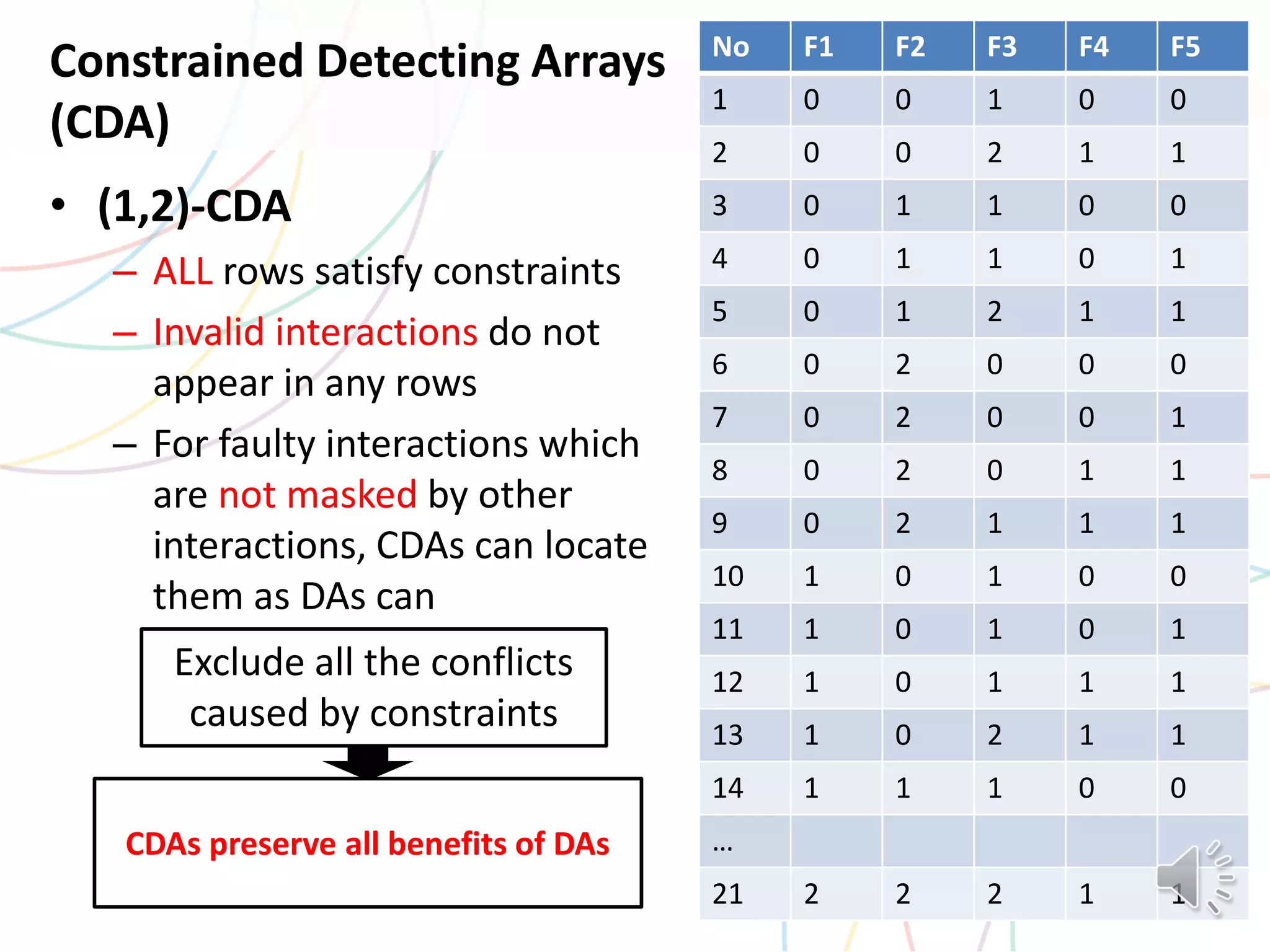

10. Constrained Detecting Arrays
(CDA)
• (1,2)-CDA
– ALL rows satisfy constraints
– Invalid interactions do not
appear in any rows
– For faulty interactions which
are not masked by other
interactions, CDAs can locate
them as DAs can
10
No F1 F2 F3 F4 F5
1 0 0 1 0 0
2 0 0 2 1 1
3 0 1 1 0 0
4 0 1 1 0 1
5 0 1 2 1 1
6 0 2 0 0 0
7 0 2 0 0 1
8 0 2 0 1 1
9 0 2 1 1 1
10 1 0 1 0 0
11 1 0 1 0 1
12 1 0 1 1 1
13 1 0 2 1 1
14 1 1 1 0 0
…
21 2 2 2 1 1
Exclude all the conflicts
caused by constraints
CDAs preserve all benefits of DAs

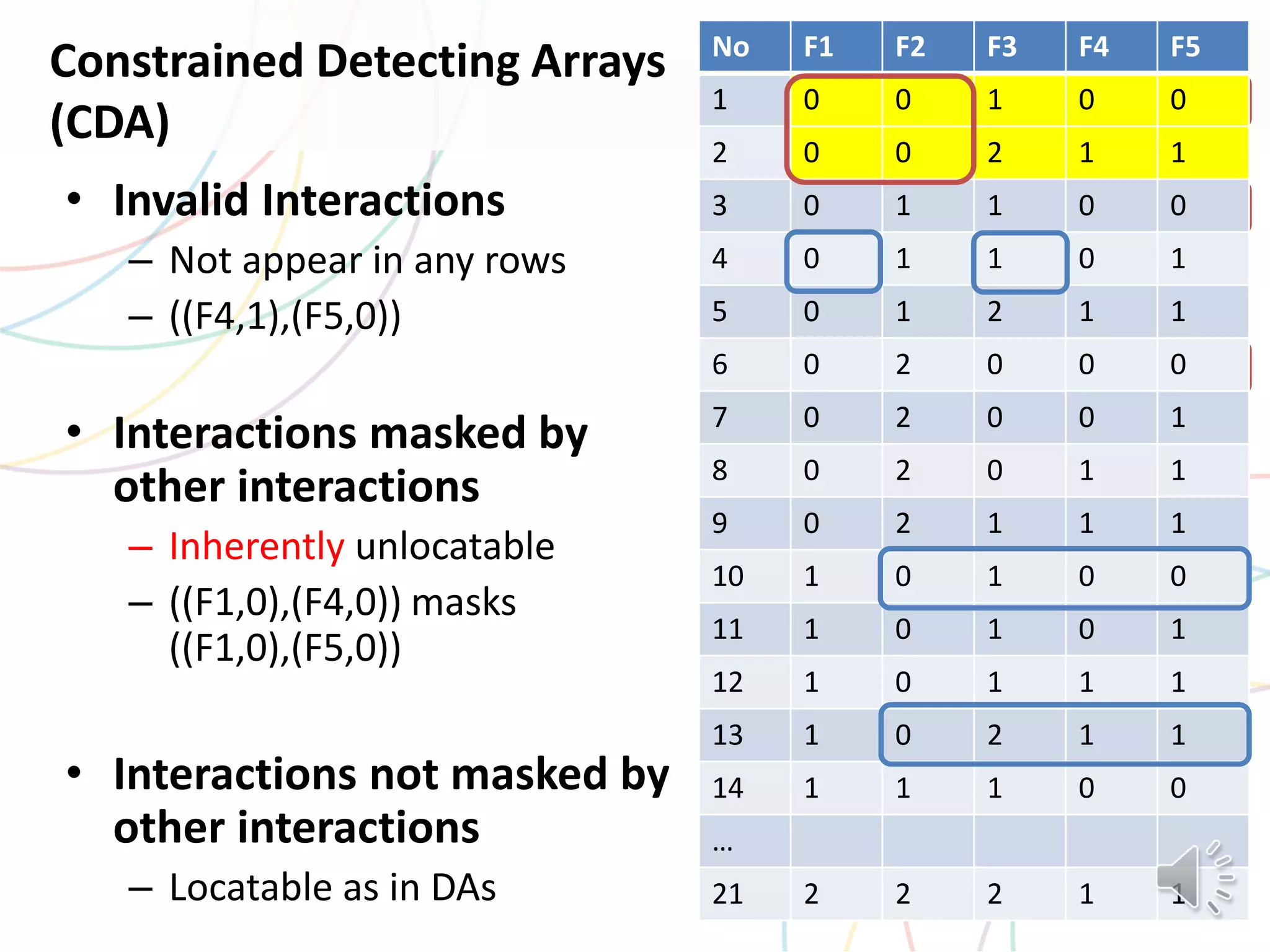

11. Constrained Detecting Arrays
(CDA)
• Invalid Interactions
– Not appear in any rows
– ((F4,1),(F5,0))
• Interactions masked by
other interactions
– Inherently unlocatable
– ((F1,0),(F4,0)) masks
((F1,0),(F5,0))
• Interactions not masked by
other interactions
– Locatable as in DAs 11
No F1 F2 F3 F4 F5
1 0 0 1 0 0
2 0 0 2 1 1
3 0 1 1 0 0
4 0 1 1 0 1
5 0 1 2 1 1
6 0 2 0 0 0
7 0 2 0 0 1
8 0 2 0 1 1
9 0 2 1 1 1
10 1 0 1 0 0
11 1 0 1 0 1
12 1 0 1 1 1
13 1 0 2 1 1
14 1 1 1 0 0
…
21 2 2 2 1 1
No F1 F2 F3 F4 F5
1 0 0 1 0 0
2 0 0 2 1 1
3 0 1 1 0 0
4 0 1 1 0 1
5 0 1 2 1 1
6 0 2 0 0 0
7 0 2 0 0 1
8 0 2 0 1 1
9 0 2 1 1 1
10 1 0 1 0 0
11 1 0 1 0 1
12 1 0 1 1 1
13 1 0 2 1 1
14 1 1 1 0 0
…
21 2 2 2 1 1

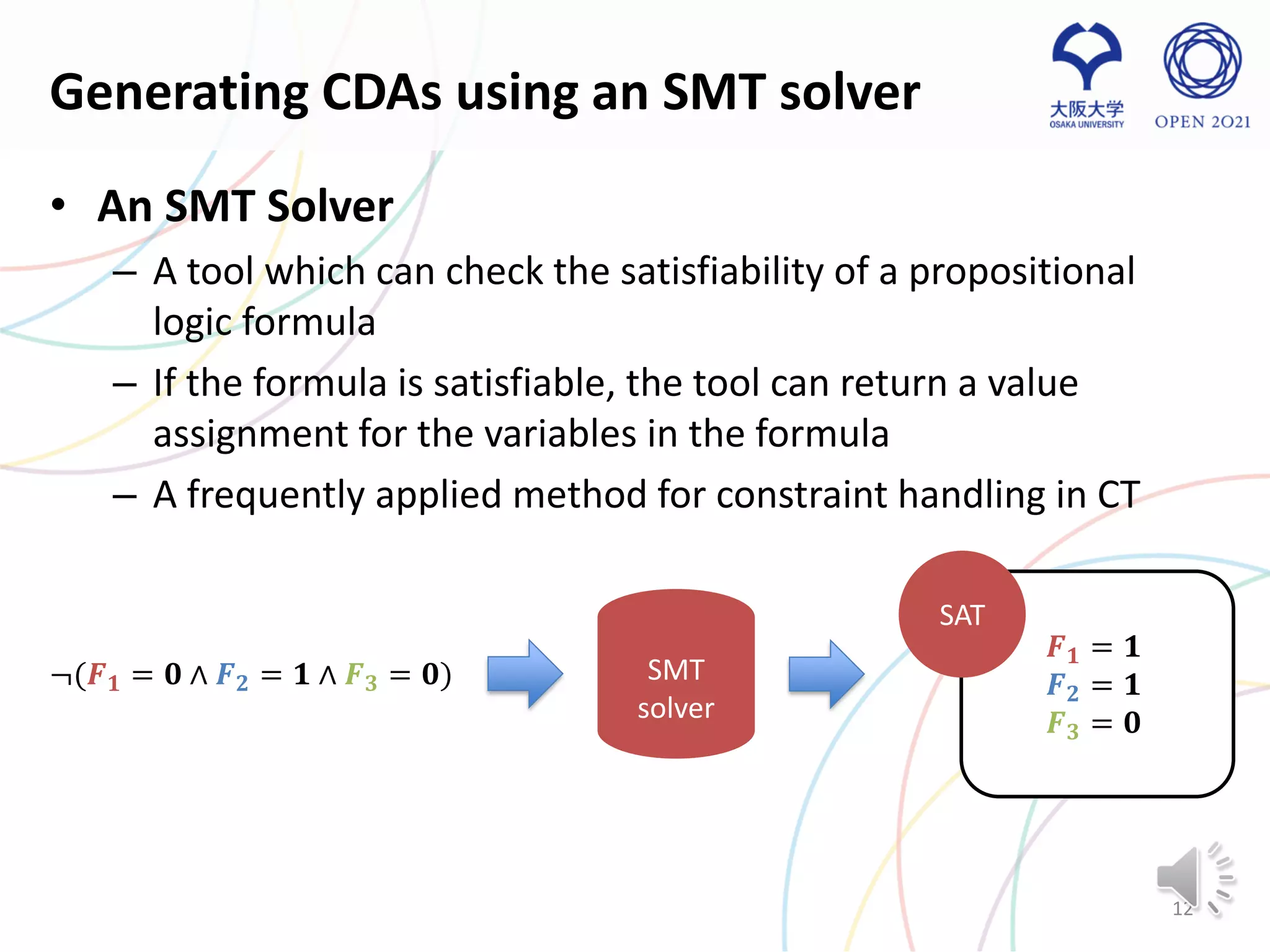

12. Generating CDAs using an SMT solver
• An SMT Solver
– A tool which can check the satisfiability of a propositional
logic formula
– If the formula is satisfiable, the tool can return a value
assignment for the variables in the formula
– A frequently applied method for constraint handling in CT
12
¬(𝑭 𝟏 = 𝟎 ∧ 𝑭 𝟐 = 𝟏 ∧ 𝑭 𝟑 = 𝟎) SMT
solver
𝑭 𝟏 = 𝟏
𝑭 𝟐 = 𝟏
𝑭 𝟑 = 𝟎
SAT

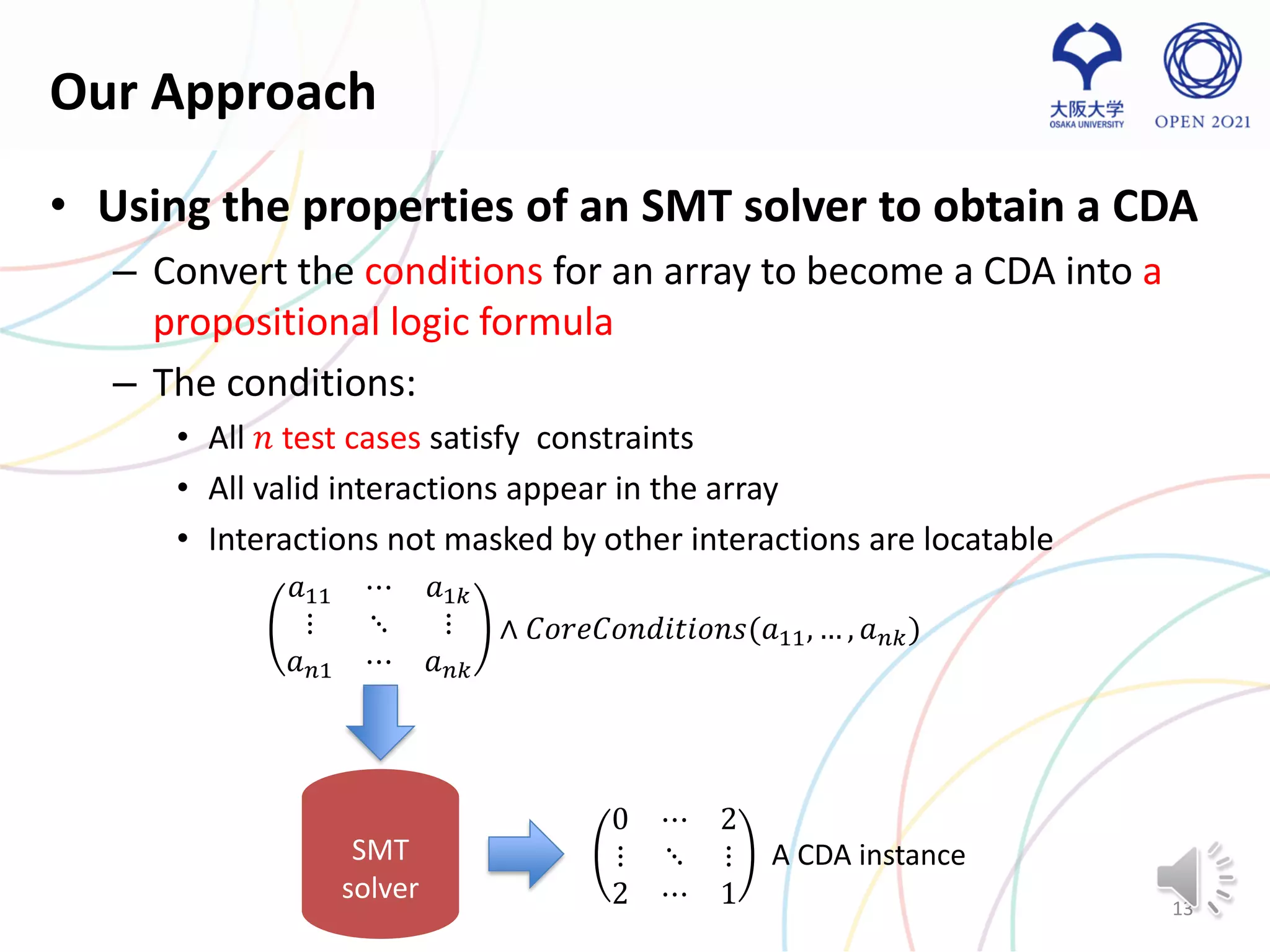

13. Our Approach
• Using the properties of an SMT solver to obtain a CDA
– Convert the conditions for an array to become a CDA into a
propositional logic formula
– The conditions:
• All 𝑛 test cases satisfy constraints
• All valid interactions appear in the array
• Interactions not masked by other interactions are locatable
13
𝑎11 ⋯ 𝑎1𝑘
⋮ ⋱ ⋮
𝑎 𝑛1 ⋯ 𝑎 𝑛𝑘
∧ 𝐶𝑜𝑟𝑒𝐶𝑜𝑛𝑑𝑖𝑡𝑖𝑜𝑛𝑠(𝑎11, … , 𝑎 𝑛𝑘)
SMT
solver
0 ⋯ 2
⋮ ⋱ ⋮
2 ⋯ 1
A CDA instance

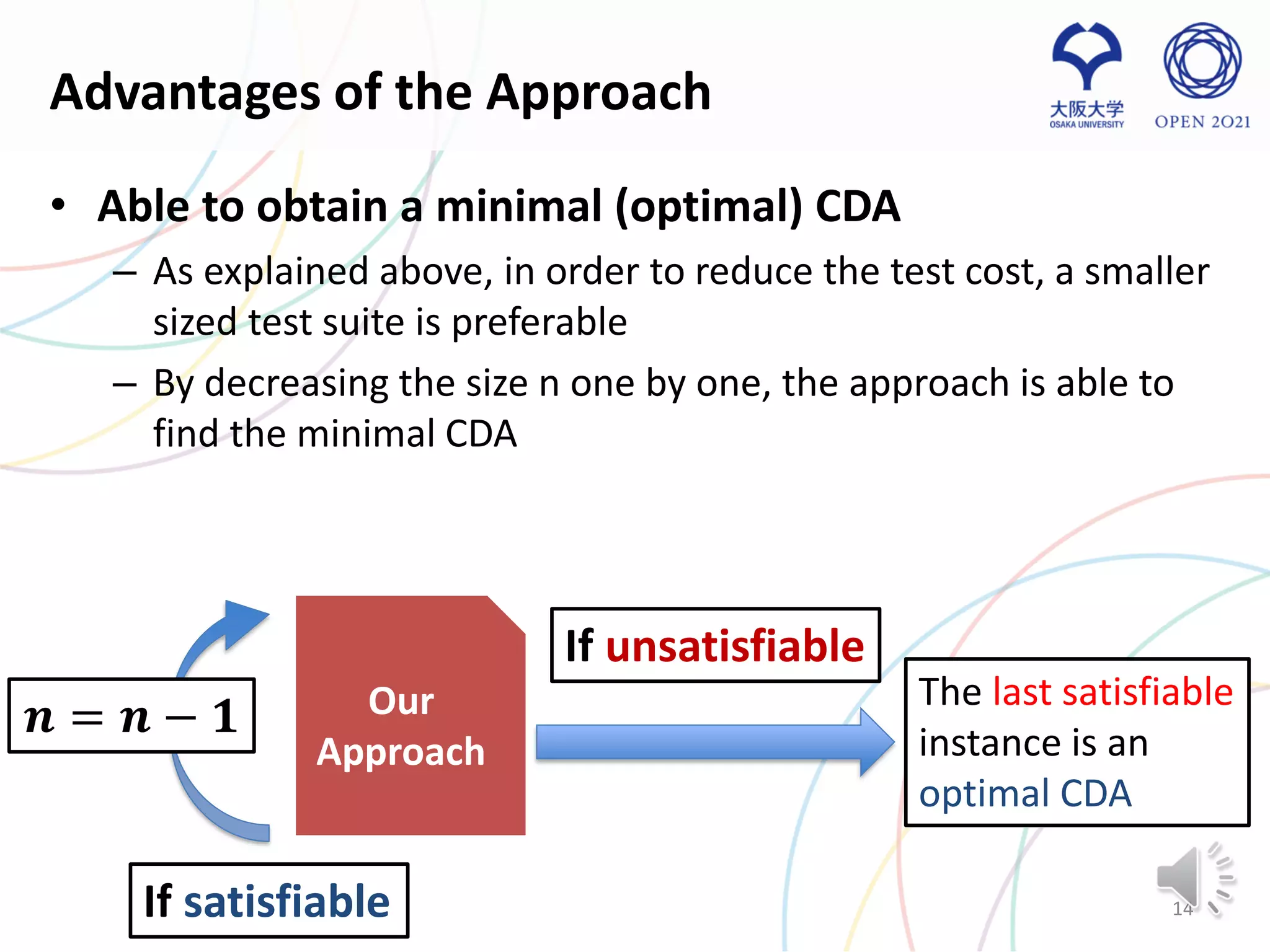

14. Advantages of the Approach
• Able to obtain a minimal (optimal) CDA
– As explained above, in order to reduce the test cost, a smaller
sized test suite is preferable
– By decreasing the size n one by one, the approach is able to
find the minimal CDA
14
Our
Approach
If satisfiable
𝒏 = 𝒏 − 𝟏
If unsatisfiable
The last satisfiable
instance is an
optimal CDA

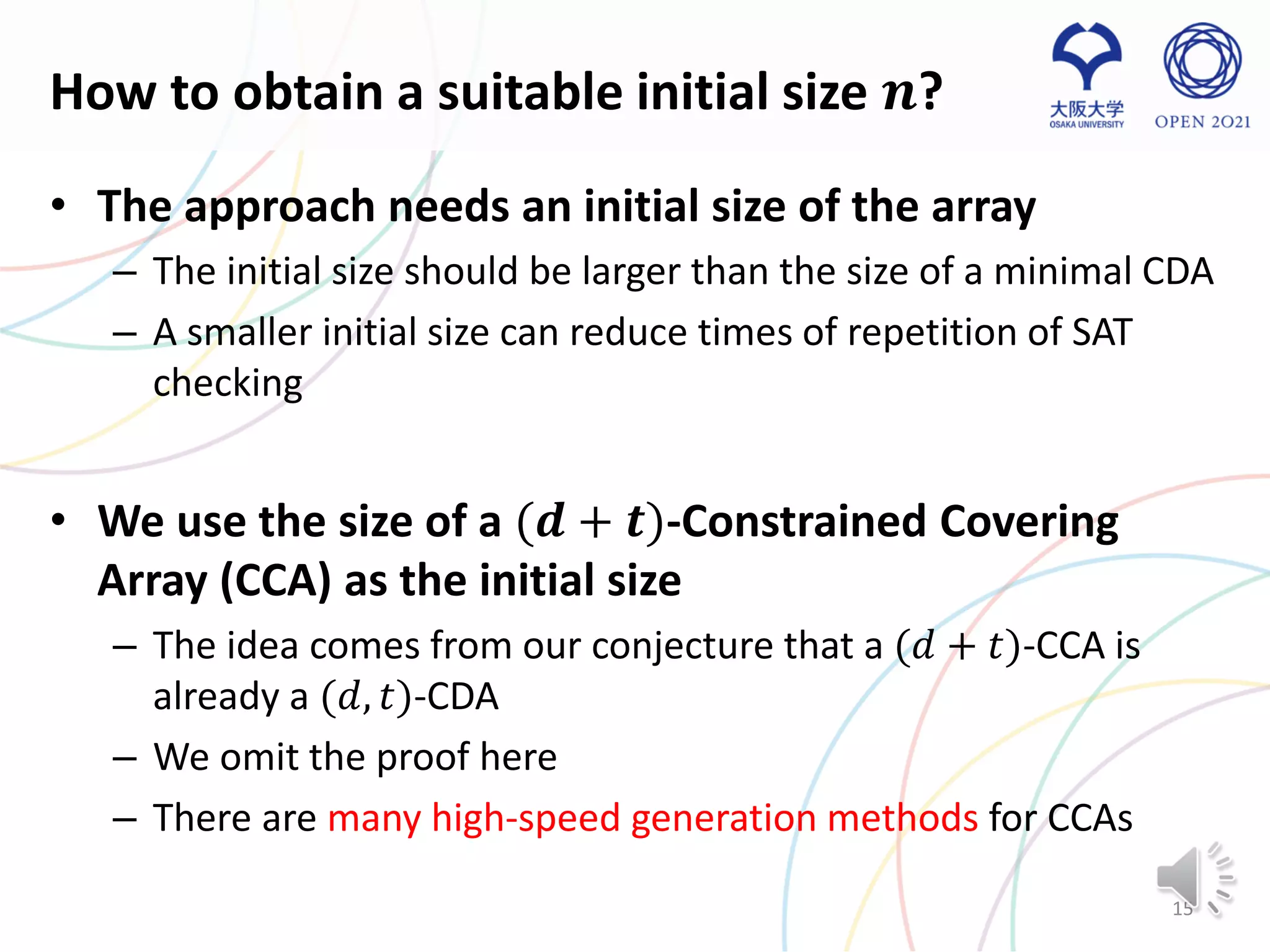

15. How to obtain a suitable initial size 𝒏?
• The approach needs an initial size of the array
– The initial size should be larger than the size of a minimal CDA
– A smaller initial size can reduce times of repetition of SAT
checking
• We use the size of a (𝒅 + 𝒕)-Constrained Covering
Array (CCA) as the initial size
– The idea comes from our conjecture that a (𝑑 + 𝑡)-CCA is
already a (𝑑, 𝑡)-CDA
– We omit the proof here
– There are many high-speed generation methods for CCAs
15

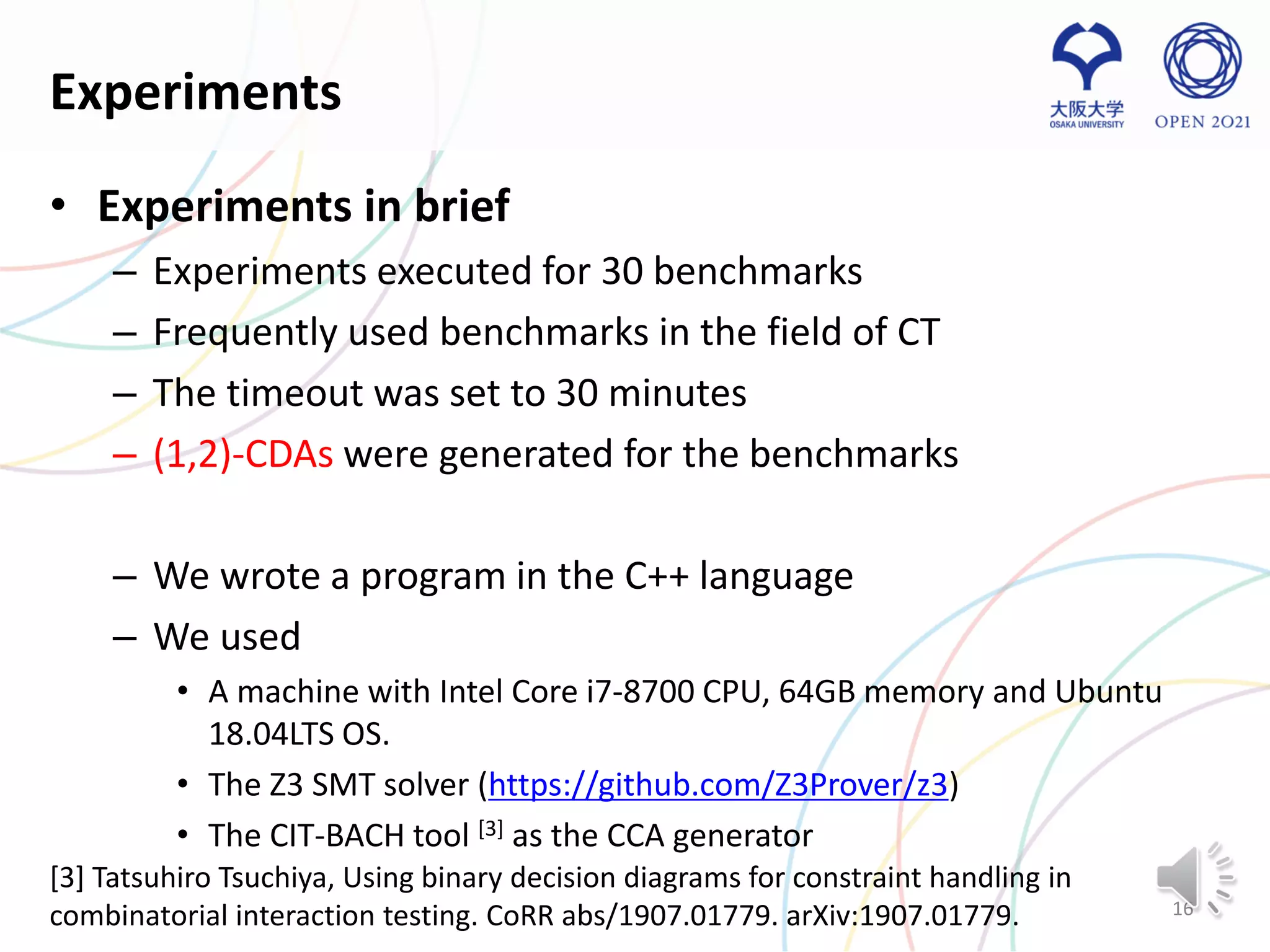

16. Experiments
• Experiments in brief
– Experiments executed for 30 benchmarks
– Frequently used benchmarks in the field of CT
– The timeout was set to 30 minutes
– (1,2)-CDAs were generated for the benchmarks
– We wrote a program in the C++ language
– We used
• A machine with Intel Core i7-8700 CPU, 64GB memory and Ubuntu
18.04LTS OS.
• The Z3 SMT solver (https://github.com/Z3Prover/z3)
• The CIT-BACH tool [3] as the CCA generator
16
[3] Tatsuhiro Tsuchiya, Using binary decision diagrams for constraint handling in
combinatorial interaction testing. CoRR abs/1907.01779. arXiv:1907.01779.

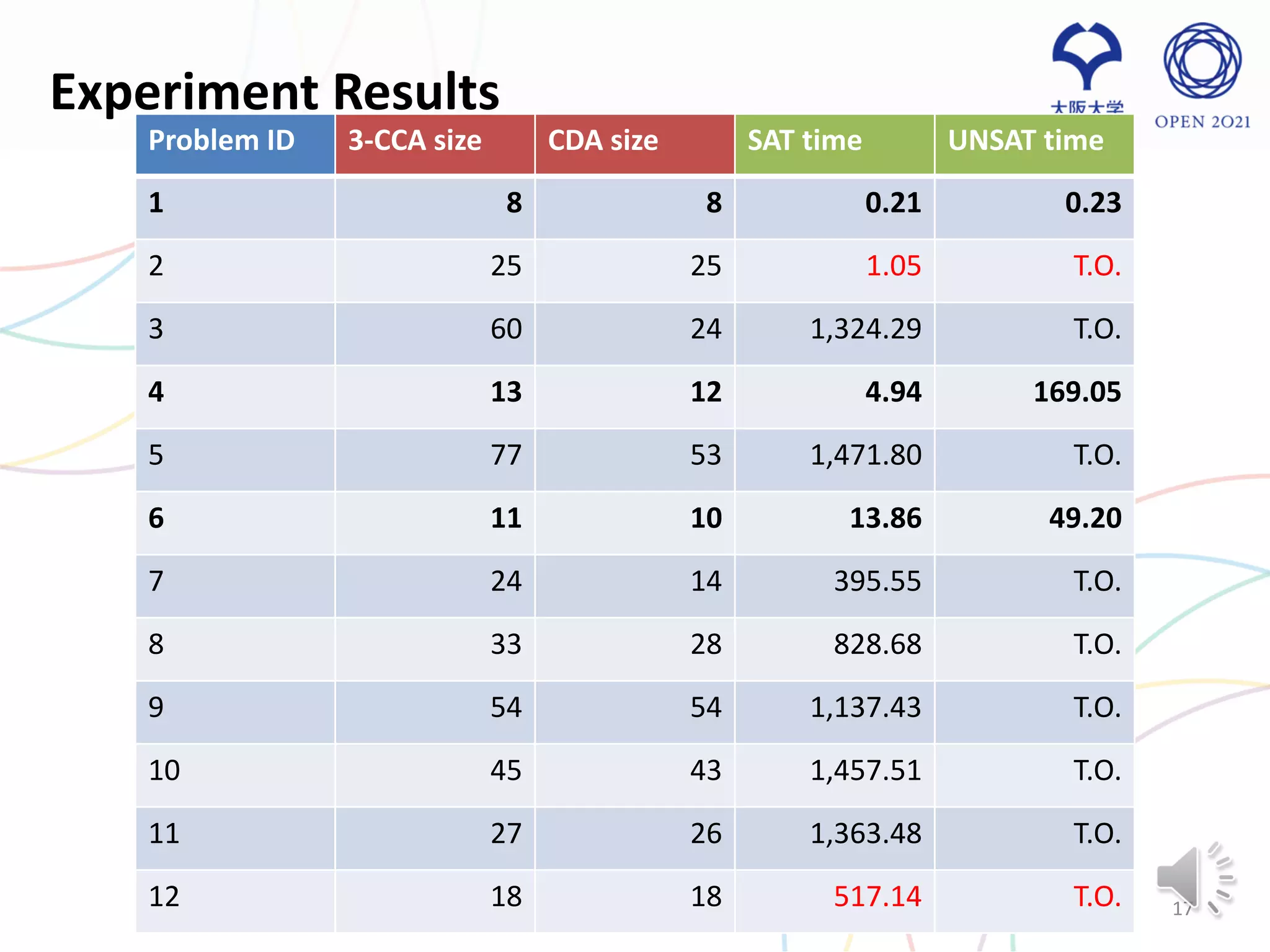

17. Experiment Results
17
Problem ID 3-CCA size CDA size SAT time UNSAT time
1 8 8 0.21 0.23
2 25 25 1.05 T.O.
3 60 24 1,324.29 T.O.
4 13 12 4.94 169.05
5 77 53 1,471.80 T.O.
6 11 10 13.86 49.20
7 24 14 395.55 T.O.
8 33 28 828.68 T.O.
9 54 54 1,137.43 T.O.
10 45 43 1,457.51 T.O.
11 27 26 1,363.48 T.O.
12 18 18 517.14 T.O.

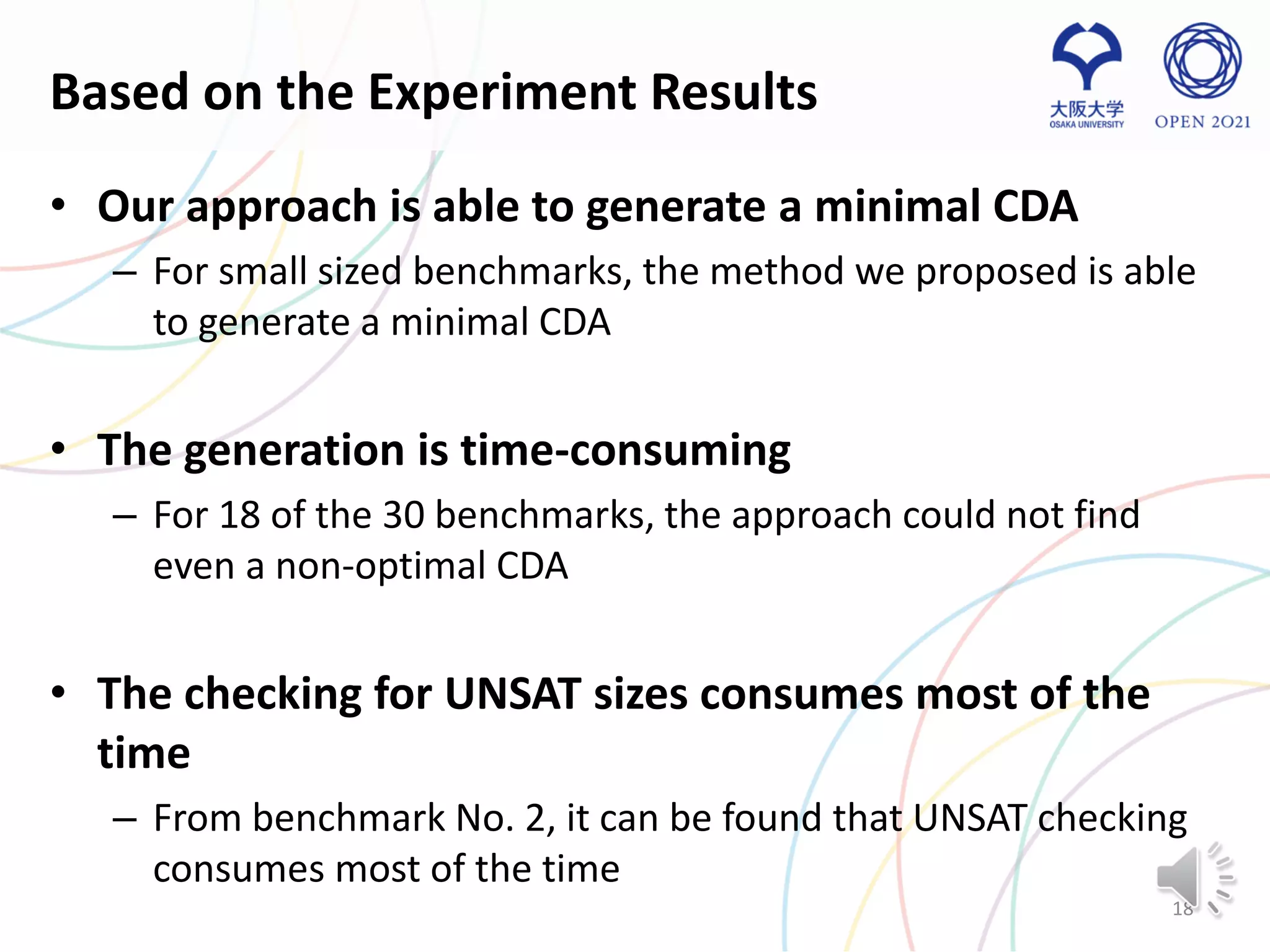

18. Based on the Experiment Results
• Our approach is able to generate a minimal CDA
– For small sized benchmarks, the method we proposed is able
to generate a minimal CDA
• The generation is time-consuming
– For 18 of the 30 benchmarks, the approach could not find
even a non-optimal CDA
• The checking for UNSAT sizes consumes most of the
time
– From benchmark No. 2, it can be found that UNSAT checking
consumes most of the time
18

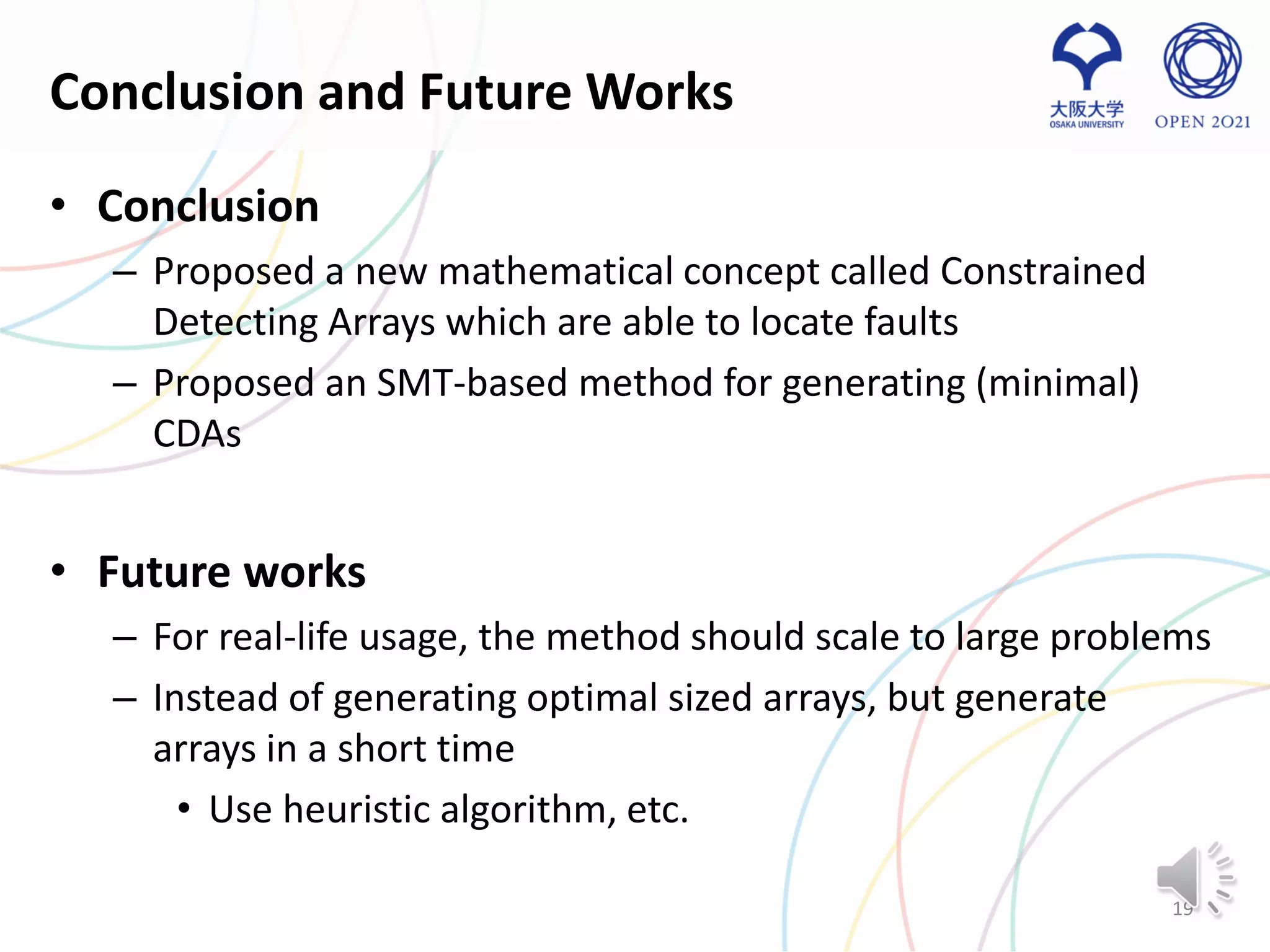

19. Conclusion and Future Works
• Conclusion
– Proposed a new mathematical concept called Constrained
Detecting Arrays which are able to locate faults
– Proposed an SMT-based method for generating (minimal)
CDAs
• Future works
– For real-life usage, the method should scale to large problems
– Instead of generating optimal sized arrays, but generate
arrays in a short time
• Use heuristic algorithm, etc.
19

20. Thank you
20
