1. Ruby on Rails
Training Week 2
Fast Books an
Example Project
Using Behavior
Driven
Development
by Mark Menard
Enable Labs

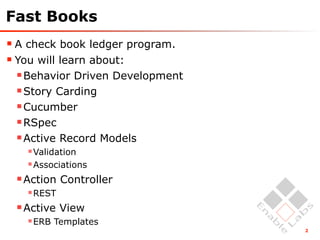

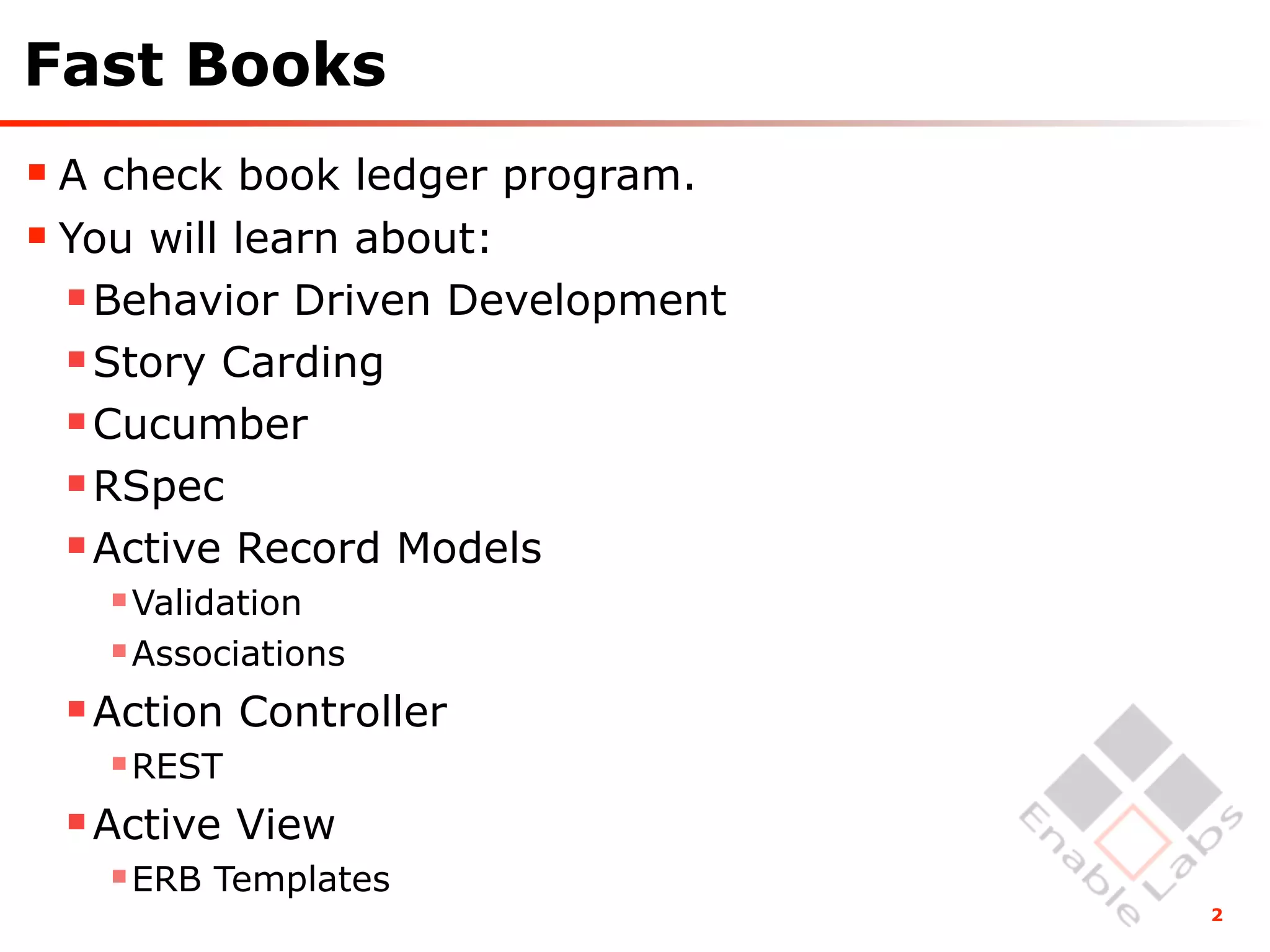

2. Fast Books
A check book ledger program.
You will learn about:
Behavior Driven Development
Story Carding
Cucumber
RSpec
Active Record Models
Validation
Associations
Action Controller
REST
Active View
ERB Templates
2

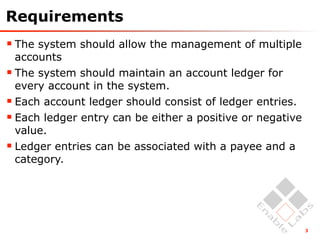

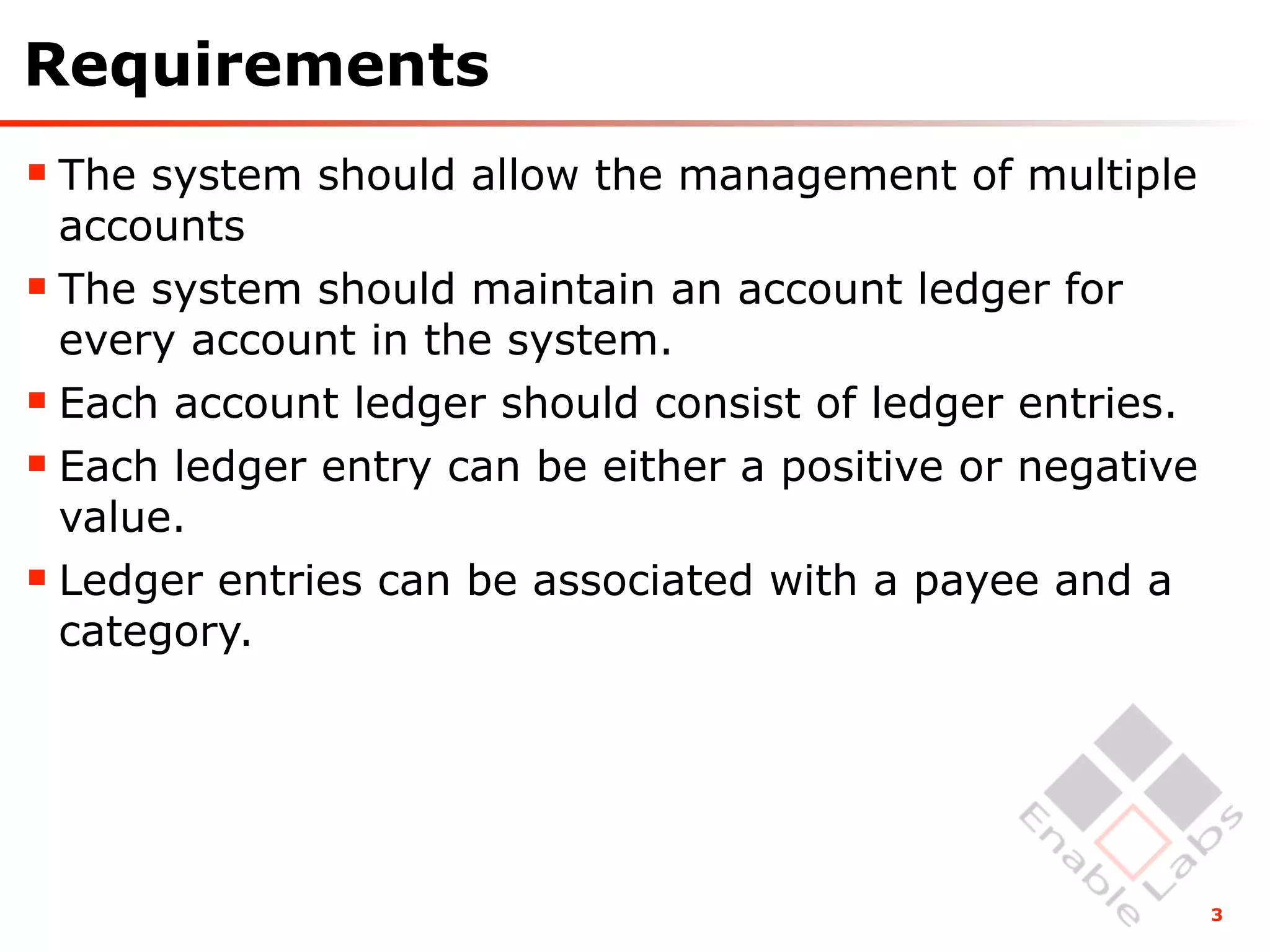

3. Requirements
The system should allow the management of multiple
accounts
The system should maintain an account ledger for
every account in the system.
Each account ledger should consist of ledger entries.
Each ledger entry can be either a positive or negative
value.
Ledger entries can be associated with a payee and a
category.
3

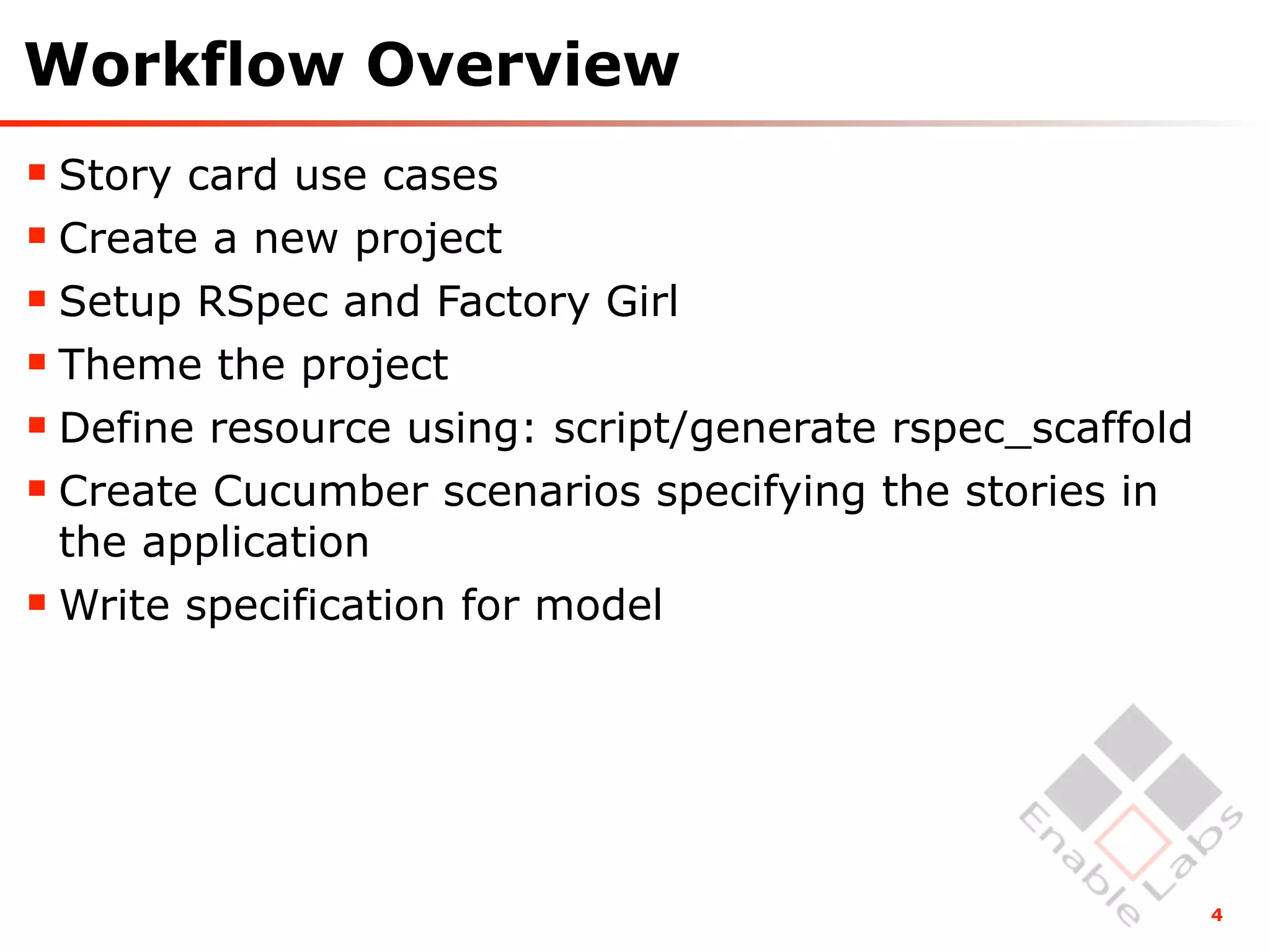

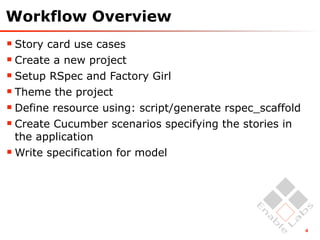

4. Workflow Overview
Story card use cases
Create a new project
Setup RSpec and Factory Girl
Theme the project
Define resource using: script/generate rspec_scaffold
Create Cucumber scenarios specifying the stories in
the application
Write specification for model
4

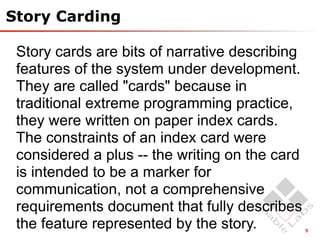

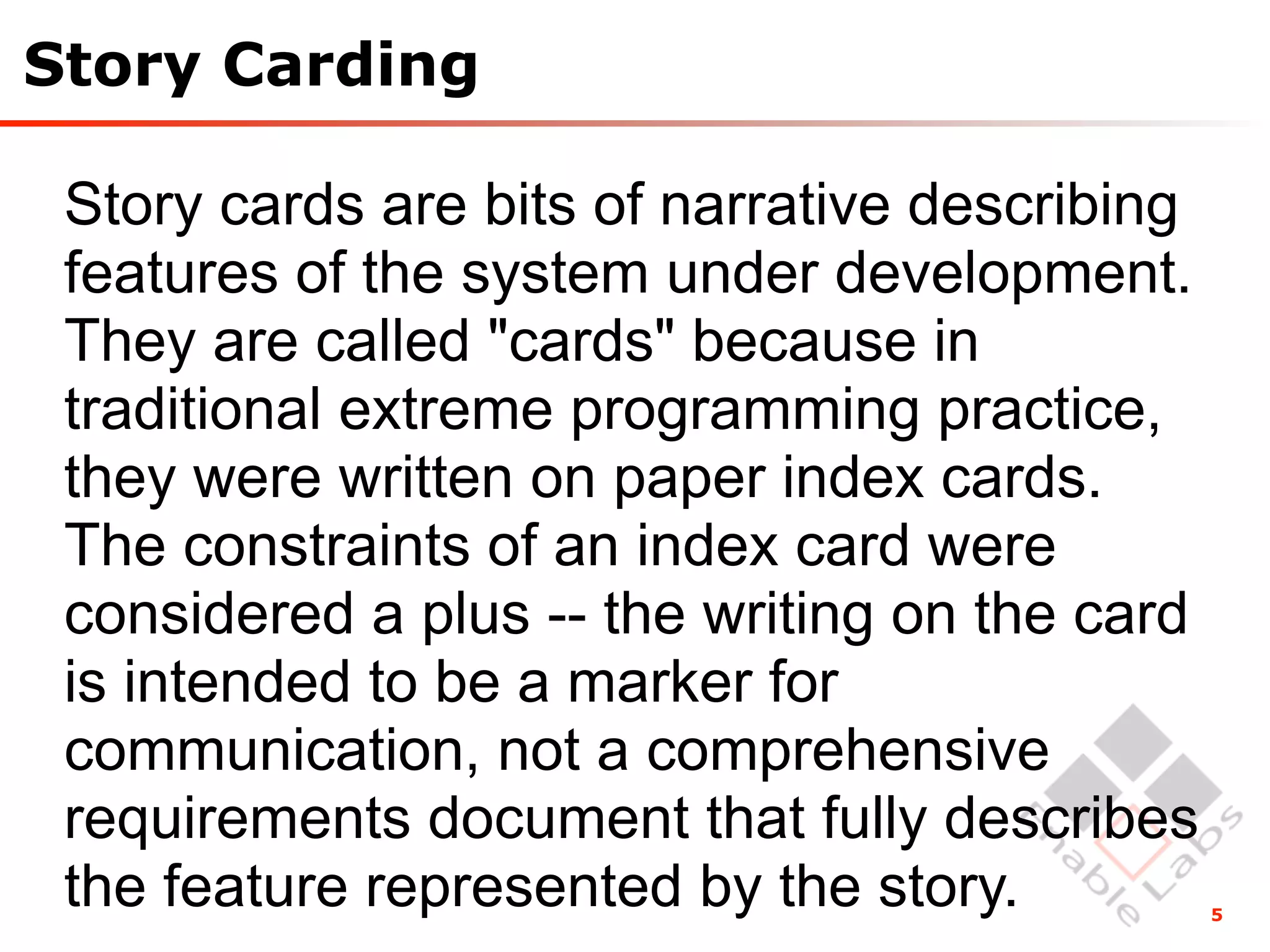

5. Story Carding
Story cards are bits of narrative describing
features of the system under development.
They are called "cards" because in
traditional extreme programming practice,
they were written on paper index cards.
The constraints of an index card were
considered a plus -- the writing on the card
is intended to be a marker for
communication, not a comprehensive
requirements document that fully describes
the feature represented by the story. 5

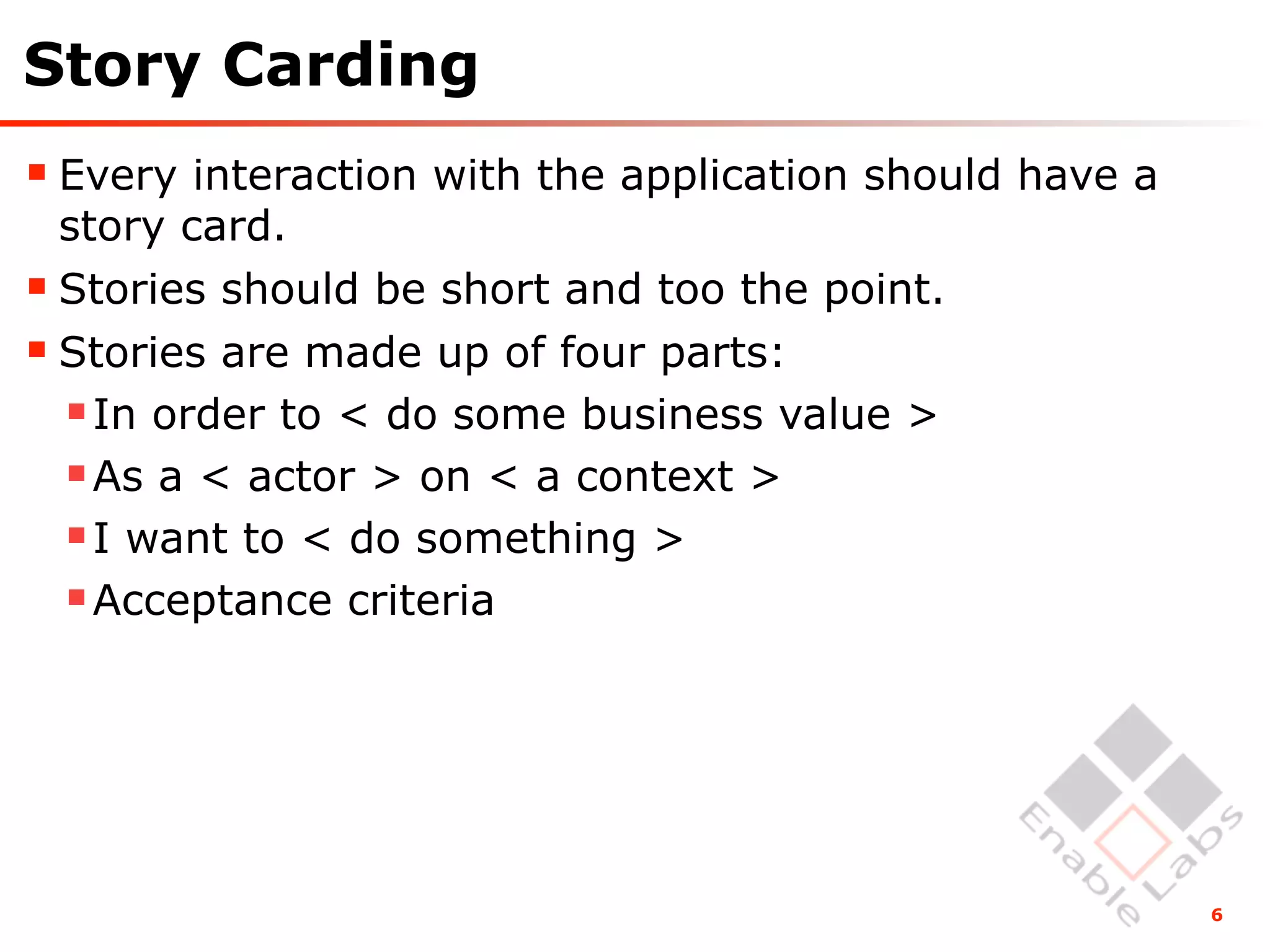

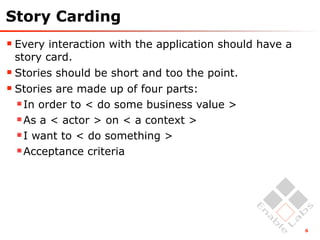

6. Story Carding
Every interaction with the application should have a
story card.
Stories should be short and too the point.
Stories are made up of four parts:
In order to < do some business value >
As a < actor > on < a context >
I want to < do something >
Acceptance criteria
6

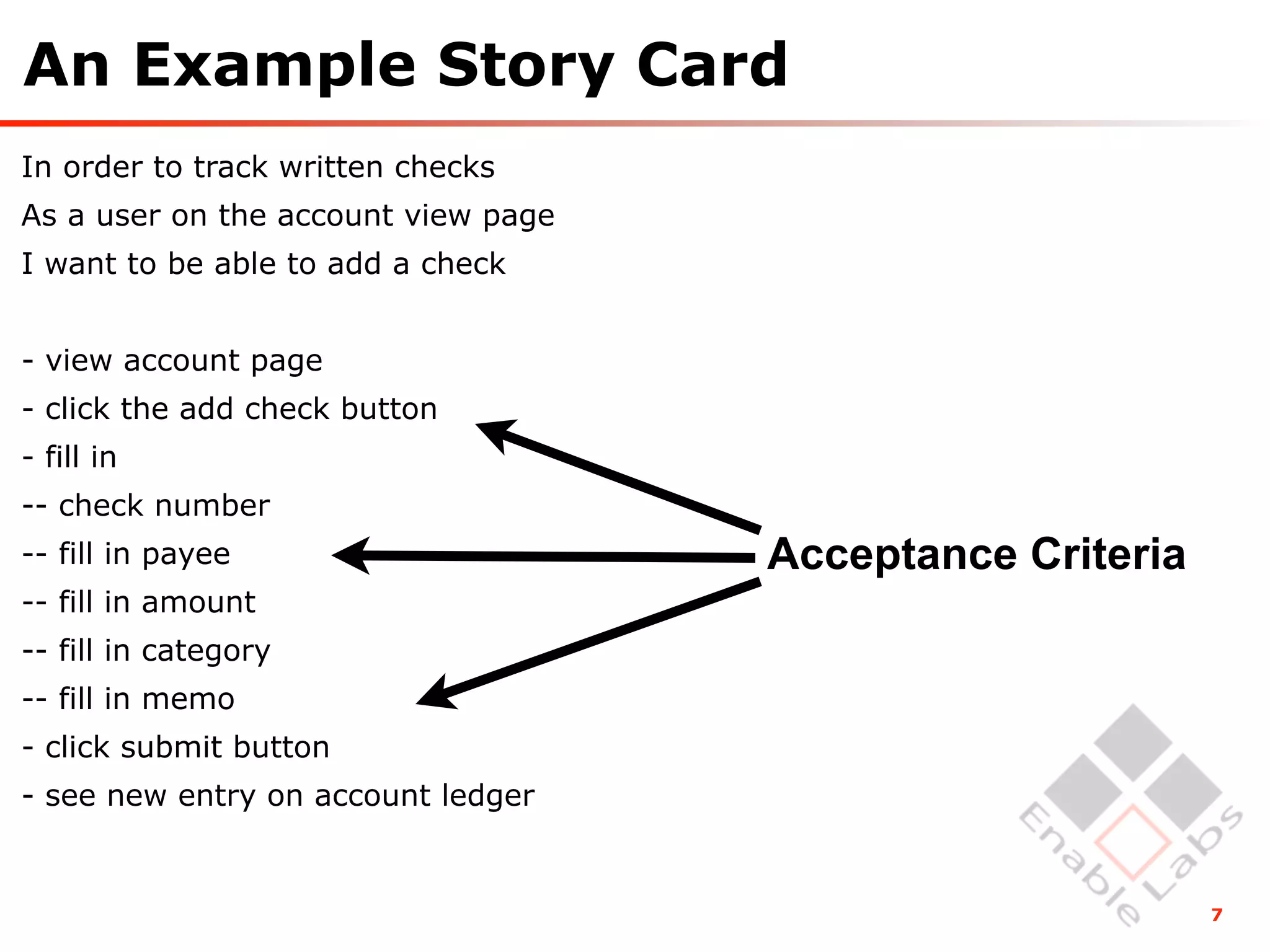

7. An Example Story Card
In order to track written checks
As a user on the account view page
I want to be able to add a check
- view account page
- click the add check button
- fill in
-- check number
-- fill in payee Acceptance Criteria
-- fill in amount
-- fill in category
-- fill in memo
- click submit button
- see new entry on account ledger
7

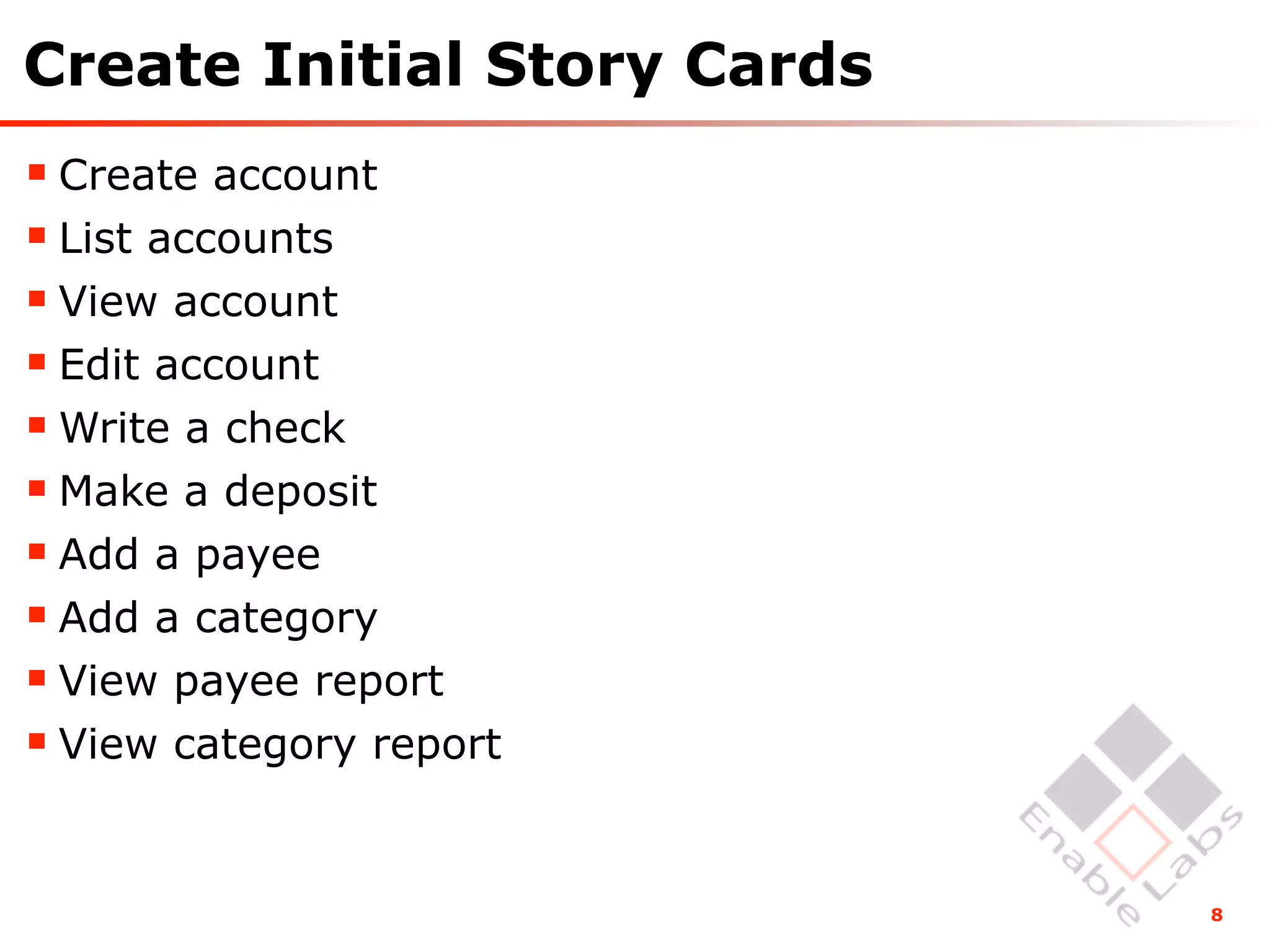

8. Create Initial Story Cards
Create account
List accounts
View account
Edit account
Write a check
Make a deposit
Add a payee
Add a category
View payee report
View category report
8

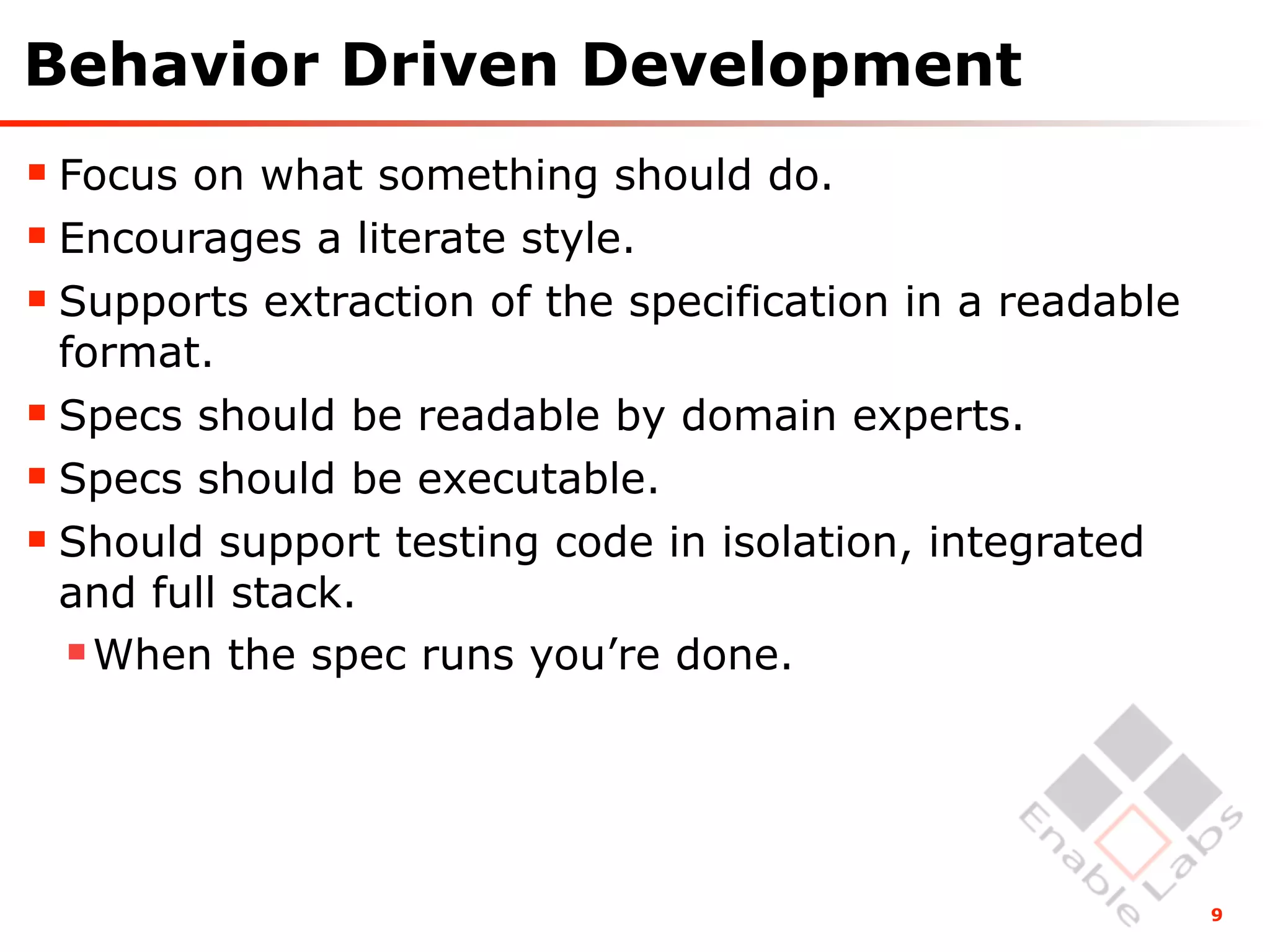

9. Behavior Driven Development
Focus on what something should do.
Encourages a literate style.
Supports extraction of the specification in a readable
format.
Specs should be readable by domain experts.
Specs should be executable.
Should support testing code in isolation, integrated
and full stack.
When the spec runs you’re done.
9

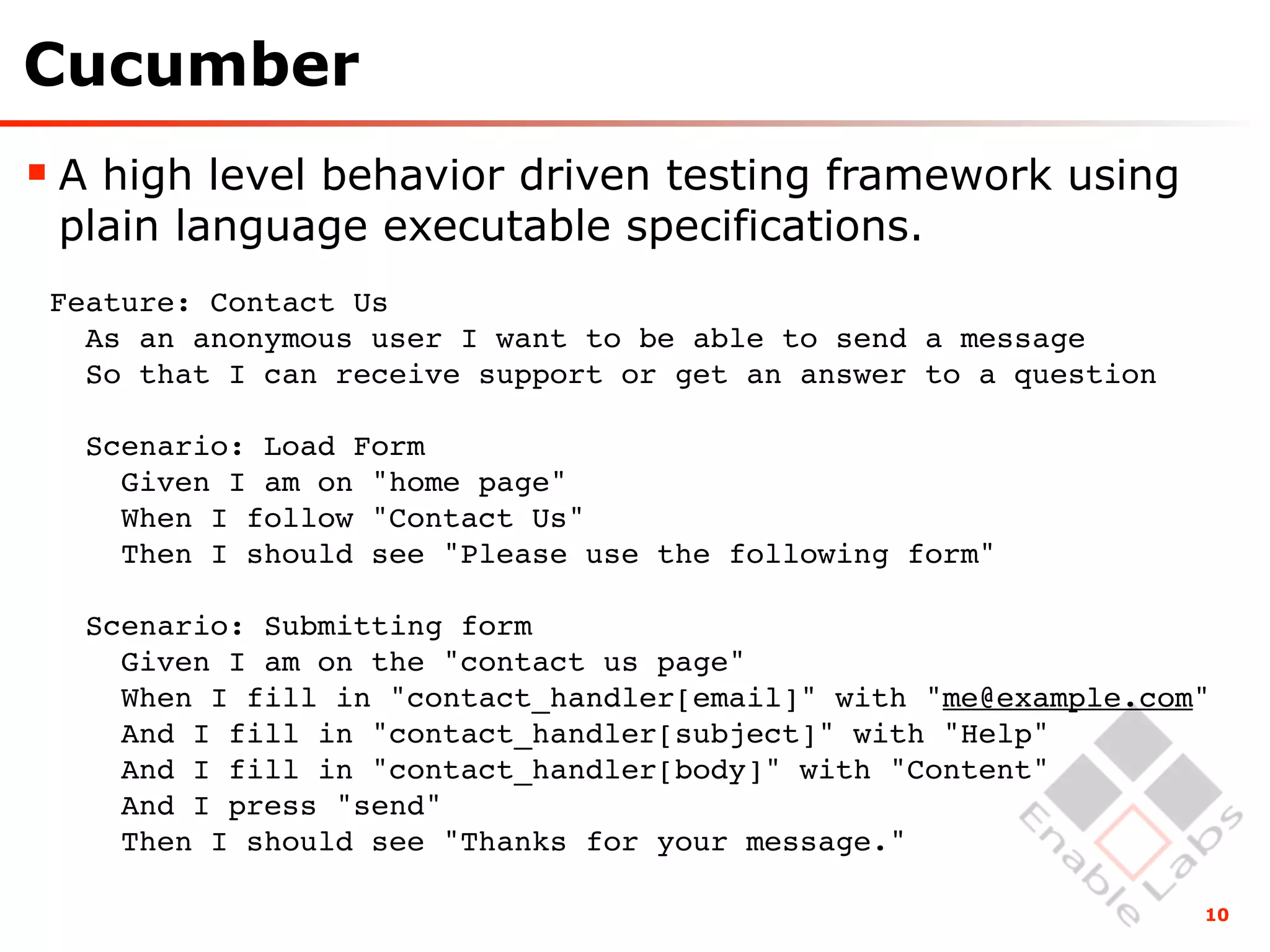

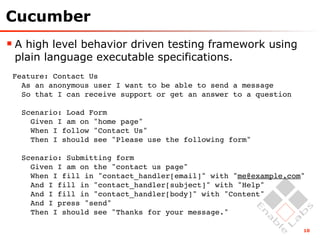

10. Cucumber
A high level behavior driven testing framework using
plain language executable specifications.
Feature: Contact Us
As an anonymous user I want to be able to send a message
So that I can receive support or get an answer to a question
Scenario: Load Form
Given I am on "home page"
When I follow "Contact Us"
Then I should see "Please use the following form"
Scenario: Submitting form
Given I am on the "contact us page"
When I fill in "contact_handler[email]" with "me@example.com"
And I fill in "contact_handler[subject]" with "Help"
And I fill in "contact_handler[body]" with "Content"
And I press "send"
Then I should see "Thanks for your message."
10

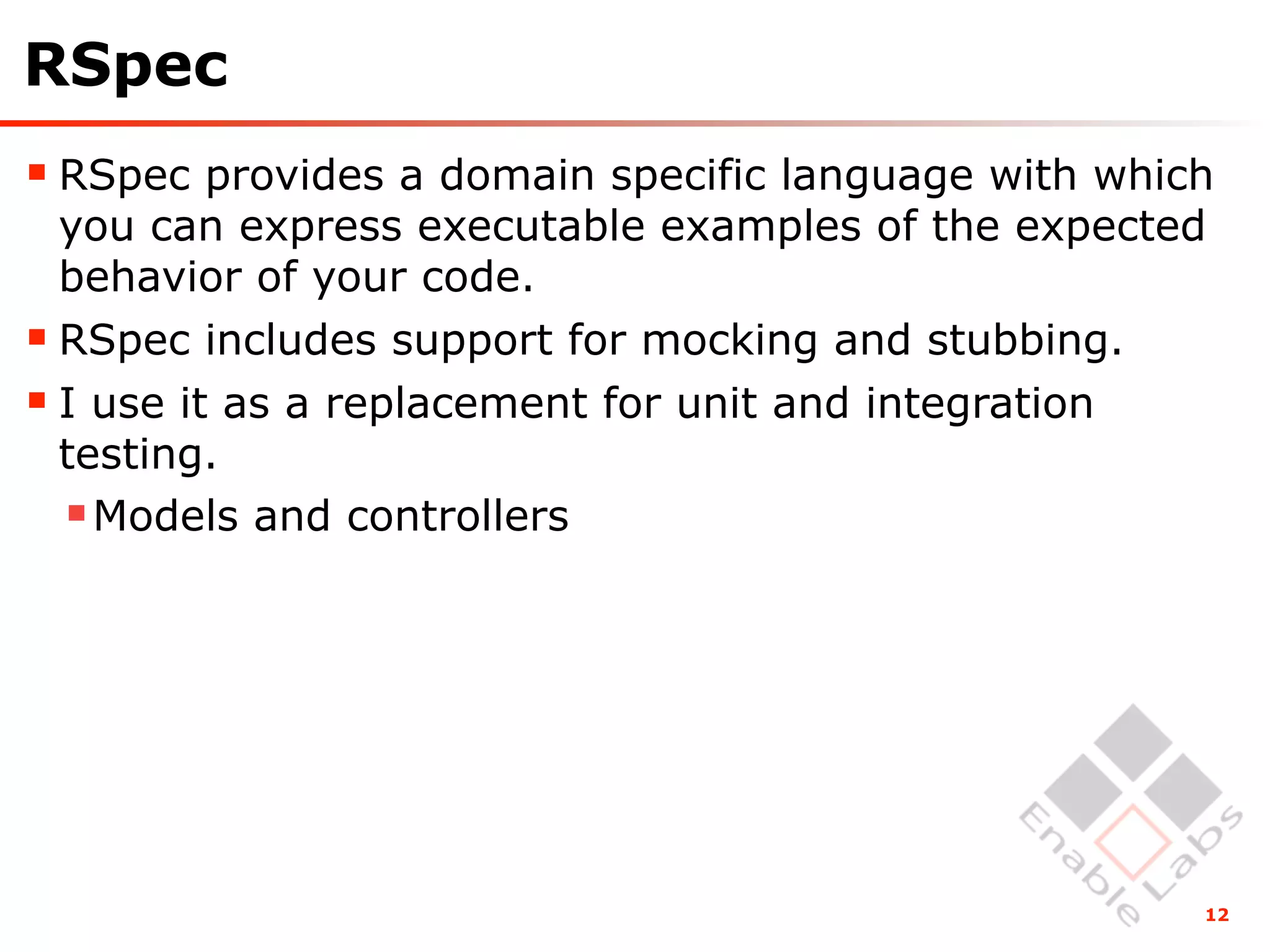

12. RSpec
RSpec provides a domain specific language with which
you can express executable examples of the expected
behavior of your code.
RSpec includes support for mocking and stubbing.
I use it as a replacement for unit and integration
testing.
Models and controllers
12

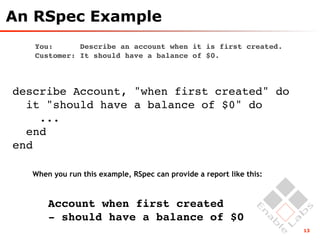

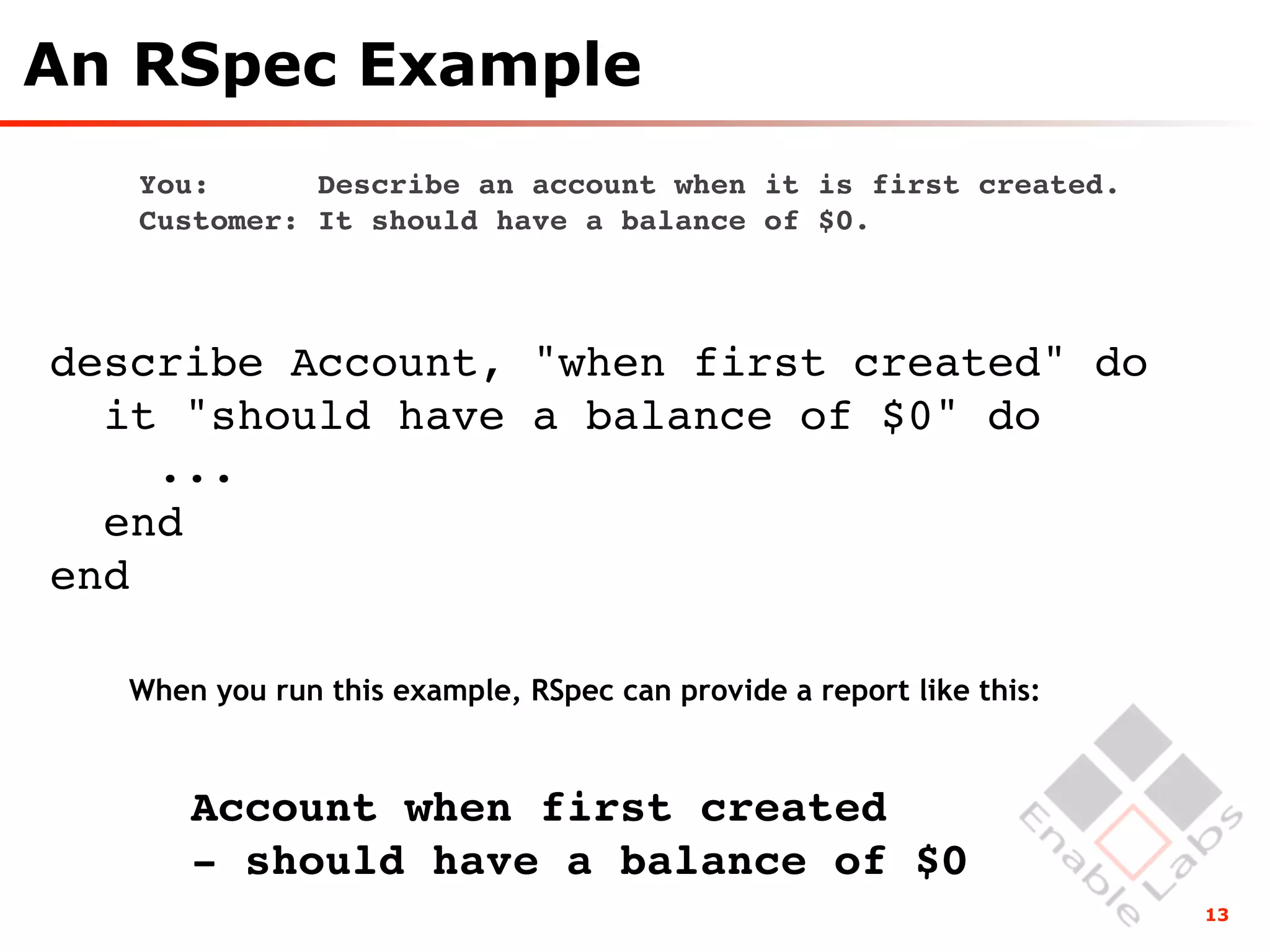

13. An RSpec Example
You: Describe an account when it is first created.
Customer: It should have a balance of $0.
describe Account, "when first created" do
it "should have a balance of $0" do
...
end
end
When you run this example, RSpec can provide a report like this:
Account when first created
- should have a balance of $0
13
