Route53 및 CloudFront를 이용한 CDN 활용기 - AWS Summit Seoul 2017
- 1. © 2017, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 이상오, 솔루션아키텍트 ROUTE53 및 CLOUDFRONT를 이용한 CDN 활용기 GS네오텍
- 2. 본 강연에서 다룰내용 CDN관련된 AWS서비스의 개요 CDN을 활용하여 성능/보안/비용측면 개선해보기 Lambda@Edge를 활용한 기능 구현해보기 - 원본 스토리지 이전 문제 - 전처리 광고 구현해 보기 - Adaptive Contents Delivery 구현해보기 기타 CloudFront사용 TIP (ROUTE53, CLOUDFRONT, SHIELD, WAF, Lambda@Edge)
- 3.
- 4. IT 서비스 =Computing Delivery+ 서비스관점 : CDN
- 5. Contents Delivery Network(CDN) 어떻게 하면 사용자에게 가장 효율적이고, 빠르게 서비스 할것인가?

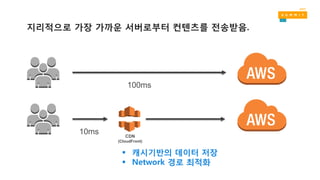

- 6. 100ms 10ms CDN (CloudFront) 캐시기반의데이터 저장 Network 경로 최적화 지리적으로 가장 가까운 서버로부터 컨텐츠를 전송받음.
- 7. AWS CDN 관련서비스의 개요
- 8.

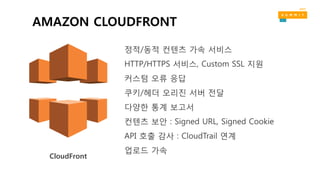

- 9. CloudFront 정적/동적 컨텐츠 가속서비스 HTTP/HTTPS 서비스, Custom SSL 지원 커스텀 오류 응답 쿠키/헤더 오리진 서버 전달 다양한 통계 보고서 컨텐츠 보안 : Signed URL, Signed Cookie API 호출 감사 : CloudTrail 연계 업로드 가속 AMAZON CLOUDFRONT

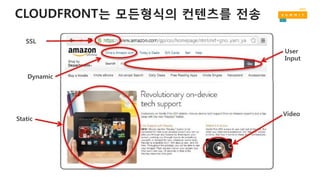

- 10. CLOUDFRONT는 모든형식의 컨텐츠를전송 Dynamic Static Video User Input SSL

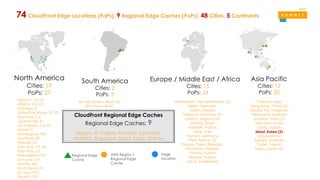

- 11. Ashburn, VA (3) Atlanta,GA (3) Chicago, IL Dallas/Fort Worth, TX (2) Hayward, CA Jacksonville, FL Los Angeles, CA (2) Miami, FL Minneapolis, MN Montreal, QC Newark, NJ New York, NY (3) Palo Alto, CA Philadelphia, PA San Jose, CA Seattle, WA South Bend, IN St. Louis, MO Toronto, ON North America Cities: 19 PoPs: 27 South America Cities: 2 PoPs: 3 Rio de Janeiro, Brazil (2) São Paulo, Brazil Europe / Middle East / Africa Cities: 15 PoPs: 24 Amsterdam, The Netherlands (2) Berlin, Germany Dublin, Ireland Frankfurt, Germany (5) London, England (4) Madrid, Spain Marseille, France Milan, Italy Munich, Germany Paris, France (2) Prague, Czech Republic Stockholm, Sweden Vienna, Austria Warsaw, Poland Zurich, Switzerland Asia Pacific Cities: 12 PoPs: 20 Chennai, India Hong Kong, China (3) Manila, the Philippines Melbourne, Australia Mumbai, India (2) New Delhi, India Osaka, Japan Seoul, Korea (3) Singapore (2) Sydney, Australia Taipei, Taiwan Tokyo, Japan (3) CloudFront Regional Edge Caches Regional Edge Caches: 9 Oregon, N. Virginia, Frankfurt, Sao Paulo, Mumbai, Singapore, Seoul, Tokyo, Sydney Edge location AWS Region / Regional Edge Cache Regional Edge Cache 74 CloudFront Edge Locations (PoPs), 9 Regional Edge Caches (PoPs), 48 Cities, 5 Continents
- 12. Amazon Route 53 AMAZON ROUTE53 GlobalServer Load Balancer(GSLB) 서버와 네트워크 장비들의 상태 및 성능 정보를 체크하며 동적으로 사용자에게 노출될 DNS 레 코드 타입과 값을 조정합니다.

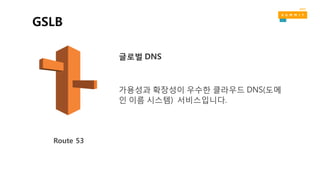

- 13. 글로벌 DNS 가용성과 확장성이우수한 클라우드 DNS(도메 인 이름 시스템) 서비스입니다. Route 53 GSLB

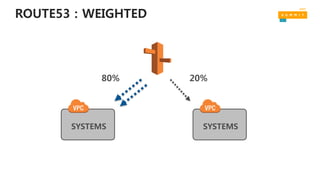

- 14. ROUTE53 : WEIGHTED SYSTEMSSYSTEMS 80% 20%
- 15. ROUTE53 : LATENCY SYSTEMSSYSTEMS 60ms 10ms

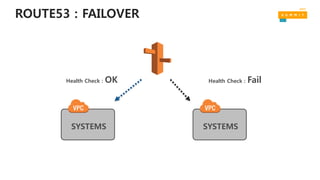

- 16. ROUTE53 : FAILOVER SYSTEMSSYSTEMS Health Check : OK Health Check : Fail

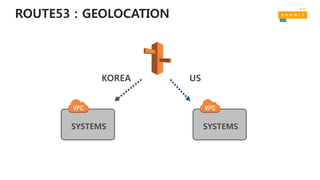

- 17. ROUTE53 : GEOLOCATION SYSTEMSSYSTEMS KOREA US
- 18.

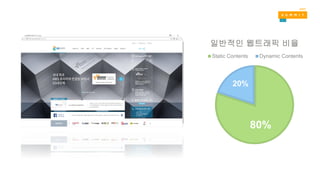

- 19. 80% 20% 일반적인 웹트래픽 비율 StaticContents Dynamic Contents
- 20.

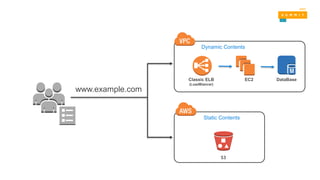

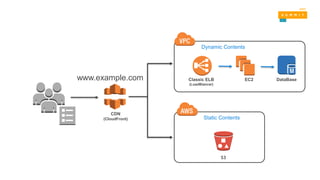

- 21. Classic ELB (LoadBlancer) EC2 S3 www.example.com Dynamic Contents StaticContents DataBase CDN (CloudFront)

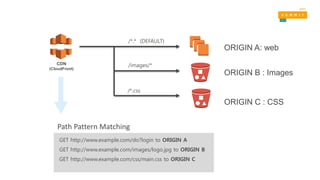

- 22. CDN (CloudFront) /*.* (DEFAULT) /images/* /*.css ORIGIN A:web ORIGIN B : Images GET http://www.example.com/do?login to ORIGIN A GET http://www.example.com/images/logo.jpg to ORIGIN B GET http://www.example.com/css/main.css to ORIGIN C ORIGIN C : CSS Path Pattern Matching

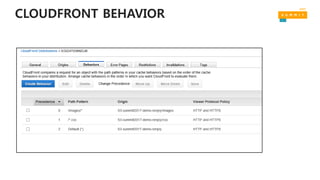

- 23.
- 24.

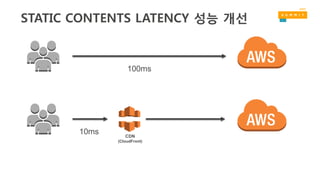

- 25. 100ms 10ms CDN (CloudFront) STATIC CONTENTSLATENCY 성능 개선

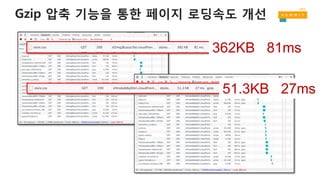

- 26. Gzip 압축 기능을통한 페이지 로딩속도 개선 362KB 81ms 51.3KB 27ms
- 27.

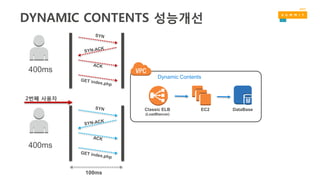

- 28. Classic ELB (LoadBlancer) EC2 Dynamic Contents DataBase 2번째사용자 400ms 400ms 100ms DYNAMIC CONTENTS 성능개선

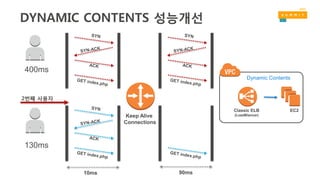

- 29. 2번째 사용자 400ms 130ms Keep Alive Connections 90ms10ms ClassicELB (LoadBlancer) EC2 Dynamic Contents DYNAMIC CONTENTS 성능개선
- 30.

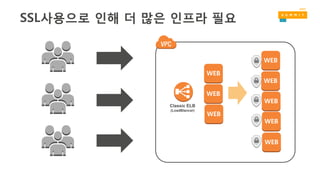

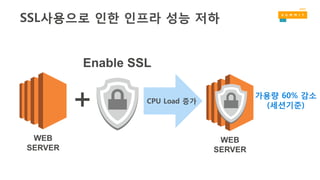

- 31. WEB SERVER WEB SERVER Enable SSL SSL사용으로 인한인프라 성능 저하 CPU Load 증가 + 가용량 60% 감소 (세션기준)
- 32.
- 33.

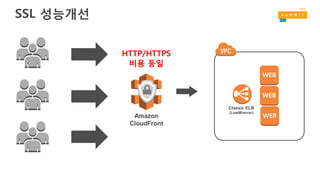

- 34.

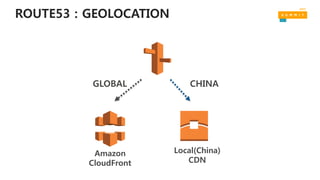

- 35. ROUTE53 : GEOLOCATION GLOBALCHINA Amazon CloudFront Local(China) CDN

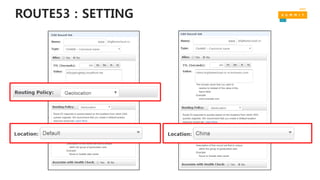

- 36.

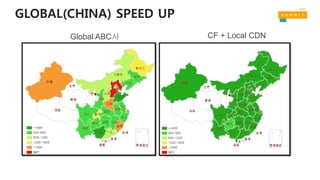

- 37. GLOBAL(CHINA) SPEED UP GlobalABC사 CF + Local CDN
- 38.
- 39.

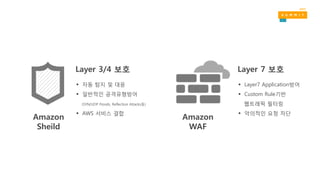

- 40. Amazon Sheild Amazon WAF Layer 3/4 보호 자동 탐지 및 대응 일반적인 공격유형방어 (SYN/UDP Floods, Reflection Attacks등) AWS 서비스 결합 Layer 7 보호 Layer7 Application방어 Custom Rule기반 웹트래픽 필터링 악의적인 요청 차단
- 41.

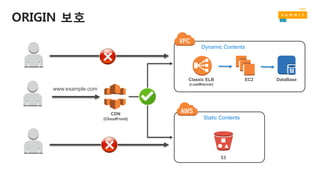

- 42. ORIGIN 보호 Classic ELB (LoadBlancer) EC2 S3 www.example.com DynamicContents Static Contents DataBase CDN (CloudFront)

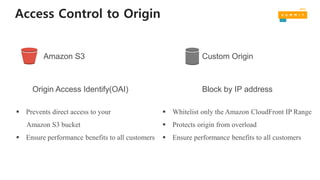

- 43. Access Control toOrigin Amazon S3 Custom Origin Origin Access Identify(OAI) Block by IP address Prevents direct access to your Amazon S3 bucket Ensure performance benefits to all customers Whitelist only the Amazon CloudFront IP Range Protects origin from overload Ensure performance benefits to all customers

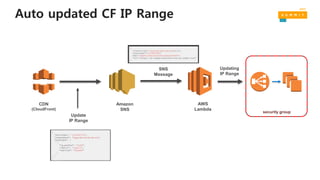

- 44. Auto updated CFIP Range CDN (CloudFront) Amazon SNS AWS Lambda security group Update IP Range SNS Message Updating IP Range
- 45.

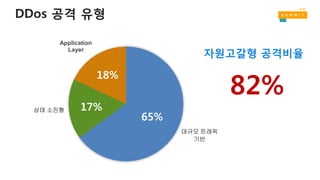

- 46. DDos 공격 유형 대규모트래픽 기반 상태 소진형 Application Layer 65% 17% 18% 자원고갈형 공격비율 82%

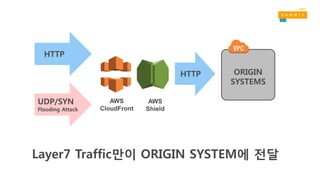

- 47. ORIGIN SYSTEMS UDP/SYN Flooding Attack HTTP HTTP AWS CloudFront Layer7 Traffic만이ORIGIN SYSTEM에 전달 AWS Shield

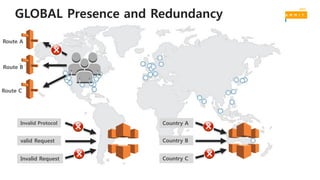

- 48. GLOBAL Presence andRedundancy Invalid Protocol valid Request Invalid Request Country A Country B Country C Route A Route B Route C
- 49.
- 50. WAF(Web Application Firewall) AWS WAF Host:www.example.com User-Agent: Mozilla/5.0 (Macintosh; … Accept: image/png,image/*;q=0.8,*/*;q=0.5 Accept-Language: en-US,en;q=0.5 Accept-Encoding: gzip, deflate Referrer: http://www.example.com/ Connection: keep-alive Check: Header “Referrer” Match Type: Contains Match: “example.com” Action: ALLOW RAW REQUEST HEADERS Rule : String match condition Match any part of the web request

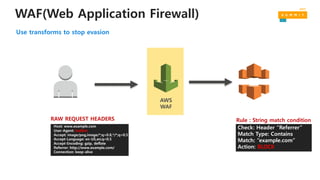

- 51. WAF(Web Application Firewall) AWS WAF Host:www.example.com User-Agent: badbot Accept: image/png,image/*;q=0.8,*/*;q=0.5 Accept-Language: en-US,en;q=0.5 Accept-Encoding: gzip, deflate Referrer: http://www.example.com/ Connection: keep-alive Check: Header “Referrer” Match Type: Contains Match: “example.com” Action: BLOCK RAW REQUEST HEADERS Rule : String match condition Use transforms to stop evasion
- 52.

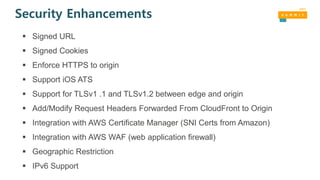

- 53. Security Enhancements SignedURL Signed Cookies Enforce HTTPS to origin Support iOS ATS Support for TLSv1 .1 and TLSv1.2 between edge and origin Add/Modify Request Headers Forwarded From CloudFront to Origin Integration with AWS Certificate Manager (SNI Certs from Amazon) Integration with AWS WAF (web application firewall) Geographic Restriction IPv6 Support
- 54.

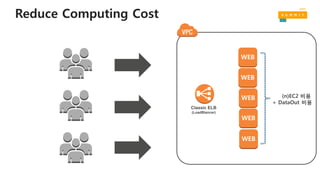

- 55. WEB WEB WEB WEB (n)EC2 비용 +DataOut 비용 Classic ELB (LoadBlancer) WEB Reduce Computing Cost

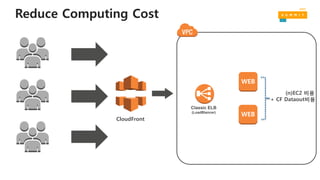

- 56. Classic ELB (LoadBlancer) WEB WEB (n)EC2 비용 +CF Dataout비용 Reduce Computing Cost CloudFront

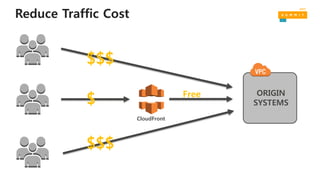

- 57.
- 58.

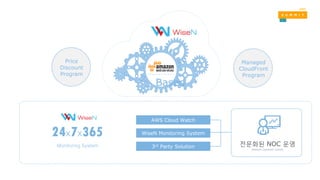

- 59. Based 3rd Party Solution WiseNMonitoring System AWS Cloud Watch 24x7x365 Monitoring System 전문화된 NOC 운영 (Network Operation Center) Price Discount Program Managed CloudFront Program
- 60. 전용 CLOUDFRONT 통계제공 Traffic BandWidth 통계
- 61. REFERENCE 게임 미디어 /엔터인먼트 쇼핑몰 공공 / 엔터프라이즈
- 62.

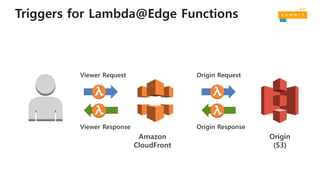

- 63. Triggers for Lambda@EdgeFunctions Viewer Request Viewer Response Origin Request Origin Response Amazon CloudFront Origin (S3)
- 64. Lambda@Edge Limits Max memorysetting 128 MB Maximum duration 50 ms Size of code/dependencies that you can zip into a deployment package (uncompressed zip/jar size) 1 MB Maximum Global TPS 100
- 65.

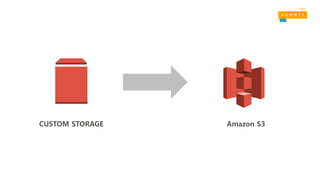

- 66.

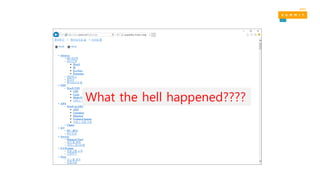

- 67. What the hellhappened????

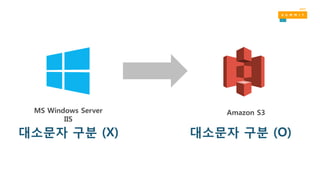

- 68. Amazon S3MS WindowsServer IIS 대소문자 구분 (X) 대소문자 구분 (O)

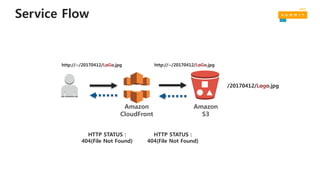

- 69. Service Flow Amazon S3 /20170412/Logo.jpg HTTP STATUS: 404(File Not Found) HTTP STATUS : 404(File Not Found) Amazon CloudFront http://~/20170412/LoGo.jpg http://~/20170412/LoGo.jpg

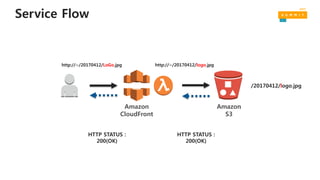

- 70. Service Flow Amazon S3 /20170412/logo.jpg HTTP STATUS: 200(OK) HTTP STATUS : 200(OK) Amazon CloudFront http://~/20170412/LoGo.jpg http://~/20170412/logo.jpg
- 71.
- 72.

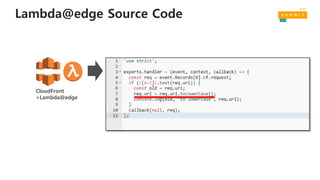

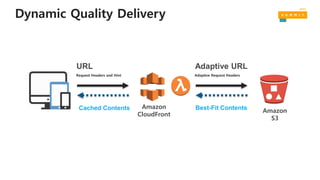

- 73. Dynamic Quality Delivery Amazon S3 Amazon CloudFront RequestHeaders and Hint URL Adaptive Request Headers Adaptive URL Best-Fit ContentsCached Contents
- 74.
- 75.

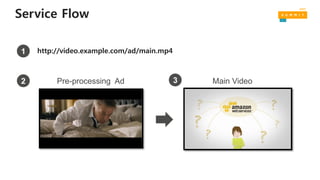

- 76. Service Flow Pre-processing AdMain Video http://video.example.com/ad/main.mp41 2 3

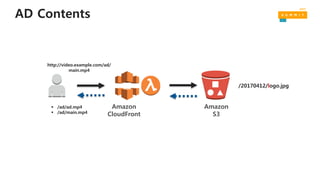

- 77.

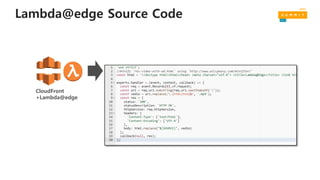

- 78.
- 79.
- 80.

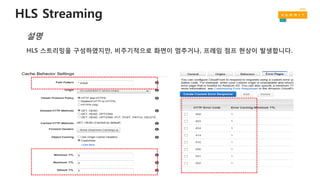

- 81. HLS Streaming HLS 스트리밍을구성하였지만, 비주기적으로 화면이 멈추거나, 프레임 점프 현상이 발생합니다. 설명
- 82. ORIGIN 응답시간 제어 사용자가월간 CSV 다운로드 요청을 하였을경우, 원본에서 해당 CSV를 생성해서 응답을 합니다. 그런데 이때 생성대상 데이터가 많아 생성하는데 약 1분의시간이 필요하다. 설명

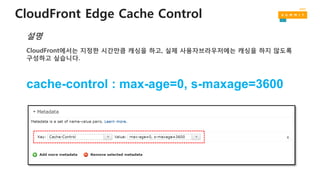

- 83. CloudFront Edge CacheControl CloudFront에서는 지정한 시간만큼 캐싱을 하고, 실제 사용자브라우저에는 캐싱을 하지 않도록 구성하고 싶습니다. 설명 cache-control : max-age=0, s-maxage=3600

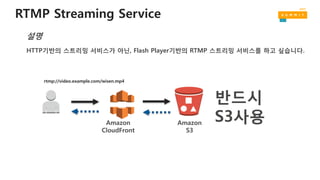

- 84. RTMP Streaming Service Amazon S3 Amazon CloudFront rtmp://video.example.com/wisen.mp4 반드시 S3사용 HTTP기반의스트리밍 서비스가 아닌, Flash Player기반의 RTMP 스트리밍 서비스를 하고 싶습니다. 설명

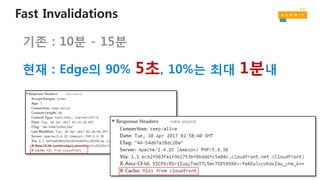

- 85. Fast Invalidations 기존 :10분 - 15분 현재 : Edge의 90% 5초, 10%는 최대 1분내

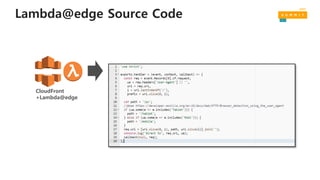

- 86. 본 강연이 끝난후… blog.wisen.co.kr www.studyforcloud.com 을 통해 Lambda@edge Source code를 다운로드 받으실수 있습니다. 16:20 – 17:00 Track3_그랜드볼룸 103 AWS 엣지 서비스를 통한 글로벌 서비스 관리 전략
