1. Stève Sfartz, Cisco DevNet
API Architect and Developer Advocates Manager
stsfartz@cisco.com
API World 2018
Emulators as an Emerging Best
Practice for API Providers

2. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

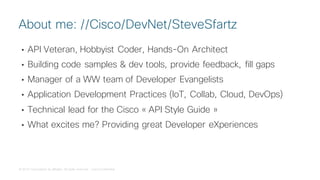

• API Veteran, Hobbyist Coder, Hands-On Architect
• Building code samples & dev tools, provide feedback, fill gaps
• Manager of a WW team of Developer Evangelists
• Application Development Practices (IoT, Collab, Cloud, DevOps)
• Technical lead for the Cisco « API Style Guide »
• What excites me? Providing great Developer eXperiences
About me: //Cisco/DevNet/SteveSfartz

3. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
• 500K+ members
• Dev Centers, Labs, Sandboxes
• Tutos
Join DevNet
twitter: @CiscoDevNet
github: @CiscoDevNet
webex: stsfartz@cisco.com
twitter: @SteveSfartz
github: @ObjectIsAdvantag

4. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

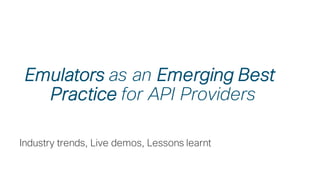

Industry trends, Live demos, Lessons learnt
Emulators as an Emerging Best
Practice for API Providers

5. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

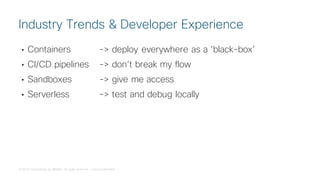

• Containers -> deploy everywhere as a ‘black-box’
• CI/CD pipelines -> don’t break my flow
• Sandboxes -> give me access
• Serverless -> test and debug locally
Industry Trends & Developer Experience

6. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

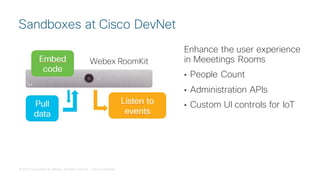

Enhance the user experience
in Meeetings Rooms
• People Count
• Administration APIs
• Custom UI controls for IoT
Sandboxes at Cisco DevNet
Webex RoomKit

7. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

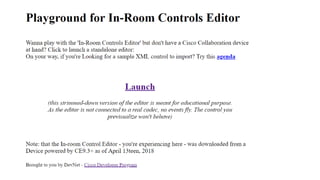

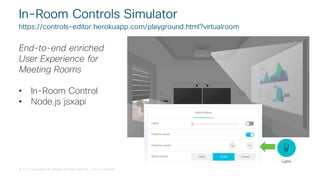

In-Room Controls Simulator
https://controls-editor.herokuapp.com/playground.html?virtualroom
End-to-end enriched
User Experience for
Meeting Rooms
• In-Room Control
• Node.js jsxapi

8. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

9. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

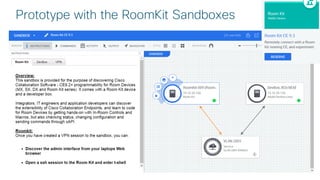

Prototype with the RoomKit Sandboxes

10. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

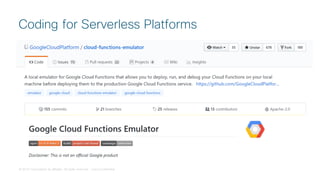

Coding for Serverless Platforms

11. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

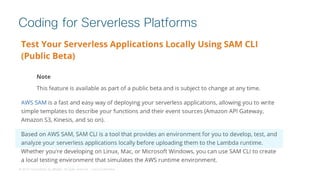

Coding for Serverless Platforms

12. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
• Cisco Tropo is « telephony platform as a service »
• In-bound / out-bound Calls and SMS
• REST API endpoint
• Runs 5 languages as Serverless (JS, Python, Java, Groovy, PHP)
• Feedback from one year of evangelism
• hackathons, meetups, tutorials
• great platform
• bad debugging experience
An Emulator for Tropo Serverless Platform

13. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
IVR script sample: auto-attendant

14. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Running Tropo Script locally

15. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

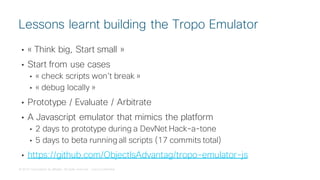

• « Think big, Start small »
• Start from use cases
• « check scripts won’t break »
• « debug locally »
• Prototype / Evaluate / Arbitrate
• A Javascript emulator that mimics the platform
• 2 days to prototype during a DevNet Hack-a-tone
• 5 days to beta running all scripts (17 commits total)
• https://github.com/ObjectIsAdvantag/tropo-emulator-js
Lessons learnt building the Tropo Emulator

16. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

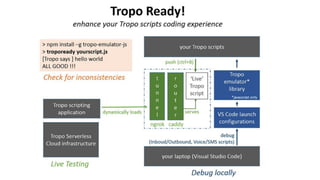

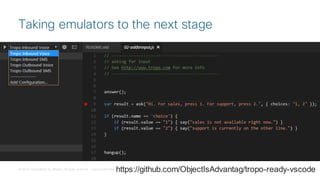

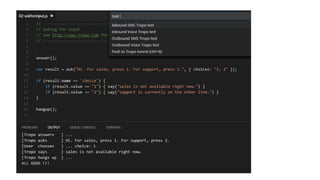

Taking emulators to the next stage
https://github.com/ObjectIsAdvantag/tropo-ready-vscode

19. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

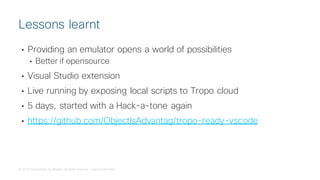

• Providing an emulator opens a world of possibilities
• Better if opensource
• Visual Studio extension
• Live running by exposing local scripts to Tropo cloud
• 5 days, started with a Hack-a-tone again
• https://github.com/ObjectIsAdvantag/tropo-ready-vscode
Lessons learnt

20. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

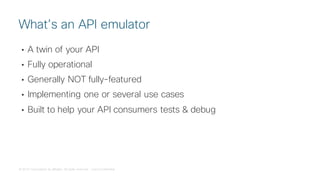

• A twin of your API
• Fully operational
• Generally NOT fully-featured
• Implementing one or several use cases
• Built to help your API consumers tests & debug
What’s an API emulator

21. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

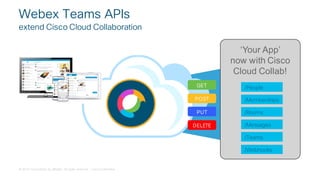

‘Your App’
now with Cisco
Cloud Collab!

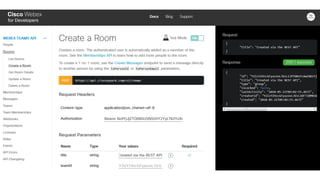

Webex Teams APIs
extend Cisco Cloud Collaboration
GET
POST
DELETE
PUT /Rooms
/Memberships
/Messages
/Teams
/People
/Webhooks

23. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

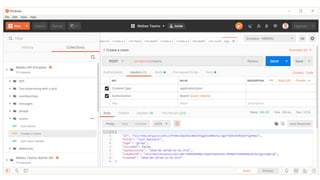

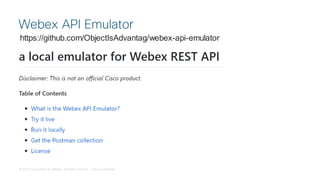

Webex API Emulator
https://github.com/ObjectIsAdvantag/webex-api-emulator

24. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

25. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

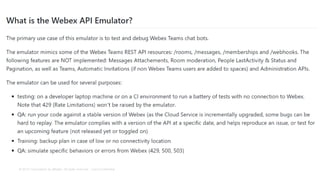

Meet the Webex API Emulator

26. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

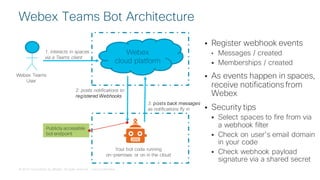

Webex Teams Bot Architecture
 Register webhook events
• Messages / created
 Memberships / created
 As events happen in spaces,
receive notifications from
Webex
 Security tips
 Select spaces to fire from via
a webhook filter
 Check on user’s email domain
in your code
 Check webhook payload
signature via a shared secret
Webex
cloud platform
1. interacts in spaces
via a Teams client
Webex Teams
User
Your bot code running
on-premises or on in the cloud
2. posts notifications to
registered Webhooks
3. posts back messages
as notifications fly in
Publicly accessible
bot endpoint

27. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

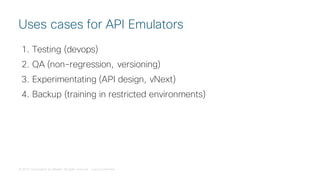

1. Testing (devops)
2. QA (non-regression, versioning)
3. Experimentating (API design, vNext)
4. Backup (training in restricted environments)
Uses cases for API Emulators

28. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

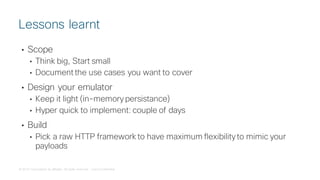

• Scope
• Think big, Start small
• Document the use cases you want to cover
• Design your emulator
• Keep it light (in-memory persistance)
• Hyper quick to implement: couple of days
• Build
• Pick a raw HTTP framework to have maximum flexibility to mimic your
payloads
Lessons learnt

29. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

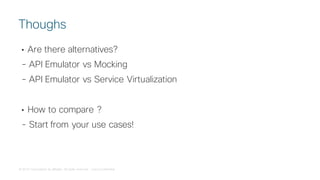

• Are there alternatives?
- API Emulator vs Mocking
- API Emulator vs Service Virtualization
• How to compare ?
- Start from your use cases!
Thoughs

30. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
• Who are the customers of your API emulator?
- your developer community
- Internally (Product Management)
Thoughts

31. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

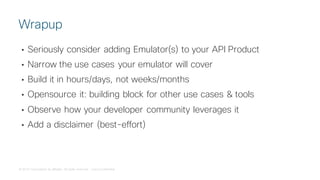

• Seriously consider adding Emulator(s) to your API Product
• Narrow the use cases your emulator will cover
• Build it in hours/days, not weeks/months
• Opensource it: building block for other use cases & tools
• Observe how your developer community leverages it
• Add a disclaimer (best-effort)
Wrapup

32. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

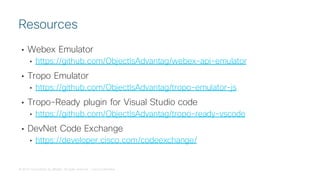

• Webex Emulator
• https://github.com/ObjectIsAdvantag/webex-api-emulator
• Tropo Emulator
• https://github.com/ObjectIsAdvantag/tropo-emulator-js
• Tropo-Ready plugin for Visual Studio code
• https://github.com/ObjectIsAdvantag/tropo-ready-vscode
• DevNet Code Exchange
• https://developer.cisco.com/codeexchange/
Resources

33. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
• 500K+ members
• Dev Centers, Labs, Sandboxes
• Tutos
Join DevNet
twitter: @CiscoDevNet
webex: stsfartz@cisco.com
twitter: @SteveSfartz
github: @ObjectIsAdvantag

34. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Thank you
