1. RL2
ActionScript Application Framework
Dot Brighton - 2012 1

2. hello, I’m
shaun
smith
@darscan
#robotlegs
http://shaun.boyblack.co.za/blog/about/ 2

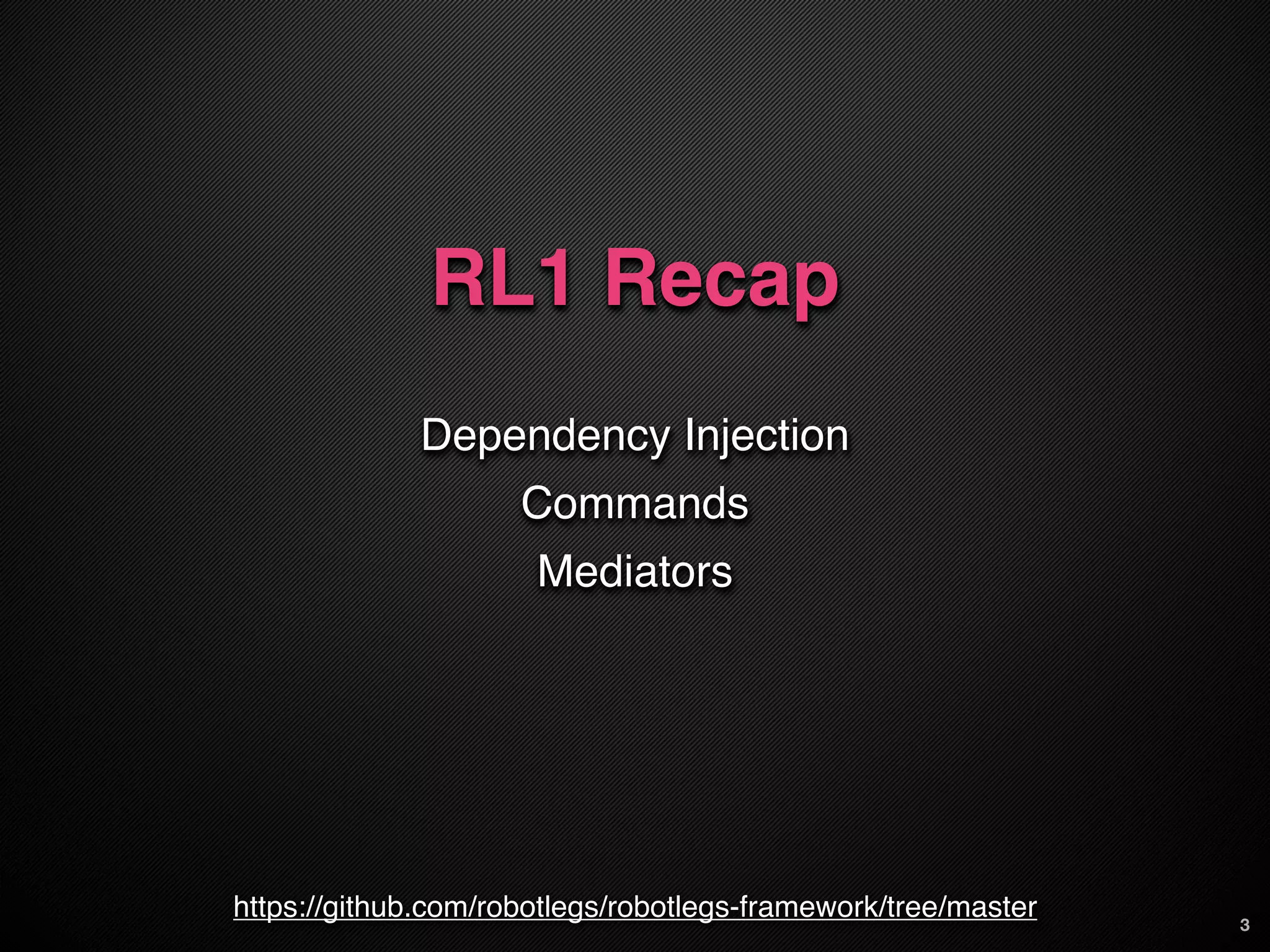

3. RL1 Recap
Dependency Injection
Commands
Mediators
https://github.com/robotlegs/robotlegs-framework/tree/master 3

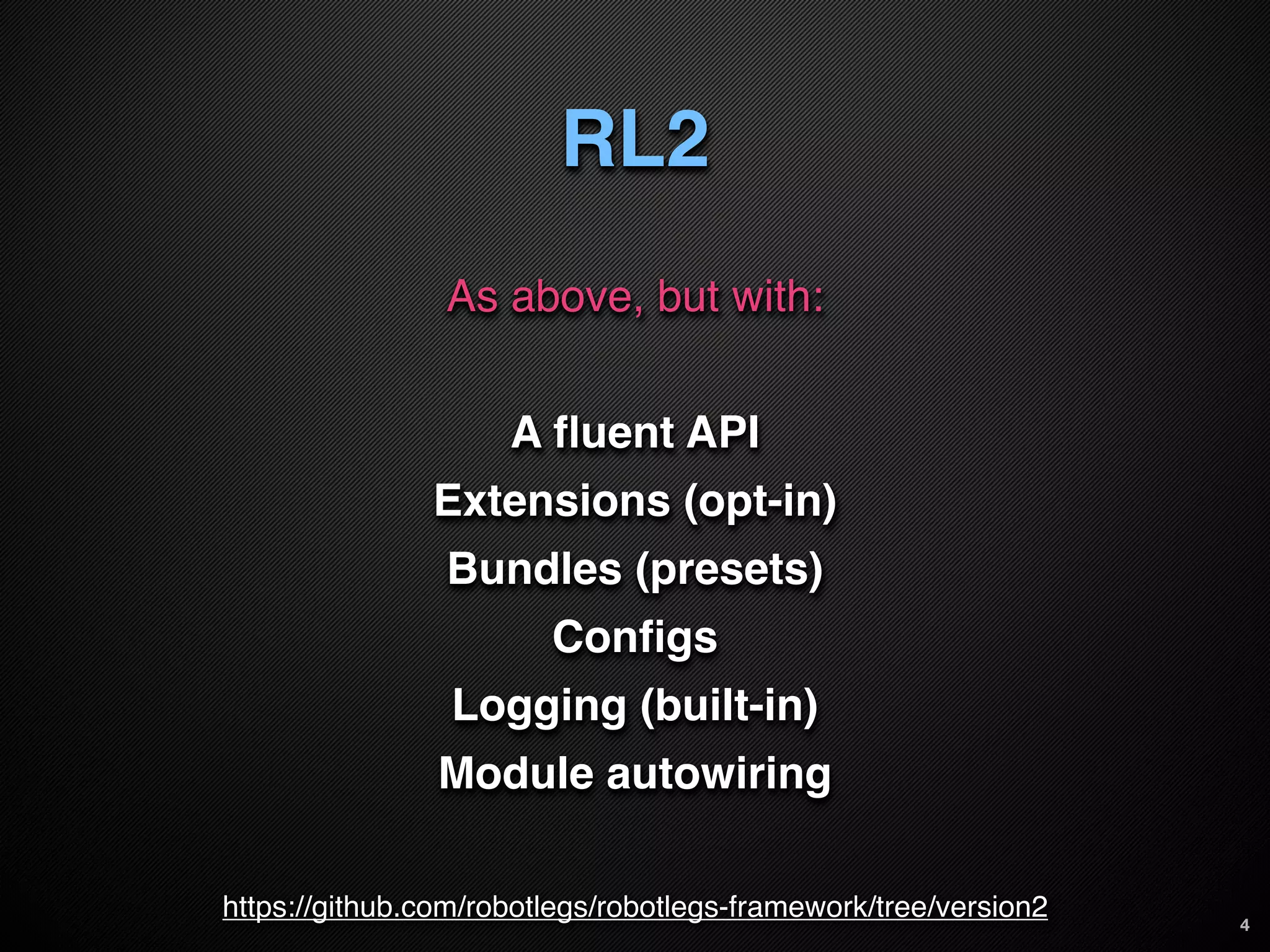

4. RL2
As above, but with:
A fluent API
Extensions (opt-in)
Bundles (presets)
Configs
Logging (built-in)
Module autowiring
https://github.com/robotlegs/robotlegs-framework/tree/version2 4

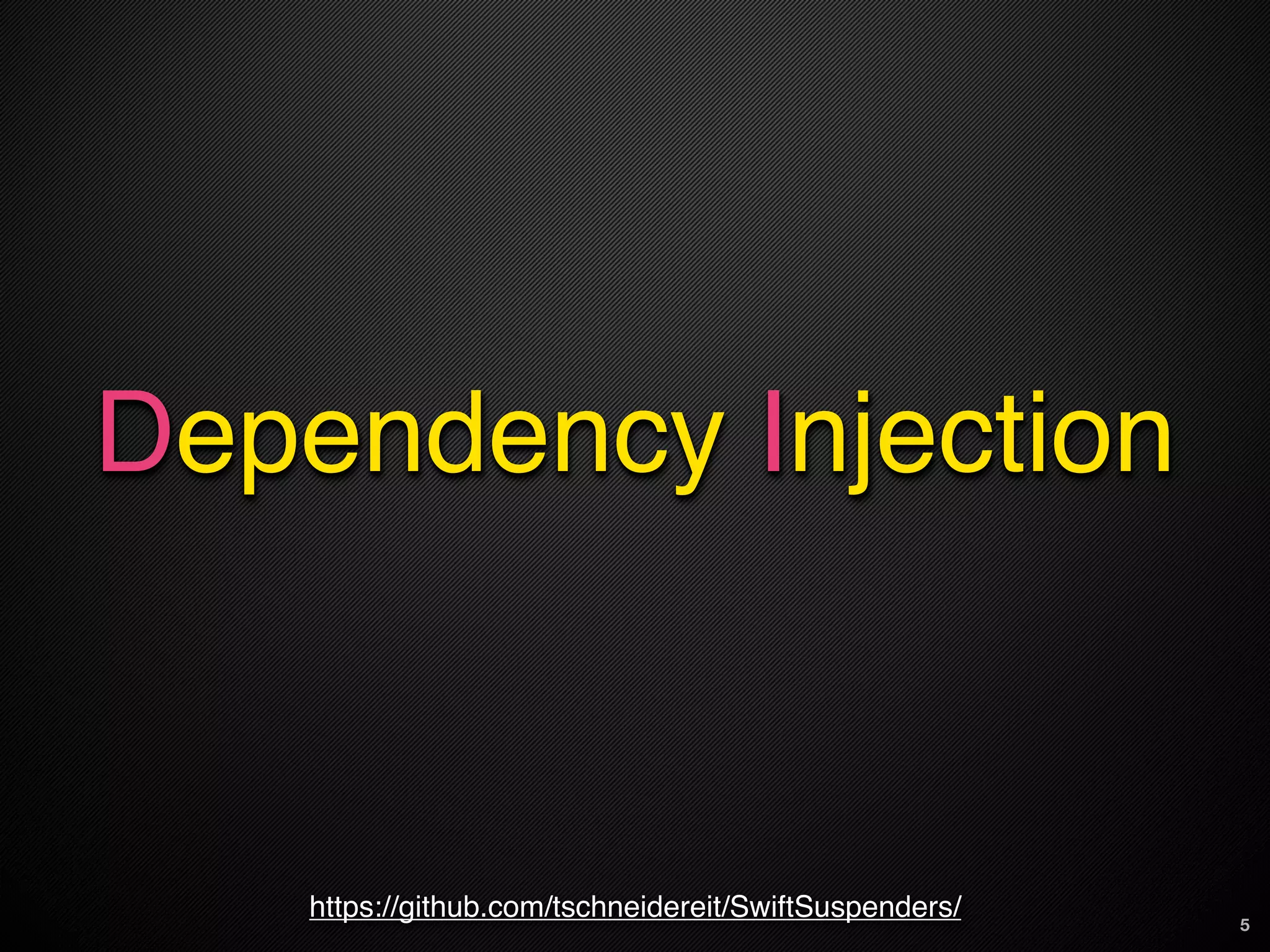

5. Dependency Injection
https://github.com/tschneidereit/SwiftSuspenders/ 5

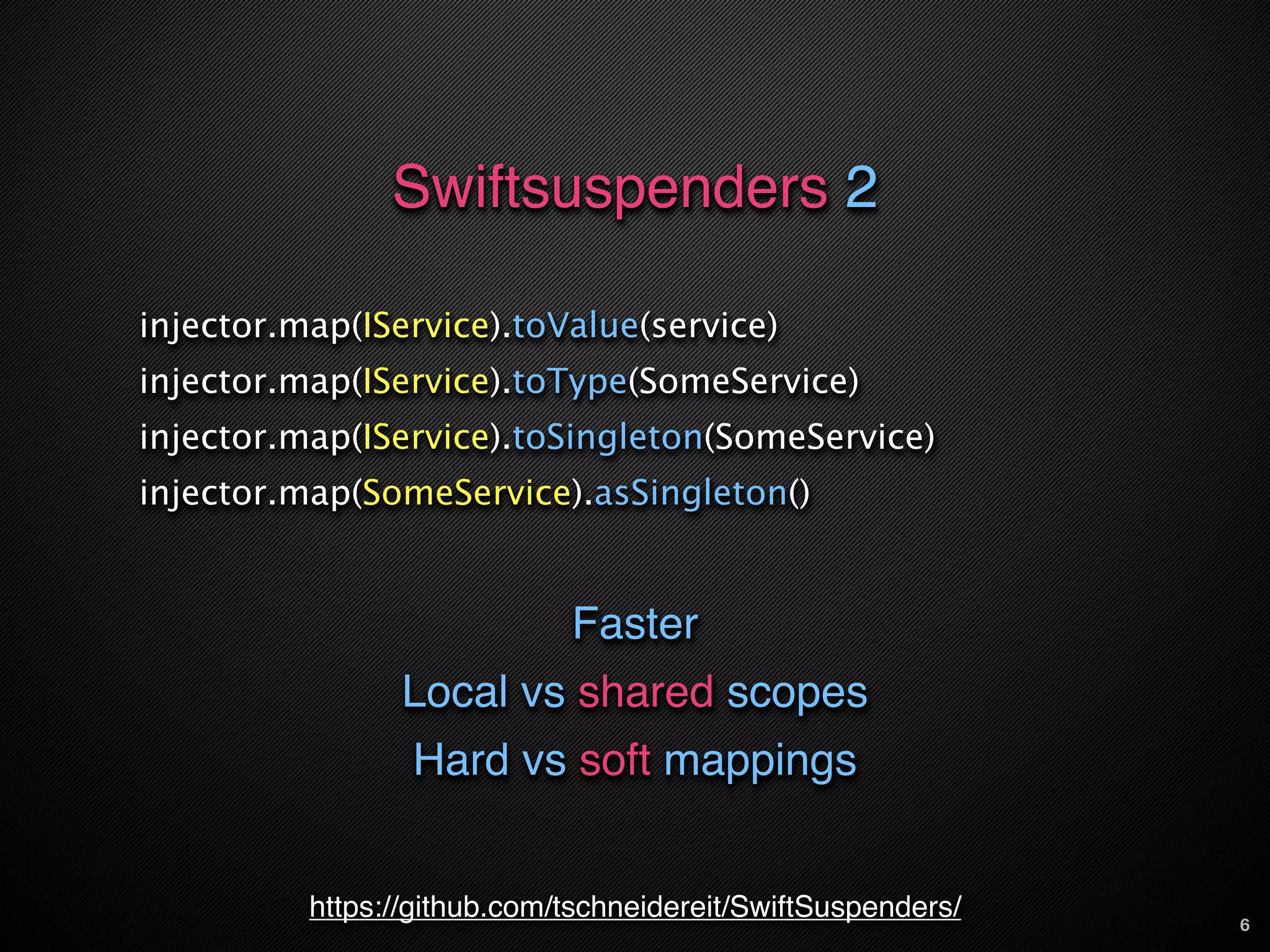

6. Swiftsuspenders 2
injector.map(IService).toValue(service)
injector.map(IService).toType(SomeService)
injector.map(IService).toSingleton(SomeService)
injector.map(SomeService).asSingleton()
Faster
Local vs shared scopes
Hard vs soft mappings
https://github.com/tschneidereit/SwiftSuspenders/ 6

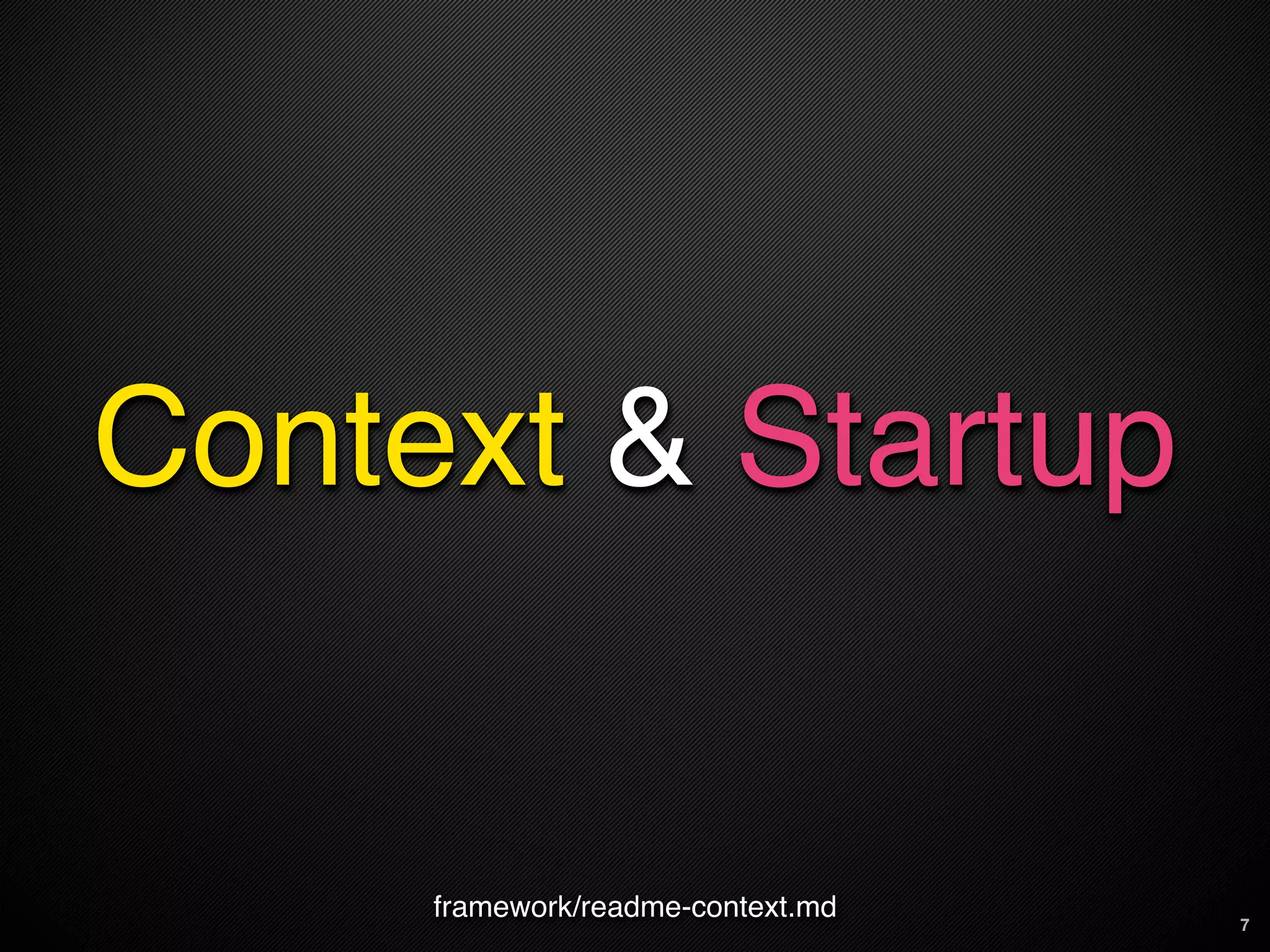

7. Context & Startup
framework/readme-context.md 7

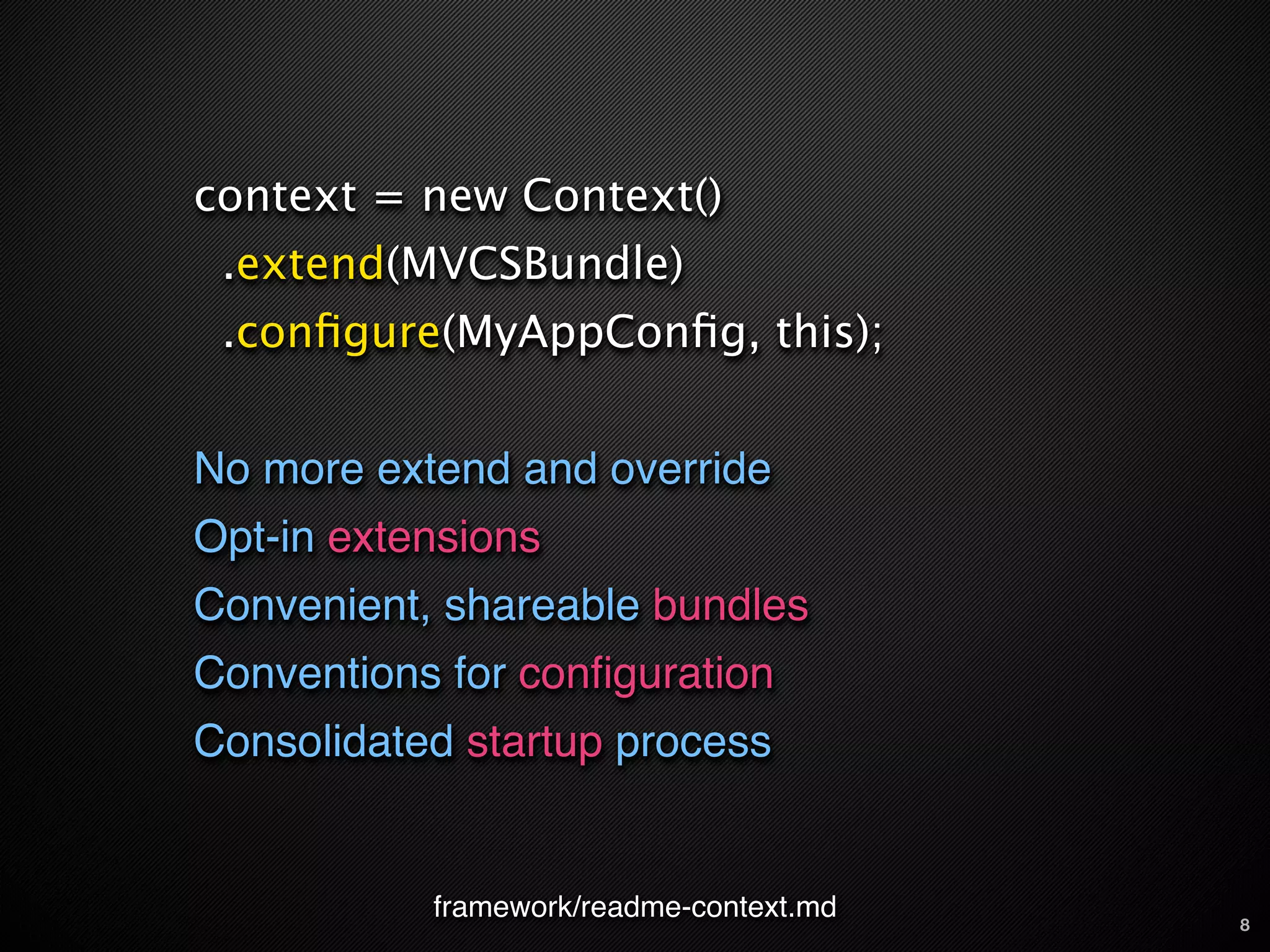

8. context = new Context()
.extend(MVCSBundle)
.configure(MyAppConfig, this);
No more extend and override
Opt-in extensions
Convenient, shareable bundles
Conventions for configuration
Consolidated startup process
framework/readme-context.md 8

9. Commands
extensions/eventCommandMap 9

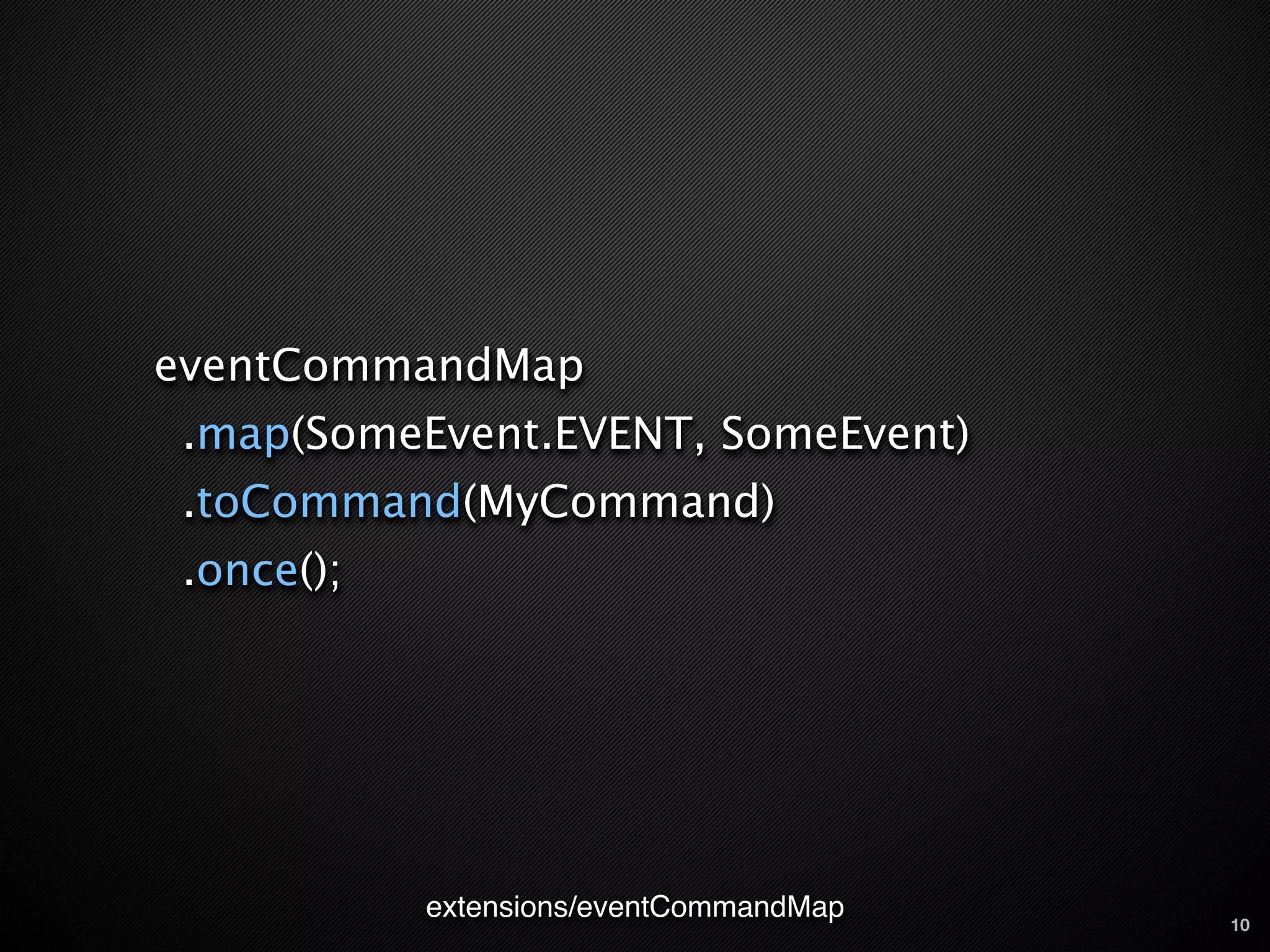

10. eventCommandMap
.map(SomeEvent.EVENT, SomeEvent)
.toCommand(MyCommand)
.once();
extensions/eventCommandMap 10

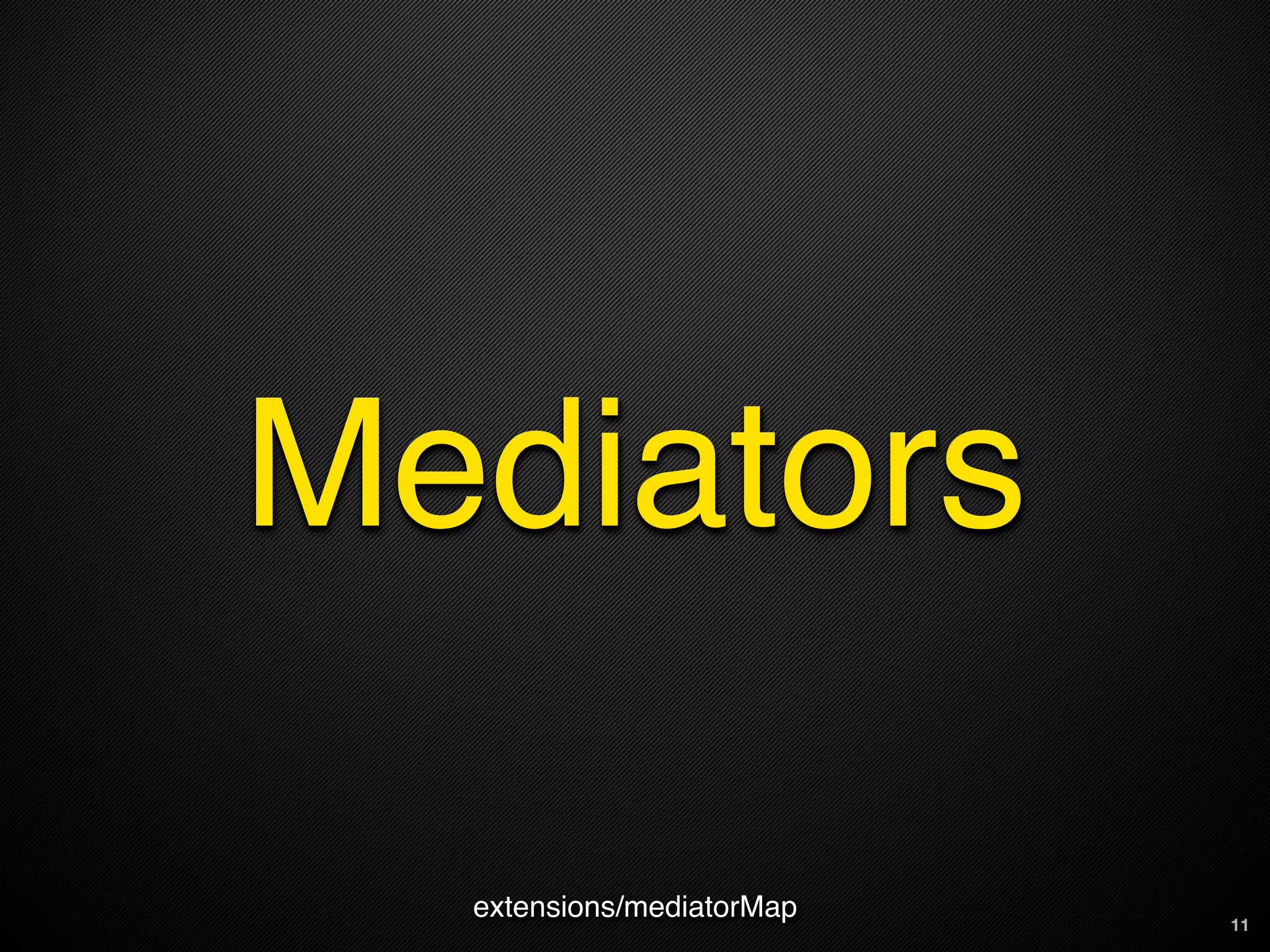

11. Mediators
extensions/mediatorMap 11

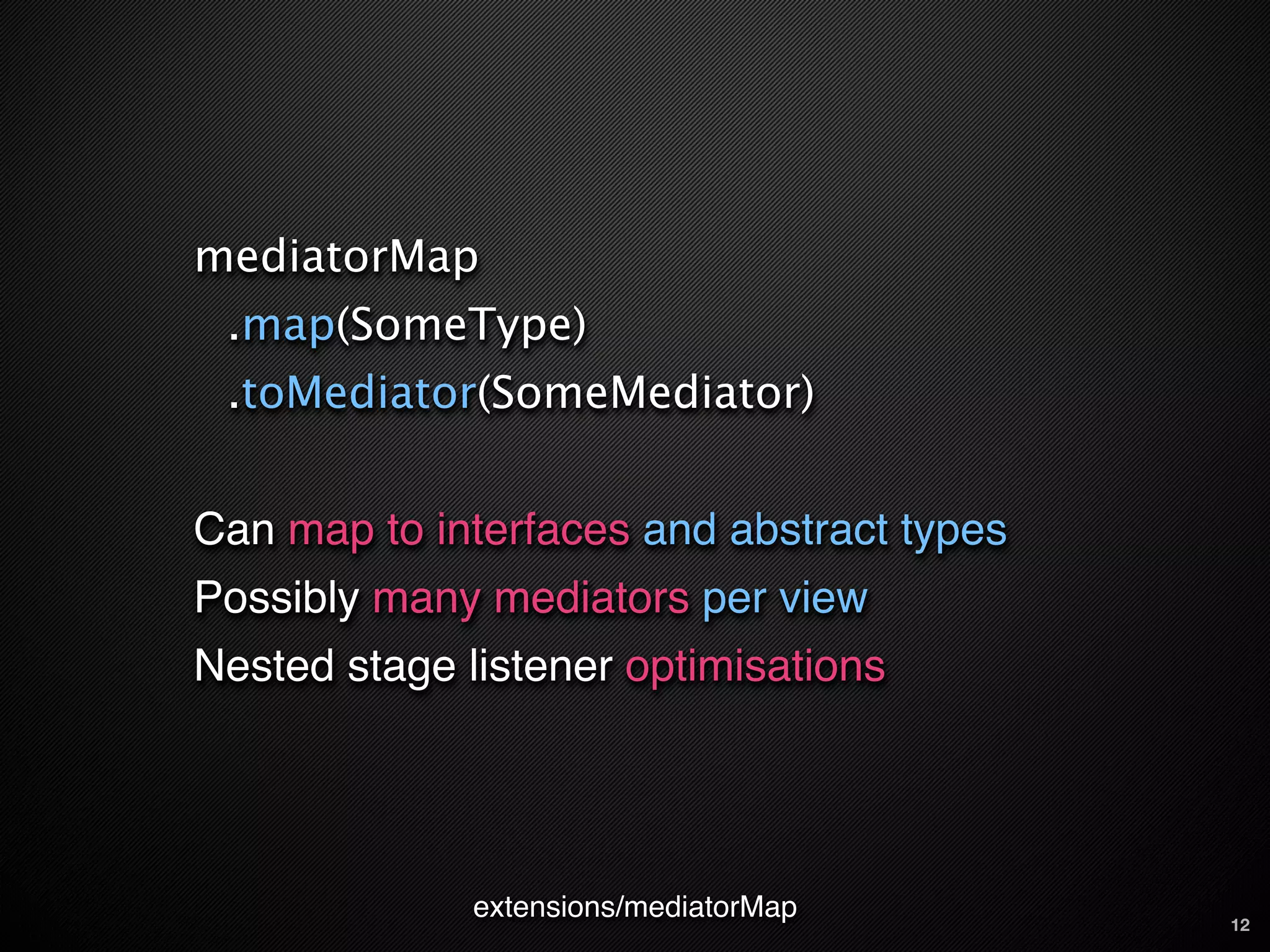

12. mediatorMap
.map(SomeType)
.toMediator(SomeMediator)
Can map to interfaces and abstract types
Possibly many mediators per view
Nested stage listener optimisations
extensions/mediatorMap 12

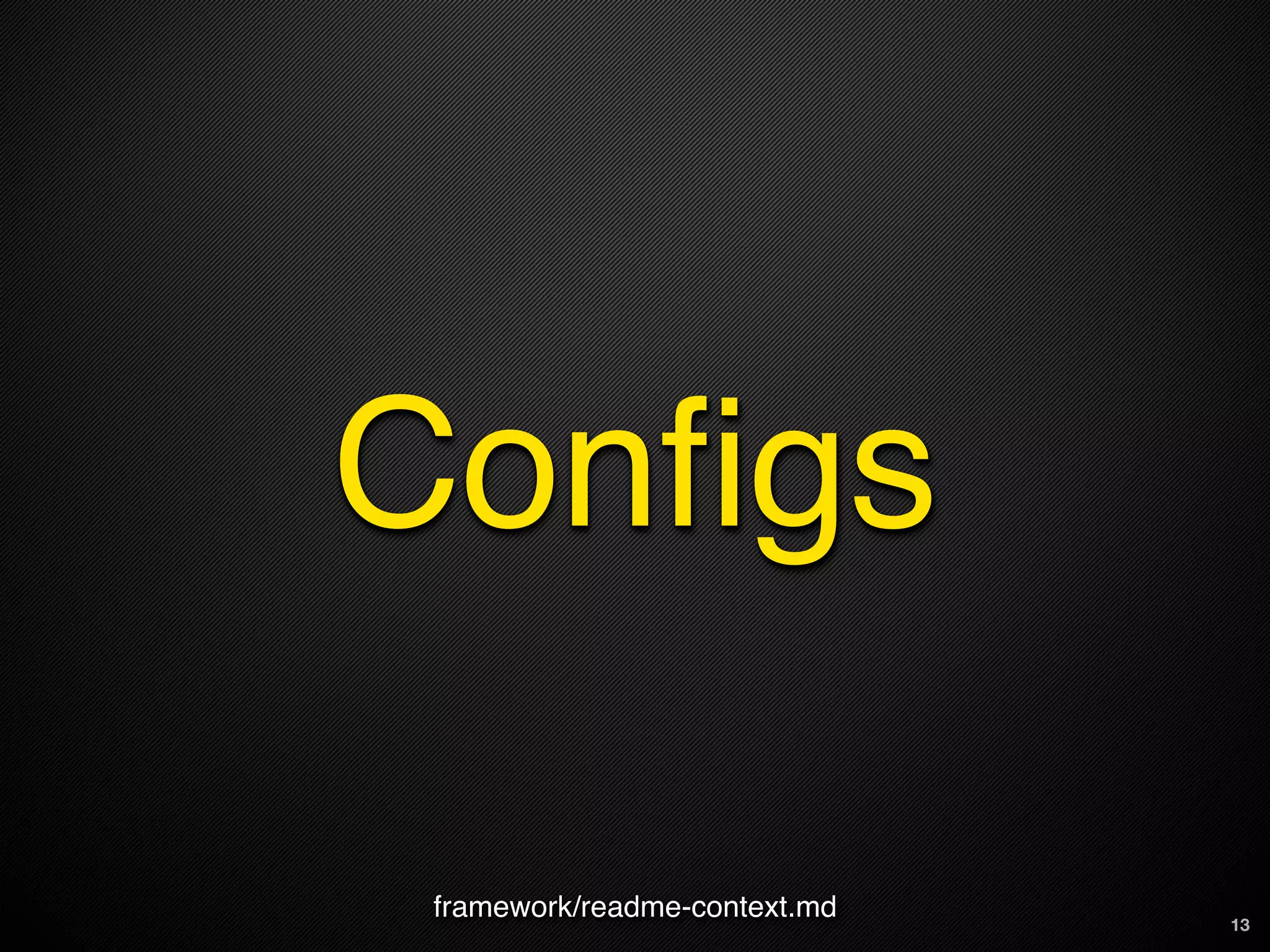

13. Configs
framework/readme-context.md 13

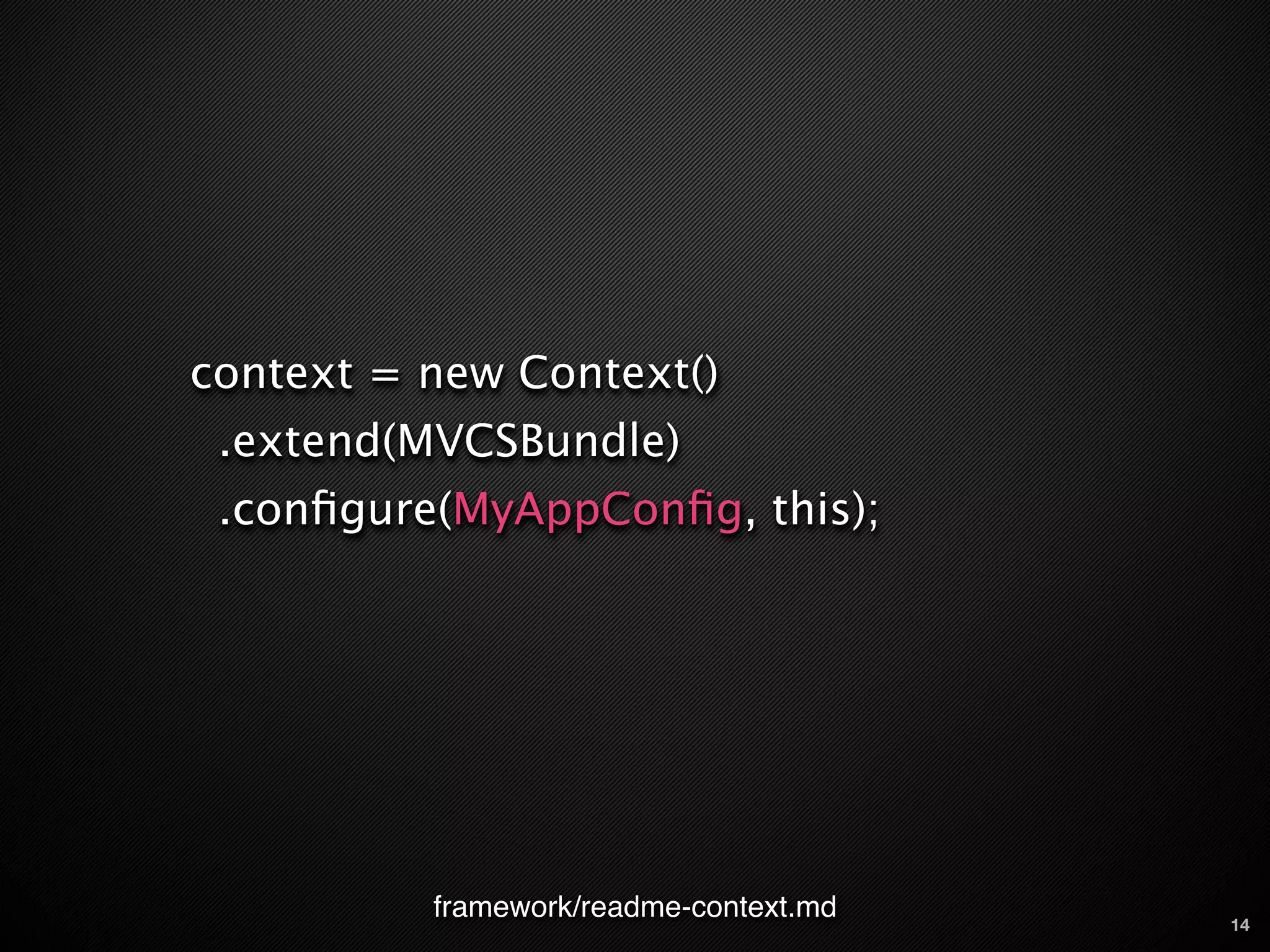

14. context = new Context()
.extend(MVCSBundle)
.configure(MyAppConfig, this);
framework/readme-context.md 14

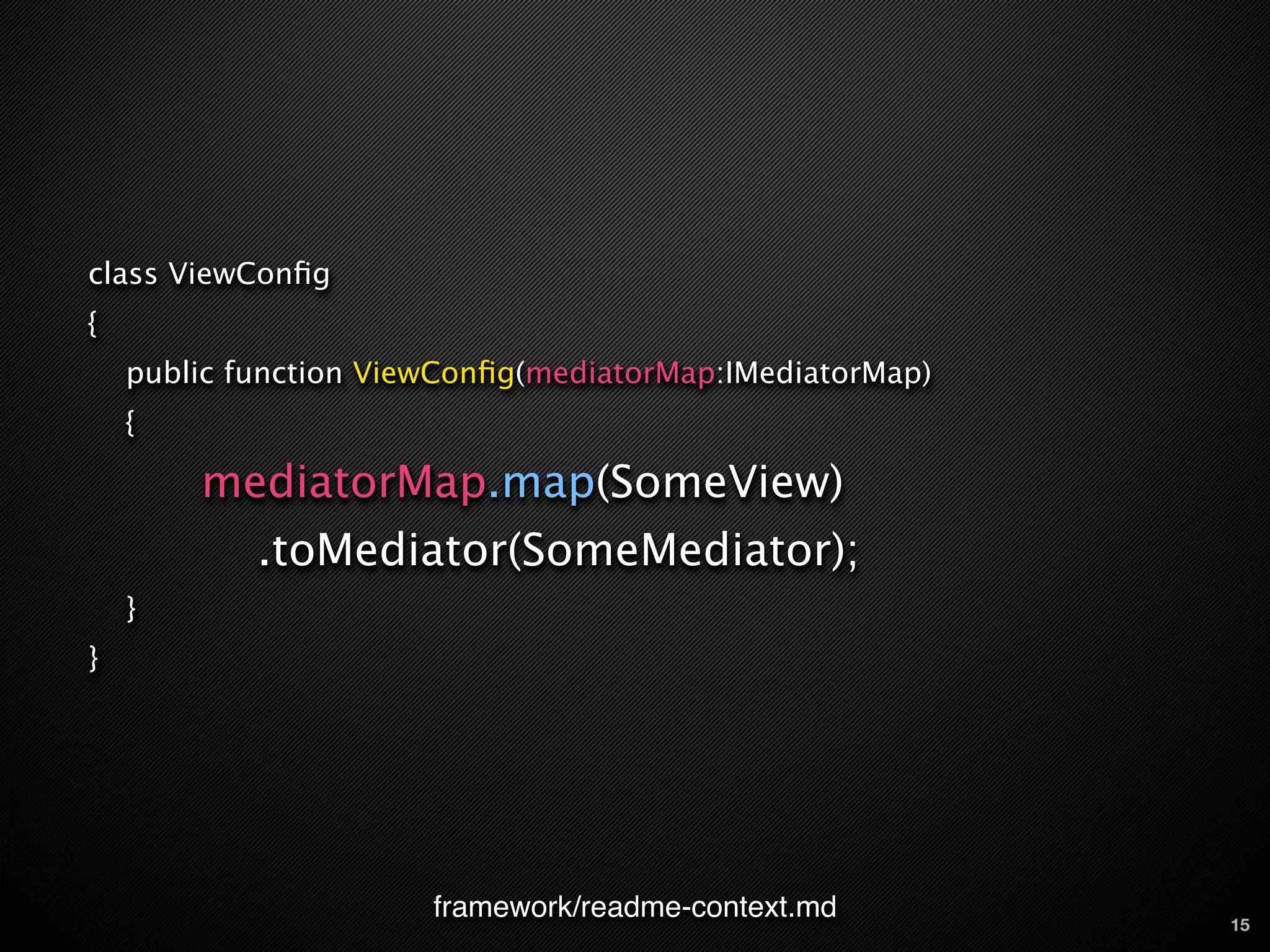

15. class ViewConfig
{
public function ViewConfig(mediatorMap:IMediatorMap)
{
mediatorMap.map(SomeView)
.toMediator(SomeMediator);
}
}
framework/readme-context.md 15

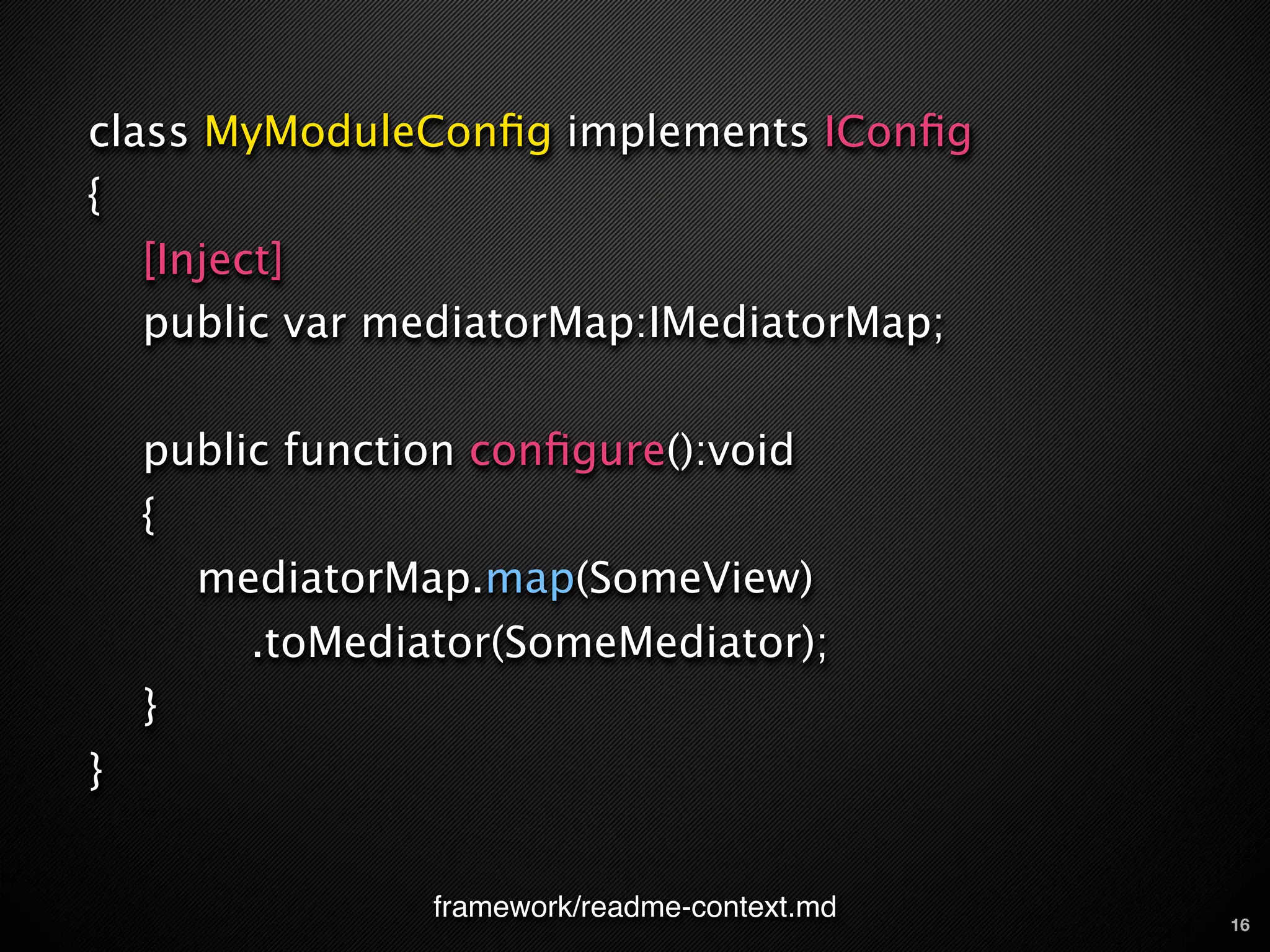

16. class MyModuleConfig implements IConfig
{
[Inject]
public var mediatorMap:IMediatorMap;
public function configure():void
{
mediatorMap.map(SomeView)
.toMediator(SomeMediator);
}
}
framework/readme-context.md 16

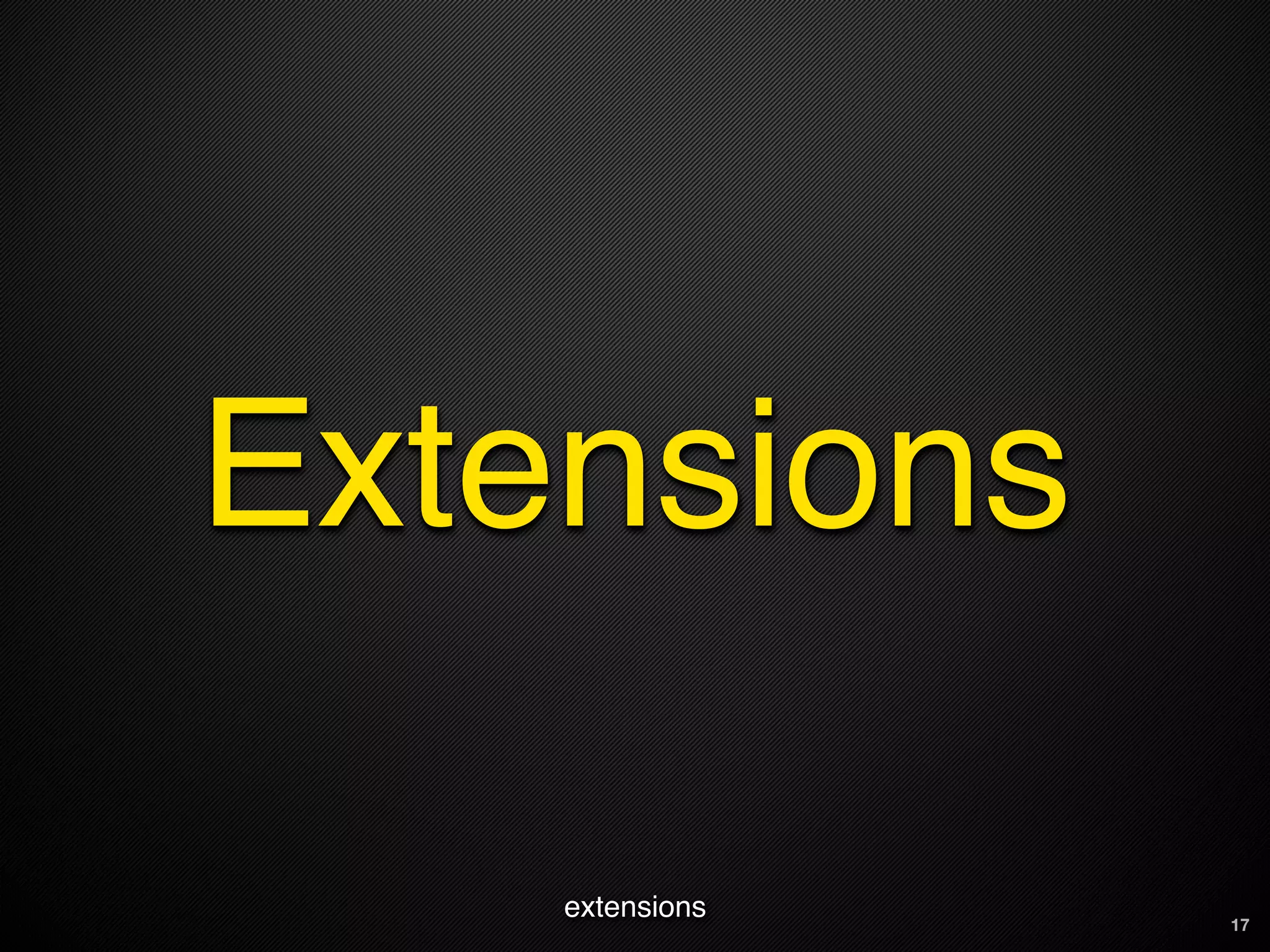

17. Extensions
extensions 17

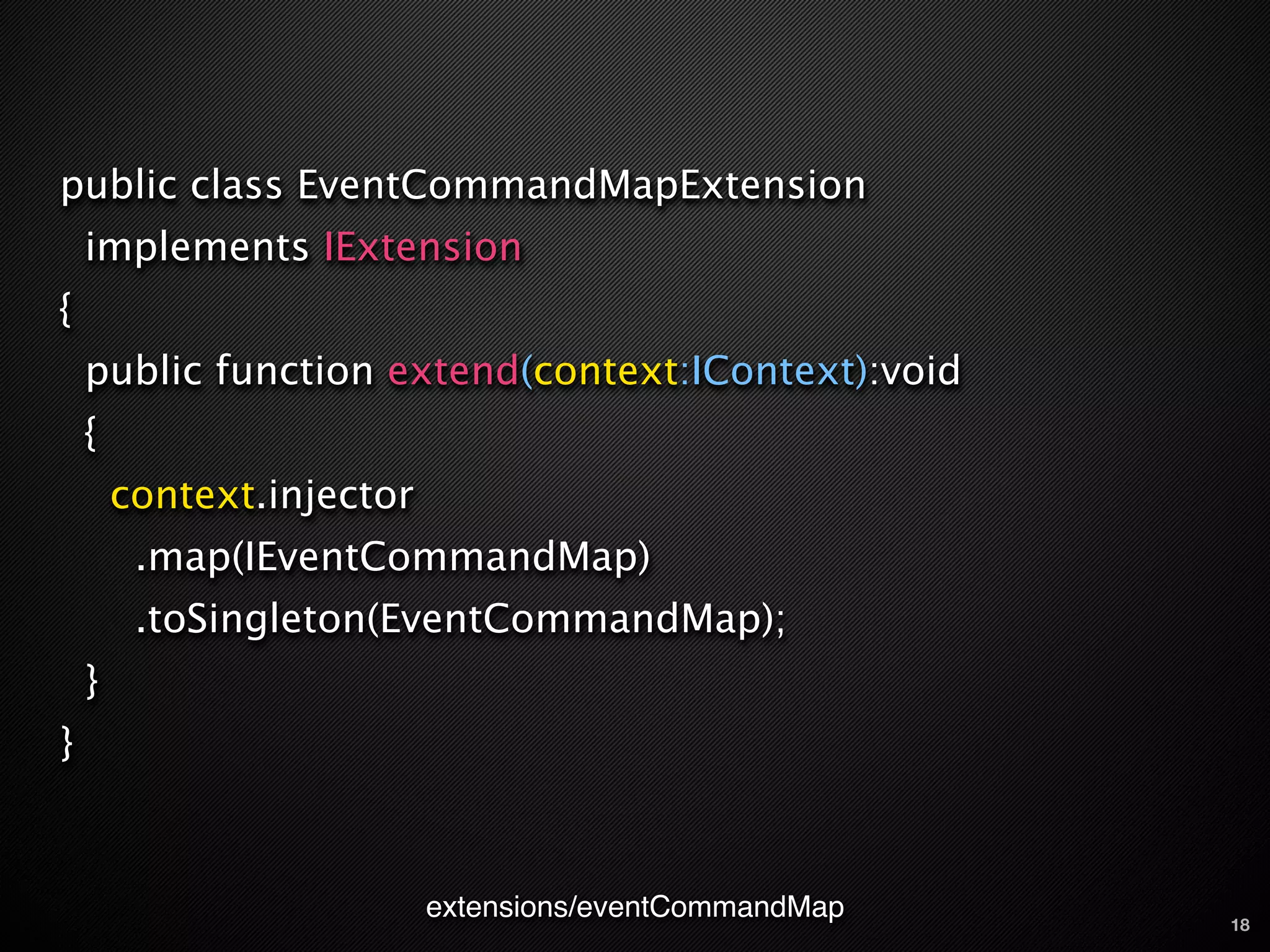

18. public class EventCommandMapExtension
implements IExtension
{
public function extend(context:IContext):void
{
context.injector
.map(IEventCommandMap)
.toSingleton(EventCommandMap);
}
}
extensions/eventCommandMap 18

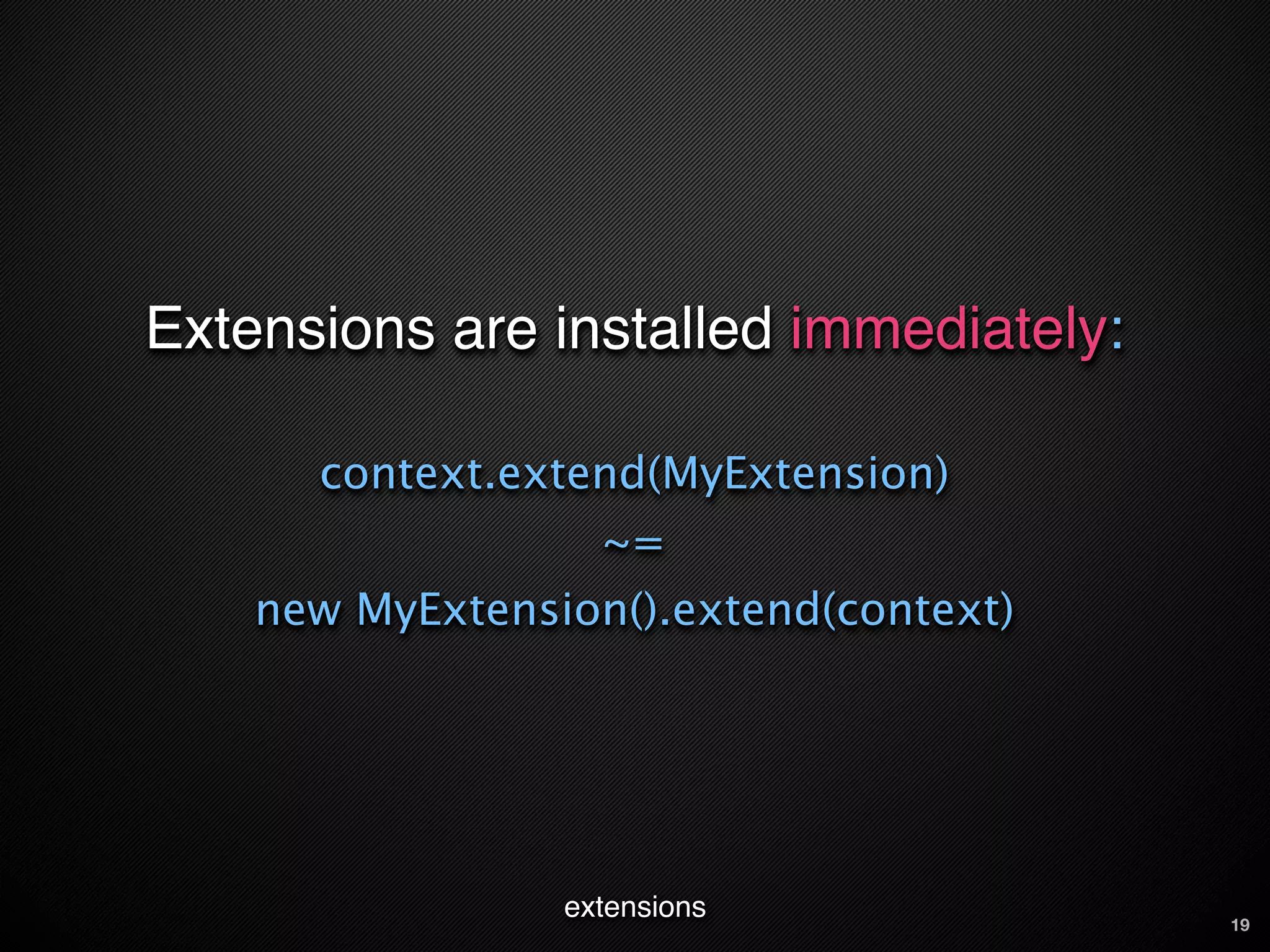

19. Extensions are installed immediately:
context.extend(MyExtension)
~=
new MyExtension().extend(context)
extensions 19

20. Bundles
bundles 20

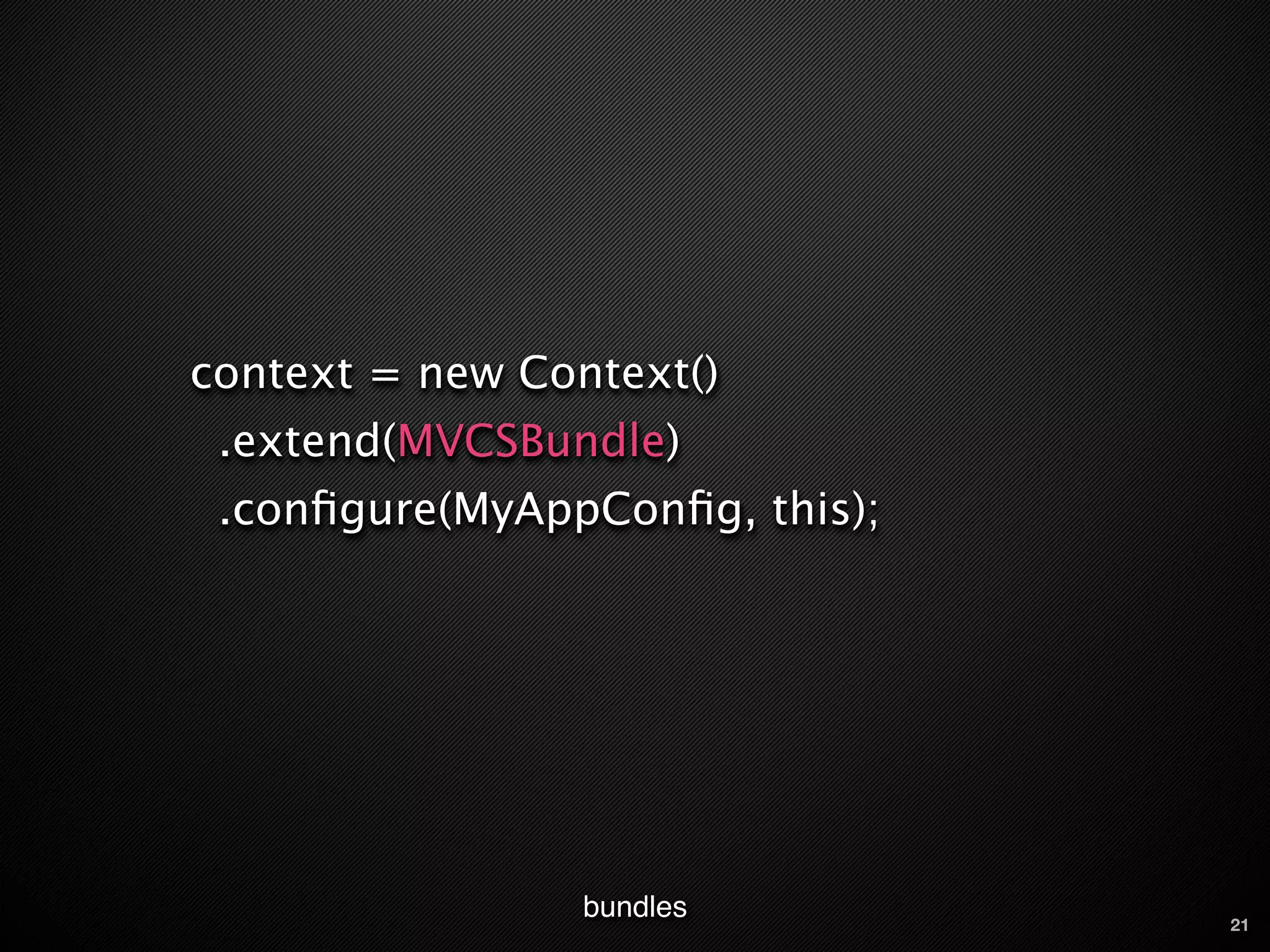

21. context = new Context()
.extend(MVCSBundle)
.configure(MyAppConfig, this);
bundles 21

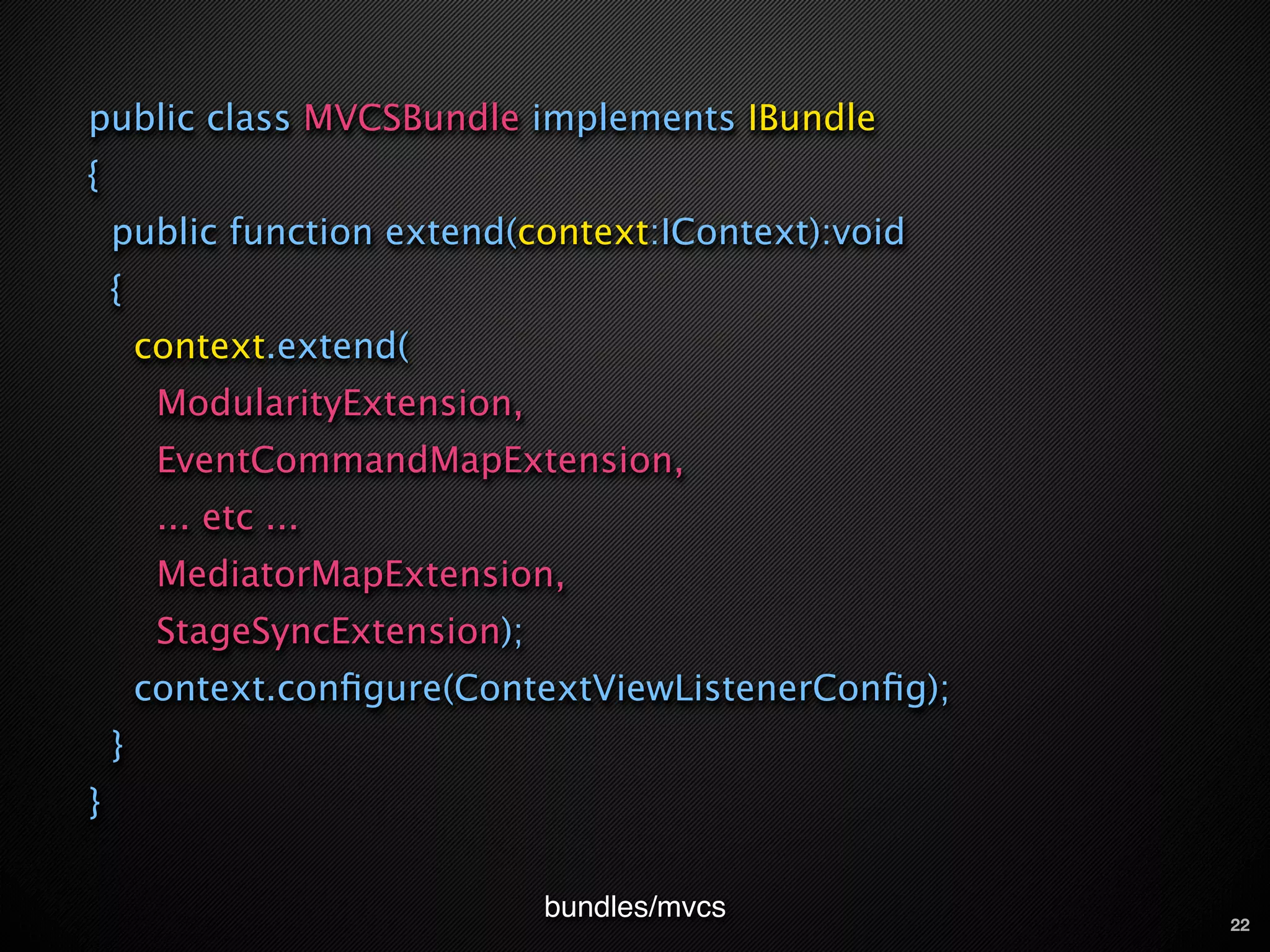

22. public class MVCSBundle implements IBundle
{
public function extend(context:IContext):void
{
context.extend(
ModularityExtension,
EventCommandMapExtension,
... etc ...
MediatorMapExtension,
StageSyncExtension);
context.configure(ContextViewListenerConfig);
}
}
bundles/mvcs 22

23. Bundles are installed immediately:
context.extend(MyBundle)
~=
new MyBundle().extend(context)
bundles 23

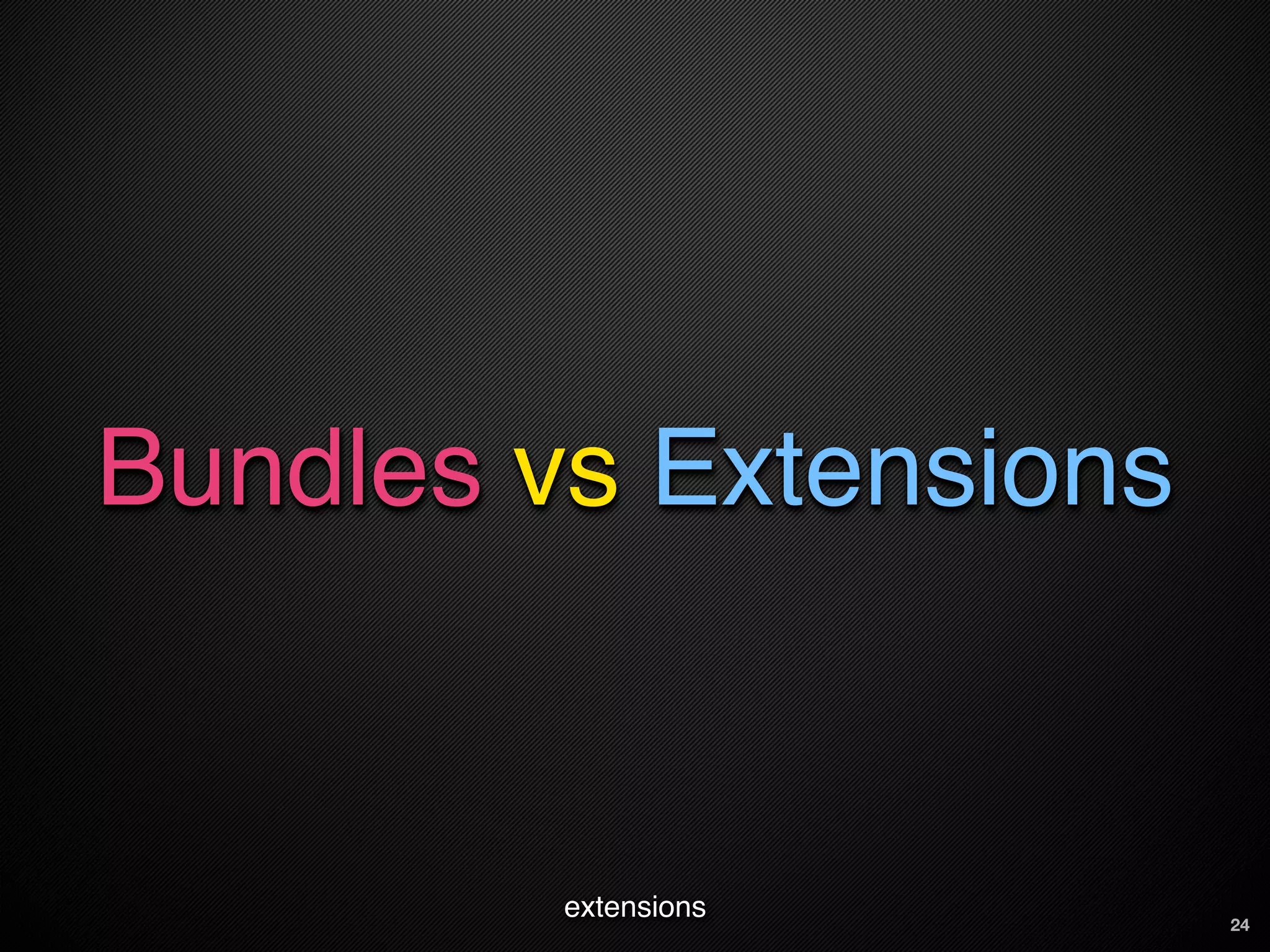

24. Bundles vs Extensions
extensions 24

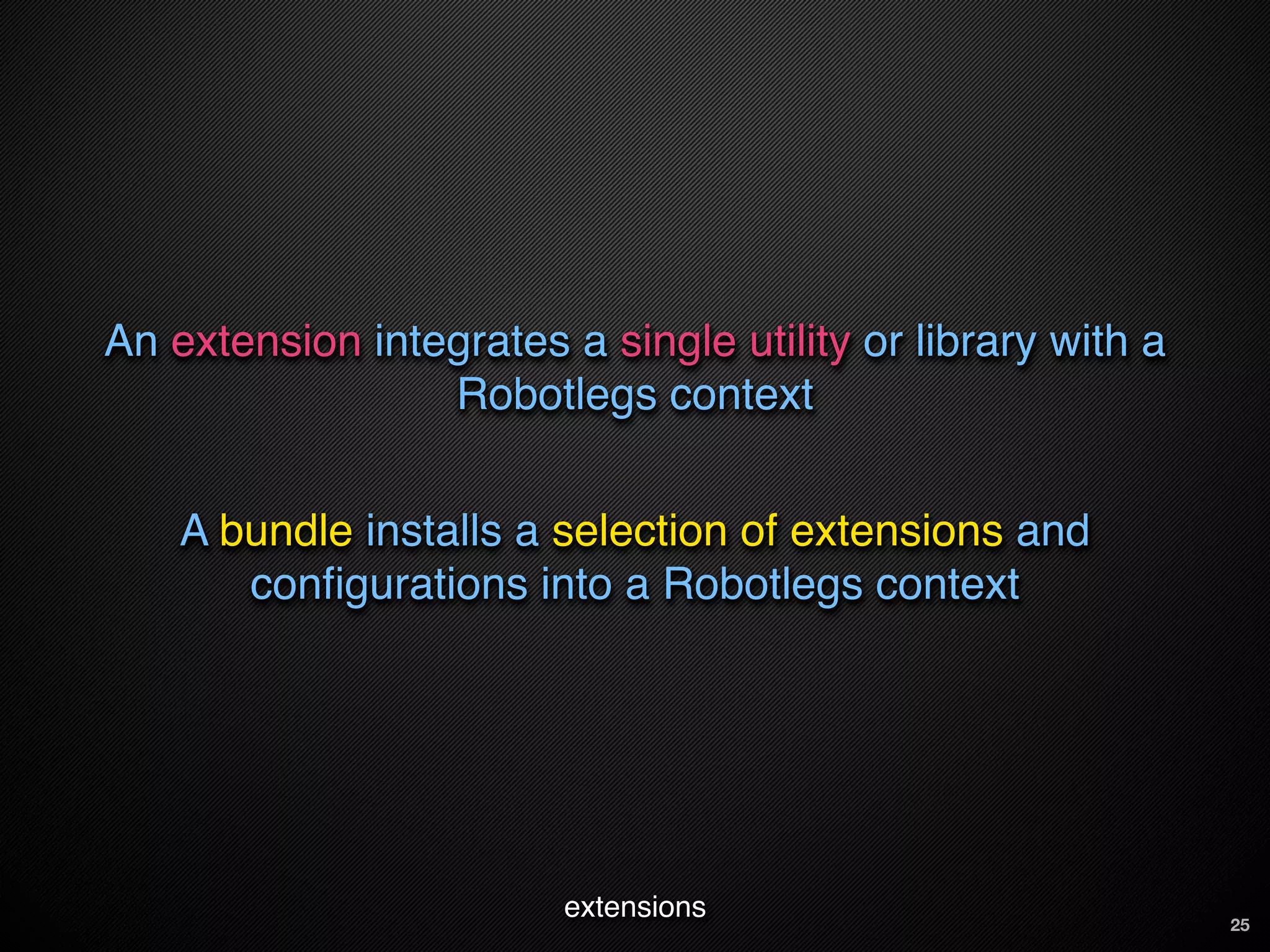

25. An extension integrates a single utility or library with a
Robotlegs context
A bundle installs a selection of extensions and
configurations into a Robotlegs context
extensions 25

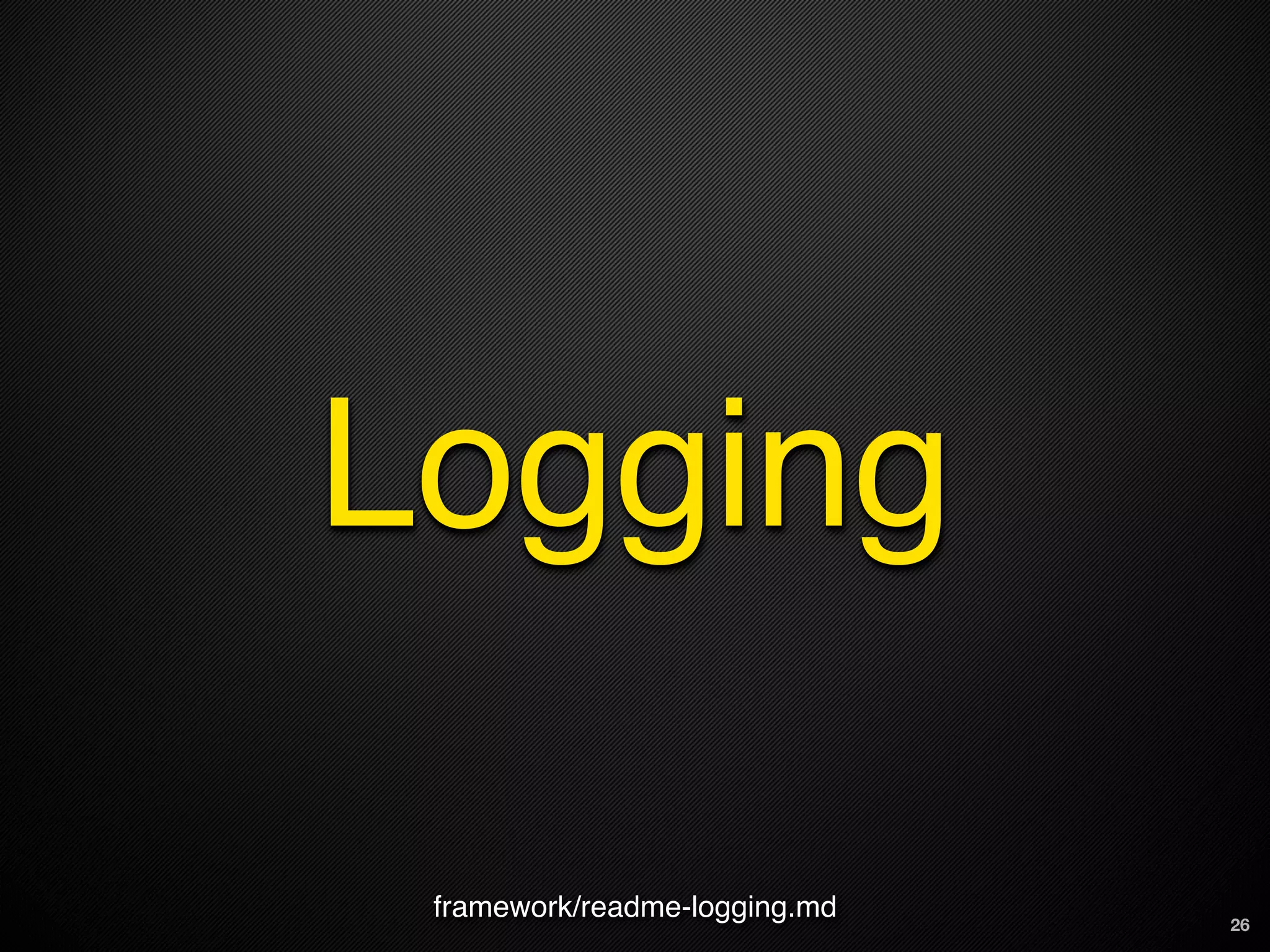

26. Logging
framework/readme-logging.md 26

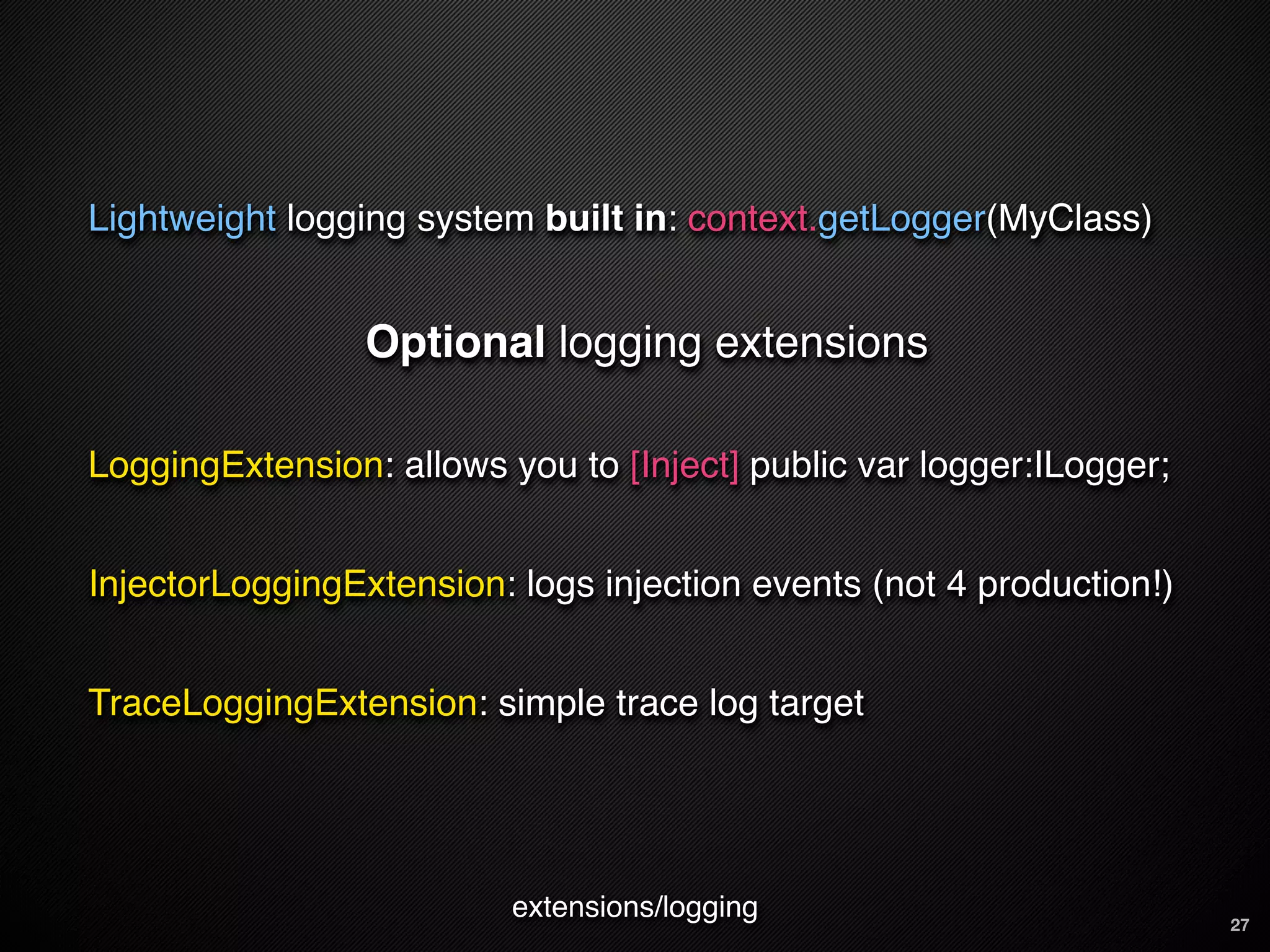

27. Lightweight logging system built in: context.getLogger(MyClass)
Optional logging extensions
LoggingExtension: allows you to [Inject] public var logger:ILogger;
InjectorLoggingExtension: logs injection events (not 4 production!)
TraceLoggingExtension: simple trace log target
extensions/logging 27

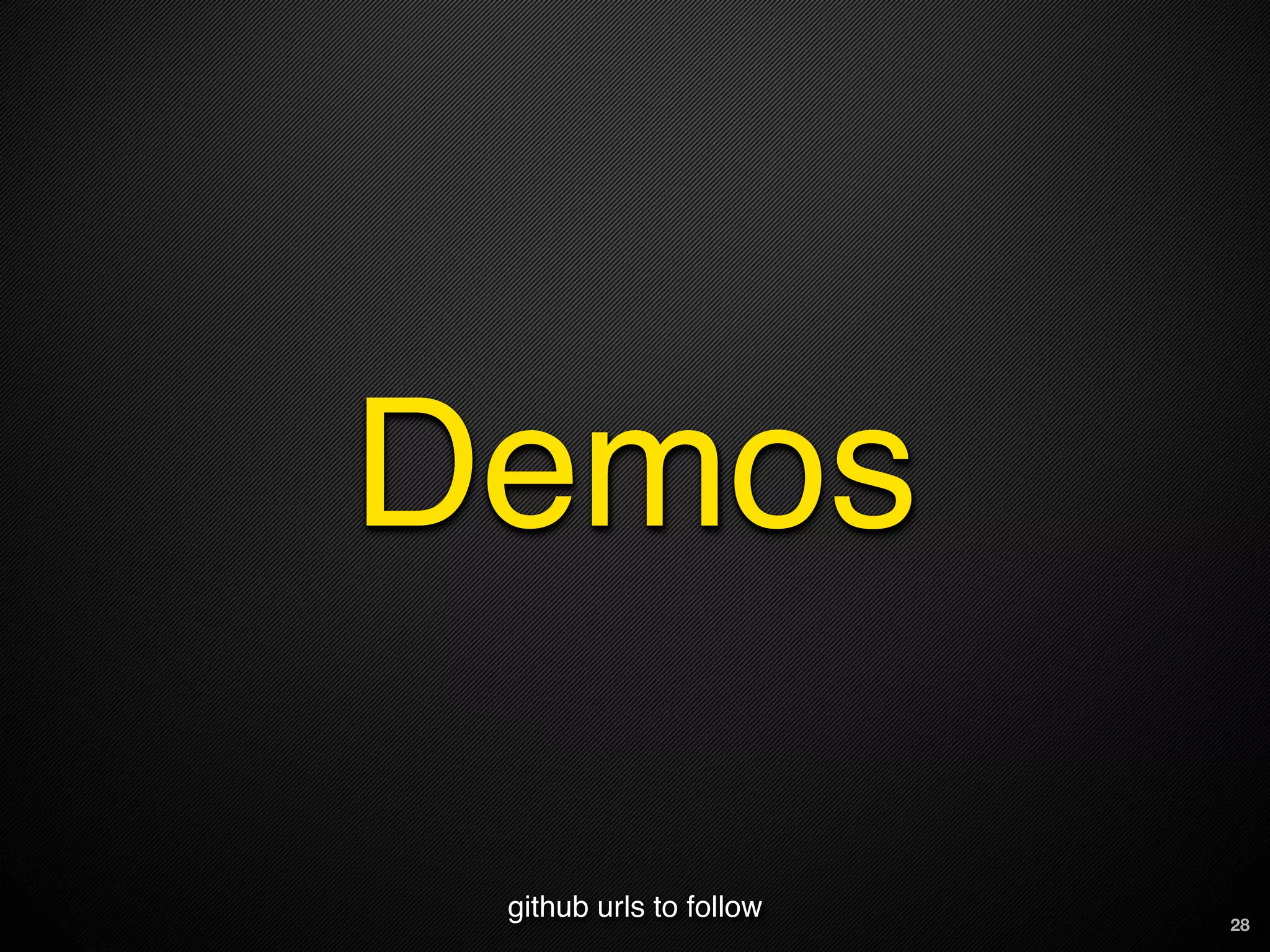

28. Demos
github urls to follow 28

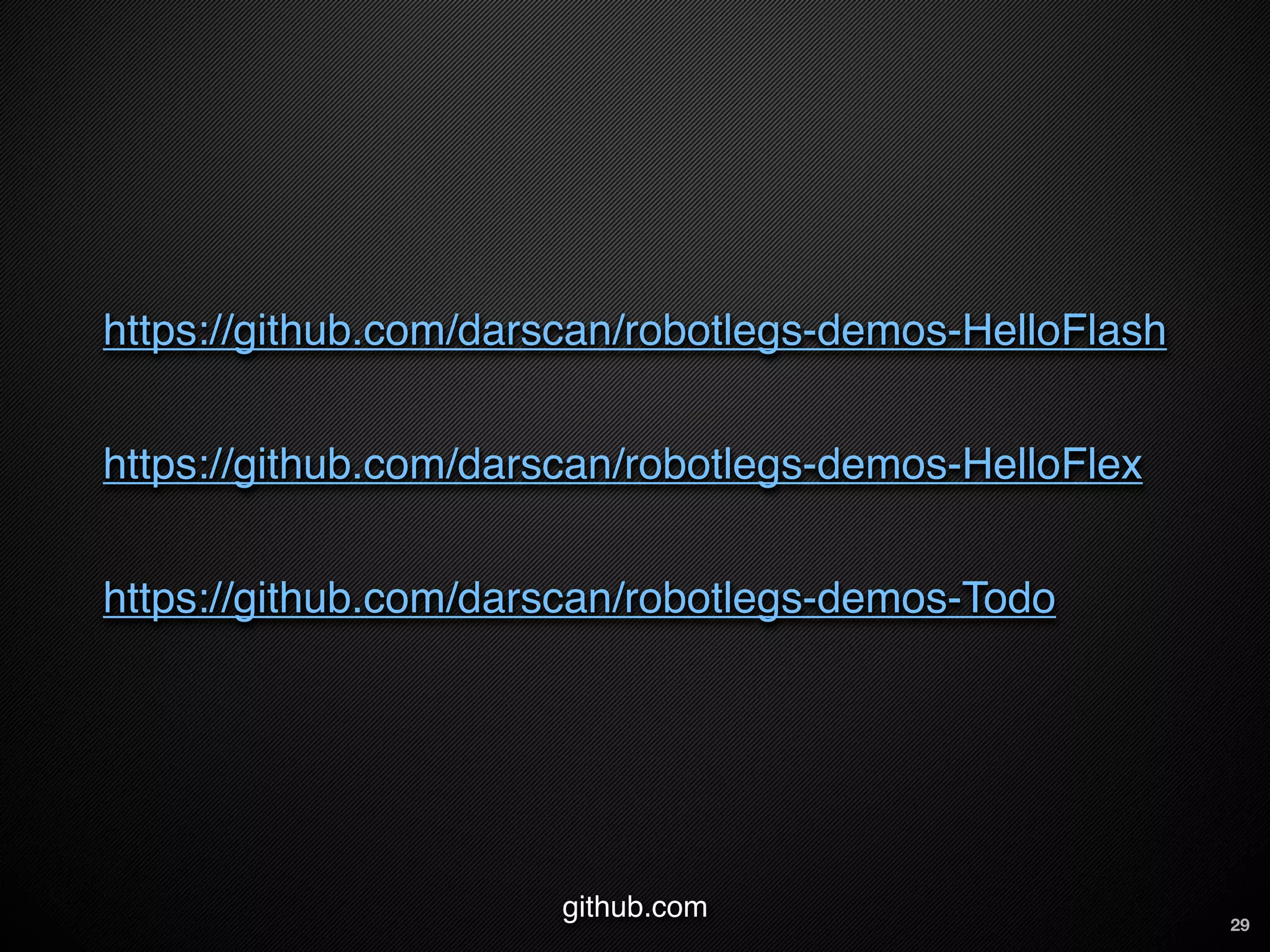

29. https://github.com/darscan/robotlegs-demos-HelloFlash
https://github.com/darscan/robotlegs-demos-HelloFlex
https://github.com/darscan/robotlegs-demos-Todo
github.com 29

30. Thanks!
https://github.com/robotlegs/robotlegs-framework 30

31. Questions?
31
