Riena/RCP Applications in the Web using RAP
Christian Campo
EclipseCon 2011 – March 22nd
Confidential | Date | Other Information, if necessary
März 23, 2011 © 2002 IBM Corporation
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0

2. What is Riena again ?
§ RCP based Framework
§ Client / Server Applications
§ Remote OSGi Service Support
§ End-user focused Navigation Concept
§ Promotes the separation of View and ViewController
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 2

3. End-user focused Navigation Concept ?
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 3

4. RCP started as the Eclipse IDE
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 4

5. RCP – Apps
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 5

6. UI Concepts used in Riena
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 6

7. UI Concepts for Views (=Workarea)
• Model
• Data modeled in POJO or JavaBeans
• View
• Widgets
• Layout
• Colors, Fonts
• Controller
• ActionListener, SelectionListener, DoubleClickListener
• Databinding Calls
ActionListener, SelectionListener, DoubleClickListener
• use of Services (DI ?, OSGi Services)
Databinding Calls
• use of Services (DI ?, OSGi Services)
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 7

8. Many implementation of the same concept
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 8

9. Riena is also ...
§ Equinox Security Support for Client / Server Environment
§ Aimed at large Applications
§ Avoid Boilerplate Code
§ Make reoccurring tasks simple
§ Manage the overall UI structure of the application
§ Promotes the use of Dependency Injection for Services and
Extensions using Annotations and API
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 9

10. What is RAP again ?
§ RCP, JFace and Workbench for Webapplications
§ Goals
§ Any RCP App can be run in a Browser
§ Single-sourcing (same source for desktop and web)
§ By default a desktop client with a browser look
§ Themeable
§ API to convert Singletons into Session-Singletons
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 10

11. What is RAP again ?
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 11

12. Bring Riena and RAP together
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 12

13. Scalability – RCP/Riena
Riena Server
Browser
Browser remote Service Calls
Browser stateless Services
RCP/Riena
Browser
Client
• one Session per JVM • many worker threads
• many RCP Riena Clients • stateless Services
• maintains Client state • calls can take several
seconds
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 13

14. Scalability – RCP/Riena + RAP
RAP Server Riena Server
Browser
Browser
Browser Session stateless Services
Browser Session
Browser Session
Session
Session
• many Browser Clients • one Session per User • many worker threads
• short and quick calls • stateless Services
• stateful • calls can take several
• maintains Client state seconds
• runs RCP Client code
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 14

15. Moving Client Code to the Webcontainer
§ Identify all Singletons
§ Some are REAL Singletons (ImageCache)
§ Some need to become SessionSingletons
§ Create Fragments for RCP/RAP specific code
§ Create Facades to call one of the specific impl. at runtime
§ Local (Client) OSGi Services
§ should not maintain state
§ should be reentrant
§ If you are NOT on the UI Thread, its hard to get the correct
Display instance i.e. in Jobs. (one Display instance per user)
§ The GOAL is to SingleSource ! (one source for RCP and RAP)
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 15

16. How to convert Singletons into SessionSingletons
RCP
RAP
public MySingleton {
public MySingleton extends SessionSingletonBase {
private static MySingleton instance = new MySingleton();
private static MySingleton instance;
public static MySingleton getInstance() {
return instance; public static MySingleton getInstance() {
} return (MySingleton)super.getInstance(MySingleton.class);
} }
}
public MySingleton {
Riena
private static SingletonProvider<MySingleton> ME = new
SessionSingletonProvider<MySingleton>(MySingleton.class);
public static MySingleton getInstance() {
return ME.getInstance(MySingleton.class);
}
}
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 16

17. Creating Facades
Riena
// your code using the facades
public class MyFacade {
MyFacade.getInstance().getText(myTextField);
• Sometimes you need different code on RCP and RAP
• Use a facade to abstract that
• Put the platform specific codeinstance = FacadeFactory.getFacade(MyFacade.class);
private static MyFacade in a fragment
public static MyFacade getInstance() {
return instance;
}
public abstract String getText(Text text);
public class MyFacadeRAP extends MyFacade {
}
public String getText(Text text) {
......
public class MyFacadeRCP extends MyFacade { }
}
public String getText(Text text) {
....
}
}
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 17

18. Moving Riena Client to a Webcontainer
§ Session -> SessionSingleton
§ NavigationTreeModel
§ Workarea (managing the Views attached to Navigation Tree Leafs)
§ Security (logged User, Permissions, Sessionid)
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 18

19. One more thing....
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 19

20. UI Model Desktop -> Web Riena + RAP Client
Riena Client
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 20

21. Existing Web Application
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 21

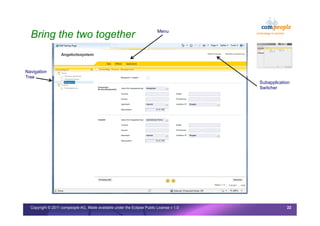

22. Bring the two together Menu
Navigation
Tree
Subapplication
Switcher
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 22

23. ...even on the iPad thanks to RAP
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0 23

24. § If you want to move your Desktop Client to Web
§ Understand the problem areas
§ You need to possibly refactor and rework some of your code
§ SingleSourcing as much as possible
§ Contact
§ http://www.eclipse.org/riena
§ http://wiki.eclipse.org/Riena_Project
§ riena-dev@eclipse.org
§ RT BoF TONIGHT(Tuesday) 8:30 pm
Copyright © 2011 compeople AG, Made available under the Eclipse Public License v 1.0
