Revit Interface By Neetu FOR ARCHITECTURE STUDENTS
- 1. REVIT INTERFACE SUBMITTED TO-AR. SHAILENDRA SINGH SUBMITTED BY- NEETU KUMAWAT CLASS- 3rd YEAR 5th SEM. B.ARCH SUBJECT-ARCHITECTURAL DRAWING V

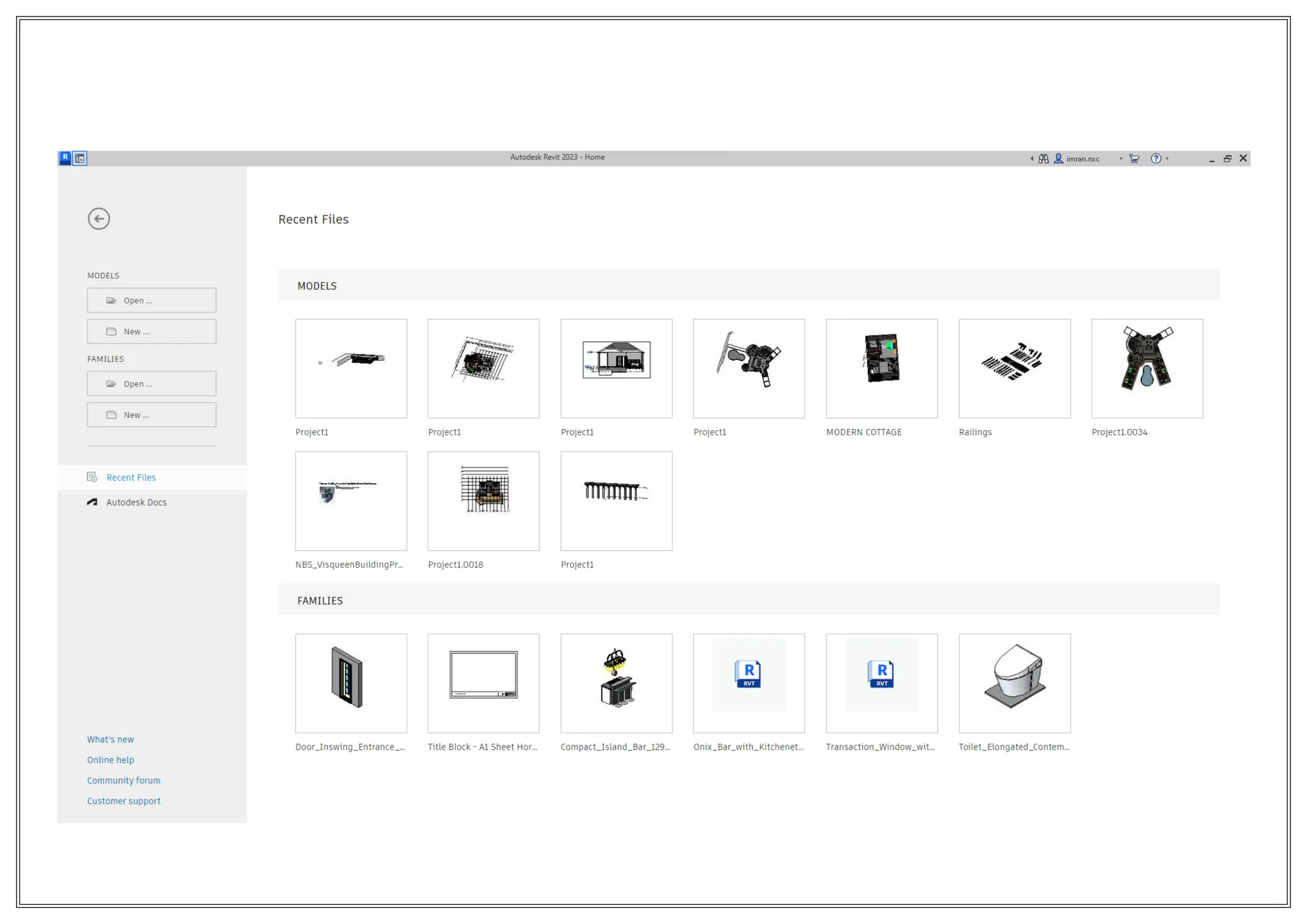

- 3. ELEVATION MARKER APPLICATION MENU QUICKACCESS TOOLBAR VIEW CONTROL BAR MENU BAR TOOL BAR OPTION BAR STATUS BAR DRAWING WINDOW NAVIGATION BAR INFO CENTER TYPE SELECTOR TYPE SELECTION ON PROPERTES PALETTE PROJECT BROWSER
- 4. DRAWING WINDOW 1.MODIFY(MD) :Enters selection mode so u can select elements to modify. 2.WALL(WA) : Creates a non structural wall in building model. 3.DOORS (DR) : Adds doors to the building model. 4.WINDOWS (WN) : Adds windows to the building model. 5. PLACE A COMPONENT (CM) : Places an element in the building model , based on a selected element type
- 5. DRAWING WINDOW 6.STRUCTURAL COLOUMN(CL) : Adds a vertical load bearinng element to the model. 7.MODEL LINE (LI) : Creates a line that exists in 3d space and is visible in all views of a project
- 6.
- 7. DRAWING WINDOW Tab :Organizes tools based on the main function such as Architecture, View, or Massing. Ribbon : Provides tools to create elements or components of a project or family along with other commands Tools : Individual icons available to initiate a command Option Bar : Displays options available to alter the function of a command
- 8. DRAWING WINDOW Type Selector: Identifies the currently selected family type and provides a drop-down menu from which a different type can be chosen such as a wall or roof material or construction Properties Palette : Used to view or modify the parameters that define the properties of elements or canvas Project Browser : Provides access and organizes the views, schedules, and sheets of the project
- 9. DRAWING WINDOW Status Bar: Provides tips or hints on what to do with the selected element or component Info Center : Provides searchable help options and the app store icon View Cube : Available in 3D view and adjusts the view settings Navigation Bar : Available in 3D and 2D to adjust the zoom and view settings View Control Bar : Quick access to functions that affect the current view

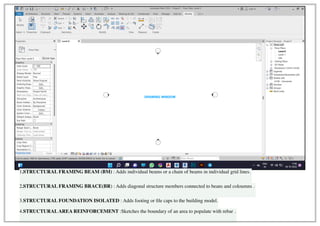

- 10. DRAWING WINDOW 1.STRUCTURAL FRAMINGBEAM (BM) : Adds individual beams or a chain of beams in individual grid lines. 2.STRUCTURAL FRAMING BRACE(BR) : Adds diagonal structure members connected to beans and coloumns . 3.STRUCTURAL FOUNDATION ISOLATED : Adds footing or file caps to the building model. 4.STRUCTURALAREA REINFORCEMENT :Sketches the boundary of an area to populate with rebar .
- 11. DRAWING WINDOW 5.STRUCTURAL PATHREINFORCEMENT :Sketches the path of evenly place reinforcing bars that are created perpendicular to the sketch. 6.STRUCTURAL REBAR COUPLER : Places a reinforcement coupler elements to join rebar in a host. 7.OPENING BY FACE : Creates an opening that is perpendicular to the selected face, or roof or floor oor ceiling 8.SHAFT OPENING : Creates a vertical opening that spans multiple lvls cutting through interveining roofs , floor or ceilings. 9.SET WORK PLANE : Specifies the work plane for the current view or for aselected work place based element.
