Restful Services

The document is a comprehensive overview of RESTful services presented by Shakil Akhtar, detailing his qualifications and the principles of REST architecture. It covers key concepts such as resources, HTTP methods, uniform interfaces, and the importance of stateless communication, alongside practical examples of designing and securing RESTful services. Additionally, the document addresses JAX-RS features, best practices in RESTful web service development, and various methods for client-server interaction.

Embed presentation

RESTful Services Presented By SHAKIL AKHTAR
About Me.. v Open Source Technologies Enthusiastic v TOGAF 9 Certified v TOGAF 9 Foundation Certified v Introduction to Enterprise Architecture Certified v Oracle Certifier Master Java Enterprise Architect (SCEA 5)-All Levels. v SCJDWS certified. v SCWCD certified v SCJP certified v Spring Source Groovy Grails Training Certified. v Gemfire Cloud Training Certified v Independent Architecture &Technology Consultant © Shakil Akhtar
RESTful Services © Shakil Akhtar
Agenda v  Introduction to REST v  Designing RESTful Services v  First JAX-RS Service v  HTTP Method and URI Matching v  JAX-RS Injection v  Scaling JAX-RS v  Securing JAX-RS v  RESTful Java Clients v  Developing REST Web Services v  REST Best Practices v  Common Objections to REST © Shakil Akhtar
What’s the point? Integration Architecture © Shakil Akhtar

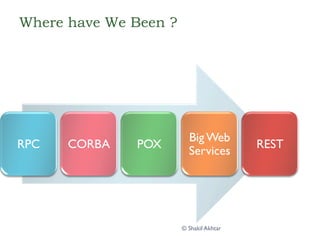

Where have We Been ? RPC CORBA POX Big Web Services REST © Shakil Akhtar
Introduction To REST § What is REST § RESTful Architectural Principles © Shakil Akhtar

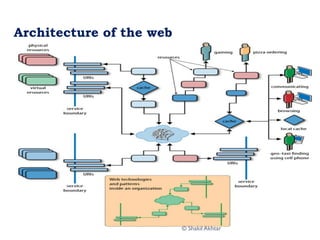

Architecture of the web © Shakil Akhtar
REST v  REST stands for REpresentational State Transfer. v  REST is not a toolkit it’s an architectural style v  Lightweight alternative to mechanisms like RPC,CORBA and Big Web Services. v  REST uses HTTP for CRUD operations. © Shakil Akhtar
Thinking in Resources v  Resource= the entity, item or things exposed by the system to outside world. v  Each resources must be uniquely identifiable v  Resources are the heart of REST. v  Resources are just concept v  URI tells that there’s a concept somewhere v  Client can then request a specific representation of the concept from the representations the server makes available © Shakil Akhtar
© Shakil Akhtar Resources
Resources v Things §  Order §  Product v Associations §  Enrollment §  Membership v Processes §  Onboarding §  Mentoring v Functions §  Driving Directions §  Search © Shakil Akhtar
resource representation representation representation representation http://cafecoffee.com/order/1234 http://cafecoffee.com/order/1234.json urn:cafecoffee.com:order:1234 ftp://cafecoffee.com/order/1234.txt service boundary © Shakil Akhtar

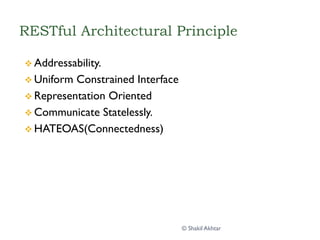

RESTful Architectural Principle v Addressability. v Uniform Constrained Interface v Representation Oriented v Communicate Statelessly. v HATEOAS(Connectedness) © Shakil Akhtar

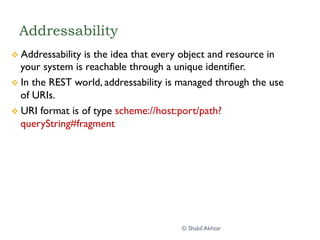

Addressability v  Addressability is the idea that every object and resource in your system is reachable through a unique identifier. v  In the REST world, addressability is managed through the use of URIs. v  URI format is of type scheme://host:port/path? queryString#fragment © Shakil Akhtar
Addressability © Shakil Akhtar
Uniform Constrained Interface v  Interaction between client and resources uses HTTP methods. v  HTTP methods include GET,POST,PUT and DELETE. © Shakil Akhtar
Uniform Constrained Interface GET Request Customer CafeCoffee http://cafecoffee.com/order/1234GET /order/1234 404 Not Found 500 Internal Error 200 OK <order…/> get error © Shakil Akhtar
Uniform Constrained Interface POST Request Customer CafeCoffee http://cafecoffee.com/order POST /order <order …/> 400 Bad Request 500 Internal Error 201 Created Location http:// coffee.com/order/1234 create error http://cafecoffee.com/order/1234 © Shakil Akhtar
Uniform Constrained Interface PUT Request Customer CafeCoffee http://cafecoffee.com/order/1234 PUT /order/1234 <order …/> 404 Not Found 500 Internal Error 200 OK or 204 No Content put error 409 Conflict © Shakil Akhtar
Uniform Constrained Interface DELETE Request Customer CafeCoffee http://cafecoffee.com/order/1234 DELETE /order/1234 404 Not Found 503 Service Unavailable 204  No Content delete error 405 Method Not Allowed © Shakil Akhtar
getOrderDetails() findMatchingBid() listAuctions() getUsers() initiateProcess() submitApplcationData() updateQuote() cancelSubscription() © Shakil Akhtar
Mapping Example getFreeTimeSlots (Person) →GET /people/{id}/timeslots?state=free rejectApplication (Application) →POST /rejections↵ <application>http://...</application>↵ <reason>Unsuitable for us!</reason> performTariffCalculation(Data) →POST /contracts↵ Data ←Location: http://.../contracts/4711 →GET /contracts/4711/tariff ←Result shipOrder (ID) →PUT /orders/0815/status↵ <status>shipped</status> shipOrder(ID) [variation] →POST /shipments↵ Data ←Location: http://.../shipments/4711 © Shakil Akhtar
Why Uniform Interface Important? v  Familiarity. v  Interoperability. v  Scalability © Shakil Akhtar
Representation Oriented v  Services should be representation oriented. v  Each service is having URI and representations are exchanged between client and server. v  Representation could be XML,JSON,YAML or any format you can come up. v  Representation is the message body of request and response v Support Content Negotiation §  Accept Header §  GET /customer §  Accept : application/json §  URI based §  GET /customer.json © Shakil Akhtar
Menu Latte: $5 Espresso: $4 Cookie: $1 <xhtml> <body> <p><b>Menu</b></p> <ul> <li>Latte:$5</li> <li>Espresso:$4</li> <li>Cookie:$1</li> </ul> </body> </xhtml> Menu Latte:$5 Espresso:$4 Cookie:$1 http://caffecoffee.com/menu X H T M L T e x t © Shakil Akhtar
Communicate Statelessly v  No client session data storage on server. v  Server should records and manage resources state it exposes. v  Application state should maintained by client. v  Everything required to process a request contained in the request v  The resource forgets about you while you are not directly interacting with it. © Shakil Akhtar
HATEOAS: connectedness v  Stands for Hypermedia As The Engine Of Application State v  Server can guide client from one application state to another by sending links and forms in its representations v  Connectedness of resources v  Resource representations can contain other URIs v  Links acts as state transitions © Shakil Akhtar
HATEOAS… © Shakil Akhtar
Links v Response contains links v Define link for resource self description <order self="http://example.com/orders/101230"> <customer ref="http://example.com/customers/bar"> <product ref="http://example.com/products/21034"/> <amount value="1"/> </order> © Shakil Akhtar
Link state transition Use Case v  Possible state transitions for a coffee order © Shakil Akhtar
Designing REST web services © Shakil Akhtar v The Object Model v Model the URIs v Defining the data format v Assigning HTTP Methods
First REST Service v Developing a JAX-RS RESTful service v Deploying our service © Shakil Akhtar
JAX-RS Injection v  The Basics v  @PathParam v  @MatrixParam v  @QuesryParam v  @FormParam v  @HeaderParam v  @CookieParam v  Common Functionality © Shakil Akhtar
@PathParam // At class level // At method level @Path("/customers") public class CustomerResource { } @GET @Path("{id}") @Produces("application/xml") public StreamingOutput getCustomer(@PathParam("id") int id) { } © Shakil Akhtar

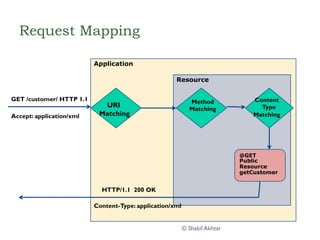

Request Mapping Application Resource @GET Public Resource getCustomer URI Matching Method Matching Content Type Matching GET /customer/ HTTP 1.1 Accept: application/xml HTTP/1.1 200 OK Content-Type: application/xml © Shakil Akhtar
Scope of Path Parameters HTTP Request -> /customers/123/address/456 The addressId parameter in the getAddress() method would Have the 456 value injected @Path("/customers/{id}") public class CustomerResource { @Path("/address/{id}") @Produces("text/plain") @GET public String getAddress(@PathParam("id") String addressId){ } } © Shakil Akhtar
@MatrixParam GET /mercedes/e55;color=black/2006/interior;color=tan http://www.w3.org/DesignIssues/MatrixURIs.html @Path(“/{make}") public class CarResource { @GET @Path(“/{model}/{year}") @Produces(“image/jpeg") public Jpeg getPicture(@PathParam(“make") String make, @PathParam(“model") String model, @MatrixParam(“color") String color) { } } © Shakil Akhtar
@QueryParam GET /customers?start=0&limit=10 @Path("/customers") public class CustomerResource { @Produces(“application/xml") @GET public String getCustomers(@QueryParam(“start") int start , @QueryParam(“limit") int limit){ } } © Shakil Akhtar
Programatic Query Parameter GET /customers?start=0&limit=10 @GET @Produces("application/xml") public String getCustomers(@Context UriInfo info) { String start = info.getQueryParameters().getFirst("start"); String size = info.getQueryParameters().getFirst("limit"); } © Shakil Akhtar
@FormParam <FORM action="http://mycomp.com/customers" method="post"> <P> First name: <INPUT type="text" name="firstname"><BR> Last name: <INPUT type="text" name="lastname"><BR> <INPUT type="submit" value="Send"> </P> </FORM> @Path("/customers") public class CustomerResource { @POST public void createCustomer(@FormParam("firstname") String fname, @FormParam("lastname") String lname) { } } © Shakil Akhtar
@HeaderParam Raw Header can be accessed as follows- @Path("/customerService") public class CustomerService { @Produces (“text/html") public String get(@HeaderParam(“Referer") String referer) { } } @GET @Produces("text/html") public String get(@Context HttpHeaders headers) { String referer = headers.getRequestHeader("Referer").get(0); for (String header : headers.getRequestHeaders().keySet()) { System.out.println("This header was set: " + header); } } © Shakil Akhtar

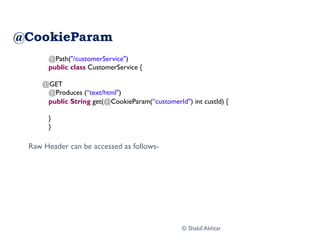

@CookieParam Raw Header can be accessed as follows- @Path("/customerService") public class CustomerService { @GET @Produces (“text/html") public String get(@CookieParam(“customerId") int custId) { } } © Shakil Akhtar
JAX-RS Content Handler §  Built-in Content Marshaling §  JAXB §  Custom Marshaling © Shakil Akhtar

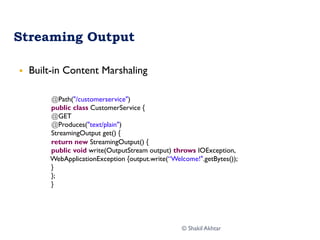

Streaming Output §  Built-in Content Marshaling @Path("/customerservice") public class CustomerService { @GET @Produces("text/plain") StreamingOutput get() { return new StreamingOutput() { public void write(OutputStream output) throws IOException, WebApplicationException {output.write(“Welcome!".getBytes()); } }; } © Shakil Akhtar
JAXB §  An annotation framework that maps java classes to XML and XML Schemas §  Built-in support by JAX-RS @XmlRootElement(name="customer") @XmlAccessorType(XmlAccessType.FIELD) public class Customer { @XmlAttribute private int id; @XmlElement private String fullName; @XmlElement private Address address; //getter setter } © Shakil Akhtar
Scaling JAX-RS v  Caching v  Concurrency © Shakil Akhtar

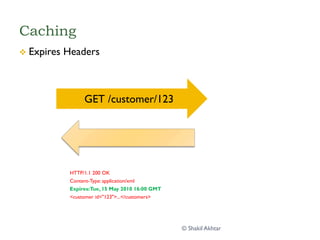

Caching v  Expires Headers GET /customer/123 HTTP/1.1 200 OK Content-Type: application/xml Expires:Tue, 15 May 2010 16:00 GMT <customer id="123">...</customers> © Shakil Akhtar
Caching v  Cache-Controls §  Expires Header deprecated in HTTP 1.1 §  Cache-controls added in HTTP 1.1 §  Comma delimited set of directives ü  private ü  public ü  no-cache ü  no-store ü  no-transform ü  max-age © Shakil Akhtar

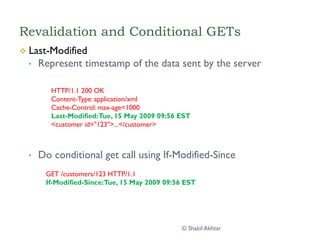

Revalidation and Conditional GETs v  Last-Modified •  Represent timestamp of the data sent by the server •  Do conditional get call using If-Modified-Since HTTP/1.1 200 OK Content-Type: application/xml Cache-Control: max-age=1000 Last-Modified:Tue, 15 May 2009 09:56 EST <customer id="123">...</customer> GET /customers/123 HTTP/1.1 If-Modified-Since:Tue, 15 May 2009 09:56 EST © Shakil Akhtar
cont… v  ETag •  A pesudounique identifier header that represents the version of data sent back •  Do conditional get call using If-None-Match HTTP/1.1 200 OK Content-Type: application/xml Cache-Control: max-age=1000 ETag:“3141271342554322343200” <customer id="123">...</customer> GET /customers/123 HTTP/1.1 If-None-Match:” 3141271342554322343200” © Shakil Akhtar
Concurrency v  When many clients try to update a resource v  Conditional PUT or POST A conditional PUT request – PUT /customers/123 HTTP/1.1 If-Match: "3141271342554322343200" If-Unmodified-Since:Tue, 15 May 2009 09:56 EST Content-Type: application/xml <customer id="123">...</customer> © Shakil Akhtar
Web Security Concepts v  Confidentiality §  Keep information private while in transit or storage v  Integrity §  Prevent information from being changed undetectably v  Identity §  Authenticate parties involved in interaction v  Trust §  Authorizing a party to interact with a system in prescribed manner © Shakil Akhtar
Securing JAX-RS v  Authentication v  Authorization v  Authentication and Authorization in JAX-RS © Shakil Akhtar
Authentication §  Basic §  Digest §  Client Certificate © Shakil Akhtar
Authentication: Configure web.xml <login-config> <auth-method>BASIC</auth-method> <realm-name>admin</realm-name> </login-config> © Shakil Akhtar
Authentication: Configure web.xml §  login-config •  Defines how the HTTP requests should be authenticated §  auth-method •  BASIC, DIGEST, or CLIENT_CERT. corresponds to Basic, Digest, and Client Certificate authentication, respectively §  relam-name •  Name for database of users and groups that identify valid users of a web application <login-config> <auth-method>BASIC</auth-method> <realm-name>admin</realm-name> </login-config> © Shakil Akhtar
Authentication: Configure web.xml §  security-constraints •  Defines access privileges to a collection of resource §  url-pattern •  URL pattern you want to secure §  http-method •  Methods to be protected <security-constraint> <web-resource-collection> <url-pattern>/secure/*</url-pattern> <http-method>POST</http-method> </web-resource-collection> ... © Shakil Akhtar

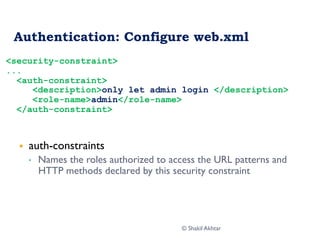

Authentication: Configure web.xml §  auth-constraints •  Names the roles authorized to access the URL patterns and HTTP methods declared by this security constraint <security-constraint> ... <auth-constraint> <description>only let admin login </description> <role-name>admin</role-name> </auth-constraint> © Shakil Akhtar
Authentication: Configure web.xml §  User-data-constraints •  How data will be transported between client and server •  NONE,INTEGRAL or CONFIDENTIAL §  url-pattern •  URL pattern you want to secure §  http-method •  Methods to be protected <security-constraint> ... <user-data-constraint> <description>SSL</description> <transport-guarantee>CONFIDENTIAL</transport-guarantee> </user-data-constraint> </security-constraint> © Shakil Akhtar
Authentication: Configure web.xml §  security-role •  lists all of the security roles used in the application •  For every <role-name> used in <auth-constraints> must define a corresponding <security-role> <security-role> <role-name>admin</role-name> </security-role> © Shakil Akhtar
Authentication: Configure web.xml §  security-role-mapping •  Assigns security role to a group or user in Application Server realm •  For every <role-name> used in <auth-constraints> must define a corresponding <security-role> <sun-web-app> <security-role-mapping> <role-name>admin</role-name> <principal-name>admin</principal-name> </security-role-mapping> </sun-web-app> LDAP realm © Shakil Akhtar
Authorization §  Authorization is the domain of the server and application §  Application permission constrains §  Role base access for resources © Shakil Akhtar
RESTful Java Clients §  java.net.URL §  Apache HTTPClient §  RESTEasy Client framework §  Spring RestTemplate §  Jersey © Shakil Akhtar
java.net.URL §  Two important classes java.net.URL and java.net.HTTPUrlConnection §  Supports standard HTTP method calls §  caching support using setUseCaches(boolean) §  HTTPUrlConnection supports Basic, Digest and Client Certificate authentication © Shakil Akhtar
GET Method call public class GetCall { public static void main(String[] args) throws Exception { URL url = new URL("http://caffecoffee.com/order/1"); HttpURLConnection connection = (HttpURLConnection) url.openConnection(); connection.setRequestMethod("GET"); connection.setRequestProperty("Accept", "application/xml"); if (connection.getResponseCode() != 200) { throw new RuntimeException("Operation failed: " + connection.getResponseCode()); } System.out.println("Content-Type: " + connection.getContentType()); BufferedReader reader = new BufferedReader(new InputStreamReader( connection.getInputStream())); String line = reader.readLine(); while (line != null) { System.out.println(line); line = reader.readLine(); } connection.disconnect(); } } © Shakil Akhtar

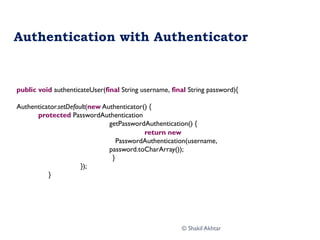

Authentication with Authenticator public void authenticateUser(final String username, final String password){ Authenticator.setDefault(new Authenticator() { protected PasswordAuthentication getPasswordAuthentication() { return new PasswordAuthentication(username, password.toCharArray()); } }); } © Shakil Akhtar

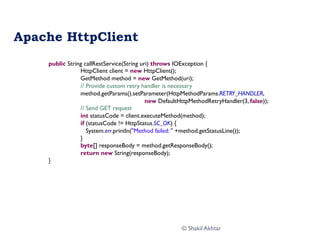

Apache HttpClient public String callRestService(String uri) throws IOException { HttpClient client = new HttpClient(); GetMethod method = new GetMethod(uri); // Provide custom retry handler is necessary method.getParams().setParameter(HttpMethodParams.RETRY_HANDLER, new DefaultHttpMethodRetryHandler(3, false)); // Send GET request int statusCode = client.executeMethod(method); if (statusCode != HttpStatus.SC_OK) { System.err.println("Method failed: " +method.getStatusLine()); } byte[] responseBody = method.getResponseBody(); return new String(responseBody); } © Shakil Akhtar

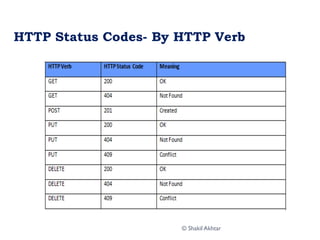

HTTP Status Codes- By HTTP Verb © Shakil Akhtar

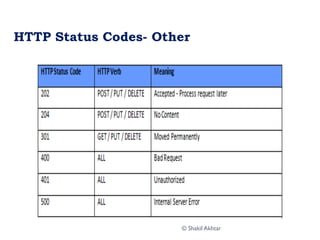

HTTP Status Codes- Other © Shakil Akhtar
REST Platforms Jersey RESTEasy Restlet ApacheCXF Rails Grails Django © Shakil Akhtar
Jersey © Shakil Akhtar
RESTEasy © Shakil Akhtar
Restlet © Shakil Akhtar

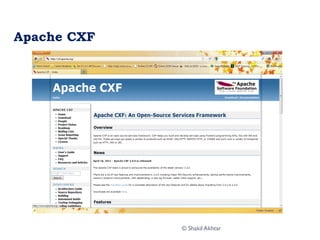

Apache CXF © Shakil Akhtar
Rails © Shakil Akhtar
Grails © Shakil Akhtar
Django © Shakil Akhtar
REST Best Practices §  Provide a URI for each resource that you want (or will want) expose. §  Prefer URIs that are logical over URIs that are physical. For example •  Prefer : http://www.caffecoffee.com/orders/747 •  Over : http://www.caffecoffee.com/orders/747.html © Shakil Akhtar
REST Best Practices §  Use nouns in the URI not verbs. Resources are “things” not “actions” §  Make all HTTP GETs side effect free. Doing so make the request “safe” §  Use links in your responses to requests! Doing so connects your response to other data. It enables client applications to be “self-propelled”. §  Minimize the use of query strings •  Prefer : http://www.caffecoffee.com/orders/1234 •  Over : http://www.caffecoffee.com/orders?orderid=1234 © Shakil Akhtar
REST Best Practices §  Use the “/” in a URI to represent a parent child, whole-part relationship. §  Use a “gradual unfolding methodology” for exposing data to clients.This is, a resource representation should provide links to obtain more details. §  Always implement a service using HTTP GET when the purpose of the service is to allow a client to retrieve a resource representation. © Shakil Akhtar

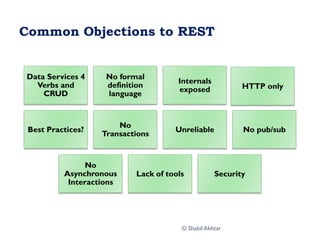

Common Objections to REST Data Services 4 Verbs and CRUD No formal definition language Internals exposed HTTP only Best Practices? No Transactions Unreliable No pub/sub No Asynchronous Interactions Lack of tools Security © Shakil Akhtar
Data Service -4 Verbs+CRUD §  Misunderstanding of Resources. §  Associations(Relationships) §  Processes §  Functions © Shakil Akhtar
Internals Exposed §  URIs are not a one to one match. §  Separation of concern © Shakil Akhtar
Best Practices? §  Many Books published §  JAX-RS standards © Shakil Akhtar
Unreliable §  Remember the HTTP codes §  Re-send the request §  Idempotence - GET,PUT,DELETE © Shakil Akhtar
No Pub/Sub §  RSS §  AtomPub © Shakil Akhtar

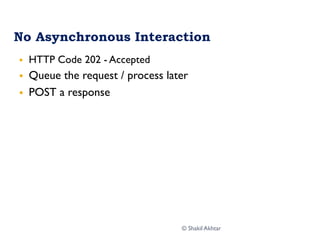

No Asynchronous Interaction §  HTTP Code 202 - Accepted §  Queue the request / process later §  POST a response © Shakil Akhtar

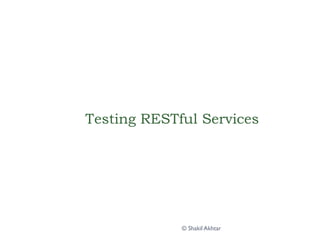

Testing RESTful Services © Shakil Akhtar

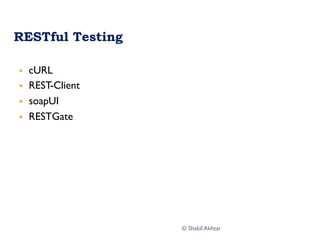

RESTful Testing §  cURL §  REST-Client §  soapUI §  RESTGate © Shakil Akhtar
cURL }  GET curl -i -H "Accept: application/xml" http://localhost:8080/jaxrs/customerscache/123   © Shakil Akhtar

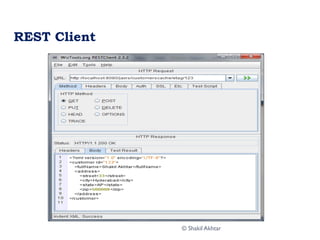

REST Client © Shakil Akhtar
Is REST being used? © Shakil Akhtar
Summary v Introduction to REST v CommonVerbs v RESTful services Implementation v Testing RESTful Services © Shakil Akhtar
© Shakil Akhtar
ThankYou! © Shakil Akhtar
