This document discusses using Redis to enable failing fast with Bloom filters. It provides an overview of Redis as a data structure server and key-value cache, as well as Bloom filters as a space-efficient probabilistic data structure for membership testing. By storing Bloom filters in Redis, they can be made updatable and persistent while avoiding the high costs of updating and querying large Bloom filters stored in databases. Examples are given where Redis-backed Bloom filters can be used to optimize queries and decide whether expensive operations need to be performed.

1. Failing Fast with Redis
backed BloomFilters
• Christopher Curtin
• Head of Technical
Research
• @ChrisCurtin

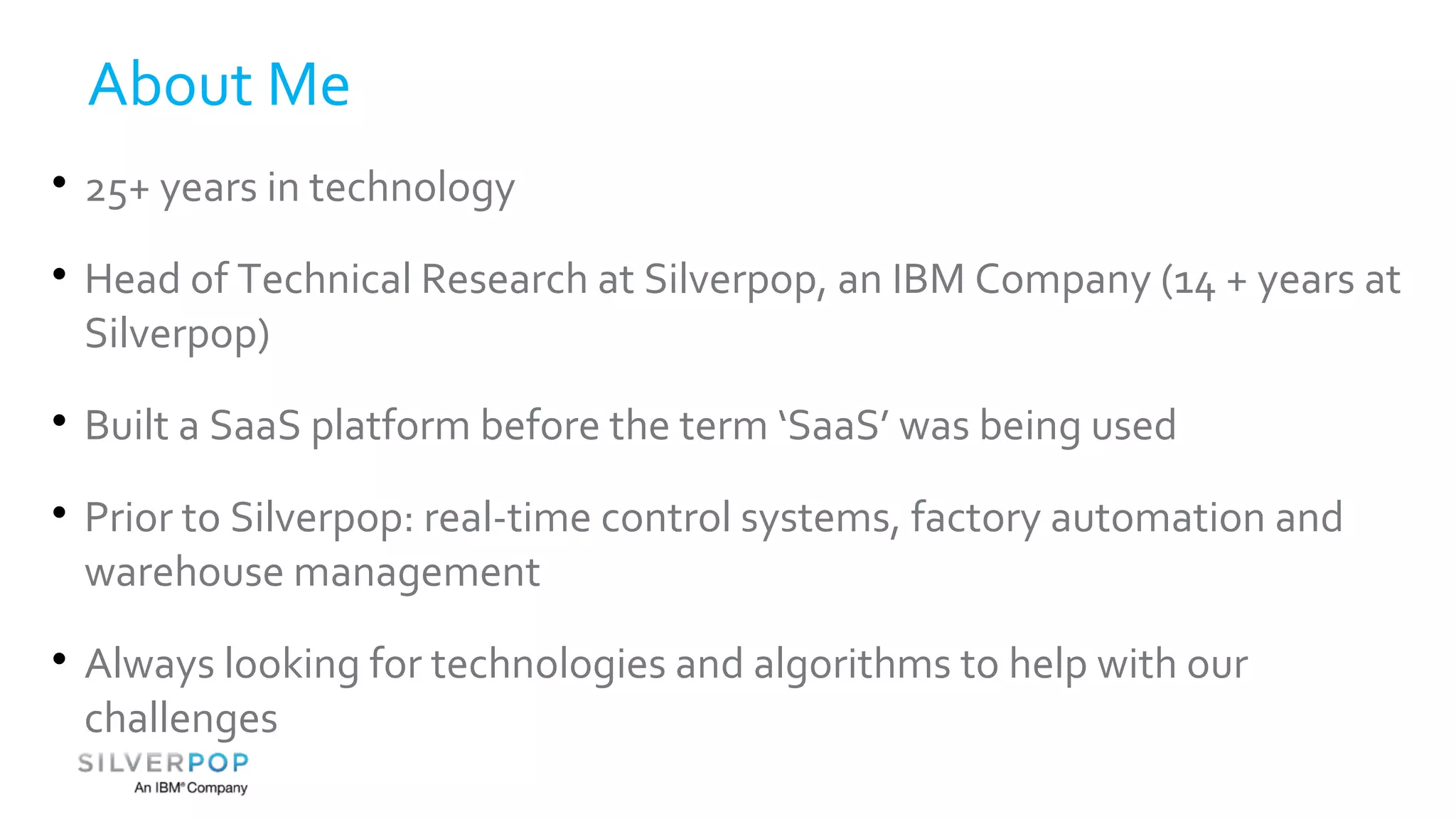

2. About Me
 25+ years in technology
 Head of Technical Research at Silverpop, an IBM Company (14 + years at
Silverpop)
 Built a SaaS platform before the term ‘SaaS’ was being used
 Prior to Silverpop: real-time control systems, factory automation and
warehouse management
 Always looking for technologies and algorithms to help with our
challenges

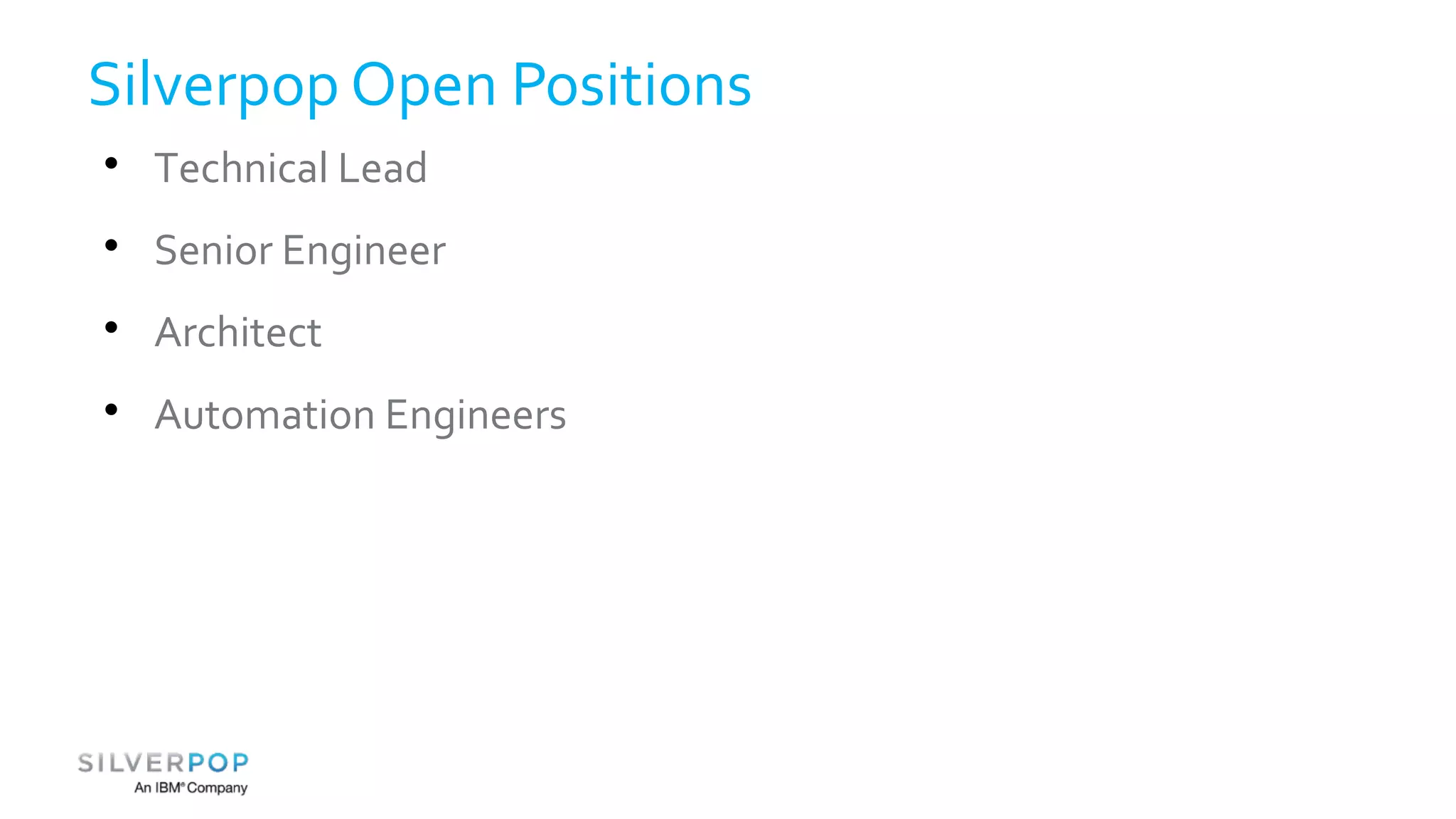

3. Silverpop Open Positions
 Technical Lead
 Senior Engineer
 Architect
 Automation Engineers

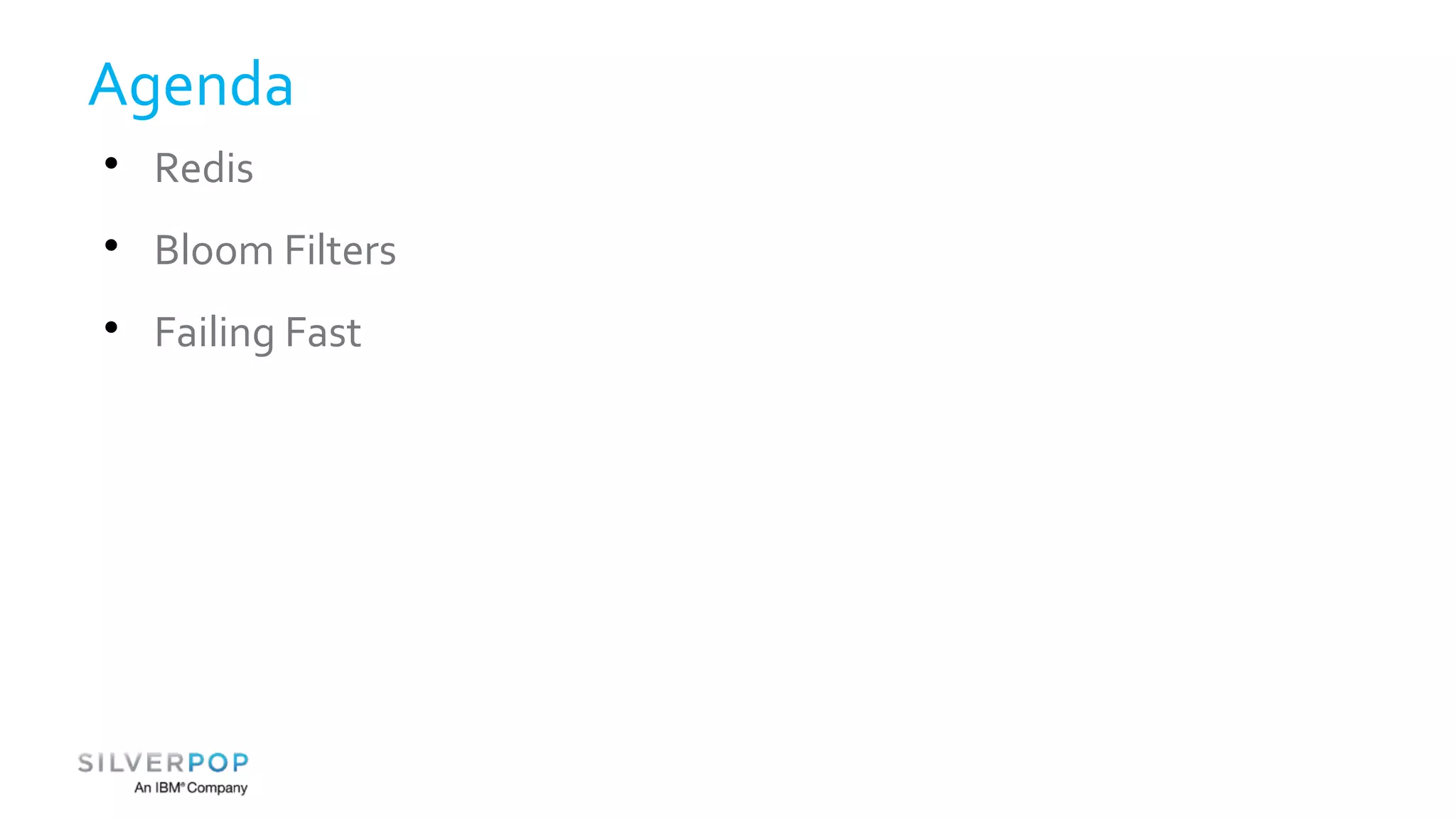

4. Agenda
 Redis
 Bloom Filters
 Failing Fast

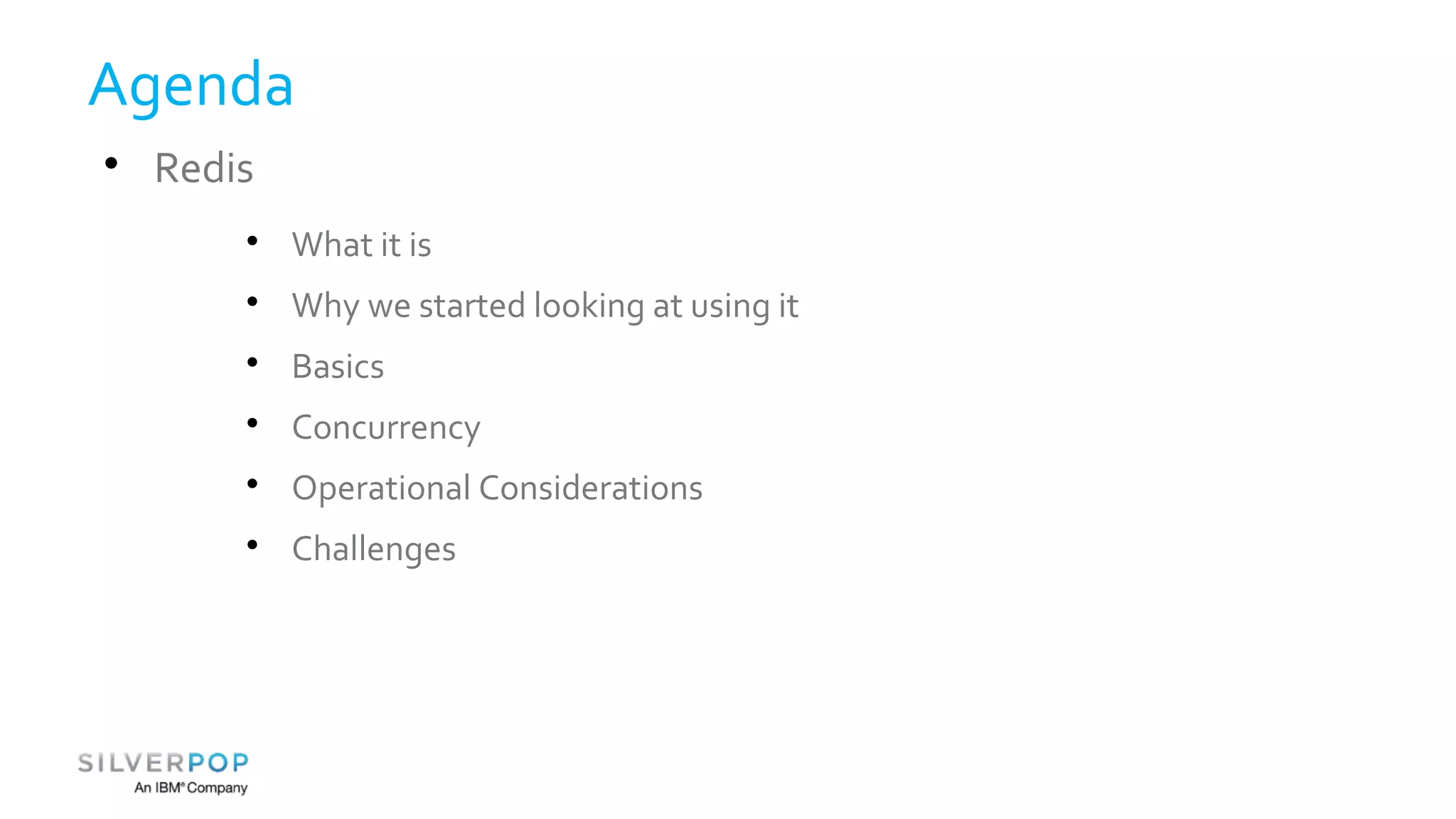

5. Agenda
 Redis
 What it is
 Why we started looking at using it
 Basics
 Concurrency
 Operational Considerations
 Challenges

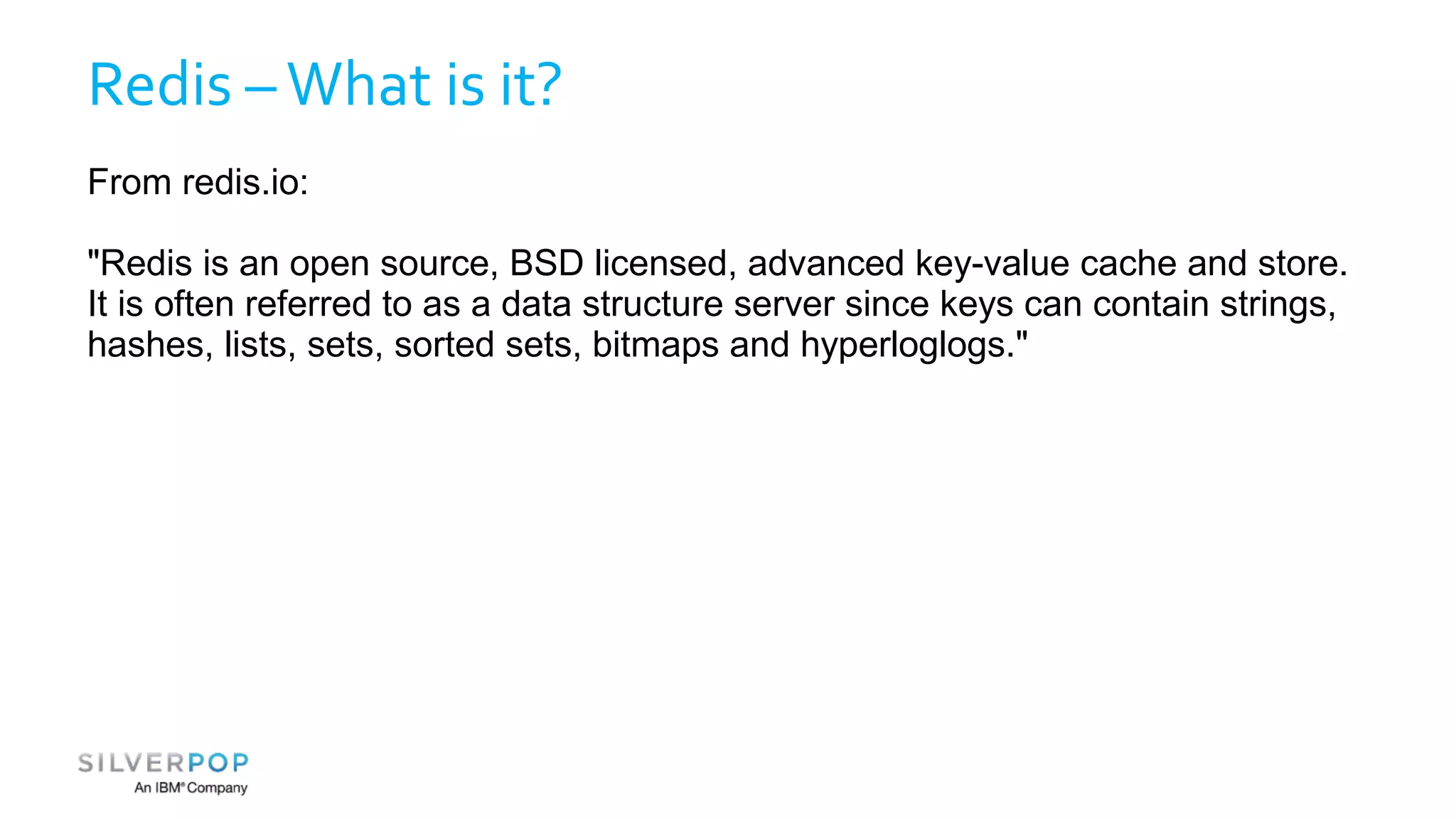

6. Redis – What is it?
From redis.io:
"Redis is an open source, BSD licensed, advanced key-value cache and store.
It is often referred to as a data structure server since keys can contain strings,
hashes, lists, sets, sorted sets, bitmaps and hyperloglogs."

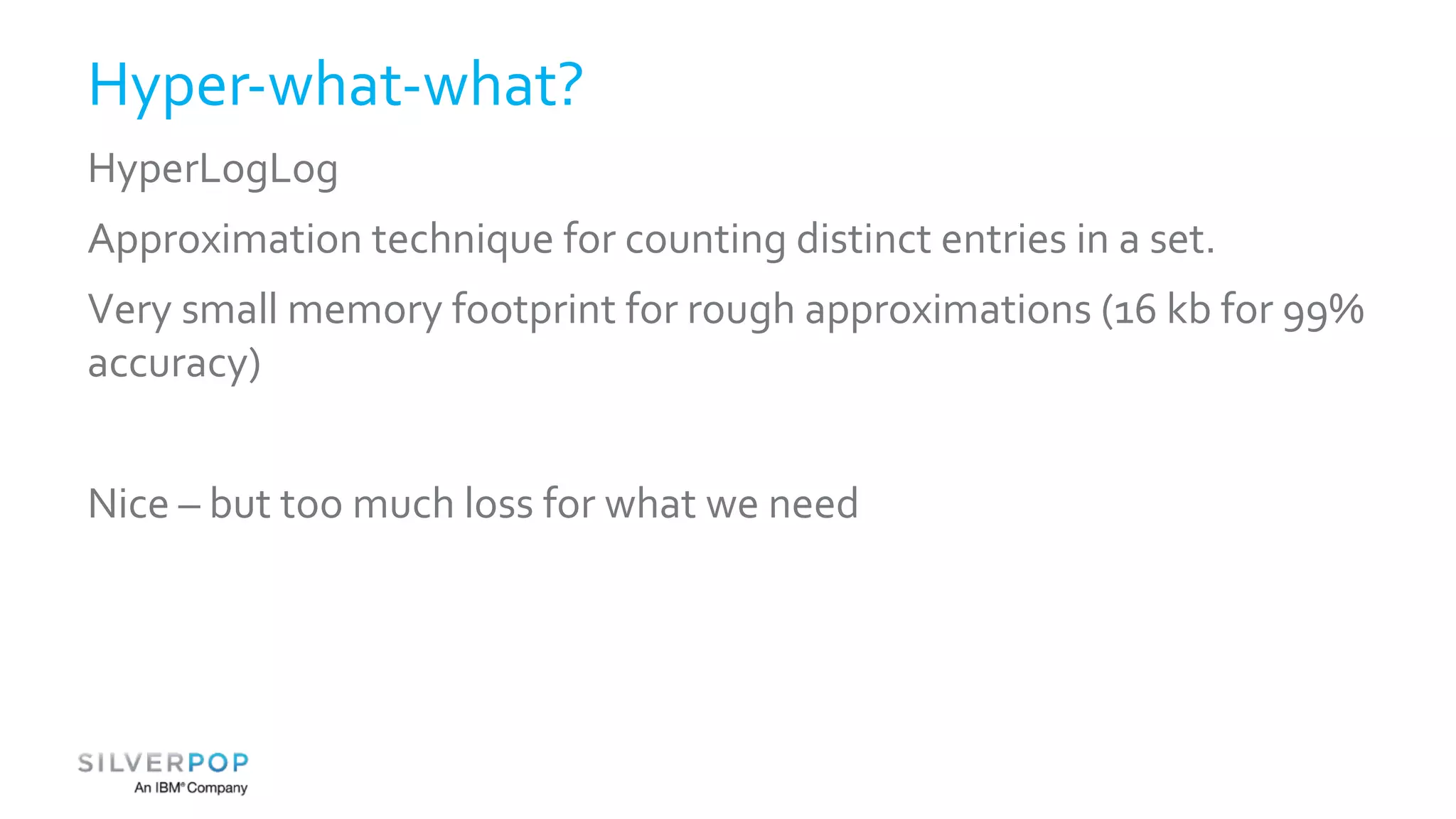

7. Hyper-what-what?
HyperLogLog
Approximation technique for counting distinct entries in a set.
Very small memory footprint for rough approximations (16 kb for 99%
accuracy)
Nice – but too much loss for what we need

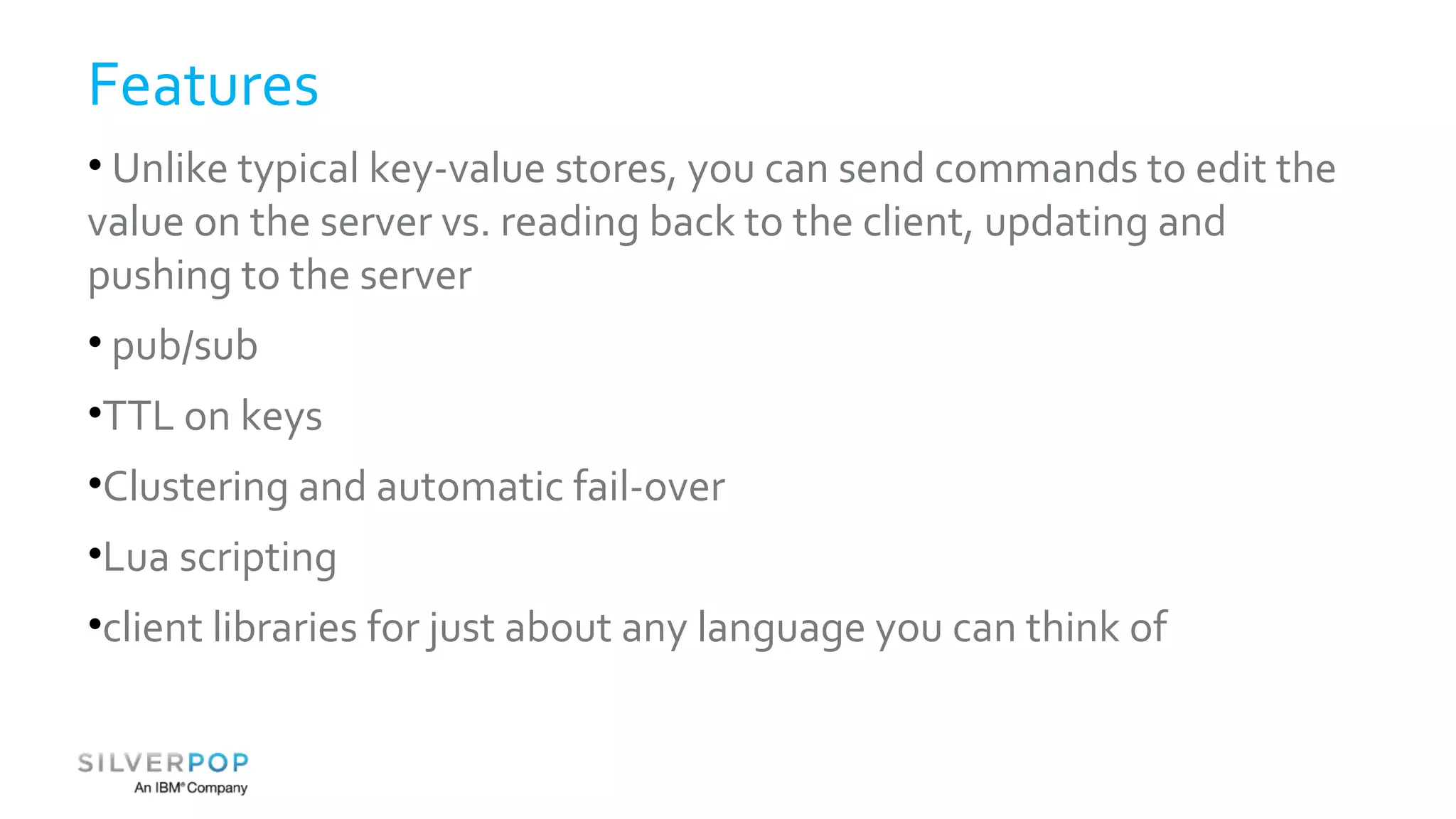

8. Features
• Unlike typical key-value stores, you can send commands to edit the
value on the server vs. reading back to the client, updating and
pushing to the server
• pub/sub
•TTL on keys
•Clustering and automatic fail-over
•Lua scripting
•client libraries for just about any language you can think of

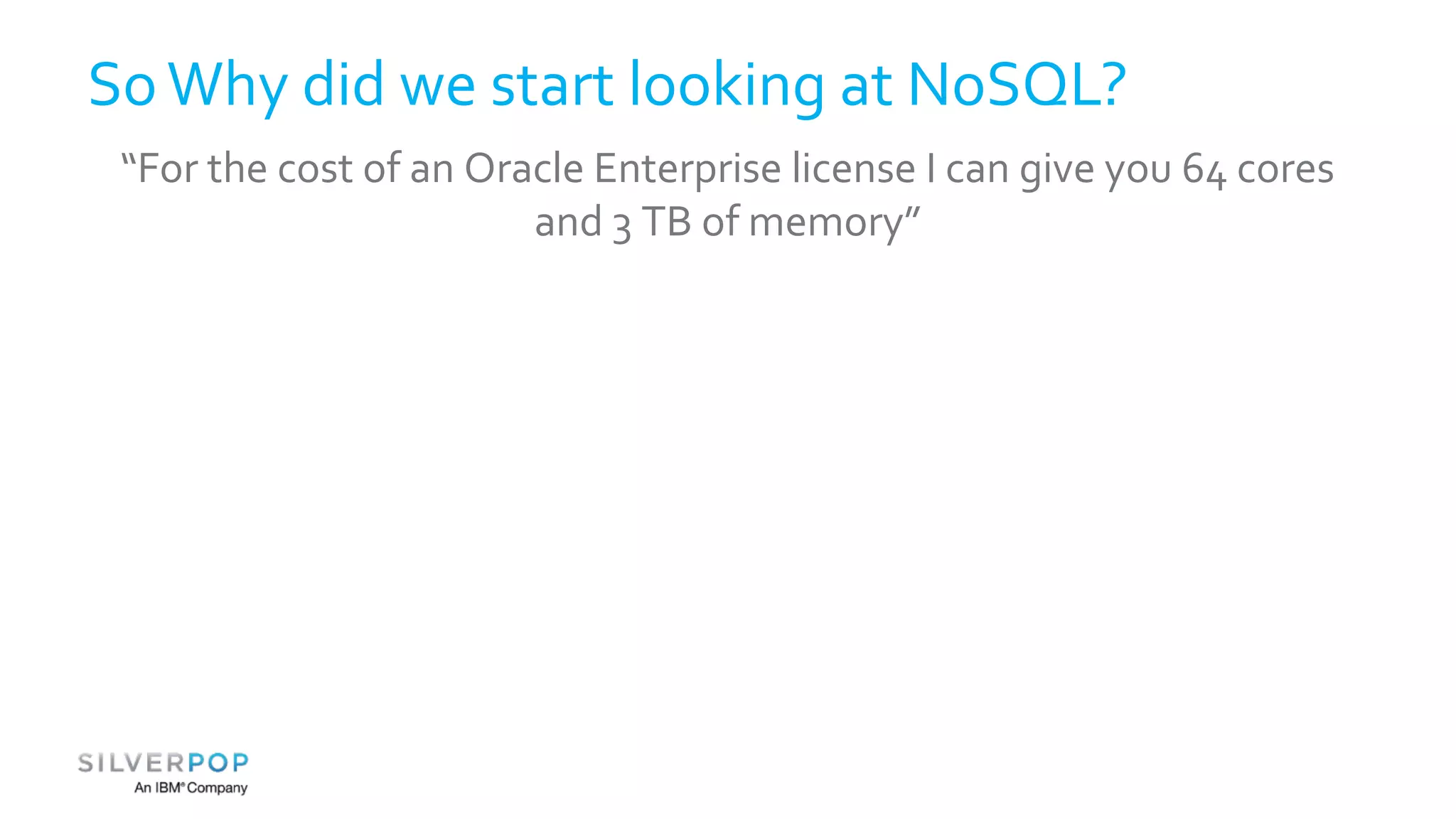

9. So Why did we start looking at NoSQL?
“For the cost of an Oracle Enterprise license I can give you 64 cores
and 3 TB of memory”

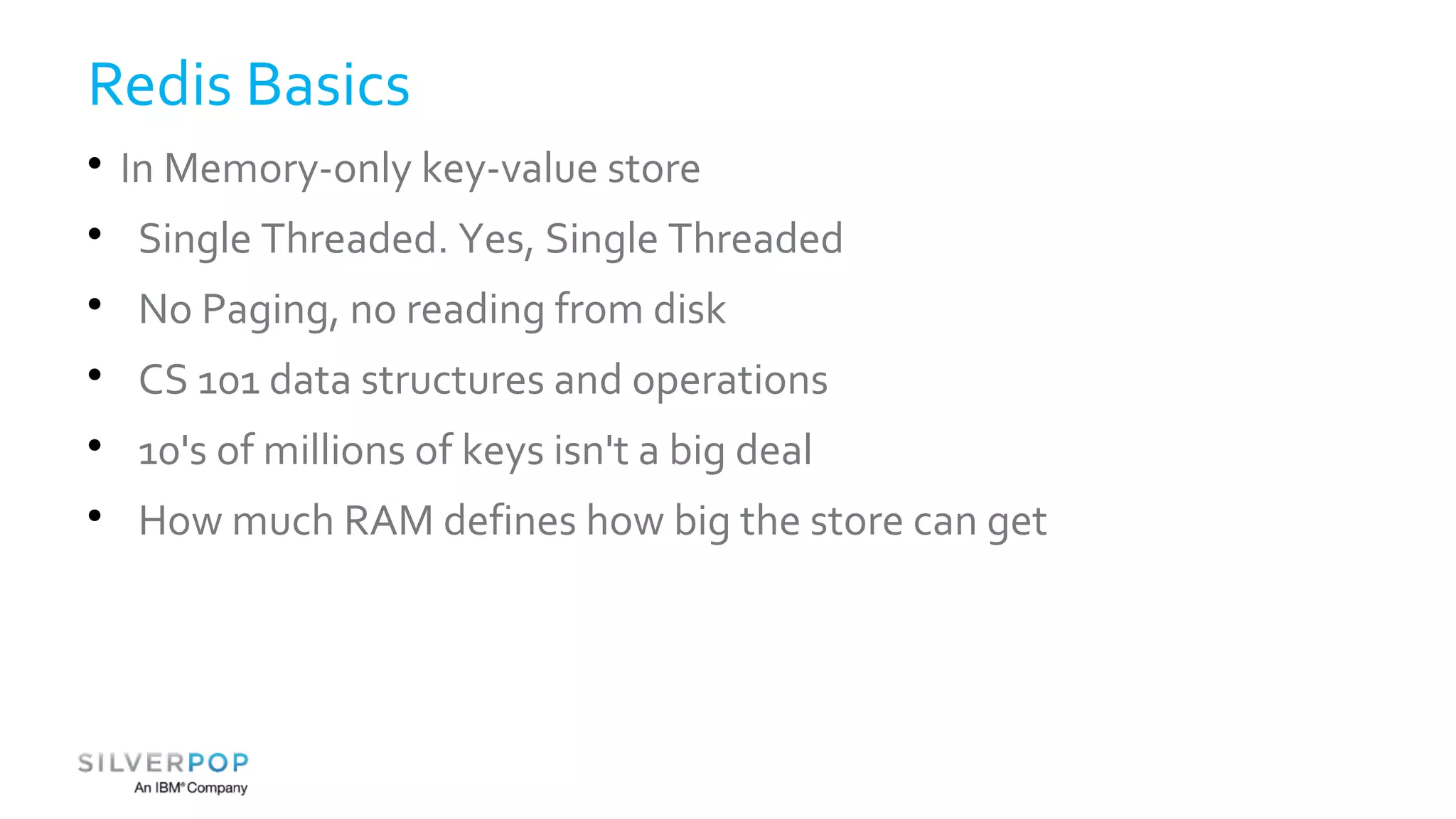

11. Redis Basics
 In Memory-only key-value store
 Single Threaded. Yes, Single Threaded
 No Paging, no reading from disk
 CS 101 data structures and operations
 10's of millions of keys isn't a big deal
 How much RAM defines how big the store can get

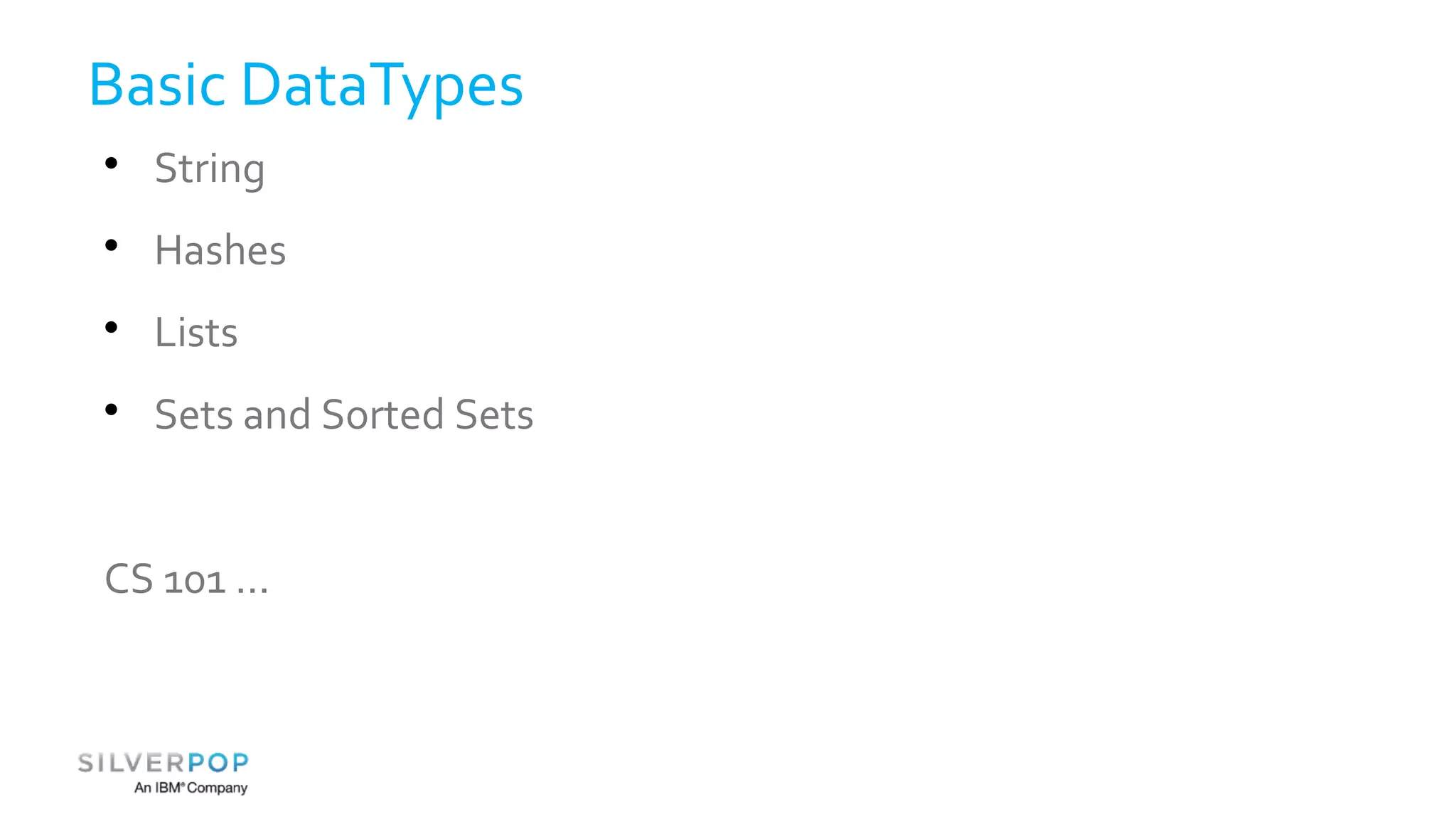

12. Basic DataTypes
 String
 Hashes
 Lists
 Sets and Sorted Sets
CS 101 ...

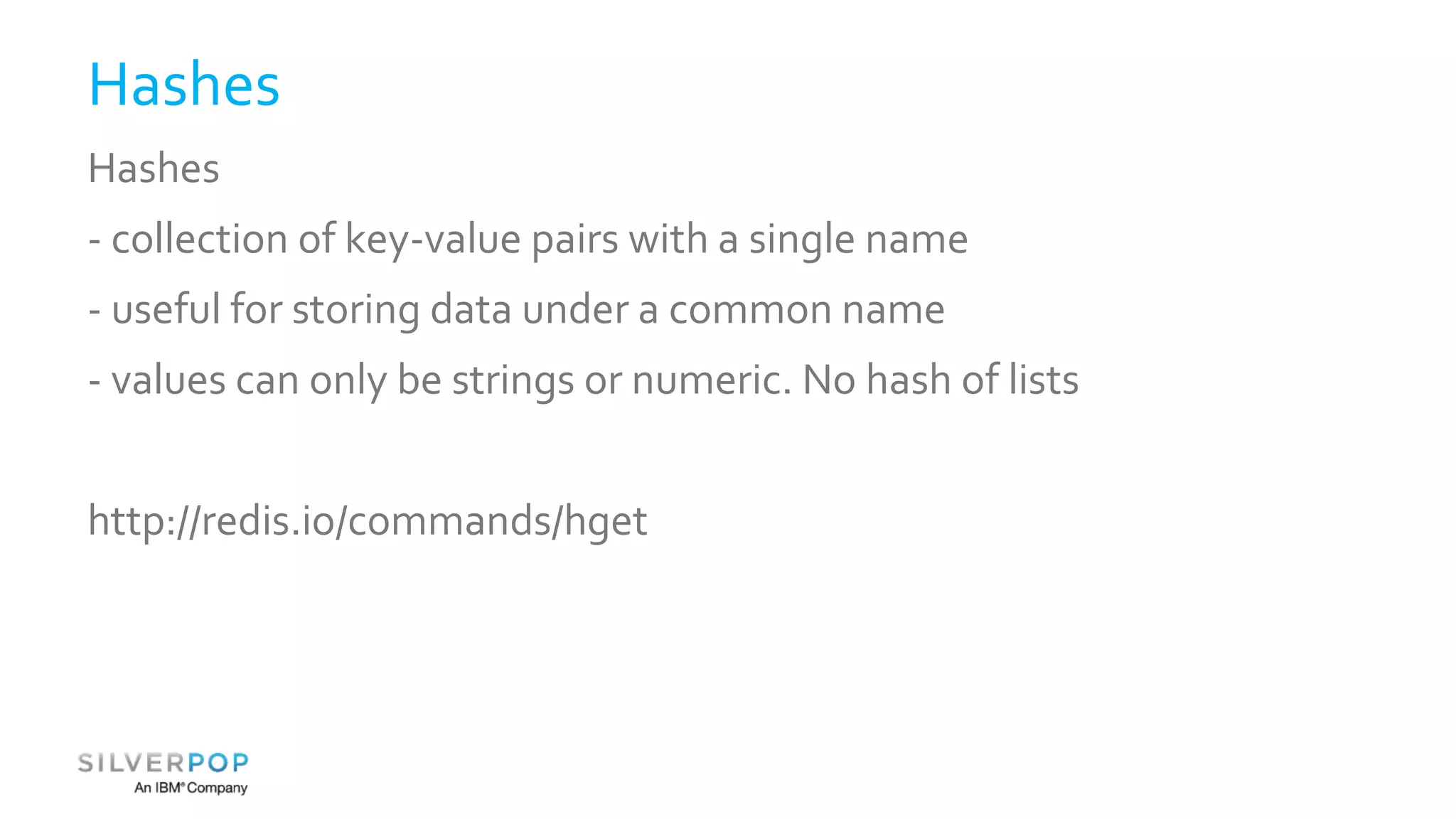

13. Hashes
Hashes
- collection of key-value pairs with a single name
- useful for storing data under a common name
- values can only be strings or numeric. No hash of lists
http://redis.io/commands/hget

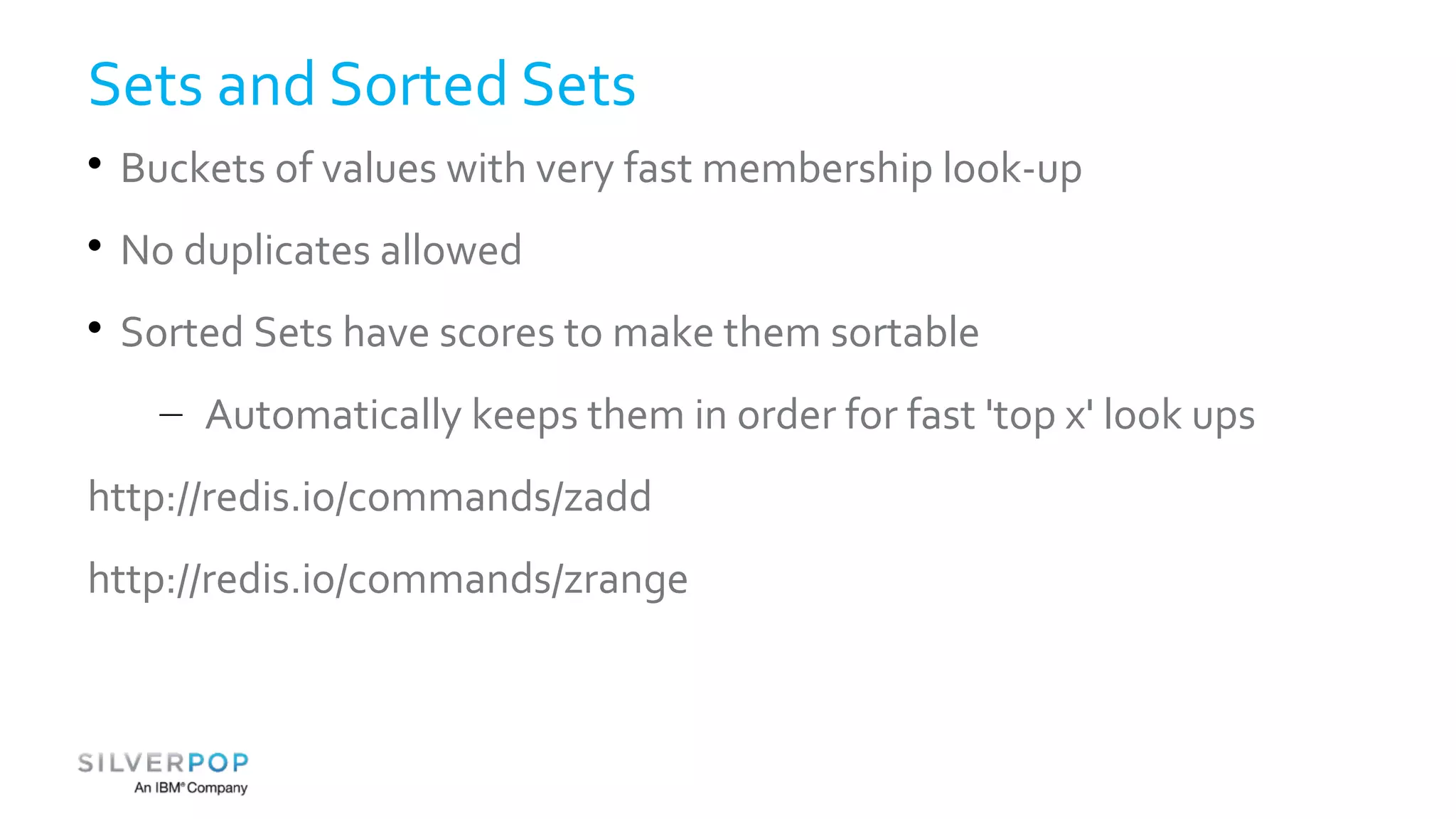

14. Sets and Sorted Sets
 Buckets of values with very fast membership look-up
 No duplicates allowed
 Sorted Sets have scores to make them sortable
– Automatically keeps them in order for fast 'top x' look ups
http://redis.io/commands/zadd
http://redis.io/commands/zrange

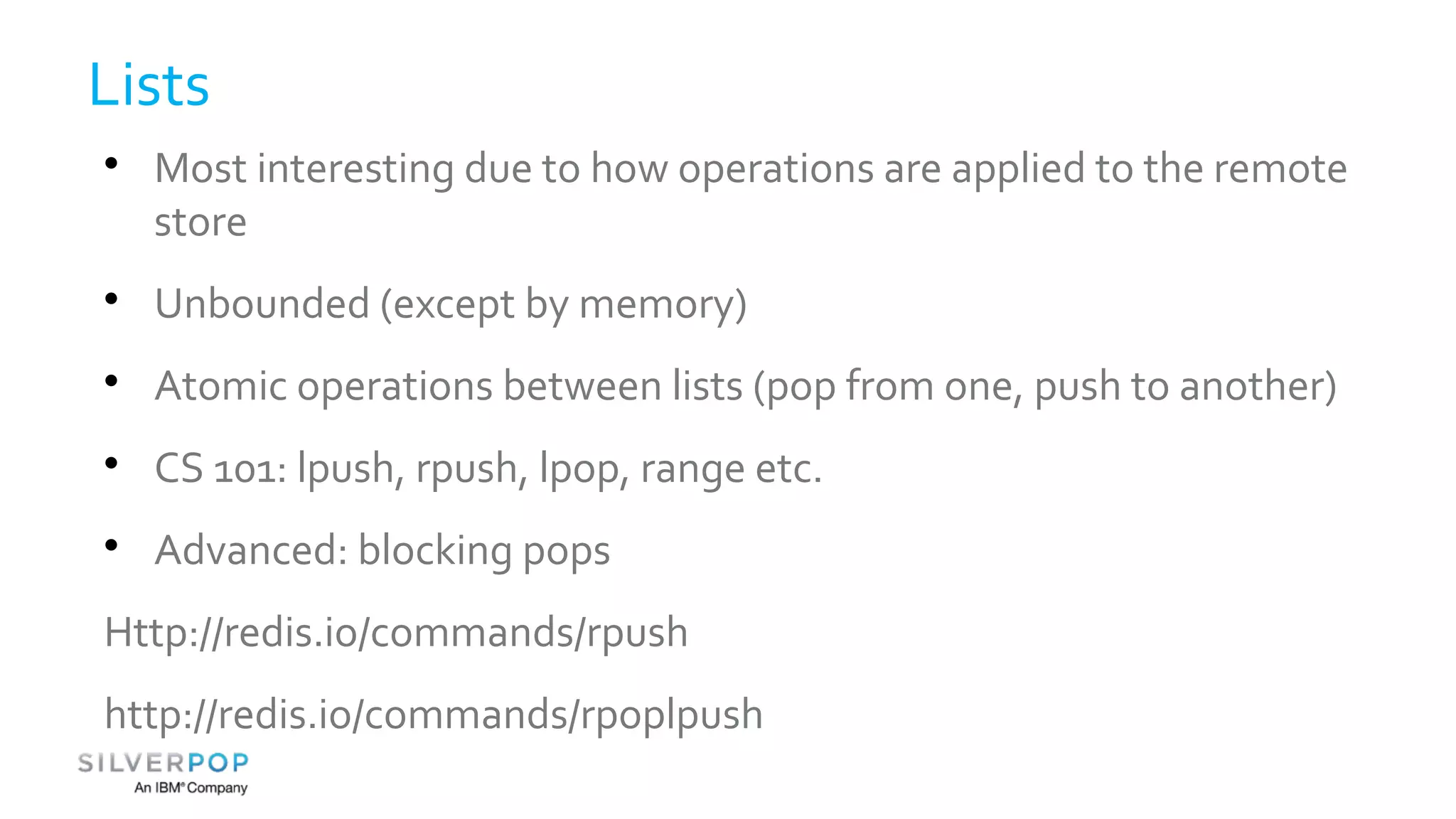

15. Lists
 Most interesting due to how operations are applied to the remote
store
 Unbounded (except by memory)
 Atomic operations between lists (pop from one, push to another)
 CS 101: lpush, rpush, lpop, range etc.
 Advanced: blocking pops
Http://redis.io/commands/rpush
http://redis.io/commands/rpoplpush

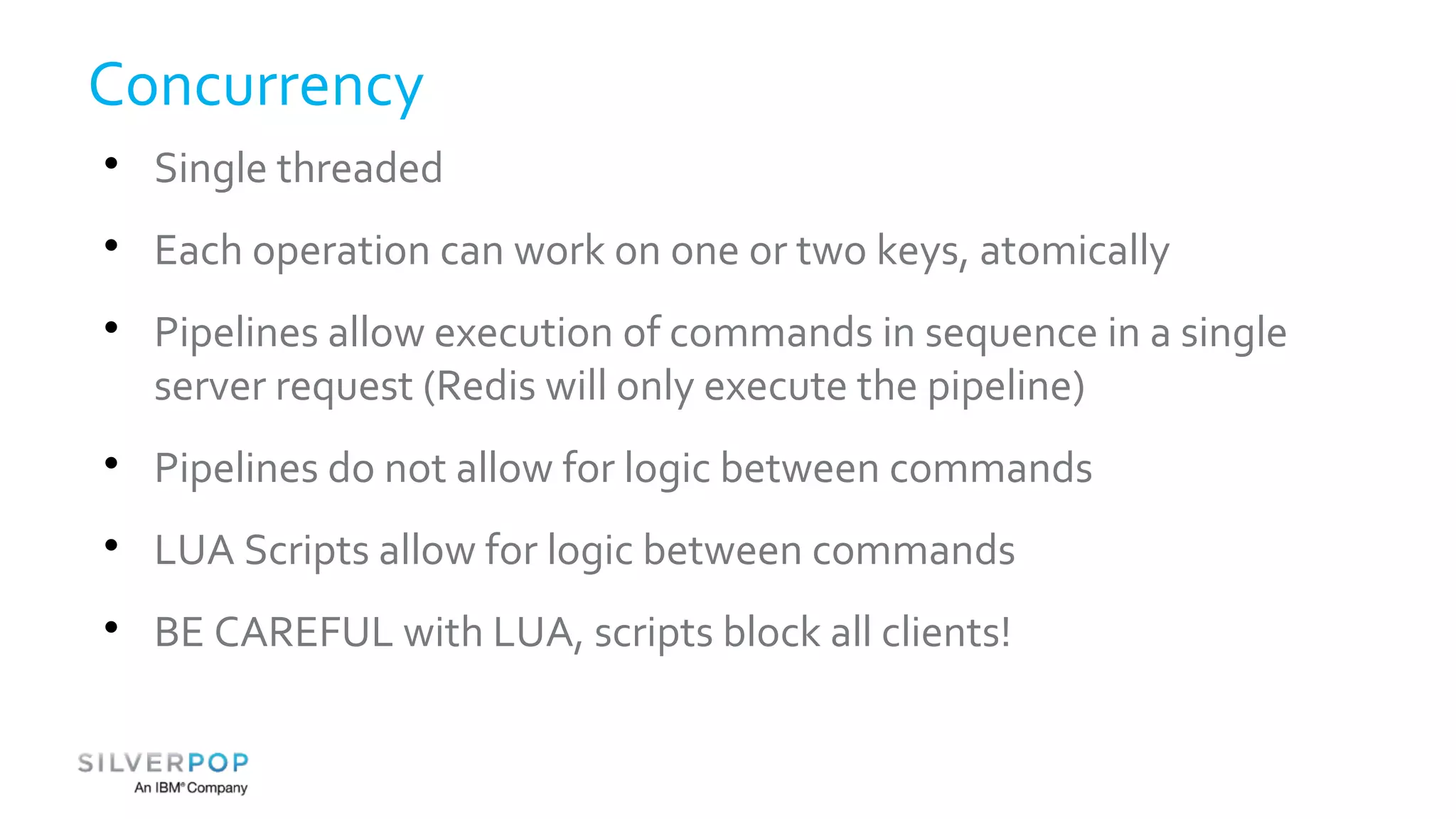

16. Concurrency
 Single threaded
 Each operation can work on one or two keys, atomically
 Pipelines allow execution of commands in sequence in a single
server request (Redis will only execute the pipeline)
 Pipelines do not allow for logic between commands
 LUA Scripts allow for logic between commands
 BE CAREFUL with LUA, scripts block all clients!

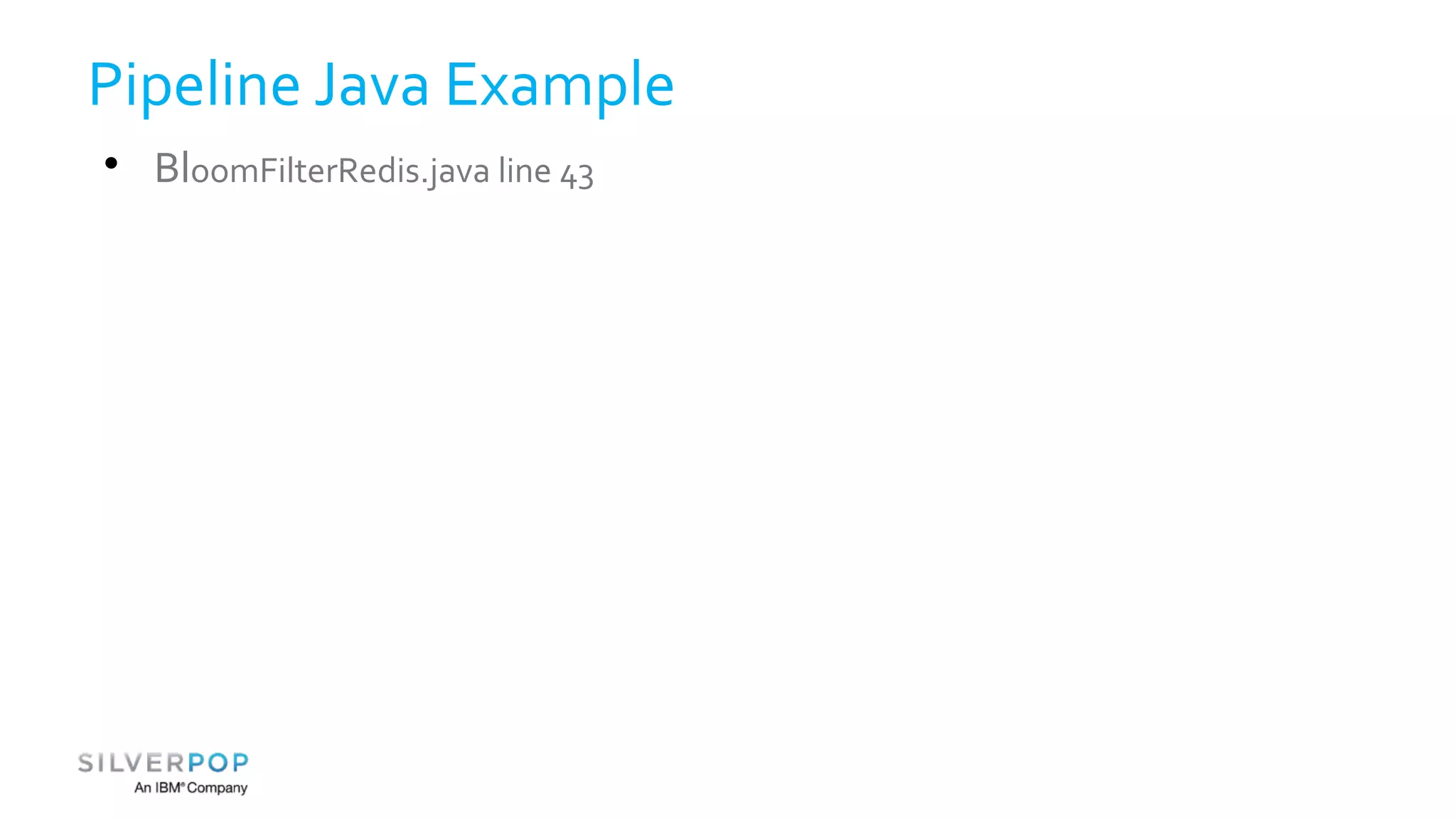

17. Pipeline Java Example
 BloomFilterRedis.java line 43

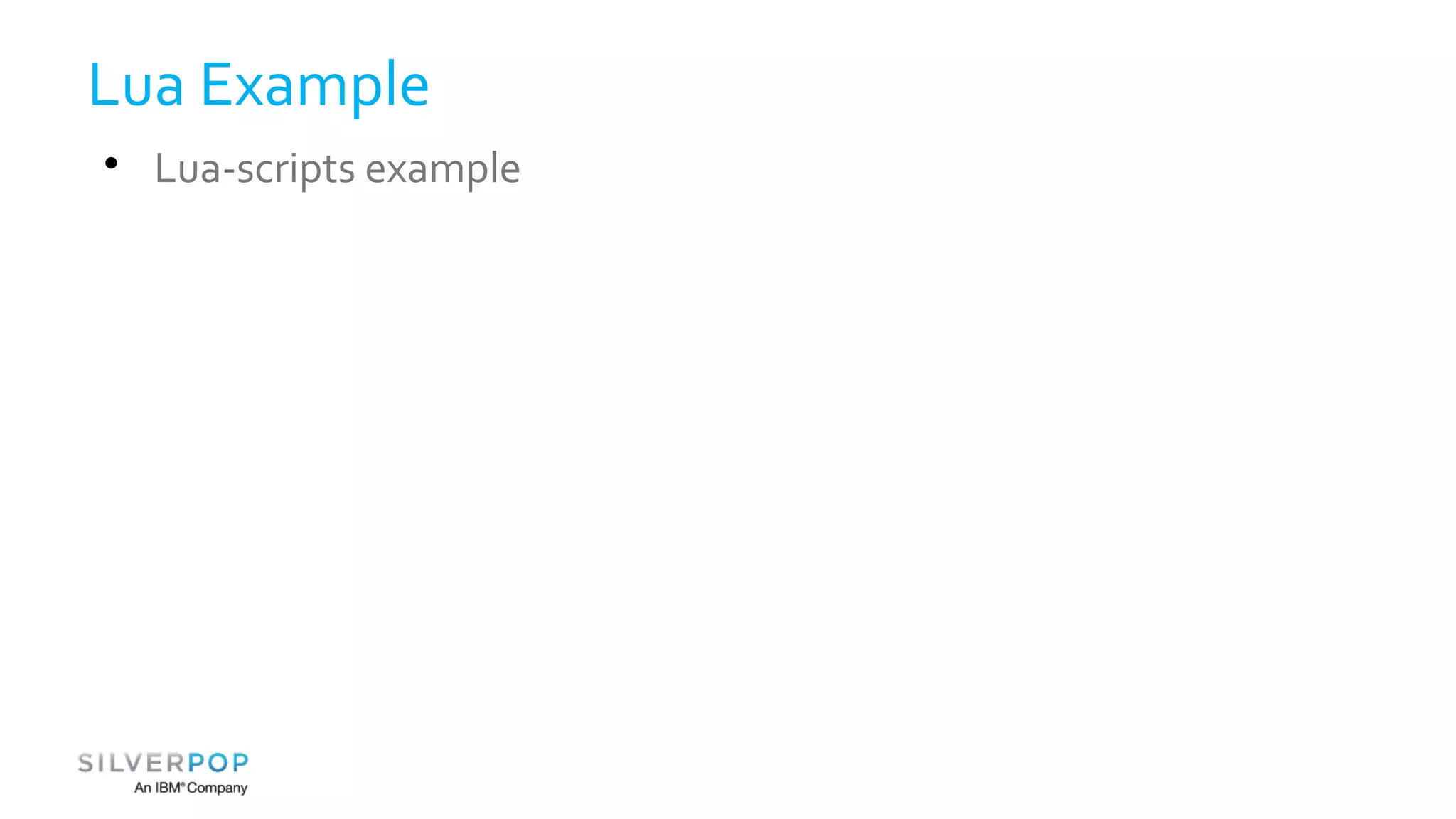

18. Lua Example
 Lua-scripts example

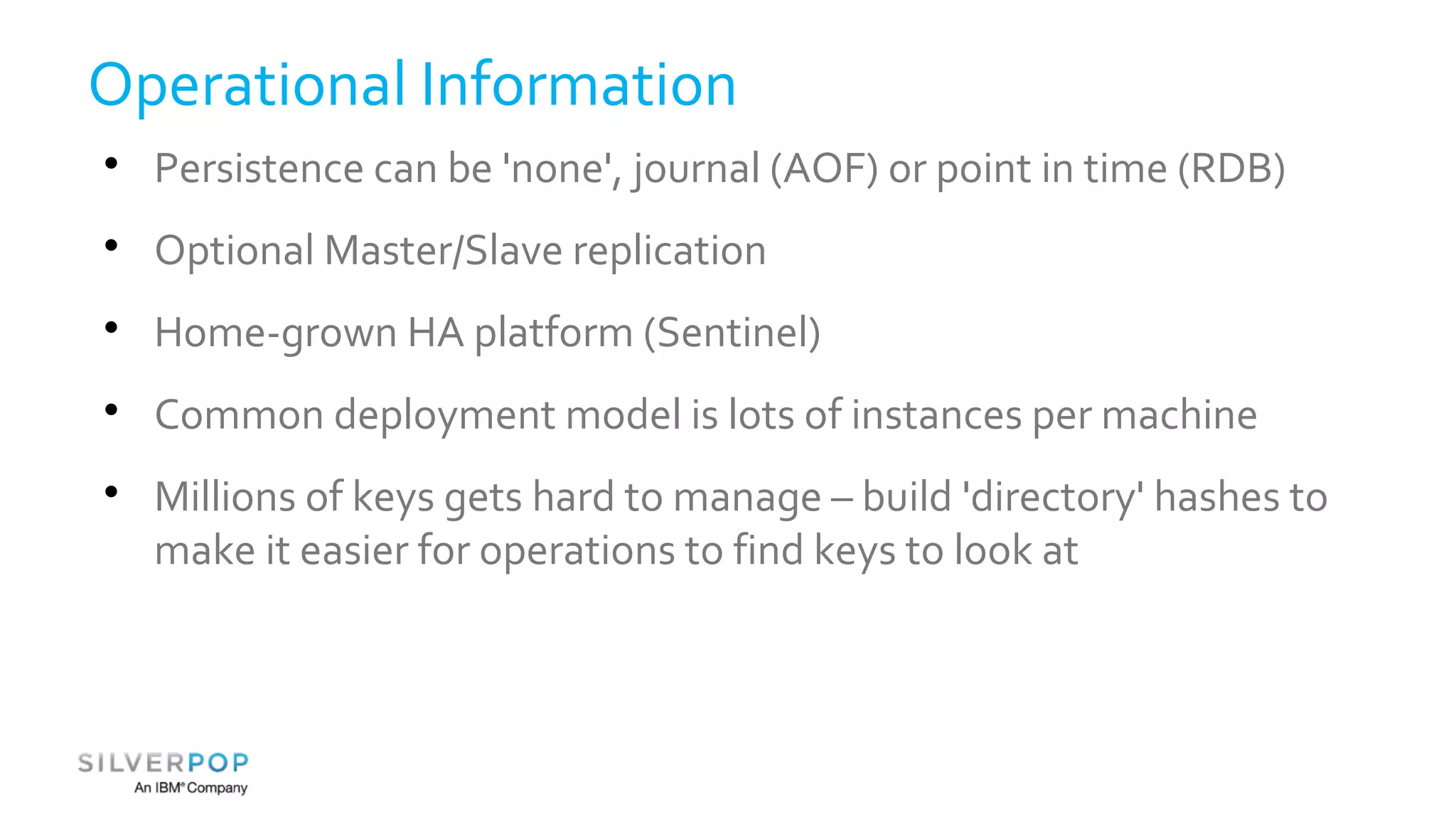

19. Operational Information
 Persistence can be 'none', journal (AOF) or point in time (RDB)
 Optional Master/Slave replication
 Home-grown HA platform (Sentinel)
 Common deployment model is lots of instances per machine
 Millions of keys gets hard to manage – build 'directory' hashes to
make it easier for operations to find keys to look at

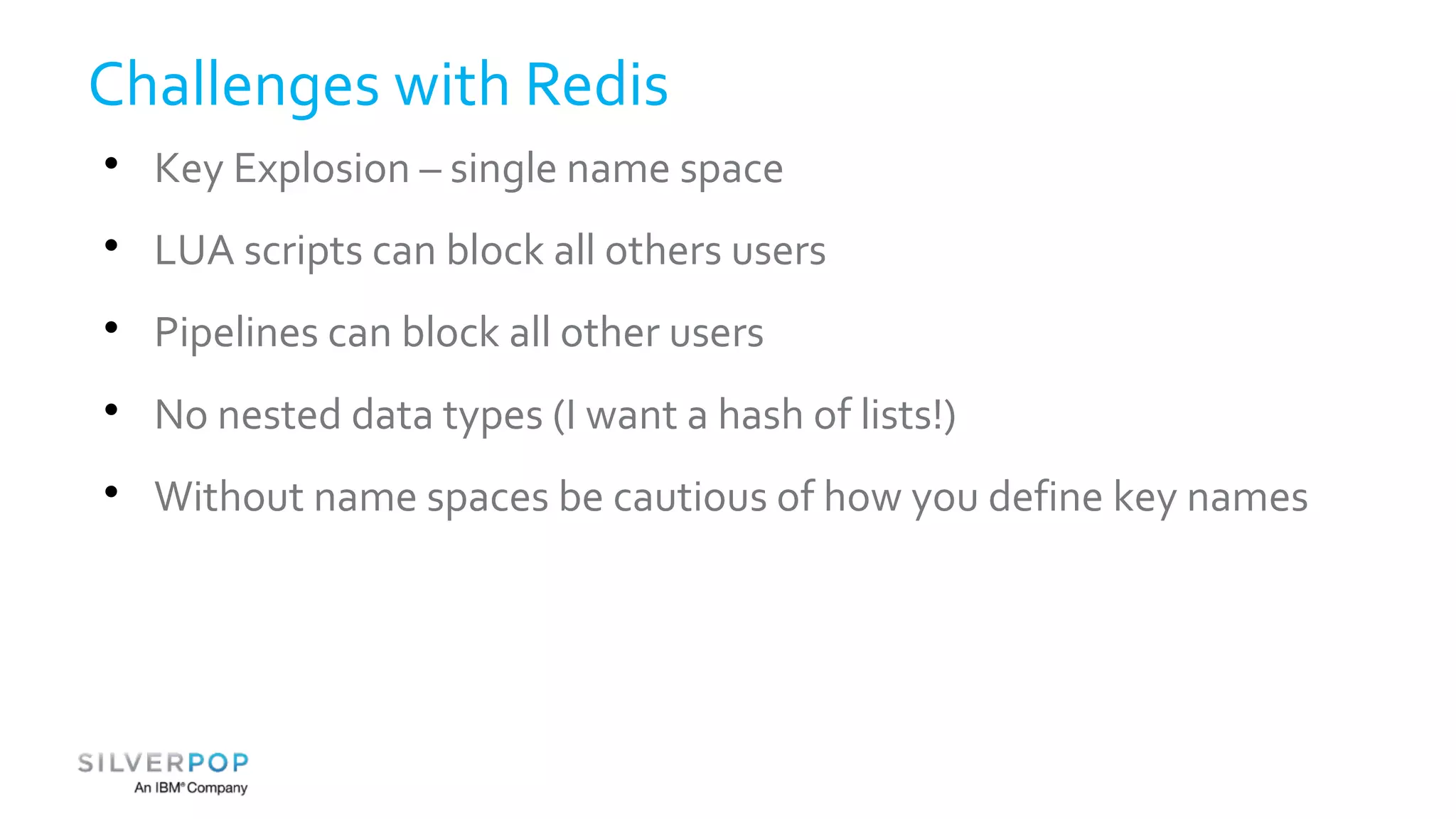

20. Challenges with Redis
 Key Explosion – single name space
 LUA scripts can block all others users
 Pipelines can block all other users
 No nested data types (I want a hash of lists!)
 Without name spaces be cautious of how you define key names

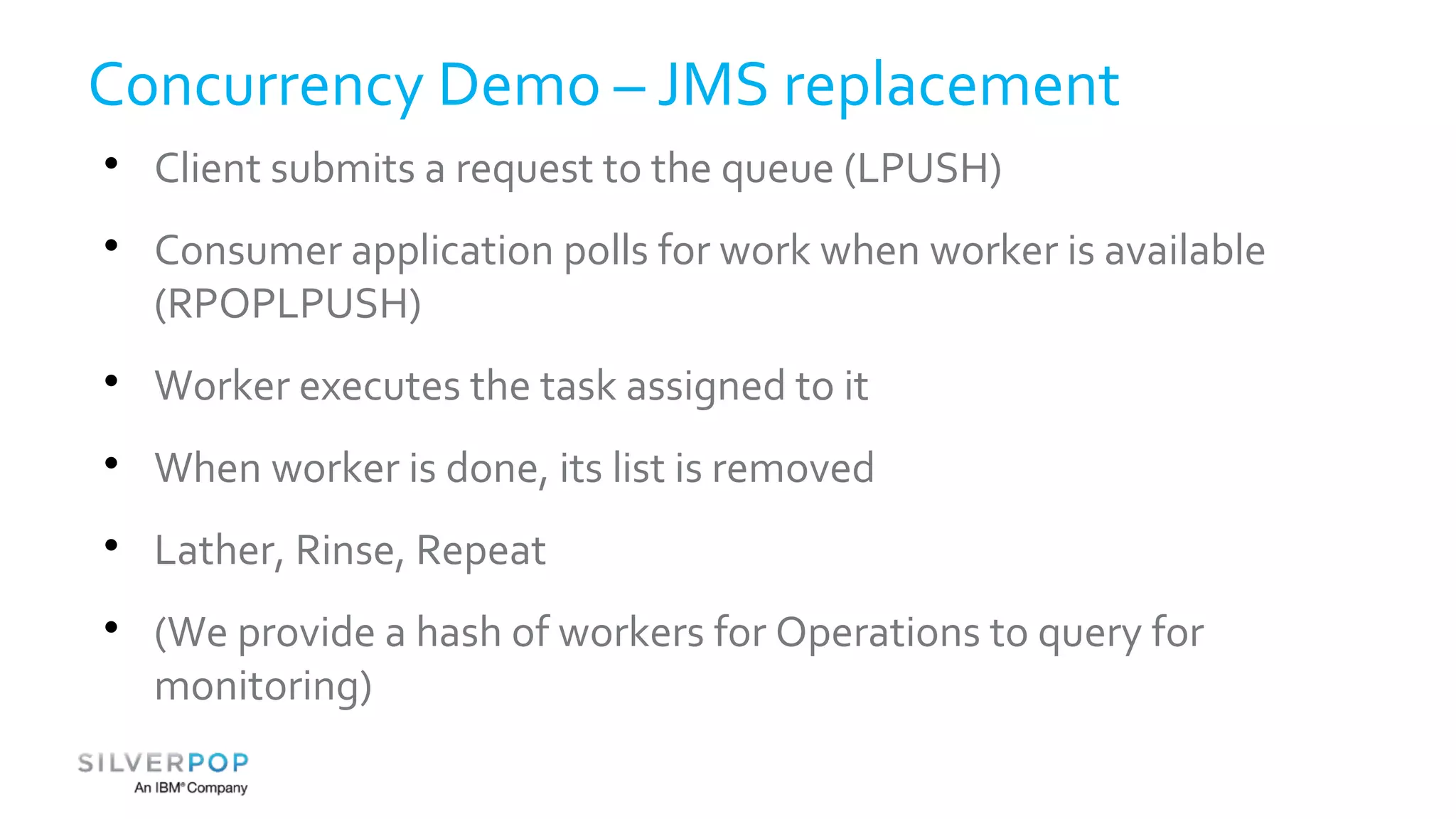

21. Concurrency Demo – JMS replacement
 Client submits a request to the queue (LPUSH)
 Consumer application polls for work when worker is available
(RPOPLPUSH)
 Worker executes the task assigned to it
 When worker is done, its list is removed
 Lather, Rinse, Repeat
 (We provide a hash of workers for Operations to query for
monitoring)

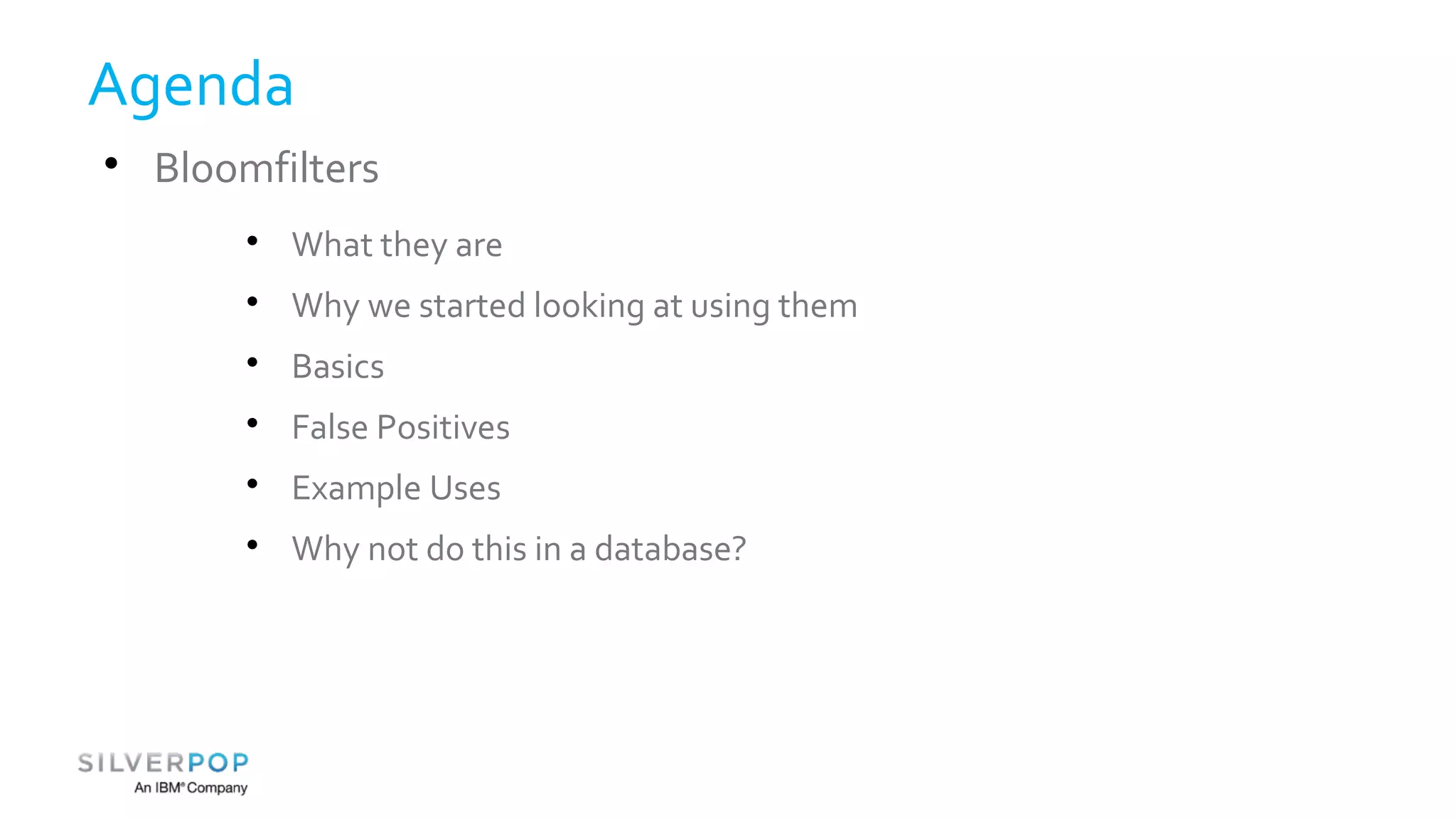

22. Agenda
 Bloomfilters
 What they are
 Why we started looking at using them
 Basics
 False Positives
 Example Uses
 Why not do this in a database?

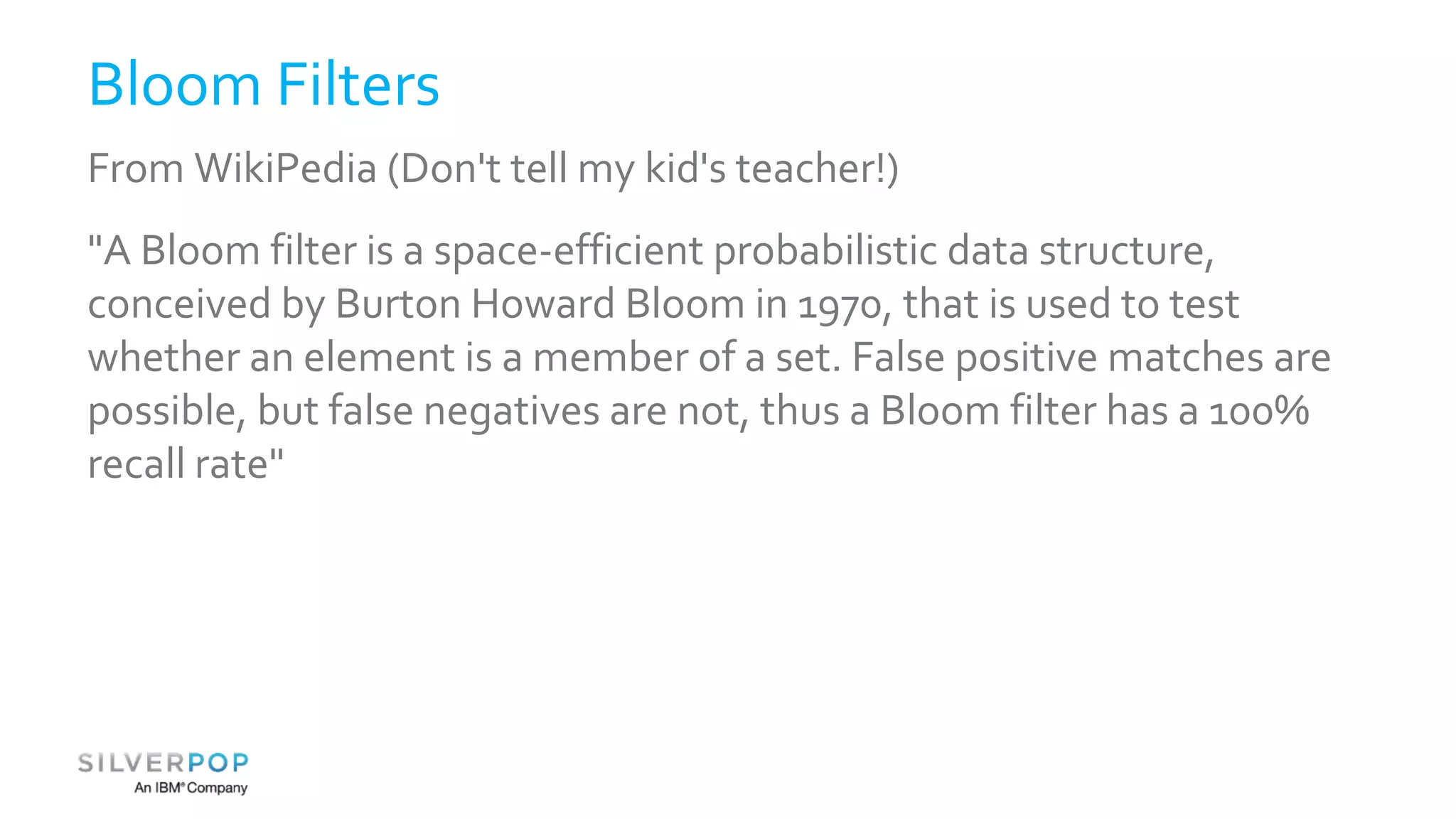

23. Bloom Filters
From WikiPedia (Don't tell my kid's teacher!)
"A Bloom filter is a space-efficient probabilistic data structure,
conceived by Burton Howard Bloom in 1970, that is used to test
whether an element is a member of a set. False positive matches are
possible, but false negatives are not, thus a Bloom filter has a 100%
recall rate"

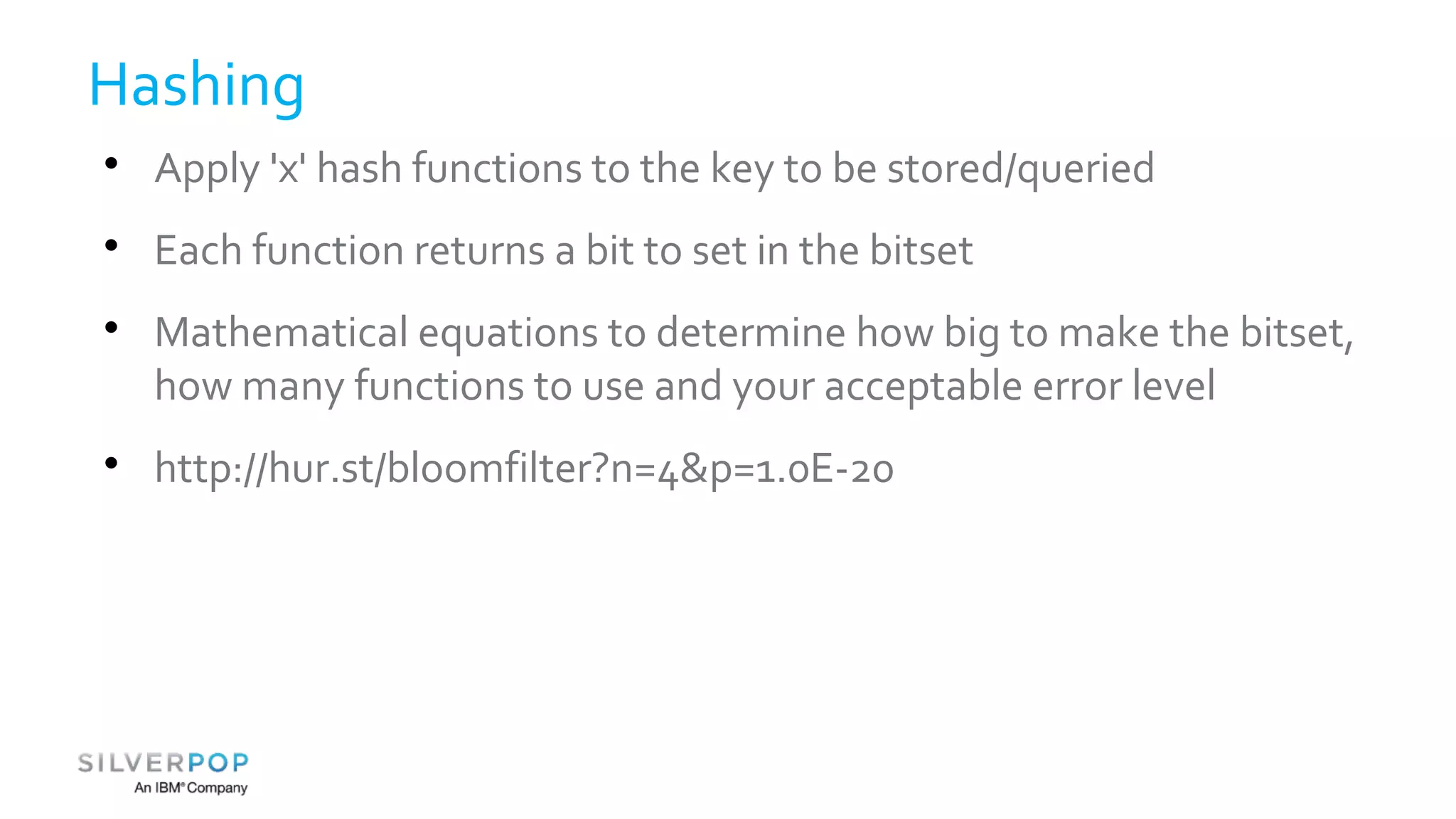

24. Hashing
 Apply 'x' hash functions to the key to be stored/queried
 Each function returns a bit to set in the bitset
 Mathematical equations to determine how big to make the bitset,
how many functions to use and your acceptable error level
 http://hur.st/bloomfilter?n=4&p=1.0E-20

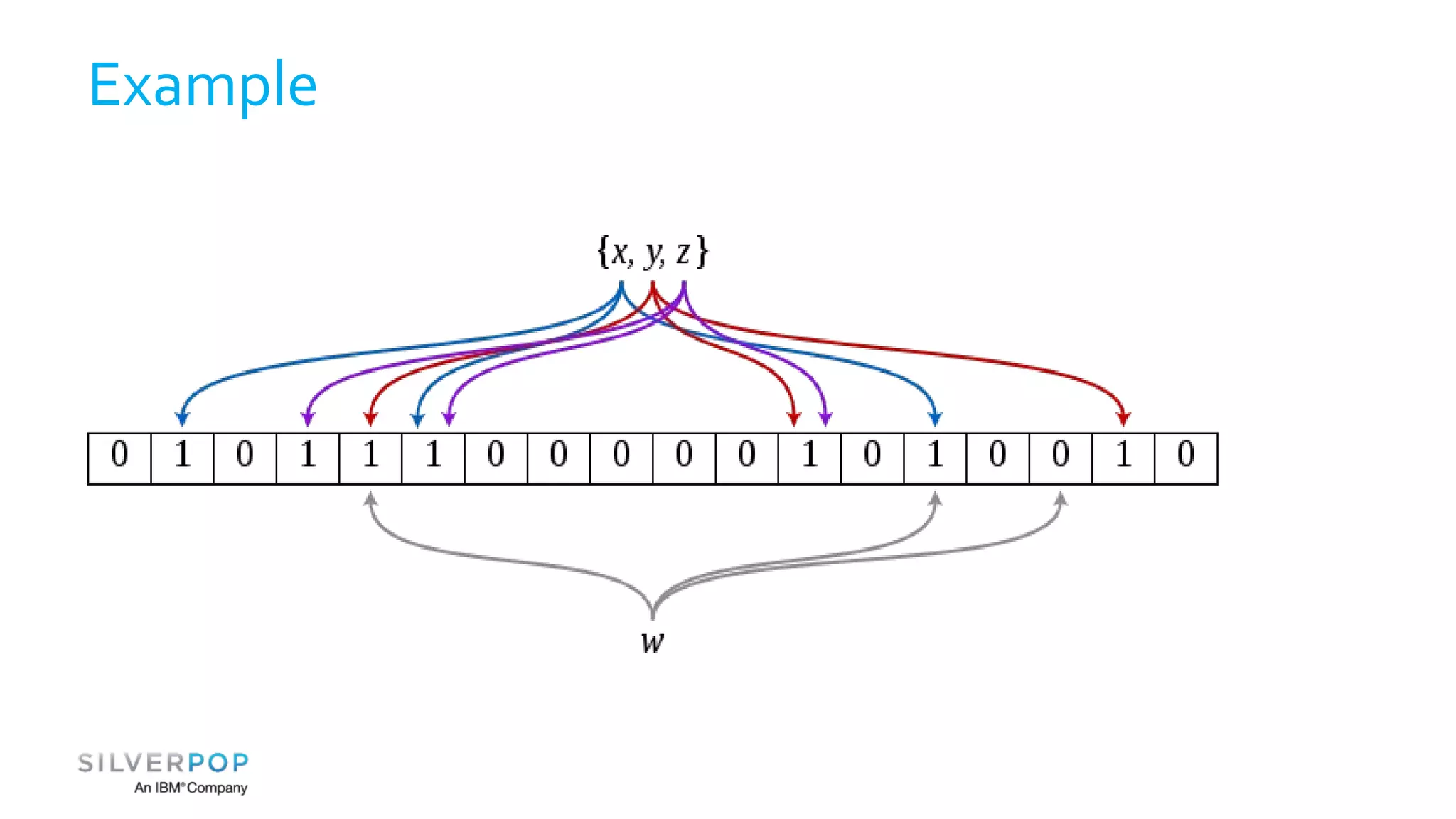

25. Example

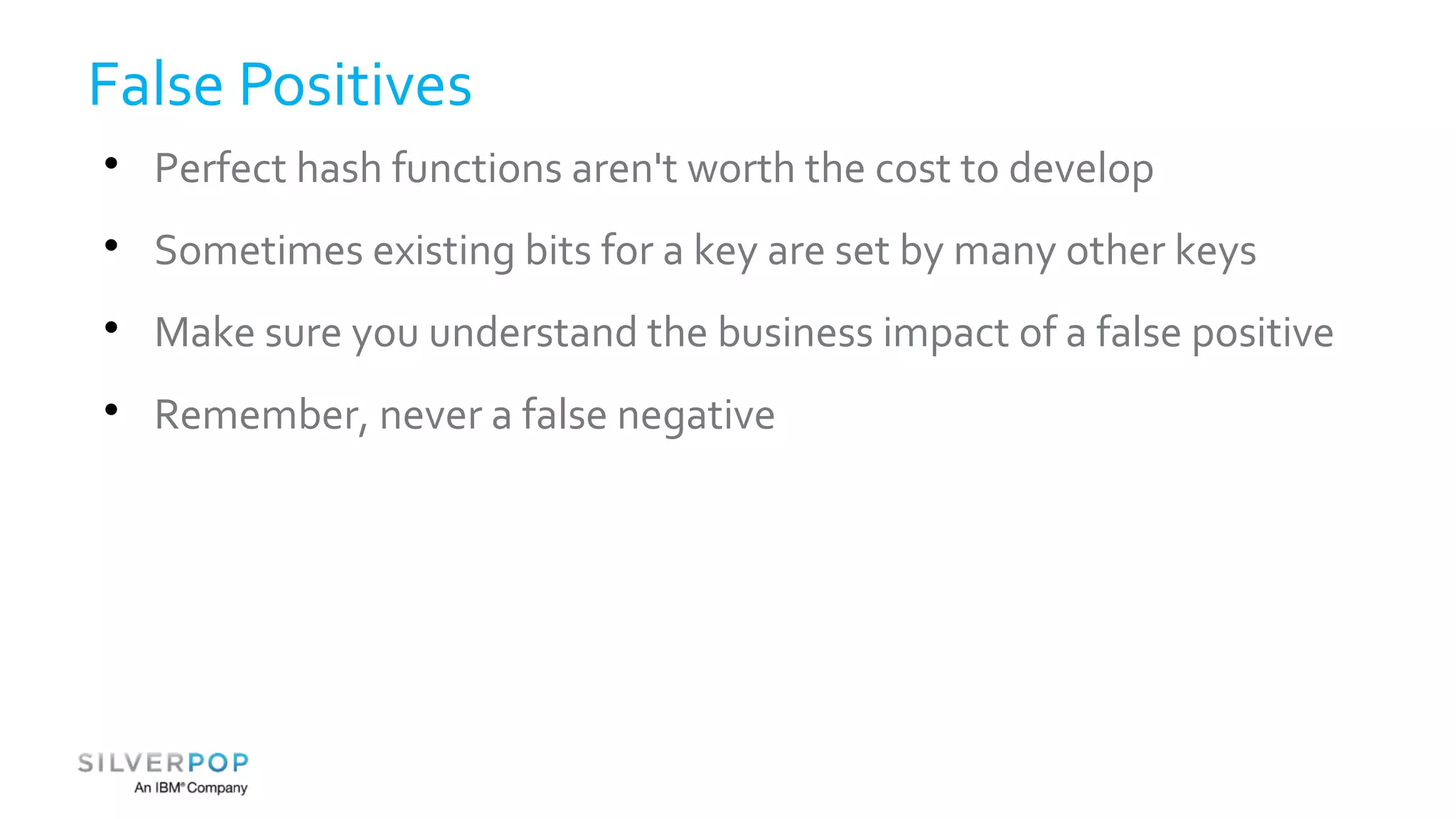

26. False Positives
 Perfect hash functions aren't worth the cost to develop
 Sometimes existing bits for a key are set by many other keys
 Make sure you understand the business impact of a false positive
 Remember, never a false negative

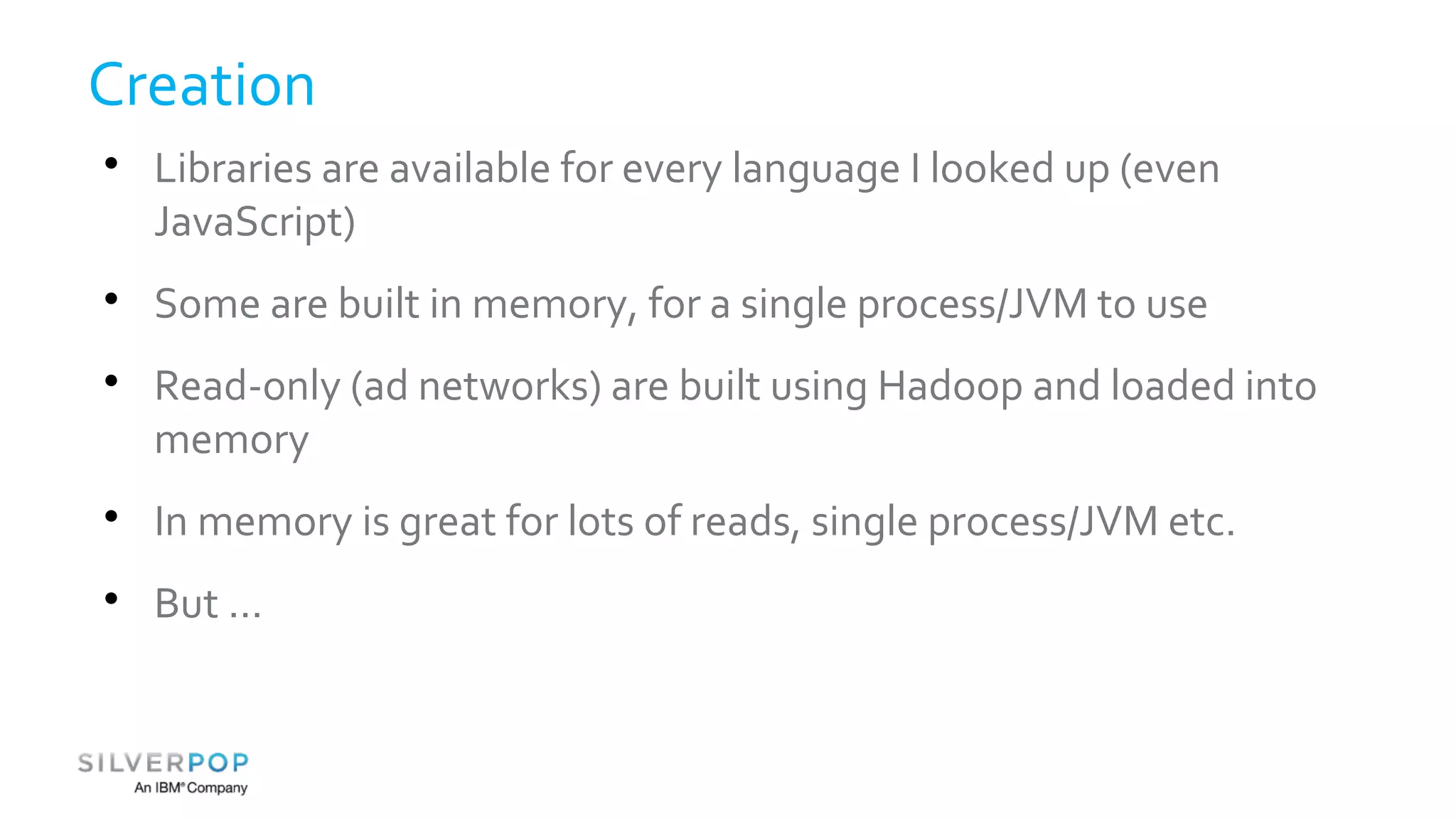

27. Creation
 Libraries are available for every language I looked up (even
JavaScript)
 Some are built in memory, for a single process/JVM to use
 Read-only (ad networks) are built using Hadoop and loaded into
memory
 In memory is great for lots of reads, single process/JVM etc.
 But ...

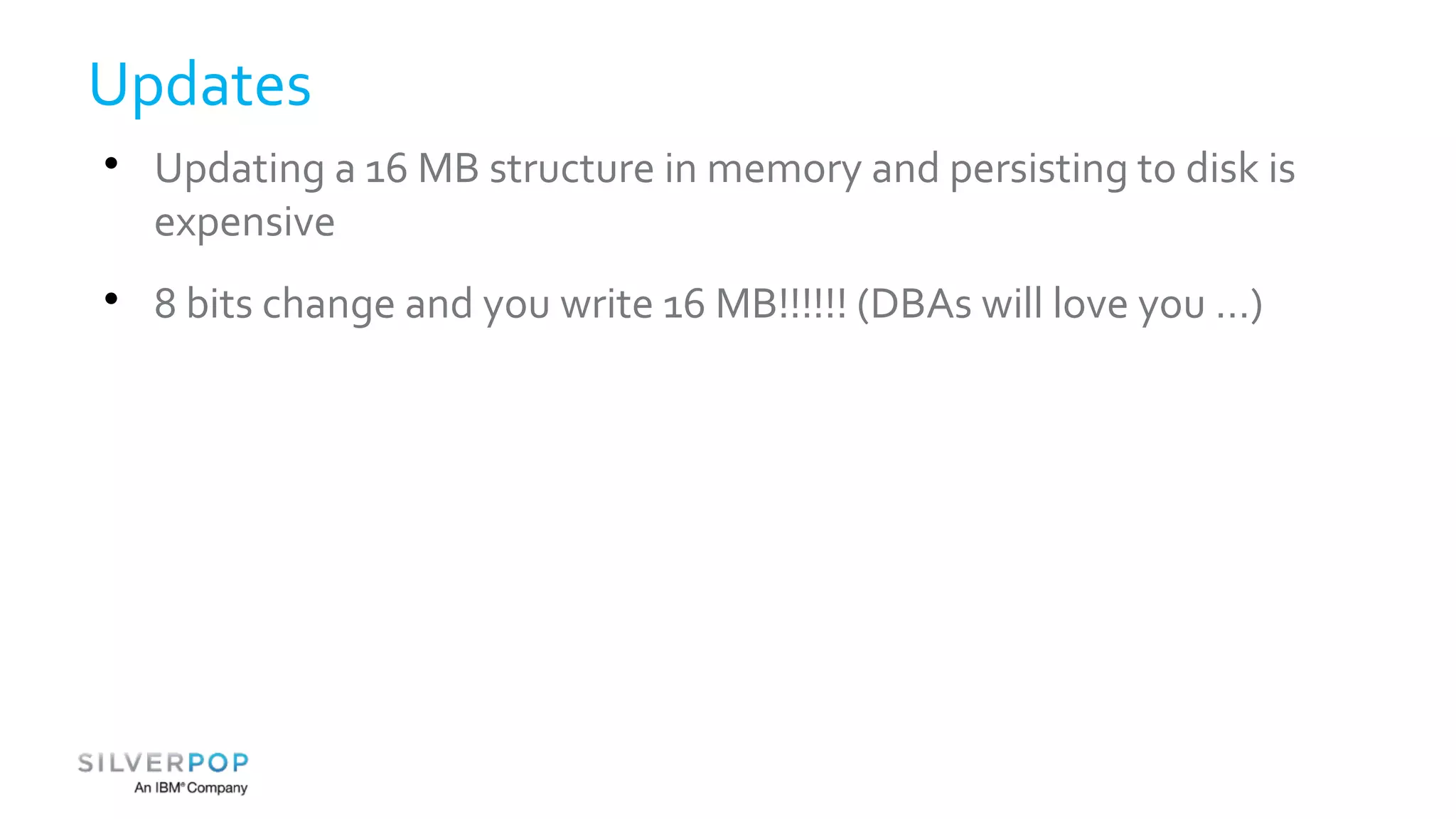

28. Updates
 Updating a 16 MB structure in memory and persisting to disk is
expensive
 8 bits change and you write 16 MB!!!!!! (DBAs will love you …)

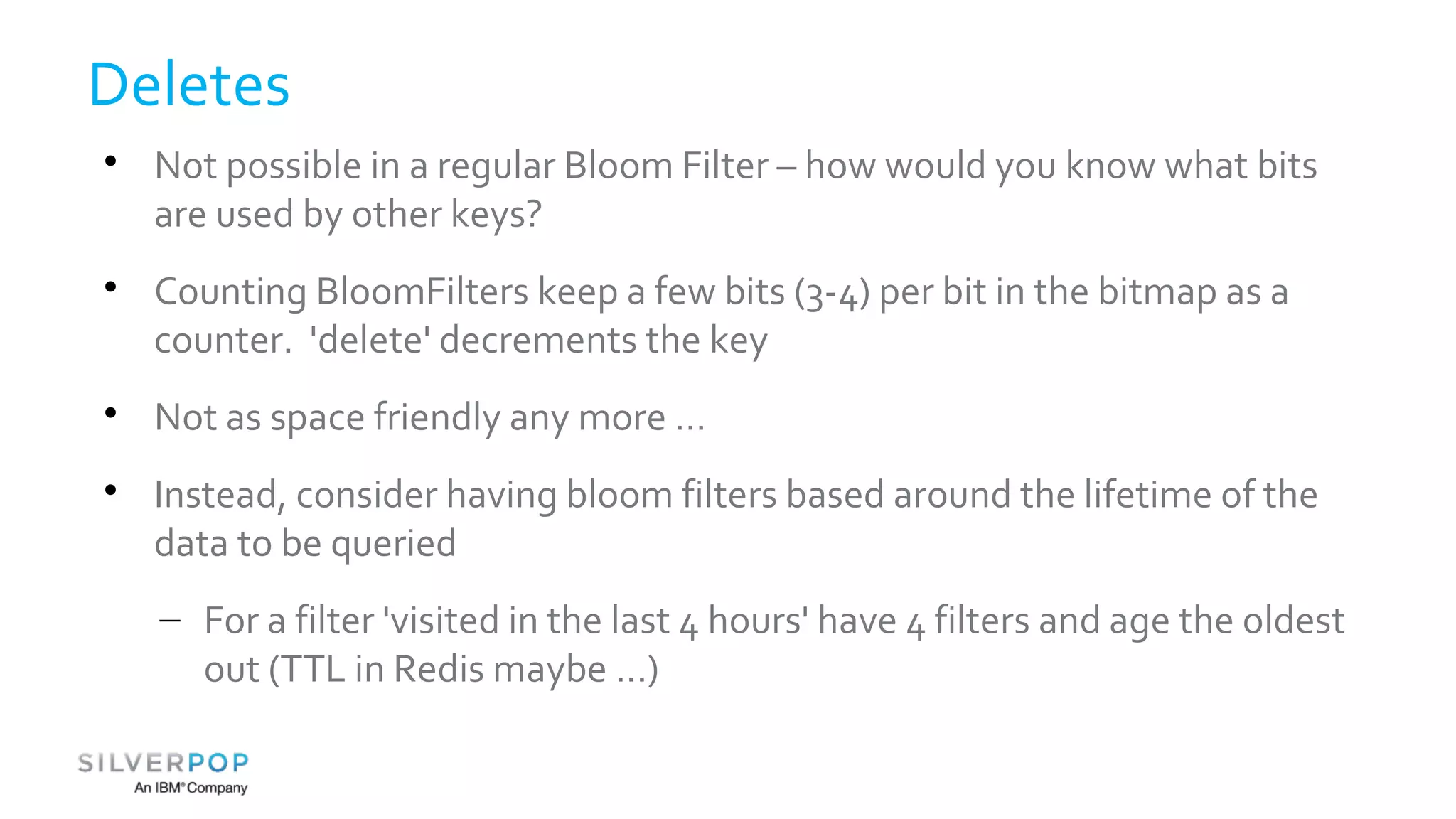

29. Deletes
 Not possible in a regular Bloom Filter – how would you know what bits
are used by other keys?
 Counting BloomFilters keep a few bits (3-4) per bit in the bitmap as a
counter. 'delete' decrements the key
 Not as space friendly any more …
 Instead, consider having bloom filters based around the lifetime of the
data to be queried
– For a filter 'visited in the last 4 hours' have 4 filters and age the oldest
out (TTL in Redis maybe ...)

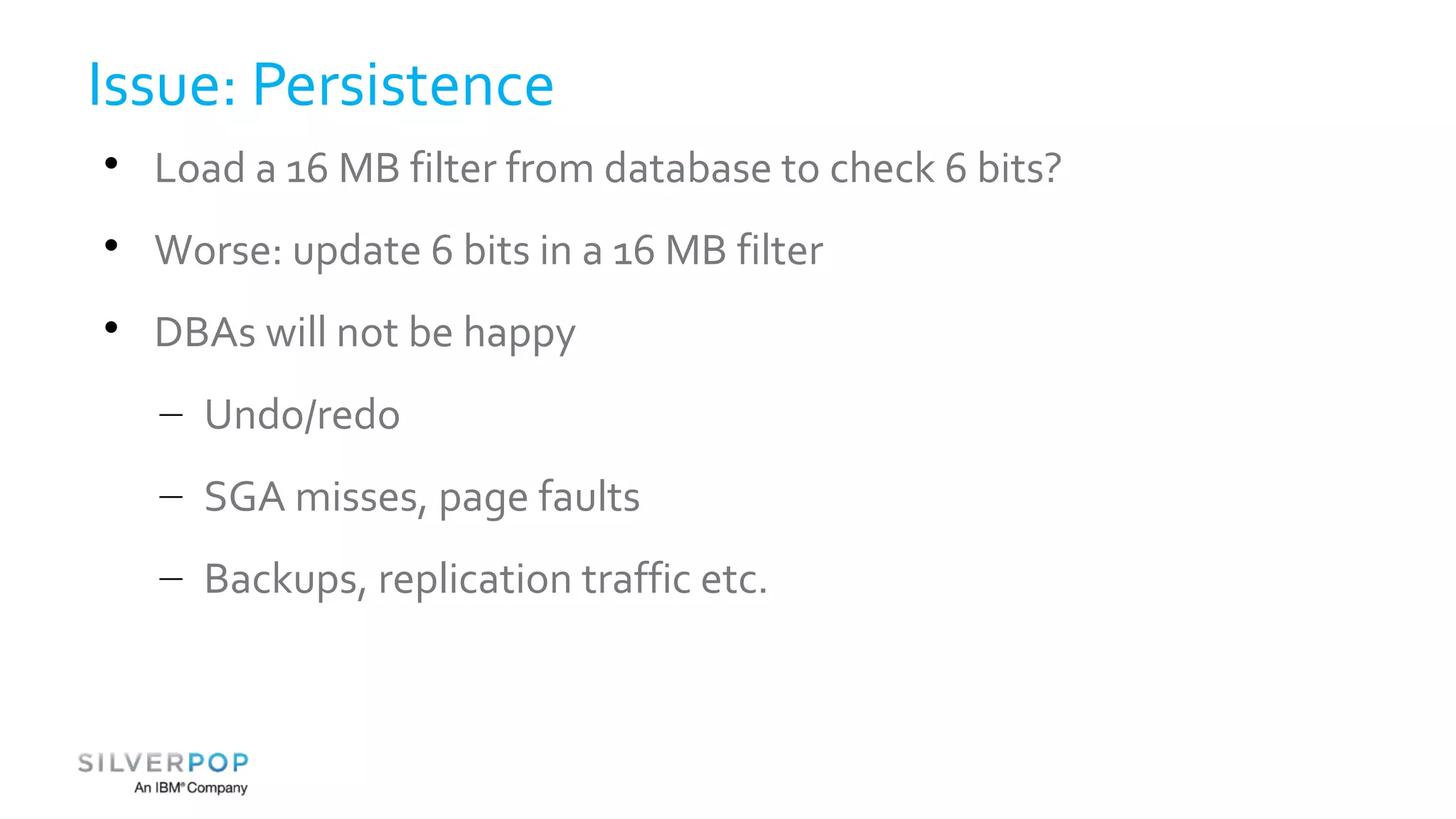

30. Issue: Persistence
 Load a 16 MB filter from database to check 6 bits?
 Worse: update 6 bits in a 16 MB filter
 DBAs will not be happy
– Undo/redo
– SGA misses, page faults
– Backups, replication traffic etc.

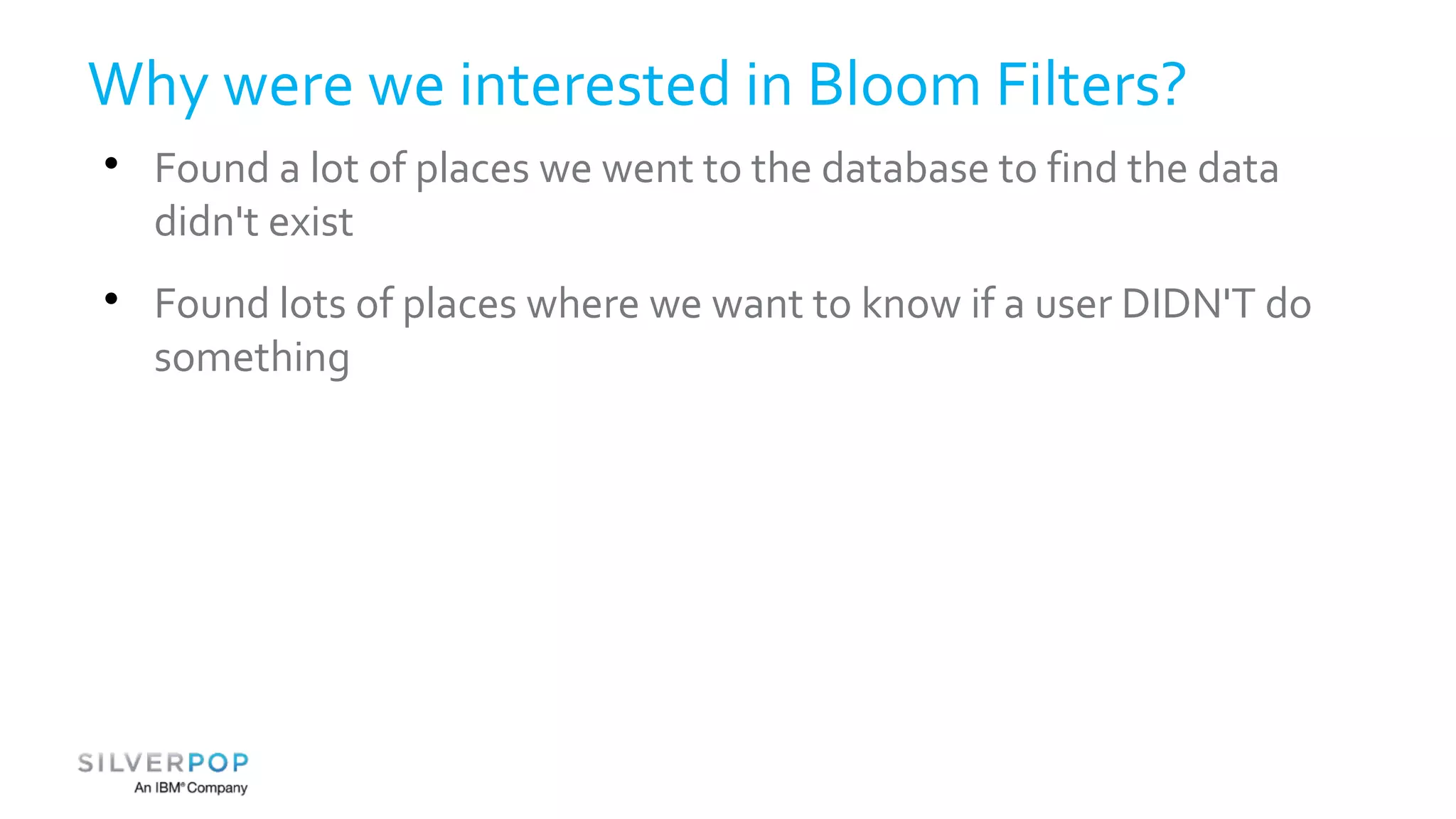

31. Why were we interested in Bloom Filters?
 Found a lot of places we went to the database to find the data
didn't exist
 Found lots of places where we want to know if a user DIDN'T do
something

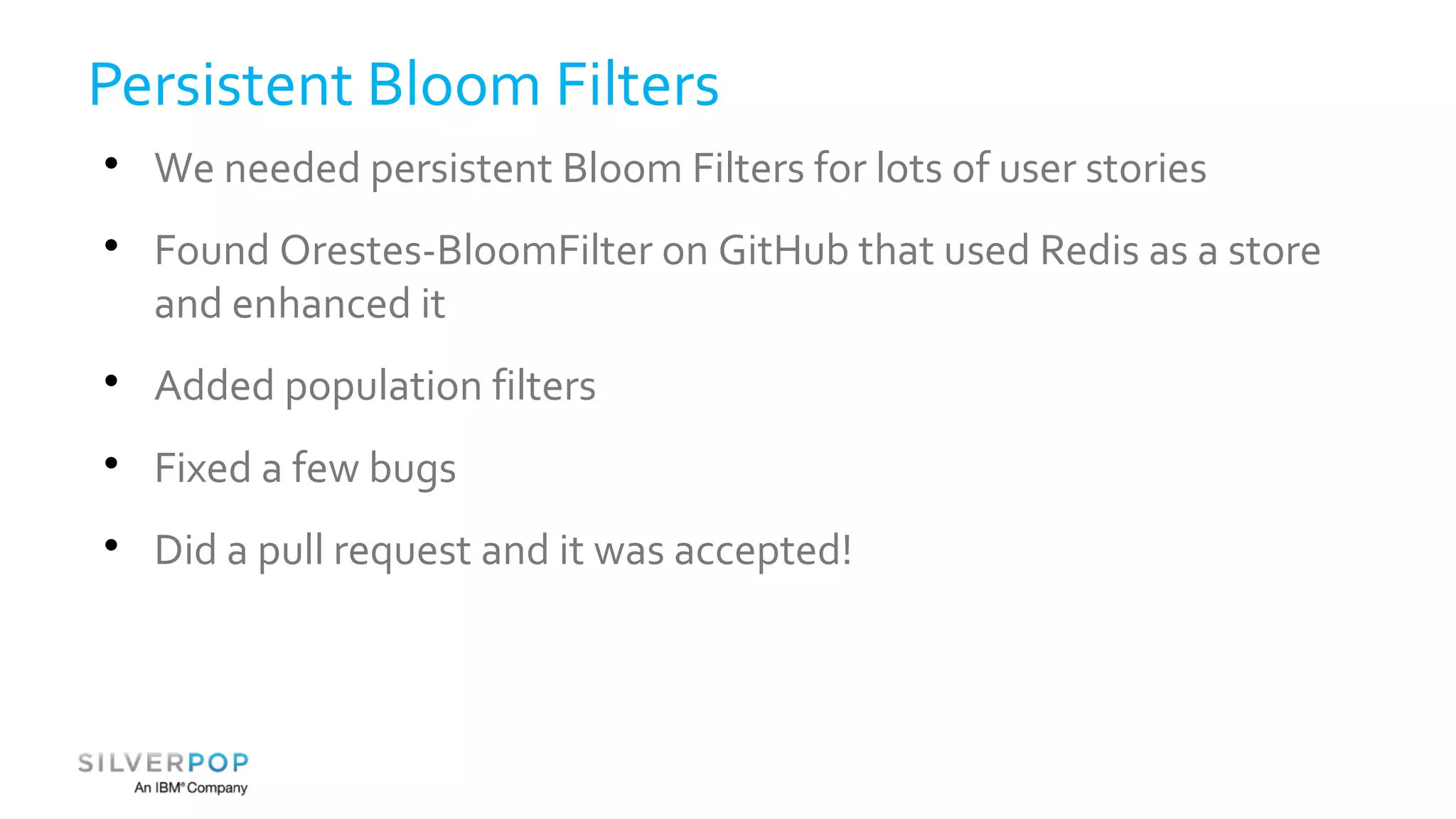

32. Persistent Bloom Filters
 We needed persistent Bloom Filters for lots of user stories
 Found Orestes-BloomFilter on GitHub that used Redis as a store
and enhanced it
 Added population filters
 Fixed a few bugs
 Did a pull request and it was accepted!

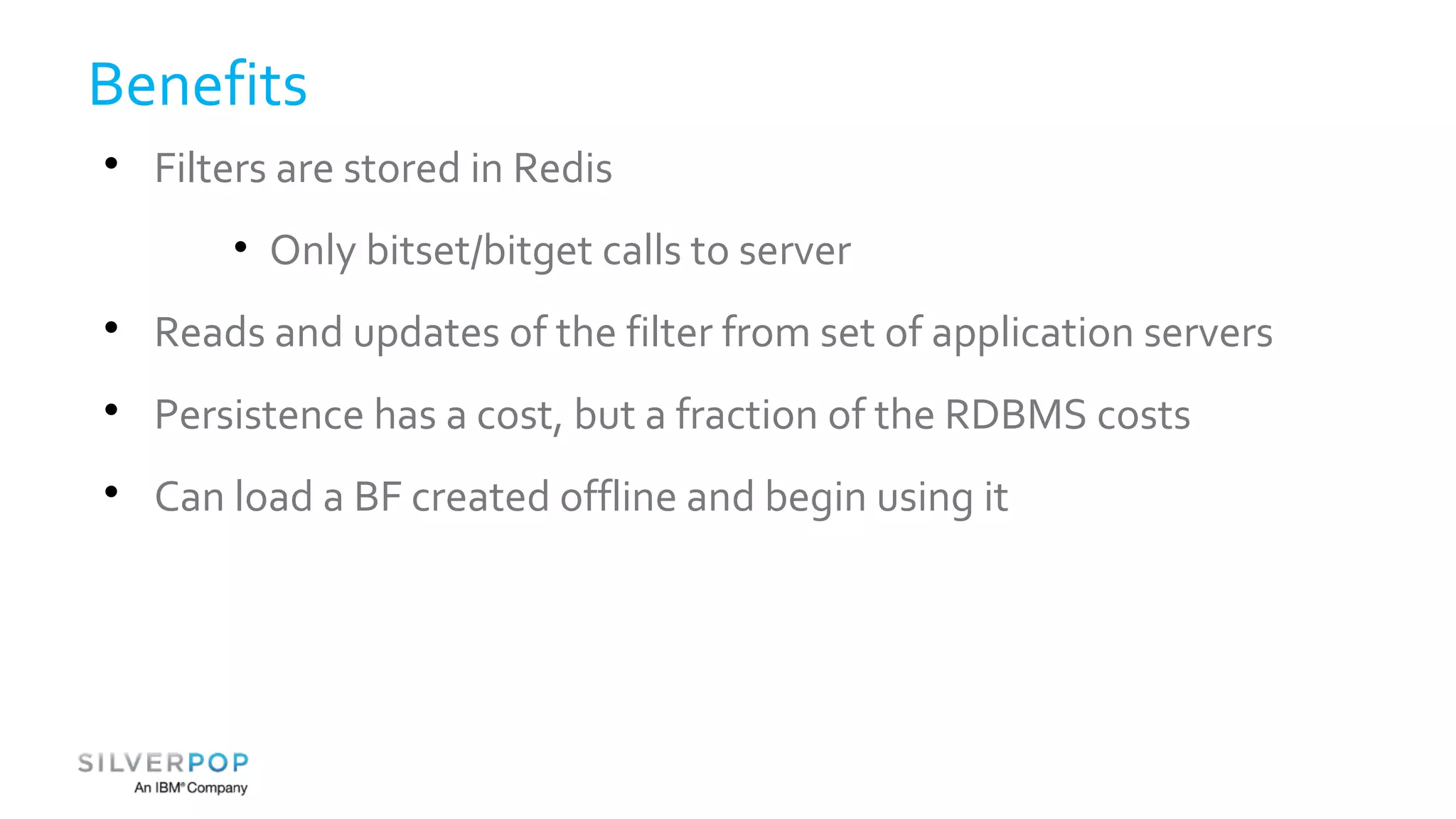

33. Benefits
 Filters are stored in Redis
• Only bitset/bitget calls to server
 Reads and updates of the filter from set of application servers
 Persistence has a cost, but a fraction of the RDBMS costs
 Can load a BF created offline and begin using it

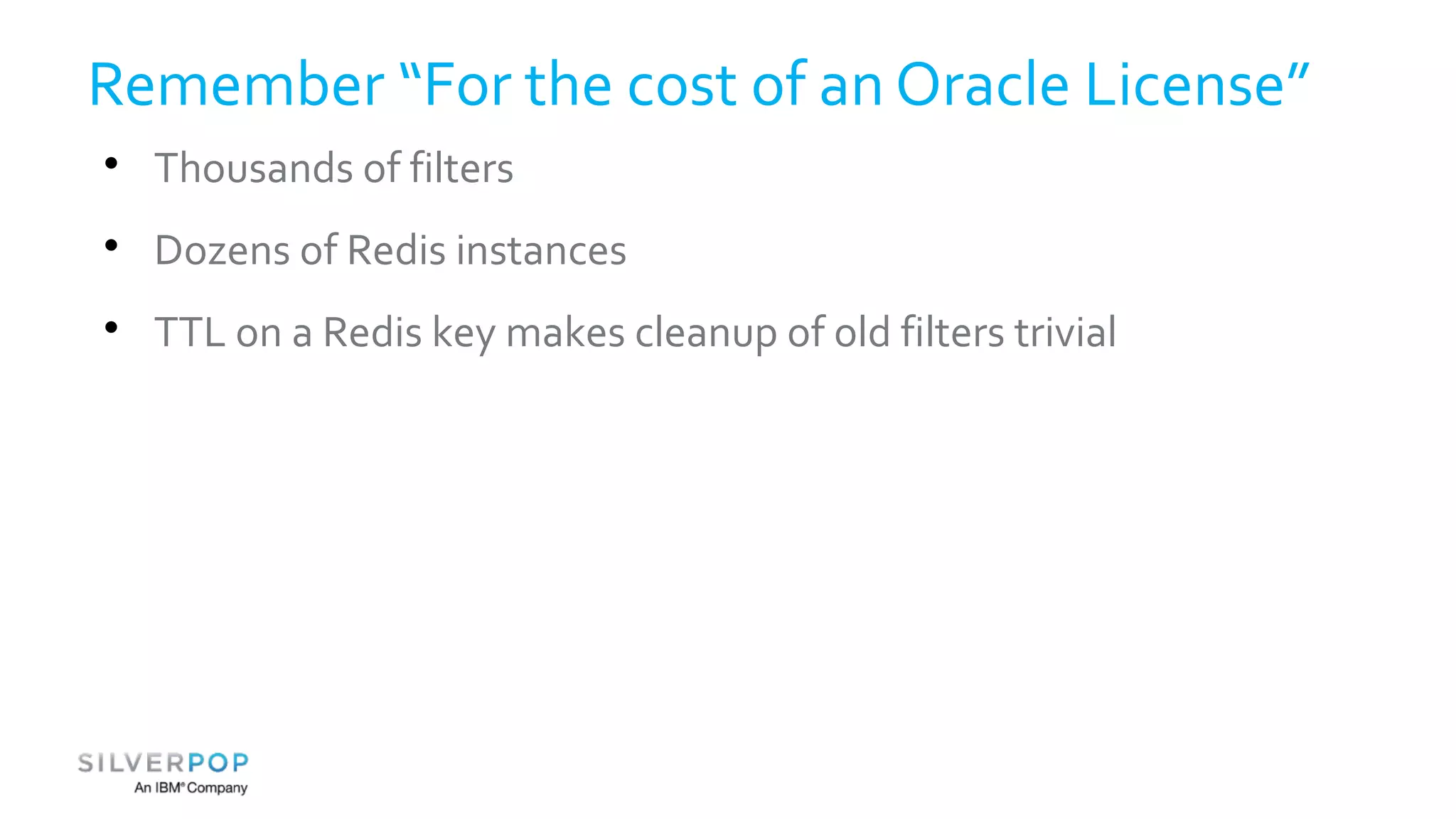

34. Remember “For the cost of an Oracle License”
 Thousands of filters
 Dozens of Redis instances
 TTL on a Redis key makes cleanup of old filters trivial

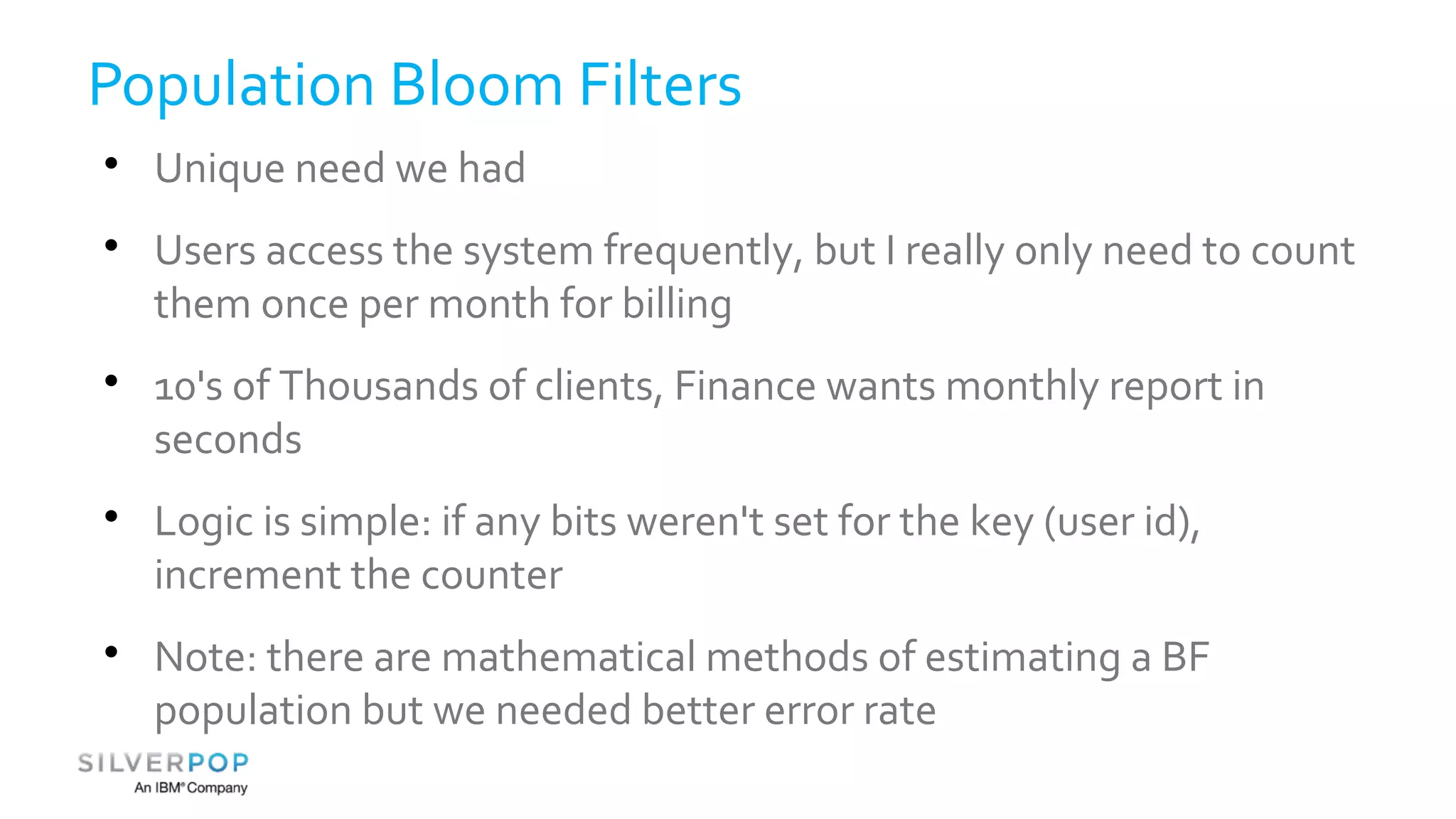

35. Population Bloom Filters
 Unique need we had
 Users access the system frequently, but I really only need to count
them once per month for billing
 10's of Thousands of clients, Finance wants monthly report in
seconds
 Logic is simple: if any bits weren't set for the key (user id),
increment the counter
 Note: there are mathematical methods of estimating a BF
population but we needed better error rate

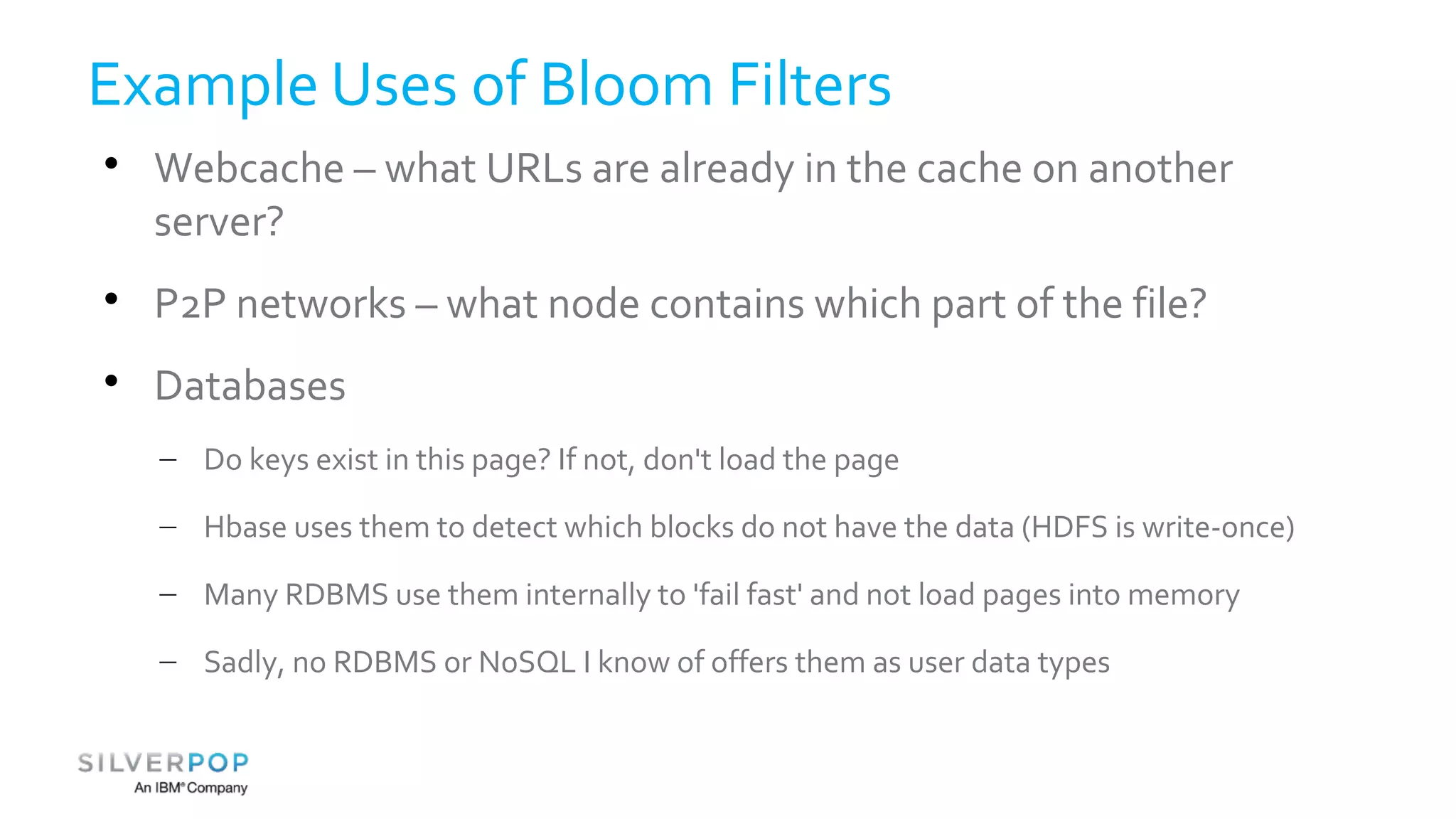

36. Example Uses of Bloom Filters
 Webcache – what URLs are already in the cache on another
server?
 P2P networks – what node contains which part of the file?
 Databases
– Do keys exist in this page? If not, don't load the page
– Hbase uses them to detect which blocks do not have the data (HDFS is write-once)
– Many RDBMS use them internally to 'fail fast' and not load pages into memory
– Sadly, no RDBMS or NoSQL I know of offers them as user data types

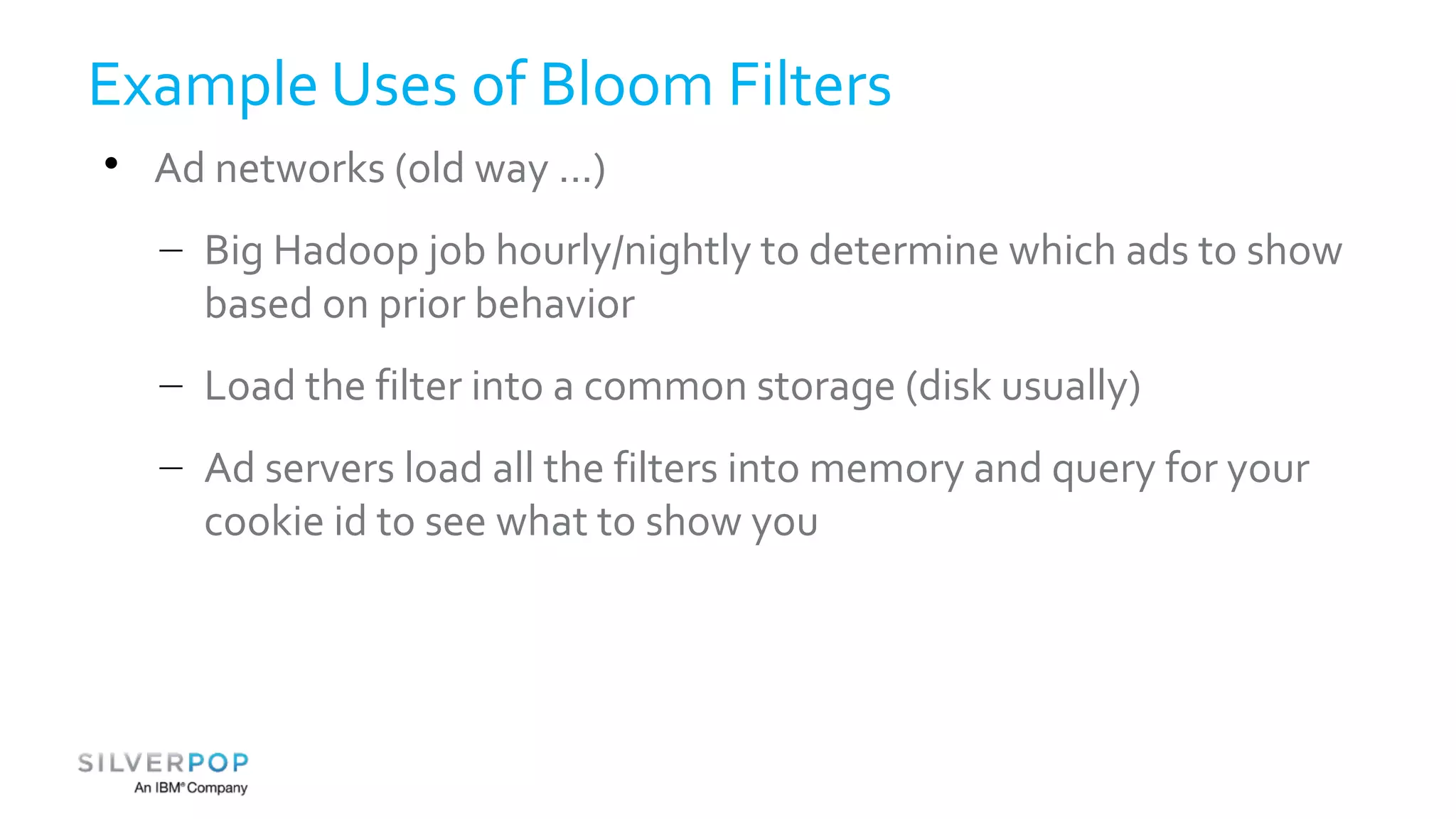

37. Example Uses of Bloom Filters
 Ad networks (old way ...)
– Big Hadoop job hourly/nightly to determine which ads to show
based on prior behavior
– Load the filter into a common storage (disk usually)
– Ad servers load all the filters into memory and query for your
cookie id to see what to show you

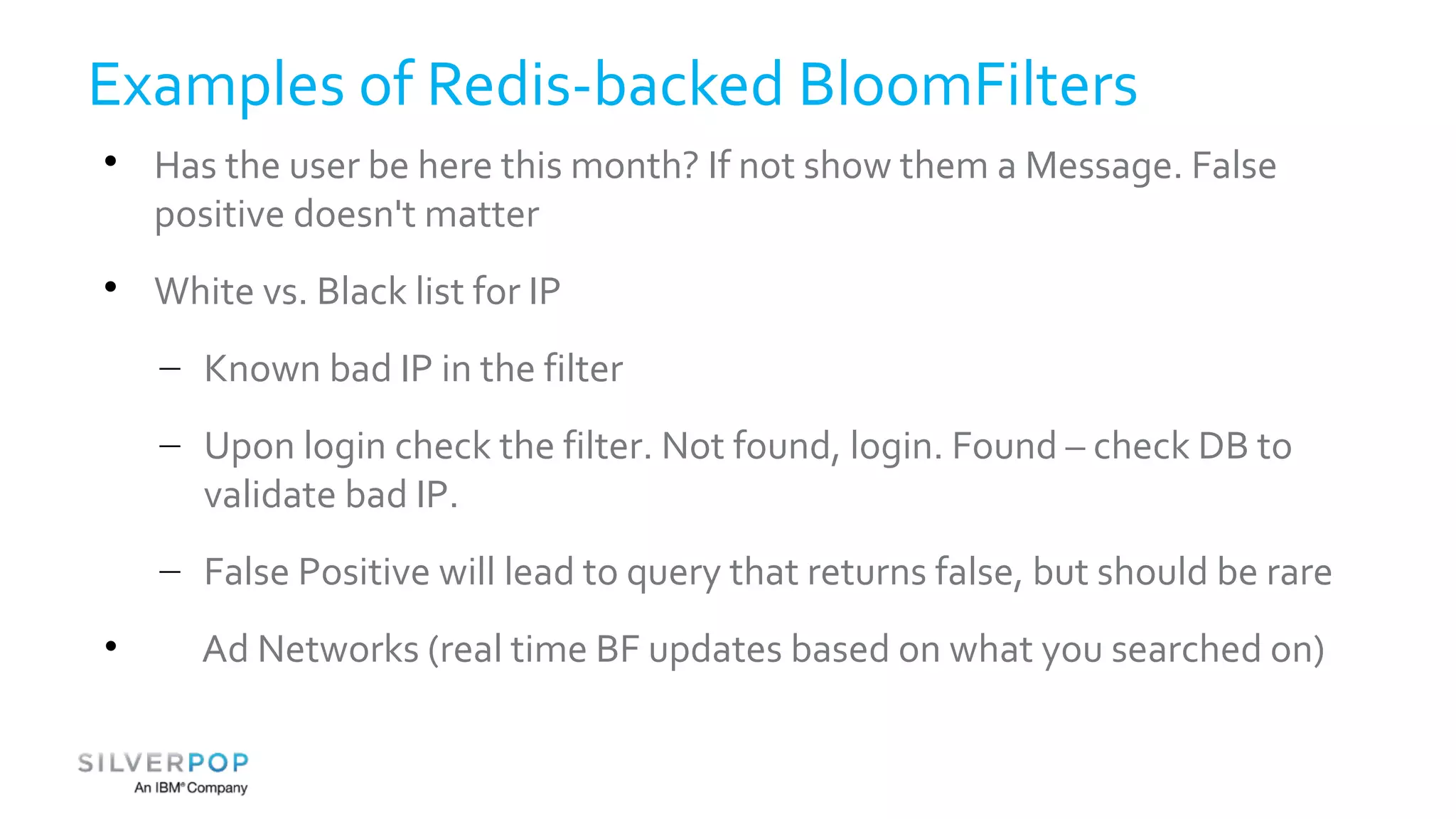

38. Examples of Redis-backed BloomFilters
 Has the user be here this month? If not show them a Message. False
positive doesn't matter
 White vs. Black list for IP
– Known bad IP in the filter
– Upon login check the filter. Not found, login. Found – check DB to
validate bad IP.
– False Positive will lead to query that returns false, but should be rare
• Ad Networks (real time BF updates based on what you searched on)

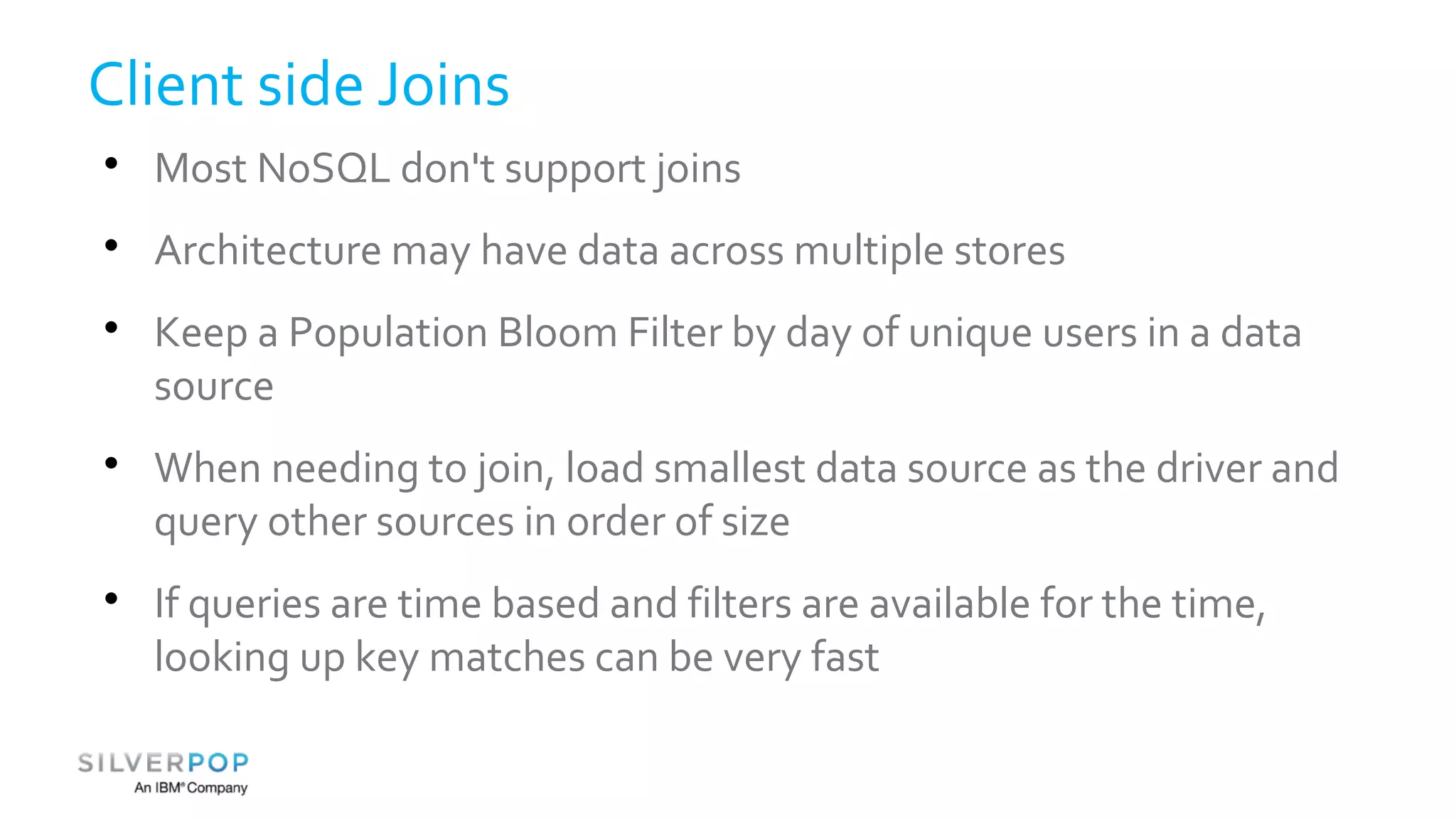

39. Client side Joins
 Most NoSQL don't support joins
 Architecture may have data across multiple stores
 Keep a Population Bloom Filter by day of unique users in a data
source
 When needing to join, load smallest data source as the driver and
query other sources in order of size
 If queries are time based and filters are available for the time,
looking up key matches can be very fast

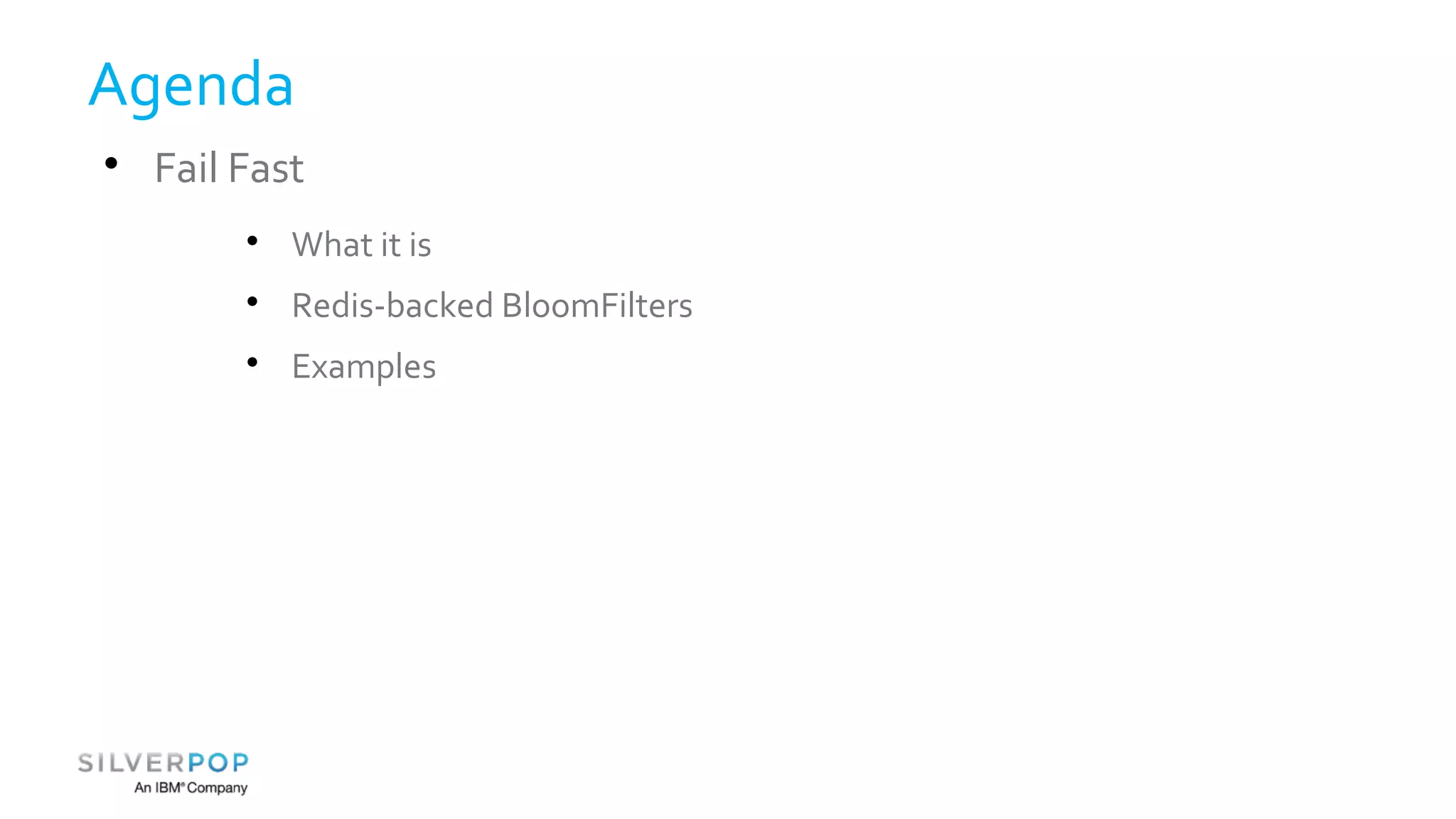

40. Agenda
 Fail Fast
 What it is
 Redis-backed BloomFilters
 Examples

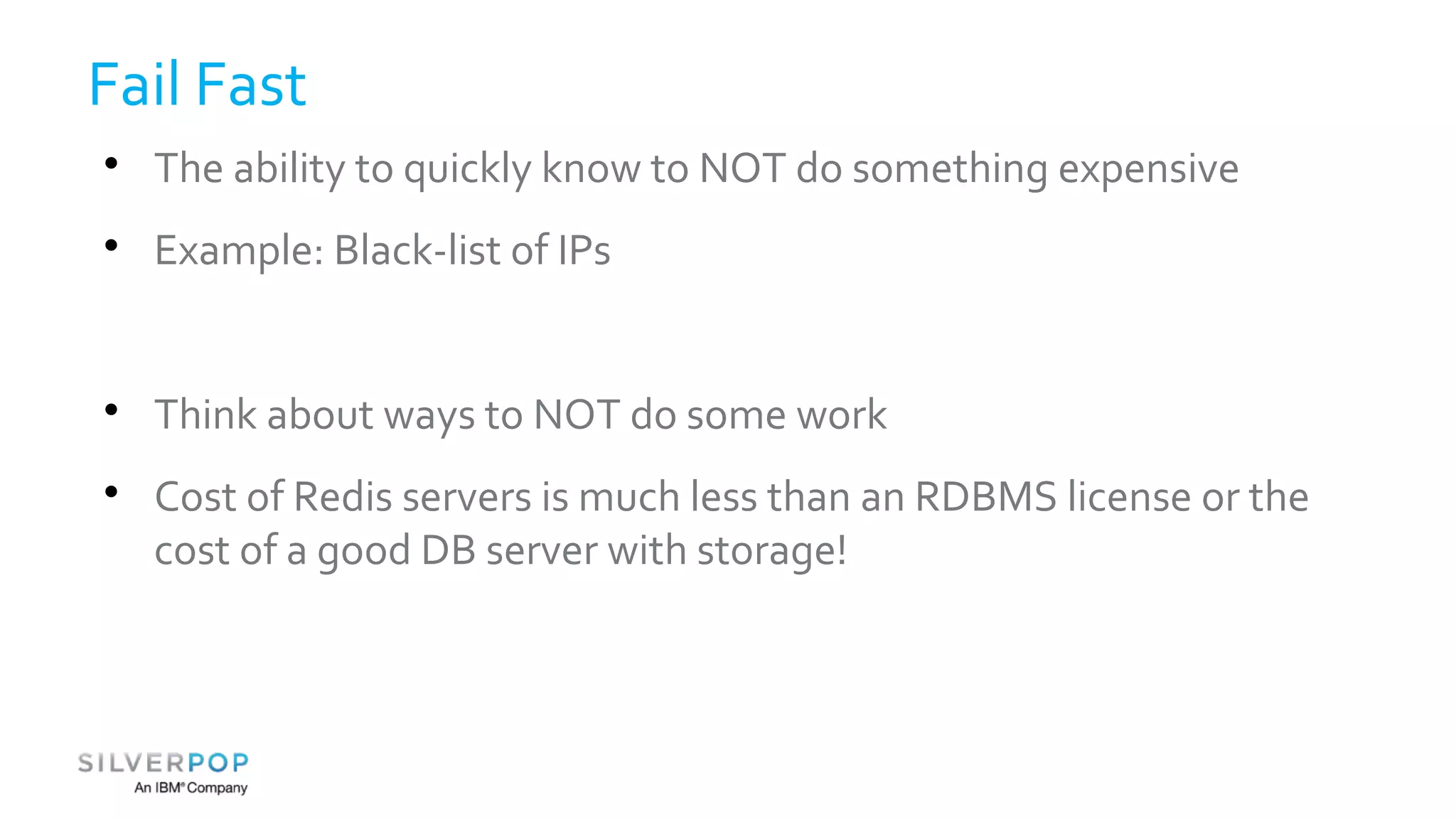

41. Fail Fast
 The ability to quickly know to NOT do something expensive
 Example: Black-list of IPs
 Think about ways to NOT do some work
 Cost of Redis servers is much less than an RDBMS license or the
cost of a good DB server with storage!

42. Hammer Time

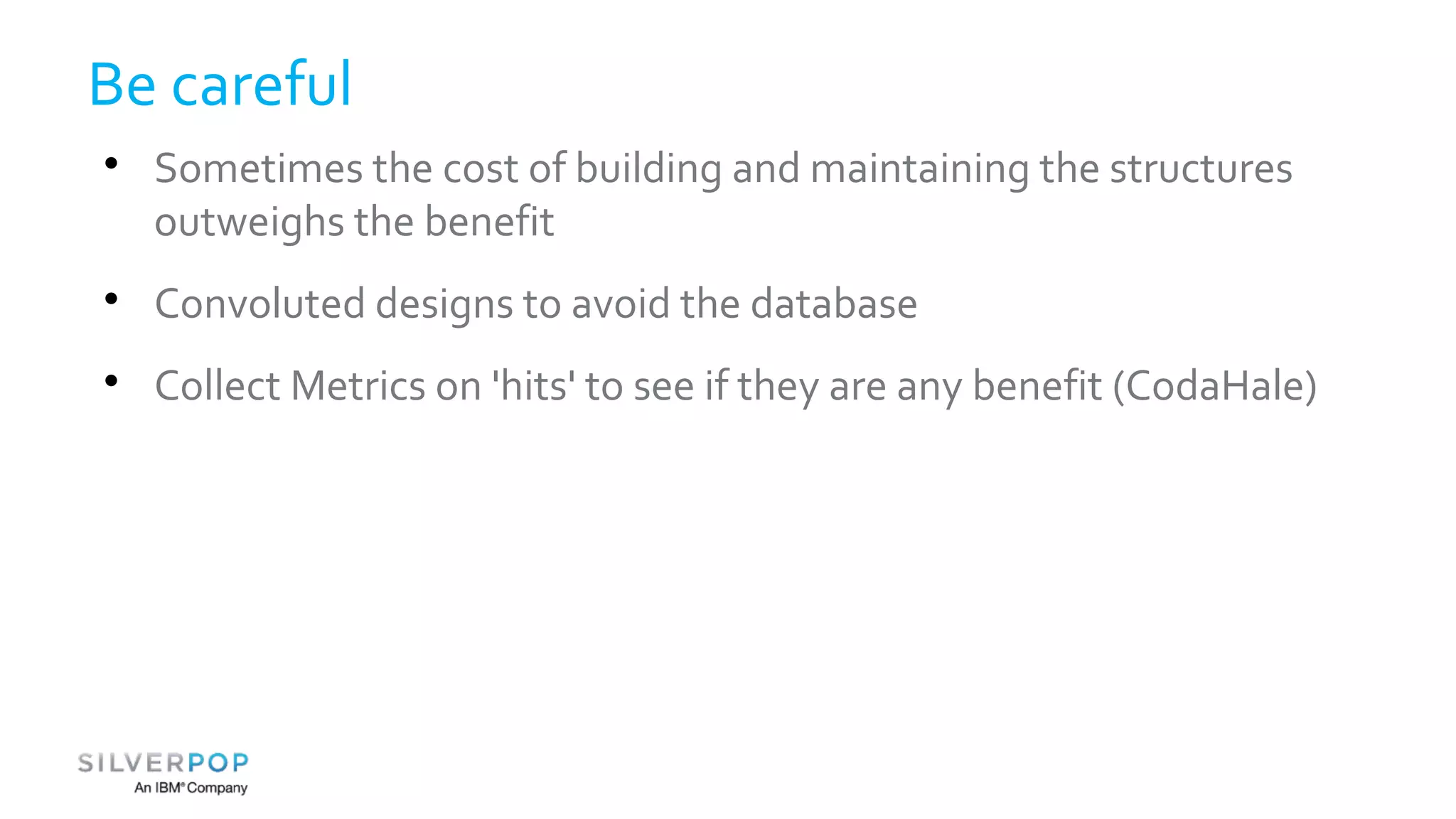

43. Be careful
 Sometimes the cost of building and maintaining the structures
outweighs the benefit
 Convoluted designs to avoid the database
 Collect Metrics on 'hits' to see if they are any benefit (CodaHale)

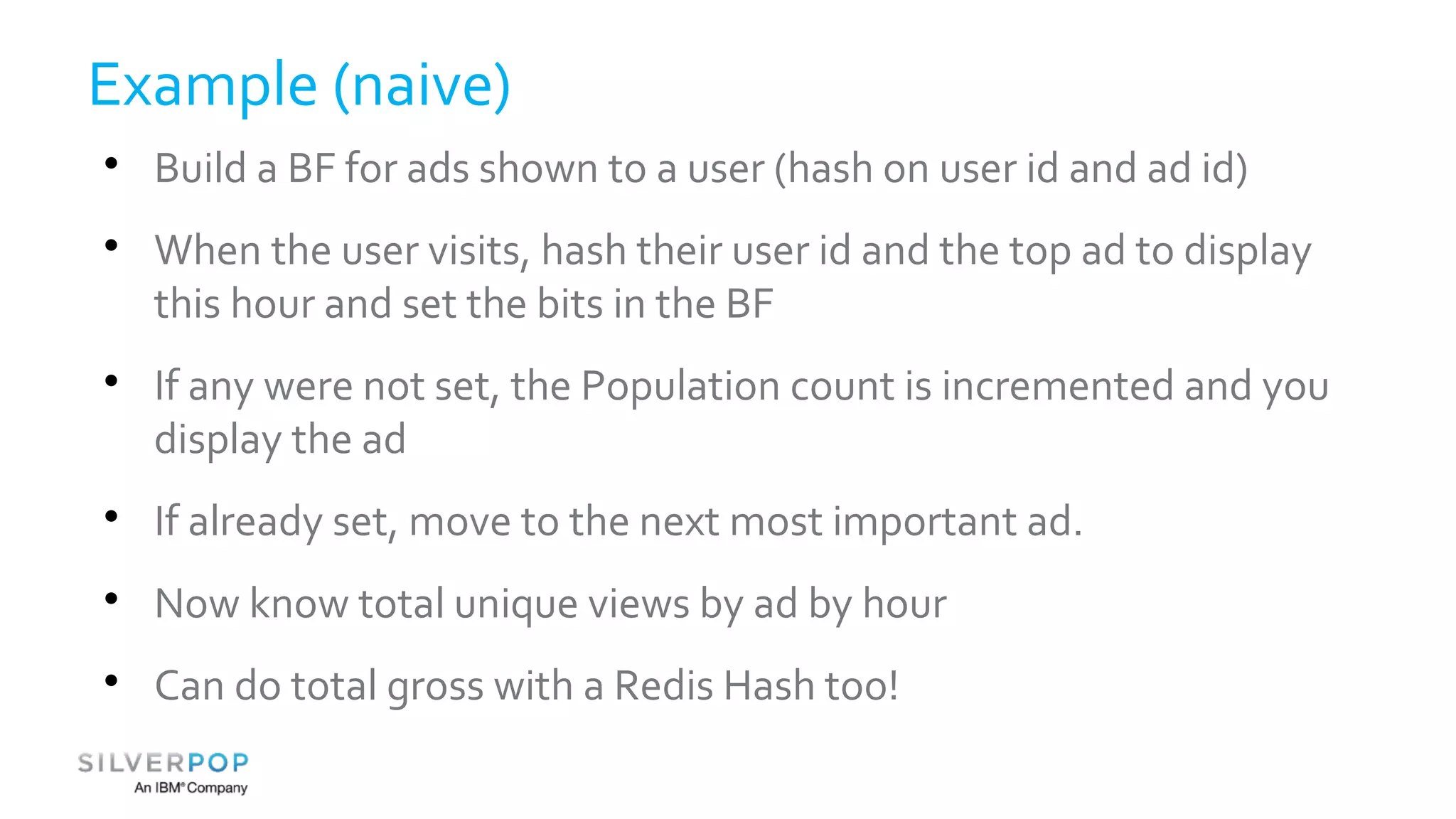

44. Example (naive)
 Build a BF for ads shown to a user (hash on user id and ad id)
 When the user visits, hash their user id and the top ad to display
this hour and set the bits in the BF
 If any were not set, the Population count is incremented and you
display the ad
 If already set, move to the next most important ad.
 Now know total unique views by ad by hour
 Can do total gross with a Redis Hash too!

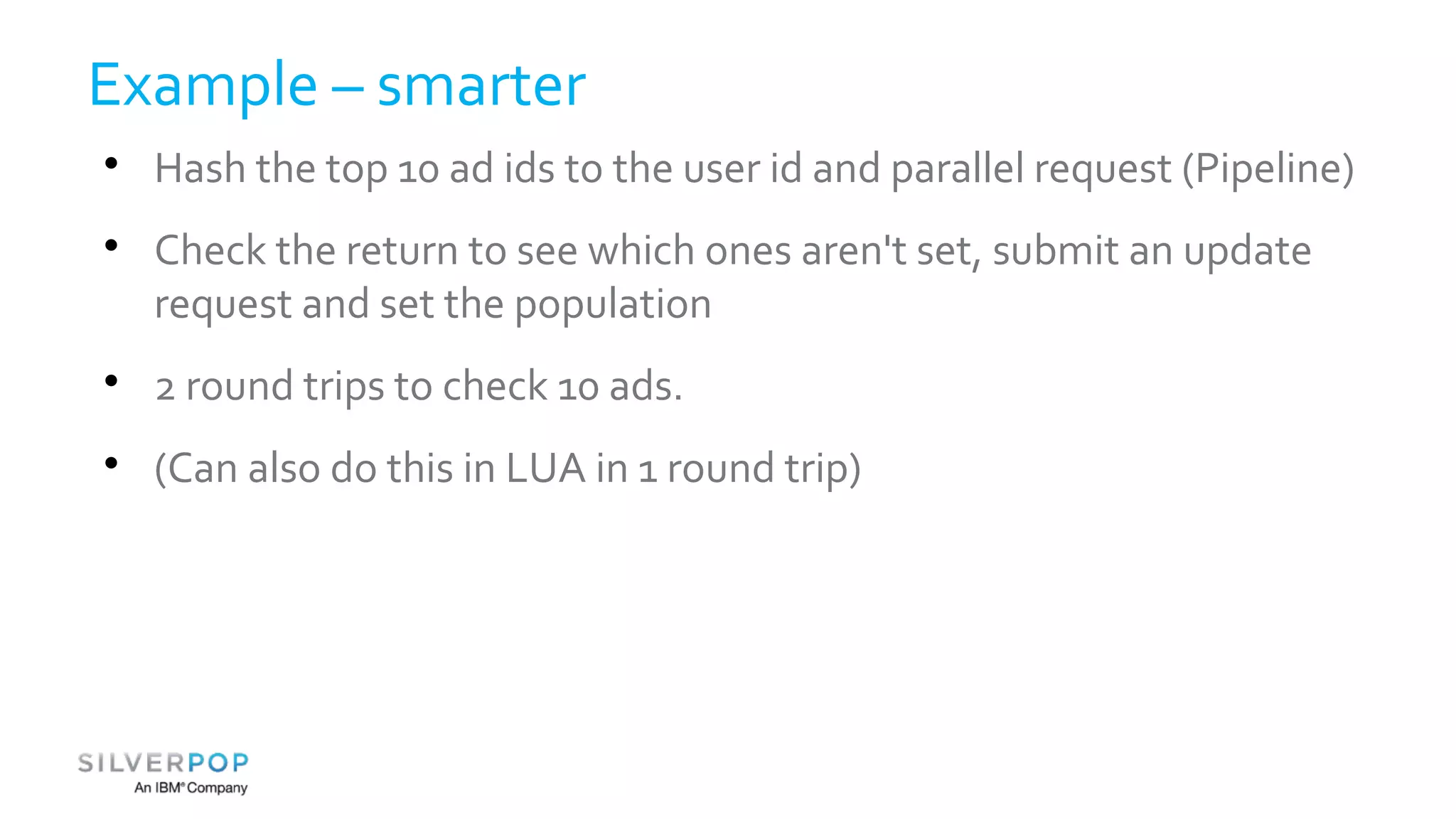

45. Example – smarter
 Hash the top 10 ad ids to the user id and parallel request (Pipeline)
 Check the return to see which ones aren't set, submit an update
request and set the population
 2 round trips to check 10 ads.
 (Can also do this in LUA in 1 round trip)

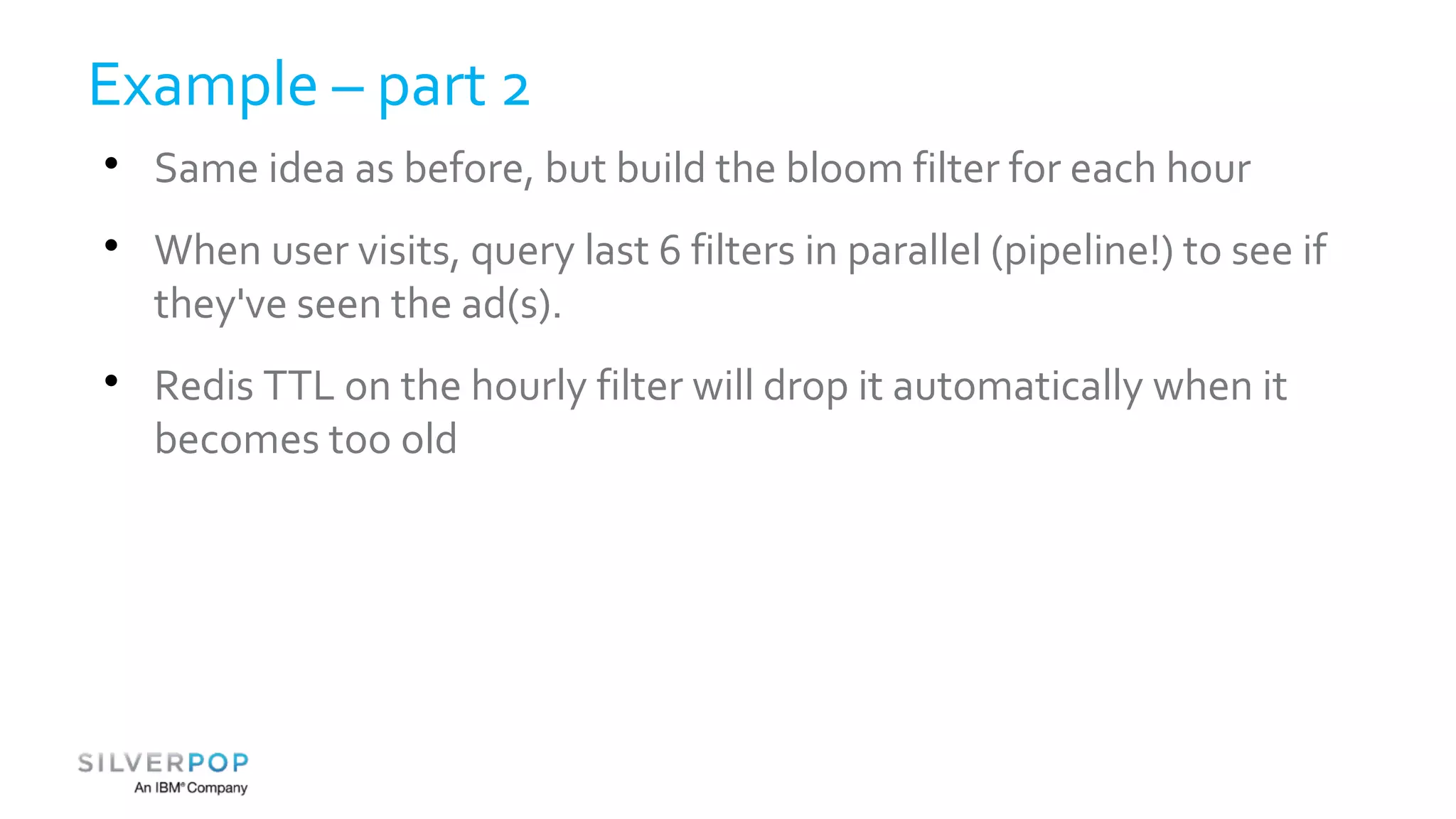

46. Example – part 2
 Same idea as before, but build the bloom filter for each hour
 When user visits, query last 6 filters in parallel (pipeline!) to see if
they've seen the ad(s).
 Redis TTL on the hourly filter will drop it automatically when it
becomes too old

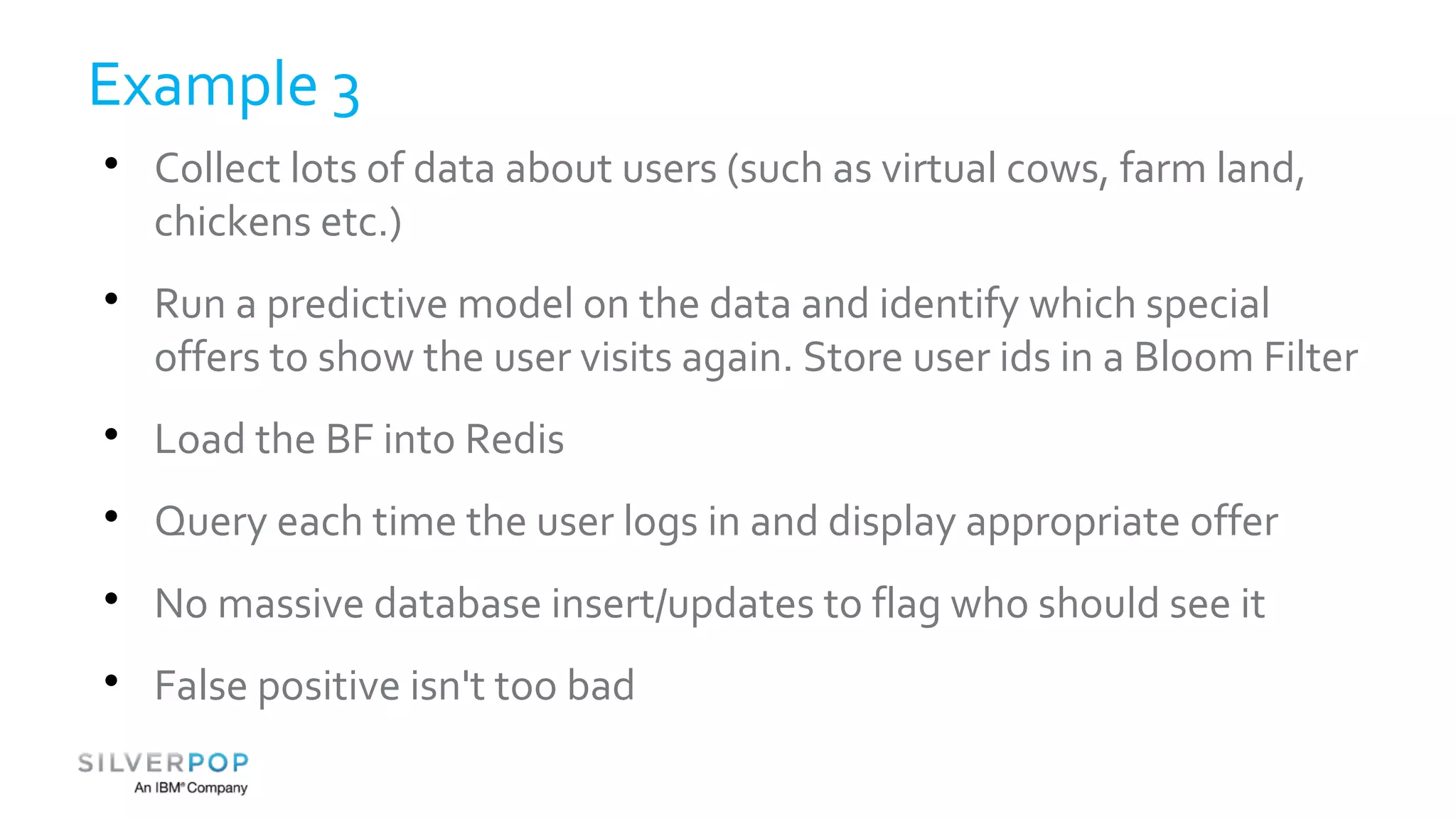

47. Example 3
 Collect lots of data about users (such as virtual cows, farm land,
chickens etc.)
 Run a predictive model on the data and identify which special
offers to show the user visits again. Store user ids in a Bloom Filter
 Load the BF into Redis
 Query each time the user logs in and display appropriate offer
 No massive database insert/updates to flag who should see it
 False positive isn't too bad

48. Example 4 – Query optimization
 Client-side joins
 Ask the Bloom Filter if the user has performed the action (filters
for hour, day, week of year etc.)
 If not, don't even call the data source
 May need to read some extra data due to 'in the last 11 days' but
asking the BF and being told 'no' prevents ANY data source
resources to be used
 What if the BF is lost? Rebuild it from the base events (Hadoop!)

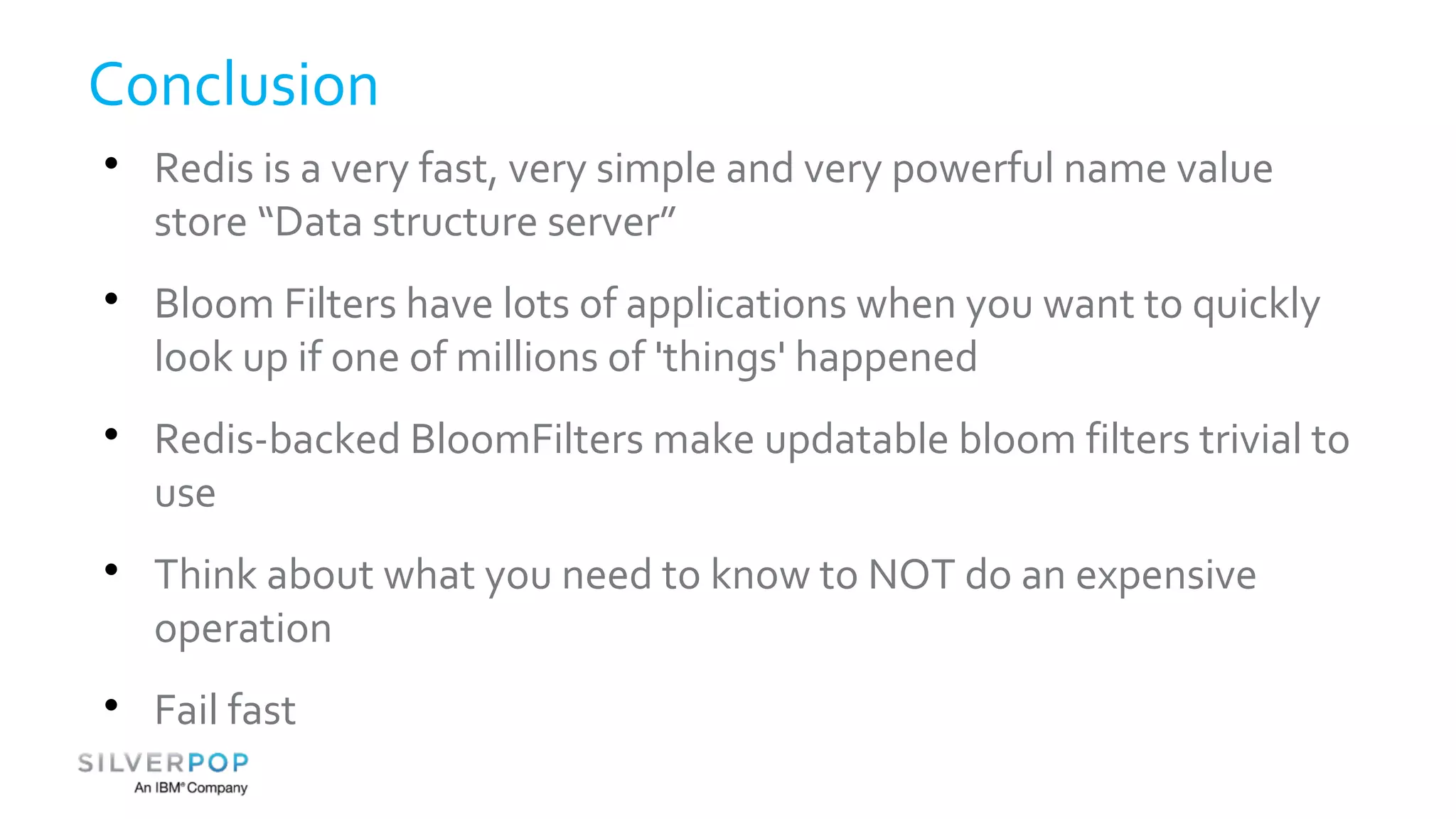

49. Conclusion
 Redis is a very fast, very simple and very powerful name value
store “Data structure server”
 Bloom Filters have lots of applications when you want to quickly
look up if one of millions of 'things' happened
 Redis-backed BloomFilters make updatable bloom filters trivial to
use
 Think about what you need to know to NOT do an expensive
operation
 Fail fast

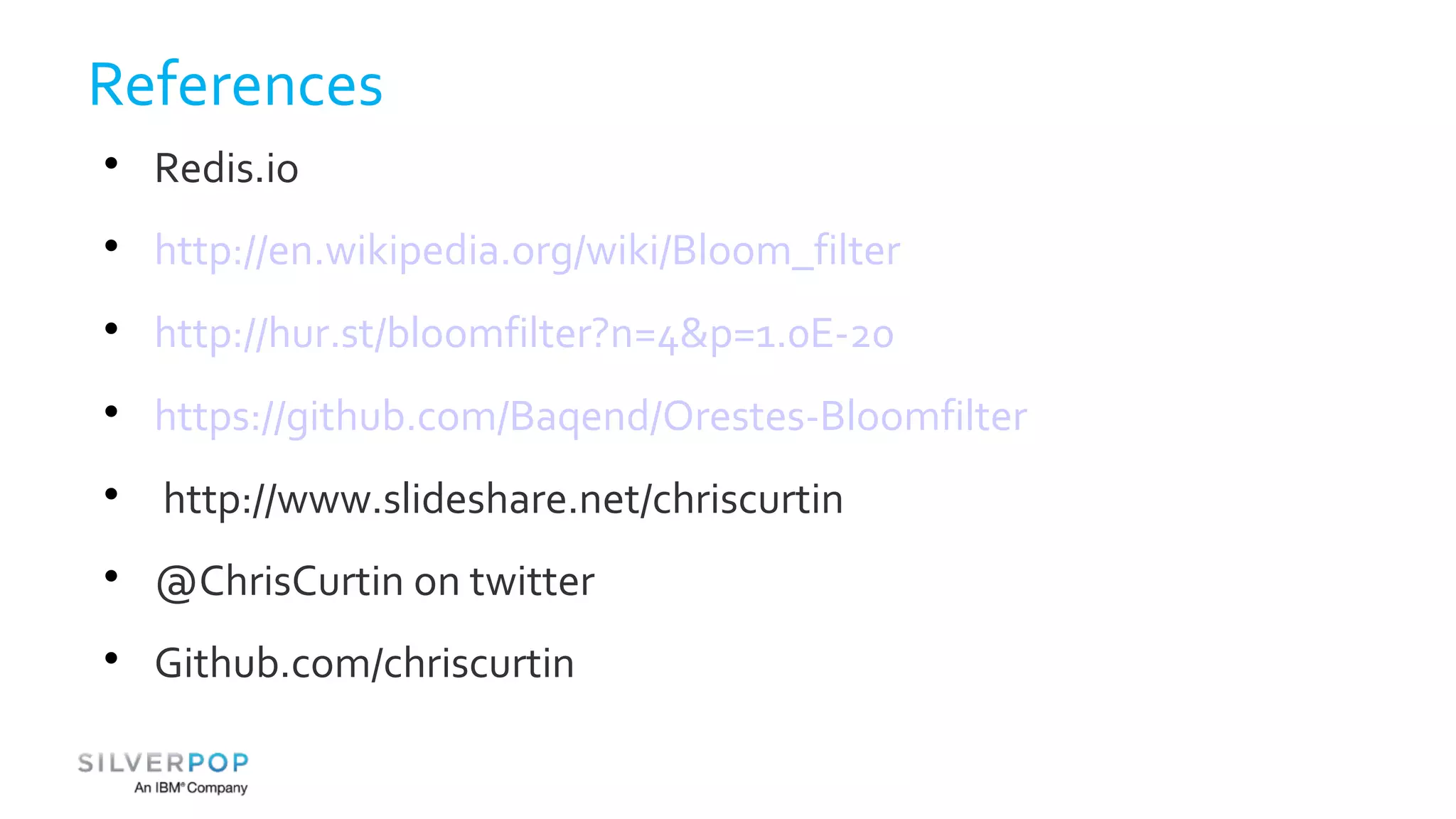

50. References
 Redis.io
 http://en.wikipedia.org/wiki/Bloom_filter
 http://hur.st/bloomfilter?n=4&p=1.0E-20
 https://github.com/Baqend/Orestes-Bloomfilter
 http://www.slideshare.net/chriscurtin
 @ChrisCurtin on twitter
 Github.com/chriscurtin

51. Questions?
