Red rio

User Manual
(Catalog Number 1757-ABRIO)
Process Remote I/O (RIO)
Communication Interface Module

Important User Information
Solid state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines
for the Application, Installation and Maintenance of Solid State Controls (publication SGI-1.1 available from your local
Rockwell Automation sales office or online at http://literature.rockwellautomation.com) describes some important differences
between solid state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the
wide variety of uses for solid state equipment, all persons responsible for applying this equipment must satisfy themselves
that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the
use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability
for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or
software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Allen-Bradley, Rockwell Automation, RSLogix 5000, ControlLogix, ProcessLogix, RSLinx, ControlFlash, and TechConnect are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
WARNING
Identifies information about practices or circumstances that can cause an explosion in a
hazardous environment, which may lead to personal injury or death, property damage, or
economic loss.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
ATTENTION
Identifies information about practices or circumstances that can lead to personal injury or death,
property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and
recognize the consequence
SHOCK HAZARD Labels may be on or inside the equipment, for example, a drive or motor, to alert people that
dangerous voltage may be present.
BURN HAZARD Labels may be on or inside the equipment, for example, a drive or motor, to alert people that
surfaces may reach dangerous temperatures.

3Publication 1757-UM007D-EN-P - December 2008 3

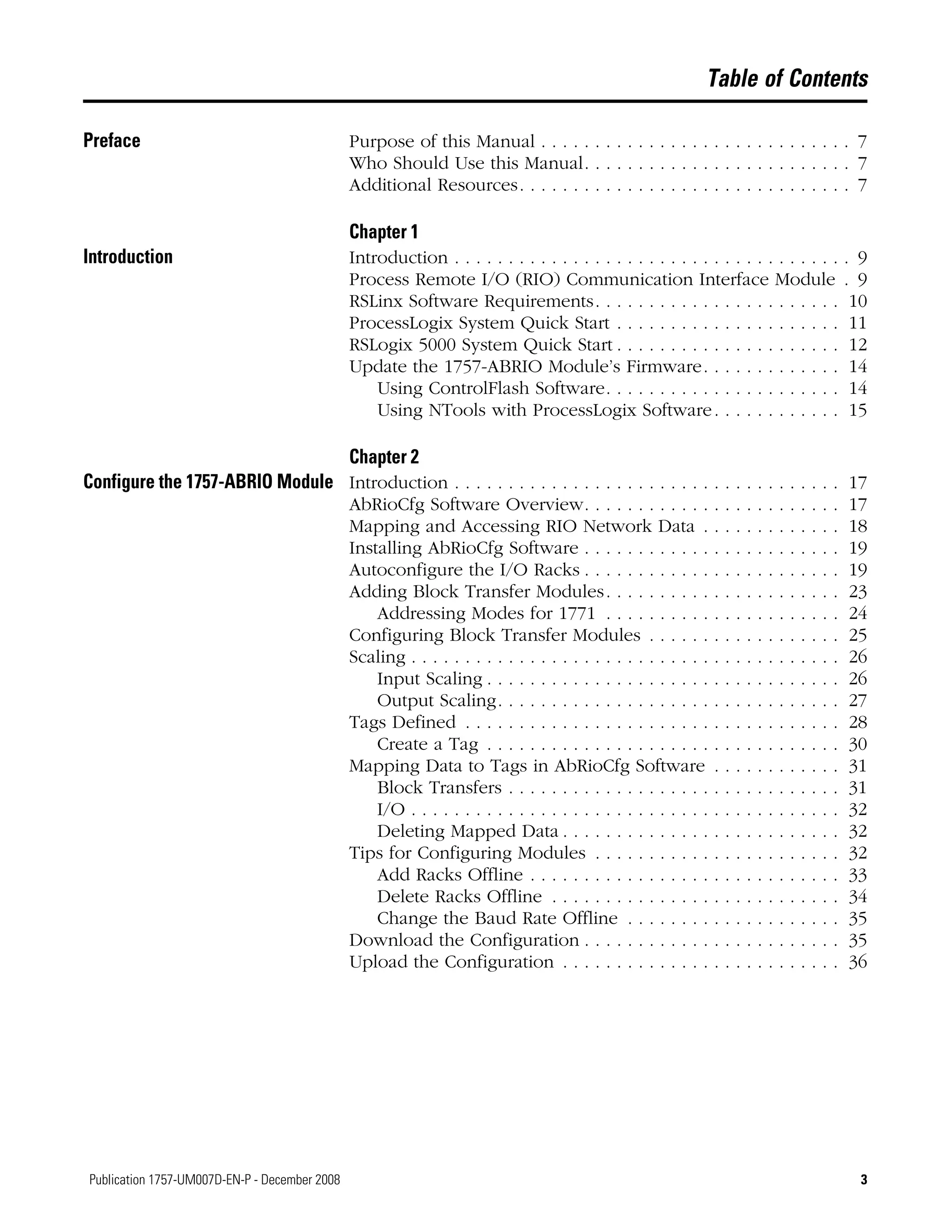

Table of Contents

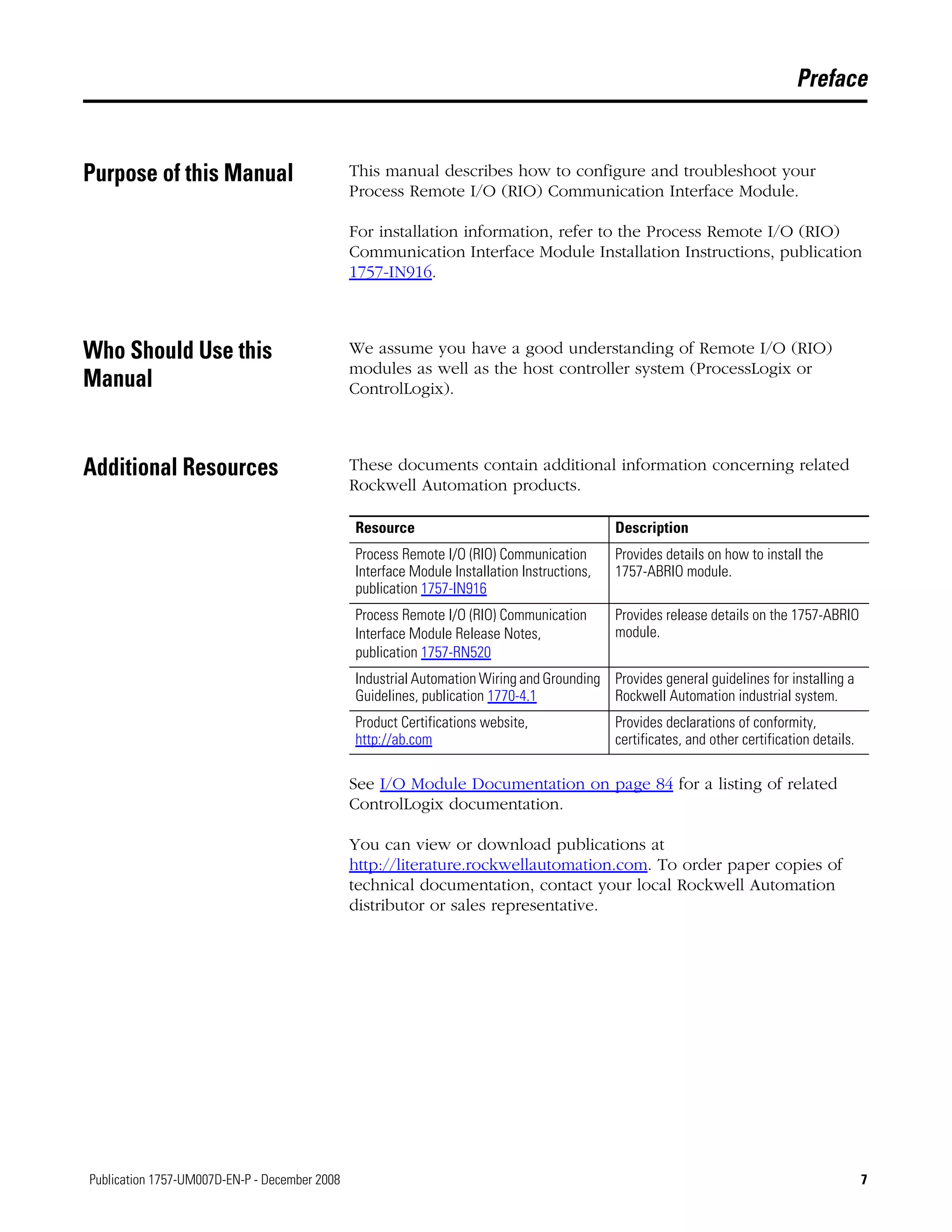

Preface Purpose of this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Who Should Use this Manual. . . . . . . . . . . . . . . . . . . . . . . . . 7
Additional Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 1
Introduction Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

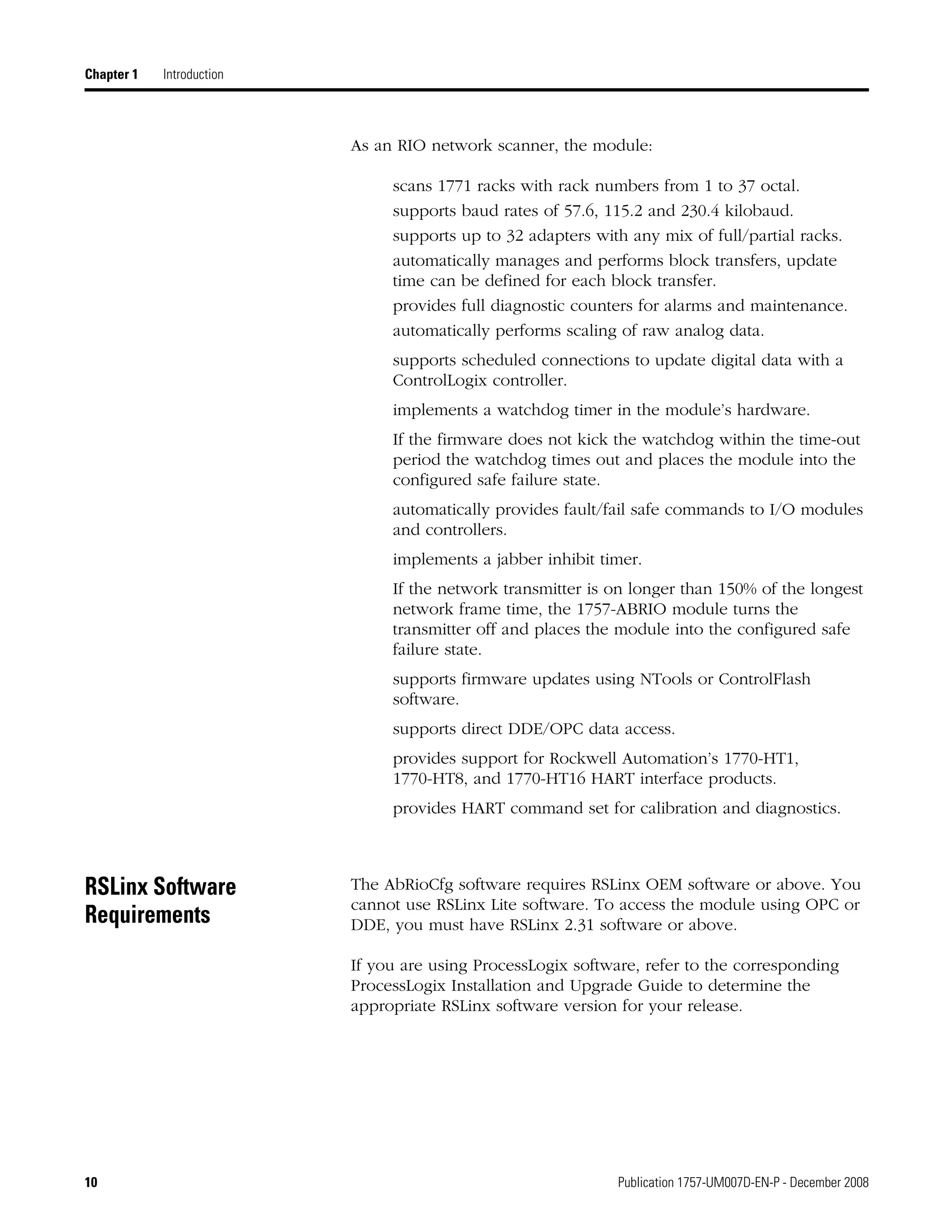

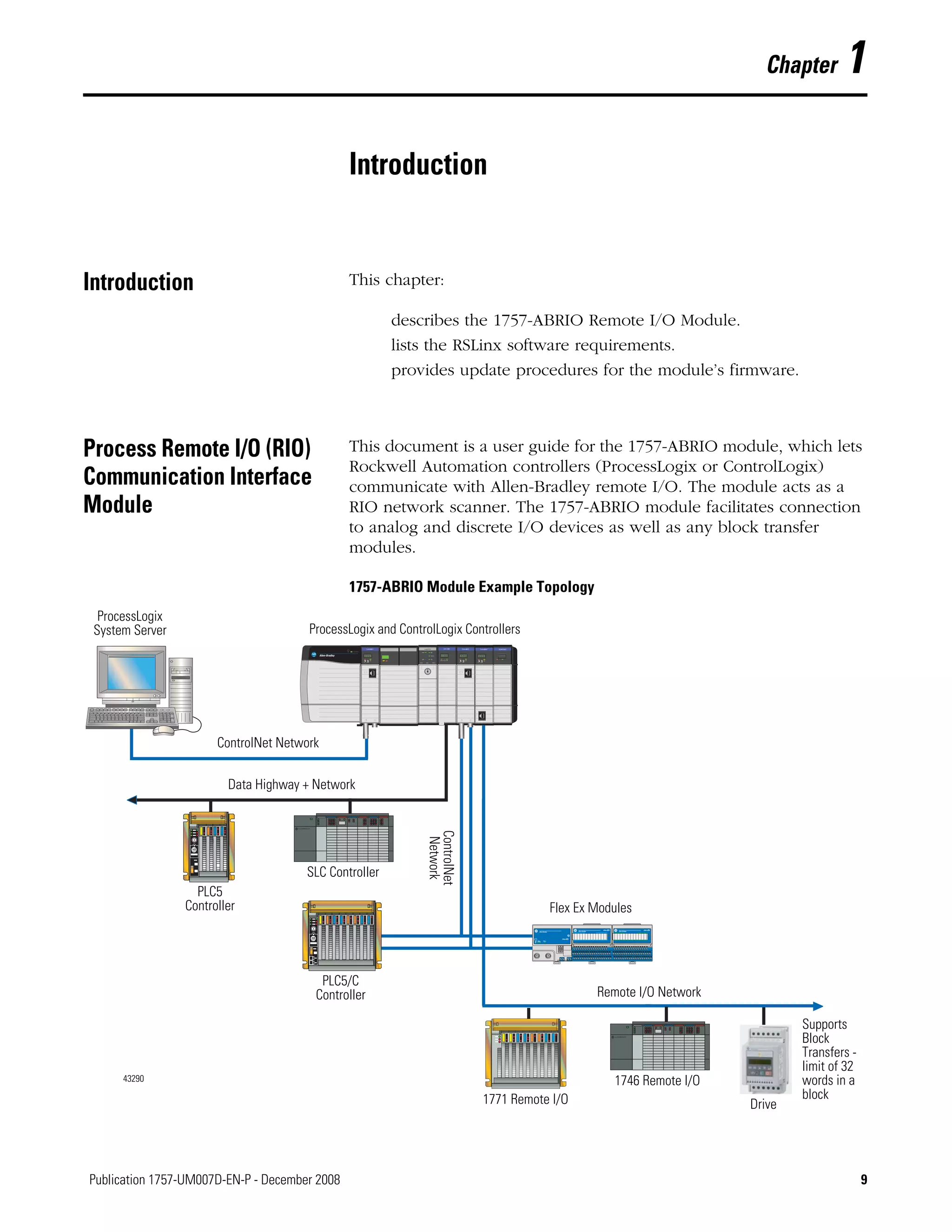

Process Remote I/O (RIO) Communication Interface Module . 9
RSLinx Software Requirements. . . . . . . . . . . . . . . . . . . . . . . 10

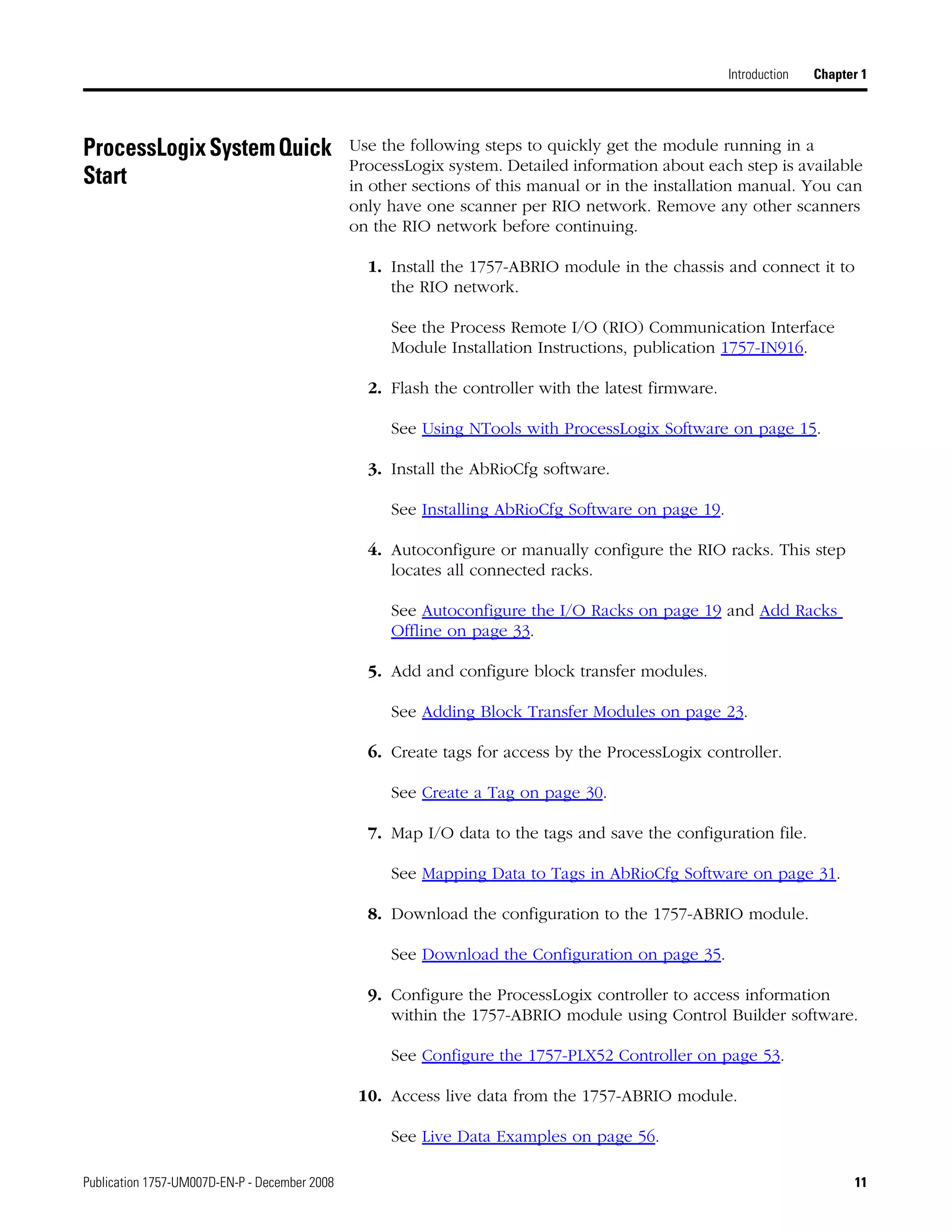

ProcessLogix System Quick Start . . . . . . . . . . . . . . . . . . . . . 11

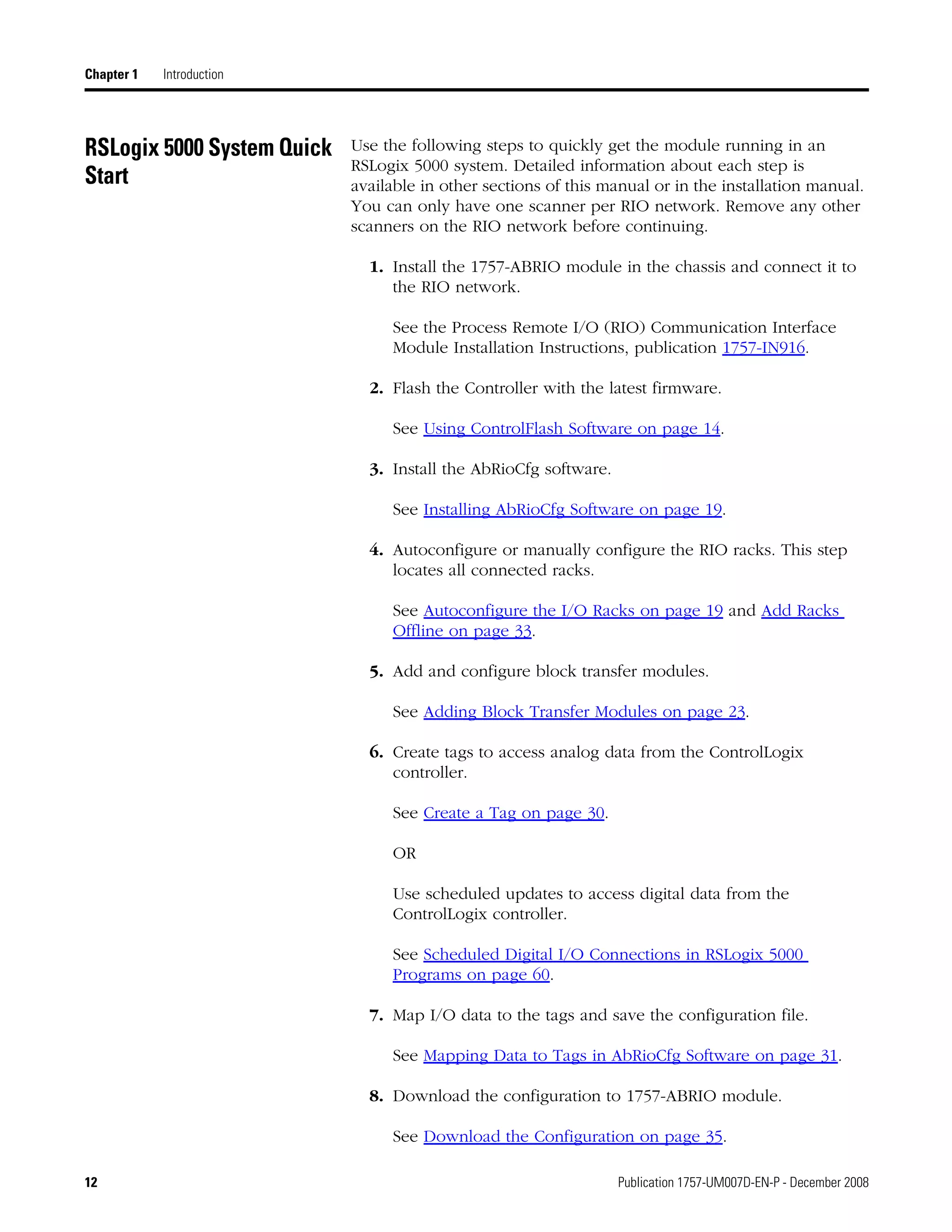

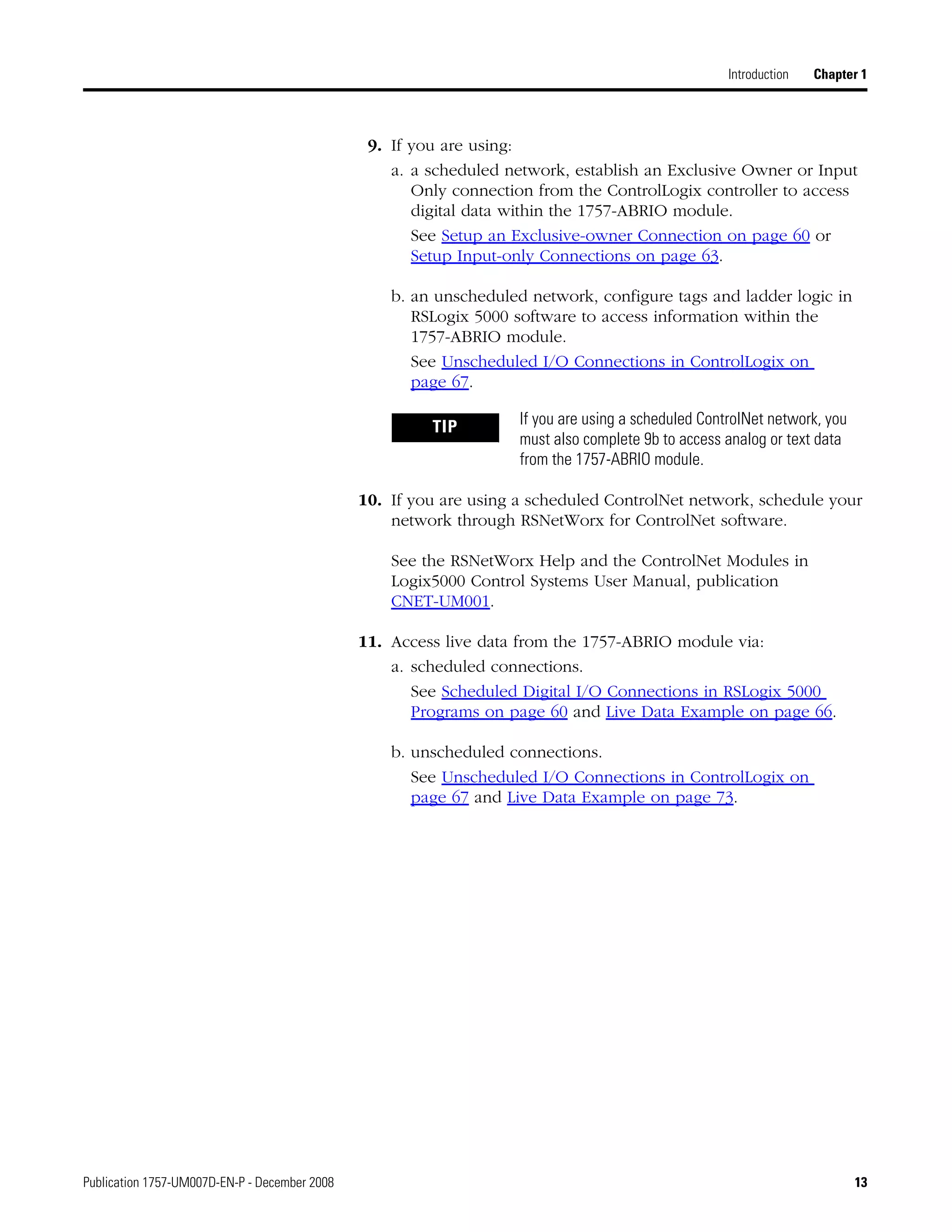

RSLogix 5000 System Quick Start . . . . . . . . . . . . . . . . . . . . . 12

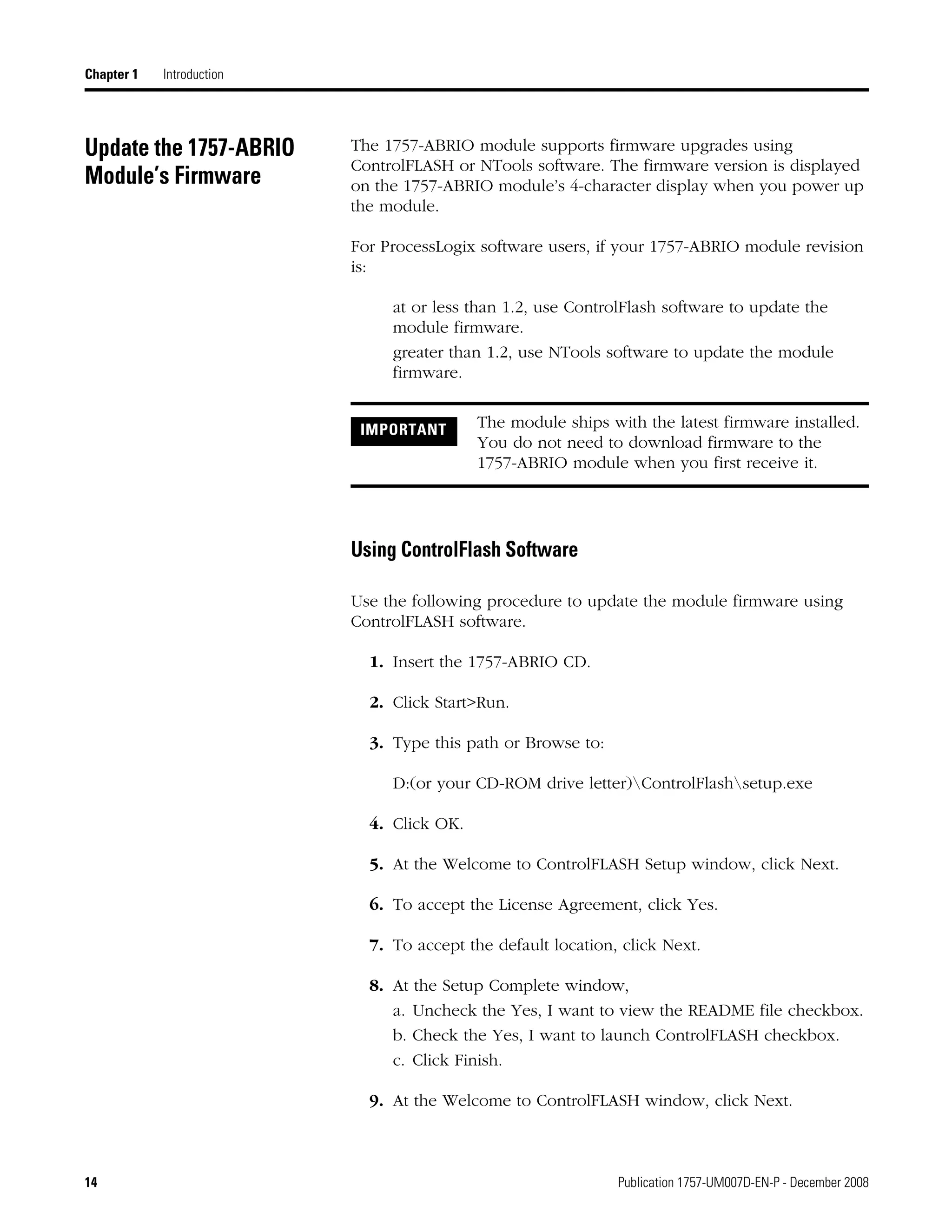

Update the 1757-ABRIO Module’s Firmware. . . . . . . . . . . . . 14
Using ControlFlash Software. . . . . . . . . . . . . . . . . . . . . . 14

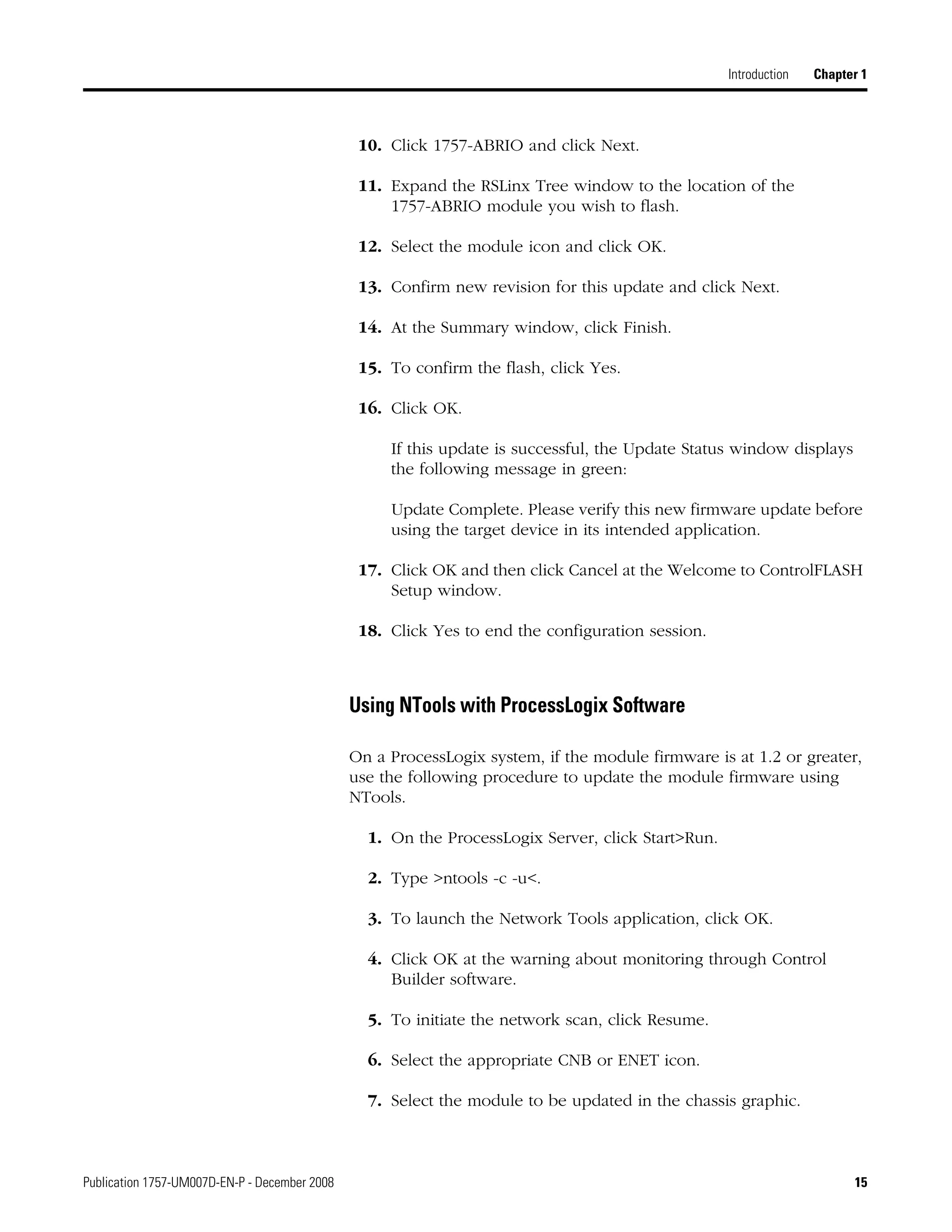

Using NTools with ProcessLogix Software. . . . . . . . . . . . 15
Chapter 2
Configure the 1757-ABRIO Module Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
AbRioCfg Software Overview. . . . . . . . . . . . . . . . . . . . . . . . 17

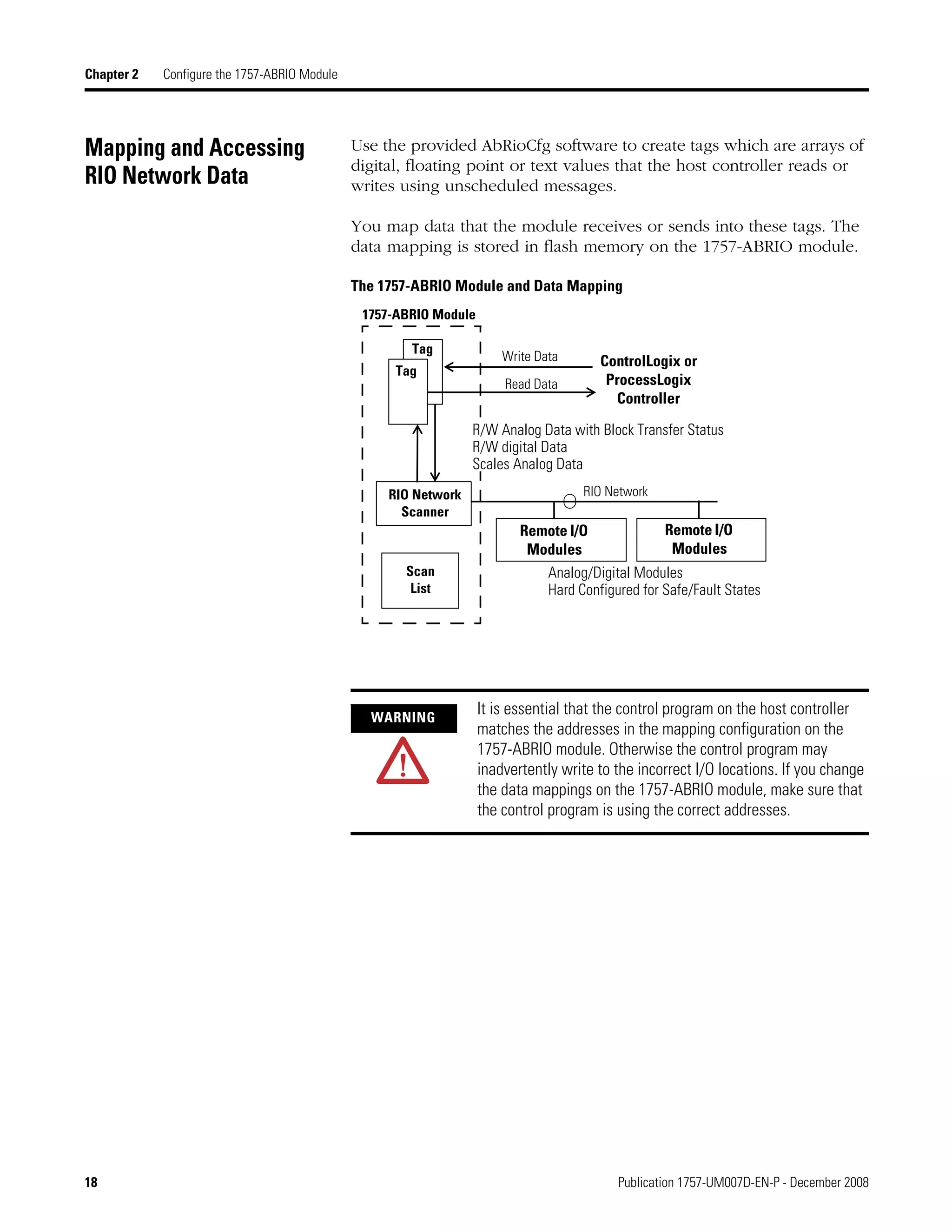

Mapping and Accessing RIO Network Data . . . . . . . . . . . . . 18

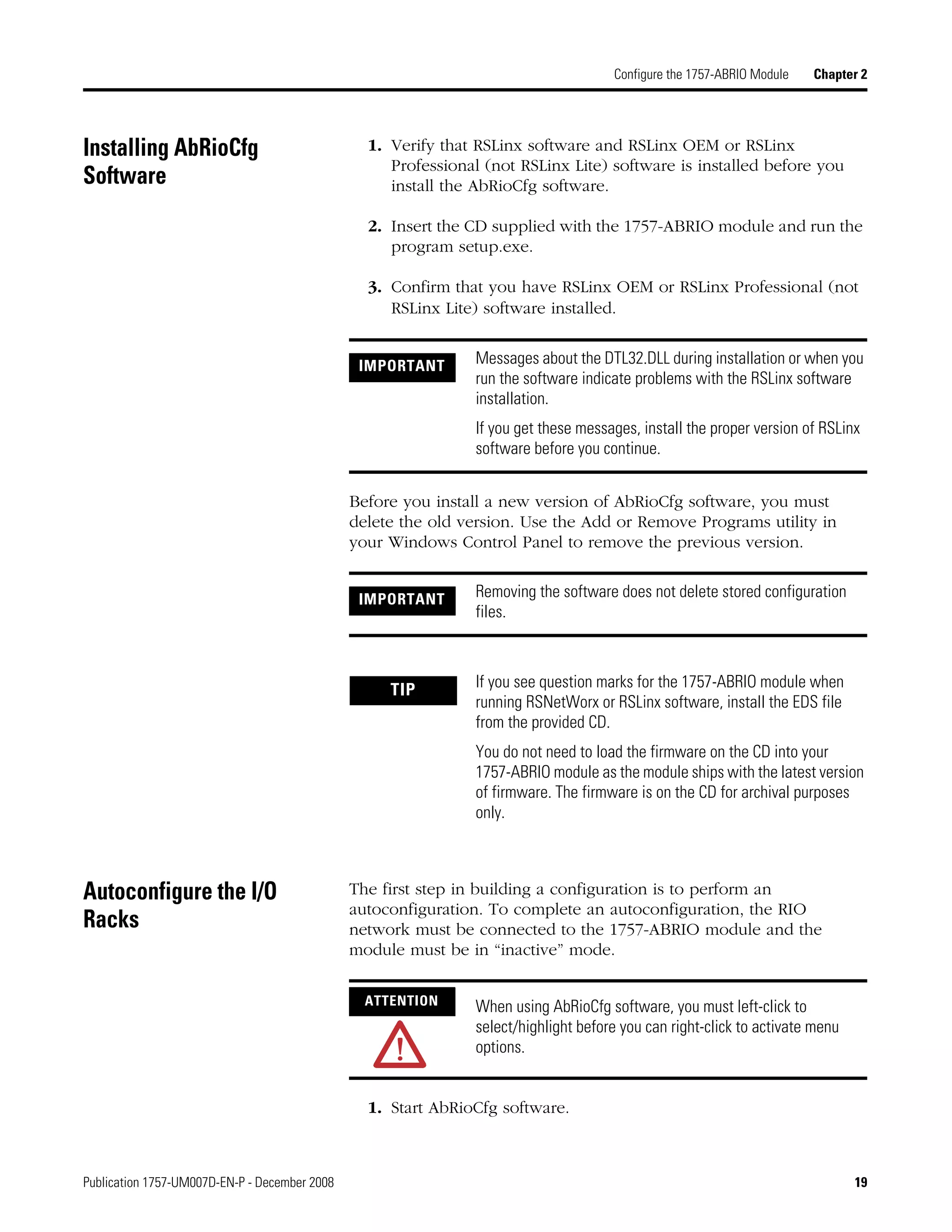

Installing AbRioCfg Software . . . . . . . . . . . . . . . . . . . . . . . . 19

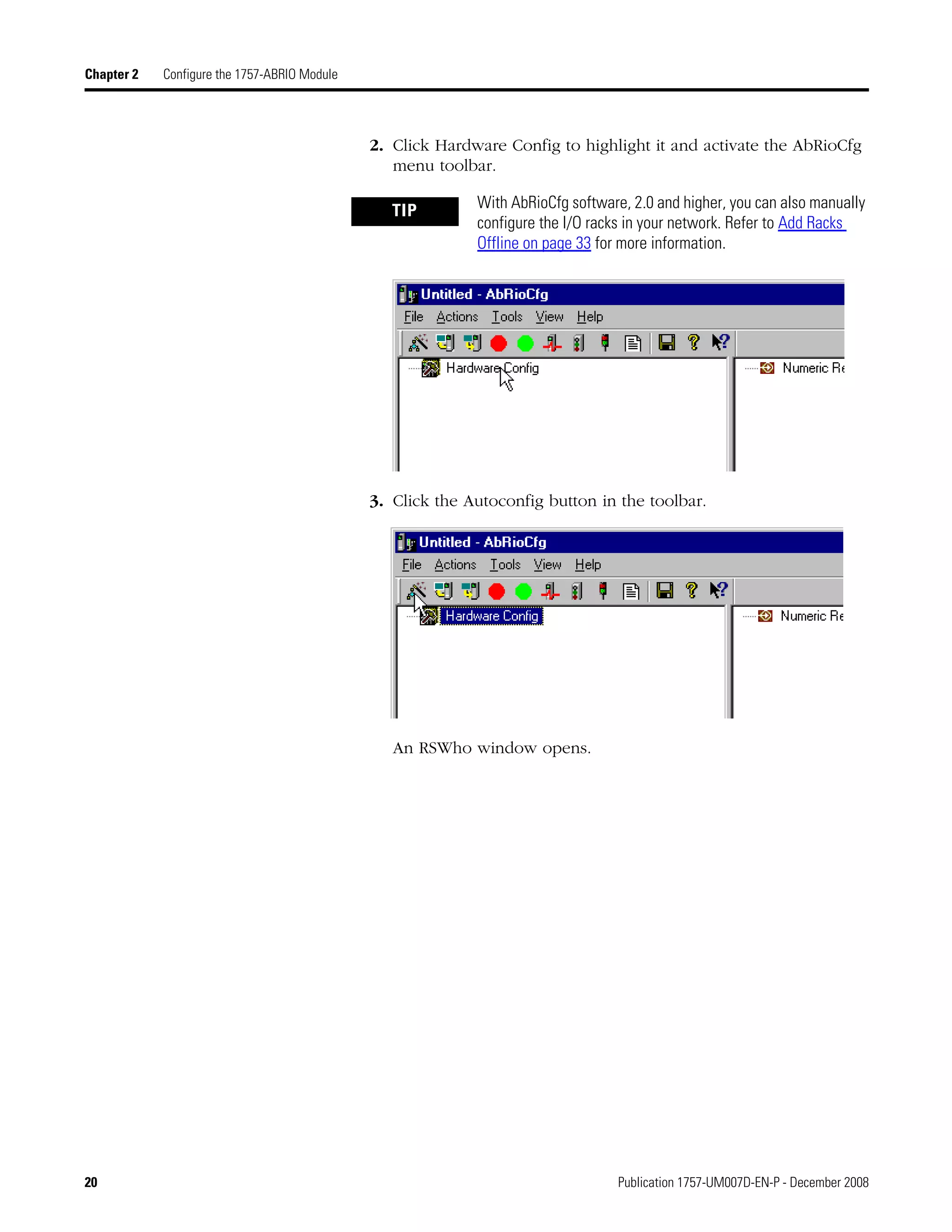

Autoconfigure the I/O Racks . . . . . . . . . . . . . . . . . . . . . . . . 19

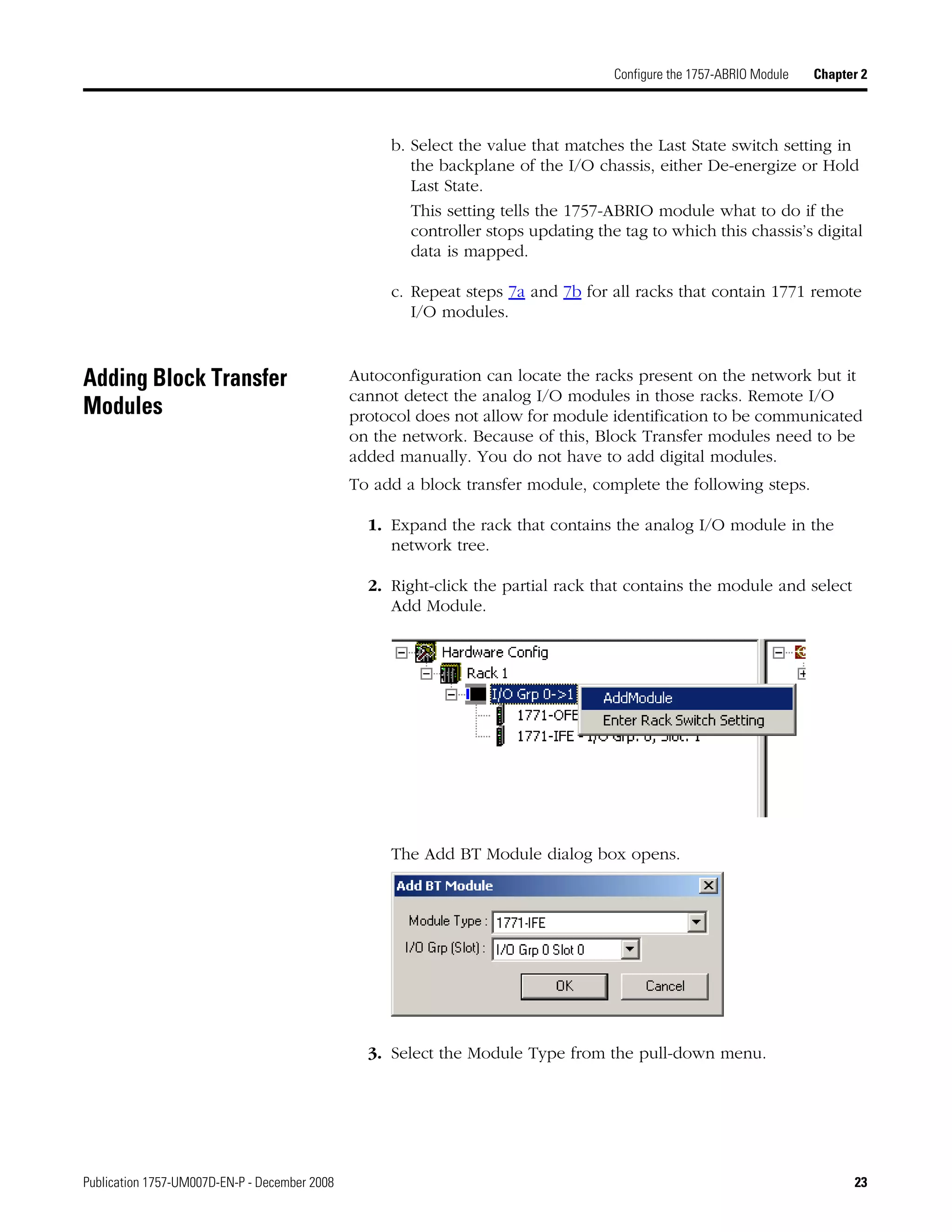

Adding Block Transfer Modules. . . . . . . . . . . . . . . . . . . . . . 23

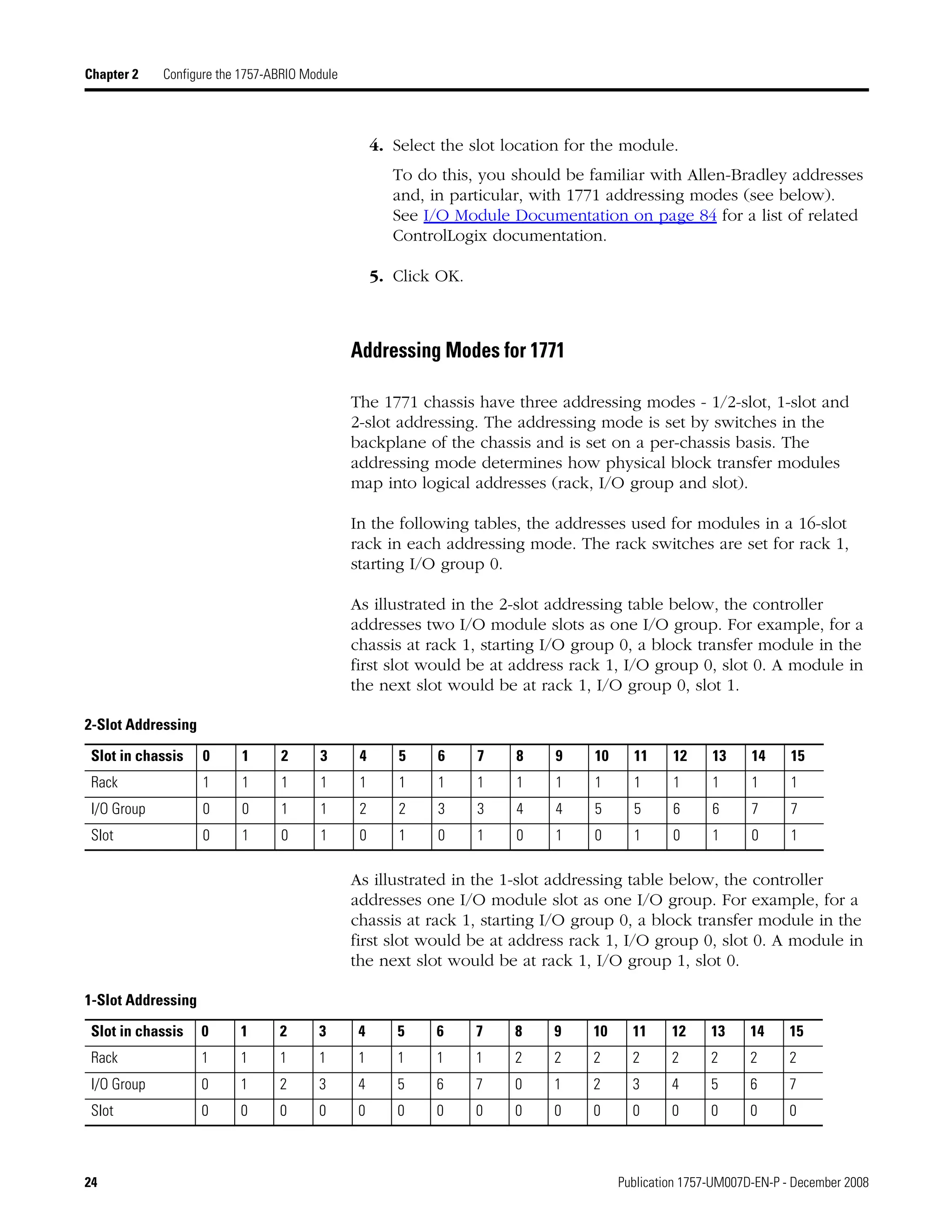

Addressing Modes for 1771 . . . . . . . . . . . . . . . . . . . . . . 24
Configuring Block Transfer Modules . . . . . . . . . . . . . . . . . . 25
Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Input Scaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

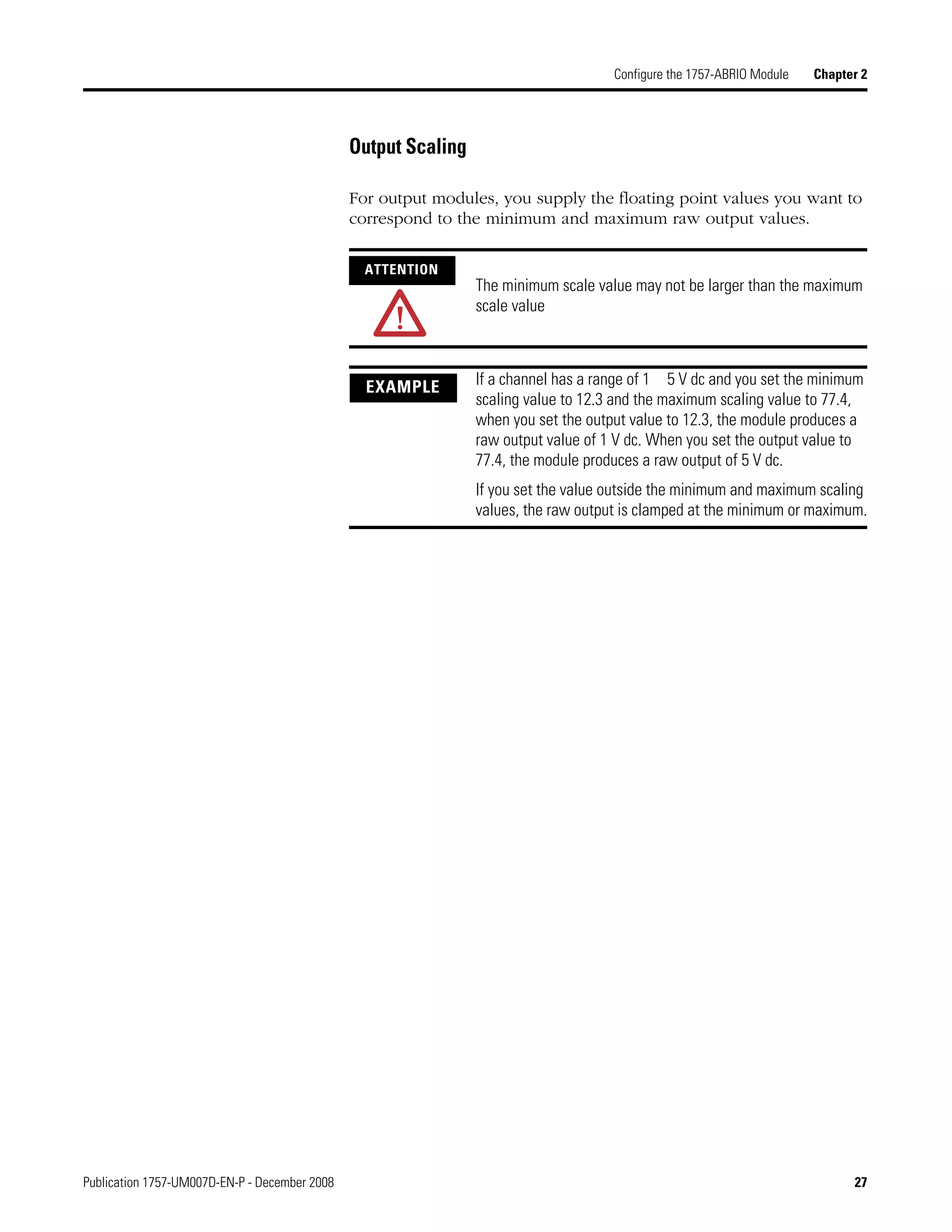

Output Scaling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Tags Defined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

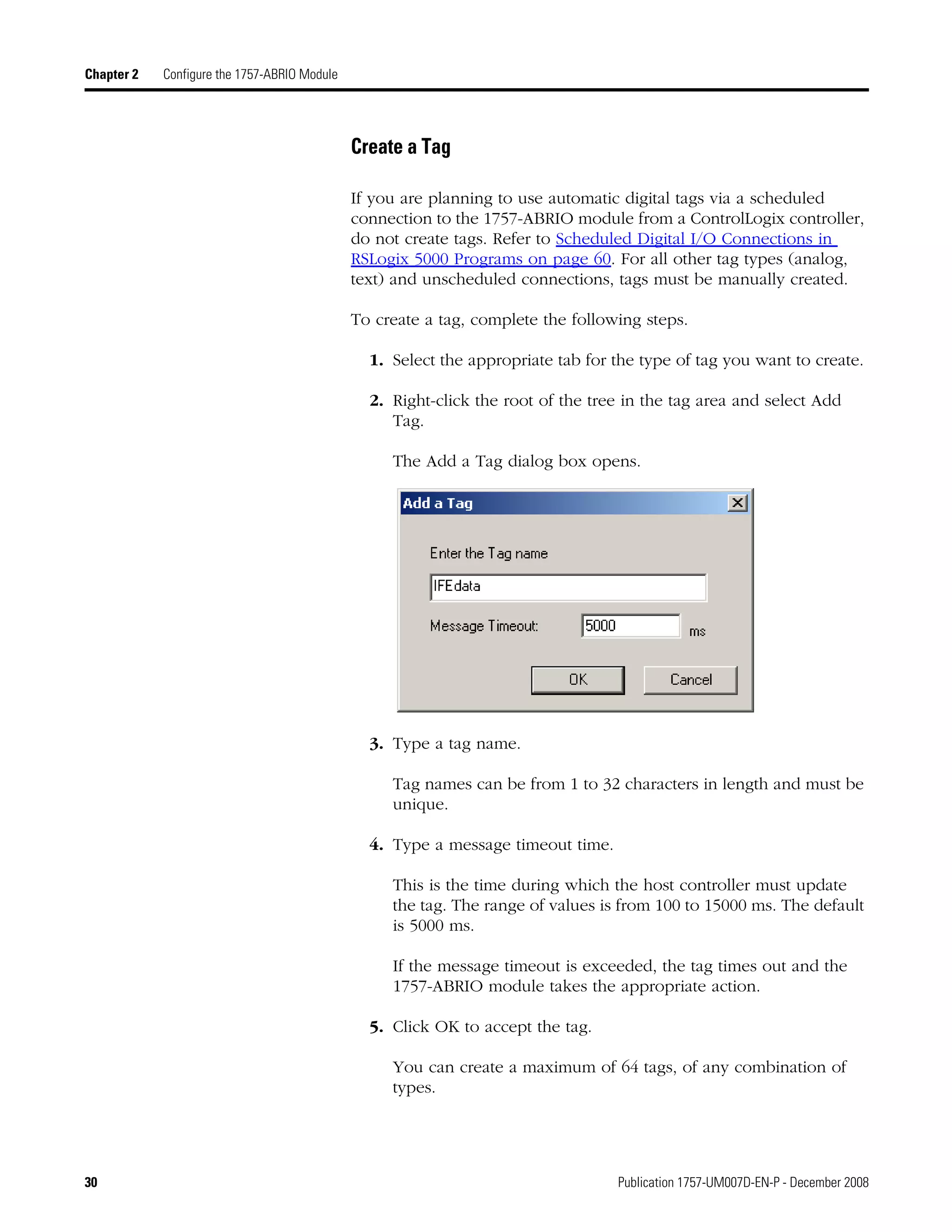

Create a Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

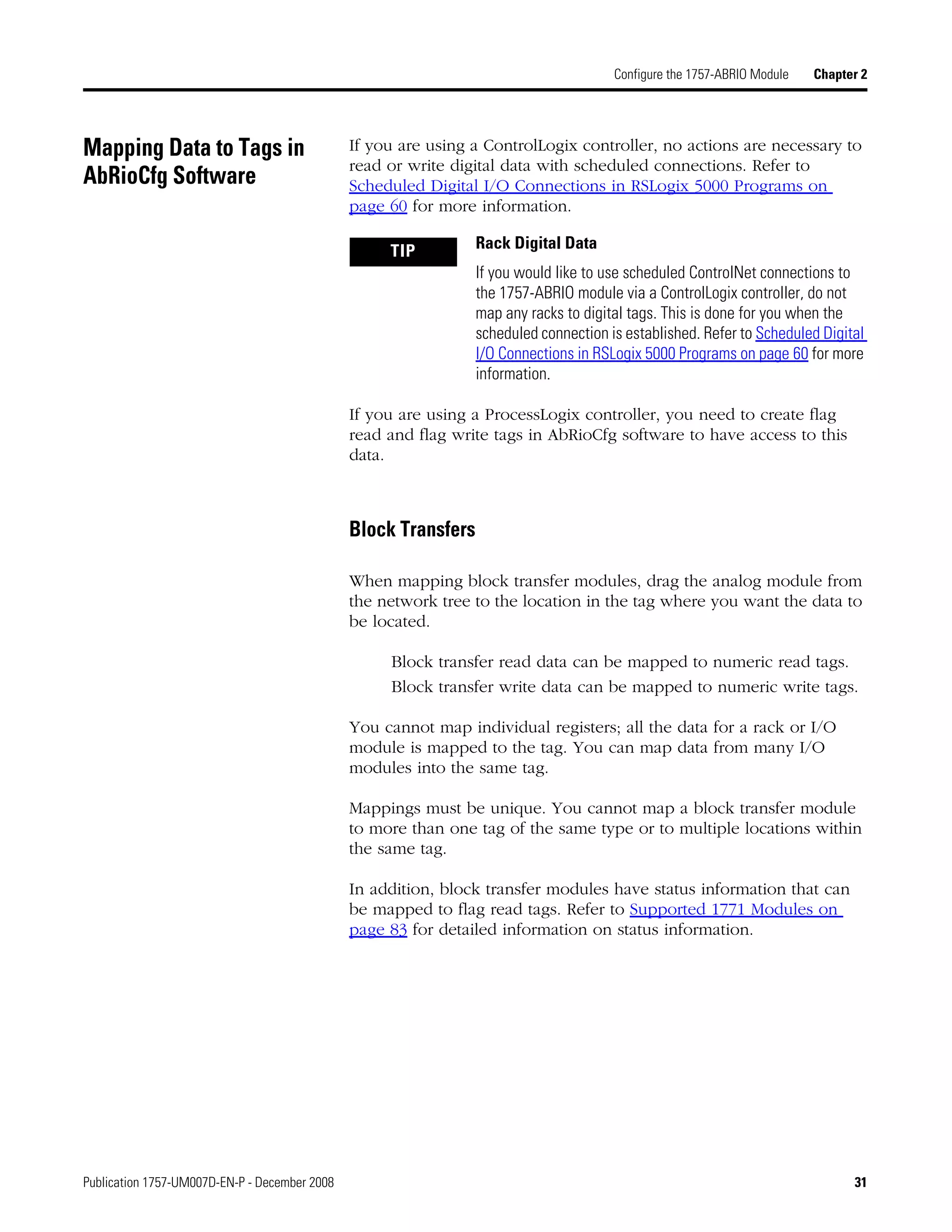

Mapping Data to Tags in AbRioCfg Software . . . . . . . . . . . . 31
Block Transfers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Deleting Mapped Data . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Tips for Configuring Modules . . . . . . . . . . . . . . . . . . . . . . . 32
Add Racks Offline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Delete Racks Offline . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Change the Baud Rate Offline . . . . . . . . . . . . . . . . . . . . 35
Download the Configuration . . . . . . . . . . . . . . . . . . . . . . . . 35

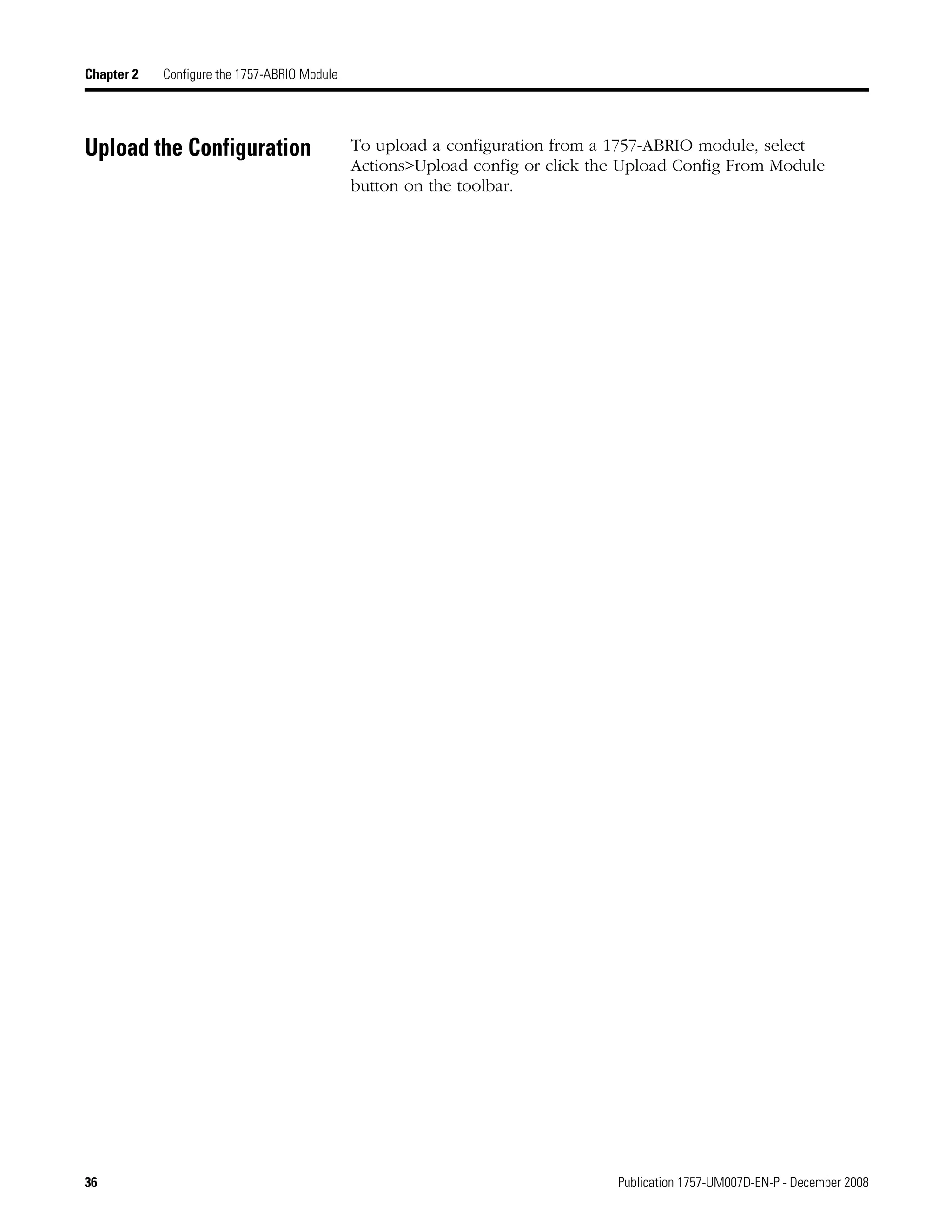

Upload the Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 36

4 Publication 1757-UM007D-EN-P - December 2008

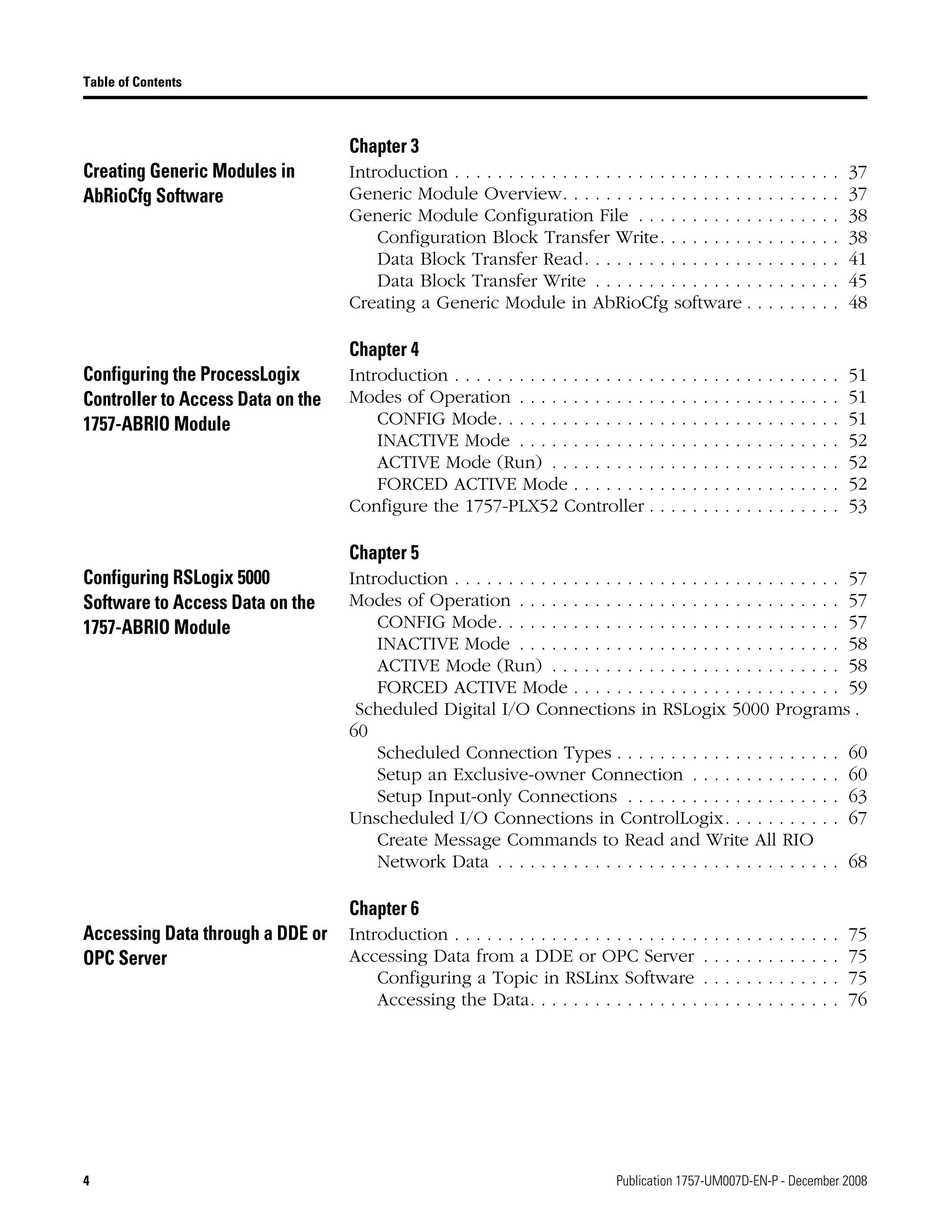

Table of Contents
Chapter 3
Creating Generic Modules in
AbRioCfg Software
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Generic Module Overview. . . . . . . . . . . . . . . . . . . . . . . . . . 37

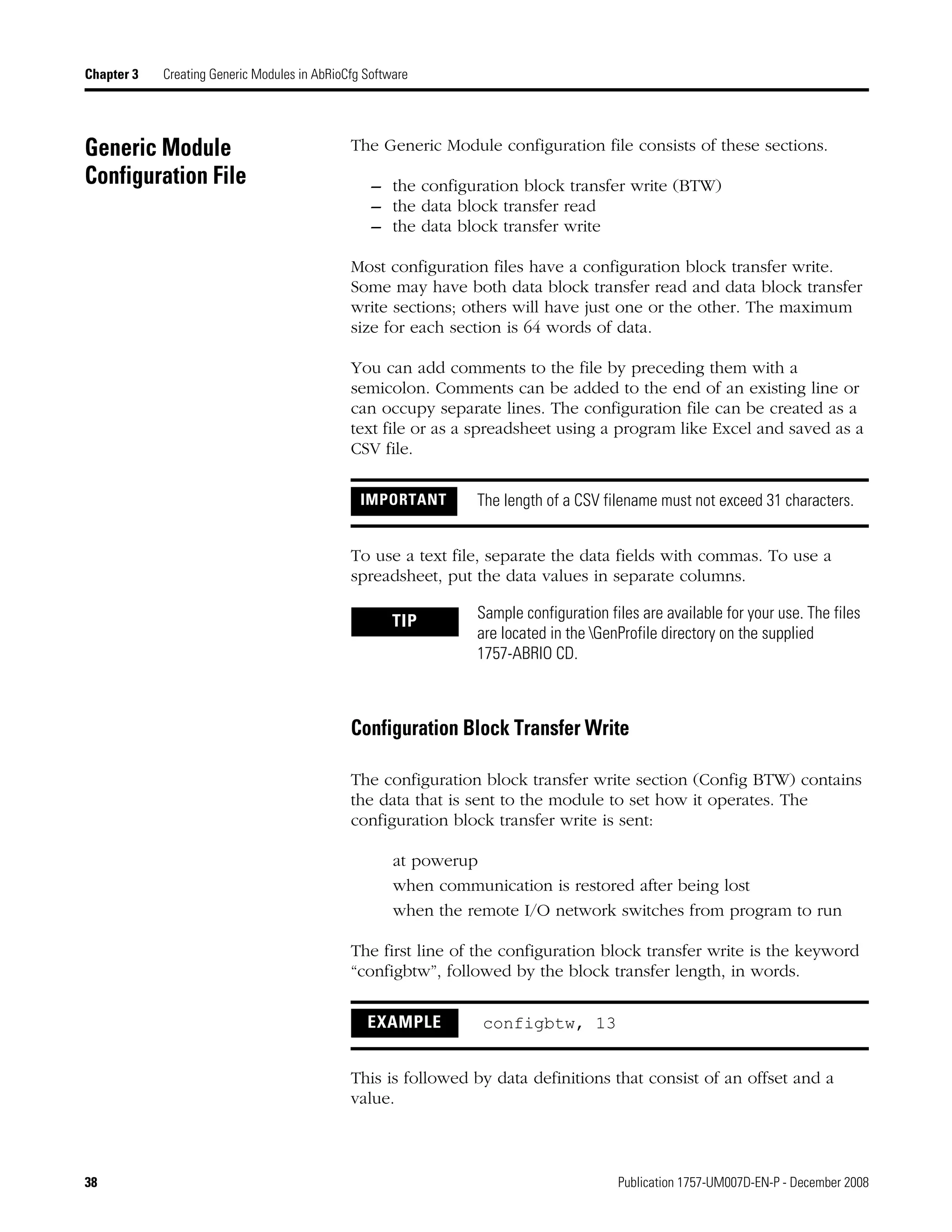

Generic Module Configuration File . . . . . . . . . . . . . . . . . . . 38
Configuration Block Transfer Write. . . . . . . . . . . . . . . . . 38
Data Block Transfer Read. . . . . . . . . . . . . . . . . . . . . . . . 41

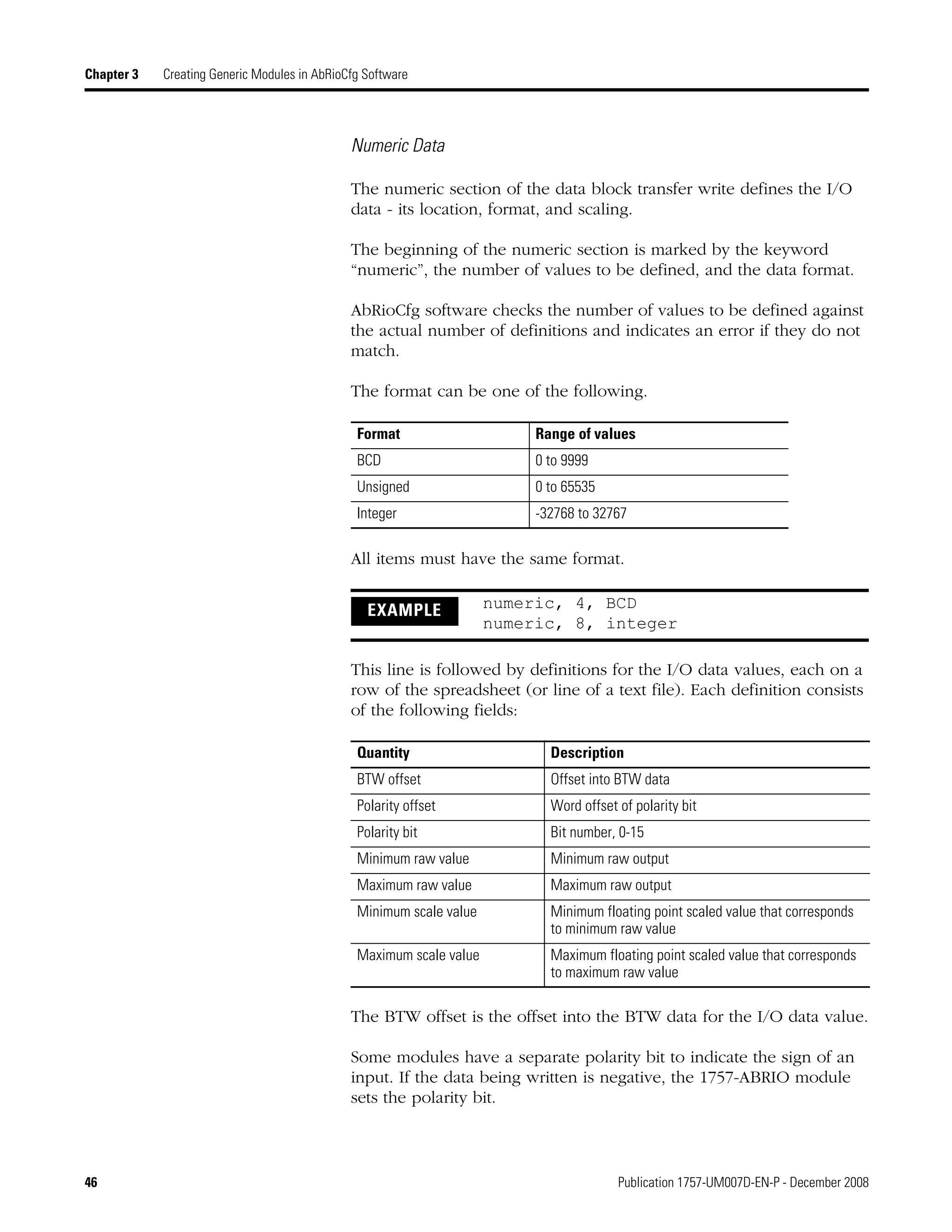

Data Block Transfer Write . . . . . . . . . . . . . . . . . . . . . . . 45

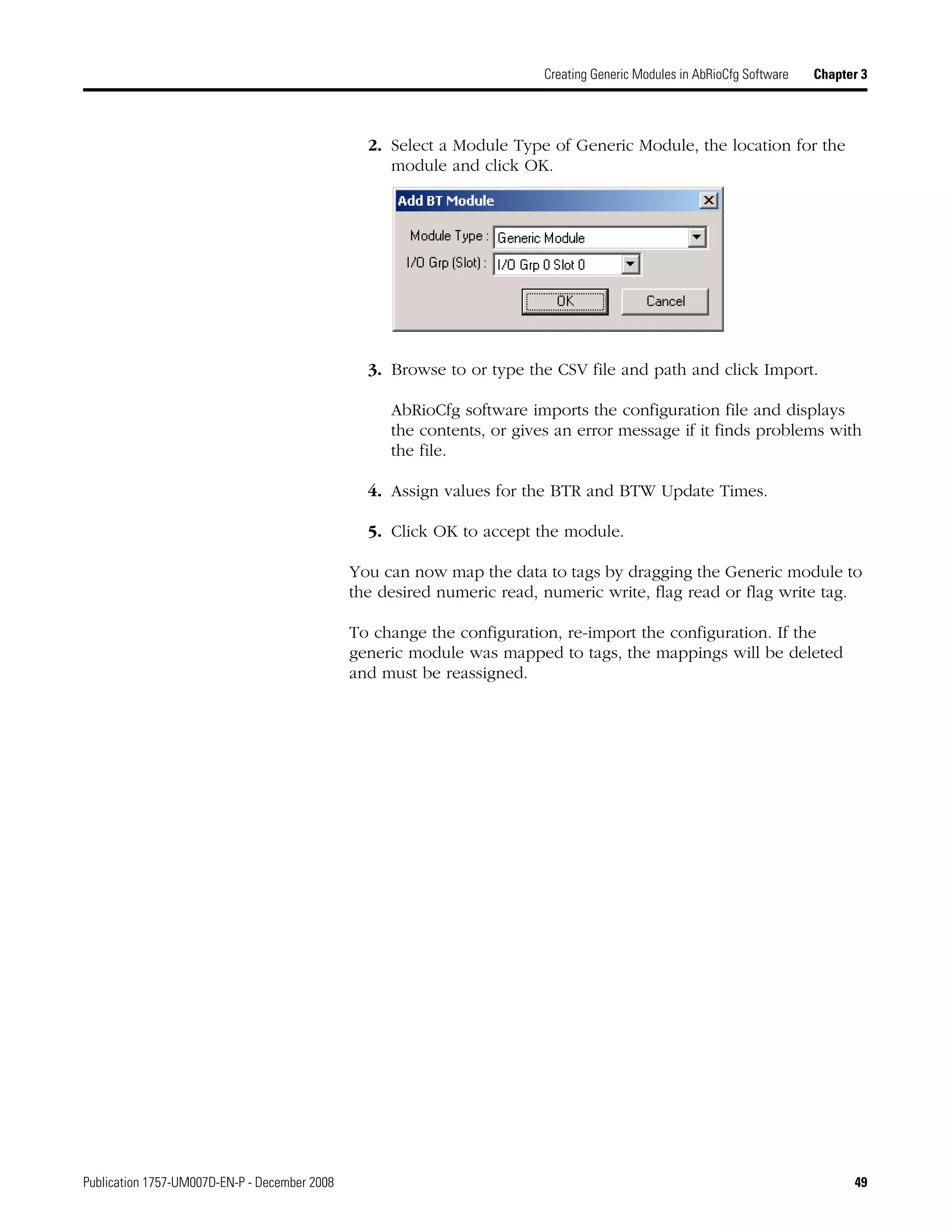

Creating a Generic Module in AbRioCfg software . . . . . . . . . 48
Chapter 4
Configuring the ProcessLogix
Controller to Access Data on the
1757-ABRIO Module
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
CONFIG Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
INACTIVE Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
ACTIVE Mode (Run) . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
FORCED ACTIVE Mode . . . . . . . . . . . . . . . . . . . . . . . . . 52

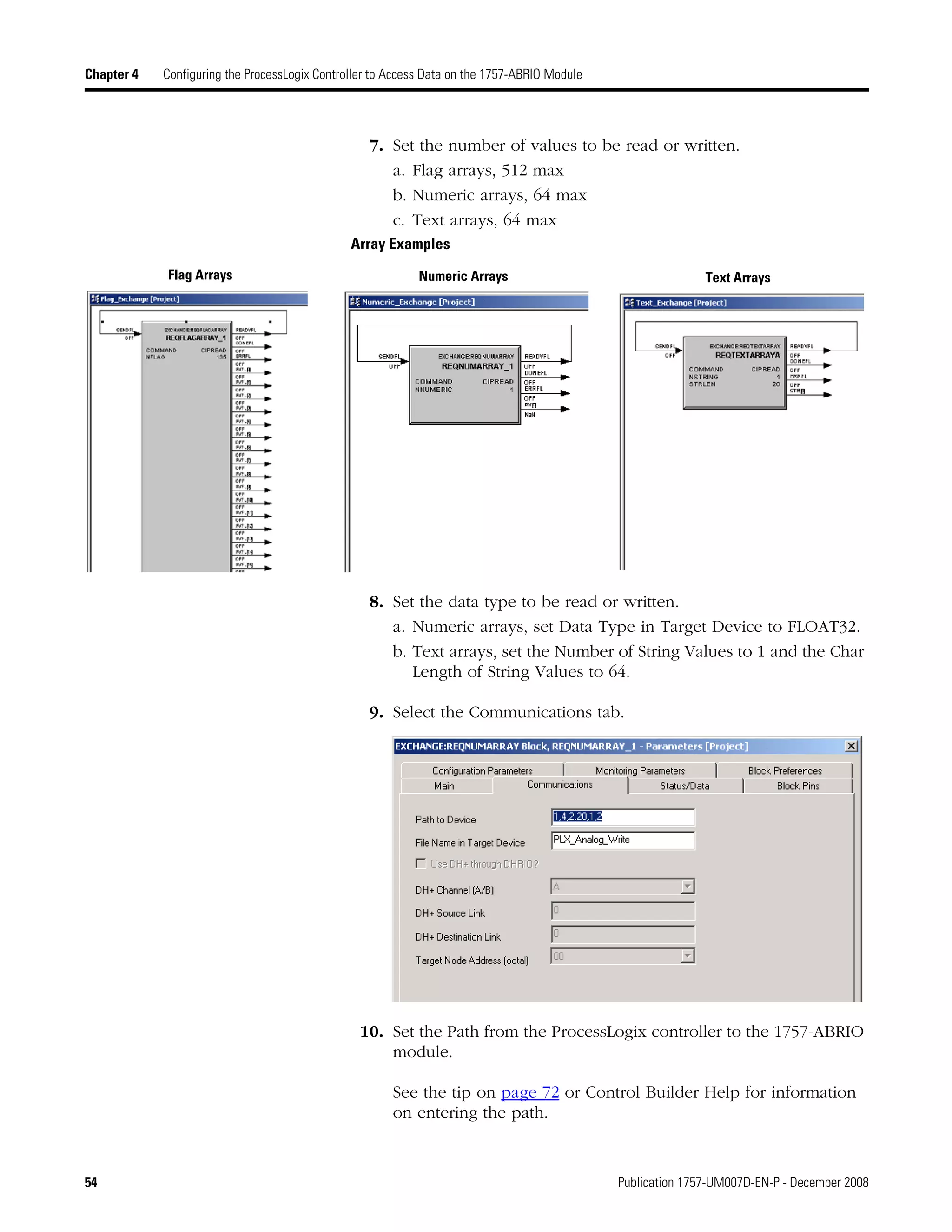

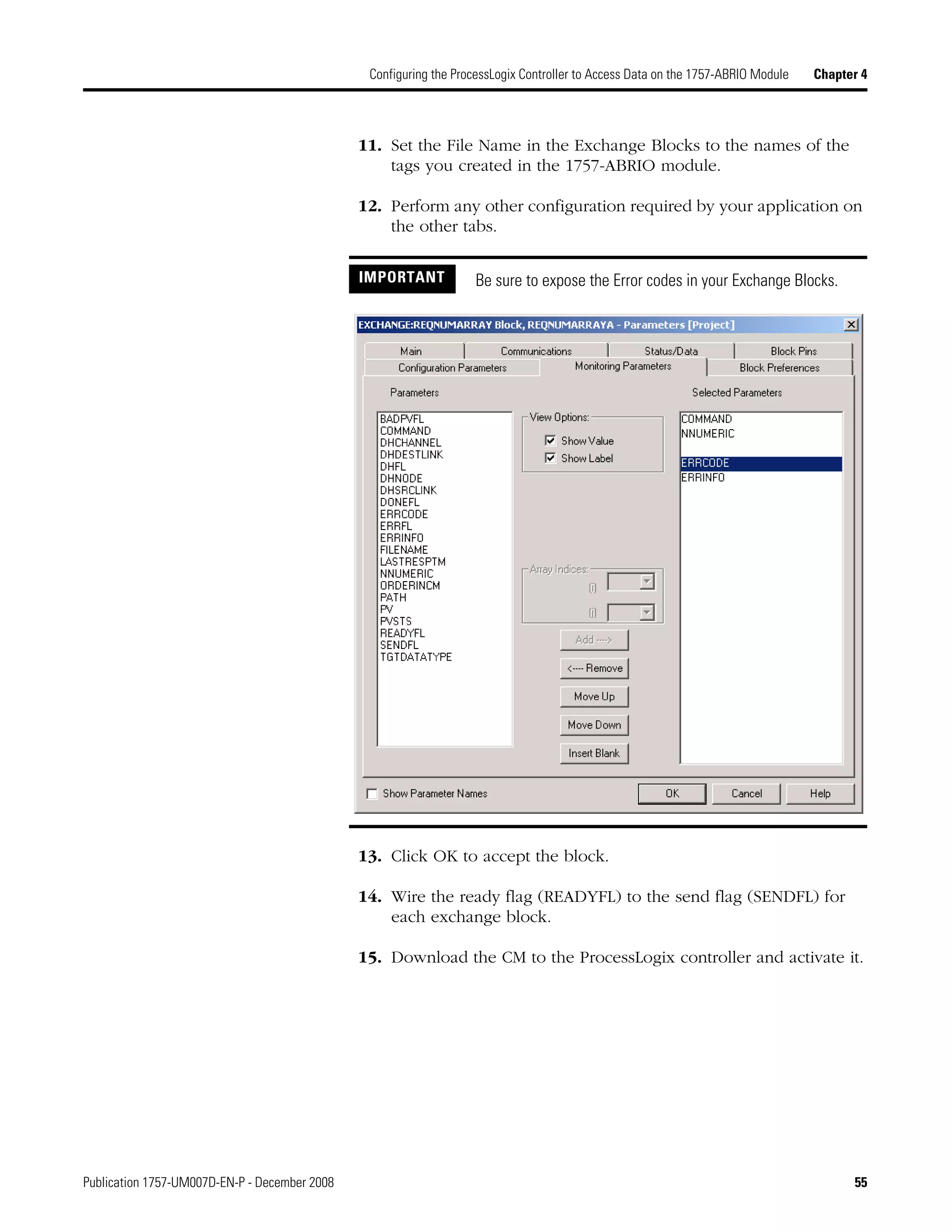

Configure the 1757-PLX52 Controller . . . . . . . . . . . . . . . . . . 53
Chapter 5
Configuring RSLogix 5000
Software to Access Data on the
1757-ABRIO Module
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
CONFIG Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
INACTIVE Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
ACTIVE Mode (Run) . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
FORCED ACTIVE Mode . . . . . . . . . . . . . . . . . . . . . . . . . 59

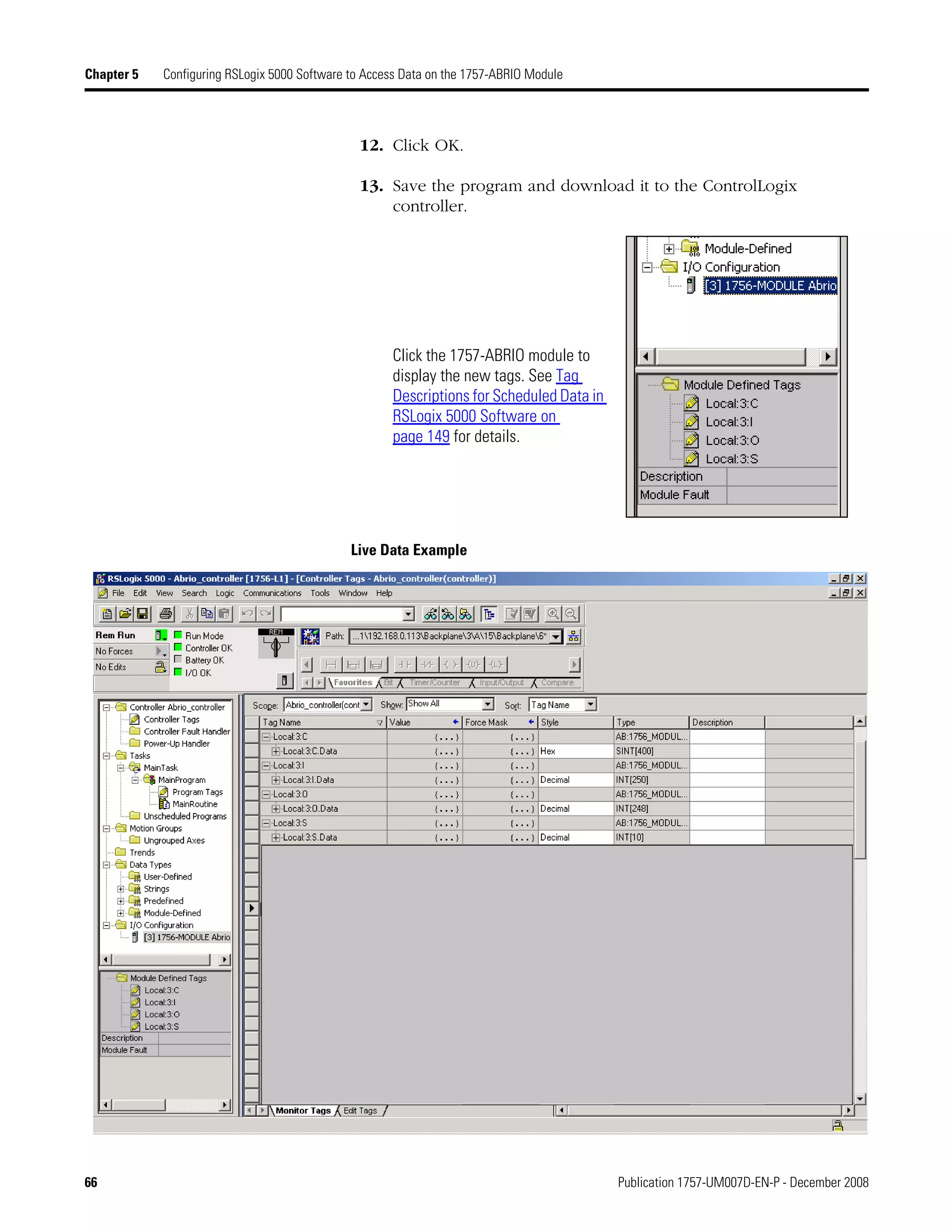

Scheduled Digital I/O Connections in RSLogix 5000 Programs .
60
Scheduled Connection Types . . . . . . . . . . . . . . . . . . . . . 60

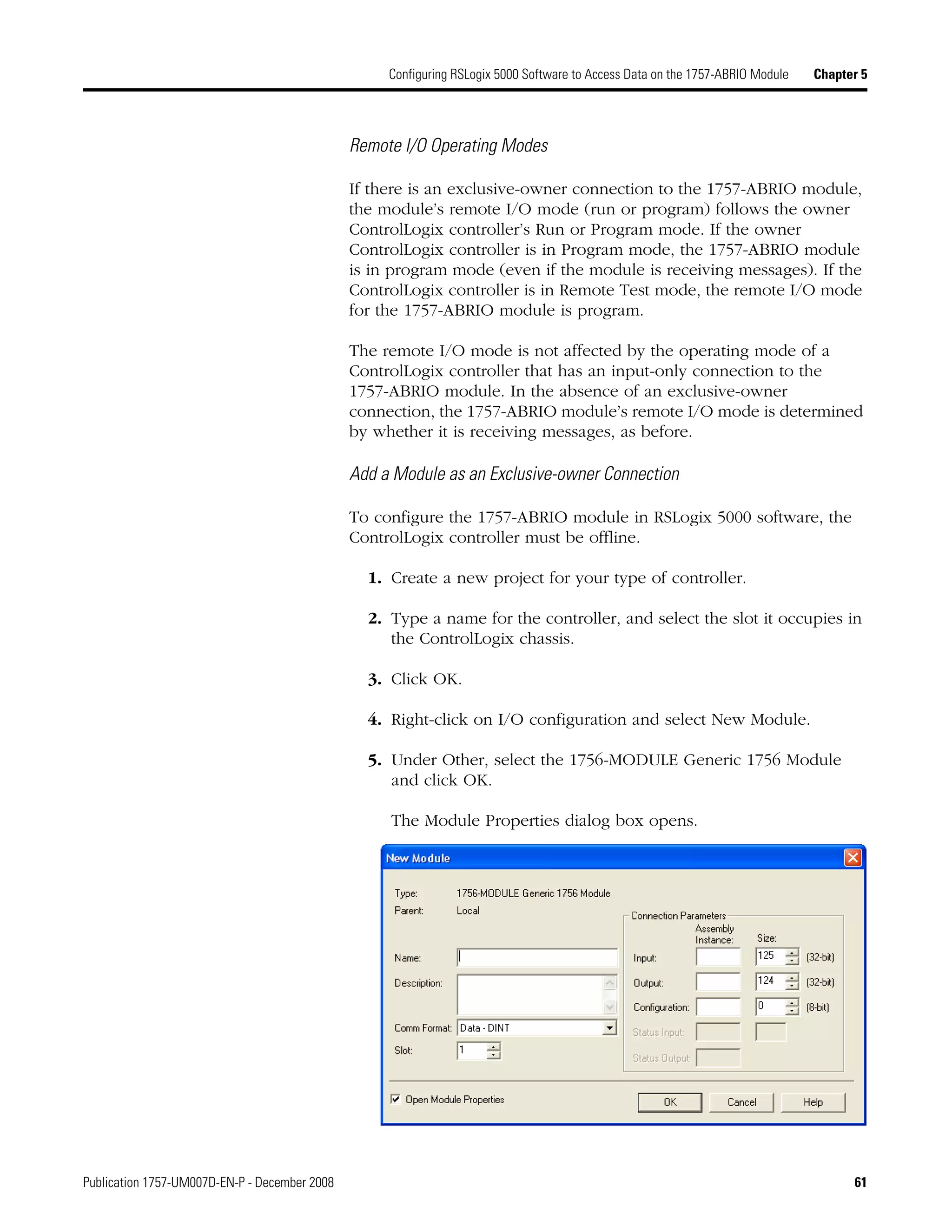

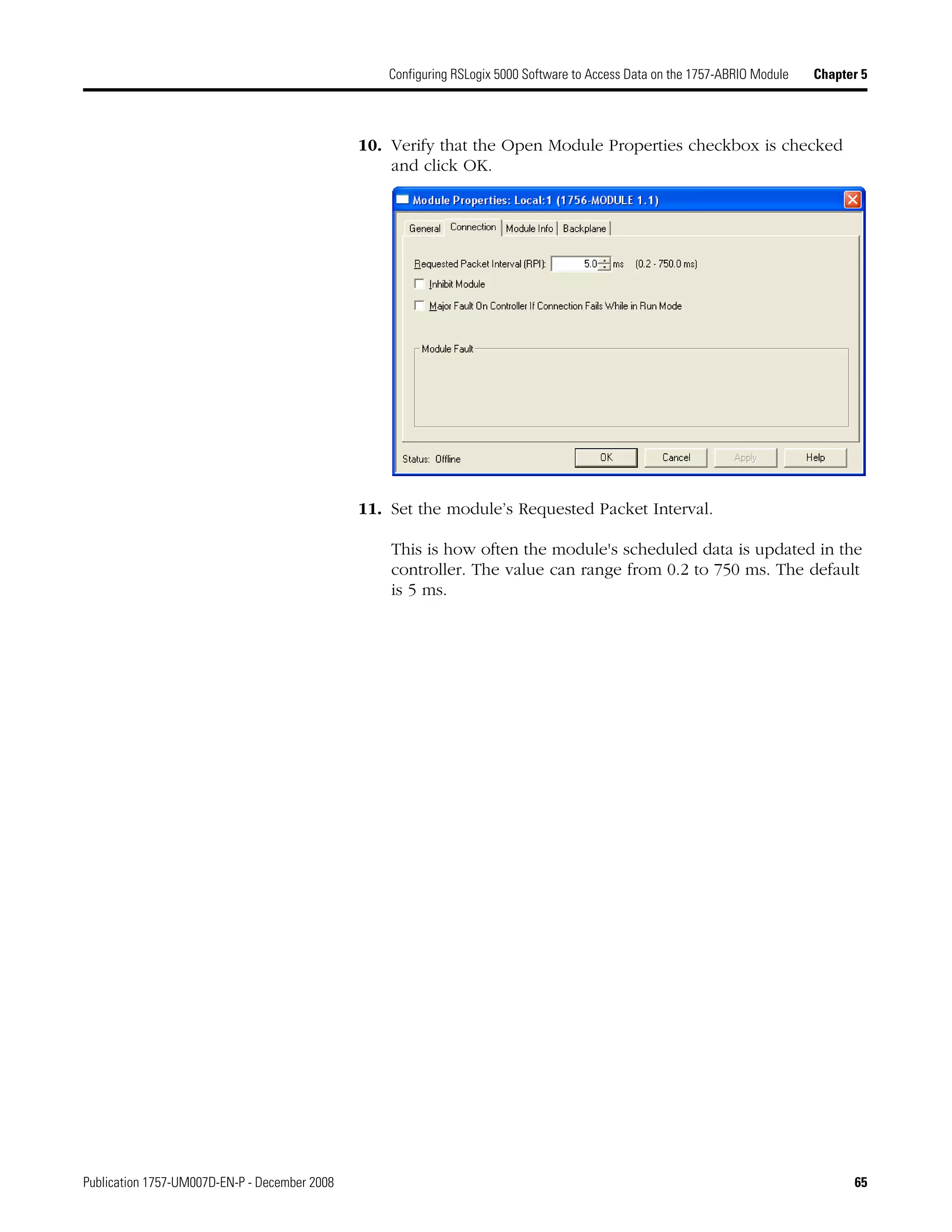

Setup an Exclusive-owner Connection . . . . . . . . . . . . . . 60
Setup Input-only Connections . . . . . . . . . . . . . . . . . . . . 63

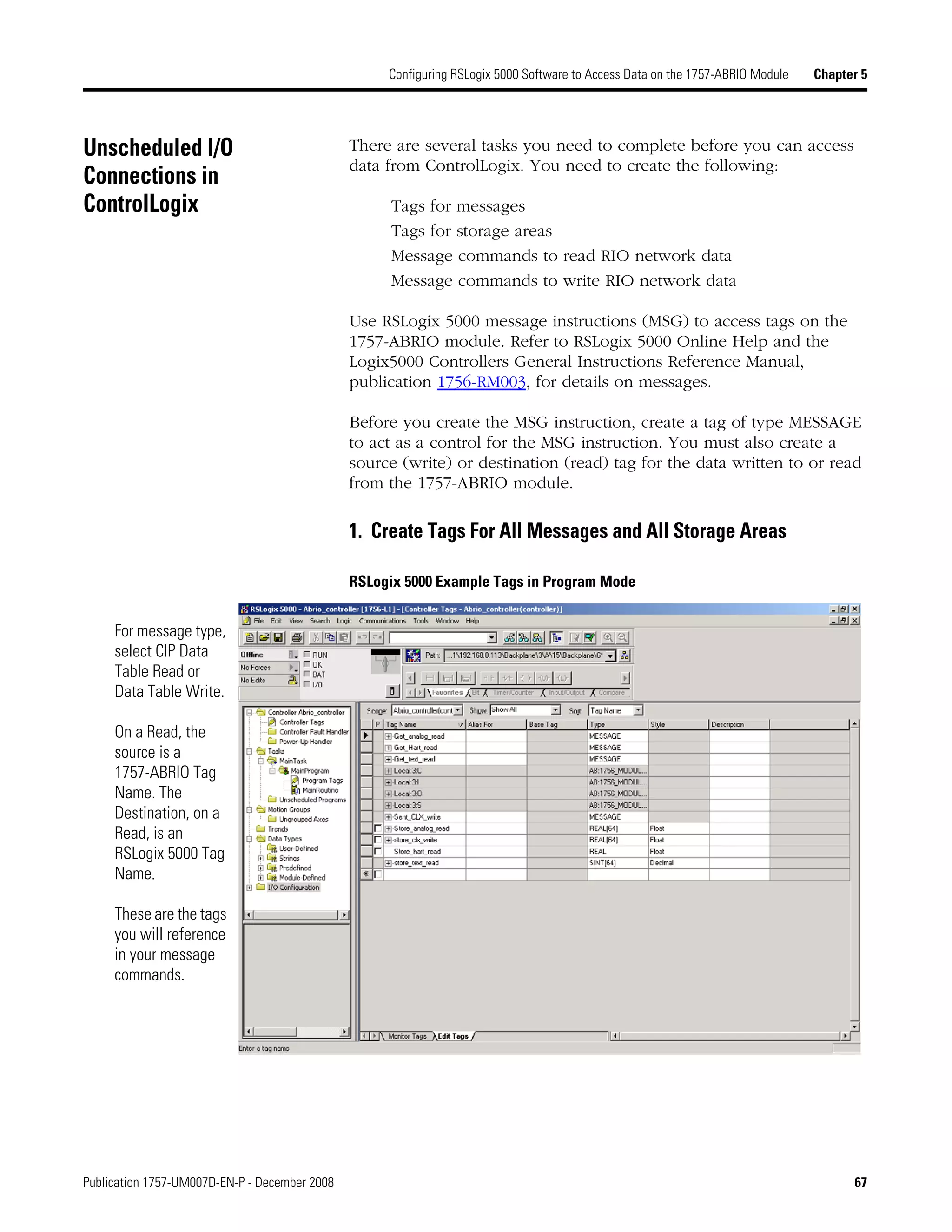

Unscheduled I/O Connections in ControlLogix. . . . . . . . . . . 67

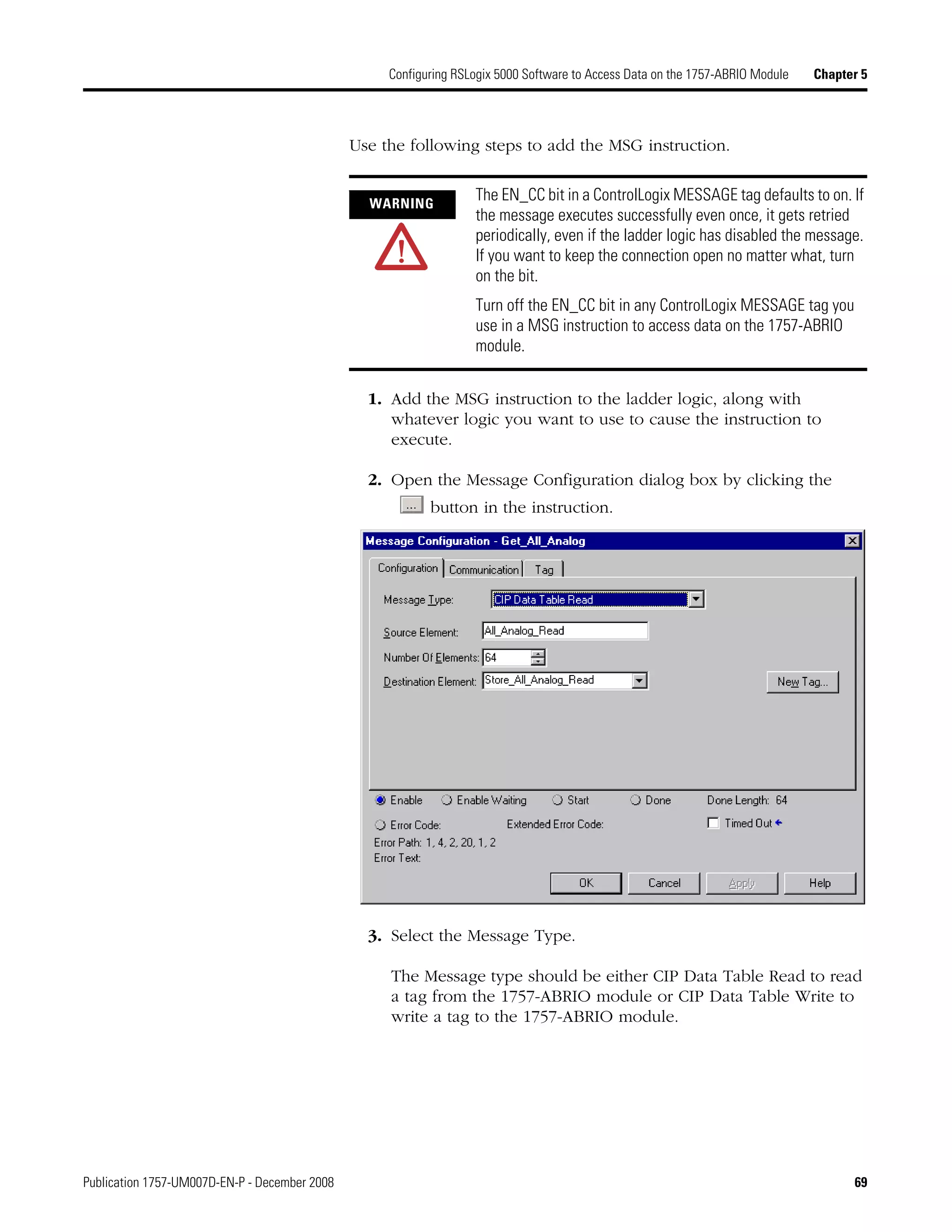

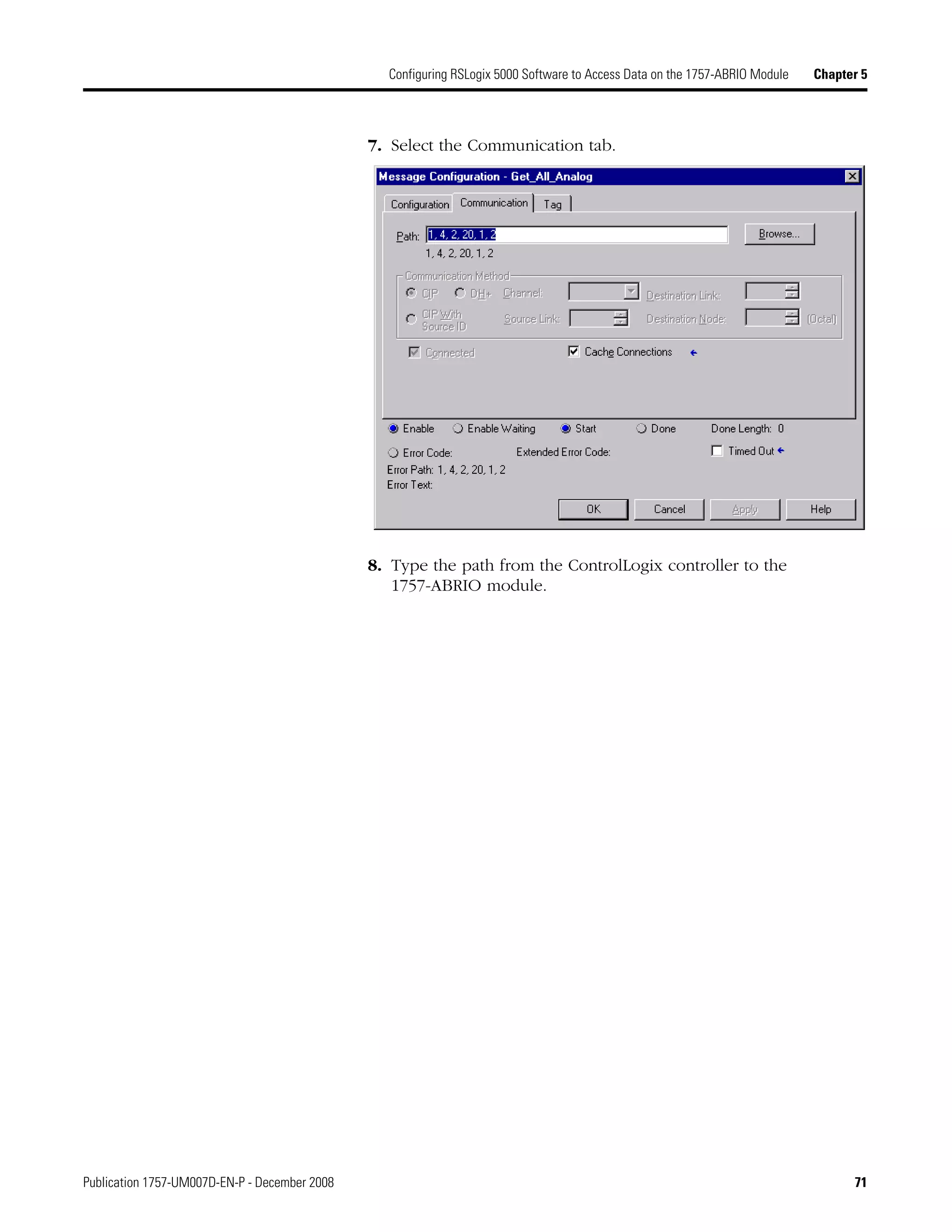

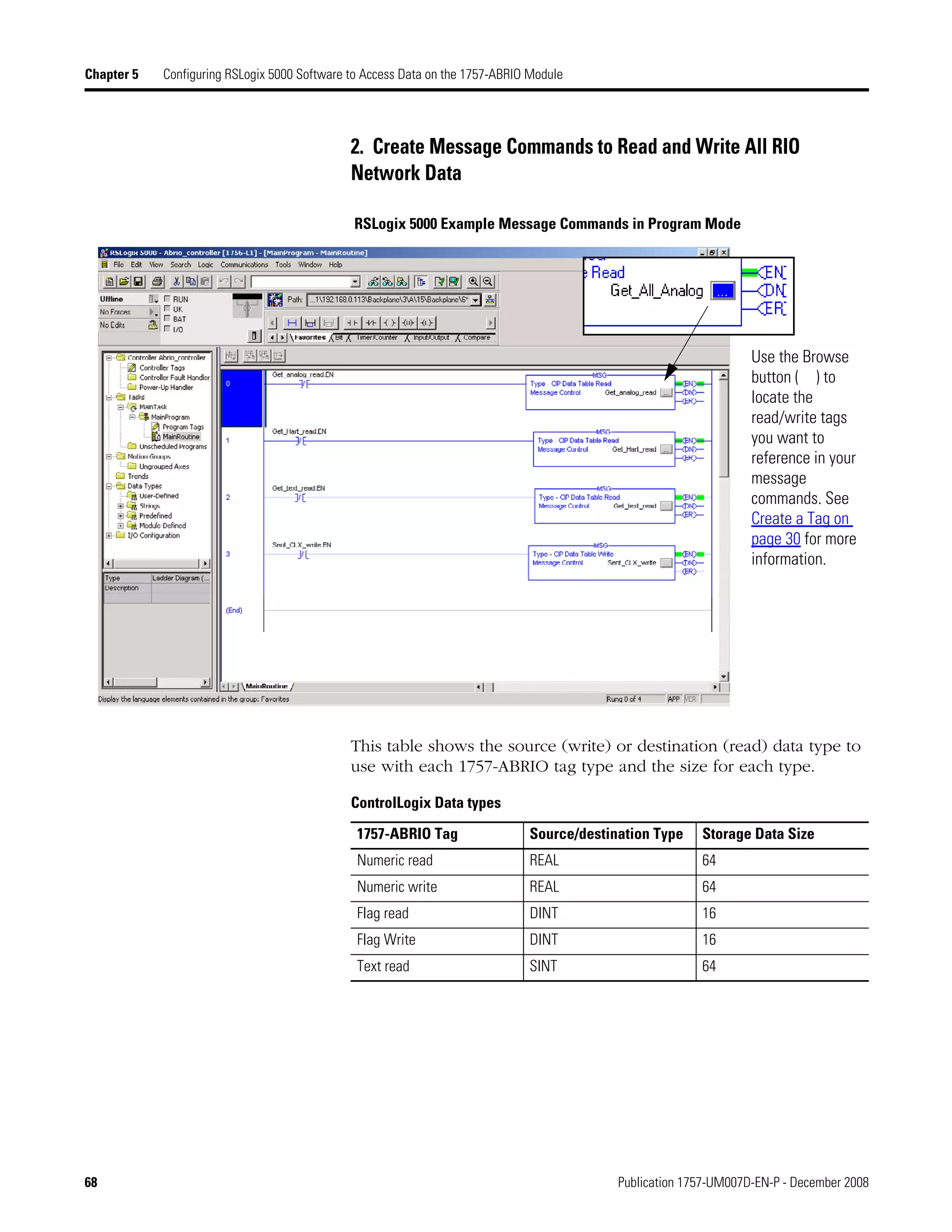

Create Message Commands to Read and Write All RIO
Network Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Chapter 6
Accessing Data through a DDE or
OPC Server
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

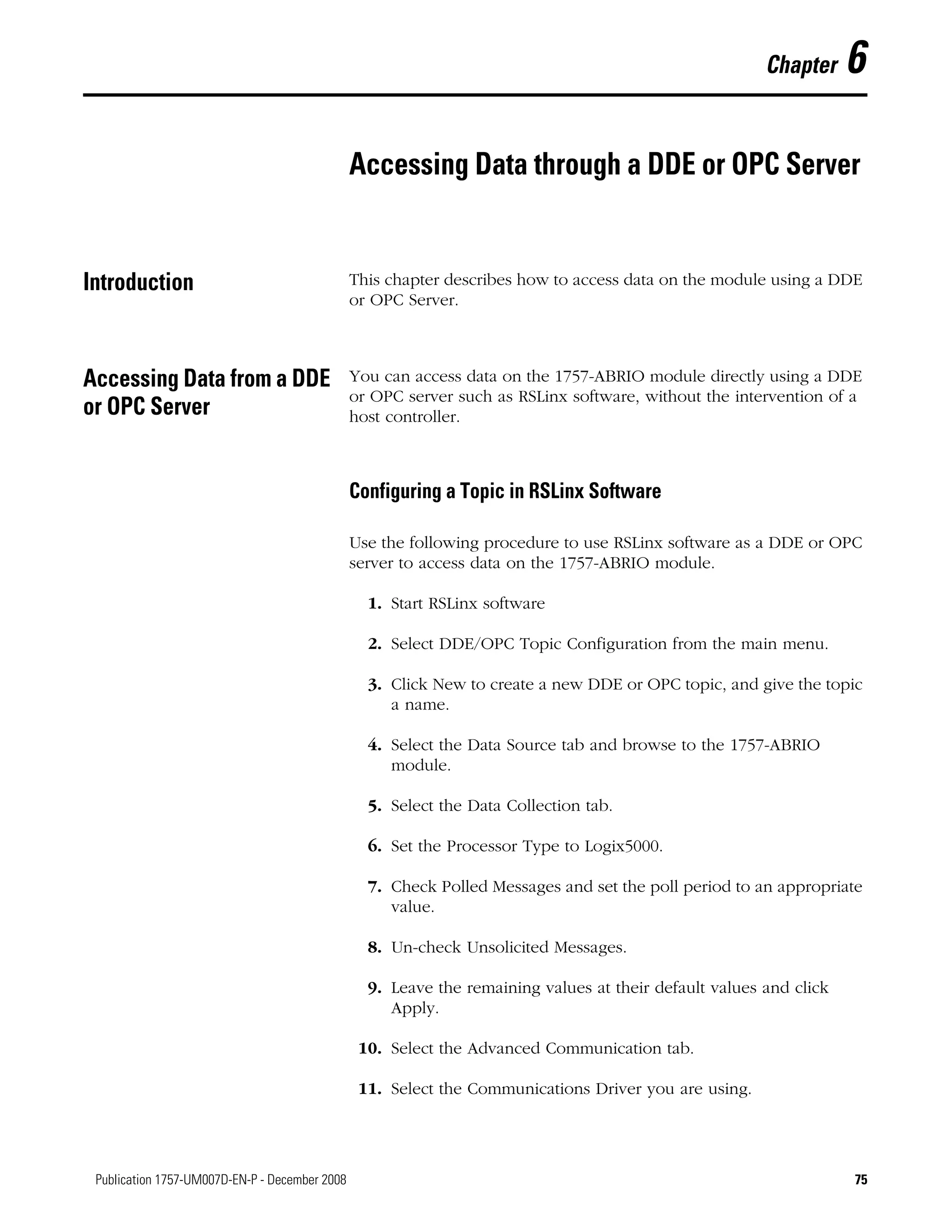

Accessing Data from a DDE or OPC Server . . . . . . . . . . . . . 75
Configuring a Topic in RSLinx Software . . . . . . . . . . . . . 75
Accessing the Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Publication 1757-UM007D-EN-P - December 2008 5
Table of Contents

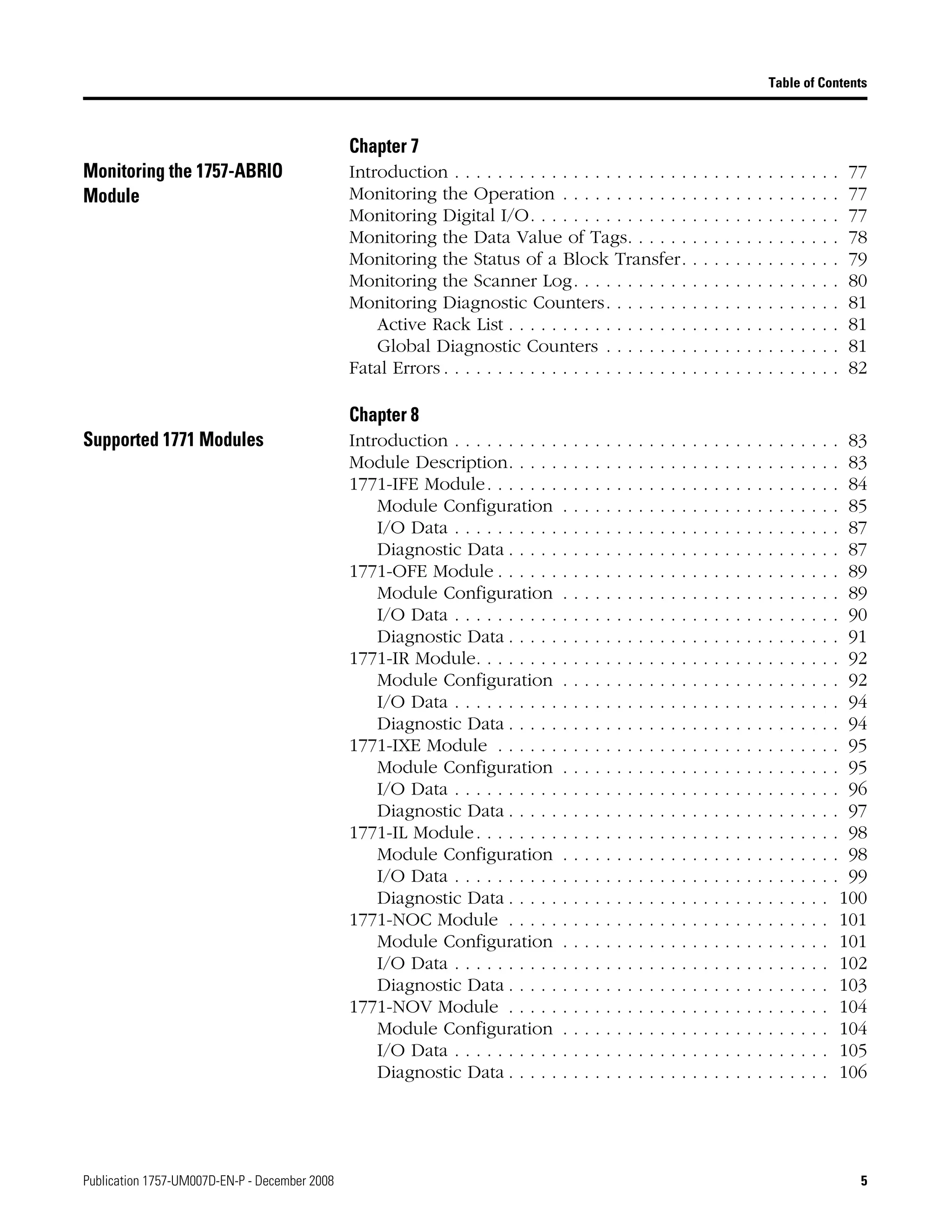

Chapter 7
Monitoring the 1757-ABRIO
Module
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Monitoring the Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Monitoring Digital I/O. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Monitoring the Data Value of Tags. . . . . . . . . . . . . . . . . . . . 78
Monitoring the Status of a Block Transfer. . . . . . . . . . . . . . . 79

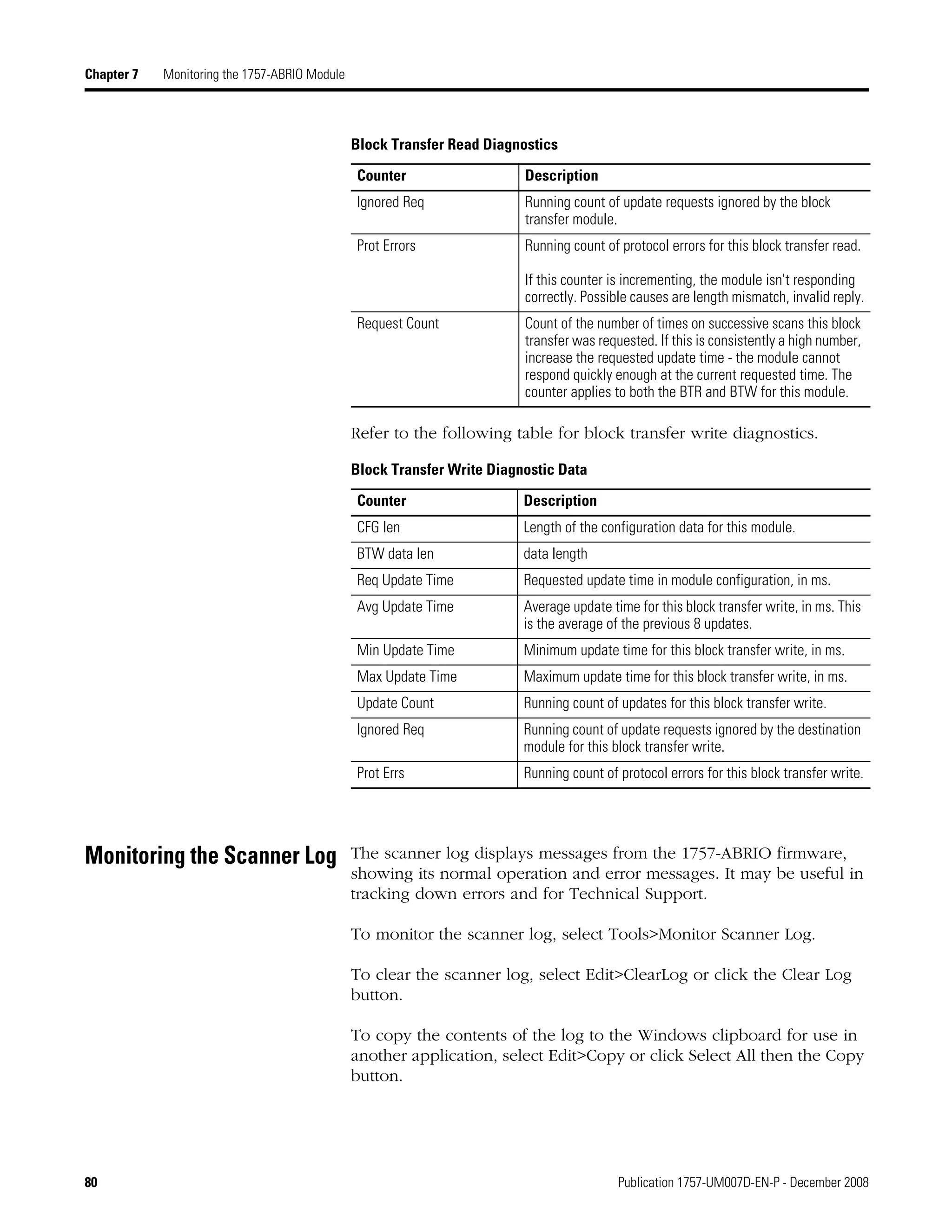

Monitoring the Scanner Log. . . . . . . . . . . . . . . . . . . . . . . . . 80

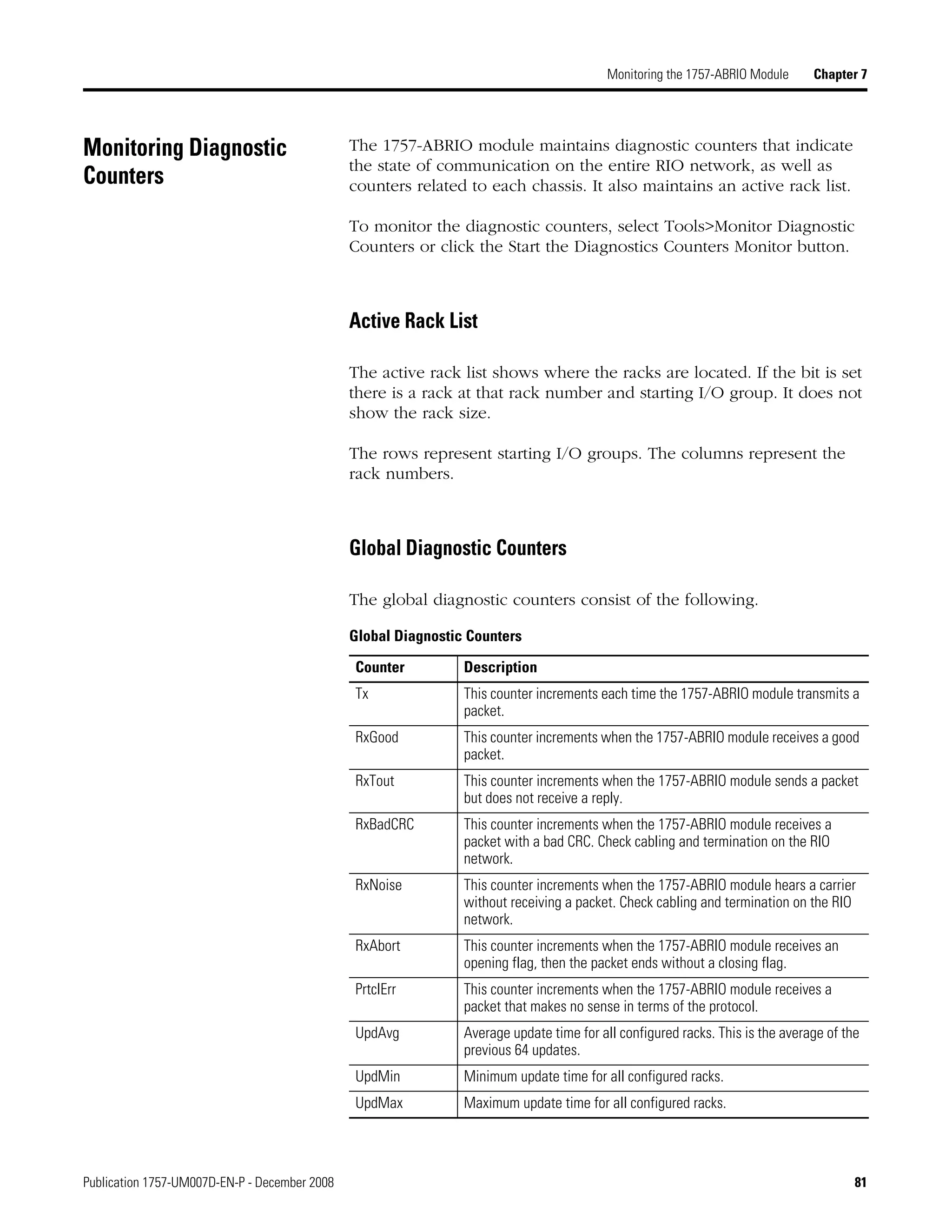

Monitoring Diagnostic Counters. . . . . . . . . . . . . . . . . . . . . . 81
Active Rack List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Global Diagnostic Counters . . . . . . . . . . . . . . . . . . . . . . 81

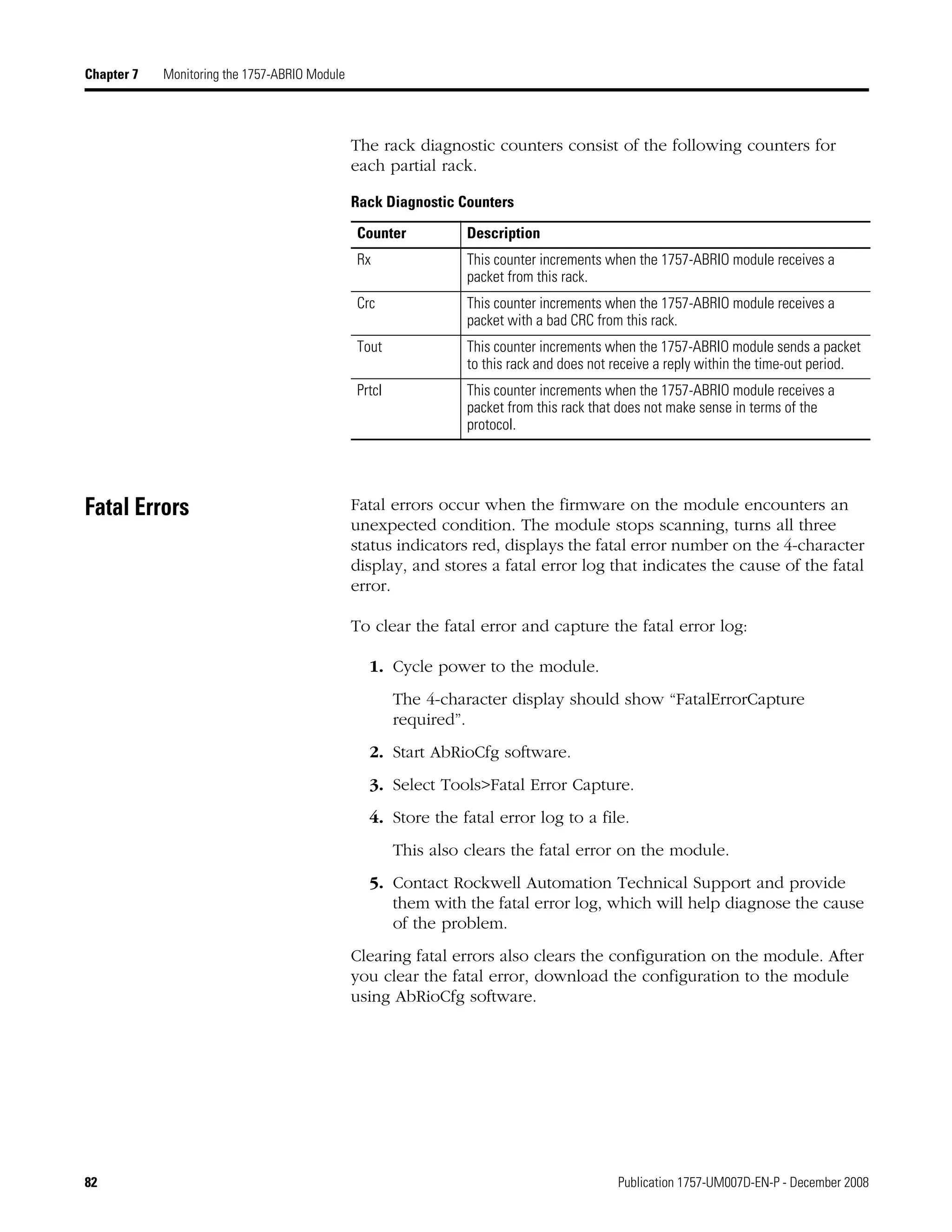

Fatal Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Chapter 8

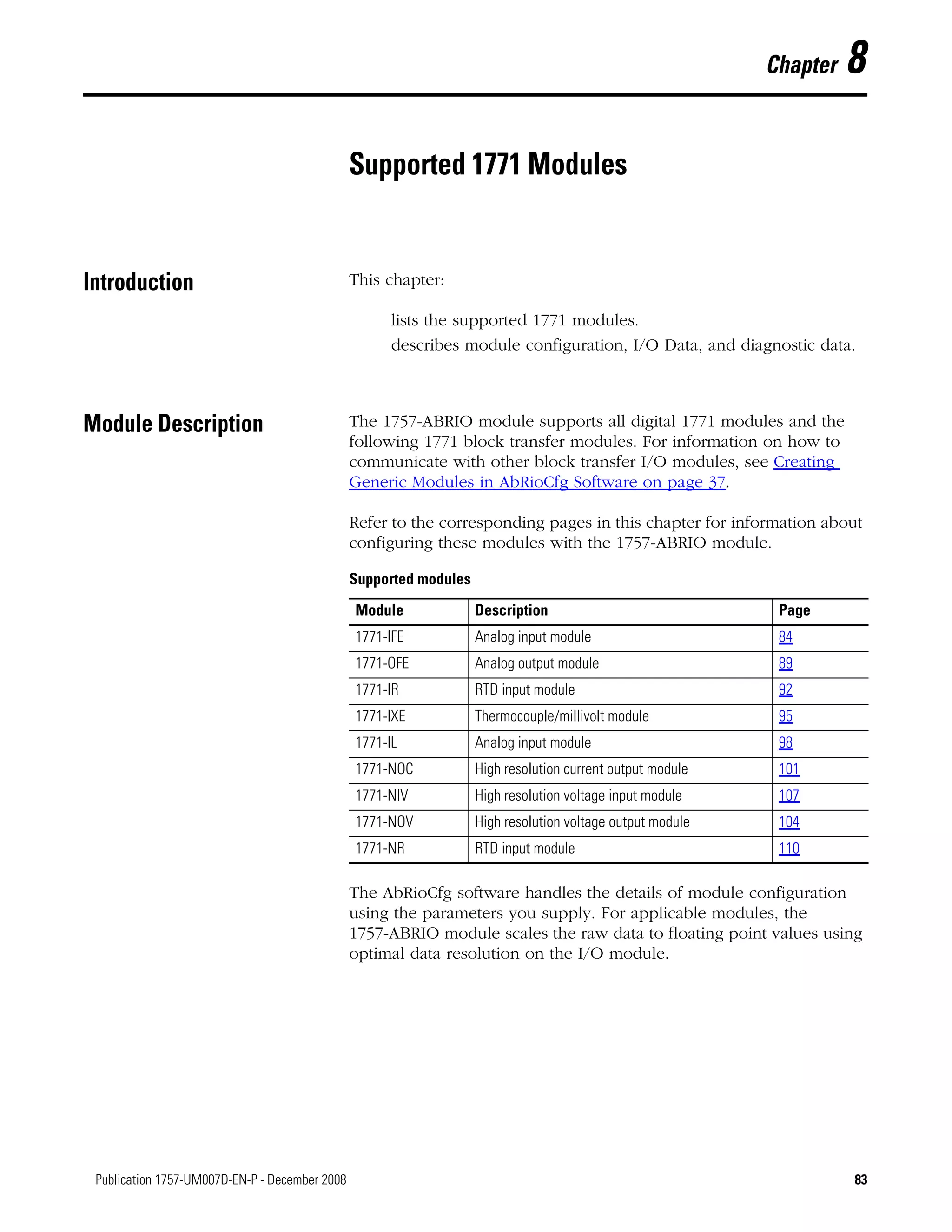

Supported 1771 Modules Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Module Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
1771-IFE Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 85

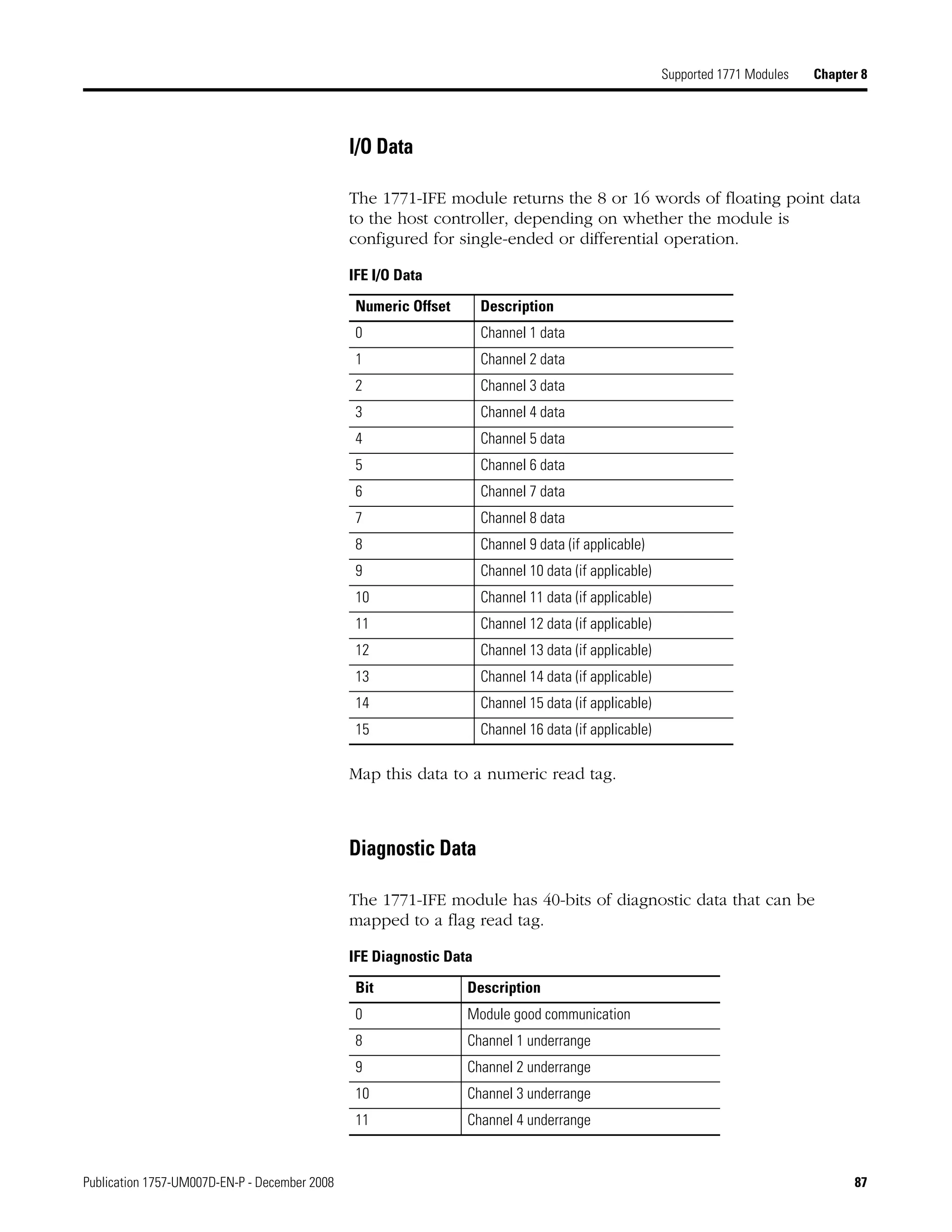

I/O Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Diagnostic Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
1771-OFE Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
I/O Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Diagnostic Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
1771-IR Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
I/O Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Diagnostic Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

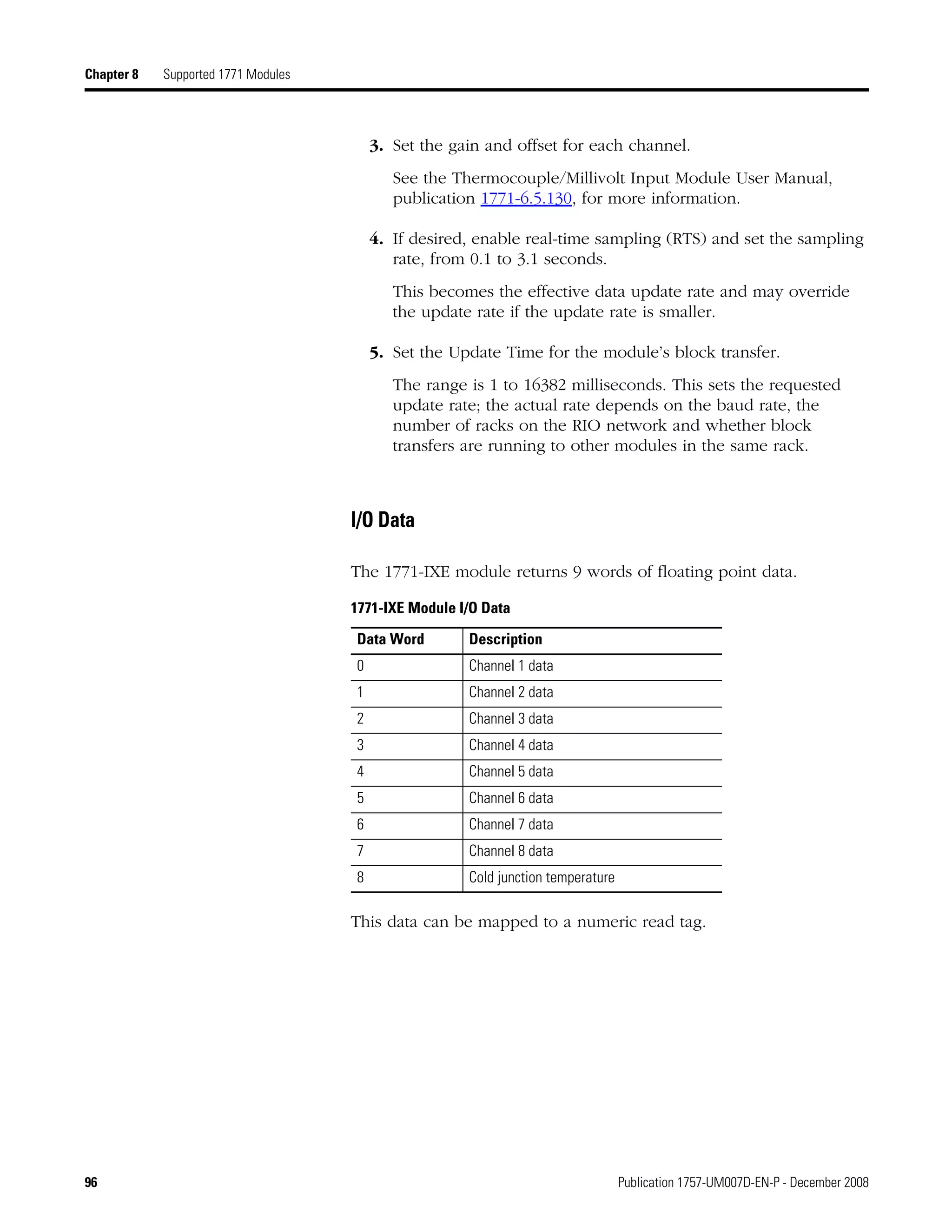

1771-IXE Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
I/O Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Diagnostic Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

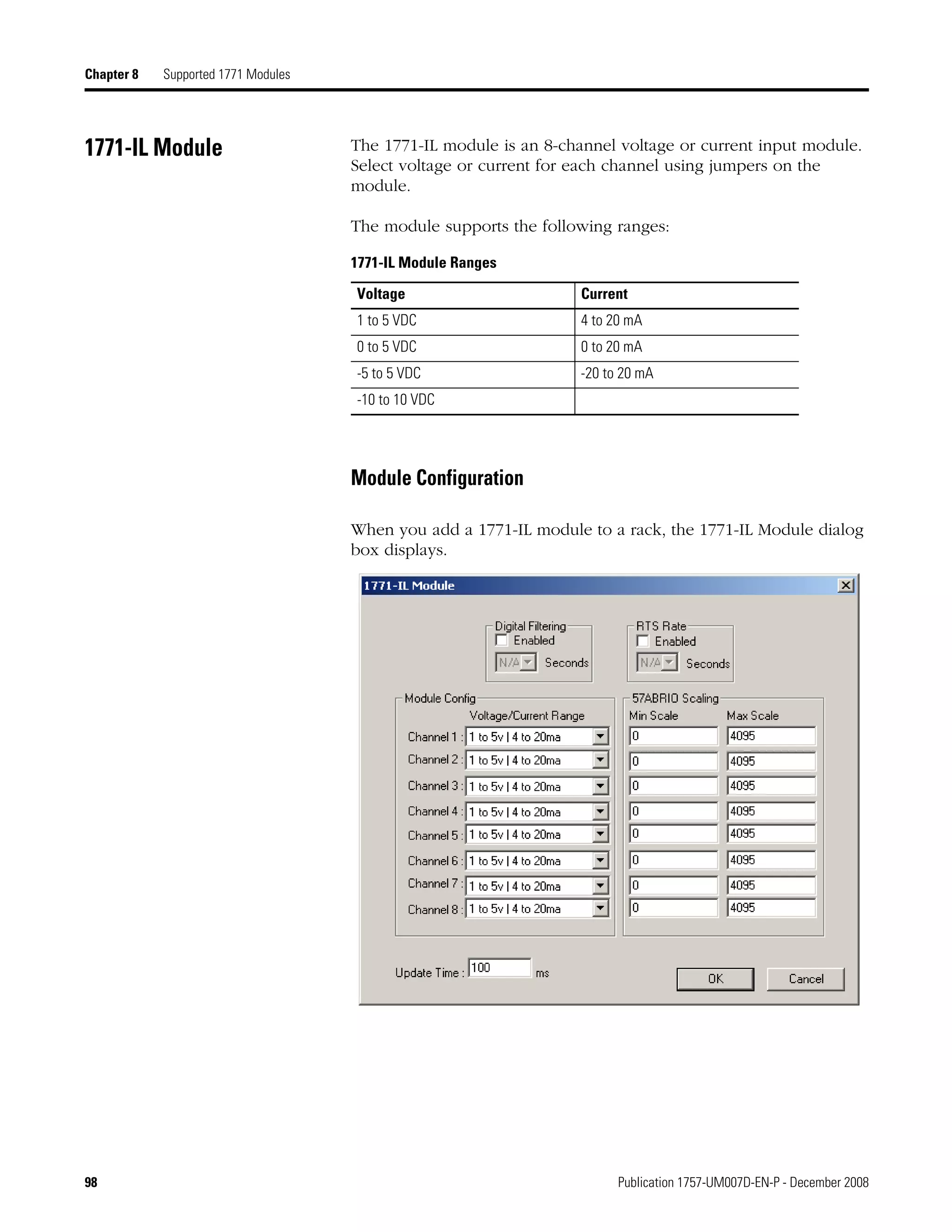

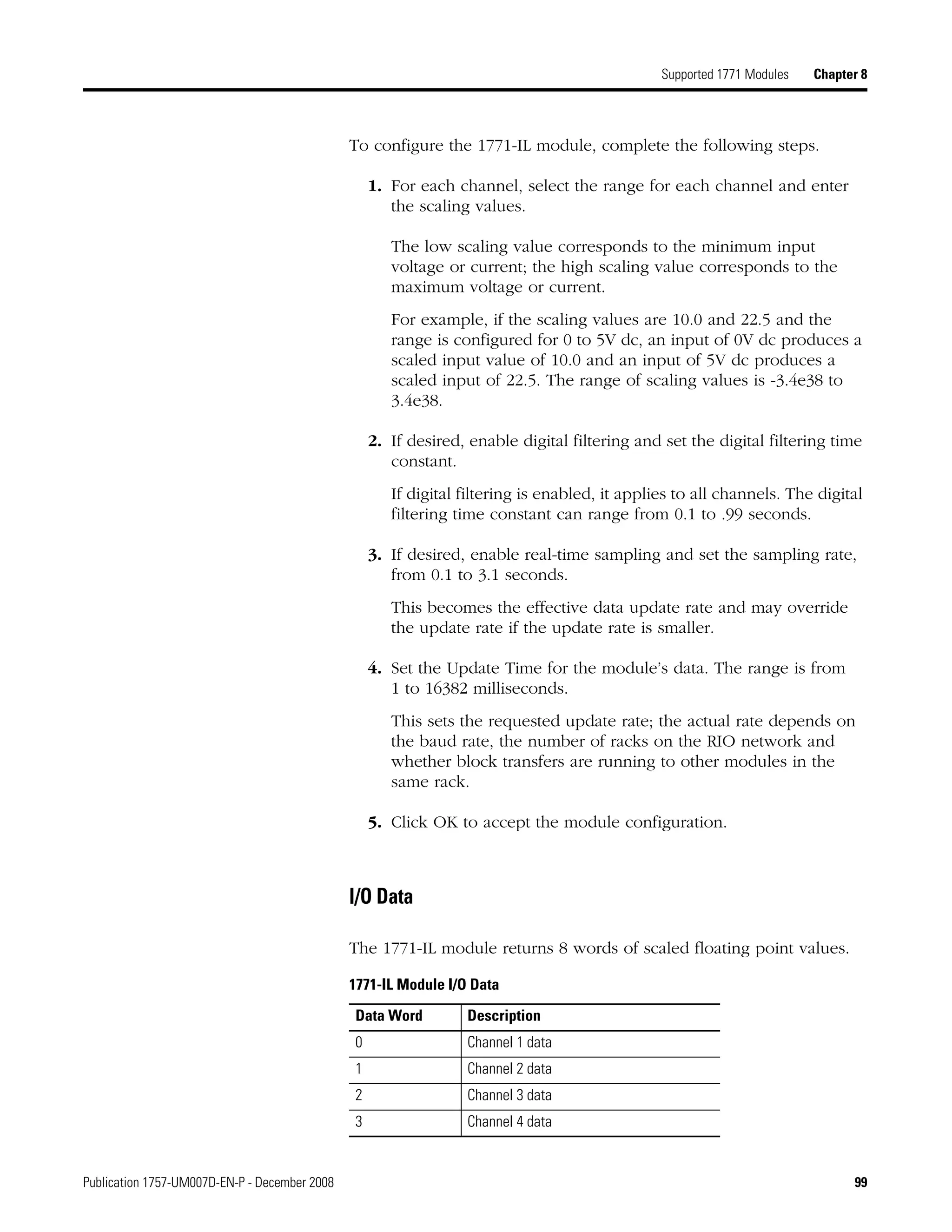

1771-IL Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
I/O Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Diagnostic Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

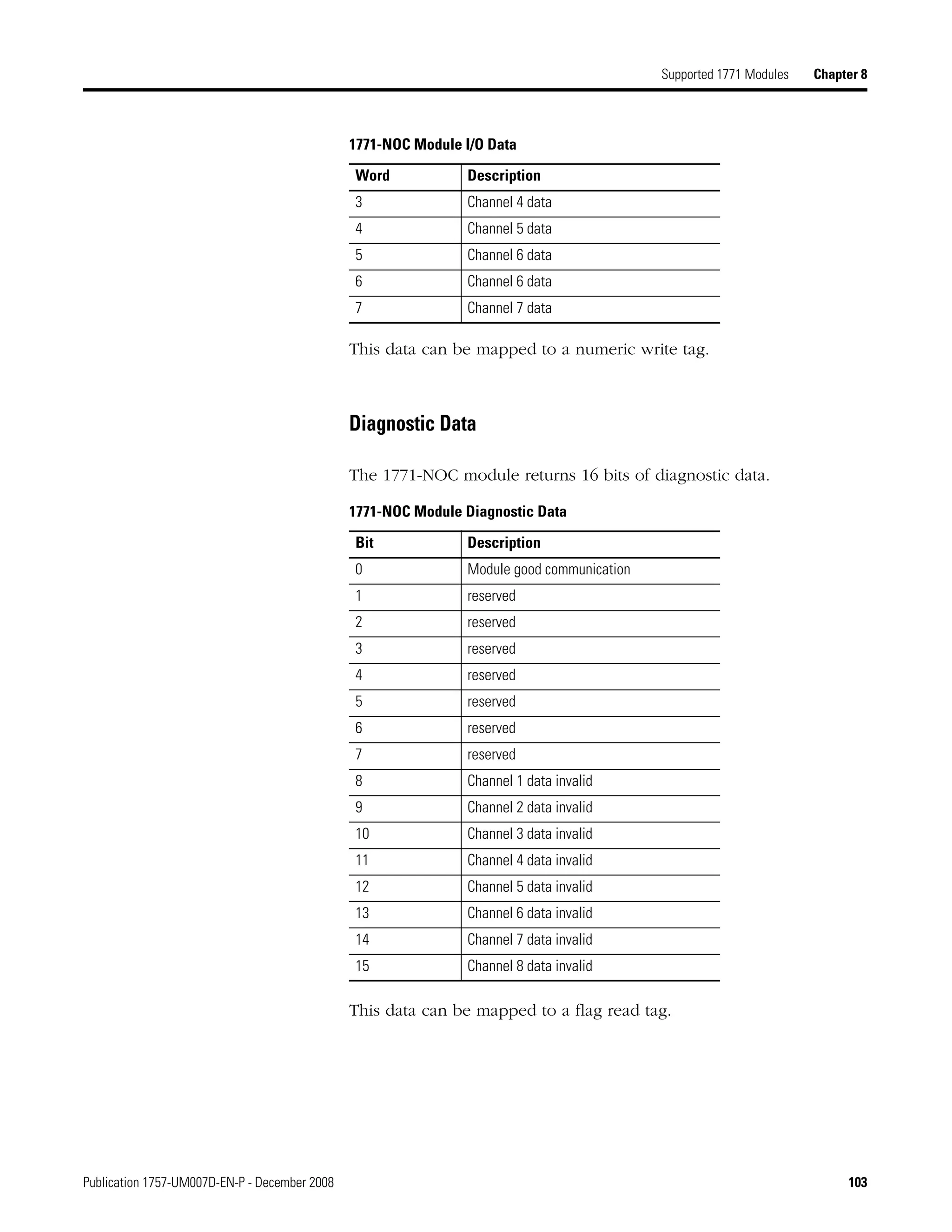

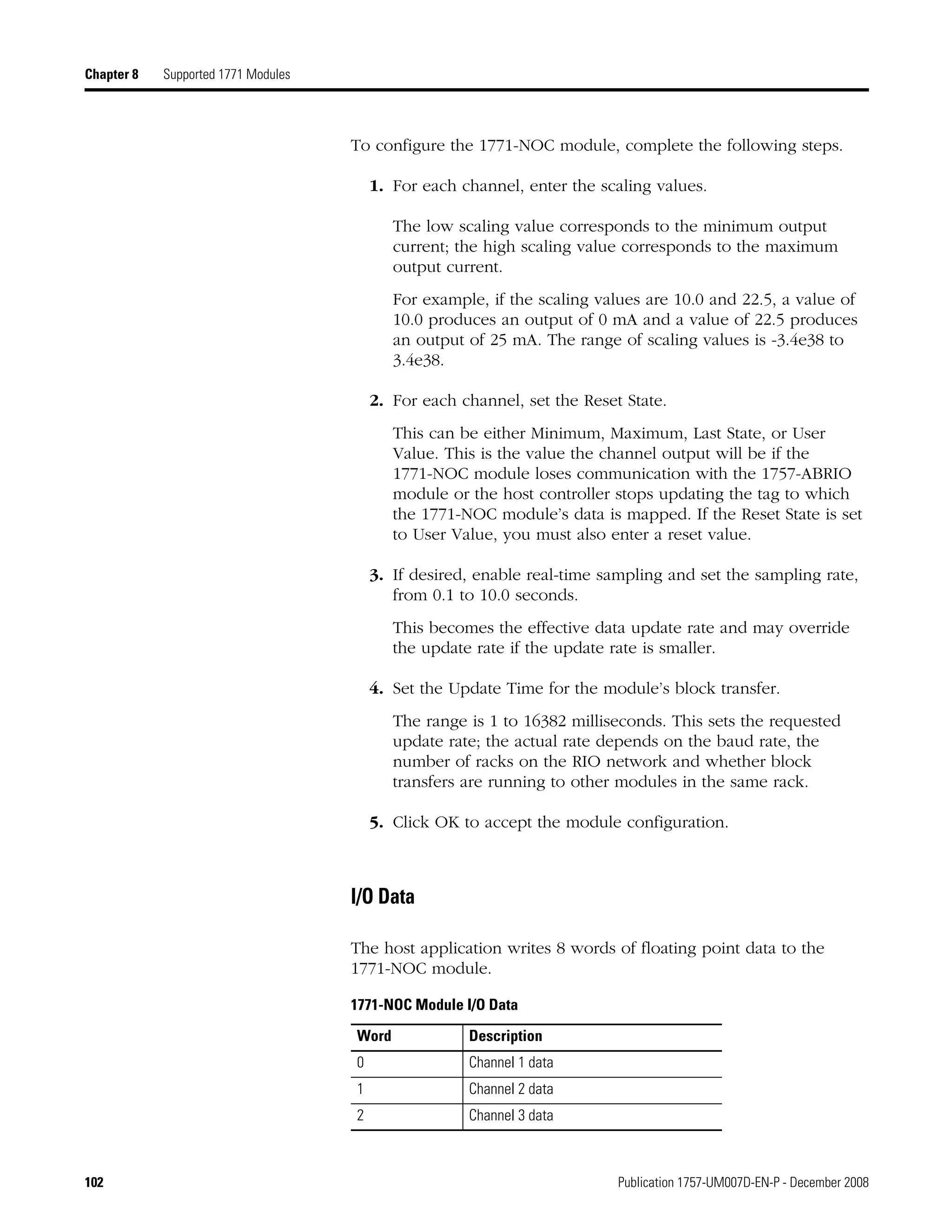

1771-NOC Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Module Configuration . . . . . . . . . . . . . . . . . . . . . . . . . 101
I/O Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Diagnostic Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
1771-NOV Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
I/O Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Diagnostic Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

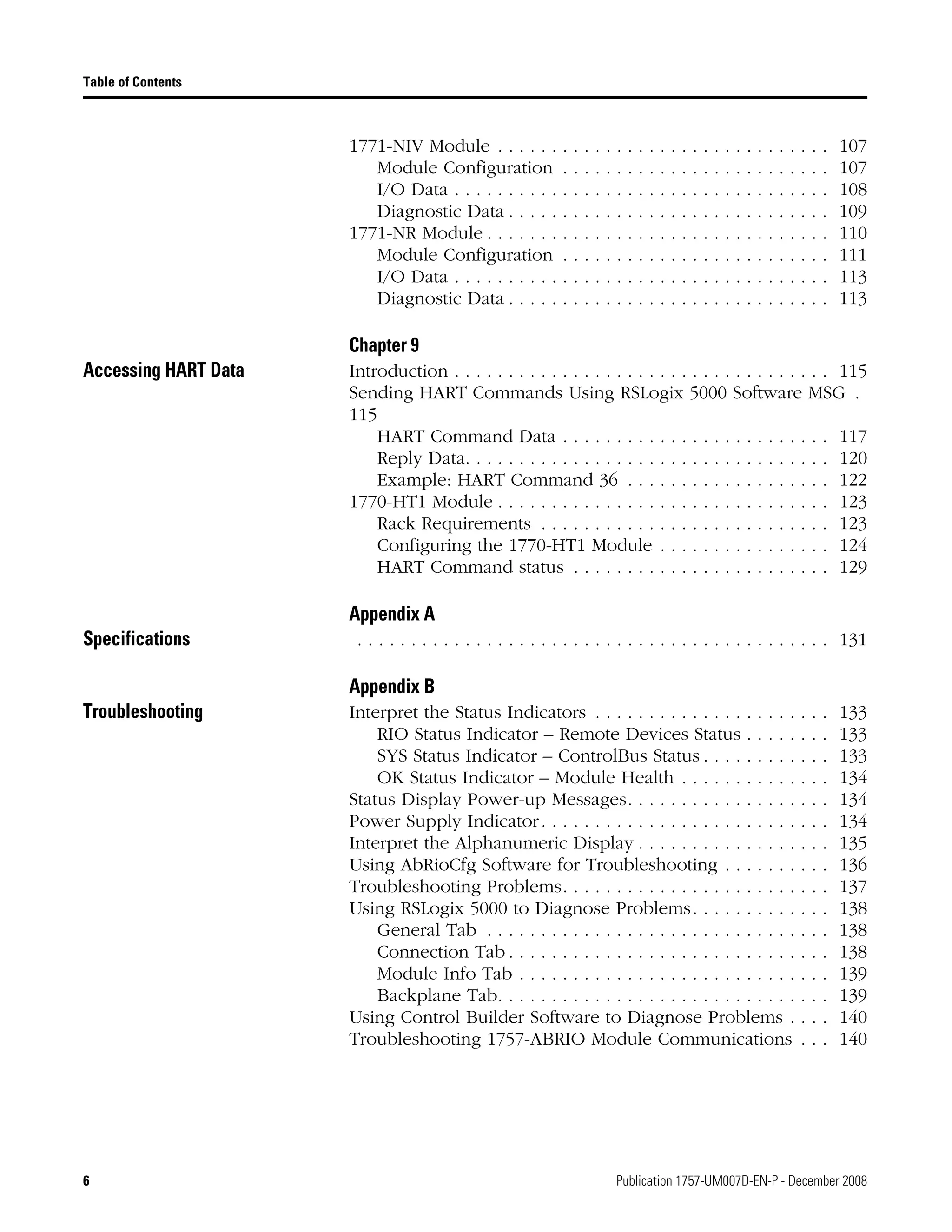

Table of Contents
1771-NIV Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
I/O Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Diagnostic Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

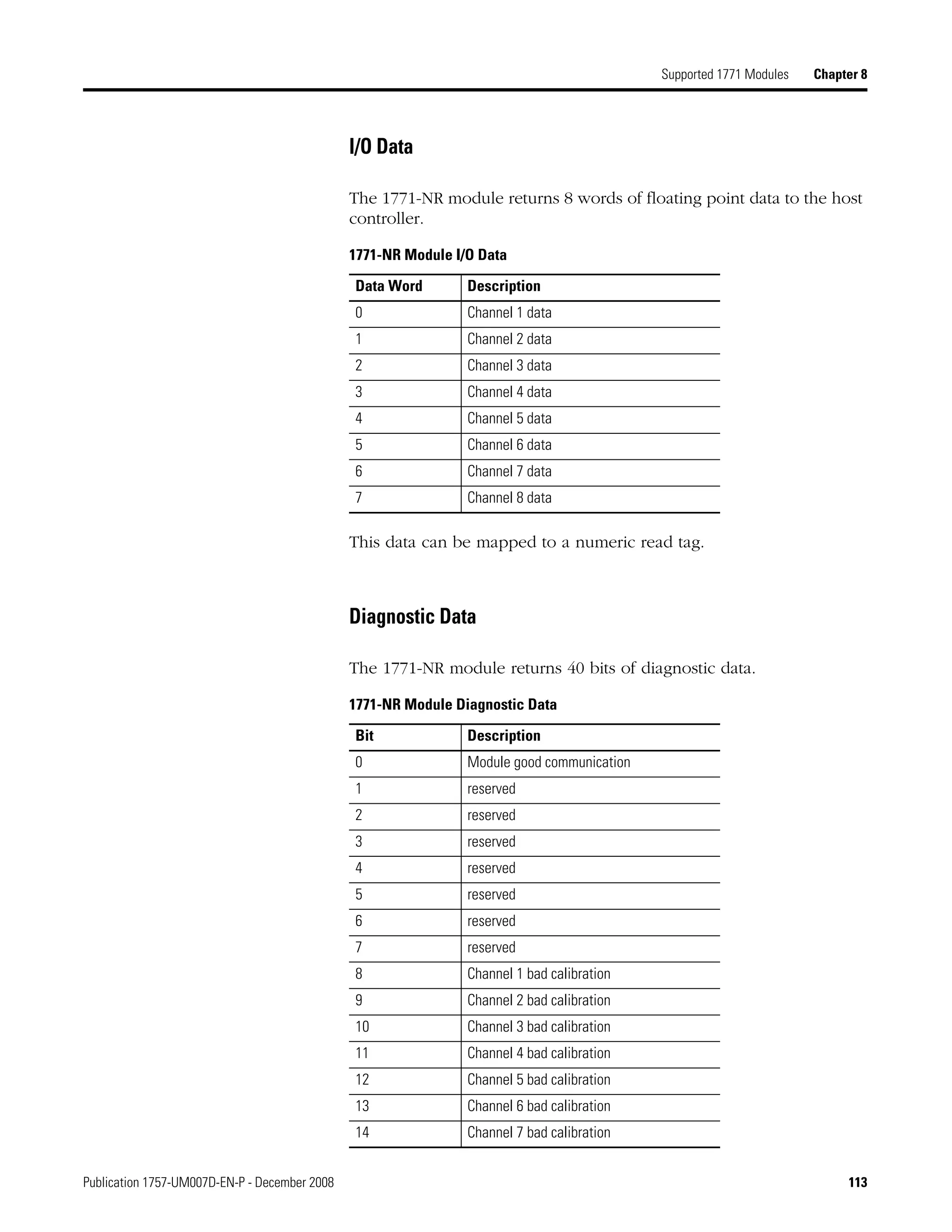

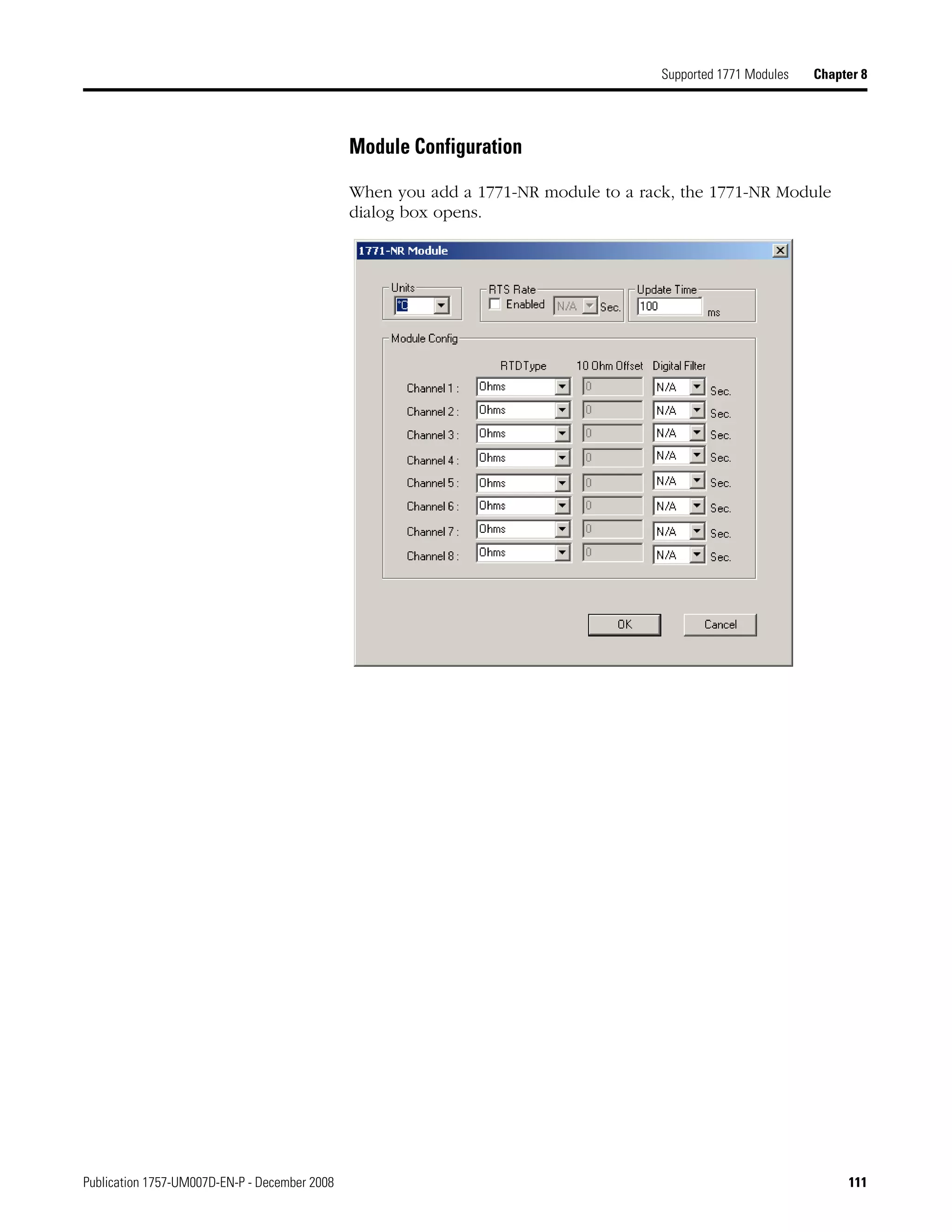

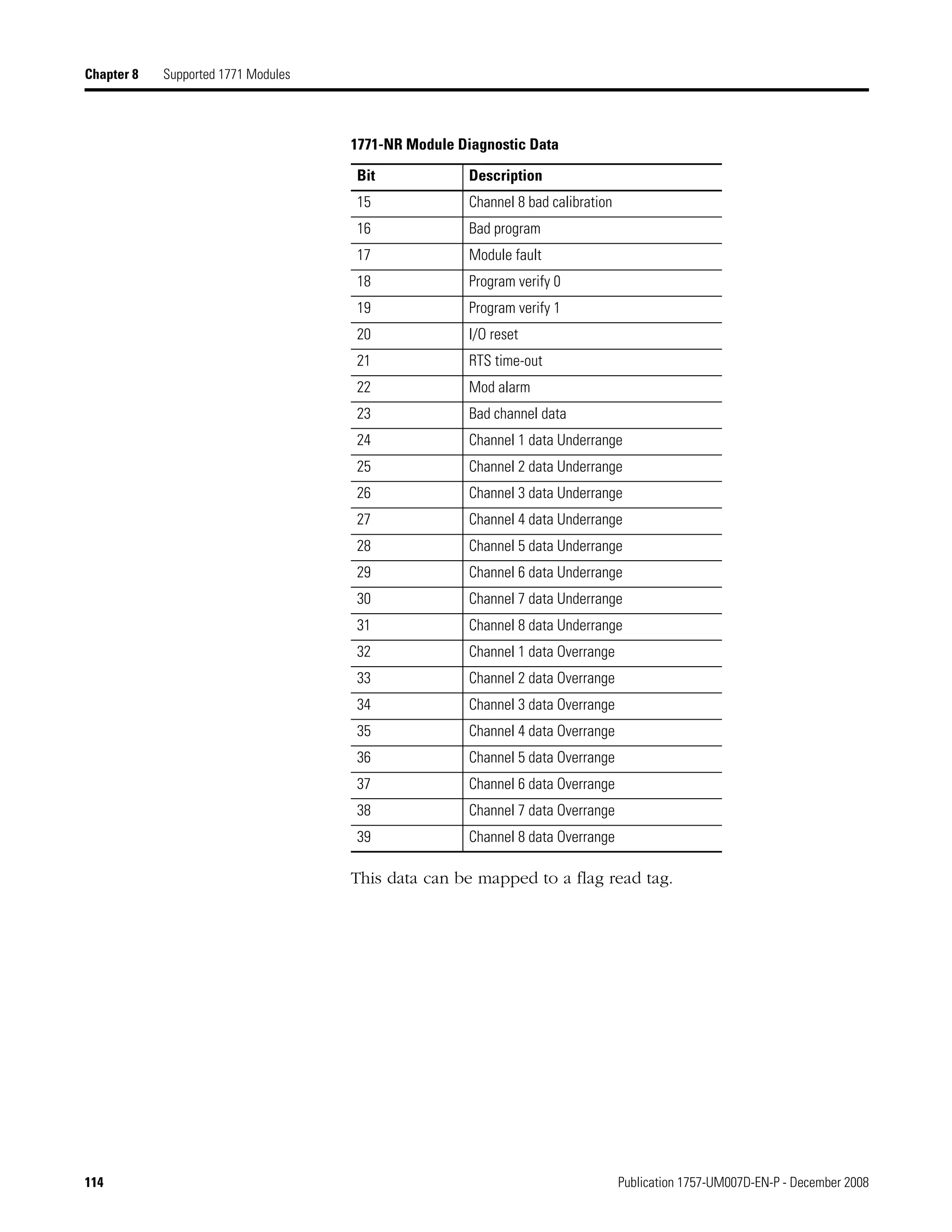

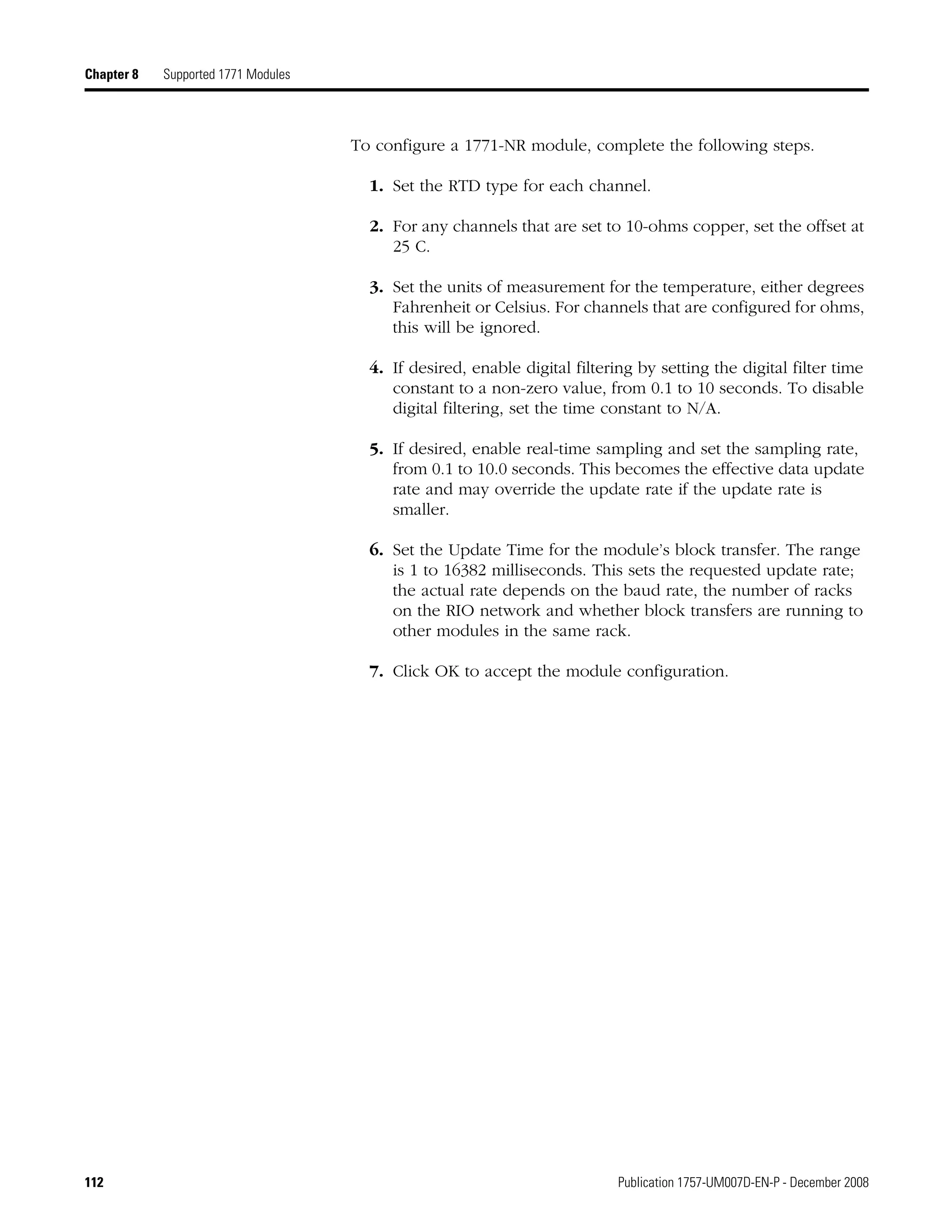

1771-NR Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
I/O Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Diagnostic Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Chapter 9
Accessing HART Data Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Sending HART Commands Using RSLogix 5000 Software MSG .
115
HART Command Data . . . . . . . . . . . . . . . . . . . . . . . . . 117
Reply Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Example: HART Command 36 . . . . . . . . . . . . . . . . . . . 122
1770-HT1 Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Rack Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

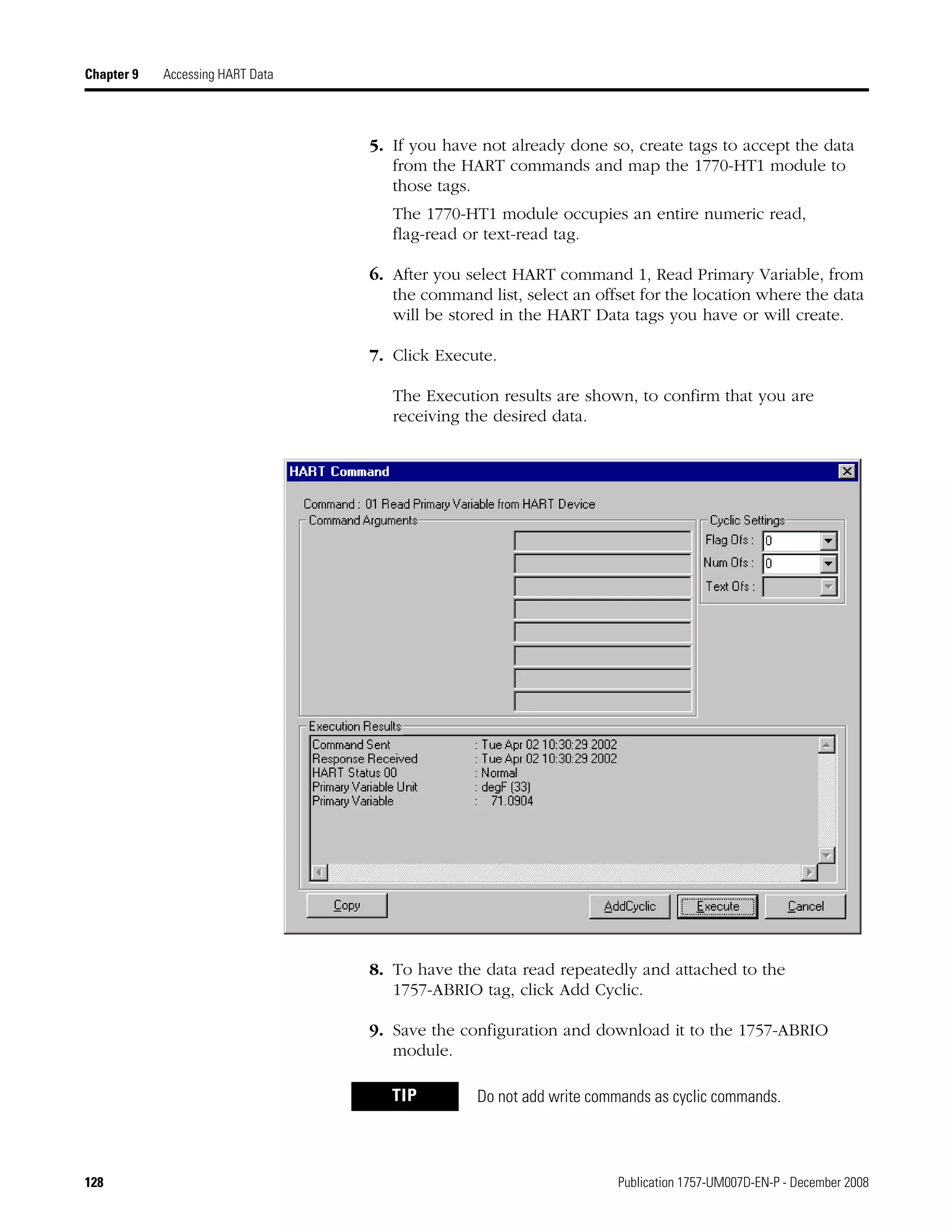

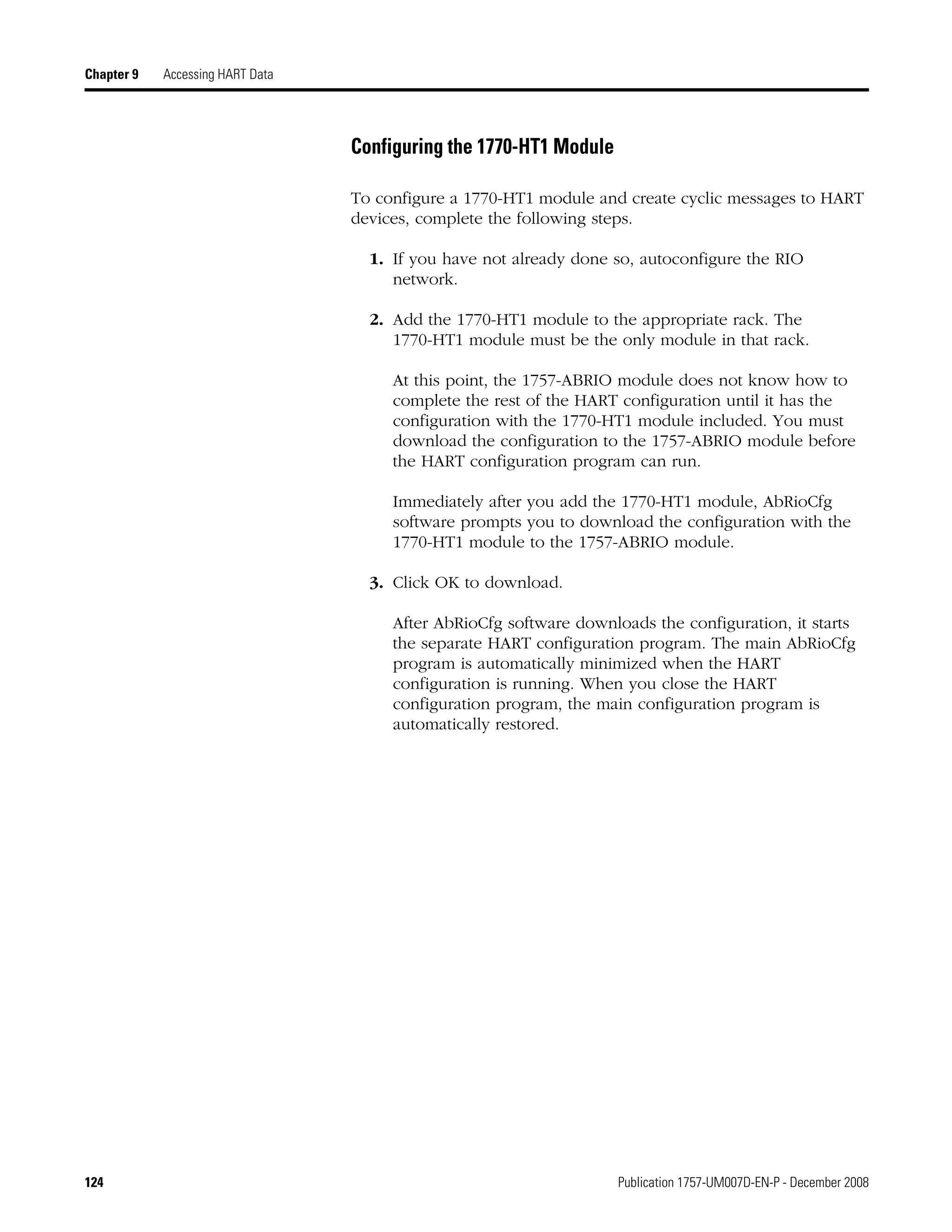

Configuring the 1770-HT1 Module . . . . . . . . . . . . . . . . 124

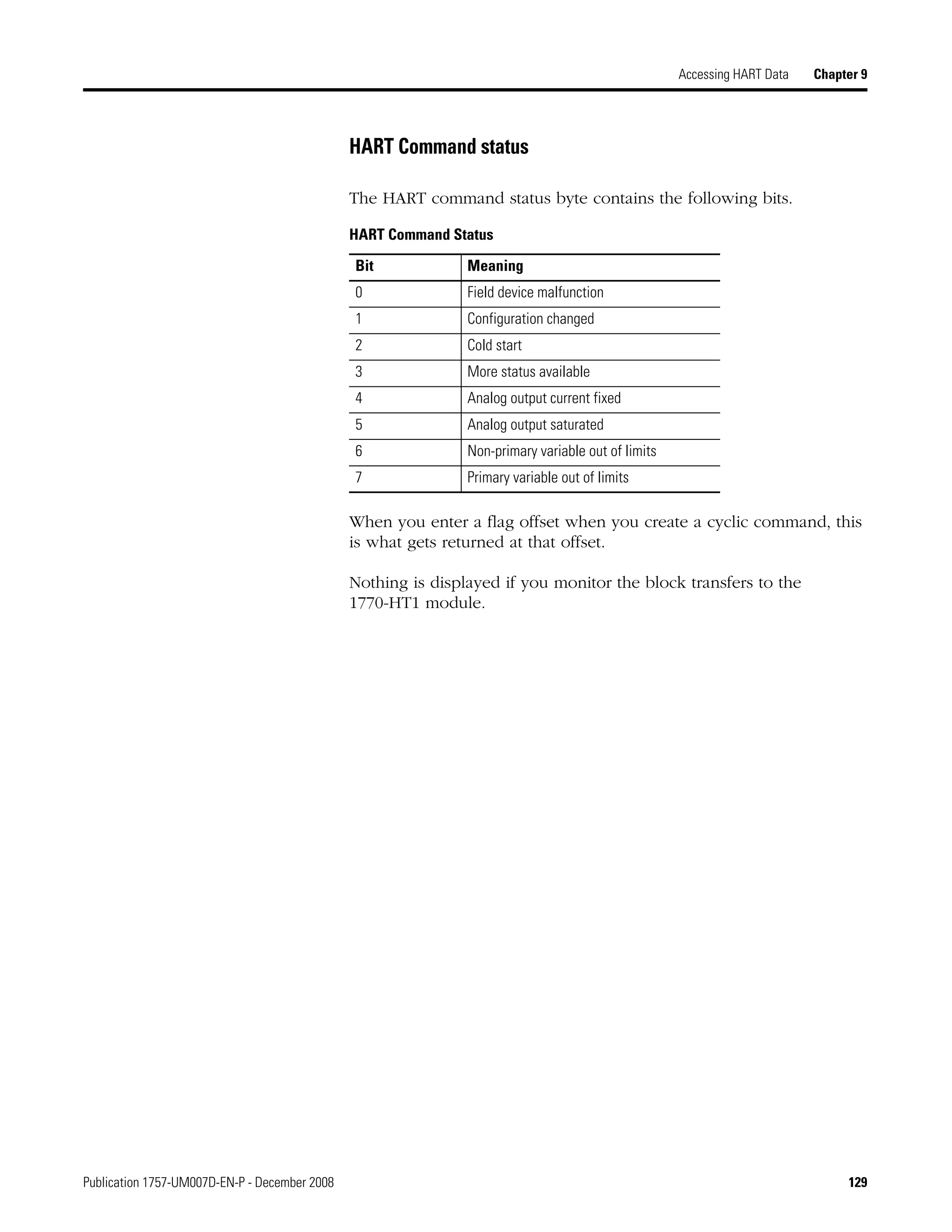

HART Command status . . . . . . . . . . . . . . . . . . . . . . . . 129
Appendix A

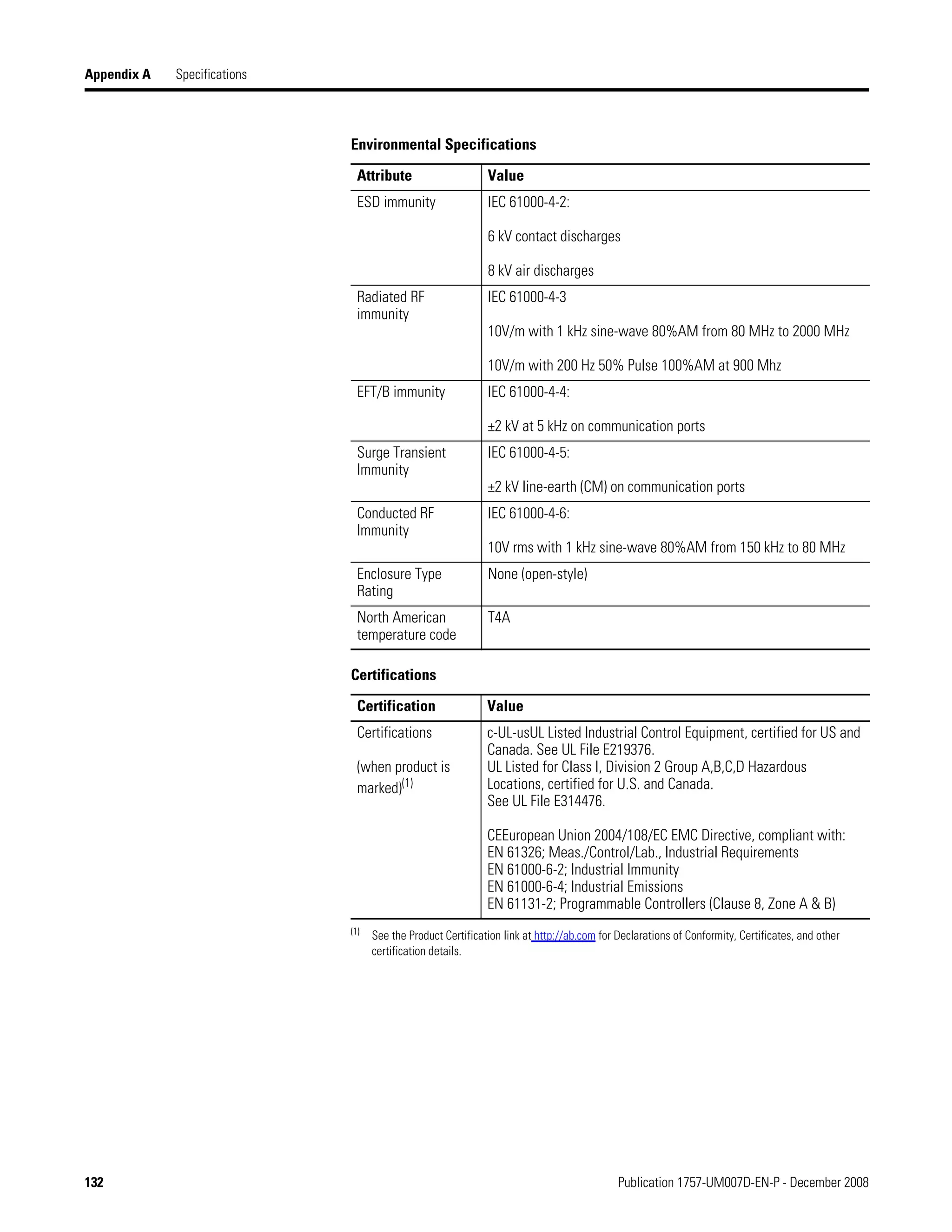

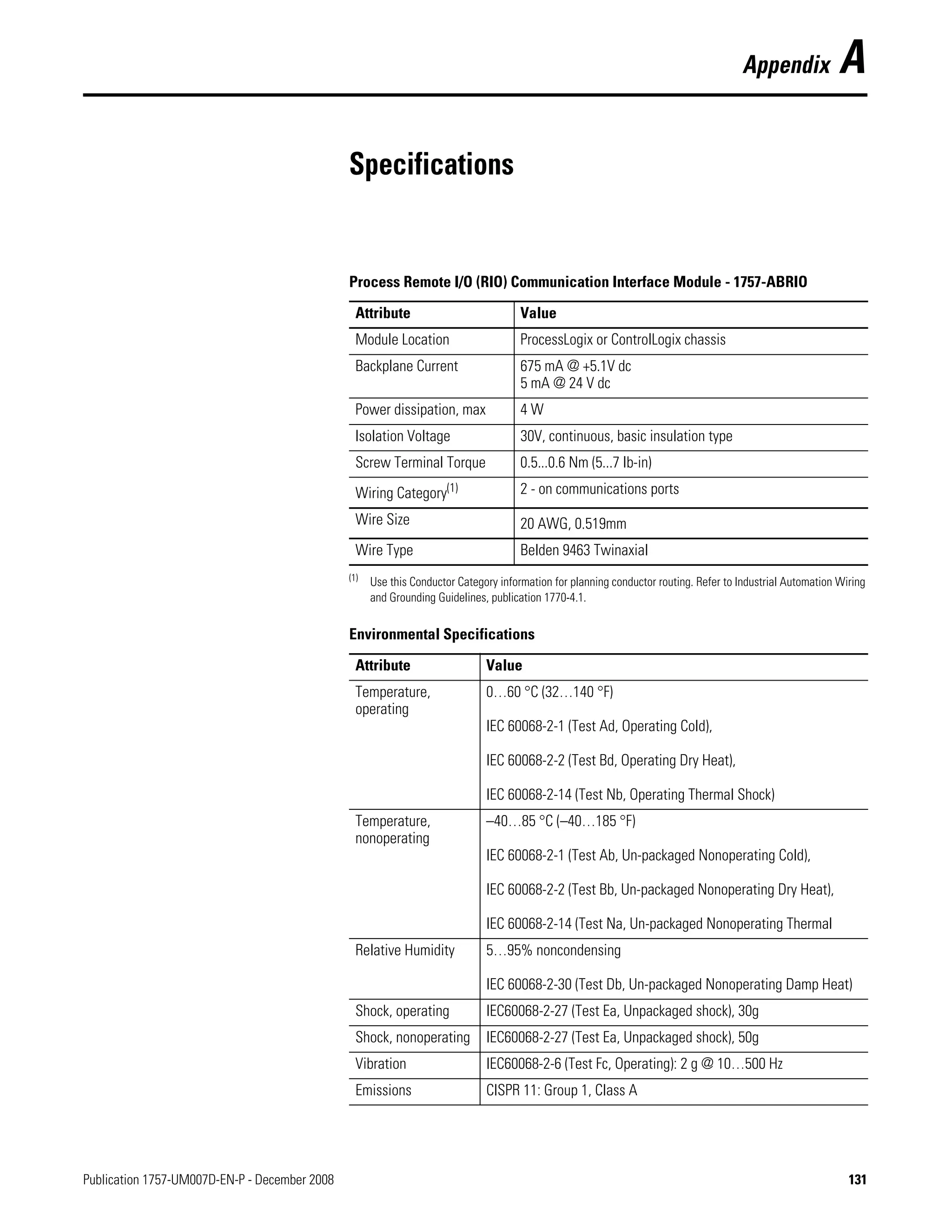

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Appendix B

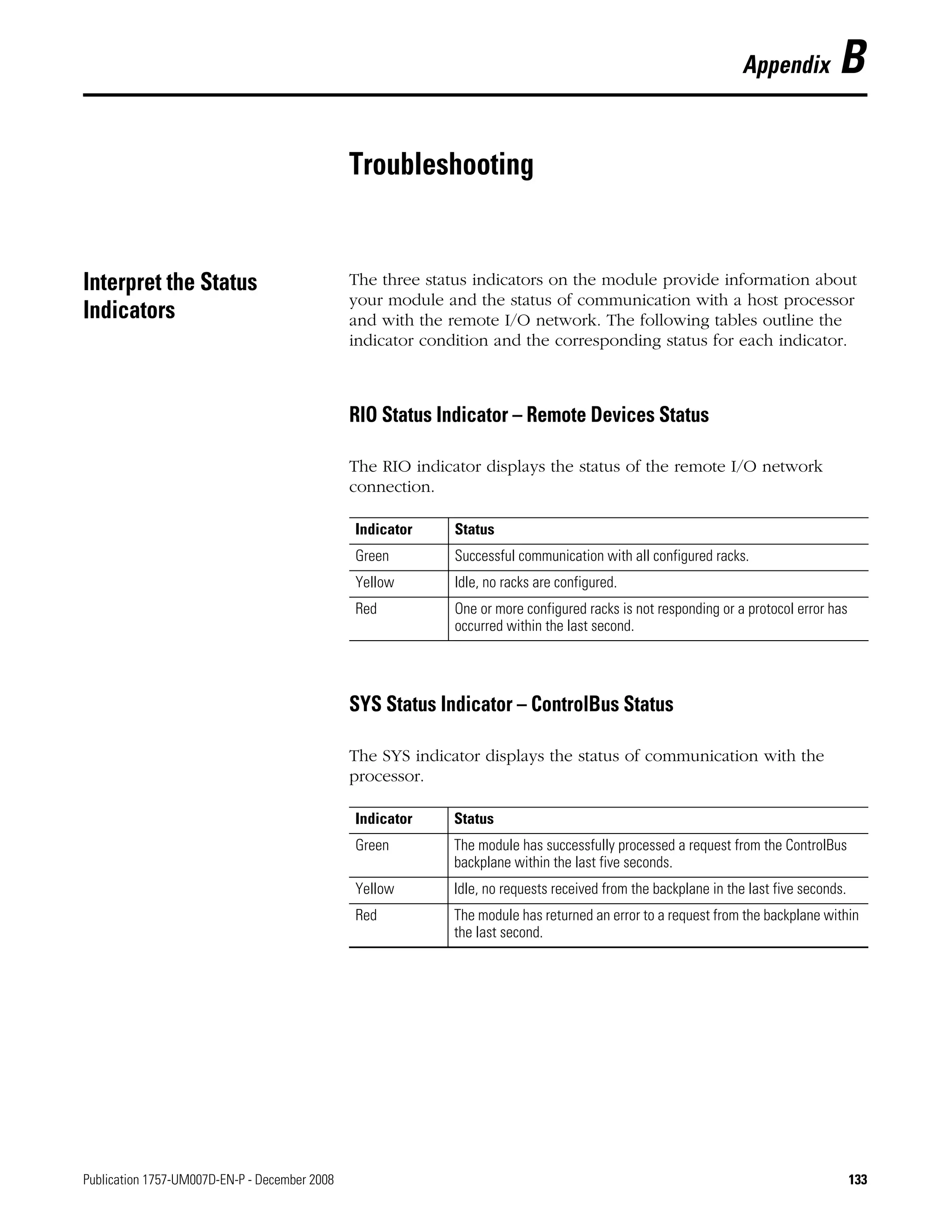

Troubleshooting Interpret the Status Indicators . . . . . . . . . . . . . . . . . . . . . . 133
RIO Status Indicator – Remote Devices Status . . . . . . . . 133
SYS Status Indicator – ControlBus Status . . . . . . . . . . . . 133
OK Status Indicator – Module Health . . . . . . . . . . . . . . 134
Status Display Power-up Messages. . . . . . . . . . . . . . . . . . . 134
Power Supply Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Interpret the Alphanumeric Display . . . . . . . . . . . . . . . . . . 135

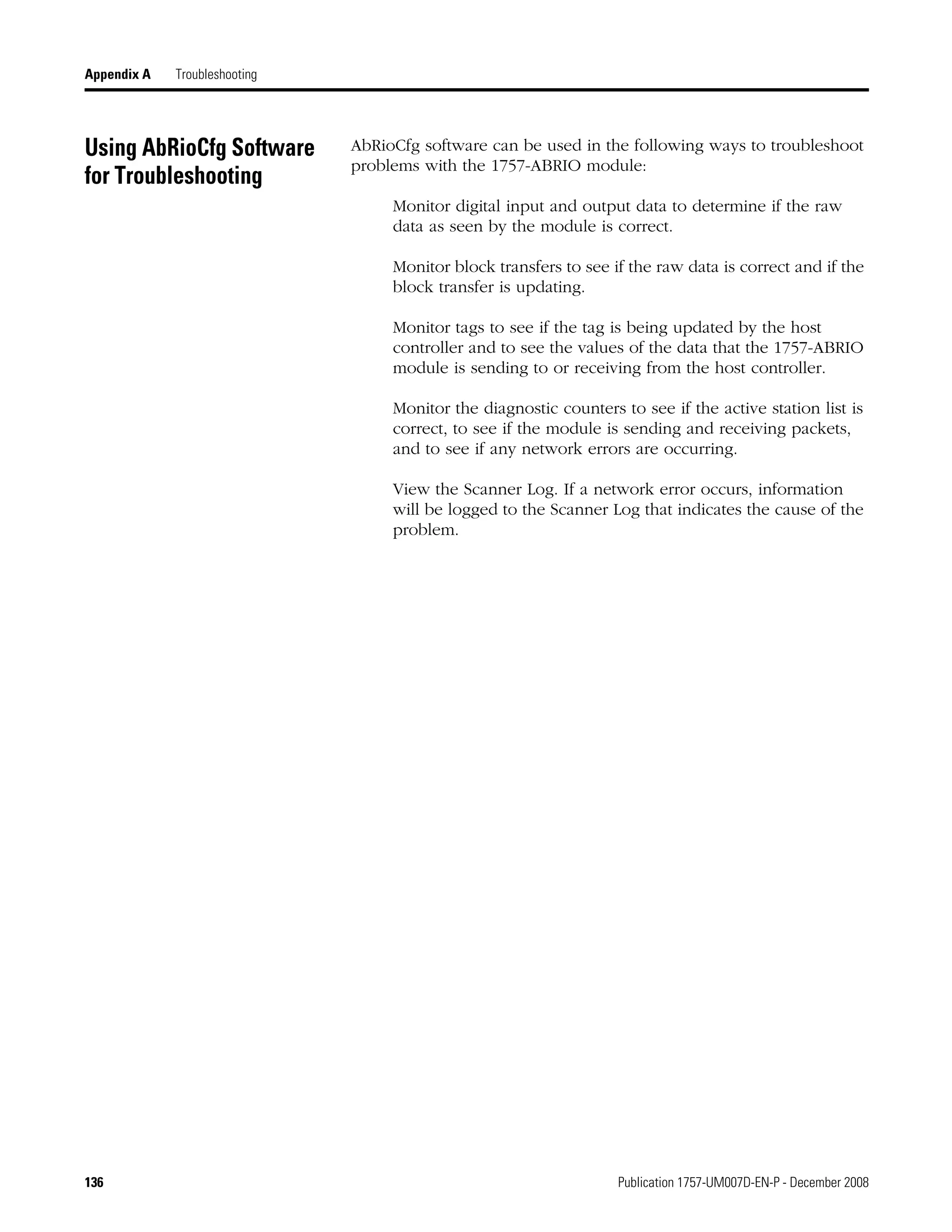

Using AbRioCfg Software for Troubleshooting . . . . . . . . . . 136

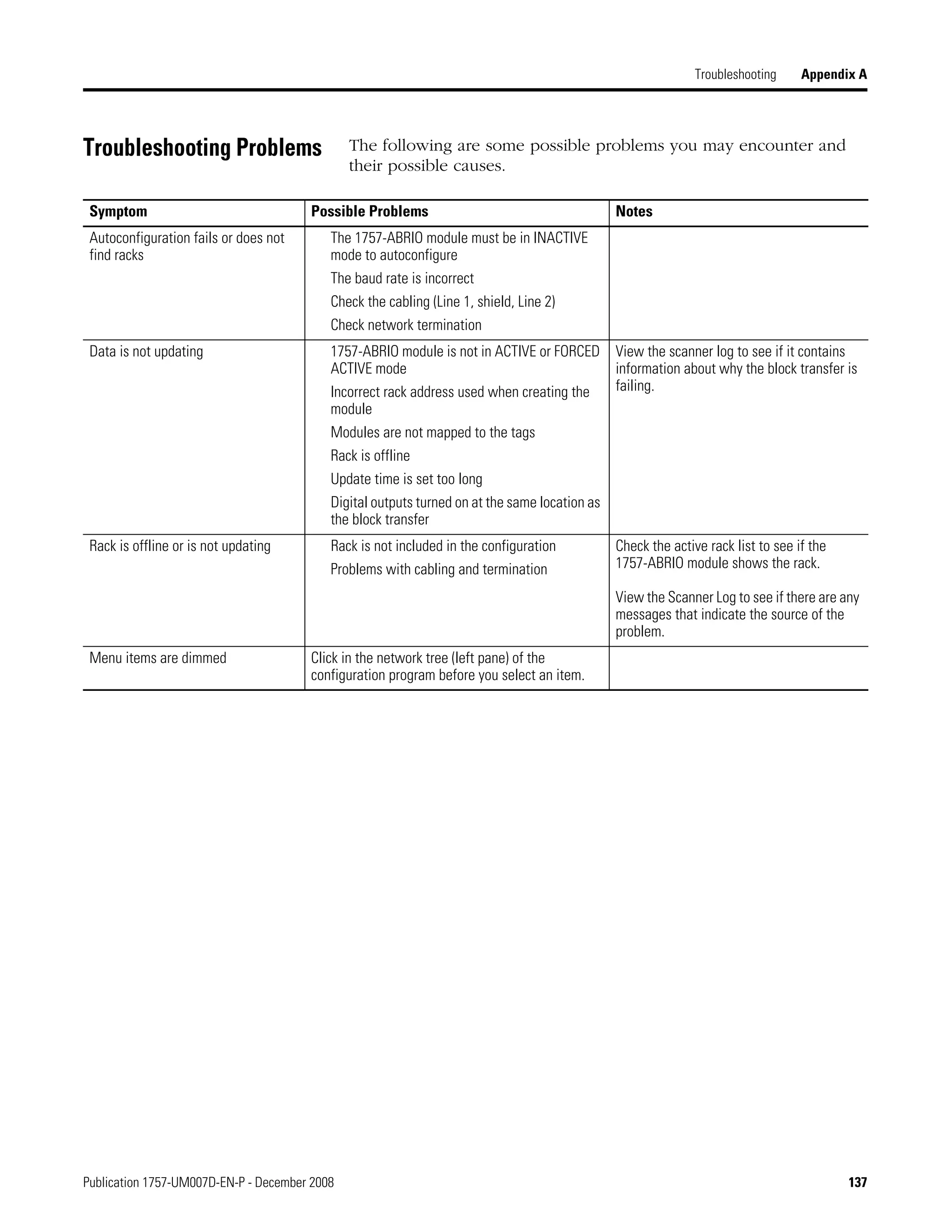

Troubleshooting Problems. . . . . . . . . . . . . . . . . . . . . . . . . 137

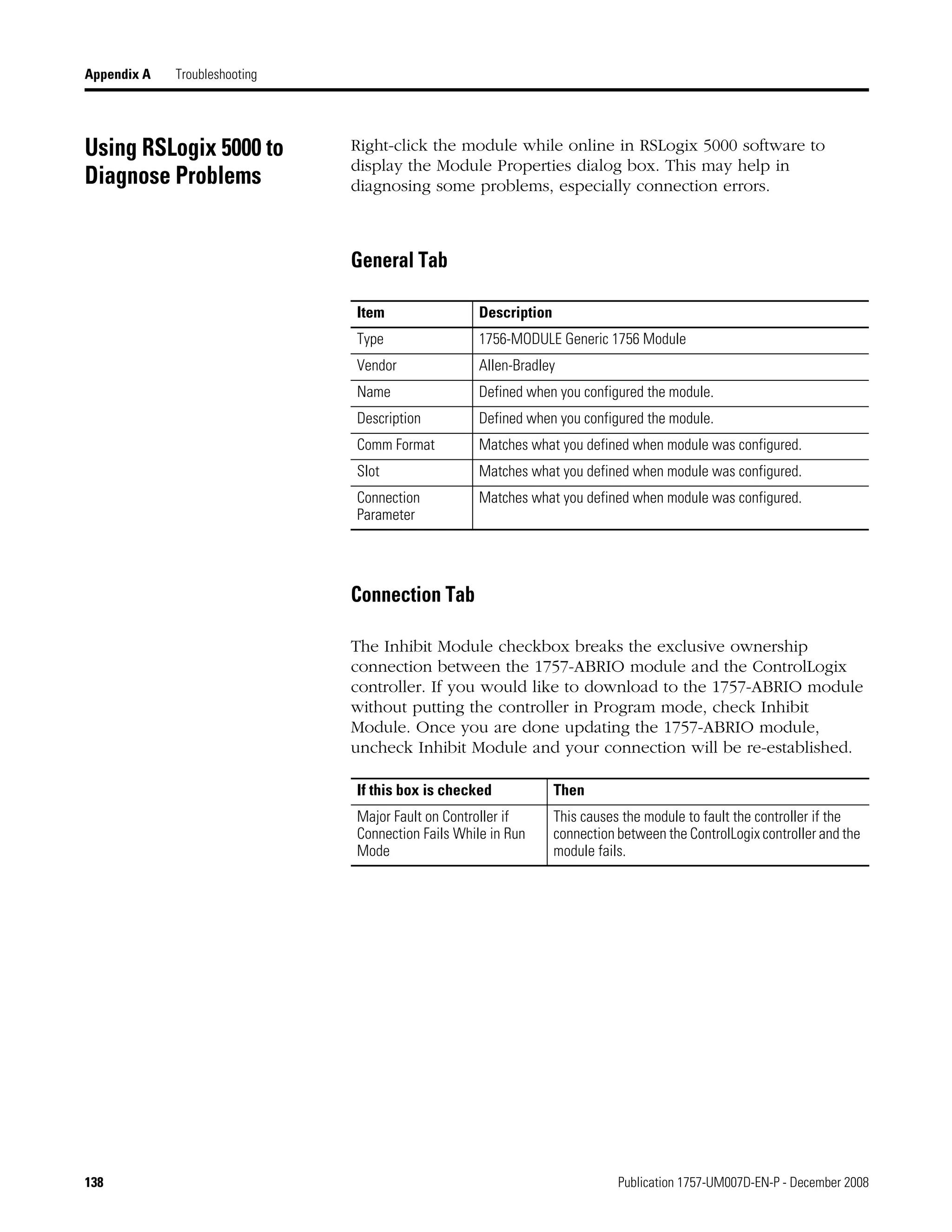

Using RSLogix 5000 to Diagnose Problems. . . . . . . . . . . . . 138
General Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Connection Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Module Info Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Backplane Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Using Control Builder Software to Diagnose Problems . . . . 140
Troubleshooting 1757-ABRIO Module Communications . . . 140

Table of Contents

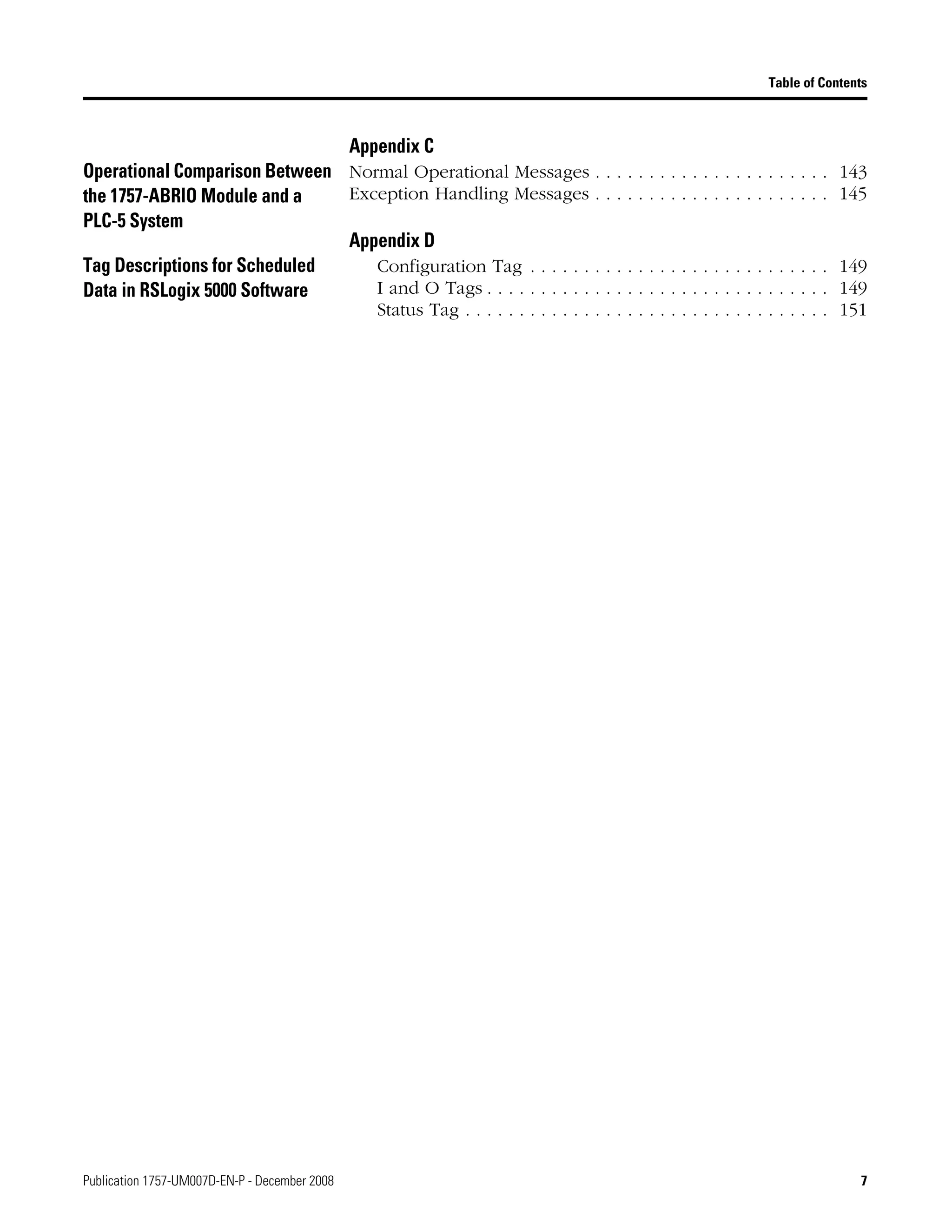

Appendix C
Operational Comparison Between
the 1757-ABRIO Module and a
PLC-5 System
Normal Operational Messages . . . . . . . . . . . . . . . . . . . . . . 143

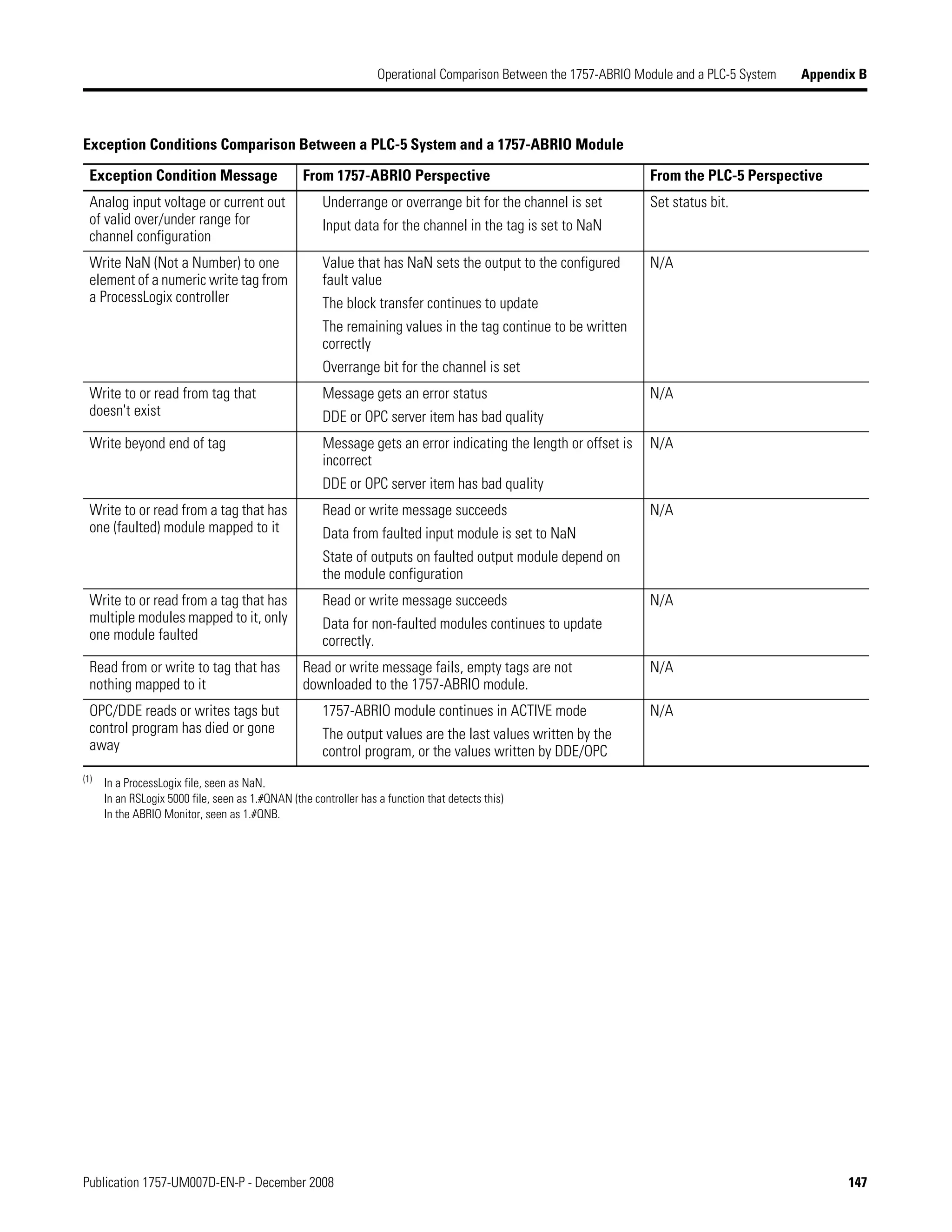

Exception Handling Messages . . . . . . . . . . . . . . . . . . . . . . 145
Appendix D
Tag Descriptions for Scheduled
Data in RSLogix 5000 Software
Configuration Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
I and O Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Status Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Table of Contents

Preface
Purpose of this Manual This manual describes how to configure and troubleshoot your
Process Remote I/O (RIO) Communication Interface Module.
For installation information, refer to the Process Remote I/O (RIO)
Communication Interface Module Installation Instructions, publication
1757-IN916.
Who Should Use this
Manual
We assume you have a good understanding of Remote I/O (RIO)
modules as well as the host controller system (ProcessLogix or
ControlLogix).
Additional Resources These documents contain additional information concerning related
Rockwell Automation products.
See I/O Module Documentation on page 84 for a listing of related
ControlLogix documentation.
You can view or download publications at
http://literature.rockwellautomation.com. To order paper copies of
technical documentation, contact your local Rockwell Automation
distributor or sales representative.
Resource Description
Process Remote I/O (RIO) Communication
Interface Module Installation Instructions,
publication 1757-IN916
Provides details on how to install the
1757-ABRIO module.
Process Remote I/O (RIO) Communication
Interface Module Release Notes,
publication 1757-RN520
Provides release details on the 1757-ABRIO
module.
Industrial Automation Wiring and Grounding
Guidelines, publication 1770-4.1
Provides general guidelines for installing a
Rockwell Automation industrial system.
Product Certifications website,
http://ab.com
Provides declarations of conformity,
certificates, and other certification details.

Table of Contents Preface

Chapter 1
Introduction
Introduction This chapter:
describes the 1757-ABRIO Remote I/O Module.
lists the RSLinx software requirements.
provides update procedures for the module’s firmware.
Process Remote I/O (RIO)
Communication Interface
Module
This document is a user guide for the 1757-ABRIO module, which lets
Rockwell Automation controllers (ProcessLogix or ControlLogix)
communicate with Allen-Bradley remote I/O. The module acts as a
RIO network scanner. The 1757-ABRIO module facilitates connection
to analog and discrete I/O devices as well as any block transfer
modules.
1757-ABRIO Module Example Topology
43290
Supports
Block
Transfers -
limit of 32
words in a
block
ProcessLogix
System Server
Flex Ex Modules
PLC5/C
Controller
ControlNet
Network
SLC Controller
Data Highway + Network
ControlNet Network
PLC5
Controller
ProcessLogix and ControlLogix Controllers
Remote I/O Network
1771 Remote I/O
1746 Remote I/O
Drive

Chapter 1 Introduction
As an RIO network scanner, the module:
scans 1771 racks with rack numbers from 1 to 37 octal.
supports baud rates of 57.6, 115.2 and 230.4 kilobaud.
supports up to 32 adapters with any mix of full/partial racks.
automatically manages and performs block transfers, update
time can be defined for each block transfer.
provides full diagnostic counters for alarms and maintenance.
automatically performs scaling of raw analog data.
supports scheduled connections to update digital data with a
ControlLogix controller.
implements a watchdog timer in the module’s hardware.
If the firmware does not kick the watchdog within the time-out
period the watchdog times out and places the module into the
configured safe failure state.
automatically provides fault/fail safe commands to I/O modules
and controllers.
implements a jabber inhibit timer.
If the network transmitter is on longer than 150% of the longest
network frame time, the 1757-ABRIO module turns the
transmitter off and places the module into the configured safe
failure state.
supports firmware updates using NTools or ControlFlash
software.
supports direct DDE/OPC data access.
provides support for Rockwell Automation’s 1770-HT1,
1770-HT8, and 1770-HT16 HART interface products.
provides HART command set for calibration and diagnostics.
RSLinx Software
Requirements
The AbRioCfg software requires RSLinx OEM software or above. You
cannot use RSLinx Lite software. To access the module using OPC or
DDE, you must have RSLinx 2.31 software or above.
If you are using ProcessLogix software, refer to the corresponding
ProcessLogix Installation and Upgrade Guide to determine the
appropriate RSLinx software version for your release.

Introduction Chapter 1
ProcessLogixSystemQuick
Start
Use the following steps to quickly get the module running in a
ProcessLogix system. Detailed information about each step is available
in other sections of this manual or in the installation manual. You can
only have one scanner per RIO network. Remove any other scanners
on the RIO network before continuing.
1. Install the 1757-ABRIO module in the chassis and connect it to
the RIO network.
See the Process Remote I/O (RIO) Communication Interface
Module Installation Instructions, publication 1757-IN916.
2. Flash the controller with the latest firmware.
See Using NTools with ProcessLogix Software on page 15.
3. Install the AbRioCfg software.
See Installing AbRioCfg Software on page 19.
4. Autoconfigure or manually configure the RIO racks. This step
locates all connected racks.
See Autoconfigure the I/O Racks on page 19 and Add Racks
Offline on page 33.
5. Add and configure block transfer modules.
See Adding Block Transfer Modules on page 23.
6. Create tags for access by the ProcessLogix controller.
See Create a Tag on page 30.
7. Map I/O data to the tags and save the configuration file.
See Mapping Data to Tags in AbRioCfg Software on page 31.
8. Download the configuration to the 1757-ABRIO module.
See Download the Configuration on page 35.
9. Configure the ProcessLogix controller to access information
within the 1757-ABRIO module using Control Builder software.
See Configure the 1757-PLX52 Controller on page 53.
10. Access live data from the 1757-ABRIO module.
See Live Data Examples on page 56.

RSLogix 5000 System Quick
Start
Use the following steps to quickly get the module running in an
RSLogix 5000 system. Detailed information about each step is
available in other sections of this manual or in the installation manual.
You can only have one scanner per RIO network. Remove any other
scanners on the RIO network before continuing.
1. Install the 1757-ABRIO module in the chassis and connect it to
the RIO network.
See the Process Remote I/O (RIO) Communication Interface
Module Installation Instructions, publication 1757-IN916.
2. Flash the Controller with the latest firmware.
See Using ControlFlash Software on page 14.
3. Install the AbRioCfg software.
See Installing AbRioCfg Software on page 19.
4. Autoconfigure or manually configure the RIO racks. This step
locates all connected racks.
See Autoconfigure the I/O Racks on page 19 and Add Racks
Offline on page 33.
5. Add and configure block transfer modules.
See Adding Block Transfer Modules on page 23.
6. Create tags to access analog data from the ControlLogix
controller.
See Create a Tag on page 30.
OR
Use scheduled updates to access digital data from the
See Scheduled Digital I/O Connections in RSLogix 5000
Programs on page 60.
7. Map I/O data to the tags and save the configuration file.
See Mapping Data to Tags in AbRioCfg Software on page 31.
8. Download the configuration to 1757-ABRIO module.
See Download the Configuration on page 35.

9. If you are using:
a. a scheduled network, establish an Exclusive Owner or Input
Only connection from the ControlLogix controller to access
digital data within the 1757-ABRIO module.
See Setup an Exclusive-owner Connection on page 60 or
Setup Input-only Connections on page 63.
b. an unscheduled network, configure tags and ladder logic in
RSLogix 5000 software to access information within the
1757-ABRIO module.
See Unscheduled I/O Connections in ControlLogix on
page 67.
10. If you are using a scheduled ControlNet network, schedule your
network through RSNetWorx for ControlNet software.
See the RSNetWorx Help and the ControlNet Modules in
Logix5000 Control Systems User Manual, publication
CNET-UM001.
11. Access live data from the 1757-ABRIO module via:
a. scheduled connections.
See Scheduled Digital I/O Connections in RSLogix 5000
Programs on page 60 and Live Data Example on page 66.
b. unscheduled connections.
See Unscheduled I/O Connections in ControlLogix on
page 67 and Live Data Example on page 73.
TIP If you are using a scheduled ControlNet network, you
must also complete 9b to access analog or text data
from the 1757-ABRIO module.

Update the 1757-ABRIO
Module’s Firmware
The 1757-ABRIO module supports firmware upgrades using
ControlFLASH or NTools software. The firmware version is displayed
on the 1757-ABRIO module’s 4-character display when you power up
the module.
For ProcessLogix software users, if your 1757-ABRIO module revision
is:
at or less than 1.2, use ControlFlash software to update the
module firmware.
greater than 1.2, use NTools software to update the module
firmware.
Using ControlFlash Software
Use the following procedure to update the module firmware using
ControlFLASH software.
1. Insert the 1757-ABRIO CD.
2. Click Start>Run.
3. Type this path or Browse to:
D:(or your CD-ROM drive letter)ControlFlashsetup.exe
4. Click OK.
5. At the Welcome to ControlFLASH Setup window, click Next.
6. To accept the License Agreement, click Yes.
7. To accept the default location, click Next.
8. At the Setup Complete window,
a. Uncheck the Yes, I want to view the README file checkbox.
b. Check the Yes, I want to launch ControlFLASH checkbox.
c. Click Finish.
9. At the Welcome to ControlFLASH window, click Next.
IMPORTANT The module ships with the latest firmware installed.
You do not need to download firmware to the
1757-ABRIO module when you first receive it.

10. Click 1757-ABRIO and click Next.
11. Expand the RSLinx Tree window to the location of the
1757-ABRIO module you wish to flash.
12. Select the module icon and click OK.
13. Confirm new revision for this update and click Next.
14. At the Summary window, click Finish.
15. To confirm the flash, click Yes.
16. Click OK.
If this update is successful, the Update Status window displays
the following message in green:
Update Complete. Please verify this new firmware update before
using the target device in its intended application.
17. Click OK and then click Cancel at the Welcome to ControlFLASH
Setup window.
18. Click Yes to end the configuration session.
Using NTools with ProcessLogix Software
On a ProcessLogix system, if the module firmware is at 1.2 or greater,
use the following procedure to update the module firmware using
NTools.
1. On the ProcessLogix Server, click Start>Run.
2. Type >ntools -c -u<.
3. To launch the Network Tools application, click OK.
4. Click OK at the warning about monitoring through Control
Builder software.
5. To initiate the network scan, click Resume.
6. Select the appropriate CNB or ENET icon.
7. Select the module to be updated in the chassis graphic.

8. Click the firmware button and click Yes to acknowledge the
warning.
9. Navigate to:
D:(or your CD-ROM drive letter)Firmware_NTools
10. Select the appropriate .nvs file.
11. To start the firmware load, click Open.
12. To confirm, click Yes.
The Status field in the lower portion of the Network Tools
window tracks the load progress.
13. When the load completes, click OK.

Chapter 2
Configure the 1757-ABRIO Module
provides an overview of the AbRioCfg software.
gives an introduction to mapping and accessing RIO network
data.
explains how to install the AbRioCfg software.
explains how to autoconfigure I/O racks.
explains how to add and configure block transfer modules.
AbRioCfg Software
Overview
The 1757-ABRIO module ships with configuration software, called
AbRioCfg. This configuration software is an online configuration tool.
Use the configuration software to:
query the RIO network to determine the location and size of the
racks present.
manually add and configure racks present in RIO network.
add and configure supported block transfer modules.
import comma separated variable files to define the Generic
Module as any block transfer module that uses 16-bit integer
data.
add, edit, and delete racks offline.
create tags for access by the controller.
map I/O data to those tags.
download the configuration to the module, using RSLinx
software.
monitor data and diagnostics on the module.
change the baud rate of network communications in a
configuration and download to the module.
change the configuration of racks in a configuration and
download to the module.
upload a configuration from a module.
print the configuration.

Chapter 2 Configure the 1757-ABRIO Module
Mapping and Accessing
RIO Network Data
Use the provided AbRioCfg software to create tags which are arrays of
digital, floating point or text values that the host controller reads or
writes using unscheduled messages.
You map data that the module receives or sends into these tags. The
data mapping is stored in flash memory on the 1757-ABRIO module.
The 1757-ABRIO Module and Data Mapping
WARNING
It is essential that the control program on the host controller
matches the addresses in the mapping configuration on the
1757-ABRIO module. Otherwise the control program may
inadvertently write to the incorrect I/O locations. If you change
the data mappings on the 1757-ABRIO module, make sure that
the control program is using the correct addresses.
1757-ABRIO Module
Tag
Tag
ControlLogix or
ProcessLogix
Controller
Write Data
Remote I/O
Modules
R/W Analog Data with Block Transfer Status
R/W digital Data
Scales Analog Data
Analog/Digital Modules
Hard Configured for Safe/Fault States
RIO Network
Read Data
Scan
List
RIO Network
Scanner
Remote I/O
Modules

Configure the 1757-ABRIO Module Chapter 2
Installing AbRioCfg
Software
1. Verify that RSLinx software and RSLinx OEM or RSLinx
Professional (not RSLinx Lite) software is installed before you
install the AbRioCfg software.
2. Insert the CD supplied with the 1757-ABRIO module and run the
program setup.exe.
3. Confirm that you have RSLinx OEM or RSLinx Professional (not
RSLinx Lite) software installed.
Before you install a new version of AbRioCfg software, you must
delete the old version. Use the Add or Remove Programs utility in
your Windows Control Panel to remove the previous version.
Autoconfigure the I/O
Racks
The first step in building a configuration is to perform an
autoconfiguration. To complete an autoconfiguration, the RIO
network must be connected to the 1757-ABRIO module and the
module must be in “inactive” mode.
1. Start AbRioCfg software.
IMPORTANT Messages about the DTL32.DLL during installation or when you
run the software indicate problems with the RSLinx software
installation.
If you get these messages, install the proper version of RSLinx
software before you continue.
IMPORTANT Removing the software does not delete stored configuration
files.
TIP If you see question marks for the 1757-ABRIO module when
running RSNetWorx or RSLinx software, install the EDS file
from the provided CD.
You do not need to load the firmware on the CD into your
1757-ABRIO module as the module ships with the latest version
of firmware. The firmware is on the CD for archival purposes
only.
ATTENTION When using AbRioCfg software, you must left-click to
select/highlight before you can right-click to activate menu
options.

2. Click Hardware Config to highlight it and activate the AbRioCfg
menu toolbar.
3. Click the Autoconfig button in the toolbar.
An RSWho window opens.
TIP With AbRioCfg software, 2.0 and higher, you can also manually
configure the I/O racks in your network. Refer to Add Racks
Offline on page 33 for more information.

4. Navigate to the 1757-ABRIO module.
5. Select the module and click OK.
The Select Baud Rate dialog box opens.
6. Select the appropriate baud rate and click OK.
The baud rate in this example is set by
switches on the 1771-ASB adapter. See
your device documentation for how to
set the desired baud rate. All racks or
devices on one RIO network must
operate at the same baud rate.

The 1757-ABRIO module sends messages to all possible racks
and builds the network rack configuration from the responses. It
displays a list of the racks it found in the network tree.
If you expand a rack, the partial racks that make up that rack
number are displayed.
7. If you are using 1771 remote I/O modules,
a. Right-click the rack in the network tree and select Enter Rack
Switch Setting.
The Select Rack Setting dialog box opens.

b. Select the value that matches the Last State switch setting in
the backplane of the I/O chassis, either De-energize or Hold
Last State.
This setting tells the 1757-ABRIO module what to do if the
controller stops updating the tag to which this chassis’s digital
data is mapped.
c. Repeat steps 7a and 7b for all racks that contain 1771 remote
I/O modules.
Adding Block Transfer
Modules
Autoconfiguration can locate the racks present on the network but it
cannot detect the analog I/O modules in those racks. Remote I/O
protocol does not allow for module identification to be communicated
on the network. Because of this, Block Transfer modules need to be
added manually. You do not have to add digital modules.
To add a block transfer module, complete the following steps.
1. Expand the rack that contains the analog I/O module in the
network tree.
2. Right-click the partial rack that contains the module and select
Add Module.
The Add BT Module dialog box opens.
3. Select the Module Type from the pull-down menu.

4. Select the slot location for the module.
To do this, you should be familiar with Allen-Bradley addresses
and, in particular, with 1771 addressing modes (see below).
See I/O Module Documentation on page 84 for a list of related
ControlLogix documentation.
5. Click OK.
Addressing Modes for 1771
The 1771 chassis have three addressing modes - 1/2-slot, 1-slot and
2-slot addressing. The addressing mode is set by switches in the
backplane of the chassis and is set on a per-chassis basis. The
addressing mode determines how physical block transfer modules
map into logical addresses (rack, I/O group and slot).
In the following tables, the addresses used for modules in a 16-slot
rack in each addressing mode. The rack switches are set for rack 1,
starting I/O group 0.
As illustrated in the 2-slot addressing table below, the controller
addresses two I/O module slots as one I/O group. For example, for a
chassis at rack 1, starting I/O group 0, a block transfer module in the
first slot would be at address rack 1, I/O group 0, slot 0. A module in
the next slot would be at rack 1, I/O group 0, slot 1.
As illustrated in the 1-slot addressing table below, the controller
addresses one I/O module slot as one I/O group. For example, for a
chassis at rack 1, starting I/O group 0, a block transfer module in the
first slot would be at address rack 1, I/O group 0, slot 0. A module in
the next slot would be at rack 1, I/O group 1, slot 0.
2-Slot Addressing
Slot in chassis 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Rack 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
I/O Group 0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7
Slot 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
1-Slot Addressing
Slot in chassis 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Rack 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2
I/O Group 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
Slot 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

As illustrated in the 1/2-slot addressing table below, the controller
addresses 1/2 of an I/O module slot as one I/O group. For example,
for a chassis at rack 1, starting I/O group 0, a block transfer module in
the first slot would be at address rack 1, I/O group 0, slot 0. A module
in the next slot would be at rack 1, I/O group 2, slot 0.
Configuring Block Transfer
Modules
When you add a block transfer module, the configuration dialog box
for that module opens. The contents of the dialog box are specific to
each module type.
See Supported 1771 Modules on page 83 or the online help for
information on configuring individual modules.
To edit the configuration for a module, double-click the module in the
network tree, or right-click the module and select Configure.
1/2-Slot Addressing
Slot in chassis 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Rack 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4
I/O Group 0 2 4 6 0 2 4 6 0 2 4 6 0 2 4 6
Slot 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
TIP You cannot change the location of a module in the
configuration once you have created it. You must delete the
module and create a new one at the new location.

Scaling Part of the configuration procedure for analog modules is entering
scaling values. The 1757-ABRIO module performs scaling between
raw I/O data and floating point user values.
You can send floating point output values to the 1757-ABRIO module
which it converts to raw output values using the scaling values you
supplied in the configuration. Similarly, the 1757-ABRIO module
converts raw input data to floating point values, using the scaling you
enter. The 1757-ABRIO module supports scaling values from -3.4e38
to 3.4e38. Scaling is done on a per-channel basis.
Input Scaling
For analog input modules, you must supply the floating point values
to which you want the minimum and maximum raw data scaled.
Minimum corresponds to the lowest raw value.
Maximum corresponds to the maximum raw value.
EXAMPLE If a raw input range is 1 5 V dc and you set the minimum
scaling value to 12.3 and the maximum scaling value to 77.4,
a raw input voltage of 1 produces a scaled input value of 12.3.
A raw input voltage of 5 V dc produces a scaled input value of
77.4
A raw input value outside the range of 1 5 V dc produces an
input of NaN (not a number). Modules also have underrange
and overrange bits to indicate data overflows.

Output Scaling
For output modules, you supply the floating point values you want to
correspond to the minimum and maximum raw output values.
ATTENTION
The minimum scale value may not be larger than the maximum
scale value
EXAMPLE If a channel has a range of 1 5 V dc and you set the minimum
scaling value to 12.3 and the maximum scaling value to 77.4,
when you set the output value to 12.3, the module produces a
raw output value of 1 V dc. When you set the output value to
77.4, the module produces a raw output of 5 V dc.
If you set the value outside the minimum and maximum scaling
values, the raw output is clamped at the minimum or maximum.

Tags Defined The ProcessLogix or ControlLogix controller accesses data for the
1757-ABRIO module using unscheduled messages that read or write
tags. For more information on how the controllers access this data, see
Configuring the ProcessLogix Controller to Access Data on the
1757-ABRIO Module on page 51 and Configuring RSLogix 5000
Software to Access Data on the 1757-ABRIO Module on page 57.
Before you program the controller to read or write to the 1757-ABRIO
module, you must define the tags in AbRioCfg software.
The 1757-ABRIO module supports the following five types of tags.
Numeric Read (1) and Numeric Write (2) tags
– Numeric read and numeric write tags are arrays of 64 scaled
floating point values.
– You can map data from block transfer modules to these tags.

Flag Read (3) and Flag Write (4) tags
– Flag read and write tags are arrays of 512 bits.
– Block transfer modules also have status bits that can be
mapped to flag read tags.
– Dragging an entire I/O Grp to a Flag Read or Flag Write tag
will expose all discrete read or write values for that rack as
well as the Rack Global Status tag.
Text Read (5) tags
– Text read tags are arrays of 64 bytes.
– They are used only with the 1770-HT1 HART module.
From the ProcessLogix or ControlLogix perspective, the HART
interface is read only. You can read text and tags from the
HART, but you can’t write data to the HART.

Create a Tag
If you are planning to use automatic digital tags via a scheduled
connection to the 1757-ABRIO module from a ControlLogix controller,
do not create tags. Refer to Scheduled Digital I/O Connections in
RSLogix 5000 Programs on page 60. For all other tag types (analog,
text) and unscheduled connections, tags must be manually created.
To create a tag, complete the following steps.
1. Select the appropriate tab for the type of tag you want to create.
2. Right-click the root of the tree in the tag area and select Add
Tag.
The Add a Tag dialog box opens.
3. Type a tag name.
Tag names can be from 1 to 32 characters in length and must be
unique.
4. Type a message timeout time.
This is the time during which the host controller must update
the tag. The range of values is from 100 to 15000 ms. The default
is 5000 ms.
If the message timeout is exceeded, the tag times out and the
1757-ABRIO module takes the appropriate action.
5. Click OK to accept the tag.
You can create a maximum of 64 tags, of any combination of
types.

Mapping Data to Tags in
AbRioCfg Software
If you are using a ControlLogix controller, no actions are necessary to
read or write digital data with scheduled connections. Refer to
Scheduled Digital I/O Connections in RSLogix 5000 Programs on
page 60 for more information.
If you are using a ProcessLogix controller, you need to create flag
read and flag write tags in AbRioCfg software to have access to this
data.
Block Transfers
When mapping block transfer modules, drag the analog module from
the network tree to the location in the tag where you want the data to
be located.
Block transfer read data can be mapped to numeric read tags.
Block transfer write data can be mapped to numeric write tags.
You cannot map individual registers; all the data for a rack or I/O
module is mapped to the tag. You can map data from many I/O
modules into the same tag.
Mappings must be unique. You cannot map a block transfer module
to more than one tag of the same type or to multiple locations within
the same tag.
In addition, block transfer modules have status information that can
be mapped to flag read tags. Refer to Supported 1771 Modules on
page 83 for detailed information on status information.
TIP Rack Digital Data
If you would like to use scheduled ControlNet connections to
the 1757-ABRIO module via a ControlLogix controller, do not
map any racks to digital tags. This is done for you when the
scheduled connection is established. Refer to Scheduled Digital
I/O Connections in RSLogix 5000 Programs on page 60 for more
information.

I/O
To map I/O data to a tag, complete the following steps.
1. Expand the tag to show the tag elements.
2. Scroll to display the destination in the tag where you want to
add the data.
3. Drag the rack or block transfer module to the desired location in
the tag.
Deleting Mapped Data
To delete mapped data from a tag, complete the following steps.
1. Select any element of the data.
2. Click Delete.
You cannot delete individual elements of the data for an I/O module.
When you delete an element you delete all the data for the particular
module. Data is not affected for the other modules mapped to the
same tag.
Tips for Configuring
Modules
Use the largest range of raw values possible for the 1757-ABRIO
module and optimum data resolution. The scaling should be done to
engineering units in the module.
The following operations are features of firmware version 2.1. To use
these features, you need the following:
Firmware version 2.1 or above for the 1757-ABRIO module
AbRioCfg software version 2.0 or above
AbRioCfg software version 2.0 or above can open or upload
configurations made with previous versions of AbRioCfg
software.

Add Racks Offline
To add a rack, complete the following steps.
1. Right-click Hardware Config and select Add A Rack.
2. Enter the Rack Number (1 to 37 octal), Starting I/O Group
(0,2,4,6) and Ending I/O Group (1,3,5,7) and click OK.

Delete Racks Offline
To delete racks offline, complete the following steps.
1. Right-click the partial rack and select Delete Rack.
A warning dialog box opens.
2. Click OK.
When you delete a rack, all I/O modules on the rack and flag
mappings for the rack are deleted. If this partial rack is the only one in
the rack number, the rack number will be deleted from the tree.

Change the Baud Rate Offline
To change the baud rate offline, complete the following steps.
1. Select Actions>Change Baud Rate.
The Select Baud Rate dialog box opens.
2. Select the desired baud rate and click OK.
A warning window opens
3. To select the path to the 1757-ABRIO module from an RSWho
window, click Yes.
To make this change in the offline file only, click No.
Download the
Configuration
To download the configuration to the 1757-ABRIO module from
AbRioCfg software, select Actions>Download config or click the
Download Configuration to Module button on the toolbar.
WARNING
Downloading a configuration disrupts communication between
the 1757-ABRIO module and the RIO network.
If the module is in active or forced active mode, the
configuration program asks if you want to remove it from
active mode.
Scaling data for modules that have not been mapped to tags is
not downloaded with the configuration.

Upload the Configuration To upload a configuration from a 1757-ABRIO module, select
Actions>Upload config or click the Upload Config From Module
button on the toolbar.

Chapter 3
Creating Generic Modules in AbRioCfg
Software
Introduction This chapter describes using a generic module type which supports
any block transfer I/O module that uses 16-bit integer data. To use
these features, you need the following:
Firmware version 2.1 or above of the firmware for the
1757-ABRIO module
AbRioCfg software version 2.1 or above
AbRioCfg software version 2.1 or above can open or upload
configurations made with previous versions of AbRioCfg
software.
If you are using a 1771 module refer to Supported 1771 Modules on
page 83.
If you need to access HART data refer to Accessing HART Data on
page 115.
Generic Module Overview The generic module type makes it possible to do the following:
Configure and communicate with any block transfer I/O module
that uses 16-bit integer data. You create the configuration file as
a comma-separated variable (CSV) file, using a spreadsheet or
text editor, and import it using AbRioCfg software.
Configure a block transfer module that is already supported by
AbRioCfg software in ways that the standard configuration does
not allow, for example, using fewer channels than in the
standard module configuration, or adding features not
supported by the standard configuration.
Have up to 100 different generic module types in an
1757-ABRIO configuration file, and an unlimited number of
modules made from those 100 types.

Chapter 3 Creating Generic Modules in AbRioCfg Software
Generic Module
Configuration File
The Generic Module configuration file consists of these sections.
– the configuration block transfer write (BTW)
– the data block transfer read
– the data block transfer write
Most configuration files have a configuration block transfer write.
Some may have both data block transfer read and data block transfer
write sections; others will have just one or the other. The maximum
size for each section is 64 words of data.
You can add comments to the file by preceding them with a
semicolon. Comments can be added to the end of an existing line or
can occupy separate lines. The configuration file can be created as a
text file or as a spreadsheet using a program like Excel and saved as a
CSV file.
To use a text file, separate the data fields with commas. To use a
spreadsheet, put the data values in separate columns.
Configuration Block Transfer Write
The configuration block transfer write section (Config BTW) contains
the data that is sent to the module to set how it operates. The
configuration block transfer write is sent:
at powerup
when communication is restored after being lost
when the remote I/O network switches from program to run
The first line of the configuration block transfer write is the keyword
“configbtw”, followed by the block transfer length, in words.
This is followed by data definitions that consist of an offset and a
value.
IMPORTANT The length of a CSV filename must not exceed 31 characters.
TIP Sample configuration files are available for your use. The files
are located in the GenProfile directory on the supplied
1757-ABRIO CD.
EXAMPLE configbtw, 13

Creating Generic Modules in AbRioCfg Software Chapter 3
The offset is the offset into the block transfer and ranges from 0 to the
block transfer length - 1. For example, if the block transfer is 10 words
long, the allowed offsets range from 0 to 9.
The value can be in one of the following formats:
Binary values start with a leading “0b”. Hexadecimal values start with
a leading “0x”. It's usually easier and less prone to error to enter the
values in binary or hexadecimal.
Format Range
Binary 0b0000000000000000 to 0b1111111111111111
Hexadecimal 0x0000 to 0xFFFF
Unsigned integer 0 to 65535
Signed integer -32768 to 32767
TIP If a module does not require a configuration block transfer
write, you can omit the Config BTW section of the configuration
file. For example, an SLC analog module does not require a
Config BTW section in the file.
EXAMPLE 0, 0b1011001100100001
7, 0xB321
11, 45857
Only non-zero values need be entered; all other values in the
configuration block transfer will default to 0.

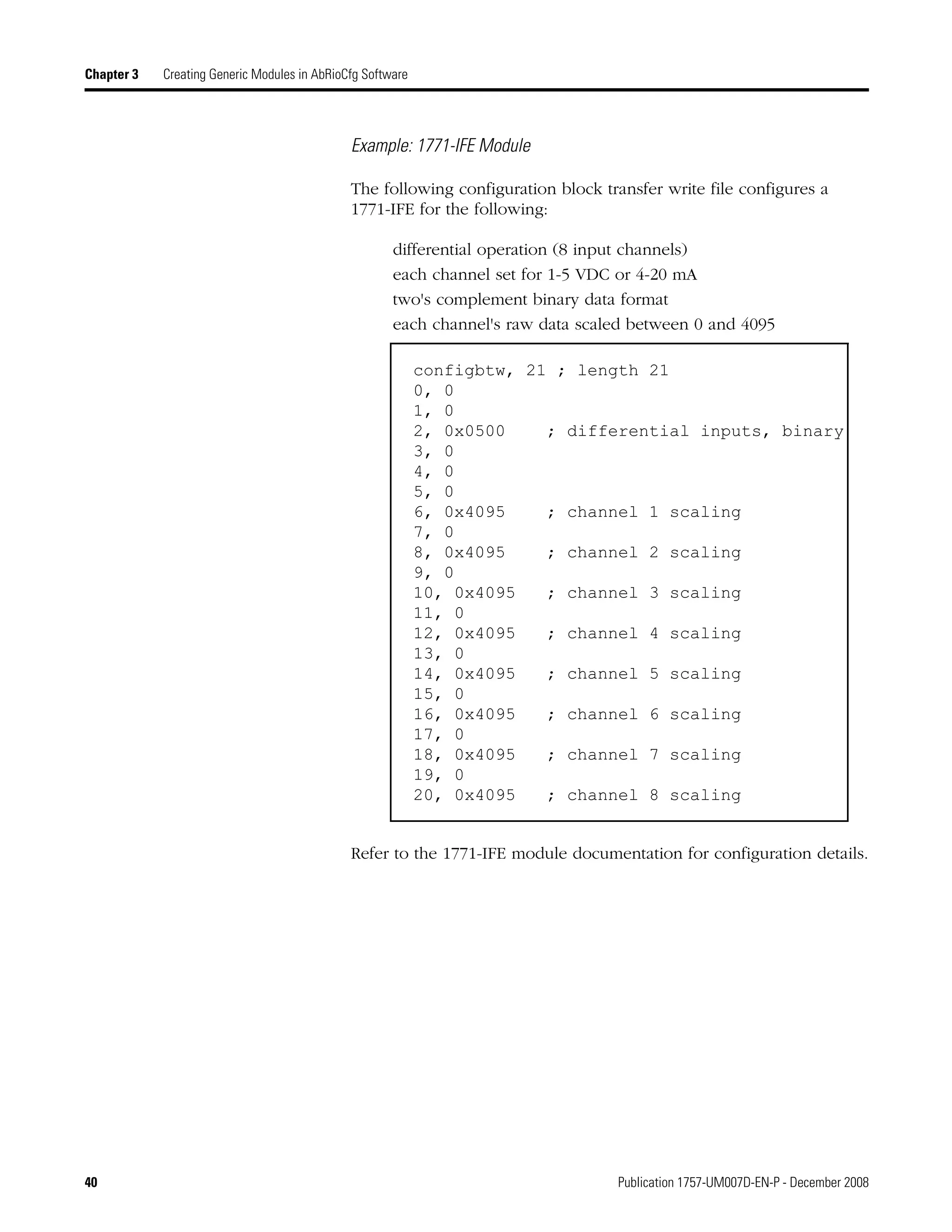

Example: 1771-IFE Module
The following configuration block transfer write file configures a
1771-IFE for the following:
differential operation (8 input channels)
each channel set for 1-5 VDC or 4-20 mA
two's complement binary data format
each channel's raw data scaled between 0 and 4095
Refer to the 1771-IFE module documentation for configuration details.
configbtw, 21 ; length 21
0, 0
1, 0
2, 0x0500 ; differential inputs, binary
3, 0
4, 0
5, 0
6, 0x4095 ; channel 1 scaling
7, 0
9, 0
11, 0
13, 0
15, 0
17, 0
19, 0

Example: 1771-OFE module
The following configuration block transfer write file configures a
1771-OFE for:
binary data format
raw data from 0 to 0x0fff (0 to 4095 decimal) on each channel
0 values have been omitted.
Refer to the 1771-OFE module documentation for the details.
Data Block Transfer Read
The data block transfer read defines the cyclic block transfer read that
is used to read data from an input module, and is sometimes used to
read status data from an output module.
The data block transfer read consists of a numeric section and a flag
section.
The beginning of the data block transfer read section is marked by the
keyword “databtr”, followed by the block transfer read length.
Numeric Data
The numeric section of the data block transfer read defines the I/O
data - its location, format, and scaling.
The beginning of the numeric section is marked by the keyword
“numeric”, followed by the number of values to be defined, and the
data format.
EXAMPLE databtr, 15
4, 0x8000 ; binary data format
6, 0x0fff ; maximum raw value channel 1

AbRioCfg software checks the number of values to be defined against
the actual number of definitions and indicates an error if they do not
match.
The format can be one of:
All items must have the same format.
This is followed by definitions for the I/O data values, each on a row
of the spreadsheet (or line of a text file). Each definition consists of
the following fields:
Some modules have data underrange and overrange bits to indicate
out-of-range inputs.
If the underrange or overrange bit is set, the AbRioCfg software
sets the I/O value to NaN.
Format Range of values
BCD 0 to 9999
Unsigned 0 to 65535
Integer -32768 to 32767
EXAMPLE numeric, 4, BCD
numeric, 8, integer
Quantity Description
BTR offset Offset into BTR data The BTR offset is the offset into
the BTR data for the I/O data value
Underrange offset(1)
(1) If the offset is not used, the field must be left blank (not 0).
Word offset of underrange bit, 0–15
Underrange bit Bit number, 0–15
Overrange offset(1) Word offset of overrange bit, 0–15
Overrange bit Bit number, 0–15
Polarity offset(1) Word offset of polarity bit, 0–15
Polarity bit Bit number, 0–15
Minimum raw value Minimum raw input
Maximum raw value Maximum raw input
Minimum scale value Minimum floating point scaled value that corresponds
to minimum raw value
Maximum scale value Maximum floating point scaled value that
corresponds to maximum raw value

If the module does not have overrange or underrange bits, leave
those fields blank in the configuration file.
Some modules have a separate polarity bit to indicate the sign of an
input.
If the polarity bit is set, the 1757-ABRIO module assigns the
corresponding data a negative value.
the 1757-ABRIO module uses the polarity offset and bit only for
the BCD data type. It ignores them for the other data types.
If the data type is BCD, enter the raw minimum and maximum values
in decimal, not hexadecimal. For example is the range is 0 to 9999,
enter the value as 9999, not 0x9999.
Flag Data
In some cases the block transfer read contains data that we want to
map to flag read tags, for example, a module error bit. If a module has
flag data defined, you can then map it to flag read data in AbRioCfg
software.
The flag data section of the Data Block Transfer read defines the
location of this discrete data.
The beginning of the flag section is marked by a line containing the
keyword “flag”, followed by the total length of the flags data, in bits.
The length must be a multiple of 8.
This is followed by a number of lines that define where the flag data
is found. Each line consists of an offset and a length. The maximum
number of flag data definition lines is 4.
EXAMPLE A 1771-IFE module has channel 1 data at offset 4, the
underrange bit is in offset 1, bit 0, the overrange bit is in offset
2, bit 0, and the polarity bit is in offset 3, bit 0. The raw data
ranges from 0 to 4095. We want to scale the raw data to
floating point values from 0 to 1000.
In a text file:
4,1, 0, 2, 0, 3, 0, 0, 4095, 0, 1000
In a spreadsheet:
EXAMPLE flag, 32
numeric 4 BCD
4 1 0 2 0 3 0 0 4095 0 1000

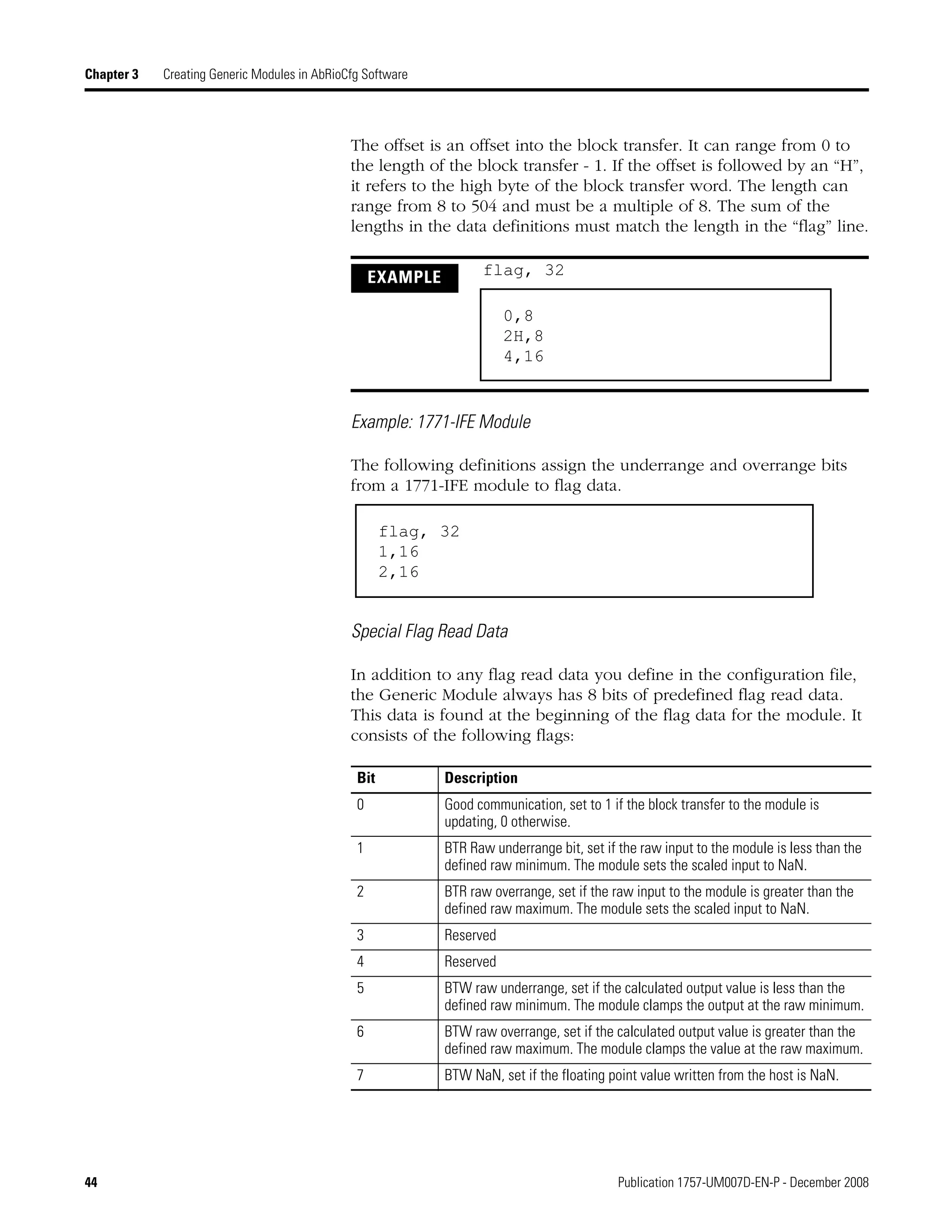

The offset is an offset into the block transfer. It can range from 0 to
the length of the block transfer - 1. If the offset is followed by an “H”,
it refers to the high byte of the block transfer word. The length can
range from 8 to 504 and must be a multiple of 8. The sum of the
lengths in the data definitions must match the length in the “flag” line.
Example: 1771-IFE Module
The following definitions assign the underrange and overrange bits
from a 1771-IFE module to flag data.
Special Flag Read Data
In addition to any flag read data you define in the configuration file,
the Generic Module always has 8 bits of predefined flag read data.
This data is found at the beginning of the flag data for the module. It
consists of the following flags:
EXAMPLE flag, 32
Bit Description
0 Good communication, set to 1 if the block transfer to the module is
updating, 0 otherwise.
1 BTR Raw underrange bit, set if the raw input to the module is less than the
defined raw minimum. The module sets the scaled input to NaN.
2 BTR raw overrange, set if the raw input to the module is greater than the
defined raw maximum. The module sets the scaled input to NaN.
3 Reserved
4 Reserved
5 BTW raw underrange, set if the calculated output value is less than the
defined raw minimum. The module clamps the output at the raw minimum.
6 BTW raw overrange, set if the calculated output value is greater than the
defined raw maximum. The module clamps the value at the raw maximum.
7 BTW NaN, set if the floating point value written from the host is NaN.
0,8
2H,8
4,16
flag, 32
1,16
2,16

Sample 1771-IFE Configuration File
Data Block Transfer Write
The data block transfer write defines the cyclic block transfer read that
is used to write data to an output module. The data block transfer
write consists of a numeric section and a flag section. The beginning
of the data block transfer write section is marked by the keyword
“databtw, followed by the block transfer write length.
EXAMPLE databtw, 12
2, 0x0500 ; differential inputs, binary
5, 0
7, 0
9, 0
11, 0
13, 0
15, 0
17, 0
19, 0
databtr, 12
numeric, 4, signed
4, 1, 0, 2, 0, 3, 0, 0, 4095, 0, 1000
5, 1, 0, 2, 0, 3, 0, 0, 4095, 0, 1000
6, 1, 0, 2, 0, 3, 0, 0, 4095, 0, 1000
7, 1, 0, 2, 0, 3, 0, 0, 4095, 0, 1000
8, 1, 0, 2, 0, 3, 0, 0, 4095, 0, 1000
9, 1, 0, 2, 0, 3, 0, 0, 4095, 0, 1000
10, 1, 0, 2, 0, 3, 0, 0, 4095, 0, 1000
11, 1, 0, 2, 0, 3, 0, 0, 4095, 0, 1000
flag, 32
1, 16
2, 16

Numeric Data
The numeric section of the data block transfer write defines the I/O
data - its location, format, and scaling.
The beginning of the numeric section is marked by the keyword
“numeric”, the number of values to be defined, and the data format.
AbRioCfg software checks the number of values to be defined against
the actual number of definitions and indicates an error if they do not
match.
The format can be one of the following.
All items must have the same format.
This line is followed by definitions for the I/O data values, each on a
row of the spreadsheet (or line of a text file). Each definition consists
of the following fields:
The BTW offset is the offset into the BTW data for the I/O data value.
Some modules have a separate polarity bit to indicate the sign of an
input. If the data being written is negative, the 1757-ABRIO module
sets the polarity bit.
Format Range of values
BCD 0 to 9999
Unsigned 0 to 65535
Integer -32768 to 32767
EXAMPLE numeric, 4, BCD
numeric, 8, integer
Quantity Description
BTW offset Offset into BTW data
Polarity offset Word offset of polarity bit
Polarity bit Bit number, 0-15
Minimum raw value Minimum raw output
Maximum raw value Maximum raw output
Minimum scale value Minimum floating point scaled value that corresponds
to minimum raw value
Maximum scale value Maximum floating point scaled value that corresponds
to maximum raw value

The 1757-ABRIO module uses the polarity offset and bit only for the
BCD data type. It ignores them for the other data types.
If the scaled valued written is NaN, the raw output gets set to the
corresponding value in the configuration data. For example, if an I/O
data value is at offset 7 in the data block transfer write, the value at
offset 7 in the configuration block transfer write is written if the host
controller writes NaN to the tag that is mapped to the I/O value.
Flag Data
In some cases the block transfer write contains data that we want to
map to flag write tags.
The flag data section of the Data Block Transfer write defines the
location of this discrete data.
The beginning of the flag section is marked by a line containing the
keyword “flag”, followed by the total length of the flags data, in bits.
The length can be from 8 to 504 and must be a multiple of 8.
This is followed by a number of lines that define where the flag data
is found. Each line consists of an offset and a length. The maximum
number of flag definition lines is 4.
The offset is an offset into the block transfer. It can range from 0 to
the length of the block transfer - 1. If the offset is followed by an “H”,
it refers to the high byte of the block transfer word.
The length can range from 8 to 504 and must be a multiple of 8.
TIP If the data type is BCD, enter the raw minimum and maximum
values in decimal, not hexadecimal. For example is the range is
0 to 9999, enter the value as 9999, not 0x9999.
EXAMPLE A 1771-OFE module has channel 1 data at offset 0. The polarity
bit is offset 4 bit 0. We want to write floating point values from
0 to 1000 and have them scaled to the raw values 0 to 4095.
In a text file:
0, 4, 0, 0, 4095, 0, 1000
In a spreadsheet:
EXAMPLE flag, 32
0 4 0 0 4095 0 1000

The sum of the lengths in the data definitions must match the length
in the “flag” line.
Example 1771-OFE Configuration File
Creating a Generic Module
in AbRioCfg software
To add a generic module in AbRioCfg software, complete the
following steps.
1. Right-click the rack to which the module will be added and
select Add Module.
EXAMPLE flag, 32
0,8
2H,8
4,16
4, 0x8000 ; binary data format
databtw, 12
numeric, 4
0, 4, 0, 0, 4095, 0, 1000
1, 4, 1, 0, 4095, 0, 1000
2, 4, 2, 0, 4095, 0, 1000
3, 4, 3, 0, 4095, 0, 1000

2. Select a Module Type of Generic Module, the location for the
module and click OK.
3. Browse to or type the CSV file and path and click Import.
AbRioCfg software imports the configuration file and displays
the contents, or gives an error message if it finds problems with
the file.
4. Assign values for the BTR and BTW Update Times.
5. Click OK to accept the module.
You can now map the data to tags by dragging the Generic module to
the desired numeric read, numeric write, flag read or flag write tag.
To change the configuration, re-import the configuration. If the
generic module was mapped to tags, the mappings will be deleted
and must be reassigned.

You can export the generic module configuration by clicking the
Export button in the Generic Module dialog box. Since comments in
the original file are not imported (and therefore are not exported), it is
usually better to modify the original configuration file and save it with
a new name. Export may be useful if you upload a configuration that
contains a generic module from a 1757-ABRIO module and you do
not have the original file.

Chapter 4
Configuring the ProcessLogix Controller to
Access Data on the 1757-ABRIO Module
Introduction This chapter describes:
the operating modes of the 1757-ABRIO module.
how to access data on the module from a ProcessLogix
controller.
Modes of Operation There are four modes of operation for the module.
CONFIG
INACTIVE (Program)
ACTIVE (Run)
FORCED ACTIVE
The mode of the 1757-ABRIO module determines the RIO network
mode.
Modes related to RIO network operations:
INACTIVE (Program) mode, digital inputs continue to update
but digital outputs and block transfers do not.
ACTIVE (Run) mode, digital inputs and outputs update, and
block transfers update.
CONFIG Mode
The module is in CONFIG mode while AbRioCfg software downloads
a configuration. CONFIG mode is largely invisible to the user unless
the configuration being downloaded is large. After downloading, the
software returns the module to INACTIVE mode.

Chapter 4 Configuring the ProcessLogix Controller to Access Data on the 1757-ABRIO Module
INACTIVE Mode
The module is in INACTIVE mode when it is not receiving messages
from either a host controller or via OPC/DDE. The module is also in
INACTIVE mode when it has not been put in FORCED ACTIVE mode
by AbRioCfg software.
When the module is in INACTIVE mode, the RIO network is placed in
program mode with input updates but no output updates. The
1757-ABRIO module must be in the INACTIVE mode to accept a
download.
ACTIVE Mode (Run)
The module is in ACTIVE mode when it receives a message from
either a host controller or from an OPC or DDE server. When the
module is in ACTIVE mode, the RIO network is in run mode.
The module is in ACTIVE mode as long as any tag is being updated.
Each tag has an associated time-out. The tag is considered to be
updating until the time-out expires. If all tags have timed out, the
1757-ABRIO module automatically switches to INACTIVE mode.
If you try to download a configuration when the module is in ACTIVE
mode, AbRioCfg software asks if you want to take the module out of
ACTIVE mode. If you click OK, AbRioCfg software changes the mode,
downloads the configuration, then puts the module in INACTIVE
mode.
FORCED ACTIVE Mode
The module is in FORCED ACTIVE mode when you set ACTIVE mode
from the AbRioCfg program. FORCED ACTIVE mode lets you send
and receive data without having to create messages in the module. It
is intended primarily for setting up and testing RIO networks.
If you try to download a configuration when the module is in
FORCED ACTIVE mode, AbRioCfg software asks if you want to take
the module out of ACTIVE mode. If you click OK, AbRioCfg software
changes the mode, downloads the configuration, then puts the
module in INACTIVE mode.
IMPORTANT When the module is in FORCED ACTIVE mode, the RIO network
is in run mode.

Configuring the ProcessLogix Controller to Access Data on the 1757-ABRIO Module Chapter 4
Configure the 1757-PLX52
Controller
To access tag data on the 1757-ABRIO module from a ProcessLogix
controller, use the REQNUMARRAY, REQFLAGARRAY and
REQTEXTARRAY Exchange Blocks with CIPREAD and CIPWRITE
commands to read and write tags.
Use Control Builder software to complete the following steps.
1. Select the Exchange Block from the Library in Control Builder.
2. Add the desired Exchange Block to the CM (Control Module) by
dragging it into the CM window.
– REQFLAGARRAY for flag data
– REQNUMARRAY for numeric data
– REQTEXTARRAY for text data
3. Expand the Exchange Block by double-clicking on it.
4. Select the Main tab.
5. Give the block a name and set the execution order.
6. Select either CIPREAD or CIPWRITE for the message command.

7. Set the number of values to be read or written.
a. Flag arrays, 512 max
b. Numeric arrays, 64 max
c. Text arrays, 64 max
Array Examples
8. Set the data type to be read or written.
a. Numeric arrays, set Data Type in Target Device to FLOAT32.
b. Text arrays, set the Number of String Values to 1 and the Char
Length of String Values to 64.
9. Select the Communications tab.
10. Set the Path from the ProcessLogix controller to the 1757-ABRIO
module.
See the tip on page 72 or Control Builder Help for information
on entering the path.
Flag Arrays Numeric Arrays Text Arrays

Configuring the ProcessLogix Controller to Access Data on the 1757-ABRIO Module Chapter 4
11. Set the File Name in the Exchange Blocks to the names of the
tags you created in the 1757-ABRIO module.
12. Perform any other configuration required by your application on
the other tabs.
13. Click OK to accept the block.
14. Wire the ready flag (READYFL) to the send flag (SENDFL) for
each exchange block.
15. Download the CM to the ProcessLogix controller and activate it.
IMPORTANT Be sure to expose the Error codes in your Exchange Blocks.

Live Data Examples
Double-click function block

Chapter 5
Configuring RSLogix 5000 Software to Access
Data on the 1757-ABRIO Module
Introduction This chapter describes:
the operating modes of the 1757-ABRIO module.
how to access data on the module from a ControlLogix
controller.
Modes of Operation There are four modes of operation for the module.
CONFIG
INACTIVE (Program)
ACTIVE (Run)
FORCED ACTIVE
The mode of the 1757-ABRIO module determines the RIO network
mode.
Modes related to RIO network operations:
INACTIVE (Program) mode, digital inputs continue to update
but digital outputs and block transfers do not.
ACTIVE (Run) mode, digital inputs and outputs update, and
block transfers update.
CONFIG Mode
The module is in CONFIG mode while AbRioCfg software downloads
a configuration. CONFIG mode is largely invisible to the user unless
the configuration being downloaded is large. After downloading, the
software returns the module to INACTIVE mode.

Chapter 5 Configuring RSLogix 5000 Software to Access Data on the 1757-ABRIO Module
INACTIVE Mode
The module is in INACTIVE mode when it is not receiving messages
from either a host controller or via OPC/DDE. The module is also in
INACTIVE mode when it has not been put in FORCED ACTIVE mode
by AbRioCfg software.
When the module is in INACTIVE mode, the RIO network is placed in
program mode with input updates but no output updates. The
1757-ABRIO module must be in the INACTIVE mode to accept a
download.
When scheduled connections are used, the 1757-ABRIO module’s
mode will always follow the ControlLogix controller’s mode regardless
if it is receiving messages. For example, when the controller is in
PROGRAM mode, the module is in INACTIVE mode.
ACTIVE Mode (Run)
The module is in ACTIVE mode when it receives a message from
either a host controller or from an OPC or DDE server. When the
module is in ACTIVE mode, the RIO network is in run mode.
The module is in ACTIVE mode as long as any tag is being updated.
Each tag has an associated time-out. The tag is considered to be
updating until the time-out expires. If all tags have timed out, the
1757-ABRIO module automatically switches to INACTIVE mode.
If you try to download a configuration when the module is in ACTIVE
mode, AbRioCfg software asks if you want to take the module out of
ACTIVE mode. If you click OK, AbRioCfg software changes the mode,
downloads the configuration, then puts the module in INACTIVE
mode.
When scheduled connections are used, the 1757-ABRIO module’s
mode will always follow the ControlLogix controller’s mode regardless
if it is receiving messages. For example, when the controller is in RUN
mode, the module is in ACTIVE mode.

Configuring RSLogix 5000 Software to Access Data on the 1757-ABRIO Module Chapter 5
FORCED ACTIVE Mode
The module is in FORCED ACTIVE mode when you set ACTIVE mode
from the AbRioCfg program. FORCED ACTIVE mode lets you send
and receive data without having to create messages in the module. It
is intended primarily for setting up and testing RIO networks.
If you try to download a configuration when the module is in
FORCED ACTIVE mode, AbRioCfg software asks if you want to take
the module out of ACTIVE mode. If you click OK, AbRioCfg software
changes the mode, downloads the configuration, then puts the
module in INACTIVE mode.
IMPORTANT When the module is in FORCED ACTIVE mode, the RIO network
is in run mode.

Scheduled Digital I/O
Connections in RSLogix
5000 Programs
1757-ABRIO module firmware versions 1.2 and above support
scheduled connections for exchanging digital input and output data
between the 1757-ABRIO module and the host ControlLogix
controller. This results in much faster updates for the digital data than
is possible using unscheduled messages. This section describes how
to configure the module and the format of the scheduled data.
When you add a 1757-ABRIO module to the I/O Configuration of an
RSLogix 5000 program using the generic 1757-MODULE profile, a data
connection is created for the digital remote I/O data. See Tag
Descriptions for Scheduled Data in RSLogix 5000 Software on
page 149 for more information about the status tag when using
ControlLogix. The status tag gives global status for digital data and
individual rack status.
Scheduled Connection Types
There are two types of scheduled connection.
Exclusive Owner, read/write
Input Only, read only

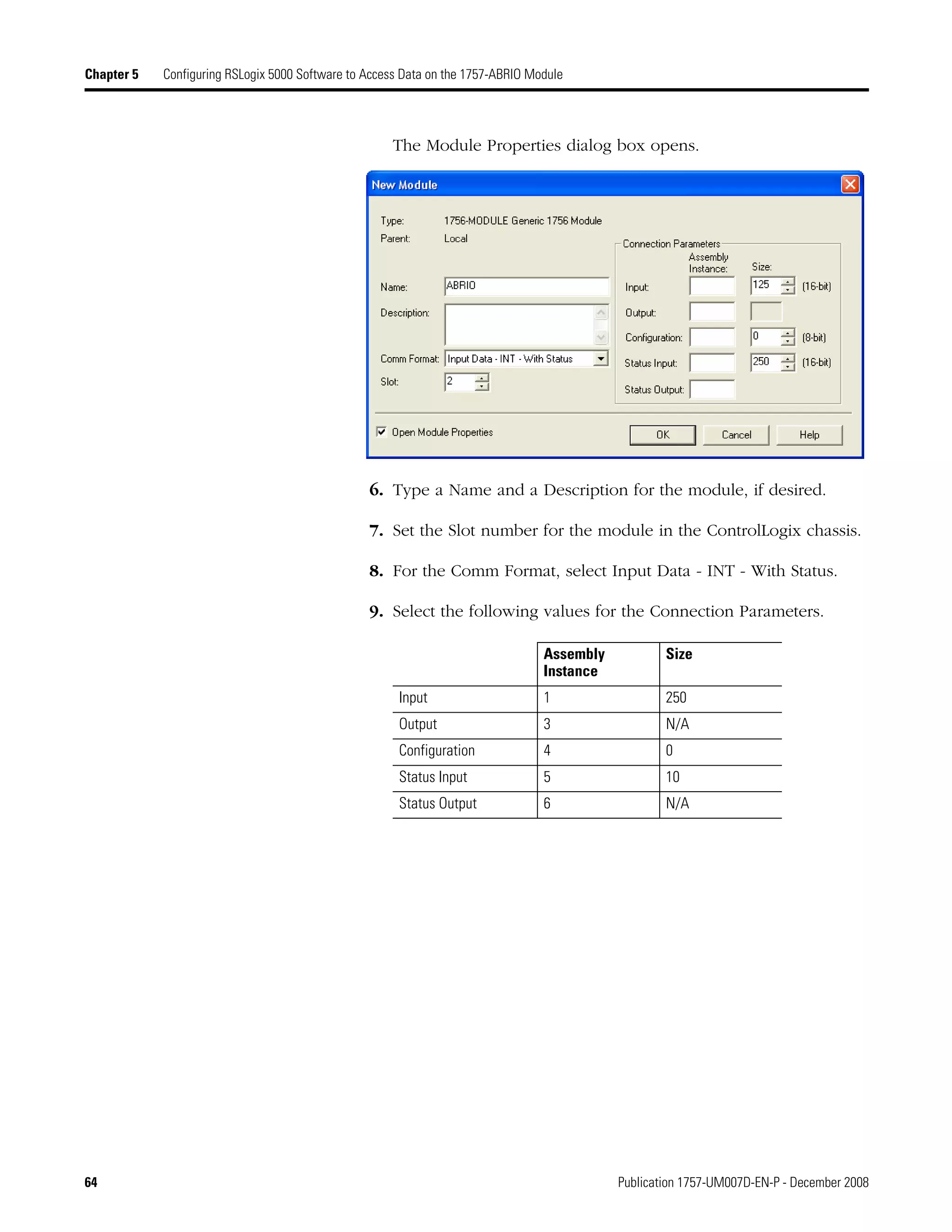

Setup an Exclusive-owner Connection
Configure a generic module profile in RSLogix 5000 software to
represent the 1757-ABRIO module. This dictates the format and
amount of scheduled data, and how often the scheduled data is
transferred. The ControlLogix controller is the owner of the
connection and controls the digital outputs. The connection is referred
to as an exclusive-owner connection.
TIP In order to access any numeric read, numeric write, or text read
data from the ControlLogix controller you must also complete
Unscheduled I/O Connections in ControlLogix on page 67.
IMPORTANT In order for the scheduled connection to control the outputs of a
chassis, the chassis must not be mapped to any flag write tag
in the AbRioCfg software configuration that has been
downloaded to the 1757-ABRIO module.

Remote I/O Operating Modes
If there is an exclusive-owner connection to the 1757-ABRIO module,
the module’s remote I/O mode (run or program) follows the owner
ControlLogix controller’s Run or Program mode. If the owner
ControlLogix controller is in Program mode, the 1757-ABRIO module
is in program mode (even if the module is receiving messages). If the
ControlLogix controller is in Remote Test mode, the remote I/O mode
for the 1757-ABRIO module is program.
The remote I/O mode is not affected by the operating mode of a
ControlLogix controller that has an input-only connection to the
1757-ABRIO module. In the absence of an exclusive-owner
connection, the 1757-ABRIO module’s remote I/O mode is determined
by whether it is receiving messages, as before.
Add a Module as an Exclusive-owner Connection
To configure the 1757-ABRIO module in RSLogix 5000 software, the
ControlLogix controller must be offline.
1. Create a new project for your type of controller.
2. Type a name for the controller, and select the slot it occupies in
the ControlLogix chassis.
3. Click OK.
4. Right-click on I/O configuration and select New Module.
5. Under Other, select the 1756-MODULE Generic 1756 Module
and click OK.
The Module Properties dialog box opens.

6. Type a Name and a Description for the module, if desired.
7. Set the Slot number for the module in the ControlLogix chassis.
8. For the Comm Format, select Data - INT - With Status.
9. Select the following values for the Connection Parameters.
10. Verify that the Open Module Properties checkbox is checked
and click OK.
11. Set the module’s Requested Packet Interval (RPI).
This is how often the module's scheduled data is updated in the
controller. The value can range from 0.2 to 750 ms. The default
time is 5 ms.
12. Click OK.
13. Save the program and download it to the ControlLogix
controller.
Assembly
Instance
Size
Input 1 250
Output 2 248
Configuration 4 0
Status Input 5 10
Status Output 6 N/A

Output Priority
If a digital rack is mapped to a flag write tag in the AbRioCfg software,
the flag data takes precedence over the digital outputs in the
scheduled connection, even if nothing is writing to the flag write tag.
To control outputs on a chassis using a scheduled connection, make
sure the chassis is not mapped to a flag write tag.
Setup Input-only Connections
The 1757-ABRIO module also supports input-only connections. In a
ControlLogix system, multiple controllers can receive inputs from a
module, but only one controller can control the outputs. An
input-only connection does not require the presence of an exclusive
owner connection. More than one ControlLogix controller can open
an input-only connection to the 1757-ABRIO module and receive its
inputs.
Add a Module as an Input-only Connection
To configure an input-only connection to the 1757-ABRIO module in
RSLogix 5000 software, you must be offline.
1. Create a new project for your type of controller.
2. Type a name for the controller, and select the slot it occupies in
the ControlLogix chassis.
3. Click OK.
4. Right-click on I/O configuration and select New Module.
5. Under Other, select the 1756-MODULE Generic 1756 Module
and click OK.

The Module Properties dialog box opens.
6. Type a Name and a Description for the module, if desired.
7. Set the Slot number for the module in the ControlLogix chassis.
8. For the Comm Format, select Input Data - INT - With Status.
9. Select the following values for the Connection Parameters.
Assembly
Instance
Size
Input 1 250
Output 3 N/A
Configuration 4 0
Status Input 5 10
Status Output 6 N/A

10. Verify that the Open Module Properties checkbox is checked
and click OK.
11. Set the module’s Requested Packet Interval.
This is how often the module's scheduled data is updated in the
controller. The value can range from 0.2 to 750 ms. The default
is 5 ms.

12. Click OK.
13. Save the program and download it to the ControlLogix
controller.
Live Data Example
Click the 1757-ABRIO module to
display the new tags. See Tag
Descriptions for Scheduled Data in
RSLogix 5000 Software on
page 149 for details.

Unscheduled I/O
Connections in
ControlLogix
There are several tasks you need to complete before you can access
data from ControlLogix. You need to create the following:
Tags for messages
Tags for storage areas
Message commands to read RIO network data
Message commands to write RIO network data
Use RSLogix 5000 message instructions (MSG) to access tags on the
1757-ABRIO module. Refer to RSLogix 5000 Online Help and the
Logix5000 Controllers General Instructions Reference Manual,
publication 1756-RM003, for details on messages.
Before you create the MSG instruction, create a tag of type MESSAGE
to act as a control for the MSG instruction. You must also create a
source (write) or destination (read) tag for the data written to or read
from the 1757-ABRIO module.
1. Create Tags For All Messages and All Storage Areas
RSLogix 5000 Example Tags in Program Mode
For message type,
select CIP Data
Table Read or
Data Table Write.
On a Read, the
source is a
1757-ABRIO Tag
Name. The
Destination, on a
Read, is an
RSLogix 5000 Tag
Name.
These are the tags
you will reference
in your message
commands.

2. Create Message Commands to Read and Write All RIO
Network Data
RSLogix 5000 Example Message Commands in Program Mode
This table shows the source (write) or destination (read) data type to
use with each 1757-ABRIO tag type and the size for each type.
Use the Browse
button ( ) to
locate the
read/write tags
you want to
reference in your
message
commands. See
Create a Tag on
page 30 for more
information.
ControlLogix Data types
1757-ABRIO Tag Source/destination Type Storage Data Size
Numeric read REAL 64
Numeric write REAL 64
Flag read DINT 16
Flag Write DINT 16
Text read SINT 64

Use the following steps to add the MSG instruction.
1. Add the MSG instruction to the ladder logic, along with
whatever logic you want to use to cause the instruction to
execute.
2. Open the Message Configuration dialog box by clicking the
button in the instruction.
3. Select the Message Type.
The Message type should be either CIP Data Table Read to read
a tag from the 1757-ABRIO module or CIP Data Table Write to
write a tag to the 1757-ABRIO module.
WARNING
The EN_CC bit in a ControlLogix MESSAGE tag defaults to on. If
the message executes successfully even once, it gets retried
periodically, even if the ladder logic has disabled the message.
If you want to keep the connection open no matter what, turn
on the bit.
Turn off the EN_CC bit in any ControlLogix MESSAGE tag you
use in a MSG instruction to access data on the 1757-ABRIO
module.

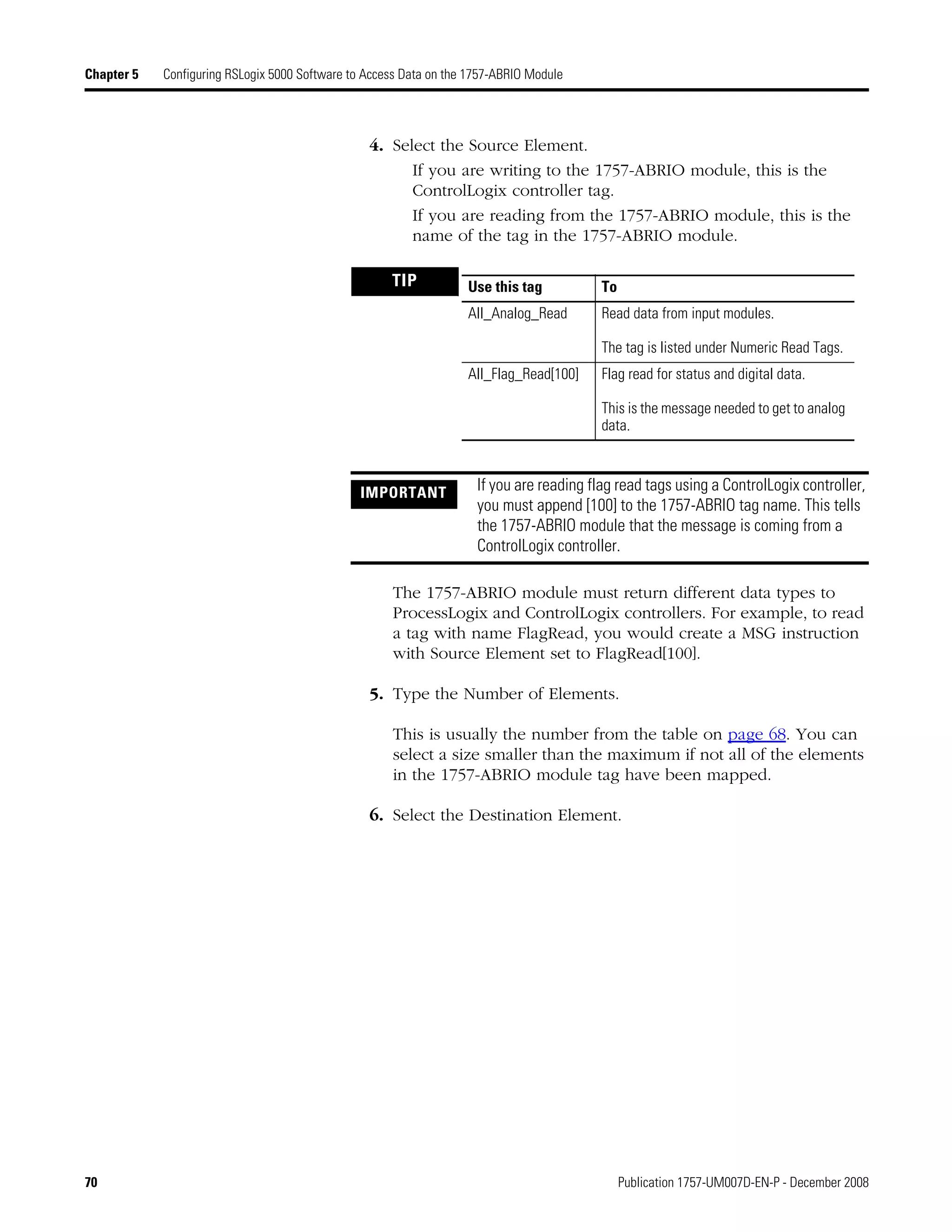

4. Select the Source Element.
If you are writing to the 1757-ABRIO module, this is the
ControlLogix controller tag.
If you are reading from the 1757-ABRIO module, this is the
name of the tag in the 1757-ABRIO module.
The 1757-ABRIO module must return different data types to
ProcessLogix and ControlLogix controllers. For example, to read
a tag with name FlagRead, you would create a MSG instruction
with Source Element set to FlagRead[100].
5. Type the Number of Elements.
This is usually the number from the table on page 68. You can
select a size smaller than the maximum if not all of the elements
in the 1757-ABRIO module tag have been mapped.
6. Select the Destination Element.
TIP
IMPORTANT If you are reading flag read tags using a ControlLogix controller,
you must append [100] to the 1757-ABRIO tag name. This tells
the 1757-ABRIO module that the message is coming from a
Use this tag To
All_Analog_Read Read data from input modules.
The tag is listed under Numeric Read Tags.
All_Flag_Read[100] Flag read for status and digital data.
This is the message needed to get to analog
data.

7. Select the Communication tab.
8. Type the path from the ControlLogix controller to the
1757-ABRIO module.

When you are using scheduled connections in ControlLogix this
is automatically populated with your 1757-ABRIO module’s
name and address through an RSNetworx network polling.
9. Click OK to accept the MSG instruction.
10. After all message instructions are configured, save the program
and download it to the ControlLogix controller.
TIP The 1757-ABRIO module, ProcessLogix controller and
ControlLogix controller (most likely) will not be in the same
racks. Refer to RSLogix 5000 Online Help and the Logix5000
Controllers General Instructions Reference Manual, publication
1756-RM003 for details on MSG paths.

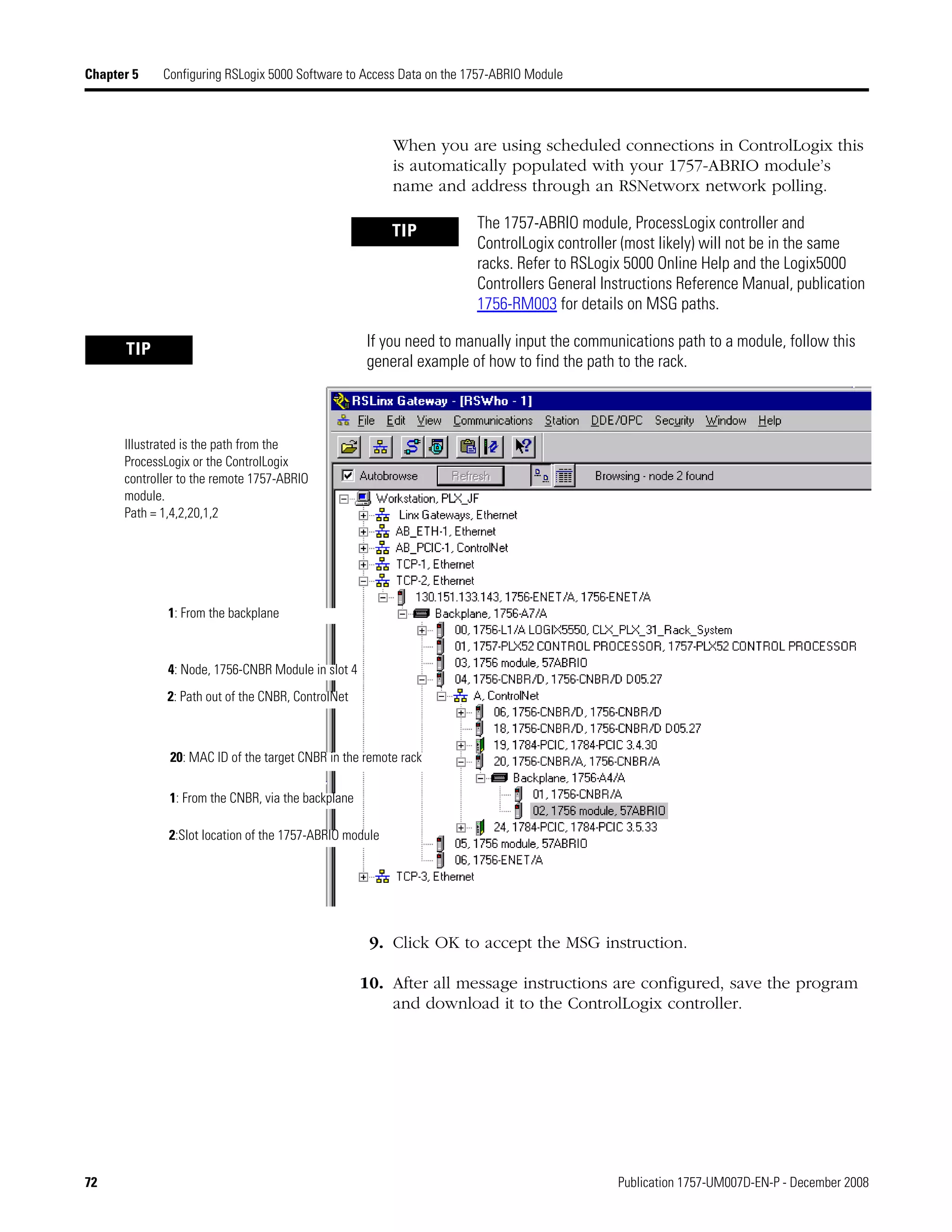

TIP If you need to manually input the communications path to a module, follow this
general example of how to find the path to the rack.
Illustrated is the path from the
ProcessLogix or the ControlLogix
controller to the remote 1757-ABRIO
module.
Path = 1,4,2,20,1,2
1: From the backplane
4: Node, 1756-CNBR Module in slot 4
2: Path out of the CNBR, ControlNet
20: MAC ID of the target CNBR in the remote rack
2:Slot location of the 1757-ABRIO module
1: From the CNBR, via the backplane

Live Data Example

Ladder Rung Example

Chapter 6
Accessing Data through a DDE or OPC Server
Introduction This chapter describes how to access data on the module using a DDE
or OPC Server.
Accessing Data from a DDE
or OPC Server
You can access data on the 1757-ABRIO module directly using a DDE
or OPC server such as RSLinx software, without the intervention of a
host controller.
Configuring a Topic in RSLinx Software
Use the following procedure to use RSLinx software as a DDE or OPC
server to access data on the 1757-ABRIO module.
1. Start RSLinx software
2. Select DDE/OPC Topic Configuration from the main menu.
3. Click New to create a new DDE or OPC topic, and give the topic
a name.
4. Select the Data Source tab and browse to the 1757-ABRIO
module.
5. Select the Data Collection tab.
6. Set the Processor Type to Logix5000.
7. Check Polled Messages and set the poll period to an appropriate
value.
8. Un-check Unsolicited Messages.
9. Leave the remaining values at their default values and click
Apply.
10. Select the Advanced Communication tab.
11. Select the Communications Driver you are using.

Chapter 6 Accessing Data through a DDE or OPC Server
12. Change Local or Remote Addressing defaults to Local.
If you are using a bridge device to communicate with the
1757-ABRIO module, select Remote and configure the bridging.
Refer to the RSLinx software documentation for detailed
information on how to configure bridging.
13. Click Done to accept the DDE/OPC topic.
Accessing the Data
1. Start your DDE or OPC client.
2. Connect to RSLinx software.
The 1757-ABRIO module supports browsing of tags.
3. Type or browse to the tags you want to monitor in the client.

Chapter 7
Monitoring the 1757-ABRIO Module
Introduction This chapter provides the following information on:
monitoring the operation of the 1757-ABRIO module.
monitoring the data value of tags.
monitoring the status of a block transfer.
monitoring the scanner log.
recognizing and clearing fatal errors.
Monitoring the Operation The AbRioCfg software lets you monitor the operation of the module
and perform maintenance operations. Tag, block transfer, and module
diagnostic counters are available only from AbRioCfg software, and
are not available to a ProcessLogix or ControlLogix controller.
AbRioCfg software can be used to:
display the current values of the digital inputs and outputs.
display the current values of block transfer data, along with
diagnostic information on the block transfer.
display the current contents of a tag.
display the module log, which consists of messages from the
firmware running on the module.
clear the log.
copy the contents of the log to the clipboard for use by another
application. This is often useful for technical support.
clear fatal errors and dump the fatal error log to a file for use by
technical support.
Monitoring Digital I/O To monitor the current value of digital inputs or digital outputs on all
racks, select Tools>Monitor Inputs or Tools>Monitor Outputs.
Rows correspond to racks 1 to 37 octal; columns correspond
to I/O groups 0 to 7.
Data can be displayed in hexadecimal, signed decimal, or
unsigned decimal using the View menu or buttons on the
toolbar. The default format is hexadecimal. One hexadecimal
digit corresponds to 4 digital bits.
You can use the monitor program to edit data.

Chapter 7 Monitoring the 1757-ABRIO Module
Use the Edit>Write toolbar button or the menu item to enable editing.
You can now change any data and it will be written to the network
(outputs) or to the data table (inputs). However if the same data is
being updated by I/O modules or the controller, the value you write is
overwritten the next time this I/O module is scanned.
Monitoring the Data Value
of Tags
To monitor the current data value in a tag, complete the following
steps.
1. Select the corresponding tab for the data type of the tag you
want to monitor (Numeric read, etc.).
2. Select the tag you want to monitor.
3. Right-click the tag and select Monitor Tag.
The tag monitor displays the raw data for the tag, as well as
diagnostic data.
The raw data can be displayed as floating point, hexadecimal, signed,
or unsigned integer.
Refer to the following table for tag diagnostic information.
To clear the diagnostic counters, select Actions>ClearDiagCounters or
click the Clear Diag Counters button on the toolbar.
Tag Diagnostic Counters
Counter Description
Tag Name The tag name in AbRioCfg software
Command Read or write
Type Numeric, flag or text
MsgNum 0 to 63, used internally by the 1757-ABRIO module
Len Tag length, units are bytes for flag and text tags, floats for
numeric tags
Req count Number of updates this tag has been accessed (read or written)
Avg Req Time Average update time for this tag, in ms. This is the average of
the previous 64 updates.
Min Req Time Minimum request time for this tag, in ms
Max Req Time Maximum update time for this tag, in ms
Time out The message time-out, in ms
Status Active or Inactive

Monitoring the 1757-ABRIO Module Chapter 7
If you attempt to monitor a tag that has not been downloaded to the
1757-ABRIO module, AbRioCfg software displays a message that
indicates there is a configuration mismatch between the configuration
in AbRioCfg software and the configuration in the 1757-ABRIO
module.
Monitoring the Status of a
Block Transfer
To monitor the current status of a block transfer, complete the
following steps.
1. Expand the chassis where the block transfer module you want
to monitor is located.
2. Select the module you want to monitor.
3. Right-click the module to highlight and select Monitor BT from
the menu.
The block transfer monitor displays the raw data for the block transfer
and some diagnostic information. For input modules there is both a
block transfer read and a block transfer write. The write consists of
configuration data.
The raw data can be displayed as hexadecimal, signed, or unsigned
integer. The default for block transfer data is hexadecimal.
Refer to the following table for diagnostic information on block
transfer reads.
TIP Use the same procedure to monitor digital and text data.
Block Transfer Read Diagnostics
Counter Description
State Active/Inactive
Type Module type
BTR Len Block transfer read length
Req Update Time Requested update time in the module configuration, in ms
Avg Update Time Average update time for this block transfer read, in ms. This
is the average of the previous 8 updates.
Min Update Time Minimum update time for this block transfer read, in ms
Max Update Time Maximum update time for this block transfer read, in ms
Update Count Running count of updates for this block transfer read

Refer to the following table for block transfer write diagnostics.
Monitoring the Scanner Log The scanner log displays messages from the 1757-ABRIO firmware,
showing its normal operation and error messages. It may be useful in
tracking down errors and for Technical Support.
To monitor the scanner log, select Tools>Monitor Scanner Log.
To clear the scanner log, select Edit>ClearLog or click the Clear Log
button.
To copy the contents of the log to the Windows clipboard for use in
another application, select Edit>Copy or click Select All then the Copy
button.
Ignored Req Running count of update requests ignored by the block
transfer module.
Prot Errors Running count of protocol errors for this block transfer read.
If this counter is incrementing, the module isn't responding
correctly. Possible causes are length mismatch, invalid reply.
Request Count Count of the number of times on successive scans this block
transfer was requested. If this is consistently a high number,
increase the requested update time - the module cannot
respond quickly enough at the current requested time. The
counter applies to both the BTR and BTW for this module.
Block Transfer Write Diagnostic Data
Counter Description
CFG len Length of the configuration data for this module.
BTW data len data length
Req Update Time Requested update time in module configuration, in ms.
Avg Update Time Average update time for this block transfer write, in ms. This
is the average of the previous 8 updates.
Min Update Time Minimum update time for this block transfer write, in ms.
Max Update Time Maximum update time for this block transfer write, in ms.
Update Count Running count of updates for this block transfer write.
Ignored Req Running count of update requests ignored by the destination
module for this block transfer write.
Prot Errs Running count of protocol errors for this block transfer write.
Block Transfer Read Diagnostics
Counter Description

Monitoring the 1757-ABRIO Module Chapter 7
Monitoring Diagnostic
Counters
The 1757-ABRIO module maintains diagnostic counters that indicate
the state of communication on the entire RIO network, as well as
counters related to each chassis. It also maintains an active rack list.
To monitor the diagnostic counters, select Tools>Monitor Diagnostic
Counters or click the Start the Diagnostics Counters Monitor button.
Active Rack List
The active rack list shows where the racks are located. If the bit is set
there is a rack at that rack number and starting I/O group. It does not
show the rack size.
The rows represent starting I/O groups. The columns represent the
rack numbers.
Global Diagnostic Counters
The global diagnostic counters consist of the following.
Global Diagnostic Counters
Counter Description
Tx This counter increments each time the 1757-ABRIO module transmits a
packet.
RxGood This counter increments when the 1757-ABRIO module receives a good
packet.
RxTout This counter increments when the 1757-ABRIO module sends a packet
but does not receive a reply.
RxBadCRC This counter increments when the 1757-ABRIO module receives a
packet with a bad CRC. Check cabling and termination on the RIO
network.
RxNoise This counter increments when the 1757-ABRIO module hears a carrier
without receiving a packet. Check cabling and termination on the RIO
network.
RxAbort This counter increments when the 1757-ABRIO module receives an
opening flag, then the packet ends without a closing flag.
PrtclErr This counter increments when the 1757-ABRIO module receives a
packet that makes no sense in terms of the protocol.
UpdAvg Average update time for all configured racks. This is the average of the
previous 64 updates.
UpdMin Minimum update time for all configured racks.
UpdMax Maximum update time for all configured racks.

The rack diagnostic counters consist of the following counters for
each partial rack.
Fatal Errors Fatal errors occur when the firmware on the module encounters an
unexpected condition. The module stops scanning, turns all three
status indicators red, displays the fatal error number on the 4-character
display, and stores a fatal error log that indicates the cause of the fatal
error.
To clear the fatal error and capture the fatal error log:
1. Cycle power to the module.
The 4-character display should show “FatalErrorCapture
required”.
2. Start AbRioCfg software.
3. Select Tools>Fatal Error Capture.
4. Store the fatal error log to a file.
This also clears the fatal error on the module.
5. Contact Rockwell Automation Technical Support and provide
them with the fatal error log, which will help diagnose the cause
of the problem.
Clearing fatal errors also clears the configuration on the module. After
you clear the fatal error, download the configuration to the module
using AbRioCfg software.
Rack Diagnostic Counters
Counter Description
Rx This counter increments when the 1757-ABRIO module receives a
packet from this rack.
Crc This counter increments when the 1757-ABRIO module receives a
packet with a bad CRC from this rack.
Tout This counter increments when the 1757-ABRIO module sends a packet
to this rack and does not receive a reply within the time-out period.
Prtcl This counter increments when the 1757-ABRIO module receives a
packet from this rack that does not make sense in terms of the
protocol.

Chapter 8
Supported 1771 Modules
lists the supported 1771 modules.
describes module configuration, I/O Data, and diagnostic data.
Module Description The 1757-ABRIO module supports all digital 1771 modules and the
following 1771 block transfer modules. For information on how to
communicate with other block transfer I/O modules, see Creating
Generic Modules in AbRioCfg Software on page 37.
Refer to the corresponding pages in this chapter for information about
configuring these modules with the 1757-ABRIO module.
The AbRioCfg software handles the details of module configuration
using the parameters you supply. For applicable modules, the
1757-ABRIO module scales the raw data to floating point values using
optimal data resolution on the I/O module.
Supported modules
Module Description Page
1771-IFE Analog input module 84
1771-OFE Analog output module 89
1771-IR RTD input module 92
1771-IXE Thermocouple/millivolt module 95
1771-IL Analog input module 98
1771-NOC High resolution current output module 101
1771-NIV High resolution voltage input module 107
1771-NOV High resolution voltage output module 104
1771-NR RTD input module 110

Chapter 8 Supported 1771 Modules
Refer to the following publications for information on installing and
using the supported modules.
1771-IFE Module The 1771-IFE module is a 12-bit analog input module that can be
configured as 16 single-ended inputs or 8 differential inputs. Each
channel can be configured as one of the following.
Select between current or voltage by using jumpers on the module.
Select the range when you configure the 1771-IFE module in
AbRioCfg software.
I/O Module Documentation
Module Installation Instructions User Manual
1771-ASB NA 1771-UM001
1771-IFE 1771-5.45 1771-6.5.90
1771-6.5.115
1771-OFE 1771-IN044 1771-6.5.30
1771-IR 1771-5.63 1771-6.5.76
1771-IXE 1771-5.64 1771-6.5.130
1771-IL 1771-5.62 1771-6.5.91
1771-NOC NA 1771-UM127
1771-NIV NA 1771-UM127
1771-NOV NA 1771-UM127
1771-NR NA 1771-UM127
1770-HT1 NA 1770-6.5.19
IFE Channel Configurations
1 to 5 VDC 4 to 20 mA
-5 to 5 VDC -20 to 20 mA
-10 to 10 VDC

Supported 1771 Modules Chapter 8
Module Configuration
Configuring the 1771-IFE module consists of setting the following:
single-ended or differential operation
range and scaling for each channel
digital filter and time constant
real time sampling and time constant
module update time
When you add a 1771-IFE module to a rack, the 1771-IFE Module
dialog box opens.

To configure the 1771-IFE module, complete the following steps.
1. Set the Input Type to single-ended or differential operation.
2. For each channel select the voltage or current range and enter
the scaling values.
The low scaling value corresponds to the minimum input
voltage or current; the high scaling value corresponds to the
maximum voltage or current.
For example, if the scaling values are 10.0 and 22.5 and the
range is configured for 0 to 5V dc, an input of 0V dc produces a
scaled input value of 10.0 and an input of 5V dc produces a
scaled input of 22.5. The range of scaling values is -3.4e38 to
3.4e38.
3. If desired, enable digital filtering and set the digital filtering time
constant.
If digital filtering is enabled, it applies to all channels. The digital
filtering time constant can range from 0.01 to .99 seconds.
4. If desired, enable real-time sampling.
If real-time sampling is enabled, the sampling rate is set for the
data and overrides the Update Time. The real-time sampling
period can range from 0.1 to 3.1 seconds.
5. Type the Update Time.
The Update Time is the rate at which the block transfer read,
which reads the data from the 1771-IFE module, executes. The
range of values is 1 to 16382 ms. This sets the requested update
rate, the actual rate depends on the baud rate, the number of
racks on the RIO network and whether block transfers are
running to other modules in the same rack.
6. Click OK to accept the configuration.
If you edit an existing 1771-IFE module and change the module
between single-ended and differential, any existing mappings for the
module will be deleted.

I/O Data
The 1771-IFE module returns the 8 or 16 words of floating point data
to the host controller, depending on whether the module is
configured for single-ended or differential operation.
Map this data to a numeric read tag.
Diagnostic Data
The 1771-IFE module has 40-bits of diagnostic data that can be
mapped to a flag read tag.
IFE I/O Data
Numeric Offset Description
0 Channel 1 data
1 Channel 2 data
2 Channel 3 data
3 Channel 4 data
4 Channel 5 data
5 Channel 6 data
6 Channel 7 data
7 Channel 8 data
8 Channel 9 data (if applicable)
IFE Diagnostic Data
Bit Description
0 Module good communication
8 Channel 1 underrange

The Good Communication bit is set when the 1757-ABRIO module is
successfully communicating with the 1771-IFE module, and is 0
otherwise.
The underrange and overrange bits are set when the raw input for a
channel is outside the configured voltage or current range.
24 Channel 1 overrange
IFE Diagnostic Data
Bit Description

1771-OFE Module The 1771-OFE module is a four-channel analog output module. The
module is available in three different types.
The 1771-OFE1 module has jumper-selectable voltage ranges.
The 1771-OFE2 module is a 4 to 20 mA current module.
The 1771-OFE3 module is a 0 to 50 mA current module.
The 1771-OFE1 module supports ranges of 1 to 5V dc, 0 to 10V dc
and -10 to 10V dc.
When you add a 1771-OFE module to a rack, the 1771-OFE Module
dialog box opens.
To configure a 1771-OFE module, complete the following steps
1. Select the Module Type, either OFE1, OFE2 or OFE3.

2. For each channel select the range for each channel and enter the
scaling values.
The low scaling value corresponds to the minimum output
maximum output voltage or current.
3. Set the LAST STATE jumper setting to match the jumpers on the
1771-OFE module.
The setting can be Last, Min, Mid, or Max. This value determines
how the 1757-ABRIO module responds to a loss of
communication with the host controller.
4. Set the Update Time.
The Update Time is the rate at which the block transfer write,
which writes data to the 1771-OFE module, occurs. The range of
values is from 1 to 16382 ms. This sets the requested update
rate; the actual rate depends on the baud rate, the number of
5. Click OK to accept the module configuration.
I/O Data
4 words of floating point data are written to the 1771-OFE module.
You map this data to a numeric write tag.
EXAMPLE If the scaling values are 10.0 and 22.5 and the range is
configured for 0 to 5V dc, a value of 10.0 produces an output of
0V dc and a value of 22.5 produces an output of 5V dc. The
range of scaling values is -3.4e38 to 3.4e38.
Values received from a controller that are outside the scaled
range are clamped to the scaled range value.
1771-OFE I/O Data
Data Word Description
0 Channel 1 data
1 Channel 2 data
2 Channel 3 data
3 Channel 4 data

Diagnostic Data
The 1771-OFE module has 8 bits of diagnostic data that can be
mapped to a flag read tag.
The good communication bit is set if the 1757-ABRIO module is
successfully communicating with the 1771-OFE module.
The data invalid bits are set if the value written to the channel is
outside the range of the scaling values entered in the configuration
dialog.
OFE Diagnostic Data
Bit Description
0 OFE good communication bit
1 reserved
2 reserved
3 reserved
4 Channel 1 data invalid bit

1771-IR Module The 1771-IR module is a 6-channel RTD module. Supported RTDs
include 100-ohm platinum and 10-ohm copper. You can use any other
type but the results are returned in ohms.
When you add a 1771-IR module to a rack, the 1771-IR Module dialog
box displays.

To configure the 1771-IR module, complete the following steps.
1. Set the global RTD type to either 10-ohm copper or 100-ohm
platinum. If the RTD you are using is neither of these two, you
will override each channel to report the results in ohms.
2. If the RTD type is set to 10-ohm copper, enter the resistance
value at 25 C.
3. Select the Units of measurement, either degrees Fahrenheit or
Celsius, or Ohms.
4. If Ohms is the selected unit of measurement, select a resolution
of 10 M per count or 30 M per count.
5. For each channel, set the bias, gain and offset.
Refer to the RTD Input Module User Manual, publication
1771-6.5.129, for more information.
6. If you want any of the channel results to be returned in Ohms,
check the Channel Units Override box for that channel.
7. If you want to use real-time sampling (RTS), check the RTS Rate
Enabled box and select the sampling rate from 0.1 to 3.1
seconds.
8. Type the module Update Time.
The Update Rate is the rate at which the block transfer read,
which reads the data from the 1771-IR module, occurs. The
range of values is 1 to 16382 ms. This sets the requested update
rate; the actual rate depends on the baud rate, the number of
9. Click OK to accept the values.

I/O Data
The 1771-IR module returns 6 words of floating point data to the host
controller.
This data is mapped to a numeric read tag.
Diagnostic Data
The 1771-IR module returns 16 bits of diagnostic data to the host
controller.
This data can be mapped to a flag read tag.
1771-IR Module I/O Data
0 Channel 1 data
1 Channel 2 data
2 Channel 3 data
3 Channel 4 data
4 Channel 5 data
5 Channel 6 data
1771-IR Module Diagnostic Data
Data Bit Description
7 reserved
14 reserved
15 reserved

1771-IXE Module The 1771-IXE module is an 8-channel thermocouple input module.
The channels are configured in groups of four. The module supports
types E, J, K, T, R and S thermocouples.
The module can also be used as a millivolt input module. The range is
from -100 to 100 mV.
When you add a 1771-IXE module to a rack, the 1771-IXE Module
dialog box displays.
To configure the 1771-IXE module, complete the following steps.
1. Select the thermocouple type for each of the two groups of
channels, either one of the supported thermocouple types or
millivolts.
2. Set the units of measurement, either degrees Fahrenheit or
Celsius.
If you have selected millivolts for the returned data, this entry is
ignored.

3. Set the gain and offset for each channel.
See the Thermocouple/Millivolt Input Module User Manual,
publication 1771-6.5.130, for more information.
4. If desired, enable real-time sampling (RTS) and set the sampling
rate, from 0.1 to 3.1 seconds.
This becomes the effective data update rate and may override
the update rate if the update rate is smaller.
5. Set the Update Time for the module’s block transfer.
The range is 1 to 16382 milliseconds. This sets the requested
update rate; the actual rate depends on the baud rate, the
number of racks on the RIO network and whether block
transfers are running to other modules in the same rack.
I/O Data
The 1771-IXE module returns 9 words of floating point data.
This data can be mapped to a numeric read tag.
1771-IXE Module I/O Data
0 Channel 1 data
1 Channel 2 data
2 Channel 3 data
3 Channel 4 data
4 Channel 5 data
5 Channel 6 data
6 Channel 7 data
7 Channel 8 data
8 Cold junction temperature

Diagnostic Data
The 1771-IXE module returns 24 bits of diagnostic data.
1771-IXE Module Diagnostic Data
Bit Description
1 Out of range
2 RTS time-out
3 reserved
4 Low cold junction temperature
5 High cold junction temperature
6 reserved
7 Calibration EEPROM failed

1771-IL Module The 1771-IL module is an 8-channel voltage or current input module.
Select voltage or current for each channel using jumpers on the
module.
The module supports the following ranges:
When you add a 1771-IL module to a rack, the 1771-IL Module dialog
box displays.
1771-IL Module Ranges
Voltage Current
-5 to 5 VDC -20 to 20 mA
-10 to 10 VDC

To configure the 1771-IL module, complete the following steps.
1. For each channel, select the range for each channel and enter
the scaling values.
maximum voltage or current.
For example, if the scaling values are 10.0 and 22.5 and the
range is configured for 0 to 5V dc, an input of 0V dc produces a
scaled input value of 10.0 and an input of 5V dc produces a
scaled input of 22.5. The range of scaling values is -3.4e38 to
3.4e38.
2. If desired, enable digital filtering and set the digital filtering time
constant.
If digital filtering is enabled, it applies to all channels. The digital
filtering time constant can range from 0.1 to .99 seconds.
3. If desired, enable real-time sampling and set the sampling rate,
from 0.1 to 3.1 seconds.
4. Set the Update Time for the module’s data. The range is from
1 to 16382 milliseconds.
This sets the requested update rate; the actual rate depends on
the baud rate, the number of racks on the RIO network and
whether block transfers are running to other modules in the
same rack.
I/O Data
The 1771-IL module returns 8 words of scaled floating point values.
1771-IL Module I/O Data
0 Channel 1 data
1 Channel 2 data
2 Channel 3 data
3 Channel 4 data

Diagnostic Data
The 1771-IL module returns 24 bits of diagnostic data.
4 Channel 5 data
5 Channel 6 data
6 Channel 7 data
7 Channel 8 data
1771-IL Module Diagnostic Data
Bit Description
1 Out of range
2 Invalid scaling (should never be set)
3 RTS time-out
4 Invalid filter
5 reserved
6 Hardware failure
7 reserved
1771-IL Module I/O Data

1771-NOC Module The 1771-NOC module is an 8-channel high resolution (16-bit) current
output module. Each channel has a range of 0 to 25 mA.
When you add a 1771-NOC module to a rack, the 1771-NOC(V) dialog
box opens.
1771-IL Module Diagnostic Data
Bit Description

To configure the 1771-NOC module, complete the following steps.
1. For each channel, enter the scaling values.
current; the high scaling value corresponds to the maximum
output current.
For example, if the scaling values are 10.0 and 22.5, a value of
10.0 produces an output of 0 mA and a value of 22.5 produces
an output of 25 mA. The range of scaling values is -3.4e38 to
3.4e38.
2. For each channel, set the Reset State.
This can be either Minimum, Maximum, Last State, or User
Value. This is the value the channel output will be if the
1771-NOC module loses communication with the 1757-ABRIO
module or the host controller stops updating the tag to which
the 1771-NOC module’s data is mapped. If the Reset State is set
to User Value, you must also enter a reset value.
I/O Data
The host application writes 8 words of floating point data to the
1771-NOC module.
1771-NOC Module I/O Data
Word Description
0 Channel 1 data
1 Channel 2 data
2 Channel 3 data

This data can be mapped to a numeric write tag.
Diagnostic Data
The 1771-NOC module returns 16 bits of diagnostic data.
3 Channel 4 data
4 Channel 5 data
5 Channel 6 data
6 Channel 6 data
7 Channel 7 data
1771-NOC Module Diagnostic Data
Bit Description
1 reserved
2 reserved
3 reserved
4 reserved
5 reserved
6 reserved
7 reserved
8 Channel 1 data invalid
1771-NOC Module I/O Data
Word Description

1771-NOV Module The 1771-NOV module is an 8-channel high resolution (16-bit) voltage
output module. Each channel has a range of -10 to 10V dc.
When you add a 1771-NOV module to a rack, the 1771-NOC(V) dialog
box opens.
To configure the 1771-NOV module, complete the following steps.
current; the high scaling value corresponds to the maximum
output current.
For example, if the scaling values are 10.0 and 22.5, a value of
10.0 produces an output of -10V dc and a value of 22.5 produces
an output of 10V dc. The range of scaling values is -3.4e38 to
3.4e38.

2. For each channel, set the Failure State.
This can be either Minimum, Maximum, Last State, or User
value. This is the value the channel output will be if the
1771-NOV module loses communication with the 1757-ABRIO
module or the host controller stops updating the tag to which
the 1771-NOV module’s data is mapped.
3. If the Failure State for a channel is set to User Value, enter the
User value.
The is the value the output will be set to on loss of
communication.
I/O Data
The host application writes 8 words of floating point data to the
1771-NOV module.
This data can be mapped to a numeric write tag.
1771-NOV Module I/O Data
Word Description
0 Channel 1 data
1 Channel 2 data
2 Channel 3 data
3 Channel 4 data
4 Channel 5 data
5 Channel 6 data
6 Channel 6 data
7 Channel 7 data

Diagnostic Data
The 1771-NOV module returns 16 bits of diagnostic data.
1771-NOV Module Diagnostic Data
Bit Description
1 reserved
2 reserved
3 reserved
4 reserved
5 reserved
6 reserved
7 reserved

1771-NIV Module The 1771-NIV module is an 8-channel high resolution (16-bit) analog
voltage input module. Each channel has a range of -5 to 5V dc.
When you add a 1771-NIV module to a rack, the 1771-NIV Module
dialog box opens.
To configure the 1771-NIV module, complete the following steps.
voltage; the high scaling value corresponds to the maximum
input voltage. For example, if the scaling values are 10.0 and
22.5, an input voltage of -5V dc produces a value of 10.0 and an
input voltage of 5V dc produces a value of 22.5. The range of
scaling values is -3.4e38 to 3.4e38.

2. If desired, enable digital filtering on any channel by selecting a
non-zero time constant.
The values range from 0.1 to 9.9 seconds. Set the value to N/A
to disable digital filtering.
4. Set the Update Time for the module’s data.
I/O Data
The 1771-NIV module returns 8 words of floating point data to the
host controller.
1771-NIV Module I/O Data
Word Description
0 Channel 1 data
1 Channel 2 data
2 Channel 3 data
3 Channel 4 data
4 Channel 5 data
5 Channel 6 data
6 Channel 7 data
7 Channel 8 data

Diagnostic Data
The 1771-NIV module returns 40 bits of diagnostic data to the host
controller.
1771-NIV Module Diagnostic Data
Bit Description
1 reserved
2 reserved
3 reserved
4 reserved
5 reserved
6 reserved
7 reserved
8 Channel 1 bad calibration
16 Bad program
17 Module fault
18 Program verify 0
19 Program verify 1
20 I/O reset
21 RTS time-out
22 Mod alarm
23 Bad channel data
24 Channel 1 data Underrange

1771-NR Module The 1771-NR module is an 8-channel RTD input module. It supports
the following types of RTDs:
100 ohm platinum US standard
100 ohm platinum European standard
10 ohm copper
120 ohm nickel
ohms mode
The module:
reports the temperature in degrees Fahrenheit or Celsius.
supports digital filtering on any channel, with a time constant
32 Channel 1 data Overrange
1771-NIV Module Diagnostic Data
Bit Description

When you add a 1771-NR module to a rack, the 1771-NR Module
dialog box opens.

To configure a 1771-NR module, complete the following steps.
1. Set the RTD type for each channel.
2. For any channels that are set to 10-ohms copper, set the offset at
25 C.
3. Set the units of measurement for the temperature, either degrees
Fahrenheit or Celsius. For channels that are configured for ohms,
this will be ignored.
4. If desired, enable digital filtering by setting the digital filter time
constant to a non-zero value, from 0.1 to 10 seconds. To disable
digital filtering, set the time constant to N/A.
from 0.1 to 10.0 seconds. This becomes the effective data update
rate and may override the update rate if the update rate is
smaller.
6. Set the Update Time for the module’s block transfer. The range
is 1 to 16382 milliseconds. This sets the requested update rate;
the actual rate depends on the baud rate, the number of racks
on the RIO network and whether block transfers are running to
other modules in the same rack.

I/O Data
The 1771-NR module returns 8 words of floating point data to the host
controller.
Diagnostic Data
The 1771-NR module returns 40 bits of diagnostic data.
1771-NR Module I/O Data
0 Channel 1 data
1 Channel 2 data
2 Channel 3 data
3 Channel 4 data
4 Channel 5 data
5 Channel 6 data
6 Channel 7 data
7 Channel 8 data
1771-NR Module Diagnostic Data
Bit Description
1 reserved
2 reserved
3 reserved
4 reserved
5 reserved
6 reserved
7 reserved

16 Bad program
17 Module fault
18 Program verify 0
19 Program verify 1
20 I/O reset
21 RTS time-out
22 Mod alarm
23 Bad channel data
1771-NR Module Diagnostic Data
Bit Description

Chapter 9
Accessing HART Data
Introduction This chapter describes how to:
send HART commands using ControlLogix messaging.
access data through a 1770-HT1 module.
Sending HART Commands
Using RSLogix 5000
Software MSG
The 1757-ABRIO module can send HART messages cyclically to
devices on the HART network. Messages can be sent a single time
using the AbRioCfg software. In addition, messages can be sent
programmatically from RSLogix 5000 software using the MSG
instruction.
1. Create a tag of type MESSAGE to act as a control tag for the MSG
instruction.
2. Create a tag of type INT and array size large enough to hold the
outgoing message.
3. Create another tag of type INT and array size large enough to
hold the reply.
4. Create a MSG instruction in the RSLogix 5000 software ladder
logic, along with any logic required to control the instruction
execution.
5. Assign the MESSAGE tag you created as the Message Control.

Chapter 9 Accessing HART Data
6. Click on the … box in the MSG instruction to configure the
message.
The MSG Configuration dialog box opens.
7. Set the Message Type to CIP Generic.
8. Set the Service Type to Custom.
9. Set the Service Code to 32 Hex.
10. Set the Class to c5 Hex.
11. Type the Instance in decimal.
The low 4 bits of the Instance are always 0. The upper 12 bits of
the Instance are the rack number that has been assigned to the
1770-HT1 module. For example, if the rack number is 1, the
Instance is 10 hex, or 16 decimal.
12. Set the Attribute to 0.
13. Set the Source Element to the tag that contains the outgoing
HART message.
14. Set the Destination to the tag that will contain the reply to the
HART message.

Accessing HART Data Chapter 9
HART Command Data
The contents of the message are similar to what is described in the
manual for the 1770-HT1 module, with some differences. You fill in
the HART command in the Source Element tag. When the MSG
instruction executes, the reply is stored in the Destination tag.
The following table describes the contents of the reply. More detailed
descriptions follow.
Reply Contents
Word High Byte Low Byte
0 Expected reply length, in words, 7 +
returned data
Length to send, in words, 7 +
required parameters
1 Channel - 1 Interface command, usually 10
hex
2 Interface parameter, set to 0 Interface control, set to 0
3 HART address Manufacturer ID (from
HartCfg.exe)
HART delimiter = 82 hex for long
frame address
4 Device ID, most significant byte Manufacturer device type, from
HartCfg.exe
5 Device ID, least significant byte Device ID, middle byte
6 Byte count, number of bytes of
parameters for the HART command
HART command
… parameter data
N 0 Check byte = 0

Word 0
The Program Files1757AbRioHartCmd directory contains files that
show the parameters required by each HART command and the data
returned by that command. For example, for command 1, read
primary variable, the file contains the following:
Cmd 01 Read Primary Variable from HART Device
Rsp
unit Primary Variable Unit
float Primary Variable
If either length is an odd number of bytes, round up to calculate
the number of words.
There are no parameters in the Cmd section, so in this case the
low byte, length to send, contains 7 + 0 = 7.
The high byte, expected reply length, contains 7 + 3 = 10 (5
bytes, rounded up to 3 words)
The Source Length in the MSG configuration dialog should be
set to match the length, in bytes, of the data to be sent. If the
length is 8 words, set the Source Length to 16.
Possible Types and Byte Counts
Type Byte Count
unit 1
byte 1
3bytes 3
float 4
date 3
text n where n < 4 and n < 64. The byte count is n * 3/4
TIP If the command requires a float parameter, the value
must be reversed, byte by byte, before sending the data
on the HART network. Byte 0 becomes byte 3, byte 1
becomes byte 2, and so on. Similarly, if the reply data
contains a float, the bytes must be reversed.

Word 1
The low byte contains 10 hex, send message to device. For more
information, see the Smart Transmitter Interface Products (HART
Protocol) User Manual, publication 1770-6.5.19.
The high byte contains the channel number for the destination
device, minus 1. Channels are numbered from 1 to 16, so this
byte contains 0 to F hex.
Word 2
The low byte contains the interface control, which should
contain 0.
The high byte contains the interface parameter, which should
also be set to 0. For more information, see the Smart Transmitter
Interface Products (HART Protocol) User Manual, publication
1770-6.5.19.
Word 3
The low byte contains the HART delimiter, which should be set
to 82 hex for a long frame address.
The high byte contains the manufacturer ID. This can be
obtained from HartCfg.exe, version 1.01.0 or above. For
example, the following screen capture shows a Rosemount
3044D. The manufacturer ID is 26 hex, the device type is 0d
hex, and the device ID is 01b1ae hex.
Word 4
The low byte contains the manufacturer device type. In the
previous screen capture, this is 0d hex
The high byte contains the device ID most significant byte. In
the previous screen capture, this is 01 hex.
Word 5
The low byte contains the device ID middle byte. In the
previous screen capture, this is b1 hex.
The high byte contains the device ID least significant byte. In
the previous screen capture, this is ae hex.

Word 6
The low byte contains the HART command. For example, to
send Read Primary Variable, enter 01 hex.
The high byte contains the number of bytes of parameters from
the command file.
Words 7…
If there are any parameters to the HART command, the following
words contain those parameters.
Word N
The last word contains 0. Both the upper and lower byte (check byte)
should be 0.
Reply Data
When the MSG command executes, the reply to the command will be
stored in the Destination tag.
The following table shows the contents of the reply.
Reply Contents
Word High Byte Low Byte
0 Channel - 1 Interface command, usually 10
hex
1 Interface status Interface error
2 HART address Manufacturer ID HART delimiter = 86 hex for ACK
with long frame address
3 Device ID, most significant byte Manufacturer device type, from
HartCfg.exe
4 Device ID, least significant byte Device ID, middle byte
5 Byte count, number of following bytes
of response data until the check byte
HART command
6 HART response code, second byte, 0
for no error
HART response code, first byte,
0 for no error
… data data
data

Word 0
The low byte contains 10 hex, send message to device. For more
The high byte contains the channel number for the destination
device, minus 1. Channels are numbered from 1 to 16, so this
byte contains 0 to F hex.
Word 1
For more information, see the Smart Transmitter Interface Products
(HART Protocol) User Manual, publication 1770-6.5.19.
Word 2
The low byte contains the HART delimiter, which should be 86
hex for an ACK with a long frame address.
The high byte contains the manufacturer ID.
Word 3
The low byte contains the manufacturer device type.
The high byte contains the device ID most significant byte.
Word 4
The low byte contains the device ID middle byte.
The high byte contains the device ID least significant byte.
Word 5
The low byte contains the HART command.
The high byte contains the number of bytes of response data to
follow, including the two HART response code bytes.
Word 6
Word 6 contains the two HART response code bytes. For more
Words 7…
These contain any response data.

Example: HART Command 36
In this example, we are sending command 36, Set primary variable
upper range value, to a Rosemount 3044C module. The manufacturer
ID is 26 hex, the device type is 0d hex, and the device ID is 1b1ae
hex. The device is attached to channel 1 of a 1770-HT8 module.
The command file for command 36 contains:
Cmd 36 Set Upper Range Value
Rsp
There are no command parameters or response data, so the length to
send and expected reply length are both 7. The source file therefore
contains:
The reply contains:
There are 7 words of data, including 2 bytes of response data (the
HART response codes). The first response byte is 0, indicating the
command executed without error. The second response byte is 40
hex, indicating that the configuration changed.
Example Source File Contains
Word High byte, hex Low byte, hex Word data, hex
0 07 07 0707
1 00 10 0010
2 00 00 0000
3 26 82 2682
4 01 0D 010D
5 AE B1 AEB1
6 00 24 0024
7 00 00 0000
Example Source File Reply
Word High byte, hex Low byte, hex Word data, hex
0 00 10 0010
1 80 00 8000
2 26 86 2686
3 01 0D 010D
4 AE B1 AEB1
5 02 24 0224
6 40 00 4000

1770-HT1 Module The 1757-ABRIO module supports scanning HART devices connected
to a 1770-HT1 module.
The 1770-HT1 module occupies one quarter rack on the RIO
network.
The 1757-ABRIO module can execute HART commands
cyclically to the various HART devices.
You can also use the 1757-ABRIO module to execute HART
commands manually (one time only) to configure HART devices.
This includes manually writing to the HART devices.
You can only execute commands cyclically.
Depending on the HART command, the returned data is either
floating point (numeric read tag) or text (text read tag).
The command status is returned as a single byte of flag data.
Since only one command is active to a specific device at one
time, if you want to view the message status for a device, you
need map it only once, even if there are multiple messages to
the same device.
The 1757-ABRIO module is intended to be used with HART
input devices. It is not suitable for use with output devices.
Rack Requirements
The 1770-HT1 module can be set for any rack number from 1 to 37
octal. The 1770-HT1 module must be configured at starting I/O
group 0. No other device can use the same rack number.

Configuring the 1770-HT1 Module
To configure a 1770-HT1 module and create cyclic messages to HART
devices, complete the following steps.
1. If you have not already done so, autoconfigure the RIO
network.
2. Add the 1770-HT1 module to the appropriate rack. The
1770-HT1 module must be the only module in that rack.
At this point, the 1757-ABRIO module does not know how to
complete the rest of the HART configuration until it has the
configuration with the 1770-HT1 module included. You must
download the configuration to the 1757-ABRIO module before
the HART configuration program can run.
Immediately after you add the 1770-HT1 module, AbRioCfg
software prompts you to download the configuration with the
1770-HT1 module to the 1757-ABRIO module.
3. Click OK to download.
After AbRioCfg software downloads the configuration, it starts
the separate HART configuration program. The main AbRioCfg
program is automatically minimized when the HART
configuration is running. When you close the HART
configuration program, the main configuration program is
automatically restored.

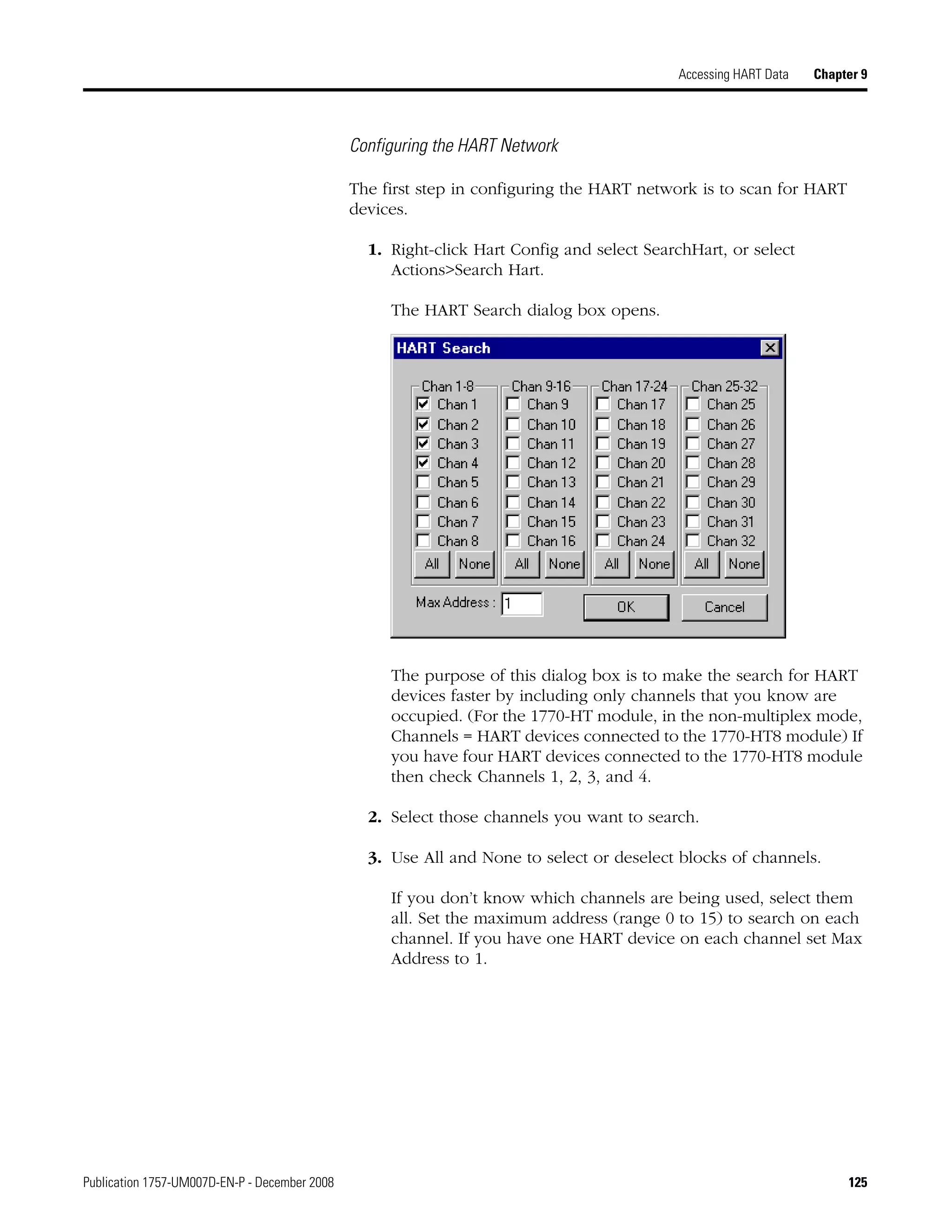

Configuring the HART Network
The first step in configuring the HART network is to scan for HART
devices.
1. Right-click Hart Config and select SearchHart, or select
Actions>Search Hart.
The HART Search dialog box opens.
The purpose of this dialog box is to make the search for HART
devices faster by including only channels that you know are
occupied. (For the 1770-HT module, in the non-multiplex mode,
Channels = HART devices connected to the 1770-HT8 module) If
you have four HART devices connected to the 1770-HT8 module
then check Channels 1, 2, 3, and 4.
2. Select those channels you want to search.
3. Use All and None to select or deselect blocks of channels.
If you don’t know which channels are being used, select them
all. Set the maximum address (range 0 to 15) to search on each
channel. If you have one HART device on each channel set Max
Address to 1.

4. Click OK to start the search.
The HART Configuration program displays a progress bar as it
searches the HART network devices. When the search is
complete, expand the HART Config to display the devices
found.
Send a Message or Add a Cyclic Command to a Device
To send a message to a device or add a cyclic command to a device,
complete the following steps.
1. Select the HART device.
2. Right-click the device and select Send>Add Message.
A dialog box opens with available HART commands.

3. Select the command you want to execute and click Open.
The HART Command dialog box for that command opens.
a. If the Command has any required arguments, enter them in
the Command Arguments area.
b. To execute a command just once, click Execute. For example,
you could execute a command to confirm that the command
works correctly, or to configure a device.
c. To add a cyclic command, enter the offset (Numeric or Text)
where the data returned from the command will be stored.
d. To return the message status to a flag tag, enter the offset into
the Flag Ofs field.
4. Click AddCyclic.
When you have finished adding cyclic commands, close the
HART configuration program.
TIP The first time you configure a HART interface module,
the dialog box that opens may contain the folder HART
Command File. Choose this file to view all available
commands

5. If you have not already done so, create tags to accept the data
from the HART commands and map the 1770-HT1 module to
those tags.
The 1770-HT1 module occupies an entire numeric read,
flag-read or text-read tag.
6. After you select HART command 1, Read Primary Variable, from
the command list, select an offset for the location where the data
will be stored in the HART Data tags you have or will create.
7. Click Execute.
The Execution results are shown, to confirm that you are
receiving the desired data.
8. To have the data read repeatedly and attached to the
1757-ABRIO tag, click Add Cyclic.
9. Save the configuration and download it to the 1757-ABRIO
module.
TIP Do not add write commands as cyclic commands.

HART Command status
The HART command status byte contains the following bits.
When you enter a flag offset when you create a cyclic command, this
is what gets returned at that offset.
Nothing is displayed if you monitor the block transfers to the
1770-HT1 module.
HART Command Status
Bit Meaning
0 Field device malfunction
1 Configuration changed
2 Cold start
3 More status available
4 Analog output current fixed
5 Analog output saturated
6 Non-primary variable out of limits
7 Primary variable out of limits

Appendix A
Specifications
Process Remote I/O (RIO) Communication Interface Module - 1757-ABRIO
Attribute Value
Module Location ProcessLogix or ControlLogix chassis
Backplane Current 675 mA @ +5.1V dc
5 mA @ 24 V dc
Power dissipation, max 4 W
Isolation Voltage 30V, continuous, basic insulation type
Screw Terminal Torque 0.5...0.6 Nm (5...7 lb-in)
Wiring Category(1)
(1)
Use this Conductor Category information for planning conductor routing. Refer to Industrial Automation Wiring
and Grounding Guidelines, publication 1770-4.1.
2 - on communications ports
Wire Size 20 AWG, 0.519mm
Wire Type Belden 9463 Twinaxial
Environmental Specifications
Attribute Value
Temperature,
operating
0…60 °C (32…140 °F)
IEC 60068-2-1 (Test Ad, Operating Cold),
IEC 60068-2-2 (Test Bd, Operating Dry Heat),
IEC 60068-2-14 (Test Nb, Operating Thermal Shock)
Temperature,
nonoperating
–40…85 °C (–40…185 °F)
IEC 60068-2-1 (Test Ab, Un-packaged Nonoperating Cold),
IEC 60068-2-2 (Test Bb, Un-packaged Nonoperating Dry Heat),
IEC 60068-2-14 (Test Na, Un-packaged Nonoperating Thermal
Relative Humidity 5…95% noncondensing
IEC 60068-2-30 (Test Db, Un-packaged Nonoperating Damp Heat)
Shock, operating IEC60068-2-27 (Test Ea, Unpackaged shock), 30g
Shock, nonoperating IEC60068-2-27 (Test Ea, Unpackaged shock), 50g
Vibration IEC60068-2-6 (Test Fc, Operating): 2 g @ 10…500 Hz
Emissions CISPR 11: Group 1, Class A

Appendix A Specifications
ESD immunity IEC 61000-4-2:
6 kV contact discharges
8 kV air discharges
Radiated RF
immunity
IEC 61000-4-3
10V/m with 1 kHz sine-wave 80%AM from 80 MHz to 2000 MHz
10V/m with 200 Hz 50% Pulse 100%AM at 900 Mhz
EFT/B immunity IEC 61000-4-4:
±2 kV at 5 kHz on communication ports
Surge Transient
Immunity
IEC 61000-4-5:
±2 kV line-earth (CM) on communication ports
Conducted RF
Immunity
IEC 61000-4-6:
10V rms with 1 kHz sine-wave 80%AM from 150 kHz to 80 MHz
Enclosure Type
Rating
None (open-style)
North American
temperature code
T4A
Certifications
Certification Value
Certifications
(when product is
marked)(1)
c-UL-usUL Listed Industrial Control Equipment, certified for US and
Canada. See UL File E219376.
UL Listed for Class I, Division 2 Group A,B,C,D Hazardous
Locations, certified for U.S. and Canada.
See UL File E314476.
CEEuropean Union 2004/108/EC EMC Directive, compliant with:
EN 61326; Meas./Control/Lab., Industrial Requirements
EN 61000-6-2; Industrial Immunity
EN 61000-6-4; Industrial Emissions
EN 61131-2; Programmable Controllers (Clause 8, Zone A & B)
(1) See the Product Certification link at http://ab.com for Declarations of Conformity, Certificates, and other
certification details.
Environmental Specifications
Attribute Value

Appendix B
Troubleshooting
Interpret the Status
Indicators
The three status indicators on the module provide information about
your module and the status of communication with a host processor
and with the remote I/O network. The following tables outline the
indicator condition and the corresponding status for each indicator.
RIO Status Indicator – Remote Devices Status
The RIO indicator displays the status of the remote I/O network
connection.
SYS Status Indicator – ControlBus Status
The SYS indicator displays the status of communication with the
processor.
Indicator Status
Green Successful communication with all configured racks.
Yellow Idle, no racks are configured.
Red One or more configured racks is not responding or a protocol error has
occurred within the last second.
Indicator Status
Green The module has successfully processed a request from the ControlBus
backplane within the last five seconds.
Yellow Idle, no requests received from the backplane in the last five seconds.
Red The module has returned an error to a request from the backplane within
the last second.

Appendix A Troubleshooting
OK Status Indicator – Module Health
Status Display Power-up
Messages
The alphanumeric display shows the following messages at power-up.
If the indicator on the 1757-ABRIO module does not cycle through
these messages on powerup, refer to the Troubleshooting section of
publication 1757-UM007C, the 1757-ABRIO User Manual.
Power Supply Indicator
Indicator Status
Green Indicates that module has passed all power-up diagnostics and is
functioning normally.
Red Indicates that module startup diagnostics have failed or a major module
fault such as watchdog time-out or jabber inhibit has occurred.
IMPORTANT If all three status indicators are solid red and the 4-character
display shows the #xx, (where xx is the error number) this is
where the fatal area occurs. Refer to publication
1757-UM007C, the 1757-ABRIO User Manual for information on
clearing fatal errors. Be sure to make a note of the error code
numbers to give Tech Support, if you need to call for help.
B#nn Stages in the start-up processes, nn is a hexadecimal number
Boot Next stage in power-up sequence
57ABRIO Ver x.xx.xx Module firmware version
POWER Indicator Power Supply Status Recommended Action
Off Not operating Turn power switch ON.
Check power wiring connections.
Check fuse.
On Operating None, normal operation.

Troubleshooting Appendix A
Interpret the Alphanumeric
Display
The Process Remote I/O (RIO) Communication Interface Module
displays alphanumeric messages that provide diagnostic information
about your module. The warning messages display twice, then the
normal display resumes. The following table summarizes the
messages.
Alphanumeric Display Message Descriptions
Message Description
57ABRIO Version x.xx.xx The module’s firmware version, displayed at powerup. The
three parts of the version number are the major revision, the
minor revision and the build number.
Config The module is being configured from the configuration
program.
Inactive The module is not receiving any messages that read or write
tags. It is scanning discrete I/O in program mode. Block
transfers are not updating.
Active The module is receiving messages that read or write tags. It is
scanning discrete I/O in run mode. Block transfers are
updating.
Forced Active The module has been put into active mode by the configuration
program.
RIO Flash Config Invalid The configuration stored in Flash memory on the module is
invalid due to the following possible reasons.
The module has never been configured.
The module firmware has been updated and the
configuration format has changed.
A fatal error has been captured.
To clear the invalid state, download the I/O configuration.
Error: Heard Another RIO
Master
Another master has been detected on the network because of
the following possible reasons.
The module is connected to a network with another RIO
master.
The module is connected to a Data Highway Plus network.
RIO Master Config Scan At startup, the module scans the RIO network to see what
racks are connected.
Rack xx I/O Grp yy Size
Mismatch
The rack size in the stored configuration on the module for the
rack at rack number xx octal, starting I/O group yy, does not
match the rack size on the network.
Rack xx I/O Grp yy
Offline
The rack at rack number xx octal, starting I/O group yy, is not
responding.
Firmware Update The firmware on the module is being updated.

Using AbRioCfg Software
for Troubleshooting
AbRioCfg software can be used in the following ways to troubleshoot
problems with the 1757-ABRIO module:
Monitor digital input and output data to determine if the raw
data as seen by the module is correct.
Monitor block transfers to see if the raw data is correct and if the
block transfer is updating.
Monitor tags to see if the tag is being updated by the host
controller and to see the values of the data that the 1757-ABRIO
module is sending to or receiving from the host controller.
Monitor the diagnostic counters to see if the active station list is
correct, to see if the module is sending and receiving packets,
and to see if any network errors are occurring.
View the Scanner Log. If a network error occurs, information
will be logged to the Scanner Log that indicates the cause of the
problem.

Troubleshooting Problems The following are some possible problems you may encounter and
their possible causes.
Symptom Possible Problems Notes
Autoconfiguration fails or does not
find racks
The 1757-ABRIO module must be in INACTIVE
mode to autoconfigure
The baud rate is incorrect
Check the cabling (Line 1, shield, Line 2)
Check network termination
Data is not updating 1757-ABRIO module is not in ACTIVE or FORCED
ACTIVE mode
Incorrect rack address used when creating the
module
Modules are not mapped to the tags
Rack is offline
Update time is set too long
Digital outputs turned on at the same location as
the block transfer
View the scanner log to see if it contains
information about why the block transfer is
failing.
Rack is offline or is not updating Rack is not included in the configuration
Problems with cabling and termination
Check the active rack list to see if the
1757-ABRIO module shows the rack.
View the Scanner Log to see if there are any
messages that indicate the source of the
problem.
Menu items are dimmed Click in the network tree (left pane) of the
configuration program before you select an item.

Using RSLogix 5000 to
Diagnose Problems
Right-click the module while online in RSLogix 5000 software to
display the Module Properties dialog box. This may help in
diagnosing some problems, especially connection errors.
General Tab
Connection Tab
The Inhibit Module checkbox breaks the exclusive ownership
connection between the 1757-ABRIO module and the ControlLogix
controller. If you would like to download to the 1757-ABRIO module
without putting the controller in Program mode, check Inhibit
Module. Once you are done updating the 1757-ABRIO module,
uncheck Inhibit Module and your connection will be re-established.
Item Description
Type 1756-MODULE Generic 1756 Module
Vendor Allen-Bradley
Name Defined when you configured the module.
Description Defined when you configured the module.
Comm Format Matches what you defined when module was configured.
Slot Matches what you defined when module was configured.
Connection
Parameter
Matches what you defined when module was configured.
If this box is checked Then
Major Fault on Controller if
Connection Fails While in Run
Mode
This causes the module to fault the controller if the
connection between the ControlLogix controller and the
module fails.

Module Info Tab
Backplane Tab
Item Description
Vendor Allen-Bradley
Product Type Communications Adapter
Product Code 107
Revision Matches the firmware revision level of the module.
Serial Number Matches the serial number on the module
Product Name 57ABRIO
Status Section contains information about the connection status, including:
Major fault
Minor fault
Internal state
Configured
Owned
Module Identity
Refresh Updates information on the screen
Item Description
ControlBus Status displays backplane faults
ControlBus Parameters The Multicast CRC error threshold is fixed at 8.
The Transmit Retry Limit defaults to 45 but can be edited.
Chassis The Chassis area contains information that relates to the
chassis, not the module.
It contains the rack Revision, Serial Number, Size, and the
1757-ABRIO module slot number.
Error Counters These refer to communications across the backplane.
They should all be 0.
Status The Status at the bottom of the screen indicates the
status of the connection to the module.

Using Control Builder
Software to Diagnose
Problems
All communication between the ProcessLogix controller and the
1757-ABRIO module is via exchange blocks. If these exchange blocks
are producing errors or do not seem to be working properly, check
these items:
Path from the ProcessLogix controller to 1757-ABRIO module is
correct
1757-ABRIO tag name is correct
If you see error codes on your exchange blocks, in Knowledge
Builder, refer to Knowledge Builder>R500>Troubleshooting and
Maintenance Guide>Fault Codes>Exchange Block ERRCODE Fault
Codes.
Troubleshooting
1757-ABRIO Module
Communications
If the Data in the various Tag Storage files in your controller is not
what you expect, try the following possible solutions.
Check that the 1757-ABRIO module is active. If it is not active,
your controller is probably not in Run mode.
Confirm that the 1757-ABRIO tags referenced in your message
commands or exchange blocks exactly match the tag names in
the 1757-ABRIO module.
In the AbRioCfg software, right-click on the Tag Name, select
Monitor Tag, and confirm that 1757-ABRIO module is seeing the
correct data.
Both 1757-ABRIO tag name read and write data should match
the data in your controller.
Still having a problem?
Try sending data to and reading data from an I/O Module.
1. Put the controller (ProcessLogix or ControlLogix) into program
or inactive mode (or inhibit the ControlLogix controller in
RSLogix 5000 software).
The 1757-ABRIO module goes inactive.
2. Put the 1757- ABRIO module into Forced Active Mode, select
Actions>Forced Active Mode from the toolbar in AbRioCfg
software.
3. Select Flag Write from the tabs in the bottom right window.

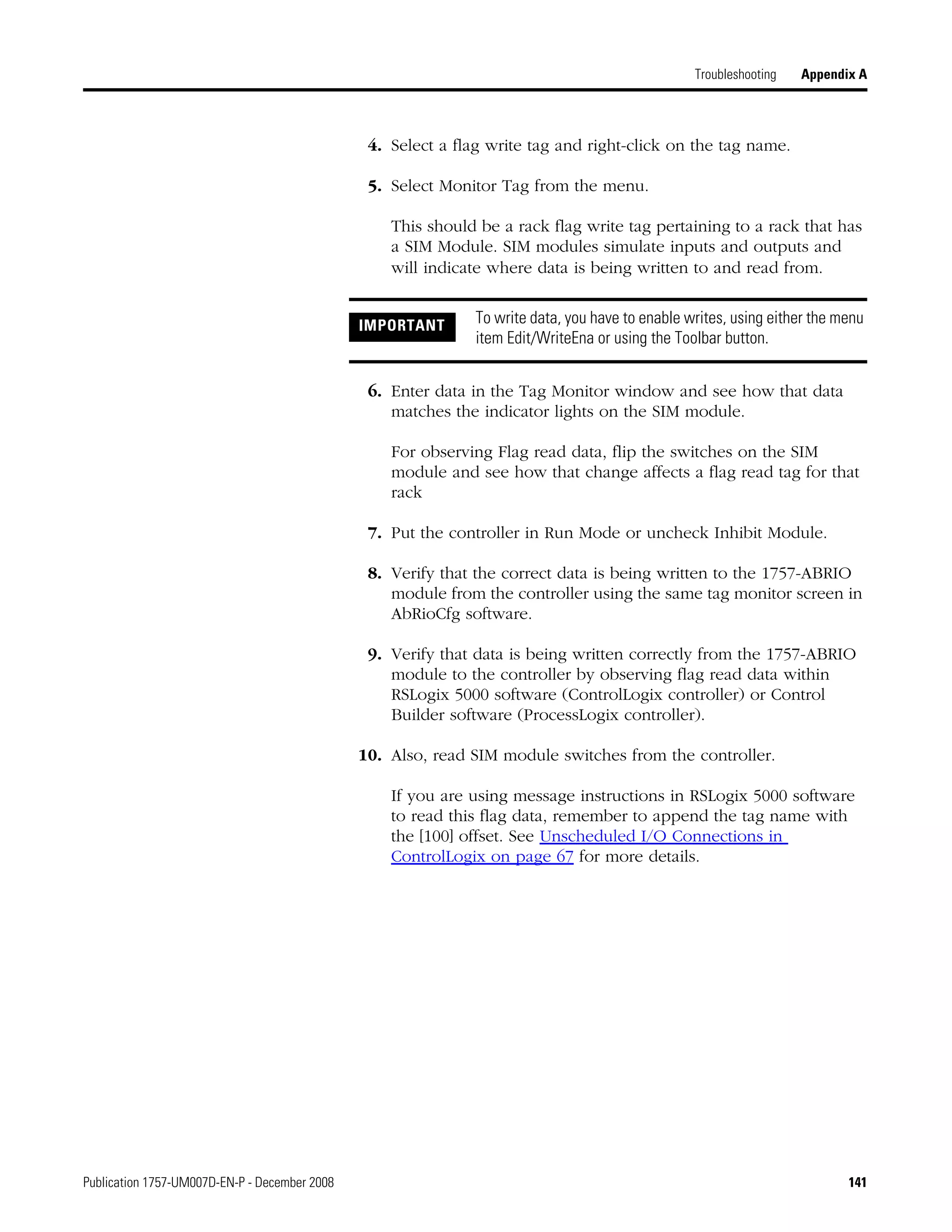

4. Select a flag write tag and right-click on the tag name.
5. Select Monitor Tag from the menu.
This should be a rack flag write tag pertaining to a rack that has
a SIM Module. SIM modules simulate inputs and outputs and
will indicate where data is being written to and read from.
6. Enter data in the Tag Monitor window and see how that data
matches the indicator lights on the SIM module.
For observing Flag read data, flip the switches on the SIM
module and see how that change affects a flag read tag for that
rack
7. Put the controller in Run Mode or uncheck Inhibit Module.
8. Verify that the correct data is being written to the 1757-ABRIO
module from the controller using the same tag monitor screen in
AbRioCfg software.
9. Verify that data is being written correctly from the 1757-ABRIO
module to the controller by observing flag read data within
RSLogix 5000 software (ControlLogix controller) or Control
Builder software (ProcessLogix controller).
10. Also, read SIM module switches from the controller.
If you are using message instructions in RSLogix 5000 software
to read this flag data, remember to append the tag name with
the [100] offset. See Unscheduled I/O Connections in
ControlLogix on page 67 for more details.
IMPORTANT To write data, you have to enable writes, using either the menu
item Edit/WriteEna or using the Toolbar button.

Appendix C
Operational Comparison Between the
1757-ABRIO Module and a PLC-5 System
Normal Operational
Messages
The 1757-ABRIO module is designed to respond, as much as possible,
like a PLC-5 system. In PLC-5 applications, all I/O modules are
physically configured for safe state if the PLC-5 controller is in
Program or Fault mode.
There is one important difference - the PLC-5 controller has
well-defined, built-in modes of operation, either program or run. The
1757-ABRIO module has additional modes due to increased
capabilities (see the table on page 144). The 1757-ABRIO module uses
the concept of a tag to store data that is exchanged between the
1757-ABRIO module and controllers. A tag is a user configured data
array that is composed of data read from or written to I/O modules.
As long as any tag is being refreshed from a Read/Write generated by
a controller or from a DDE or OPC server, the 1757-ABRIO module
scans remote I/O in ACTIVE (Run) mode. In ACTIVE mode all block
transfers run and digital inputs and outputs update.
If all tags have timed out (have not been refreshed within the
configured refresh time), the 1757-ABRIO module indicates INACTIVE
mode. Inputs continue to be updated. Output modules are placed in
safe state via Program mode.
In AbRioCfg software, mode block transfers are held which causes the
analog modules to be set to configured safe state (usually Last, Min,
Max or Safe value). Digital outputs also do what they have been
configured at the rack to do - hold last state or shut-off.
While the PLC-5 controller immediately changes from program to run
or from run to program modes based on user input, the 1757-ABRIO
module has the ability to change between inactive to active when
communication with a controller is established. However, the change
from active to inactive occurs only after the longest time-out period
for any tag after the last tag has been updated by the host controller.

Appendix B Operational Comparison Between the 1757-ABRIO Module and a PLC-5 System
.
Equivalent Modes
1757-ABRIO
Module
PLC-5
Controller
Description
ACTIVE Run Data is transferred and diagnostics are
enabled.
INACTIVE Program Inputs are updated and outputs are treated the
same as PLC-5 Program mode.
CONFIG Program Inputs are held and outputs are treated the
same as PLC-5 Program mode.
FORCED ACTIVE Inputs are updated and outputs are set by the
user through AbRioCfg software.
TIP
Any data “read tag” refers to data being read by a controller.
Any data “write tag” refers to data being written by a controller.
Normal Operational Comparison Between a PLC-5 System and a 1757-ABRIO Module
1757-ABRIO ACTIVE or
PLC-5 RUN Modes
From the PLC-5 Perspective From the 1757-ABRIO Perspective
Digital inputs Digital output data updates. Data update in the
PLC data table is asynchronous to the I/O update,
based on the PLC I/O scan.
Digital input data updates (in the 1757-ABRIO
module) based on the scan list. Data updates by the
controller asynchronously when the tag is read by the
controller.
Digital outputs Digital input data updates. Data update in the PLC
data table is asynchronous to the I/O update,
based on the PLC I/O scan.
Digital output data updates (in the 1757-ABRIO
module) based on the scan list. Data updates by the
controller asynchronously when the tag is read by the
controller.
Block transfer read data Updates when the block transfer instruction
executes. Block transfers to the local rack are
faster than block transfers to the 1757-ABRIO
module.
Updates the 1757-ABRIO module tag when the block
transfer cycle executes based on the scan list and
user configured Block Transfer Update time. Updates
in the controller when the tag data is exchanged.
Block transfer write data Updates on the module when the block transfer
instruction executes. Block transfers to the local
rack are faster than block transfers to 1757-ABRIO
module.
Updates on the 1757-ABRIO module when the control
process exchanges data. Updates on the module
when the block transfer cycle executes.
1757-ABRIO INACTIVE and
or PLC-5 Program Mode
From the PLC-5 Perspective From the 1757-ABRIO Perspective
Digital inputs Digital input data updates. Data update in the PLC
data table is asynchronous to the I/O update.
Digital input data updates in the 1757-ABRIO module.
Data does not update in the host controller since tags
are not being read.
Digital outputs Digital output data does not update. Digital output data does not update.
Block transfer read data Block transfers do not execute. Block transfers do not execute.
Block transfer write data Block transfers do not execute. Block transfers do not execute.

Operational Comparison Between the 1757-ABRIO Module and a PLC-5 System Appendix B
Exception Handling
Messages
The 1757-ABRIO module provides a good communication flag for
each digital partial rack. It also maintains a good communication flag
for each configured block transfer module. These bits are set when
the rack or block transfer module is updating without errors, and are
cleared when an error occurs. These health bits are included in the
“Tag” along with the channel states.
In addition, the 1757-ABRIO module has underrange and overrange
bits for data on each channel for analog input modules. These are
treated as communication errors per channel setting outputs to
configured state (min, max, mid, last value) based on module
hardware jumpers.
These bits are included when you map a digital rack or block transfer
module to a flag read tag. Exceptions cause messages to be logged in
the scanner log.
Exception Conditions Comparison Between a PLC-5 System and a 1757-ABRIO Module
Exception Condition Message From 1757-ABRIO Perspective From the PLC-5 Perspective
No RIO network communication Good communication bits for all racks and all block
transfers are cleared and set to 0.
Digital Data does not update
Digital inputs hold their last state
Digital outputs go to the state set on the rack last state
switch in the rack
Block transfers do not update
Data from block transfer read modules is set to Not a
Number (NaN)
Block transfer write data goes to the state configured on
the I/O module (module dependent)
Tags with digital or block transfer data mapped to the
rack continue to update
Front panel displays a message for the last rack in error,
twice
RIO network status indicator is red
Status table bits for all racks are
cleared and set to 0.
Digital data does not update
Digital outputs go to the state set
on the rack last state switch
Block transfers do not update
Block transfer read data holds its
last state
Block transfer write data goes to
the state configured on the I/O
module
Error bits are set for all enabled
block transfer instructions

Rack Missing Good communication bit for the rack is cleared
Good communication bits for block transfer modules in
the rack are cleared
Digital outputs go to the state set on the rack last state
switch in the rack
Block transfers to the rack do not update
Data from block transfer read modules goes to Not a
Number (NaN)
Block transfer write data goes to the state configured on
the I/O module
Tags with digital or block transfer data mapped to the
rack continue to update
Front panel displays the missing rack for 5 seconds
RIO network status indicator is red
Status bit for the rack is cleared
Block transfers to modules in the
rack error
Digital outputs go to the state set
on the rack last state switch
Block transfer read data holds its
last state
Block transfer write data goes to
the state configured on the I/O
module
Block transfer module missing or
not responding
Good communication bit for the block transfer module is
never set
Block transfer doesn't update, BT ignored request
diagnostic counter slowly increments
Error with module location is entered in the scanner log
each time the BT is retried
Tags to which the module is mapped update
Initial configuration block transfer
write to the module fails, block
transfer error bit is set
Invalid configuration data to block
transfer module
Can not happen, configuration program should validate
configuration
Initial block transfer write to the
module fails, block transfer error bit is
set for that block transfer
Block transfer read to configured
input module fails
Good communication flag for module is cleared
Input data is set to Not a Number(1)
Block transfer read error bit is set
Input data holds last state
Block transfer write to configured
output module fails
Good communication flag for module is cleared
Output data is set to a value that depends on the
module configuration or jumpers
Block transfer write error bit is set
Output data is set to a value that
depends on the module
configuration or jumpers
Flag write tag to digital rack times
out
1757-ABRIO module sets outputs mapped to the tag to the
state set on the backplane switches (last state or 0)
N/A
Flag read tag times out Inputs continue to update in the 1757-ABRIO module. N/A
Numeric read tag times out Data continues to update in the 1757-ABRIO module but
nothing is reading them.
N/A
Numeric write tag times out 1757-ABRIO module sets block transfer write data mapped
to the tag to the state set by the user in the module
configuration. Possible choices (last state, etc.) depend on
the module.
N/A
Analog output data out of
configured range
Data invalid bit for the channel is set
Output for the channel clamped to min/max value
See specific output module
documentation for appropriate
response.

Operational Comparison Between the 1757-ABRIO Module and a PLC-5 System Appendix B
Analog input voltage or current out
of valid over/under range for
channel configuration
Underrange or overrange bit for the channel is set
Input data for the channel in the tag is set to NaN
Set status bit.
Write NaN (Not a Number) to one
element of a numeric write tag from
a ProcessLogix controller
Value that has NaN sets the output to the configured
fault value
The block transfer continues to update
The remaining values in the tag continue to be written
correctly
Overrange bit for the channel is set
N/A
Write to or read from tag that
doesn't exist
Message gets an error status
DDE or OPC server item has bad quality
N/A
Write beyond end of tag Message gets an error indicating the length or offset is
incorrect
DDE or OPC server item has bad quality
N/A
Write to or read from a tag that has
one (faulted) module mapped to it
Read or write message succeeds
Data from faulted input module is set to NaN
State of outputs on faulted output module depend on
the module configuration
N/A
Write to or read from a tag that has
multiple modules mapped to it, only
one module faulted
Read or write message succeeds
Data for non-faulted modules continues to update
correctly.
N/A
Read from or write to tag that has
nothing mapped to it
Read or write message fails, empty tags are not
downloaded to the 1757-ABRIO module.
N/A
OPC/DDE reads or writes tags but
control program has died or gone
away
1757-ABRIO module continues in ACTIVE mode
The output values are the last values written by the
control program, or the values written by DDE/OPC
N/A
(1)
In a ProcessLogix file, seen as NaN.
In an RSLogix 5000 file, seen as 1.#QNAN (the controller has a function that detects this)
In the ABRIO Monitor, seen as 1.#QNB.

Appendix D
Tag Descriptions for Scheduled Data in
RSLogix 5000 Software
When you create an exclusive owner or input only connection,
several tags are automatically created for the each 1757-ABRIO
module. For example, if your 1757-ABRIO module is located in the
supervisory rack, slot 3, then the configuration tag associated with it
would be Local:3:C.
Configuration Tag
The configuration tag gets created when you configure the
1757-ABRIO module as a 1756-MODULE, but the contents of the
configuration tag are not used by the 1757-ABRIO module.
I and O Tags
The I and O tags are associated with the digital I/O data. The input
tag also contains rack global status. The following tables show how
the tag contents correspond to the racks.
Generated Tag Extensions
Tag
Extension
Description
C Configuration tag, created but not used
I Digital input data tag
O Digital output data tag
S Status tag
Input Tags
Address Description
Local:<slot>:I.Data[0] Rack global status, 0 if all configured racks are
communicating with no errors, FFFF hex otherwise.
Local:<slot>:I.Data[1] Rack global status, 0 if all configured racks are
Local:<slot>:I.Data[2] Rack 1, I/O group 0 inputs
...

Appendix C Tag Descriptions for Scheduled Data in RSLogix 5000 Software
The offset for the input data for any rack and the I/O group can
be found from:
offset = 8 * (rack - 1) + I/O group + 2
where the rack number is in decimal
The offset for the output data for any rack and the I/O group
can be found from:
offset = 8 * (rack - 1) + I/O group
where the rack number is in decimal
...
...
Local:<slot>:I.Data[242] Rack 37 octal, I/O group 0 inputs
...
Local:<slot>:I.Data[249] Rack 37 octal, I/O group 7 inputs
Output Tags
Address Description
Local:<slot>:O.Data[0] Rack 1, I/O group 0 outputs
...
...
...
Local:<slot>:O.Data[240] Rack 37 octal, I/O group 0 outputs
...
Local:<slot>:O.Data[247] Rack 37 octal, I/O group 7 outputs
Input Tags
Address Description

Tag Descriptions for Scheduled Data in RSLogix 5000 Software Appendix C
Status Tag
The status tag contains a global status as well as individual status flags
for all possible partial racks. The status bits are set if the rack with the
corresponding rack number and starting I/O group is configured in
the 1757-ABRIO module and is not communicating, and are 0
otherwise. If any configured rack is not communicating, the global
status is set.
The following table shows the contents of the Status Tag.
Status Tag
Address Description
Local:<slot>:S.Data[0] Rack global status, 0 if all configured racks are
Local:<slot>:S.Data[1] Rack global status, 0 if all configured racks are
Local:<slot>:S.Data[2].0 Not used
Local:<slot>:S.Data[2].4 Rack 1, I/O group 0 error

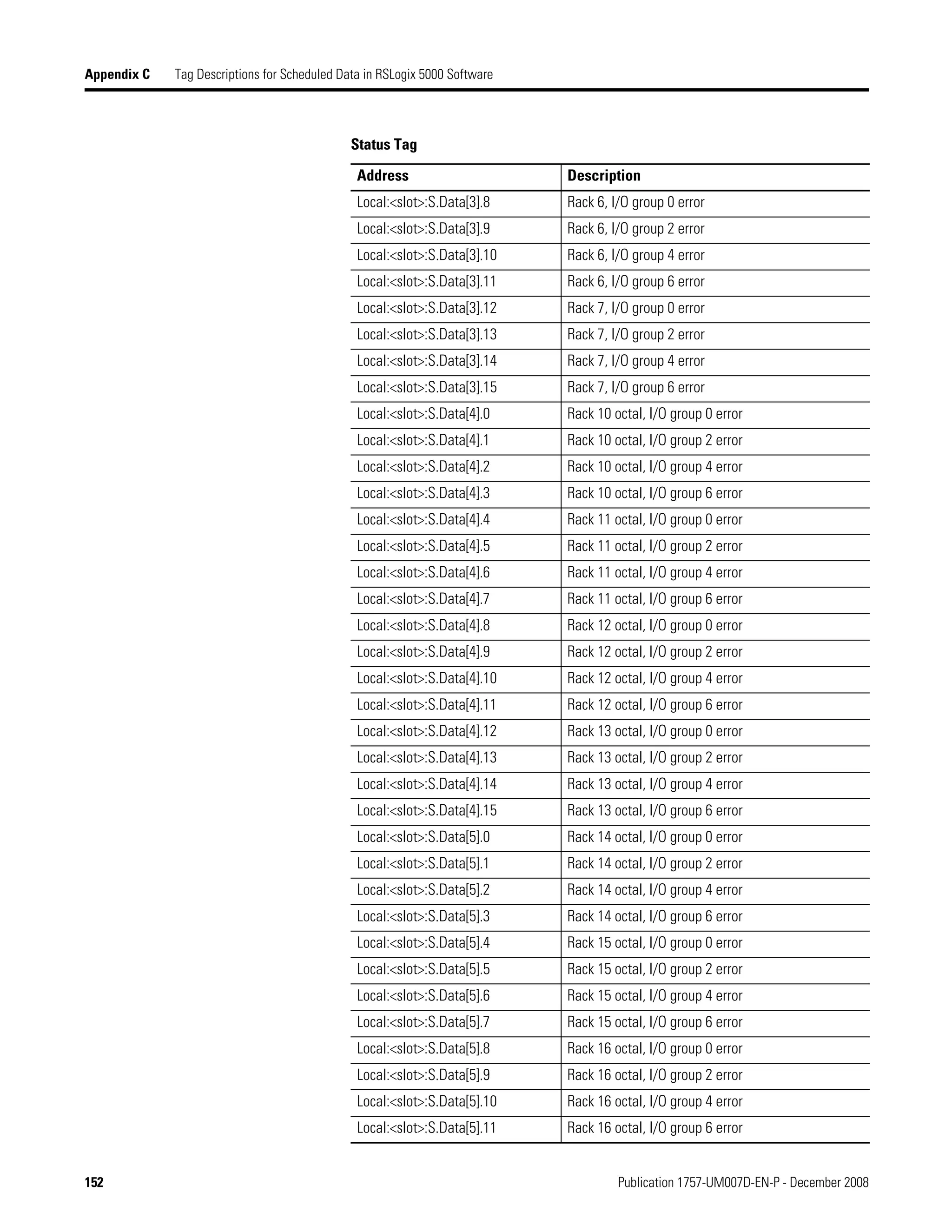

Local:<slot>:S.Data[4].0 Rack 10 octal, I/O group 0 error

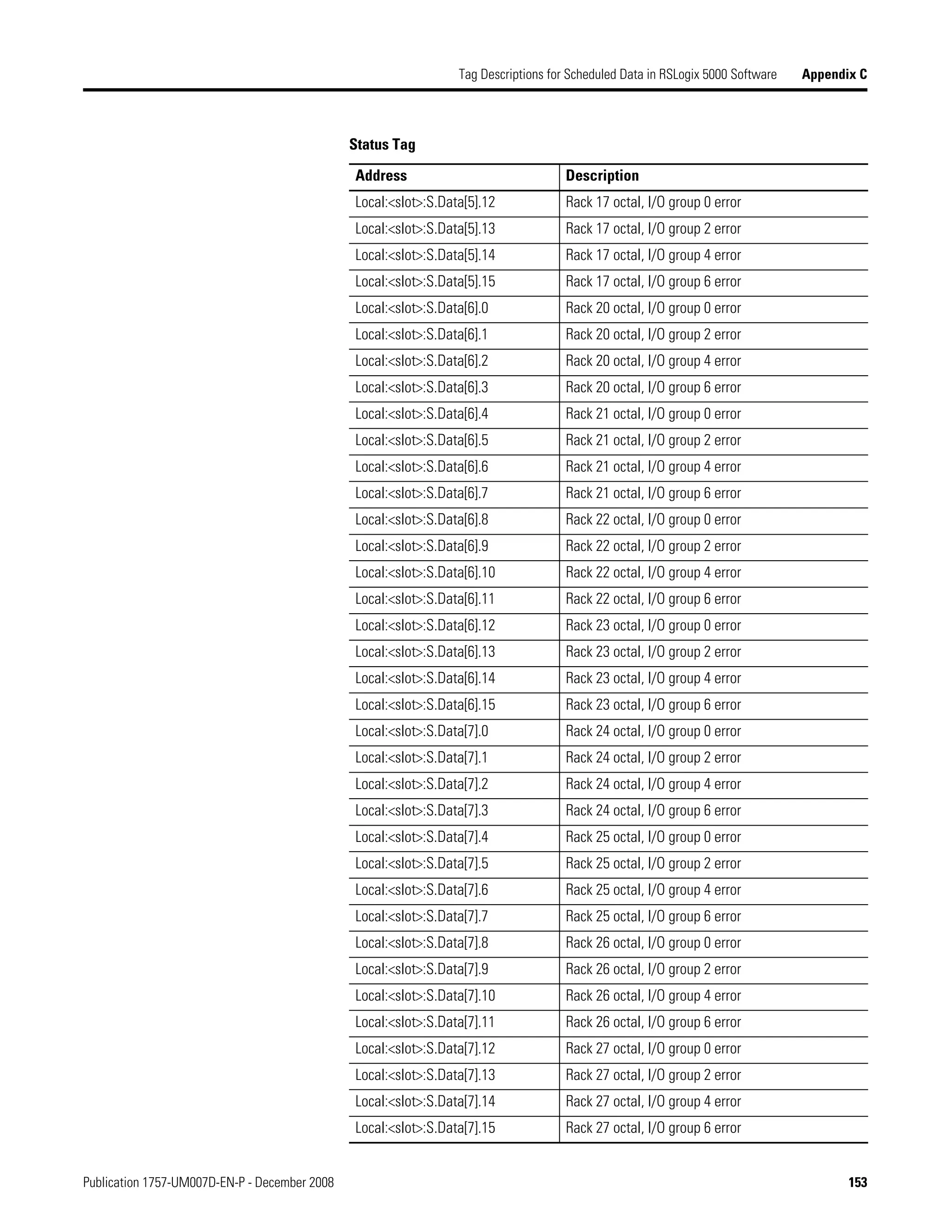

Status Tag
Address Description

Tag Descriptions for Scheduled Data in RSLogix 5000 Software Appendix C

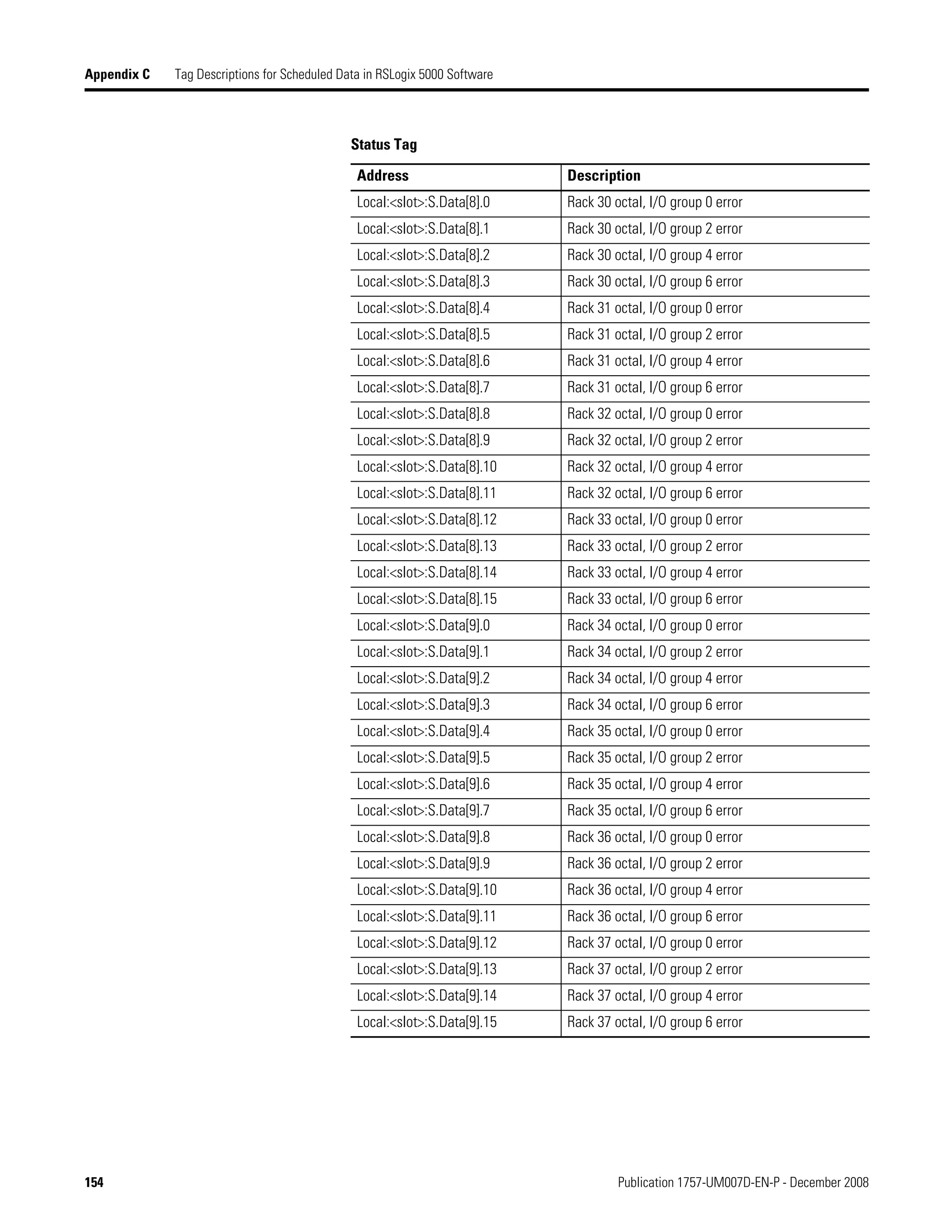

Status Tag
Address Description

Status Tag
Address Description

Publication CIG-CO521D-EN-P- July 2007
How Are We Doing?
Your comments on our technical publications will help us serve you better in the future.
Thank you for taking the time to provide us feedback.
You can complete this form and mail (or fax) it back to us or email us at
RADocumentComments@ra.rockwell.com.
Please complete the sections below. Where applicable, rank the feature (1=needs improvement, 2=satisfactory, and 3=outstanding).
Pub. Title/Type Process Remote I/O (RIO) Communication Interface Module
Cat. No. 1757-ABRIO Pub. No. 1757-UM007D-EN-P Pub. Date December 2008 Part No. N/A
Overall Usefulness 1 2 3 How can we make this publication more useful for you?
Completeness
(all necessary information
is provided)
1 2 3 Can we add more information to help you?
procedure/step illustration feature
example guideline other
explanation definition
Technical Accuracy
(all provided information
is correct)
1 2 3 Can we be more accurate?
text illustration
Clarity
(all provided information is
easy to understand)
1 2 3 How can we make things clearer?
Other Comments You can add additional comments on the back of this form.
Your Name
Your Title/Function Would you like us to contact you regarding your comments?
Location/Phone ___No, there is no need to contact me
___Yes, please call me
___Yes, please email me at _______________________
___Yes, please contact me via _____________________
Return this form to: Rockwell Automation Technical Communications, 1 Allen-Bradley Dr., Mayfield Hts., OH 44124-9705
