1. Recursion in
Data Structure
Presented By:
Basit Ali Soomro
Khuda Bux Magsi

2. Agenda
o Introduction of Recursion
o Types of Recursion
o Base Case and Recursive Case
o Advantages & Disadvantages of Recursion
o Recursive Algorithms
o Recursion in Data Structure
o Time and Space Complexity of Recursive Algorithms
o Conclusion
2

3. Objective:
“The objective of the presentation is to
clearly explain the topic of recursion to
you.”
3

4. Magic:
Imagine a function that solves a problem by breaking it
down into smaller parts and solving each part one by one.
4
That's the magic of recursion.

5.  Recursion:
“Recursion is a technique where a function calls itself directly or indirectly.”
Directly: when a function calls itself in its definition.
Indirectly: when a function call another function and that function call the first function.
Example: Function A calls function B and Function B is calling Function A again.
5

6. Direct Function Call:
6

7. Indirect
Function Call:

8.  Why Do We Use Recursion?
“When we have a complex problem that relies on solving a smaller problem of the same type, We
Use Recursion.”
Example: # 1:
• When tracing your family history, you might ask your parents about their parents, and then ask your
grandparents about their parents, and so on. This process can be seen as recursive because you're asking
the same question (about parents) repeatedly, but going back further in time with each iteration.
Eventually, you'll reach ancestors who have no living relatives to ask about..
8

9.  Example: # 2:
24 = 2 x 2 x 2 x 2.
24 = 2 x 23
23 = 2 x 22
22 = 2 x 2
Here it seems that the solution to a large problem depends on solving a smaller problem of the
same type.
9

10. Components of
Recursion:
There are two important component of
Recursion.
1) Mandatory.
2) Optional.

11.  1) Mandatory :
Recursion contain two mandatory things.
1) Base Case: It is a specific condition within a function that stops the recursive calls and allows the
function to return a final value
2) Recursion Relation: The Function Call.
11

12.  2) Optional :
Optional can contains many things.
1)Storing data,
2) Printing something
3)Updating date, & so on..
12

13.  Tail & Head Recursion.
Tail Recursion:
is a specific type of recursion where the recursive call is the last statement within
the function.
Head Recursion:
Is a specific type of recursion where the recursive call is the first statement
within the function.
13

14.  Tail Recursion:
14

15. Head Recursion:

16.  Advantages of Recursion:
1. Recursion is very simple and easy to understand.
2. It requires a minimal number of programming statements.
3. Recursion will break the problem into smaller pieces of sub problems for example Square root.
4. It is used to solve mathematical, trigonometric, or any type of algebraic problems.
5. It is useful in solving data structure problems like linked lists, queues and stacks.
6. Complex tasks can be solved easily.
16

17.  Disadvantages of Recursion:
1.It consumes more storage space than other techniques such as iteration (loops), Dynamic programming etc.
2. If base condition is not set properly then it may create a problem such as a system crash, freezing etc.,
3. Compared to other techniques recursion is a time-consuming process and less efficient.
4. It is difficult to trace the logic of the function.
5. Computer memory is exhausted if recursion enters an infinite loop.
6. Excessive function calls are being used.
7. Each function called will occupy memory in stack. Which will lead to stack overflow.
17

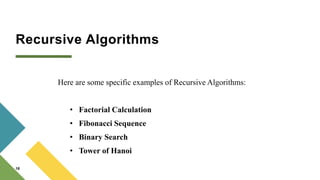

18. Recursive Algorithms
Here are some specific examples of Recursive Algorithms:
• Factorial Calculation
• Fibonacci Sequence
• Binary Search
• Tower of Hanoi
18

19.  Factorial Calculation
The factorial of a non-negative integer n is the
product of all positive integers less than or
equal to n.
Recursive Formula:
 Base Case: factorial(0) = 1
 Recursive Case: factorial(n) = n * factorial(n-1)
19

20.  Fibonacci Sequence
A sequence of numbers where each number is the
sum of the two preceding ones, starting from 0
and 1.
• Sequence:
0, 1, 1, 2, 3, 5, 8, 13, 21, 34, ...
• Recursive Implementation:
 Base Cases:
fibonacci(0) = 0
fibonacci(1) = 1
 Recursive Case:
fibonacci(n) = fibonacci(n - 1) + fibonacci(n - 2)
The function calls itself with smaller values
until it reaches the base cases.
20

21.  Binary Search
Binary search is an efficient algorithm for finding an item
from a sorted list of items.
Base Case:
 If the lower bound becomes greater than the upper bound (meaning the search space is
empty), the element is not found (return -1 or some appropriate value).
 If the target element is found at the middle index (comparison with the middle
element), return the middle index (element found!).
Recursive Case:
 Calculate the middle index of the current search space.
 Compare the target element with the element at the middle index:
 If the target element is less than the middle element, recursively call the function with
the left half of the search space (update upper bound to middle index - 1).
 If the target element is greater than the middle element, recursively call the function
with the right half of the search space (update lower bound to middle index + 1).
21

22.  Tower of Hanoi
The Tower of Hanoi is a classic problem involving moving disks
from one peg to another, following specific rules.
Problem Description:
• Base Case:
 Move a single disk directly to the destination.
• Recursive Case:
 Move n-1 disks from source to auxiliary peg.
 Move the nth disk from source to destination peg.
 Move the n-1 disks from auxiliary peg to destination peg.
22
Tower of Hanoi puzzle with n disks can be
solved in minimum 2n−1 steps. This
presentation shows that a puzzle with 3 disks
has taken 23 - 1 = 7 steps.

23. Recursion in Data Structure
Recursion is particularly powerful when working
with certain data structures, such as trees and linked
lists, because these structures are inherently
recursive.
So here are examples of recursion in
data structure:
 Recursion in Arrays
 Recursion in Linked Lists
23

24.  Recursion in LinkedList
A linear data structure where each element
(node) points to the next node.
• Components:
• Node: Contains data and a reference to
the next node.
• Head: The first node in the list.
24

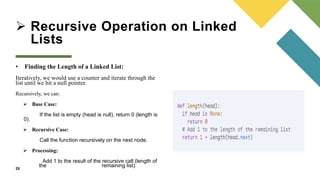

25.  Recursive Operation on Linked
Lists
25
• Finding the Length of a Linked List:
Iteratively, we would use a counter and iterate through the
list until we hit a null pointer.
Recursively, we can:
 Base Case:
If the list is empty (head is null), return 0 (length is
0).
 Recursive Case:
Call the function recursively on the next node.
 Processing:
Add 1 to the result of the recursive call (length of
the remaining list).

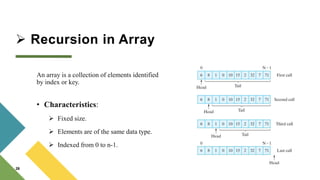

26.  Recursion in Array
An array is a collection of elements identified
by index or key.
• Characteristics:
 Fixed size.
 Elements are of the same data type.
 Indexed from 0 to n-1.
26

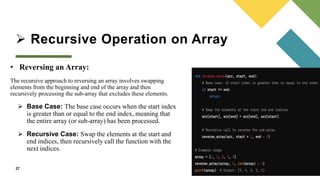

27.  Recursive Operation on Array
27
• Reversing an Array:
The recursive approach to reversing an array involves swapping
elements from the beginning and end of the array and then
recursively processing the sub-array that excludes these elements.
 Base Case: The base case occurs when the start index
is greater than or equal to the end index, meaning that
the entire array (or sub-array) has been processed.
 Recursive Case: Swap the elements at the start and
end indices, then recursively call the function with the
next indices.

28. Time and Space
Complexity in
Recursion
• Time Complexity:
 Time complexity refers to the amount of time an
algorithm takes to execute as the input size increases.
 In recursion, time complexity is often analysed based
on the number of function calls made.
 A common case is linear time complexity (O(n)),
where the number of calls grows proportionally with
the input size (n).
 For example, a recursive function that iterates
through an array will have linear time complexity.
28

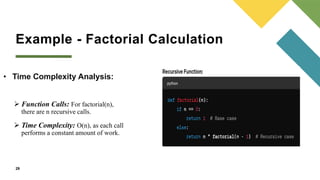

29. Example - Factorial Calculation
• Time Complexity Analysis:
 Function Calls: For factorial(n),
there are n recursive calls.
 Time Complexity: O(n), as each call
performs a constant amount of work.
29

30. Example - Fibonacci Sequence
• Time Complexity Analysis:
 Function Calls: The number of calls
grows exponentially due to repeated
calculations.
 Time Complexity: O(2^n), as each call
generates two more calls except for base
cases.
30

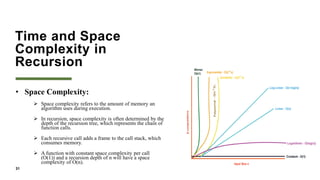

31. Time and Space
Complexity in
Recursion
• Space Complexity:
 Space complexity refers to the amount of memory an
algorithm uses during execution.
 In recursion, space complexity is often determined by the
depth of the recursion tree, which represents the chain of
function calls.
 Each recursive call adds a frame to the call stack, which
consumes memory.
 A function with constant space complexity per call
(O(1)) and a recursion depth of n will have a space
complexity of O(n).
31

32. Example – Factorial Calculation
(Space)
• Space Complexity Analysis:
Stack Depth: For factorial(n), the
stack depth is n.
Space Complexity: O(n), as each
call waits for the result of the next
call.
32

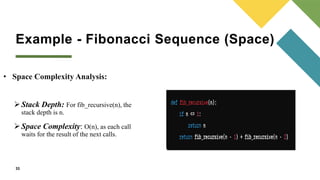

33. Example - Fibonacci Sequence (Space)
• Space Complexity Analysis:
Stack Depth: For fib_recursive(n), the
stack depth is n.
Space Complexity: O(n), as each call
waits for the result of the next calls.
33

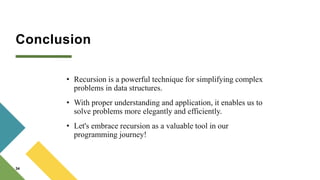

34. Conclusion
• Recursion is a powerful technique for simplifying complex
problems in data structures.
• With proper understanding and application, it enables us to
solve problems more elegantly and efficiently.
• Let's embrace recursion as a valuable tool in our
programming journey!
34

35. Thank you
Basit Ali Somoro (CSC-23S-239)
Khuda Bux Magsi (CSC-23F-259)

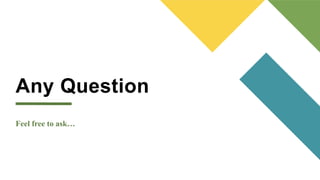

36. Any Question
Feel free to ask…
