The document introduces the Ray-max power island system for solar energy generation. The system uses high efficiency inverters and a distributed architecture to generate 7-8% more energy than standard inverters. It has 97% efficiency from inverters to distribution and offers 40% savings on installation costs through its 1000V capabilities. The system includes Ray-max inverters, a smart controller, solar power strips, homerun disconnect boxes, and a load center to integrate solar power into the electrical distribution system.

1. Ray-max energy system

2. Introducing solar evolution… the ray-max power island

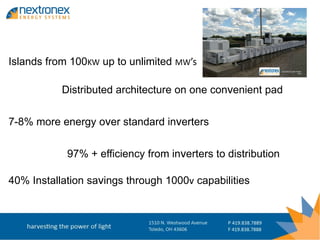

4. Islands from 100KW up to unlimited MW’s
Distributed architecture on one convenient pad
7-8% more energy over standard inverters
97% + efficiency from inverters to distribution
40% Installation savings through 1000v capabilities

5. Meet the Ray-max team

6. Ray-max load center
Ray-max
smart
Ray-max controller
inverter
Ray-max solar Ray-max homerun
power strips disconnect boxes

7. Ray-max inverter
• Best in class 98% + efficiency
• low profile for centralized design
• 1000v and 600v design options

8. Ray-max smart controller
• Intelligent distributed • expandable with 16 I/O
control module kits
• advanced telemetry for • up to 192 I/O points for
AC and DC performance detailed row telemetry
diagnostics
• eliminate the need for
• Fault alerts, array costly third party
economics and weather monitoring sources.
data Monitoring included!

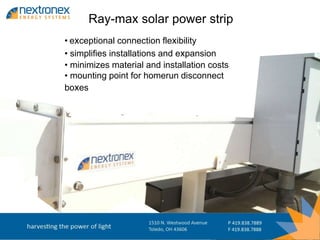

9. Ray-max solar power strip
• exceptional connection flexibility
• simplifies installations and expansion
• minimizes material and installation costs
• mounting point for homerun disconnect
boxes

10. Ray-max homerun disconnect boxes
• Convenient landing point for
combiner boxes with over-
current protection and safety
disconnect functions
• optional CT’s for DC current
monitoring
• mounts to ray-max power strip
• up to 250A DC, 150A with CT’s

11. Ray-max load center
• all in one solution for step up to distribution
voltage
• greater than 98.5% efficiency and includes
switchgear, fusing, disconnects, lightning
protection and fan control

12. What does this all means to you?

13. 7 – 8% more kilowatt hours
produced each day
1% improvement in your
investment
during the life of the project

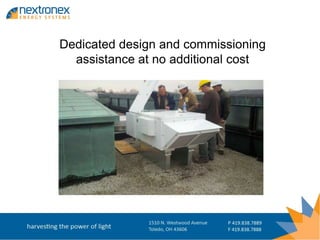

14. Dedicated design and commissioning
assistance at no additional cost

15. 1000v technology means 40% fewer parallel
connections and greater installation savings

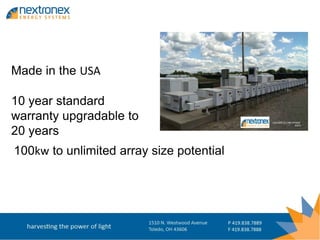

16. Made in the USA
10 year standard
warranty upgradable to
20 years
100kw to unlimited array size potential

17. Call for a quote on your next project
and learn more about what the Ray-
max power island can do for you and
your customer
