This document provides specifications for Jinko Solar's JKM260P-60 polycrystalline solar photovoltaic module. The module is IEC certified and produces 260 watts of power with a conversion efficiency of up to 15.89%. It has 60 polycrystalline solar cells, measures 1650x992x45mm, and weighs 19.0kg. The module comes with a 10-year warranty on materials and workmanship and 12-25 year linear performance warranty.

1. ISO9001:2008、ISO14001:2004、OHSAS18001 certified factory
IEC61215、IEC61730、IEC61701、IEC62716 certified products

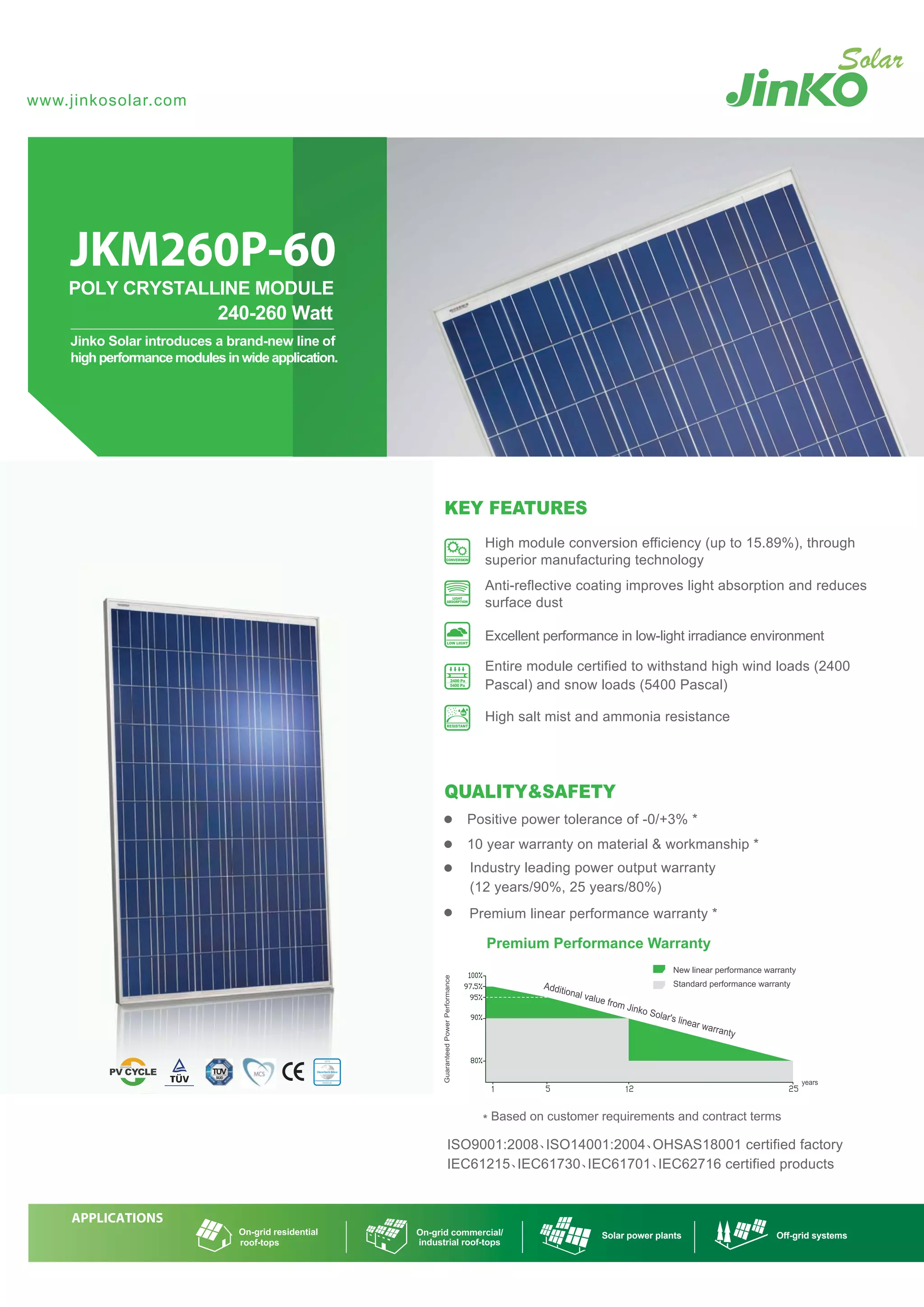

JKM260P-60
POLY CRYSTALLINE MODULE
240-260 Watt
smetsysdirg-ffOstnalprewopraloS
High module conversion efficiency (up to 15.89%), through
superior manufacturing technology
Anti-reflective coating improves light absorption and reduces
surface dust
Excellent performance in low-light irradiance environment
Entire module certified to withstand high wind loads (2400
Pascal) and snow loads (5400 Pascal)
High salt mist and ammonia resistance
10 year warranty on material & workmanship *
Premium linear performance warranty *
Industry leading power output warranty
(12 years/90%, 25 years/80%)
Jinko Solar introduces a brand-new line of
highperformancemodulesinwideapplication.
www.jinkosolar.com
KEY FEATURES
QUALITY&SAFETY
Positive power tolerance of -0/+3% *
* Based on customer requirements and contract terms

2. Current-Voltage & Power-Voltage
Curves (240W)
Temperature Dependence
of Isc,Voc,Pmax
Packaging Configuration
(Twoboxes=Onepallet)
The company reserves the final right for explanation on any of the information presented hereby. EN-MKT-260P_v1.0_rev2013

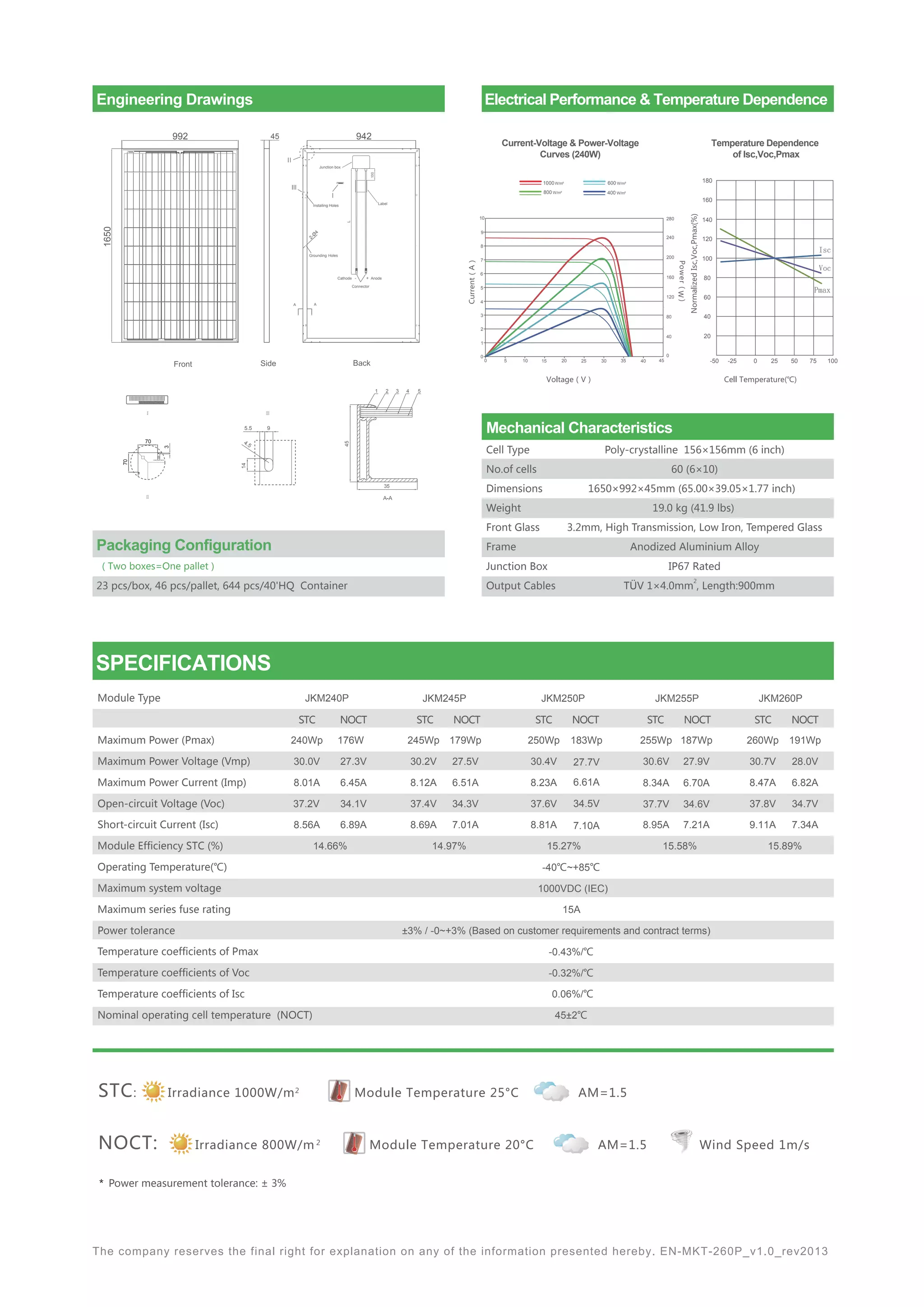

Engineering Drawings
SPECIFICATIONS
Mechanical Characteristics
CellType
No.ofcells
Dimensions
Weight
FrontGlass
Frame
JunctionBox
OutputCables
Poly-crystalline156×156mm(6inch)
60(6×10)
1650×992×45mm(65.00×39.05×1.77inch)
19.0kg(41.9lbs)
3.2mm,HighTransmission,LowIron,TemperedGlass
AnodizedAluminiumAlloy
IP67Rated
TÜV1×4.0mm
2
,Length:900mm
Electrical Performance & Temperature Dependence
23pcs/box,46pcs/pallet,644pcs/40'HQContainer
45
1650
992 942
XXXXXXXXXXXXXXXXXXXX
100
ＸＸＸＸＸＸＸＸＸＸＸＸＸＸＸＸＸＸＸＸ
L
Installing Holes
Grounding Holes
Cathode - + Anode
Connector
Ⅲ
Junction box
Label
Ⅰ
A A
Ⅱ
1 2 3 4 5
35
45
Ⅲ
4.5
14
95.5
70
70
3
8
Ⅱ
ＸＸＸＸＸＸＸＸＸＸＸＸＸＸＸＸＸＸＸＸ
Ⅰ
-50 -25 0 25 50 75 100
20
40
60
80
100
120
140
160
180
Isc
Voc
Pmax
1000W/m²
800 W/m²
600 W/m²
400 W/m²
5 10 15 20 25 30 35 40 450
0
1
2
3
4
5
6
7
8
9
10
40
0
80
120
160
200
240
280
Irradiance1000W/m2
ModuleTemperature25°C AM=1.5STC:
Irradiance800W/m 2
ModuleTemperature20°C AM=1.5NOCT:
Powermeasurementtolerance:±3%*
WindSpeed1m/s
ModuleType
MaximumPower(Pmax)
MaximumPowerVoltage(Vmp)
MaximumPowerCurrent(Imp)
Open-circuitVoltage(Voc)
Short-circuitCurrent(Isc)
ModuleEfficiencySTC(%)
OperatingTemperature(℃)
Maximumsystemvoltage
Maximumseriesfuserating
Powertolerance
TemperaturecoefficientsofPmax
TemperaturecoefficientsofVoc
TemperaturecoefficientsofIsc
Nominaloperatingcelltemperature(NOCT)
-40℃~+85℃
1000VDC (IEC)
15A
±3% / -0~+3% (Based on customer requirements and contract terms)
-0.43%/℃
-0.32%/℃
0.06%/℃
45±2℃
JKM240P
240Wp
30.0V
8.01A
37.2V
8.56A
14.66%
JKM245P
245Wp
30.2V
8.12A
37.4V
8.69A
14.97%
JKM250P
250Wp
30.4V
8.23A
37.6V
8.81A
15.27%
JKM255P
255Wp
30.6V
8.34A
37.7V
8.95A
15.58%
JKM260P
260Wp
30.7V
8.47A
37.8V
9.11A
15.89%
176W 187Wp 191Wp
27.3V
6.45A 6.70A 6.82A
27.9V 28.0V
34.1V 34.6V 34.7V
6.89A
179Wp
6.51A
27.5V
34.3V
7.01A
183Wp
6.61A
27.7V
34.5V
7.10A 7.21A 7.34A
STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
2-Ø
4
