An introduction to Zeversolar inverters
Zeversolar produces a range of string and central solar inverters for residential and commercial applications. Their inverters range in power from 1.5 kW to 20 kW for string inverters and up to 1 MW for central inverters. The presentation provided an overview of Zeversolar's inverters and their technical specifications, an inside look at the components, information on monitoring and remote access capabilities, and a tour of their manufacturing facilities where inverters are assembled and tested.
More Related Content
Similar to An introduction to Zeversolar inverters
An introduction to Zeversolar inverters
- 1.
- 2. 2 Agenda 1. Overview 2. Introductionof Zeversolar String Inverters 3. A Look Inside 4. Technical Information 5. Monitoring Solution 6. PMU 7. SolarCloud 8. ZeverPlan 9. What I´ve Seen 10. Manufacturing Tour
- 3.
- 4. Our Product Overview 4 No matter what size your solar plant is we offer the right inverter Our string inverters range from 1.5kW to 20kW to satisfy residential and commercial usage * Available expected end of 2014 ** Available expected August 2014 *** Available expected end of October 2014 1-3 TL1500 TL2000 TL3000 3-5 TL3680 TL5000 4-6 TLC4000 TLC5000* TLC6000 TLC8000** 500 NSG- 500K3TL 1000 KW NSG- 1000K3TL 15-20 TLC10K** TLC15K TLC17K TLC20K
- 5. Certification 5 UK Certificatescan be downloaded from the ENA Register http://www.ena-eng.org/ProductTypeTestRegister/Login.aspx?LoggedOut=Y
- 6. Introduction of Zeversolar StringInverters 6 02
- 7. Single Phase Inverters 7 EversolTL TL1500-20 TL2000-20 TL3000-20 Features: • Efficiency - > 96,5 %, MPPT - 99,5 %, European - > 96,2 % • RS485 communication via RJ45 (IP65) • IP65 • Convection cooled • Eversol TL – 1 MPPT / Evershine TL – 2 MPPT´s Introduction of Zeversolar Inverters Evershine TL TL3680* TL5000-10
- 8. Three Phase Inverters 8 EvershineTLC TLC4000 TLC5000* TLC6000 TLC8000** Features • Efficiency - 98 %, MPPT - 99,5 %, European - 97,5 % • Wide voltage range • Two MPPT´s for flexible PV Plant design • Graphical LCD-Display • IP65 Introduction of Zeversolar Inverters Eversol TLC TLC10K* TLC15K TLC17K TLC20K
- 9.
- 10. Exploded View 10 Bracket Heat sink PCBA Tank Lid EversolTL Bracket Heat sink PCBA Tank Lid Bracket Heat sink PCBA Tank Lid Evershine TLC Eversol TLC
- 11. Eversol TL 11 直流EMC滤波器 DC EMCfilter 光伏输入 DC input 直流开关 DC switch 升压电路 BOOST DC/DC 逆变电路 DC/AC 交流电抗器 AC inductor EMC滤波器 EMC filter L N PE 交流输出 AC output 继电器 Relay 987654321
- 12.
- 13. High Power GeneratingCapability 13 • High efficiency across all products > 97 % • High input DC voltage • PV Array oversizing – 30 % • Reactive Power Control up to 0.85 lagging / leading • Wide MPPT voltage range • Multiple MPPT´s • East / West design • Flexible string lengths MPPT A MPPT B Flexibility
- 14. Did You Know 14 •IP 65 rated enclosure and RJ45 comm ports • Tolerant to temperature [-25oC – 60oC] • Heatsink • Cooling Fan • 3 kW - up to 10 kg lighter – lowest DC start up voltage – lowest DC shutdown voltage • 5 kW – up to 7 kg lighter – lowest DC start up voltage – lowest DC shutdown voltage • 15 kW – 9 kg heavier – not the lightest • Quality internal components
- 15. Sunclix DC Connector 15 •No special crimping tool required • 2.5mm2 – 6mm2 • 40 A CCC – 1100 V • Terminate cable up to 10 times
- 16. 16 Optimisation of theProduct Development Process Engineering Pilot Trial Project Start Planning & Preperation R&D Design Labor Pilot Trial Field Pilot Trial Mass Production Market Research, Feasibility Assessment Establishment of Project Team Review by Technical Experts Evaluation by SMA Customer Tests

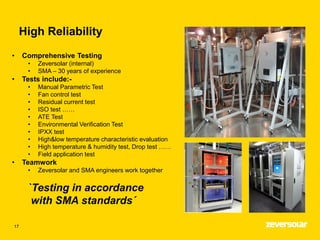

- 17. High Reliability 17 • ComprehensiveTesting • Zeversolar (internal) • SMA – 30 years of experience • Tests include:- • Manual Parametric Test • Fan control test • Residual current test • ISO test …… • ATE Test • Environmental Verification Test • IPXX test • High&low temperature characteristic evaluation • High temperature & humidity test, Drop test …… • Field application test • Teamwork • Zeversolar and SMA engineers work together `Testing in accordance with SMA standards´
- 18. „All in all,the product, Eversol TL3000, is operating smoothly and steadily. We have expectations that customers will be satisfied with it.” --- SMA Test Centre Feb. 2014 18 Summary PASSED
- 19.

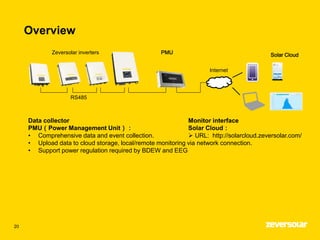

- 20. Overview 20 Data collector PMU（Power ManagementUnit）： • Comprehensive data and event collection. • Upload data to cloud storage, local/remote monitoring via network connection. • Support power regulation required by BDEW and EEG PMU Solar CloudZeversolar inverters RS485 Internet Monitor interface Solar Cloud： URL: http://solarcloud.zeversolar.com/
- 21.

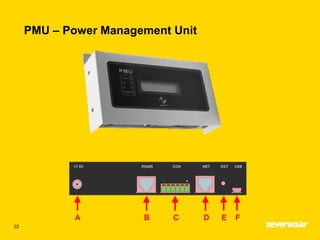

- 22. PMU – PowerManagement Unit 22

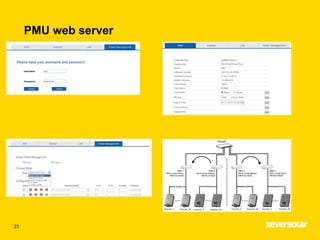

- 23.
- 24.

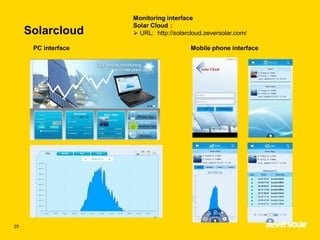

- 25. Solarcloud 25 PC interface Mobilephone interface Monitoring interface Solar Cloud： URL: http://solarcloud.zeversolar.com/
- 26.

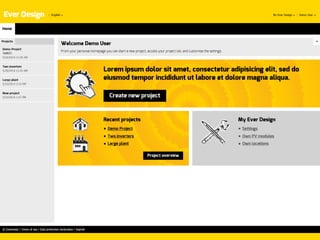

- 27.

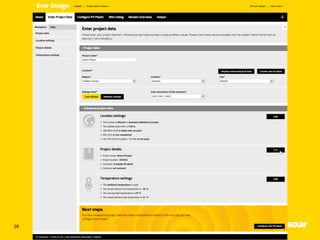

- 28.

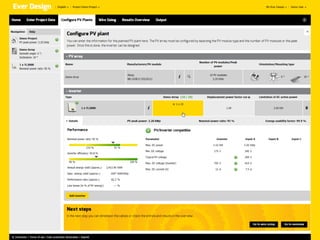

- 29.

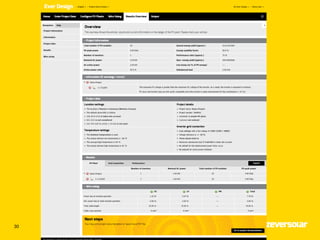

- 30.
- 31.
- 32. RCD Nuisance Tripping 32 •Residual Current Device • Detects leakage current • Rated @ 30 mA – avoid heart attacks caused from electric shock X X X X X X X X X X XX Addition of PV causes Upstream RCD´s to trip Some inverters disconnect after 5s on loss of mains Back Connect to supply side of main RCD • Zeversolar inverters have an internal Residual Current Monitoring Unit • We recommend a 120 mA RCD Type A or B

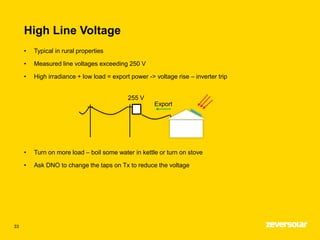

- 33. High Line Voltage 33 •Typical in rural properties • Measured line voltages exceeding 250 V • High irradiance + low load = export power -> voltage rise – inverter trip 255 V Export • Turn on more load – boil some water in kettle or turn on stove • Ask DNO to change the taps on Tx to reduce the voltage

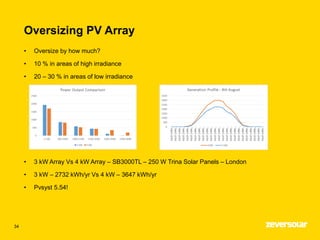

- 34. Oversizing PV Array 34 •Oversize by how much? • 10 % in areas of high irradiance • 20 – 30 % in areas of low irradiance • 3 kW Array Vs 4 kW Array – SB3000TL – 250 W Trina Solar Panels – London • 3 kW – 2732 kWh/yr Vs 4 kW – 3647 kWh/yr • Pvsyst 5.54!

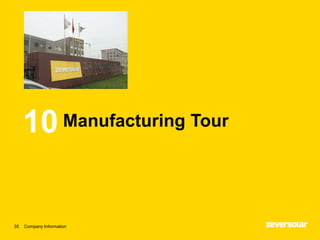

- 35.
- 36. Manufacturing Capacity 4 stringinverter manufacturing lines and 3 central inverters manufacturing lines (4 lines by end of 2014) 1.8GW annual capacity with full product portfolio now/2.8GW capacity from end of 2014 36Company Information

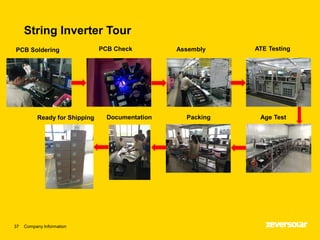

- 37. String Inverter Tour CompanyInformation37 PCB Soldering PCB Check Documentation Assembly PackingReady for Shipping ATE Testing Age Test

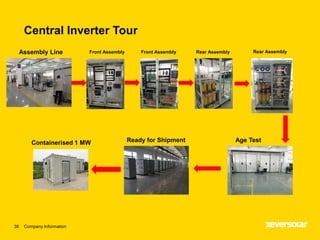

- 38. Central Inverter Tour CompanyInformation38 Assembly Line Front Assembly Ready for ShipmentContainerised 1 MW Age Test Front Assembly Rear Assembly Rear Assembly
- 39. 39 Thank you. Energy foreverybody. Kaiserswerther Str. 115 | 40880 Ratingen Deutschland Tel.: +49 2102 420 000 | Fax.: +49 2102 420 001 www.zeversolar.com
