Rayfract
1.
Seismic Refraction Data

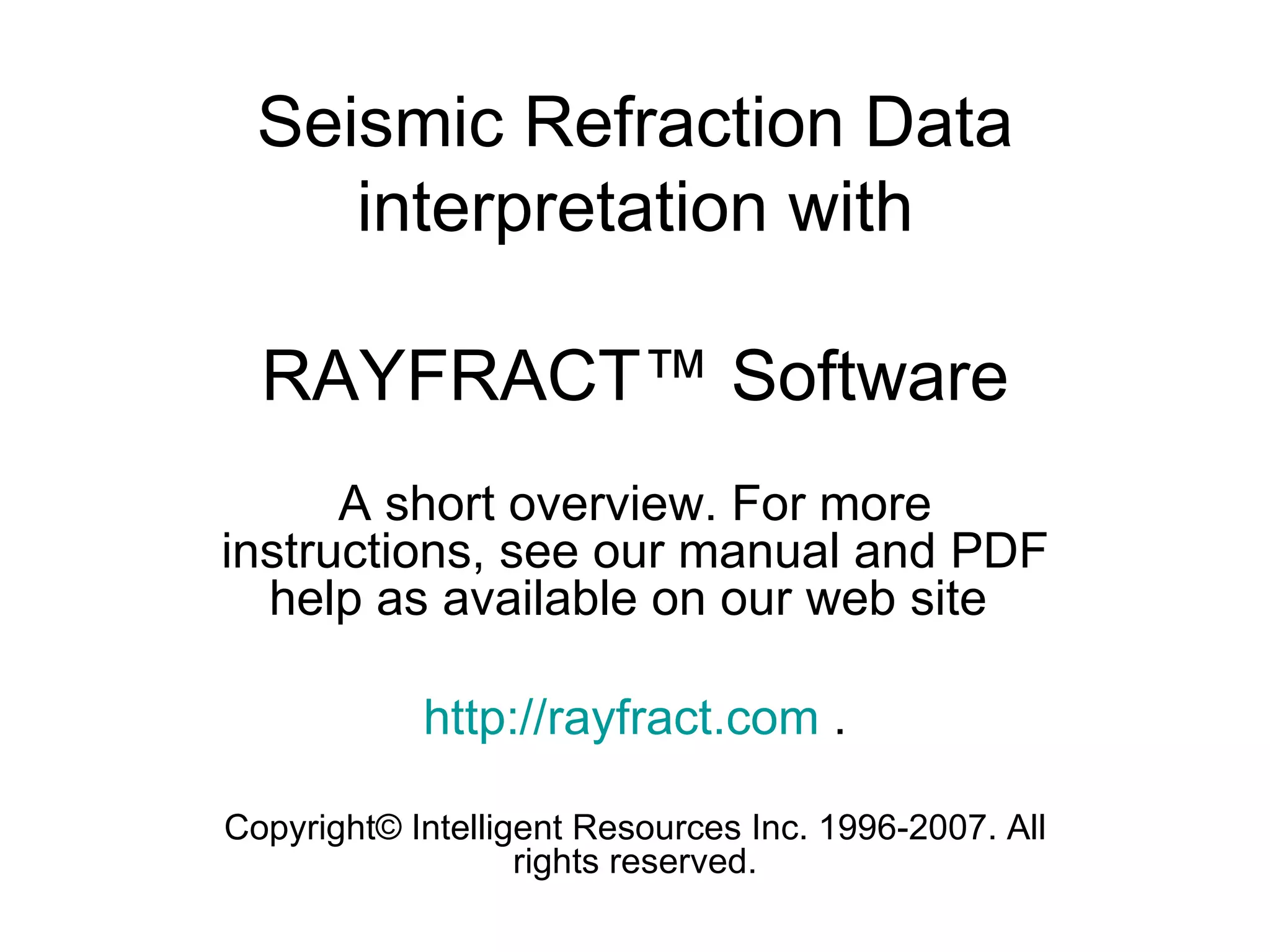

interpretation with RAYFRACT™ Software A short overview. For more instructions, see our manual and PDF help as available on our web site http://rayfract.com . Copyright© Intelligent Resources Inc. 1996-2007. All rights reserved.
2.

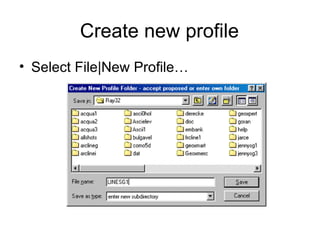

Create new profile •
Select File|New Profile…
3.
Edit profile header •

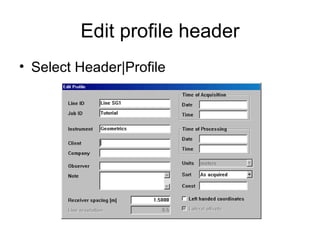

Select Header|Profile
4.

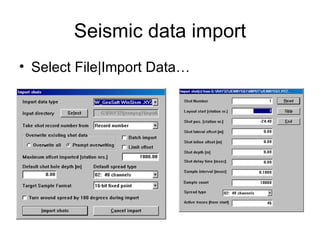

Seismic data import •
Select File|Import Data…
5.

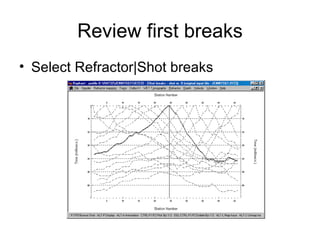

Review first breaks •
Select Refractor|Shot breaks
6.
Smooth inversion • Select

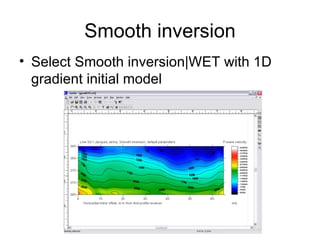

Smooth inversion|WET with 1D gradient initial model
7.
Automatic refractor mapping •

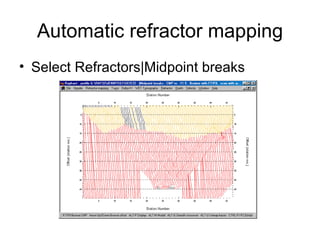

Select Refractors|Midpoint breaks
8.

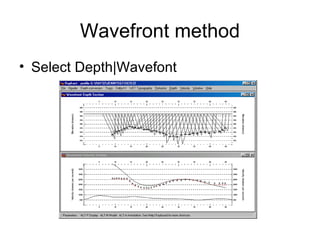

Wavefront method • Select
Depth|Wavefont
9.
Automatic picking • Select

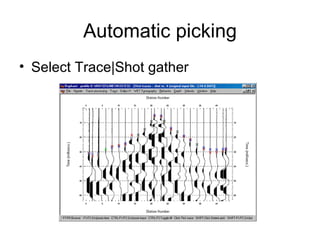

Trace|Shot gather
10.
Manual refractor mapping •

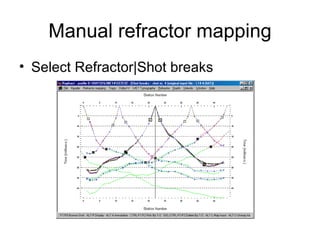

Select Refractor|Shot breaks
11.

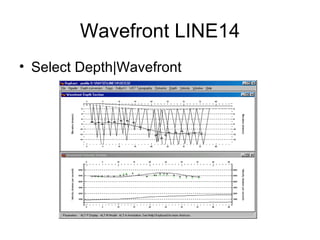

Wavefront LINE14 • Select
Depth|Wavefront
12.

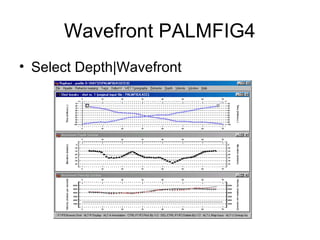

Wavefront PALMFIG4 • Select
Depth|Wavefront
13.

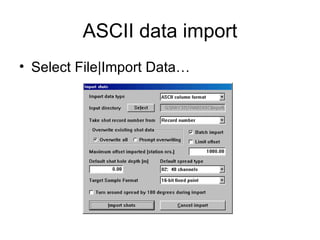

ASCII data import •
Select File|Import Data…
14.

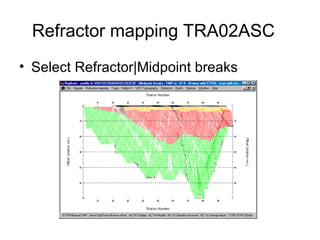

Refractor mapping TRA02ASC •
Select Refractor|Midpoint breaks
15.

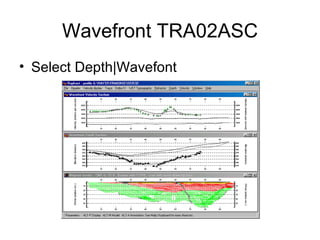

Wavefront TRA02ASC • Select
Depth|Wavefont
16.
Smooth inversion TRA02ASC •

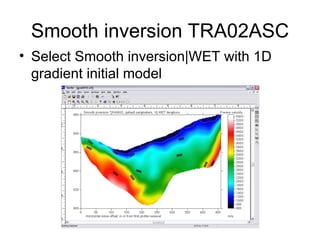

Select Smooth inversion|WET with 1D gradient initial model
17.

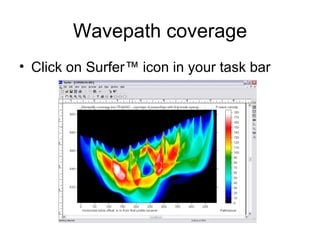

Wavepath coverage • Click
on Surfer™ icon in your task bar
18.

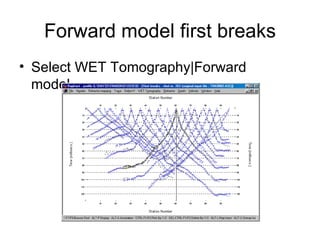

Forward model first
breaks • Select WET Tomography|Forward model...
