Raising performance in composites bonding
Quarter 1, 2015

Advanced Materials 2

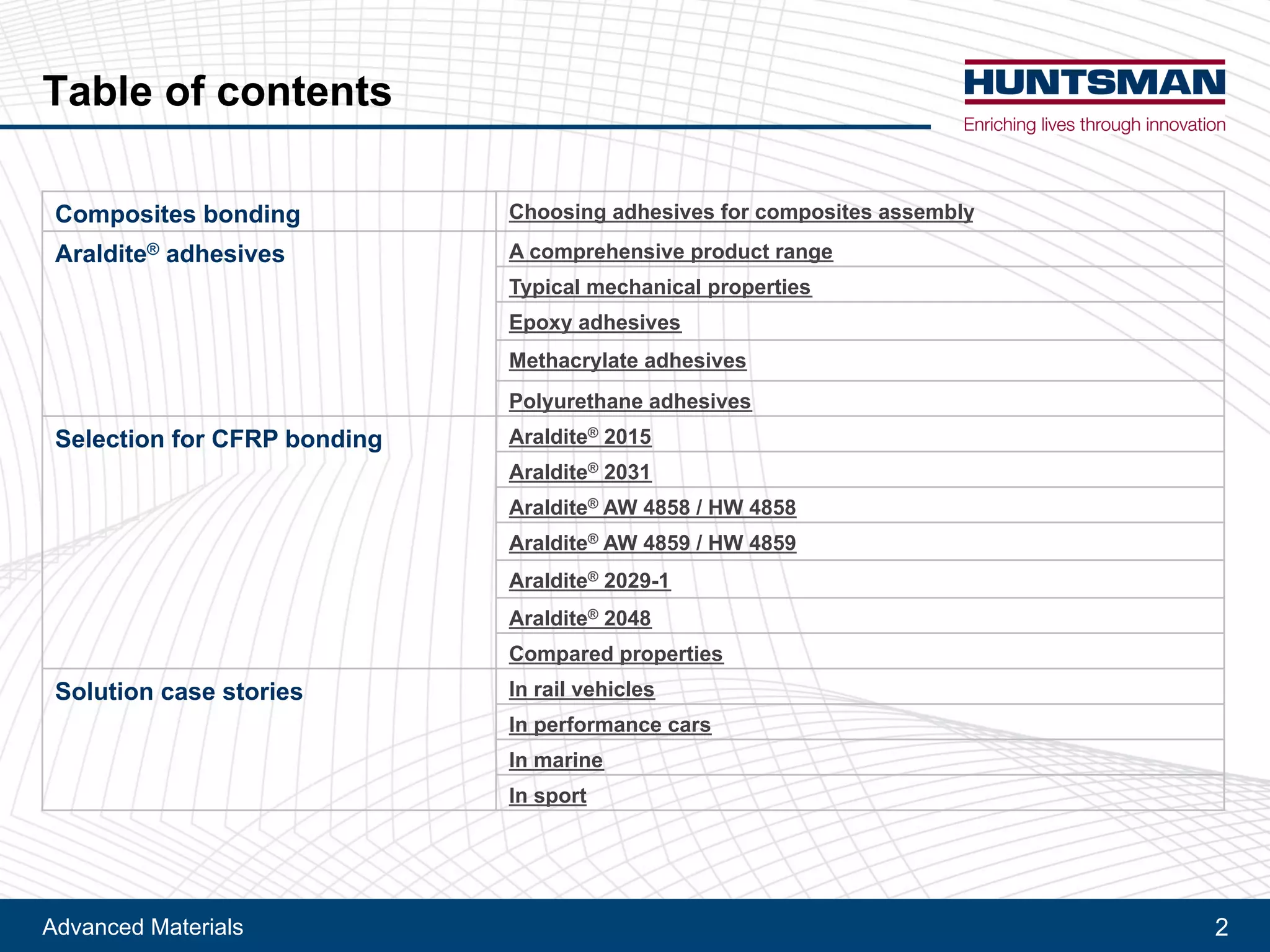

Table of contents
Choosing adhesives for composites assembly
Araldite® adhesives A comprehensive product range
Typical mechanical properties
Epoxy adhesives
Methacrylate adhesives
Polyurethane adhesives
Selection for CFRP bonding Araldite® 2015
Araldite® 2031
Araldite® AW 4858 / HW 4858
Araldite® 2029-1
Araldite® 2048
Compared properties
Selection for specific requirements
Araldite® solutions for transportation For railway industry
For automotive industry

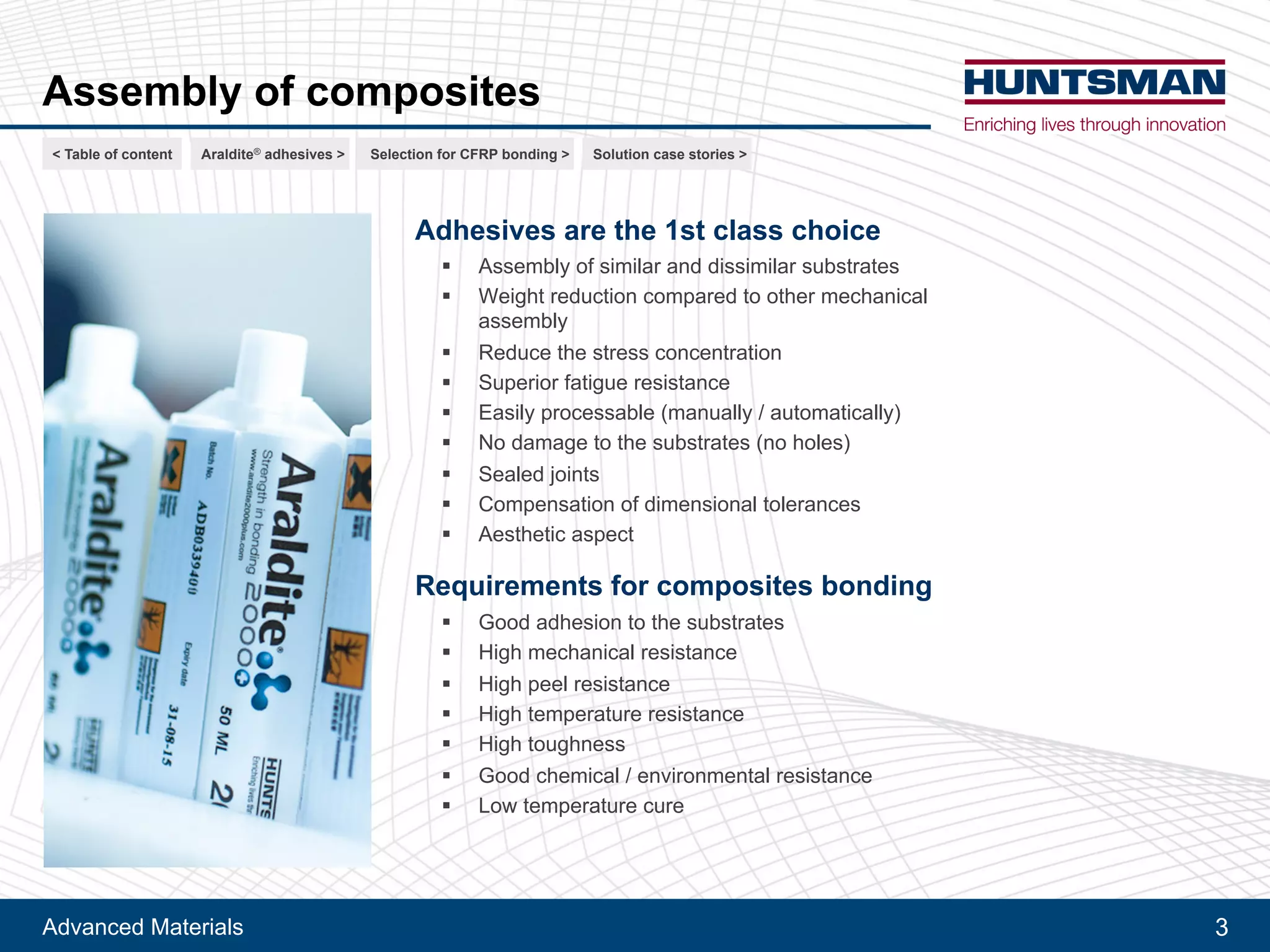

Choosing adhesives
for composites assembly
Adhesives are the 1st class choice
!! Assembly of similar and dissimilar substrates
!! Weight reduction compared to other mechanical
assembly
!! Reduce the stress concentration
!! Superior fatigue resistance
!! Easily processable (manually / automatically)
!! No damage to the substrates (no holes)
!! Sealed joints
!! Compensation of dimensional tolerances
!! Aesthetic aspect
Requirements for composites bonding
!! Good adhesion to the substrates
!! High mechanical resistance
!! High peel resistance
!! High temperature resistance
!! High toughness
!! Good chemical / environmental resistance
!! Low temperature cure
< Table of content CFRP bonding >Araldite® adhesives > For railway > For automotive >

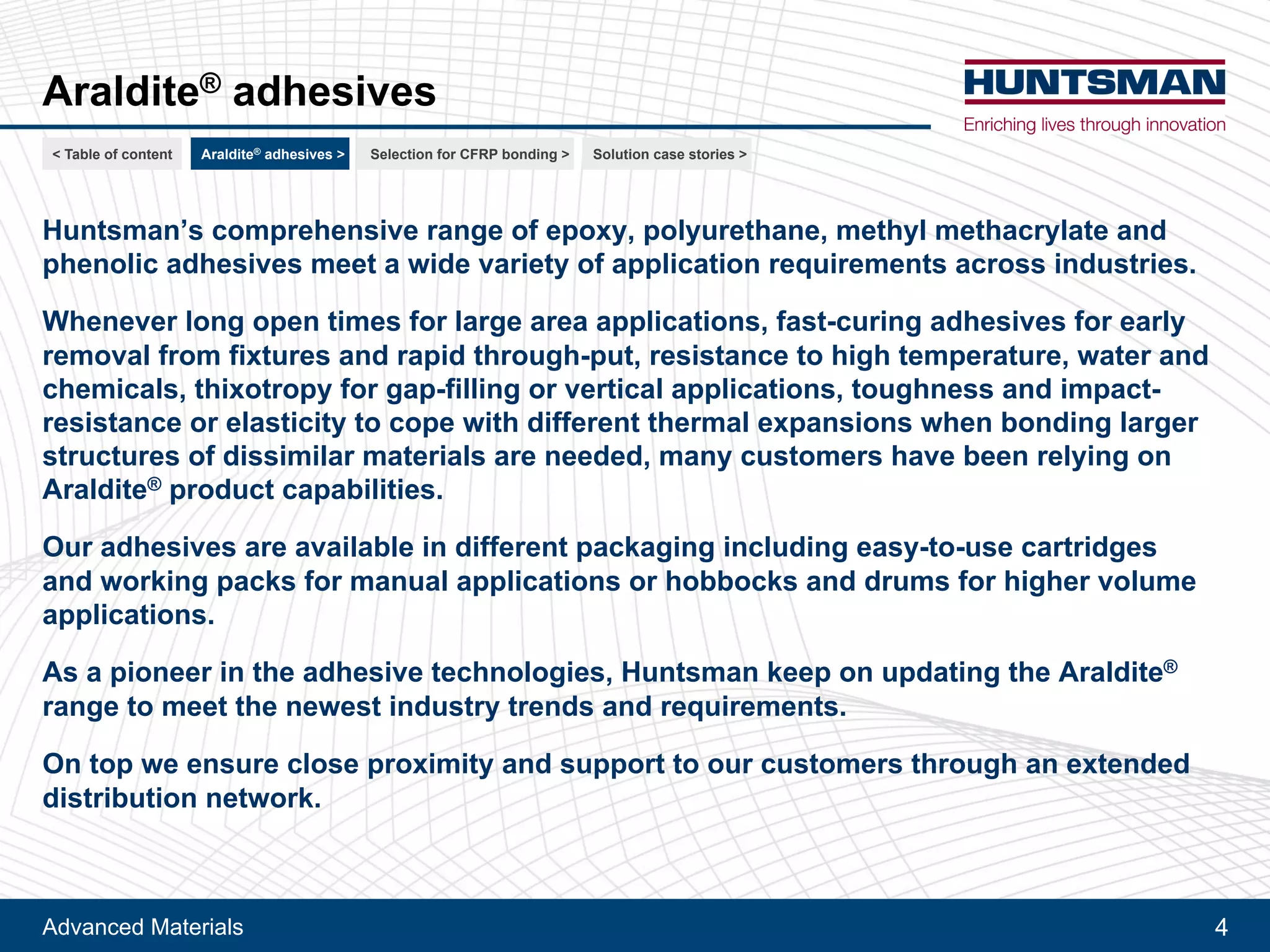

Araldite® adhesives
Huntsman’s comprehensive range of epoxy, polyurethane, methyl methacrylate and
phenolic adhesives meets a wide variety of application requirements across industries.
Whenever long open times for large area applications, fast-curing adhesives for early
removal from fixtures and rapid through-put, resistance to high temperature, water and
chemicals, thixotropy for gap-filling or vertical applications, toughness and impact-
resistance or elasticity to cope with different thermal expansions when bonding larger
structures of dissimilar materials are needed, many customers have been relying on
Araldite® product capabilities.
Our adhesives are available in different packaging including easy-to-use cartridges
and working packs for manual applications or hobbocks and drums for higher volume
applications.
As a pioneer in the adhesive technologies, Huntsman keeps on updating the Araldite®
range to meet the newest industry trends and requirements.
On top we ensure close proximity and support to our customers through an extended
distribution network.

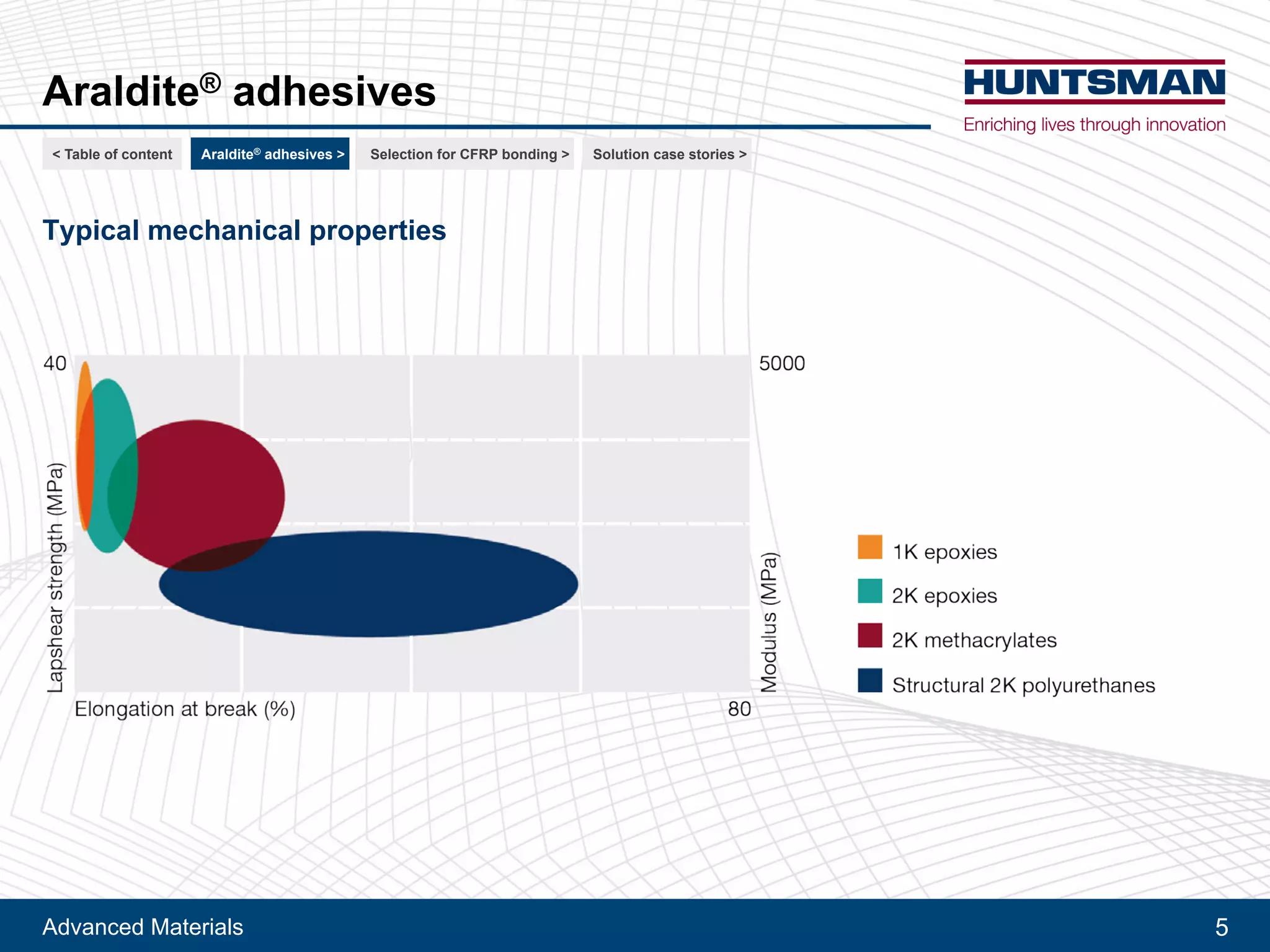

Typical mechanical properties

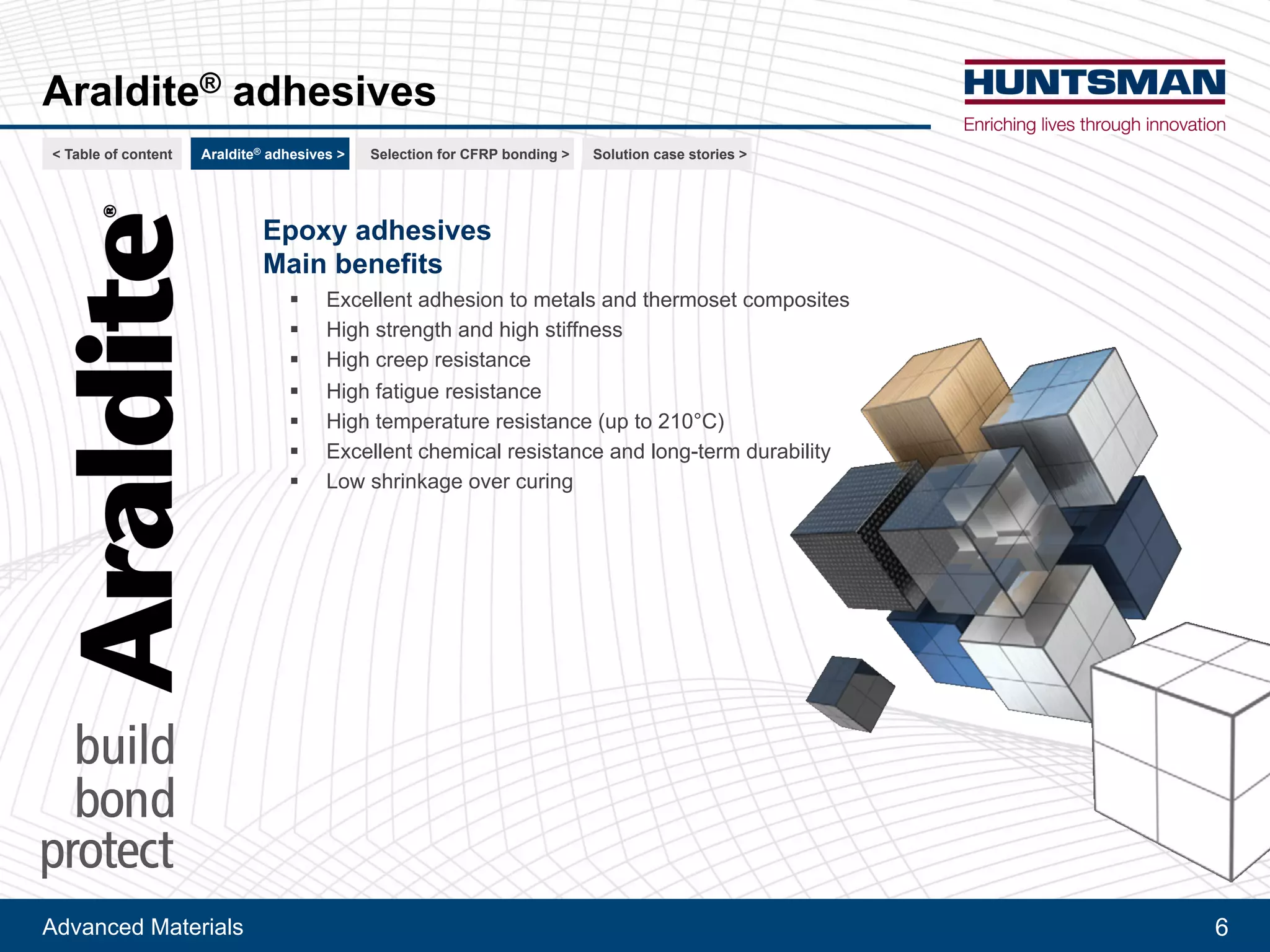

Epoxy adhesives
Main benefits
!! Excellent adhesion to metals and thermoset composites
!! High strength and high stiffness
!! High creep resistance
!! High fatigue resistance
!! High temperature resistance (up to 210°C)
!! Excellent chemical resistance and long-term durability
!! Low shrinkage over curing
6
Excellent chemical resistance and long-term durability

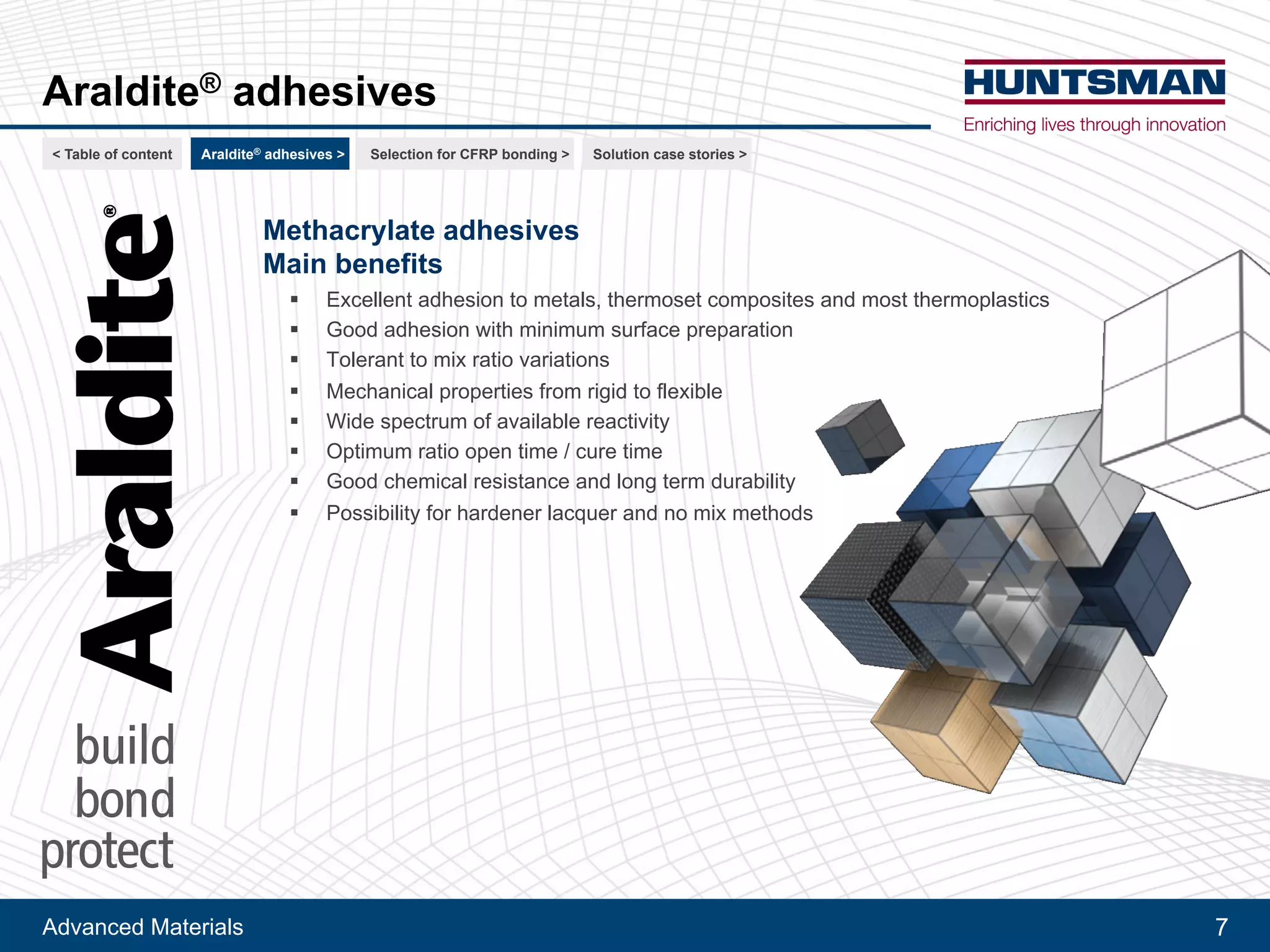

Methacrylate adhesives
Main benefits
!! Excellent adhesion to metals, thermoset composites and most thermoplastics
!! Good adhesion with minimum surface preparation
!! Tolerant to mix ratio variations
!! Mechanical properties from rigid to flexible
!! Wide spectrum of available reactivity
!! Optimum ratio open time / cure time
!! Good chemical resistance and long term durability
!! Possibility for hardener lacquer and no mix methods
Excellent adhesion to metals, thermoset composites and most thermoplastics
Good adhesion with minimum surface preparation
Good chemical resistance and long term durability
Possibility for hardener lacquer and no mix methods

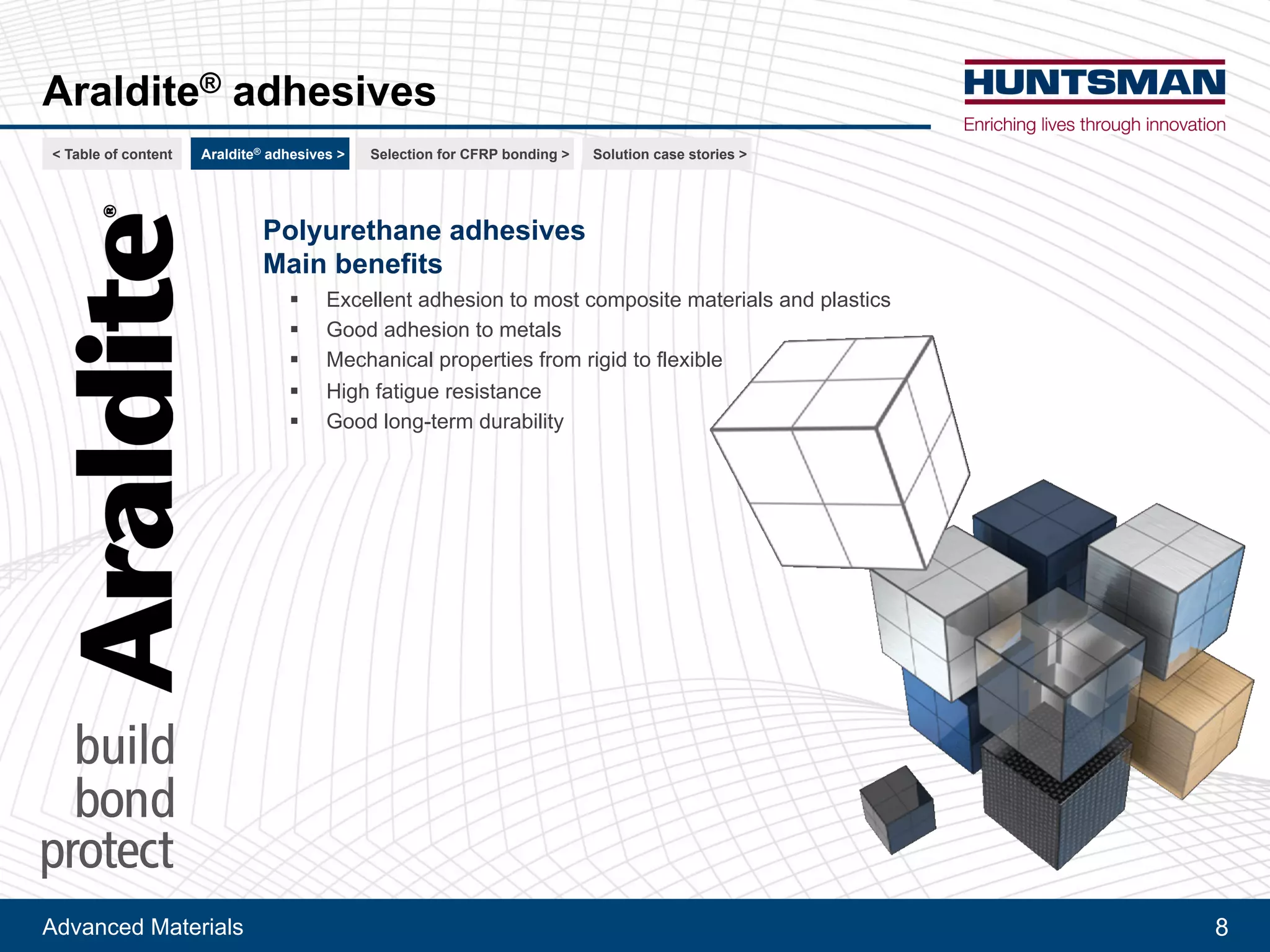

Polyurethane adhesives
Main benefits
!! Excellent adhesion to most composite materials and plastics
!! Good adhesion to metals
!! Mechanical properties from rigid to flexible
!! High fatigue resistance
!! Good long-term durability
8
Excellent adhesion to most composite materials and plastics
Mechanical properties from rigid to flexible

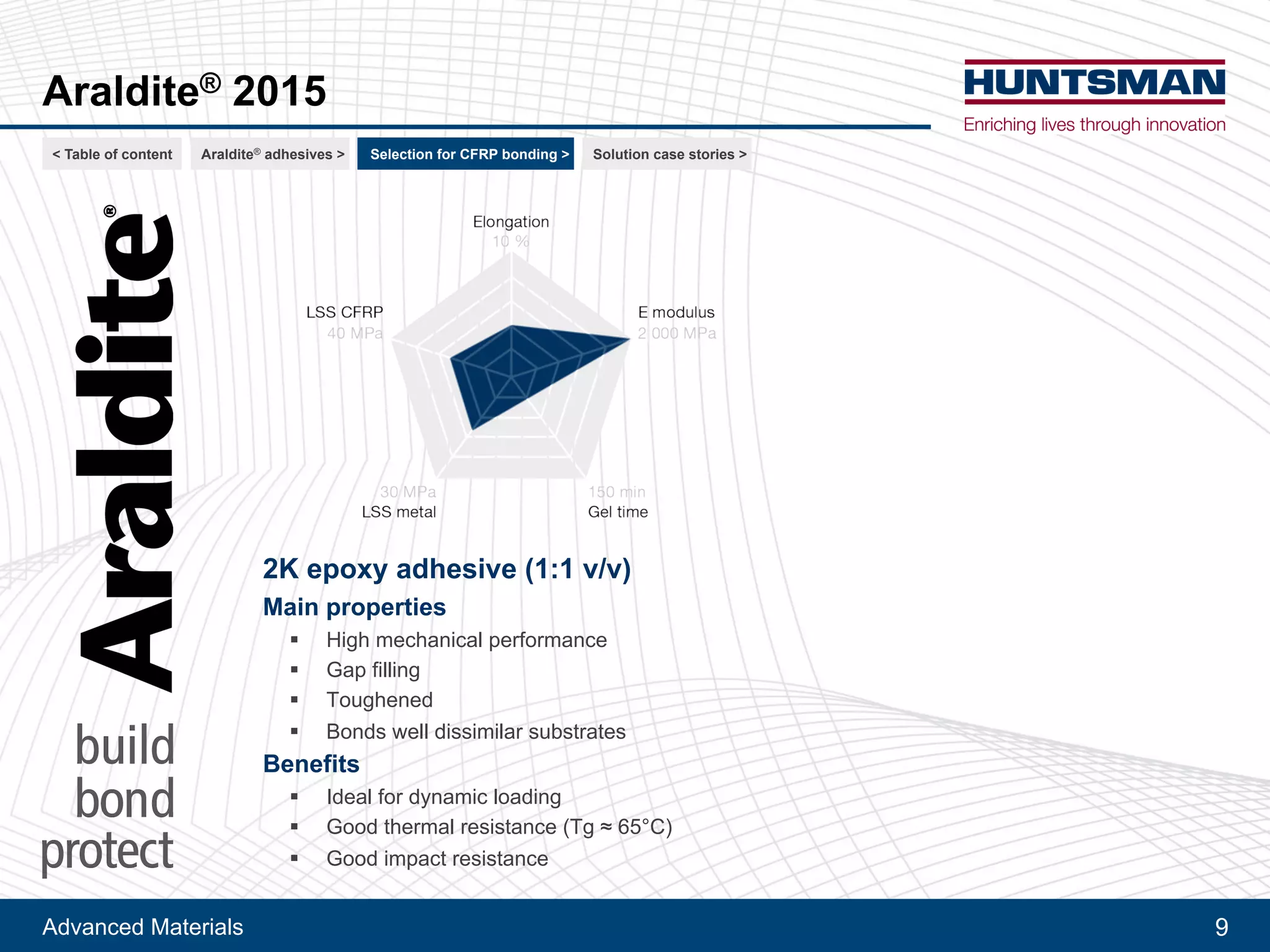

Araldite® 2015
2K epoxy adhesive (1:1 v/v)
Main properties
!! High mechanical performance
!! Gap filling
!! Toughened
!! Bonds well dissimilar substrates
Benefits
!! Ideal for dynamic loading
!! Good thermal resistance (Tg ! 65°C)
!! Good impact resistance

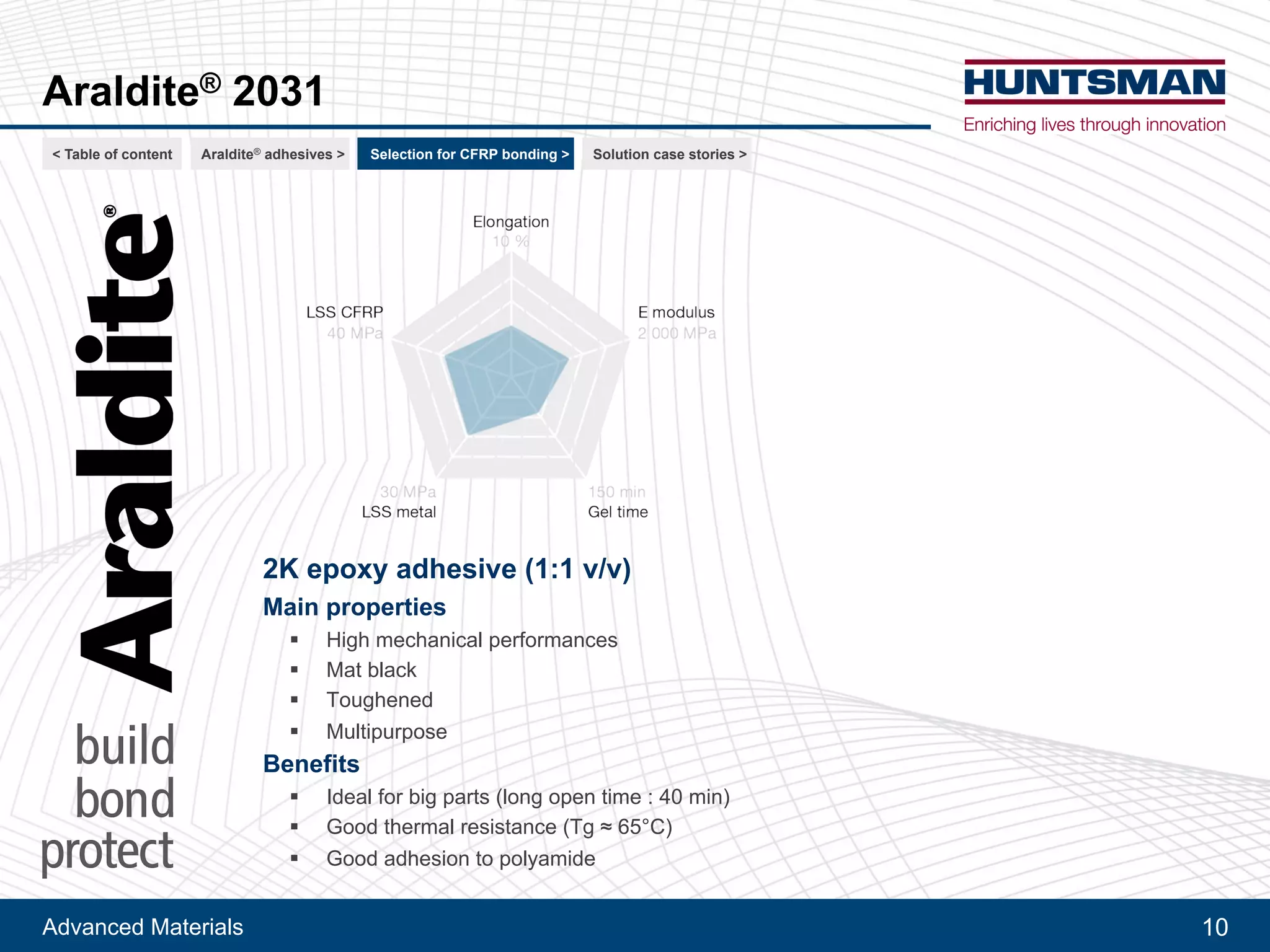

Araldite® 2031
Main properties
!! High mechanical performances
!! Mat black
!! Toughened
!! Multipurpose
Benefits
!! Ideal for big parts
!! Good thermal resistance (Tg ! 65°C)
!! Good adhesion to polyamide

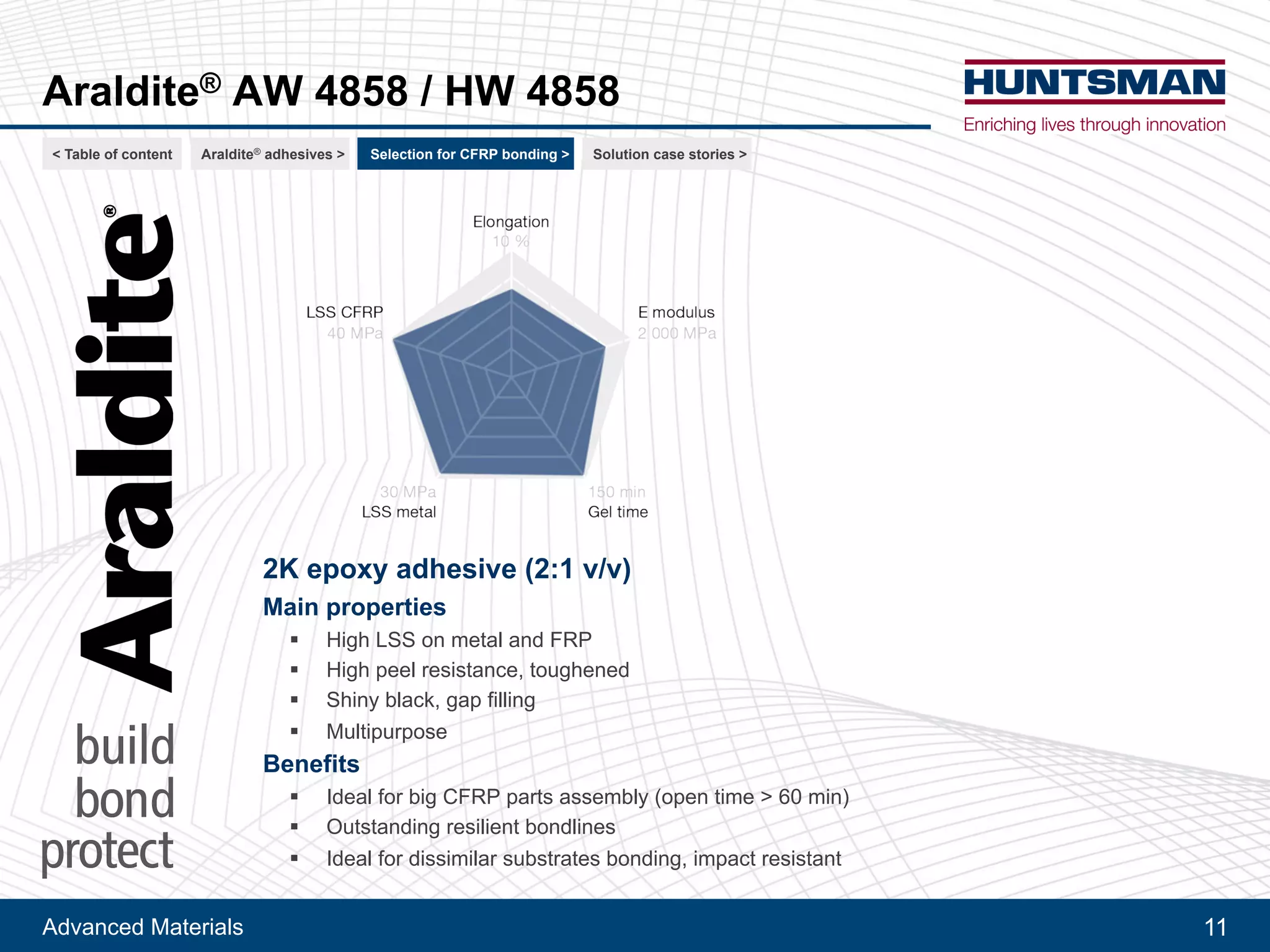

Main properties
!! High LSS on metal and FRP
!! High peel resistance, toughened
!! Shiny black, gap filling
!! Multipurpose
Benefits
!! Ideal for big CFRP parts assembly (open time > 60 min)
!! Outstanding resilient bondlines
!! Ideal for dissimilar substrates bonding, impact resistant

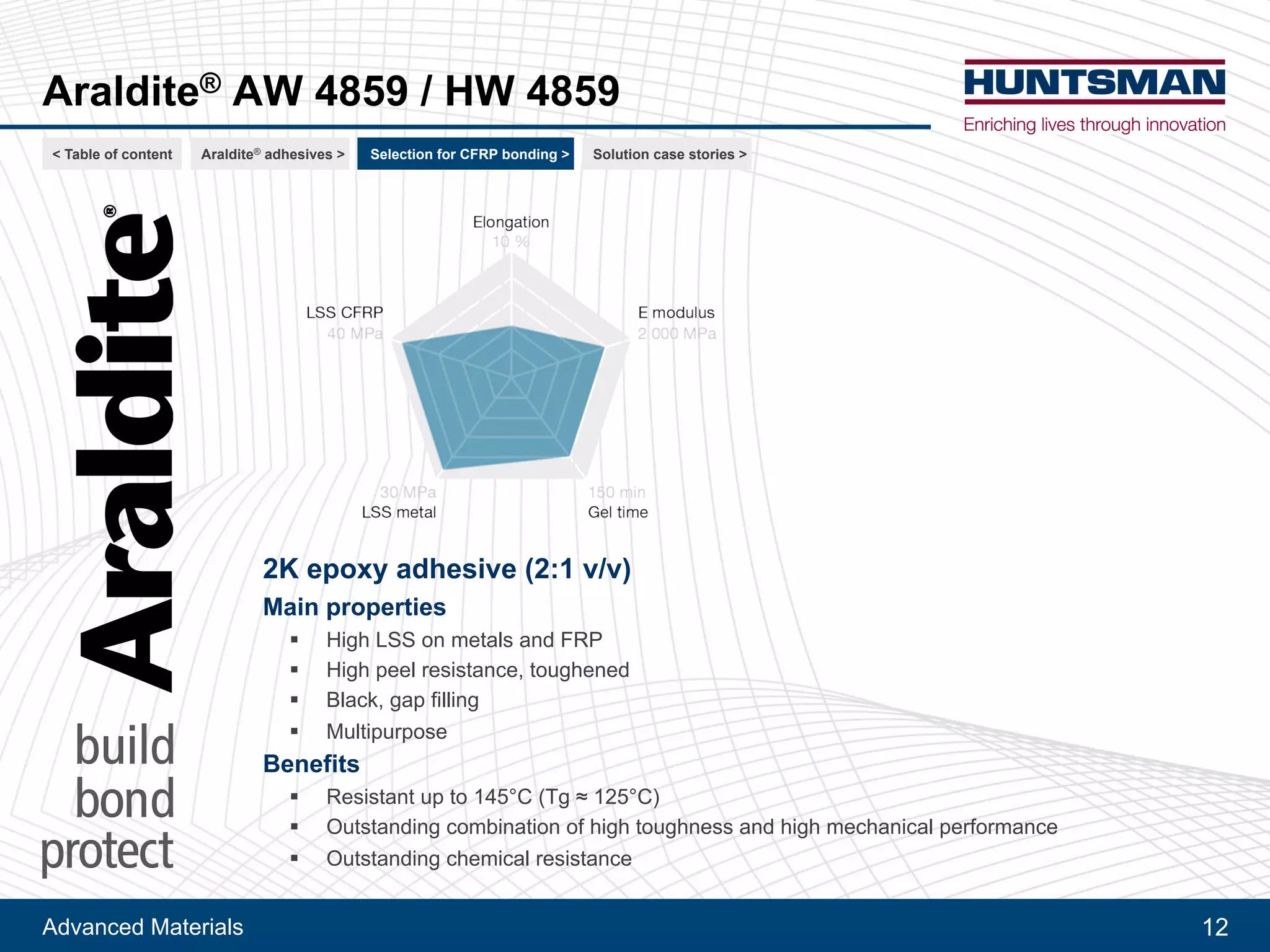

Main properties
!! High LSS on metals and FRP
!! High toughness
!! Black, gap filling
!! Multipurpose
Benefits
!! Resistant up to 145°C (Tg ! 125°C)
!! Outstanding combination of high toughness and high mechanical performance
!! Outstanding chemical resistance

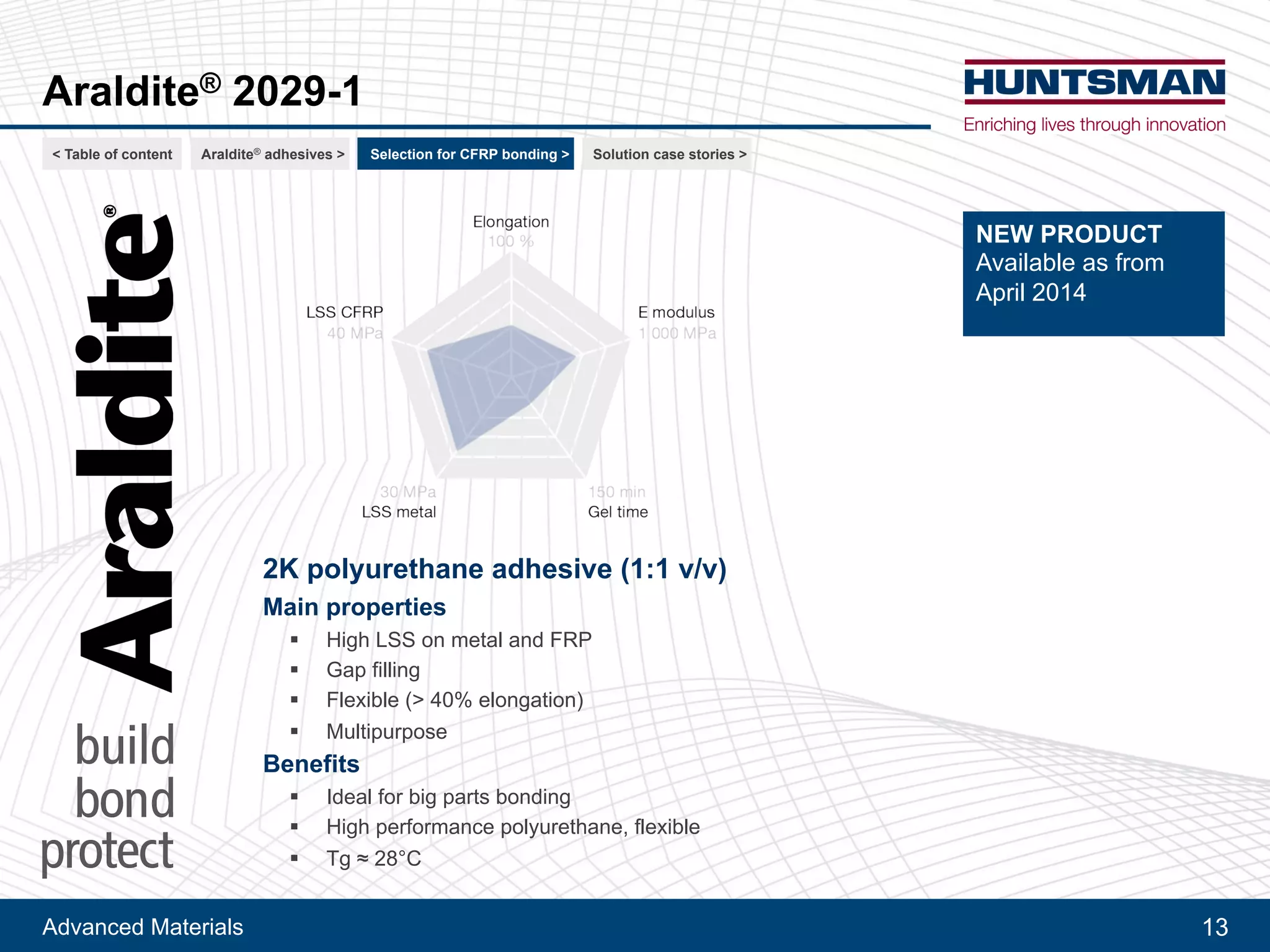

Araldite® 2029-1
2K polyurethane adhesive (1:1 v/v)
Main properties
!! High LSS on metal and FRP
!! Gap filling
!! Flexible (> 40% elongation)
!! Multipurpose
Benefits
!! Ideal for big parts bonding
!! High performance polyurethane, flexible
!! Tg ! 28°C

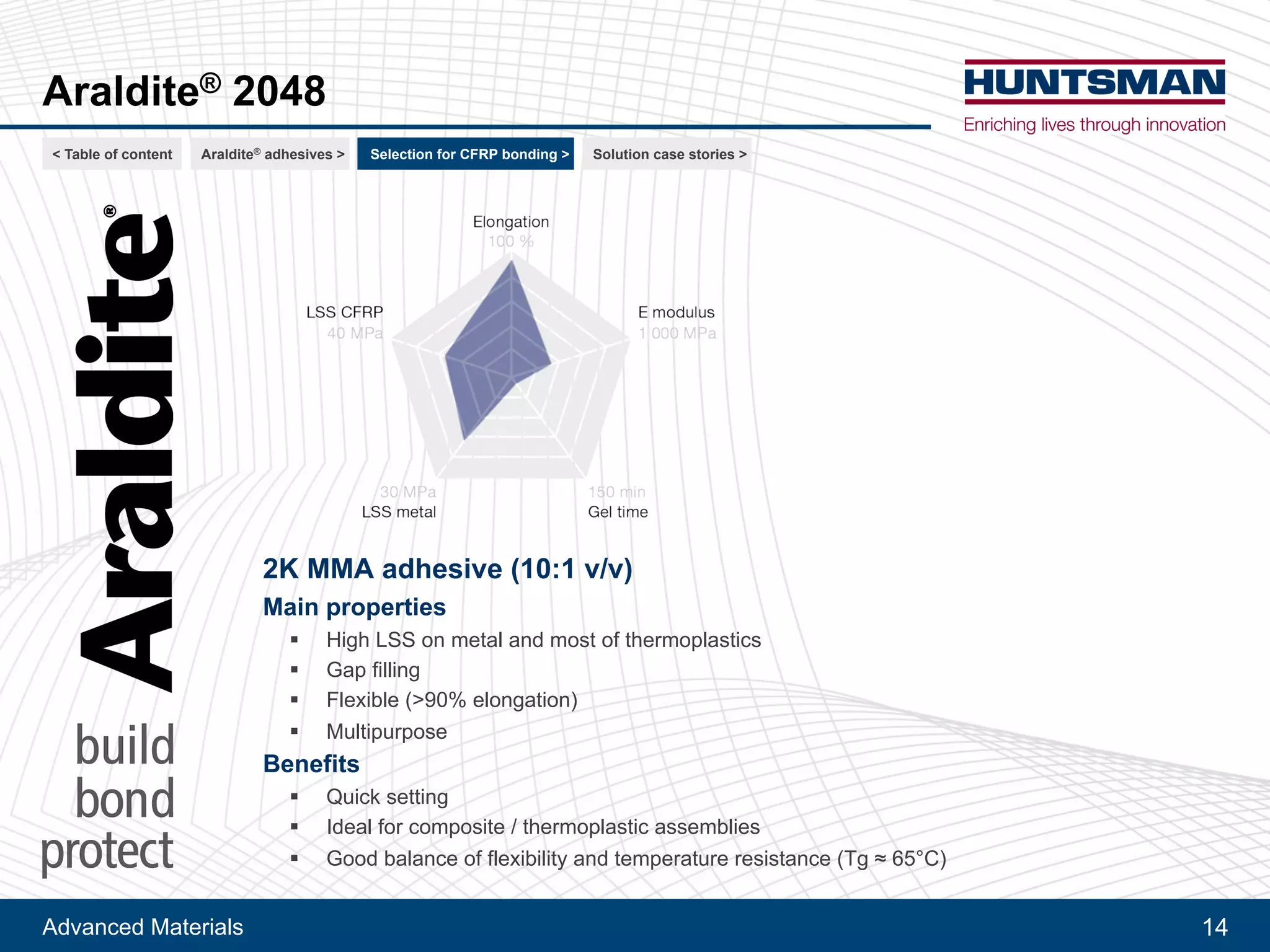

Araldite® 2048
2K MMA adhesive (10:1 v/v)
Main properties
!! High LSS on metal and most of thermoplastics
!! Gap filling
!! Flexible (>90% elongation)
!! Multipurpose
Benefits
!! Quick setting
!! Ideal for composite / thermoplastic assemblies
!! Good balance of flexibility and temperature resistance (Tg ! 65°C)

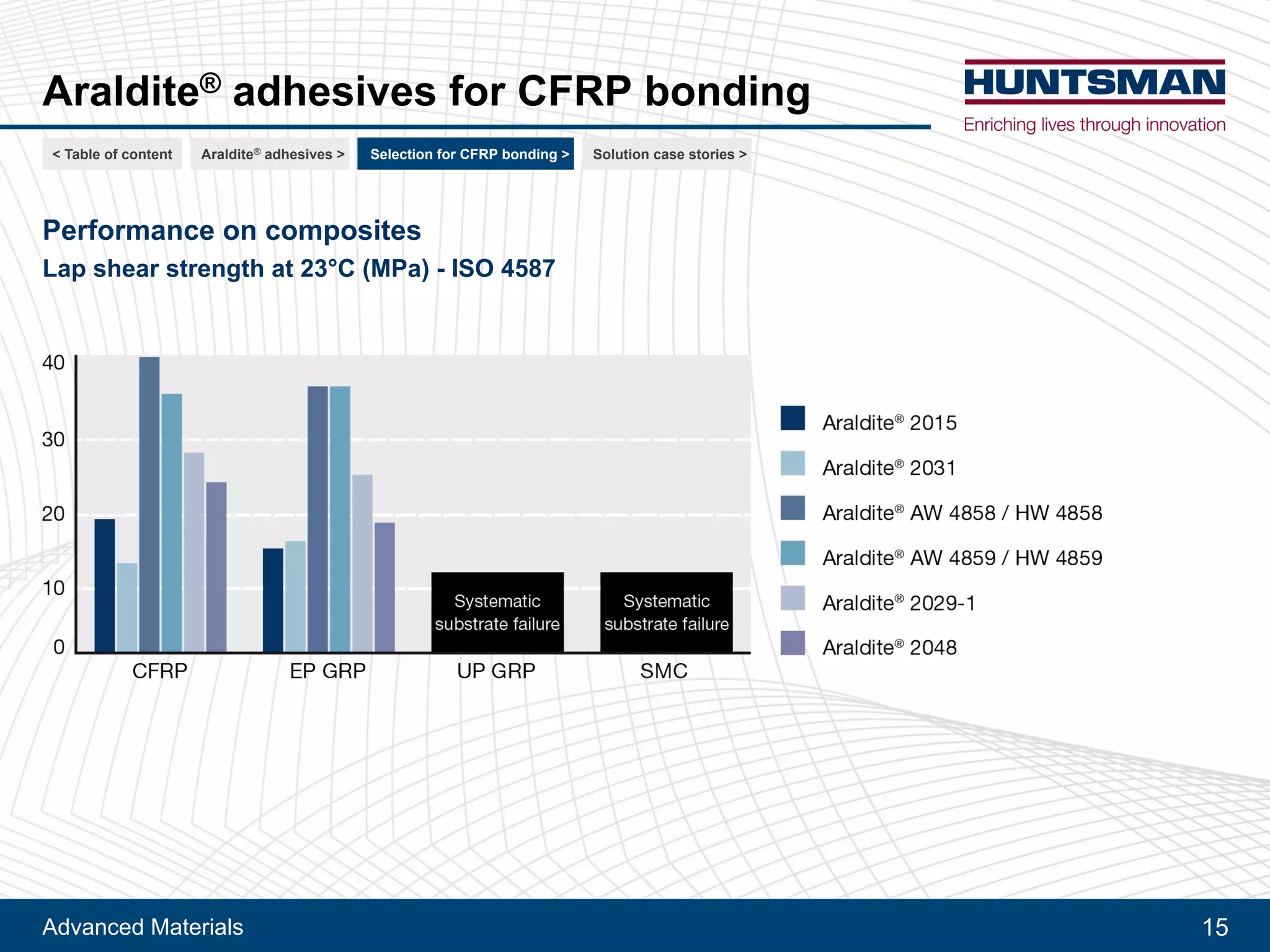

Araldite® adhesives for CFRP bonding
Performance on composites
Lap shear strength at 23°C (MPa) - ISO 4587

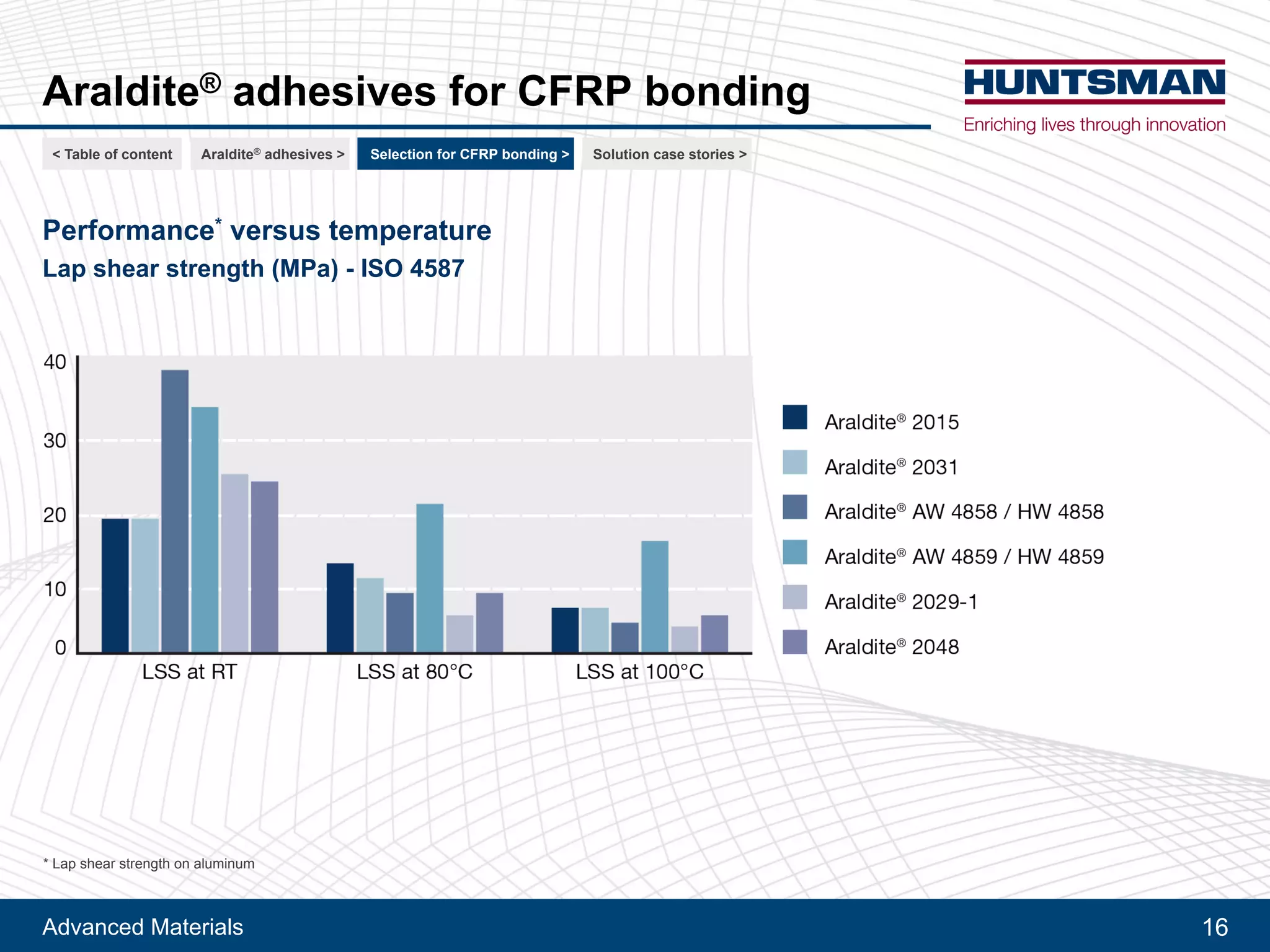

Performance* versus temperature
Lap shear strength (MPa) - ISO 4587
* Lap shear strength on aluminum
Lap shear strength (MPa) - ISO 4587

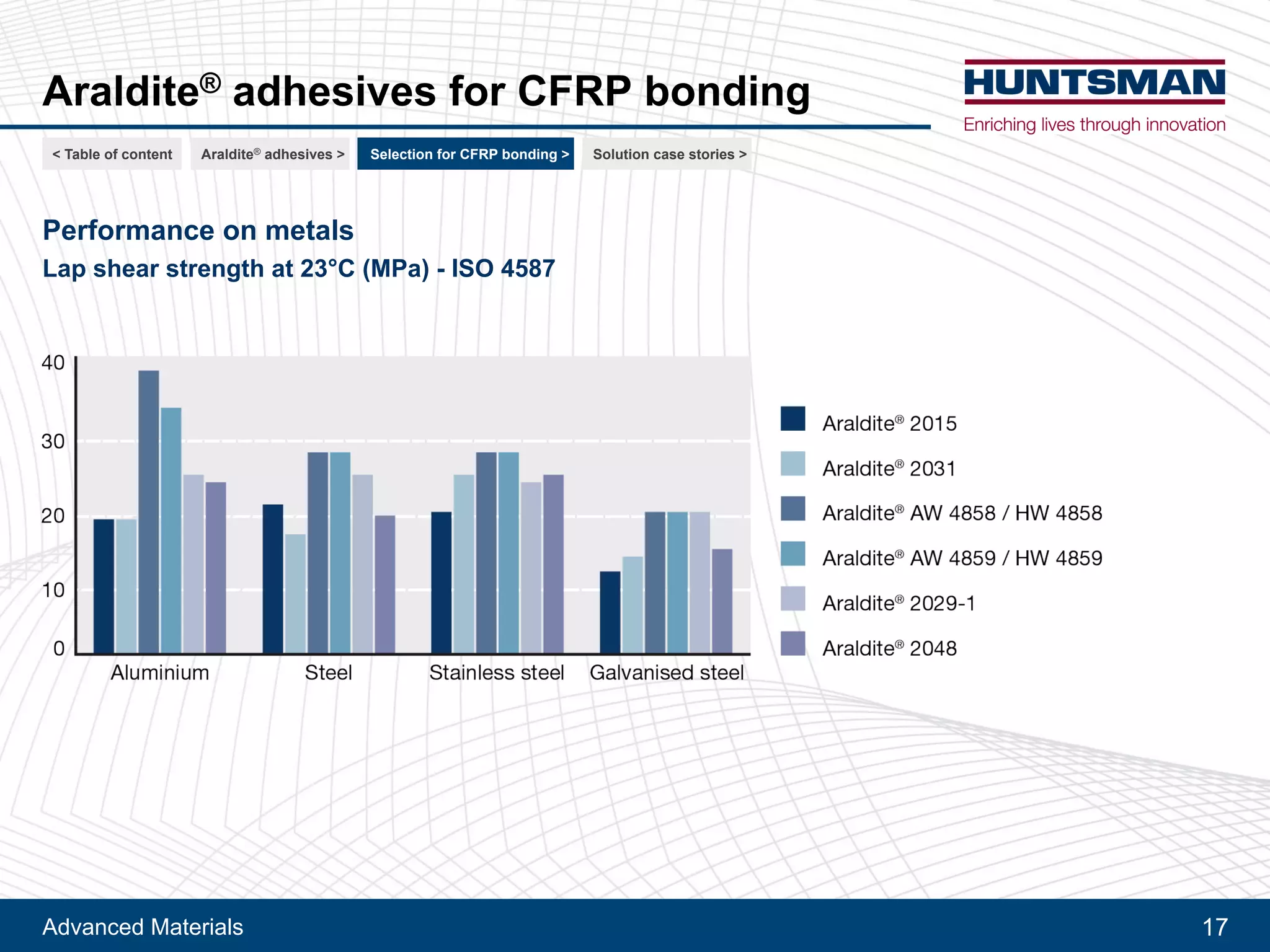

Performance on metals
Lap shear strength at 23°C (MPa) - ISO 4587Lap shear strength at 23°C (MPa) - ISO 4587

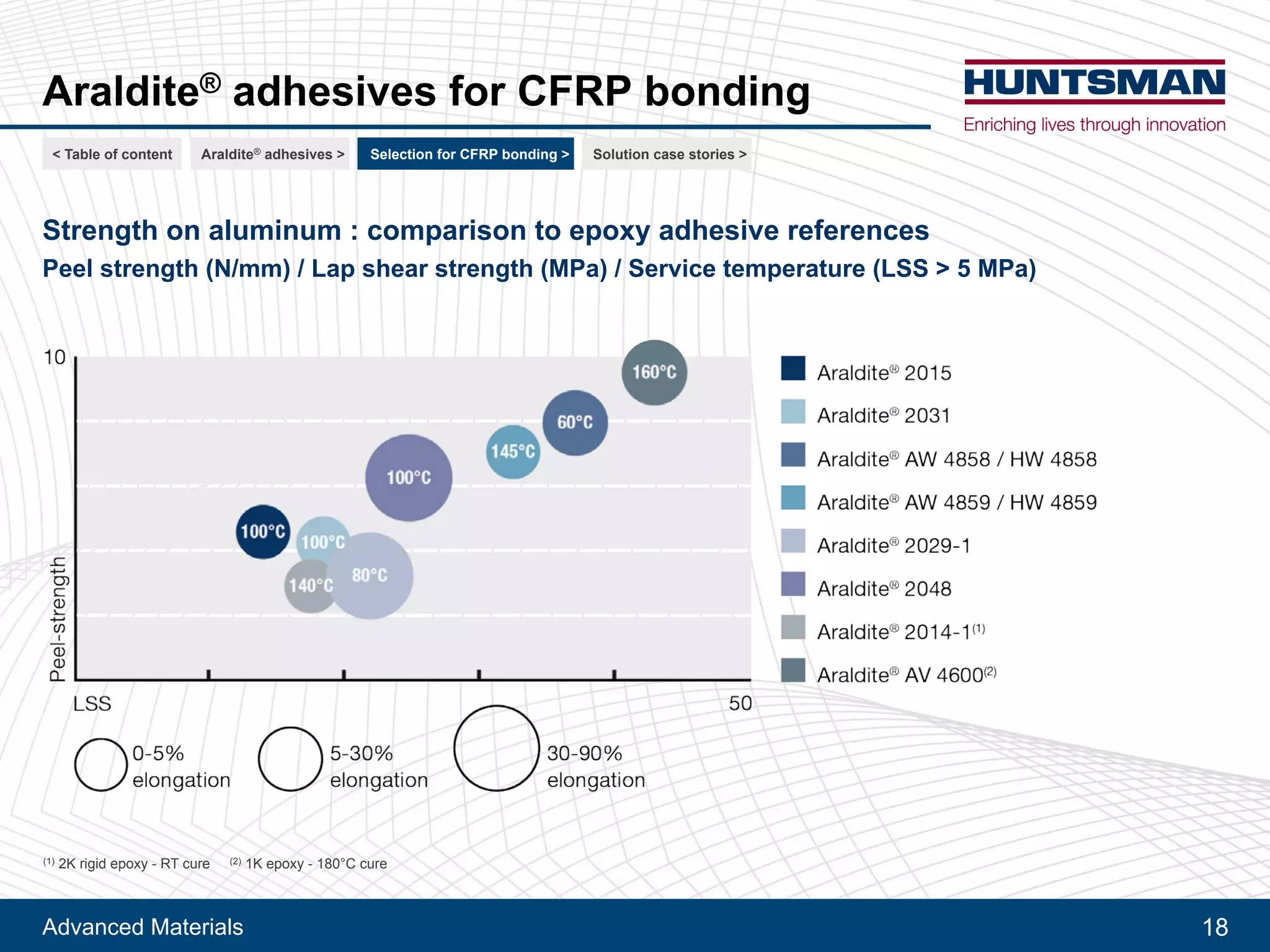

Strength on aluminum : comparison to epoxy adhesive references
Peel strength (N/mm) / Lap shear strength (MPa) / Service temperature (LSS > 5 MPa)
(1) 2K rigid epoxy - RT cure (2) 1K epoxy - 180°C cure

Advanced Materials

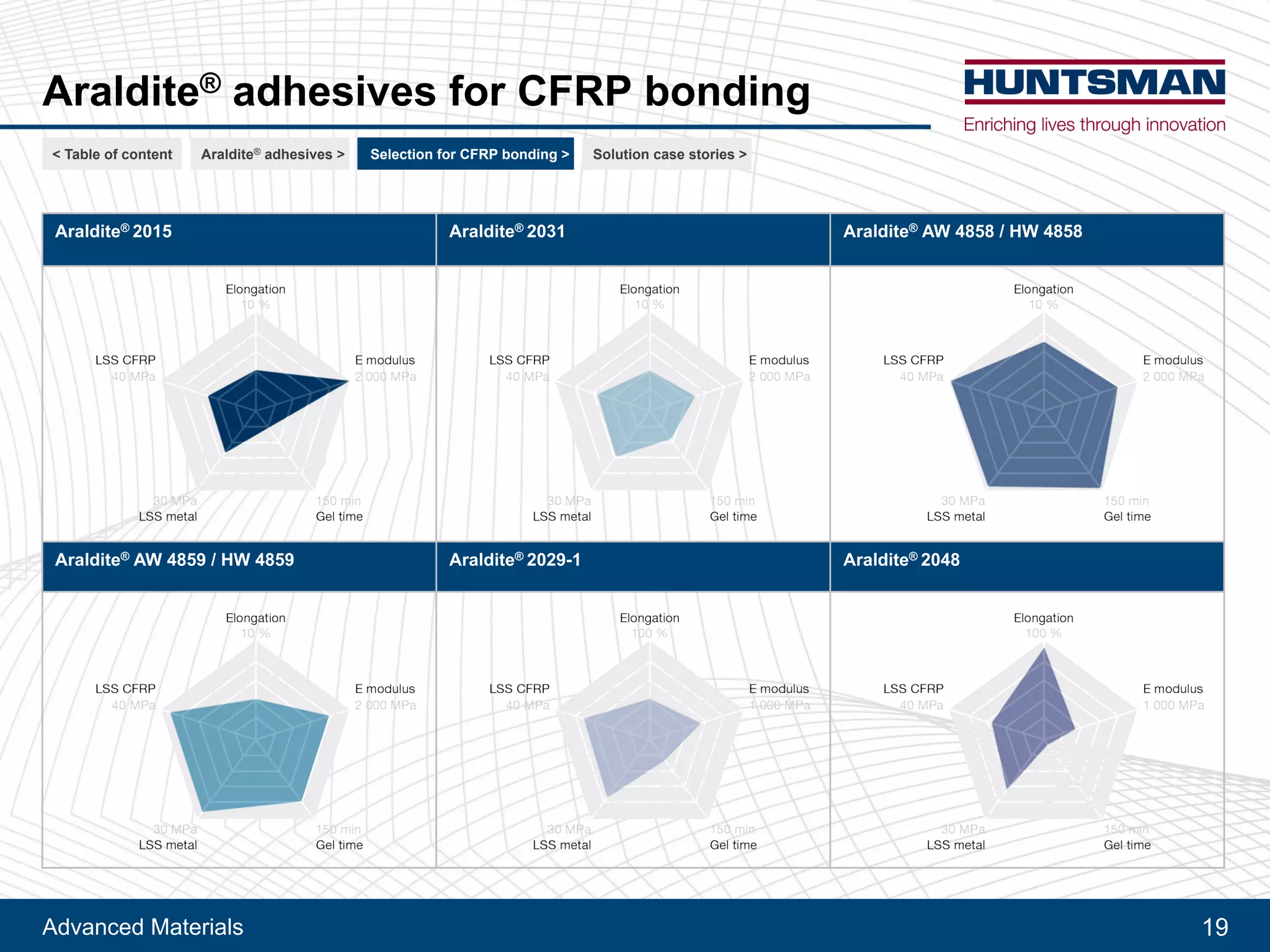

Assembly of composites : main properties overview
19
Araldite® 2015 Araldite® 2031 Araldite® AW 4858 / HW 4858
Araldite® AW 4859 / HW 4859 Araldite® 2029-1 Araldite® 2048

Assembly of composites : main properties overview
Product designation LSS performance Peel performance Thermal
resistance
Chemical
resistance
Elongation at
break
Handling time RT curing
Araldite® 2015
Araldite® 2031
Araldite® AW 4858 /
Hardener HW 4858
Araldite® AW 4859 /
Hardener HW 4859
Araldite® 2029-1
Araldite® 2048
Ideal Recommended

Selection for specific requirements
High service temperature
!! Araldite® AW 4510 / Hardener HW 4511
LSS (1) > 5 MPa at 200°C
Flame retardant properties
!! Araldite® 2033
UL 94 V0, F2 & I2 NF F 16-101/102 and EN 45545-2 tested
Fast curing epoxy
!! Araldite® AW 2101 / Hardener HW 2951
5 min gel time - 60 min handling time
Fast curing methacrylates
!! Araldite® 2021, Araldite® 2022
5-10 min gel time, 15-20 min handling time, tolerant to surface preparation
(1) LSS : lap shear strength on aluminum (ISO 4587)

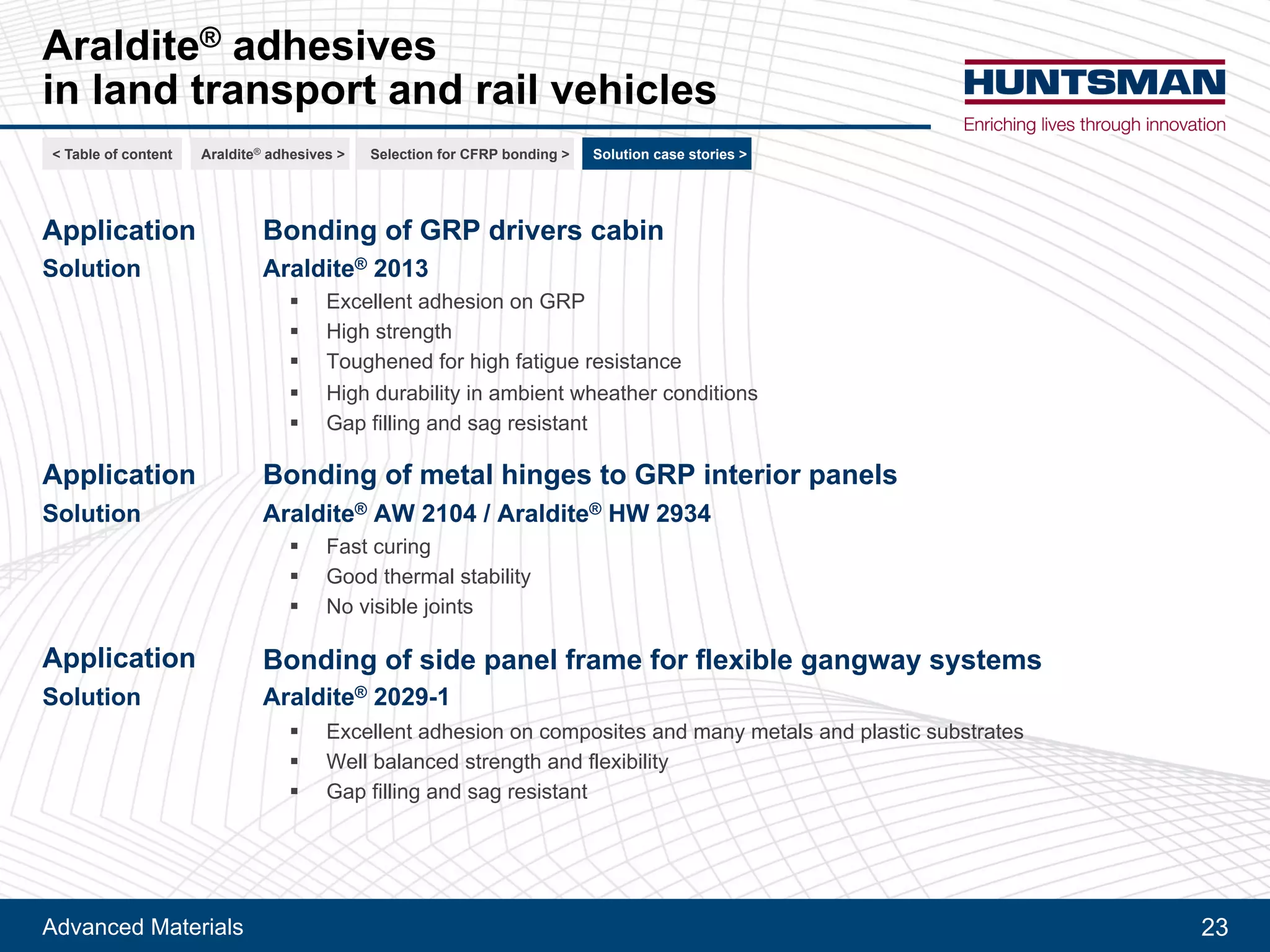

Araldite® solutions for railway industry

Lights and control boxes
1
Trackside traffic
control box
Signal light box

Lights and control boxes
Body assembly, lens assembly
Your needs Our solutions
> Very good weathering resistance
> Electrical insulation
> Good thermal resistance
> Flame retardancy
Araldite® 2013
Araldite® 2015
Araldite® 2021
Araldite® 2022
Araldite® 2033
Araldite® 2052-1
Non exclusive selection
Ask our experts for other solutions
1
Trackside traffic
control box
Signal light box

Carriage structure
1
Carriage
structure

Carriage structure
Frame and ceiling reinforcement
> Improve the fatigue resistance of the metal assemblies
> Reduce overall weight of structure
> Prevent and reduce corrosion
> Improve stiffness and shock resistance of the assemblies
Araldite® 2014-1
Araldite® 2015
Araldite® AV 170
Araldite® AV 4600
1
Carriage
structure

Roofs, doors, floors
and semi-structural bonding
1
Outer / inner
door
2
Window
3
Floor coverings
4
HVAC
5
Air dam

Roofs, doors, floors
and semi-structural bonding
Floor coverings, seats attachment to floor, doors frames, hinges, HVAC
> Multimaterial assemblies
> Ease of application
> Toughness, shock resistance
> Aesthetical design
Araldite® 420
Araldite® 2013
Araldite® 2015
Araldite® 2029-1
1
Outer / inner
door
2
Window
3
Floor coverings
4
HVAC
5
Air dam

Insulated rail joints
1
Rail joint

> Fast curing
> High fatigue and vibration resistance
Araldite® 2013
Araldite® 2014-1
Araldite® 2015
Araldite® 2031
Araldite® 2052-1
1
Rail joint

Interior furnishings
1
Driving cabin
2
Window
3
Luggage carrier
4
Table / chair
5
Kitchen and
sanitary blocks

Interior furnishings
Fold tables, equipment boxes on carriages, handles, mirrors, luggage racks, ceiling liners
> Reduce overall weight
> Flame retardancy
Araldite® 2015
Araldite® 2022
Araldite® 2029-1
Araldite® 2033
Araldite® 2047-1
Araldite® 2048
1
Driving cabin
2
Window
3
Luggage carrier
4
Table / chair
5
Kitchen and
sanitary blocks

Brake bonding
1
Brake system

Brake bonding
Brake shoes, brake pads, dip-coating
> Very high temperature resistance
> Very good adhesion to friction material
> Very good adhesion to steel and aluminum
Araldite® 64-1
Araldite® 71
1
Brake system

Sandwich panels laminating and assembly
1
Sandwich
panels

Sandwich panels laminating and assembly
Wall cabinets, partition walls, panelling
> Long open time for large parts laminating
> Controlled rheology
> Fast curing for panels assembly
> Design freedom
For laminating
Araldite® AW 146 / HV 957
XB 5090-1 / Arathane® HY 5611-1
XD 4465 / Arathane® HY 5611-1
For assembly
Araldite® 420
Araldite® 2013
Araldite® 2015
Araldite® 2029-1
Araldite® 2033
Araldite® AW 4858 / HW 4858 Non exclusive selection
1
Sandwich
panels

Electrical components assembly
1
Transformer

Electrical components assembly
Transformers, drivers control panel, cables
> Weathering resistance
Araldite® 2013
Araldite® 2014-1
Araldite® 2033
Agomet® F 305 A/B
Agomet® F 330
1
Transformer

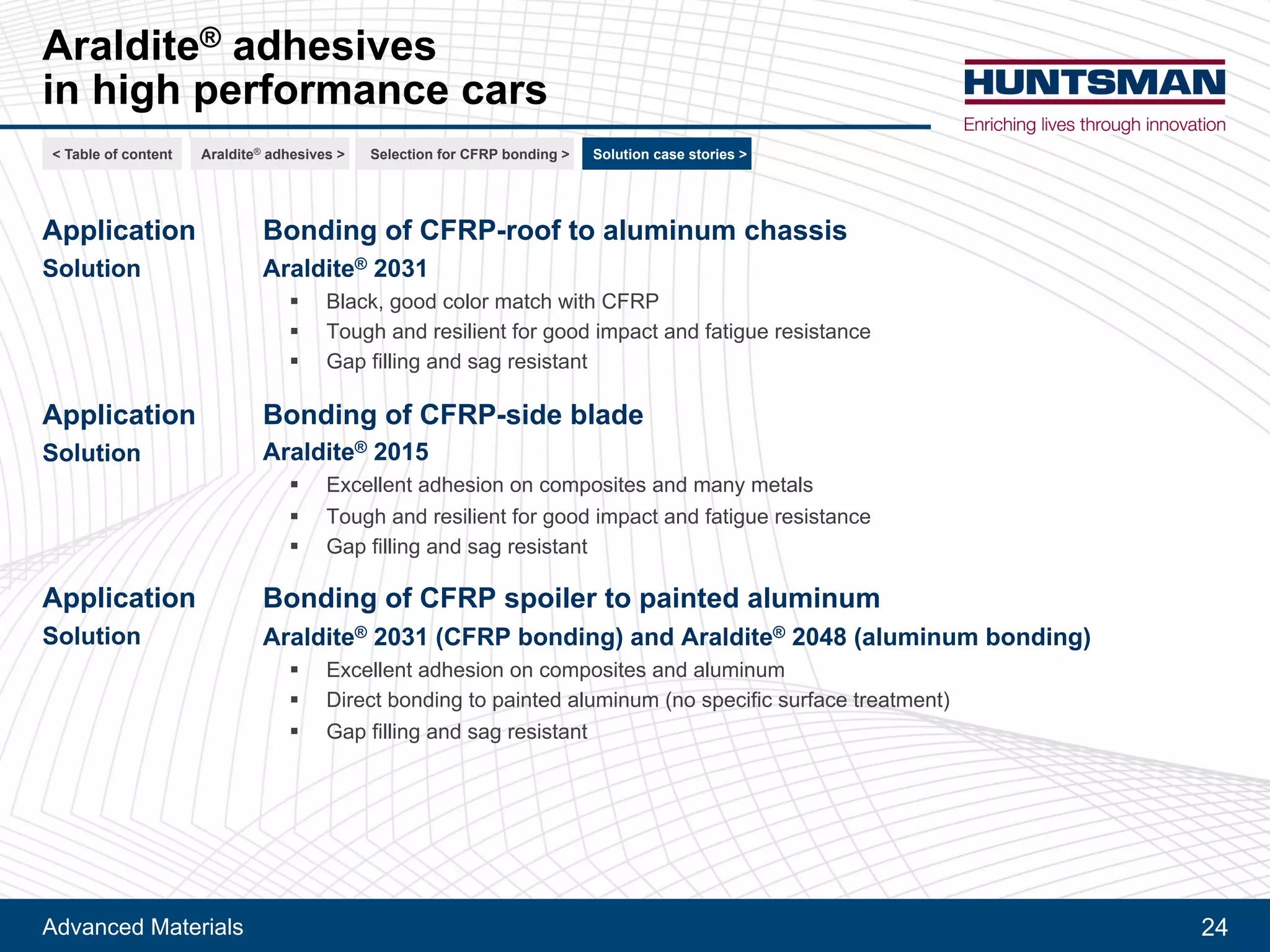

Araldite® solutions for automotive industry

Structural / semi-structural assemblies
1
Bumpers
2
Motor parts
3
Door modules
4
Structural
modules

Structural / semi-structural assemblies
1
Bumpers
2
Motor parts
3
Door modules
4
Structural
modules
Door modules, composite shells, transmission shafts, structural modules
> Improve the fatigue resistance of the metal assemblies
> Reduce the overall structure weight
> Prevent and reduce metal corrosion
> Uniform stress distribution and larger stress bearing areas
> High toughness
> Gap filling
> Very high fatigue, and thermal shock resistance
> Excellent moisture and chemical resistance
> Easy automation
Araldite® 2014-1
Araldite® 2015
Araldite® 2031
Araldite® 2052-1

Exterior finishers / interior modules
1
Cockpit
2
Seats
3
Door capping
4
Exterior trims
5
Spoiler

Exterior finishers / interior modules
Spoiler, door capping, side blade, exterior trim, seat, cockpit
> Toughness, shock resistance
Araldite® 2012
Araldite® 2015
Araldite® 2021
Araldite® 2047-1
Araldite® 2048
Agomet® F300 A/B
1
Cockpit
2
Seats
3
Door capping
4
Exterior trims
5
Spoiler

Lights / headlamps
1
Headlamps, brake
lights and reflector
housings

Lights / headlamps
Headlights, brake lights, reflector housings
> Good adhesion to glass, PC, acrylics and thermoplastics
> Minimal fogging
> Aesthetical design, transparent adhesives
Araldite® 2018
Araldite® 2021
Araldite® 2022
Araldite® 2026
Araldite® 2028-1
1
Headlamps, brake
lights and reflector
housings

Brake / clutch
1
Brake shoes,
pads and clutch
friction material

Brake / clutch
Brake shoes, brake pads, friction lining material for clutches, dip-coating
> Very high temperature resistance
> Very good adhesion to friction material
> Very good adhesion to steel and aluminum
Araldite® 64-1
Araldite® 71
1
Brake shoes,
pads and clutch
friction material

Electronics
1
Electronics

Electronics
Control units, climate controls, navigation systems
> Multimaterial assemblies (copper, ferrite, PCB ")
> Low outgasing
> Flame retardancy
Araldite® 2014-1
Araldite® 2033
Araldite® 2048
Araldite® 2052-1
Agomet® F 300 A/B
Araldite® F 330
1
Electronics

Filters
1
Filters

Filters
Hydraulic filters, oil filters, air filters
> High chemical resistance
> High temperature resistance
> Self-levelling adhesives
Araldite® 2014-1
XD 4567 / XD 4568
XB 5090-1 / Arathane® HY 5611-1
1
Filters

Repair / aftermarket
1
Repair

Repair / aftermarket
Cracks repair, metal bonding, SMC bonding
> High fatigue and vibration resistance
> Easy to use packaging
Araldite® 2011
Araldite® 2013
Araldite® 2022
Araldite® 2029-1
Araldite® 2048
Araldite® AW 2101 / Hardener HW 2951
1
Repair

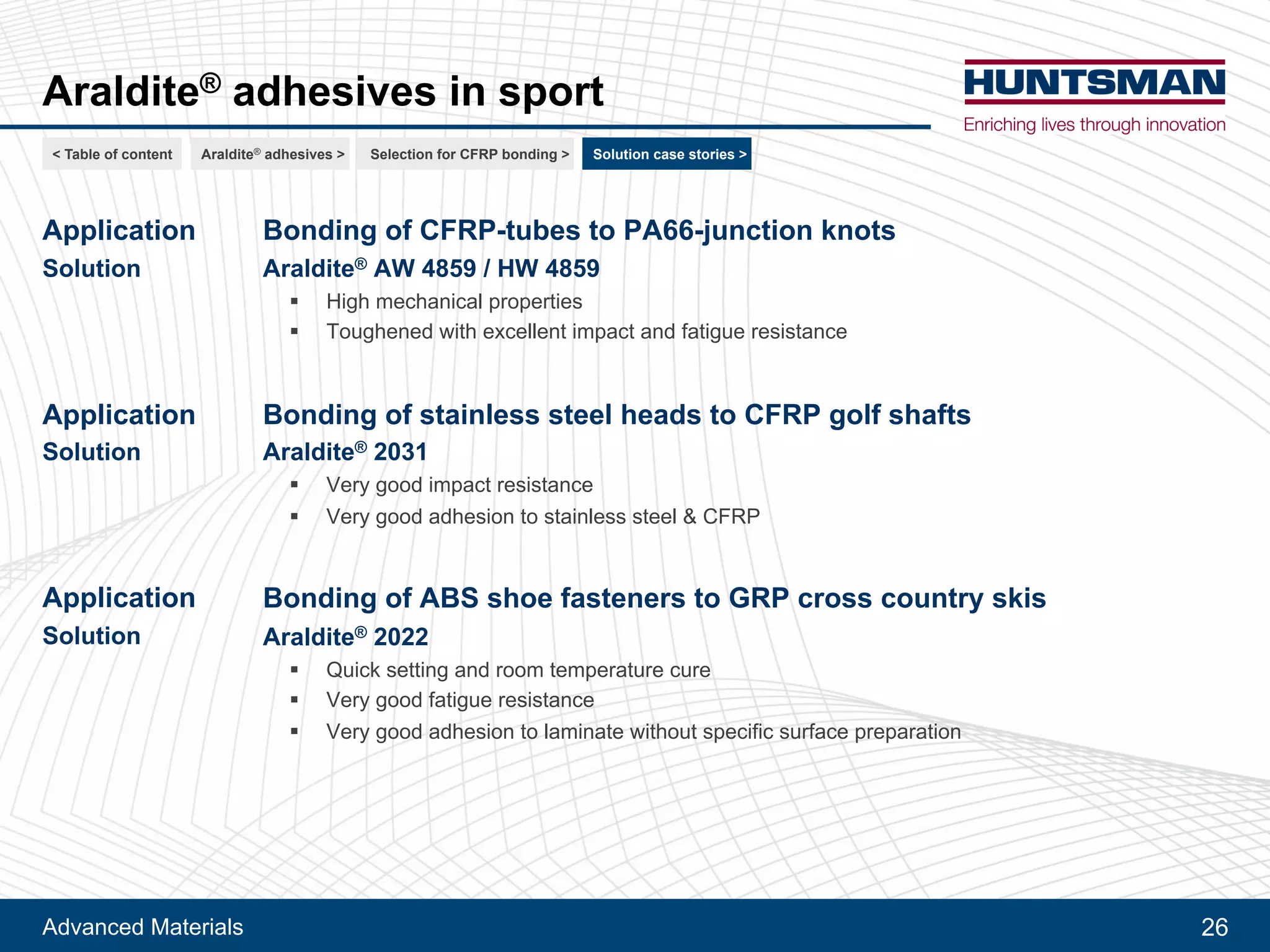

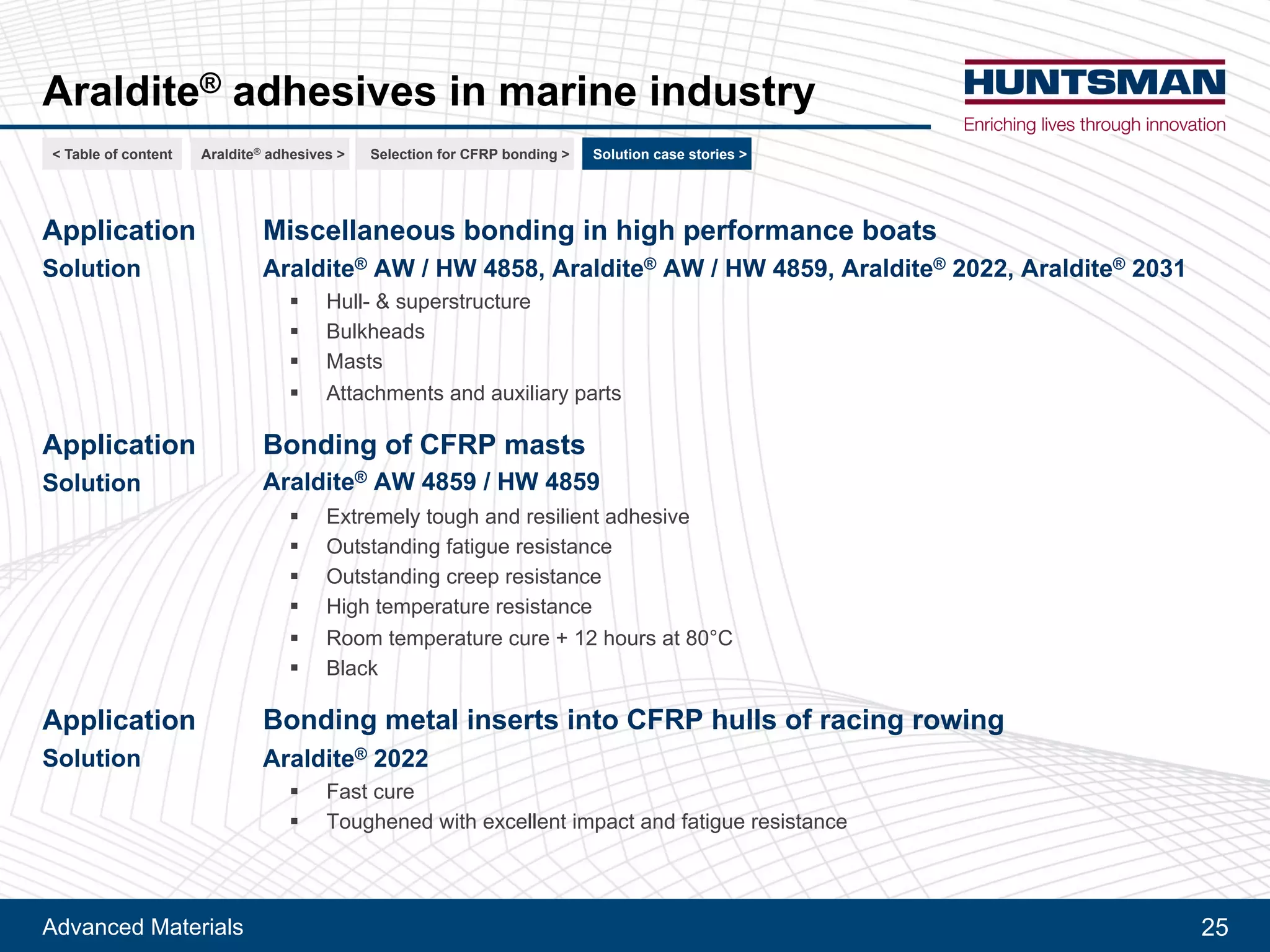

Keep our products at your fingertips
Find the right adhesive to fulfill your needs.
www.AralditeAdhesives.com
Learn more about our products and
access useful technical information.
Mobile app on smartphone
Select immediately the right adhesive
for your specific need and contact a
distributor.
View our
latest releases
on SlideShare
Find and download
our latest brochures
and white papers.

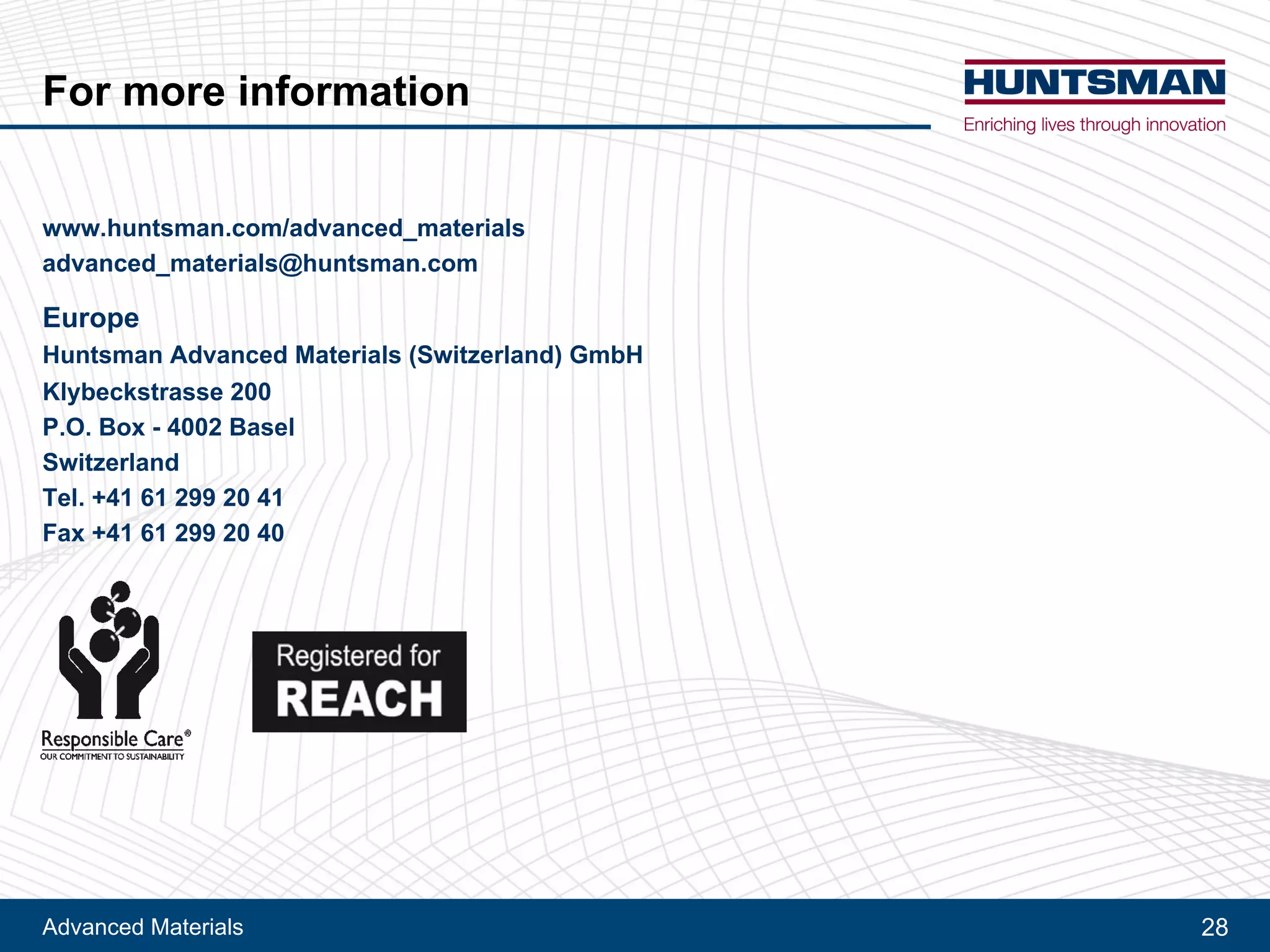

For more information
www.huntsman.com/advanced_materials
advanced_materials@huntsman.com
Europe
Huntsman Advanced Materials (Switzerland) GmbH
Klybeckstrasse 200
P.O. Box - 4002 Basel
Switzerland
Tel. +41 61 299 1111
Fax +41 61 299 1112

Advanced MaterialsAdvanced Materials
Legal Disclaimer
Copyright © 2015 Huntsman Corporation
or an affiliate thereof. All rights reserved.
The use of the symbol ® herein signifies the registration of the associated trademark in one or more, but not all, countries. While the
information and recommendations included in this publication are, to the best of Huntsman�s knowledge, accurate as of the date of
publication, nothing contained herein is to be construed as a representation or warranty of any kind, express or implied.

Raising performance in composites bonding - Highlight

More Related Content

Viewers also liked

Similar to Raising performance in composites bonding - Highlight

More from Huntsman Advanced Materials Europe

Recently uploaded

Raising performance in composites bonding - Highlight
