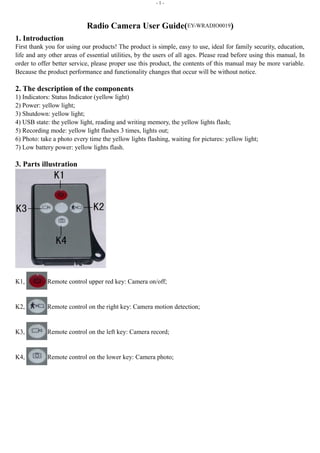

Radio Camera User Guide(EY-WRADIO0019)
1. Introduction
First thank you for using our products! The product is simple, easy to use, ideal for family security, education,
life and any other areas of essential utilities, by the users of all ages. Please read before using this manual, In
order to offer better service, please proper use this product, the contents of this manual may be more variable.
Because the product performance and functionality changes that occur will be without notice.
2. The description of the components
1) Indicators: Status Indicator (yellow light)
2) Power: yellow light;
3) Shutdown: yellow light;
4) USB state: the yellow light, reading and writing memory, the yellow lights flash;
5) Recording mode: yellow light flashes 3 times, lights out;
6) Photo: take a photo every time the yellow lights flashing, waiting for pictures: yellow light;
7) Low battery power: yellow lights flash.
3. Parts illustration
K1, Remote control upper red key: Camera on/off;
K2, Remote control on the right key: Camera motion detection;
K3, Remote control on the left key: Camera record;
K4, Remote control on the lower key: Camera photo;

2. - 2 -
A. Lens: Video signal pickup;
B. RESET hole: Uses when the machine does not respond, carries on the machine to reposition.
C. USB: For connecting a computer or charger, for data transfer or charging;
D. Remote control receiving head: For receiving remote control commands sent (better operate the remote
controller towards the remote control sensor)./ Indicator: Status Indicator yellow light.
3, The Quick Start
1), Video mode
1.1, Long press the K1 to turn on the camera, yellow light stay on, indicating that the machine is in
standby mode, then wait 5 seconds, (perfect for the device initialization), and then the next step;
1.2, Press the K3 , the yellow lights flash 3 times, then off, enter the camera Recording mode;
1.3, In the camera mode, short press the K3 , yellow light will be on, which means that last video files is
save and enter standby mode waiting for the next step. Then you can press the K3 , re-entering the still
recording process;
1.4, The machine features a video loop, video-long 10-minute video about a video is automatically saved, saved
as *. AVI format;
1.5, Long press the K1 to shut down the device, yellow light off;
2), Camera photo taking mode
2.1, After turning the standby mode (yellow light), short press the K4 to enter the camera photo mode.
3), Motion detection mode

3. - 3 -

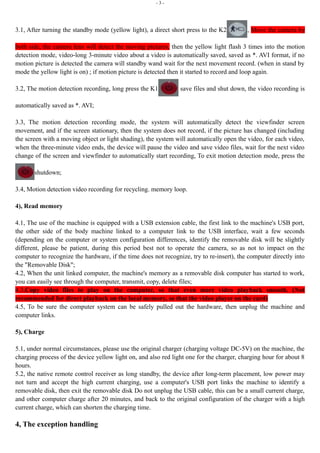

3.1, After turning the standby mode (yellow light), a direct short press to the K2 , Move the camera by
both side, the camera lens will detect the moving pictures, then the yellow light flash 3 times into the motion
detection mode, video-long 3-minute video about a video is automatically saved, saved as *. AVI format, if no
motion picture is detected the camera will standby wand wait for the next movement record. (when in stand by
mode the yellow light is on) ; if motion picture is detected then it started to record and loop again.
3.2, The motion detection recording, long press the K1 save files and shut down, the video recording is
automatically saved as *. AVI;
3.3, The motion detection recording mode, the system will automatically detect the viewfinder screen
movement, and if the screen stationary, then the system does not record, if the picture has changed (including
the screen with a moving object or light shading), the system will automatically open the video, for each video,
when the three-minute video ends, the device will pause the video and save video files, wait for the next video
change of the screen and viewfinder to automatically start recording, To exit motion detection mode, press the
shutdown;
3.4, Motion detection video recording for recycling. memory loop.
4), Read memory
4.1, The use of the machine is equipped with a USB extension cable, the first link to the machine's USB port,
the other side of the body machine linked to a computer link to the USB interface, wait a few seconds
(depending on the computer or system configuration differences, identify the removable disk will be slightly
different, please be patient, during this period best not to operate the camera, so as not to impact on the
computer to recognize the hardware, if the time does not recognize, try to re-insert), the computer directly into
the "Removable Disk";
4.2, When the unit linked computer, the machine's memory as a removable disk computer has started to work,
you can easily see through the computer, transmit, copy, delete files;
4.3,Copy video files to play on the computer, so that even more video playback smooth. (Not
recommended for direct playback on the local memory, so that the video player on the card)
4.5, To be sure the computer system can be safely pulled out the hardware, then unplug the machine and
computer links.
5), Charge
5.1, under normal circumstances, please use the original charger (charging voltage DC-5V) on the machine, the
charging process of the device yellow light on, and also red light one for the charger, charging hour for about 8
hours.
5.2, the native remote control receiver as long standby, the device after long-term placement, low power may
not turn and accept the high current charging, use a computer's USB port links the machine to identify a
removable disk, then exit the removable disk Do not unplug the USB cable, this can be a small current charge,
and other computer charge after 20 minutes, and back to the original configuration of the charger with a high
current charge, which can shorten the charging time.
4, The exception handling

4. - 4 -

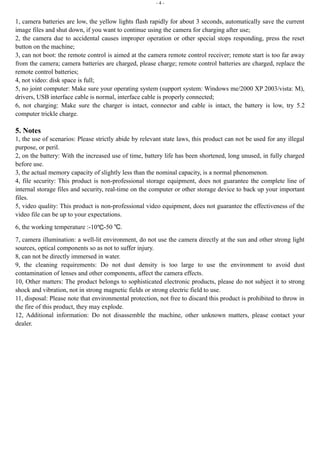

1, camera batteries are low, the yellow lights flash rapidly for about 3 seconds, automatically save the current
image files and shut down, if you want to continue using the camera for charging after use;
2, the camera due to accidental causes improper operation or other special stops responding, press the reset
button on the machine;
3, can not boot: the remote control is aimed at the camera remote control receiver; remote start is too far away
from the camera; camera batteries are charged, please charge; remote control batteries are charged, replace the
remote control batteries;
4, not video: disk space is full;
5, no joint computer: Make sure your operating system (support system: Windows me/2000 XP 2003/vista: M),
drivers, USB interface cable is normal, interface cable is properly connected;
6, not charging: Make sure the charger is intact, connector and cable is intact, the battery is low, try 5.2
computer trickle charge.
5. Notes
1, the use of scenarios: Please strictly abide by relevant state laws, this product can not be used for any illegal
purpose, or peril.
2, on the battery: With the increased use of time, battery life has been shortened, long unused, in fully charged
before use.
3, the actual memory capacity of slightly less than the nominal capacity, is a normal phenomenon.
4, file security: This product is non-professional storage equipment, does not guarantee the complete line of
internal storage files and security, real-time on the computer or other storage device to back up your important
files.
5, video quality: This product is non-professional video equipment, does not guarantee the effectiveness of the
video file can be up to your expectations.
6, the working temperature :-10℃-50 ℃.
7, camera illumination: a well-lit environment, do not use the camera directly at the sun and other strong light
sources, optical components so as not to suffer injury.
8, can not be directly immersed in water.
9, the cleaning requirements: Do not dust density is too large to use the environment to avoid dust
contamination of lenses and other components, affect the camera effects.
10, Other matters: The product belongs to sophisticated electronic products, please do not subject it to strong
shock and vibration, not in strong magnetic fields or strong electric field to use.
11, disposal: Please note that environmental protection, not free to discard this product is prohibited to throw in
the fire of this product, they may explode.
12, Additional information: Do not disassemble the machine, other unknown matters, please contact your
dealer.
