1. CD/Radio Camera User Guide
1. Introduction
First thank you for using our products! The product is simple, easy to use, ideal for family security, education, life
and any other areas of essential utilities, by the users of all ages. Please read before using this manual, In order to
offer better service, please proper use this product, the contents of this manual may be more variable. Because the
product performance and functionality changes that occur will be without notice.
2, the description of the components
1). Indicators: Status Indicator (blue and yellow light)
Standby: yellow long bright
Memory full when working: yellow long bright, blue light 3 seconds stop working.
Memory full when start: yellow light bright, blue light flashing
Charging: yellow bright，blue light flashing.
Charging full: yellow bright, blue light off
Video Resolution: AVI 1280X720
Photo Resolution: JPG
2). Icon

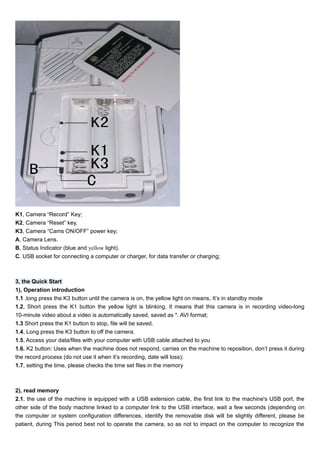

2. K1, Camera “Record” Key;
K2, Camera “Reset” key,
K3, Camera “Cams ON/OFF” power key;
A, Camera Lens.
B, Status Indicator (blue and yellow light).
C. USB socket for connecting a computer or charger, for data transfer or charging;
3, the Quick Start
1), Operation introduction
1.1 ,long press the K3 button until the camera is on, the yellow light on means, It’s in standby mode
1.2, Short press the K1 button the yellow light is blinking, It means that this camera is in recording video-long
10-minute video about a video is automatically saved, saved as *. AVI format;
1.3 Short press the K1 button to stop, file will be saved.
1.4, Long press the K3 button to off the camera.
1.5, Access your data/files with your computer with USB cable attached to you
1.6. K2 button: Uses when the machine does not respond, carries on the machine to reposition, don’t press it during
the record process (do not use it when it’s recording, date will loss);
1.7, setting the time, please checks the time set files in the memory
2), read memory
2.1, the use of the machine is equipped with a USB extension cable, the first link to the machine's USB port, the
other side of the body machine linked to a computer link to the USB interface, wait a few seconds (depending on
the computer or system configuration differences, identify the removable disk will be slightly different, please be
patient, during This period best not to operate the camera, so as not to impact on the computer to recognize the

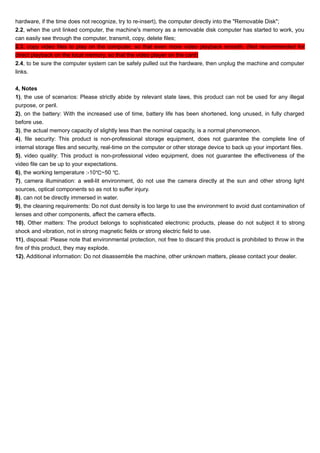

3. hardware, if the time does not recognize, try to re-insert), the computer directly into the "Removable Disk";
2.2, when the unit linked computer, the machine's memory as a removable disk computer has started to work, you
can easily see through the computer, transmit, copy, delete files;
2.3, copy video files to play on the computer, so that even more video playback smooth. (Not recommended for
direct playback on the local memory, so that the video player on the card)
2.4, to be sure the computer system can be safely pulled out the hardware, then unplug the machine and computer
links.
4, Notes
1), the use of scenarios: Please strictly abide by relevant state laws, this product can not be used for any illegal
purpose, or peril.
2), on the battery: With the increased use of time, battery life has been shortened, long unused, in fully charged
before use.
3), the actual memory capacity of slightly less than the nominal capacity, is a normal phenomenon.
4), file security: This product is non-professional storage equipment, does not guarantee the complete line of
internal storage files and security, real-time on the computer or other storage device to back up your important files.
5), video quality: This product is non-professional video equipment, does not guarantee the effectiveness of the
video file can be up to your expectations.
6), the working temperature :-10℃~50 ℃.
7), camera illumination: a well-lit environment, do not use the camera directly at the sun and other strong light
sources, optical components so as not to suffer injury.
8), can not be directly immersed in water.
9), the cleaning requirements: Do not dust density is too large to use the environment to avoid dust contamination of
lenses and other components, affect the camera effects.
10), Other matters: The product belongs to sophisticated electronic products, please do not subject it to strong
shock and vibration, not in strong magnetic fields or strong electric field to use.
11), disposal: Please note that environmental protection, not free to discard this product is prohibited to throw in the
fire of this product, they may explode.
12), Additional information: Do not disassemble the machine, other unknown matters, please contact your dealer.
