Radial inserter process

1.
www.smthelp.com Components RadialAxial

2.

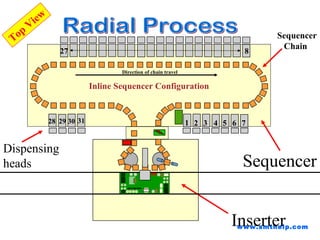

www.smthelp.com Inline Sequencer Configuration 12 3 4 5 6 7 827 28 Direction of chain travel 29 30 31 Inserter Sequencer Sequencer Chain Dispensing heads Top View

3.

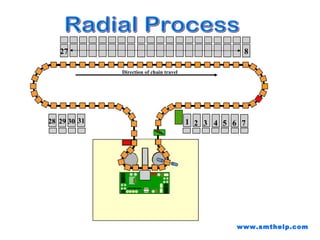

www.smthelp.com 1 2 34 5 6 7 827 28 Direction of chain travel 29 30 31 • Component is indexed by dispensing head from ammo box or reel • Component is cut from its ammo box or reel tape • Component is snapped into the carrier clip clamps Ammo box/reels Dispensing heads

4.
www.smthelp.com 1 2 34 5 6 7 827 28 Direction of chain travel 29 30 31

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

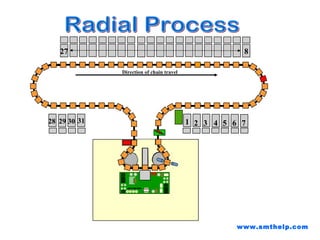

www.smthelp.com 827 28 Direction of chaintravel 29 30 31 • The Cutter Station cuts the paper tape from the component leads 1 2 3 4 5 6 7 Cutter Station

19.

20.

21.

22.

23.
www.smthelp.com 1 2 34 5 6 7 827 28 Direction of chain travel 29 30 31 • The optional Component Verification (ERV) verifies component is correct: - Correct component - Correct polarity - Correct dispensing head location + - Optional ERV (Expanded Range Verifier) + -

24.

25.

26.

27.
www.smthelp.com 1 2 34 5 6 7 827 28 Direction of chain travel 29 30 31• The component sensor examines the chain clip for a component and notifies the operator if a component is missing Component Sensor

28.

29.

30.

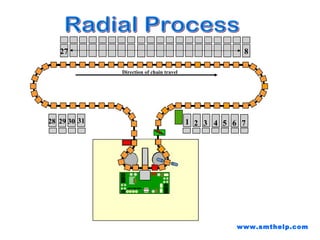

www.smthelp.com 1 2 34 5 6 7 827 28 Direction of chain travel 29 30 31•The Component Transfer Assembly (CTA) transfers the component from the chain clip to the insertion head Component Transfer Assy Insertion head CTA Upper Guide CTA Lower Guide Insertion head guide jaw

31.
www.smthelp.com 1 2 34 5 6 7 827 28 Direction of chain travel 29 30 31 • The Clinch raises to the bottom of the PCB • The Insertion head guides the leads into the holes in the PCB Insertion head

32.
www.smthelp.com 1 2 34 5 6 7 827 28 Direction of chain travel 29 30 31 • The Insertion Head retracts at a 45 0 angle • The Pusher Tip pushes the component to the PCB and inserts the leads through the PCB and into the opening of the Clinch Insertion head

33.
www.smthelp.com 1 2 34 5 6 7 827 28 Direction of chain travel 29 30 31• The Clinch cuts the component leads and clinches them before returning to its lower position Insertion head

34.
www.smthelp.com 1 2 34 5 6 7 827 28 Direction of chain travel 29 30 31 Insertion head • The Clinch cuts the component leads and clinches them before returning to its lower position

35.
www.smthelp.com End of Process
