This document provides an overview of quality assurance and quality management. It discusses key concepts such as ensuring work is done properly, using the correct materials and processes, and collecting evidence to demonstrate quality. Several quality management tools are also outlined, including check sheets, control charts, Pareto charts, scatter plots, Ishikawa diagrams, histograms, and their purposes. Additional related topics like quality management systems, courses, and standards are listed for further reference.

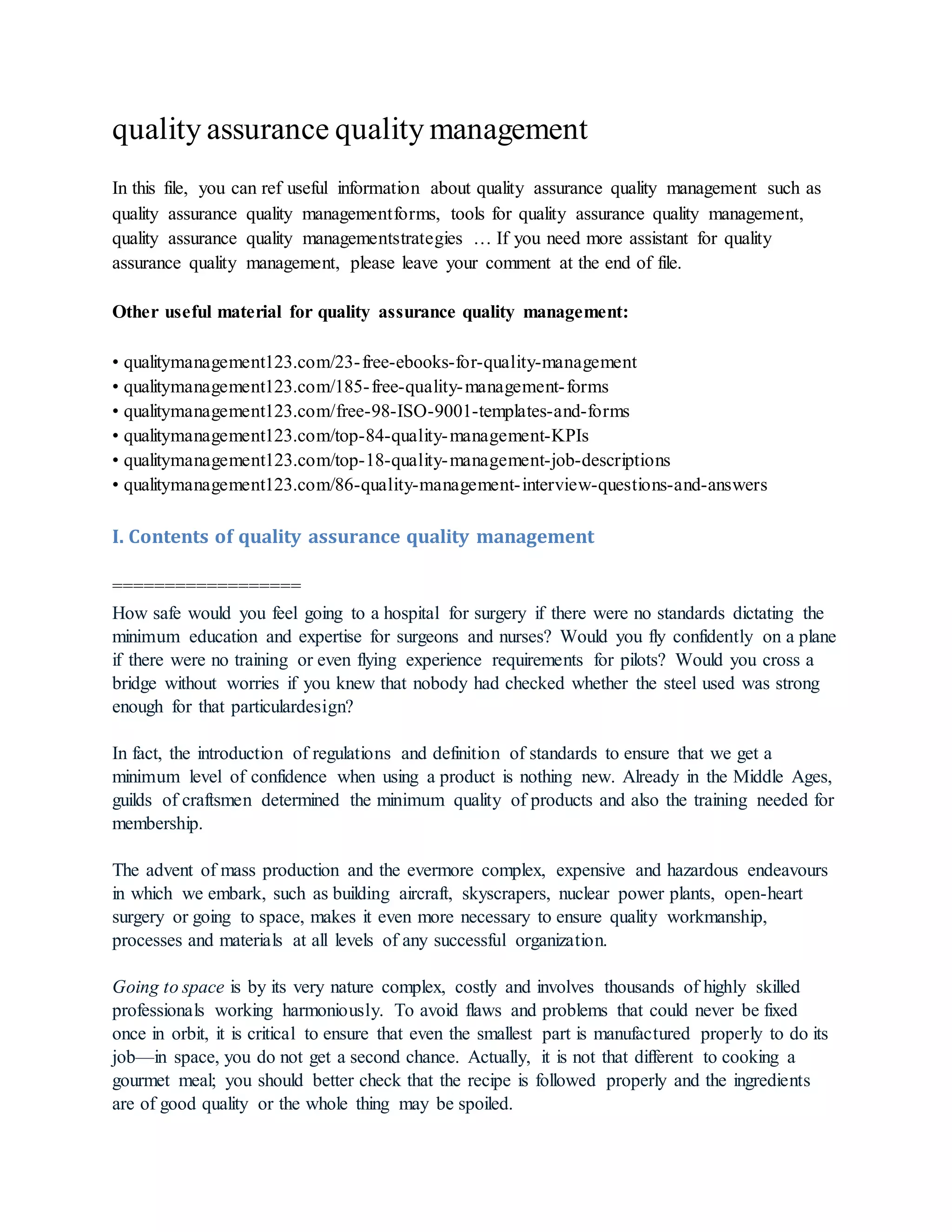

1. quality assurance quality management
In this file, you can ref useful information about quality assurance quality management such as
quality assurance quality managementforms, tools for quality assurance quality management,
quality assurance quality managementstrategies … If you need more assistant for quality
assurance quality management, please leave your comment at the end of file.
Other useful material for quality assurance quality management:
• qualitymanagement123.com/23-free-ebooks-for-quality-management
• qualitymanagement123.com/185-free-quality-management-forms
• qualitymanagement123.com/free-98-ISO-9001-templates-and-forms
• qualitymanagement123.com/top-84-quality-management-KPIs
• qualitymanagement123.com/top-18-quality-management-job-descriptions
• qualitymanagement123.com/86-quality-management-interview-questions-and-answers
I. Contents of quality assurance quality management
==================
How safe would you feel going to a hospital for surgery if there were no standards dictating the
minimum education and expertise for surgeons and nurses? Would you fly confidently on a plane
if there were no training or even flying experience requirements for pilots? Would you cross a
bridge without worries if you knew that nobody had checked whether the steel used was strong
enough for that particulardesign?
In fact, the introduction of regulations and definition of standards to ensure that we get a
minimum level of confidence when using a product is nothing new. Already in the Middle Ages,
guilds of craftsmen determined the minimum quality of products and also the training needed for
membership.
The advent of mass production and the evermore complex, expensive and hazardous endeavours
in which we embark, such as building aircraft, skyscrapers, nuclear power plants, open-heart
surgery or going to space, makes it even more necessary to ensure quality workmanship,
processes and materials at all levels of any successful organization.
Going to space is by its very nature complex, costly and involves thousands of highly skilled
professionals working harmoniously. To avoid flaws and problems that could never be fixed
once in orbit, it is critical to ensure that even the smallest part is manufactured properly to do its
job—in space, you do not get a second chance. Actually, it is not that different to cooking a
gourmet meal; you should better check that the recipe is followed properly and the ingredients
are of good quality or the whole thing may be spoiled.

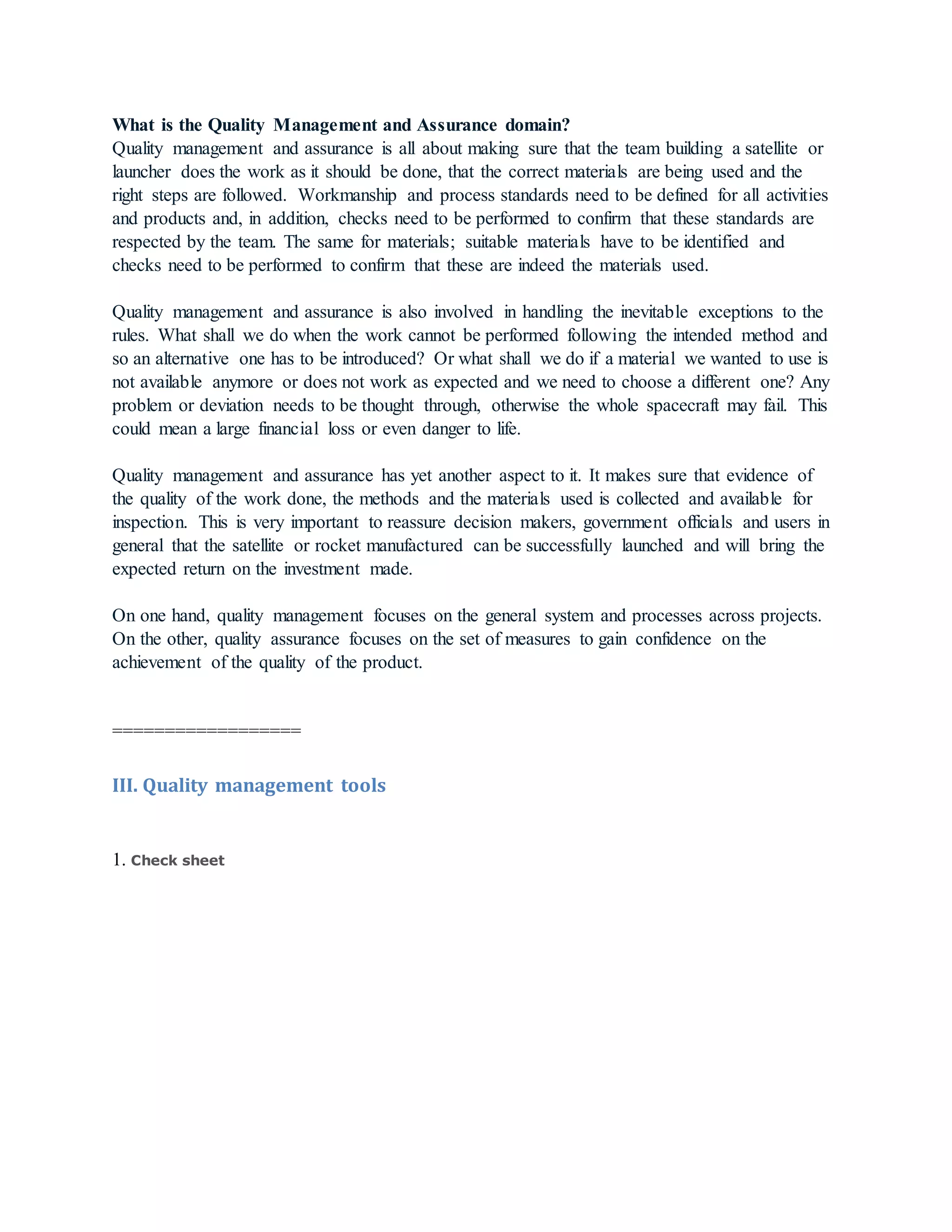

2. What is the Quality Management and Assurance domain?
Quality management and assurance is all about making sure that the team building a satellite or
launcher does the work as it should be done, that the correct materials are being used and the
right steps are followed. Workmanship and process standards need to be defined for all activities
and products and, in addition, checks need to be performed to confirm that these standards are
respected by the team. The same for materials; suitable materials have to be identified and
checks need to be performed to confirm that these are indeed the materials used.
Quality management and assurance is also involved in handling the inevitable exceptions to the
rules. What shall we do when the work cannot be performed following the intended method and
so an alternative one has to be introduced? Or what shall we do if a material we wanted to use is
not available anymore or does not work as expected and we need to choose a different one? Any
problem or deviation needs to be thought through, otherwise the whole spacecraft may fail. This
could mean a large financial loss or even danger to life.
Quality management and assurance has yet another aspect to it. It makes sure that evidence of
the quality of the work done, the methods and the materials used is collected and available for
inspection. This is very important to reassure decision makers, government officials and users in
general that the satellite or rocket manufactured can be successfully launched and will bring the
expected return on the investment made.
On one hand, quality management focuses on the general system and processes across projects.
On the other, quality assurance focuses on the set of measures to gain confidence on the
achievement of the quality of the product.
==================
III. Quality management tools
1. Check sheet

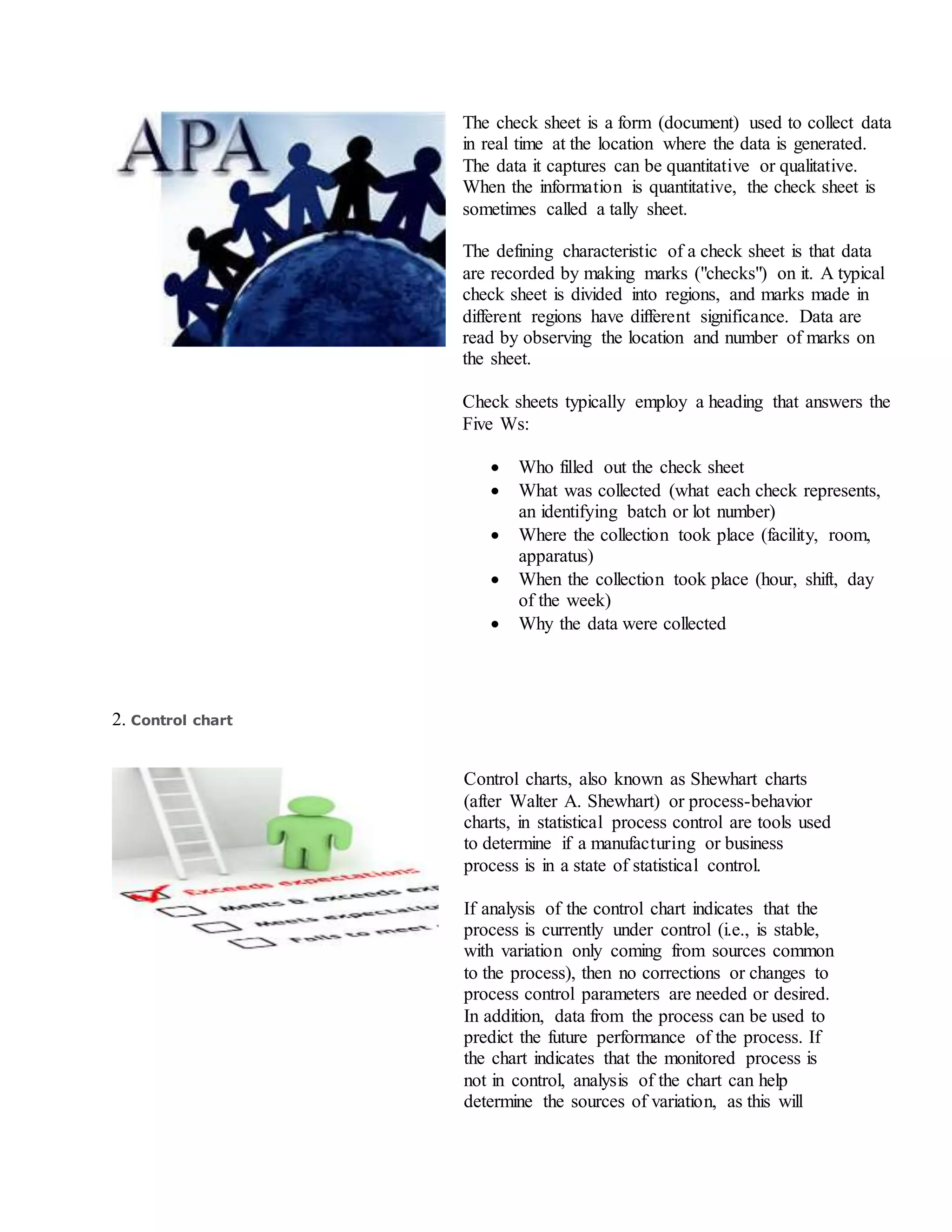

3. The check sheet is a form (document) used to collect data
in real time at the location where the data is generated.
The data it captures can be quantitative or qualitative.
When the information is quantitative, the check sheet is
sometimes called a tally sheet.
The defining characteristic of a check sheet is that data
are recorded by making marks ("checks") on it. A typical
check sheet is divided into regions, and marks made in
different regions have different significance. Data are
read by observing the location and number of marks on
the sheet.
Check sheets typically employ a heading that answers the
Five Ws:
 Who filled out the check sheet
 What was collected (what each check represents,
an identifying batch or lot number)
 Where the collection took place (facility, room,
apparatus)
 When the collection took place (hour, shift, day
of the week)
 Why the data were collected
2. Control chart
Control charts, also known as Shewhart charts
(after Walter A. Shewhart) or process-behavior
charts, in statistical process control are tools used
to determine if a manufacturing or business
process is in a state of statistical control.
If analysis of the control chart indicates that the
process is currently under control (i.e., is stable,
with variation only coming from sources common
to the process), then no corrections or changes to
process control parameters are needed or desired.
In addition, data from the process can be used to
predict the future performance of the process. If
the chart indicates that the monitored process is
not in control, analysis of the chart can help
determine the sources of variation, as this will

4. result in degraded process performance.[1] A
process that is stable but operating outside of
desired (specification) limits (e.g., scrap rates
may be in statistical control but above desired
limits) needs to be improved through a deliberate
effort to understand the causes of current
performance and fundamentally improve the
process.
The control chart is one of the seven basic tools of
quality control.[3] Typically control charts are
used for time-series data, though they can be used
for data that have logical comparability (i.e. you
want to compare samples that were taken all at
the same time, or the performance of different
individuals), however the type of chart used to do
this requires consideration.
3. Pareto chart
A Pareto chart, named after Vilfredo Pareto, is a type
of chart that contains both bars and a line graph, where
individual values are represented in descending order
by bars, and the cumulative total is represented by the
line.
The left vertical axis is the frequency of occurrence,
but it can alternatively represent cost or another
important unit of measure. The right vertical axis is
the cumulative percentage of the total number of
occurrences, total cost, or total of the particular unit of
measure. Because the reasons are in decreasing order,
the cumulative function is a concave function. To take
the example above, in order to lower the amount of
late arrivals by 78%, it is sufficient to solve the first
three issues.
The purpose of the Pareto chart is to highlight the
most important among a (typically large) set of
factors. In quality control, it often represents the most
common sources of defects, the highest occurring type
of defect, or the most frequent reasons for customer
complaints, and so on. Wilkinson (2006) devised an

5. algorithm for producing statistically based acceptance
limits (similar to confidence intervals) for each bar in
the Pareto chart.
4. Scatter plot Method
A scatter plot, scatterplot, or scattergraph is a type of
mathematical diagram using Cartesian coordinates to
display values for two variables for a set of data.
The data is displayed as a collection of points, each
having the value of one variable determining the position
on the horizontal axis and the value of the other variable
determining the position on the vertical axis.[2] This kind
of plot is also called a scatter chart, scattergram, scatter
diagram,[3] or scatter graph.
A scatter plot is used when a variable exists that is under
the control of the experimenter. If a parameter exists that
is systematically incremented and/or decremented by the
other, it is called the control parameter or independent
variable and is customarily plotted along the horizontal
axis. The measured or dependent variable is customarily
plotted along the vertical axis. If no dependent variable
exists, either type of variable can be plotted on either axis
and a scatter plot will illustrate only the degree of
correlation (not causation) between two variables.
A scatter plot can suggest various kinds of correlations
between variables with a certain confidence interval. For
example, weight and height, weight would be on x axis
and height would be on the y axis. Correlations may be
positive (rising), negative (falling), or null (uncorrelated).
If the pattern of dots slopes from lower left to upper right,
it suggests a positive correlation between the variables
being studied. If the pattern of dots slopes from upper left
to lower right, it suggests a negative correlation. A line of
best fit (alternatively called 'trendline') can be drawn in
order to study the correlation between the variables. An
equation for the correlation between the variables can be
determined by established best-fit procedures. For a linear
correlation, the best-fit procedure is known as linear

6. regression and is guaranteed to generate a correct solution
in a finite time. No universal best-fit procedure is
guaranteed to generate a correct solution for arbitrary
relationships. A scatter plot is also very useful when we
wish to see how two comparable data sets agree with each
other. In this case, an identity line, i.e., a y=x line, or an
1:1 line, is often drawn as a reference. The more the two
data sets agree, the more the scatters tend to concentrate in
the vicinity of the identity line; if the two data sets are
numerically identical, the scatters fall on the identity line
exactly.
5.Ishikawa diagram
Ishikawa diagrams (also called fishbone diagrams,
herringbone diagrams, cause-and-effect diagrams, or
Fishikawa) are causal diagrams created by Kaoru
Ishikawa (1968) that show the causes of a specific
event.[1][2] Common uses of the Ishikawa diagram are
product design and quality defect prevention, to identify
potential factors causing an overall effect. Each cause or
reason for imperfection is a source of variation. Causes
are usually grouped into major categories to identify these
sources of variation. The categories typically include
 People: Anyone involved with the process
 Methods: How the process is performed and the
specific requirements for doing it, such as policies,
procedures, rules, regulations and laws
 Machines: Any equipment, computers, tools, etc.
required to accomplish the job
 Materials: Raw materials, parts, pens, paper, etc.
used to produce the final product
 Measurements: Data generated from the process
that are used to evaluate its quality
 Environment: The conditions, such as location,
time, temperature, and culture in which the process
operates
6. Histogram method

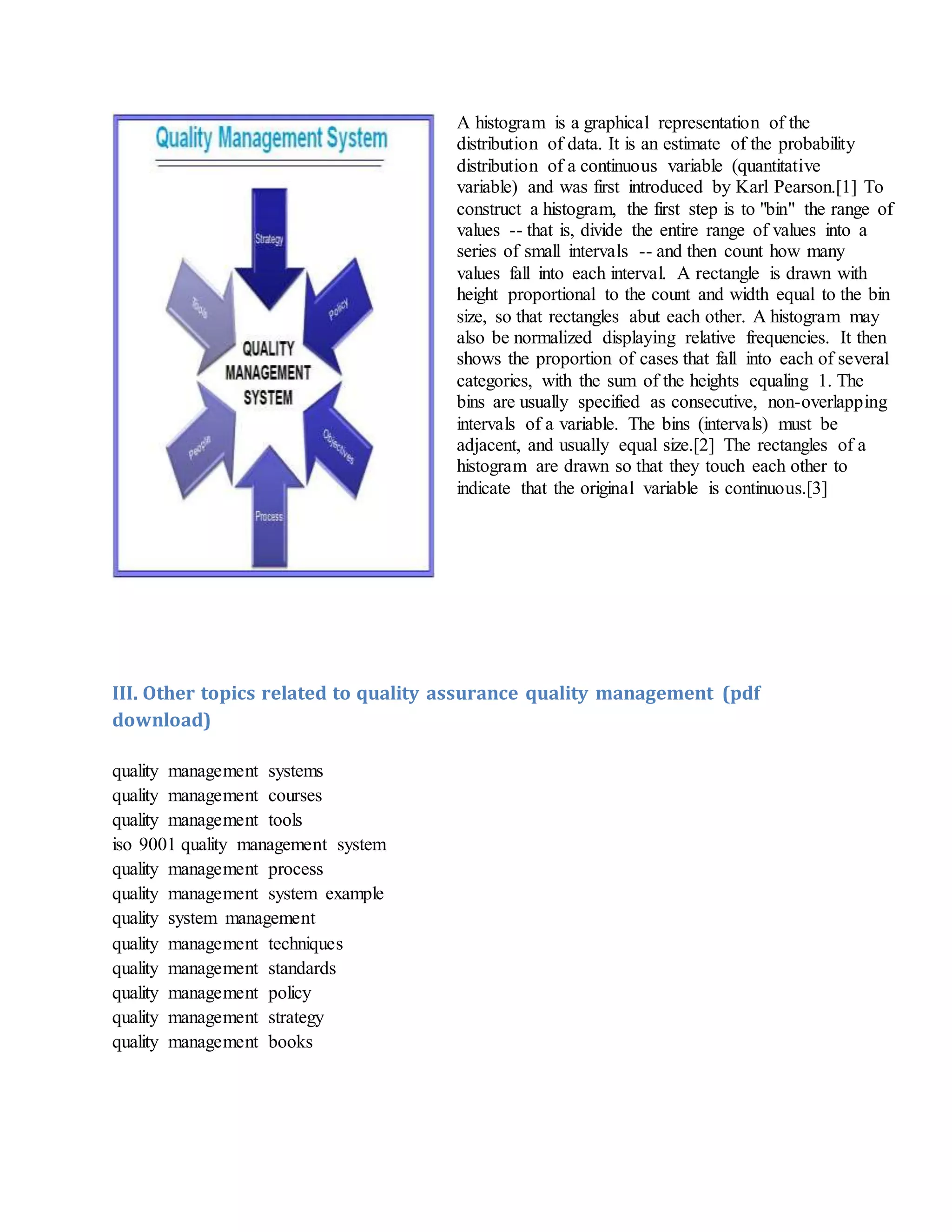

7. A histogram is a graphical representation of the
distribution of data. It is an estimate of the probability
distribution of a continuous variable (quantitative
variable) and was first introduced by Karl Pearson.[1] To
construct a histogram, the first step is to "bin" the range of
values -- that is, divide the entire range of values into a
series of small intervals -- and then count how many
values fall into each interval. A rectangle is drawn with
height proportional to the count and width equal to the bin
size, so that rectangles abut each other. A histogram may
also be normalized displaying relative frequencies. It then
shows the proportion of cases that fall into each of several
categories, with the sum of the heights equaling 1. The
bins are usually specified as consecutive, non-overlapping
intervals of a variable. The bins (intervals) must be
adjacent, and usually equal size.[2] The rectangles of a
histogram are drawn so that they touch each other to
indicate that the original variable is continuous.[3]
III. Other topics related to quality assurance quality management (pdf
download)
quality management systems
quality management courses
quality management tools
iso 9001 quality management system
quality management process
quality management system example
quality system management
quality management techniques
quality management standards
quality management policy
quality management strategy
quality management books
