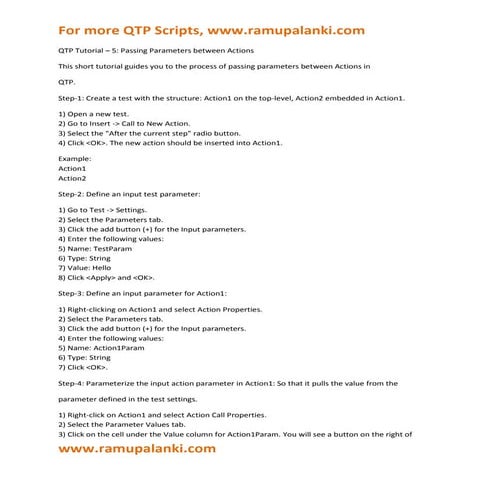

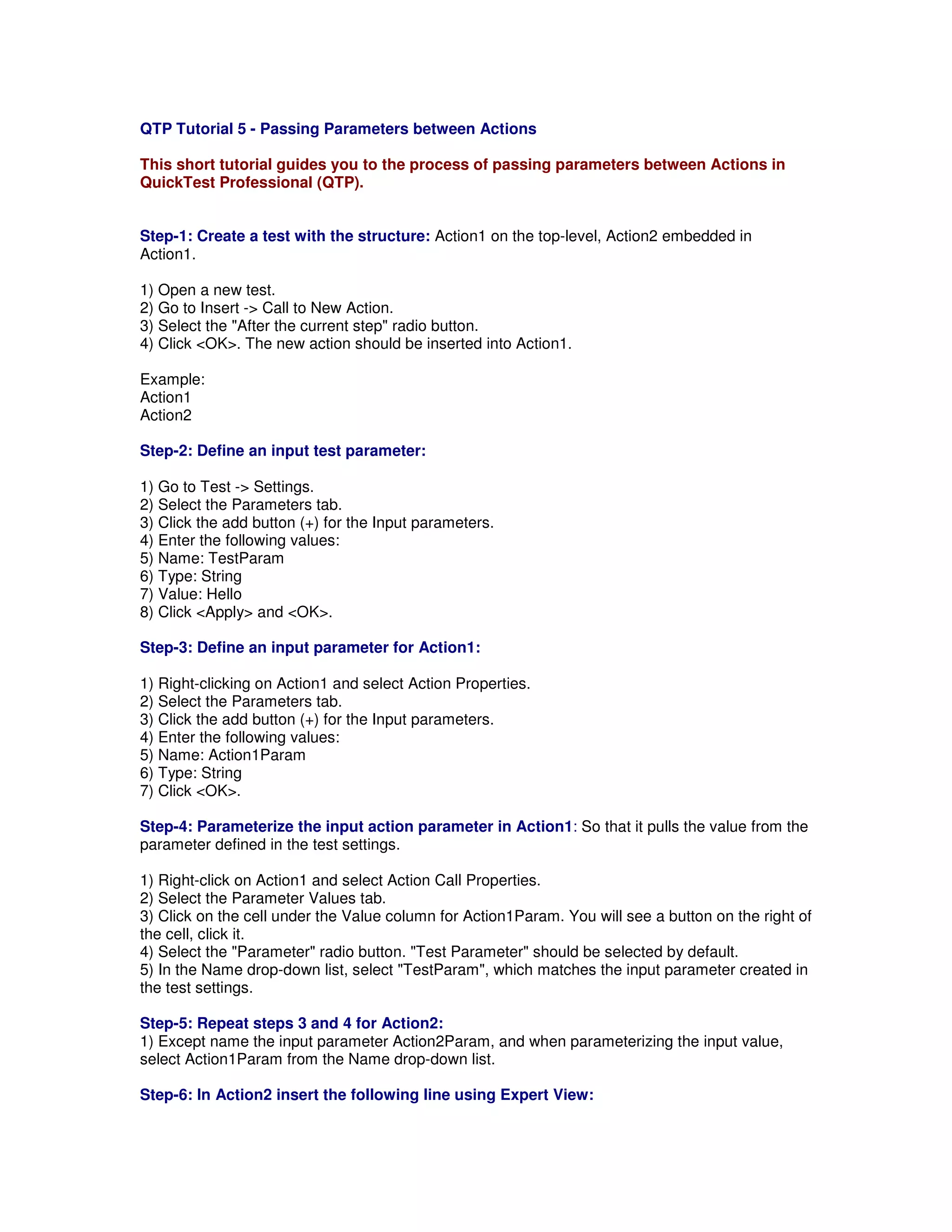

1. QTP Tutorial 5 - Passing Parameters between Actions
This short tutorial guides you to the process of passing parameters between Actions in
QuickTest Professional (QTP).
Step-1: Create a test with the structure: Action1 on the top-level, Action2 embedded in
Action1.
1) Open a new test.
2) Go to Insert -> Call to New Action.
3) Select the "After the current step" radio button.
4) Click <OK>. The new action should be inserted into Action1.
Example:
Action1
Action2
Step-2: Define an input test parameter:
1) Go to Test -> Settings.
2) Select the Parameters tab.
3) Click the add button (+) for the Input parameters.
4) Enter the following values:
5) Name: TestParam
6) Type: String
7) Value: Hello
8) Click <Apply> and <OK>.
Step-3: Define an input parameter for Action1:
1) Right-clicking on Action1 and select Action Properties.
2) Select the Parameters tab.
3) Click the add button (+) for the Input parameters.
4) Enter the following values:
5) Name: Action1Param
6) Type: String
7) Click <OK>.
Step-4: Parameterize the input action parameter in Action1: So that it pulls the value from the
parameter defined in the test settings.
1) Right-click on Action1 and select Action Call Properties.
2) Select the Parameter Values tab.
3) Click on the cell under the Value column for Action1Param. You will see a button on the right of
the cell, click it.
4) Select the "Parameter" radio button. "Test Parameter" should be selected by default.
5) In the Name drop-down list, select "TestParam", which matches the input parameter created in
the test settings.
Step-5: Repeat steps 3 and 4 for Action2:
1) Except name the input parameter Action2Param, and when parameterizing the input value,
select Action1Param from the Name drop-down list.
Step-6: In Action2 insert the following line using Expert View:

2. msgbox Parameter("Action2Param")
The above steps can be repeated if you wish to pass more Parameters
