1. Provisioning Anywhere
Platform provisioning across compute environments
Andre Pitanga <andre@redhat.com>
Senior Solutions Architect
10/10/2017

2. Northern NJ Red Hat Users Group2

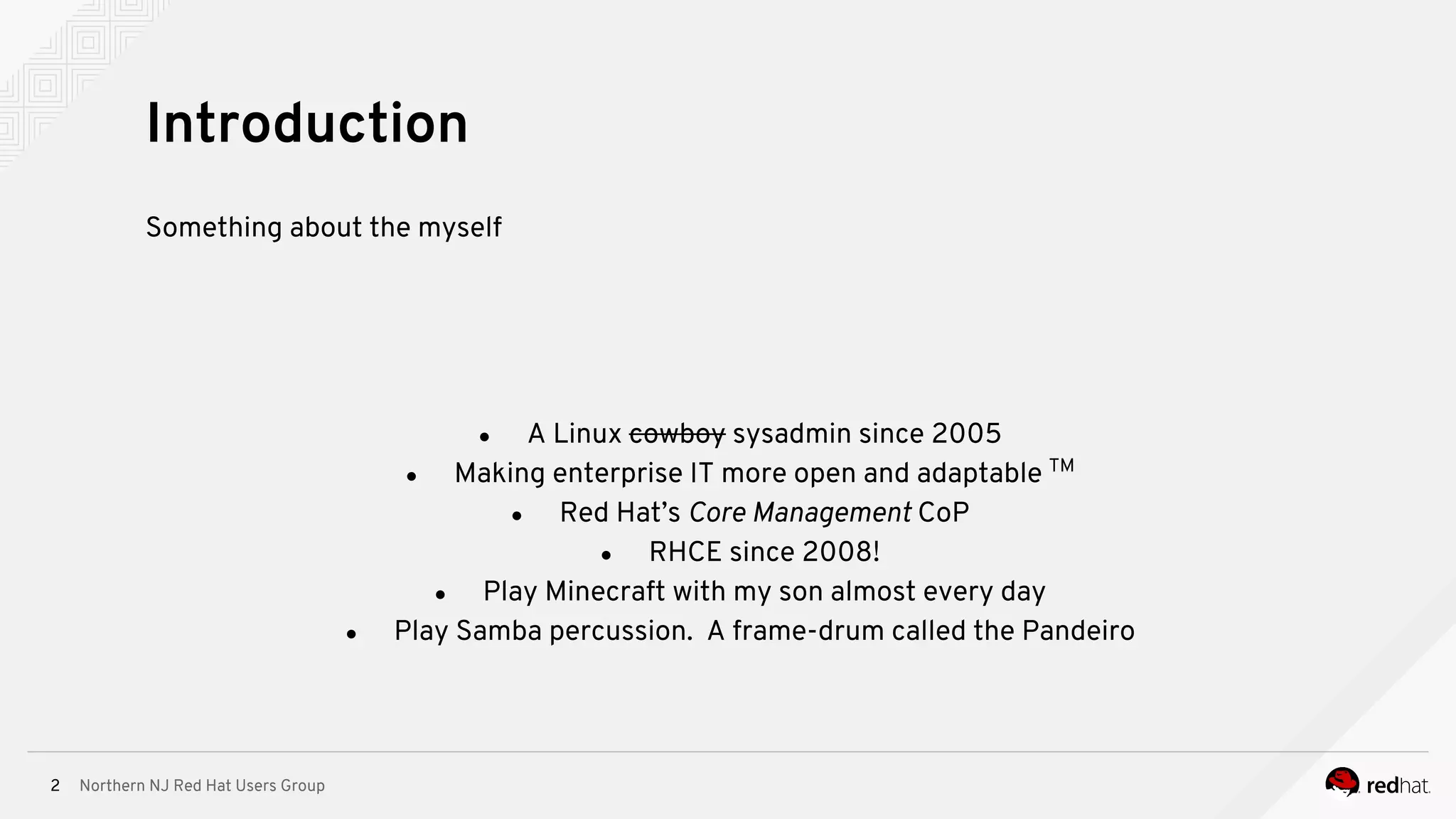

Something about the myself
● A Linux cowboy sysadmin since 2005
● Making enterprise IT more open and adaptable TM
● Red Hat’s Core Management CoP
● RHCE since 2008!
● Play Minecraft with my son almost every day
● Play Samba percussion. A frame-drum called the Pandeiro
Introduction

3. Northern NJ Red Hat Users Group3
● Deployment vs. Provisioning
● Manual vs Push-button vs Automated provisioning
● (re) Introducing SOE (Standard Operating Environment)
● Provisioning next: Modularity, Immutable images and ...
Agenda

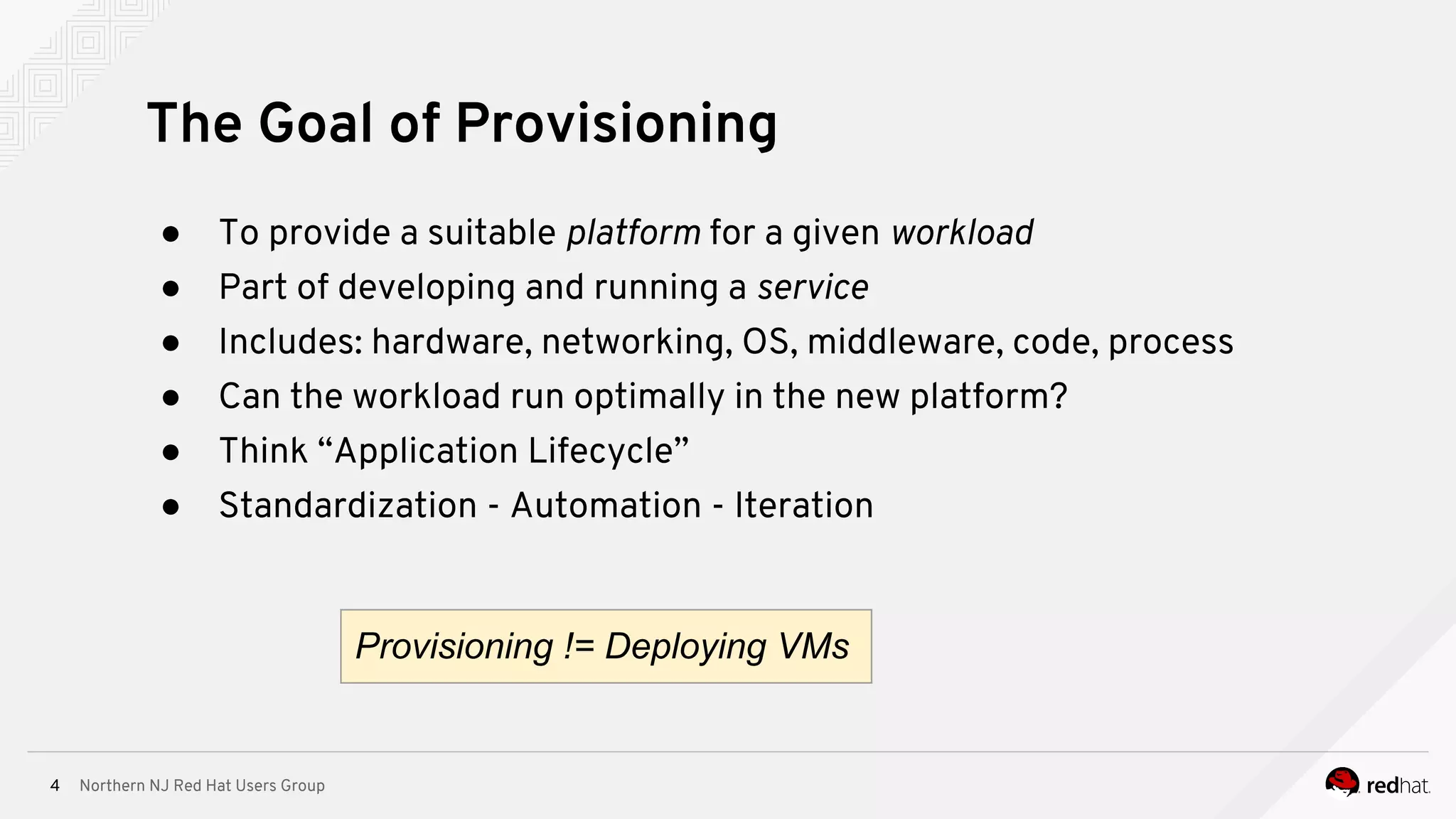

4. Northern NJ Red Hat Users Group4
The Goal of Provisioning
● To provide a suitable platform for a given workload
● Part of developing and running a service
● Includes: hardware, networking, OS, middleware, code, process
● Can the workload run optimally in the new platform?
● Think “Application Lifecycle”
● Standardization - Automation - Iteration
Provisioning != Deploying VMs

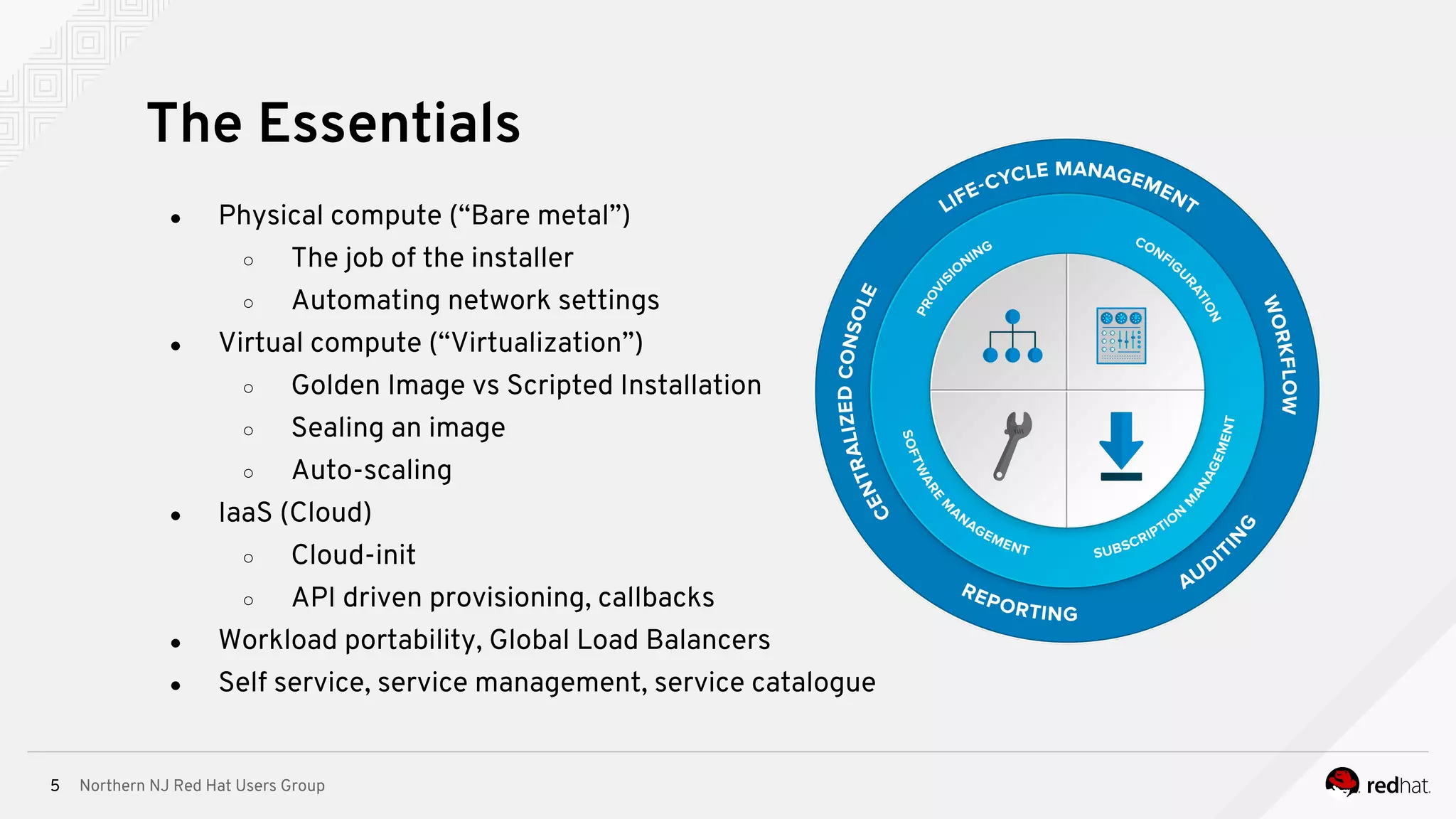

5. Northern NJ Red Hat Users Group5
● Physical compute (“Bare metal”)
○ The job of the installer
○ Automating network settings
● Virtual compute (“Virtualization”)
○ Golden Image vs Scripted Installation
○ Sealing an image
○ Auto-scaling
● IaaS (Cloud)
○ Cloud-init
○ API driven provisioning, callbacks
● Workload portability, Global Load Balancers
● Self service, service management, service catalogue
The Essentials

6. Northern NJ Red Hat Users Group6
● iPXE + Kickstart + Anaconda to the rescue!
● Anaconda/kickstart takes care of:
○ Installation destination preparation
(usually disk partitioning)
○ package and data installation
○ boot loader installation and configuration
○ configuration of the newly installed system
● Think “kickstart variables”
● Initial setup
○ The first boot of the newly installed system
is traditionally considered a part of the
installation process as well
The Job of the Installer
Anaconda Team
(Brno, Czech Republic)

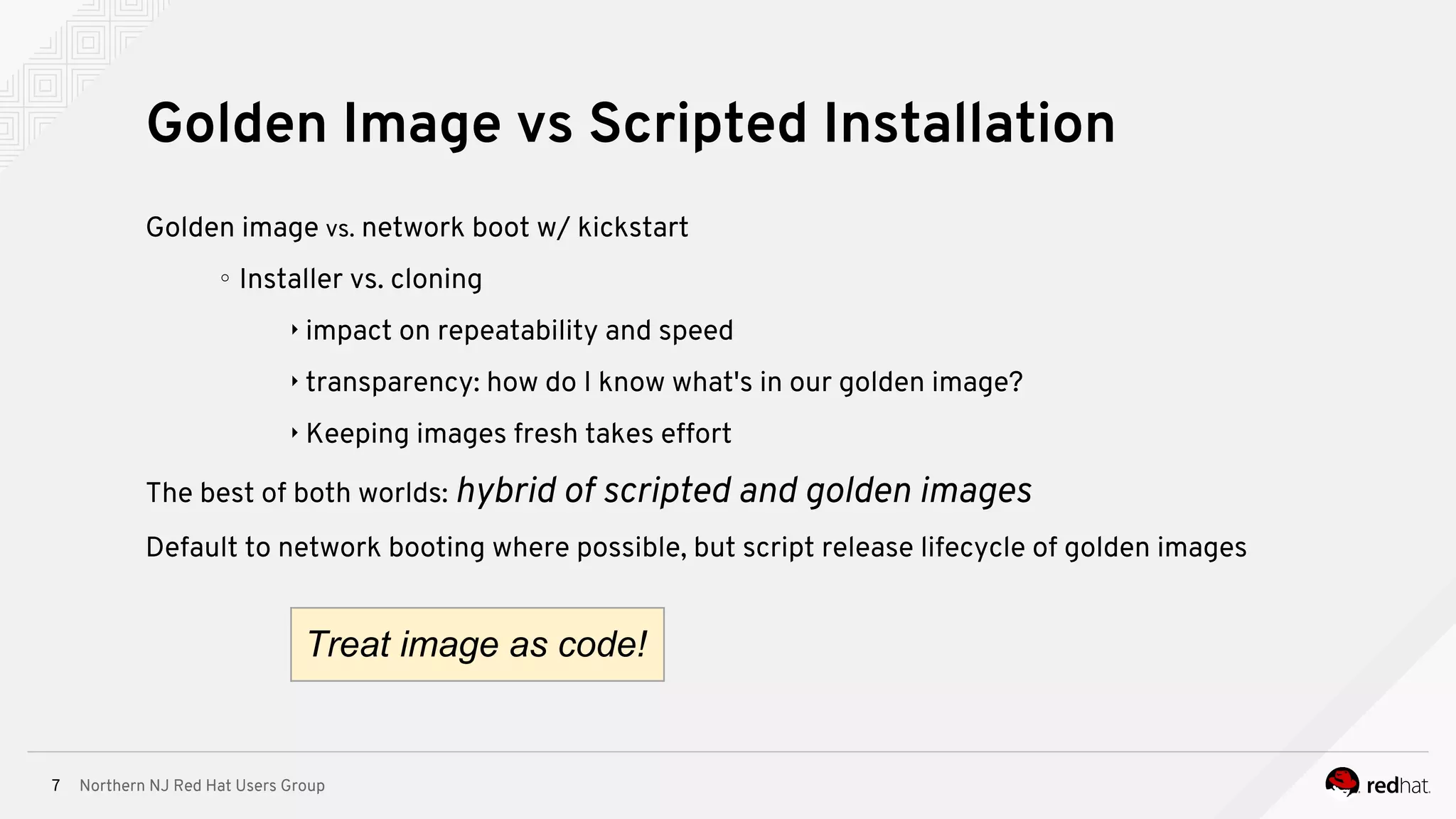

7. Northern NJ Red Hat Users Group7
Golden image vs. network boot w/ kickstart
∘ Installer vs. cloning
‣ impact on repeatability and speed
‣ transparency: how do I know what's in our golden image?
‣ Keeping images fresh takes effort
The best of both worlds: hybrid of scripted and golden images
Default to network booting where possible, but script release lifecycle of golden images
Golden Image vs Scripted Installation
Treat image as code!

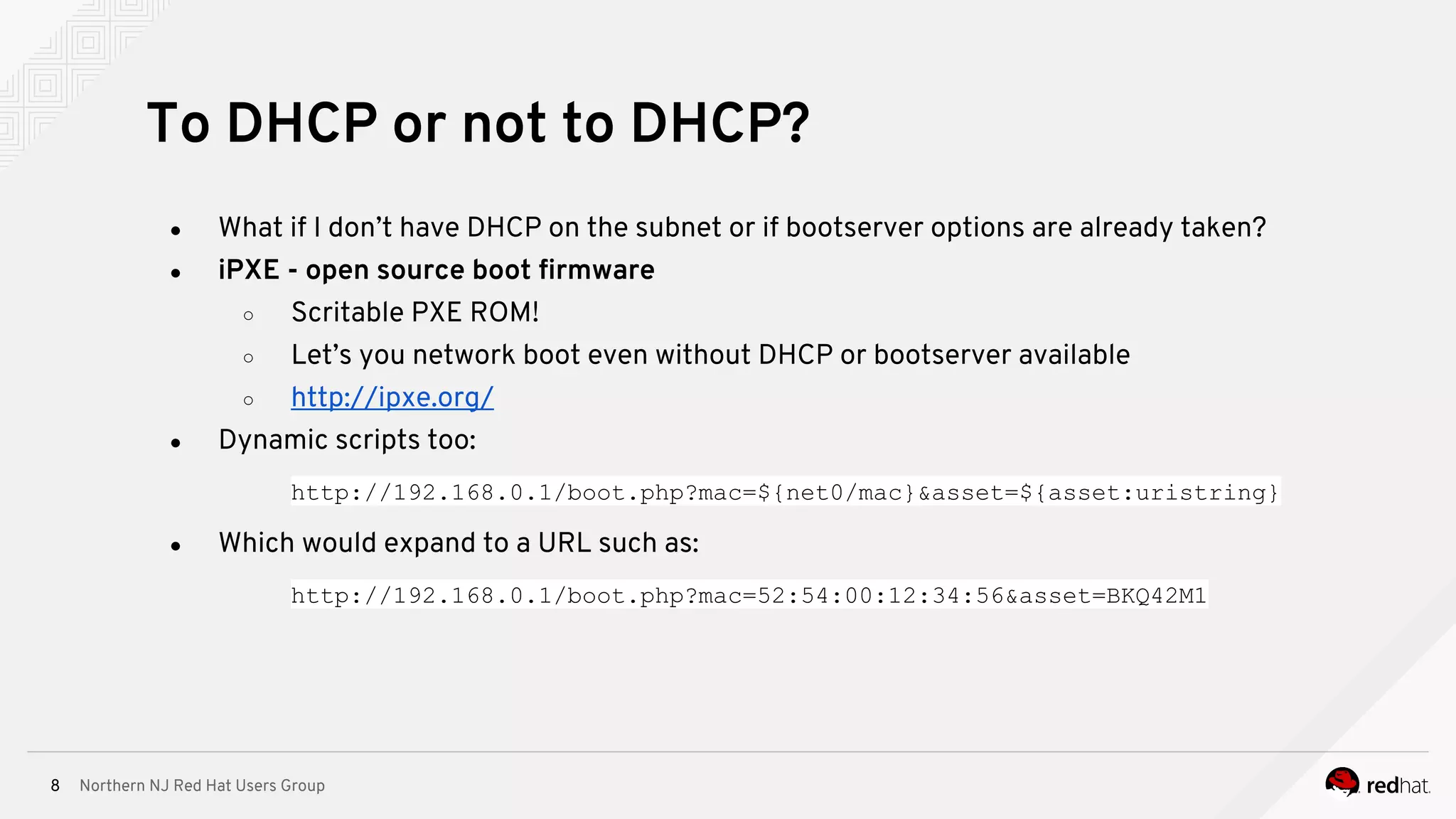

8. Northern NJ Red Hat Users Group8
● What if I don’t have DHCP on the subnet or if bootserver options are already taken?
● iPXE - open source boot firmware
○ Scritable PXE ROM!
○ Let’s you network boot even without DHCP or bootserver available
○ http://ipxe.org/
● Dynamic scripts too:
http://192.168.0.1/boot.php?mac=${net0/mac}&asset=${asset:uristring}
● Which would expand to a URL such as:
http://192.168.0.1/boot.php?mac=52:54:00:12:34:56&asset=BKQ42M1
To DHCP or not to DHCP?

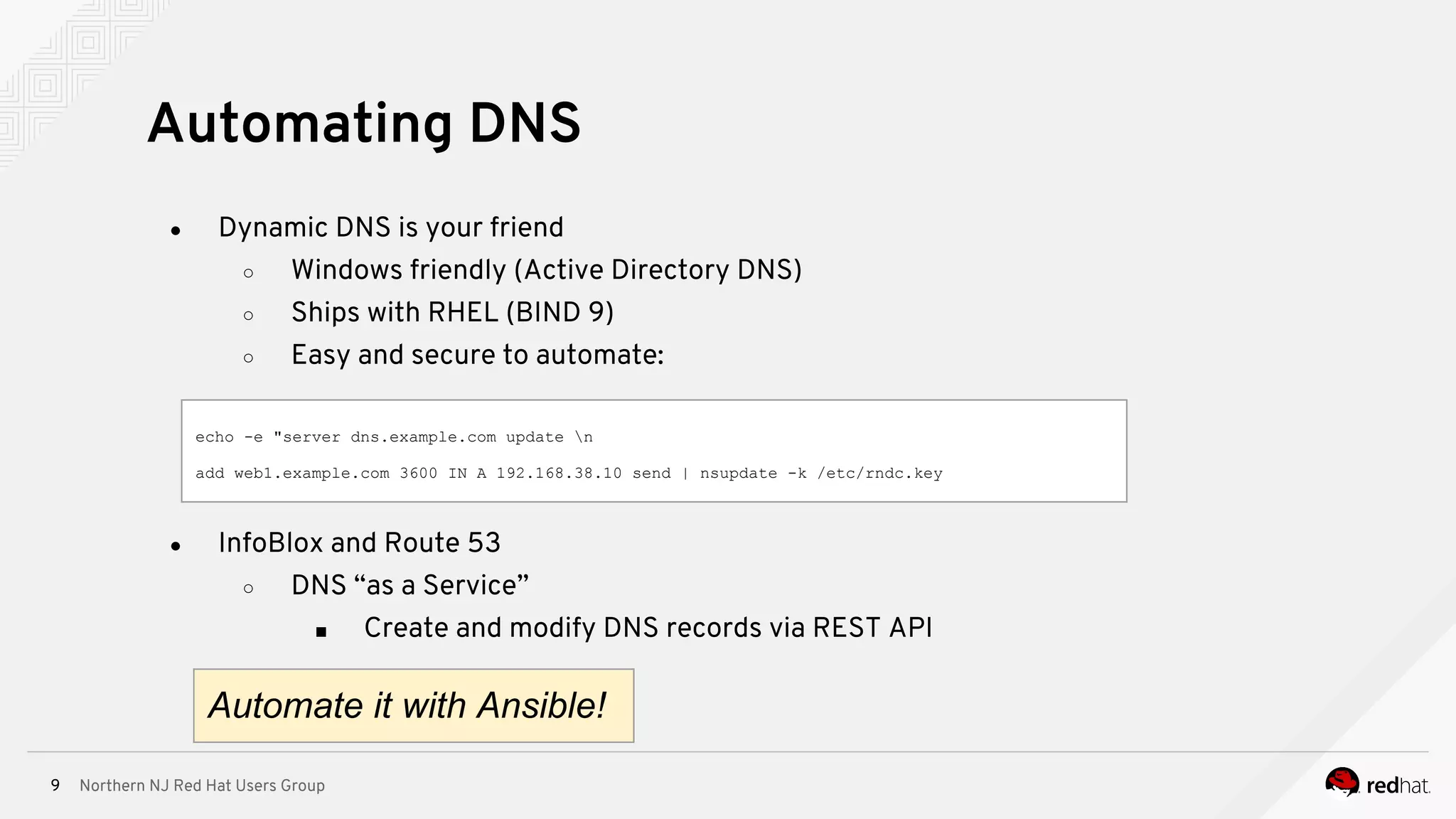

9. Northern NJ Red Hat Users Group9
● Dynamic DNS is your friend
○ Windows friendly (Active Directory DNS)
○ Ships with RHEL (BIND 9)
○ Easy and secure to automate:
Automating DNS
echo -e "server dns.example.com update n
add web1.example.com 3600 IN A 192.168.38.10 send | nsupdate -k /etc/rndc.key
● InfoBlox and Route 53
○ DNS “as a Service”
■ Create and modify DNS records via REST API
Automate it with Ansible!

10. Northern NJ Red Hat Users Group10

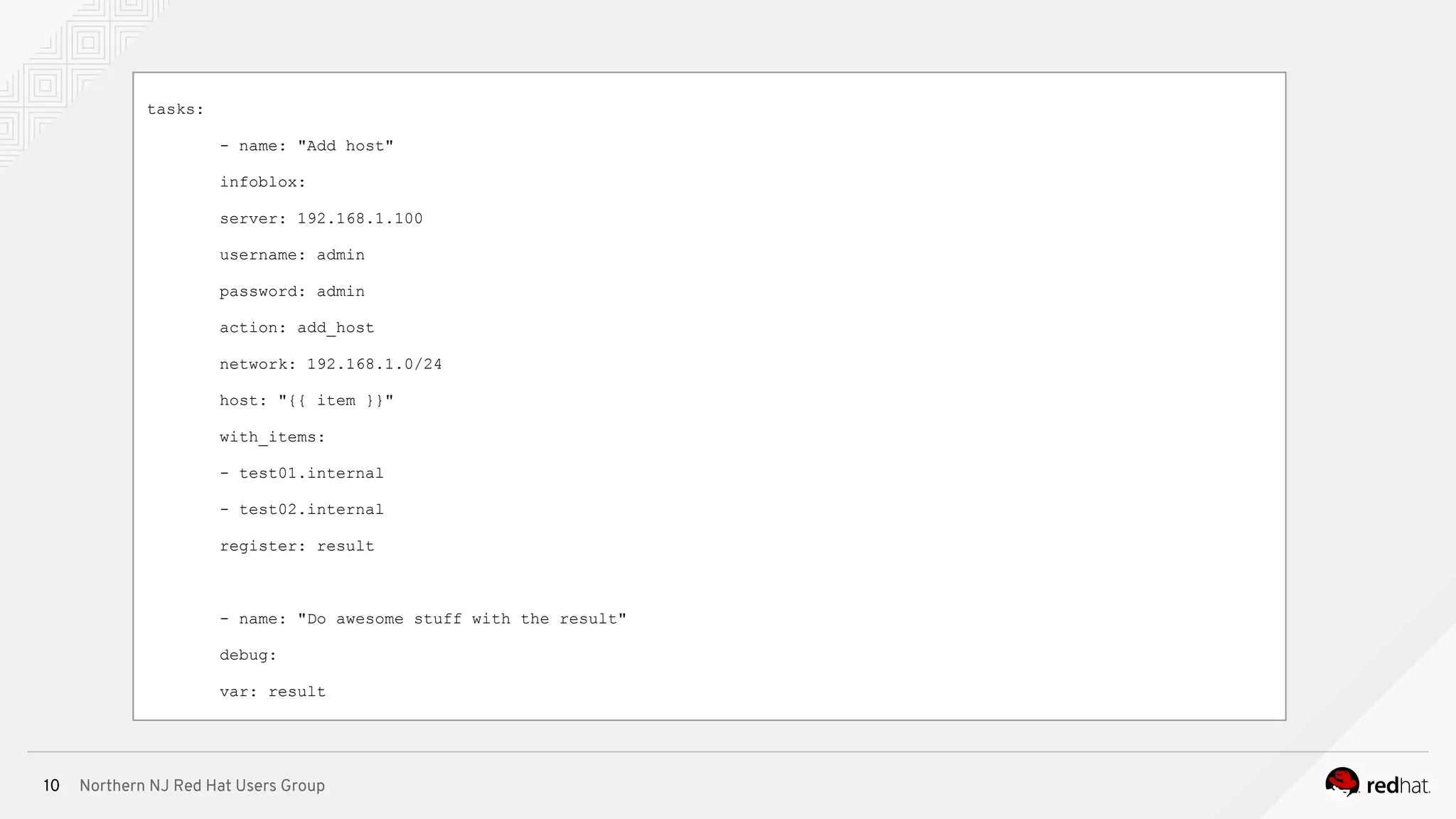

tasks:
- name: "Add host"
infoblox:
server: 192.168.1.100
username: admin
password: admin
action: add_host
network: 192.168.1.0/24
host: "{{ item }}"
with_items:
- test01.internal
- test02.internal
register: result
- name: "Do awesome stuff with the result"
debug:
var: result

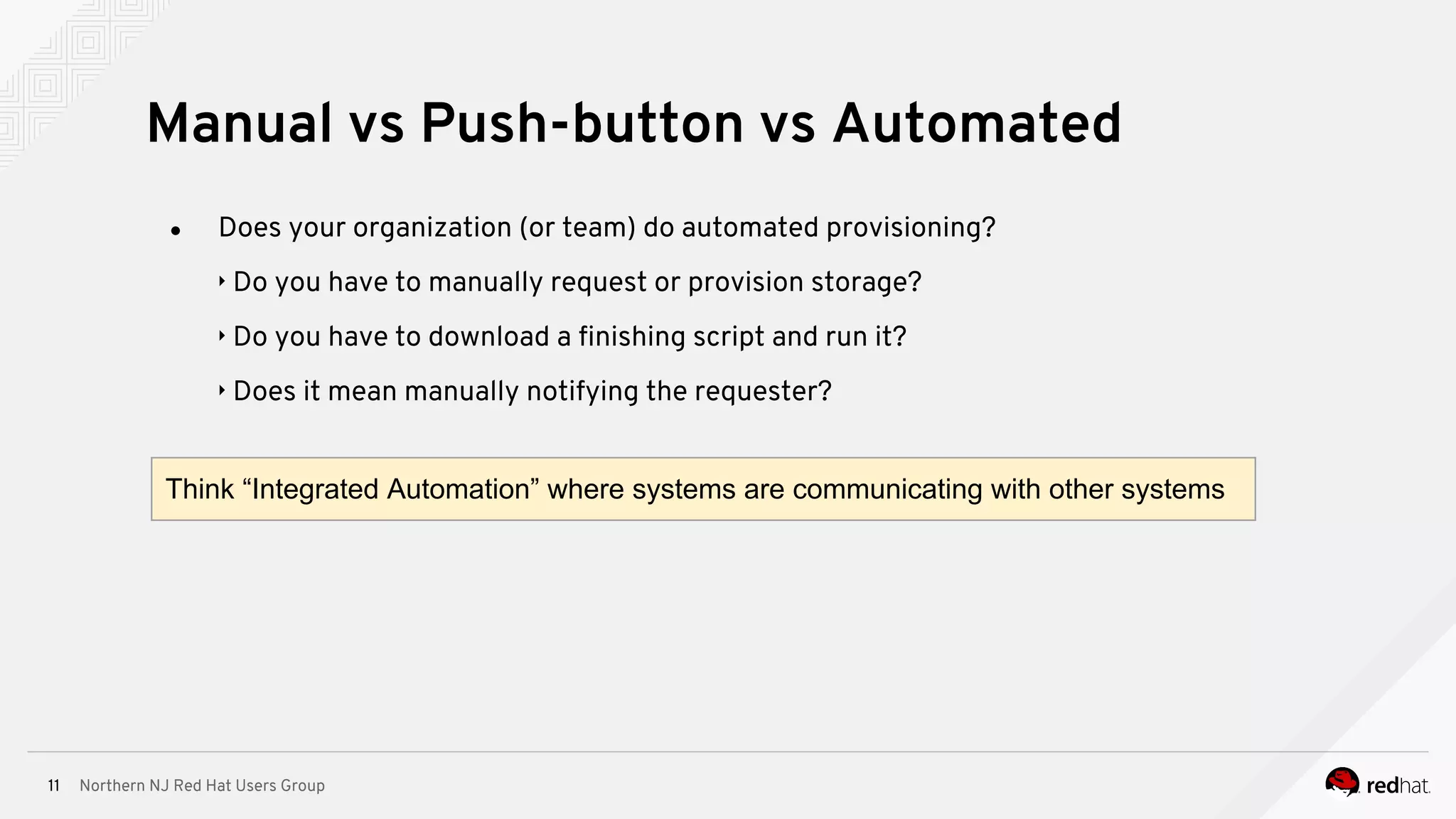

11. Northern NJ Red Hat Users Group11
● Does your organization (or team) do automated provisioning?
‣ Do you have to manually request or provision storage?
‣ Do you have to download a finishing script and run it?
‣ Does it mean manually notifying the requester?
Manual vs Push-button vs Automated
Think “Integrated Automation” where systems are communicating with other systems

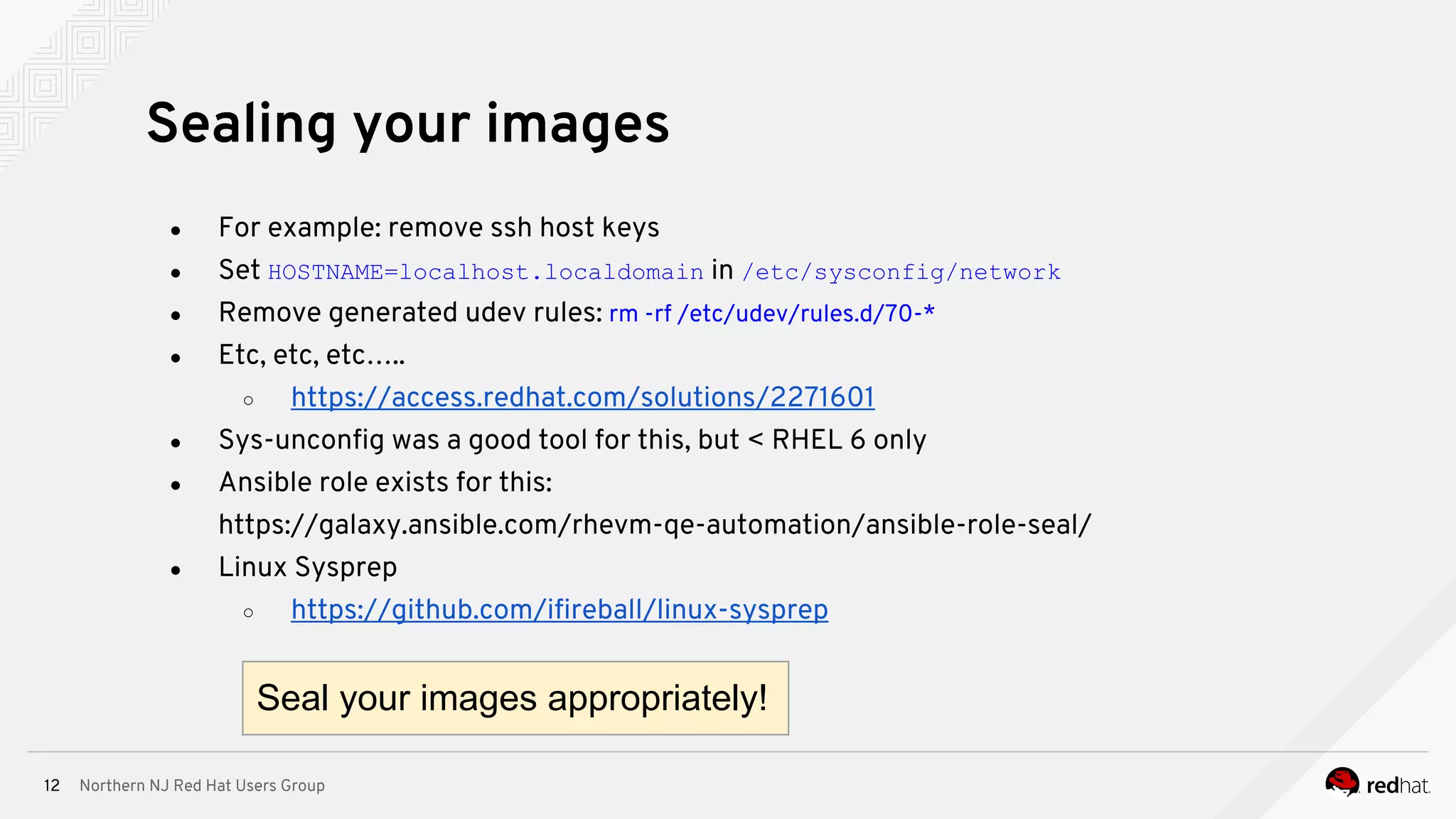

12. Northern NJ Red Hat Users Group12
● For example: remove ssh host keys
● Set HOSTNAME=localhost.localdomain in /etc/sysconfig/network
● Remove generated udev rules: rm -rf /etc/udev/rules.d/70-*
● Etc, etc, etc…..
○ https://access.redhat.com/solutions/2271601
● Sys-unconfig was a good tool for this, but < RHEL 6 only
● Ansible role exists for this:
https://galaxy.ansible.com/rhevm-qe-automation/ansible-role-seal/
● Linux Sysprep
○ https://github.com/ifireball/linux-sysprep
Sealing your images
Seal your images appropriately!

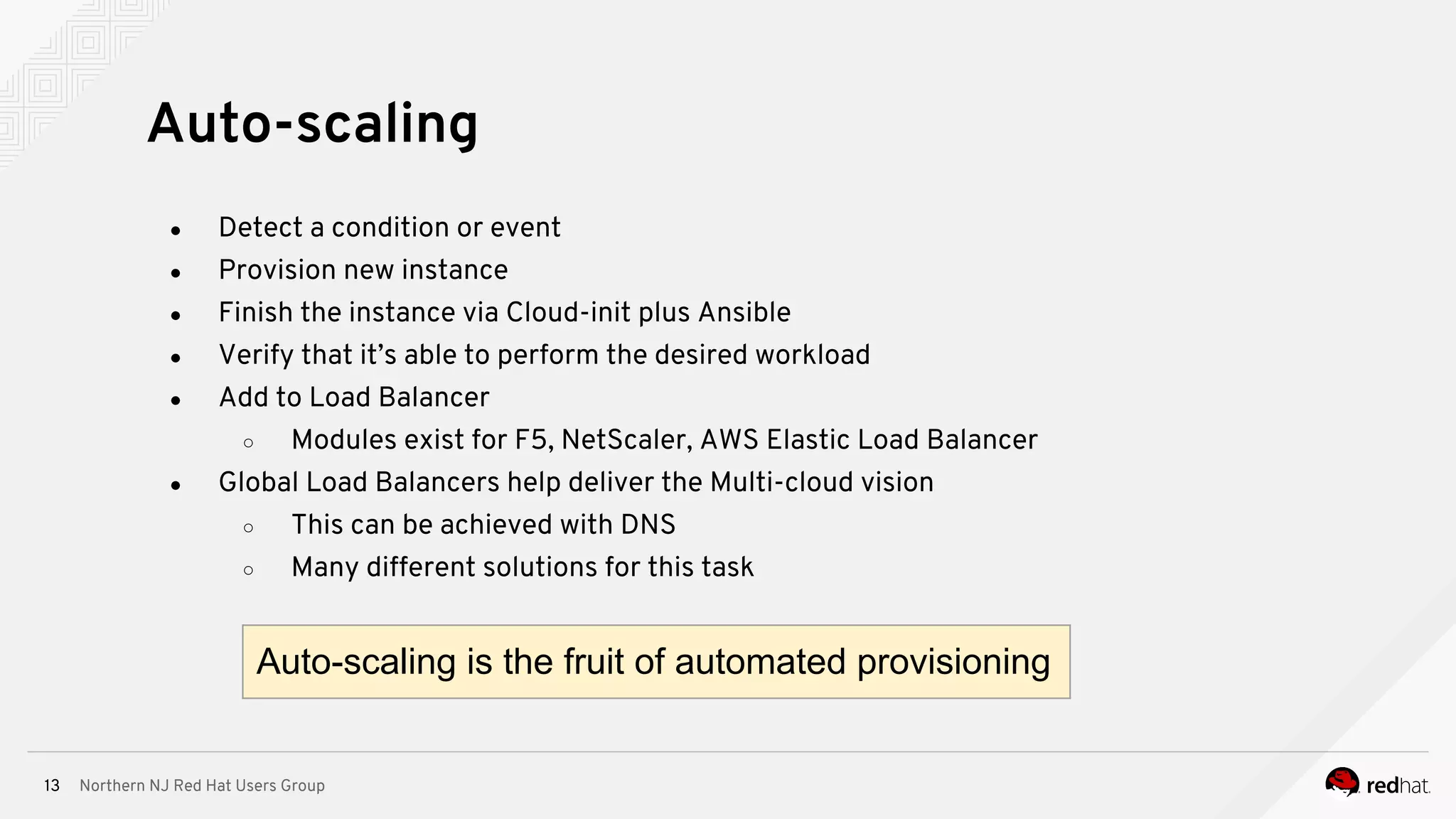

13. Northern NJ Red Hat Users Group13
● Detect a condition or event
● Provision new instance
● Finish the instance via Cloud-init plus Ansible
● Verify that it’s able to perform the desired workload
● Add to Load Balancer
○ Modules exist for F5, NetScaler, AWS Elastic Load Balancer
● Global Load Balancers help deliver the Multi-cloud vision
○ This can be achieved with DNS
○ Many different solutions for this task
Auto-scaling
Auto-scaling is the fruit of automated provisioning

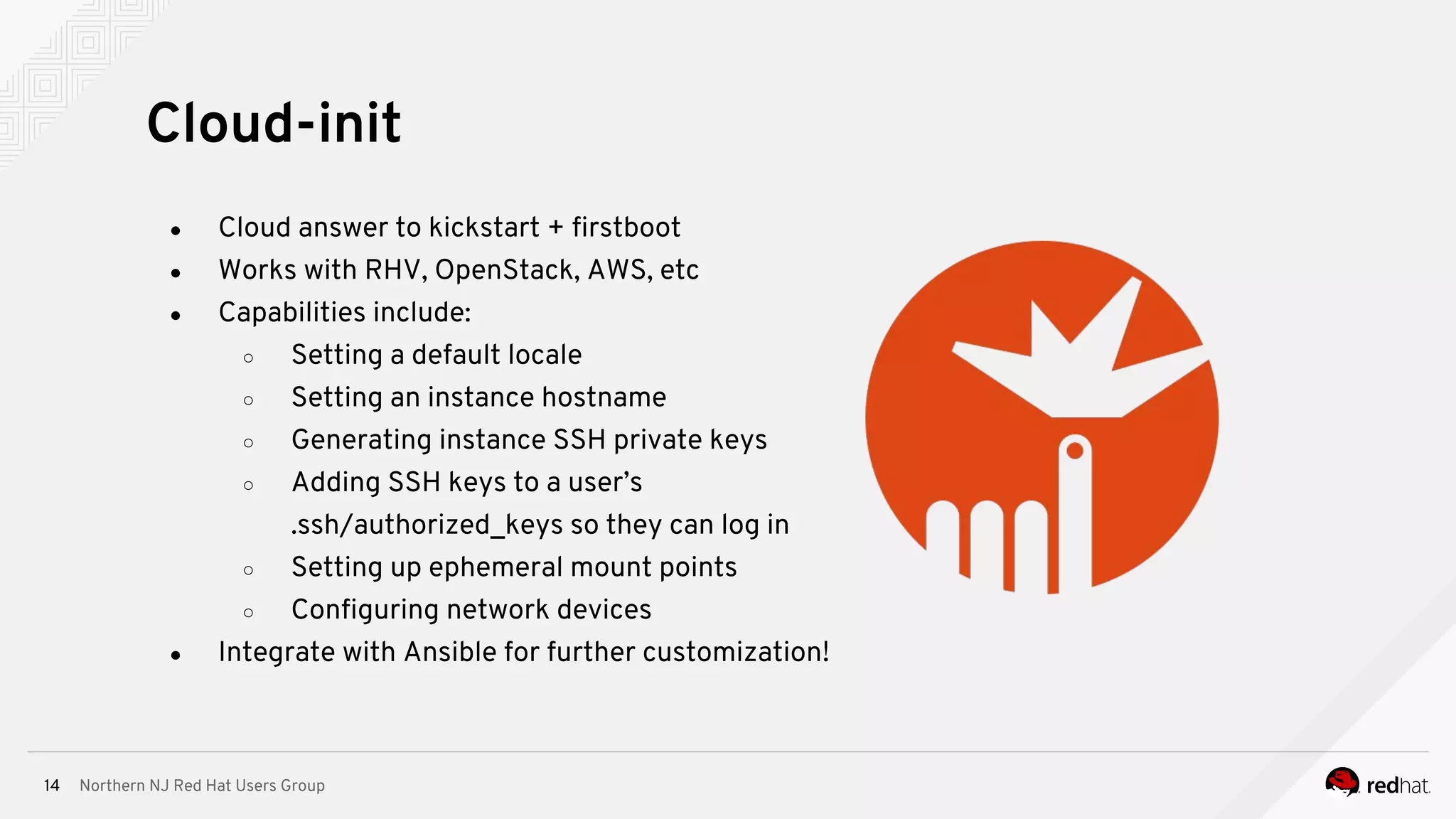

14. Northern NJ Red Hat Users Group14
● Cloud answer to kickstart + firstboot
● Works with RHV, OpenStack, AWS, etc
● Capabilities include:
○ Setting a default locale
○ Setting an instance hostname
○ Generating instance SSH private keys
○ Adding SSH keys to a user’s
.ssh/authorized_keys so they can log in
○ Setting up ephemeral mount points
○ Configuring network devices
● Integrate with Ansible for further customization!
Cloud-init

15. Northern NJ Red Hat Users Group15

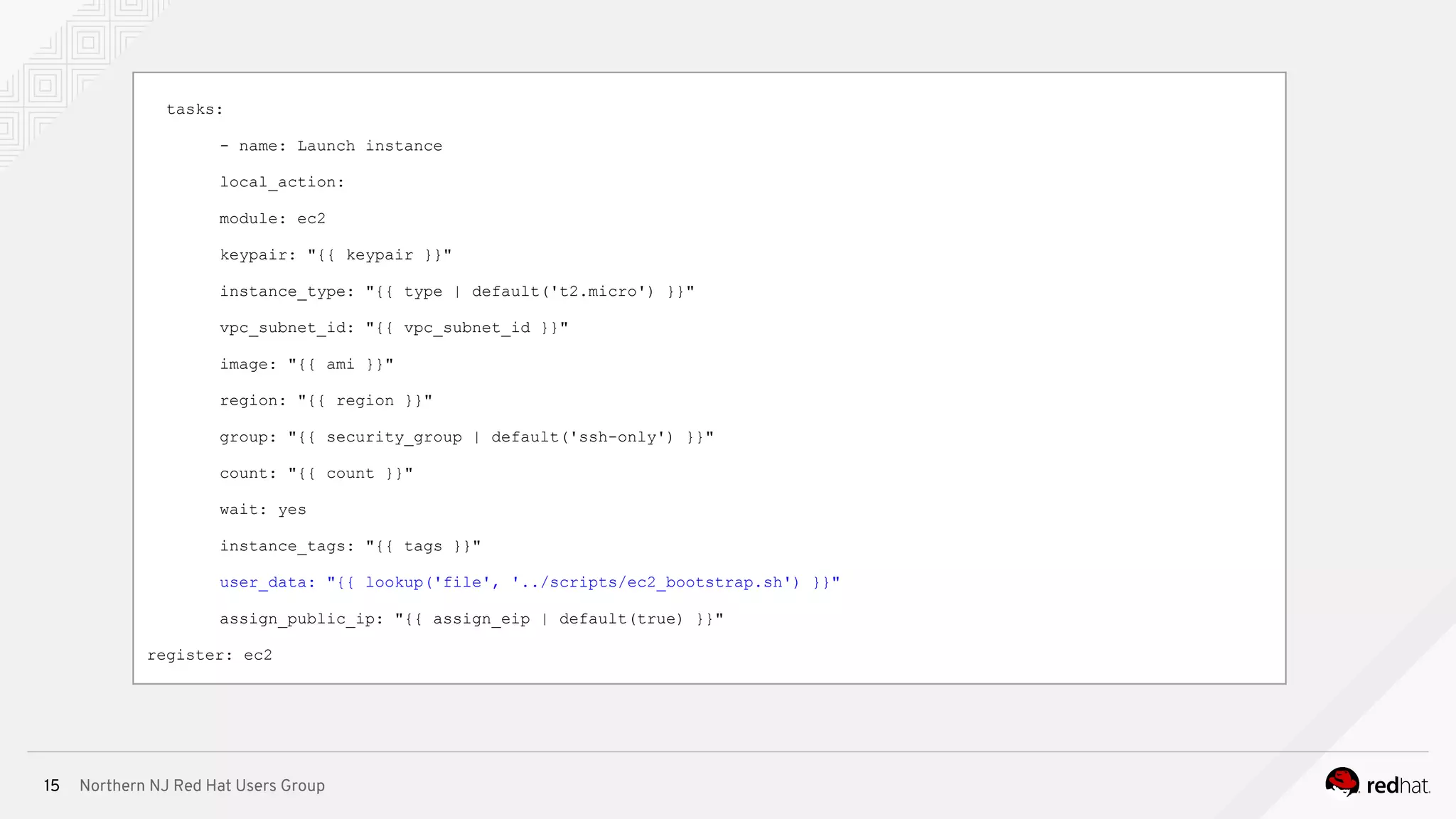

tasks:
- name: Launch instance
local_action:
module: ec2
keypair: "{{ keypair }}"
instance_type: "{{ type | default('t2.micro') }}"
vpc_subnet_id: "{{ vpc_subnet_id }}"
image: "{{ ami }}"
region: "{{ region }}"
group: "{{ security_group | default('ssh-only') }}"
count: "{{ count }}"
wait: yes
instance_tags: "{{ tags }}"
user_data: "{{ lookup('file', '../scripts/ec2_bootstrap.sh') }}"
assign_public_ip: "{{ assign_eip | default(true) }}"
register: ec2

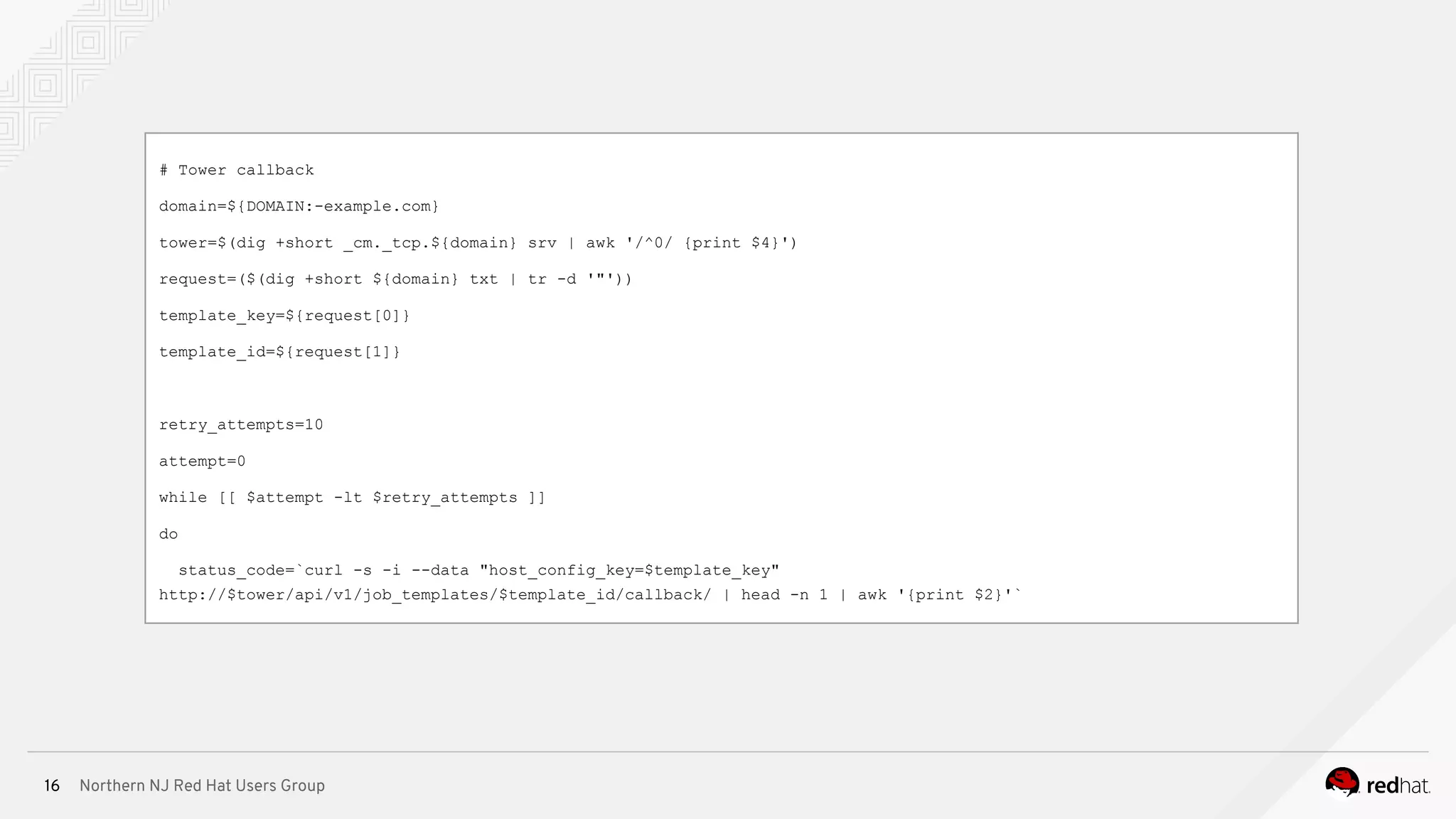

16. Northern NJ Red Hat Users Group16
# Tower callback
domain=${DOMAIN:-example.com}
tower=$(dig +short _cm._tcp.${domain} srv | awk '/^0/ {print $4}')
request=($(dig +short ${domain} txt | tr -d '"'))
template_key=${request[0]}
template_id=${request[1]}
retry_attempts=10
attempt=0
while [[ $attempt -lt $retry_attempts ]]
do
status_code=`curl -s -i --data "host_config_key=$template_key"
http://$tower/api/v1/job_templates/$template_id/callback/ | head -n 1 | awk '{print $2}'`

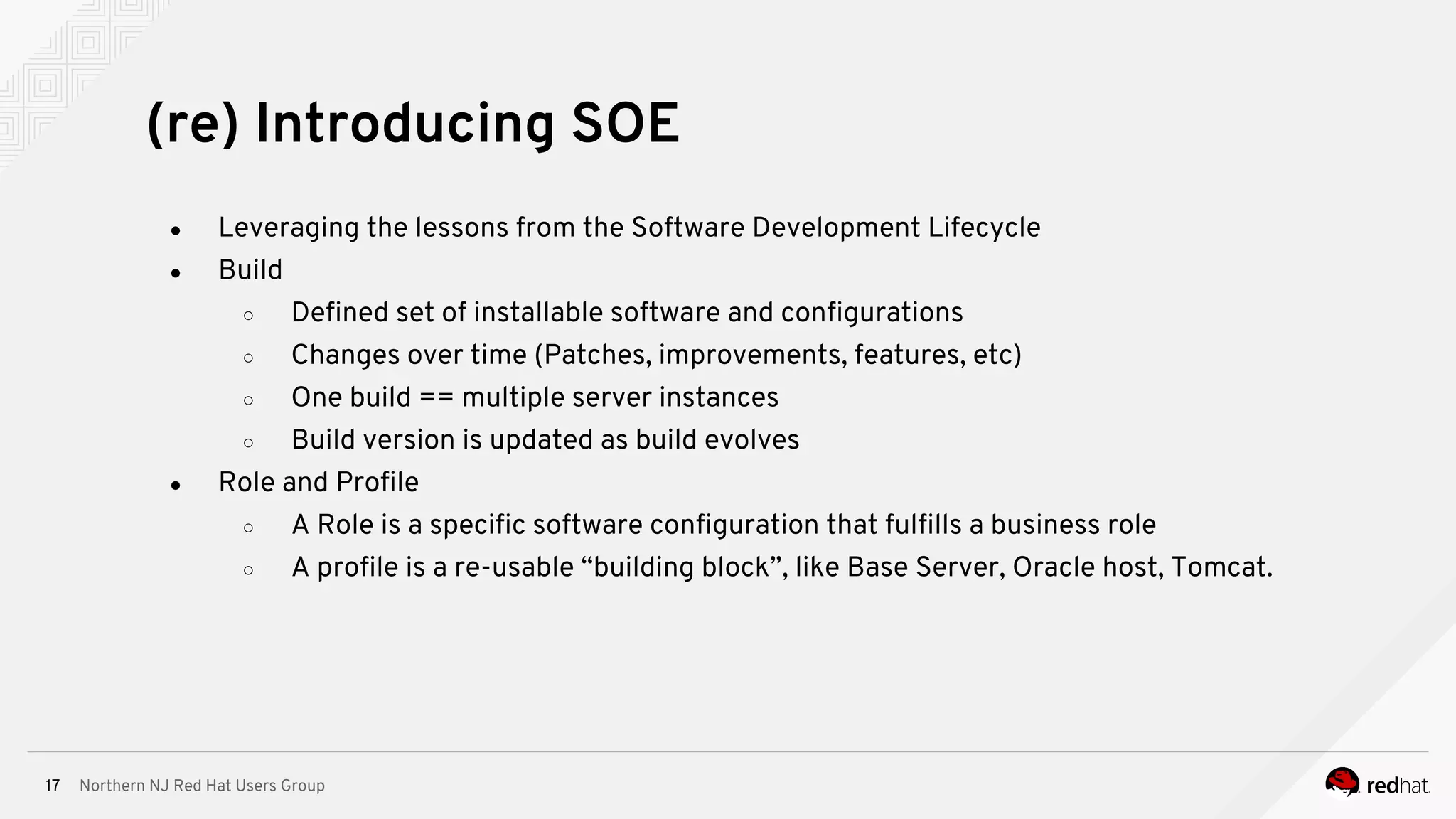

17. Northern NJ Red Hat Users Group17
● Leveraging the lessons from the Software Development Lifecycle
● Build
○ Defined set of installable software and configurations
○ Changes over time (Patches, improvements, features, etc)
○ One build == multiple server instances
○ Build version is updated as build evolves
● Role and Profile
○ A Role is a specific software configuration that fulfills a business role
○ A profile is a re-usable “building block”, like Base Server, Oracle host, Tomcat.
(re) Introducing SOE

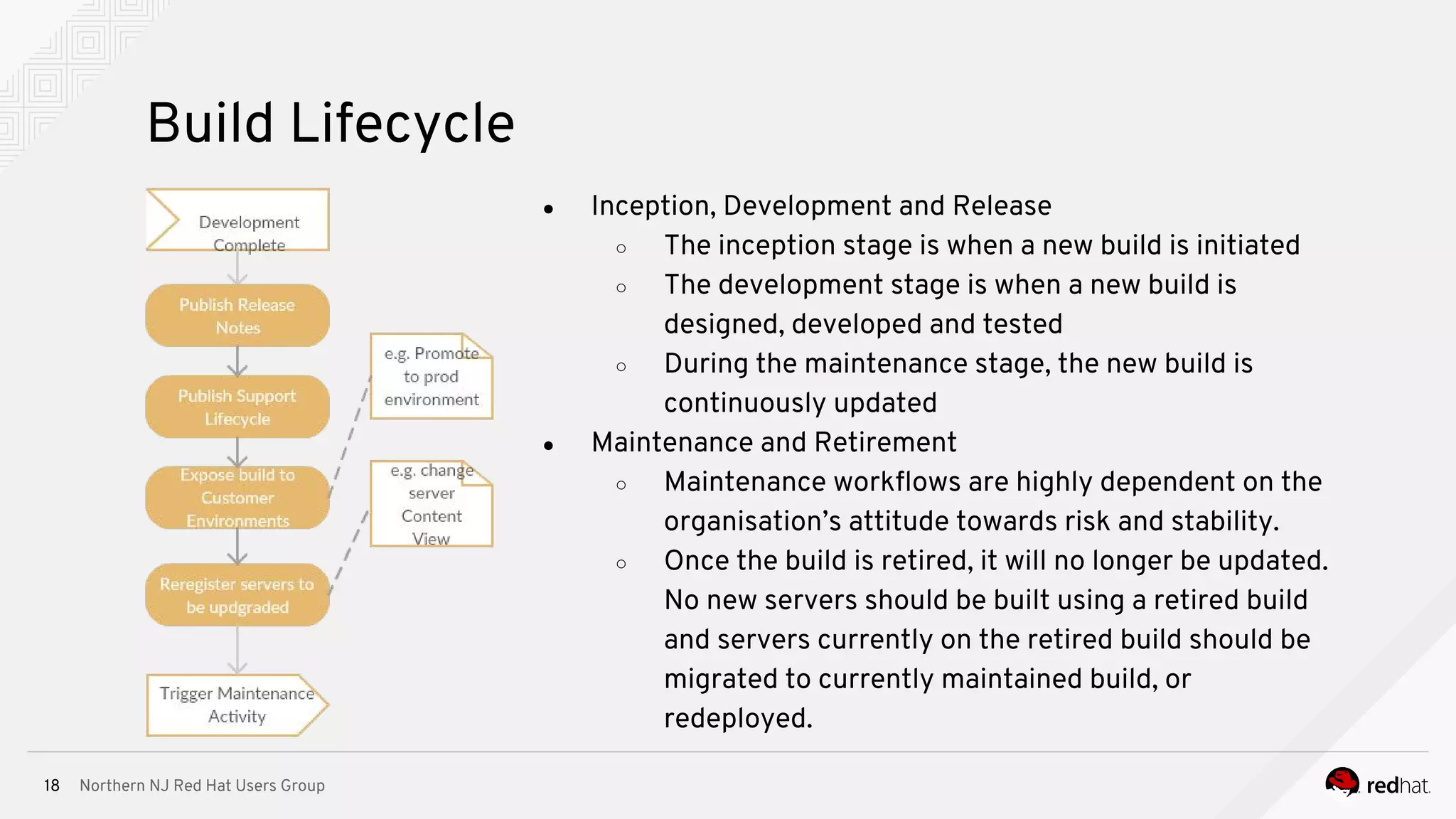

18. Northern NJ Red Hat Users Group18
● Inception, Development and Release
○ The inception stage is when a new build is initiated
○ The development stage is when a new build is
designed, developed and tested
○ During the maintenance stage, the new build is
continuously updated
● Maintenance and Retirement
○ Maintenance workflows are highly dependent on the
organisation’s attitude towards risk and stability.
○ Once the build is retired, it will no longer be updated.
No new servers should be built using a retired build
and servers currently on the retired build should be
migrated to currently maintained build, or
redeployed.
Build Lifecycle

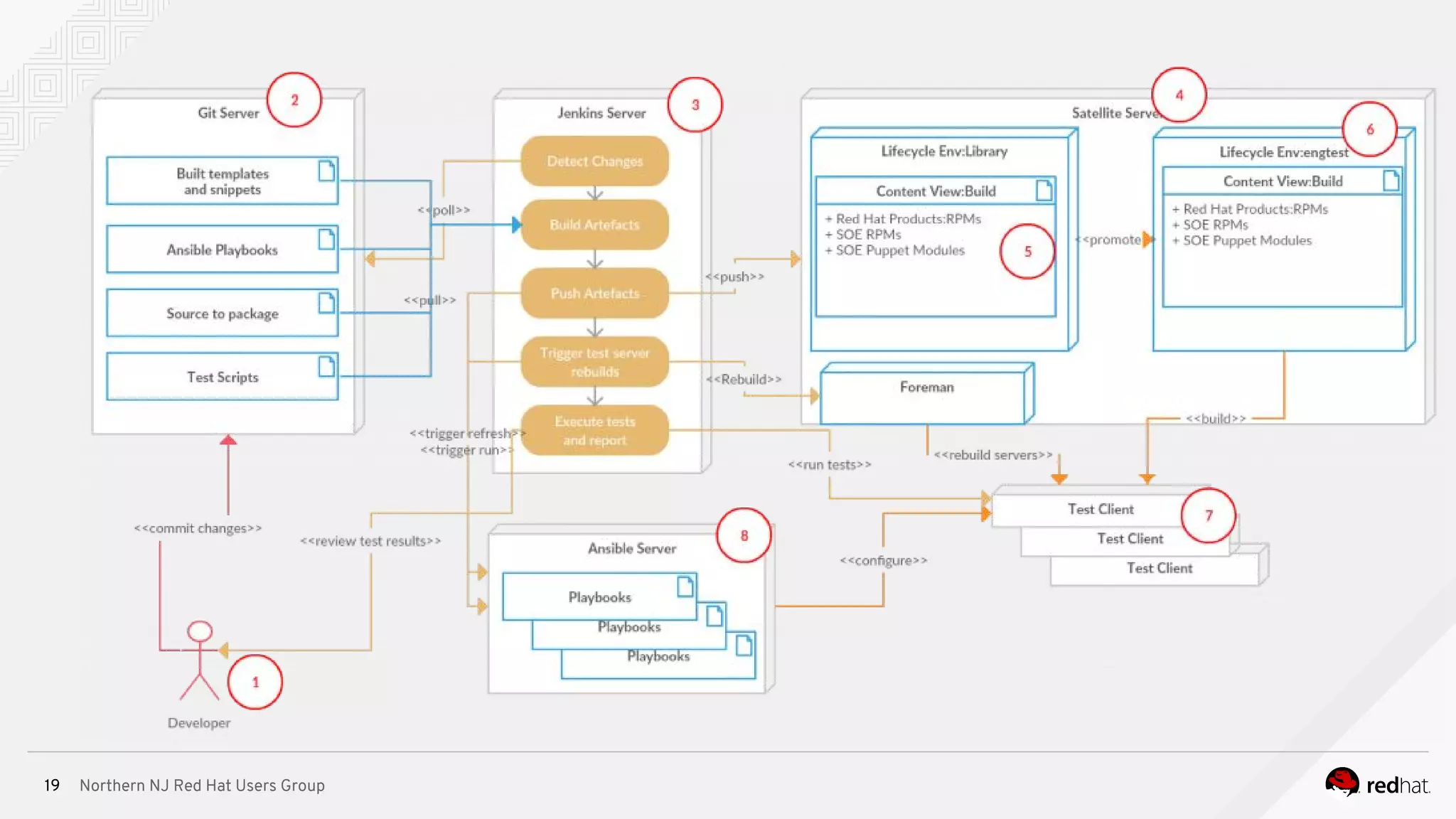

19. Northern NJ Red Hat Users Group19

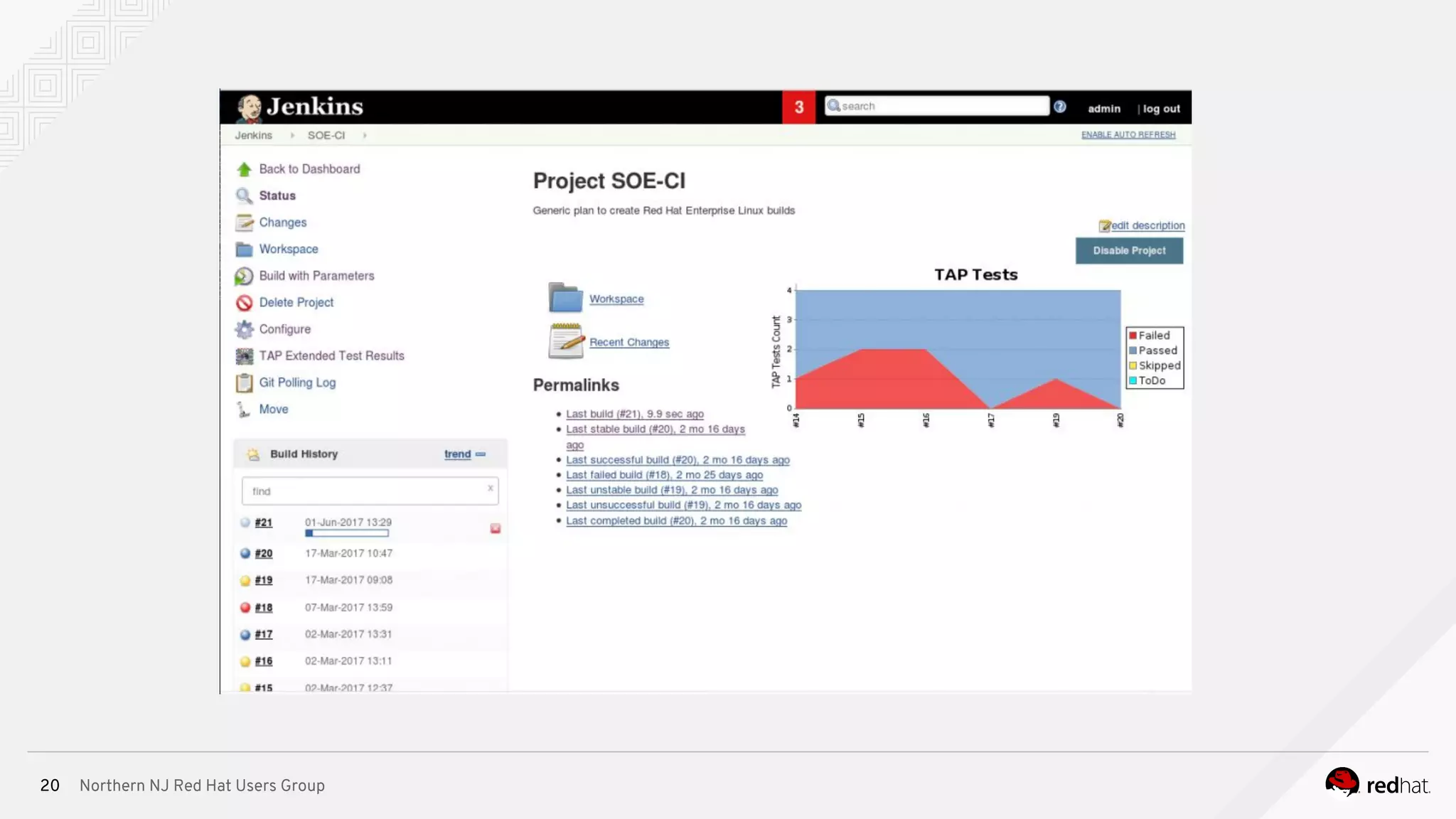

20. Northern NJ Red Hat Users Group20

21. Q&A
