This document provides a summary of programming Amazon Web Services (AWS) using Java and the Eclipse integrated development environment (IDE). It discusses AWS libraries and tools for Java, including the AWS SDK for Java and AWS toolkit for Eclipse. It also provides code examples for performing common operations with AWS services like Amazon Simple Storage Service (S3) and Amazon Elastic Compute Cloud (EC2), such as creating and accessing buckets and objects in S3 and launching, terminating, and managing instances in EC2.

1. 1
Programming
Amazon Web Services
with Java & Eclipse
- Short Tutorial -
by Markus Klems
markus.klems@kit.edu

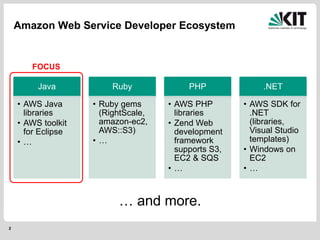

2. 2
Amazon Web Service Developer Ecosystem
Java
• AWS Java
libraries
• AWS toolkit
for Eclipse
• …
Ruby
• Ruby gems
(RightScale,
amazon-ec2,
AWS::S3)
• …
PHP
• AWS PHP
libraries
• Zend Web
development
framework
supports S3,
EC2 & SQS
• …
.NET
• AWS SDK for
.NET
(libraries,
Visual Studio
templates)
• Windows on
EC2
• …
FOCUS
… and more.

3. 3

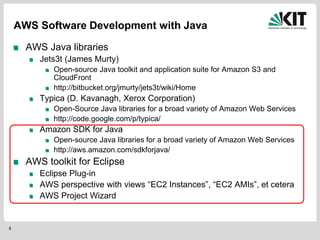

AWS Software Development with Java
AWS Java libraries
Jets3t (James Murty)
Open-source Java toolkit and application suite for Amazon S3 and
CloudFront
http://bitbucket.org/jmurty/jets3t/wiki/Home
Typica (D. Kavanagh, Xerox Corporation)
Open-Source Java libraries for a broad variety of Amazon Web Services
http://code.google.com/p/typica/
Amazon SDK for Java
Open-source Java libraries for a broad variety of Amazon Web Services
http://aws.amazon.com/sdkforjava/
AWS toolkit for Eclipse
Eclipse Plug-in
AWS perspective with views “EC2 Instances”, “EC2 AMIs”, et cetera
AWS Project Wizard

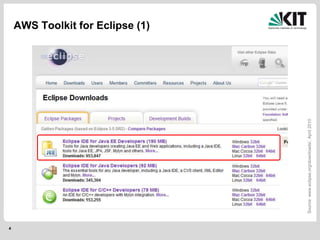

4. 4
AWS Toolkit for Eclipse (1)
Source:www.eclipse.org/downloads/,April2010

5. 5
AWS Toolkit for Eclipse (2)
1) Go to “Help” > “Install New Software…”
2) Enter http://aws.amazon.com/eclipse
Source:aws.amazon.com/eclipse/,April2010

6. 6

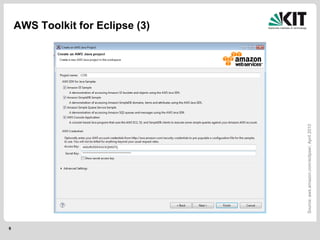

AWS Toolkit for Eclipse (3)
Source:aws.amazon.com/eclipse/,April2010

7. 7

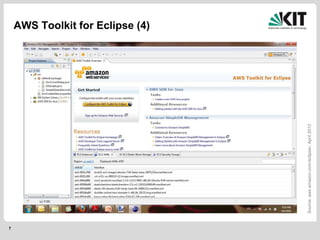

AWS Toolkit for Eclipse (4)
Source:aws.amazon.com/eclipse/,April2010

8. 8
Coding
Introduction

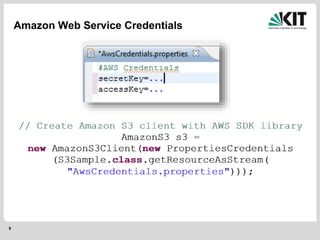

9. 9
Amazon Web Service Credentials

10. 10
Programming S3
Introduction

11. 11

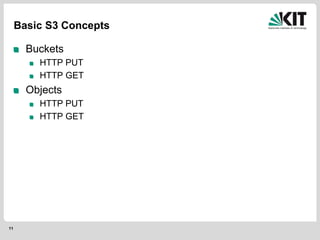

Basic S3 Concepts
Buckets
HTTP PUT
HTTP GET
Objects
HTTP PUT
HTTP GET

12. 12

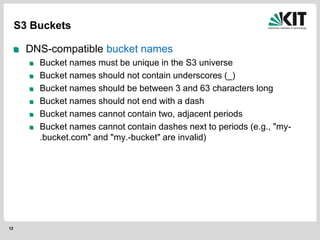

S3 Buckets
DNS-compatible bucket names
Bucket names must be unique in the S3 universe
Bucket names should not contain underscores (_)
Bucket names should be between 3 and 63 characters long
Bucket names should not end with a dash
Bucket names cannot contain two, adjacent periods
Bucket names cannot contain dashes next to periods (e.g., "my-
.bucket.com" and "my.-bucket" are invalid)

13. 13
Operations on Buckets: PUT
PUT: Create a new bucket
PUT / HTTP/1.1
Host: eorg-exercise1.s3.amazonaws.com
Content-Length: 0
Date: Wed, 27 Oct 2010 12:00:00 GMT
Authorization: AWS 15B4D3461F177624206A:xQE0diMbLRepdf…
s3.createBucket(“eorg-exercise1");

14. 14

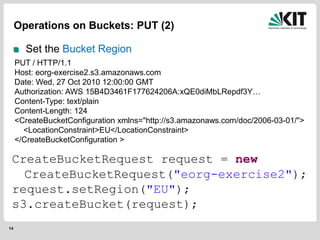

Operations on Buckets: PUT (2)
Set the Bucket Region
PUT / HTTP/1.1
Host: eorg-exercise2.s3.amazonaws.com
Date: Wed, 27 Oct 2010 12:00:00 GMT
Authorization: AWS 15B4D3461F177624206A:xQE0diMbLRepdf3Y…
Content-Type: text/plain
Content-Length: 124
<CreateBucketConfiguration xmlns="http://s3.amazonaws.com/doc/2006-03-01/">
<LocationConstraint>EU</LocationConstraint>
</CreateBucketConfiguration >
CreateBucketRequest request = new
CreateBucketRequest("eorg-exercise2");
request.setRegion("EU");
s3.createBucket(request);

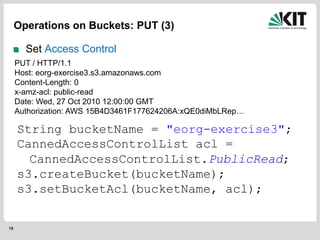

15. 15
Operations on Buckets: PUT (3)
Set Access Control
String bucketName = "eorg-exercise3";
CannedAccessControlList acl =
CannedAccessControlList.PublicRead;
s3.createBucket(bucketName);
s3.setBucketAcl(bucketName, acl);
PUT / HTTP/1.1
Host: eorg-exercise3.s3.amazonaws.com
Content-Length: 0
x-amz-acl: public-read
Date: Wed, 27 Oct 2010 12:00:00 GMT
Authorization: AWS 15B4D3461F177624206A:xQE0diMbLRep…

16. 16
Operations on Buckets: GET (1)
Return all (up to 1000) of the objects in a bucket
GET / HTTP/1.1
Host: eorg-exercise3.s3.amazonaws.com
Date: Wed, 27 Oct 2010 12:00:00 GMT
Authorization: AWS 15B4D3461F177624206A:xQE0diMbLRep…
Content-Type: text/plain
String bucketName = "eorg-exercise3";
ObjectListing list = s3.listObjects(new
ListObjectsRequest().withBucketName(bucketName));
for (S3ObjectSummary s : list.getObjectSummaries()) {
System.out.println(" - " + s.getKey() + “ (size = "
+ s.getSize() + ")");
}

17. 17

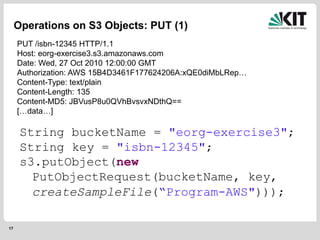

Operations on S3 Objects: PUT (1)
PUT /isbn-12345 HTTP/1.1
Host: eorg-exercise3.s3.amazonaws.com
Date: Wed, 27 Oct 2010 12:00:00 GMT
Authorization: AWS 15B4D3461F177624206A:xQE0diMbLRep…
Content-Type: text/plain
Content-Length: 135
Content-MD5: JBVusP8u0QVhBvsvxNDthQ==
[…data…]
String bucketName = "eorg-exercise3";
String key = "isbn-12345";
s3.putObject(new
PutObjectRequest(bucketName, key,
createSampleFile(“Program-AWS")));

18. 18
Operations on S3 Objects: PUT (2)
Object Versioning
BucketVersioningConfiguration config = new
BucketVersioningConfiguration();
config.setStatus(BucketVersioningConfiguration.ENABLED);
SetBucketVersioningConfigurationRequest configReq = new
SetBucketVersioningConfigurationRequest(bucketName, config);
s3.setBucketVersioningConfiguration(configReq);
PutObjectResult result = s3.putObject(new
PutObjectRequest(bucketName, key, createSampleFile("Program-
AWS-2")));
System.out.println("Version ID: "+result.getVersionId());

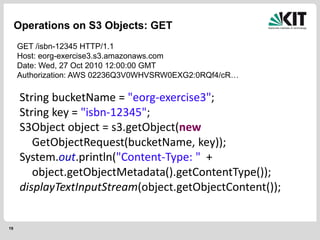

19. 19
Operations on S3 Objects: GET
GET /isbn-12345 HTTP/1.1
Host: eorg-exercise3.s3.amazonaws.com
Date: Wed, 27 Oct 2010 12:00:00 GMT
Authorization: AWS 02236Q3V0WHVSRW0EXG2:0RQf4/cR…
String bucketName = "eorg-exercise3";
String key = "isbn-12345";
S3Object object = s3.getObject(new
GetObjectRequest(bucketName, key));
System.out.println("Content-Type: " +
object.getObjectMetadata().getContentType());
displayTextInputStream(object.getObjectContent());

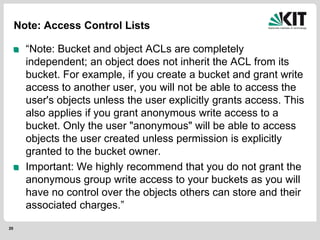

20. 20
Note: Access Control Lists
“Note: Bucket and object ACLs are completely
independent; an object does not inherit the ACL from its
bucket. For example, if you create a bucket and grant write
access to another user, you will not be able to access the
user's objects unless the user explicitly grants access. This
also applies if you grant anonymous write access to a
bucket. Only the user "anonymous" will be able to access
objects the user created unless permission is explicitly
granted to the bucket owner.
Important: We highly recommend that you do not grant the
anonymous group write access to your buckets as you will
have no control over the objects others can store and their
associated charges.”

21. 21

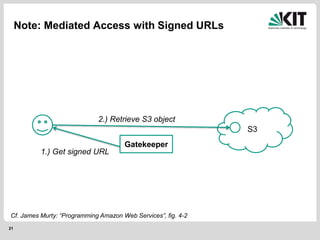

Note: Mediated Access with Signed URLs
Gatekeeper
1.) Get signed URL
S3
2.) Retrieve S3 object
Cf. James Murty: “Programming Amazon Web Services”, fig. 4-2

22. 22
Programming EC2
Introduction

23. 23

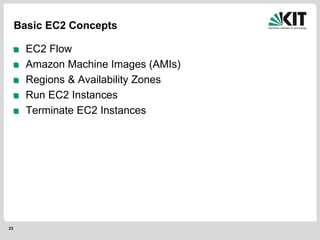

Basic EC2 Concepts
EC2 Flow
Amazon Machine Images (AMIs)
Regions & Availability Zones
Run EC2 Instances
Terminate EC2 Instances

24. 24
EC2 Flow
Source: EC2 Developer Guide 2010-08-3

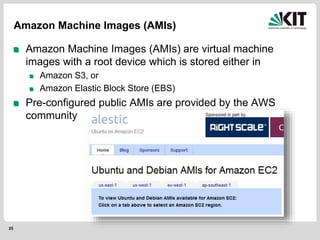

25. 25
Amazon Machine Images (AMIs)
Amazon Machine Images (AMIs) are virtual machine
images with a root device which is stored either in
Amazon S3, or
Amazon Elastic Block Store (EBS)
Pre-configured public AMIs are provided by the AWS
community

26. 26

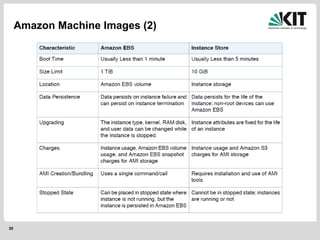

Amazon Machine Images (2)

27. 27

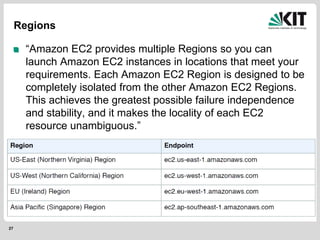

Regions
“Amazon EC2 provides multiple Regions so you can
launch Amazon EC2 instances in locations that meet your
requirements. Each Amazon EC2 Region is designed to be
completely isolated from the other Amazon EC2 Regions.
This achieves the greatest possible failure independence
and stability, and it makes the locality of each EC2
resource unambiguous.”

28. 28
Availability Zones
“[F]ailures can occur that affect the availability of instances
that are in the same location. Although this is rare, if you
host all your Amazon EC2 instances in a single location
that is affected by such a failure, your instances will be
unavailable.
For example, if you have instances distributed across three
Availability Zones and one of the instances fails, you can
design your application so the instances in the remaining
Availability Zones handle any requests.”

29. 29

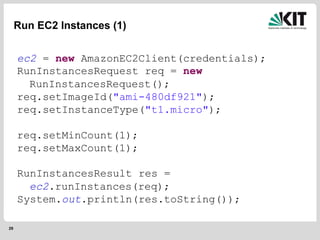

Run EC2 Instances (1)
ec2 = new AmazonEC2Client(credentials);
RunInstancesRequest req = new
RunInstancesRequest();
req.setImageId("ami-480df921");
req.setInstanceType("t1.micro");
req.setMinCount(1);
req.setMaxCount(1);
RunInstancesResult res =
ec2.runInstances(req);
System.out.println(res.toString());

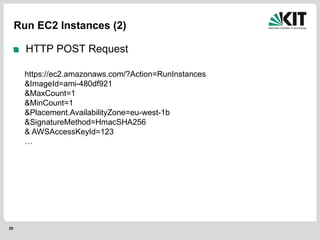

30. 30
Run EC2 Instances (2)
HTTP POST Request
https://ec2.amazonaws.com/?Action=RunInstances
&ImageId=ami-480df921
&MaxCount=1
&MinCount=1
&Placement.AvailabilityZone=eu-west-1b
&SignatureMethod=HmacSHA256
& AWSAccessKeyId=123
…

31. 31
Run EC2 Instances (3)
AWS Management Console
Eclipse Management Console

32. 32

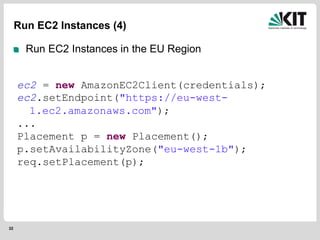

Run EC2 Instances (4)
Run EC2 Instances in the EU Region
ec2 = new AmazonEC2Client(credentials);
ec2.setEndpoint("https://eu-west-
1.ec2.amazonaws.com");
...
Placement p = new Placement();
p.setAvailabilityZone("eu-west-1b");
req.setPlacement(p);

33. 33

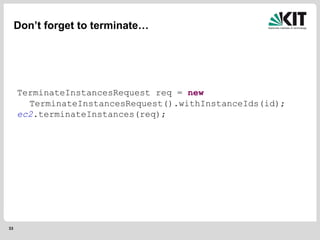

Don’t forget to terminate…
TerminateInstancesRequest req = new
TerminateInstancesRequest().withInstanceIds(id);
ec2.terminateInstances(req);

34. 34

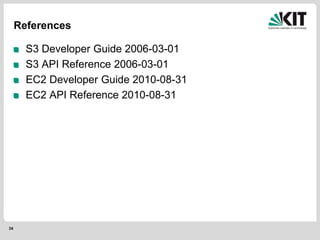

References
S3 Developer Guide 2006-03-01
S3 API Reference 2006-03-01
EC2 Developer Guide 2010-08-31
EC2 API Reference 2010-08-31
