product--catalog

Jinan Kilotech International Trading CO. LTD
Shandong KaiTai Kitchen Equipment CO.,LTD
No. 10567, Jingshi East Road, Lixia Dist., Jinan, Shandong, China
Company Introduction
KILOTECH is the export company of Shandong KaiTai Kitchen Equipment CO.,LTD , which in
charge of all export business, is the most prominent manufacturer of food machinery in China,
which integrates with technical research, production and sale. We have developed more than
100 kinds of products and the main products are flour processing machine, vegetable
Processing machine, meat processing machine, bakery equipment, disinfection cabinet, and
refrigeration equipment,etc. We have our own foundry plant and mechanical processing plant
for self-sufficient.
Through constant improving and innovation,our products have realized the specialization,
standardization and large scale production.The distribution net not only covers the domestic
market but also exports more than 80 countries and won good reputation from home and
abroad.
KILOTECH products with “corporation and common benefit,common benefit above all” as is
principle. With reliable quality and circumspect after service, Kaiatai has won high praise from
our clients. It becomes the best choice of matched cooker equipment for the customers.

Products Catalogue
Flour Diet Processing Machine --------------------------- 1
Bakery Processing equipment --------------------------- 2
Vegetable Processing Machine ------------------------- 3
Meat Processing Machine --------------------------- 4

Flour Diet Processing Machine

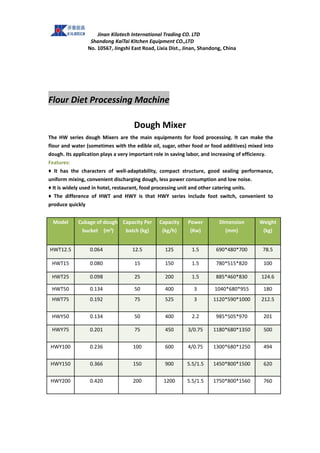

Dough Mixer
The HW series dough Mixers are the main equipments for food processing. It can make the
flour and water (sometimes with the edible oil, sugar, other food or food additives) mixed into
dough. Its application plays a very important role in saving labor, and increasing of efficiency.
Features:
♦ It has the characters of well-adaptability, compact structure, good sealing performance,
uniform mixing, convenient discharging dough, less power consumption and low noise.
♦ It is widely used in hotel, restaurant, food processing unit and other catering units.
♦ The difference of HWT and HWY is that HWY series include foot switch, convenient to
produce quickly
Model Cubage of dough
bucket (m3
)
Capacity Per
batch (kg)
Capacity
(kg/h)
Power
(Kw)
Dimension
(mm)
Weight
(kg)
HWT12.5 0.064 12.5 125 1.5 690*480*700 78.5
HWT15 0.080 15 150 1.5 780*515*820 100
HWT25 0.098 25 200 1.5 885*460*830 124.6
HWT50 0.134 50 400 3 1040*680*955 180
HWT75 0.192 75 525 3 1120*590*1000 212.5
HWY50 0.134 50 400 2.2 985*505*970 201
HWY75 0.201 75 450 3/0.75 1180*680*1350 500
HWY100 0.236 100 600 4/0.75 1300*680*1250 494
HWY150 0.366 150 900 5.5/1.5 1450*800*1500 620
HWY200 0.420 200 1200 5.5/1.5 1750*800*1560 760

Dough Mixer with speed reducer
♦ The MH series dough mixer is our new product with the characters of beautiful appearance,
compact structure, reliable performance, durability and easy operation.
♦ The stirrer can turn forward and invert, which make the dough mixed soft and evenly.
♦ It include turbine worm reducer, which can reduce noise ,protect mote
♦ It is widely used in restaurant, hotel, messhall or other catering units.
Model Output
(kg/pcs)
Time for mixing
per batch(min)
Stirrer speed
(r/min)
Voltage
(V)
Power
(Kw)
Machine
Weight(Kg)
Dimension
(mm)
MH13 13 6-10 24 220/380 1.1 86.5 500*335*760
MH25 25 6-10 24 220/380 1.5 128.5 560*450*870
MH50 50 6-10 24 380 3/0.75 320 1170*650*1120

BLJ Flour blender
Compacted with the traditional flour blender/dough mixer, this new style stainless steel flour
mixer for bakery machine not only can mixing water but can mixing other kinds of flour. Just as
honey etc. Being made of the superier raw material, the dough mixer is more durable and
economical.
Features :
♦ This flour blender has the good quality of compact structure, made of stainless steel, low
noise, etc.
♦ The flour blender is durable and easy to be operated. The mixer machine is suitable for
mixing all kinds of flour.
♦ The automatic blender is widely used in restaurant, hotel, food processing units and other
catering units.
Model Capacit（kg/h） Dimension (mm) Weight (kg) Power (kw)
BLJ15 150 670*470*920 64 1.5
BLJ25 250 870*560*1040 88.5 3

MP45 Dough Divider Rounder
Adopting the advantages of other machines, the MP45/2 model dough ball making
machine is our new product with unique design.
Features:
♦The produced dough ball has good color, sleek surface and fragrant and sweet taste.
♦ The size of the finished dough ball can be adjusted easily with four molding plates.
♦ The machine has the characters of high efficiency and compact structure. Adopt the
machinery clutch to controlling the weight of dough ball. So it is safety and easy to be
operated and maintained.
♦ It has 4 kinds of molding plate, so it can produce different weight dough ball, the detailed
specification of molding plate as follows:
1. The first molding plate’s material is aluminum. It can produce 30-50g/pcs dough ball.
2. The second molding plate’s material is plastic.It can produce 50-70g/pcs dough ball.
3. The third molding plate’s material is plastic. It can produce 80-100g/pcs dough ball.
4. The fourth molding plate’s material is plastic. It can produce 125-150g/pcs dough ball
♦ The machine with hopper for your option
Model Capacity
(kg/h)
Dimension
(mm)
Weight
(kg)
Power (kw) Weight of Dough
ball(g/pcs)
MP45/2 280 680×360×960 153 1.5 30~150

B042 Dough divider rounder
♦ A self-motion equivalent carving food machinery. Good capability,and easy operation.
♦ It can divide the dough, mooncake, etc.
♦ It is widely used for restaurant dining hall, cake store.
Description Model Size(mm)
(L×W×H)
Power
(KW)
Remarks
Continuous
Bun Divider
Rounder
B042C 1650*850*1700 1.5KW
/380V
Dough weight:40-300g,
Output:1200-2000 pcs/hour
Net weight:700kg
B042D 1800*950*1800 1.5KW
/380V
Dough weight:50-800g;
Output:1200-2000pcs/hour
Net weight:900kg

Dough Roller
The YP series dough rollers are the main equipments for food processing, It can roll and knead
all kinds of crisp and toughness dough. Food made from this dough is fragrant and attractive.
Features:
♦ It has the characters of simple structure, easy operation and maintenance performance.
♦ The thickness of the dough sheet can be adjusted at will to a certain degree.(1-25mm)
♦ It is widely used in dining hall, restaurant and other catering or food processing units.
Model Weight
(Kg)
Roller Size
(mm)
Dimension
(mm)
Gap between
Rollers (mm)
Roller Speed
(r/min)
V-belt Power
(kw)
YP350 103.5 ø113×350 560*410*870 1-25 90 A1219 1.5
YP500 112 ø113×500 710*410*870 1-25 90 A1219 1.5

Automatic Dough Sheeter
♦ The YMZD series dough sheeter is our new product, which is produced adopting the
superior characters of like products home and abroad. It fills up the blank of food processing
industry and enjoys high reputation from customers.
♦ The dough can be conveyed, folded and kneaded by this machine automatically and
continuously, The machine is sanitary and safe,it is the ideal equipment of food processing line.
♦ It is widely used in food processing and catering units.
Model Dimension
(mm)
Weight
(kg)
Adjustable range
of roller (mm)
Power
(kw)
width of Dough
Sheet(mm)
YMZD350 1310*610*1200 250 8-25 3 <350
YMZD500 1310*750*1240 284.5 8-25 3 <500

MT series Noodle Machine
♦ MT series Noodle Machine is our new product produced on the base of many years noodle
machine manufacturing experience and adopt of the advantage of like products.
♦ There is improvements in choosing material, reducing noise, safety and hygiene.
♦ Features for noodle machine:
1. MT noodle making machine can make the round noodle and square noodle.
2. The round noodle size is 1.25-10mm.
3. The capacity 35-60kg/h.
♦This machine can used for dough sheeting when disassembly the cutting knife.
Model Dimension
（mm）
Roller
size(mm)
Weight
（kg）
Roller
speed
Voltage
(V)
Noodle width
MT50 350*345*950 Ø85*220 83.5 39r/min 220/380 1.8mm,3mm, Other size
can be special made
MT75 400*460*1235 Ø91*250 128 48r/min 220/380 1.8mm,3mm, Other size
can be special made

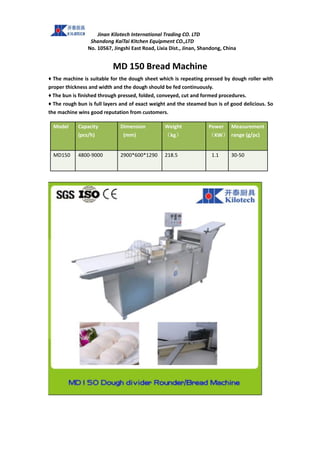

MD 150 Bread Machine
♦ The machine is suitable for the dough sheet which is repeating pressed by dough roller with
proper thickness and width and the dough should be fed continuously.
♦ The bun is finished through pressed, folded, conveyed, cut and formed procedures.
♦ The rough bun is full layers and of exact weight and the steamed bun is of good delicious. So
the machine wins good reputation from customers.
Model Capacity
(pcs/h)
Dimension
(mm)
Weight
（kg）
Power
（KW）
Measurement
range (g/pc)
MD150 4800-9000 2900*600*1290 218.5 1.1 30-50

MG 70/8 Dough Divider Rounder
♦ On the basis of repetitious practice and innovation, MG series dough divider rounder is
produced adopting the advantages of other domestic like products.
♦ It has won high praise of our customers because the steamed bread shows good color, tastes
delicious with layers
♦ The machine is widely used for the hotel, restaurant and other catering units.
♦ The forced stirrer can also be equipped in order to meet the requirements of raw materials
that contain fine powder, cake and certain moisture as request
♦ Weight controlling part is reliable, safe and convenient to maintain.
Model Capacity
(pcs/h)
Dimension
(mm)
Weight
(kg)
Power
(kw)
Weight of
Dough ball(g/pc)
MG70/8 4200 1380*470*970 198.5 3 60-175

JGL120 Dumpling Making Machine/Empanada/
Samosa making machine
♦ JGL120 dumpling machine is designed and inspected strictly as per the standard of
commercial ministry of China. (SB/T10129-92)
♦ This Machine is applicable to make dumpling, samosa, spring roll and wonton by changing
the forming mould. The stuffing of finished products can be all kinds of 100% meat, all kinds of
100% vegetables and mixture of meat and vegetable. The finished products can be boiled,
steamed, fried and freezed. The thickness of dough wrapper and the quantity of filling can be
adjusted .
♦ This samosa making machine can make high quality dumplings/samosas/spring roll/ wonton,
which is with very thin wrapper and plenty of stuffing. The finished products are not easy to be
broken when you braise or boil it.
♦ It is widely used for quick-freeze food processing factory, hotel, restaurant, dining hall, and
other catering units.
Model JGL120
Capacity(pcs/h) 3500-7200
Dimension(mm) 860*460*1150
MachineWeight 170.5kg
Capacity
(pcs/h)
Dumpling Samosa Spring roll Wonton
7200 4800 2400 7200
Weight of
product(g/pcs)
16-18 28-30 28-35 7-10
Size of Finished
product( mm)
95*45 65*35 100*80*80 65*65*65 110*45 85*35
65*65*65
Weight of
Finished product
30-40g 16-18g 30-40g 28-30g 45-50g 28-35g

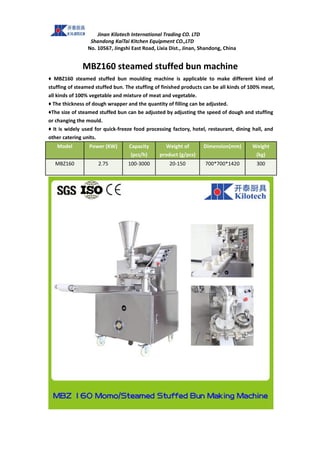

MBZ160 steamed stuffed bun machine
♦ MBZ160 steamed stuffed bun moulding machine is applicable to make different kind of
stuffing of steamed stuffed bun. The stuffing of finished products can be all kinds of 100% meat,
all kinds of 100% vegetable and mixture of meat and vegetable.
♦ The thickness of dough wrapper and the quantity of filling can be adjusted.
♦The size of steamed stuffed bun can be adjusted by adjusting the speed of dough and stuffing
or changing the mould.
♦ It is widely used for quick-freeze food processing factory, hotel, restaurant, dining hall, and
Model Power (KW) Capacity
(pcs/h)
Weight of
product (g/pcs)
Dimension(mm) Weight
(kg)
MBZ160 2.75 100-3000 20-150 700*700*1420 300

KT-860 Automatic encrusting machine
♦ The new KT--860 automatic encrusting machine is a whole new type of encrusting machine,the
KT-860is the first table top encruster.
♦ Its ultra-compact size and a very simple operation allow a convenient non-industrial use for live
food production in a store or bakery.
♦ Suitable for production of small quantities and wide varieties.
♦ With its compact body, fresh products can be served anytime in your shop.
♦ Each hopper containing inner filling and outer casing is easily changeable for next production.
Besides, cleaning is also quite easy.
♦ Material can be exchanged simply by changing the hoppers.
♦ Weight and Encrusting Ratio are changeable as required.
♦ Production parameters can be easily recalled by the product code. (Product Memory Unit)
Productivity Product
weight(g/pc)
Power Dimension
(L*W*H)
Machine
Weight
4200~6000 pcs/h 10~150 2.0 kw 167*92*129cm About 310 kg

♦ Features:
1. Various Filling
Fillings can be bean paste, peanut, powder, minced meat, sesame paste, whole piece peanut,
macadamia, pistachio nut.
2. 5 programmable memories
3. Synchronize function
4. Steps start function
5. Dough and filling increase simultaneously.
6. Conveyor speed control with timer function.
7. Resetable counter display
8. It is easy for operation, cleaning, assembling, and repairing.
9. Different materials can be applied for the encrusting product skin, such as :
10. Recipe: Beef + bulgur => for Kubba/Kibbe
All purpose flour, high gluten flour, yeast dough => for different buns
Rice starch dough => for tangyuan, rice ball, and mocha
Cookie dough => for cookies
Specially designed dough extruding device does less damage to the dough texture, which gives
better result to your product.
11. The touched screen: (English, Chinese, Arabic...)
12. Can make different weight by using different nozzle.
13. Can make different food by changing different molds.
♦Scope of Application:
Suitable for making Arabic cookie filled with date paste, Maamoul cookie filled with dates, Date
Paste Cookies, FruitJamCookie, Arepa, Arancini, BarbecueBun, Biscoitos, Biscotti, Bunuelos,
Chapatui, Chao-zhou-dumpling, Ciastak Nadziewane, Coxinha, Croquetas, Crystal Dumpling, Date
Bar, Falafel, Filled Breads, Filled Cookie, Filled Strip Cookie, Filled Petal, Strip Cookies, Fruit Bar,
Gulab Jamun, Ice Box Cookie, Kluski Na Parze, Kluski Slaskie-Silensian, Kndele, Kolomope Khormay,
Kubba/Kebbe, Meat Bun, Meat Pie, Mochi, Nane Khormay, Nastar, Peckin Duck Wrapper, Peda,
Pineapple Cake, Puri, Pyzy, Rasqulla, Scallion Cake, Surimi, Taiwanese Meat Ball, Tamales as below

Bakery Processing equipment
Double Speed Dough Mixer
♦ SS series Double Speed Dough Mixer has the characters of beautiful design, durability, reliable
performance.
♦ it is widely used in pastry factory, hotel, restaurant, food processing units for making dough.
Compared with other dough mixers, its advantage is as follows:
♦ Special design mixing stirrer and auxiliary stirrer as well as the proper rotating speed
harmonize with barrel can obtain the best mixed dough.
♦ The low speed parts adopt gear and chain transmission, which can avoid slip and easy broken.
Model Voltage Power Barrel
cubage
Flour Qty
/ batch
Dimension Machine
Weight
SS20 220V/380V 1.5kw 20L 8kg 730*450*925mm 90kg
SS30 220V/380V 1.5kw 30L 12kg 750*435*1000mm 97kg

MQP31 bread slicer
MQP31 bread slicer is a new bakery equipment which is mainly used for slicing bread and bun
evenly and efficiently. Other slicing size can be special made
Features:
♦ It is suitable for bakery, restaurant , food processing units etc.
♦ The transmission part using the triangular belt, compact structure, reliable performance, low
noise and high working efficiency.
♦ The parts which touching the food are all adopted good stainless steel material, safe and no
pollution, durability.
♦The sharpness blade make the bread slice more uniform and smooth.
♦ Beautiful appearance, easy to be operated, widely use in bakery shop, restaurant, food
processing factory, etc.
Model Blade Frame
Width
Working
width
Power
(kw)
Working
height
Slicer
thickness
Each time
( Pcs)
Dimension
(mm)
Machine
weight
MQP50 385mm 375mm 0.37 150mm 7mm 50 630*630*685 70kg
MQP44 385mm 375mm 0.37 150mm 8mm 44 630*630*685 70kg
MQP31 385mm 375mm 0.55 150mm 12mm 40 630*630*685 70kg

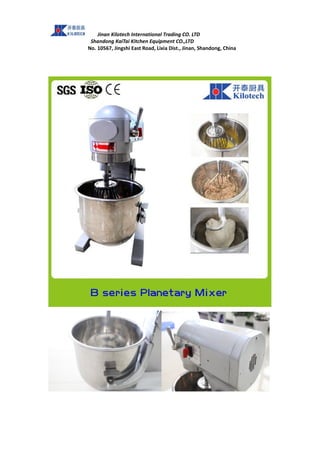

B series Planetary Mixer
The planetary mixer produced by our company is of advanced design, small size and
weight, low noise, high efficiency ,easy to be operated and maintained and convenient
cleaning.It is widely used in hotel, restaurant, bakery house, and other food processing unit to
mix cream or egg as well as to make dough and mix other materials.. It is the ideal equipment
for processing cake product.
Features :
1 .All the transmission part using the chain wheel, compact structure, reliable performance.
2. All stainless steel dough bowl
3.It has three stirrers, so it has three kinds of functions as follows:
♦ Using the hook shape stirrer and in condition of low speed, it can make dough, also you can
add the eggs, cream, honey, sugar, butter and other materials into the dough.
♦ Using the row shape stirrer and in medium speed, it can stir vegetable filling and meat filling.
♦ Using the globular stirrer and in higher speed, it can break eggs or fresh milk.
Model Cubage(L) Dimension(mm) Machine
weight (kg)
Power
(Kw)
Speed of stirrer
(r/min)
B10 10 456*360*650 50 0.37 170/340
B15 15 456*360*650 52 0.37 170/340
B20 20 420*530*770 95.5 1.1 360/166/100
B30 30 440*530*800 103 1.25 308/136/83

JSM Spiral Mixer
JSM series spiral mixers are the new products designed on the base of adopting the
advantages of double speed dough mixer and planetary mixer. It can mix flour and
water (additive) into dough.
♦ The barrel can turn forward and invert so that the finished dough is soft with mush
water. It can also mix less dough well.
♦ Double motor, high efficient speed change system, low noise
♦ It is easy to adjust the mixing time with operation panel, timing device can be
stopped at any time by hand.
♦ The machine is equipped with automatic protection device, the stirrer stop working
automatically when the safety guard is open or not perfect fixed. It is easy and
convenient to take sample through sample hole in the safety guard.
♦ It’s widely used in dining hall, restaurant, bakery as well as other food processing
units.

Model Cubage
(L)
Capacity per
batch(kg)
Power
(Kw)
Dimension
(mm)
Machine
weight (kg)
JSM250 64 25 2.77 950*540*1240 H 278
JSM380 74 40 3.15 990*590*1300H 310.5
JSM500 122 50 5.25 1270*710*1370 H 376

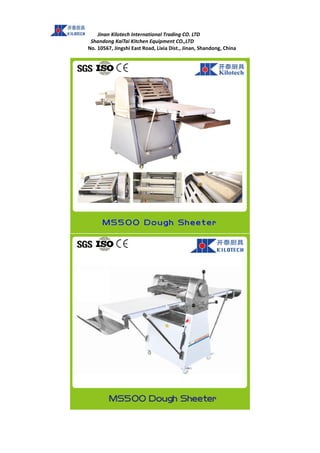

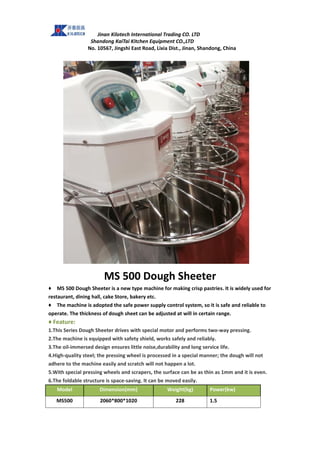

MS 500 Dough Sheeter
♦ MS 500 Dough Sheeter is a new type machine for making crisp pastries. It is widely used for
restaurant, dining hall, cake Store, bakery etc.
♦ The machine is adopted the safe power supply control system, so it is safe and reliable to
operate. The thickness of dough sheet can be adjusted at will in certain range.
♦ Feature:
1.This Series Dough Sheeter drives with special motor and performs two-way pressing.
2.The machine is equipped with safety shield, works safely and reliably.
3.The oil-immersed design ensures little noise,durability and long service life.
4.High-quality steel; the pressing wheel is processed in a special manner; the dough will not
adhere to the machine easily and scratch will not happen a lot.
5.With special pressing wheels and scrapers, the surface can be as thin as 1mm and it is even.
6.The foldable structure is space-saving. It can be moved easily.
Model Dimension(mm) Weight(kg) Power(kw)
MS500 2060*800*1020 228 1.5

Luxurious Electric/Gas oven
♦ The material is adopted the stainless steel. The quality is very good. With the
windows of tempered glass and floodlight, you can see in the baking at any time.
♦ It’s a good heat preservation with the sealing, environmental and heat resisting
material.
♦ The oven is adopted the LCD digital temperature controller, warming device and
temperature protective device.
♦ The bottom and sides of oven has in each 9 heating tubes with independently
controlled and digital display temperature controlling system.
♦ It is easy to move with castor.
♦ It is mainly used for bakery, supermarket and other catering units.
♦ Technical parameter of electric oven
♦ Technical parameter of gas oven
Model Specification Rated
Voltage
(V)
Heating
mode
Power
(kw)
Pans
size( mm)
Dimension
( mm)
Temperatur
e range
MDK-1-1 one stage
one plate
220 electric 4.2 400*600*60 900*650*380 Indoor Tep
-300℃
MDK-1-2 one stage
two plates
220/380
3N~
electric 7.02 400*600*60 1240*835*585 Indoor Tep
-300℃
MDK-2-2 two stages
two plates
-300℃
MDK-2-4 two stages
four plates
380 3~ electric 14.04 400*600*60 1240*835*1305 Indoor Tep
-300℃
MDK-3-3 three stages
three plates
-300℃
six plates
-300℃
nine plates
-300℃

Model Specification Rated
Voltage(V)
Heating
mode
Power
(kw)
Pans size
( mm)
Dimension
( mm)
Temperature
range
MQK-1-2
one stage
two plates
380 3~ gas 0.1 400*600*60 1400*910*730
Indoor Tep
-300°C
MQK2-4
two stages
four plates
380 3~ gas 0.2 400*600*60 1400*910*1580
Indoor Tep
-300°C
MQK-3-6
three stages
six plates
380 3~ gas 0.3 400*600*60 1400*910*1890
Indoor Tep
-300°C
MQK-3-9
three stages
nine plates
380 3~ gas 0.3 400*600*60 1835*910*1890
Indoor Tep
-300°C

Vegetable Processing Machine
YQC Multifunctional Vegetable Cutter
YQC series Vegetable Cutter is a composite and multifunctional cutter, which is designed
simulating the principle of hand cutting and adopting the advanced technique of variable speed
and centrifugal slicing structure. The machine is widely used for processing various root vegetable,
stem vegetable and leafy vegetable. It is also ideal equipment for pickle processing industry.
Features:
♦ By changing various blades , it can cut the root and stem vegetables (potato, yam, carrot,
eggplant etc) into many shapes, such as slices,strips, cubes, waves and rhombus.
♦ The machine is also fit for segmenting the stem vegetables (leek, celery, beanstalk etc) and
shredding various leafy vegetables (kelp, cabbage etc).
♦ The thickness and the length of processed vegetable is adjustable
Model Capacity（kg/h） Dimension（mm） Weight（kg） Power（kw）
YQC660 130-660 880*415*770 94.5 0.75
YQC1000 200-1000 1333*580*1060 197 1.5

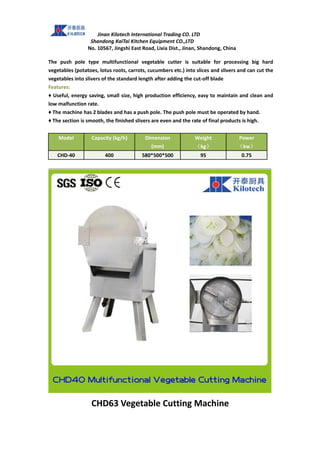

CHD-40 Multifunctional vegetable cutting Machine

The push pole type multifunctional vegetable cutter is suitable for processing big hard
vegetables (potatoes, lotus roots, carrots, cucumbers etc.) into slices and slivers and can cut the
vegetables into slivers of the standard length after adding the cut-off blade
Features:
♦ Useful, energy saving, small size, high production efficiency, easy to maintain and clean and
low malfunction rate.
♦ The machine has 2 blades and has a push pole. The push pole must be operated by hand.
♦ The section is smooth, the finished slivers are even and the rate of final products is high.
Model Capacity (kg/h) Dimension
(mm)
Weight
（kg）
Power
（kw）
CHD-40 400 580*500*500 95 0.75

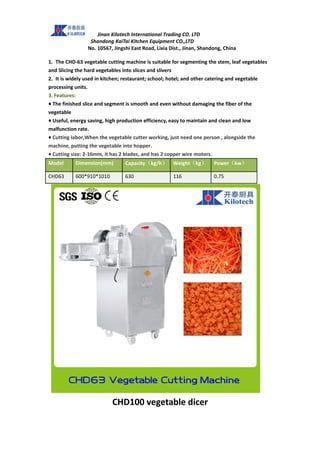

CHD63 Vegetable Cutting Machine

1. The CHD-63 vegetable cutting machine is suitable for segmenting the stem, leaf vegetables
and Slicing the hard vegetables into slices and slivers
2. It is widely used in kitchen; restaurant; school; hotel; and other catering and vegetable
processing units.
3. Features:
♦ The finished slice and segment is smooth and even without damaging the fiber of the
vegetable
♦ Useful, energy saving, high production efficiency, easy to maintain and clean and low
malfunction rate.
♦ Cutting labor,When the vegetable cutter working, just need one person , alongside the
machine, putting the vegetable into hopper.
♦ Cutting size: 2-16mm, it has 2 blades, and has 2 copper wire motors.
Model Dimension(mm) Capacity（kg/h） Weight（kg） Power（kw）
CHD63 600*910*1010 630 116 0.75

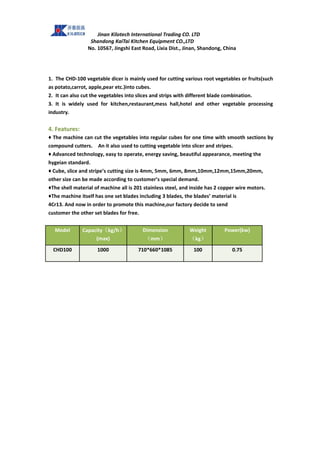

CHD100 vegetable dicer

1. The CHD-100 vegetable dicer is mainly used for cutting various root vegetables or fruits(such
as potato,carrot, apple,pear etc.)into cubes.
2. It can also cut the vegetables into slices and strips with different blade combination.
3. It is widely used for kitchen,restaurant,mess hall,hotel and other vegetable processing
industry.
4. Features:
♦ The machine can cut the vegetables into regular cubes for one time with smooth sections by
compound cutters. An it also used to cutting vegetable into slicer and stripes.
♦ Advanced technology, easy to operate, energy saving, beautiful appearance, meeting the
hygeian standard.
♦ Cube, slice and stripe’s cutting size is 4mm, 5mm, 6mm, 8mm,10mm,12mm,15mm,20mm,
other size can be made according to customer’s special demand.
♦The shell material of machine all is 201 stainless steel, and inside has 2 copper wire motors.
♦The machine itself has one set blades including 3 blades, the blades’ material is
4Cr13. And now in order to promote this machine,our factory decide to send
customer the other set blades for free.
Model Capacity（kg/h）
(max)
Dimension
（mm）
Weight
（kg）
Power(kw)
CHD100 1000 710*660*1085 100 0.75

CHD80 Digital Vegetable Cutting Machine
1. The CHD80 vegetable cutter is suitable for cutting various leafy vegetables(lettuce,leek,
celery, spinach etc.) into segments. It can also be used for cutting root based vegetables
(carrot,cucumber,pepper,yam etc.)into slices.
2. Features:
♦ Easy to operate with advanced digital adjustable system
♦ The cutting size of 1-30mm can be finished by pressing the button easily.
♦ The parts touching food are made of stainless steel, it is more hygienic and safe.
♦ The finished slices is smooth and even without damaging to the fiber of the vegetable
♦ It is suitable for medium and large vegetable processing units.
Model Capacity(kg/h) Weight(kg) Power(Kw)
CHD80 80-2000 155 2.05

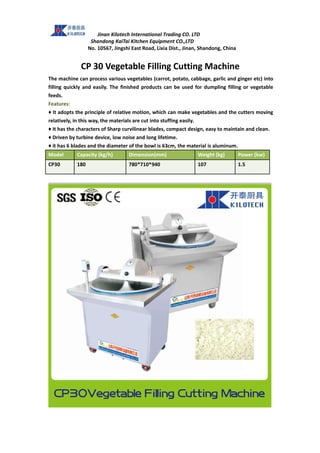

CP 30 Vegetable Filling Cutting Machine
The machine can process various vegetables (carrot, potato, cabbage, garlic and ginger etc) into
filling quickly and easily. The finished products can be used for dumpling filling or vegetable
feeds.
Features:
♦ It adopts the principle of relative motion, which can make vegetables and the cutters moving
relatively, in this way, the materials are cut into stuffing easily.
♦ It has the characters of Sharp curvilinear blades, compact design, easy to maintain and clean.
♦ Driven by turbine device, low noise and long lifetime.
♦ it has 6 blades and the diameter of the bowl is 63cm, the material is aluminum.
Model Capacity (kg/h) Dimension(mm) Weight (kg) Power (kw)
CP30 180 780*710*940 107 1.5

SH30 Slivers Cutting Machine
1. The SH 30 Slivers Cutting machine is a small vegetable cutting machinewhich is researched
and produced by our company as per customer’s special requirement.
It can cut vegetables into slices and slivers. Recutting the slivers can get filling.
2. The machine has the characters of small size, high efficiency, simple structure and durable
performance.
3. It is suitable for medium and small mess hall, restaurant, hotel and household use.
4.The machine has 2 functions, vegetable slicer and vegetable shredder, The thickness of slice is
3-6mm.The dimension of strip is 3mm*3mm.
Model Capacity
（kg/h）
Dimension（mm） Weight
（kg）
Power
（Kw）
Diameter
of silo
（mm）
SH30 150 350*285*555 28 0.55 250

QSP Vegetable Slicer & Shredder
♦ QSP machine is the new vegetable cutter for processing vegetable into slices and slivers
designed by our company.
♦ Two different feeder can cut potato, carrot, sweet potato into slices and slivers individually.
The finished slices and slivers is smooth and even.
♦ It has the characters of simple structure, reliable performance, high efficiency, beautiful
appearance and easy to operate, so it is the ideal vegetable cutter for hotel, restaurant and
Model Capacity
(kg/h)
Weight
(kg)
Dimension
(mm)
Power
(kw)
Slivers size
(mm)
Slice thickness
(mm)
QSP 100-300 49 440*366*600 0.75 3.5*1-3.5
2.2*1-2.2
1-5

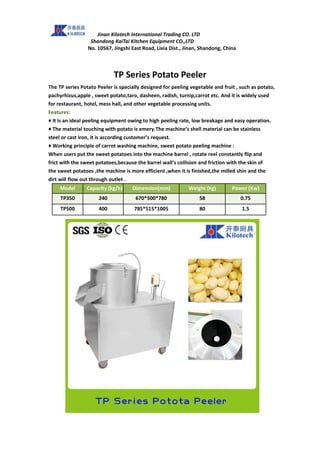

TP Series Potato Peeler
The TP series Potato Peeler is specially designed for peeling vegetable and fruit , such as potato,
pachyrhizus,apple , sweet potato,taro, dasheen, radish, turnip,carrot etc. And it is widely used
for restaurant, hotel, mess hall, and other vegetable processing units.
Features:
♦ It is an ideal peeling equipment owing to high peeling rate, low breakage and easy operation.
♦ The material touching with potato is emery.The machine’s shell material can be stainless
steel or cast iron, it is according customer’s request.
♦ Working principle of carrot washing machine, sweet potato peeling machine :
When users put the sweet potatoes into the machine barrel , rotate reel constantly flip and
frict with the sweet potatoes,because the barrel wall’s collision and friction with the skin of
the sweet potatoes ,the machine is more efficient ,when it is finished,the milled shin and the
dirt will flow out through outlet .
Model Capacity (kg/h) Dimension(mm) Weight (kg) Power (Kw)
TP350 240 670*500*780 58 0.75
TP500 400 785*515*1005 80 1.5

XCJ series Vegetable Washer
XCJ series Vegetable Washer is mainly used for washing stem and root vegetables and fruits.
(Such as carrot, potato, ginger, yam, radish, pachyrhizus etc)
Features:
♦ Its rollers are adopted the principle of unidirectional rotary. So that it has the characters of
energy saving, high capacity, low noise and steady work.
♦ The rollers are made of ABS95 plastic, and the brushes are easy to be exchanged. The main
parts of this machine adopted double bearings, and the chain and chain wheel are durable.
♦ With hard brushes, it has the function of peeling.
Model XCJ-6G-60 XCJ-8G-100 XCJ-9G-170 XCJ-11G-170
Capacity 20 kg/batch 100 kg/batch 250 kg/batch 350 kg/batch
Dimension(cm) 1080*620*620 1515*750*825 223*112*98 2200*1070*900
Weight(kg) 165.5 251.5 610 50
Qty of rollers 6 8 9 11
Roller length(cm) 60 100 170 170
Diameter of
Brushes(mm)
polish 0.18-0.20
peel 0.40-0.60
wash 0.25-0.35

DQC101 MULTIFUNCTIONAL VEGETABLE CUTTER
♦ DQ,SQ series Meat Slicer is multifunctional meat processing machine designed and
Cutting shape:
It can cut vegetable into different shapes: thick slice, thin slice, quadrangle silk, round silk,
strips, cubes and segement. Thickness is adjustable.
Usage:
Leafy vegetable: green onion, garlic, chives, celery, cabbage, and Chinese cabbage, etc. The
speed of conveyor belt and cutter knives is controlled by frequency changer, so it can change
the length of vegetables.
Root vegetable: radish, potato, tuber crops, sweet potato, bamboo shoots, onion, cucurbits
and eggplant, etc.
Model Voltage
(V)
Motor Power
(KW)
Output
(kg/h)
Thickness
(mm)
Dimension
(mm)
Weight
(kg)
DQC101 220 3 300-1000 0-60 1160*530*1260 135

Meat Processing Machine
Meat Slicer
♦ DQ,SQ series Meat Slicer is multifunctional meat processing machine designed and
manufactured by our company.
♦ It can slice meat into different sizes and the processed meat slices are uniform in thickness.
♦ It is the ideal meat processing equipment for hotel, restaurant, dinning hall and meat
processing units.
Model Voltage
(V)
Motor Power
(KW)
Output
(kg/h)
Thickness of
meat slices(mm)
Dimension
(mm)
Weight
(kg)
DQ-1 220 1.5 200 3.5mm 380*335*585 46.5
SQ-2 220 1.5 200 3.5 mm and 5mm 530*420*735 84
SQ-3 220 1.5 200 2.8mm,5mm,8mm 585*420*715 89.5

JQ Series Meat Grinder & Slicer
The JQ series meat grinder & slicer is a double function(grinding and slicing) products designed
and produced by our company. It can grind and slice pork, beef, mutton as well as other kinds
of meat.
Features:
♦The ground meat is smooth and the slices is uniform in thickness 3.5mm.
♦The Machine has the characteristics of compact structure, reliable performance, high output,
and easy operation, so it is the ideal meat processing equipment for hotel, restaurant, dinning
hall and meat processing units.
♦ High-quality copper wire motor ,stable performance and low energy consumption.
♦ Space-saving,light weight and convenient mobility.
♦ Free and efficient switch between meat grinding and slicing.
Model Voltage
(V)
Motor
Power
Output
(kg/h)
Slice
thickness
Dimension
(L×W×H）
Machine
Weight
Input Section
(strip shape)
JQ-1 220 1.1KW 200 3.5mm 540*410*800 78 kg 35*35mm
JQ-2 220 1.5KW 300 3.5mm 560*370*730 87 kg 40*40mm

TJ series Meat Grinder
TJ series Meat Grinder is electric meat grinder, designed and manufactured by ourcompany.
With fully enclosed gear driven system, it is compact reliable,beautiful and easy to operate.
Features:
♦ The machine head and components touching meat is made of good quality stainless steel and
aluminium alloy, so it is easy to clean.
♦It can grind pork, beef, mutton as well as other kinds of meats, the ground meat is smooth
and uniform.
♦ It is the ideal meat processing equipment for hotel ,restaurant, dinning hall and meat
processing units.
Model Rated
Voltage
Motor Power
(Kw)
Output
(kg/h)
Dimension
(mm)
Machine
Weight (kg)
Input Section
(strip shape)
TJ12 220V 0.55 120 375*225*425 34.5 35*35mm
TJ22 220V 0.75 220 420*250*435 43.5 40*40mm
TJ32 3-380V 1.5 320 520*260*520 78 45*45mm
TJ42 3-380V 4 500-1000 980*440*945 198 60*60mm

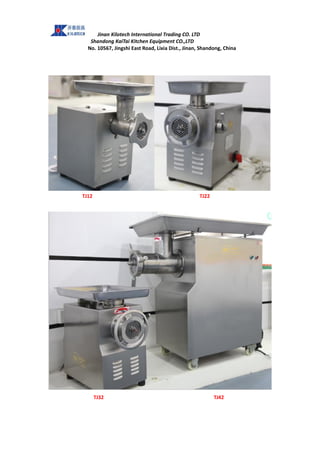

TJ12 TJ22
TJ32 TJ42

-------------------------------------------------------------------------------------------------------
Manufacturer : Shandong KaiTai Kitchen Equipment CO.,LTD
International Trade: Jinan Kilotech International Trading CO. LTD
English Web: http://www.kilotechware.com/
Web on Alibaba: http://kilotech.en.alibaba.com/
Chinese Shopping Website: http://www.kilotech.net.cn/
Mail: ecport03@kilotech.com.cn
Tel: +86-(0)531-88936819
Mobile:0086-15154394588

product--catalog

More Related Content

What's hot

Similar to product--catalog

product--catalog
